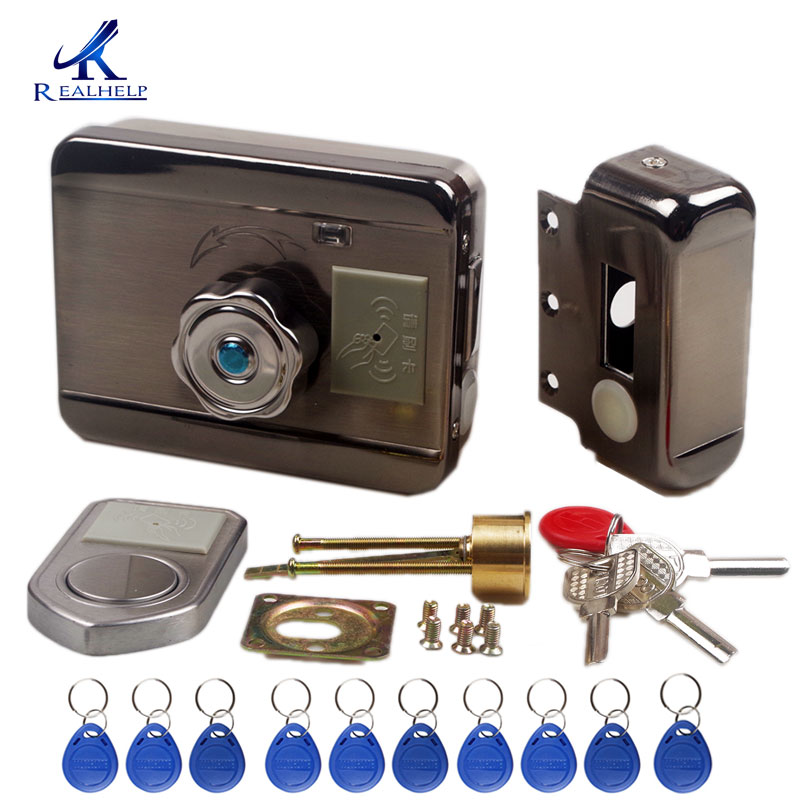

AA Dry Battery Easy Install Smart Lock RFID Electronic Locker Door Lock Wireless Rfid Electronic Battery Proximity Card Lock

4.9 (9 votes) | 101 orders
Price: US $80.98 - 157.23 / piece
Discount Price:
US $ 77.74 - 150.94 / piece
-4%
Ships From
Color
Quantity

Please noted:AA Battery belong to dangerous product, not include in package,You can buy it in your local

I.Advantage

  • The length of the lock tongue>20mm,meet GA/T73-94 5.1.6B standard

  • Can be compatible with building system of entrance guard system, etc

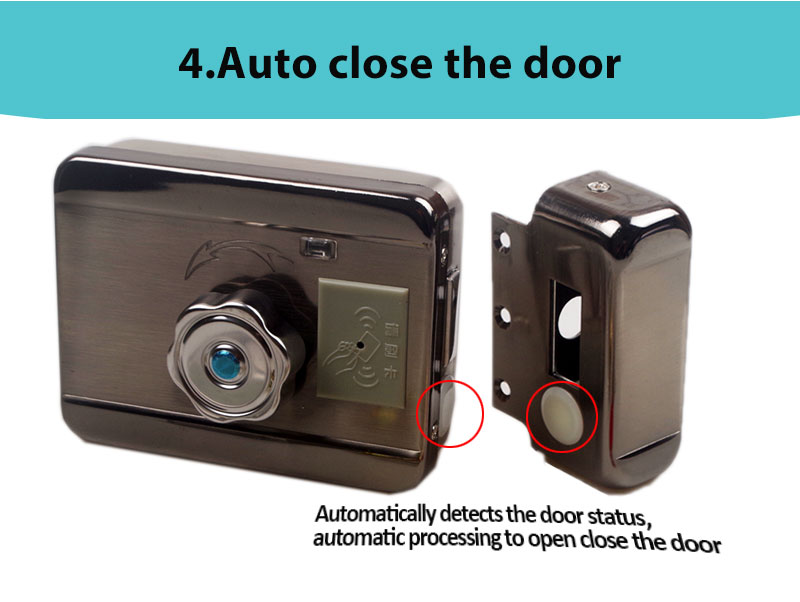

  • Automatically detects the door status, automatic processing to open close the door

  • Can be installed on the left door, right door, interior door, outside the door and other doors

  • Mistakenly lock or unlock after no entry, the door automatically locked in around 8 seconds

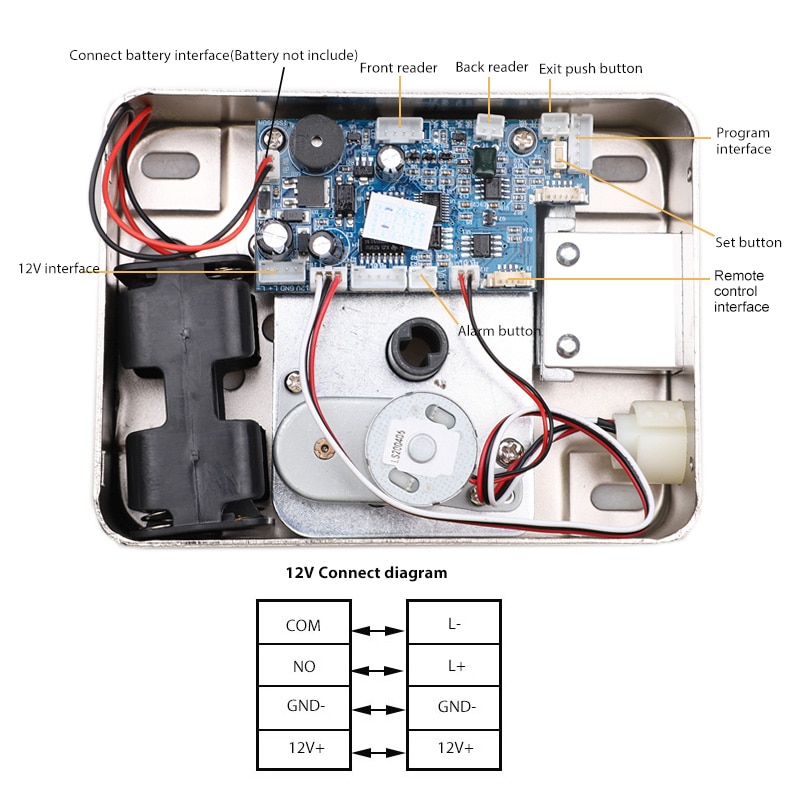

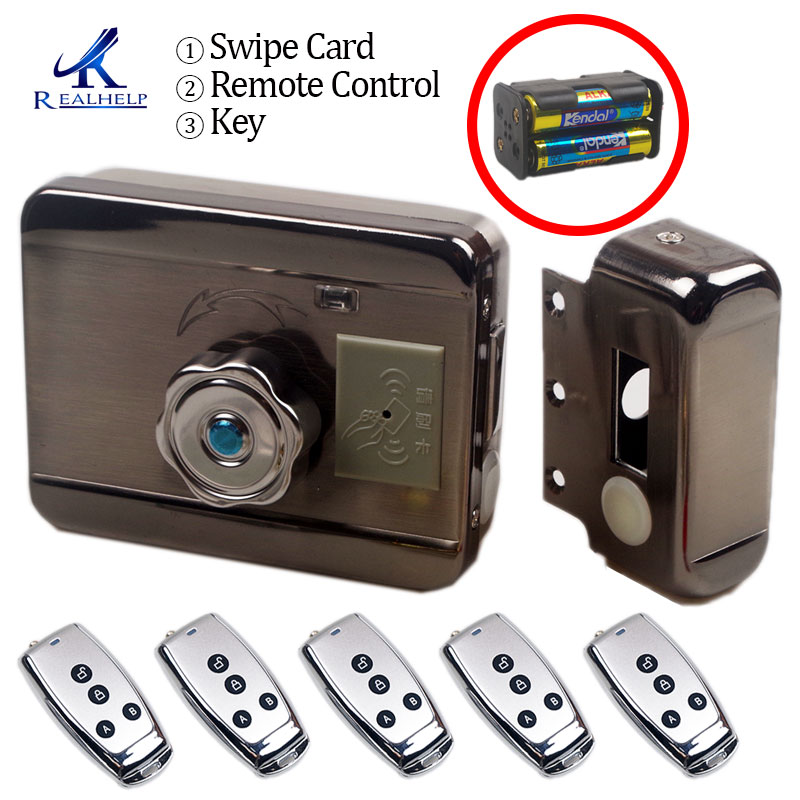

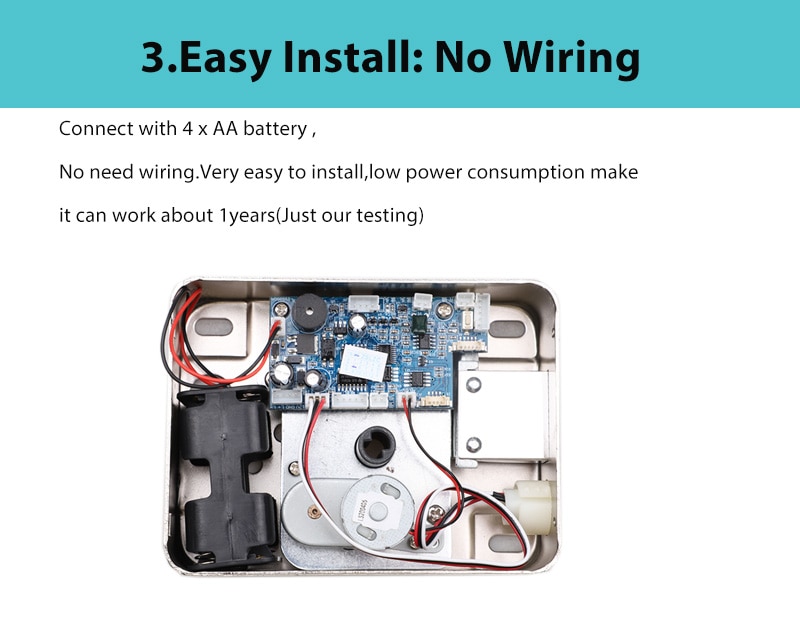

  • 2Ways Power supply: 4 x AA Battery (No wiring) and DC12V , current <350mA, unlock time 1S

  • Working temperature range -40℃--60℃

  • Long life (more than 500,000), on / off, high sensitivity about ON/OFF, low power consumption

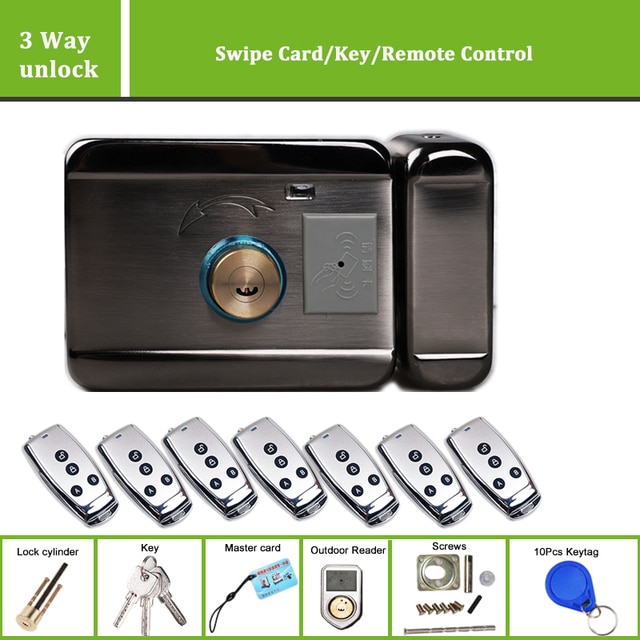

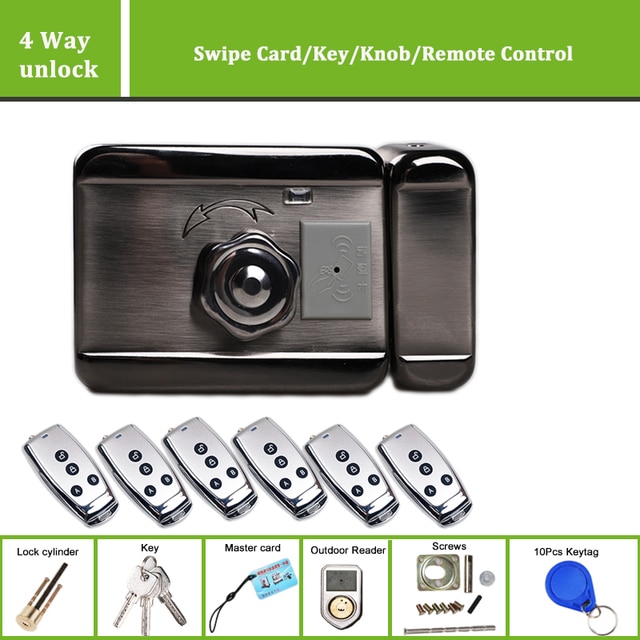

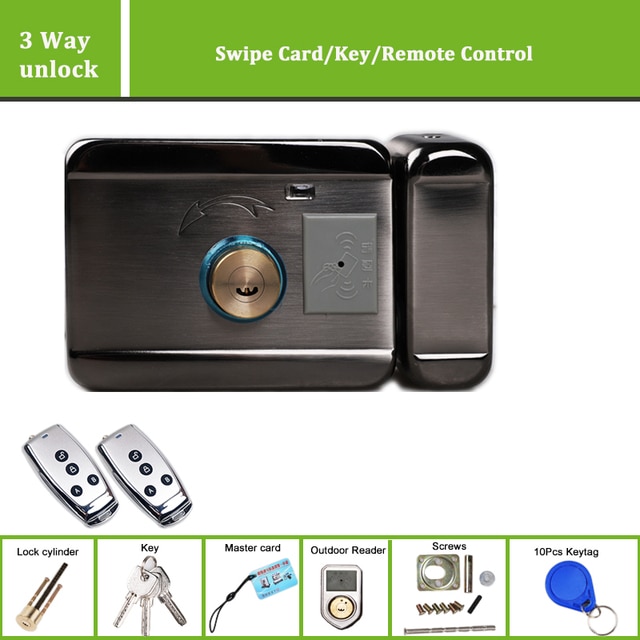

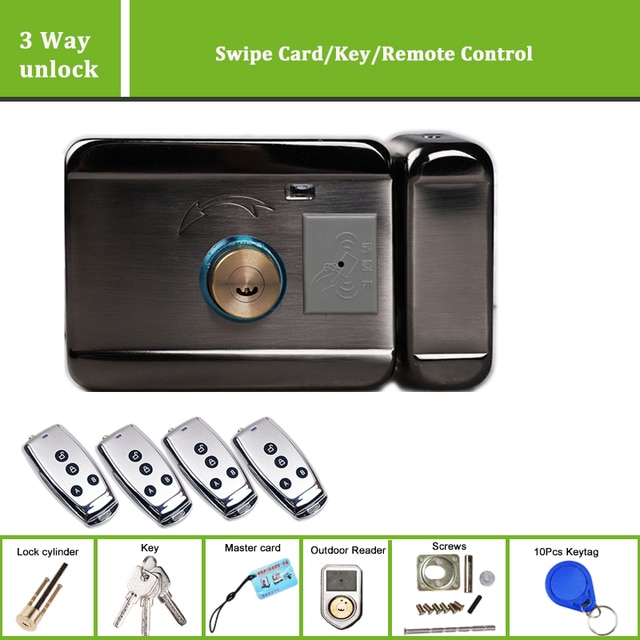

II.Single end and double end for your choose

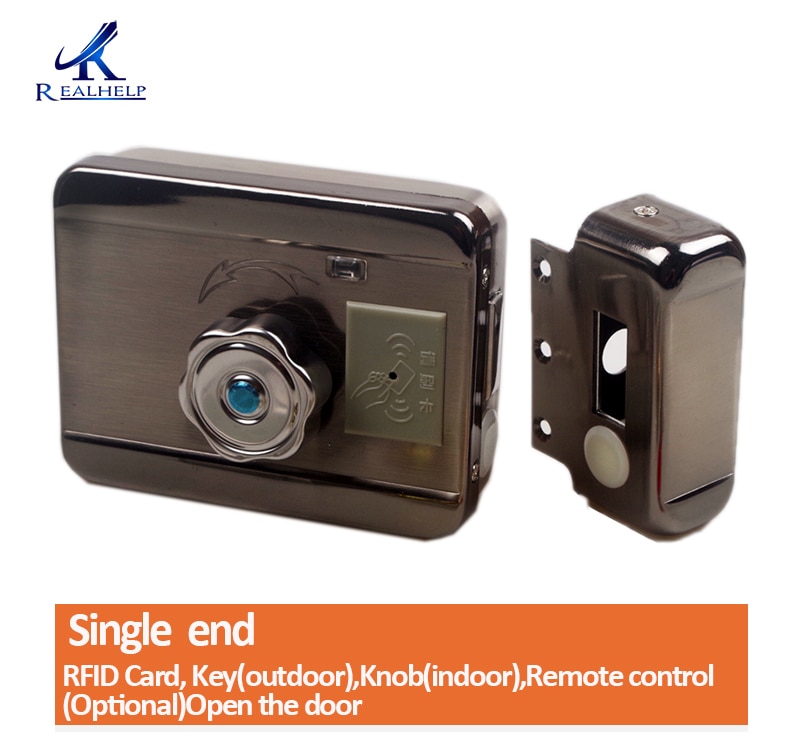

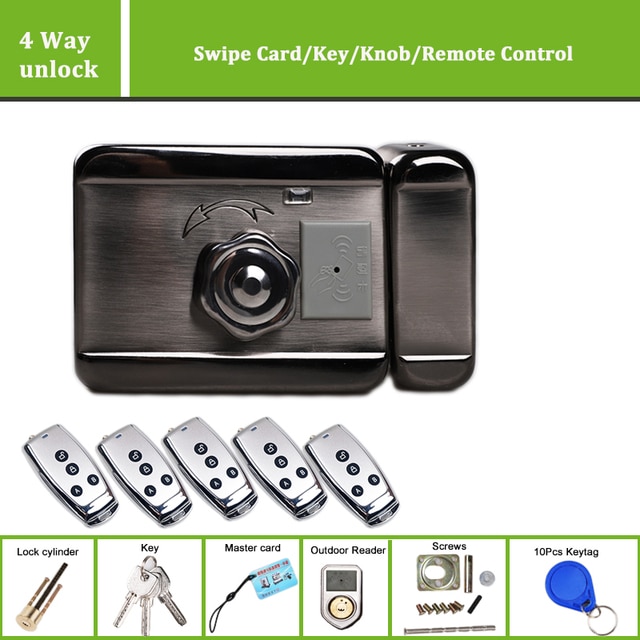

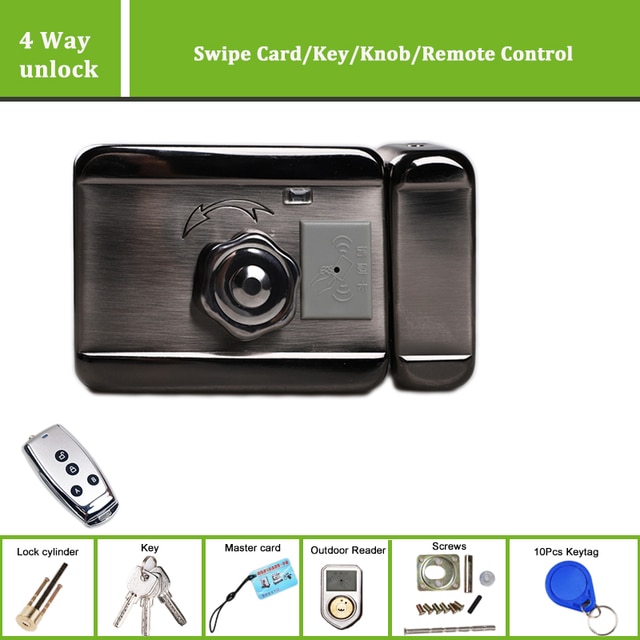

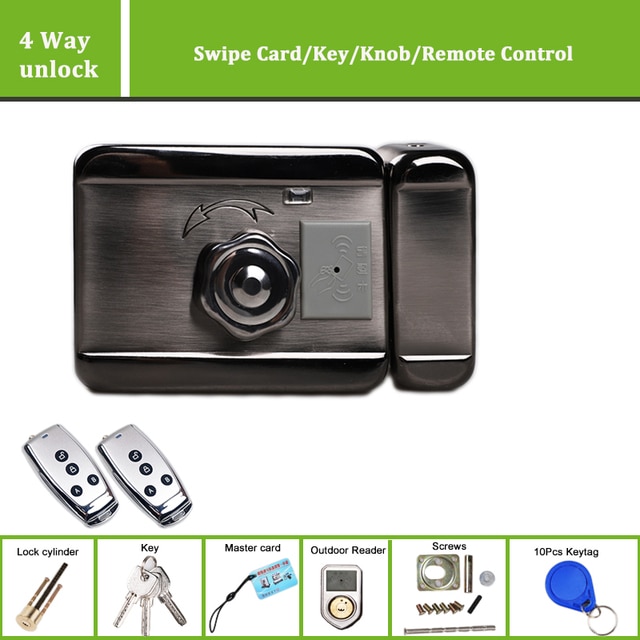

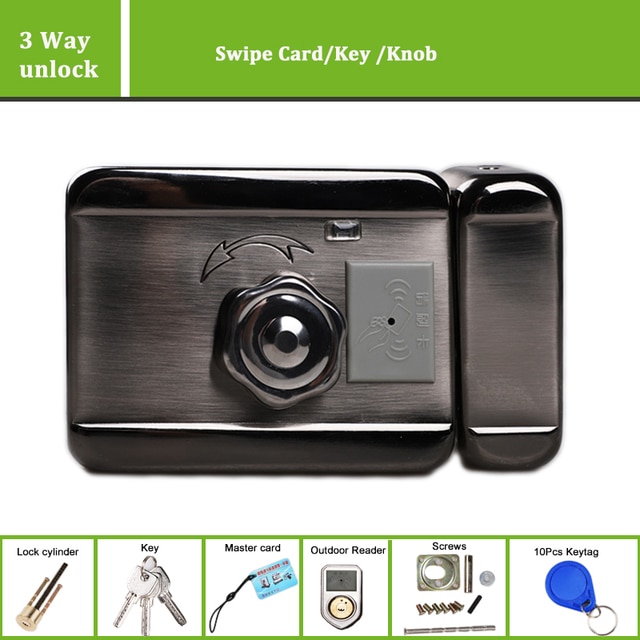

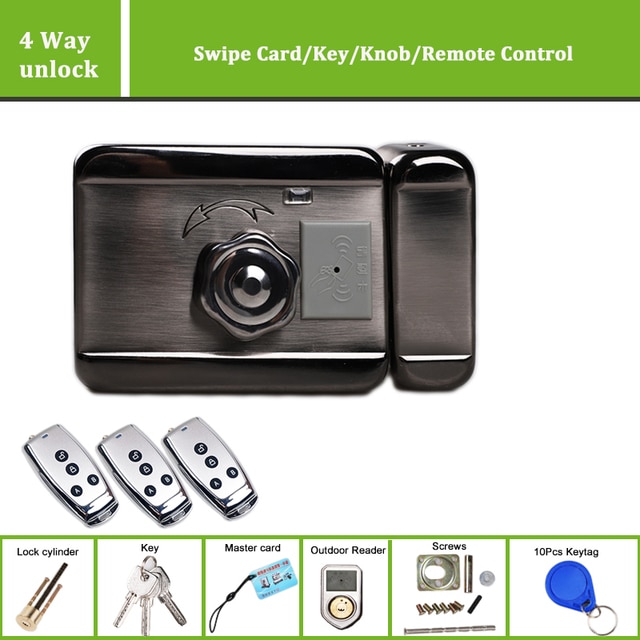

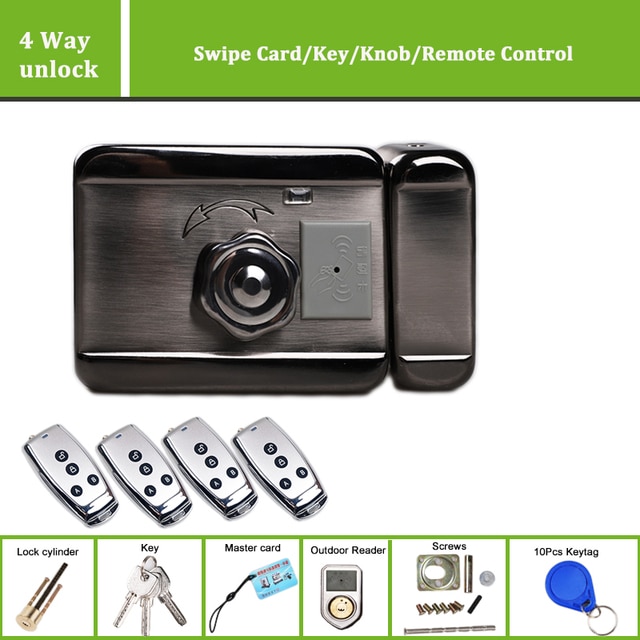

  • Single end:Exit the door by knob/Card,Enter the door by key/Card make you fell convenient

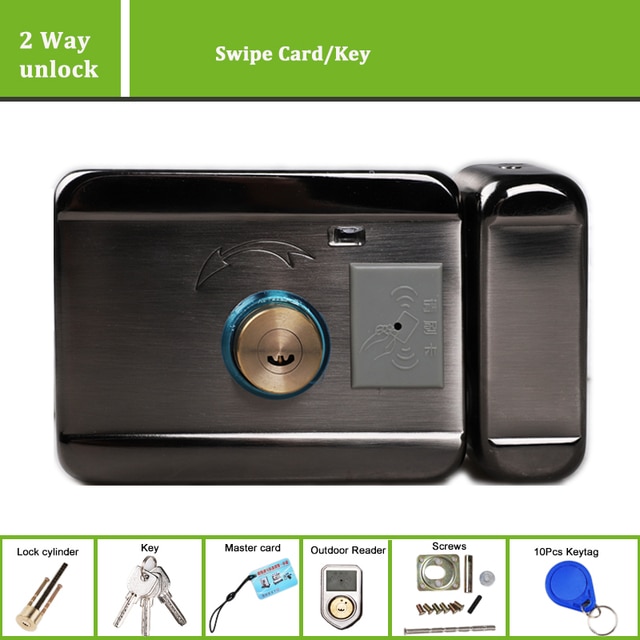

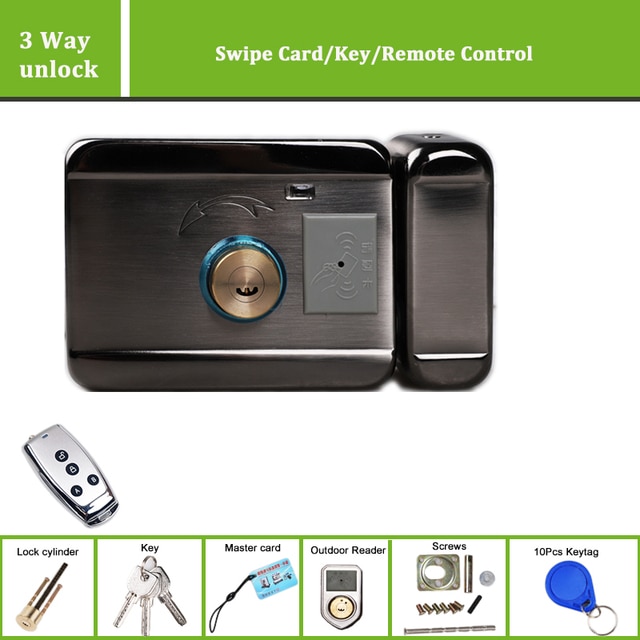

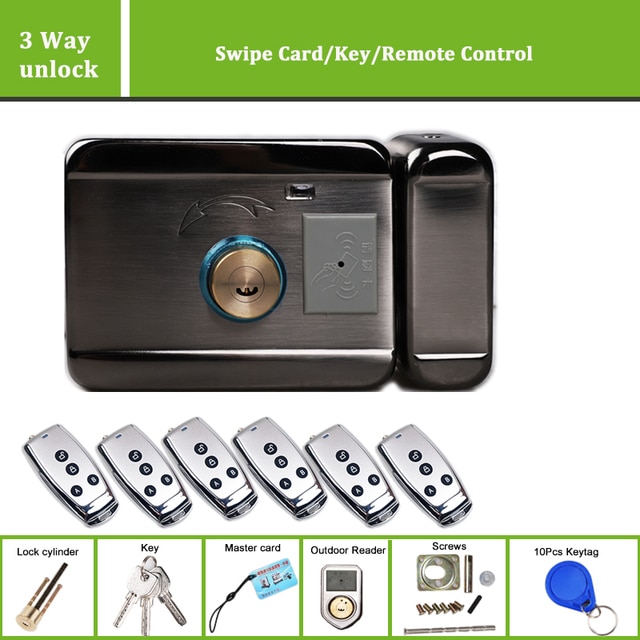

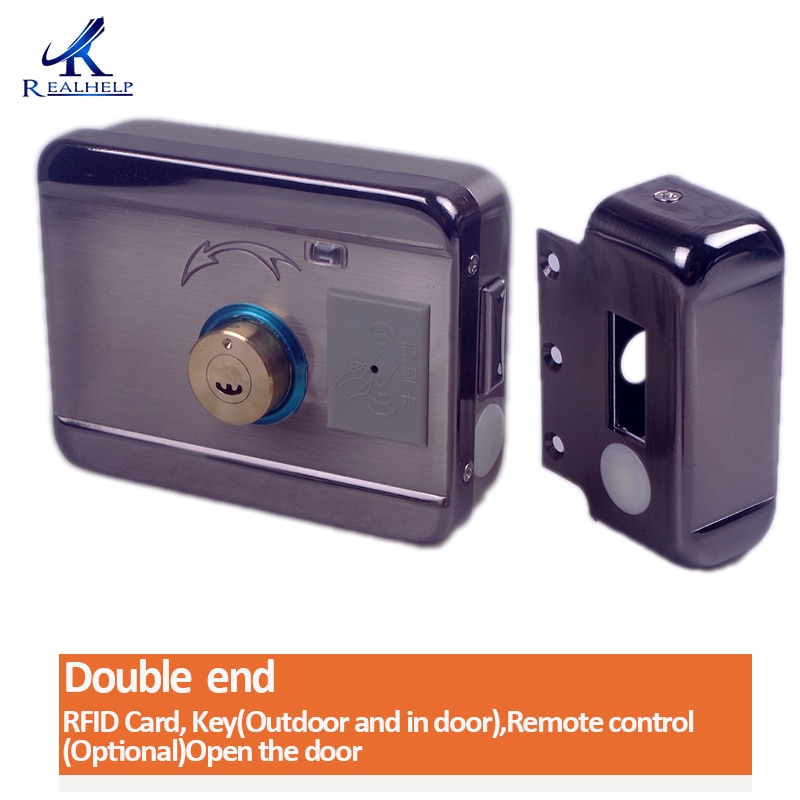

  • Double end: Exit/enter the door all by key/Card make you feel safety

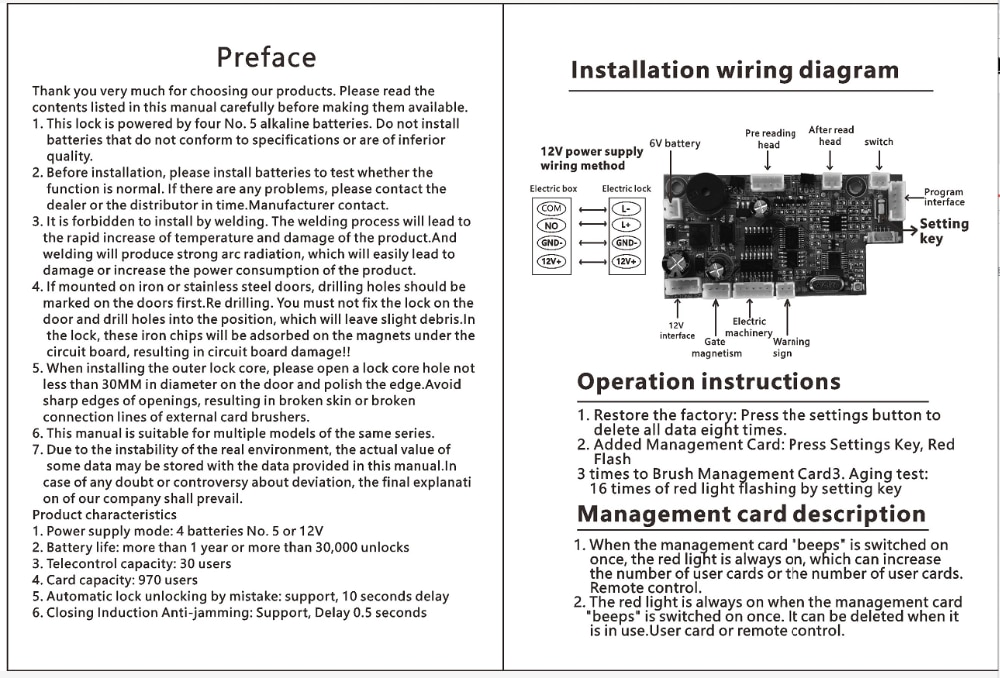

Operate instruction

1. Restore factory: Press set button,red light flash 8 times,all data will be deleted

2. Add Master: Press Set button, Red light flash 3 times then swipe master card

3. Aging test :Press set button,Red light flash 16 times

I. Method of  Master Card application(To add User)

1.Read master card,The red light ON
2.Reader User card or Remote control
3.Read Master card Again
II. Method of  Master Card application(To DELETE User)
1.Read master card , The red light ON
2.Reader User card
3.Read Master card Again

FAQ

Q1:Is the battery include?

A: No, AA battery belong to dangerous product, shipping company can not ship, you can buy it easily in your local.

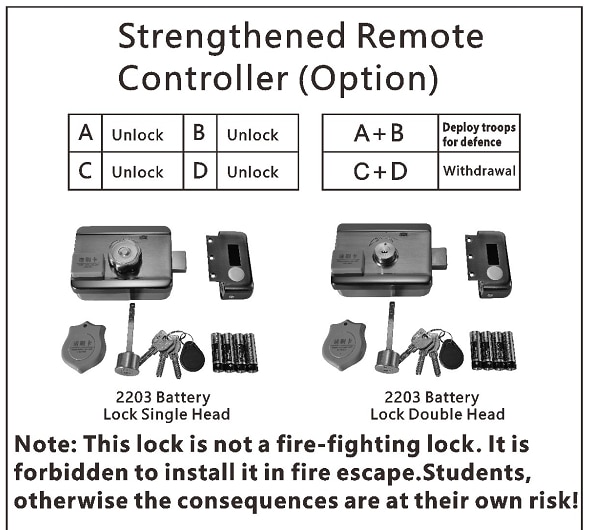

Q2:how many remotes in package?? can we get more remotes?

A:Single end and double end not include remote control, Other type have different remote control, you can order it as your requirement.


Q3:When connect with Battery and DC12V, The battery can be recharging?

A:YES, Can


Q4:Can it be installed in outdoor door?

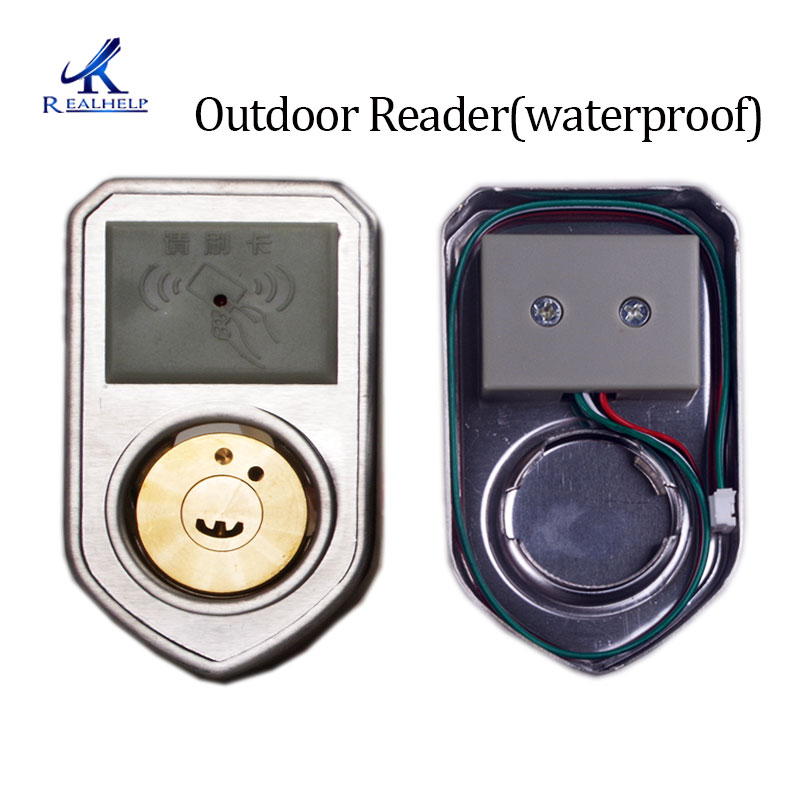

A:Outdoor reader is waterproof, but indoor lock not waterproof


Q5:How about Power off?

A:When the power is off, if the lock are in locked status, it still keep lock status. If the lock are unlocked, it keep unlock status.  if it lock the door. Single end type Users in the locked area can unlock,double end type users need use key to unlock.


Q6:What type of keytag?

A:125khz ID, EM4100/EM4200


Q7: Can i have more Mechanical key or Remote control?

A:Yes, you can connect with seller to buy.


Product user manual

1. Warranty Service will be honored if the damage is not caused by human, We Company Provides 1 years warranty for relative products. (excluding items damaged    and/or misused after receipt).Accessories come with a 3-month warranty.

2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!

3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback.  We will do our best to solve any problems and provide you with the best customer services.




  • Direction: None
  • Model Number: 2203
  • Brand Name: Realhelp
  • Certification: CE,FCC,RoHS
  • Smart home platform: NONE
  • Origin: Mainland China
  • Power supply: 4 x AA battery/12V DC
  • Read card distance: 0-6cm
  • Open the lock time: <1s
  • AA Battery working time: About 1 years/30,000 times
  • Card capacity: 970
  • Suitable for door type: Wooden door, Iron door,

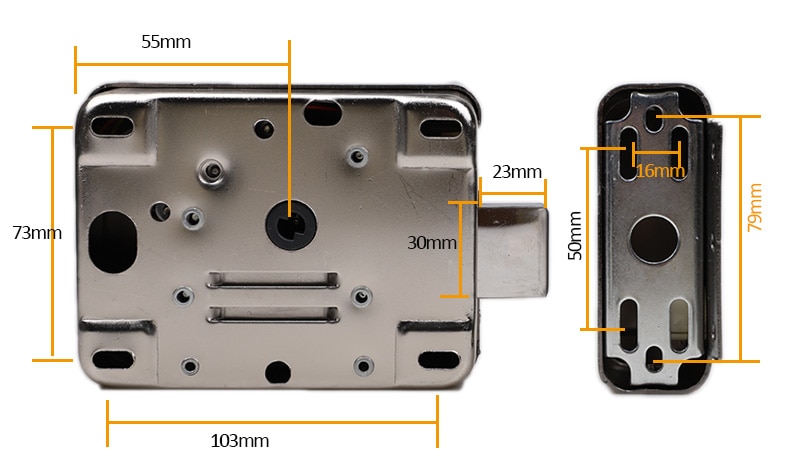

  • The length of the lock tongue: >20mm
  • work temperature: -40 to + 60 degree
  • automatically locked: around 8 seconds
  • Weight: 1.25KG
  • Card frequency: 125KHZ RFID
