RD RD6018 RD6018W 60V 18A USB WiFi DC DC adjustable Step Down voltage bench Power Supply Buck converter & 1000W1200W AC DC PSU
4.9 (163 votes) | 444 orders
Price:
US $166.50 - 463.13
/ piece
Discount Price:
US $
133.20 -
361.00
/ piece
-20%
- Ships From
- Color
-
-
NOTE:

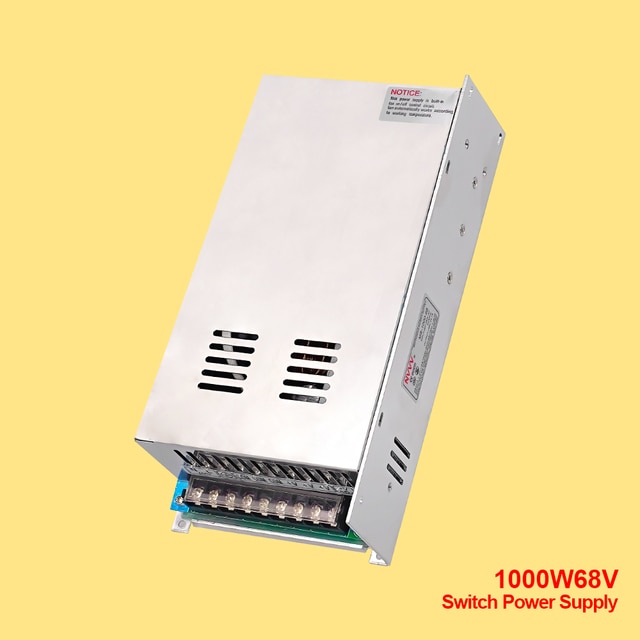

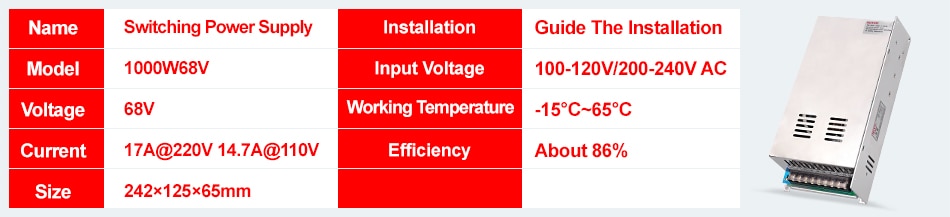

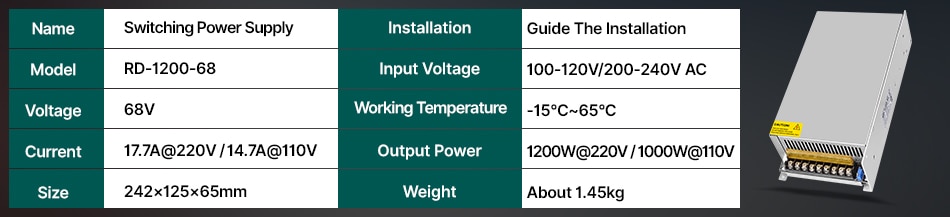

1000W PSU is 1000W under 220V/110V AC input;

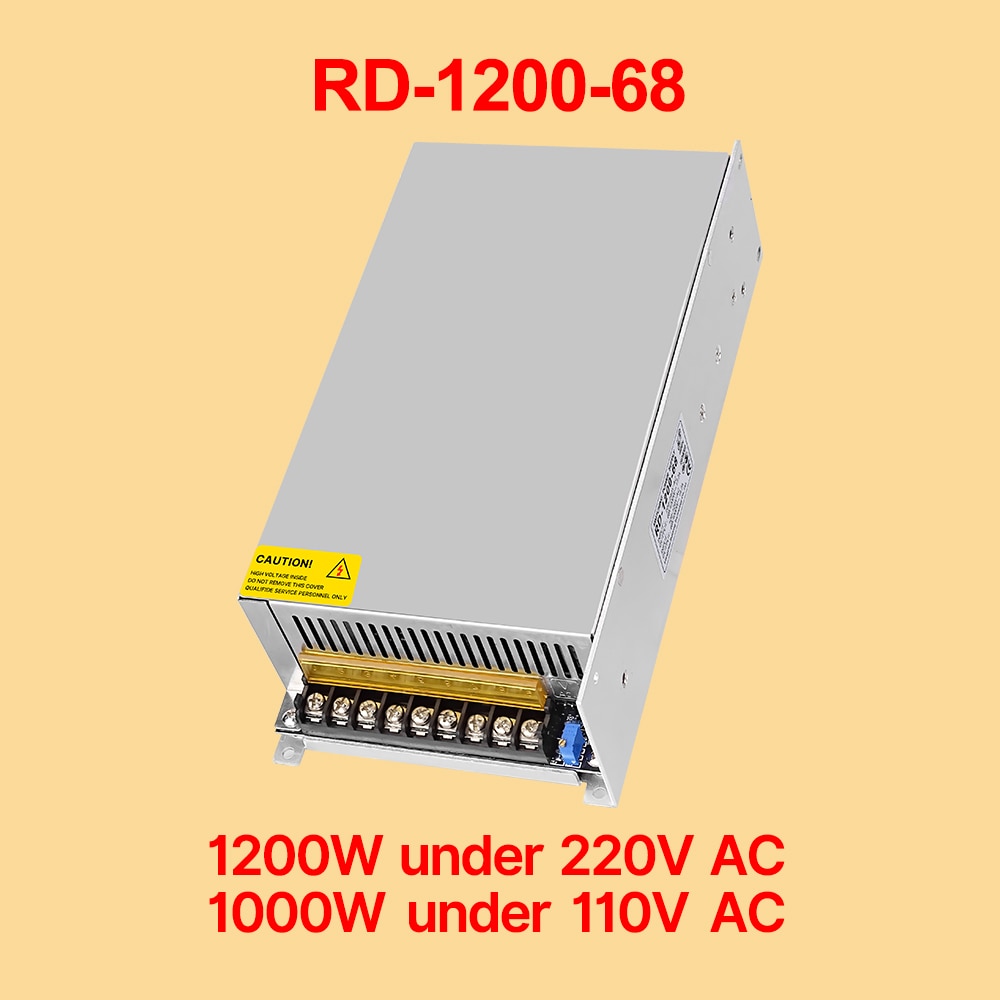

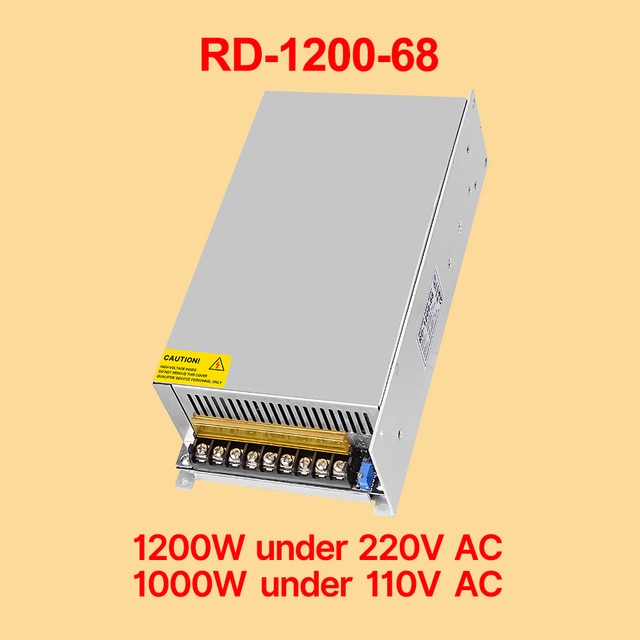

1200W PSU is 1200W under 220V AC input, but it is only 1000W under 110V AC input, please be careful when choosing PSU

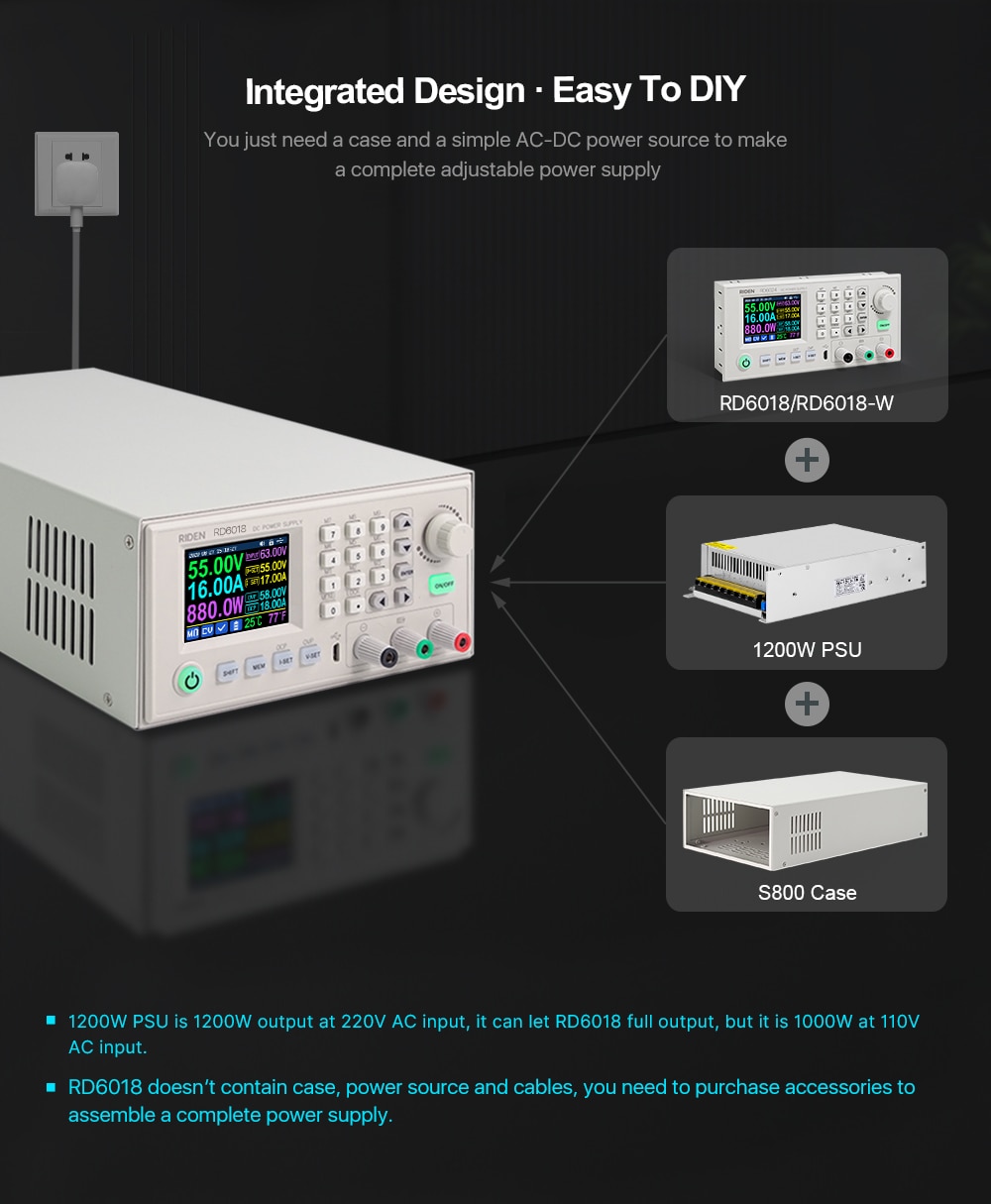

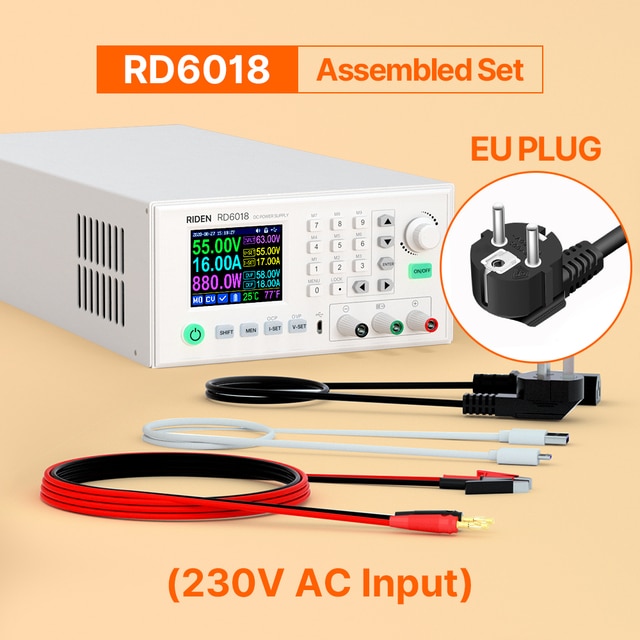

"RD6018 EU set" option is RD6018 assembled set with 230V EU plug AC power cord, it is RU warehouse stock so only RU area customers can make the order, it is same as what you can get in the product link below ↓

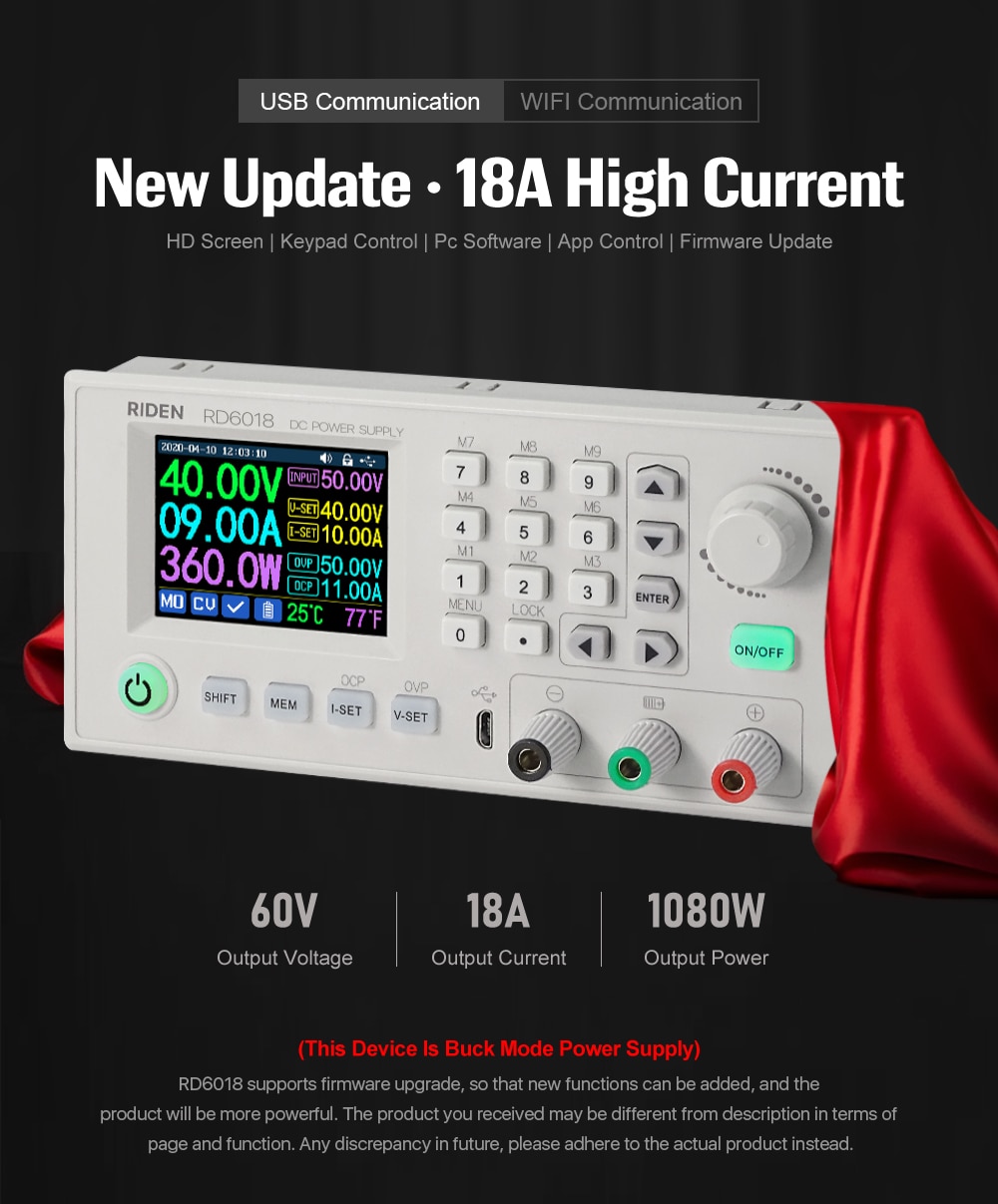

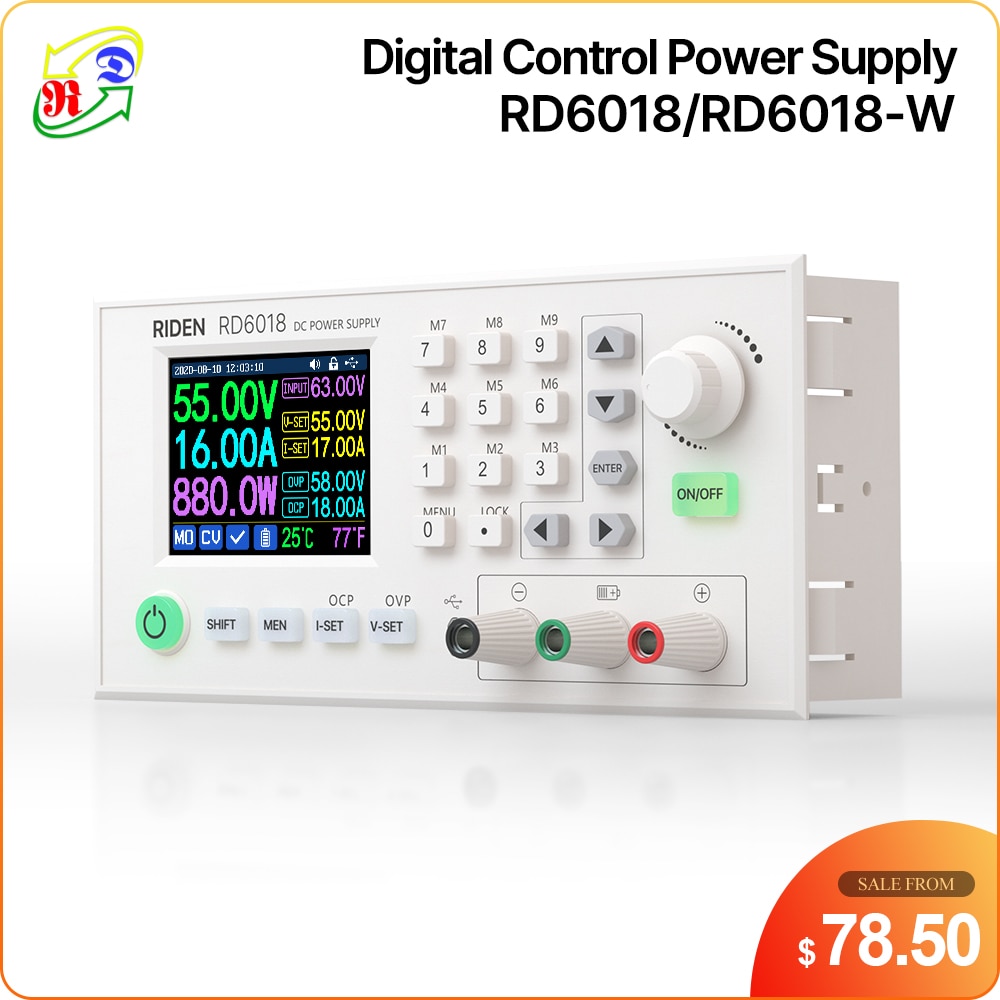

Model: RD6018/RD6018-W
Input voltage range: 6-70.00V
Output voltage range: 0-60.00V
Output current range: 0-18.00A
Output power range: 0-1080W
Input voltage measurement resolution: 0.01V
Output voltagesetting measurement resolution: 0.01V
Output current setting measurement resolution: 0.01A
Battery voltage measurement resolution: 0.01V
Input voltage measurement accuracy: ±(1%+5 digits)
Output voltage accuracybetween setting and measurement: ±(0.3%+3 digits)
Output currentaccuracybetween setting and measurement:±(0.5%+5 digits)
Battery voltage measurement accuracy: ±(0.5%+3 digits)

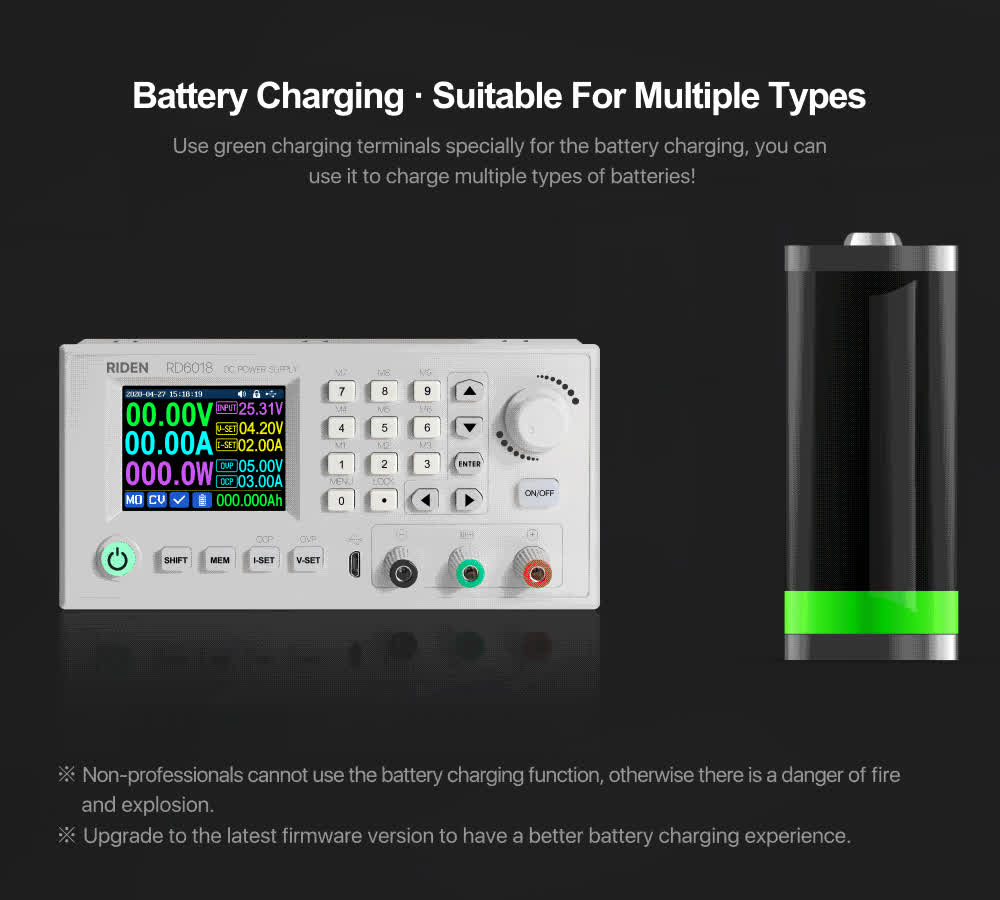

Automatic cut off current valuewhen charging:100mA
Output ripple typical:250mV VPP@6A
Working temperature range: -10℃~40℃
External sensor Temperature detection range:-10℃~100℃/0℉~200℉
External sensor Temperature detection accuracy:±3℃/±6℉
Constant voltage moderesponse time: 2ms（0.1A-5A Load）
Constant voltage mode load regulation: ±(0.1%+2 digits)
Constant current mode load regulation: ±(0.1%+3 digits)
Capacity measurement range: 0-9999.99Ah
Energy measurement range: 0-9999.99Wh
Capacity and energy statistical error: ±2％
Buck working mode: Voltage drop >1V and >10%
Over temperature protection: System temperature>80℃
Screen brightness setting: 0-5(6 level in total)
Screen: 2.4inch color HD display
Weight(with package):About0.68kg

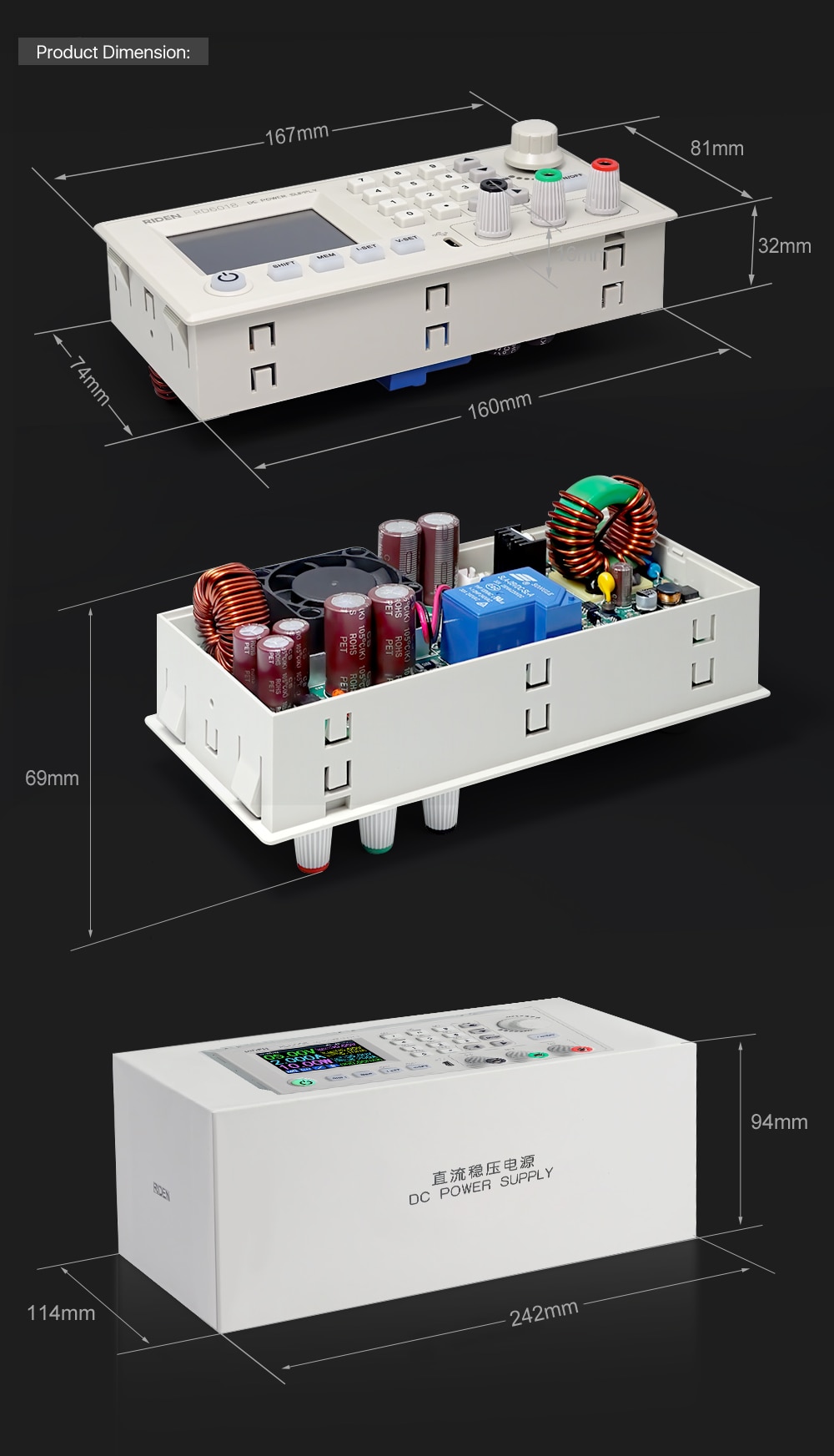

Product dimension: 167*81*69mm
Cooling fan start condition：Output current>8AorSystem temperature>45℃
Cooling fan shut down condition：Output current<7.9Aand System temperature<45℃
1, Instruction:

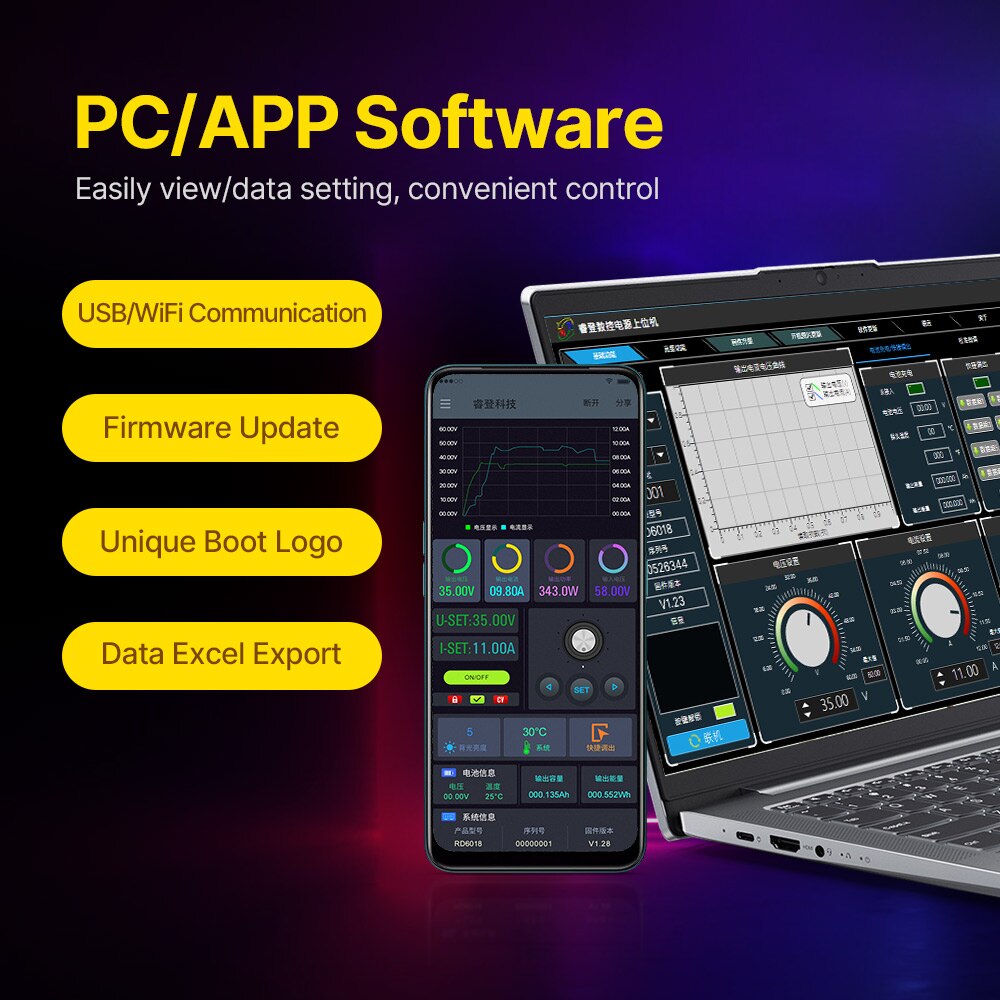

RD6018(W) operation instructon, PC software instruction , APP instruction ,APP and PC software download link:
A: Main download llink :https://drive.google.com/drive/folders/1V0l6P1sIJilN1yBOsTO9YGLVdkuO0cX9?usp=sharing
B: Mediafire:http://www.mediafire.com/folder/xc2v831oqj98g/RD6018

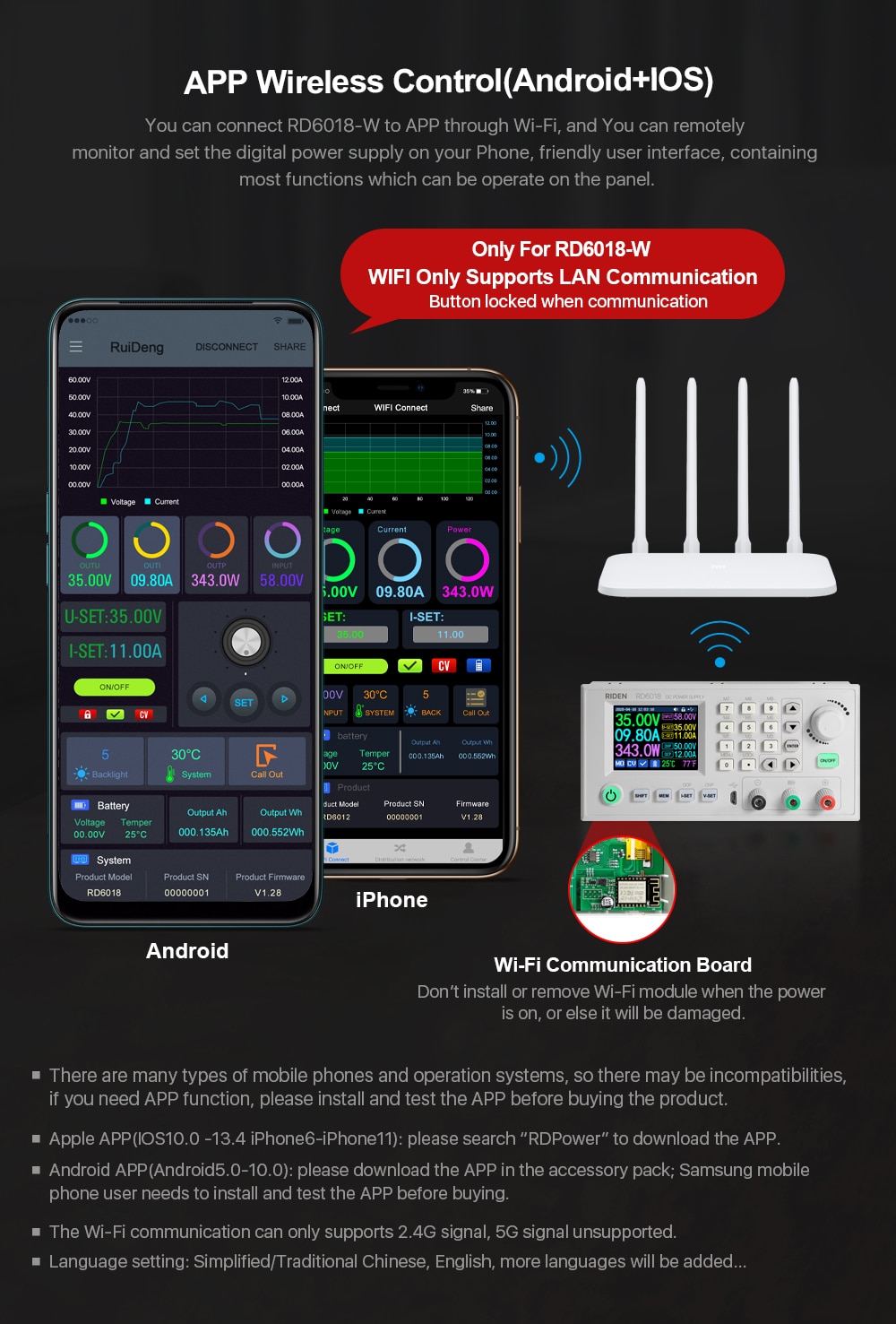

2, APP Download:
Android APP: download at file link:https://drive.google.com/drive/folders/1V0l6P1sIJilN1yBOsTO9YGLVdkuO0cX9?usp=sharing, Support android 8.0 -android 10.0;
Android APP Google Playdownload:Search "Ruideng" to download , support Android 8.0 and above phone
IOS APP download: Search "RdPower" to download , support IOS10.0-IOS13.4 System
3, Case Assembly:
RD6018 and S800 caseassemble instruction:https://drive.google.com/drive/folders/11Zb8hHO2ABnWO-Com304y0jQPFi8VTO7?usp=sharing
1,Instruction video：
a.section 1.4.2.1Battery Charging Function Introduction:https://youtu.be/irTbqfqtgU0
b.section 1.4.2.2Output Voltage and Output Current Setting:https://youtu.be/S6Kan66dNsk
c.section 1.4.2.3Data Group Quick Storage and Call out:https://youtu.be/eo5saPjOGpo
d.section 1.4.2.4Keypad lock and unlock:https://youtu.be/zxpmasJyQ6Y
e.section 1.4.2.5System Setting:https://youtu.be/Q9d3rIgIrOc
f.section 1.4.2.6Main Page Style Setting:https://youtu.be/f51VDiY2VHE
g:section 1.4.2.7Storage Data Setting:https://youtu.be/i1kTeurS13I
h:section 1.4.2.8System Information:https://youtu.be/Um4NQObeeJE
i:section 2.1.2IOS APP Download, Installation and Connection:https://youtu.be/nH2HYwop0TE
j:section 2.4.2IOS APP Operation:https://youtu.be/lXSw1CM9IY8
k:section 3.1.1/3.2.3.2Android APP Download, Installation and Connection:https://youtu.be/QwyBEUCnp9c
l:section 3.2.3.3Anroid APP Operation:https://youtu.be/hqrF4keTfbE
m:section 4.1/4.3.1PC Software Download and basic operation:https://youtu.be/mjt1RMaah1Y
o:section 4.3.2Firmware Upgrade:https://youtu.be/NOoLfDw0DiY
p:section 4.3.3Calibration:https://youtu.be/c9sn1wY2mjE
q:section 4.3.4Logo Update:https://youtu.be/vuVhBsohWts
r: RD6006 wifi connection Problem and solution:https://www.youtube.com/watch?v=7sTtc1kweJM
2,PSU Notification
3,Assembly Notification
You can only connect the cables with a foundation in electronic and electrical engineering and it must be reliably grounded!

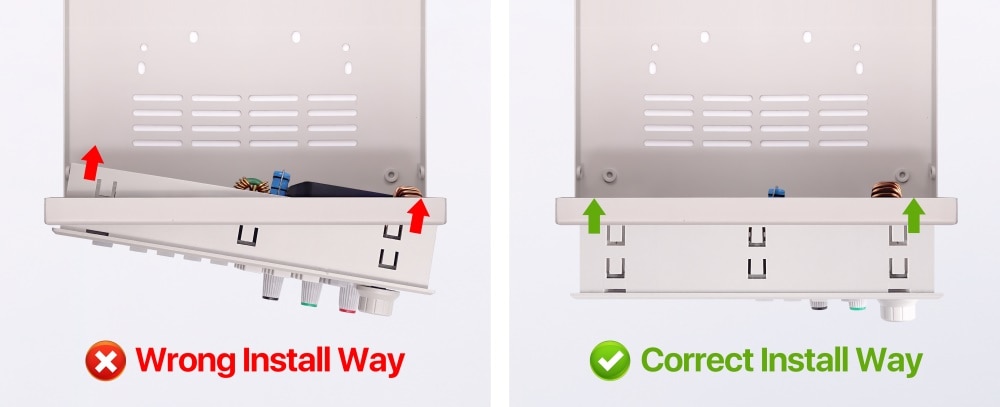

4,Correct Installation
5, Actual Test Video
https://youtu.be/09XbO148WYg

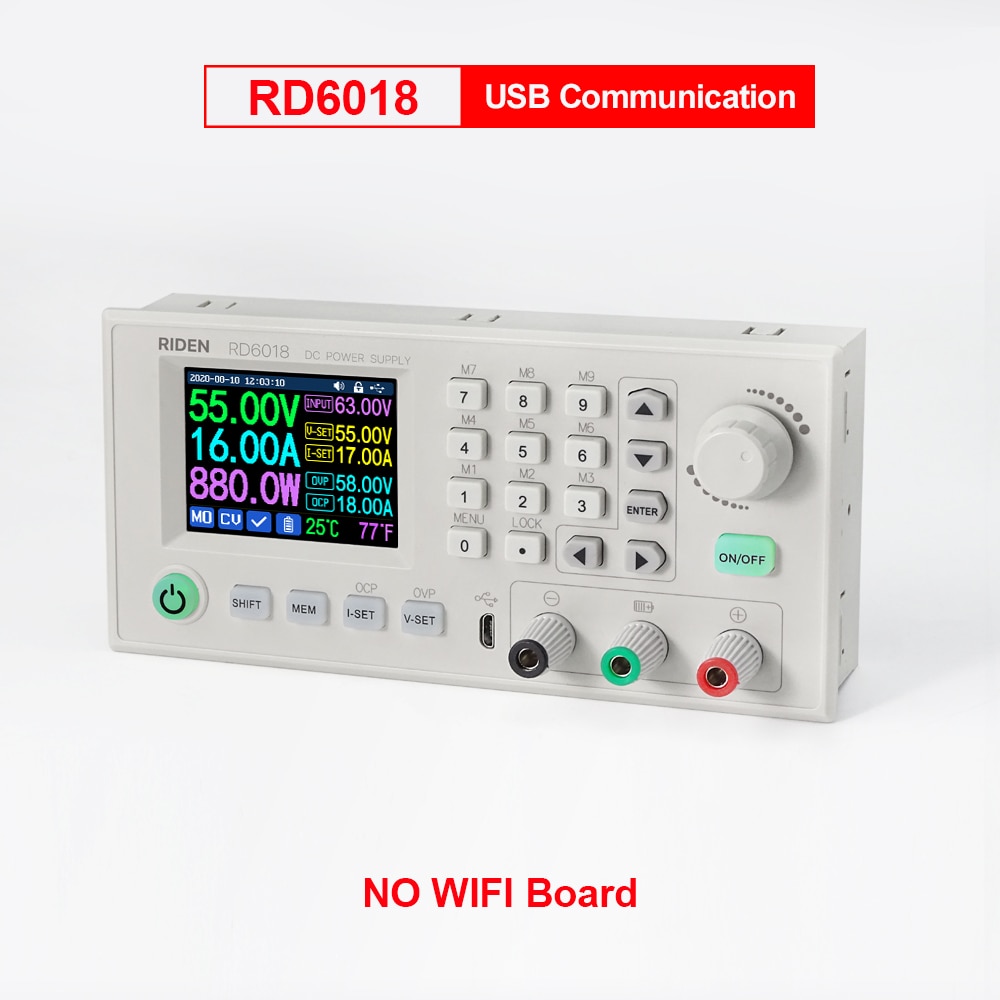

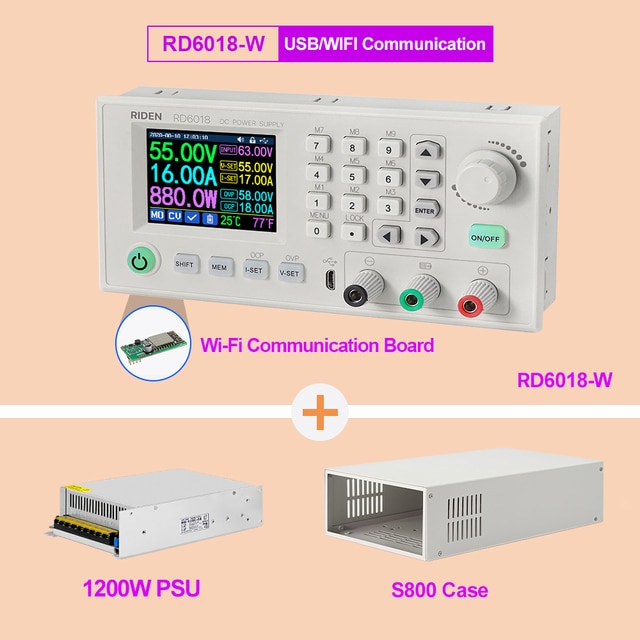

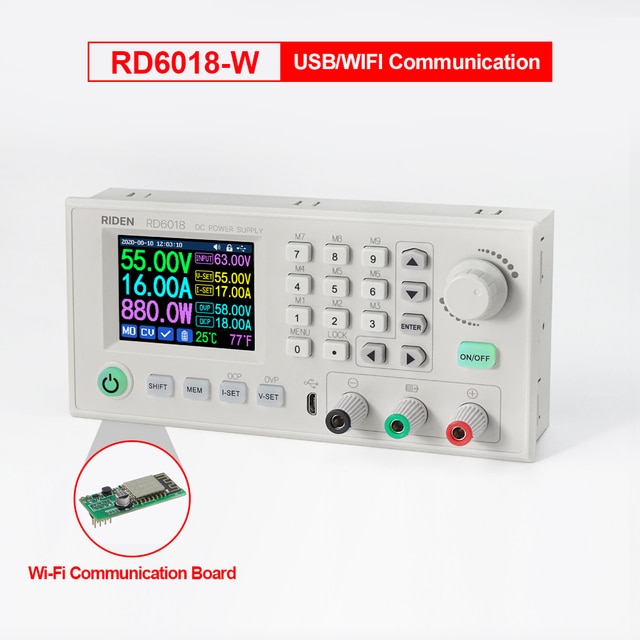

1. Q: What is the differences between RD6018 and RD6018-W?
A: RD6018-W has WIFI board , RD6018 doesn't have. RD6018-W can use WIFI board to connect APP, also use USB micro cable to connect PC software . RD6018 doesn't have WIFI board, only support PC software by connecting with USB micro cable, no support APP.
2. Q: What can I get in this link?
A: the option title and pictures shows what you can get, please check and make the order. For example, you choose "RD6018", you get RD6018, if you choose "1200W PSU under 220V", you get 1200W PSU
3. Q: What does S800 case contains?
A: For S800 case, it is just case, not containing any power supply, it contains the internal cables and screws, it is suitable for RD6012/RD6018/RD6024 and AC-DC 800W/1000W switching power supply, you can buy them separately to assemble then together.
4. Q: Why the product I get is a bit different with the picture?
A: We keep updating the product hardware and software to make the device better, so the internal material details may be different, but it does not affect you to use the functions.
5. Q: why does the instruction not come with the product?
A: Because the products keep updating, we will add some function with the firmware and hardware update, so you can download the instruction online.
6. Q: the case I receive is a bit deformed?
A: For the case, during the shipping,maybe the case side will be a little deformed (just like picture ), you can use your hand to adjust, that's OK, if you mind this , please stop buying.

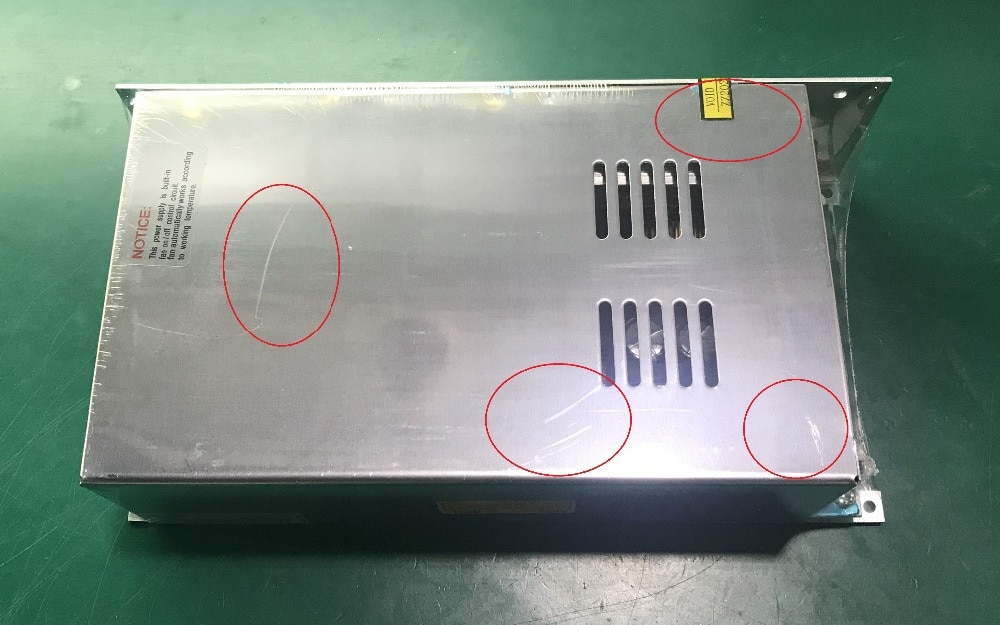

7. Q: the PSU I receive have some scratches?
A: There may be scratches on the surface but it doesn't affect the product performance, please do not be over picky, and if you do mind this, please do not buy this product
8. Q: the warranty label is broken, do I still get the warranty?
A: Due to express delivery, some power supply warranty labels may be damaged, which does not affect product warranty!

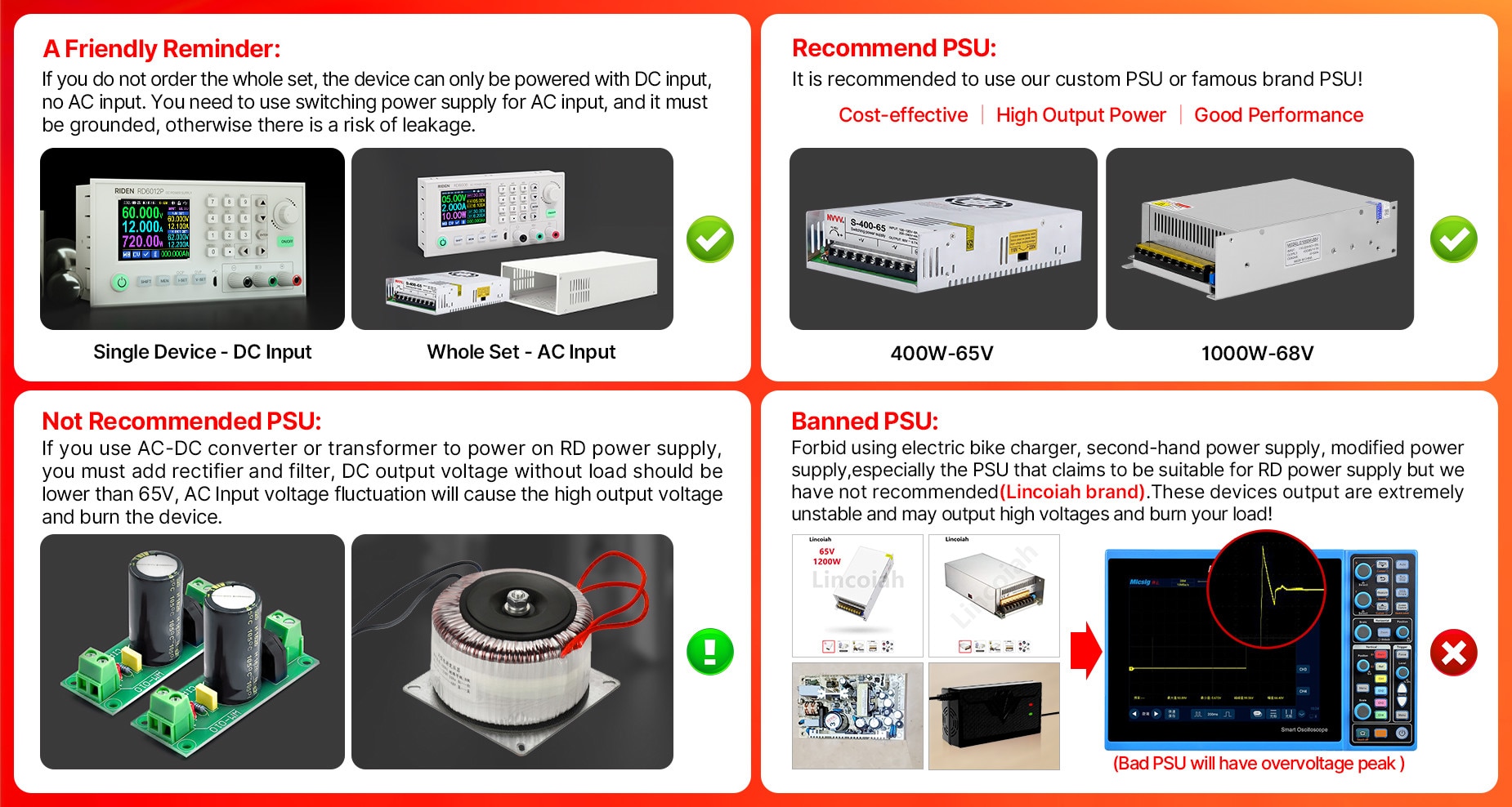

9.Q: How do I choose the PSU?
A:Friendly reminder, If you do not order the whole set, the device can only be powered with DC input, no AC input. You need to use switching power supply for AC input, and it must be grounded, otherwise there is a risk of leakage.
AA: Recommend PSU
It is recommended to use our custom PSU or famous brand PSU!
BB: Not recommended PSU
If you use AC-DC converter or transformer to power on RD power supply, you must add rectifier and filter, DC output voltage without load should be lower than 65V，power grid voltage fluctuation will cause the high output voltage and burn the device!
CC. Banned PSU
Forbid using electric bike charger, second-hand power supply, modified power supply, especially the PSU that claims to be suitable for RD power supply but we have not recommended ......These devices output are extremely unstable and may output high voltages and burn your load!
(bad PSU will have peak over-voltage)
11.Q: Can I use it to power on inductive load?
A: If you connect inductive load (such as motor), the max working voltage and current is 1/3 of full range. don't exceed it.

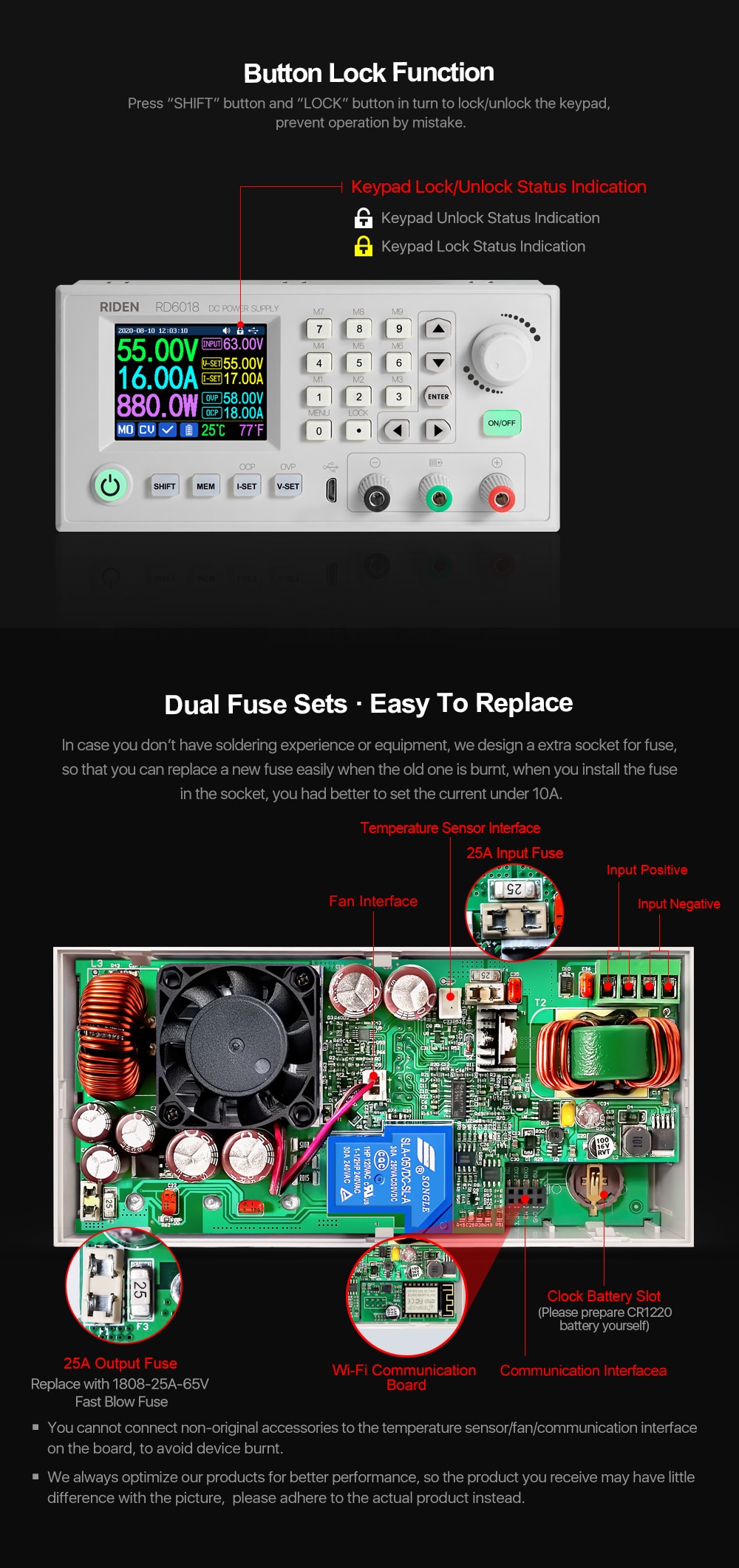

12. Q:why there is a fuse in the box? Should I install it?
A:It is a BACKUP fuse in the, if you burn the fuse with wrong operation, you can insert the fuse in the socket next to the burned one for temporary use and it supports only 10A, so it is better to remove the damaged fuse and solder the good fuse on the same position for full output.
13. Q: can I remove the case of the PSU for better heat dissipation?
A: when install our PSU into the case, please follow our instruction to assemble, do not remove the shell of the PSU to use. After removing the shell of the switching power supply, the structural change of the heat dissipation system will lead to insufficient heat dissipation,and some components will be overheated and damaged, in this case we don't offer after sell service

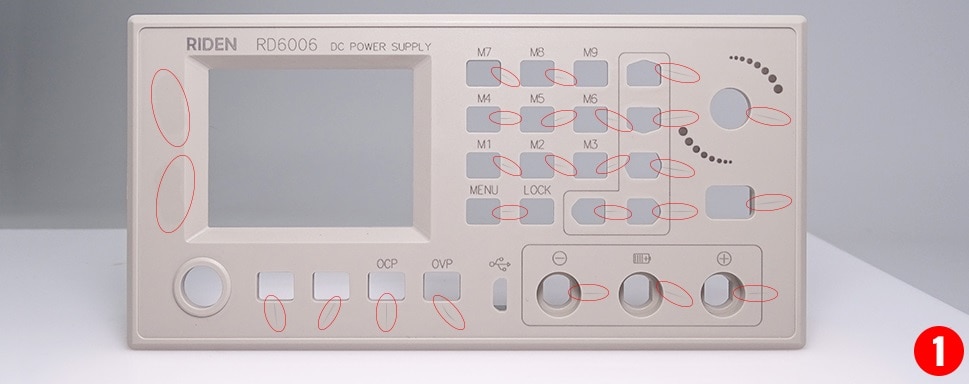

15.Q:I see some traces on the panel, is this means damaged?
A:Affected by the injection molding process, there are slight traces at the button holes of the shell. It can hardly be found in normal use. It can be found under the light (the shell is not crafts, don't be overly picky). as shown in picture, if you care, please don't buy this product
SOFTWARE QUESTIONS:
1. Q: The APP crashes on my phone, what the problem is?

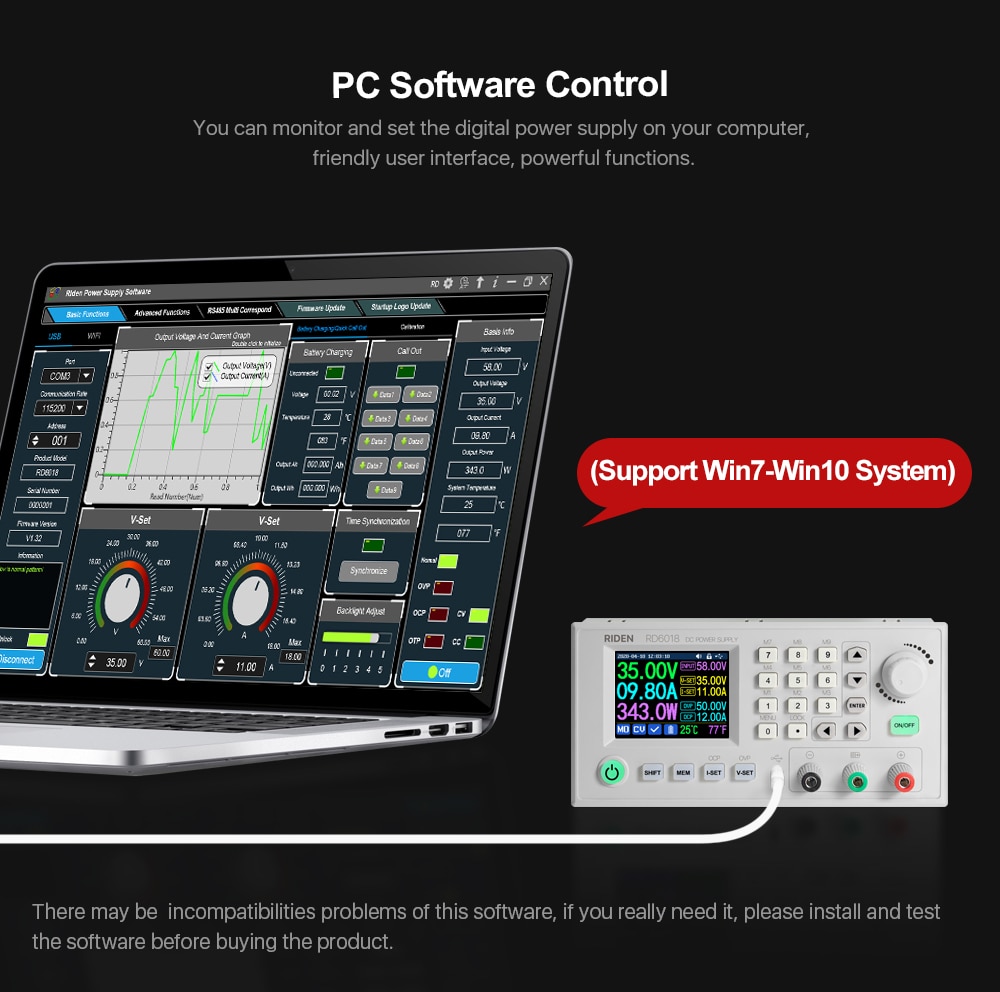

A: For APP and PC software, because there may be incompatibilities problems, please download first before buying , if you can download and install, you can make order, or else stop buying. If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.For PC software, it only support win 7 and above for now. For APP, it only support android 8.0 and above.
2. Why cannot I connect the RD6018W to my phone APP via WIFI?
A: Please check if the WIFI board is inserted properly, then check if the WIFI is 2.4G Hz and if you shut down the client isolation/ AP isolation and WMM function, and check if you turn on the location service and storage service when you install the APP. If there is still problem, contact us.
3.Why cannot I connect the RD6018W to PC via WIFI while I can connect to the Phone?
A:WiFi connection is a test function, due to poor compatibility of some computers, if you cannot connect PC software via WiFi, please ignore this function. Forthis function, we do not provide any guarantee and technical support, and we will decide whether to keep this function based on customer feedback.
Model | ||||||
Input voltage range | 6-70.00V | 7-70.00V | 7-70.00V | 6-70.00V | ||
Output voltage range | 0-60.00V | 0-60.000V | 0-60.000V | 0-60.00V | ||
Output current range | 0-6.000A | 0-12.00A | 0-18.00A | 0-6.0000A | 0-6.0000A/ 0-12.000A | 0-24.00A |
Output power range | 0-360W | 0-720W | 0-1080W | 0-360W | 0-720W | 0-1440W |
Output voltage setting measurement resolution | 0.01V | 0.001V | 0.01V | |||
Output current setting measurement resolution | 0.001A | 0.01A | 0.0001A | 0.001A/ 0.0001A | 0.01A | |
Output voltage accuracy between setting and measurement | ±(0.3%+3 digits) | ±(0.5‰+4 digits) | ±(0.3%+3 digits) | |||
Output current accuracy between setting and measurement | ±(0.5%+5 digits) | ±(1‰+6 digits) | ±(0.5%+5 digits) | |||
Automatic cut off current value when charging | 10mA | 100mA | Set by yourself | Set by yourself | Set by yourself(higher than 100mA) | |
Output ripple typical | 100mV VPP | 250mV VPP@6A | 20mV VPP | 100mV@12A，150mV@24A VPP | ||
Buck working mode | Voltage drop >1V and >10% | （input voltage÷1.1）-2 | （input voltage÷1.1）-1 | |||
Weight(with package) | About 0.58kg | About 0.61kg | About 0.68kg | About 0.62kg | About 0.66kg | About 0.72kg |
Product dimension | 167*81*65mm | 167*81*69mm | 167*81*65mm | 167*81*69mm | ||
①:Ripple measurement method: noise and ripple are measured at X1 range, AC coupling,
20MHz of bandwidth on your oscilloscope with a 0.1uF parallel capacitor at the output terminals
②for example: input voltage is 24V，the max output voltage is 19.8V.
- Current: Other
- Origin: Mainland China
- Brand Name: RD
- input voltage: 6-70V DC
- output voltage: 0-60.00V DC
- output current: 0-18.00A
- size: 167*81*69mm
- work mode: buck only
- working temperature: -10 - 40 ℃
