RD DPS5020 Constant Voltage current DC DC Step-down communication bench DC Power Supply buck Voltage converter 50V 20A

4.9 (220 votes) | 547 orders
Price: US $104.04 - 164.17 / piece
Discount Price:
US $ 80.98 - 131.33 / piece
-22%
Ships From
Color
Quantity

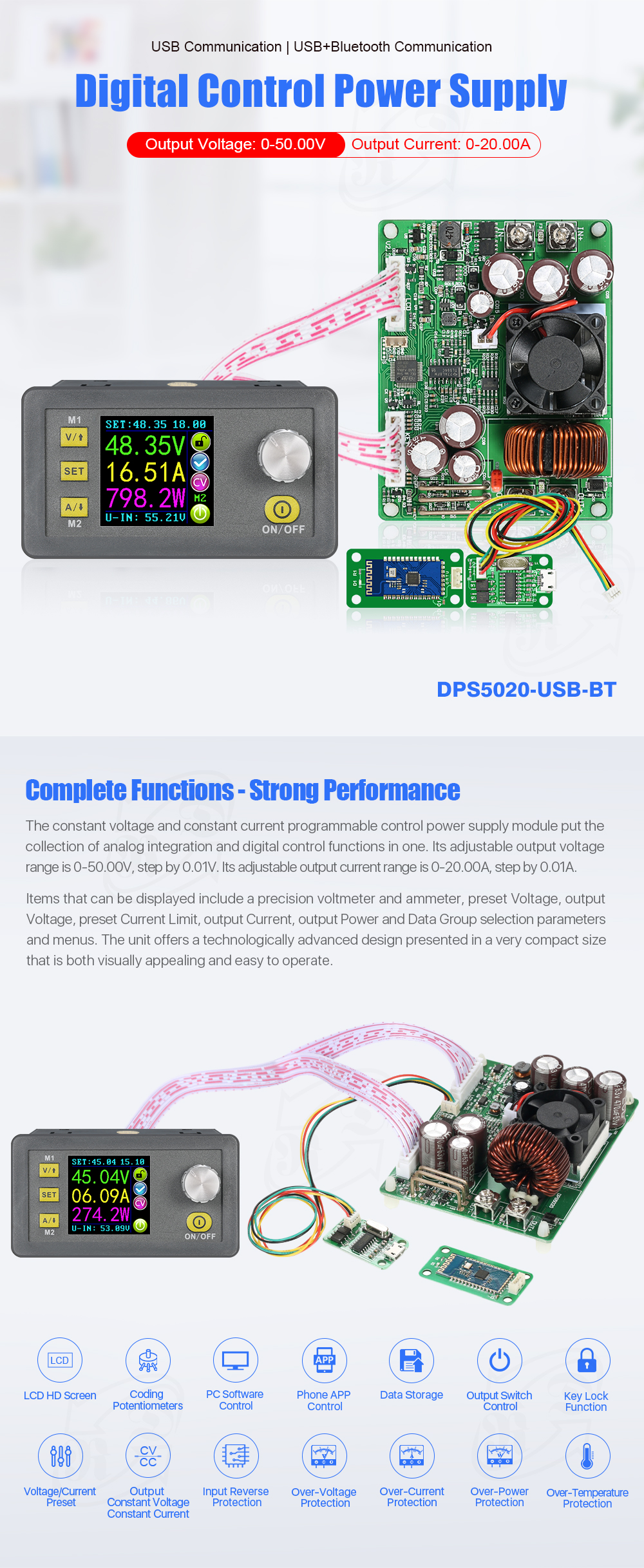

Model:DPS5020

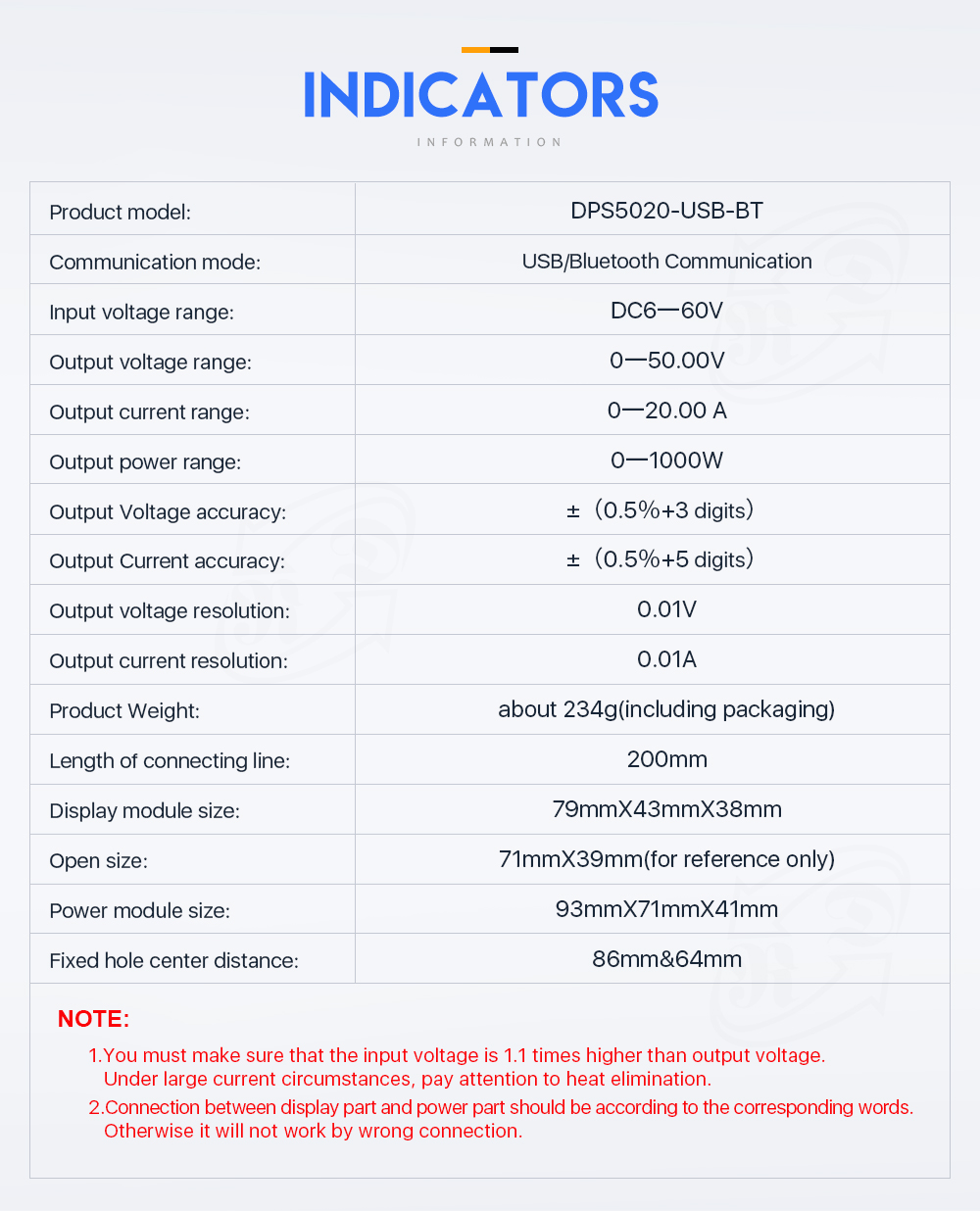

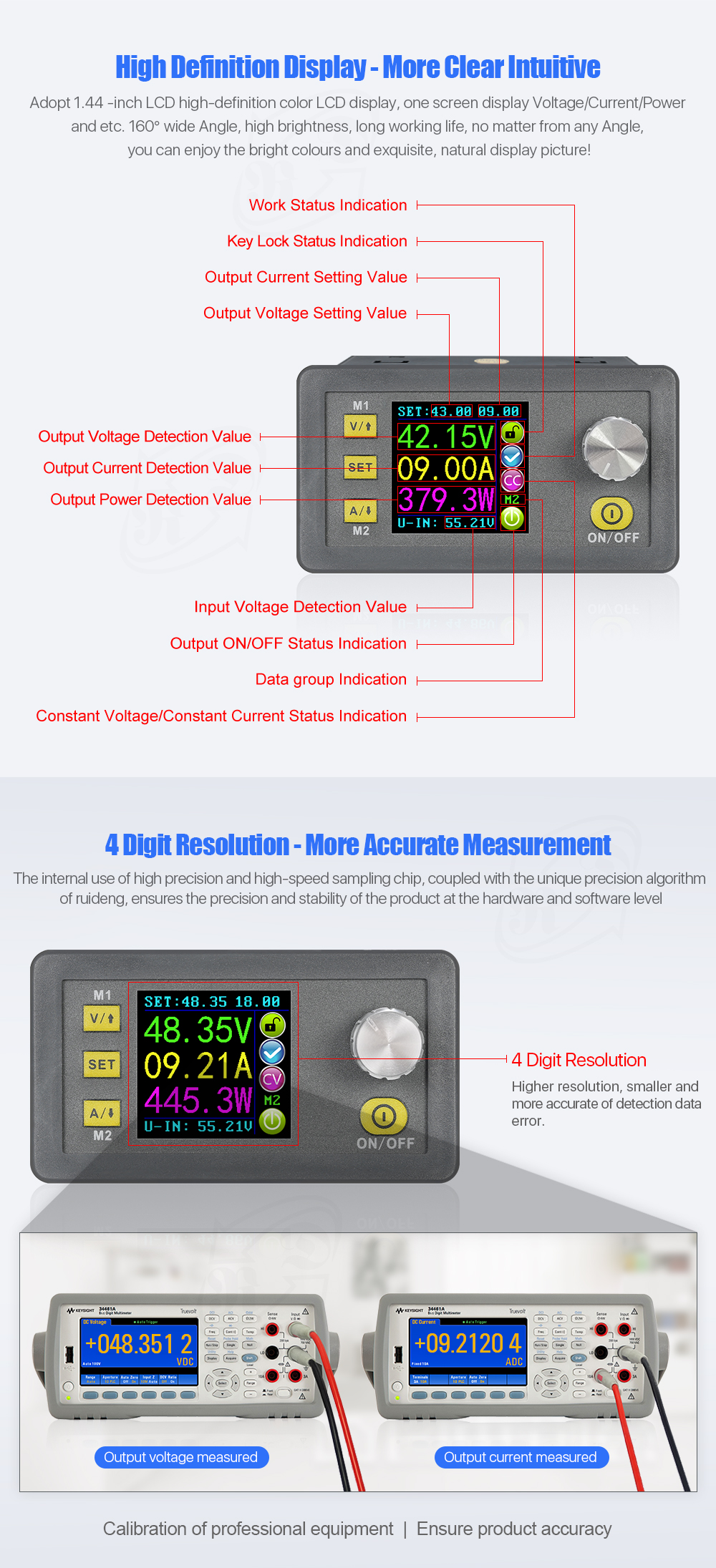

Input voltage range: 6.00-60.00V
Output voltage range: 0V-50.00V
Output current: 0-20.00A
Output voltage resolution: 0.01V
Output current resolution: 0.01A
Output power range: 0-1000W
Working mode: output voltage< input voltage/1.1
Product Weight: about 222g
Open size: 71mm*39mm
Output Voltage accuracy: ± (0.5% + 3 digit)
Output Current accuracy: ± (0.5% + 5 digits)

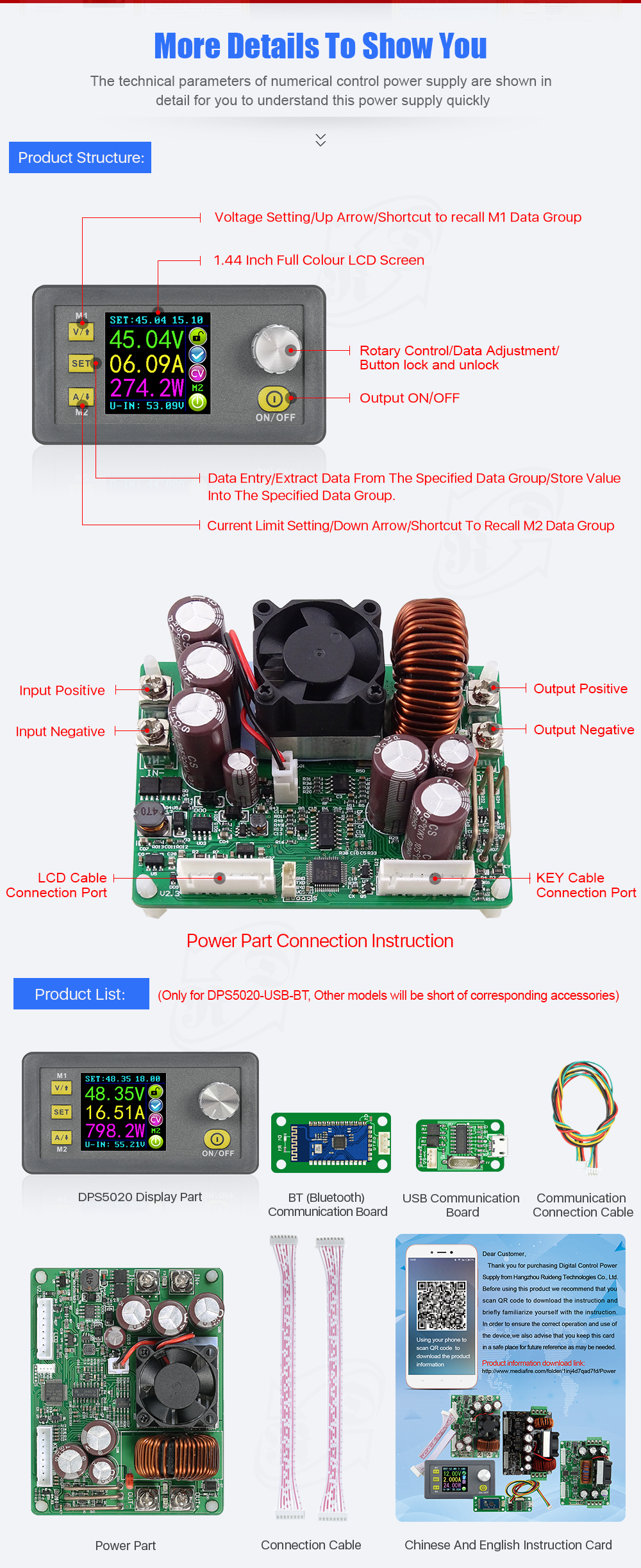

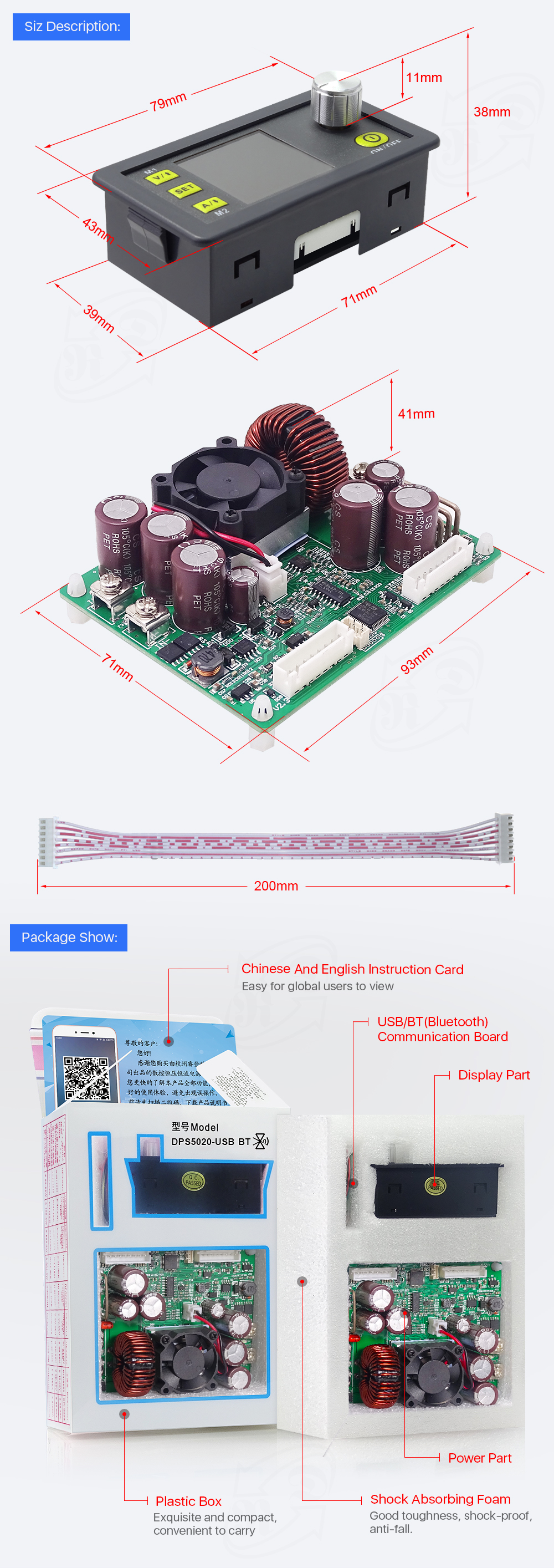

Product Dimension: 79*43*41(mm) (L*W*H)
Power module size: 93*71*41(mm) (L*W*H)
Fixed hole center distance: 86mm, 64mm
1, Instruction:

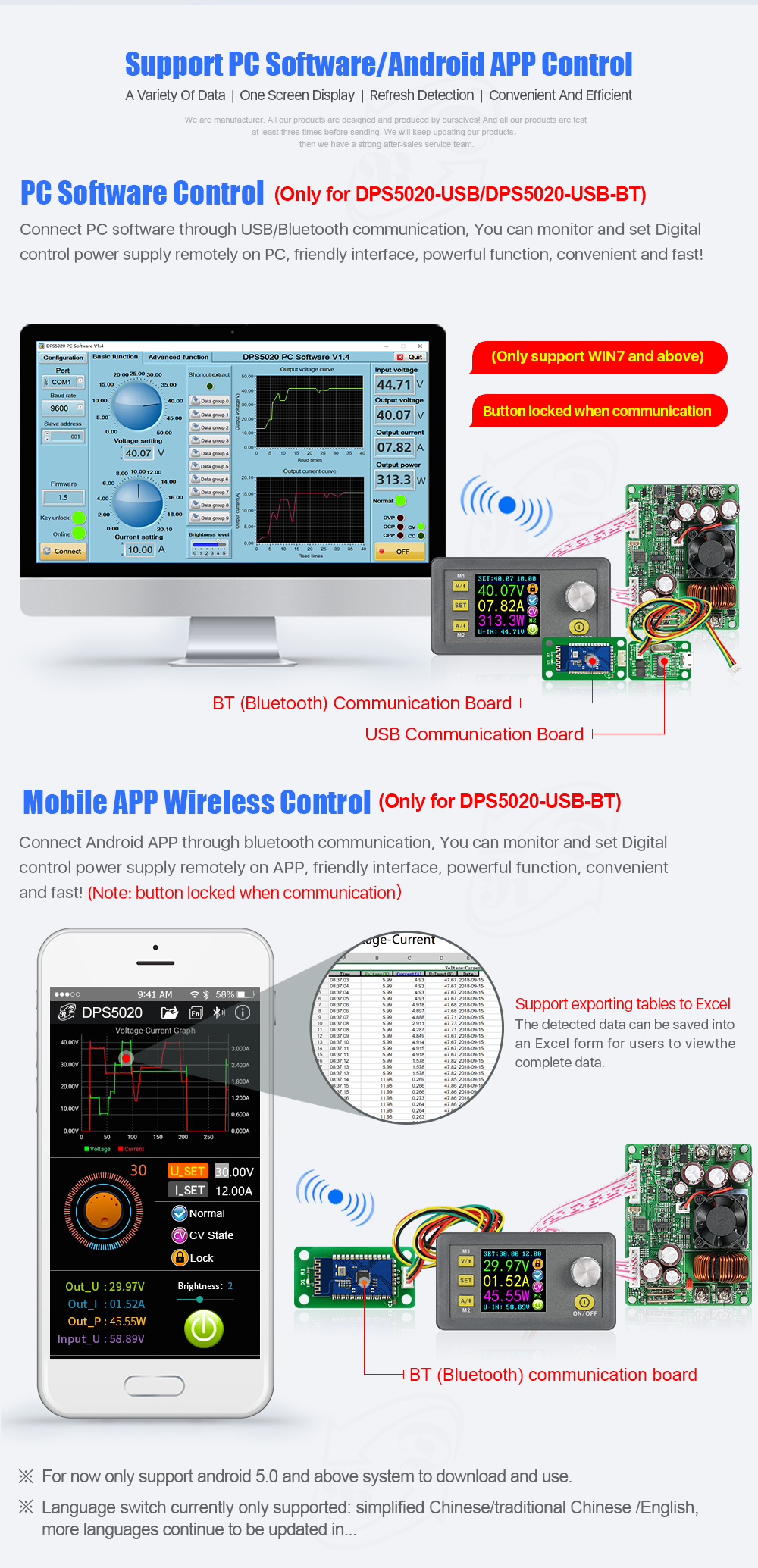

DPS5020 operation instruction, PC software and PC software instuction , android phone APP, Communication Protocol file
A: Main download link: http://www.mediafire.com/folder/xmaf7xw1coetq/DPS5020_file
B: Backup download linlk: https://drive.google.com/open?id=1nP9Vi6cgzv2zbxJG006256rYkz-R_jBL

2, APP Download:
Google play: search RUIDENG
Android phone APP(support android 8.0 and above): https://drive.google.com/open?id=1nP9Vi6cgzv2zbxJG006256rYkz-R_jBL

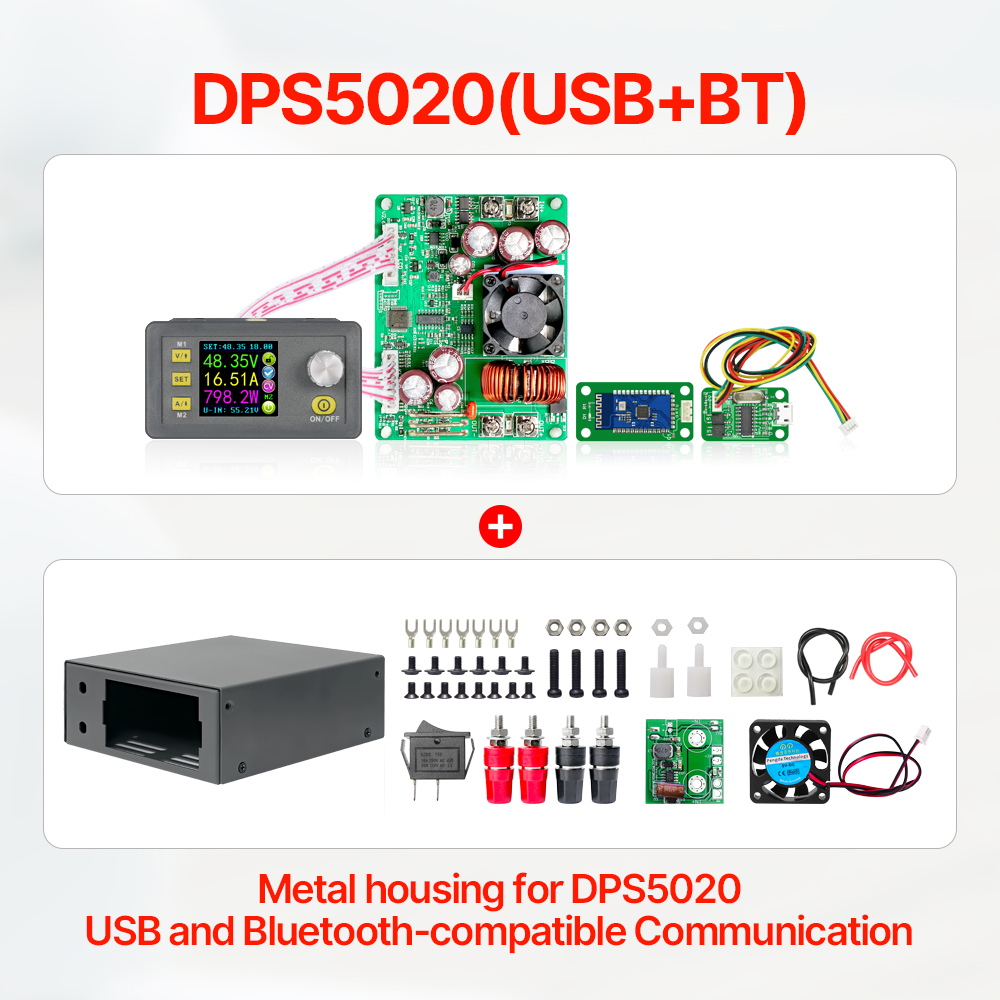

3, Case Assembly:
DPS5020 and Case C2 installation struction: https://drive.google.com/open?id=1s4kWis48ZUtR9vwmHsqVpvsIXaYJicca
similar Installation video: https://www.youtube.com/watch?v=ENZg4yTjhnY

1, Instruction video:

Upper computer installation, connection by USB and Bluetooth video: https://www.youtube.com/watch?v=7BL6KmY4x-A

Android phone APP video show: https://www.youtube.com/watch?v=mX1oO1a1nGs


2, Case recommend:


assemble instruction:

https://drive.google.com/open?id=1s4kWis48ZUtR9vwmHsqVpvsIXaYJicca


3, Correct Opeartion

You must make sure that the input voltage is 1.1 times higher than output voltage. Under large current circumstances, pay attention to heat elimination.

PRODUCT QUESTIONS:

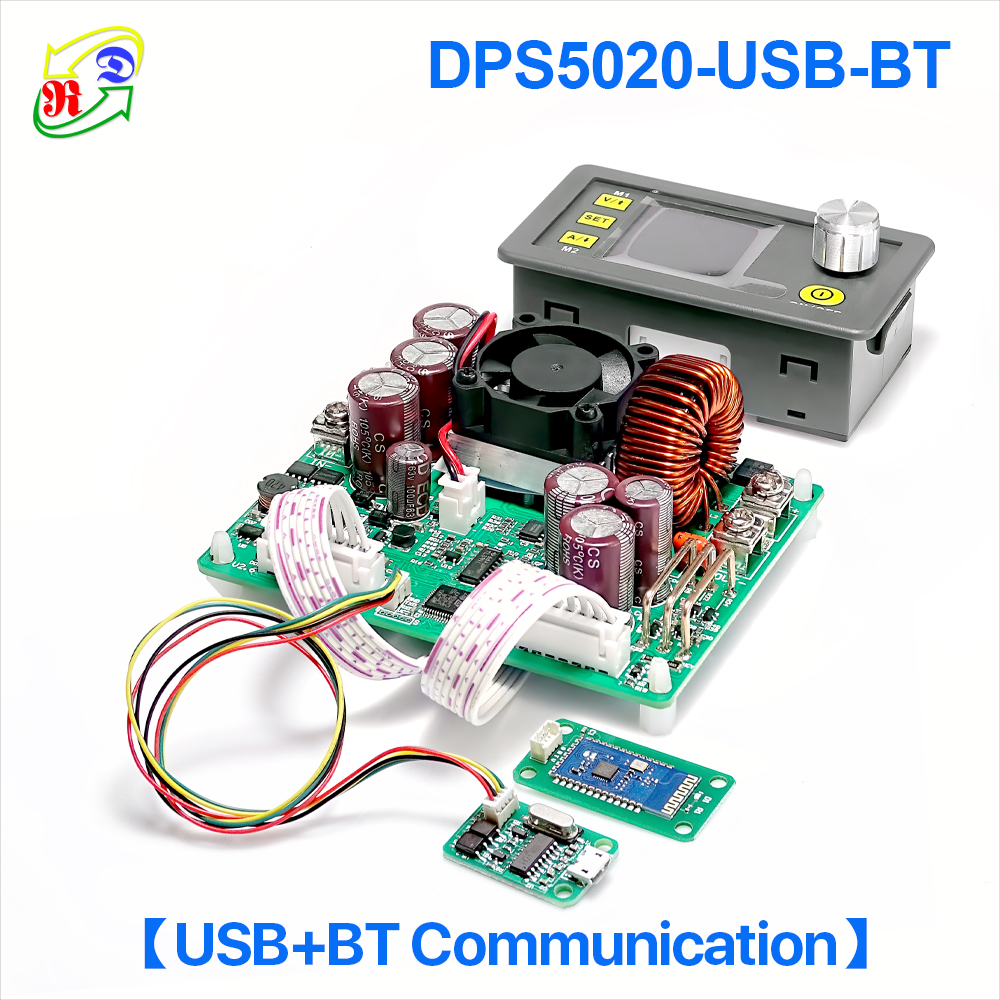

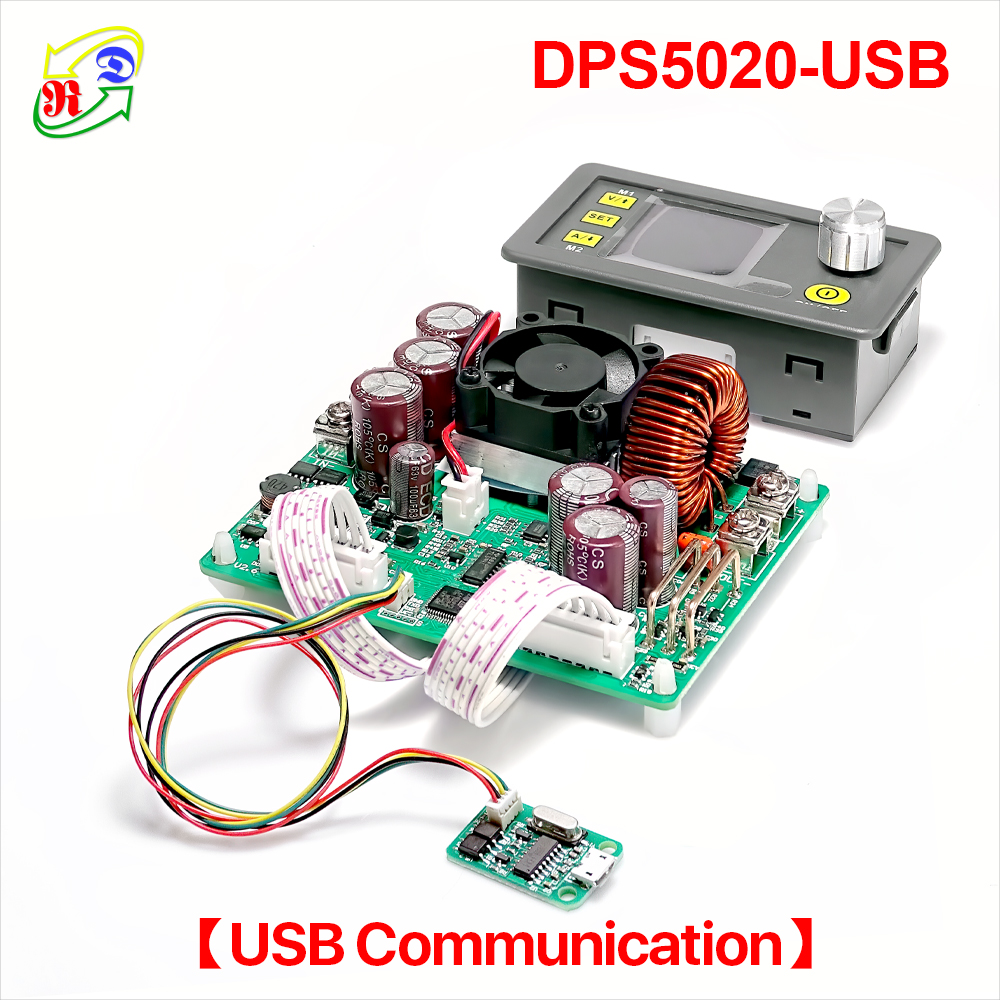

1.Q: What is the differences between DPS5020, DPS5020-USB and DPS5020-USB-BT?

A:There are 3 version, No communication version(DPS5020), communication + USB version(DPS5020-USB), communication + USB+ BT (DPS5020-USB-BT).you can only select the Bluetooth connection or USB connection, because the Bluetooth board and USB communication board can only be used alone,For no communication version, there is no commnunication program and hardware to support, not any communication function, can't be updated.


2. Q:Can I buy several devices and use them in series or in parallel to get higher output voltage or current?

A: Our products can only be used alone, their output must be used isolated, not in series or on parallel, otherwise the device will be burnt.


3. Q: Can I use it to power on inductive load?

A: If you connect inductive load (such as motor), the max working current is 1/3 of range. don't exceed it.


4. Q:What is the correct way to use this device?

A: Before using, please connect all wire well first, then turn on the input power supply, not turn on the input power supply first, then connect the wire. Otherwise it will cause the fuse and MOS damaged.


5. Q:what should I notice when I get it?

A:when you get the product in the first time, please don't use your hands to touch the components, because human static electricity can damage some chips.


6. Q: can I use AC to DC converter or transformer to power on it?

A:if you use AC-DC converter or transformer coil, please add rectifier (rectifier bridge) and filter (more than 4700uf filter capacitor). If input power supply is unstable, please add LC, L is over 47uH, C is over 2200 uf.


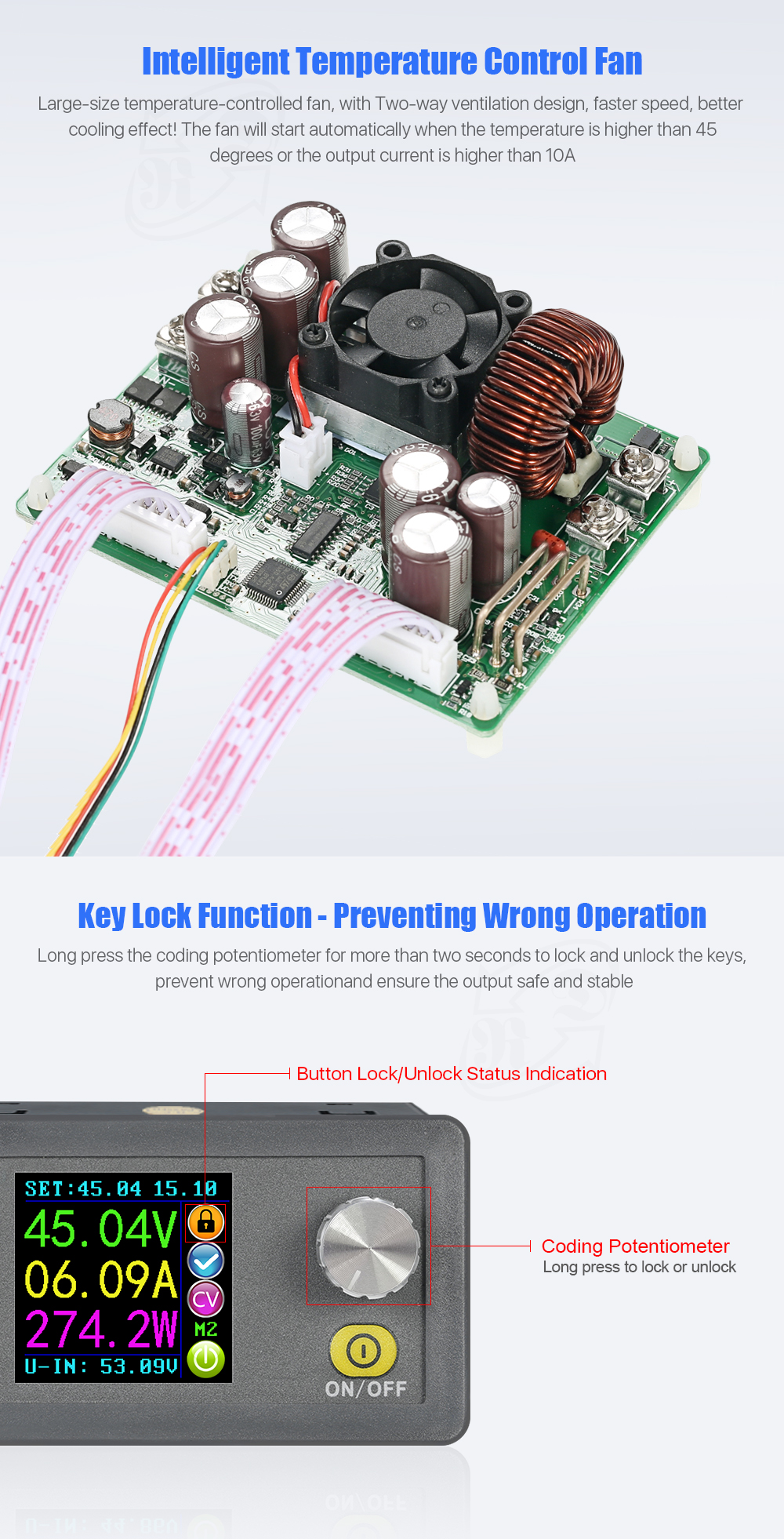

7. Q: how does the fan on the power board work?

A:When the current is more than 10A or the temperature is more than 45 °c , the fan will begin to work. when the temperature is more than 65°c, the module will stop working


SOFTWARE QUESTIONS:

1. Q: what is the software crash problem?

A: Compatibility Issues

①There may be incompatibilities problems of the PC software with some Windows systems, if you really need it, please install and test the software before buying the product.

②There are many types of mobile phones and operation systems, so there may be incompatibilities, if you need APP, please install and test the APP before buying the product.

③If you don't test the PC software and APP function before buying and find that the products works fine except the PC software or APP, we refuse to refund.

④Please do install and test the APP if you use Samsung mobile phone.


DPS3005

DPS5005

DPS5015

DPS5020

DPH5005

DPS8005

Working mode

Buck

Buck

Buck

Buck

Buck-

Boost

Buck

Buck

Buck

Buck

Buck-

Boost

Buck

Input voltage

6-55V

6-40V

6-40V

6-40V

6-40V

6-40V

6-55V

6-60V

6-60V

6-50V

10-90V

Output voltage

0-50.00V

0-32V

0-32V

0-32V

0-32V

0-32V

0-50.00V

0-50.00V

0-50.00V

0-50.00V

0-80V

Voltage resolution


0.01V

Output current

0-5.000A

0-5.000A

0-3.000A

0-12.00A

0-5.000A

0-5.000A

0-5.000A

0-15.00A

0-20.00A

0-5.000A

0-5.000A

Current resolution

0.001A

0.001A

0.001A

0.01A

0.001A

0.001A

0.001A

0.01A

0.01A

0.001A

0.001A

Fan

NO

NO

NO

YES

YES

NO

NO

YES

YES

YES

NO

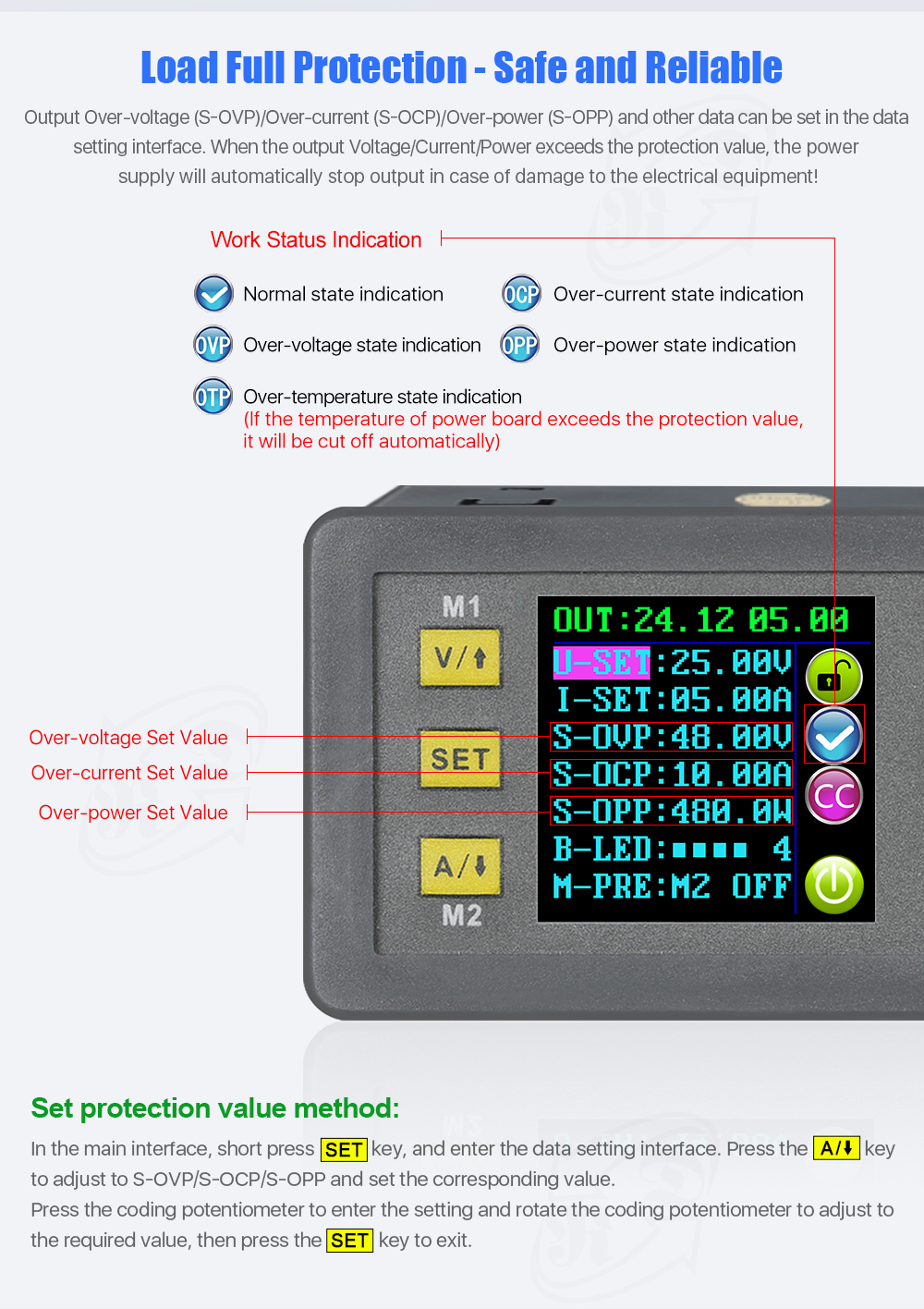

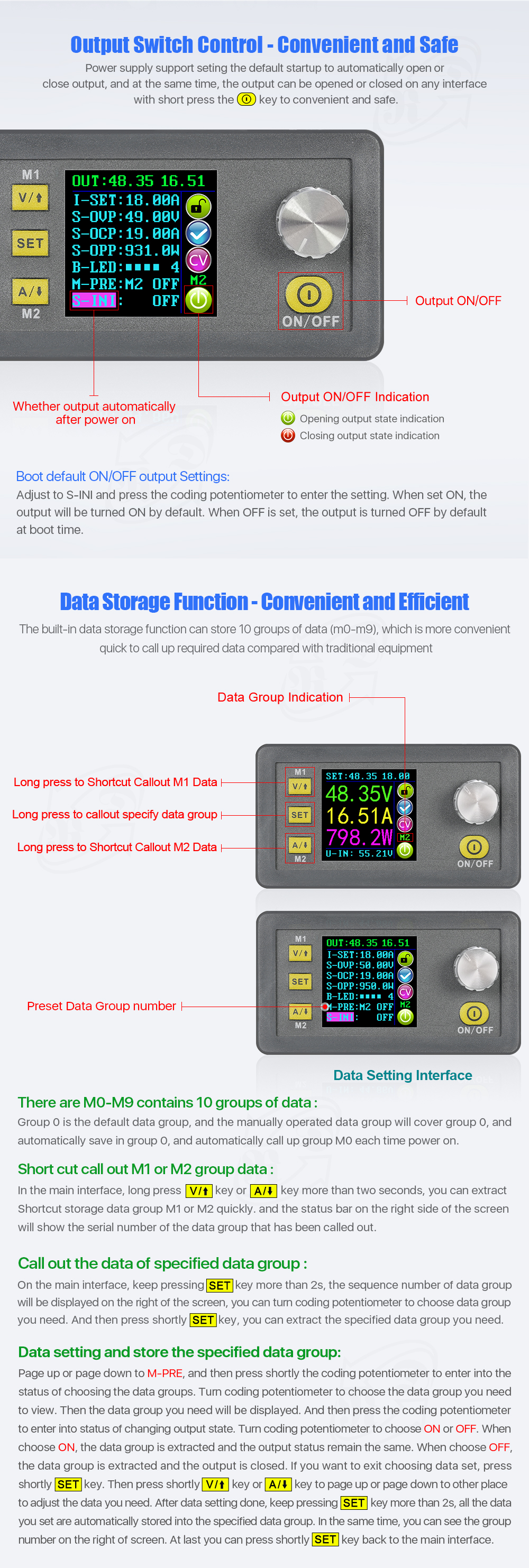

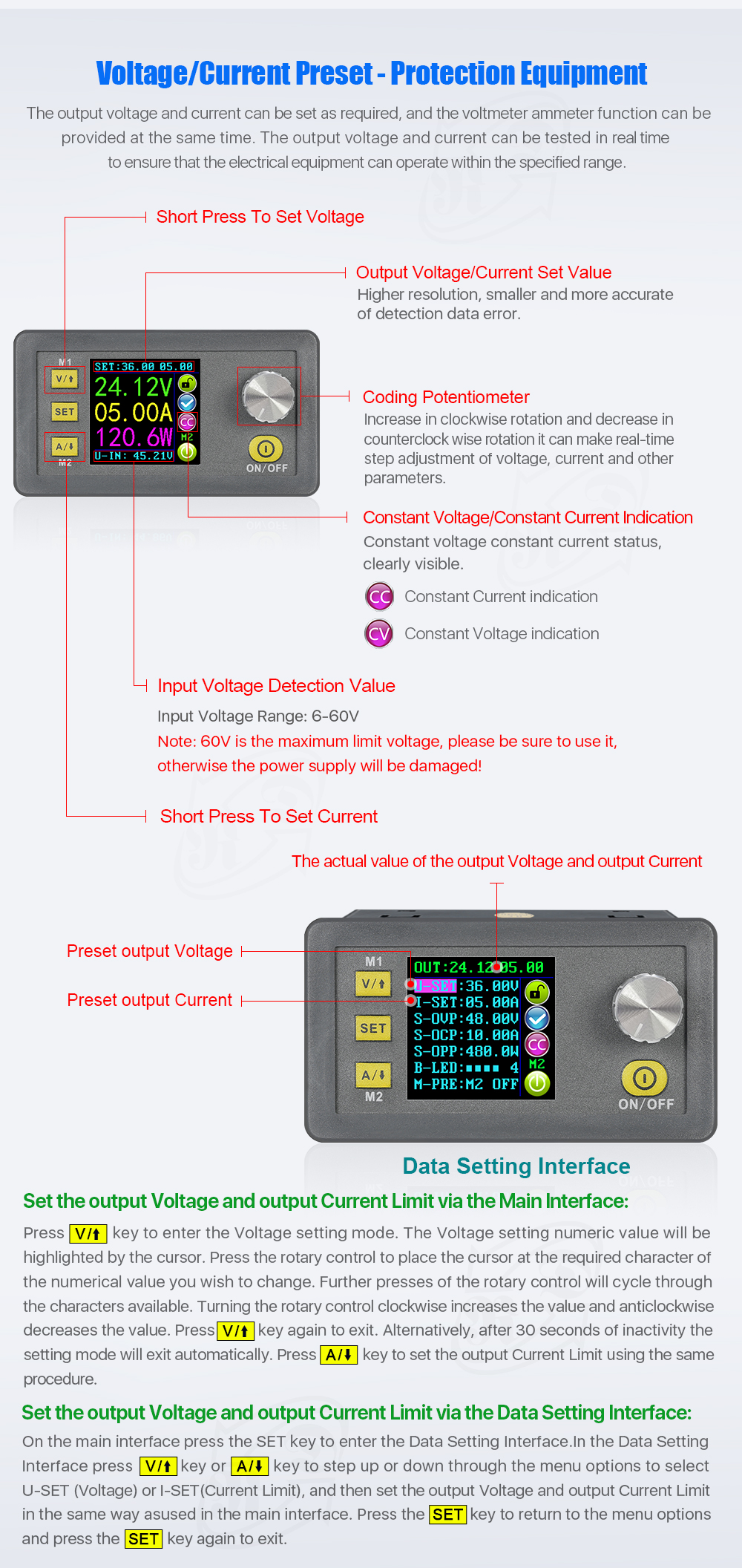

Function

·Presetoutput voltage / current(in two places by SET KEY)

·Presetprotection value

·6 running status icons

·Key lock

·Data setting and store the specified data group

·Store shortcut storage value

·Exact shortcut M1 or M2 or specified data group

·Adjust LCD brightness

·Open or close output

·10 data groups

·Preset  output voltage / current(in two places, by V,A button and SET KEY)

·Preset protection value

·6 running status icons

·Key lock

·Data setting and store the specified data group

·Store shortcut storage value

·Exact shortcut M1 or M2 or specified data group

·Adjust LCD brightness

·Open or close output

·10 data groups

·Set default boot open or close output


Difference

between

DP,DPS

and DPH

1.DPS series are updated version. Panel is different. In DPS series, we change the M1/↑and M2/↓ into V/↑and A/↓. You can press those buttonsto set the voltage and current fast. We add a new function “set default boot open or close output”Others are not changed.

2.All those power supply can charge the battery directly, don't need external diode. When charging battery, don’t connect battery polarityreversely , otherwise, power parts will bunt.

Find the difference between DPS and DP see this video https://www.youtube.com/watch?v=ptt931rrXo8

3.DP power supply and DPS power supply are all buck (step-down) converter.  But DPH3205 and DPH5005 arebuck-boost (step-down and step-up) converter .

4. DPS3005, DPS5005 DPS5015, DPS5020, DPH5005 and DPS8005 have communication version. You can connect PC and use upper computer




  • Current: Other
  • Origin: Mainland China
  • Brand Name: RD
  • input voltage: 6-60V
  • output voltage: 0-50.00V
  • output current: 0-20.00A
  • work mode: buck only
