PowMr MPPT Solar Panel Charger Controller 20A 30A 40A 12V 24V Auto LCD Display Fit for AGM Gel Flooded Lithium Batteries Charger
4.8 (290 votes)
Price:
US $111.06 - 300.35
/ piece
Discount Price:
US $
51.32 -
131.61
/ piece
-54%
- Ships From
PowMr MPPT Solar Panel Charger Controller 20A 30A 40A 12V 24V Auto LCD Display Fit for AGM Gel Flooded Lithium Batteries Charger
Dear, we're supports Whoesale, if you need more, please feel free to conatct us:)
Introduction
Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.
Features

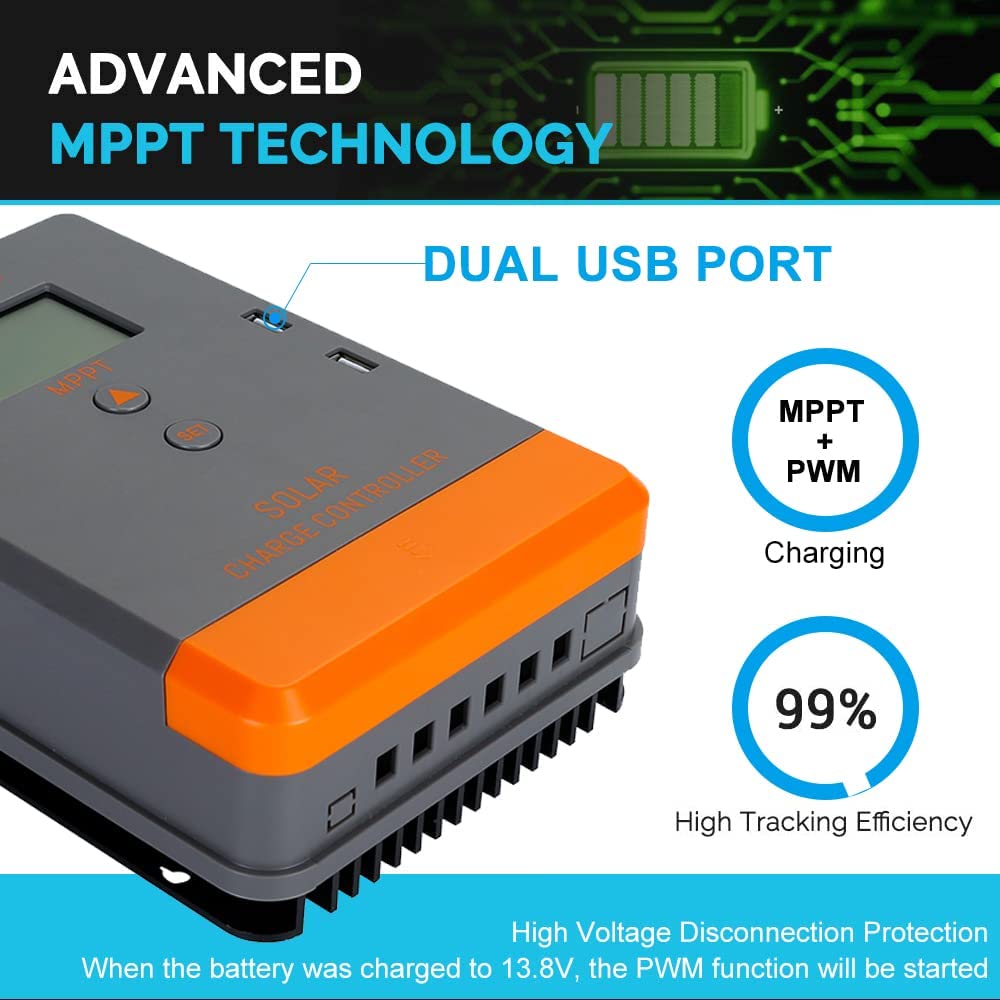

1.Advanced MPPT maximum power point tracking technology, the tracking efficiency is no less than 99.5%.
2.High quality components are used to improve the system performance, and the maximum conversion efficiency can reach97%.
3. Super fast maximum power tracking speed while ensuring tracking efficiency.
4. Accurate identification and tracking of the maximum power point of multi-wave peak.
5. Reliable maximum input power of pv array to ensure the safety of equipment.
6. Wide pv array maximum power point operating voltage range.
12/24v automatic voltage identification
7. The LCD is designed to dynamically display the operation data and working status of the equipment.

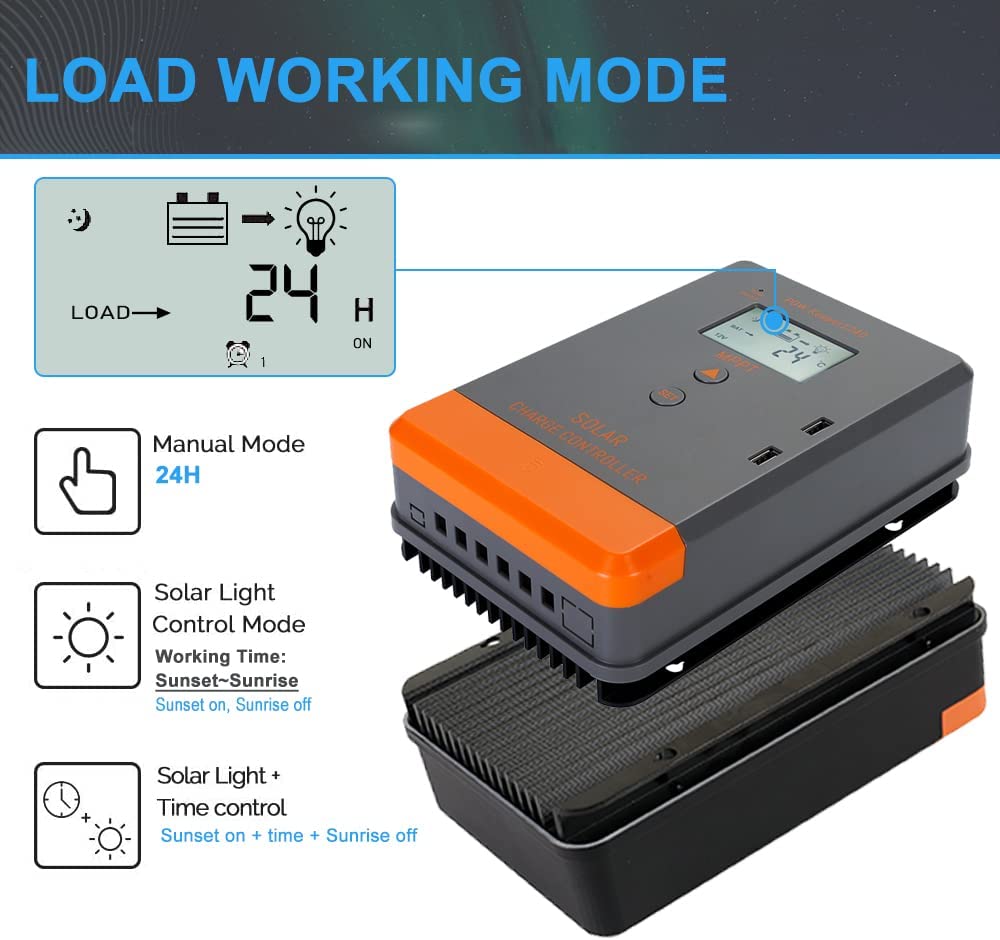

8. Various load control modes: general mode, light control mode, dual time mode, pure charger mode and timing mode.

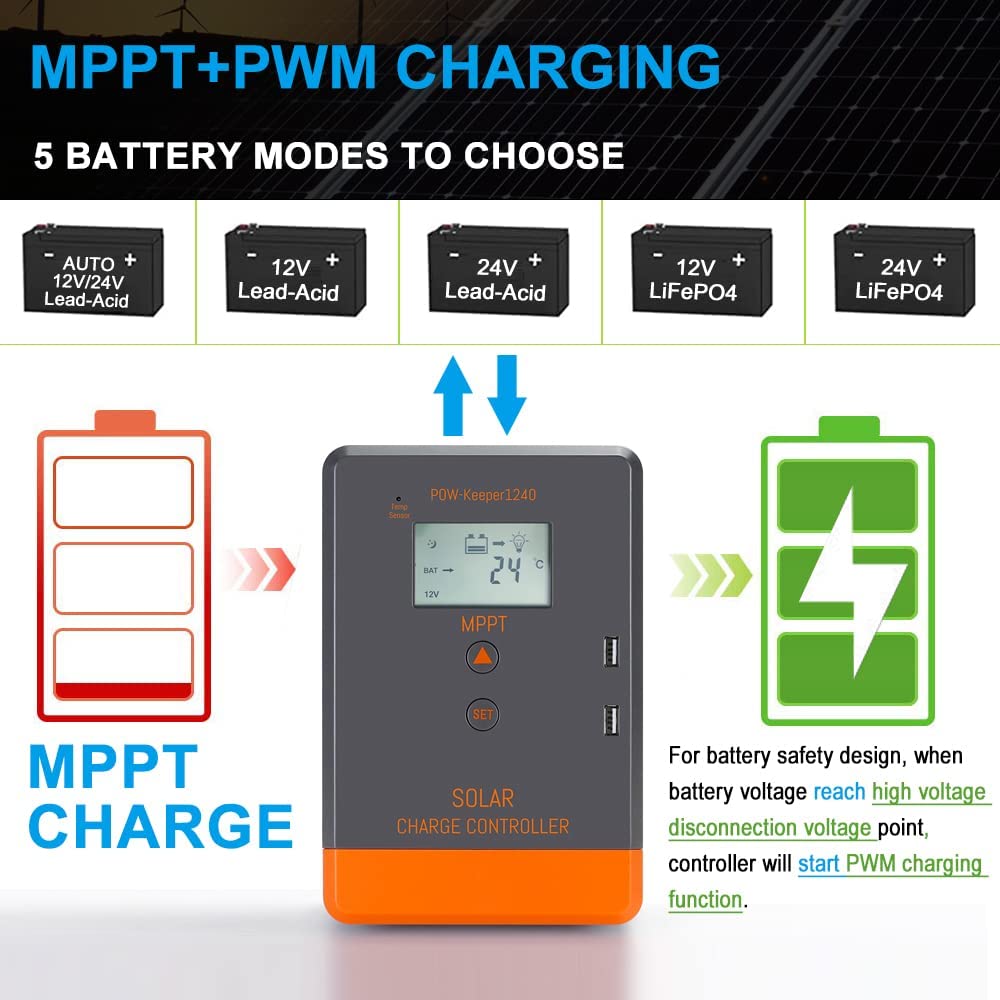

9. Seal, GEL, Flooded, LifePO4 and Li(NiCoMn)O2 charging process can be selected.
10. The function of battery temperature compensation.
11. Power statistics recording function.
Specification
Rated Charge Current | 20A | 30A | 40A |
System rated voltage | 12V/24VAuto work | ||
Voltage range of battery | 8-32V | ||
Max open voltage of PV module | 50V | 75V | 100V |
Battery Type | User default，Sealed，Flooded，GEL，LiFePO4 | ||
Equalized charging voltage | Maintenance-fee lead acid battery 14.6V, GEL: No; Lead acid flooded battery:14.8V | ||
Absorption charging voltage | Maintenance-fee lead acid battery 14.4V, GEL:14.2; Lead acid flooded battery:14.6V | ||
Floating charging voltage | Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:13.8V | ||
Low voltage re-connection(LVR) | Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:12.6V | ||
Low voltage disconnection(LVD) | Maintenance-fee lead acid battery, GEL, Lead acid flooded battery:10.8V | ||
Static loss | ≤9.2mA 12V; ≤11.7mA24V | ||
High voltage disconnection(HVD) | 16V(24V×2) | ||
Duration of absorption charging | 2 Hours | ||
Light controlvoltage | 5V | ||
Charge loop voltage drop | ≤0.29V | ||
LCD Temperature | -20℃~+70℃ | ||
Operating Temperature | -20℃~+55℃(To run at full rated current continuously) | ||
Working humidity | ≤95% No condensation | ||
Protection class | IP30 | ||
Dimension(LxWxH)mm | 123×178×48 | 133×195×55 | 150×220×67 |
Installation hole size(LxW)mm | 108×120ȼ5 | 116×140ȼ5 | 132×130ȼ5 |
Product Overview

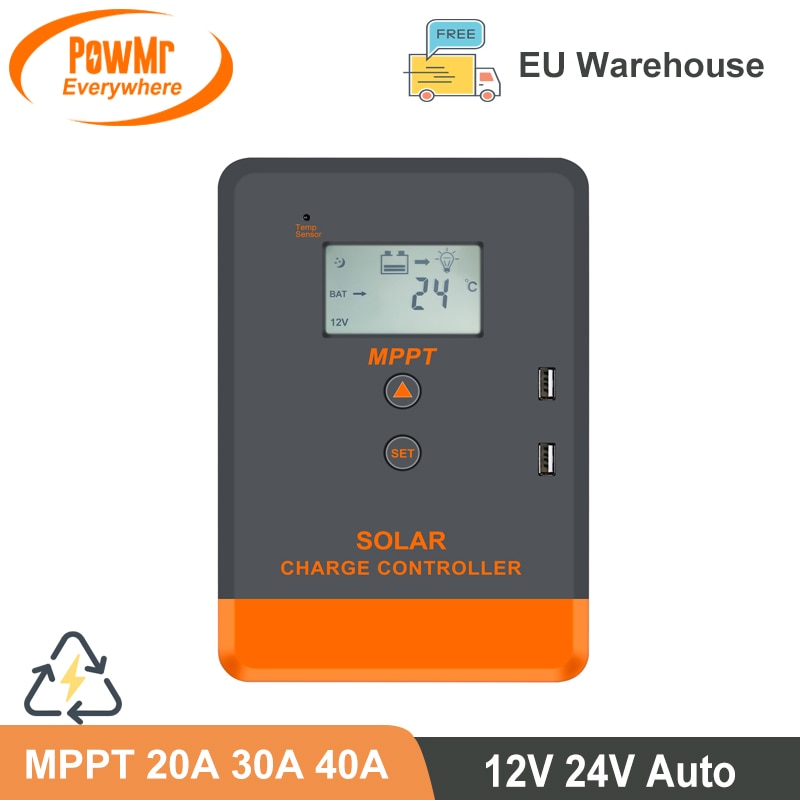

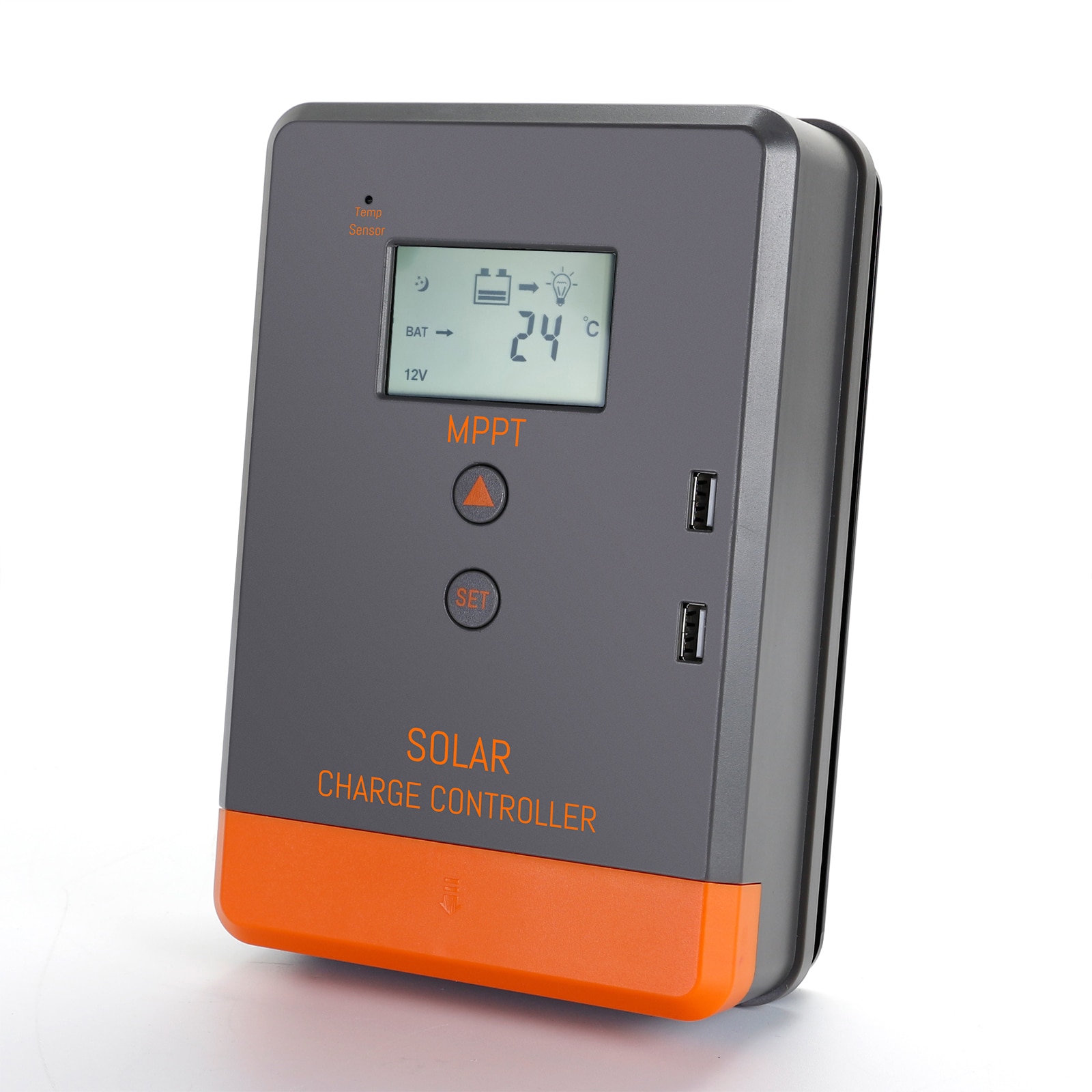

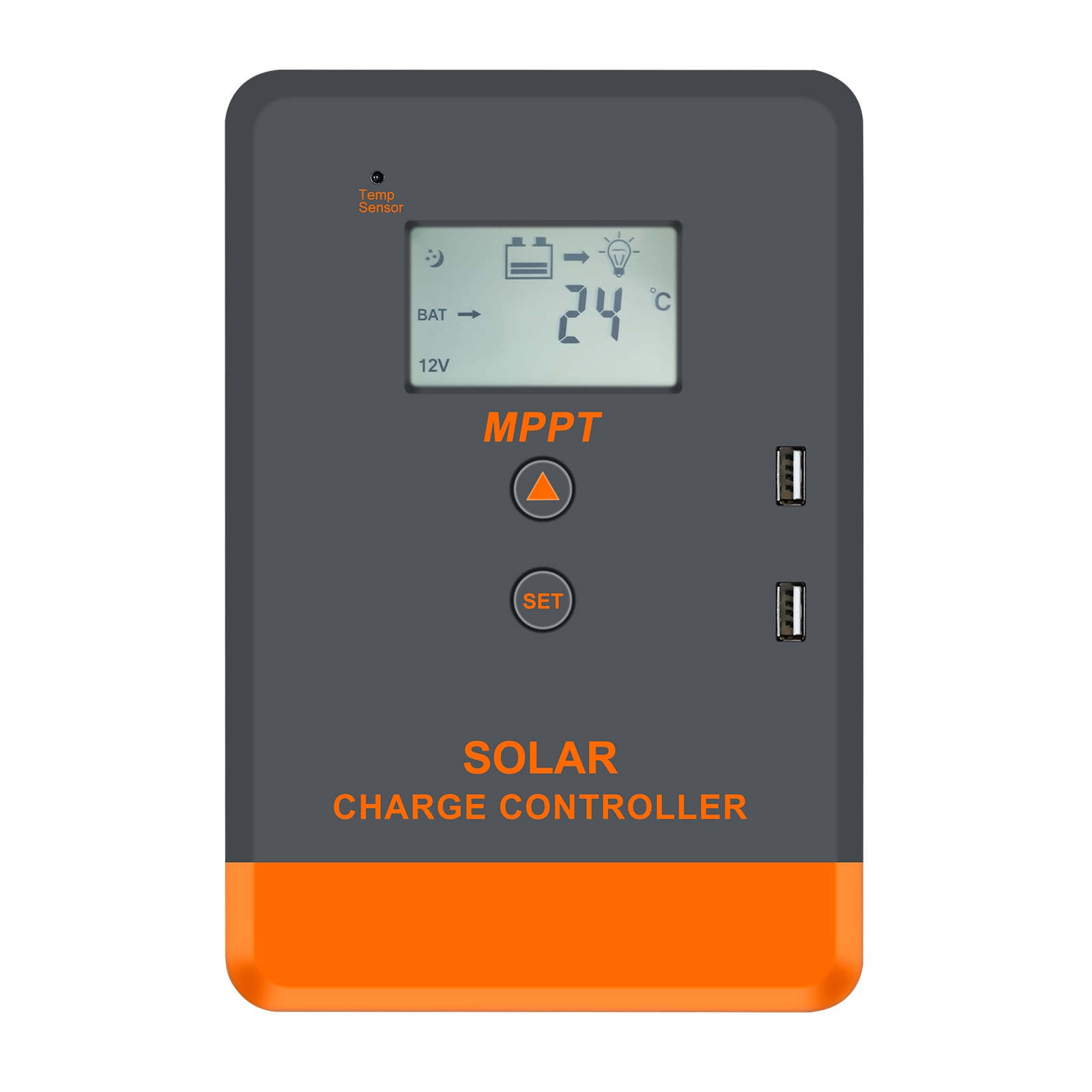

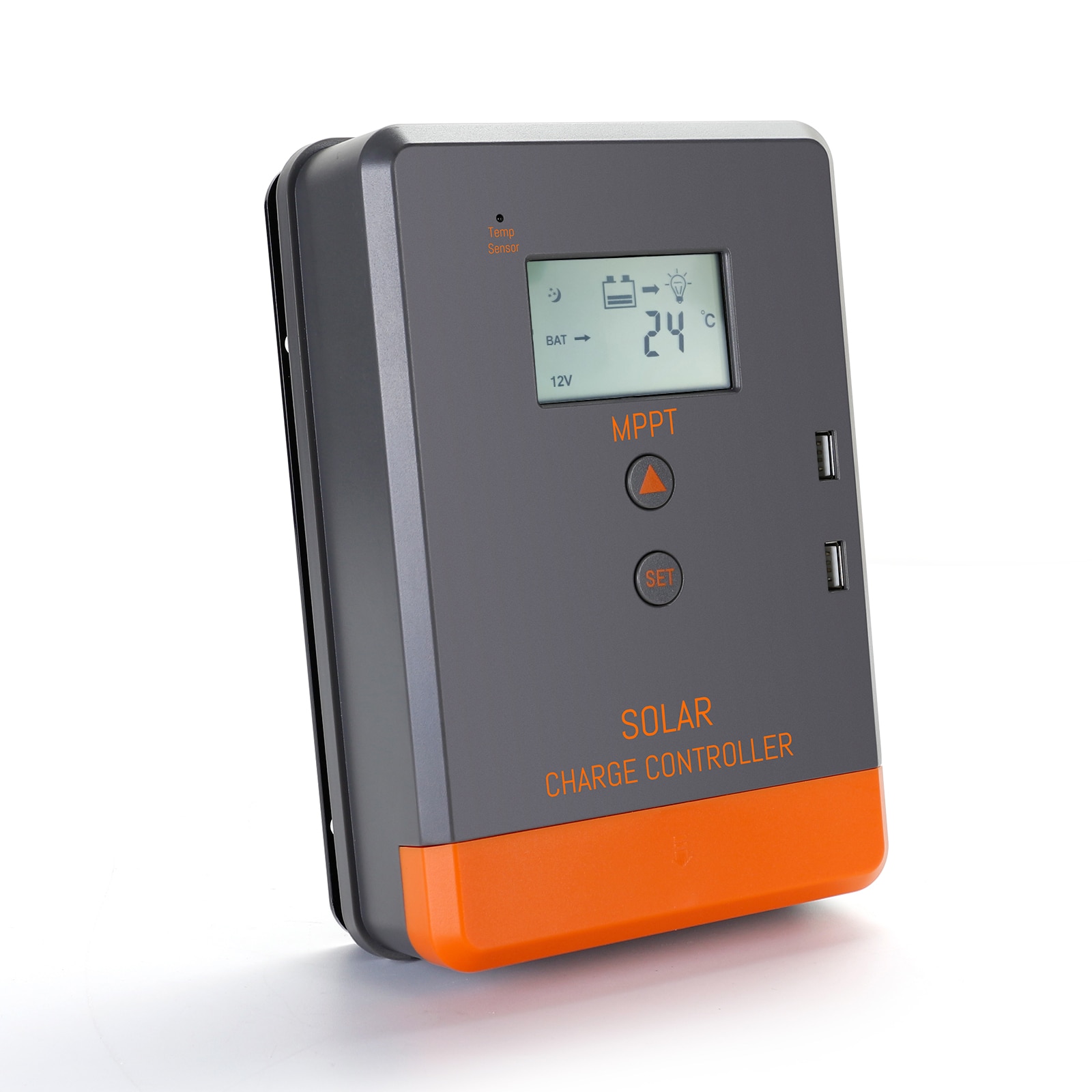

Item Picture
- is_customized: Yes
- Maximum Current: MPPT 20A 30A 40A

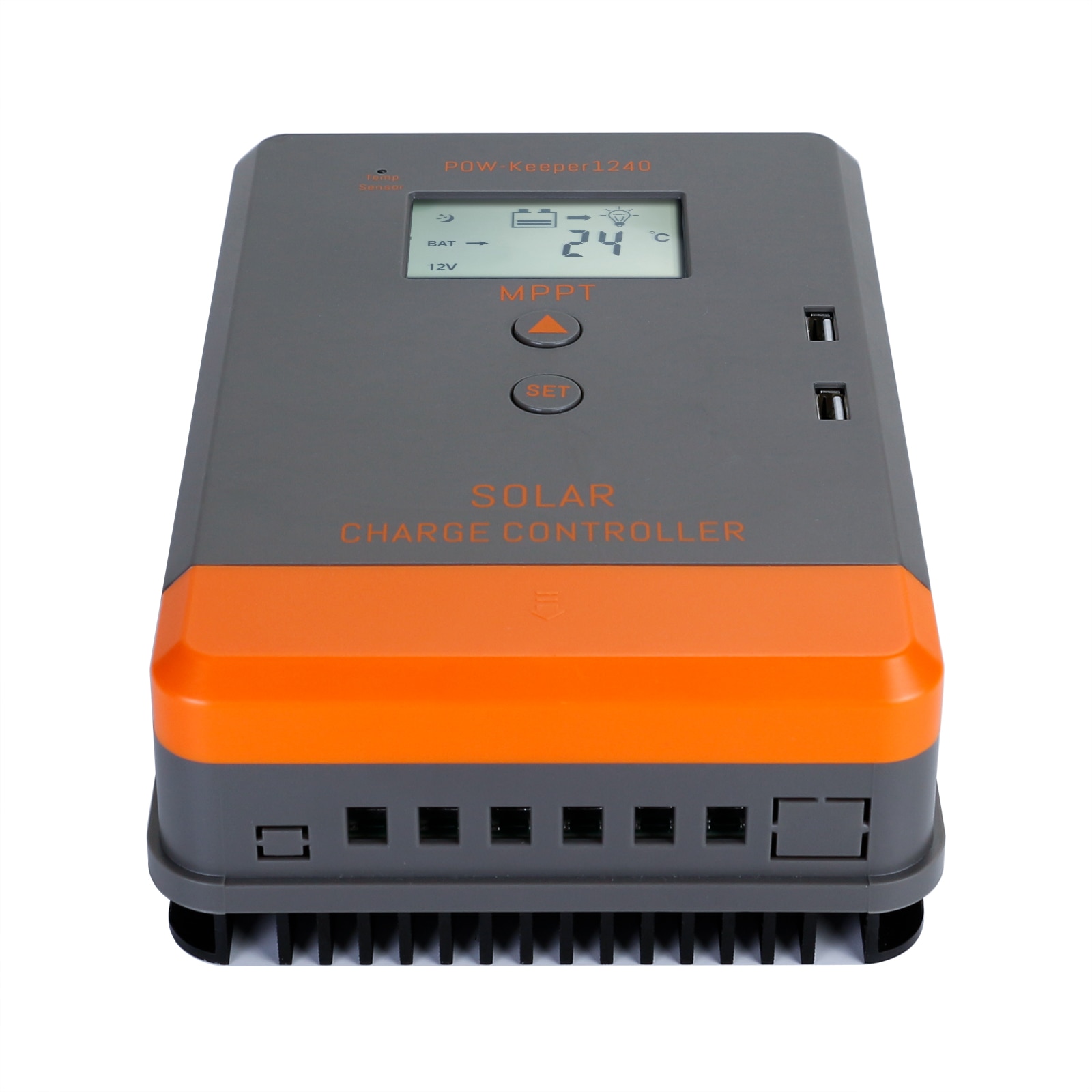

- Model Number: POW-Keeper1220/POW-Keeper1230/POW-Keeper1240
- Application: Charger Controller,Voltage Controller,Lighting Controller,Solar System Controller,Solar Working Station
- Brand Name: PowMr
- Origin: Mainland China
- Certification: CE
- System rated voltage: 12V/24V Auto work
- High voltage disconnection(HVD): 16V(24V*2)
- Voltage range of battery: 8-32V
- Duration of absorption charging: 2Hours
- Battery type: Seal, GEL, Flooded, LifePO4
- Feature 1: Support PC monitor
- Feature 2: MPPT Solar Charger
- Item 1: MPPT 20A Solar Controller
- Item 2: MPPT 30A Solar Controller
- Item 3: MPPT 40A Solar Controller
