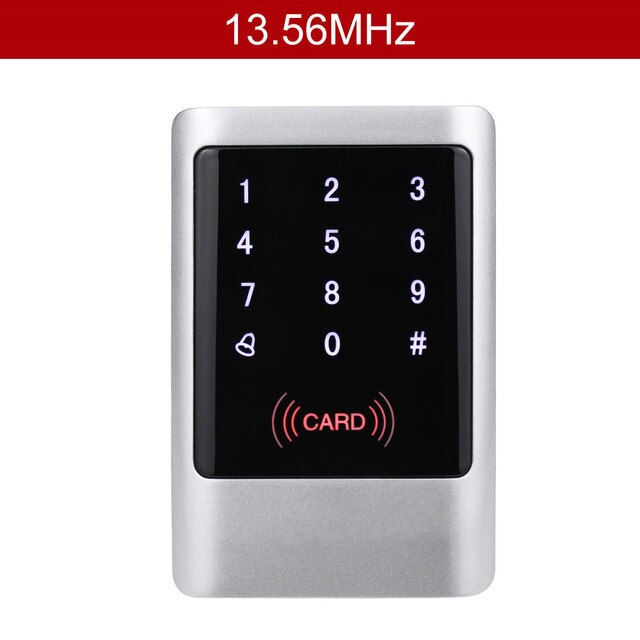

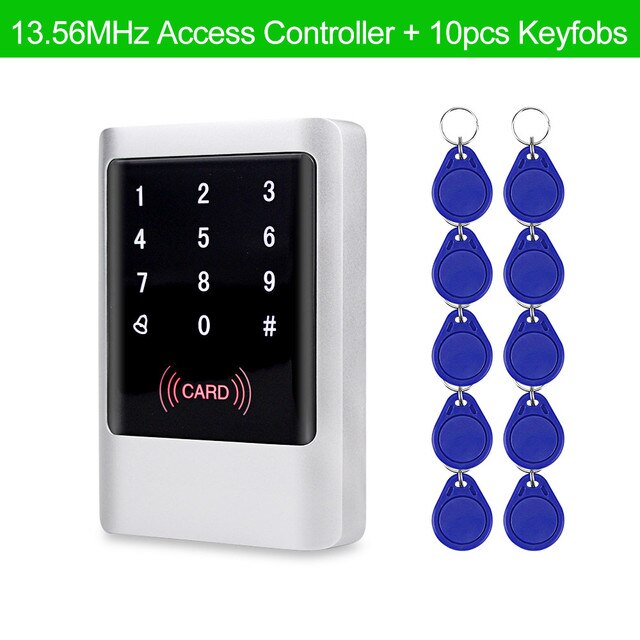

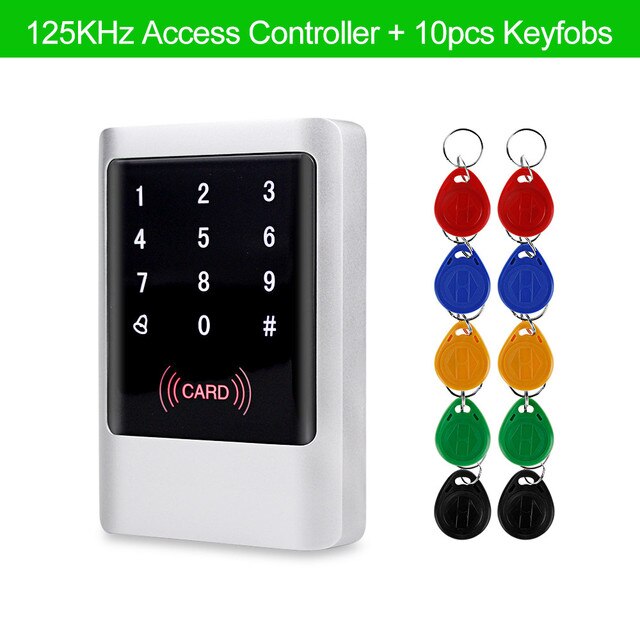

Metal Waterproof RFID 125KHz or 13.56MHz Standalone Access Control Keypad with Touch Screen Panel + 10pcs Keyfobs
0.0 ( votes) | 1 orders
Price:
US $75.47 - 84.13
/ piece
Discount Price:
US $
64.15 -
71.51
/ piece
-15%
- Color
-
-

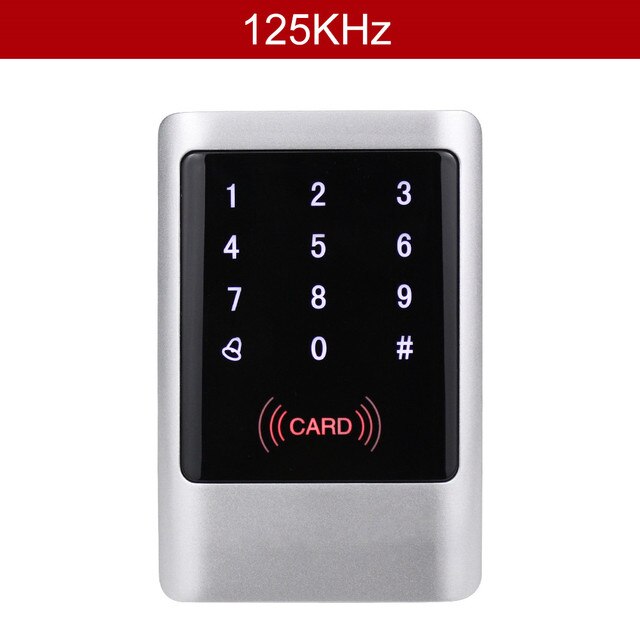

125KHz RFID Standalone Access Control Keypad
High quality / 4000 user capacity / 3 unlock method
Product Features:
All-metal case design(zincalloy).Organic glass panel (Acrylic touch screen).
IP65 waterproof /rainproof, can be used under the rain directly, can be installed outdoor.
4000 user capacity for storing and reading to provide a powerful security, the high-grade built-in microprocessor
with strong anti-interference ability,high safety and reliability.
External Wiggins dummy: WG26 input and output.
Can set up management cards(Deleted card and added card).
Support three opening way : password, credit card, card +password.
Has a door bell buttonCE certification
Product Specification:
Memory capacity：4000users
Card type (alternative)：EM(ID) card(IC card for options)
Card reading distance：1一5CM
Operating voltage：DC 12V土10%
Operating current：< 100mA
Ambient temperature：-20℃- 70℃
Relative humidity：20%- 80%
Door bell button: 1
Waterproof function: IP65 waterproof, can be installed outdoor.

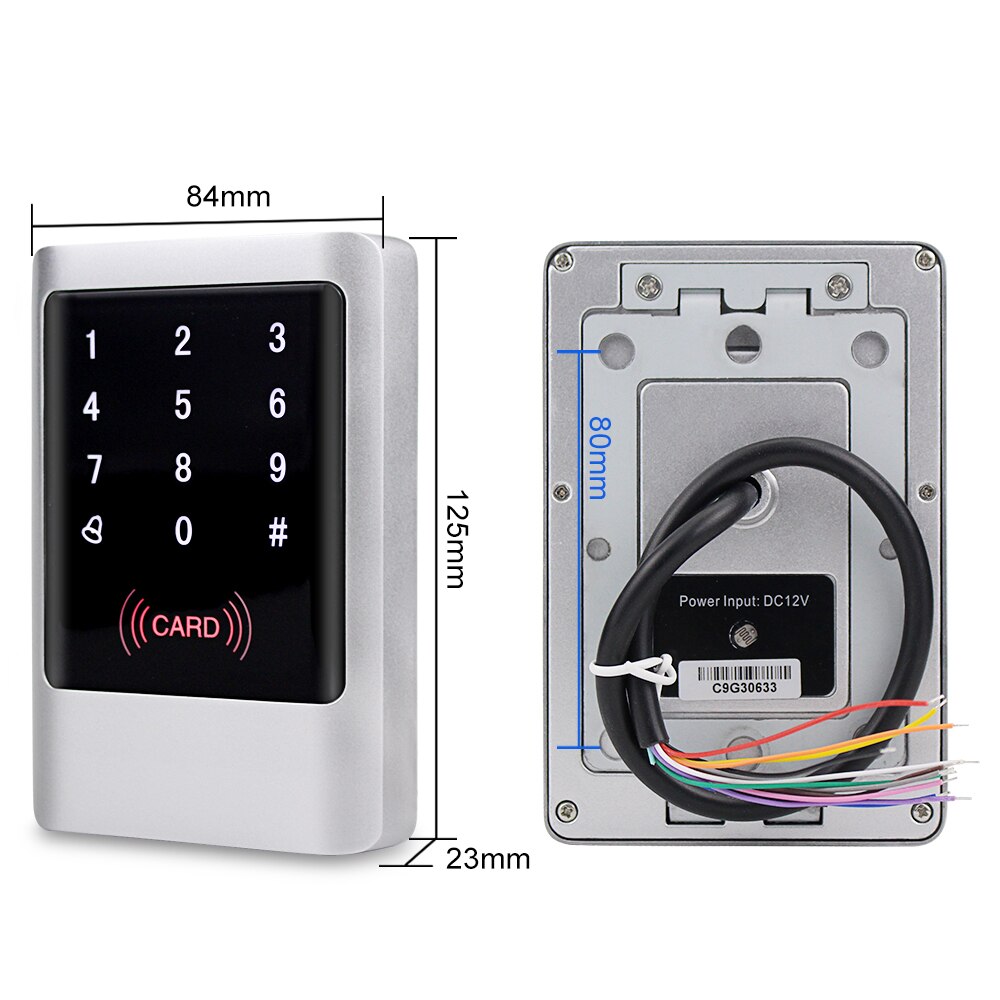

Dimensions：125mmx 84mm x 23mm
Weight：360g

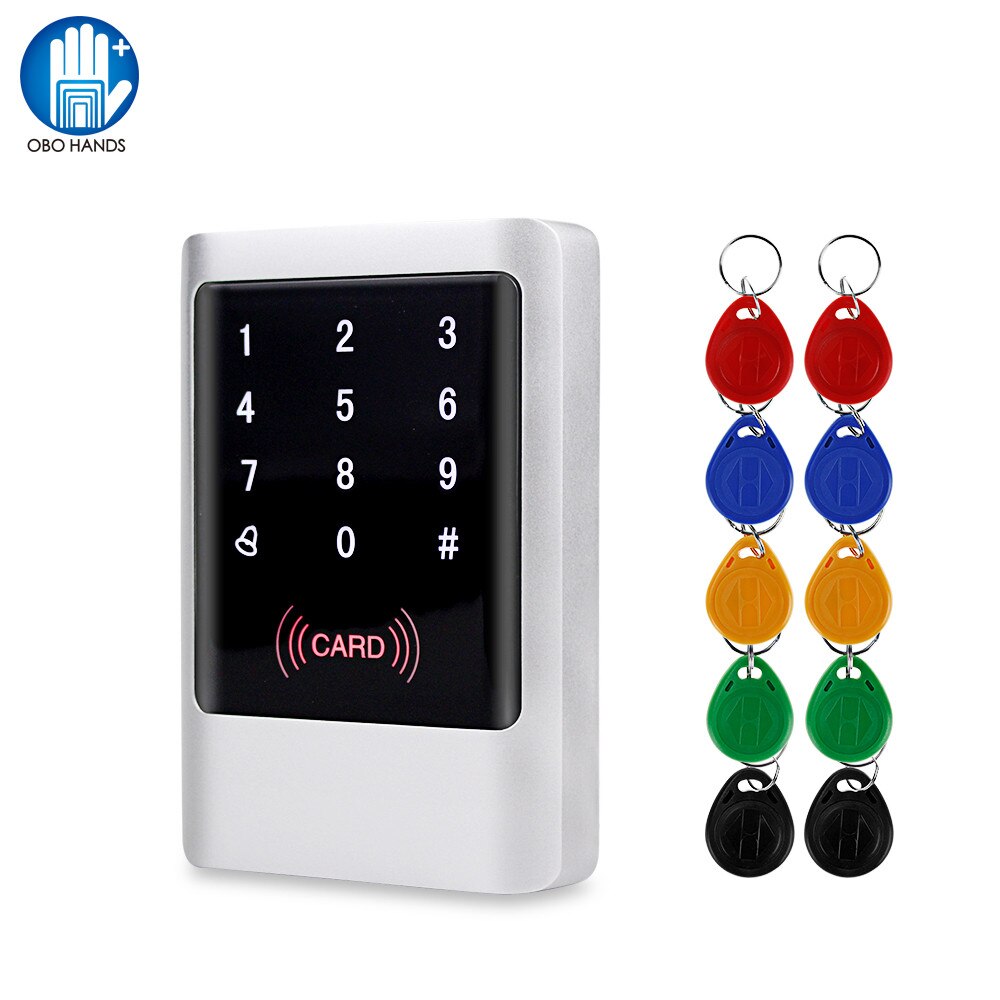

Product including : 1 RFID Keypad + 10pcs RFID Keyfobs ONLY,not including power supply, lock, exit button.

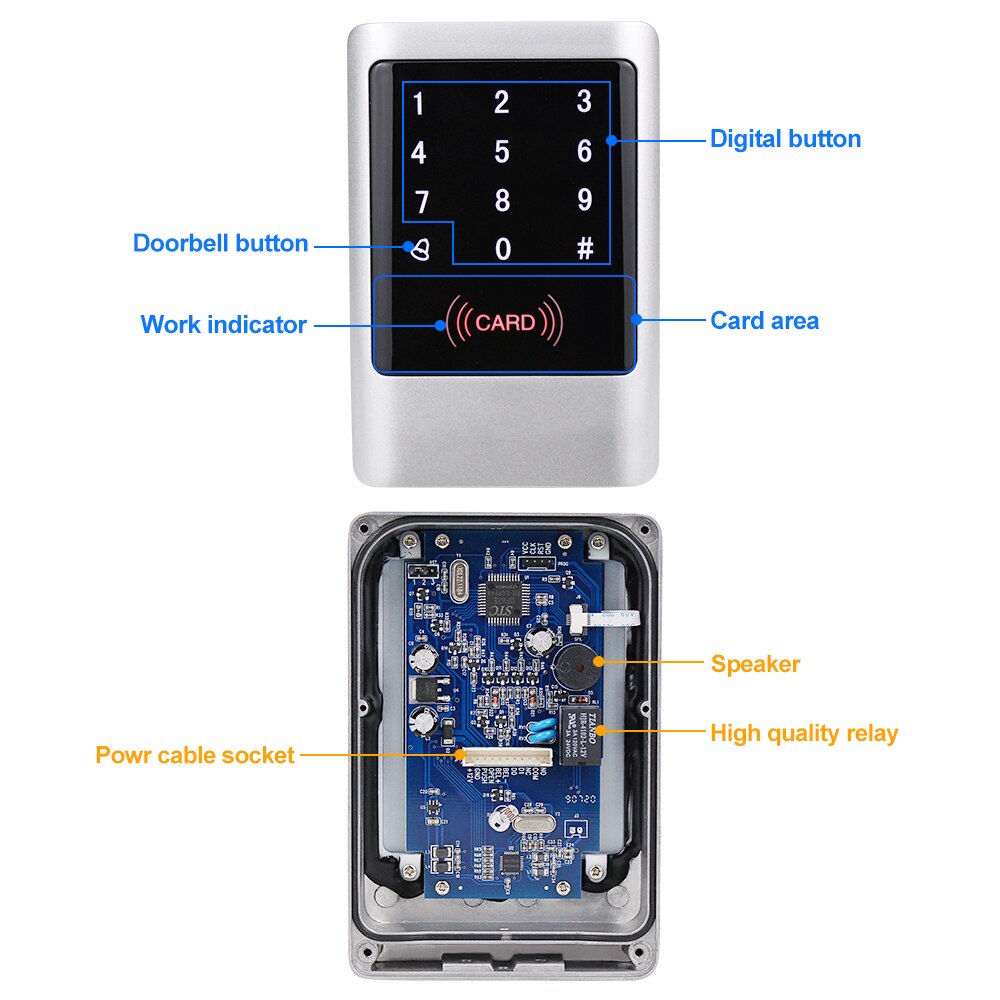

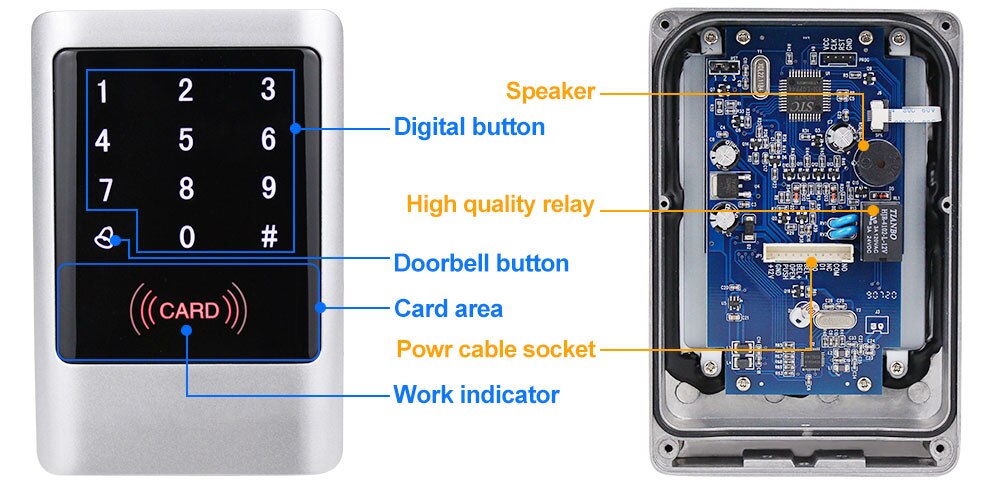

Product Details:

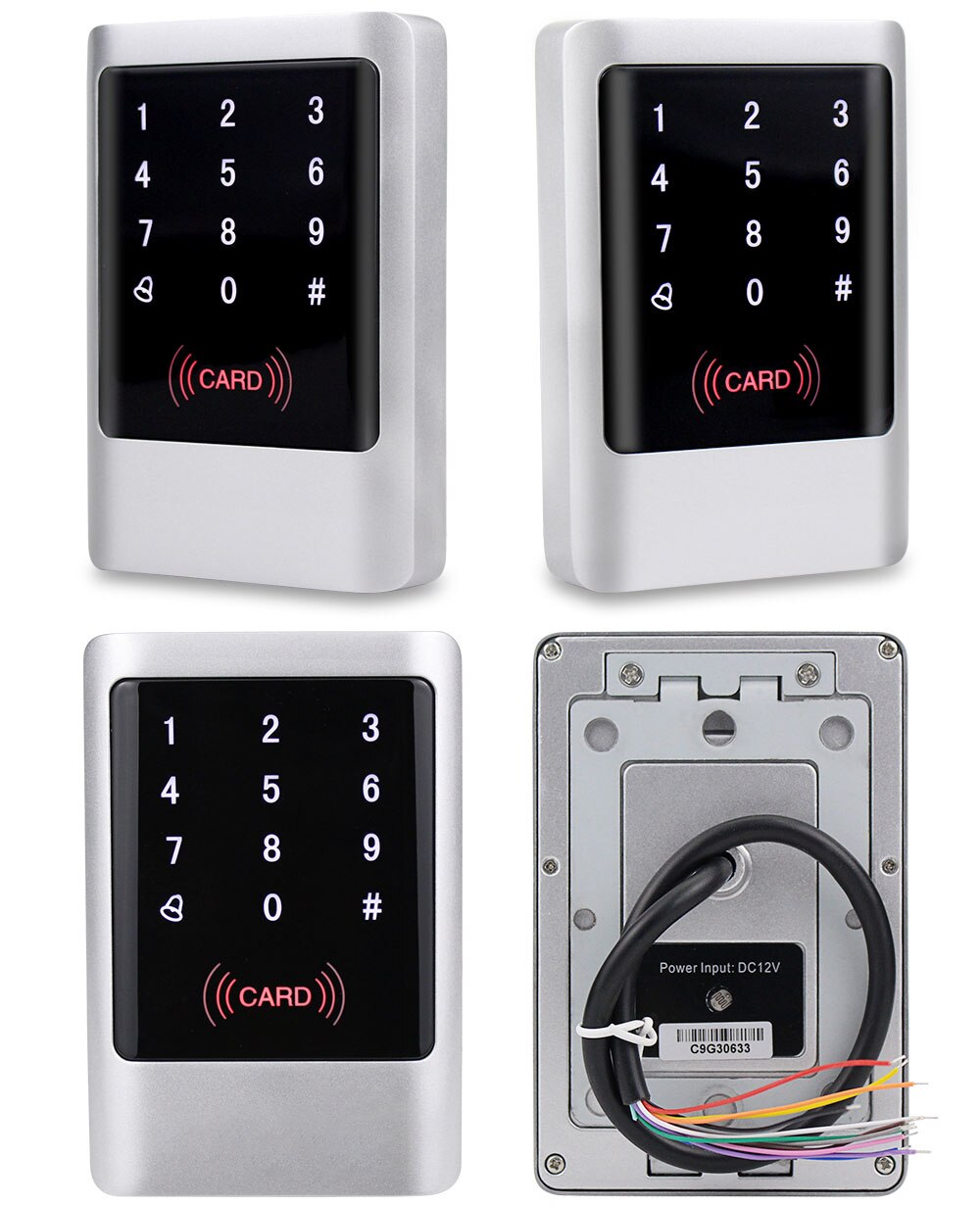

Metal structure, safe and durable
Eco-friendly zinc alloy, make the product more secure and durable, anti-vandal, anti-tamper, suitable for different enviromental installation.

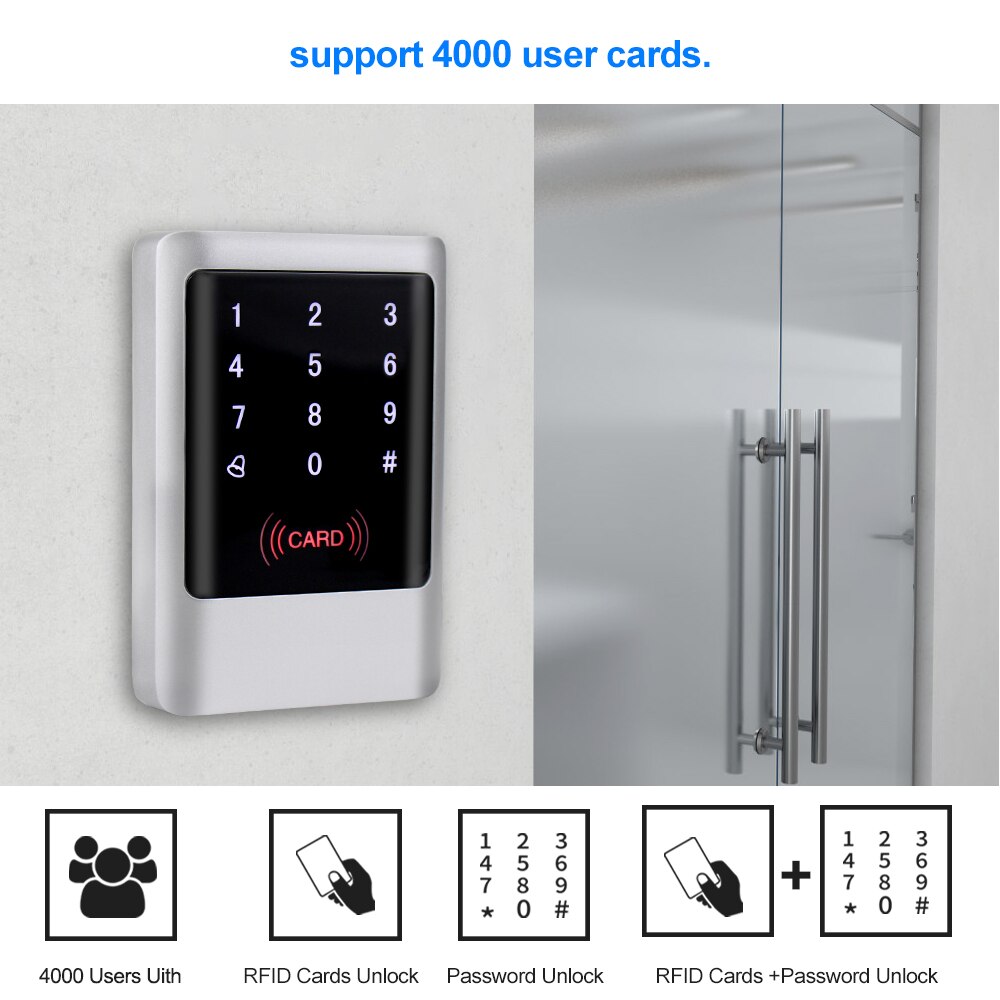

Support 4000 user cards and 4 digits password. Has 3 different unlock method.
Date copy function help you to save time to program.

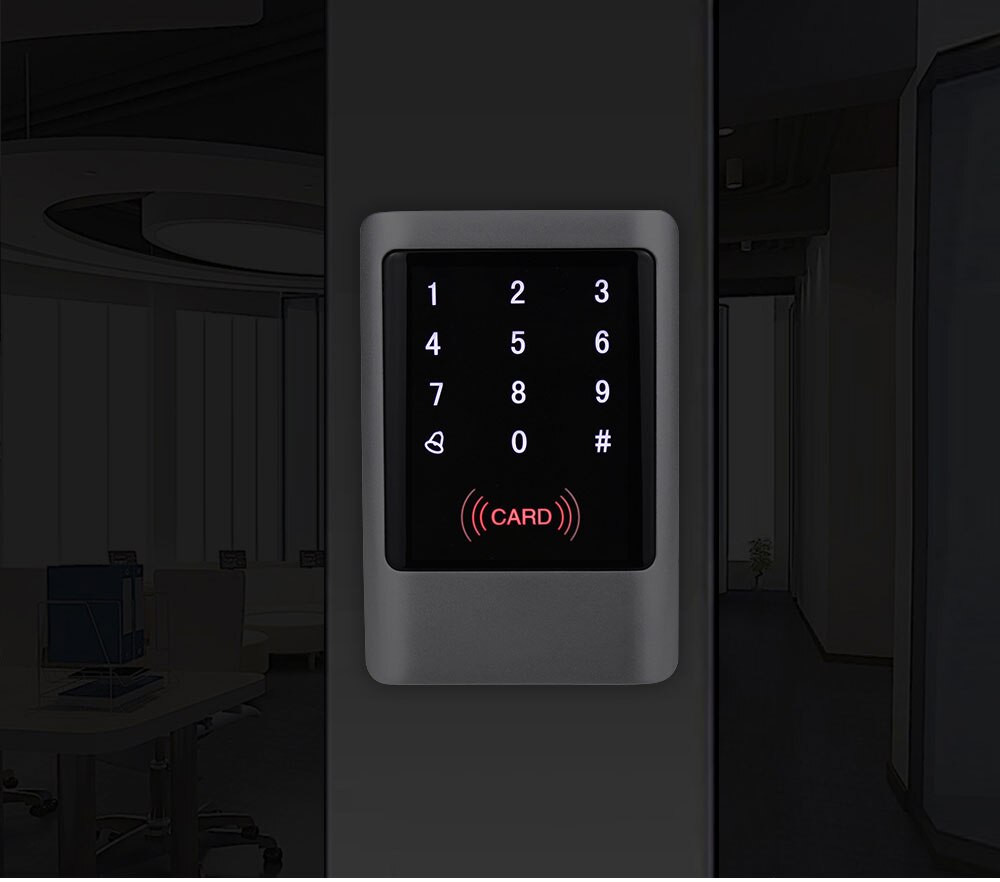

Backlight / Has Door bell button
Can see the digits number even at dark. Can install a DC12V door bell to this keypad
Easy install and operation
Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

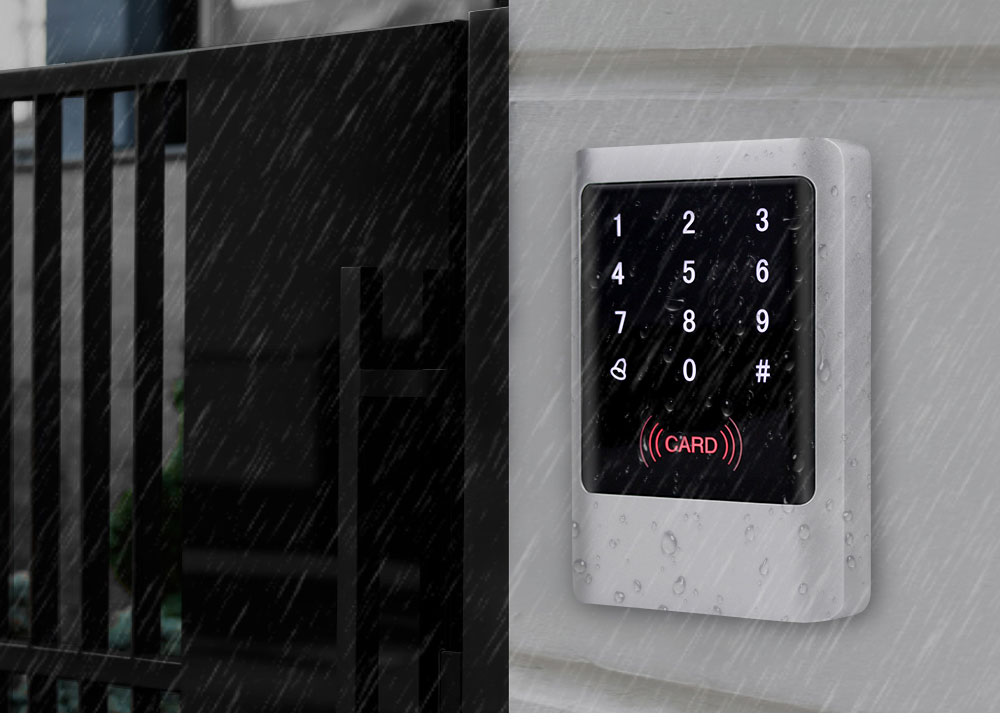

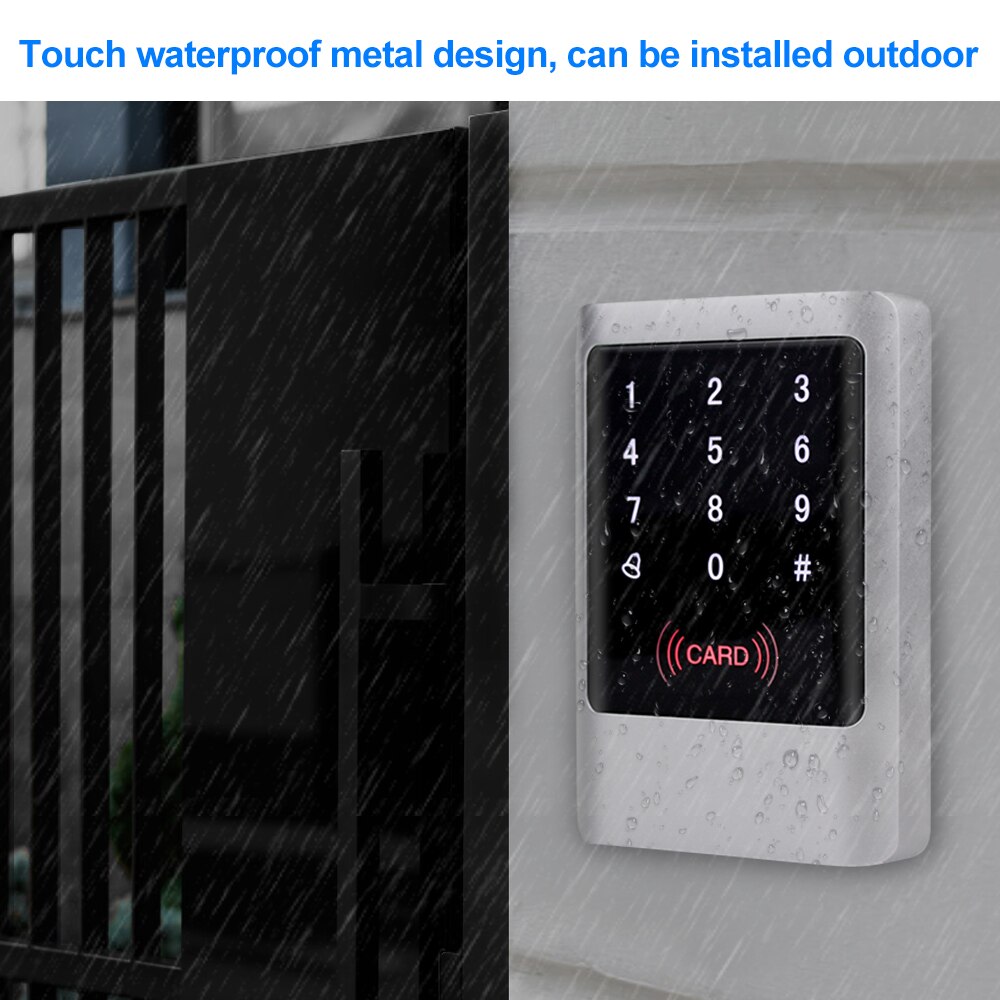

Touch waterproof metal design, can be installed outdoor

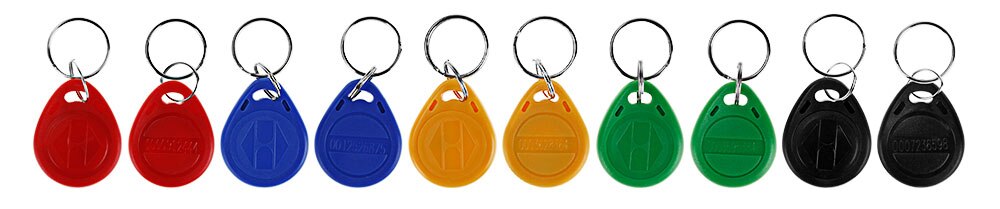

RFID Keyfobs (Optional)
You can read these keys on the access controller keypad to open the door convenient.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Red X2, Blue X2, Yellow X2, Green X2, Black X2
Quantity: 10pcs ( If you want more, please contact us )

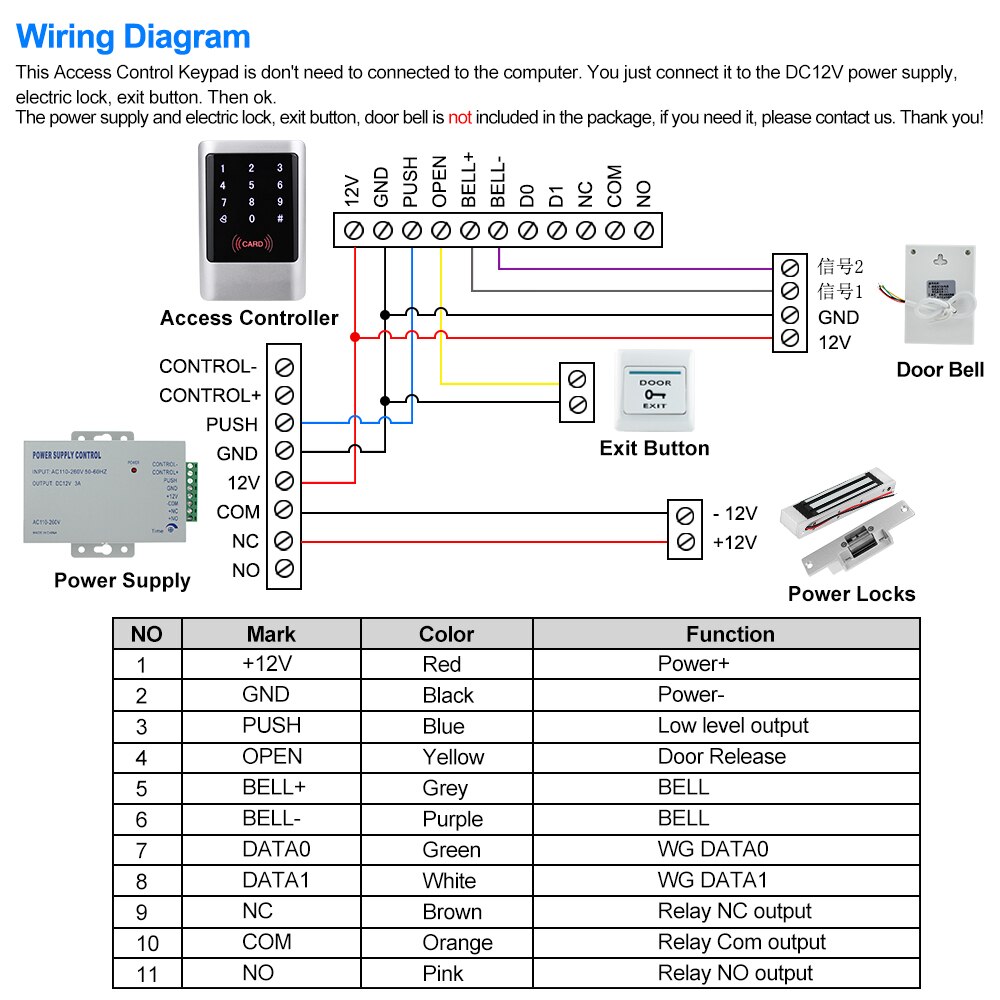

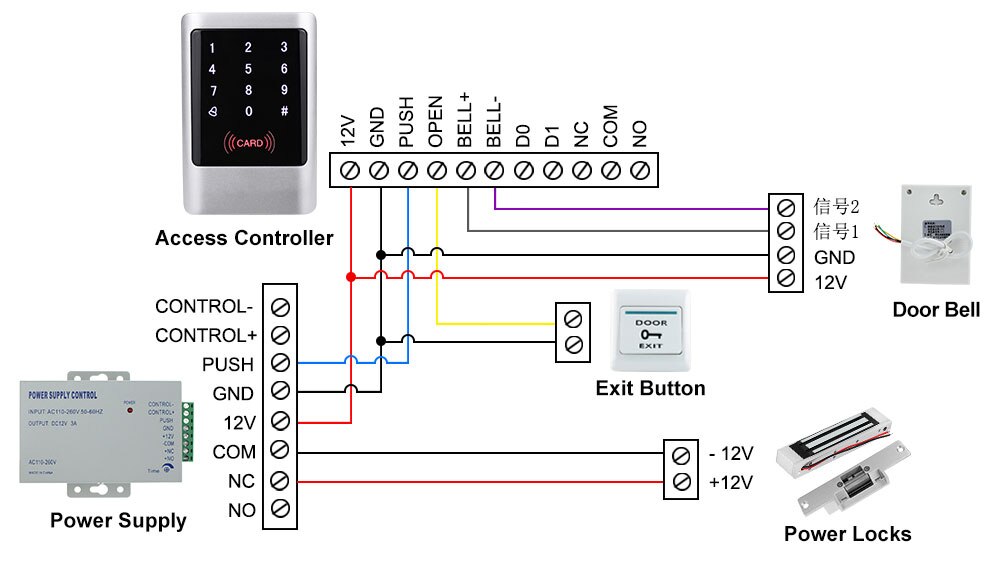

Wiring Diagram
This Access Control Keypad is don't need to connected to the computer. You just connect it to the DC12V power supply, electric lock, exit button.
The power supply and electric lock, exit button, door bell is not included in the package, if you need it, please contact us. Thank you!
- Model Number: M1
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
- Mode name: M1
- user capacity: 4000 users
- working voltage: DC12V 10%
- card type: ID /IC card (optional)
- working current: <100mA
- reading range: 1~10CM
- unlock: card, code, card+code
- dimension: 125*84*23mm( L/W/H )
