30A 20A 10A 12V/24V LCD PWM Voltage Solar Controller Battery PV Cell Panel Charger Regulator Lamp 100W 200W 300W 400W 500W
18.33 17.16 $
This is100% MPPT Solar Charger Controller ,12V 24V 36V 48VAuto work , it is used for Lead acid ,gel , lithium battery.we have30A 40A 50A 60A,

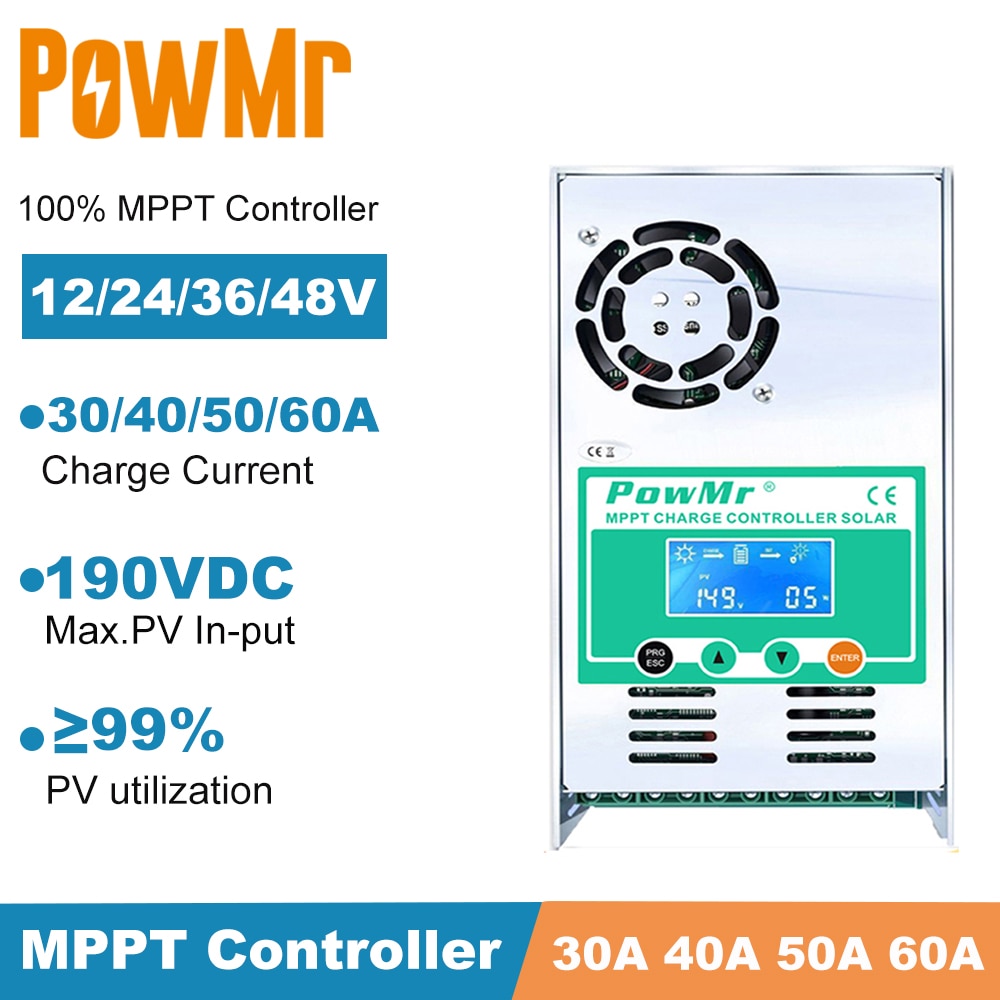

100% MPPT controller
Intelligent Maximum Power Point Tracking technology
Built-in DSP controller with high performance
Automatic battery voltage detection 12V/24V/36V/48V
Three-stage charging optimizes battery performance

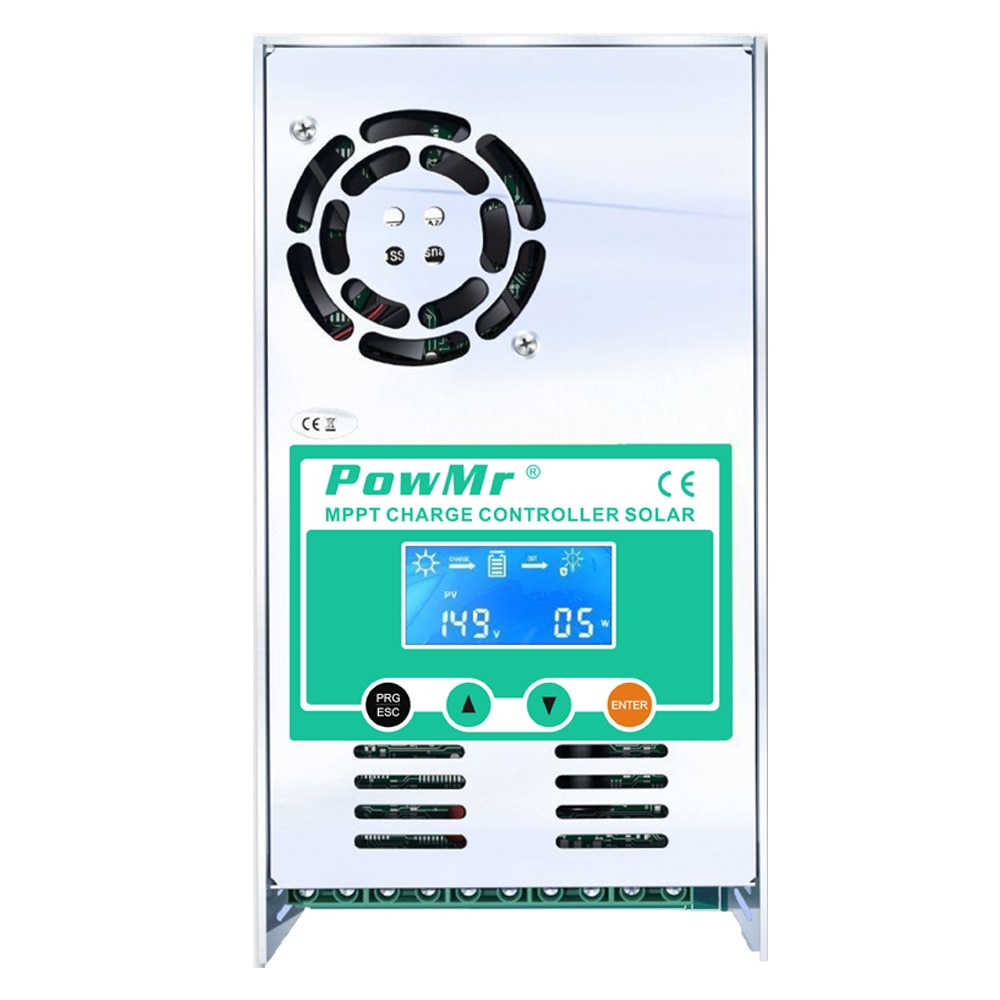

Multi-function LCD displays
Reverse polarity protection of solar panel
Can be mounted easily
Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery
MPPT Maximum power point tracking automatically
3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge
DC12V/24V/36V/48V Recognition automatically
System voltage automatic recognition
12V system (DC9V-DC15V)
24V system (DC18V-DC29V)
36V system (DC30V-DC39V)
48V system (DC40V~DC60V)
Soft start time
Dynamic response and recovery time
≥98.1% (Voc is 1.5 or 2 times than battery, then it’s best efficiency)
Voc from PV( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )
12V system (DC20V~DC80V)
24V system (DC37V~DC105V)
36V system (DC50V~DC160V)
48V system (DC72V~DC160V)
The maximum PV input voltage (Voc)
DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)
The maximum PV input power(The total power rated of PV can’t be over this watt that will break the controller.)
12V system (360W)
12V system (480W)
12V system (600W)
12V system (720W)
24V system (720W)
24V system (960W)
24V system (1200W)
24V system (1440W)
36V system (1080W)
36V system (1400W)
36V system (1800W)
36V system (2100W)
48V system (1440W)
48V system (1700W)
48V system (2200W)
48V system (2800W)
Selectable battery type(default is Sealed)
Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)
Absorption Charging Voltage
Refer to Batteries charging reference
Floating Charging Voltage
Refer to Batteries charging reference
Overcharging protection voltage
12V system (15V)
24V system (30V)
36V system (45V)
48V system (60V)
Rated output current
utomatic temperature compensation
14.2V-(Max temperature-25 centi-degree)*0.3
Output voltage ripple-peak
Output voltage accurac
Input Anti-intrusion protection
Temperature increased protection
Output power will reduce when it’s more 70 °C
Output power will be normal when it’s less 55 °C
Forced air cooling
Imported materials, Accord to EU standards, Industrial grade range.
Meet 2002/95/EC; No cadmium, hydrides and fluorides
Accord to CE, PSE, FCC, EMC, EN60950
Accord to EN61000, EN55022, EN55024
