PIR Motion Sensor Switch TDL-2012 IR Infrared Body Induction Detector 12VDC

0.0 ( votes)
Price: US $33.61 / piece
Discount Price:
US $ 17.59 / piece
-48%
Quantity

100% brand new and high quality
Features:
    Easy to install or replace existing switch. Automatic locked in day time to save energy.
    Infrared technology based automatic motion sensor switch.
    Status indication: Induction effective LED indicator, convenient installation and failure analysis.
    Brightness metering: Using photosensitive control, it won't turn on the light in the daytime or strong light      environment. And it also can adjust free induction lights in any light environment.
    Random delay: After it opens, during the delay period if there is no human activities, has the delay time on the job, properly adjust freely within the scope of delay time.
    Temperature compensation: With temperature compensation, the induction distance is influenced by temperature.
    Automatic turn on while detected people come,  after the people left delay automatically turn off the lights.
    Applicable to the corridor, passageway, toilet, basement, warehouse, garage and other places of automatic lighting.

Specification:
    Working Voltage: 8-100VDC
    Load power: 500W
    Working temperature: -20 °C ~ +50 °C
    Load capacity: LED lighting

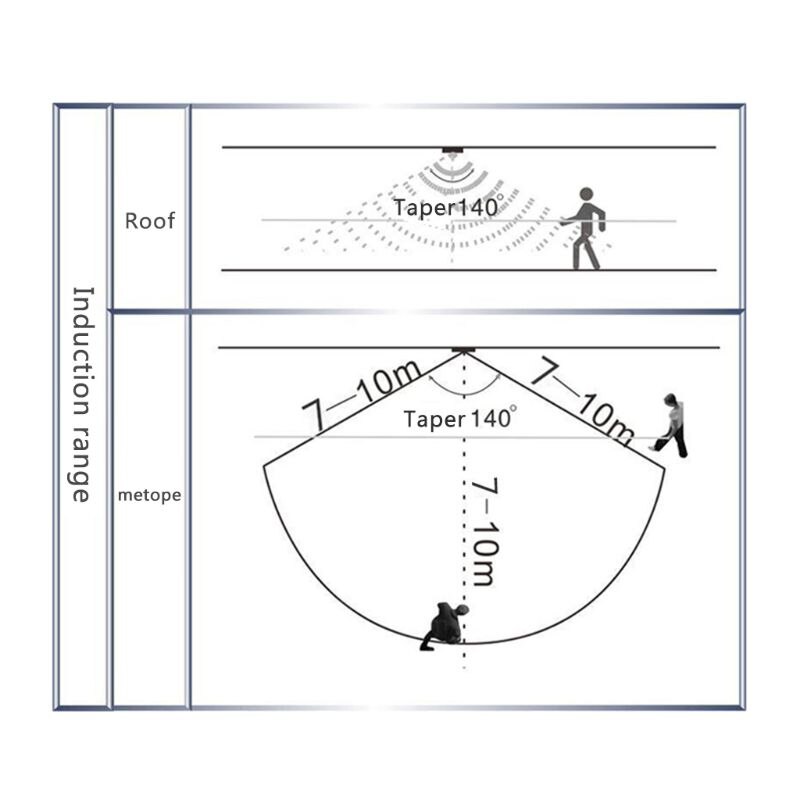

    Sensor angle: Cone angle of 140 degrees
    Induction distance: 7-10m
    Time extension: 5~480s ± 30% (Switch can be set up)
    Material: Plastic&metal

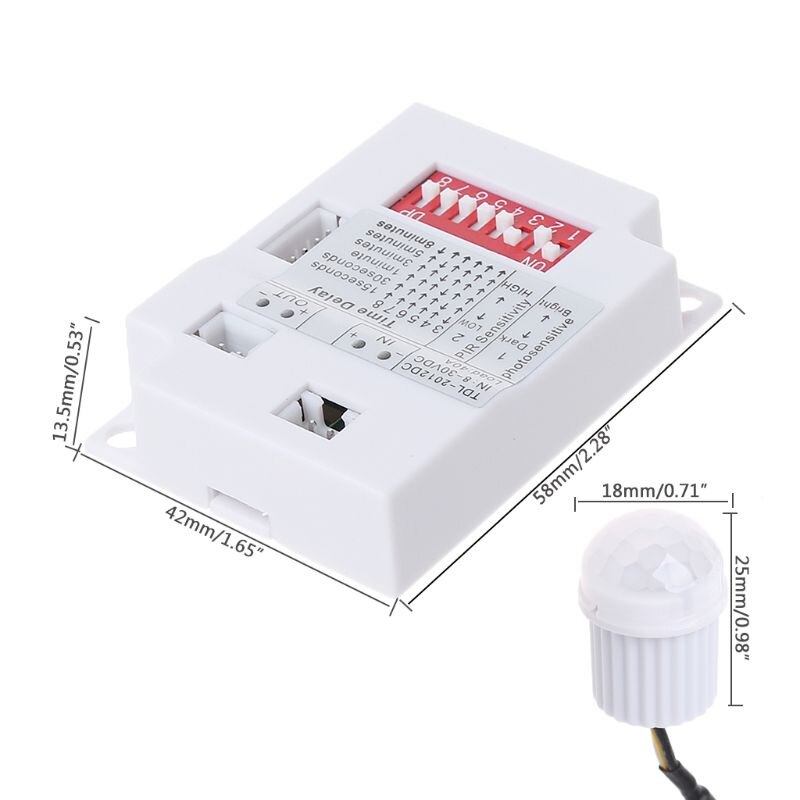

    Dimensions: 42x58x13.5mm/1.65x2.28x0.53inch
    Color: White
    Quantity: 1 Pc
Note:
    1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
    2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
    1 x Induction Switch 1AA3006661AA300666-11AA300666-21AA300666-71AA300666-81AA300666-9

  • Model Number: Induction Switch
  • Brand Name: OOTDTY
  • Origin: Mainland China
