PelcoD Visca Onvif 4D Joystick IP PTZ Keyboard Controller RS485 RS232 RS422 for Vmix / Broadcasting System
799.60 $
SALE
ID: 34481
Quantity
Onvif 3D CCTV IP PTZ joystick controller keyboard with 5 inch LCD screen for IP PTZ Camera
0.0 (3 votes) | 8 orders
Price:
US $369.11
/ piece
Discount Price:
US $
345.86
/ piece
-6%
Please note when purchasing:
Our 4.5 inch Network Keyboard Controller is not suitable for use in Live Streaming Camera, but only for CCTV IP 5MP ONVIF POE PTZ Camera / not for 8MP CCTV PTZ Canera
not for Church Business Meeting / Live Streaming Camera

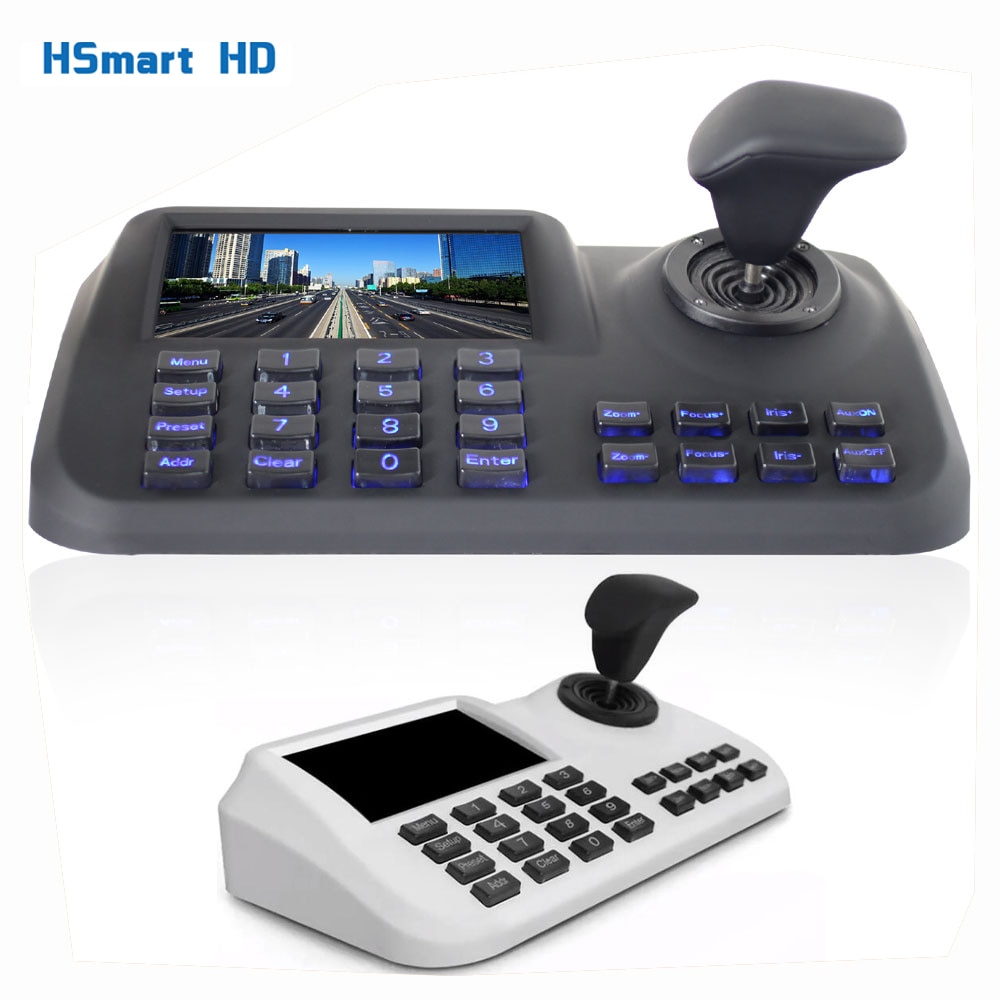

5 Inch LCD ONVIF IP PTZ Keyboard Control IP High Speed Dome Camera 3D Joystick HD LCD Display Network PTZ Keyboard Controller
1. Supports Tour,360 Scan and A-B Scan and so on function ;
2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard;
3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively;
4. Chinese and English switch ;
5. To support USB.HDMI interface output, can be realize main screen picture any switch on control board;
6. To support 5.0”HD LED , real display image on control device;
Model Name | Network keyboard controller |
Model | HD-1009 |
Control Mode | Network |
Controllable Device | Network High Speed Dome, High Speed Dome |
Screen display | 5.0" HD LED Display |

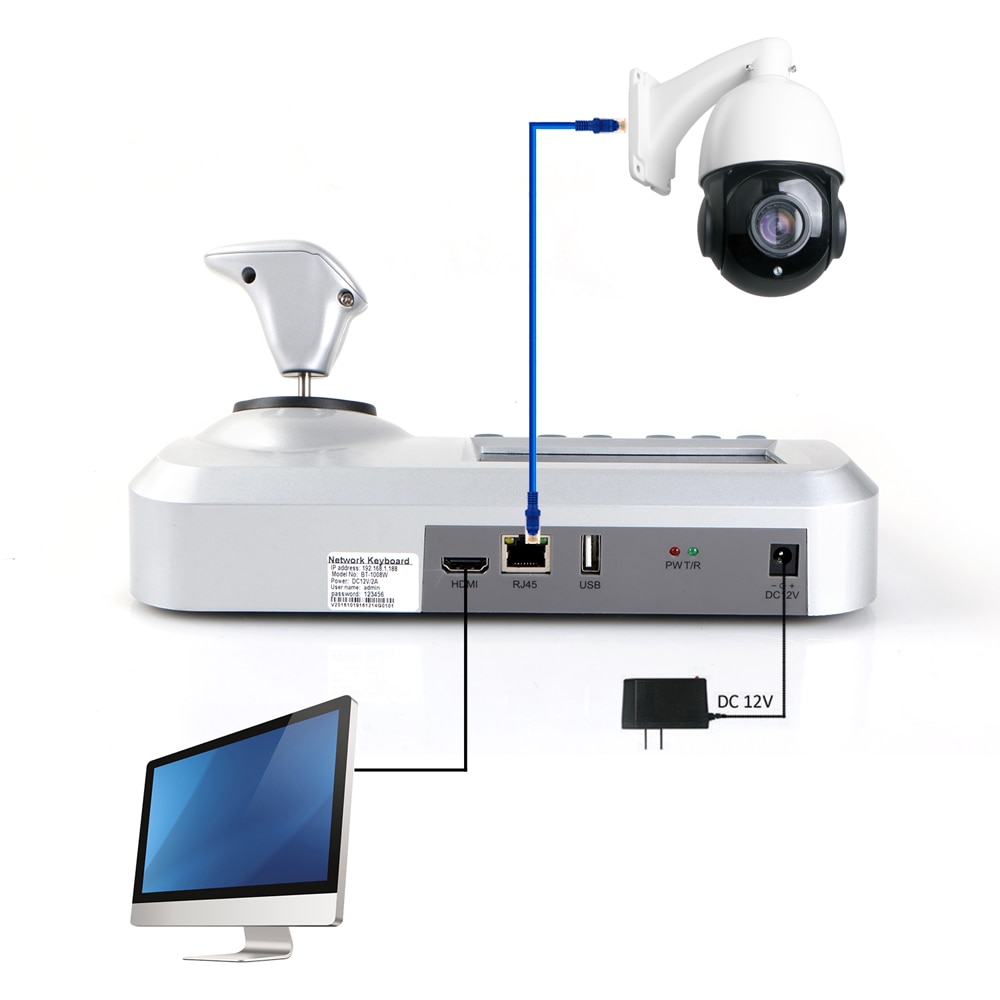

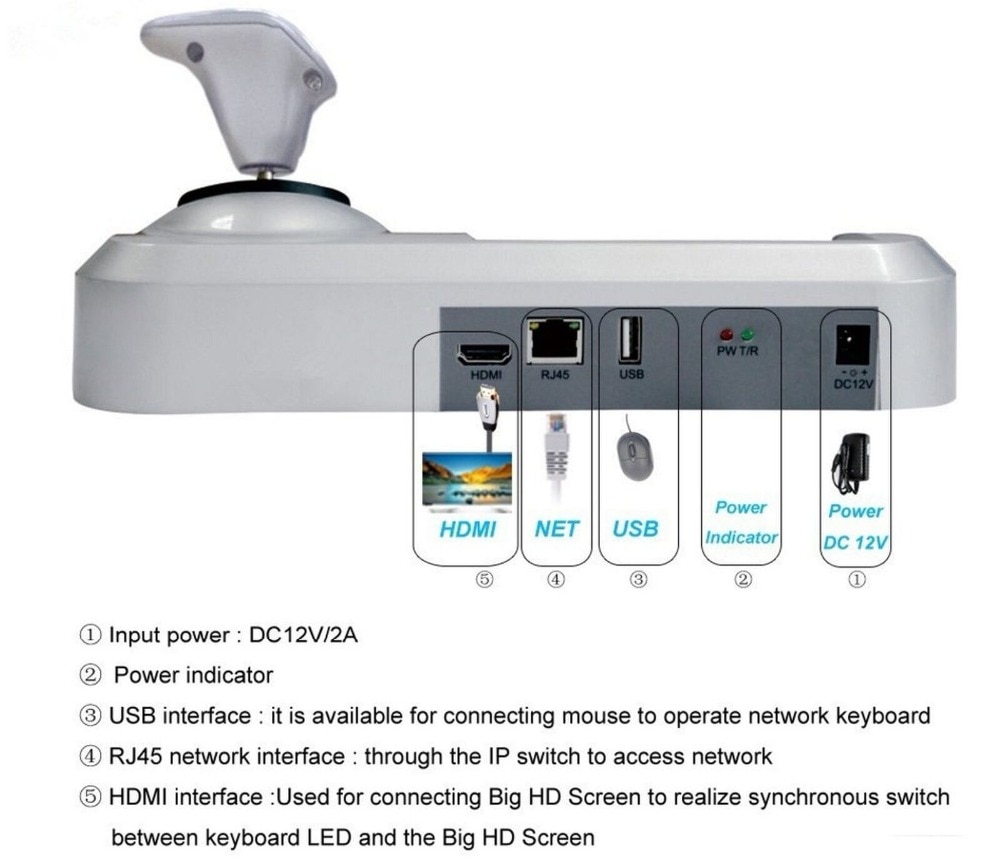

Interface | 1 RJ45, 2 RS485( reserved ), 1 DC12V, 1HDMI output, 1 USB port |
Ambient Temp. | -20°~55° |
Power Supply | DC12V/2A |
ONVIF | ONVIF2.4 |
Joystick | Three-dimensional joystick |
Language | Chinese/English |
Access Device No. | No upper limit (display by single picture) |
Image Switch Mode | Serial number or mouse |
Product Size | 260mm*160mm*48mm |
Weight | Gross: 1.52KG / Net:1.0KG |
Carton Size | 300mm*210mm*160mm |
1. Supports Tour,360 Scan and A-B Scan and so on function ;
2. To support ONVIF2.4,not limit for back-end PTZ, easy to realize PTZ tour, A-B scan, pattern, play and plug, without any set, automatically add and allocate IP address by keyboard;
3. Standard equipped with dimensional control, 1-64 grade speed limit, precise position, control sensitively;
4. Chinese and English switch ;
5. To support USB.HDMI interface output, can be realize main screen picture any switch on control board;
6. To support 5.0”HD LED , real display image on control device;
Product
IP controller
Model:
1009
Control mode
IP Network
Protocols
Onvif 2.4
LCD
5 inch HD LCD
RJ45
1 ch
HDMI
1 ch
USB
1ch
Working humidity:
20% -80%
RS485
2ch (Reserved)
Wortking Temperature
- 20 degree to 50 degress
Onvif
Onvif 2.4
Joystick
4D
Language
Chinese/English
Control Camera Quantity
unlimited
Image switching
serial number switch or mouse
Dimension
260mm*160mm*48mm
Weight
2KG
Power
DC12V 2A
- Model Number: 1009
- Brand Name: HSmart HD
- Origin: Mainland China
- Certification: CE
