Mini USB Hub Video Surveillance Joystick CCTV Controller PTZ management& Window 8, 10 manage software platform Nuuo , SEEnergy
0.0 (1 votes) | 9 orders
Price:
US $275.50
/ piece
Discount Price:
US $
256.22
/ piece
-7%

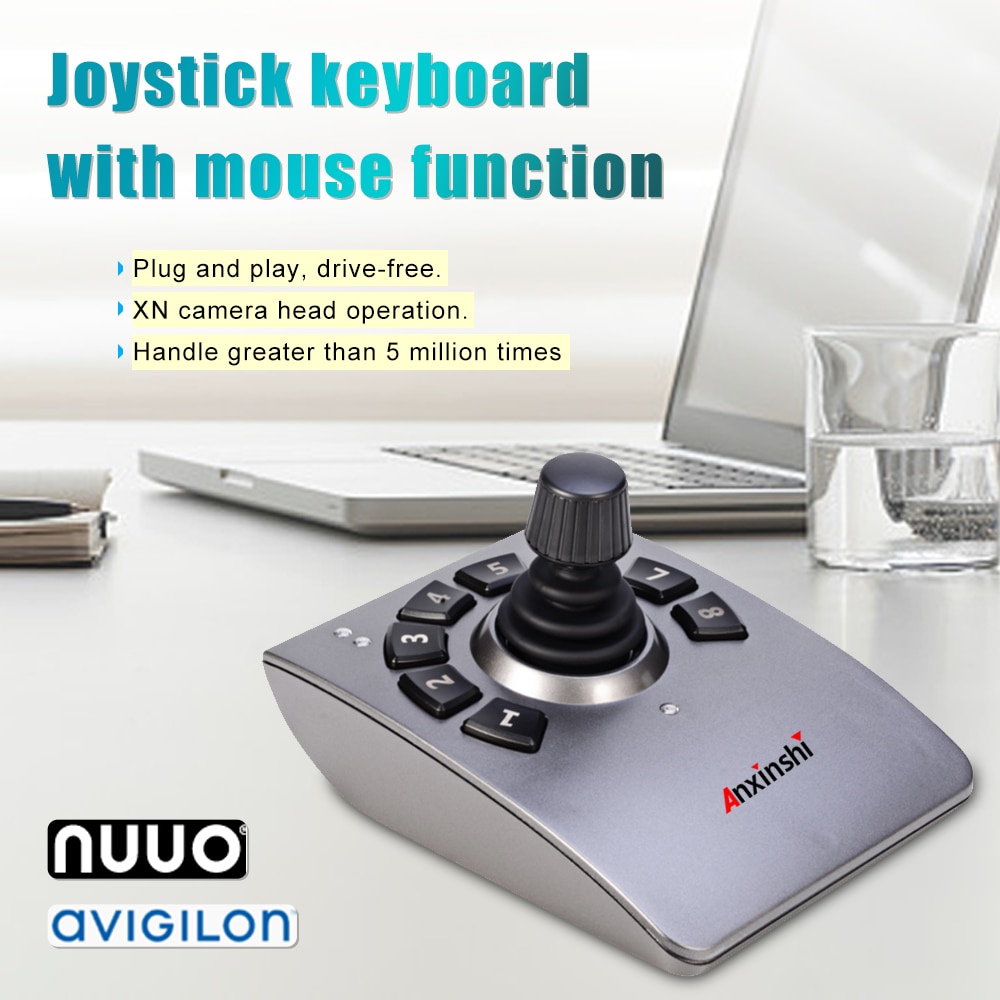

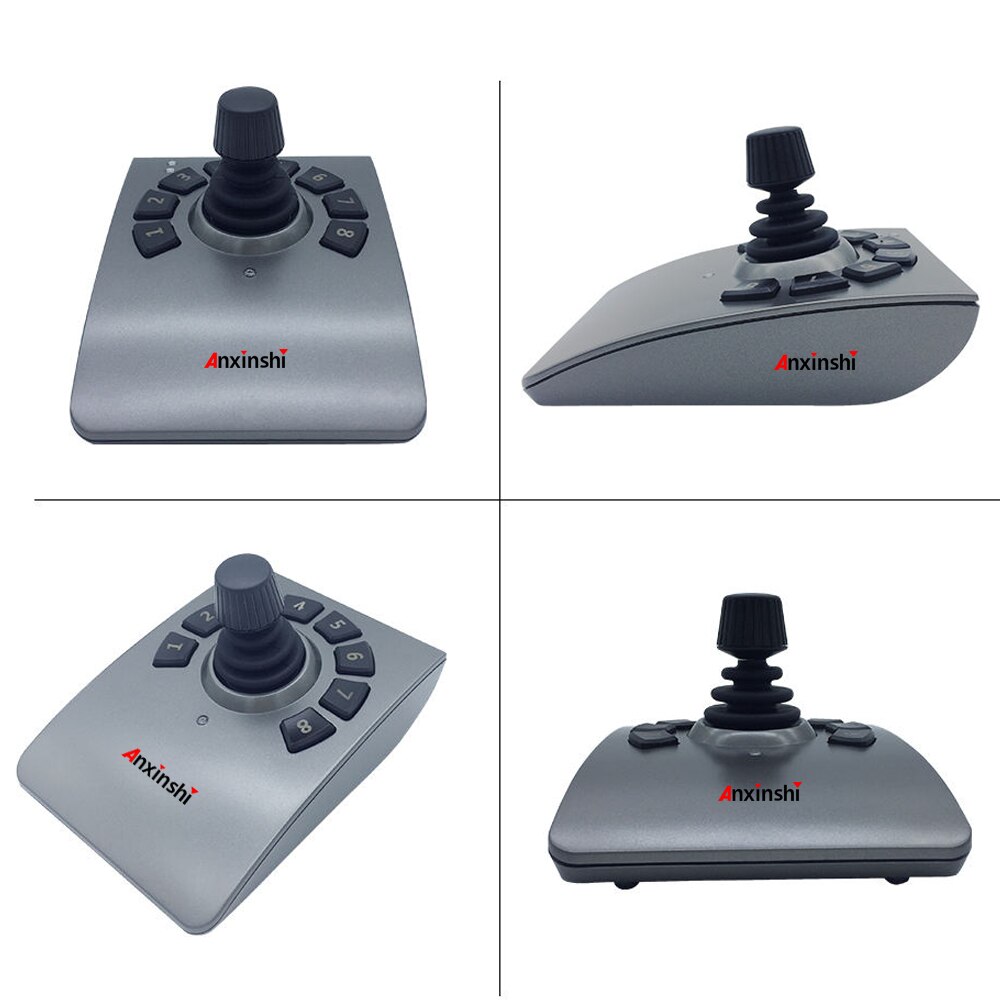

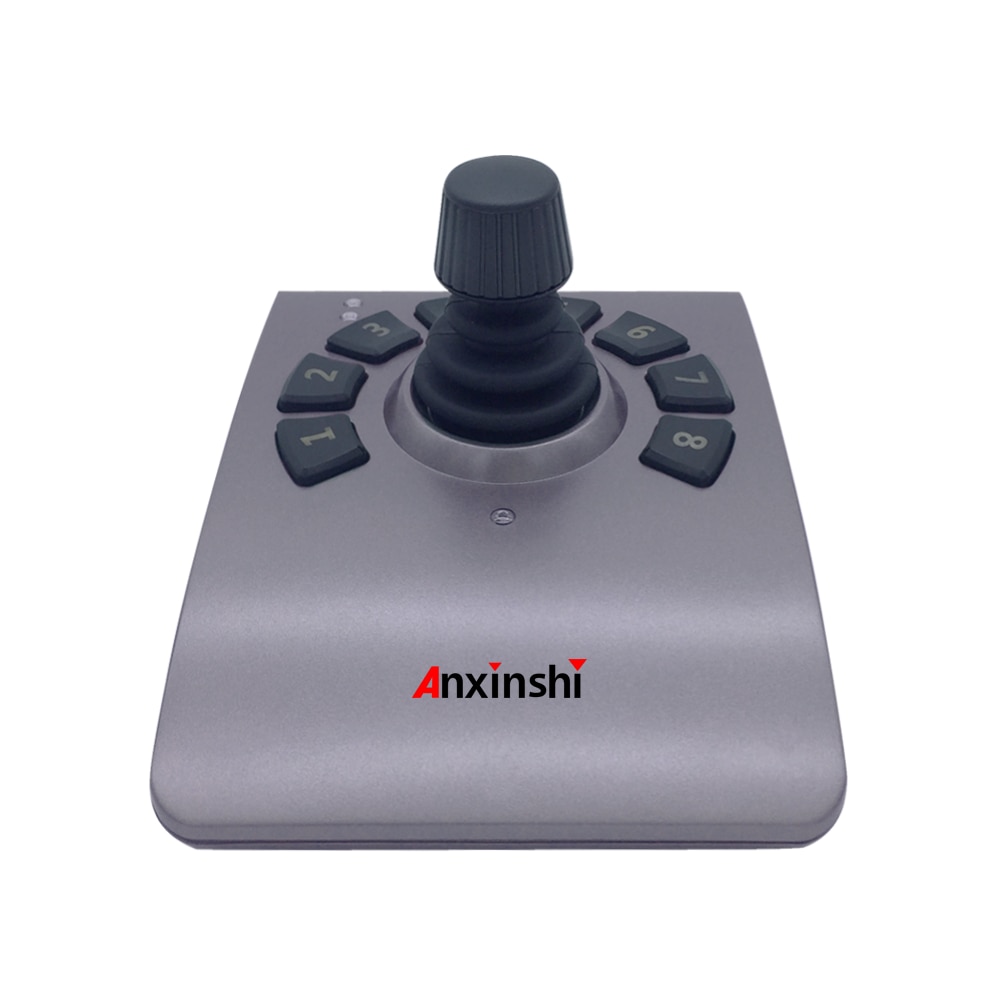

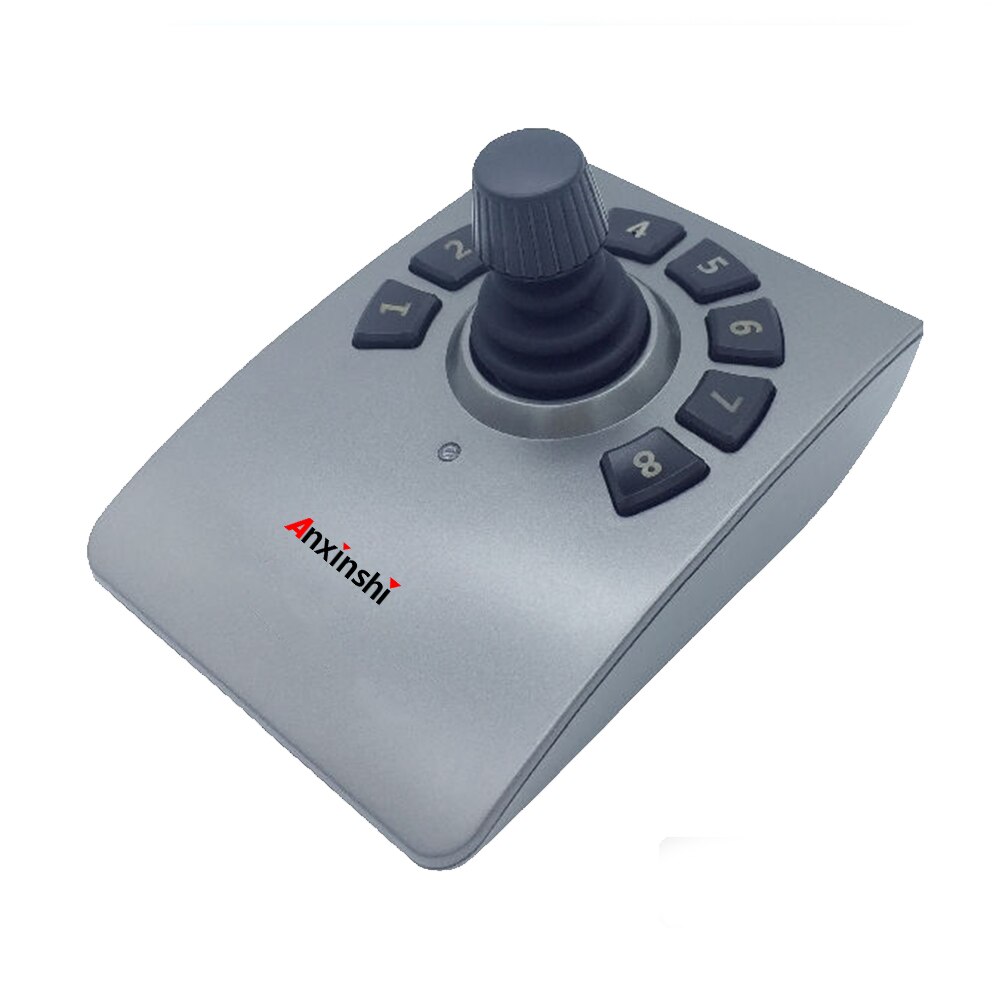

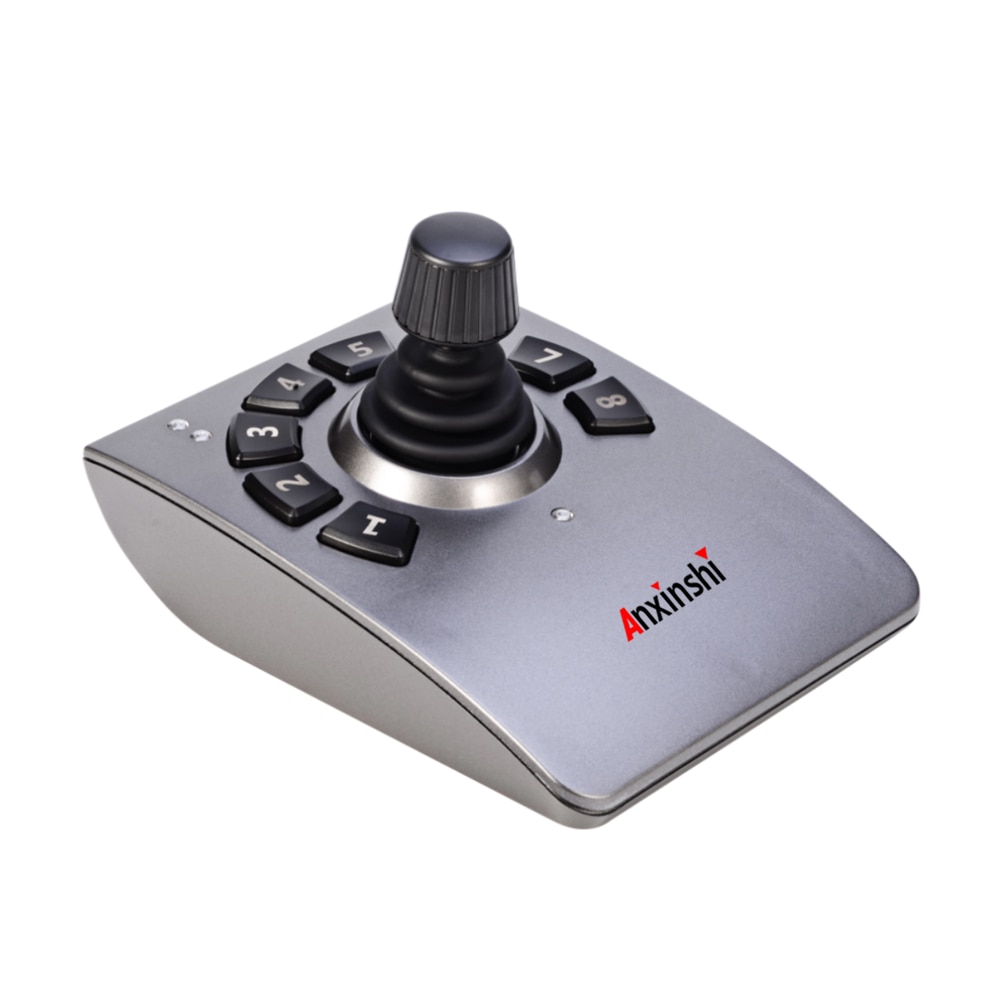

Incorporating the latest generation Hall effect positioning sensor ,a three axes joystick with 10 bit resolution, delivering superior control for PTZ cameras. Supporting USB 2.0 HID “game controller” interface for “plug-and-play” connectivity, the Joystick controller is easy to use and compatible with a wide variety of video surveillance software applications.Combining flexibility with high performance and a stylish design, the Joystick controller is an ideal choice for professional surveillance monitoring applications.

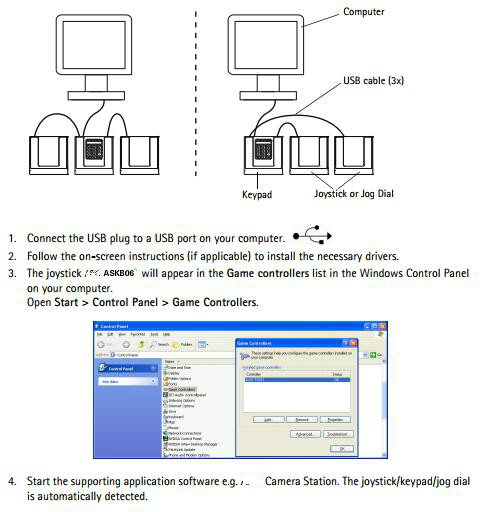

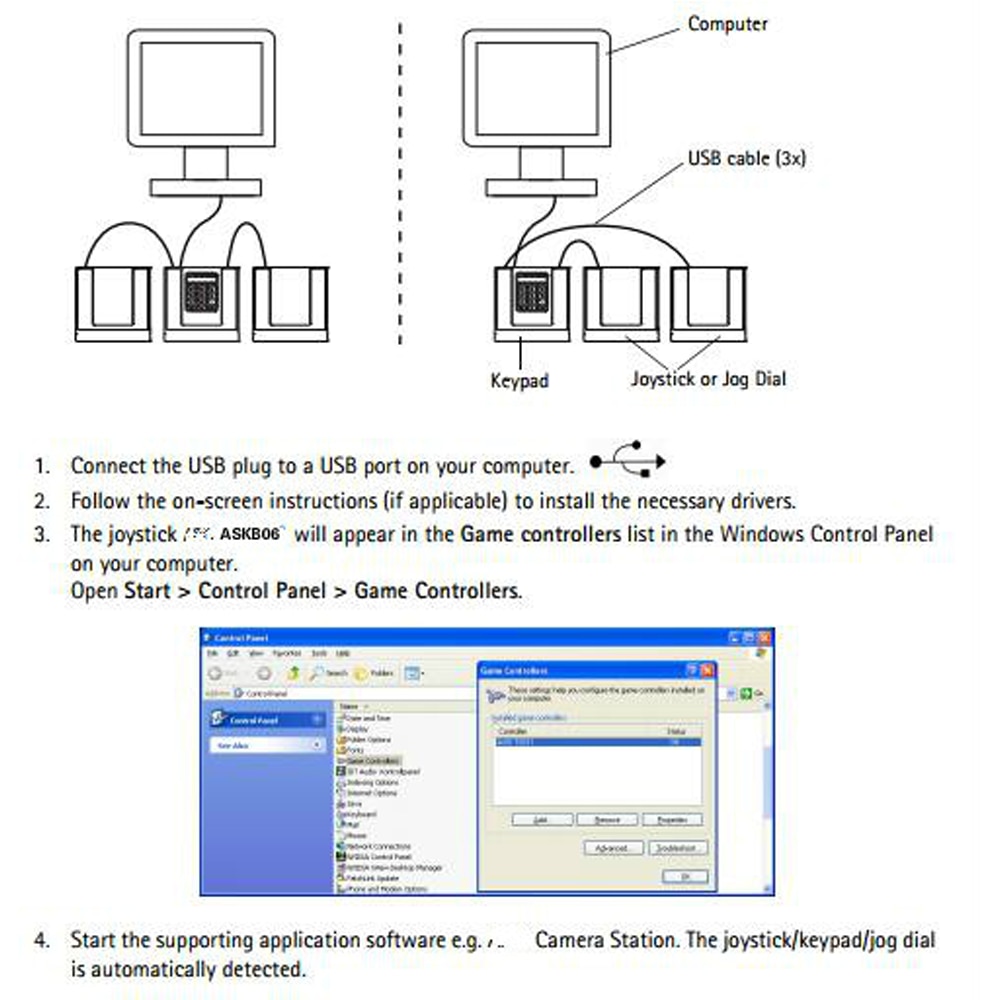

Video Surveillance Control Board is a modular system with three separate joystick, keypad and jog dial units. The modular system allows the user to choose a simple solution such as only the joystick, or a complete solution with all three modules for both camera and video management.
Video Surveillance Joystick gives responsive and accurate control of all PTZ and PTZ dome network cameras. from Nuuo or AVIGILON or SEEnergy Video management ,the user quickly navigates between workspaces, cameras, views and PTZ presets.

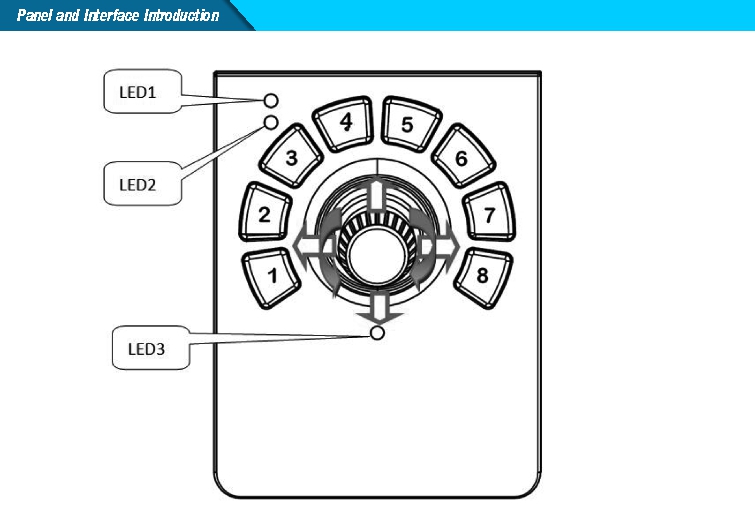

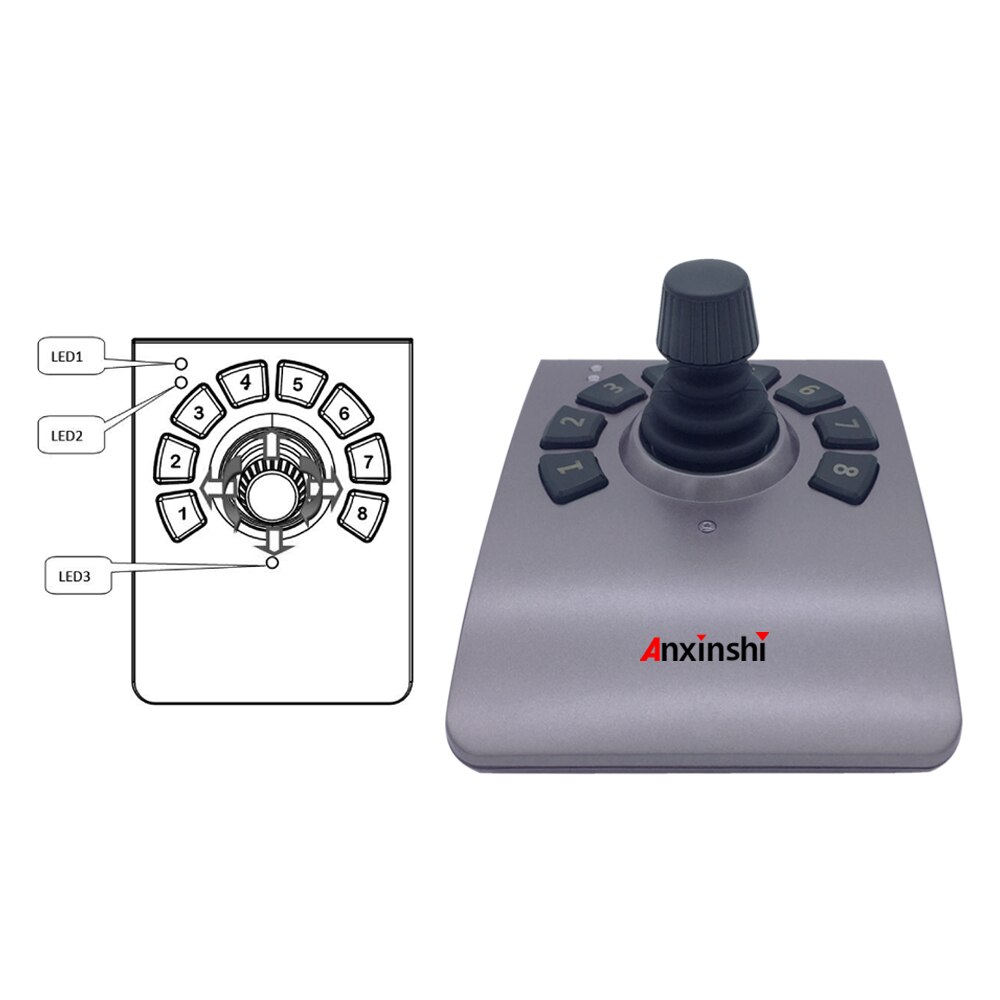

l Three axes Hall effect joystick
l 10 bit resolution
l USB interface
l Ergonomic design for left or right hand use
l Eight tactile pushbuttons
l 3 controllable led Idicator
Joystick performance: | Hall effect three axes joystick |
X/Y/Z for positioning control | |
Joystick travel: X/Y axes +/-20., Z axis +/-30. | |
Centering: single spring, omni-directional | |
Joystick shaft: aluminum alloy | |
Joystick boot: silicone | |
Joystick handle: glass filled nylon | |
One time setting: | Setting map can save in your computer |
Pushbutton performance: | Eight long life tactile switches |
Choice of button configurations | yes |
LED indicator | 3 Led |
Desktop housing: | High impact ABS |
Power: | Via the USB interface (5V DC) |
Consumption 100mA | |
Operating conditions: | - 25.C to +70.C (-13.F to +158.F) |
Interface: | USB port |
Connectors: | USB Type A Male |
Cable Length: 1.5m | |
System support integration: | Windows 7, Vista, XP, 2000 |

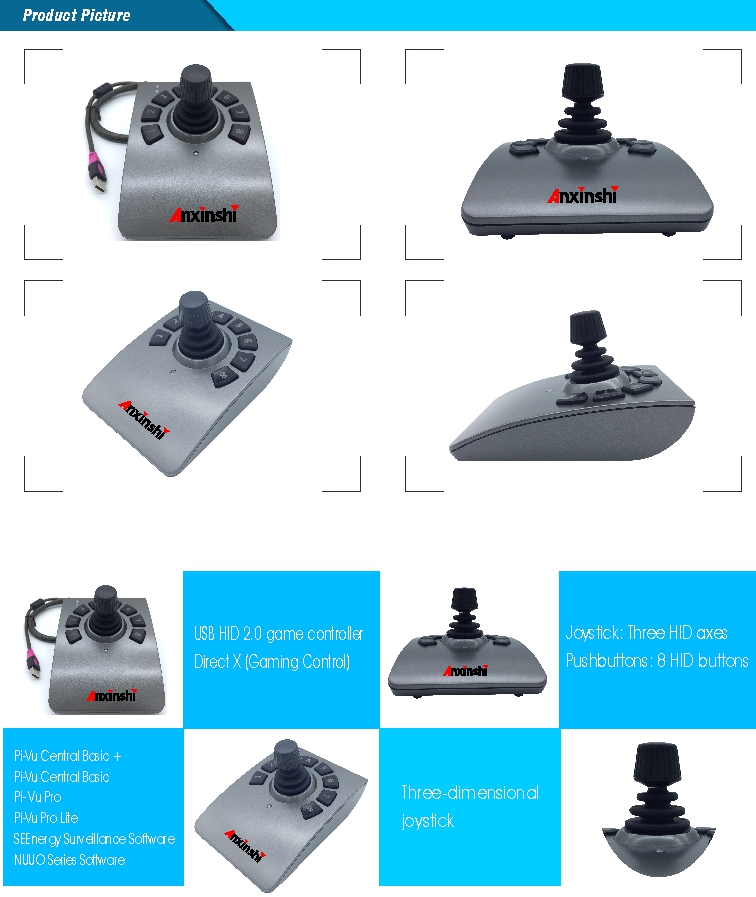

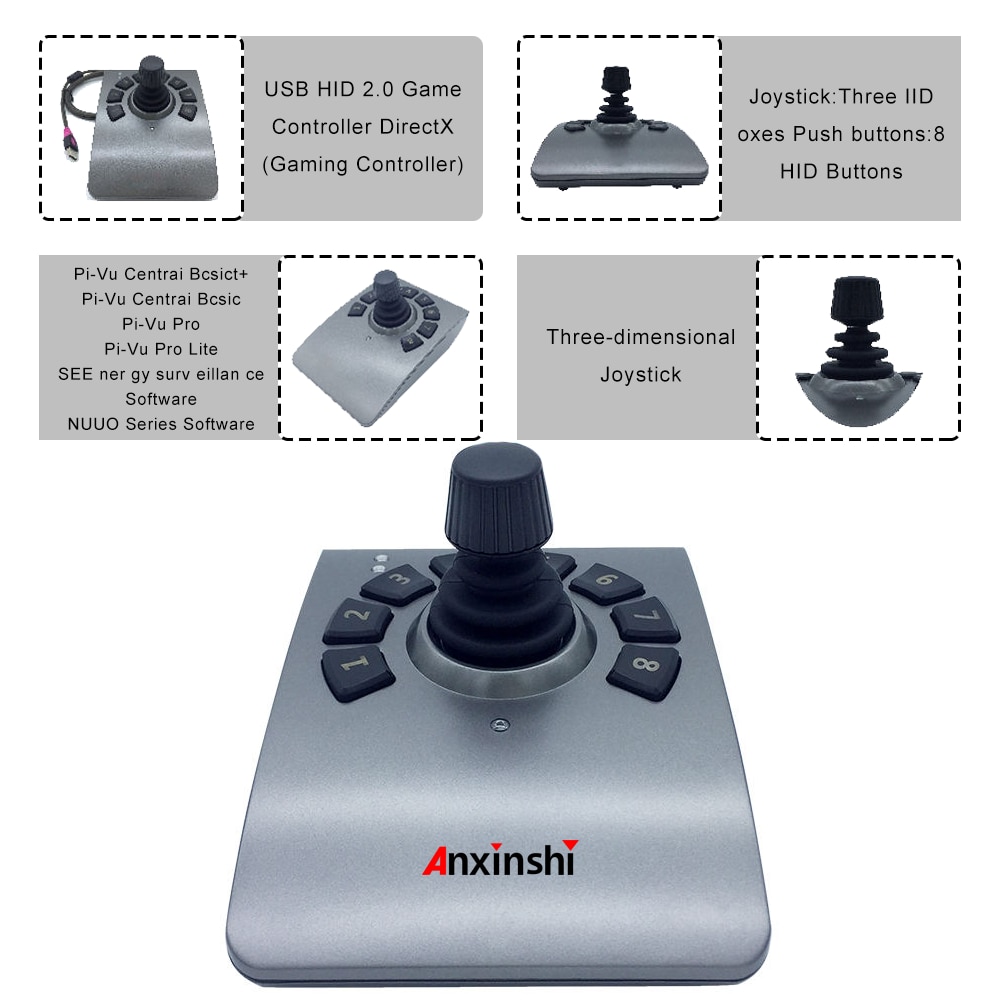

Supported protocols: | USB HID 2.0 game controller |
Direct X (Gaming Control) | |
Joystick: Three HID axes | |
Pushbuttons: 8 HID buttons | |
Uses standard DirectX HID drivers | |
Connects directly to workstation PC | |
Surveillance Software | Pi-Vu Central Basic + |
Pi-Vu Central Basic | |
Pi- Vu Pro | |
Pi-Vu Pro Lite | |
SEEnergy Surveillance Software | |
NUUO Series Software | |
Environmental: | For indoor use only |
weight： | 0.6kg |

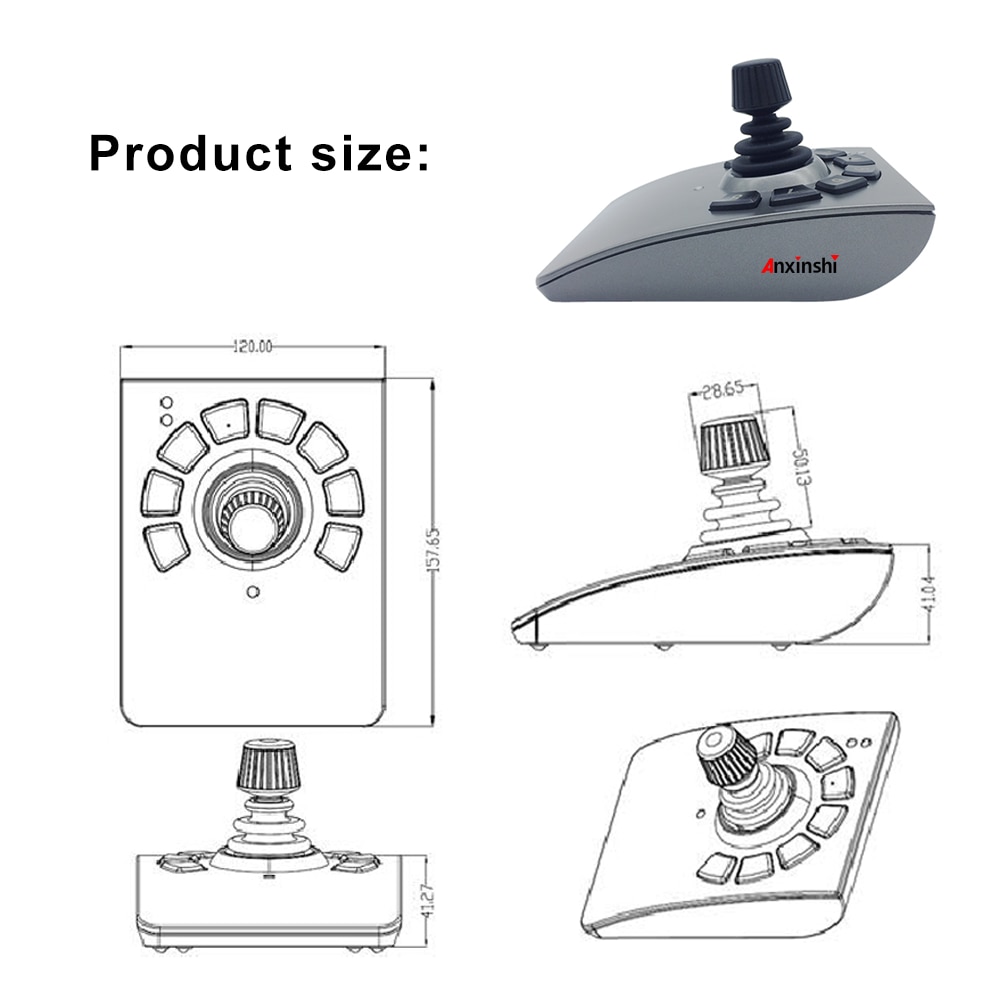

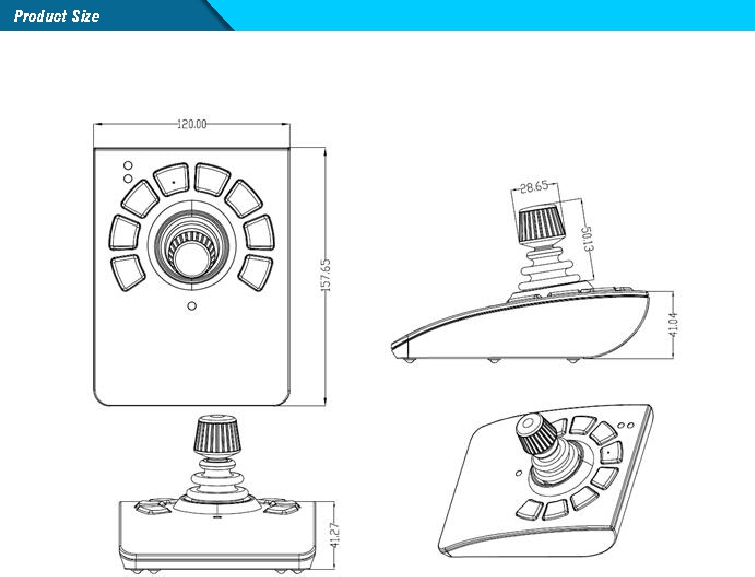

size： | (W)120X(L)157X(H)97mm |
application： | for network camera control, animation design, medical equipment etc. |
1. About the sample: How could I get a sample?
Once receive your payment for samples and their express delivery and then send samples
to you. The prices of the samples are the same as those on the pricelist. Express delivery
charge depends on the quantity of the samples.
2. About price list: can I get your price list?
Yes, please tell us the products (with their code number) and order quantity, then we will
offer the price by e-mail. And our price list will keep updated every month.
3. About the shipment: what type of shipment will you use?
We usually ship the products by express delivery to your door or by air freight to your nearest
airport. If the order quantity is large, we may ship by sea container.
4. About payment: what terms of payment do you use?
We accept TT (Telegraphic Transfer,MoneyGramor Western Union as payment term for small order and L/C for larger order.
5. About the MOQ: What is your minimum order qty?
Our minimum order qty is 20pcs each model, but we accept small order as trial order.
6,About compensation: what is your company's compensation policy?
We can compensate buyer's loss if our products have quality problem. For small qty
problem products, we can replace with new products in next order. For larger qty problem
products, we can accept returned problematic products, then we check them and replace
them by good quality products.
7. About sole-distributor: How can I be your sole-distributor?
We have special policy for sole-distributor. Please contact our sales person to get related files.
8. About OEM: could we place order by OEM style to produce our own brand products in China?
Of course you can. Welcome to do OEM.
If any further problem, welcome to contact our sales person.
Thanks for your interest
OEM Service:
We could offer OEM and ODM services for our clients.
Delivery Time:
Sample order 3-5 working days, bulk order 7-15 working days.
Quality Warranty:
2 years for free repair. Whole life service for continue cooperating customers!
Price Term:
EXW Shenzhen
Delivery Term:
By Express(DHL/FEDEX/TNT/UPS/EMS/CHINA POST),By air,By Sea.
Anxinshi Technology Co.,Ltdis a manufacturer specializing in security surveillance products . Our company set the development, production, sales and service as a whole, Products include professional intelligence, digital and network video monitoring equipment. We take our clients with professional security video surveillance products and to meet customer demand system solutions as our responsibility,and also to provide customers with system design, product supply and assembly manufacturing, sales and trade cooperation integration services.
- Model Number: ASKB06
- Brand Name: Anxinshi
- Origin: Mainland China
- Certification: CE
