OBO RFID Door Access Control System Kit Set 125KHz Fingerprint Biometric +Electric Magnetic Electronic Locks+ DC12V Power Supply
5.0 (1 votes) | 9 orders
Price:
US $63.50 - 152.33
/ piece
Discount Price:
US $
52.95 -
120.34
/ piece
-17%
- Color
-
-
A complete set of entrance guard system for wooden doors, iron doors and glass doors, which you can choose according to the type of your door. If you don't know how to choose, please contact us after taking a photo of the door, thank you.
Product Description

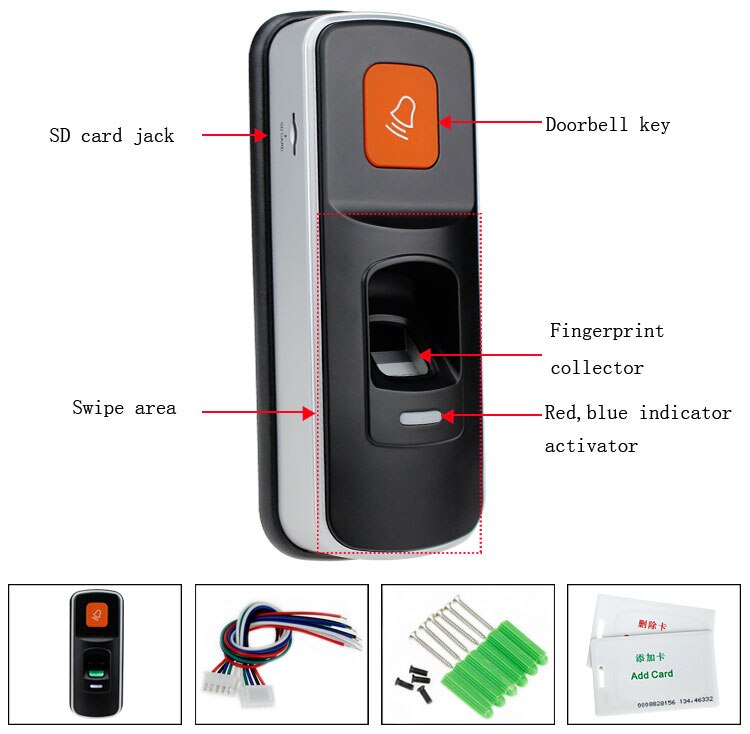

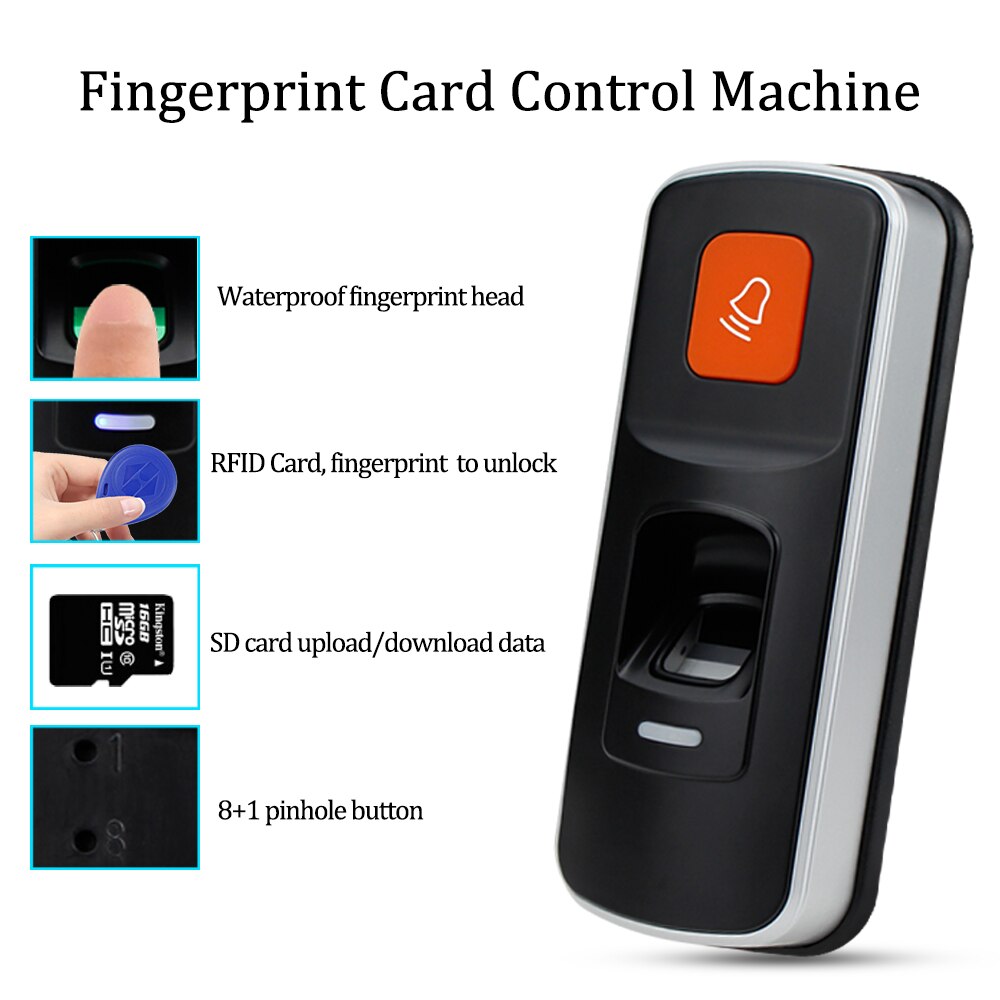

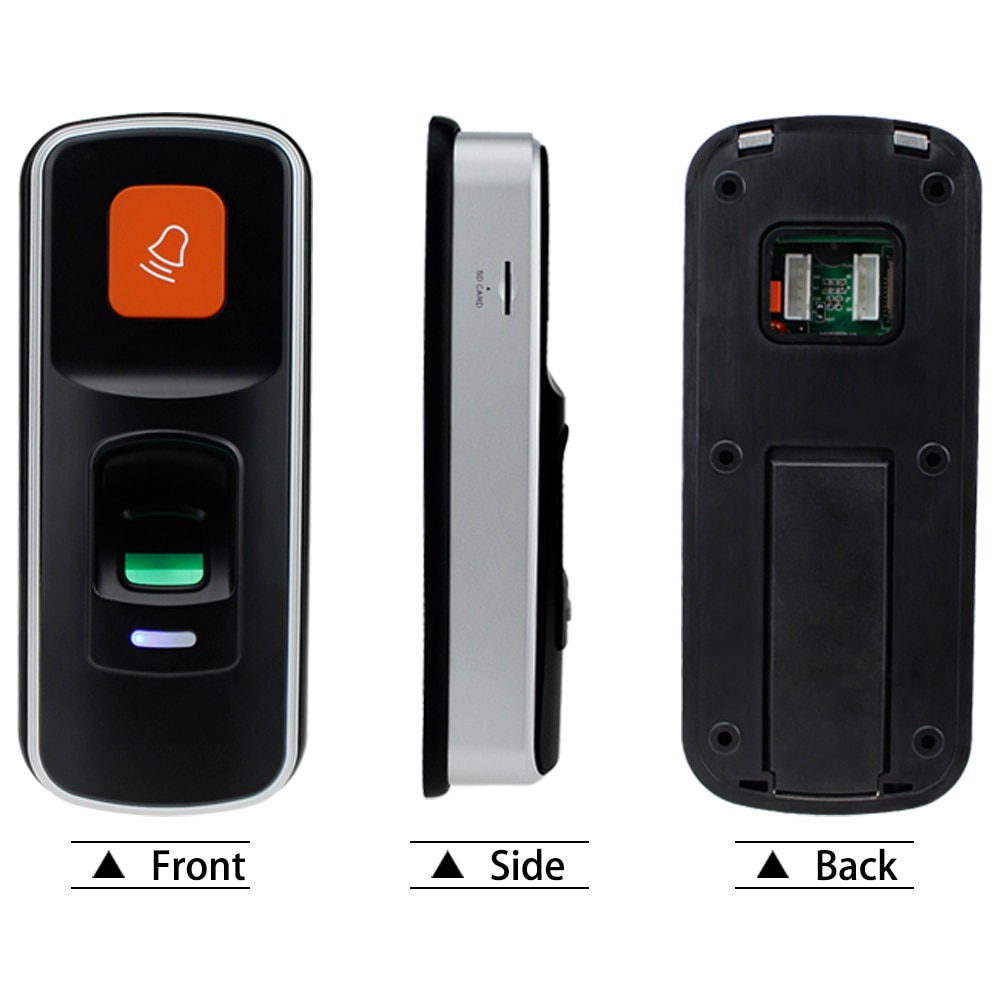

Fingerprint Access Controller
User fingerprint quantity: 1000 fingerprints and 1000 cards
Identification method: Fingerprint, RFID key card
Resolution: 450 DPI
Fingerprint input time: <1S
Identification time: <2S
FAR: <0.0001%
FRR: <0.01%
Built-in Card Reader: EM or EM Compatible
Working Voltage: DC12V
Stay Current: <100mA
Temperature: -20°c -60°c
Humidity: 20%RH-80%RH
Wiegand Interface: Wiegand26
Size: 155*66*28mm(L/H/W)
Identification method: Fingerprint, RFID key card
Resolution: 450 DPI
Fingerprint input time: <1S
Identification time: <2S
FAR: <0.0001%
FRR: <0.01%
Built-in Card Reader: EM or EM Compatible
Working Voltage: DC12V
Stay Current: <100mA
Temperature: -20°c -60°c
Humidity: 20%RH-80%RH
Wiegand Interface: Wiegand26
Size: 155*66*28mm(L/H/W)
Can download all the landing data to SD card, search is more convenient and quick. SD memory card can be used to upload, download, login data, you can edit and name the user directly. Upload to the fingerprint machine again, but can’t delete user and add user directly. Note: SD card is not including in the package.

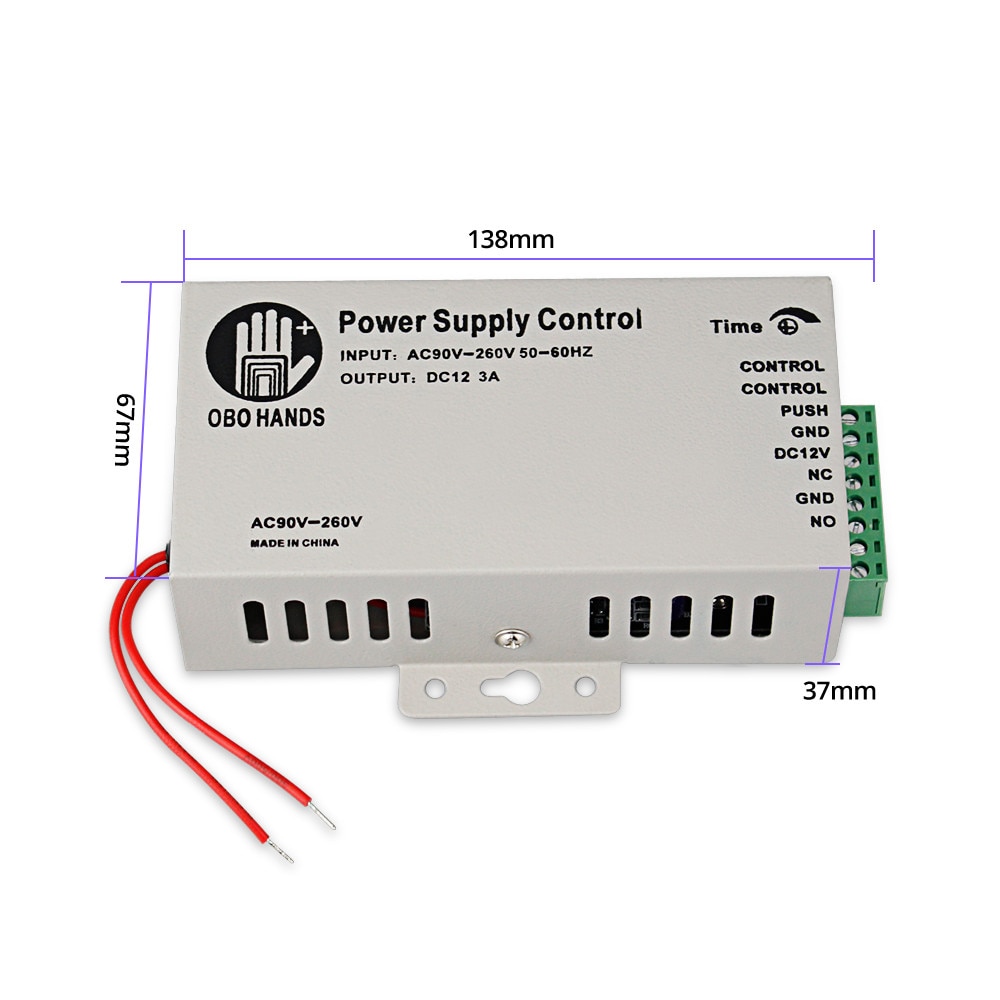

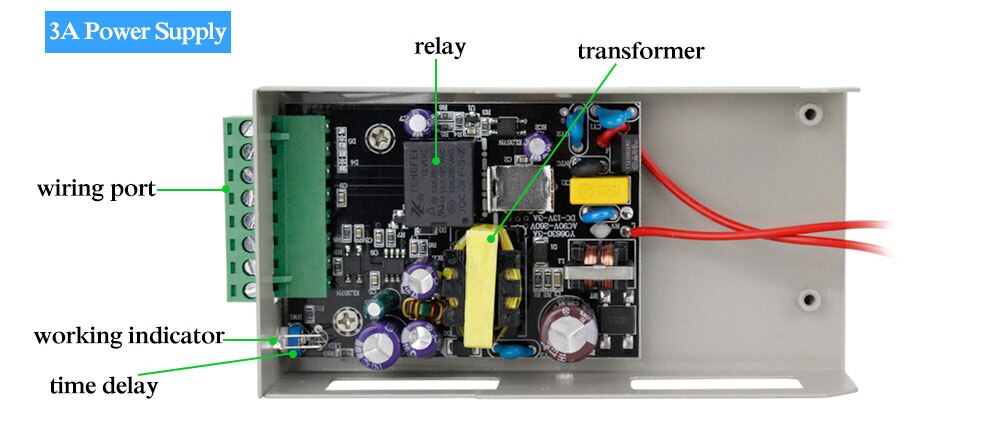

Power Supply
AC Input Voltage: AC100V-AC22V 50HZ-60HZ
Output Voltage:DC12V
Momentary Current: 5A
Persistent Current: 3.5A
Operating Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦90%
Time Delay: 0~30S adjustable
Remote control function: Yes
Dimension: 138X67X37mm( L/W/H )
Can working with all DC12V locks
Door Exit Button
Material: Hard Plastic
Maximum Power Rating: 36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension: 86X86MM ( L / W )

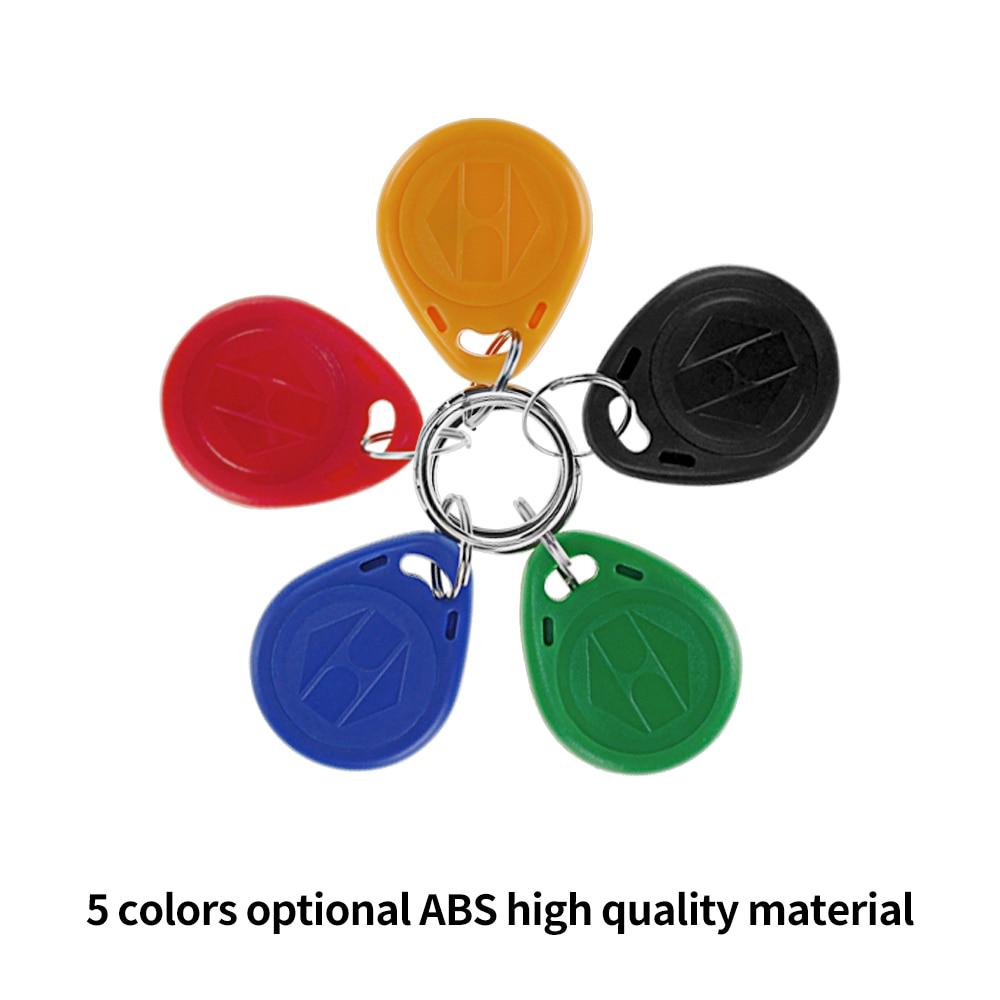

RFID Keyfobs
125KHz rfid frequency key card, waterproof
Operating frequency: 125kHz
Detection range: 1-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional
(blue, red, yellow, green, black).

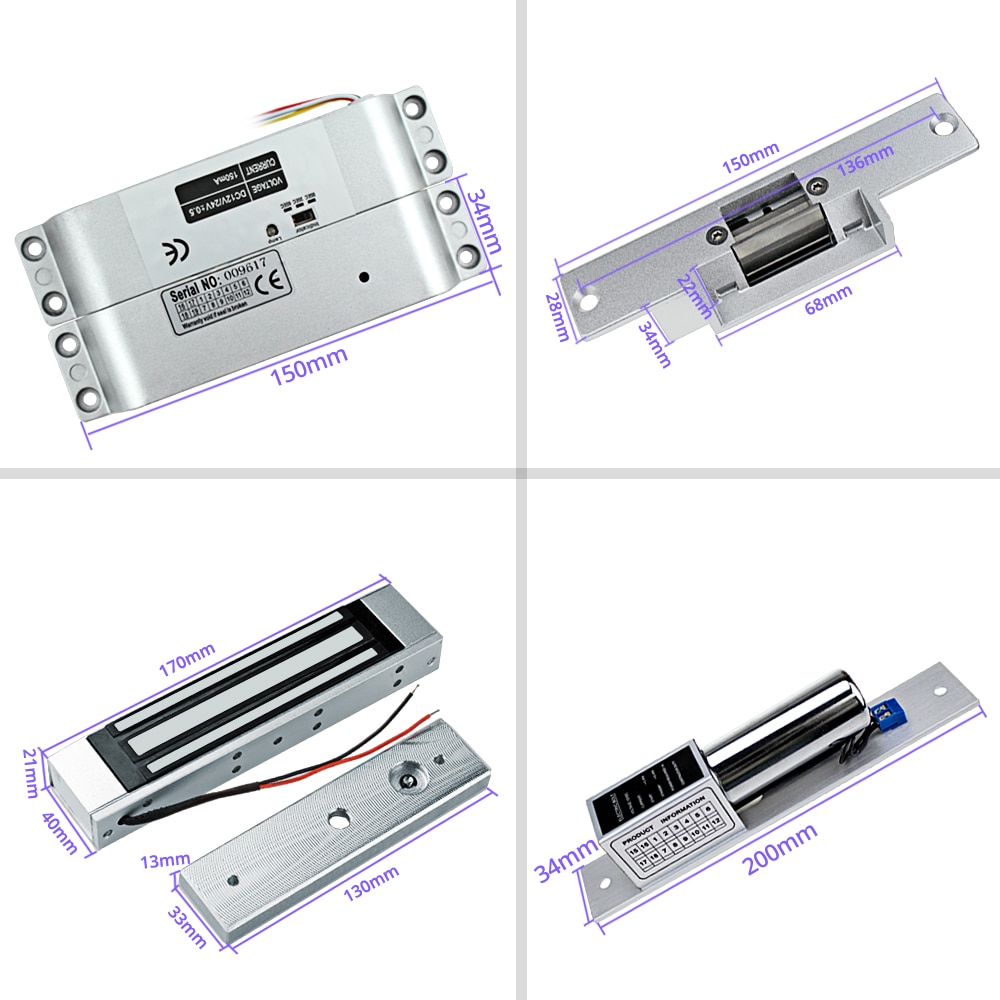

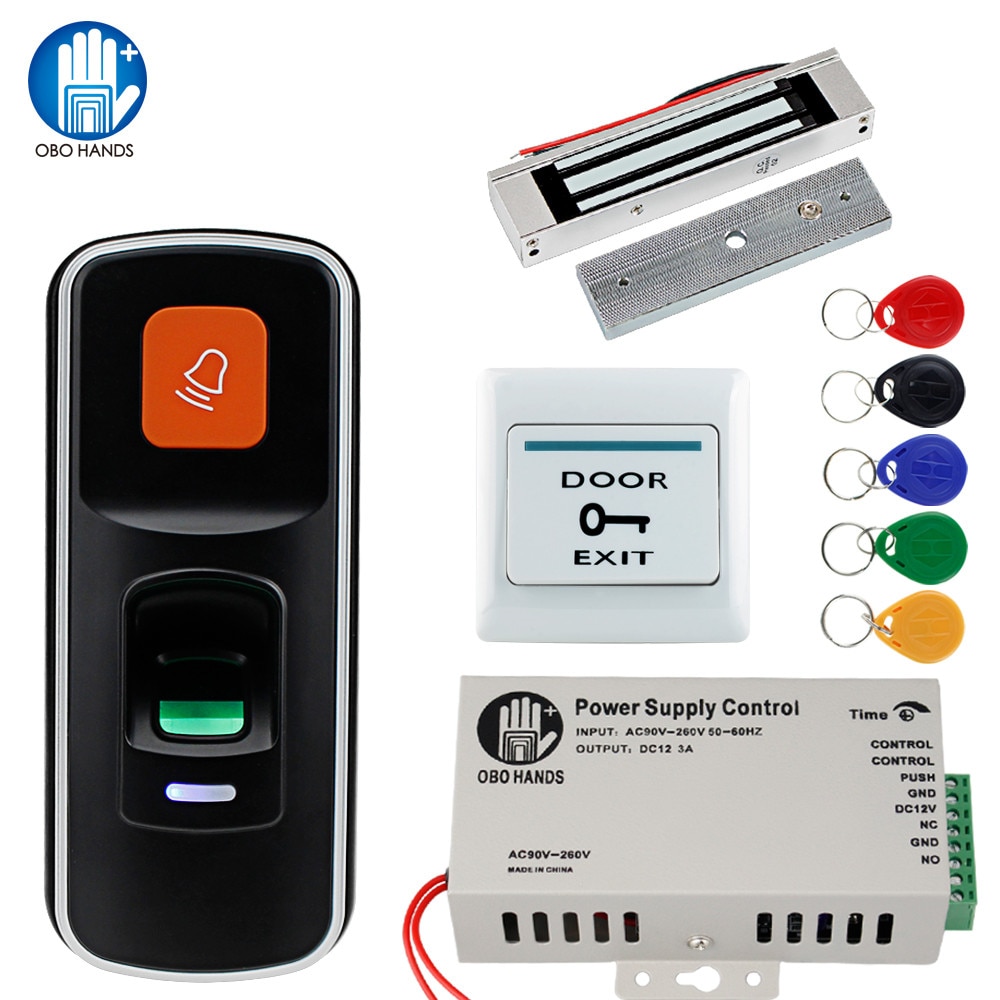

Package List

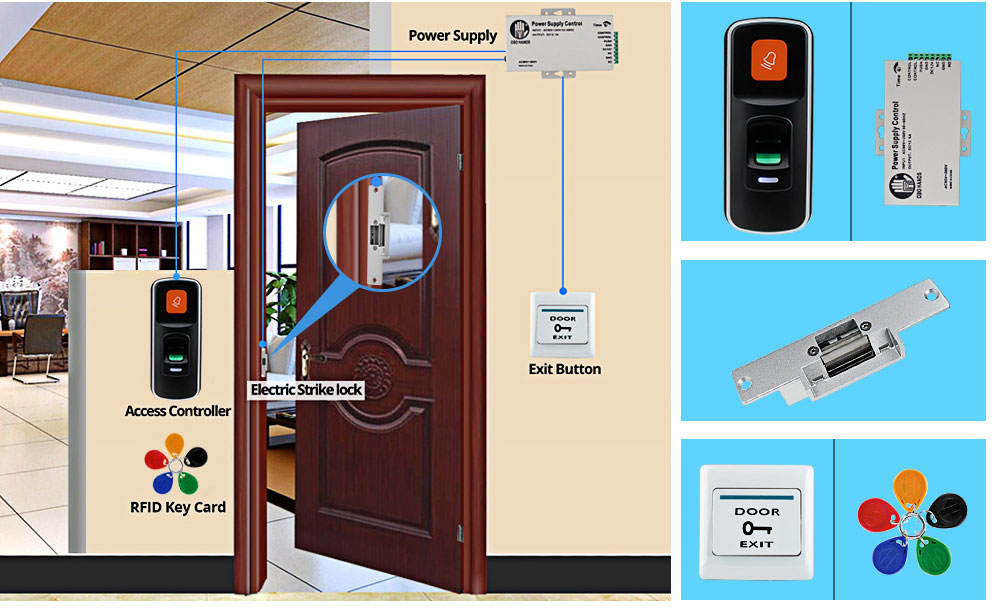

Kit1：Suitable for wooden door, metal door. Very convenient and beautiful.
Working Voltage: 12VDC
Current: 450mA 200mA
Unlock mode: NC type (Locked when power on,unlocked when power off)
Dimension of electric strike lock: 150X28X32mm( L/W/H )
Note: we have NO type electric lock too ( locked when power off, unlocked when power on), if you want it, please leave us a message.

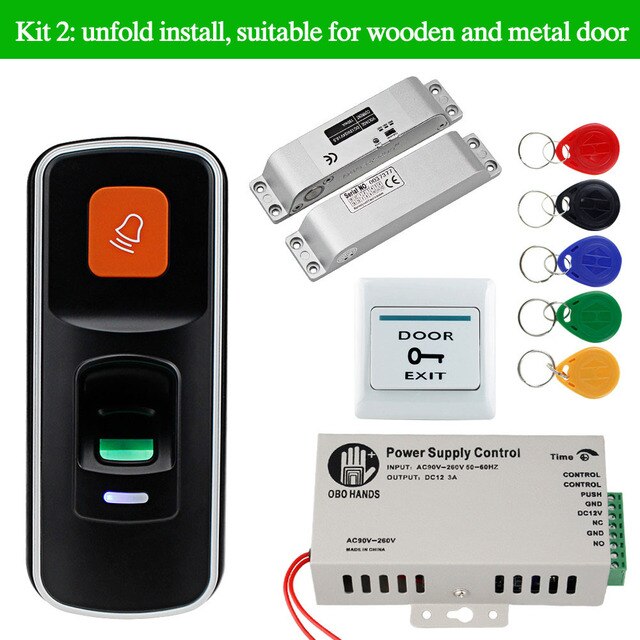

Kit2:suitable for wooden and metal door, not need bracket, convenient to install.
Working voltage: 12/24V
Time Delay: 0s, 3s, 6s (Adjustable)
Locking mode: Magnetic induction
Dimension: 150X34X28 (L/W/H)
Locked when power on, unlocked when power off

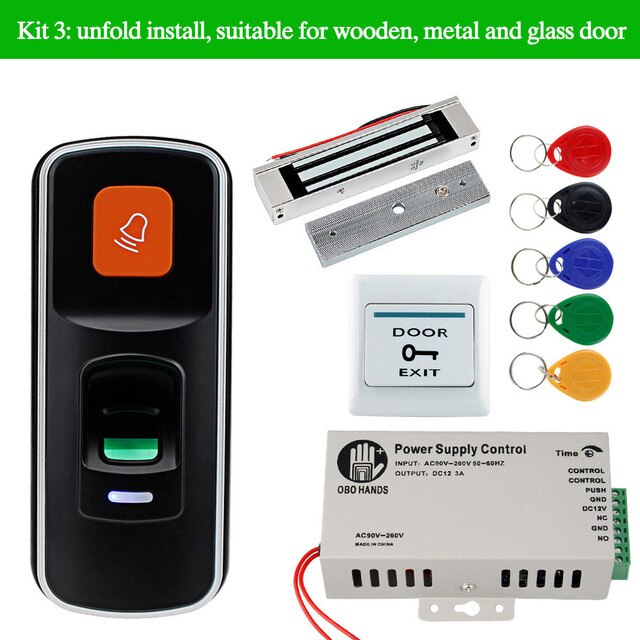

Kit3: Suitable for wooden,metal and glass door, not need bracket, convenient to install.
Material: Aluminium Alloy
Working Voltage: DC12V
Working Current: 380-500mA
Holding Force:180KG/350lbs
Dimension:172X40X20mm( L/W/H ) 130X32X11mm( L/W/H )
Locked when power on, unlocked when power off.

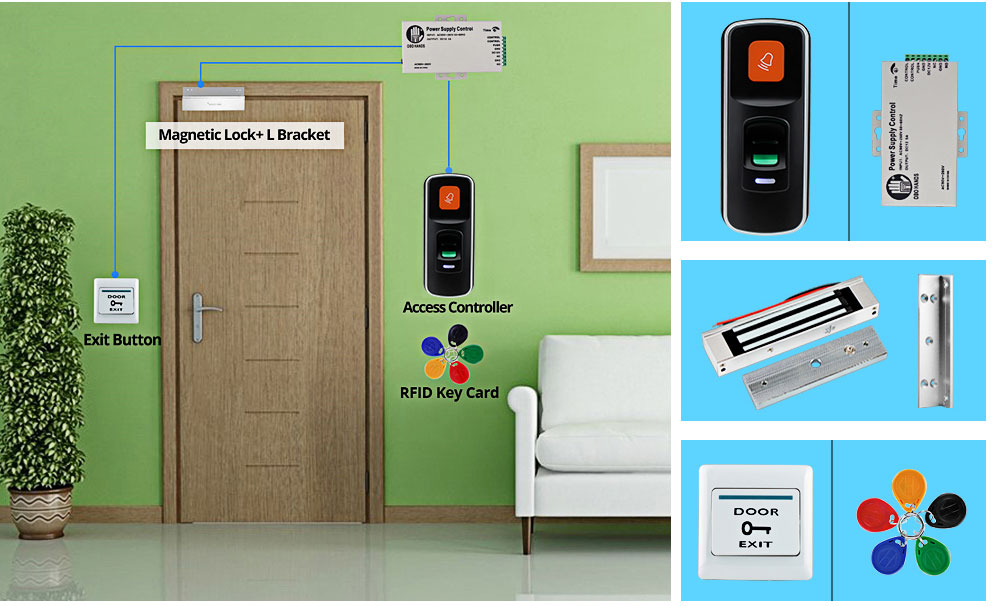

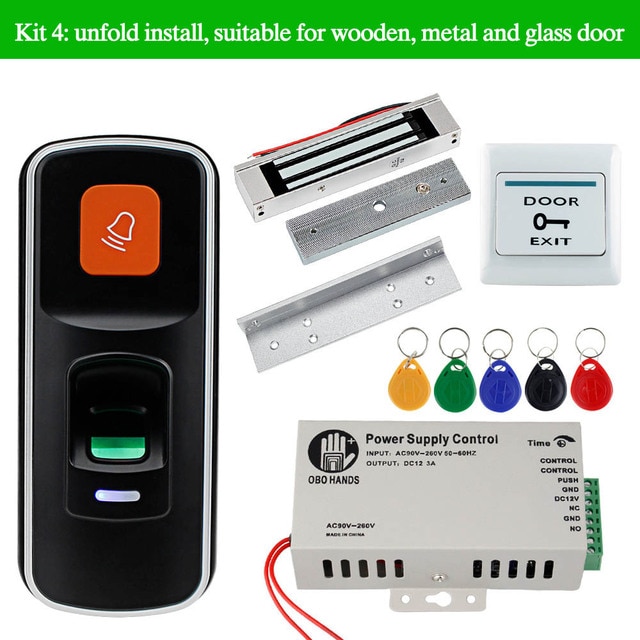

kit4:suitable for wooden, metal and glass door,need L bracket, convenient to install.
Size: L Bracket: 170* 34 * 25mm (L/W/H)

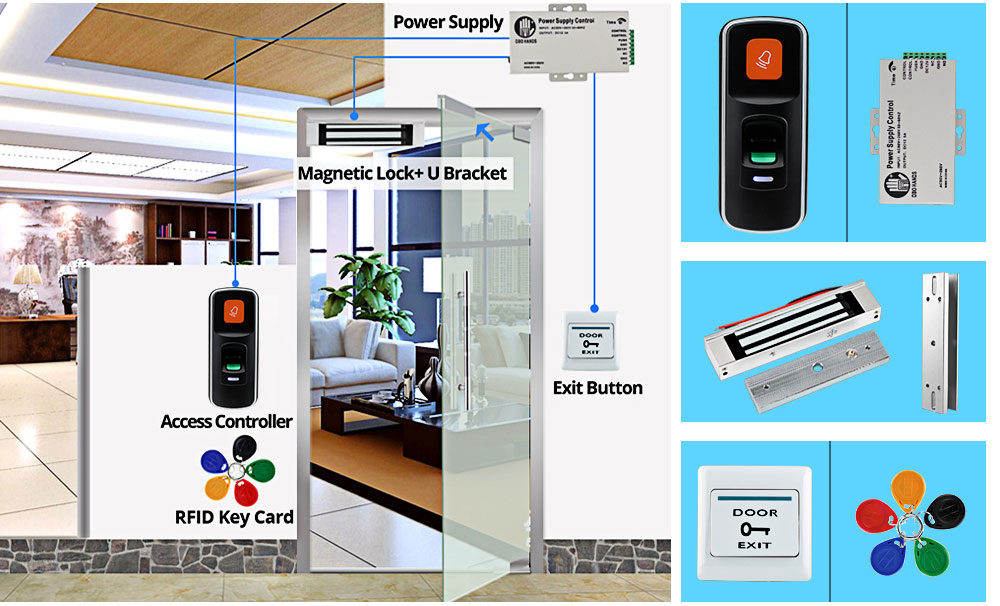

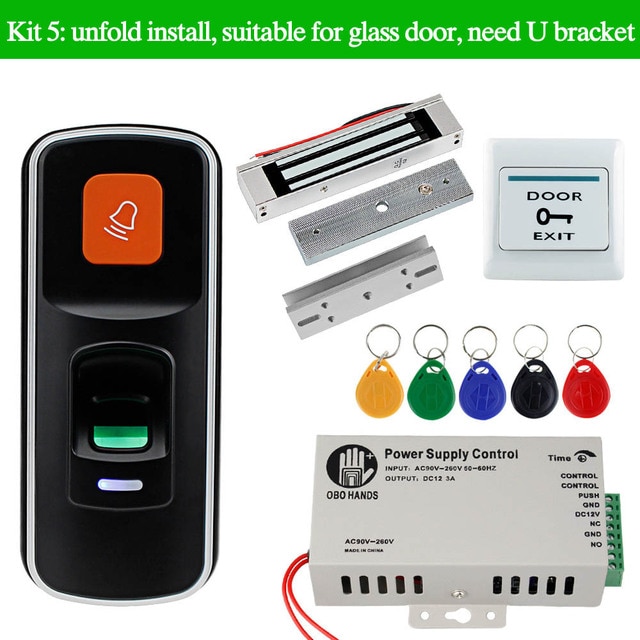

Kit5:suitable for glass door, need U bracket,convenient to install.
U bracket Size: 130*26*33mm (L/W/H)

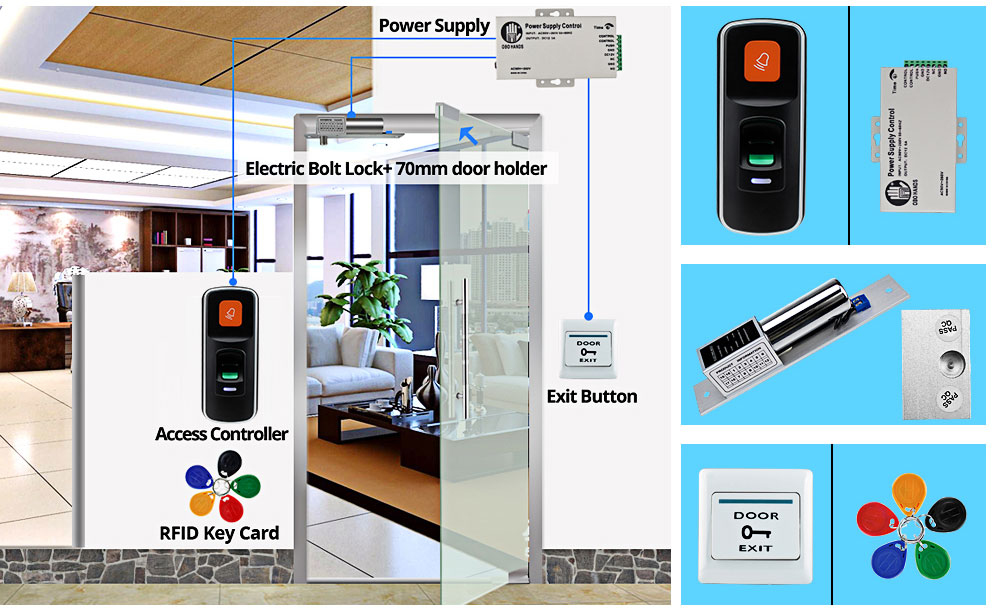

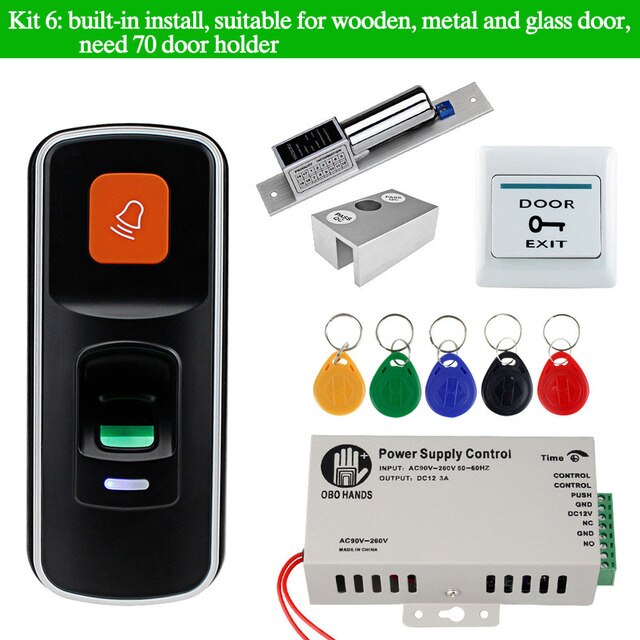

Kit6：Suitable for glass door,need 70mm door holder.
Electric Bolt Lock
Working voltage: 12VDC
Working temperature: normal temperature
Dimension: 200X33X45MM ( L / W / H )
Locking mode: Locked when power on, unlocked when power off
If your glass door is frameless, will need the door holder.

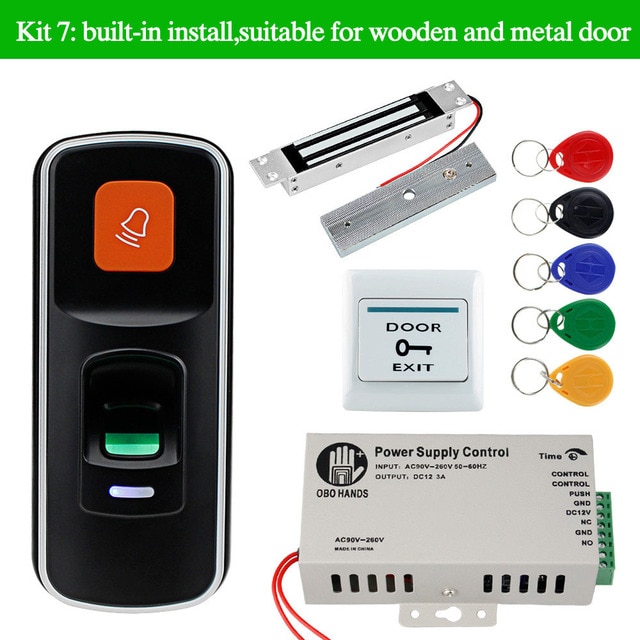

Kit7：Suitable for wooden and metal door,convenient and beautiful.
Size: 192Lx33Wx20H(mm)
Armature Plate Dimension: 139Lx32x11H(mm)
Holding Force: 180kg(350Lbs)
Input Voltage: 12VDC
Current: 12V/120mA
Lock mode: Locked when power on, unlocked when power off

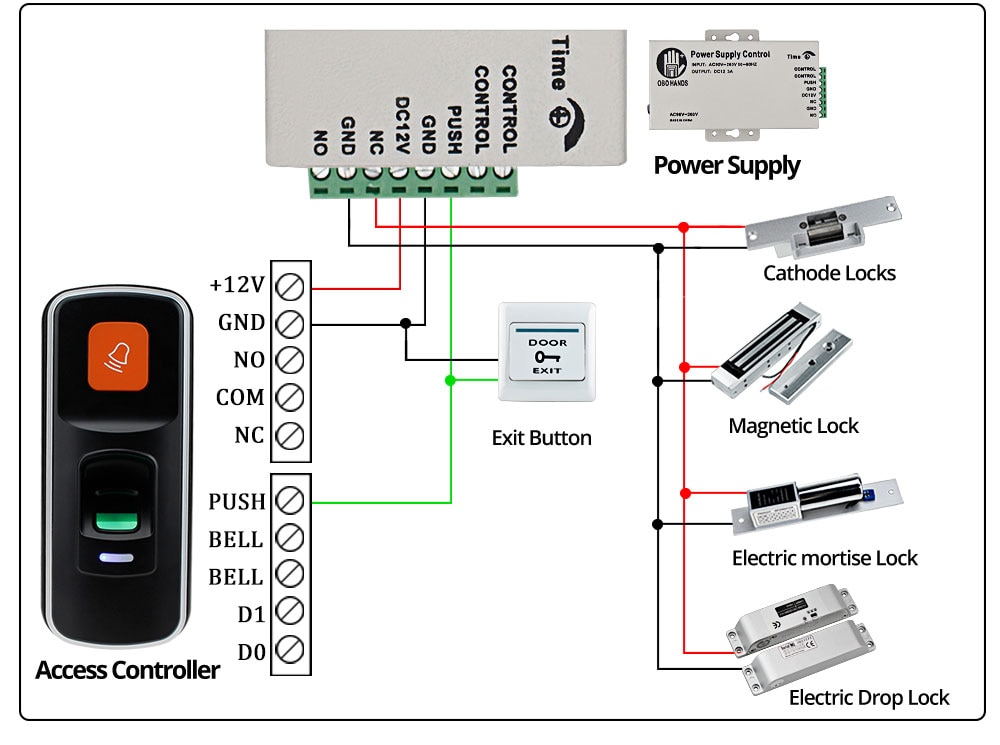

Wiring Diagram
The simple wiring diagram is connect both fingerprint access control, electric lock, door exit button to the access control power supply.
- Direction: None
- Security Mode: Fail Safe
- Model Number: i90Kits
- Brand Name: OBO HANDS
- Place of Origin: Guangdong, China (Mainland)
- Working Voltage: DC12V
- Working temperature: -20~60 Celsius degree
- Application: office,school,home,hotel,shopping mall
- Suitable for door: Metal/Wooden/Glass/Security Door, etc
- Unlock Mode: Fingerprint, RFID Card
- User Capacity: 1000
- Lock: strike lock/magnetic lock/bolt lock for choice
- RFID Keyfobs: 5pcs
