RFID EM/ID Embedded Door Access Control intercom access control lift control with 2pcs mother card 10pcs em key fob min:1pcs
12.81 $
SALE
ID: 79616
Quantity
OBO Door Access Control System Kit RFID Keyboard Waterproof Cover + Elctric Door Locks + DC12V Power Supply Door Opener for Home
4.5 (2 votes) | 14 orders
Price:
US $14.82 - 163.21
/ piece
Discount Price:
US $
12.60 -
138.73
/ piece
-15%
- Color
-
-
OBO Door Access Control System Kit RFID Keyboard Waterproof Cover + Elctric Door Locks + DC12V Power Supply Door Opener for Home
Note: This item is a full kit of Door Access Control System.You can see eight different options kit. The only difference is the Locksthat suit for different doors.Please choose the items according to your door type.If any query please feel free to contact us.
Product Description

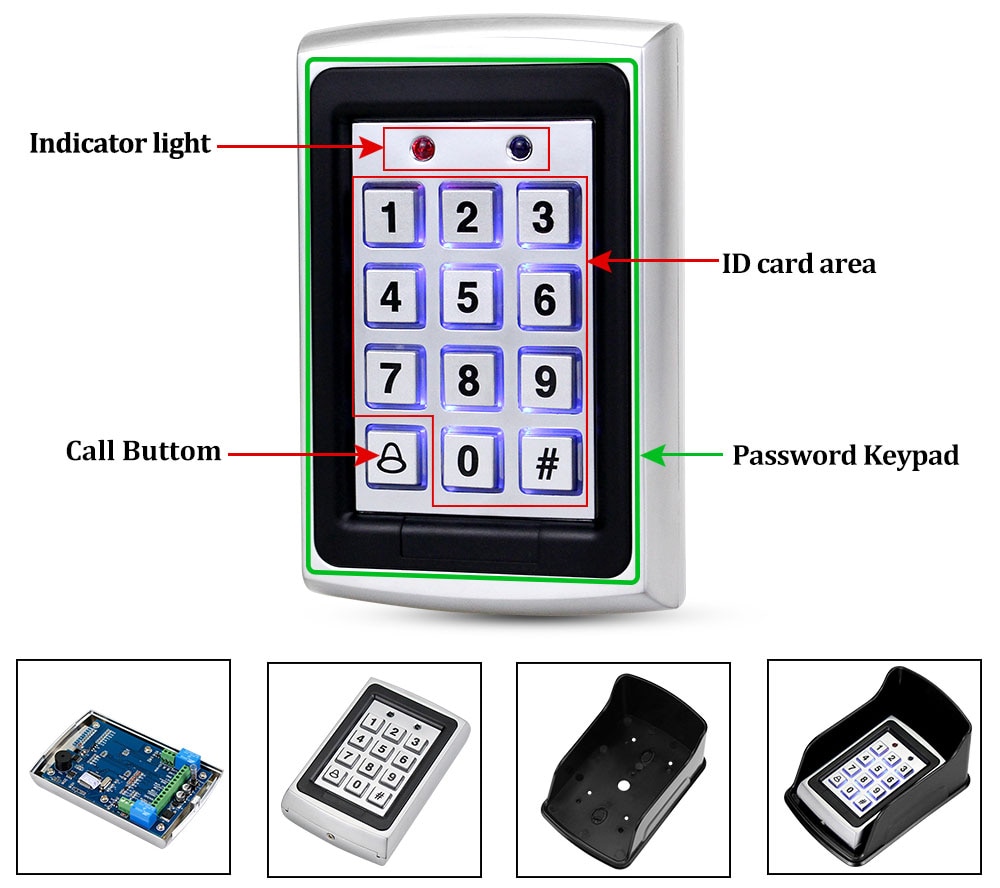

Access Controller:
Product Feature:
1. High quality and high security. Sensitively and response quickly.

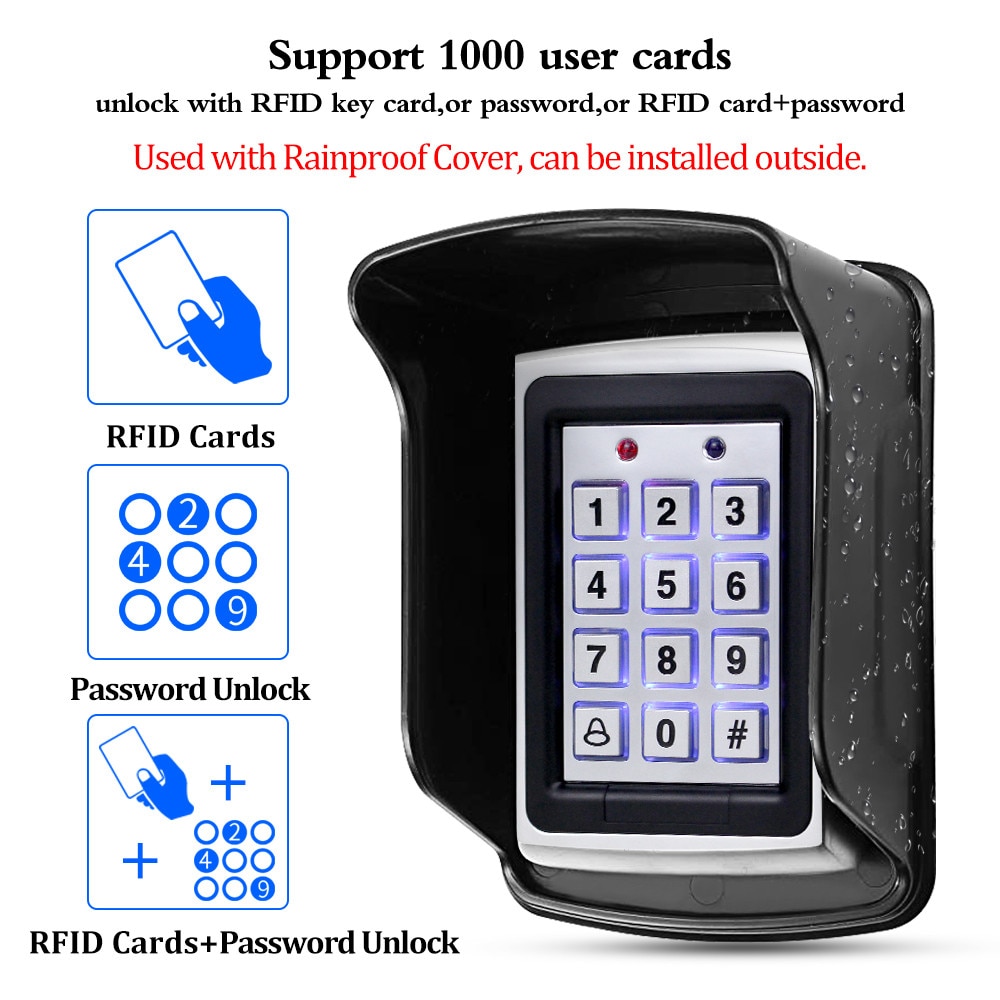

2. 1000 standard user capacity. Support card, password, password plus card to open the door
3. With door bell button, blue backlight keypad. With WG26 interface. Has 2 relays output
4. With time delay, tamper alarm function. Support one-door.
5. Does not need to connect to computer, item can works alone. Application: Home/ hotel/ office/ apartment/ factory, etc
2. 1000 standard user capacity. Support card, password, password plus card to open the door
3. With door bell button, blue backlight keypad. With WG26 interface. Has 2 relays output
4. With time delay, tamper alarm function. Support one-door.
5. Does not need to connect to computer, item can works alone. Application: Home/ hotel/ office/ apartment/ factory, etc
Product Specification
User Capacity: 1000 user cards

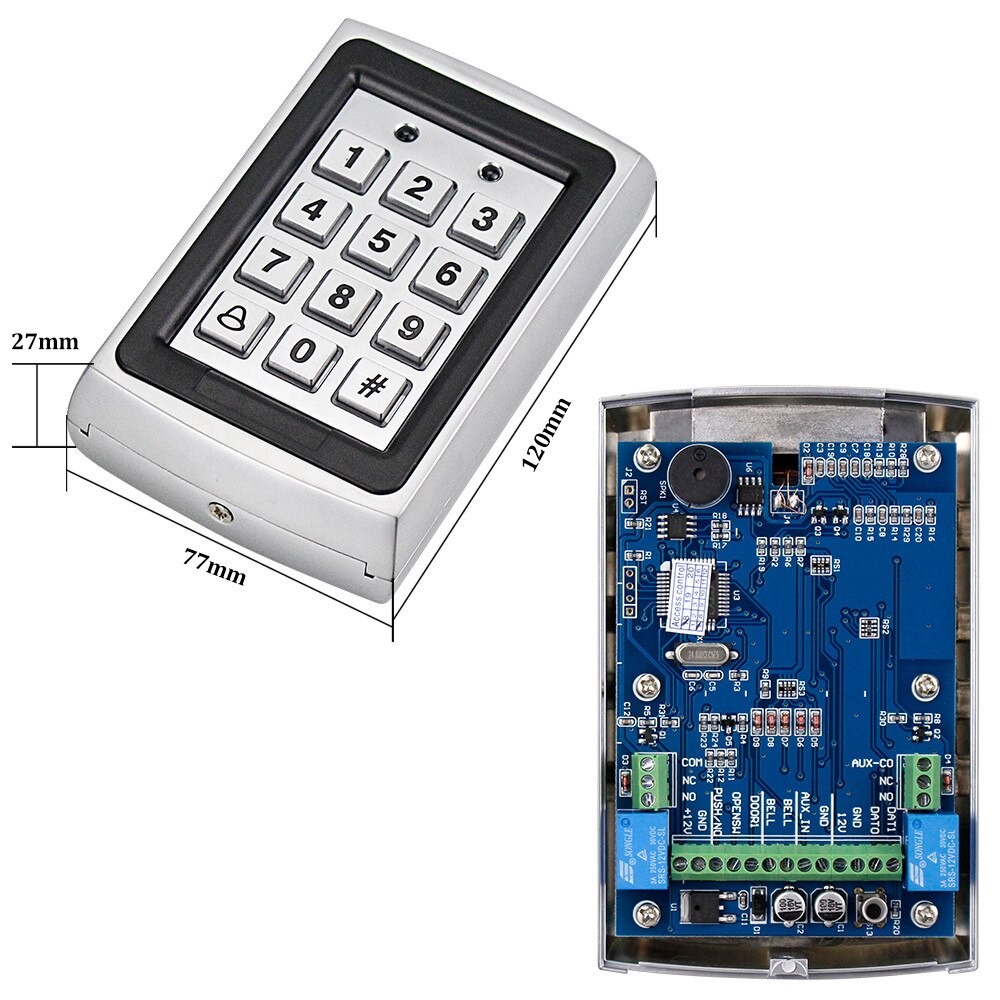

Dimension: 77*120*27mm(L/H/W)
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: 1.2A
Working Temperature: -30 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%
Dimension: 77*120*27mm(L/H/W)
Working Frequency: 125KHz
Working Voltage: DC12V
Working Current: 1.2A
Working Temperature: -30 to +60
Reading Distance: 0-10cm
Relative Humidity: 20%-90%

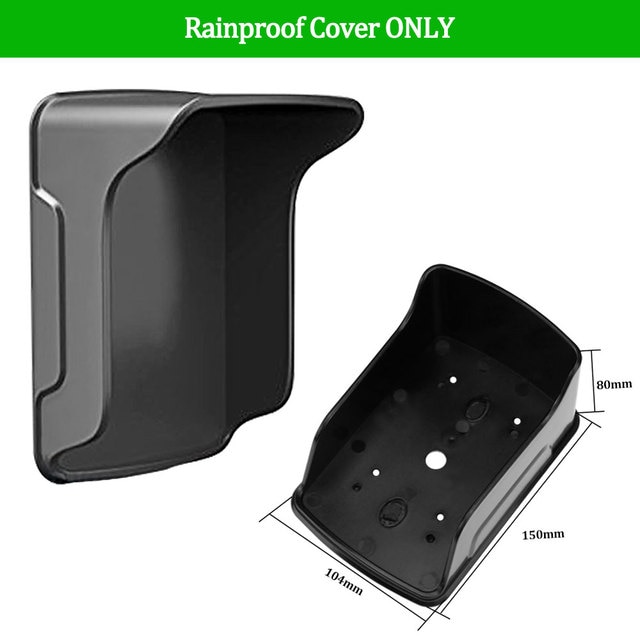

Kindly note: the surface is waterpoof. But not IP65 waterproof, can't be used under the rain directly. You can install the rainproof cover, then can used under the rain.
Power Supply:
1.AC input: Standard AC100V-240V 50-60HZ
2.DC output: Stabilivolt DC12V/ 3 A
3.Package Dimensions: 117 x 68 x 32mm
4.Remote control function:Yes
5.Dimension: 138X67X37mm( L/W/H )
Door Exit Button:
Material:Hard Plastic
Maximum Power Rating:36V DC 3A—5A output
Support both NC Mode (Fail Safe Mode) &
NO Mode (Fail Secure Mode)
Dimension:86X86MM ( L / W )
RFID Keyfobs:
125KHz rfid frequency key card, waterproof
Operating frequency: 125kHz
Detection range: 0-10cm
Each card pre programmed and has a unique identity number on it.
Please Noted: There are 5 color of the RFID keyfobs for optional
Note:(blue, red, yellow, green, black). We will send blue by default.
If you need other color, please leave message to us.

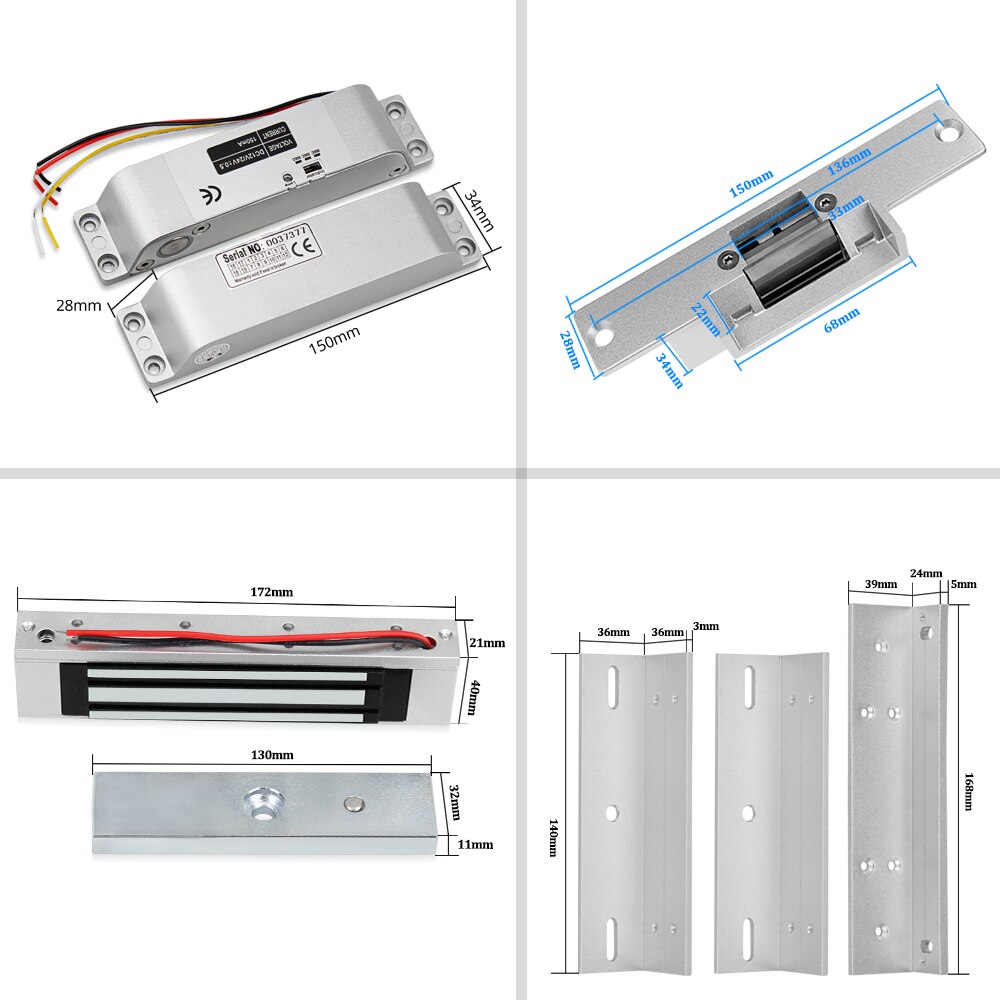

1* Electric Lock ( Optional ): according to your door to chose the right lock

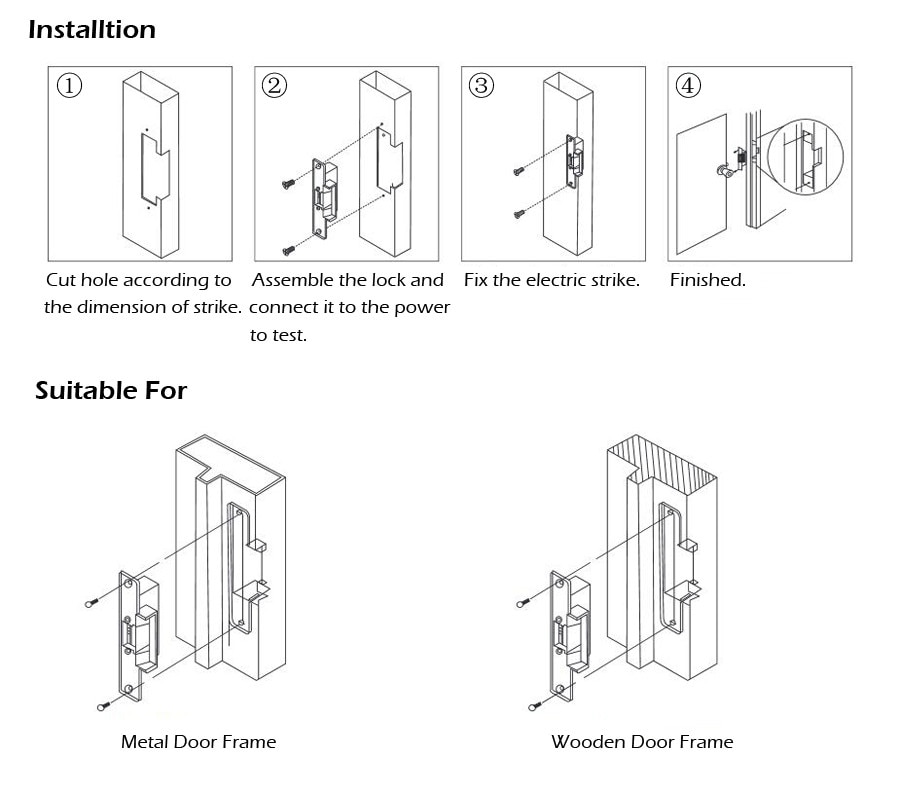

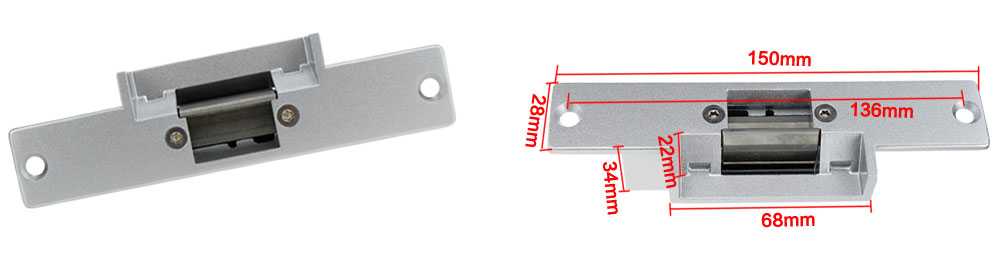

1) Electric Strike Lock
Suitable for wooden door, metal door
Material: Stainless Steel
Holding Force: 500kg
Working Voltage: DC12V
Working Current: 200mA
Operating Humidity: 0~90%
Face plate Housing: Painted Steel
Suitable: Wooden door
Opening Mode: 90 Degree Swinging Door
Size: 150*28mm
Suitable Temperature: -30~+55 Celsius Degree
Lock way: NC mode/Fail Safe mode ( Locked when power on, unlock when power off. If you want NO mode, please leave us message)

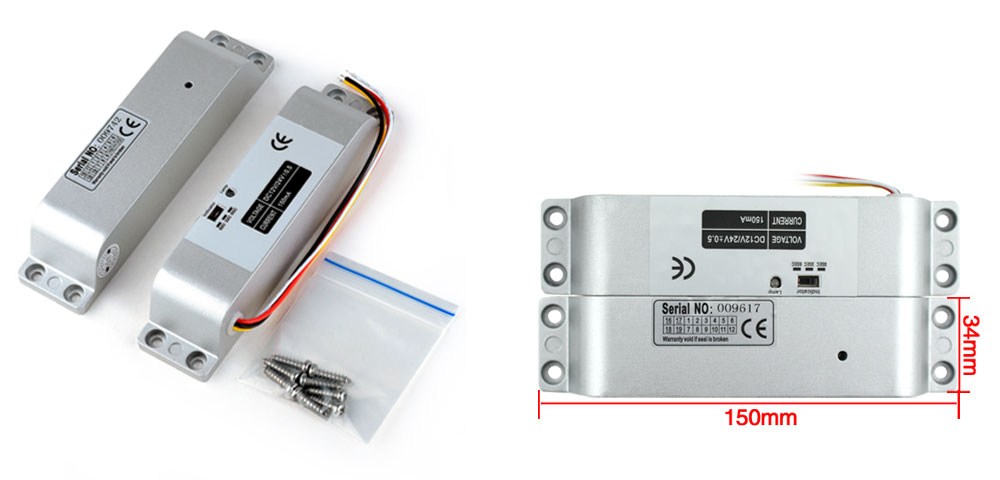

2) Electric Drop Bolt Lock
Suitable for wooden, metal door, security door. High sensitive and stable, very beautiful!
Material: Aluminum alloy
Working Voltage: DC12V
Current: Star-up: 1.2A; Working: 0.25A
Size: 150*34*28mm
Working temperature: -30~ 55 Celsius Degree
Time delay: 0/3/6 second ( Factory setting: 0 )
Lock Way: NC mode/ Fail Safe mode ( Locked when power on, unlock when power off )

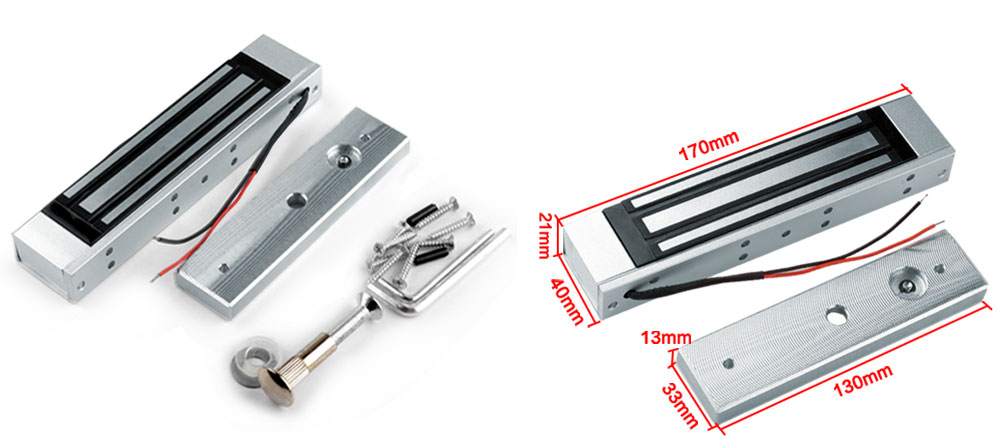

3) 180KG Electric Magnetic Lock
Suitable for wooden door, metal door, glass door
This item is magnetic lock that consists of an electromagnet and an armature plate used for access control door locks. High quality and durable in performance.
Holding Force: 180KG/350lbs
Material: Stainless steel
Working Voltage: DC12V
Anti-Residual Magnesium Designed
Performance Testing:1000000 times aging test
Safety Function: Built-in voltage spike suppressor
Suitable For: Wooden Door, Metal Door, Fireproof Door, Glass Door, etc.
Lock Way: NC Mode/ Fail Safe Mode: Locked when power on, unlocked when power off
Bracket

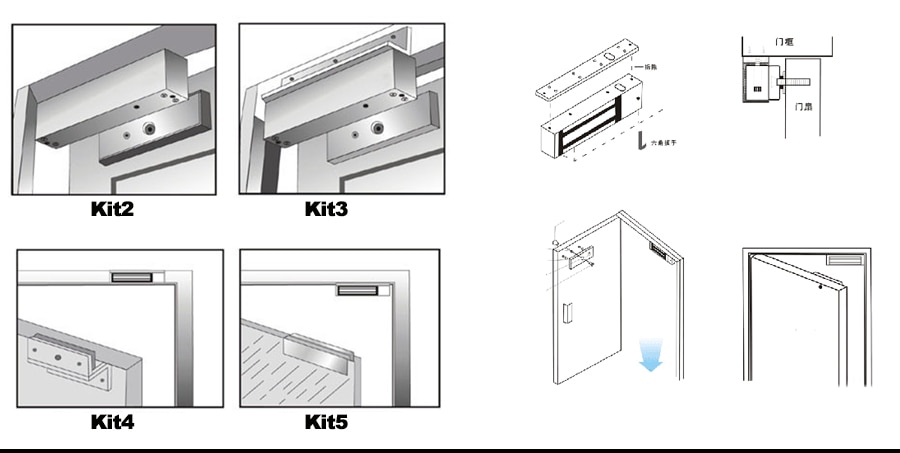

Package List

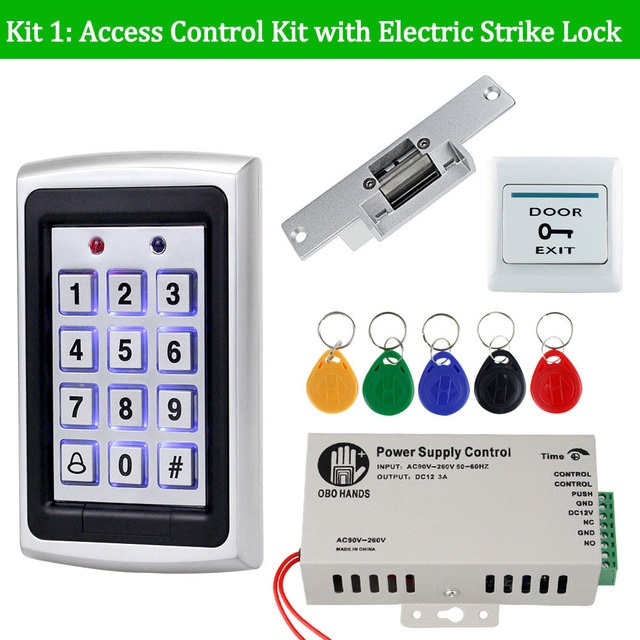

Kit1: Suitable for wooden door, metal door. convenient and beautiful. No need bracket
Package including: Access Control keypad + Power supply + Electric Strike lock + Exit button + 5pcs Keyfobs
NC model (Locked when power on, unlocked when power off), if you want NO type, please leave us a message.

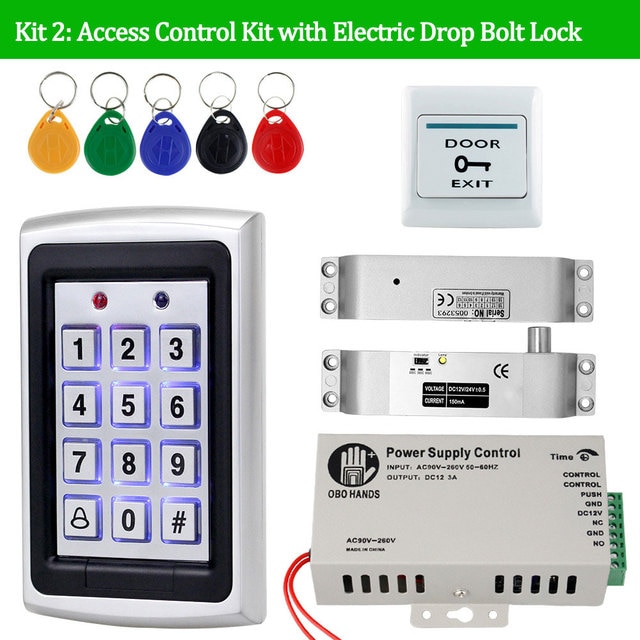

Kit2: Suitable for wooden, metal and Stainless steel door, No need bracket.
Package including: Access Control keypad + Power supply + Electric Drop bolt lock + Exit button + 5pcs Keyfobs

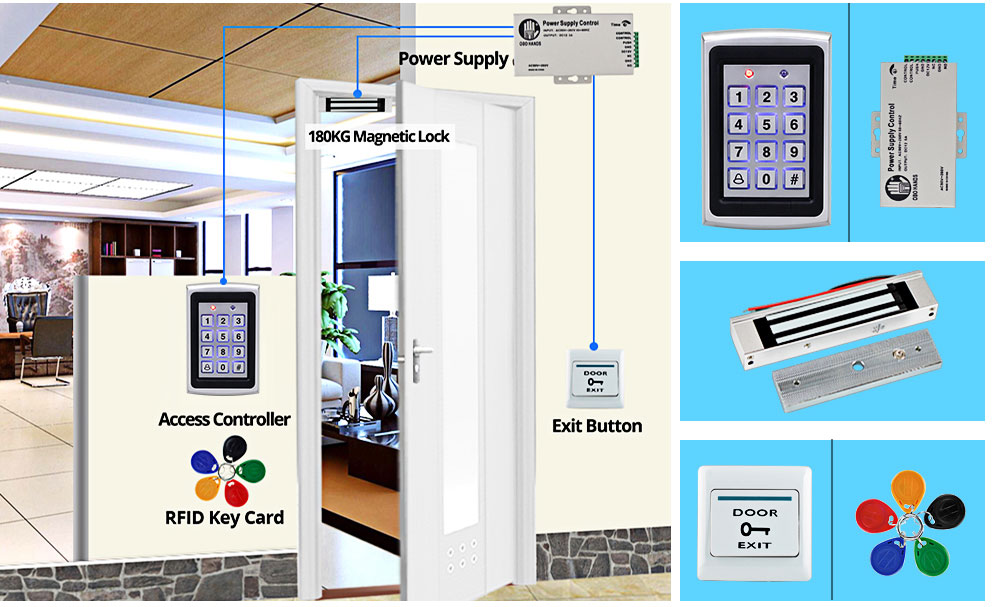

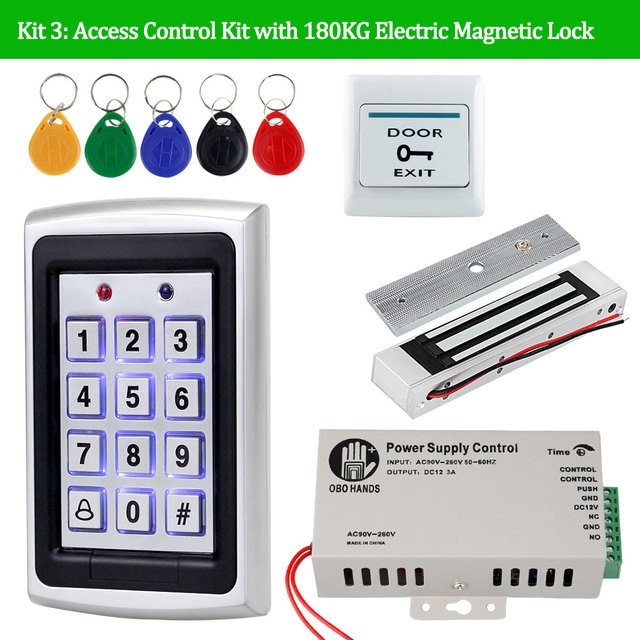

Kit3: Suitable for wooden, metal and glass frame door. No need bracket.
Package including: Access Control keypad + Power supply + 180KG Electric Magnetic Lock + Exit button + 5pcs Keyfobs
Kit4: Suitable for frameless glass door. Need U bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + U bracket + Exit button + 5pcs Keyfobs

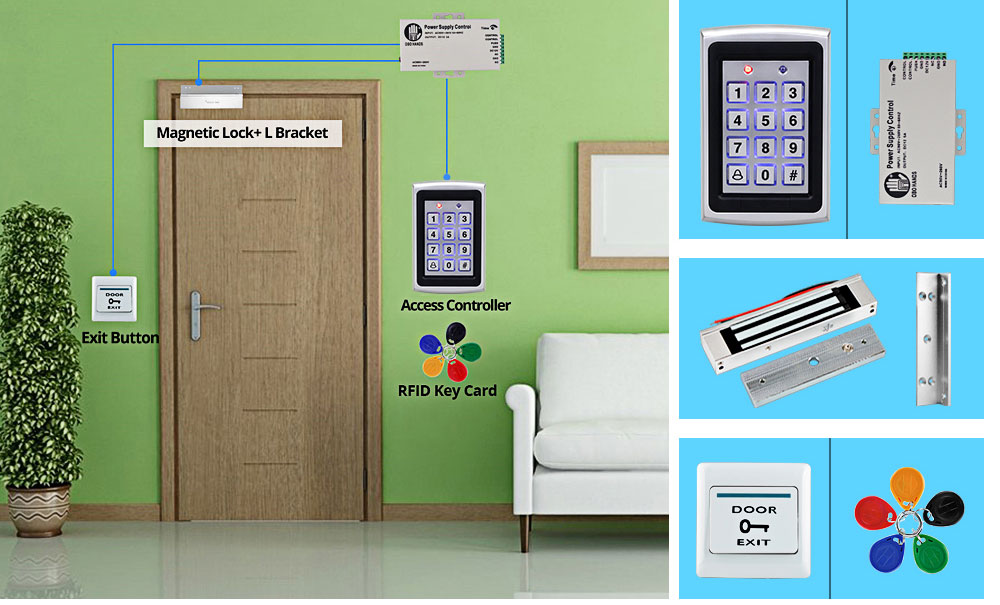

Kit5: Suitable for wooden, metal door. Need L bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + L bracket + Exit button + 5pcs Keyfobs
look at the door from the indoor, if the door is flat or the door to door frame is less than 3cm, you need to add the L bracket.

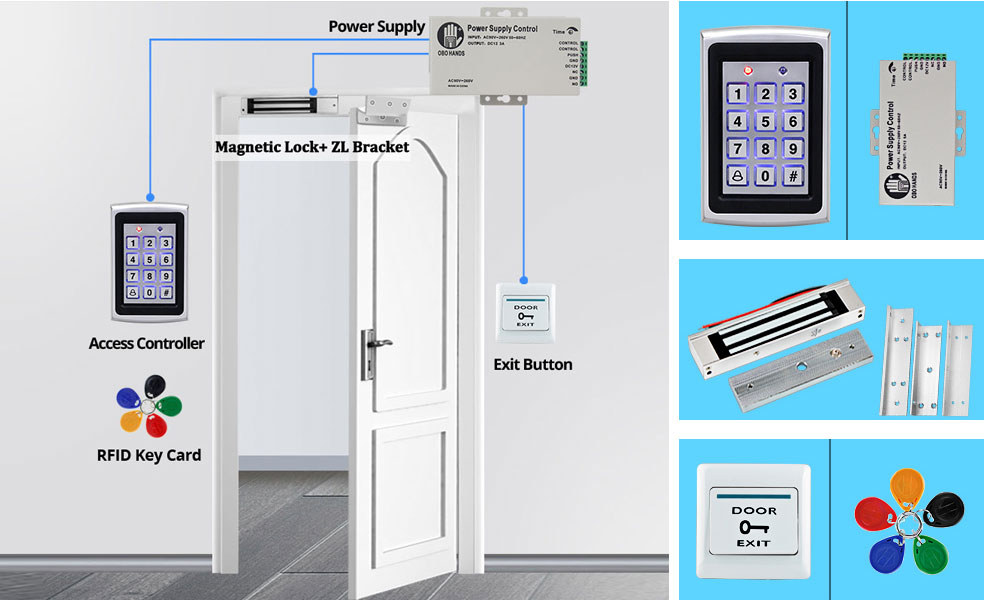

Kit6: Suitable for wooden, metal, glass door. Need ZL bracket.
Package including: Access Control keypad + Power supply + 180KG Magnetic Lock + ZL bracket + Exit button + 5pcs Keyfobs
If your door is open from indoor, then need to add the ZL bracket.

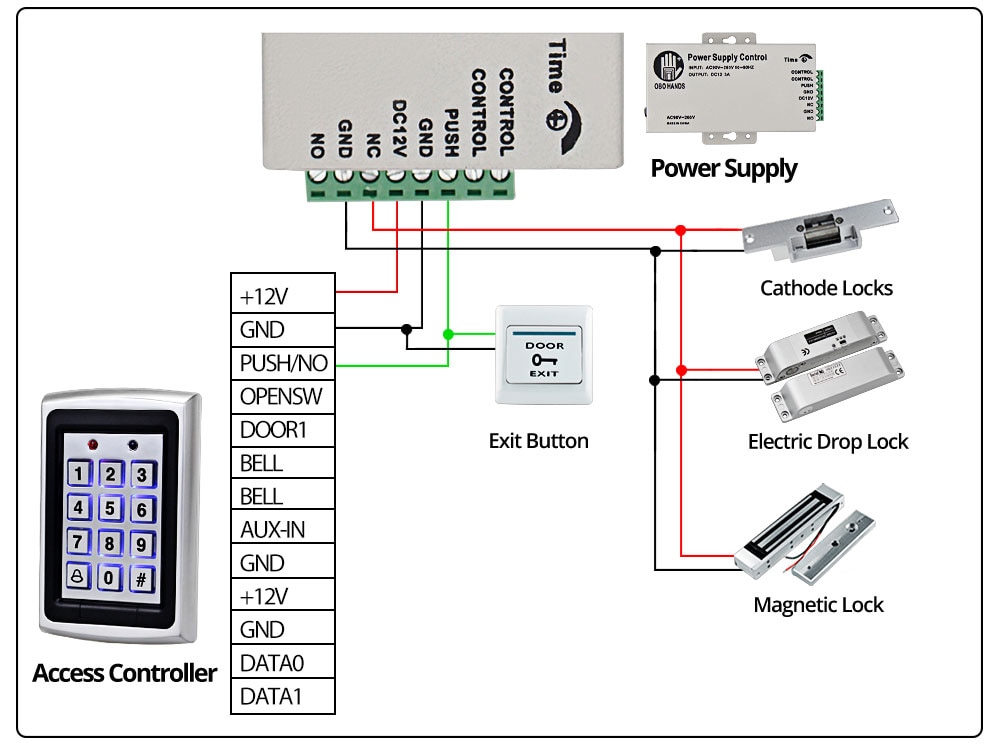

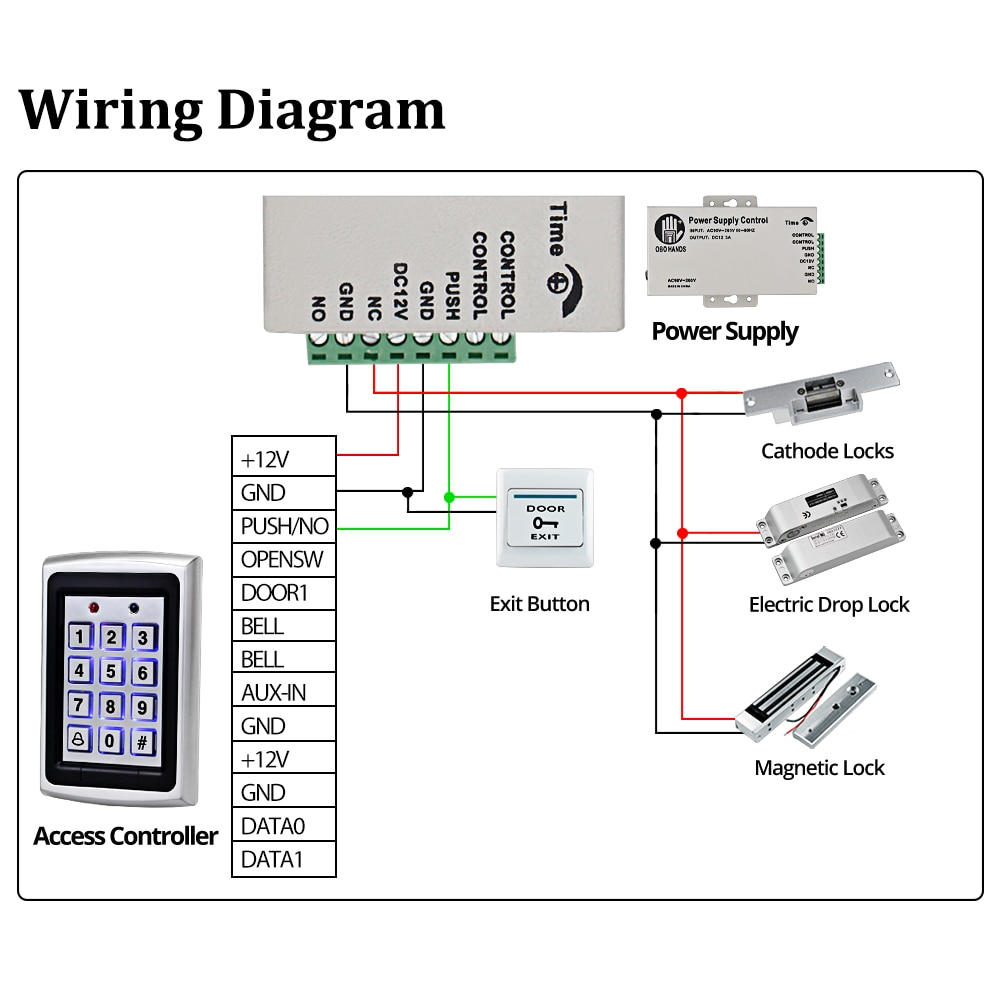

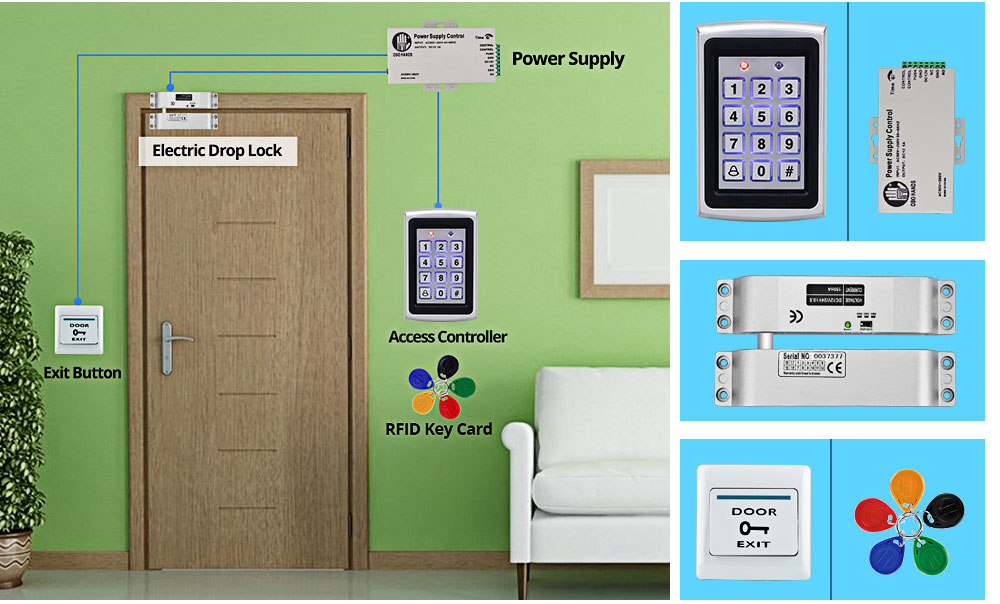

Wiring Diagram

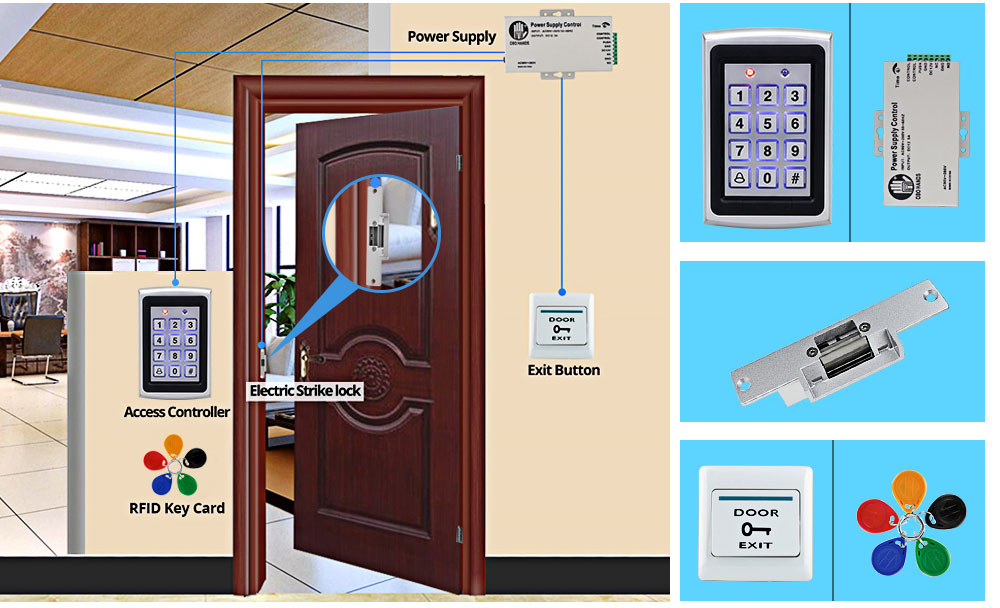

The simple wiring diagram is connect both access control keypad, electric lock, exit button to the DC12V power supply. Then connect the DC12V power supply to your AC90-260V power.
- Direction: None
- Security Mode: Fail Safe
- Model Number: 7612kit
- Brand Name: OBO HANDS
- Certification: CE
- Origin: Mainland China
- Place of Origin: Shenzhen, China
- Working Voltage: DC12V
- Working temperature: -30~55 Celsius degree
- User Capacity: 1000 users
- Unlock Mode: Password, RFID Card, RFID card+password
- Working Frequency: 125KHz
- Lock1: 180KG Magnetic Lock
- Lock2: Electric strike lock
- Lock3: Electric drop bolt lock
- Bracket: L/U/ ZL Bracket
- RFID Keypad: 7612 model
- RFID Keyfobs: EM4100
- Access control power supply: DC12V 3A
- Type: Door access control system kit
- Suitable for door: Wooden door, metal door, glass door
