OBO IP68 Waterproof Access Control Keypad RFID Keyboard Metal Case for Door Access Control System Outdoor Rainproof WG26 Reader

5.0 (1 votes) | 4 orders
Price: US $63.50 - 67.73 / piece
Discount Price:
US $ 56.98 - 57.58 / piece
-10%
Color
Quantity






IP68 Waterproof Metal Access Control Keypad

2000 user capacity / 125KHz EM / RFID card, password, RFID card + password to unlock


Product Specifications
  • Material: Metal case, Silicone button

  • Working Frequency: 125KHz

  • Operating Voltage: 12V DC

  • User Capacity: 2000

  • Card Reading Distance: 0-10 cm

  • Waterproof: IP68 waterproof, can be installed outdoor

  • Active Current: <60 mA

  • Idle Current: 25±5 mA

  • Lock Output Load: Max 3 A

  • Alarm Output Load: Max 20 A

  • Operating Temperature: -35℃~60℃

  • Operating Humidity: 20%-90% RH

  • Adjustable Door Relay Time: 0-99 seconds

  • Adjustable Alarm Time: 0-3 minutes

  • Wiegand Interface: Wiegand 26 bit

  • Door bell button: has

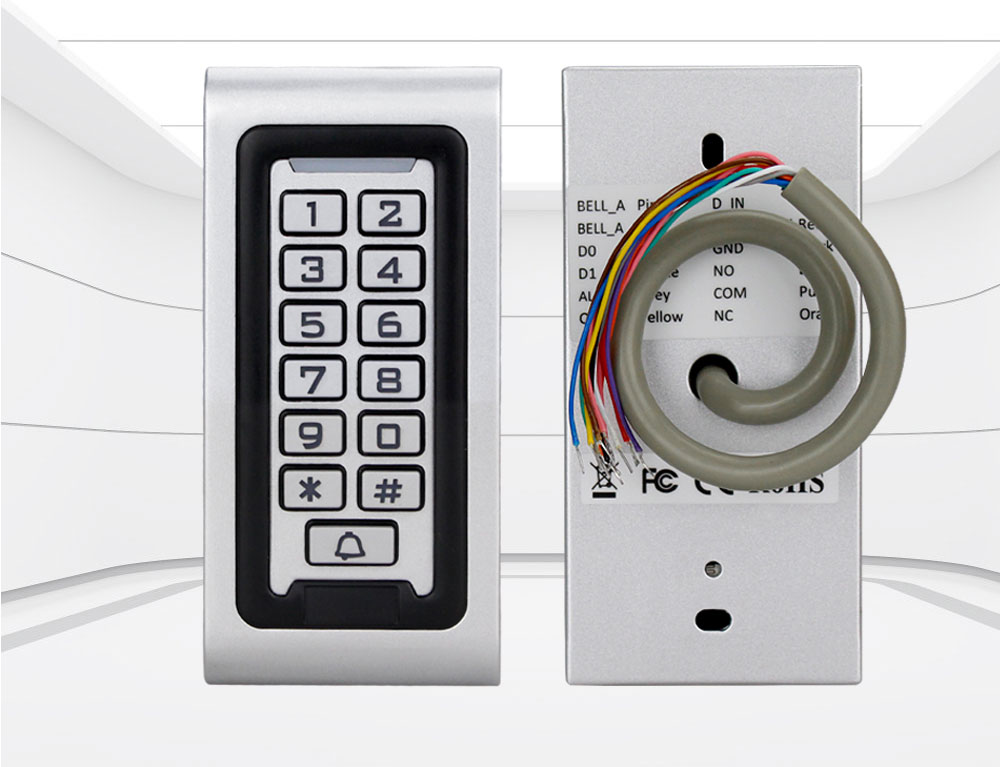

  • Wiring Connections: Electric Lock, Exit Button, External Alarm



Product Details

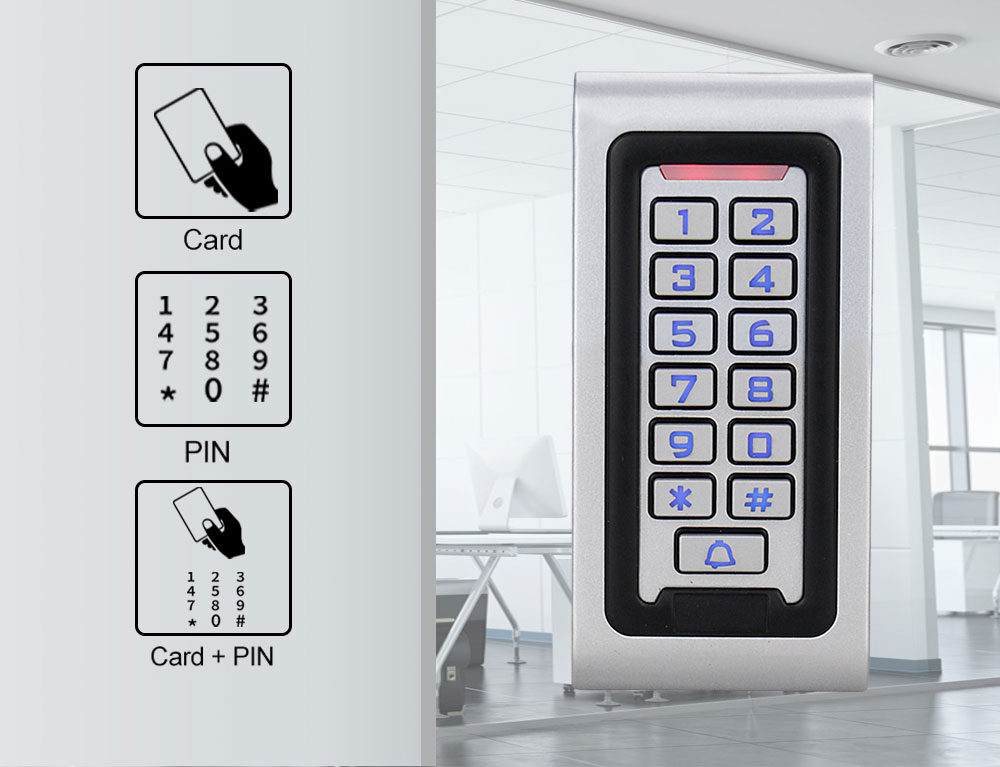

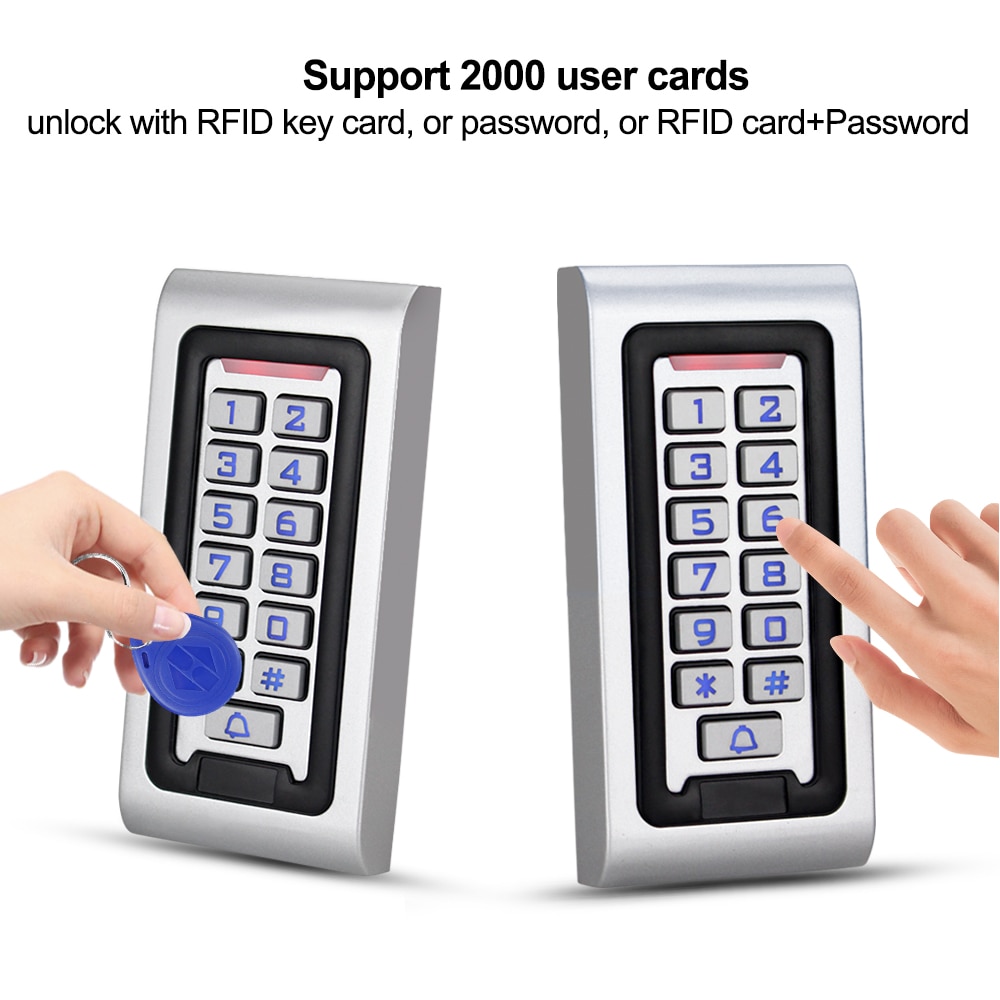

Support RFID card / Password / RFID card + password to uplock
2000 user storage. Full programming from the keypad, easy to use

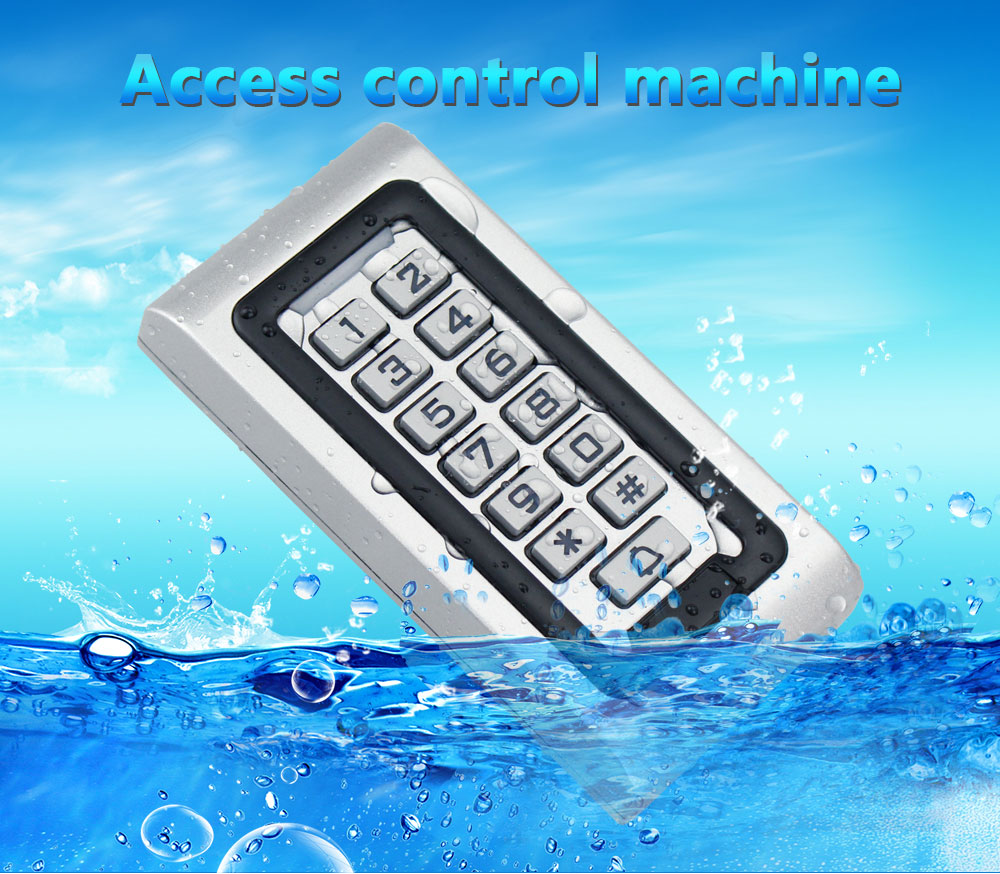

Metal structure, safe and durable
Environmentally friendly zinc alloy makes the product safer, more durable, anti-destructive and tamper-proof,
suitable for installation in different environments.

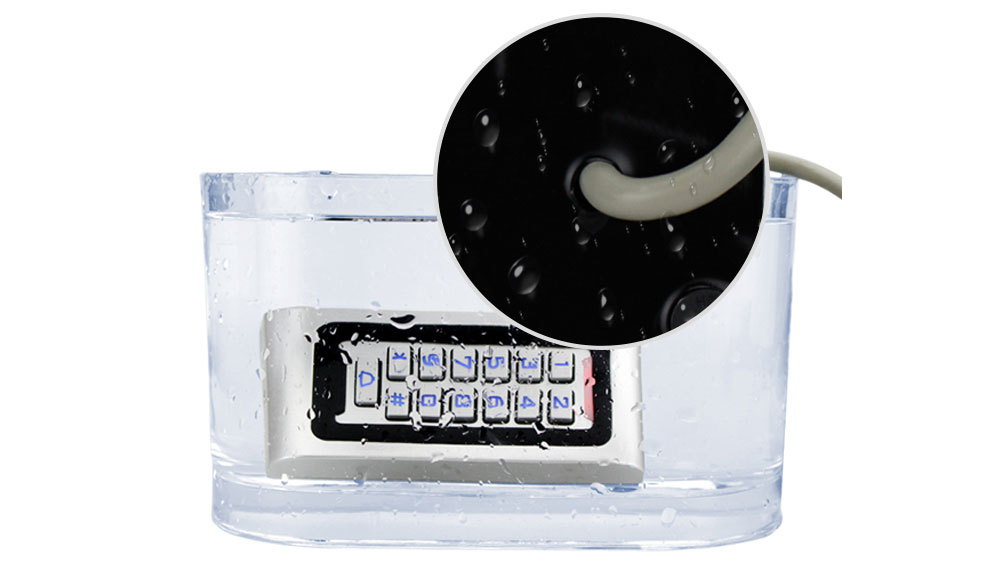

Internal glue seal design. IP68 Waterproof, dustproof, rainproof
The internal circuit board is glued and waterproof,
and can be used normally in places where water is accumulated.
Can be used outdoor.

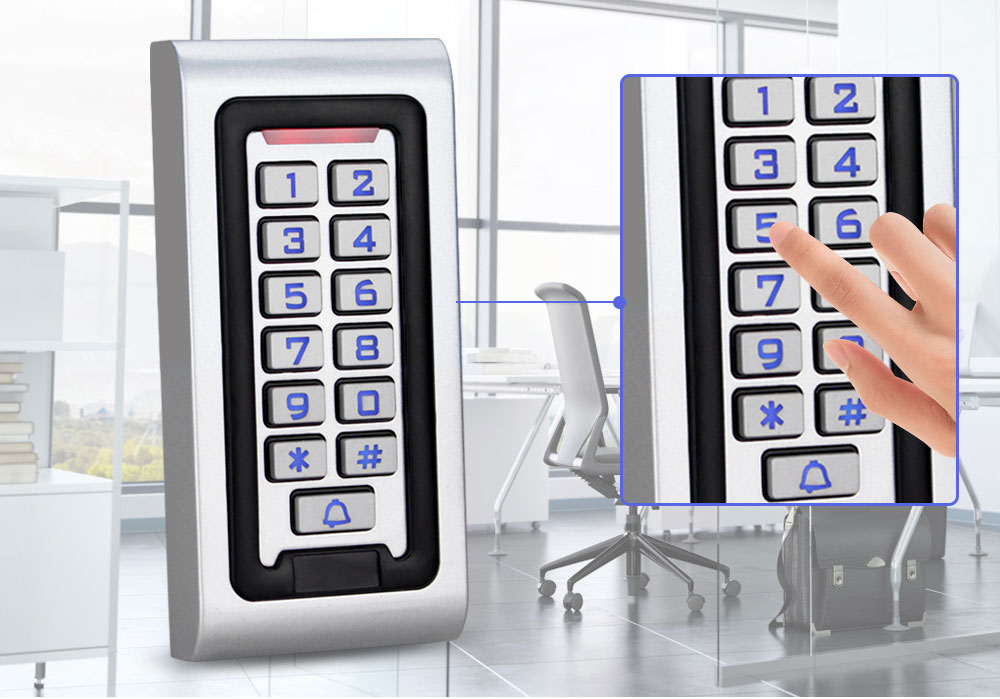

Backlight / Has Door bell button
Can see the digits number even at dark. Can install a DC12V door bell to this keypad
Smart chip component
High-quality micro CPU processor, full-featured, external read head and door magnetic alarm device
Product Analysis

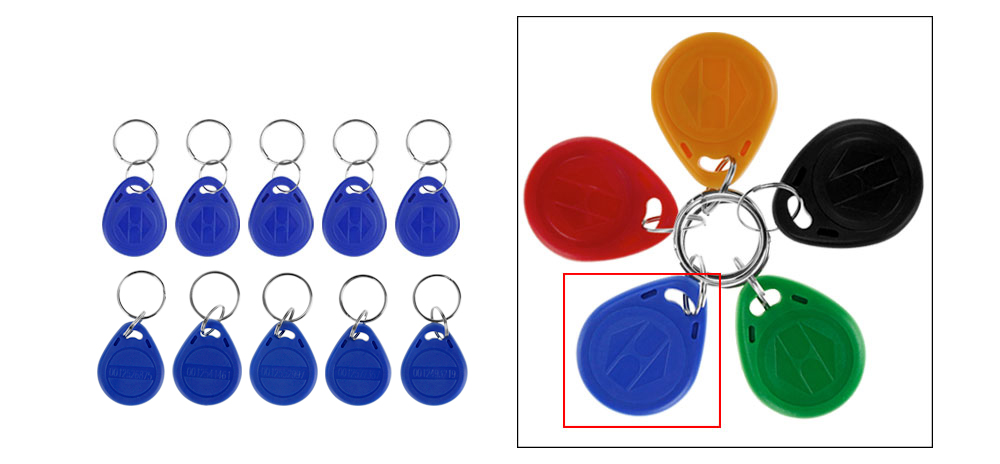

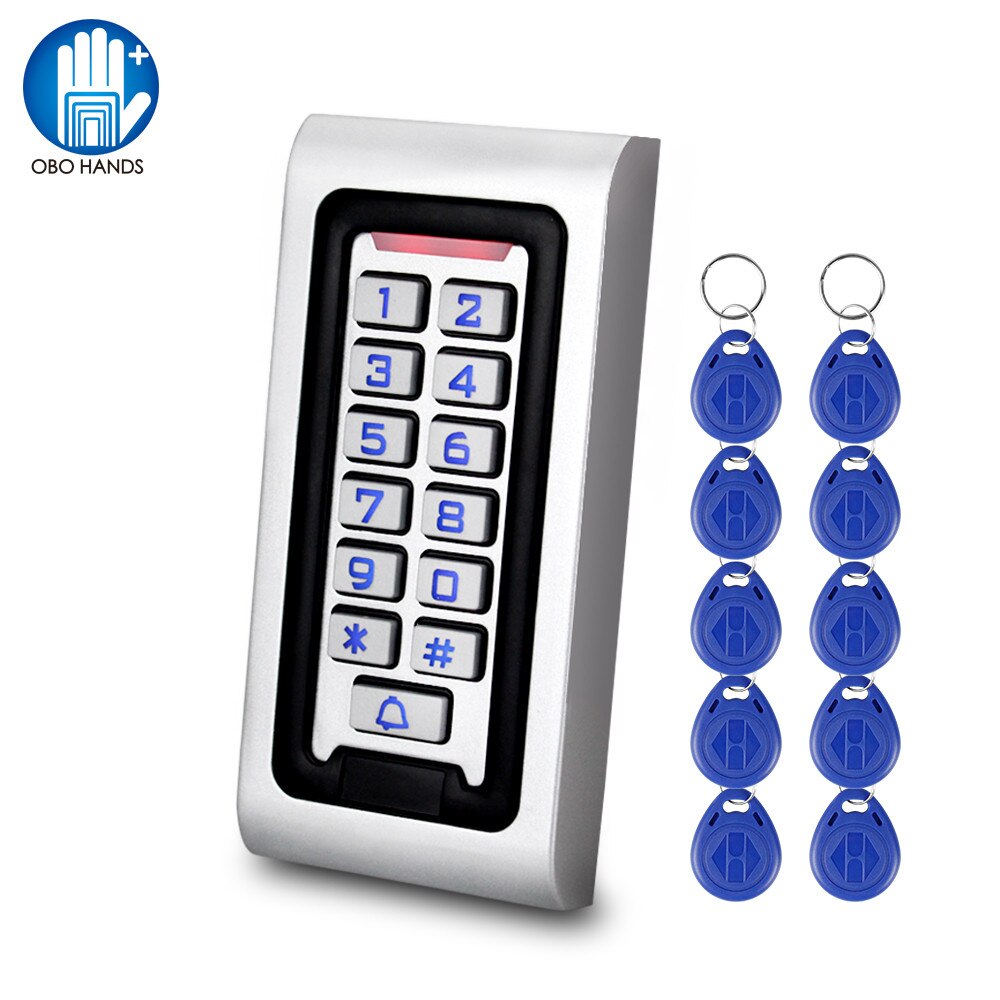

RFID Keyfobs

1. Material: ABS
2. Working Frequency: 125Khz
3. Support: read only, not support write
4. Reading distance: 0-10cm
5. Each one has a unique ID number printing on it
6. Color:
Red, Blue, Yellow, Green, Black

(The default color is blue, if you want other color, please leave us a message)

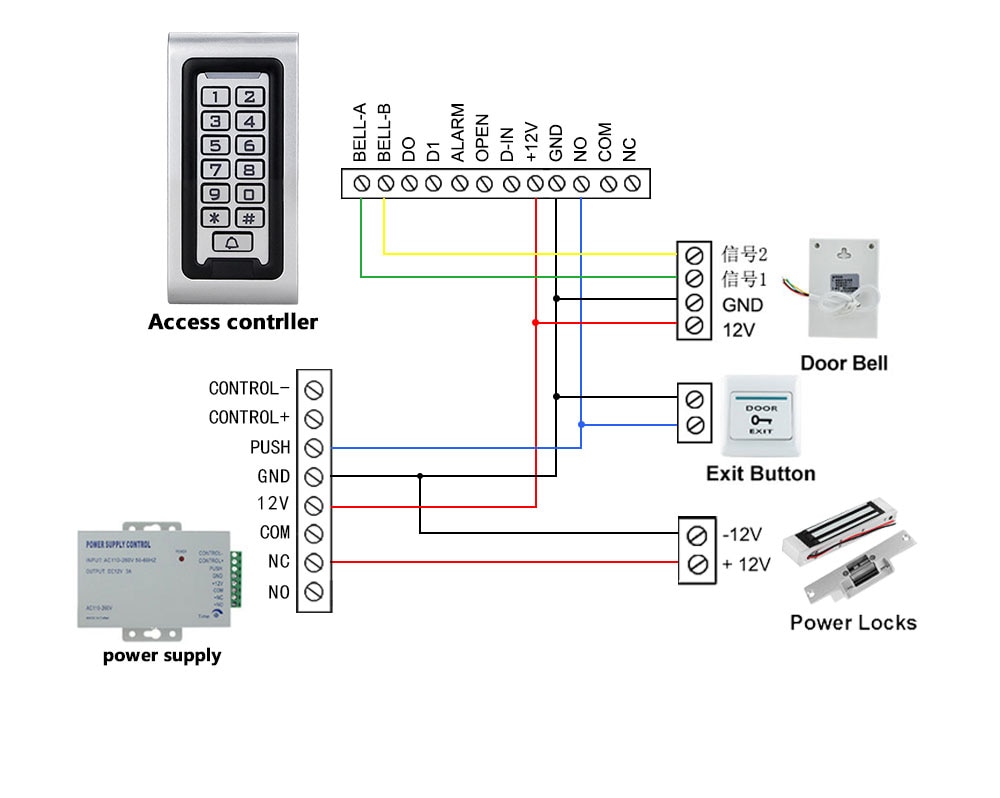

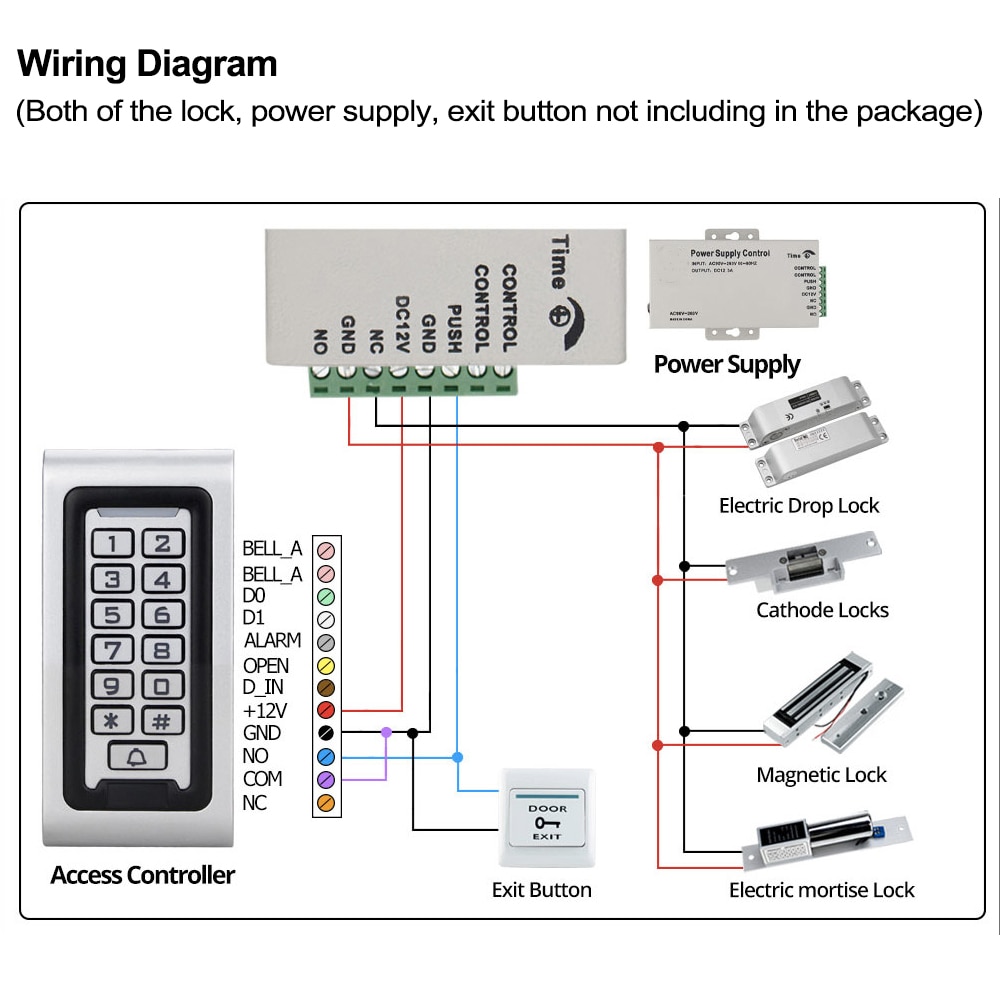

Wiring Diagram
Please note that the power supply, electric lock, exit button, door bell not included in the package, need to buy extra. Thanks!








  • Model Number: S601 RFID keypad
  • Brand Name: OBO HANDS
  • Certification: CE
  • Origin: Mainland China
  • Type: Access Control Keypad
  • User Capacity: 2000 user cards
  • Working Frequency: 125KHz
  • WG interface: WG26
  • Waterproof level: IP68 waterproof
  • Can be installed outdoor: Yes
  • Working Voltage: DC12V
  • Working Temperature: -35 to +60
  • Verification Method: RFID card, password, RFID card+password
  • Reading Distance: 0-10cm
  • Relative Humidity: 20%-90%
  • Blacklight: blue

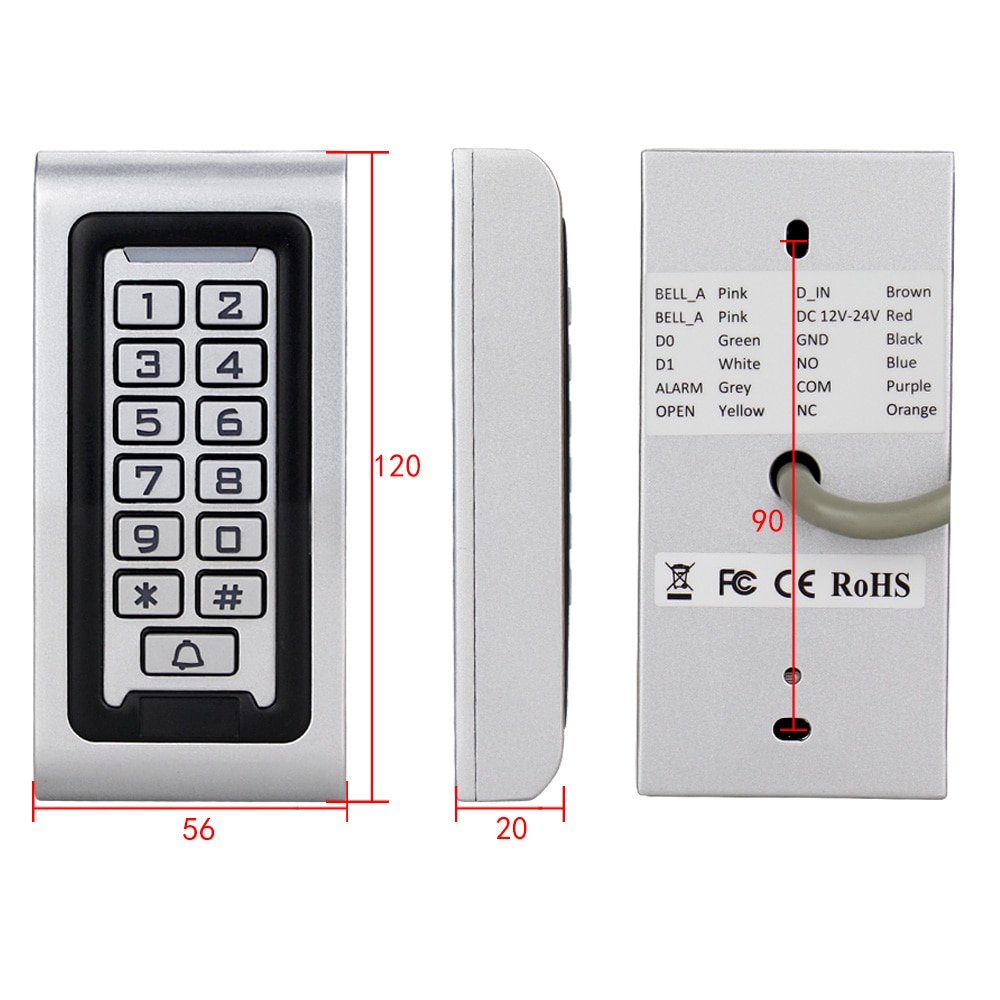

  • Dimension: 120 X 57 X 20mm
  • Support Card type: EM4100, TK4100 key cards
  • Type1: RFID keyboard
  • Type2: RFID Keypad
