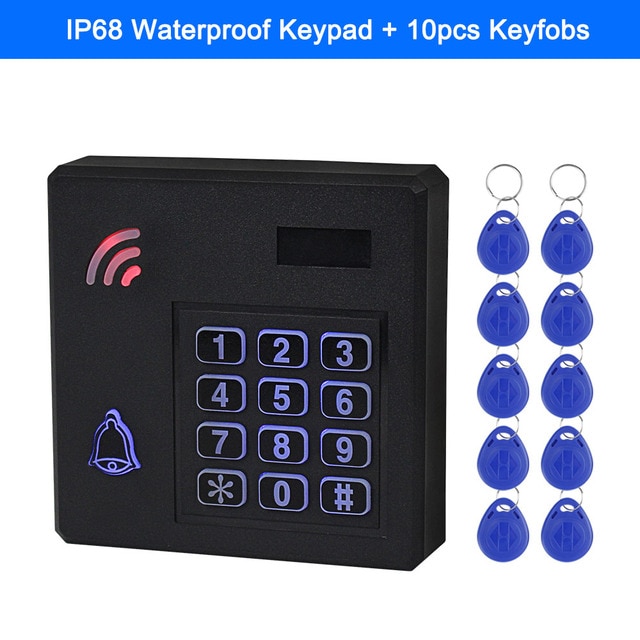

IP68 Waterproof Access Control System Outdoor RFID Keypad WG26 Access Controller Keyboard Rainproof 10 EM4100 Keyfobs for Home
4.5 (2 votes) | 11 orders
Price:
US $14.61 - 37.98
/ piece
Discount Price:
US $
11.68 -
30.38
/ piece
-20%
- Color
-
-
Waterproof IP68 RFID Card Door Access Controller With Wiegand 26 Output
High quality / 2000 user capacity / 3 unlock method
The non-contact sensing Access Controller is a third generation single door access control,recovery programming to solve the password without losing the original set information, the controller eatures the most advanced next-generation integrated access control one selected industries Embedded micro-controller, will not be lost due to power outages. powerful, has not lost the original password recovery programming information.
Product Specification:
User capacity: 2000
Material: ABS high quality material
Working frequency: 125KHz
Card reading type: support EM compatible card
Card reading distance: 0-10CM
Identification method: card, password, card + password
Backlight: has blue backlight
Waterproof function: IP68 waterproof, can be installed outdoor.
Open the door input: all the way to open the button input
Door magnetic input: one door magnetic input
Unlocking output: one way electric lock output
Doorbell button: one way wired doorbell output
Wiegand signal: WG26 input/output
Working voltage: DC 12V
Working current: ≤ 60mA
Maximum output: unlock current: ≤100mA, alarm output: ≤100mA
Working temperature: -25 ° C ~ 80 ° C,
Working Humidity: 20% ~ 90%

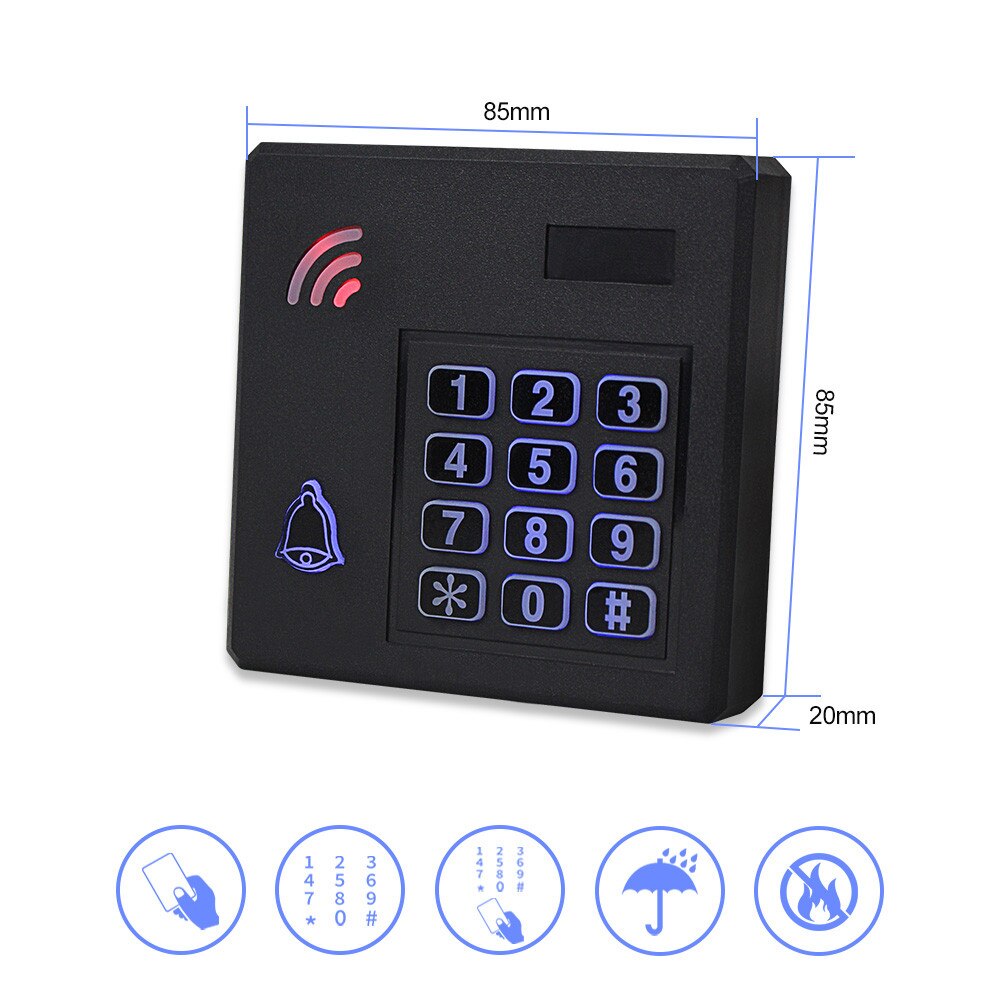

Product size: 85*85*20mm

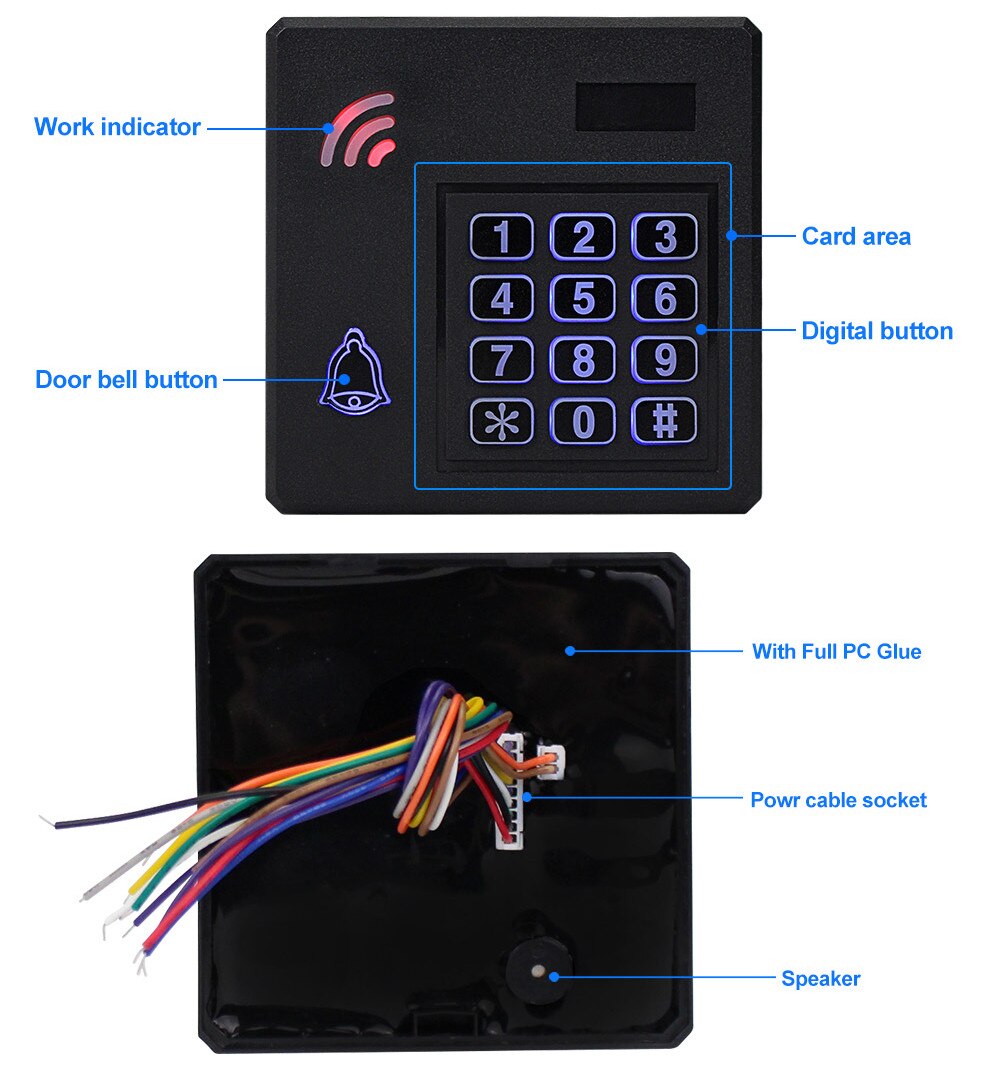

Product Details:

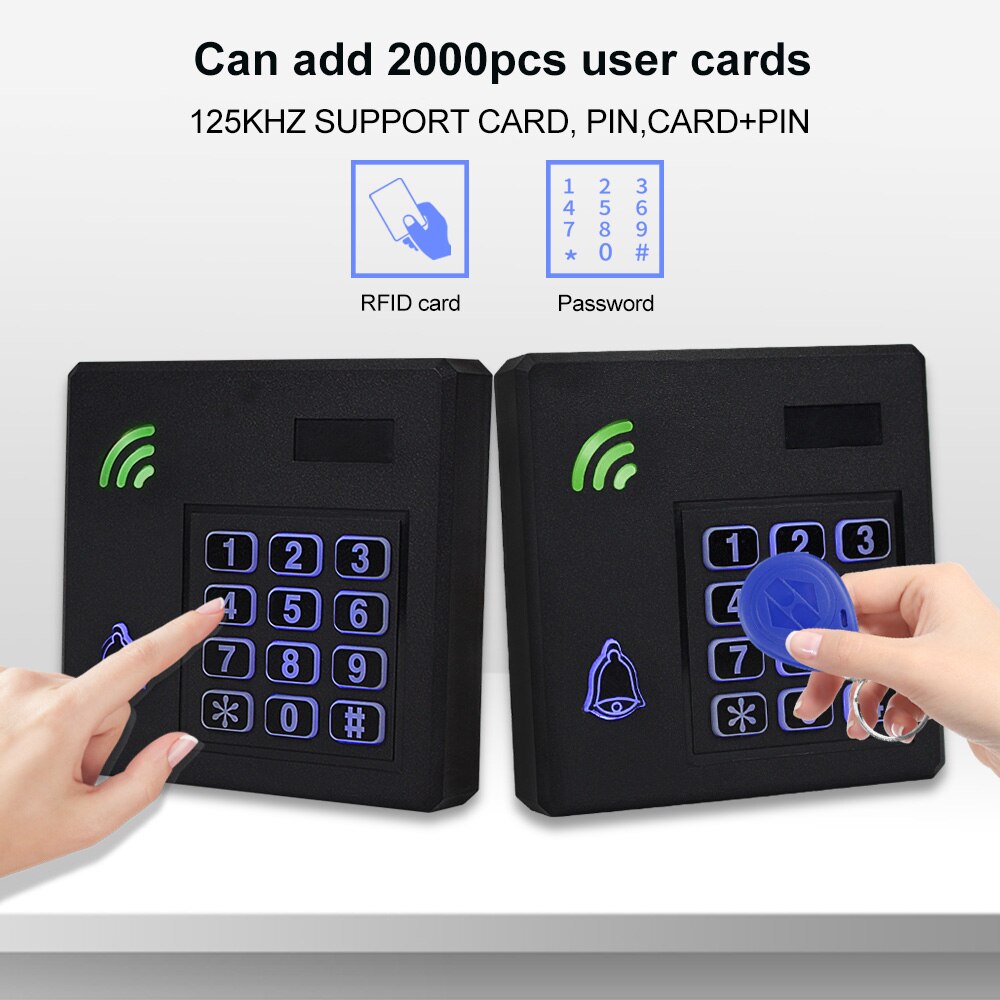

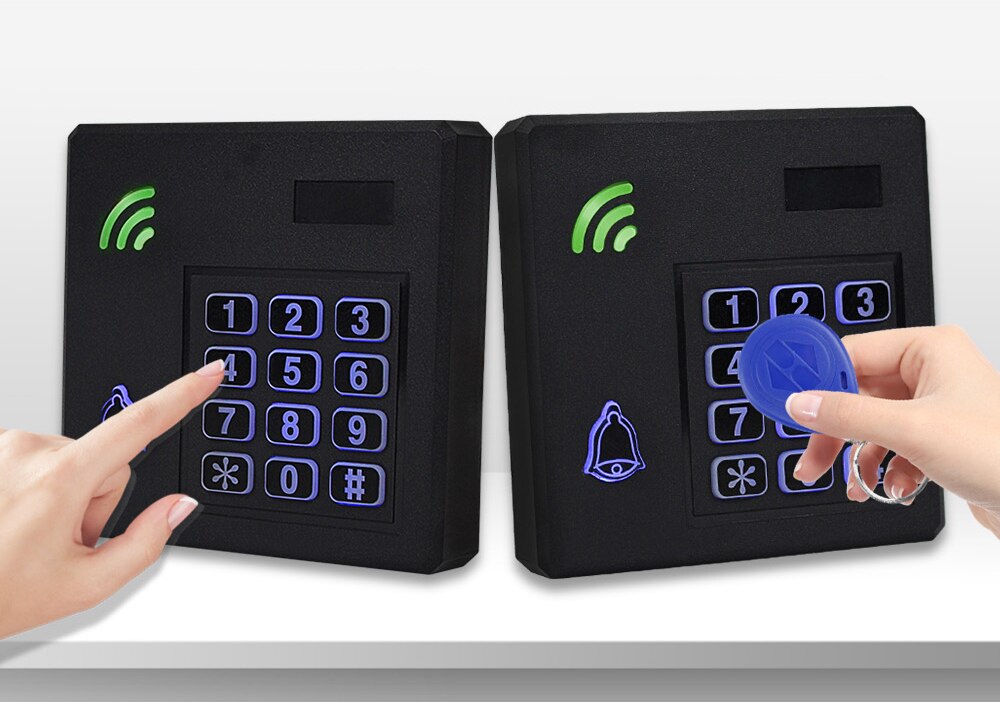

Support RFID Card, password, RFID card + password to open the door
Support 2000 card and password user capacity, can set card + password to open the door, more secure!
ABS fire retardant material shell
One-piece molding, hard plastic treatment. Fire retardant, impact resistant and wear resistant!

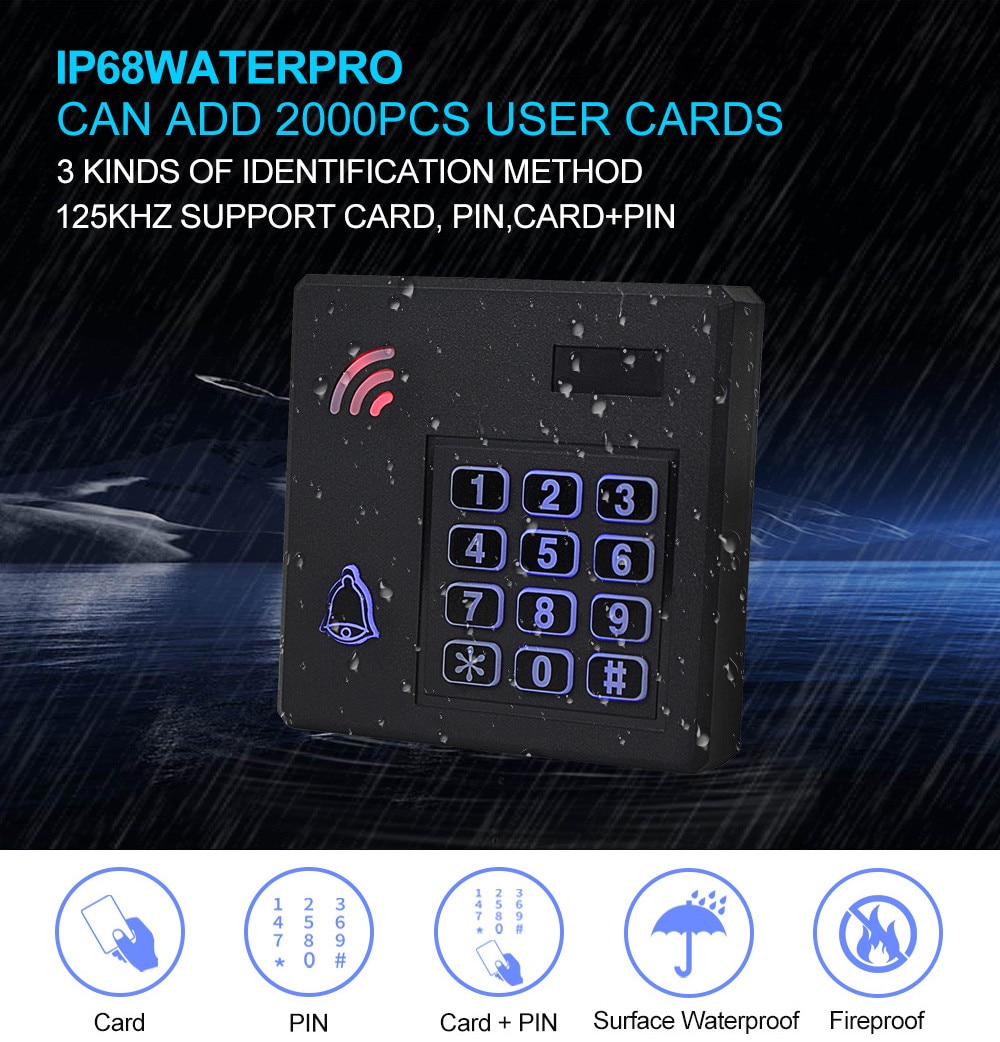

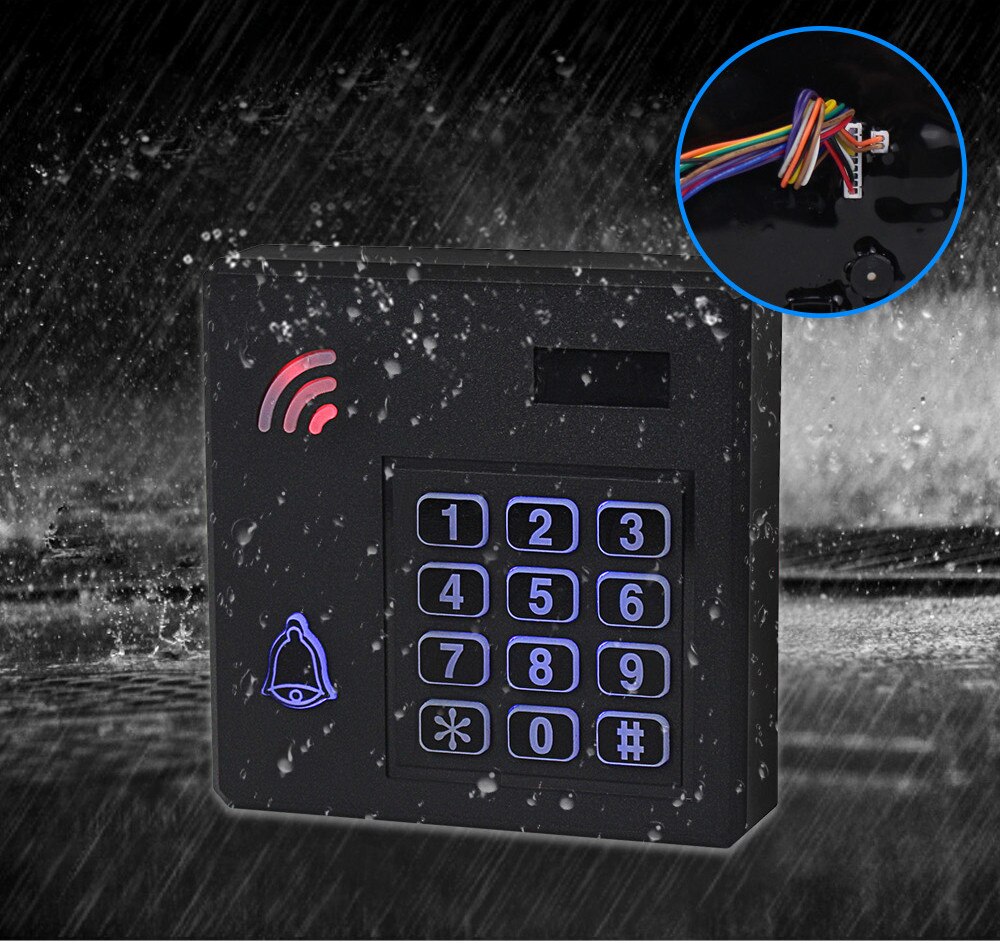

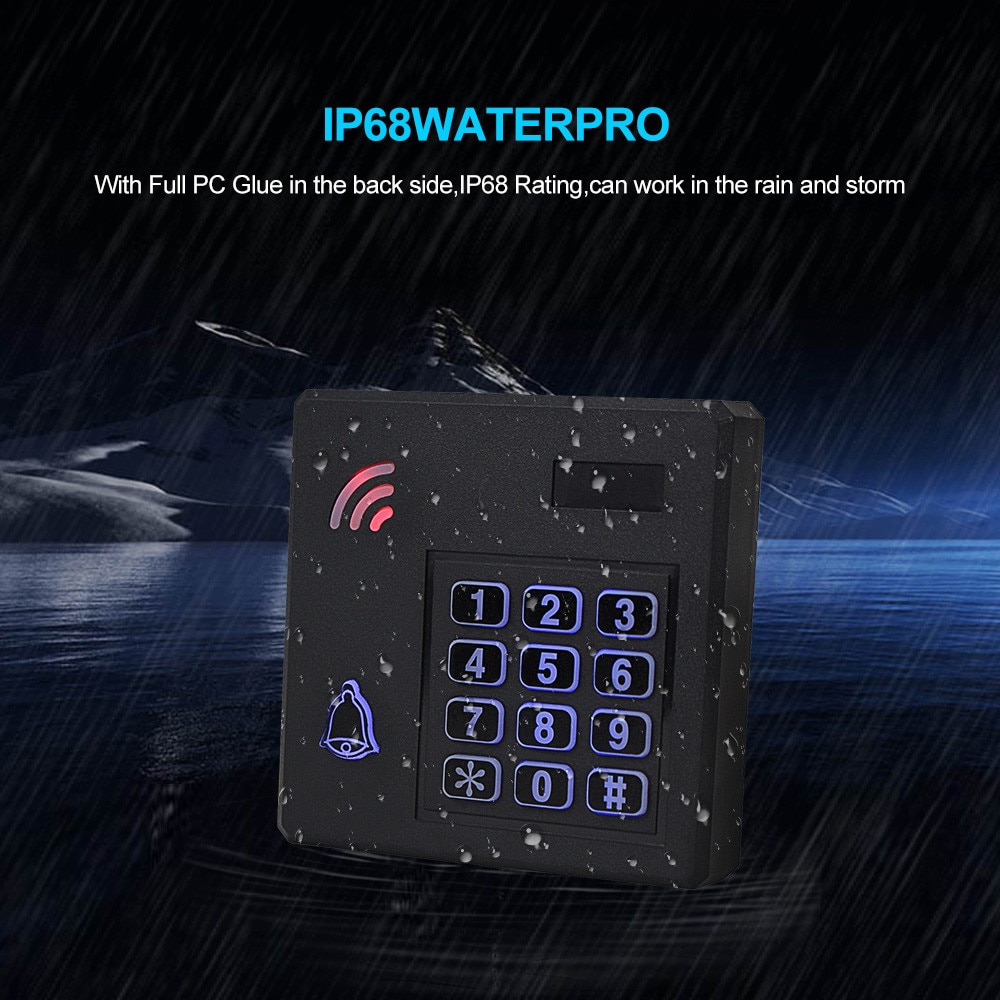

IP68 waterproof, Can be installed outdoor
With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

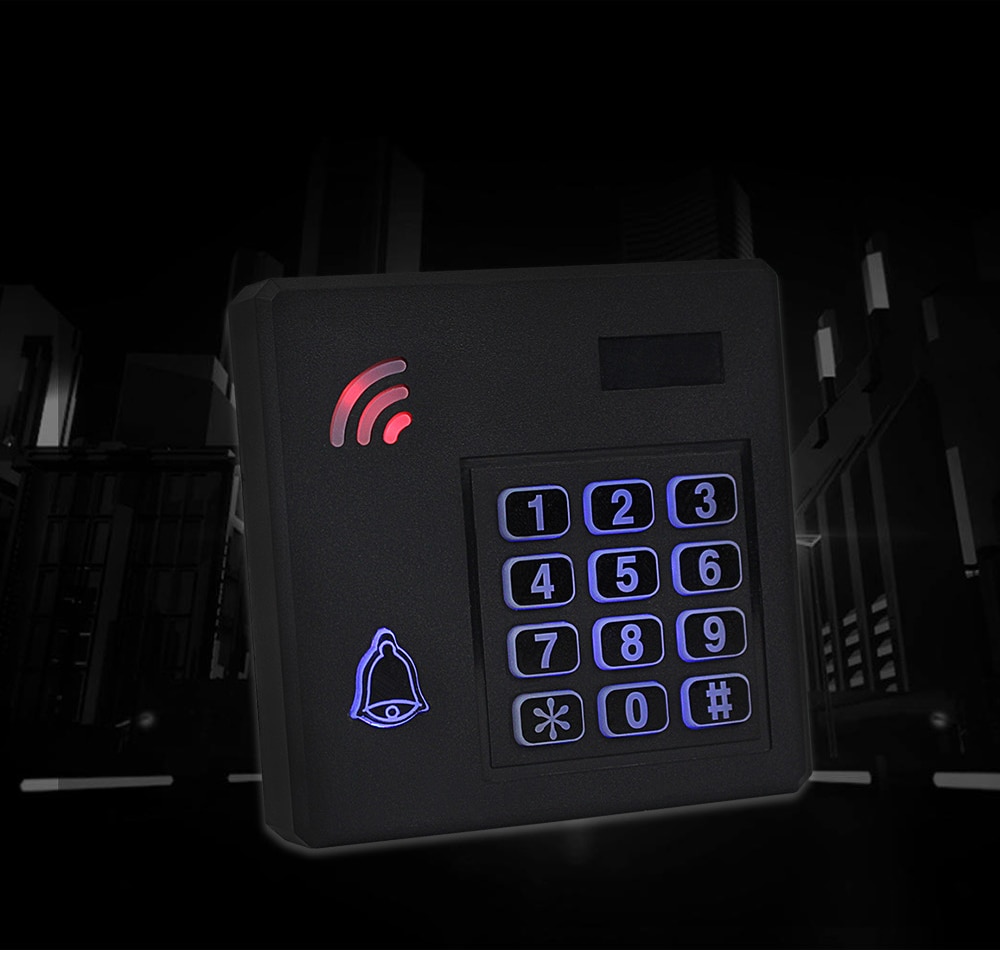

Backlight keypad
In the dark, you can also enter the password to unlock normally

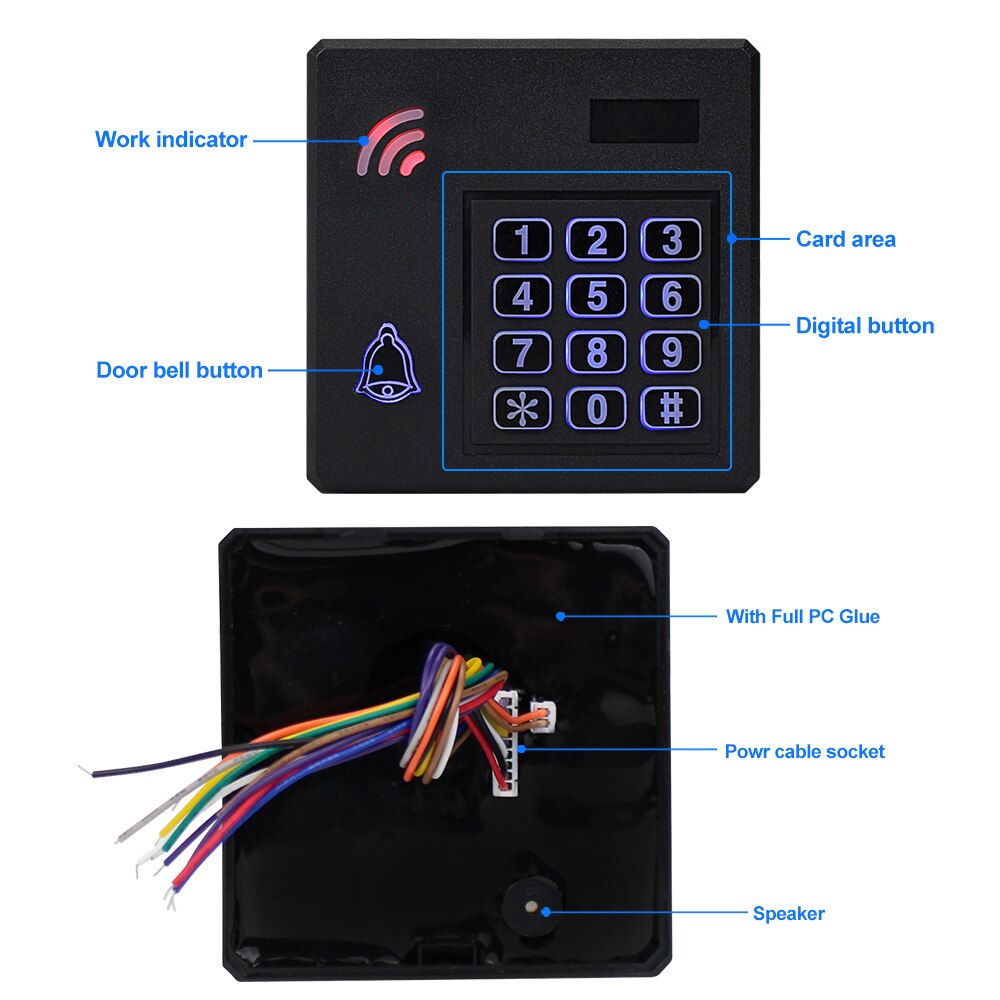

Product Analysis

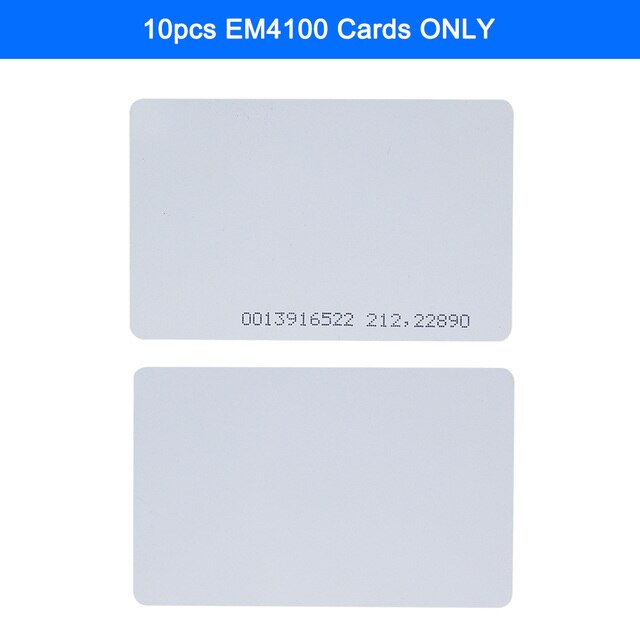

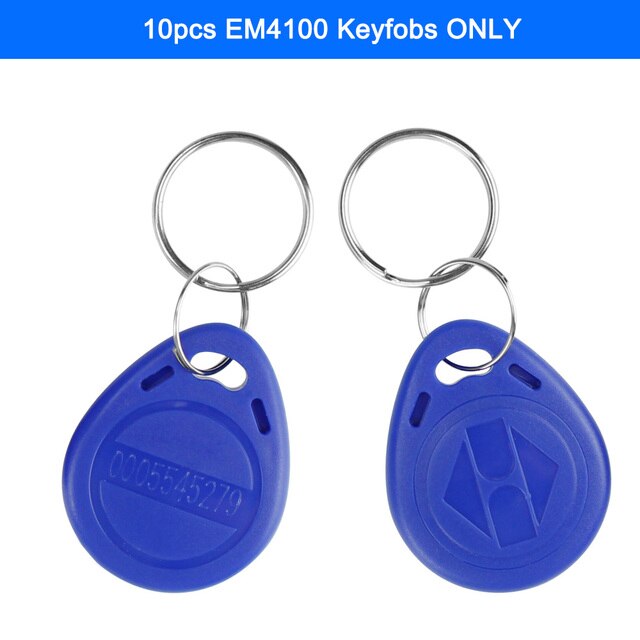

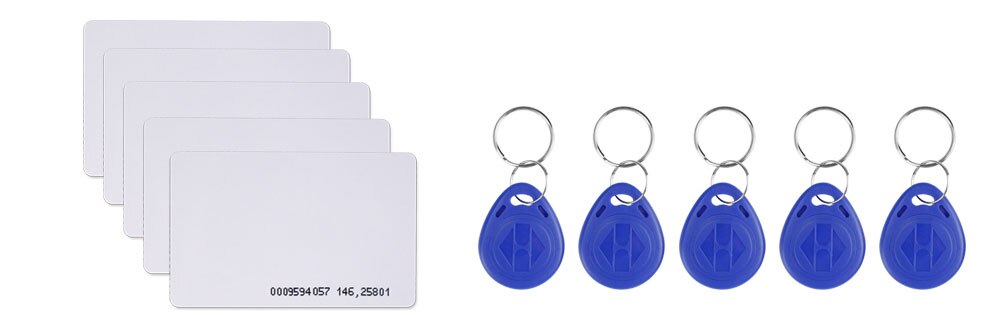

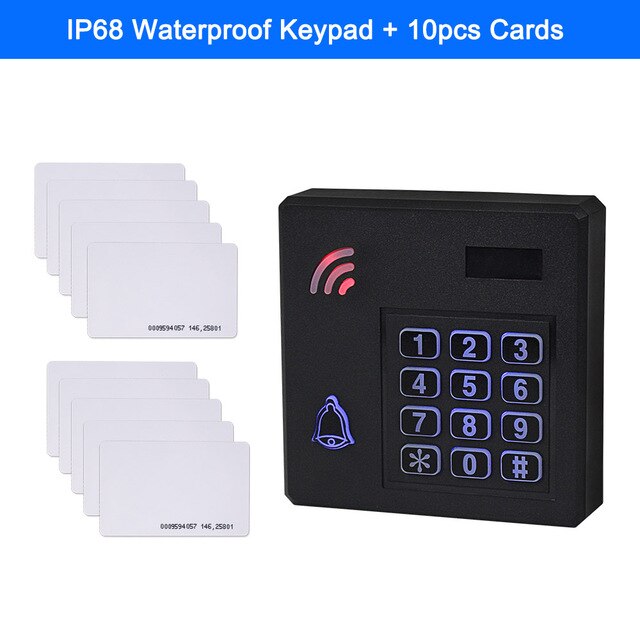

RFID Keyfobs Cards
1. Material: ABS / PVC
2. Working Frequency:125Khz
3. Support: read only, not support write
4. Reading distance: 0-10cm
5. Each one has a unique ID number printing on it
Quantity: if you want more RFID key cards, please contact us. Thank you!

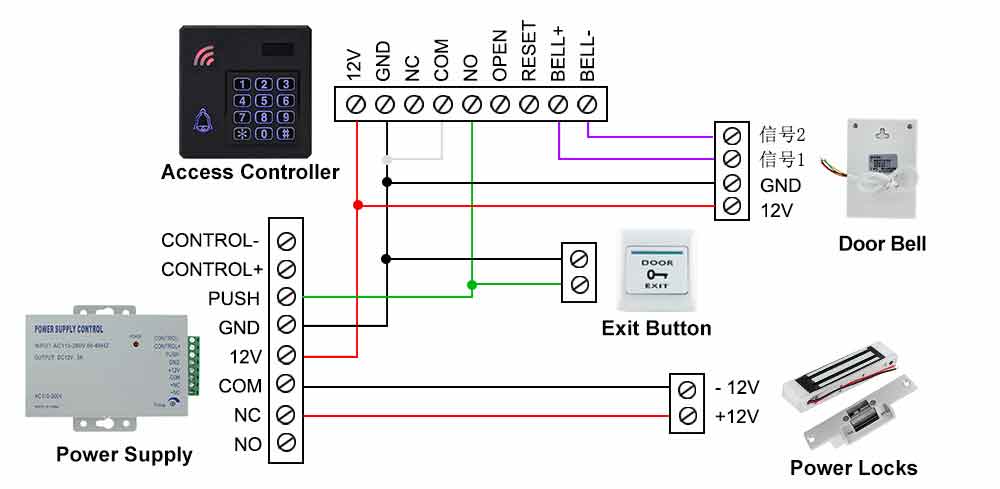

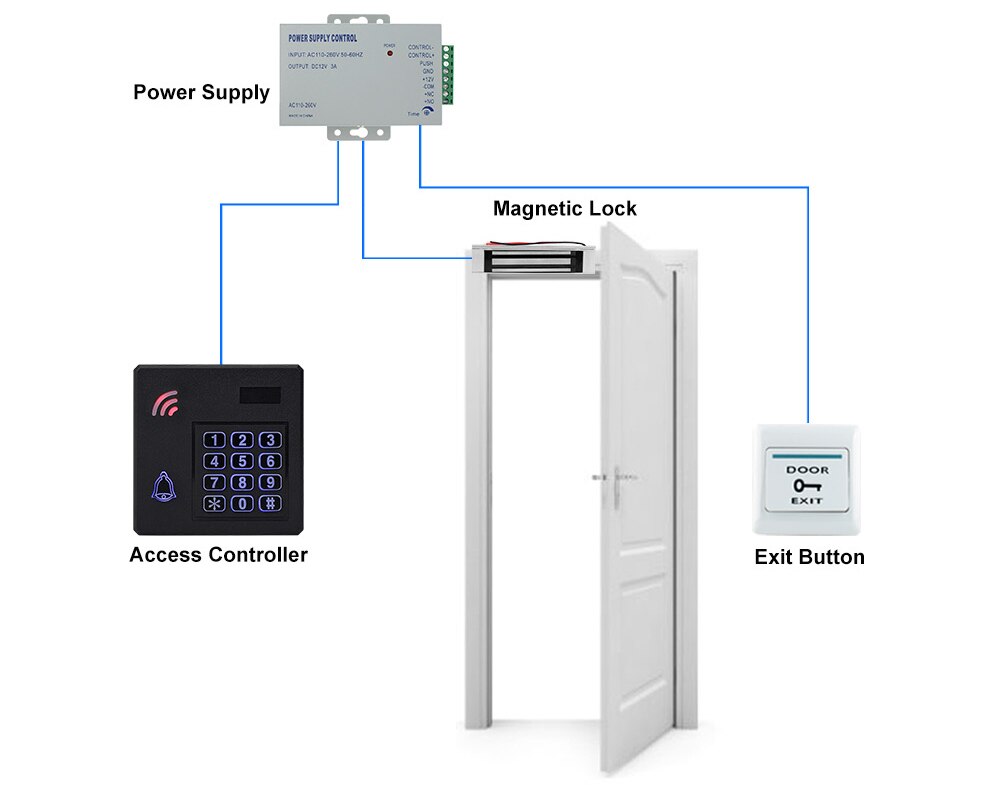

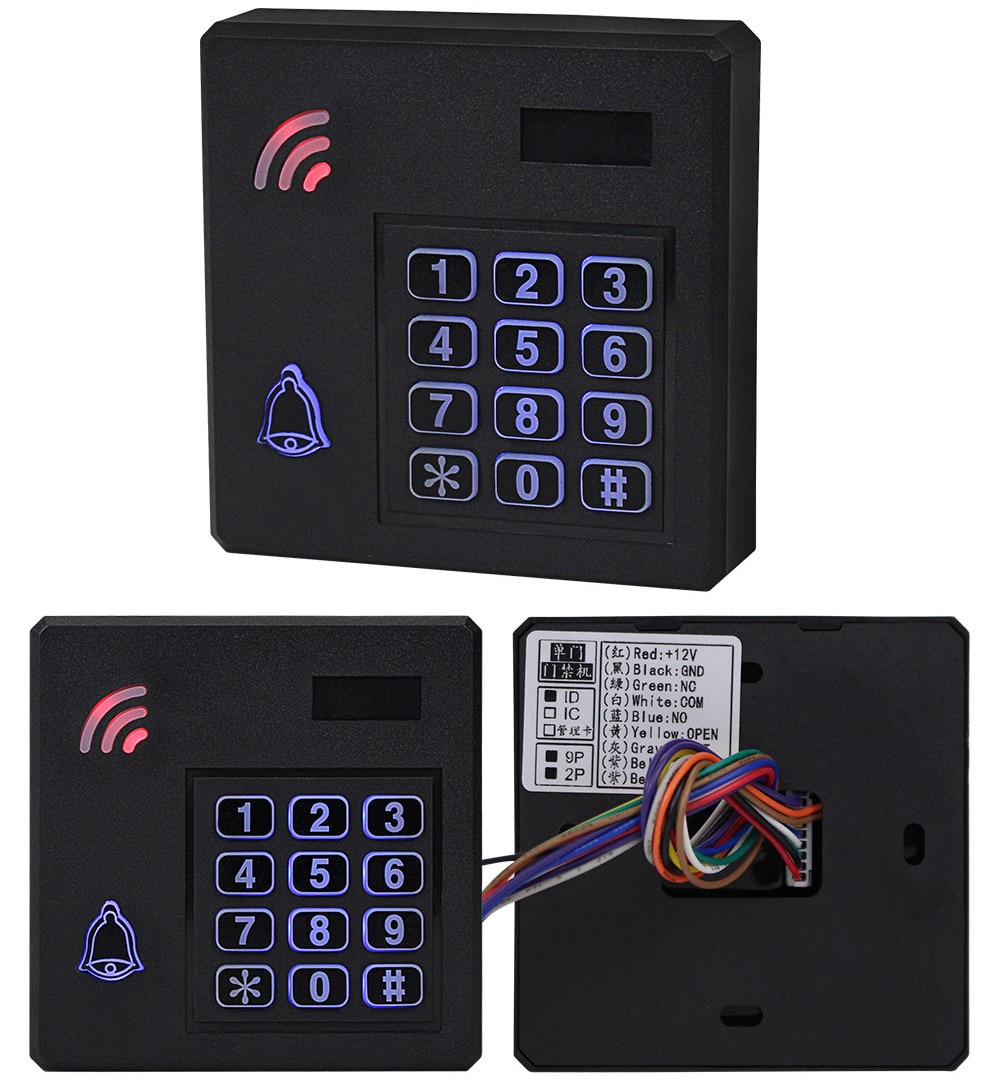

Wiring Diagram:
(Note: Both of the power supply, lock, exit button, are not including in the package, need to buy extral)
- Model Number: F103+10
- Brand Name: OBO HANDS
- Certification: NONE
- Origin: Mainland China
- Material: High quality ABS
- User capacity: 2000 users
- Blacklight: Blue backlight
- Working Voltage: DC12V
- Quiescent current: ≤ 60mA
- Waterproof function: IP68 Waterproof
- Working frequency: 125KHz
- Card type: EM Card
- Unlock method: RFID Card, password, RFID card + password
- Door bell function: Support
- Can be installed outdoor: Yes
- WG interface: WG26 input/output
