Metal Case RFID Reader door lock access standalone keypad system 1000Users Contactless Smart Card Access Built-in Buzzer
I.Introduction
Single door multifunction standalone access controller. It is housed in a strong, sturdy and vandal proof case which is available in either a bright silver or matt silver finish. Supports up to 1000 users in either a Card, 4 digit PIN, or a Card + PIN option. The inbuilt card reader supports125KHZ EM cards.Lock output current short circuit protection and a backlight keypad. Ideal choice for door access not only for small shops and domestic households but also
for commercial and industrial applications such as factories, warehouses, laboratories, banks and prisons.
II.Features
- Easy programming and operation
- Single/multiple users optional,normal/safe operating models switchable
- Support up to 1000 users
- Break proof,good choice for out door use
- LED blue Back light for buttons
- Built in door bell controller and buzzer
- Full programming from the keypad
- 1000 uses, supports Card, PIN, Card + PIN
- Can be used as a stand alone keypad
- Backlight keys
- Fast operating speed, <20ms with 1000 users
- Lock output current short circuit protection
- Easy to install and program
- Built in light dependent resistor (LDR) for anti tamper
- Built in buzzer
- Red, Yellow and Green LEDS display the working statu
III.Specification
| Dimensions |

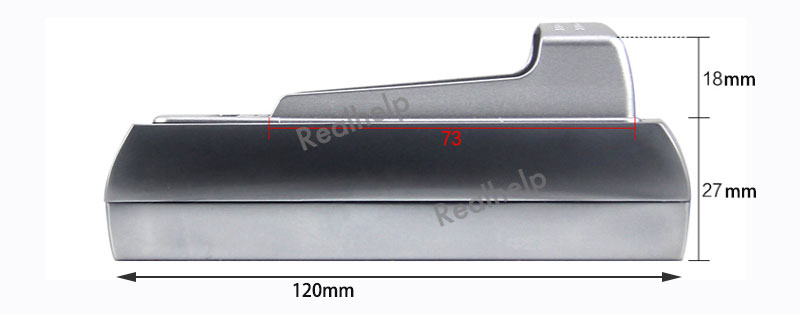

120Lx76Wx27D(mm) |
| Operating Voltage |
12VDC |
| Input Current |
Max current 150MA |
| Card Reading Distance |
3-10CM |
| Card Type |
EM card,125KHZ |
| Open door mode |
1.Four Digits(1000 groups) 2.Four Digits+Card 3.Card |
| Operating Temperature |
-31℃~63℃ |
| Operating Humidity |
10%~95% |
| Waterproof Grade |
IP55 |
| Operating Humidity |
10%~95% |
| Weight |
0.5KG |

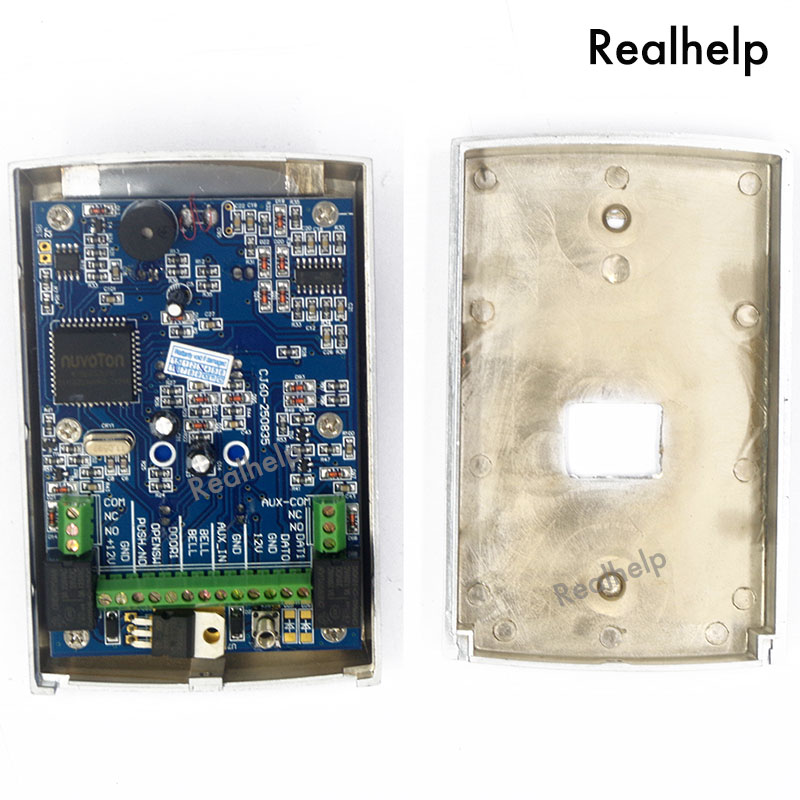

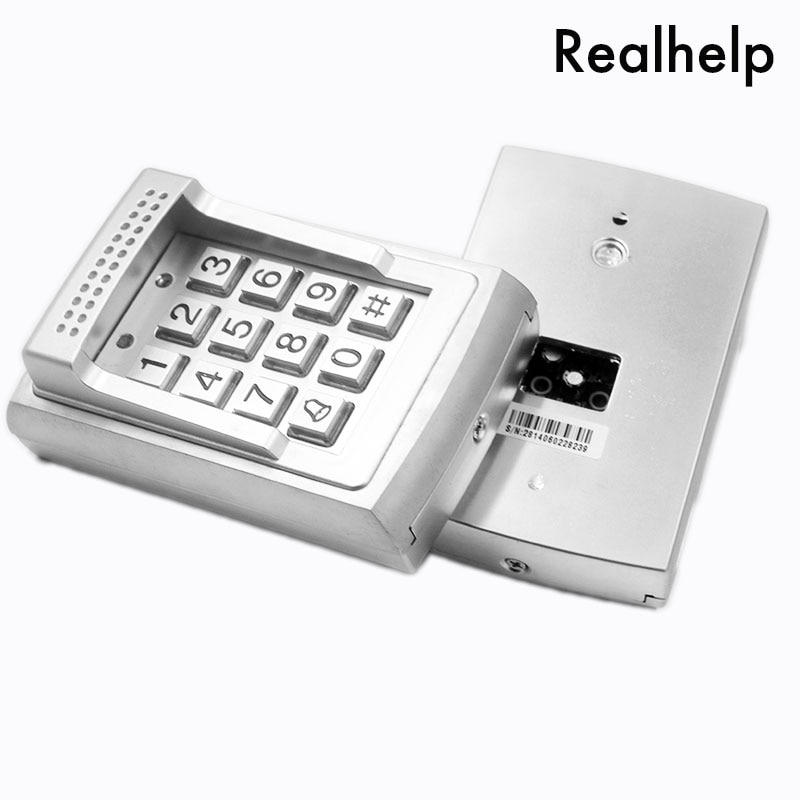

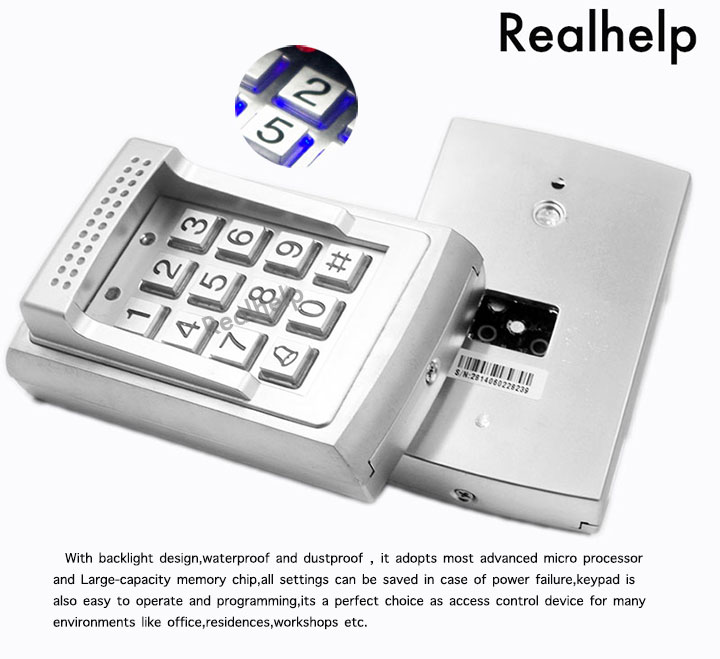

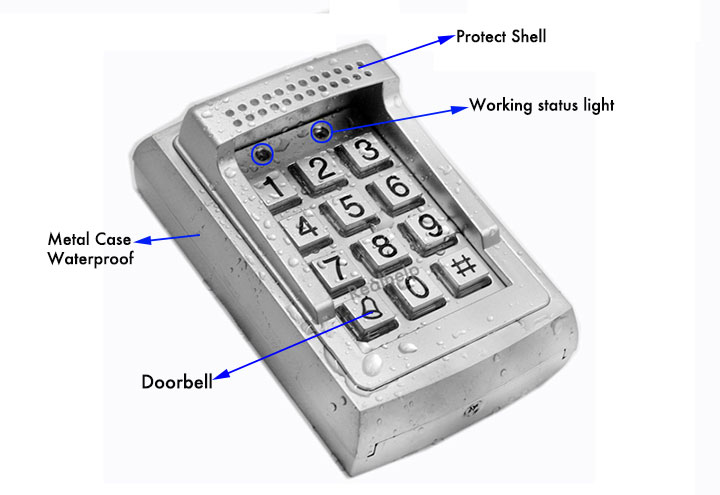

IV.Product details

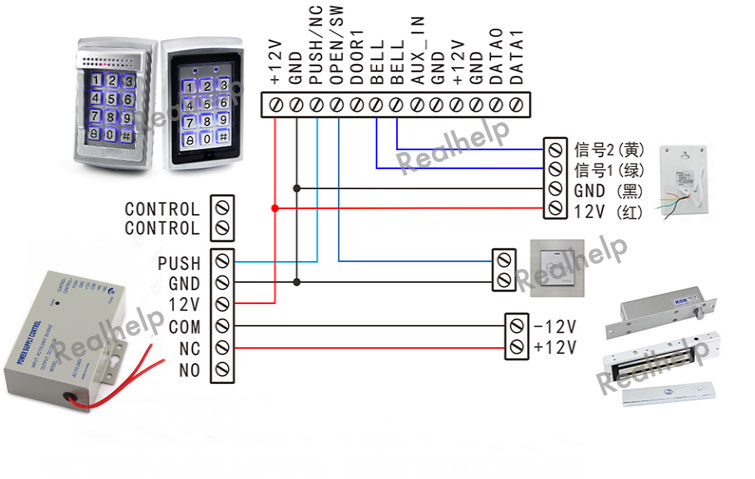

V.Connect diagram
- 1Pcs Metal case RFID Access Controller
- 1Pcs English User manul

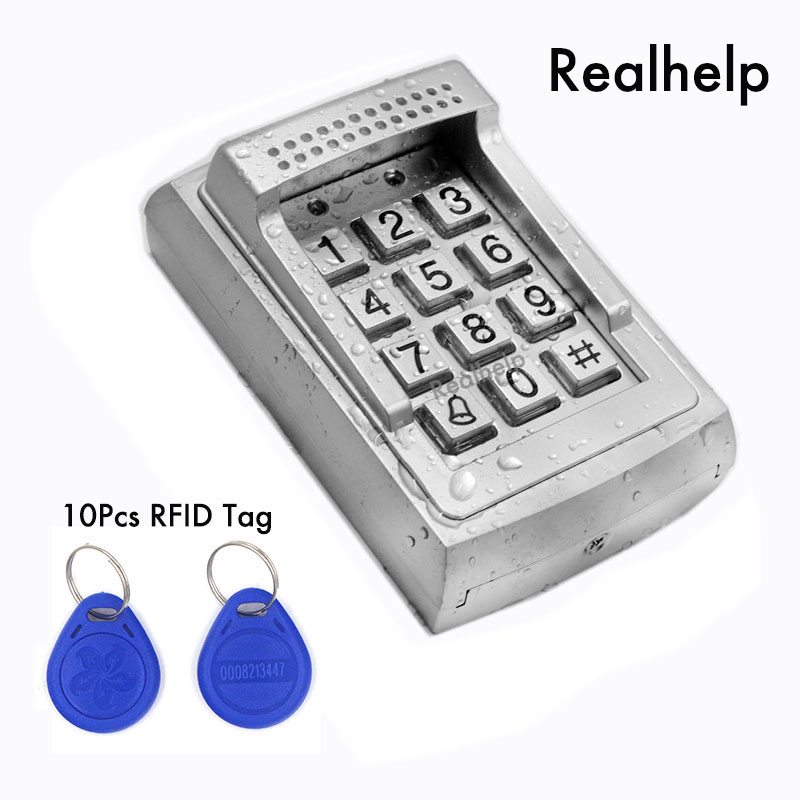

- 10Pcs rfid tag
1. Warranty Service will be honored if the damage is not caused by human, We Company Provides 1 years warranty for relative products. (excluding items damaged and/or misused after receipt).Accessories come with a 3-month warranty.
2. Defective items MUST BE reported and return to us within the warranty period(and in the original
packaging,IF possible)You must tell us what the defect is and give us your Hogaki ID,WE DO NOT REPAIR
OR REPLACE ITEMS WITH AN EXPIRED WARRANTY!
3.Negative feedback or Low DSR does not resolve any underlying issues.If you have any problems with our items or services,please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.
1.You have 7days to contact us and 10days to return it from the date it was received. IF this item in Your Possession more than 7days,It is considered used and WE WILL NO ISSUE YOU A REFUND OR REPLACEMENT. There are NO EXCEPTIONS!
2.All returned items MUST BE in the original packing and you MUST PROVIDE us with the shipping tracking number, specific reason for the return, and your Hogaki ID.
3.We will refund YOUR FULL WINNING BIG AMOUNT, upon receipt of the item in its original condition and Packaging with allComponents and accessories included, After BOTH Buyer and seller cancel the transaction from Hogaki. Or, You may choose to have a replacement.
1. Before ordering please contact us to confirm your preferred shipment method. Items are only shipped after payment is confirmed
2. Delivery,We will ship every order with their tracking numberm and you can view the shipment status on the corresponding website.
- DHL/UPS/Aramex/Fexed : 3-7 working days (We have the right to choose one of the shipping way to you)
- e-EMS: 5-15 working days
- China post:10-40 working days
- Hogaki Standard shipping: 10-40working days
3.We are not responsible for any accidents,delays or other issues that are the responsibility of the shipping service.
4. Please make sure that you have no difficulty to clearing customs and make sure you are available in the address you filled on Hogaki.
5. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer’s responsibility.
- Model Number: SJY-K2
- Brand Name: Realhelp
- Dimensions: 120Lx76Wx27D(mm)
- Operating Voltage: 12VDC
- Input Current: Max current 150MA
- Card Reading Distance: 3-10CM
- Card Type: EM card,125KHZ
- Open door mode: Card,PIN,Card+PIN
- Operating Temperature: -31 to 63degree
- Operating Humidity: 10%~95%
- Waterproof Grade: IP55
