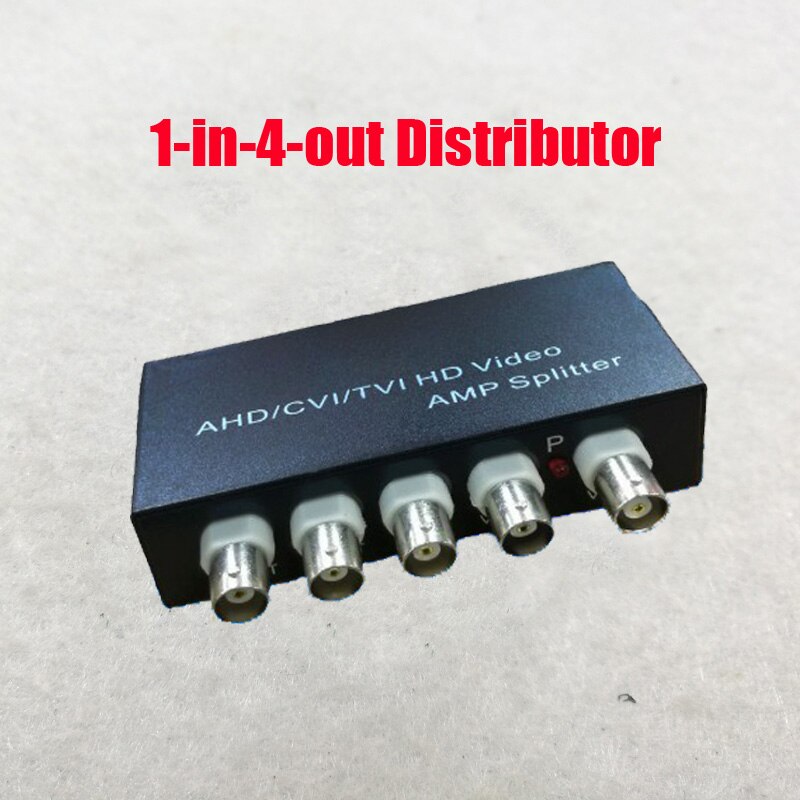

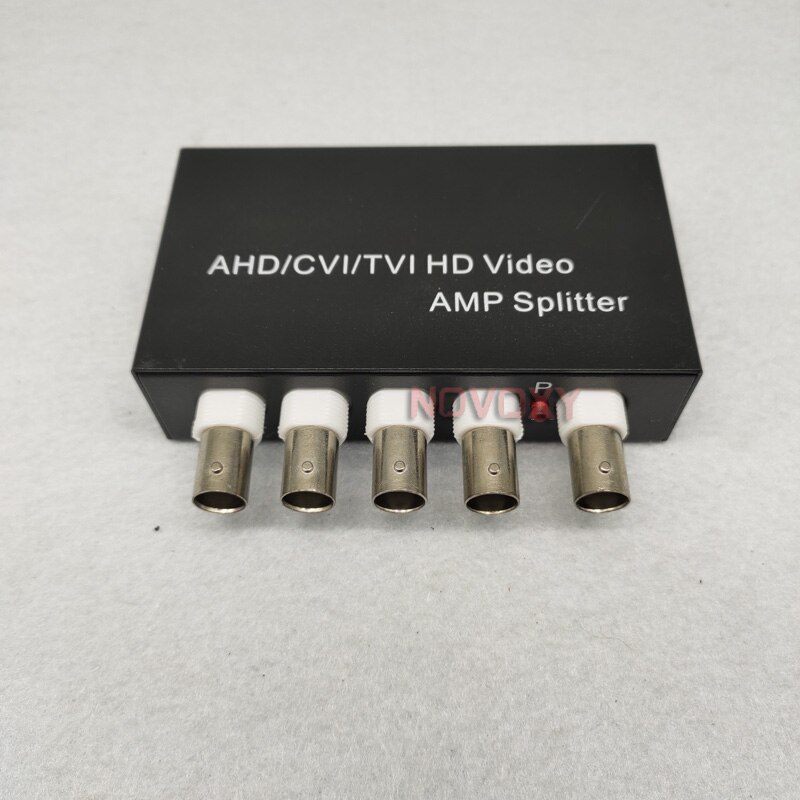

NOVOXY 1 In 4 Out 2mp 1080P AHD CVI TVI BNC Video Distributor Amplifier 1CH To 2CH Splitter For CCTV Security Camera

0.0 ( votes) | 1 orders
Price:
US $ 41.46 - 45.26 / piece
Color
Quantity

Free Shipping 1 In 4 out 2MP 1080P  Video distributor/Splitter BNC  Output,Support AHD/CVI/TVI Camera in&out Amplifier 1CH To 4CH Splitter For CCTV Security Camera DVR System


Description:

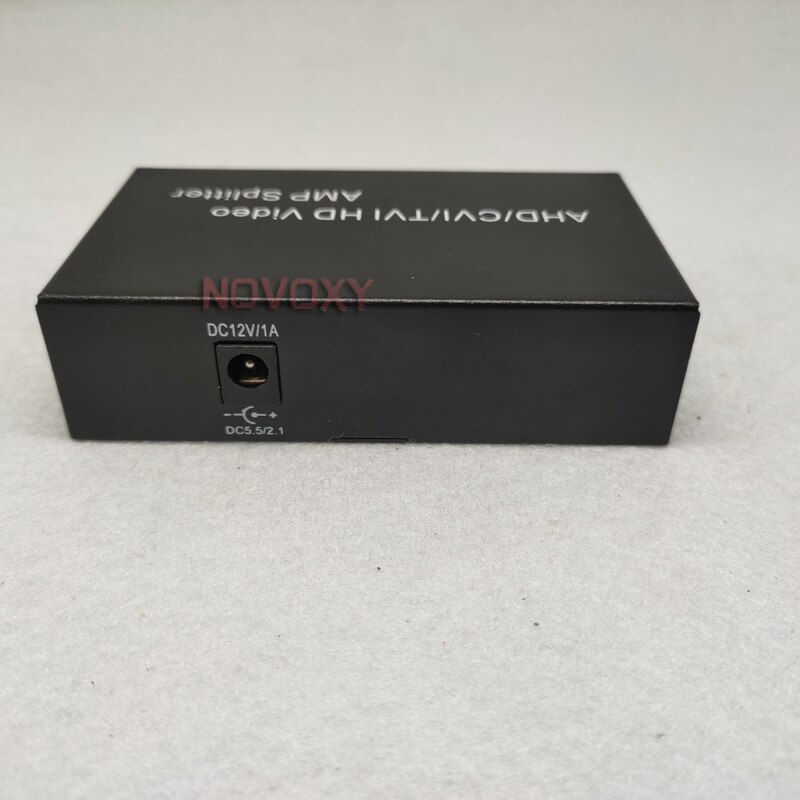

Video input:1* BNCVideo Output:4* BNCSupport :AHD/HDCVI/HDTVI Analog HD Video SplitterSupport Resolution:1280*720 or 1920*1080Input&Output Length:input unlimited and output max to 300-600mPlace of Origin:Guangdong China(Mainland)Power supply(input):jack 2.1*5.5mm,12V,1A(not include)Material quality:Anti corrosion steel blackSize:140*100*25mm


Specifications:



1, 1.5GHz@-3dB AHD video signal amplification to active loop filter. Grain processing

2, Total copper silver plated BNC female head input - distribution amplifier output

3, Built in excellent ESD protection circuit, can work in the harsh environment of the pressure demanding.

4, High 92dB common mode noise suppression and 36dB high definition video signal.

5, high 388OV /uS transient response, unique analog HD video signal white balance clamp and wide dynamic compensation Matched filter circuit.

6, Input, solve the passive isolator and the infrared camera is not compatible with the problem.

7, Power LED independent indicator, a million high-definition AHD video brightness and contrast potrast potentiometer synchronous tracking compensation.

8, Broadcast - level 1 - 2 points (1 points 2+ 16 port and 2 4 + 16 ports can be customized)

9, +12V DC/ 1A low voltage power supply, ultra low power consumption, in line with the EU’s green energy standards

10, Can work at -45 to 85 for industrial grade temperature, no similar products common two power and temperature drift phenomenon.

11, Modular design 1 points 2 points 3 points 1 points 4 points 1 points 8 points (the specifications can be customized)

12, The whole machine input and output lightning surge protection, can work all day to complex engineering environment.

13, CE/FCC/ROHS international certification is compatible with the super strong EMI to suppress image stability and reliability.



Technical Parameters:

Support for 1280 x 720 and 1920 x 1080 resolution two, 25, 30, 50, 60 and four frame rate, 1280H/25f.

1280H/30f. 1280H/50f, 1280H/60f, 1920H/25f, 1920H/30f six kinds of HD format,.

Video images of the proportion of 16:9 standards.

Analog video transmission technology.

A progressive scan frame, transmission mode.

Using the coaxial cable as the transmission medium.

Supports audio coaxial transmission, transmission direction from the camera side to the receiving device side.

The highest audio signal can be supported by the sampling rate of 44.1kHz.

(1280H/25f is the highest 32KHz sampling rate.)

Support Coaxial two-way data communication, through the receiver to send control signals such as collecting end head rotation, zoom control.

Support the baud rate of 2400/4800/9600.(foward transmission support 2400/4800/9600,2400/4800.)

Automatic correction of the signal distortion of different transmission channels.




Product parameters:

Name

HD Video Splitter

Input Length

Unlimited

Goods number

1-4

Output Length

300-600M

Temperature

-15 to + 55

Power Supply

DC 12V

Humidity

5 to 90%

Material quality

Anti Corrosion Steel Black

Resolution

1280x720, 1920x1080

Size(mm)

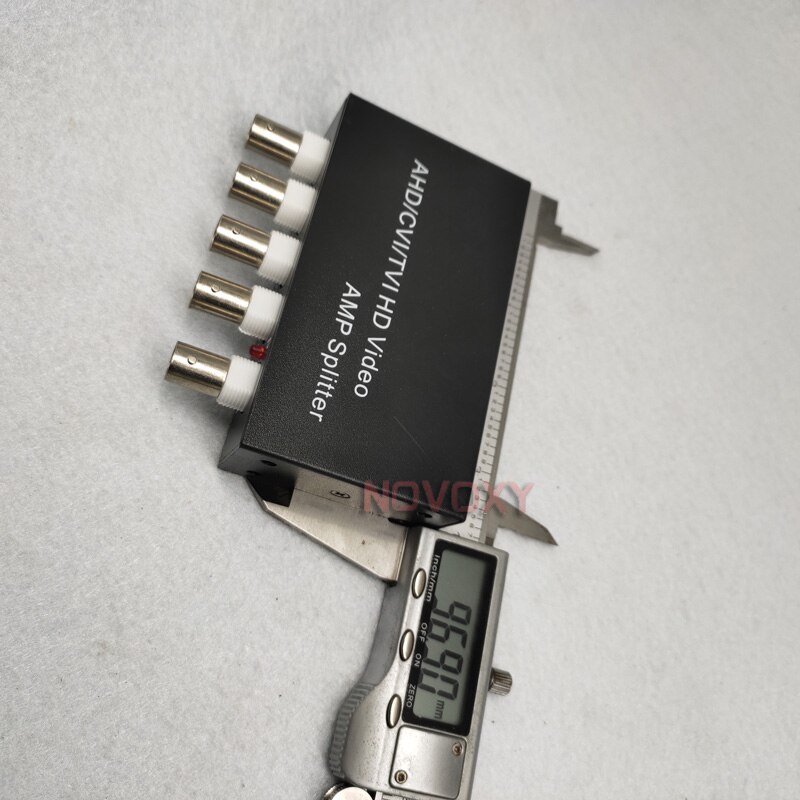

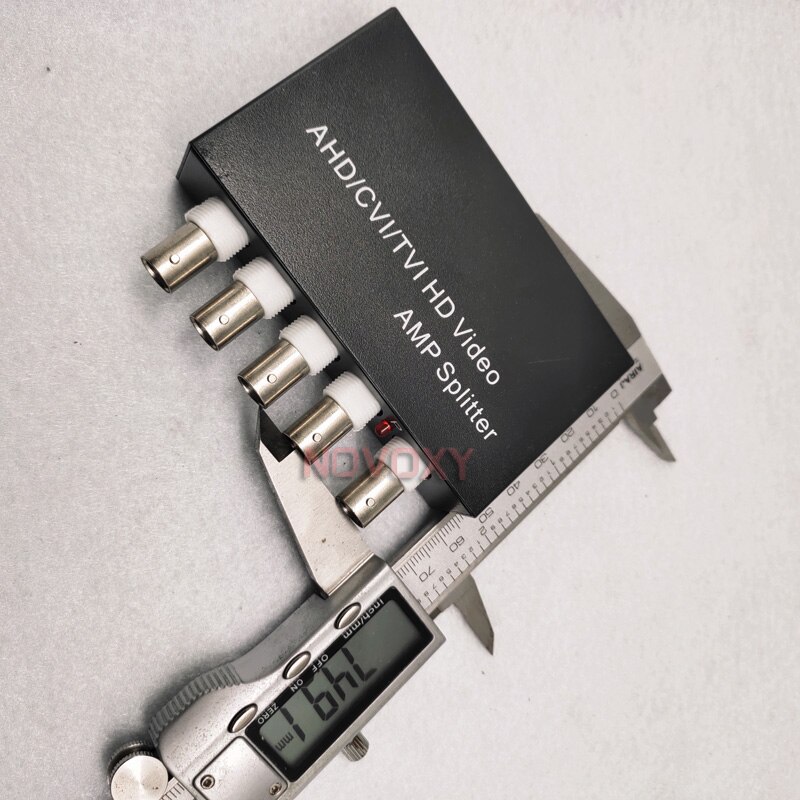

140x100x25

Input Port

1 CH

Weight

0.35kg

Output Port

2 CH

Warranty

24 months


Pakage List:

1x Video distribotor


1. Placing Order: http://help.Hogaki.com/categories_Placing_orders.html

2. For any request or suggestion about your order, please leave comment under your order thread.

3. For other security items which are not included at our showcase, please be free to send us an inquiry.

1. Payment FAQ & Payment Methods: http://help.Hogaki.com/categories_Payment.html

2. When you meet any payment issue, please contact us immediately.

3. Since our products are direct from factory, there is no broker or high markup, thus, weare available to provide quality items as well as very competitive price.

4. If you need to do wholesale purchasing, but the price is not very cheap, please get in touch with us directly!

1. Shipping & Delivery: http://help.Hogaki.com/Shipping_Delivery.html

2. Novoxy Technology ships to all countries and regions around the world.

3. Lead Time: The order is shipped within 1~3 business days after payment is completed.

4. Delivery Time (After payment is received):

      ---- By Air Mail: Normally 10~30 business days.

---- By Express: Normally 3~7 business days (Recommended - safer & faster.).

5. Shipping Method:

---- By Air Mail: China Post, Hong Kong Post, Sweden Post, etc.

---- By Express: EMS, DHL, FedEx, UPS, TNT.

6. Shipping Document: Please leave comment during purchasing if you prefer to under-declare the invoice value for customs purpose.

7. If the parcel is not received within 30 days after payment, please keep us informed. We will track the shipment in China.

8. Buyer is responsible for (in case) all taxes under any circumstances.

Notice: The delivery time of international transportation may be delayed out of seller’s control by various factors related to logistics companies, customs, holidays, local weather, etc. Thanks in advance for your understanding!

1. All items have been checked and packed in good condition before dispatch.

2. One year warranty is provided on all products.

3. All returned items must be in original packing and buyer is required to provide tracking number to us.

4. If you are not satisfied with our product or service, please contact us first before leaving a negative feedback or opening a dispute. We will try our best to fix your issue.

5. Buyer has 7 days to contact us for replacing the product and 30 days to return from the date of receipt. If the item has been kept at buyer side for more than 7 days before replacement request is raised, the item is considered used and we will not approve a refund or replacement. For replacement, seller and buyer both bear a half of shipping cost.

1. We guarantee all our items are "as stated" in the descriptions. We strive for 100% customer satisfaction on every sale we work on.

2. Should you have any questions on our products and service, please keep us posted. We will respond within 12 business hours.

3. Contact way: Trade Manager, Email, Hogaki Message, Phone.





  • Model Number: SK-AHD0104D
  • Brand Name: NOVOXY
  • Certification: NONE
  • Origin: Mainland China
  • Voltage: 1A
