Normally closed Electric Solenoid Valve Magnetic DC 12V Water Inlet Flow Switch 1/4 " 12V 24V 220V Magnetic Controller Dispenser
4.7 (81 votes) | 404 orders
Price:
US $20.49 - 26.73
/ piece
Discount Price:
US $
10.24 -
13.36
/ piece
-50%
- Specification
- Voltage

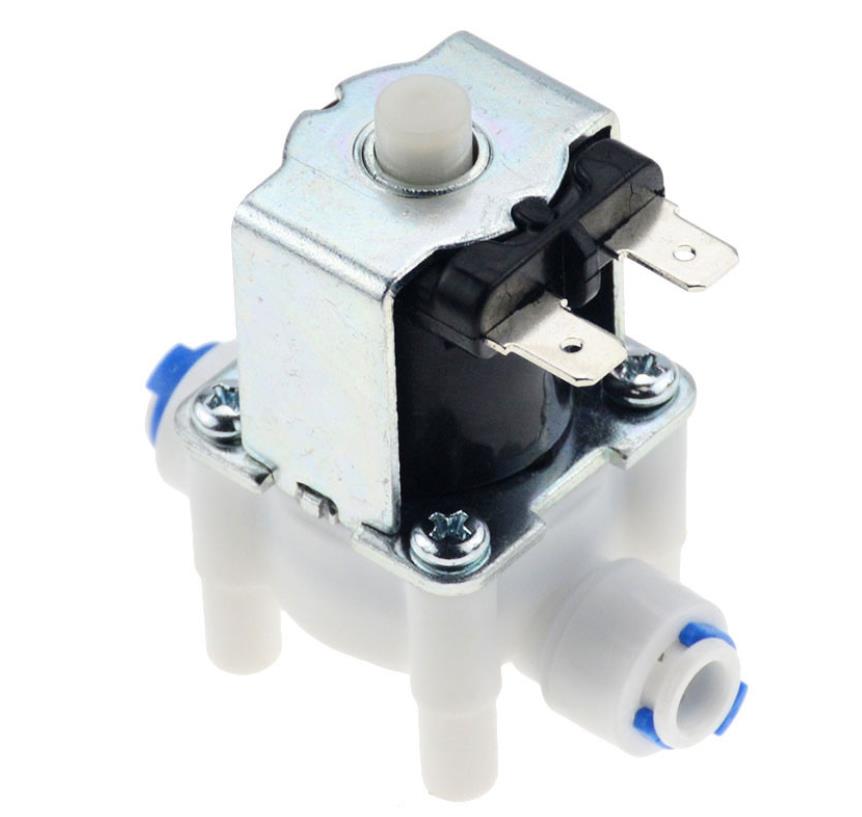

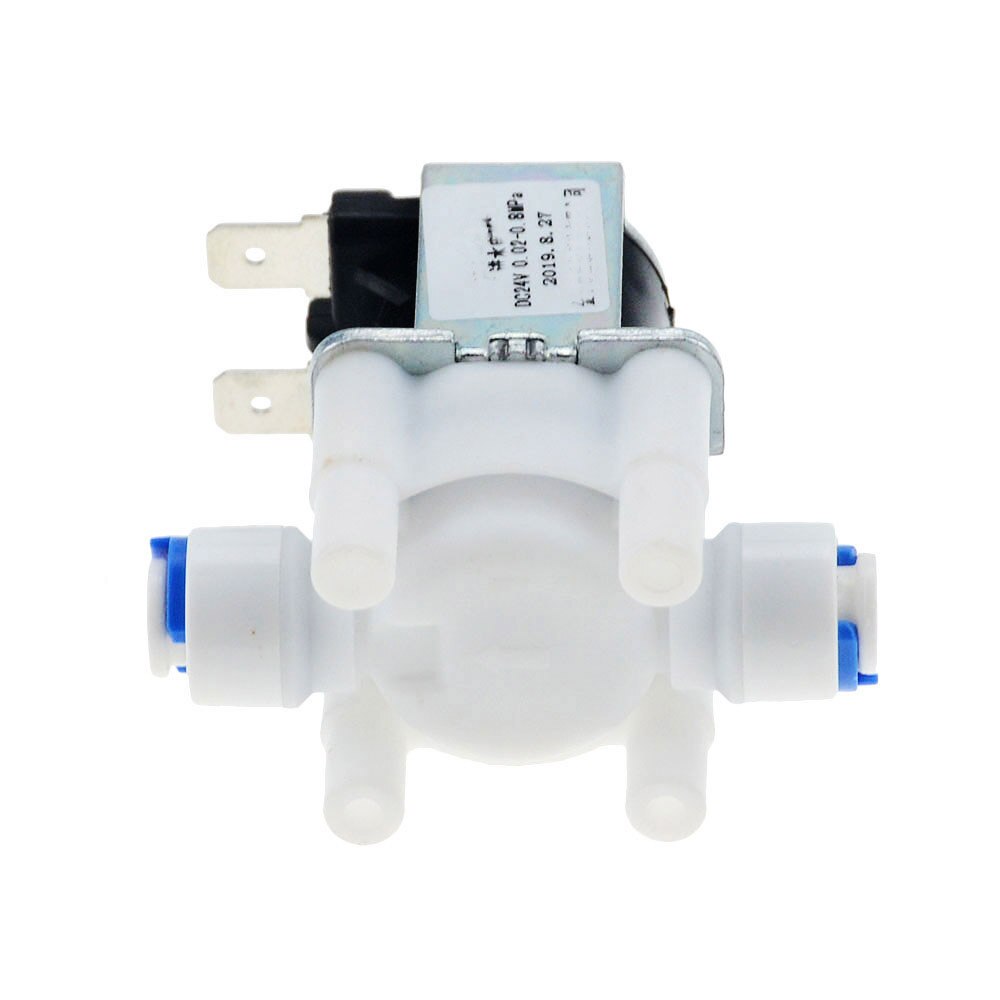

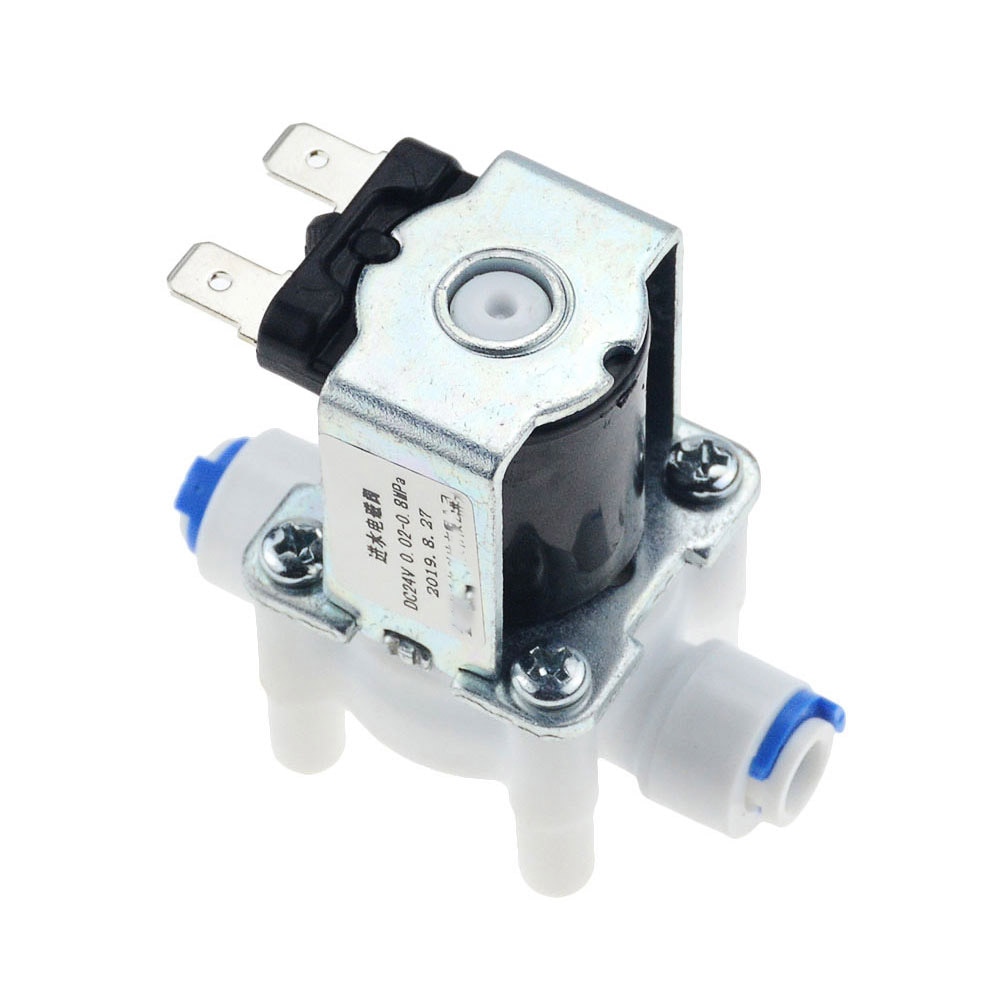

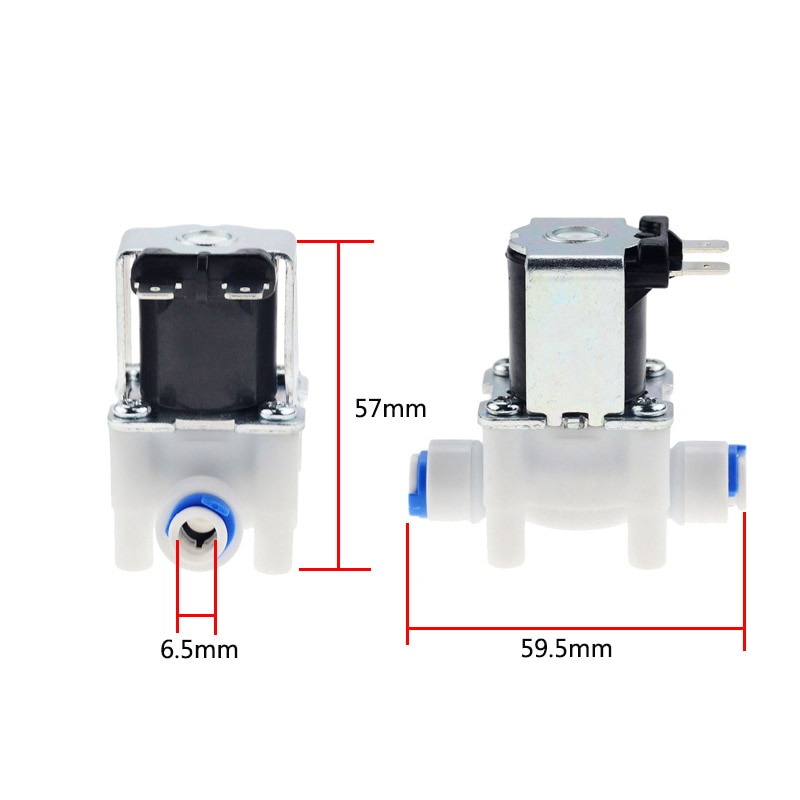

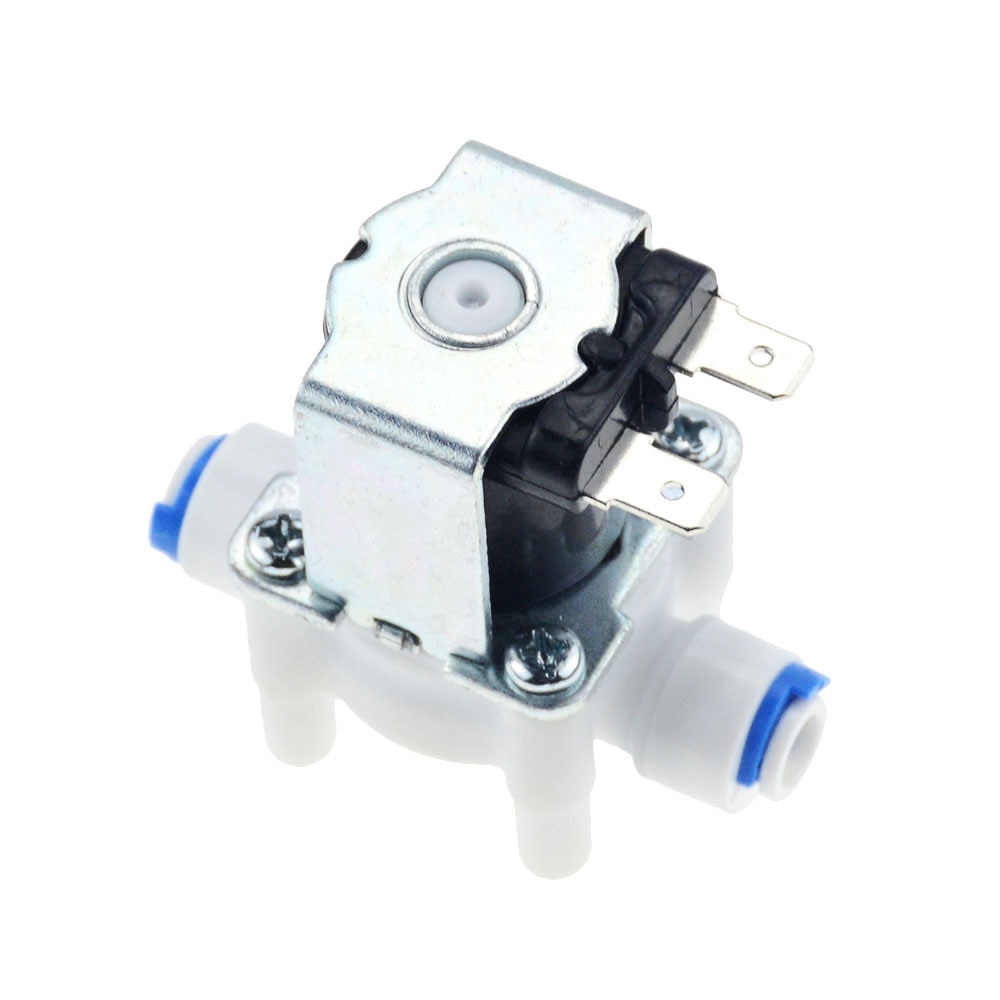

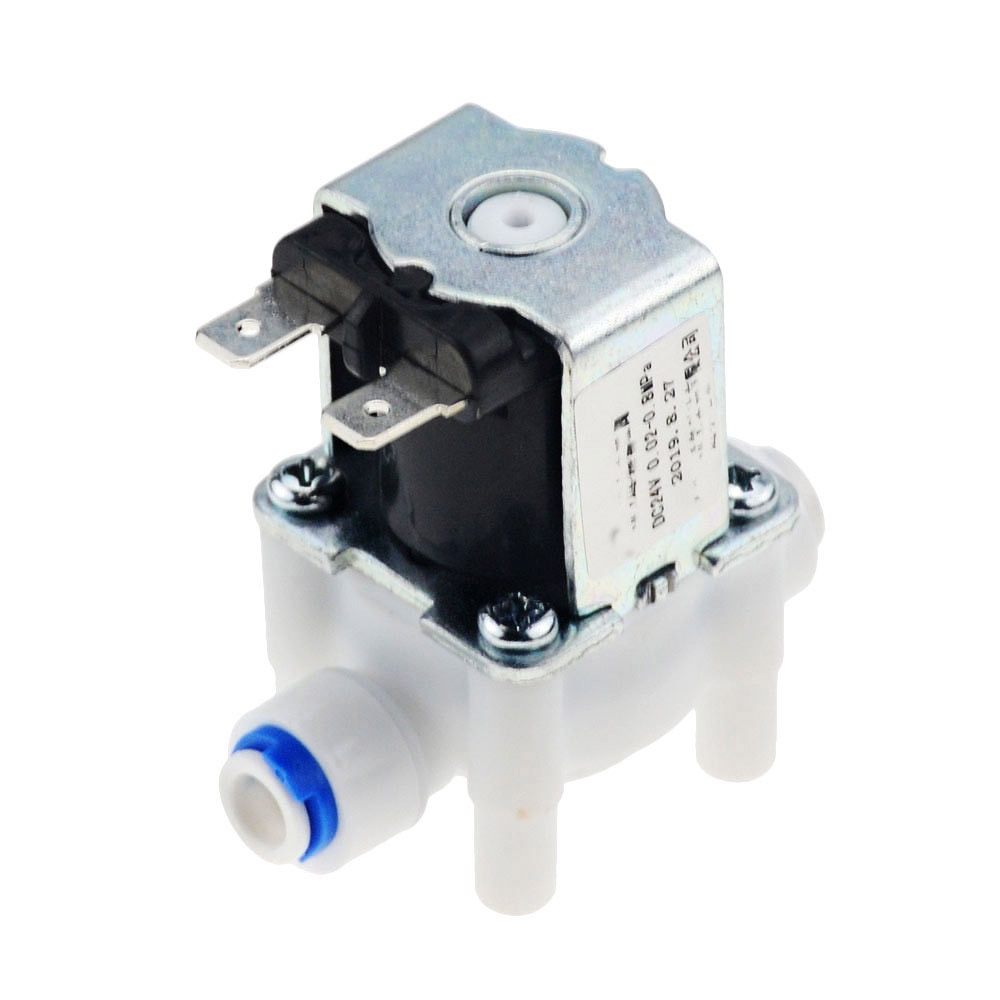

Normally closed Electric Solenoid Valve Magnetic DC 12V Water Inlet Flow Switch 1/4 " 12V 24V 220V Magnetic Controller Dispenser
PRODUCT SPECIFICS:
Name: Quick access water solenoid valve
Accessories Type :Water Purifier Valve
Material: Copper POM housing
Capacity :1
Model :1/4quick access
Use location :outside
Water Machine :Water Purifier Water Purifie
Material: Metal + plastic
Voltage:DC 12V
Product Usage:
①water solenoid valve and high pressure water pump connected in parallel on the computer board.
② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump to stop.
③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and not waste water.
Technical Parameters:
Rated voltage: DC24V
Coil resistance :37Ω ± 0.25Ω (at 20 ° C)
Switch type :DC continuous type
Working pressure: 0.02Mpa-0.8Mpa / 0.02Mpa-0.5Mpa (send randomly )
Medium temperature :1 ° -75 °
Response time to open: ≤ 0.15s off ≤ 0.3s
Electrical strength between the conductor and non-conductor should be able to withstand AC2500V voltage, 1min without breakdown and produce arcing and other phenomena
Flow characteristics 0.02Mpa ≥ 3 L / min 0.1Mpa ≥ 12 L / min 0.8Mpa ≥ 35 L / min
The number of coils is 2500 laps
Life of 200,000 times
Usage:water
Please note it is not suitable for use with gravity fed systems

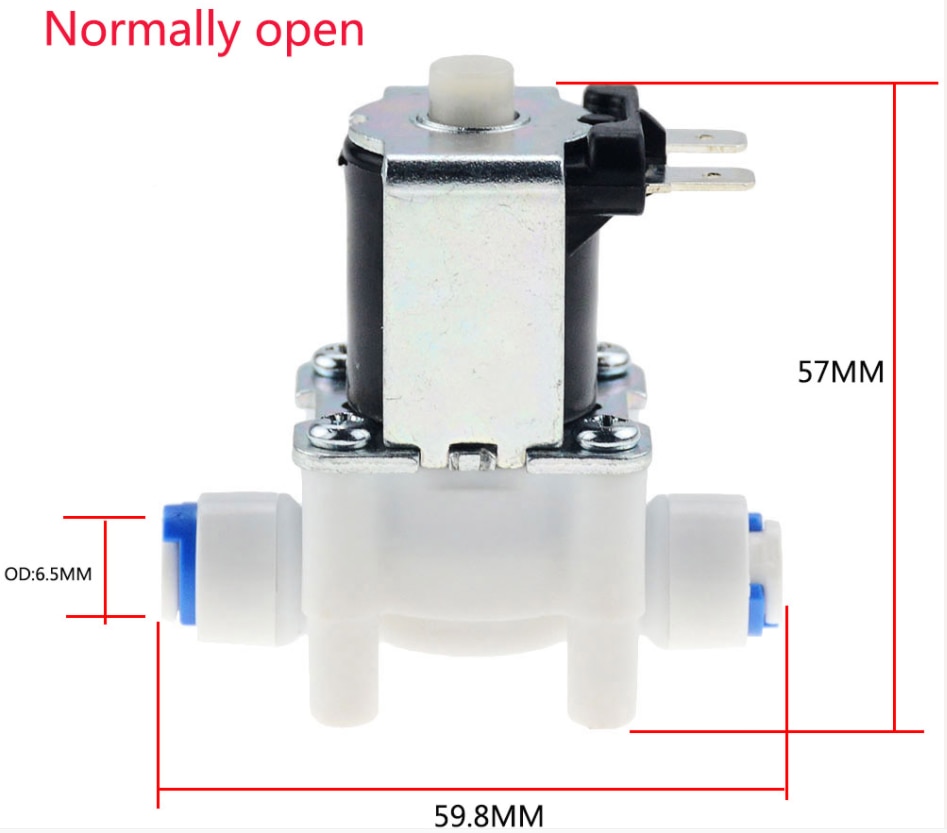

Normally open Electric Solenoid Valve Magnetic DC 12V Water Inlet Flow Switch 1/4 " 12V 24V 220V Magnetic Dispenser Controller
PRODUCT SPECIFICS:
Name: Quick access water solenoid valve
Accessories Type :Water Purifier Valve
Material: Copper POM housing
Capacity :1
Model :1/4quick access
Use location :outside
Water Machine :Water Purifier Water Purifie
Material: Metal + plastic
Voltage:DC 12V 24V 36V
Product Usage:
①water solenoid valve and high pressure water pump connected in parallel on the computer board.
② in the system of water or rinse, the water solenoid valve open at the same time high-pressure pump work; in standby, the water solenoid valve closed at the same time high-pressure pump to stop.
③the role of the water solenoid valve is in the water or rinse, open the water, and in the standby or power off when the closure of water,it can work in the pure water machine and not waste water.
Technical Parameters:
Rated voltage: DC24V
Coil resistance :37Ω ± 0.25Ω (at 20 ° C)
Switch type :DC continuous type
Working pressure: 0.02Mpa-0.8Mpa / 0.02Mpa-0.5Mpa (send randomly )
Medium temperature :1 ° -75 °
Response time to open: ≤ 0.15s off ≤ 0.3s
Electrical strength between the conductor and non-conductor should be able to withstand AC2500V voltage, 1min without breakdown and produce arcing and other phenomena
Flow characteristics 0.02Mpa ≥ 3 L / min 0.1Mpa ≥ 12 L / min 0.8Mpa ≥ 35 L / min
The number of coils is 2500 laps
Life of 200,000 times
Usage:water
Please note it is not suitable for use with gravity fed systems
- NC or NO: Normally Closed
- Media: Water
- Temperature of Media: Normal Temperature
- Standard or Nonstandard: Standard
- Power: HYDRAULIC
- Structure: control
- Certification: CE
- Origin: Mainland China
