Nice-power USB DC Regulated Lab Power Supply Adjustable 30V 10A Laboratory 60V 5A Voltage Regulator Stabilizer Bench Source DIY
4.9 (354 votes) | 1443 orders
Price:
US $144.30 - 397.80
/ piece
Discount Price:
US $
70.20 -
193.80
/ piece
-51%
1.SPS-D Series LCD Screen Protect your eyes (24hours Working)
2.Have complete operating protection function(Short circuit protection)
3.Highly efficient, low ripple, small volume, light weight

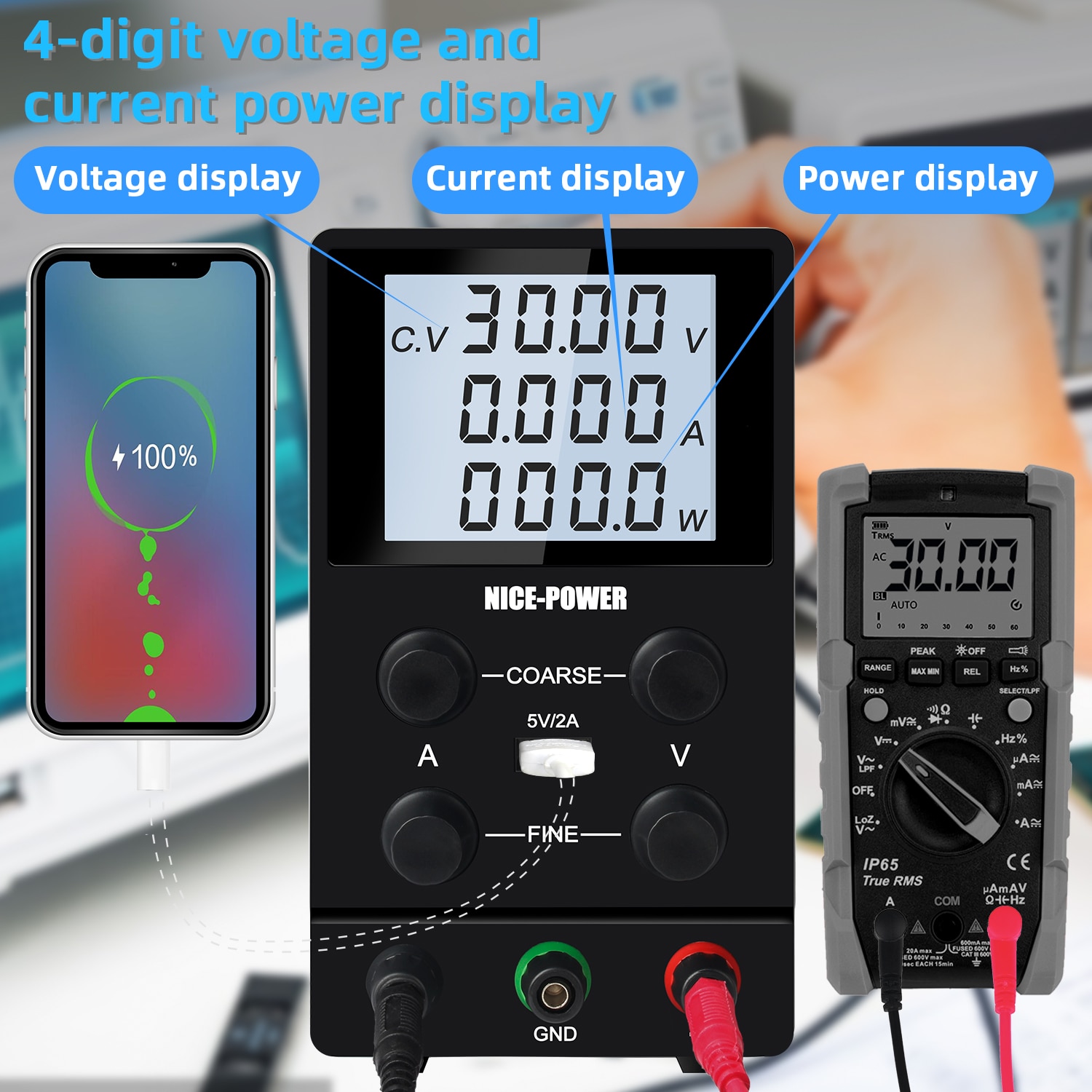

4.Display voltage, current,power, high precision
5.Voltage stabilization, current limiting, simple operation
6.Single voltage input（Dual voltage input easily destroys power supply）We will Send
the correct input voltage power supply according to your country

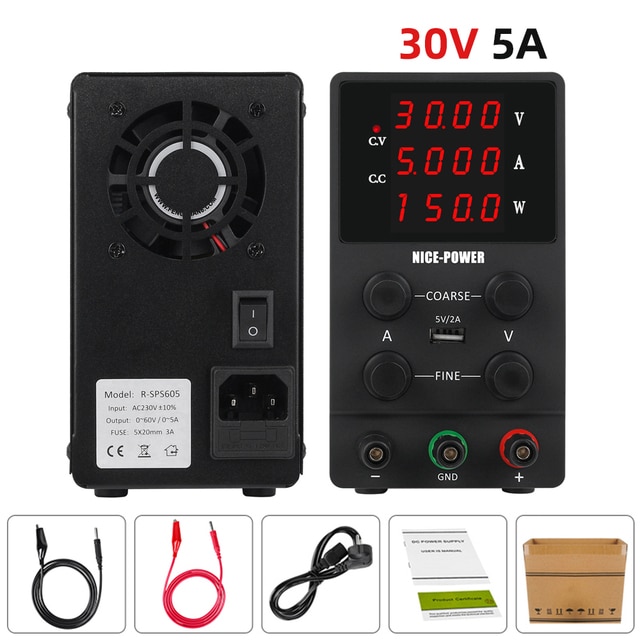

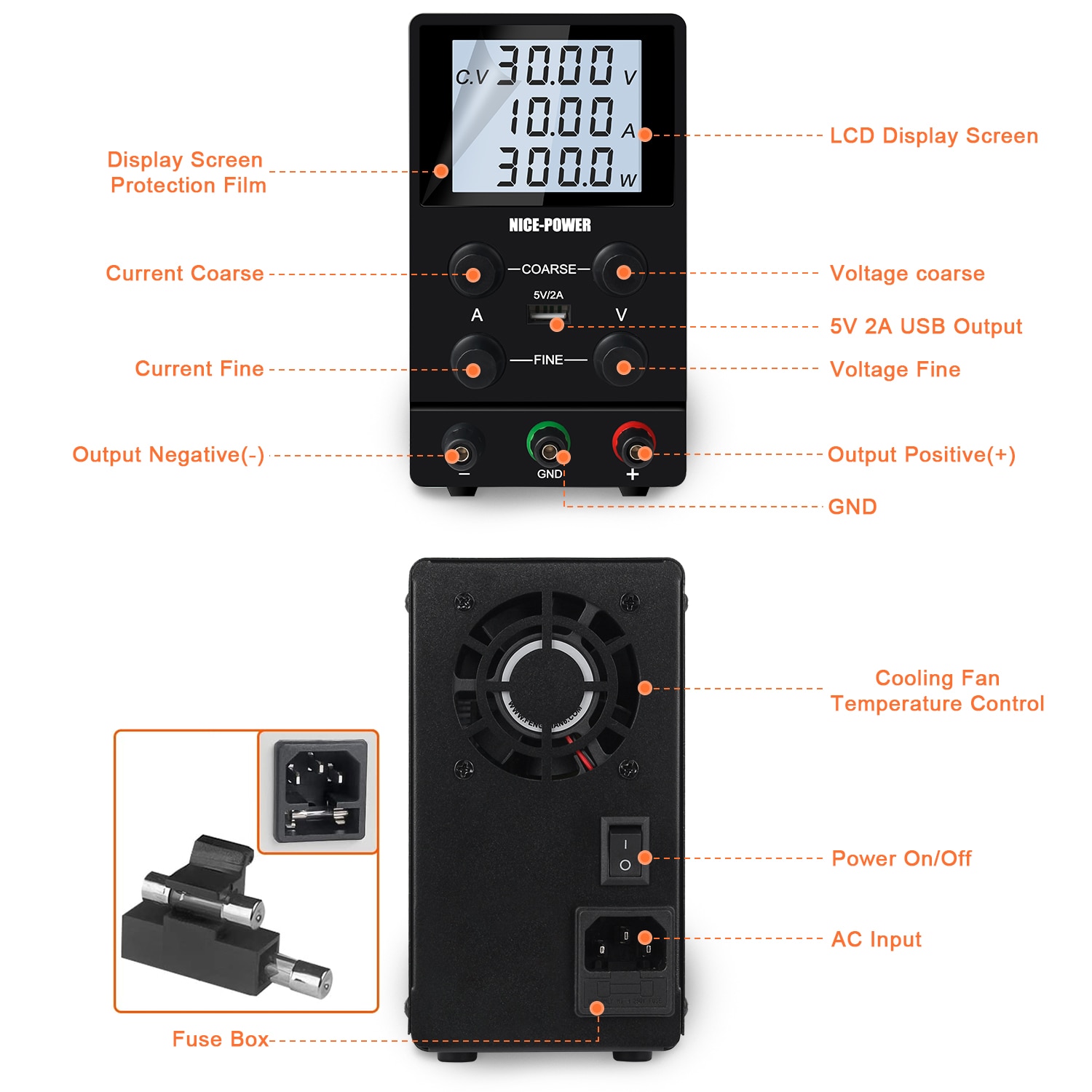

7.Temperature control fan heat dissipation, low noise

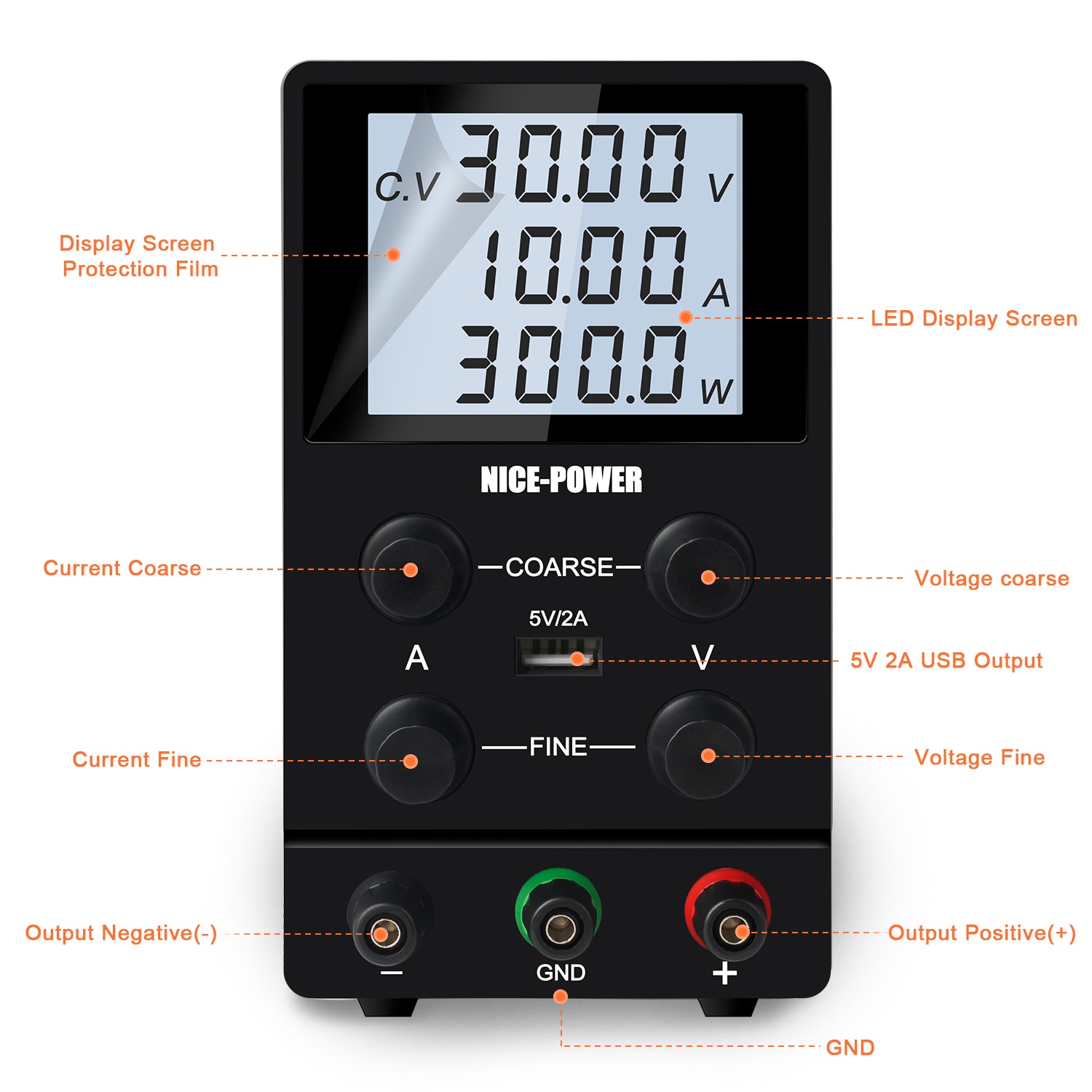

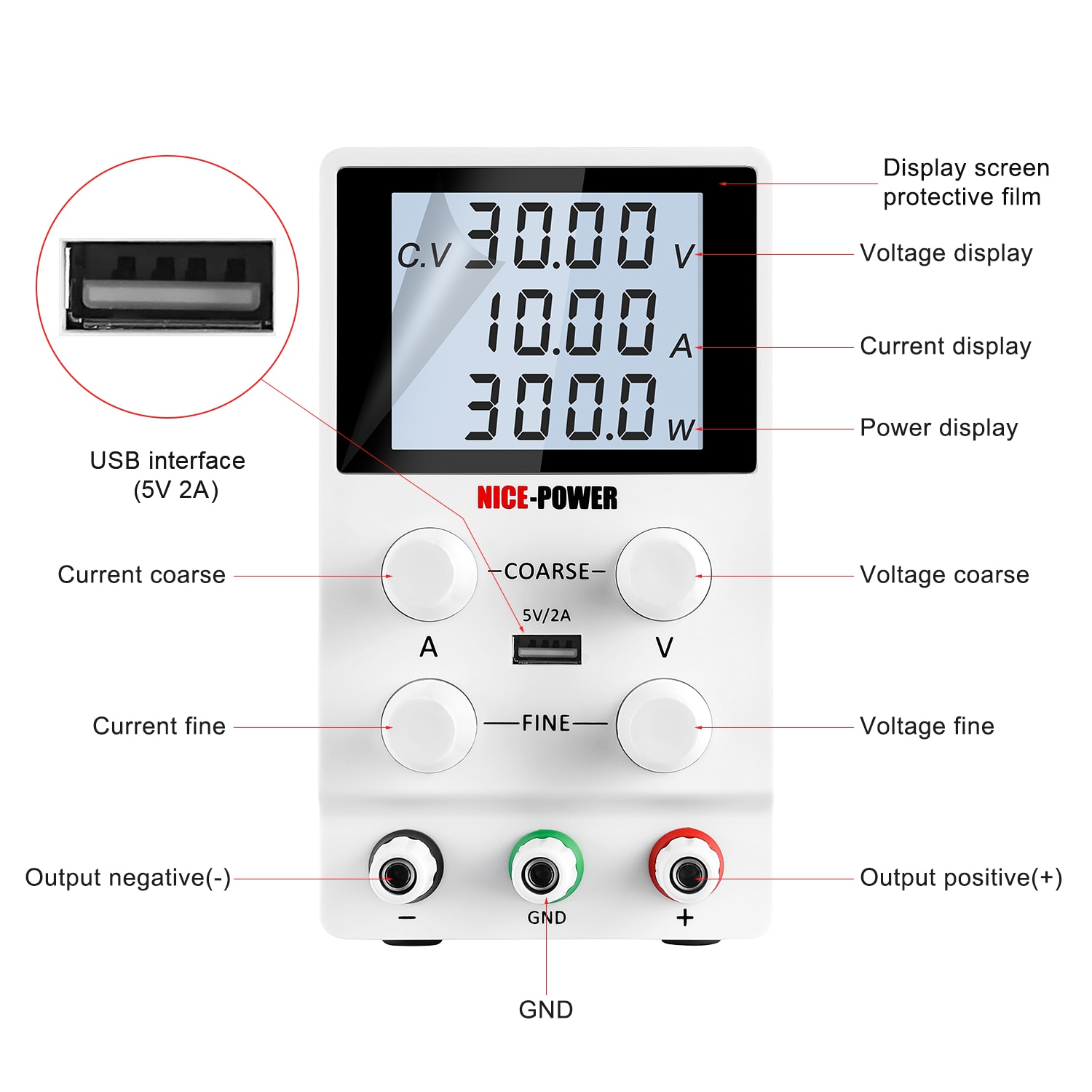

8.Double potentiometer more precise adjustment
9.Output Voltage ranges from 0 to rating voltage with continuous adjustment

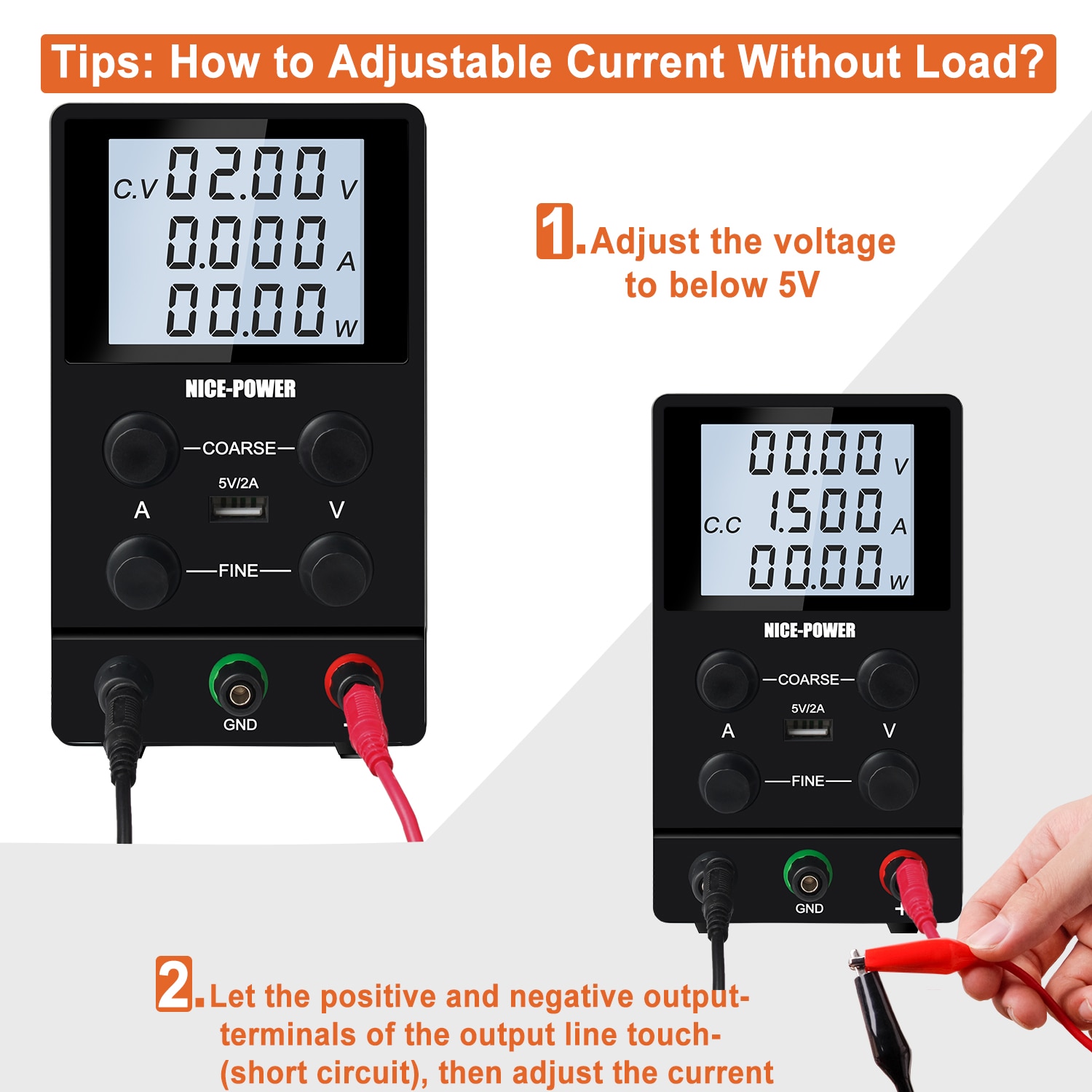

10.Output current ranges from 0 to rating current with continuous adjustment

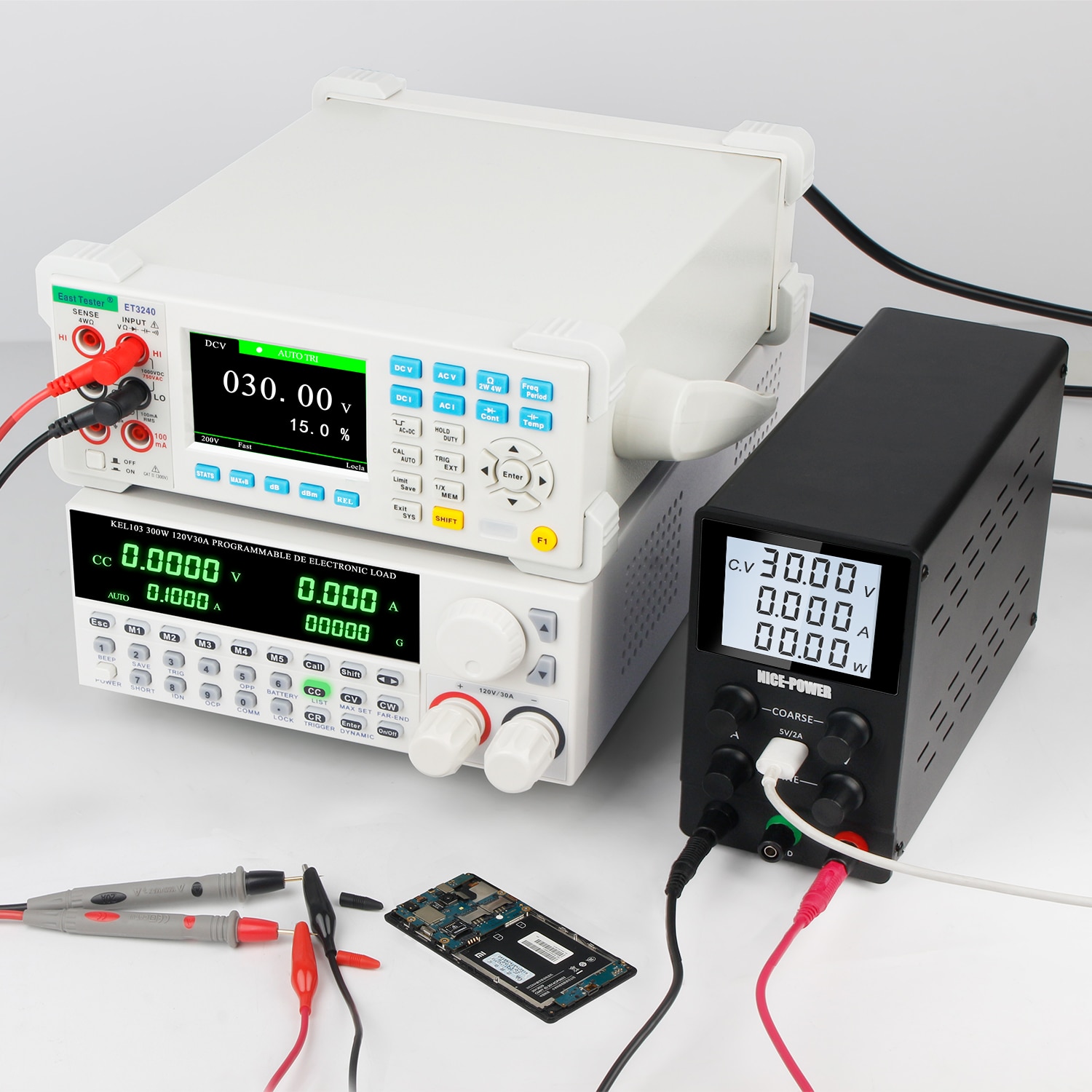

1. For Factory Production line test.
2. For Mobile phone ,computer repair, electrical appliance maintenance,Car DVD, car audio, etc.
3. For Product aging, electroplating,titanium oxide,electrolysis,such as resistors, jewelry,capacitors, relays, DC motors, LEDs, etc.
4. For Charge the battery (Include car battery).
5. For Laboratory, scientific research teaching,factory, maintenance power supply,school ,scientific research , production line use,etc.
6. For Security monitoring system, fire protection system, building automation system

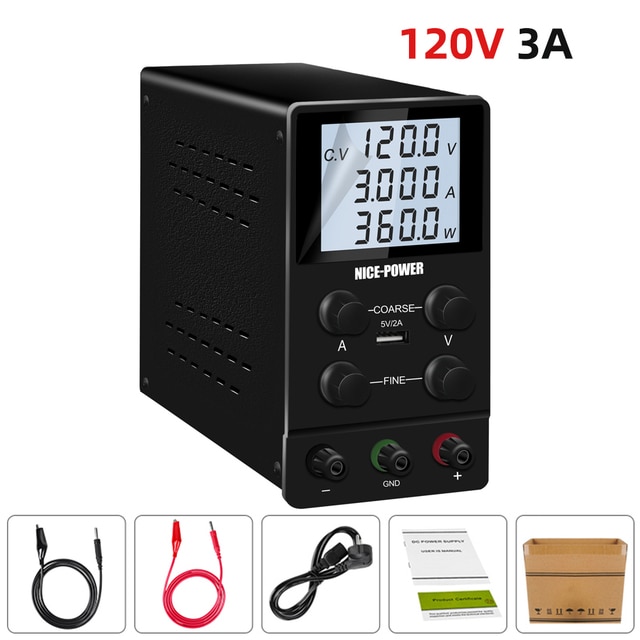

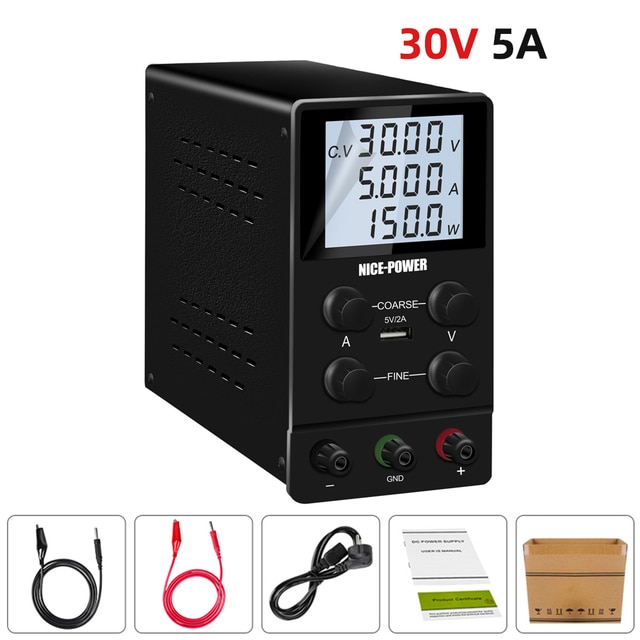

Model Name | SPS305D | SPS3010D | SPS605D | SPS1203D |
Output Voltage | 0-30V | 0-30V | 0-60V | 0-120V |
Output Current | 0-5A | 0-10A | 0-5A | 0-3A |
Output Power | 150W | 300W | 300W | 360W |
Input Voltage | 230V±10% 50Hz or 115V±10% 60Hz | |||
Working Temperature | Working temperature:0℃-40℃;relative humidity:<80%RH | |||
Storage temperature | :-10℃-70℃;relative humidity:<70%RH | |||
Constant voltage State | Voltage stability:0.1%±3mV | |||
Low Voltage:0.2-0.3%+3mV | ||||
Load stability: 0.2%±3mV | ||||
Ripple noise ≤30mVrms | ||||
0 to rated voltage continuously adjustable | ||||
Constant Current State | Current stability:0.2%+3mA | |||
Load stability: 0.2%±3mA | ||||
Ripple noise ≤20mArms(Valid Value) | ||||
Recovery time:≤500μS | ||||
Temperature coefficient:≤100ppm/℃ | ||||
0 to rated current continuously adjustable | ||||
Display | Display size:5.3cm*4.8cm | |||
Screen type:LCD Screen (Protect eyes 24hours working) | ||||
Display accuracy:0.5%±2digits | ||||
Display resolution voltage :0.01V | ||||
Display resolution Current :0.001A | ||||
Display resolution power :0.001W | ||||

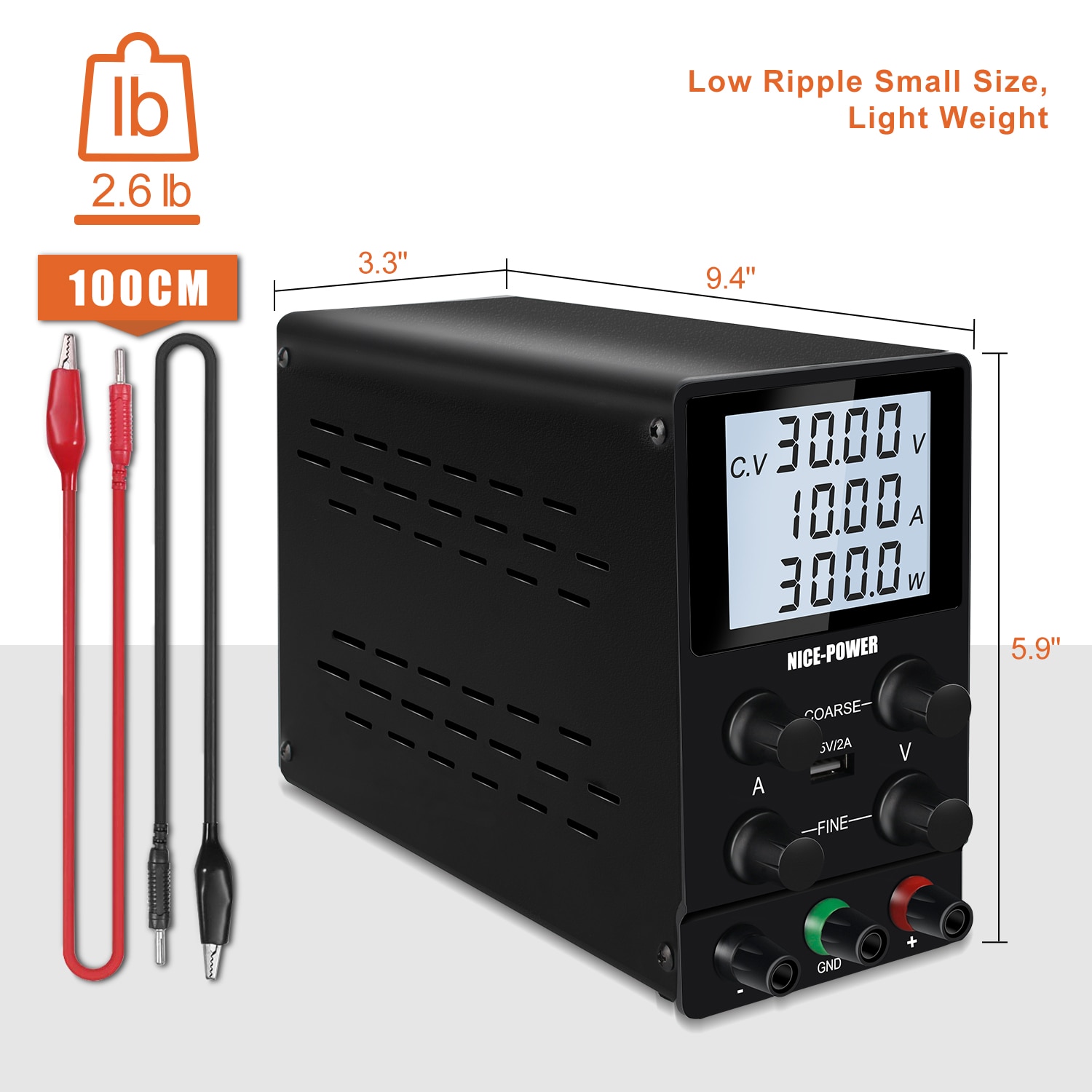

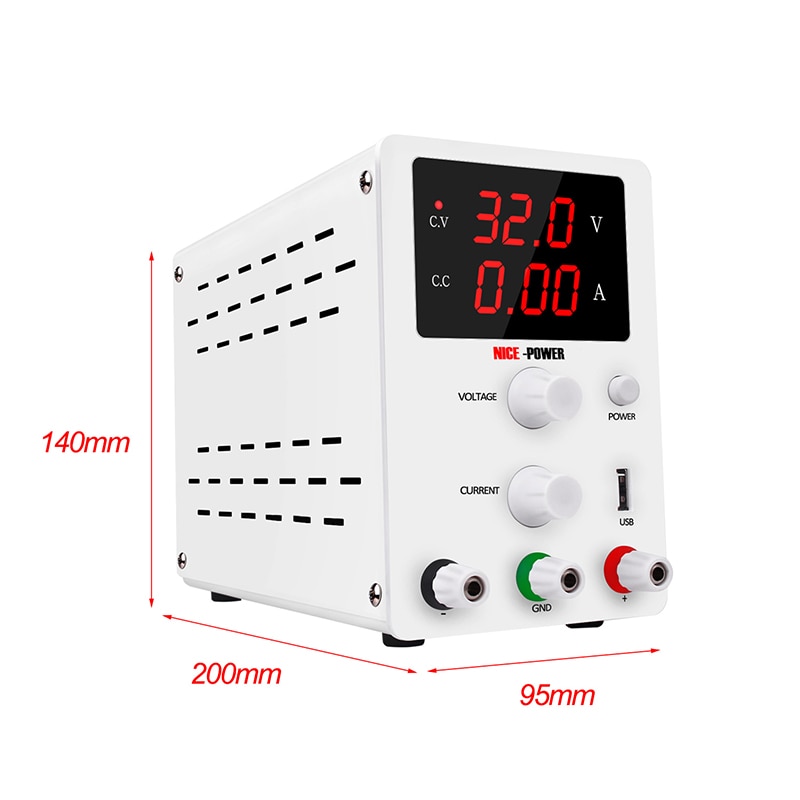

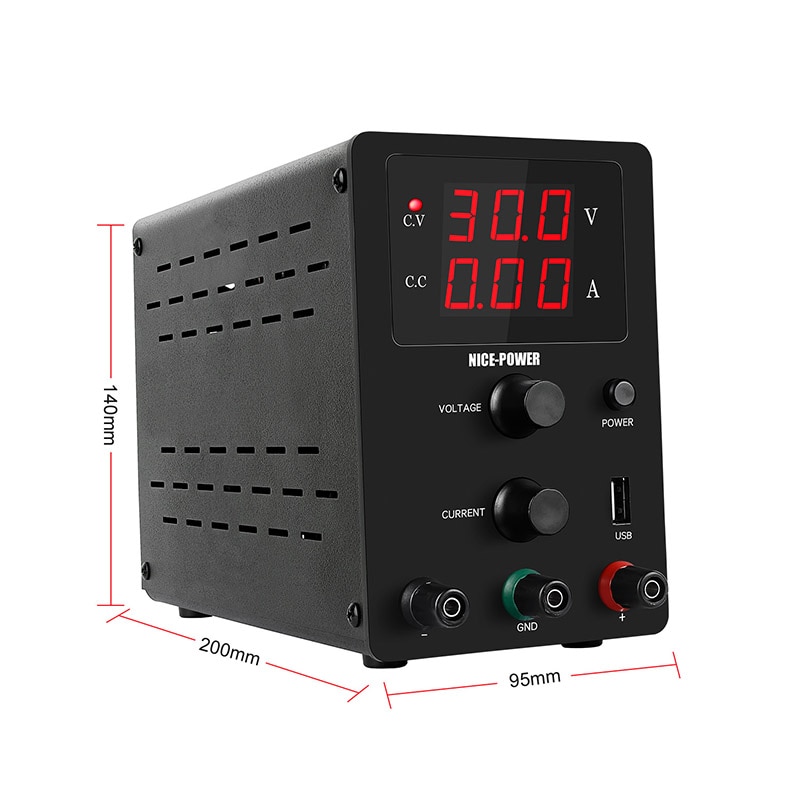

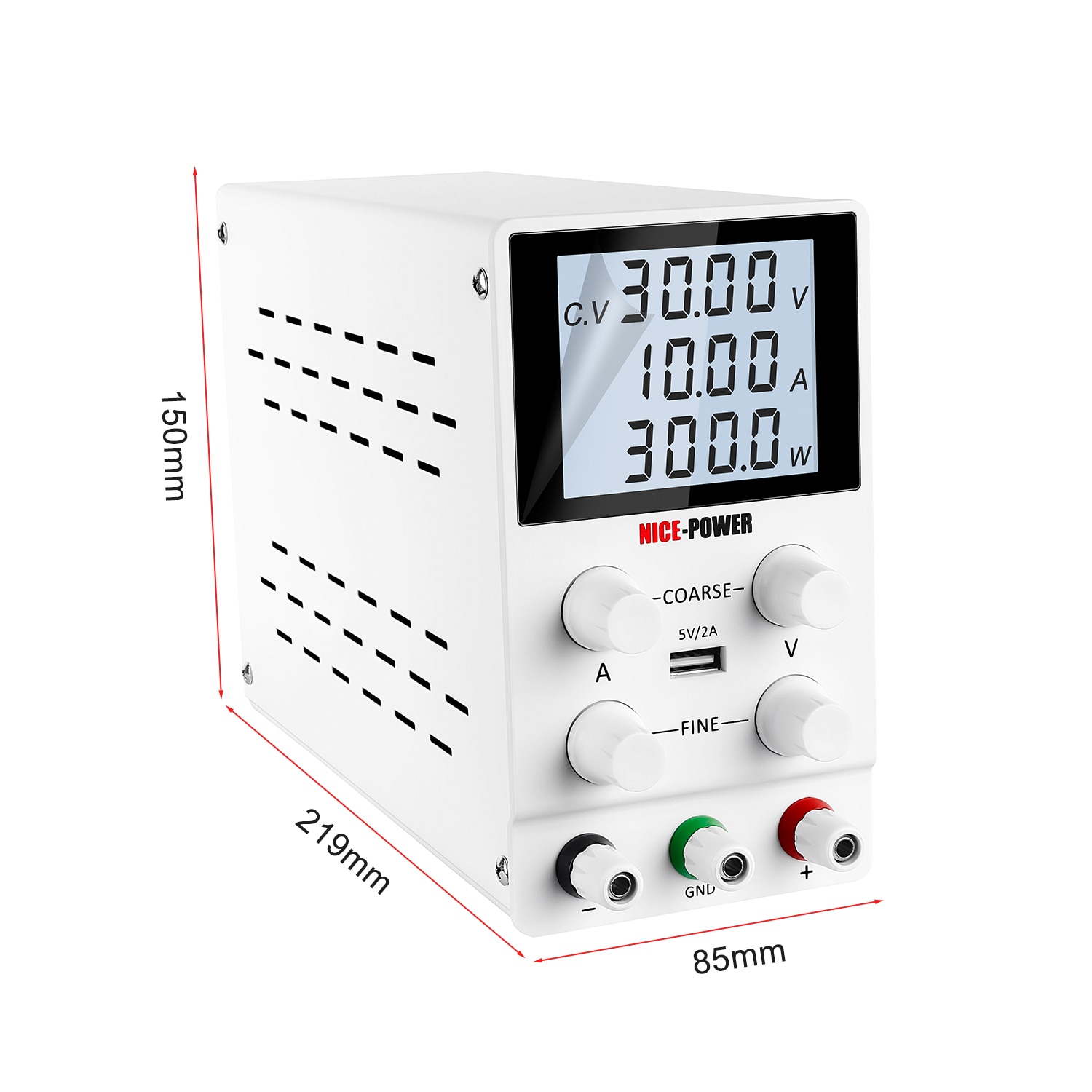

Product size | Long 24cm x Wide 8.5cm x High 15.5 | |||

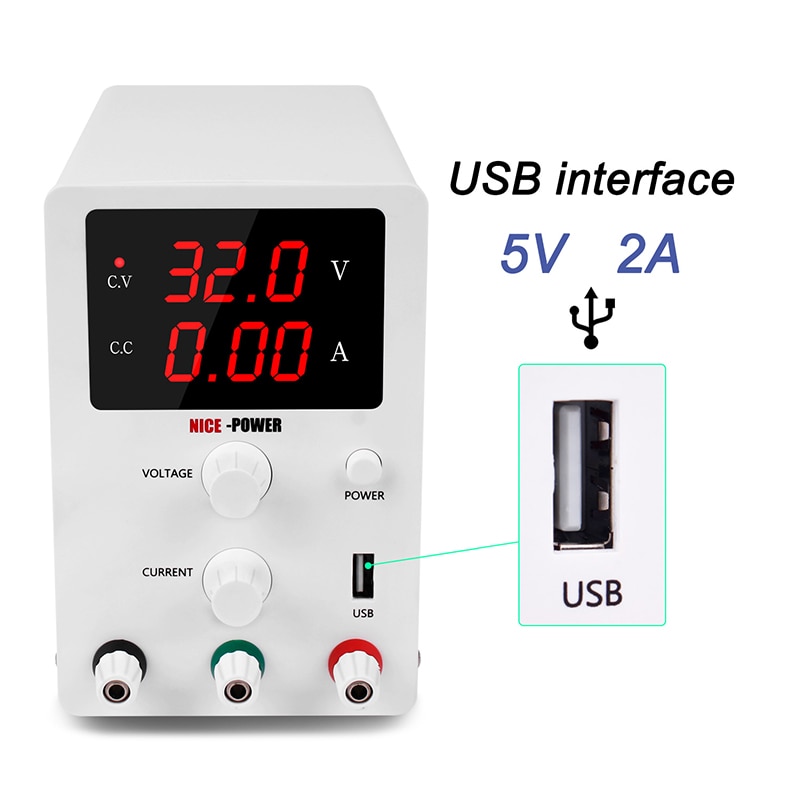

USB interface | 5V 2A for mobile phone repair and charging | |||
Net weight | 1.2Kg | 1.2Kg | 1.2Kg | 1.2Kg |
Fuse standard | 3A(AC 220V inpute) ,5A (AC 110V inpute) | |||
Product color | Black and White for optional | |||

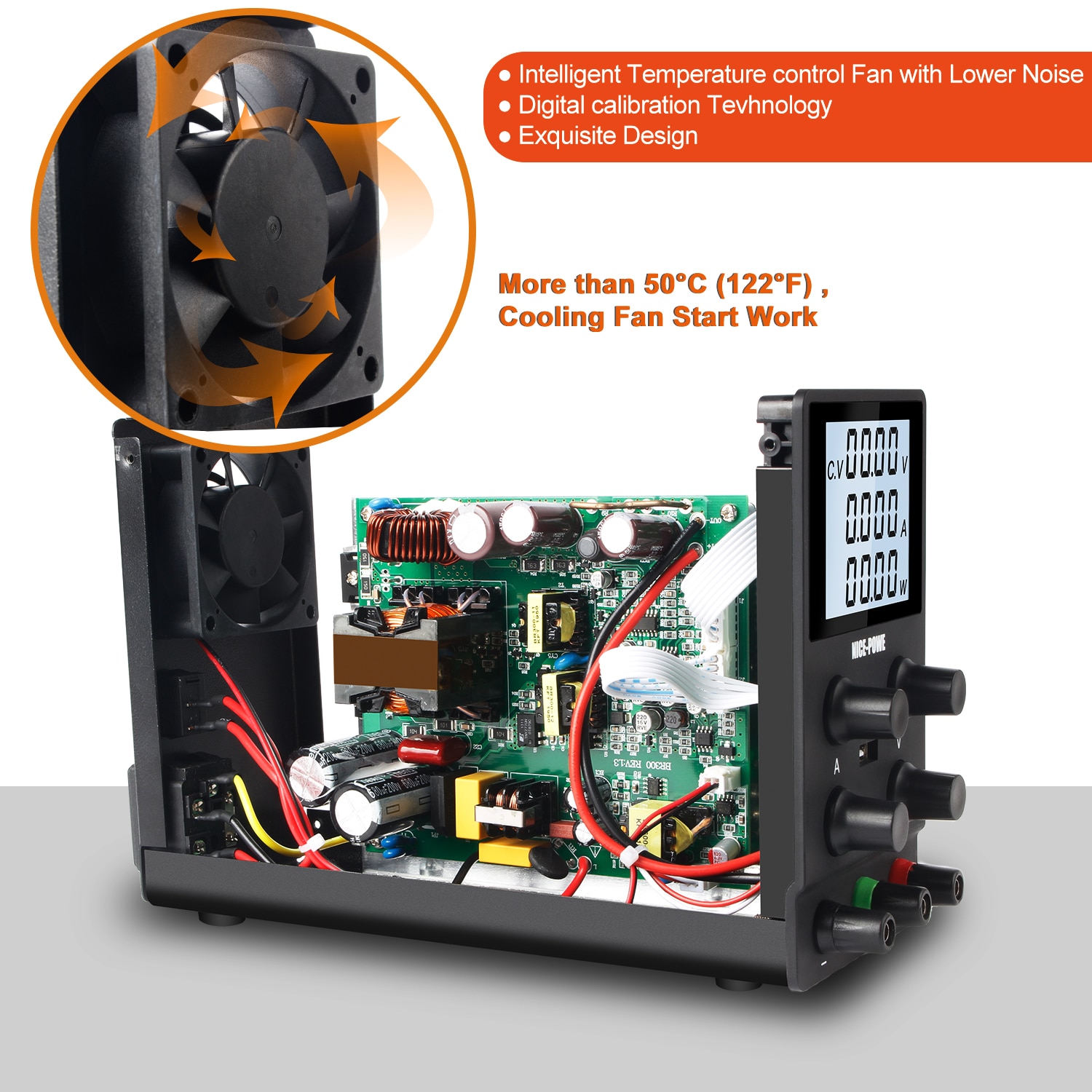

Built-in cooling fan | Smart turn on when temperature over 50℃ | |||

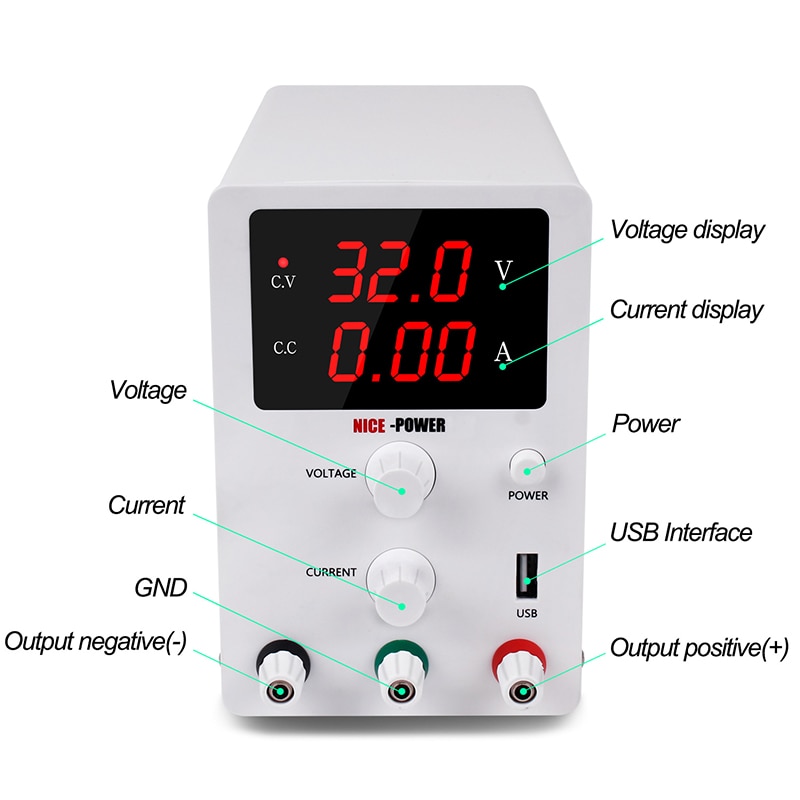

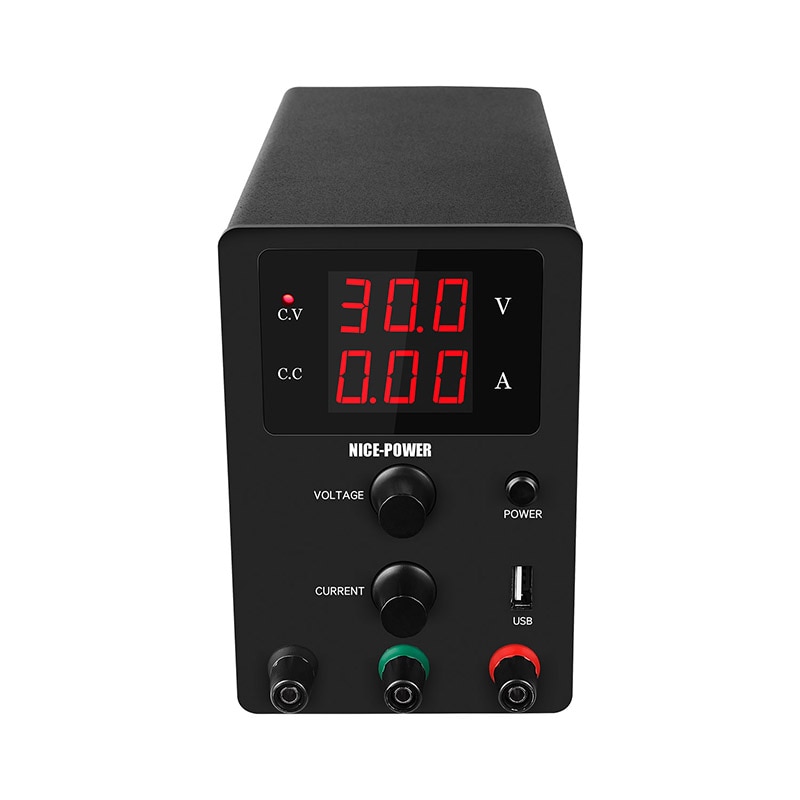

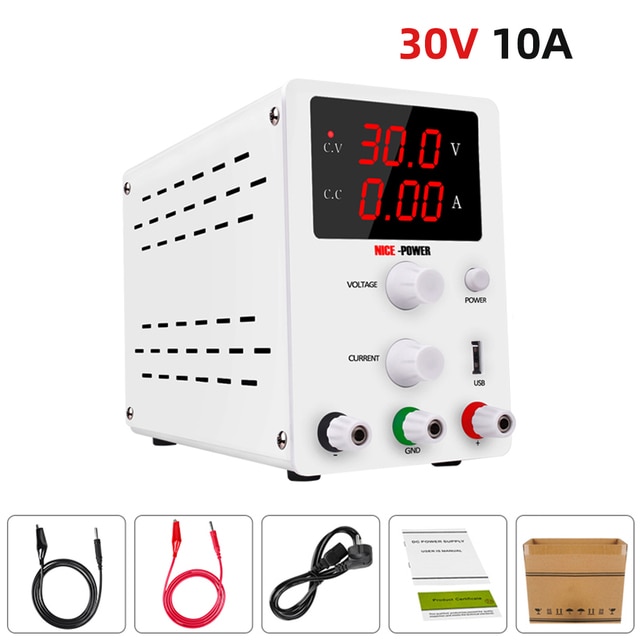

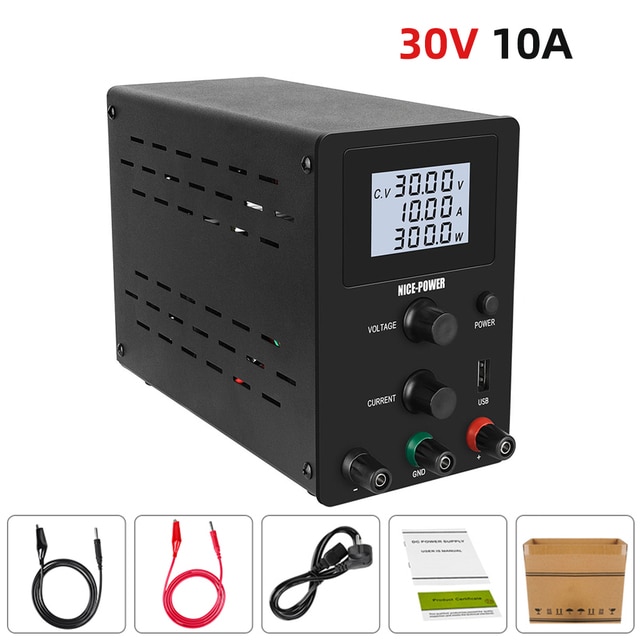

Model Name | R-SPS3010 | |||
Output Voltage | 0-30V | |||
Output Current | 0-10A | |||
Output Power | 300W | |||
Input Voltage | 230V±10% 50Hz or 115V±10% 50Hz | |||
Working Temperature | Working temperature:0℃-40℃;relative humidity:<80%RH | |||
Storage temperature | :-10℃-70℃;relative humidity:<70%RH | |||
Constant voltage State | Voltage stability:0.1%±3mV | |||
Low Voltage:0.2-0.3%+3mV | ||||
Load stability: 0.5%±3mV | ||||
Ripple noise ≤30mVrms | ||||
0 to rated voltage continuously adjustable | ||||
Constant Current State | Current stability:0.2%+3mA | |||
Load stability: 0.2%±3mA | ||||
Ripple noise ≤20mArms(Valid Value) | ||||
Recovery time:≤500μS | ||||
Temperature coefficient:≤100ppm/℃ | ||||
0 to rated current continuously adjustable | ||||
Display | Display size:5.3cm*4.8cm | |||
Screen type:LED Screen red display | ||||
Display accuracy:0.5%±2digits | ||||
Display resolution voltage : 0.1V | ||||
Display resolution Current : 0.01A | ||||
Product size | Long 24cm x Wide 8.5cm x High 15.5 | |||
USB interface | 5V 2A for mobile phone repair and charging | |||
Net weight | 1.2Kg | 1.2Kg | 1.2Kg | 1.2Kg |
Fuse standard | 3A(AC 220V inpute) ,5A (AC 110V inpute) | |||
Product color | Black and White for optional | |||
Built-in cooling fan | Smart turn on when temperature over 50℃ | |||

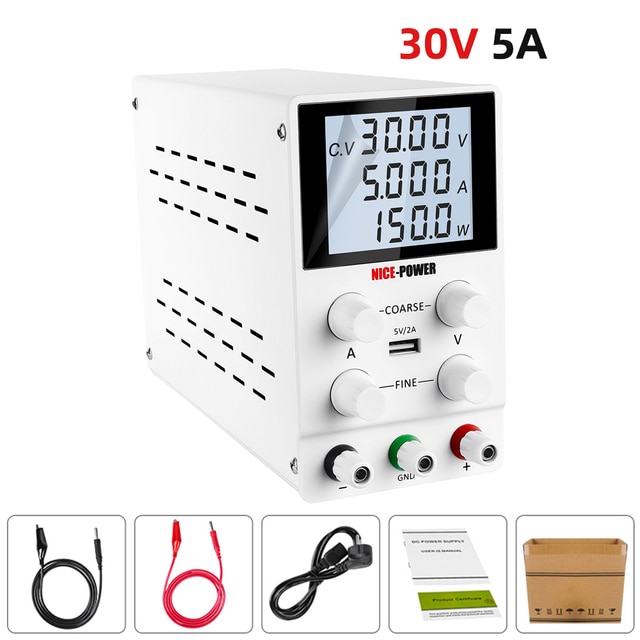

1X DC Power Supply
1X Power Adapter(EU/AU/UK/US we will send according to you country)
1X Black Output Line
1X Red Output Line
1X Instruction Book (English)
1X Pakcgae Box（Hard）
2X Protective Sponge
1X Certificate of Conformity(1 Year)
- is_customized: Yes
- Output Current: 0-10A
- Output Frequency: 50Hz/60Hz
- Model Number: SPSD R-SPS Series
- Output Type: single
- Output Power: 101 - 200W
- Brand Name: Nice-power
- Origin: Mainland China
- Certification: CE,FCC
- Feature: 60V 30V lab power supply
- Advantage 1: LCD SCreen Protection eyes
- Advantage 2: 0-30V switching power supply 0-10A
- Advantage 3: fonte de bancada
- Advantage 4: adjustable power supply AC to DC
- Advantage 5: adjustable power source power supplies
- Advantage 6: bench source digital 24hour working
- 3010d 30v 10a power: adjustable power source
- Advantage 7: School power supply laboratory Use
- Advantage 8: Better than lw-k3010d
- voltage stabilizer: power control 220 v 110 V
- current stabilizer: 0-10A variable power supply
- Lab Power Supply Switching: 0-30V 0-120V 0-60V
