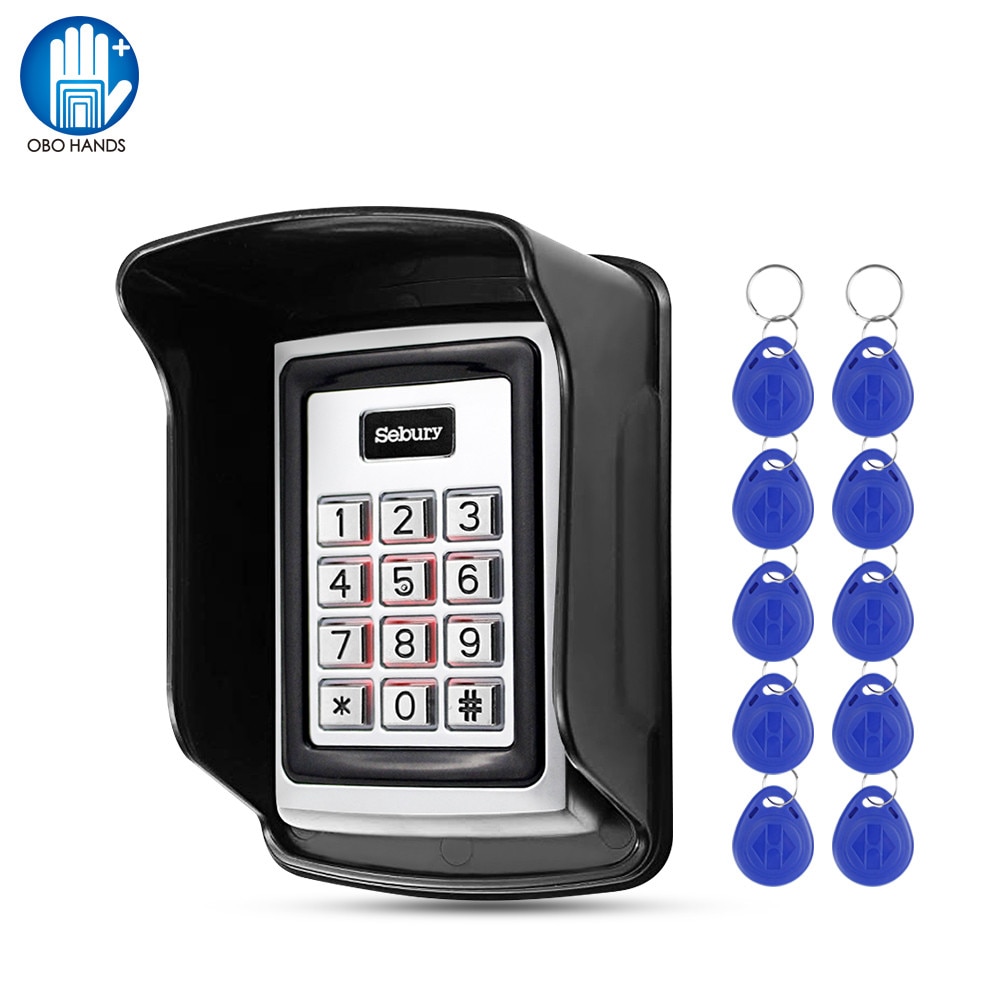

Metal RFID Access Control Keypad 125KHz Standalone Access Controller with Waterproof Cover Case And 10pcs Keyfobs RFID Cards
0.0 ( votes)
Price:
US $19.09 - 62.98
/ piece
Discount Price:
US $
16.22 -
56.51
/ piece
-15%
- Color
-
-
125KHz RFID Standalone Metal Access Control Keypad
High quality / 1000 user capacity / 3 unlock method
Product Description:
1.High quality and high security
2.Sensitively and response quickly
3.1000 standard users
4.Support card, password, password plus card to open the door
5.Opening time: 50mS, 1-98 seconds for normal mode, 99 seconds for switch mode;
6.Electric lock mode: power-on unlocking (such as electric rim lock, electric strike)；
power-off unlocking (such as electric bolt, magnetic lock);
7.Built-in high-current MOS tube can directly drive the electric lock, and can resist strong magnetic unlocking;
8.Safe mode can be set: 10 times invalid card or password will automatically lock the machine for 10 minutes;
9.Can connect with an exit button, convenient to open the door from inside.
10.Safety screw at the bottom can prevent malicious destroy.
11.Metal structure, anti-vandal, simple & safe design
12.Doesn't need to connect on the computer, can works alone
13.Application: Home / hotel / office / department / apartment etc
Product Specification:
Effective Cards:1000
Password: 1000
Working Frequency: 125KH
Reading Distance: 0-5cm
Card Type: EM or EM compatible
Working Voltage: DC12V±2V
Static current: ≤20mA
Operating current: ≤100mA
Drive electric lock current: ≤3A
Working Temperature: Working:-20℃~50℃;
Relative Humidity: Working:0%-95%;

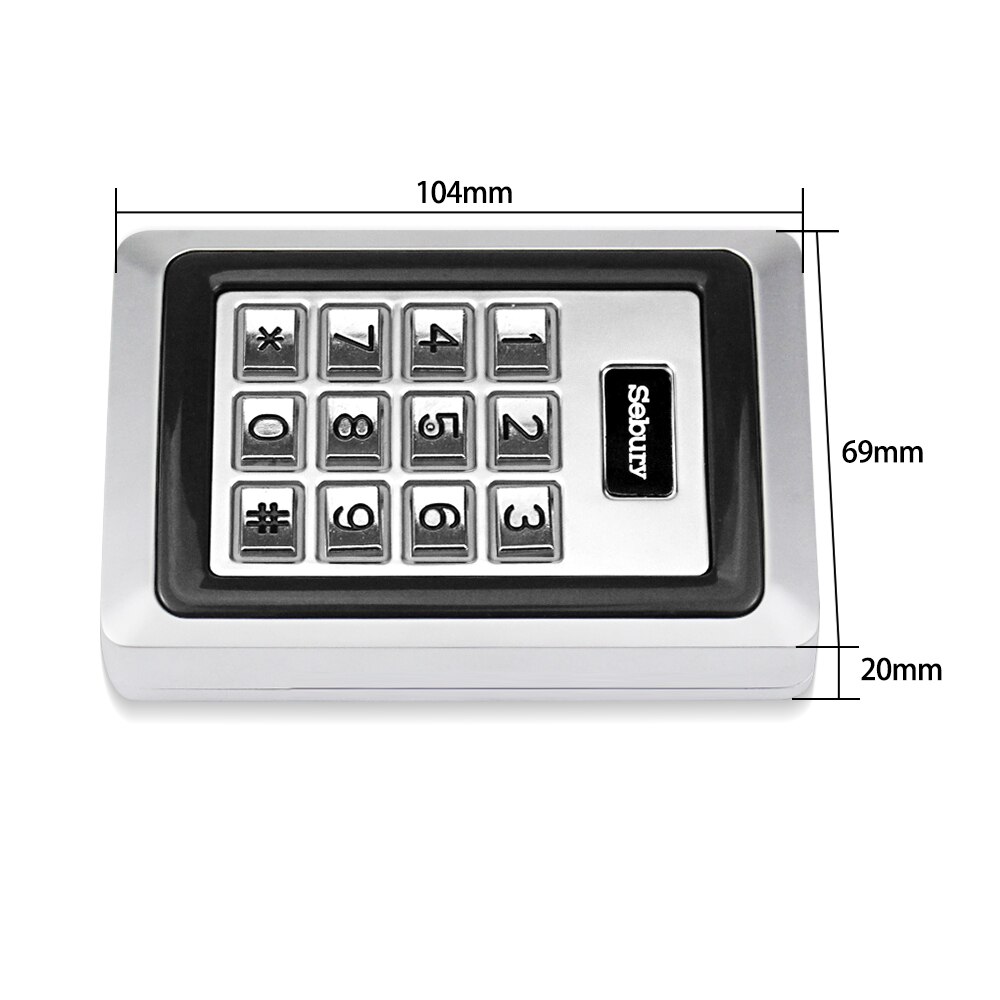

Dimension: 104X20X69mm(L/H/W)

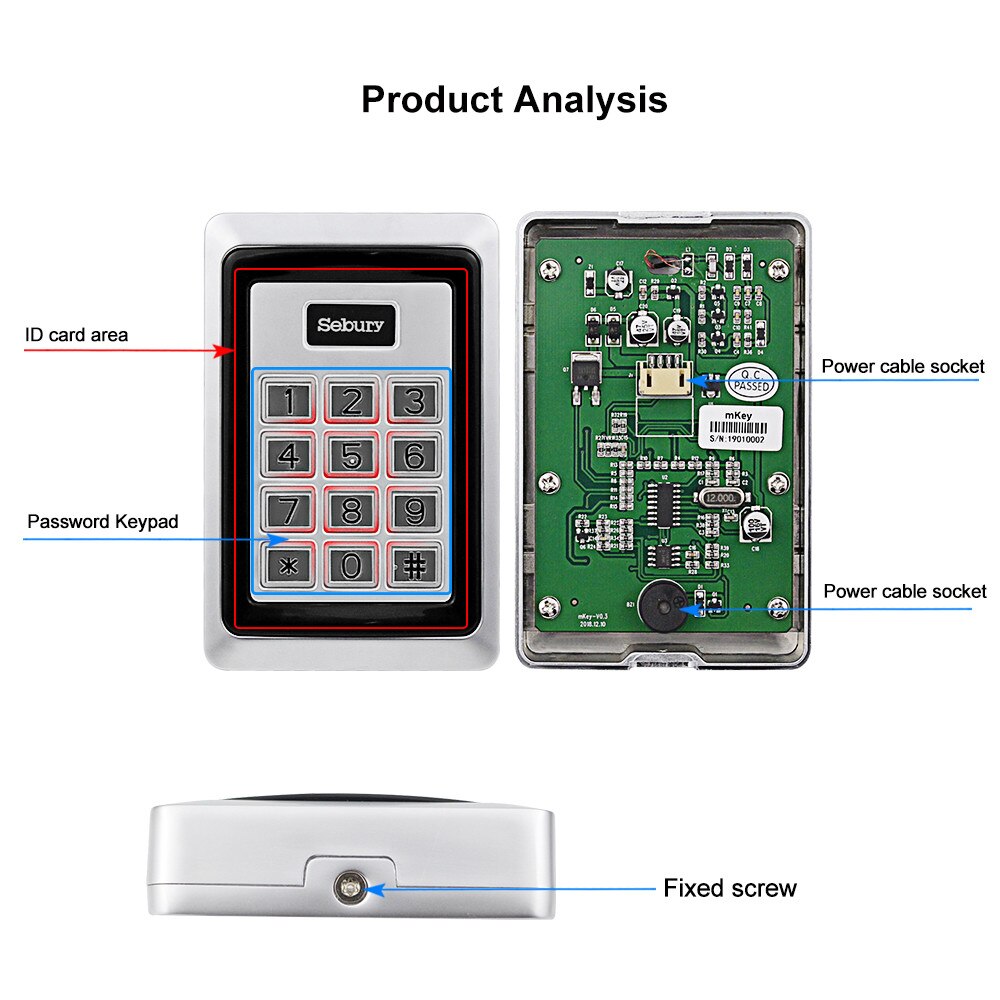

Product Details

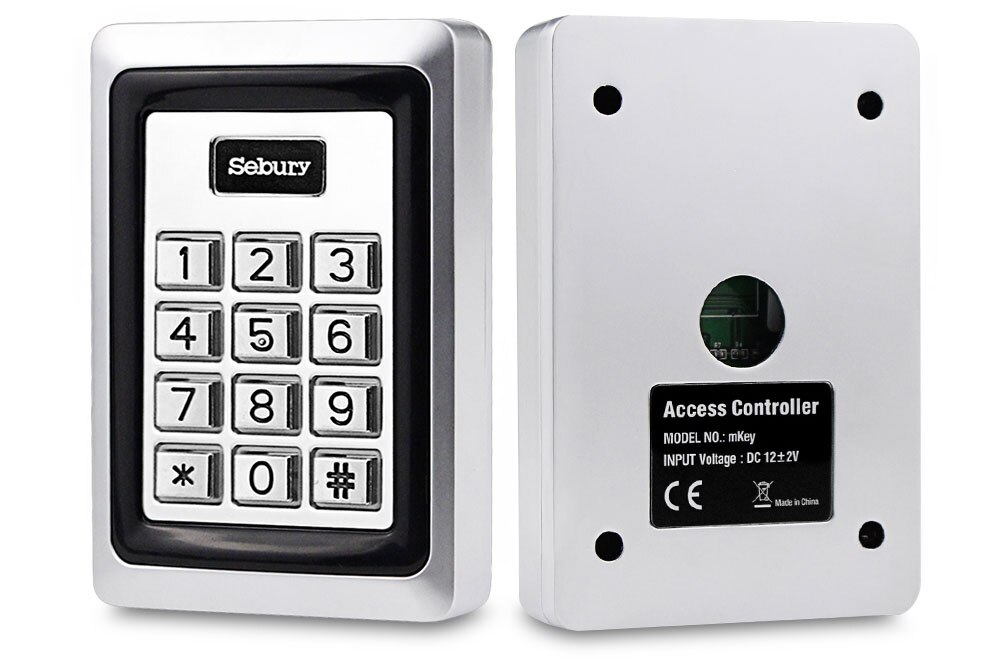

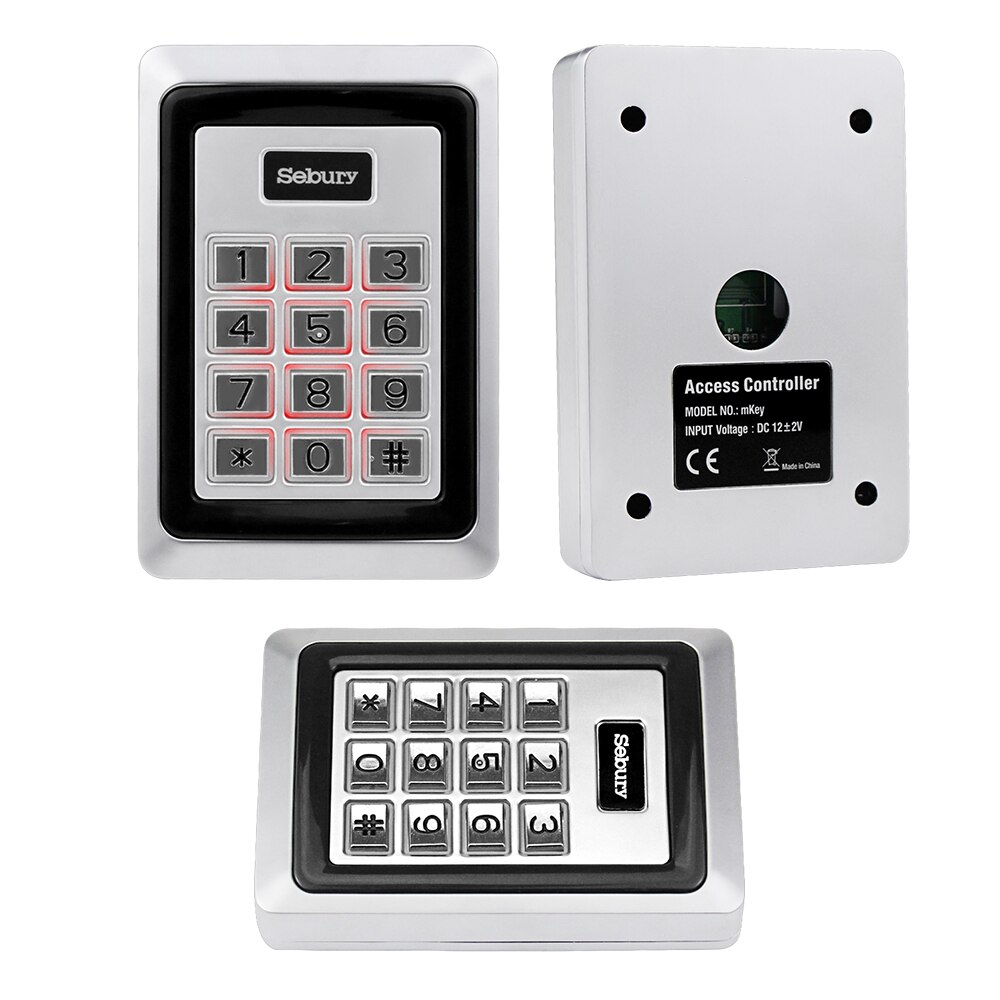

Metal structure, safe and durable
eco-friendly zinc alloy, make the product more secure and durable, anti-vandal,anti-tamper, suitable for different enviromental installation.

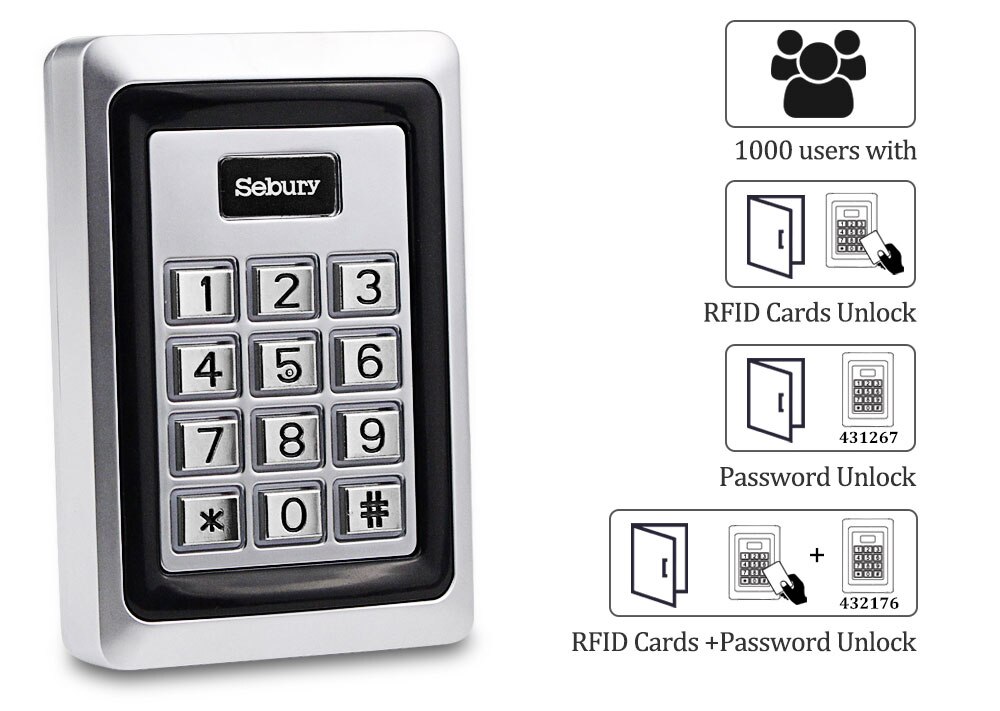

Support 1000 user cards. and 6 digits password. Has 3 different unlock method.
unlock with rfid card, password, rfid card + password

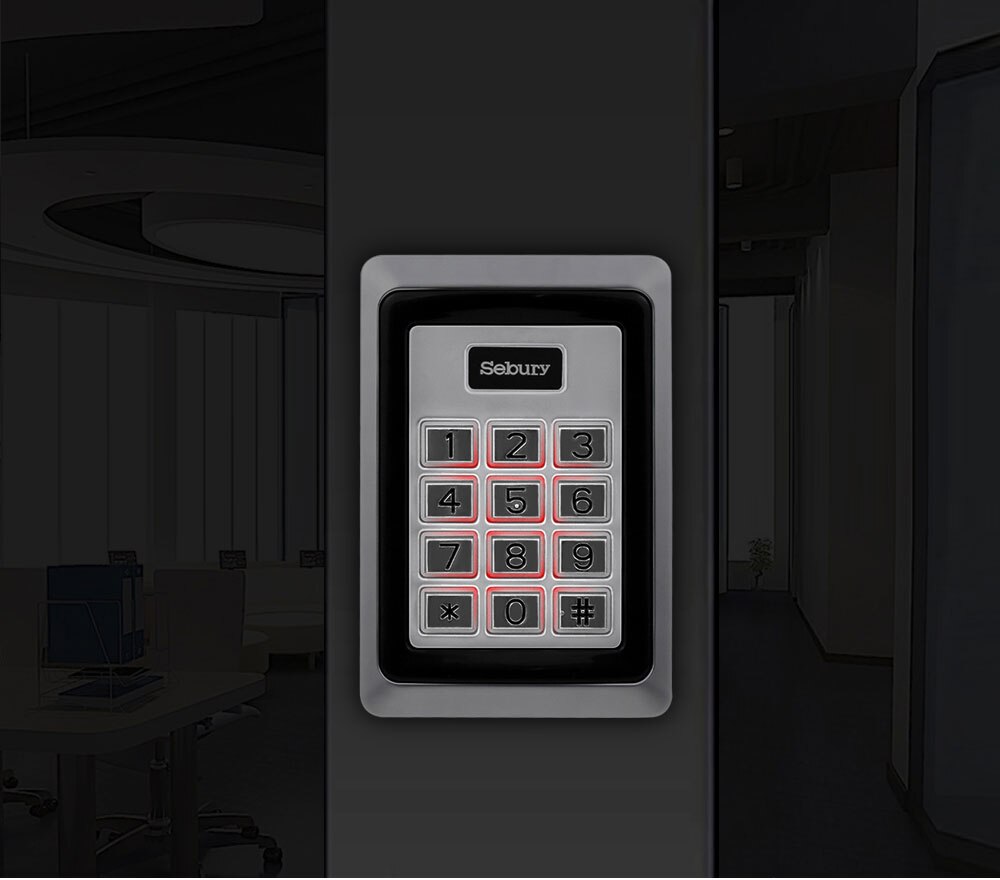

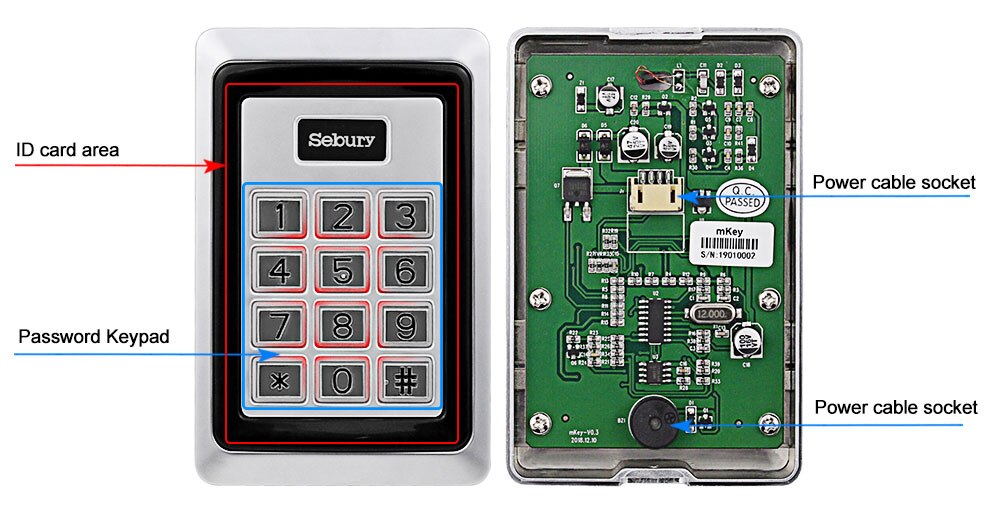

Metal keypad, digital backlit
All programming is done via the keyboard and can accommodate up to 1000 user capacity.
The digital backlight key is convenient in night or dark enviroment.

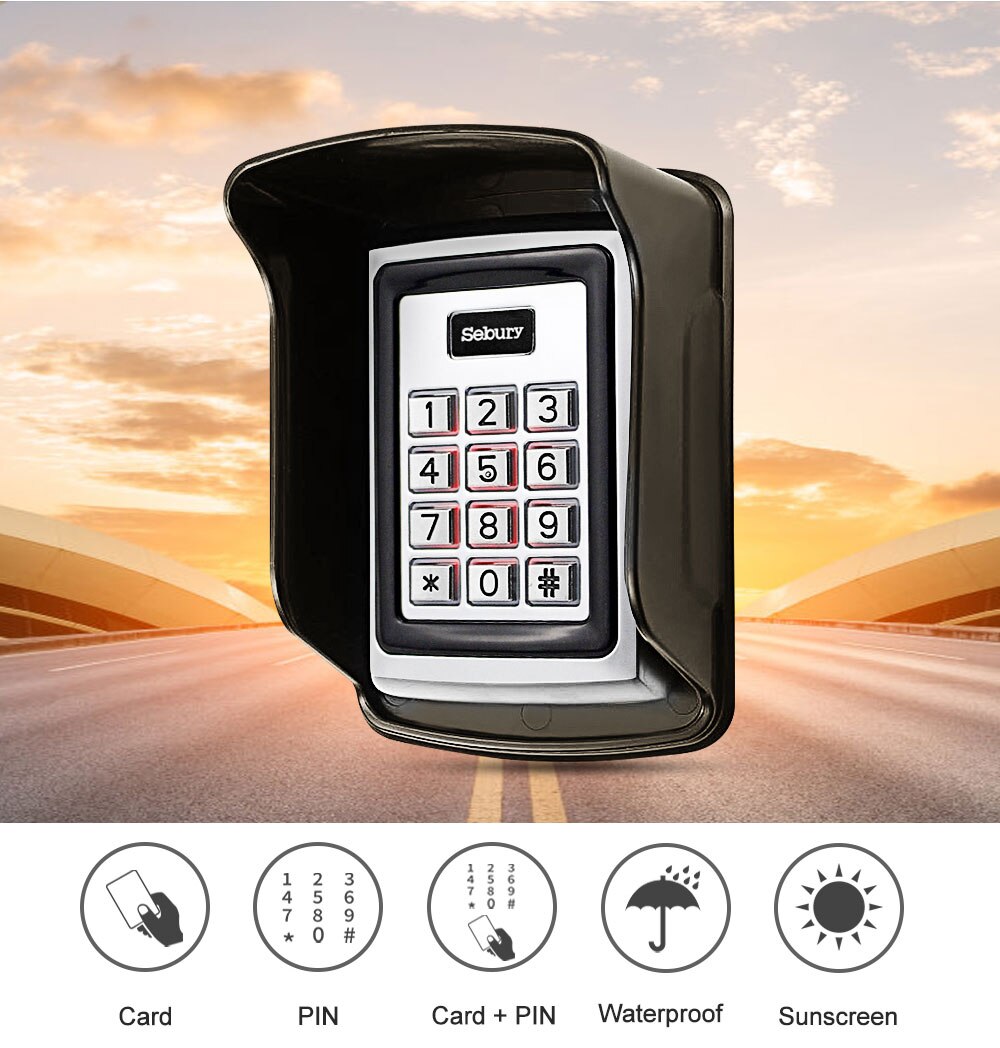

Used with Rainproof Cover, can be installed outdoor
Easy to install and operation
Based on advanced technology, fast recognition speed, high sensitivity.
Suitable for most major access control solution.
RFID Keyfobs (Optional)
You can read these keys on the access controller keypad to open the door convenient.
Only the key finished programed with our instruction then can be open the door.
Working Frequency: 125KHz
With ABS high quality
Each one has unique ID number on it
Reading Range: 1-10cm
Color: Red, Blue, Yellow, Green, Black (We will send 10pcs BLUE color by default, if you want other color, please leave us
a message)
Quantity: 10pcs ( If you want more, please click below link. )

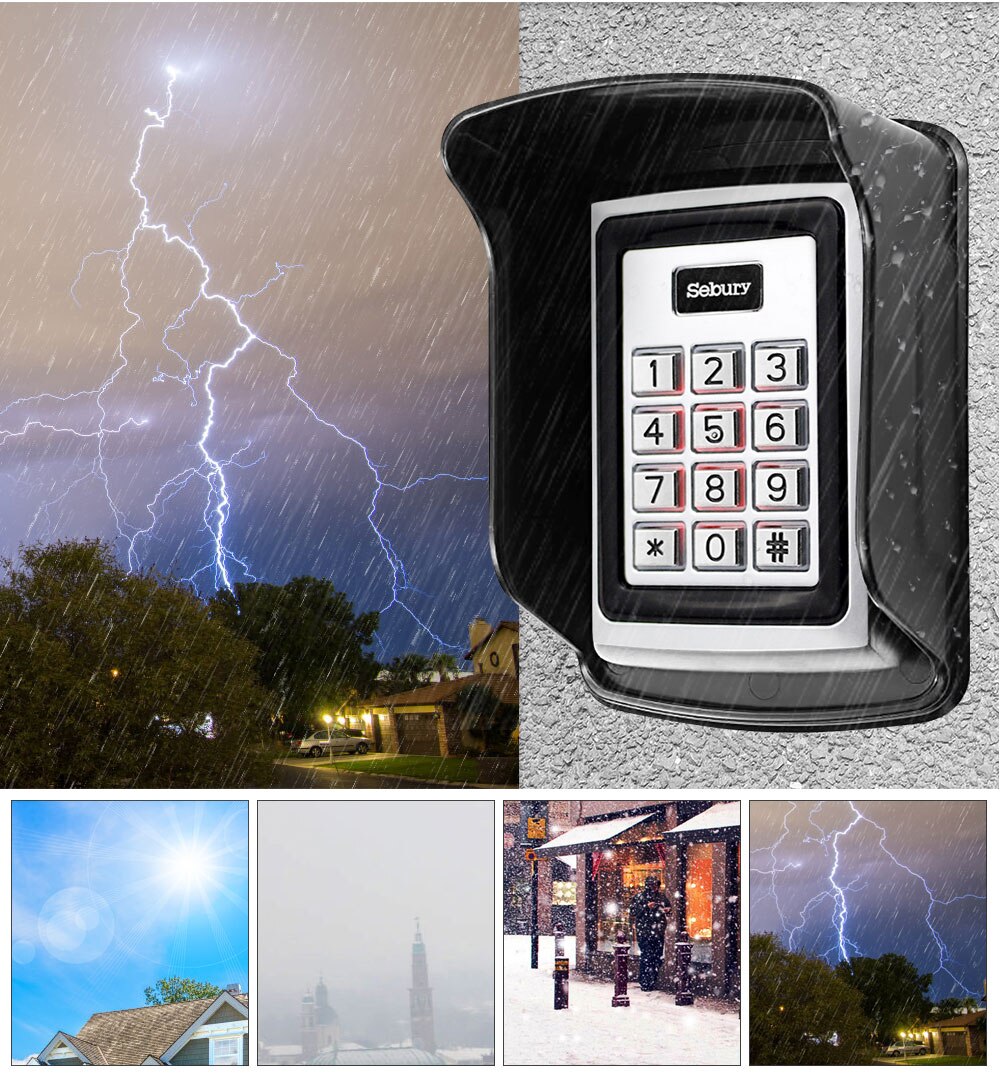

Rainproof Cover
This waterproof shell is suitable for fingerprint device, access controller, standalone rfid door access controller, which length
is less than 13cm, width is less than 8cm.

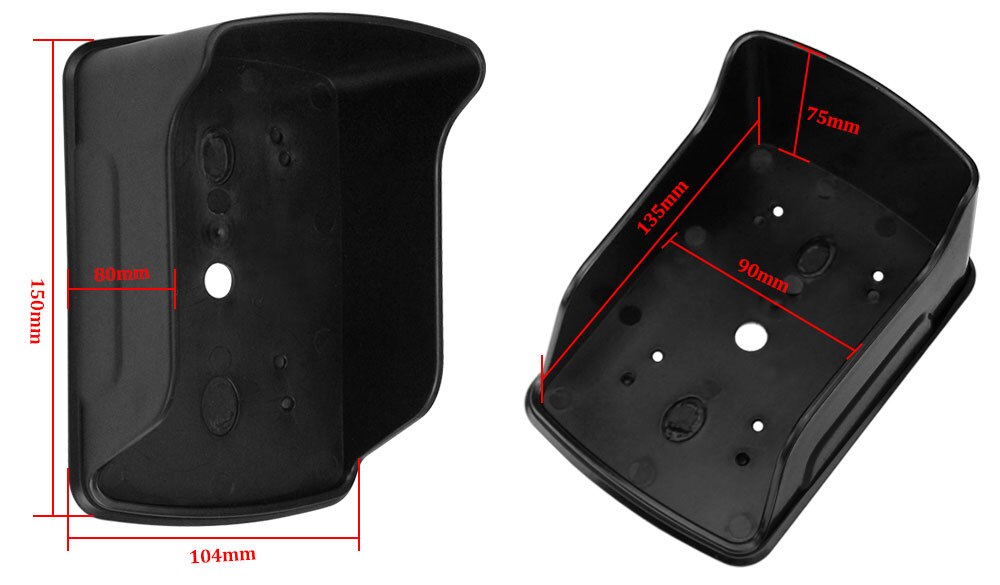

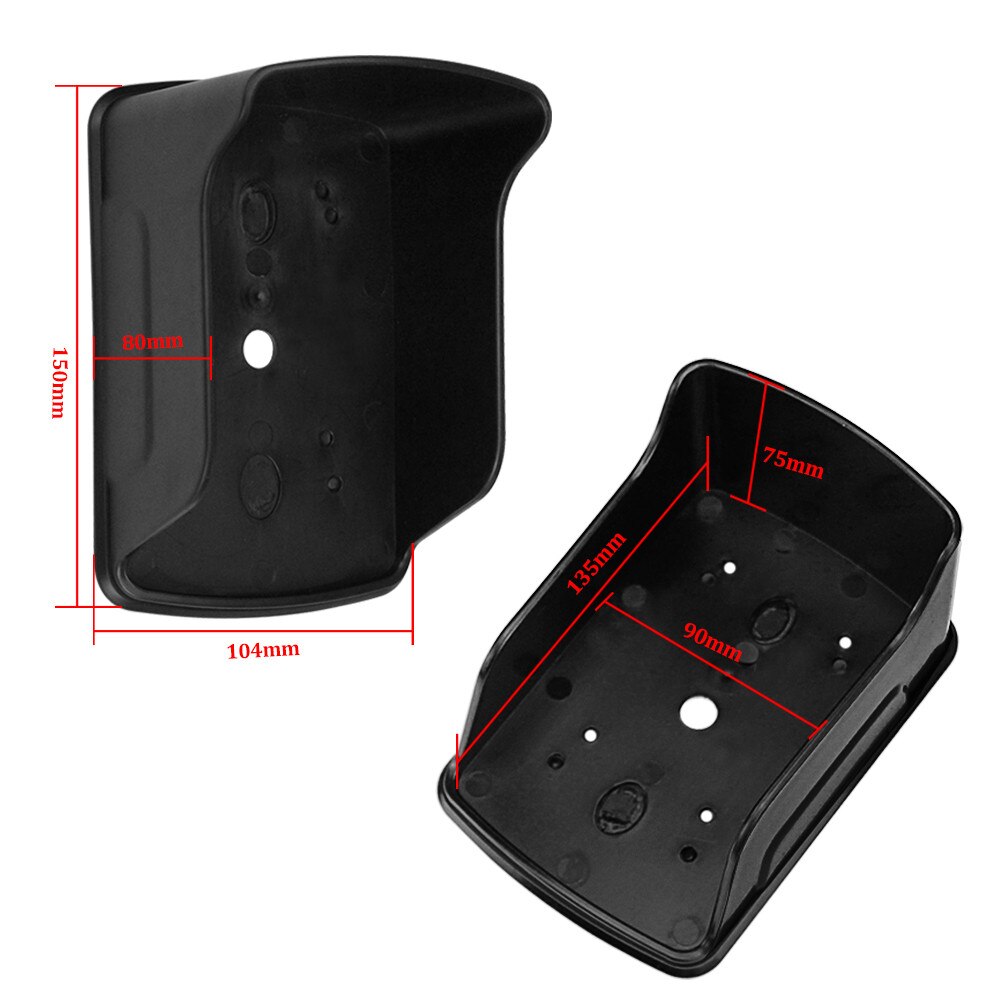

Dimension:
Outside: 15cm*10.4cm*9cm (L*W*H)
Inside: 13.5cm*8.9cm*8.4cm (L*W*H)
( The 7612 model access control is still working when there are some water on the surface, but can’t be use in rain directly.
If you want to install item outside, please buy this rainproof cover to protect it. )

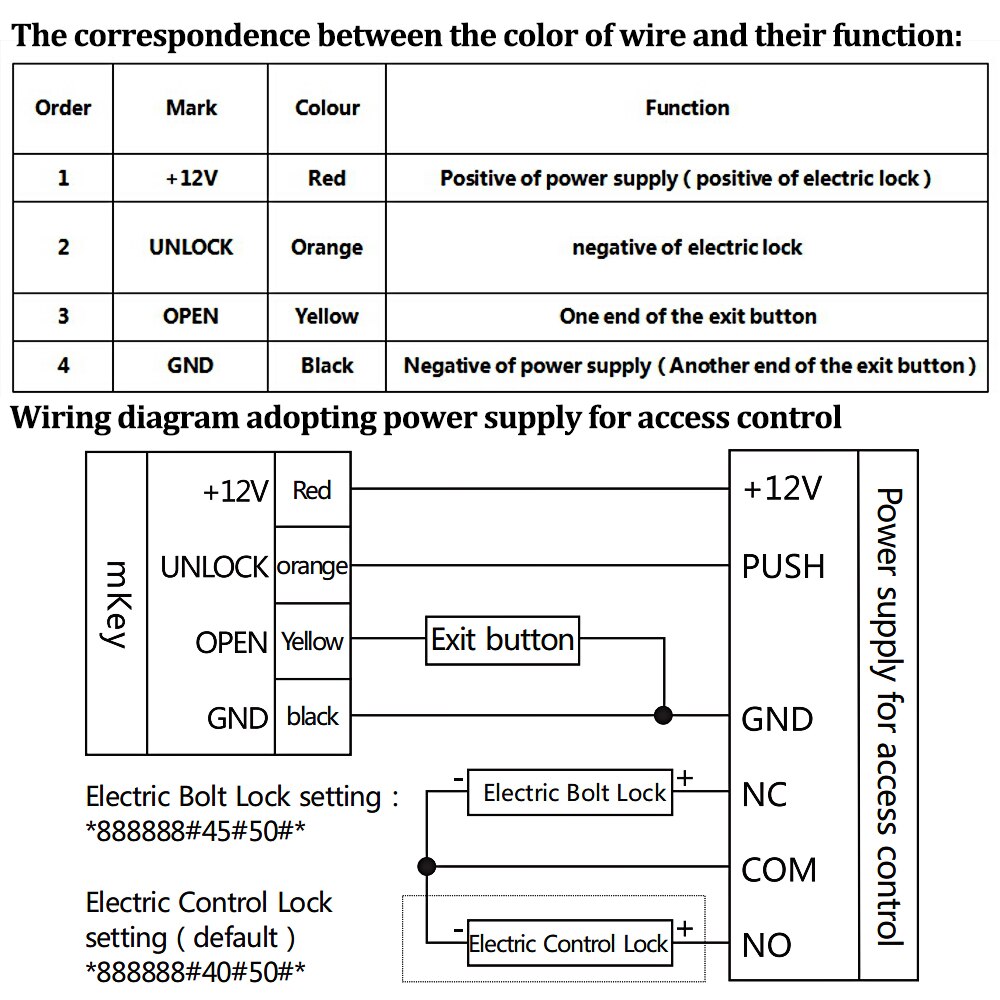

Wiring Diagram:

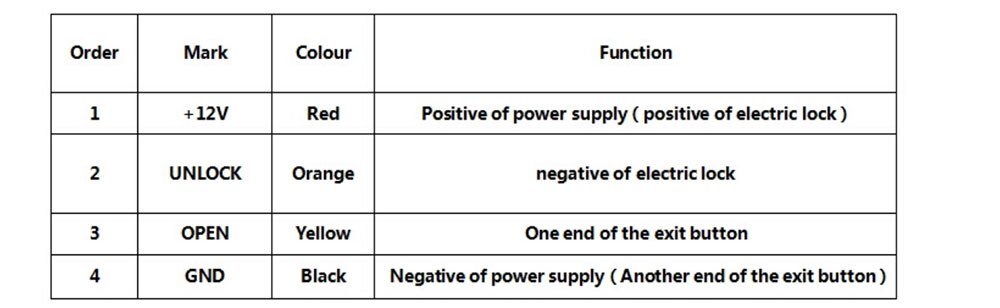

The correspondence between the color of wire and their function

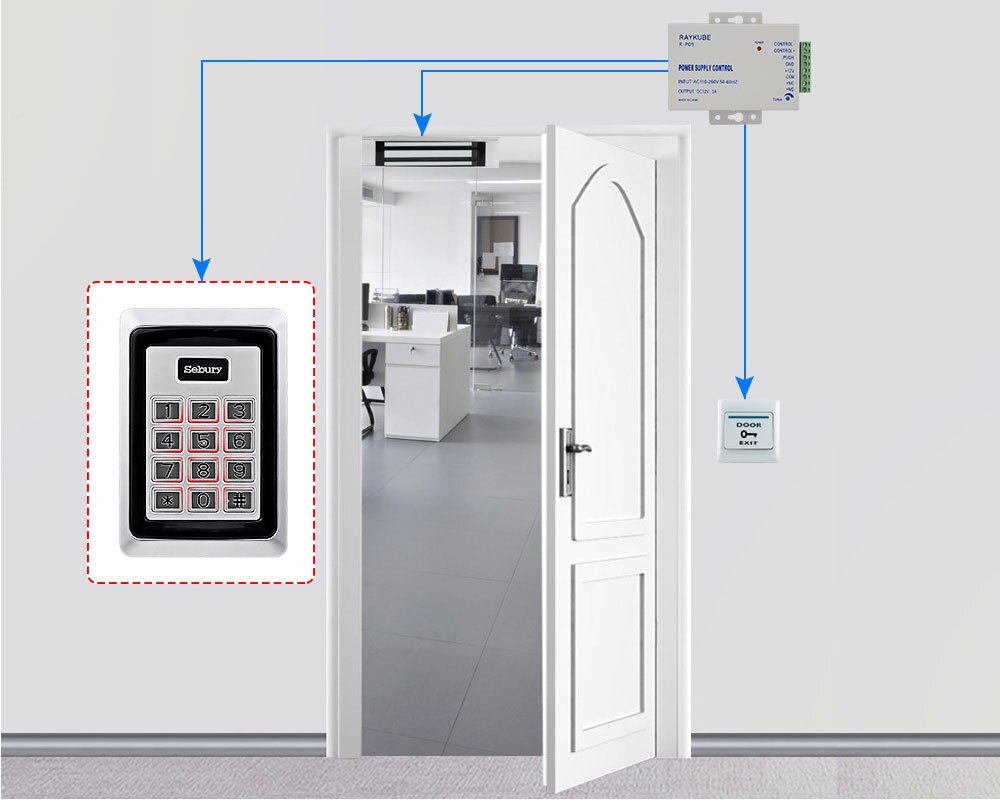

Wiring diagram adopting power supply for access control
Multi-models for you to choose!!!
There are 5 different models for you to choose from. Please choose the suitable model according to your needs.

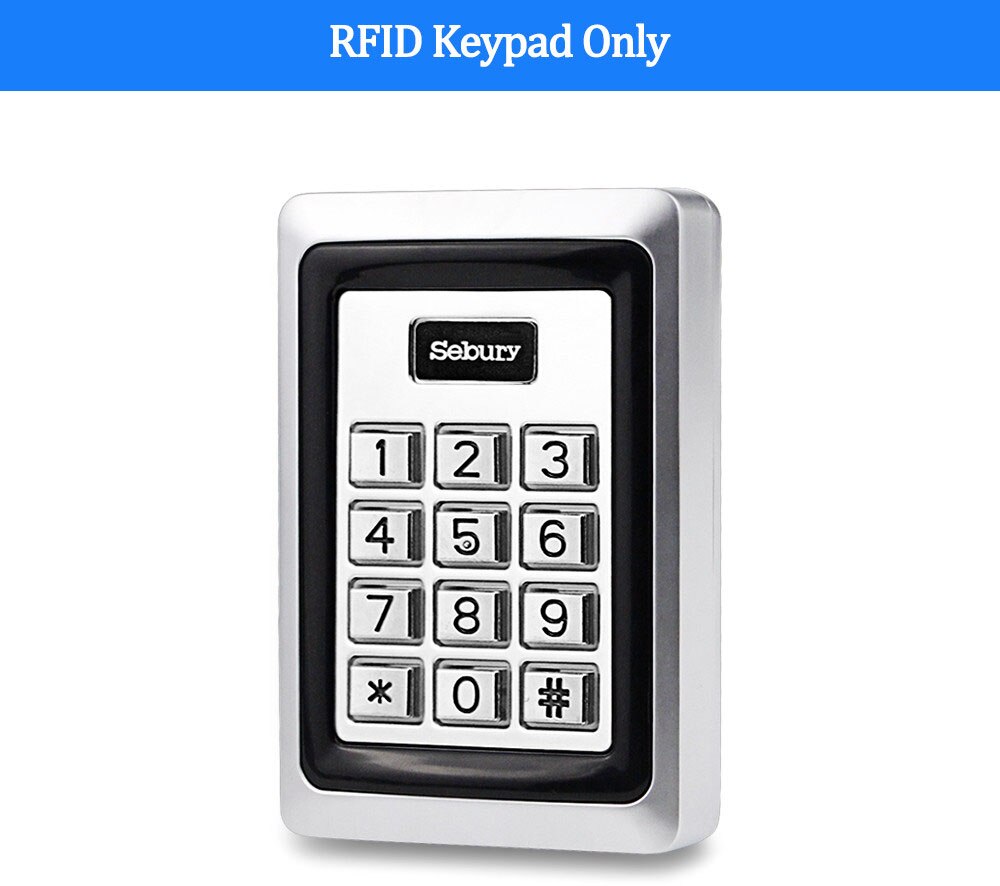

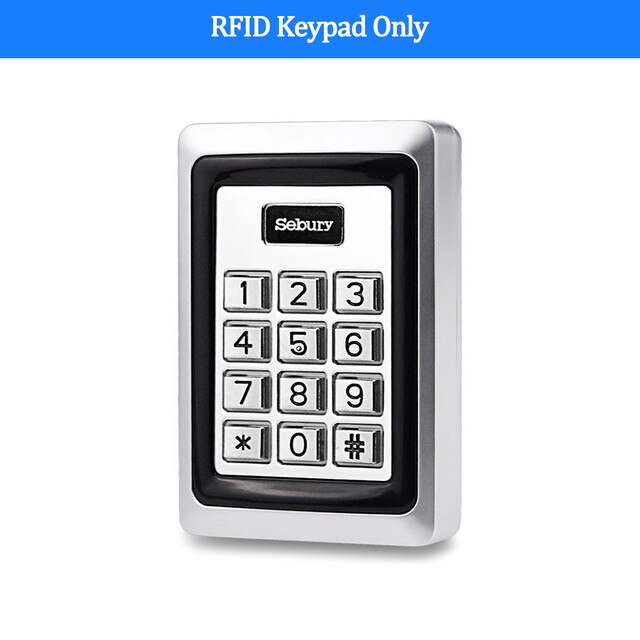

Model 1: Access Control Keypad Only
This model is a RFID access control keypad only. Don't include the RFID keyfobs or rainproof cover.
Package List:
Access control keypad x 1

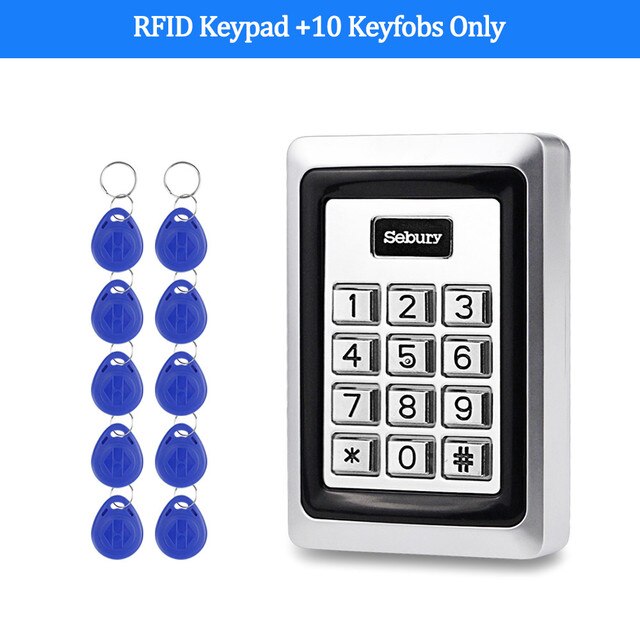

Model 2: Access Control Keypad with RFID keyfobs
This model is a RFID access control keypad with 10pcs RFID keyfobs. Don't include the rainproof cover.
Package List:
Access control keypad x 1
125KHz RFID keyfobs x 10 (Blue color)

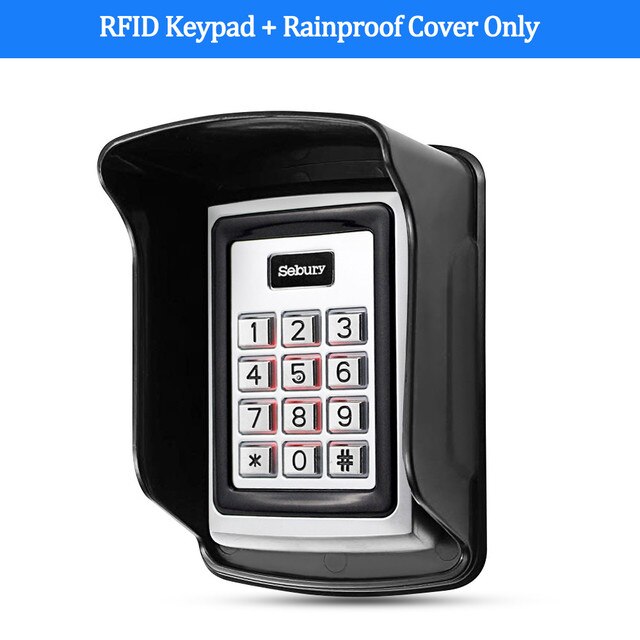

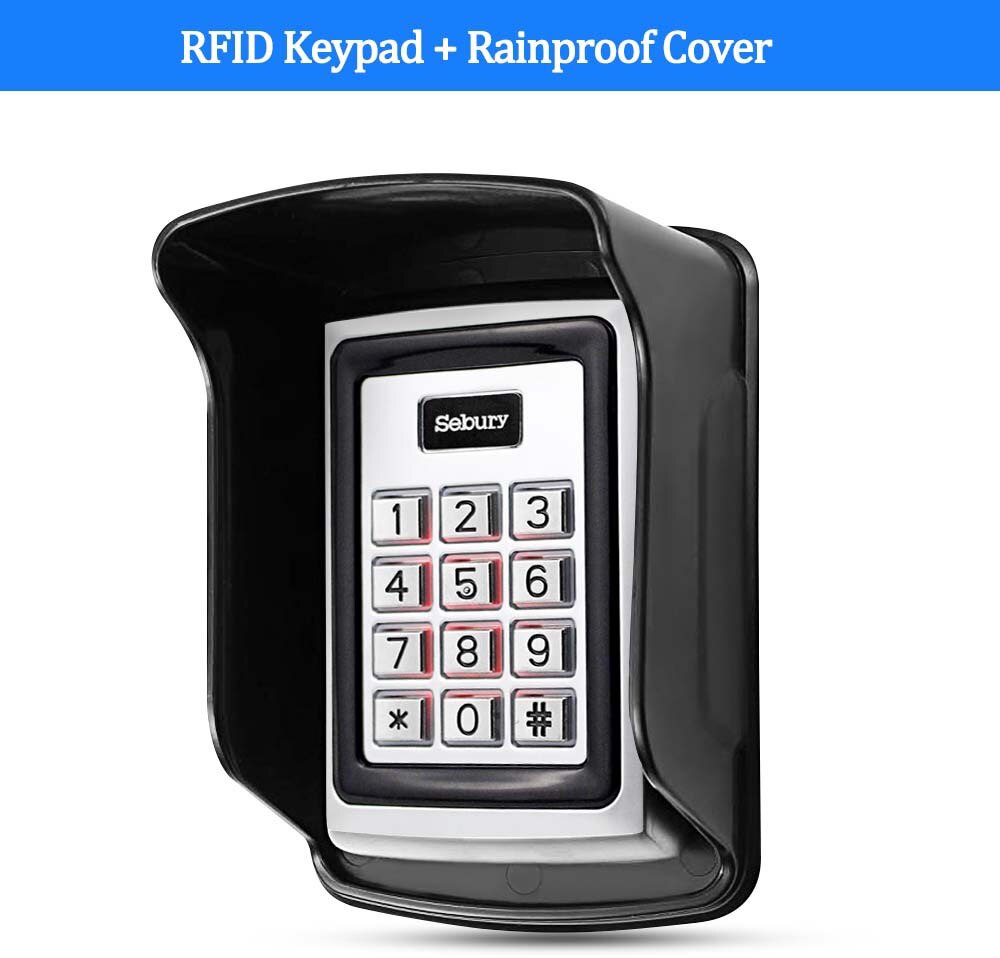

Model 3: Access Control Keypad with rainproof cover
This model is a RFID access control keypad with a rainproof cover. Don't include the RFID keyfobs.
Package List:
Access control keypad x 1
Rainproof cover x1

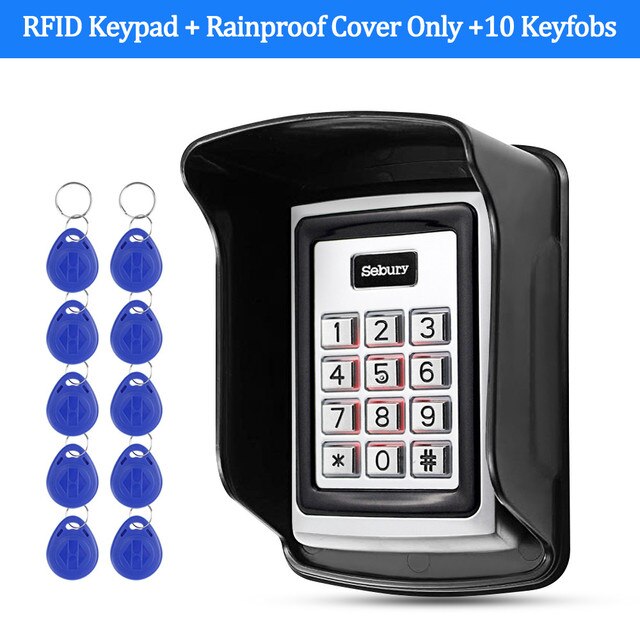

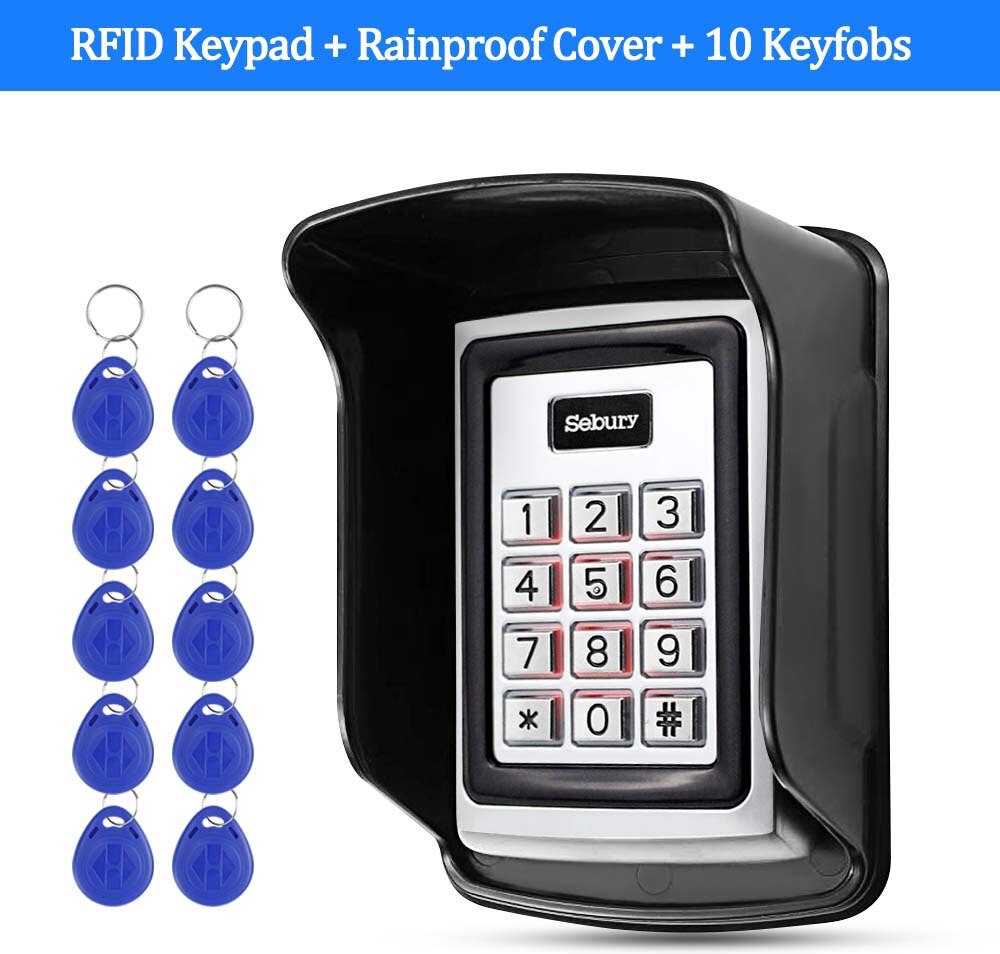

Model 4: Access Control Keypad with RFID keyfobs and rainproof cover
This model is a RFID access control keypad with a rainproof cover and RFID keyfobs.
Package List:
Access control keypad x 1
Rainproof cover x1
125KHz RFID keyfobs x 10 (Blue color)

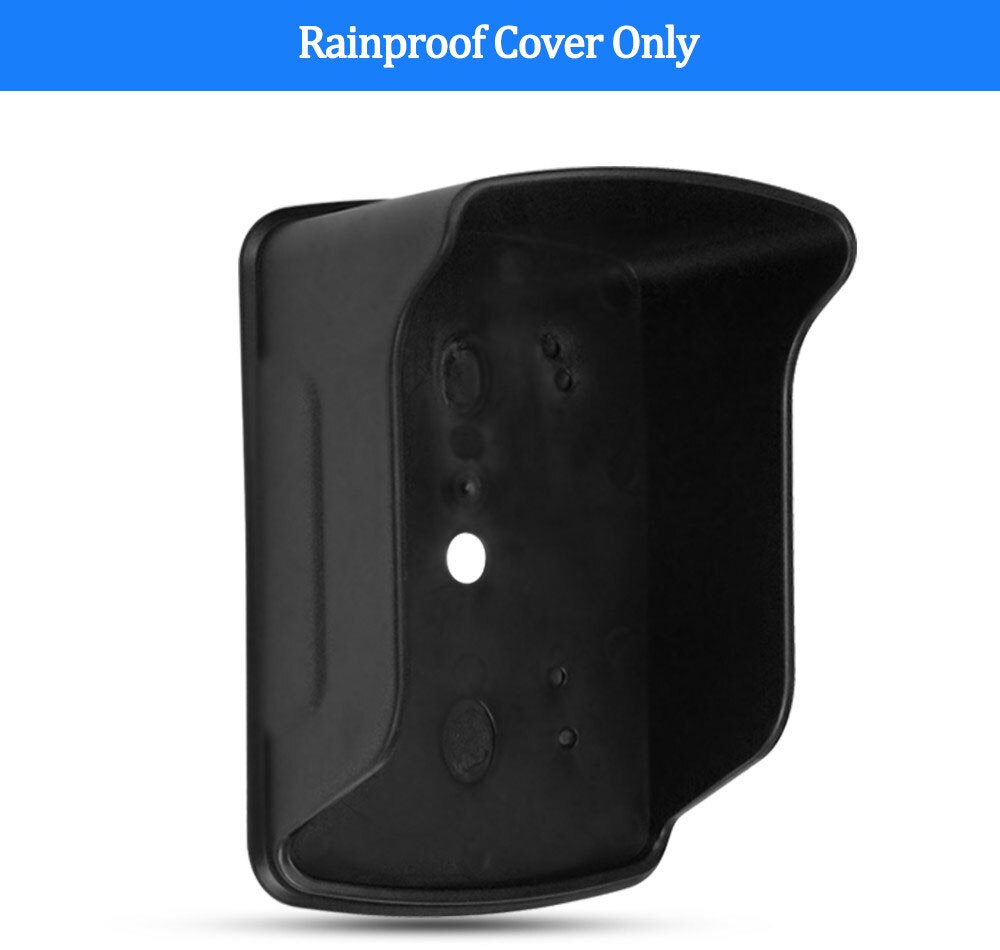

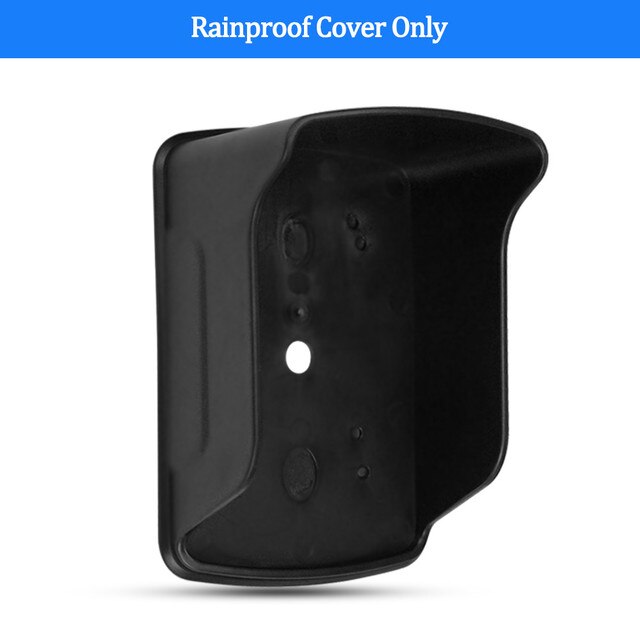

Model 5: A rainproof cover only
This model is a rainproof cover only. Don't include the access control keypad or RFID keyfobs.
Package List:
Rainproof cover x1
- Model Number: mKey+FYG+10
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Smart home platform: NONE
- Effective Cards: 1000
- Password: 1000
- Working Frequency: 125KH
- Reading Distance: 0-5cm
- Card Type: EM or EM compatible
- Working Voltage: DC12V±2V
- Working Temperature: -20℃~50℃
- Dimension: 104*20*69mm(L/H/W)
