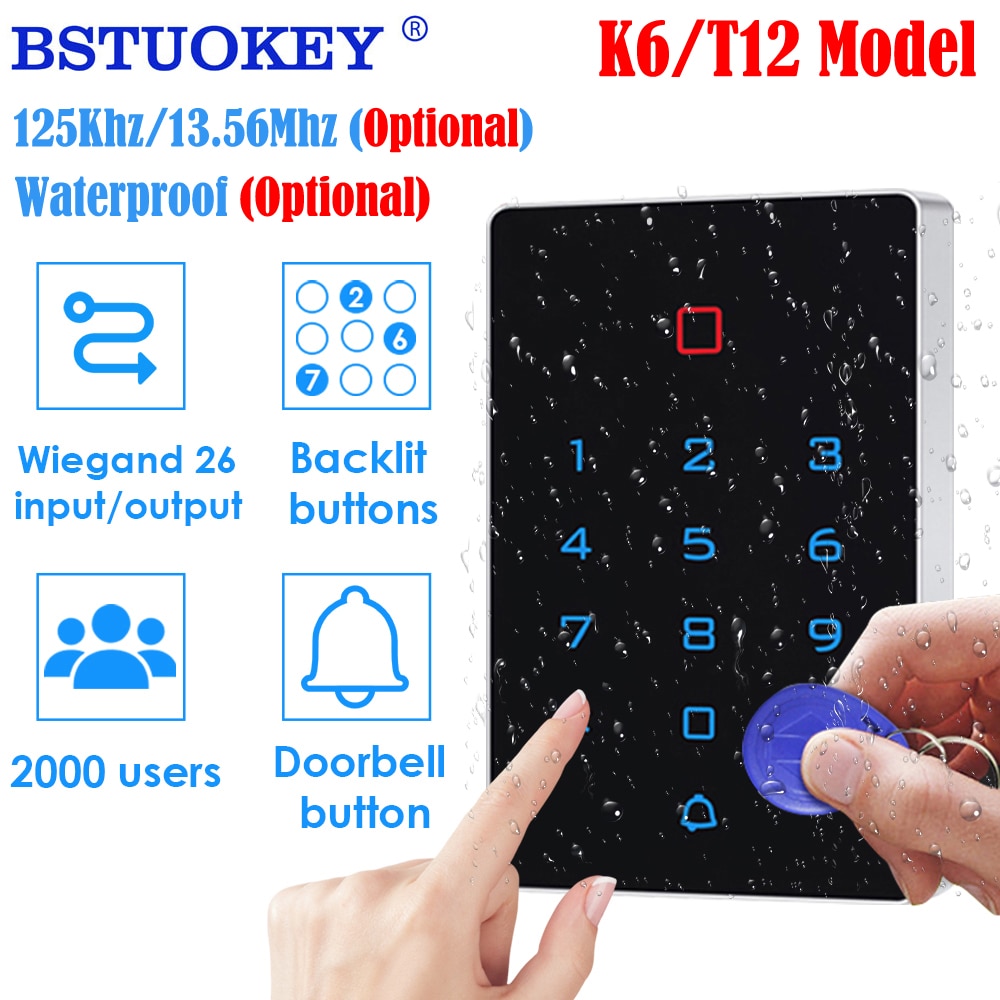

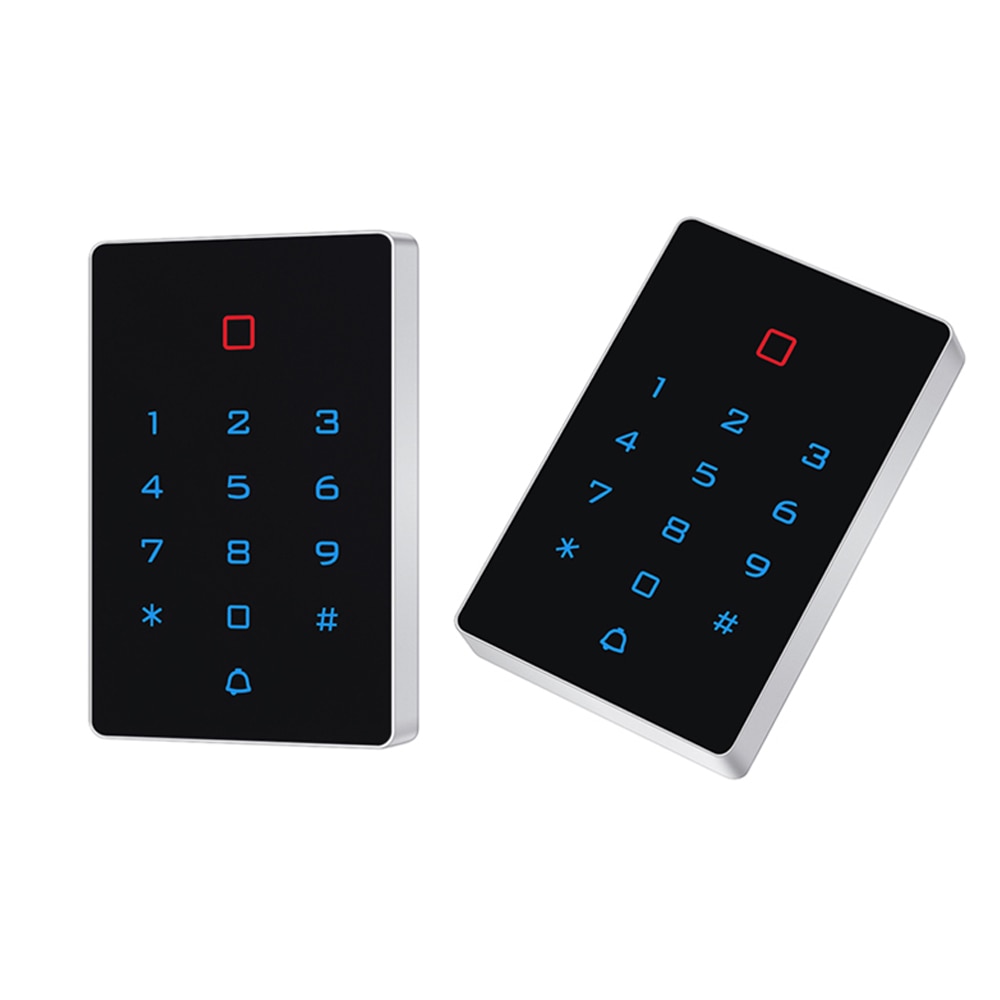

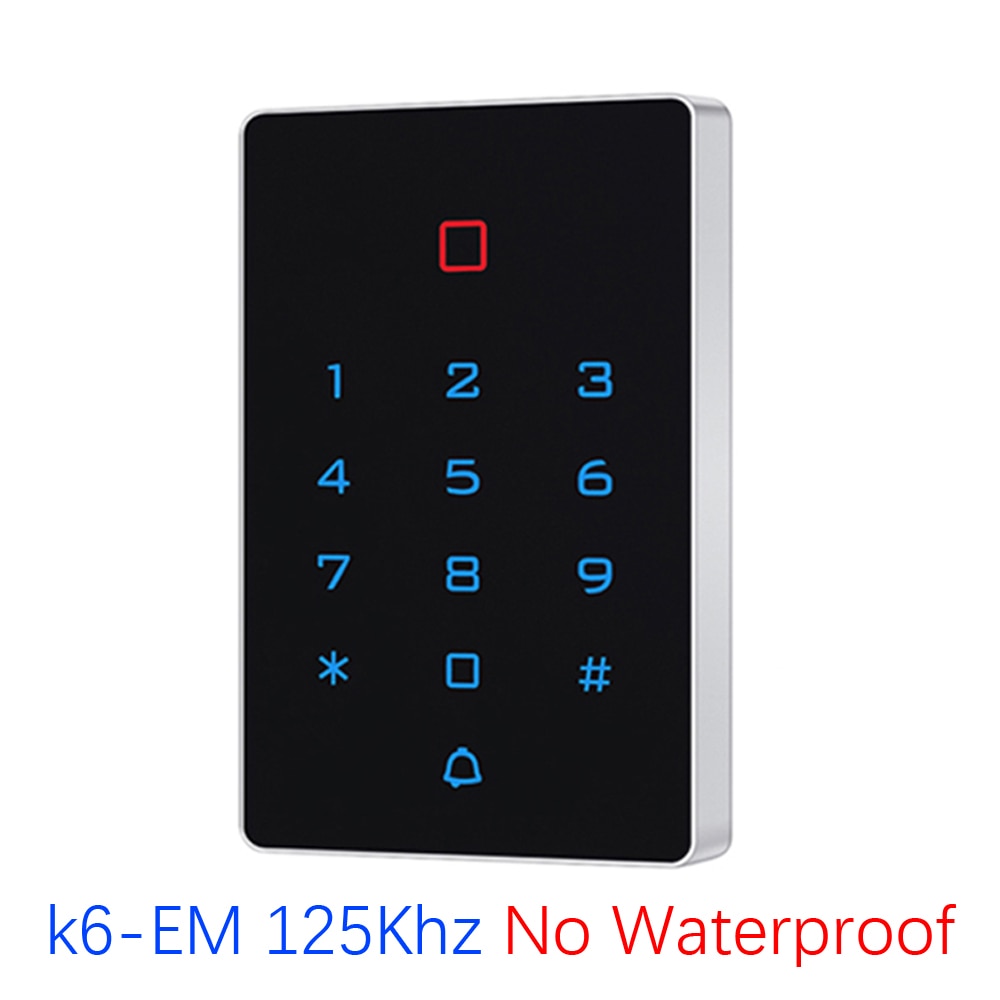

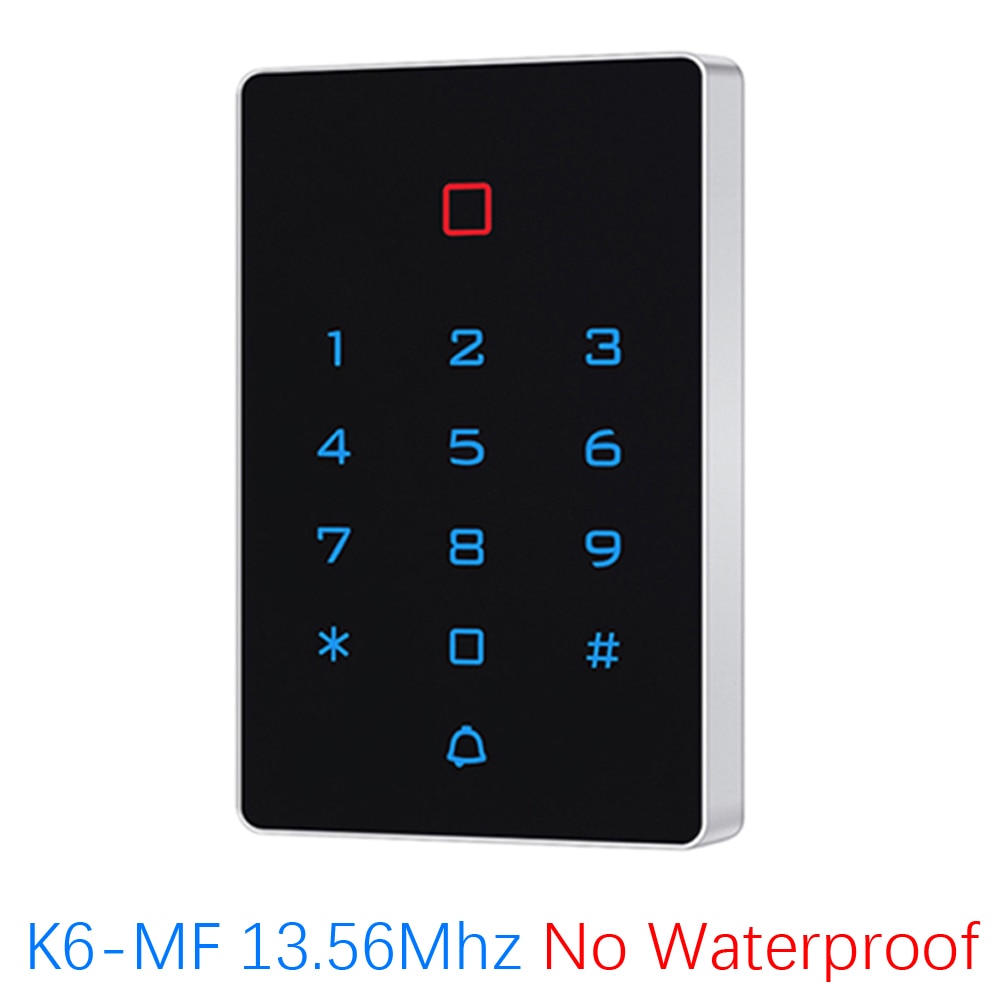

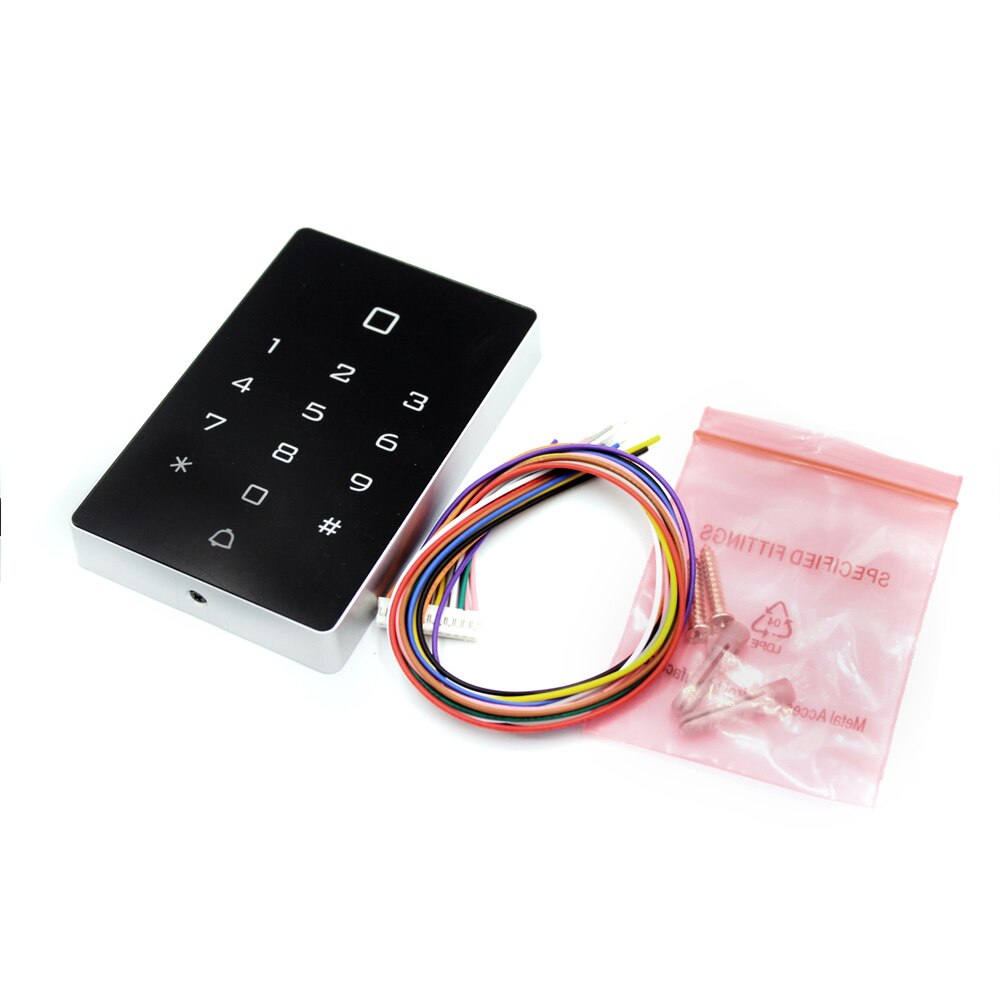

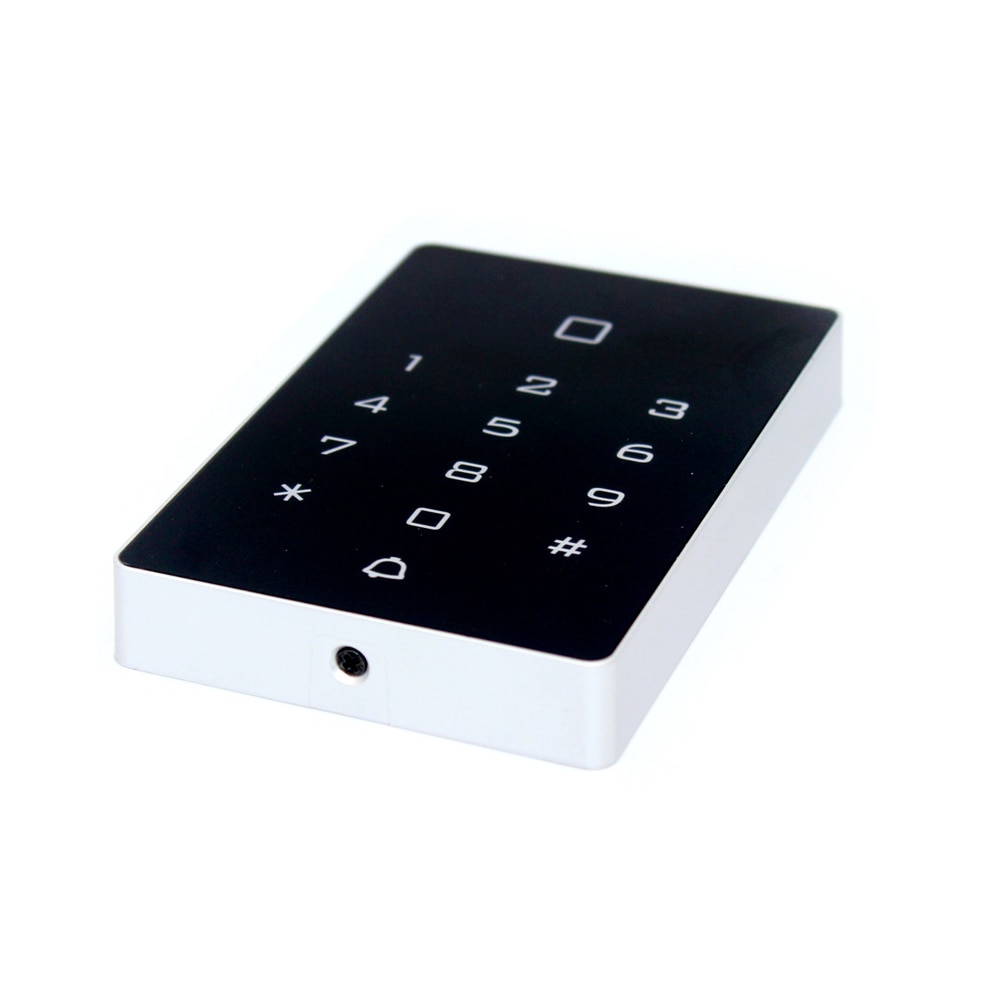

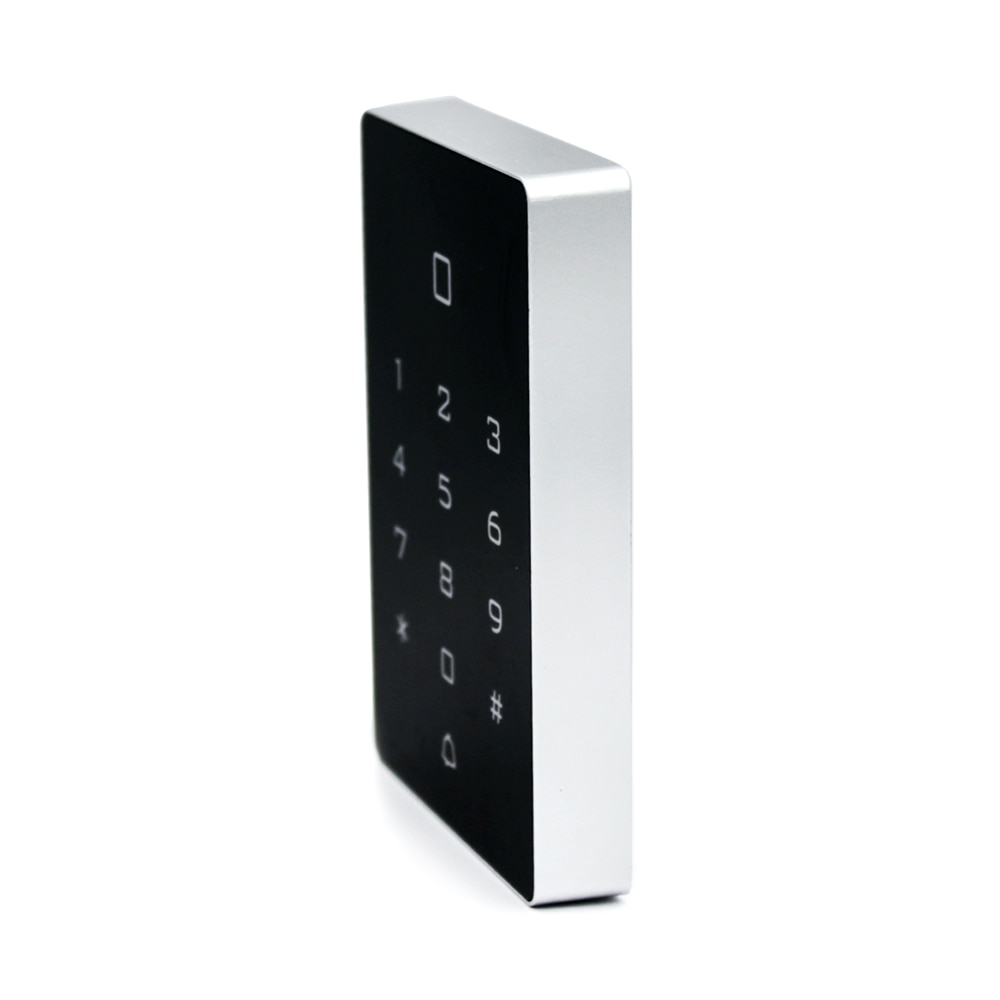

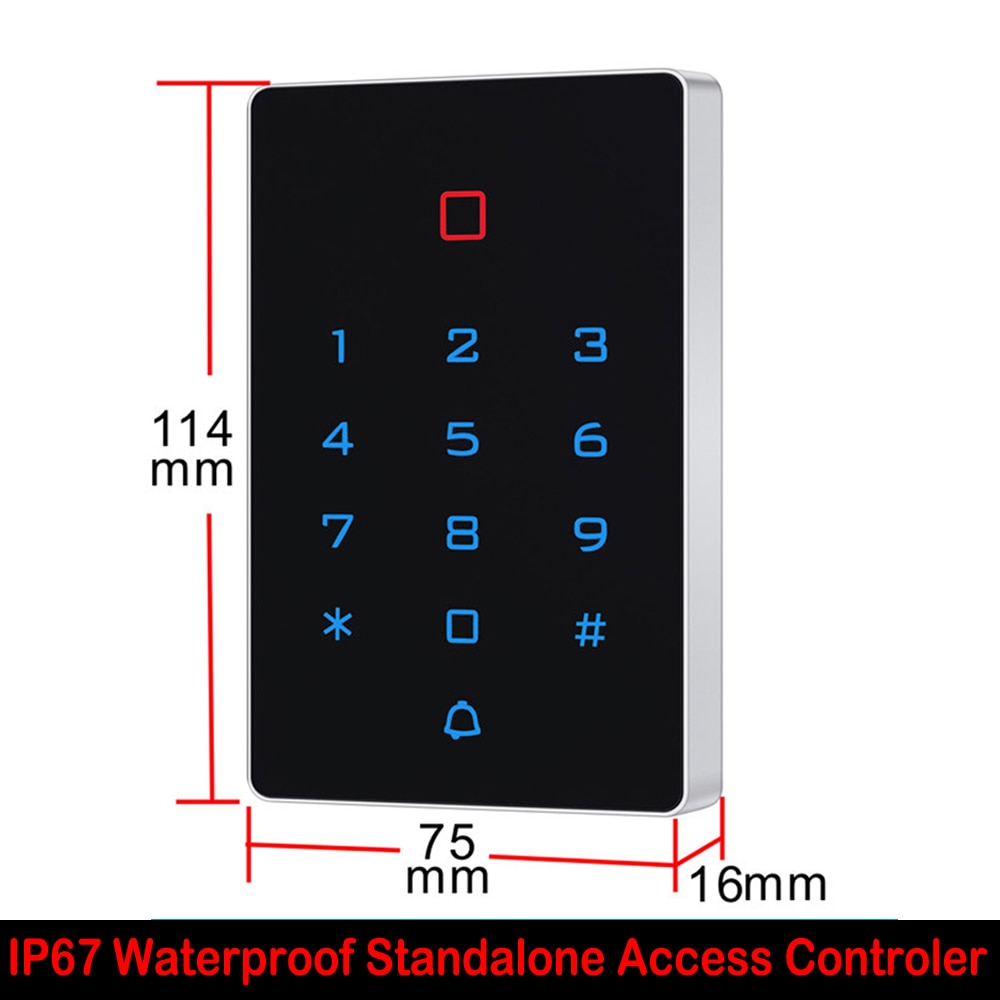

Tuya App RFID Keyless Access Control Keypad 2000 User EM / MF Card Touch Screen Standalone Access Controll Reader Non-Waterproof
54.72 32.83 $

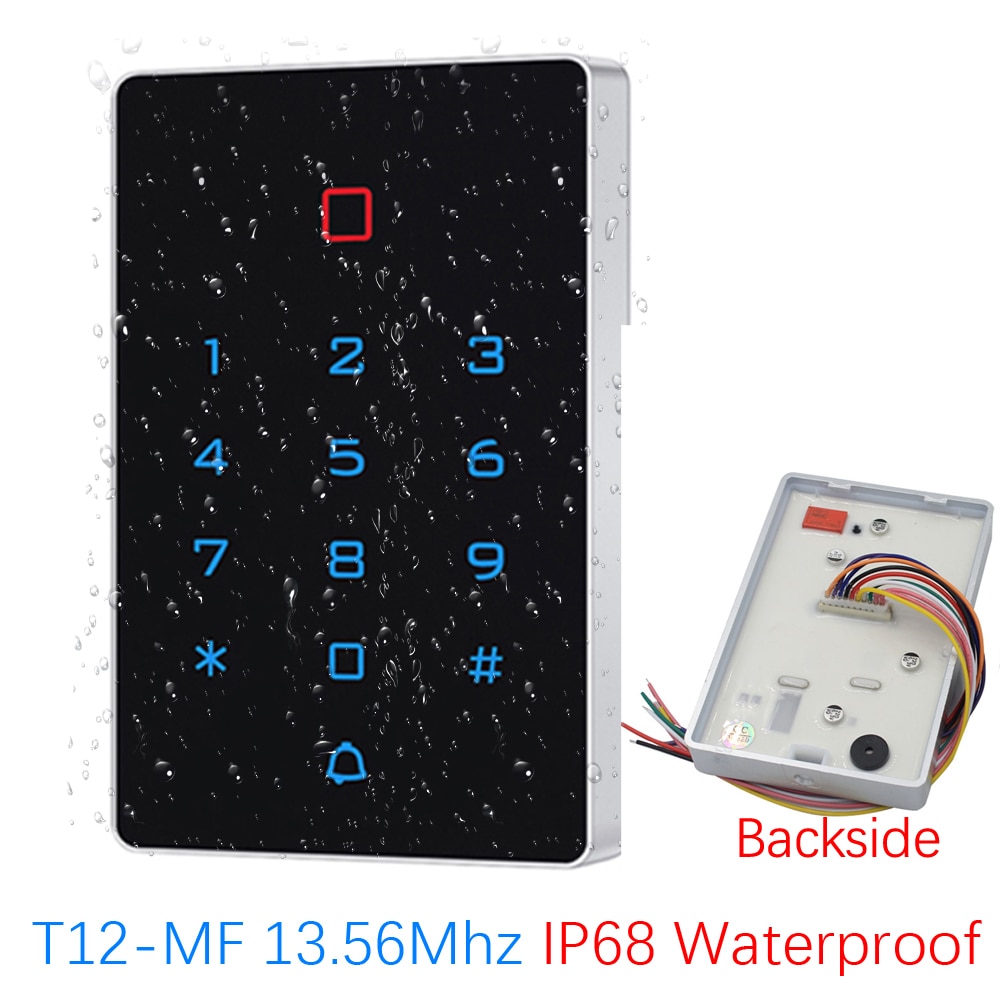

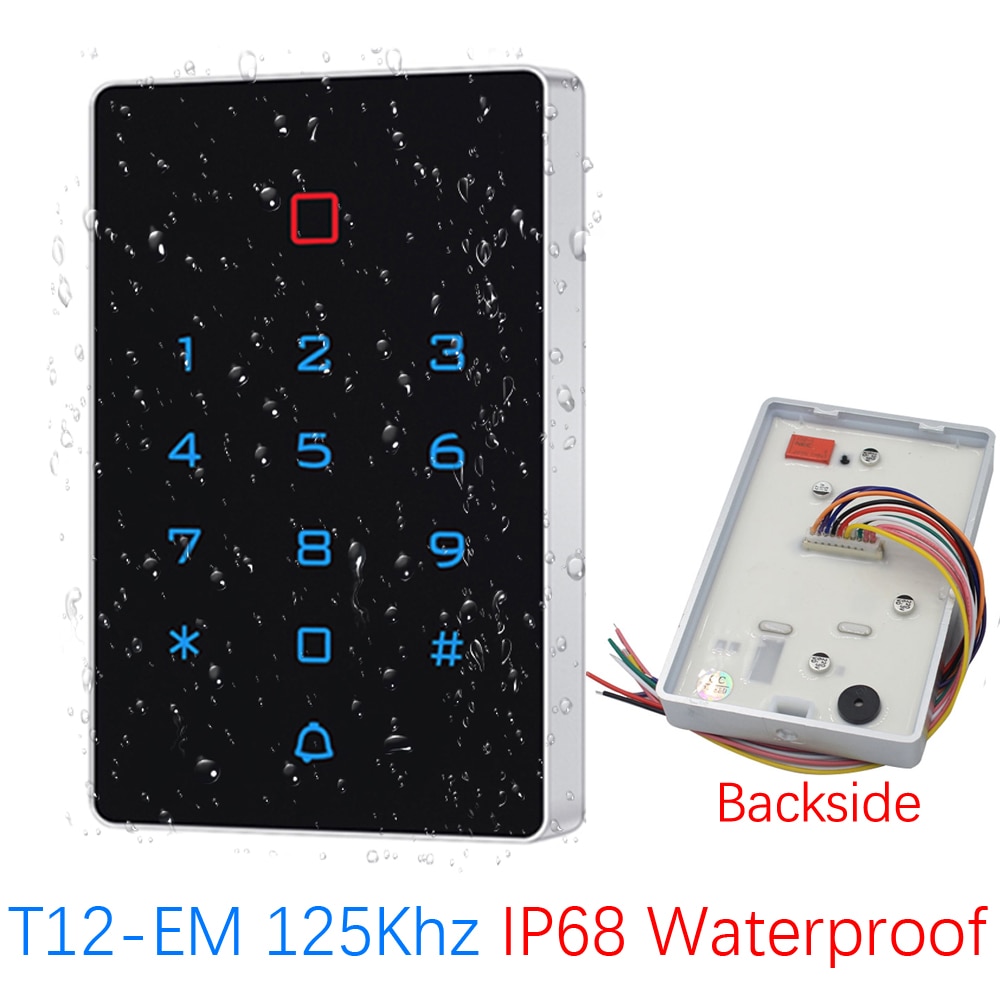

Outdoor IP68 Waterproof RFID Keypad Touch Access Control System Rainproof WG26/34 125Khz 13.56Mhz Access Controller Keyboard
note:Enter * 999999 # 73 # to enter wifi pairing mode
1.Description

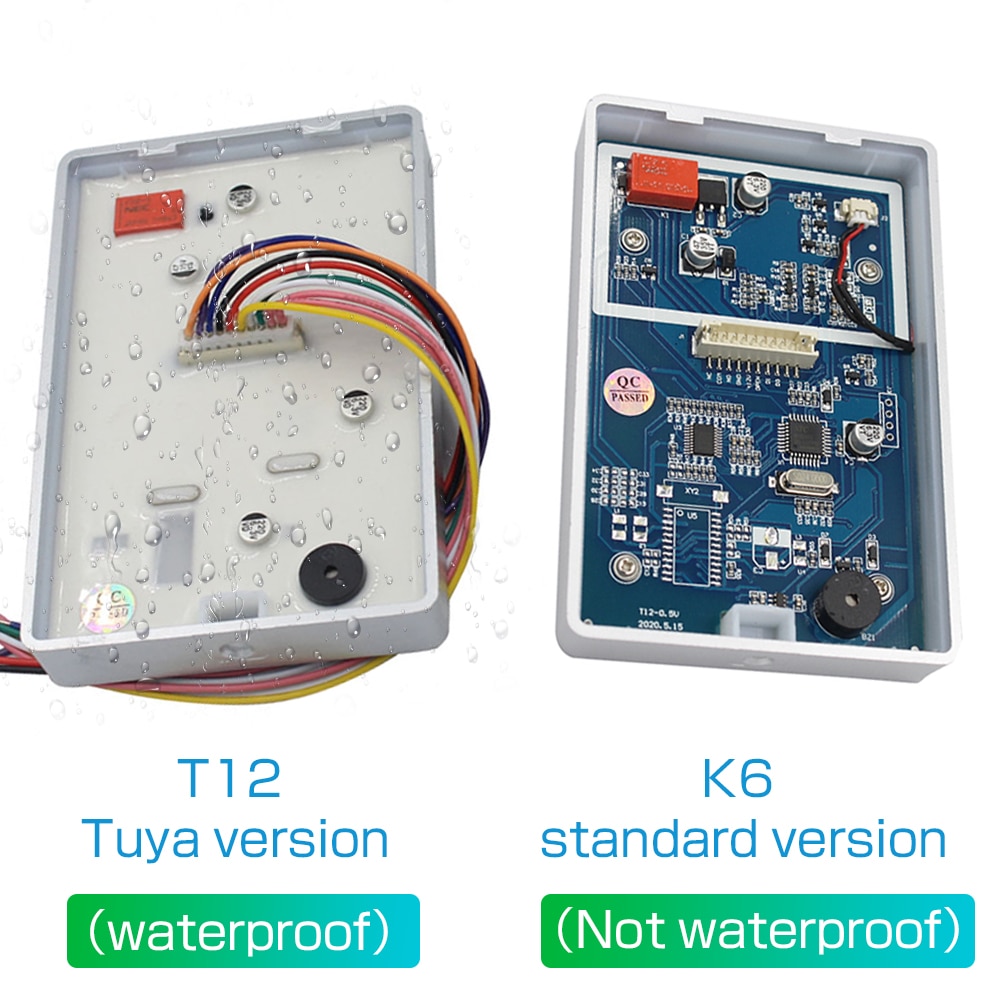

The device is a standalone access control and proximity card reader which supports EM & MF card types. It builds-in STC microprocessor, with strong anti-interference ability,high security and reliability,powerful function and convenient operation.It’s widely used in high-end buildings, residential communities and other public places.
2.Features
Standby current is less than 30mA | |
Wiegand Interface | WG26 or WG34 input and output |
Searching time | Less than 0.1s after reading card |

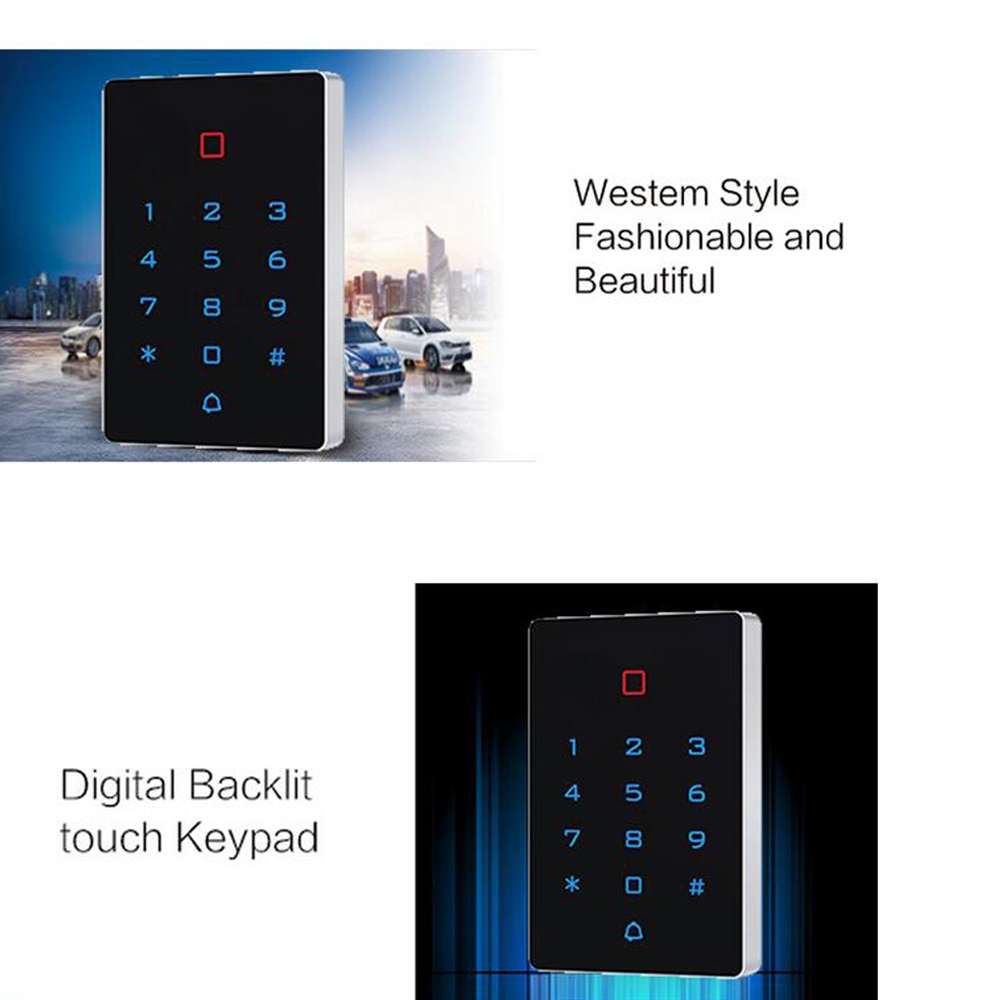

Backlight keypad | Operate easily at night |
Doorbell interface | Support external wired doorbell |

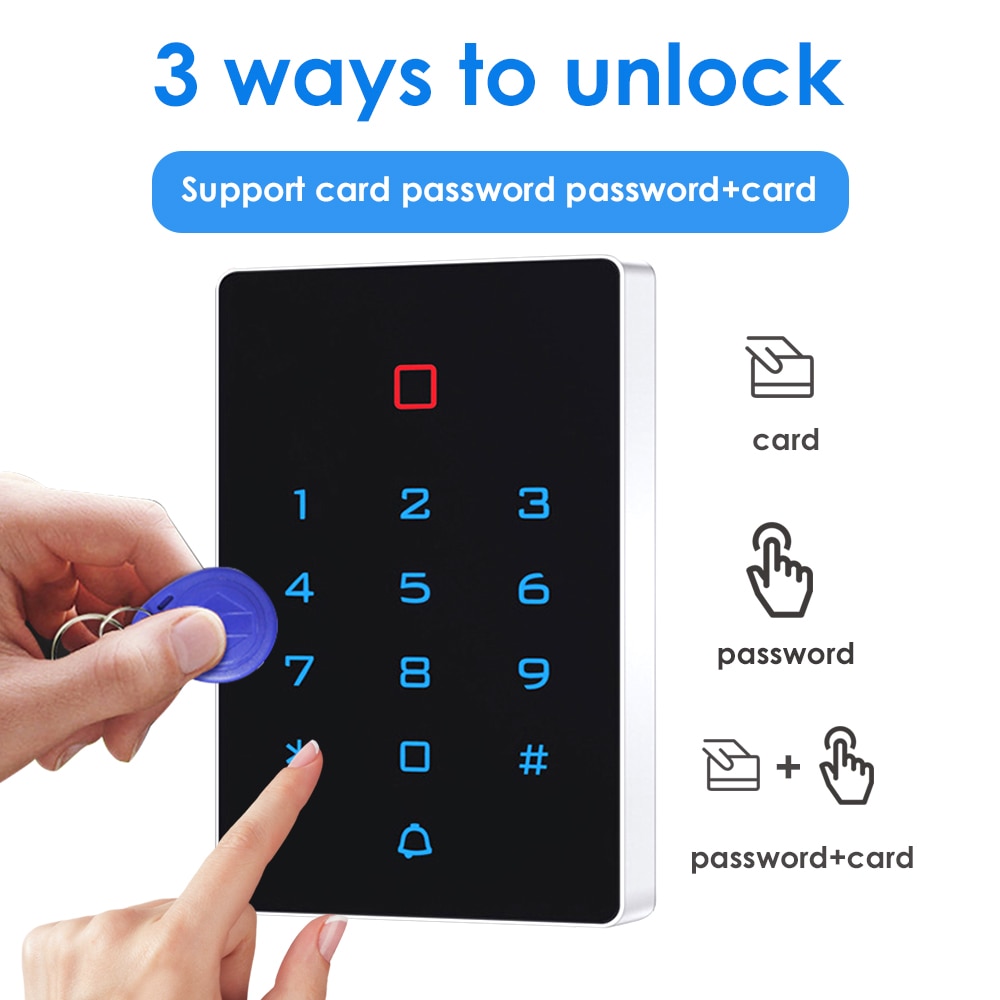

Access ways | Card, Pin code, Card & Pin code |
Independent codes | Use codes without related card |
Change codes | Users can change codes by themselves |
Delete users by card No. | The lost card can be delete by keyboard |
3.Specifications
Working Voltage:DC12-24V | StandbyCurrent:≤30mA |
Card Reading Distance:1~3cm | Capacity:2000users |
Working Temperature:-40℃~60℃ | Working Humidity:10%~90% |
Lock output load:≤3A | Door Relay time:0~99S(Adjustable |

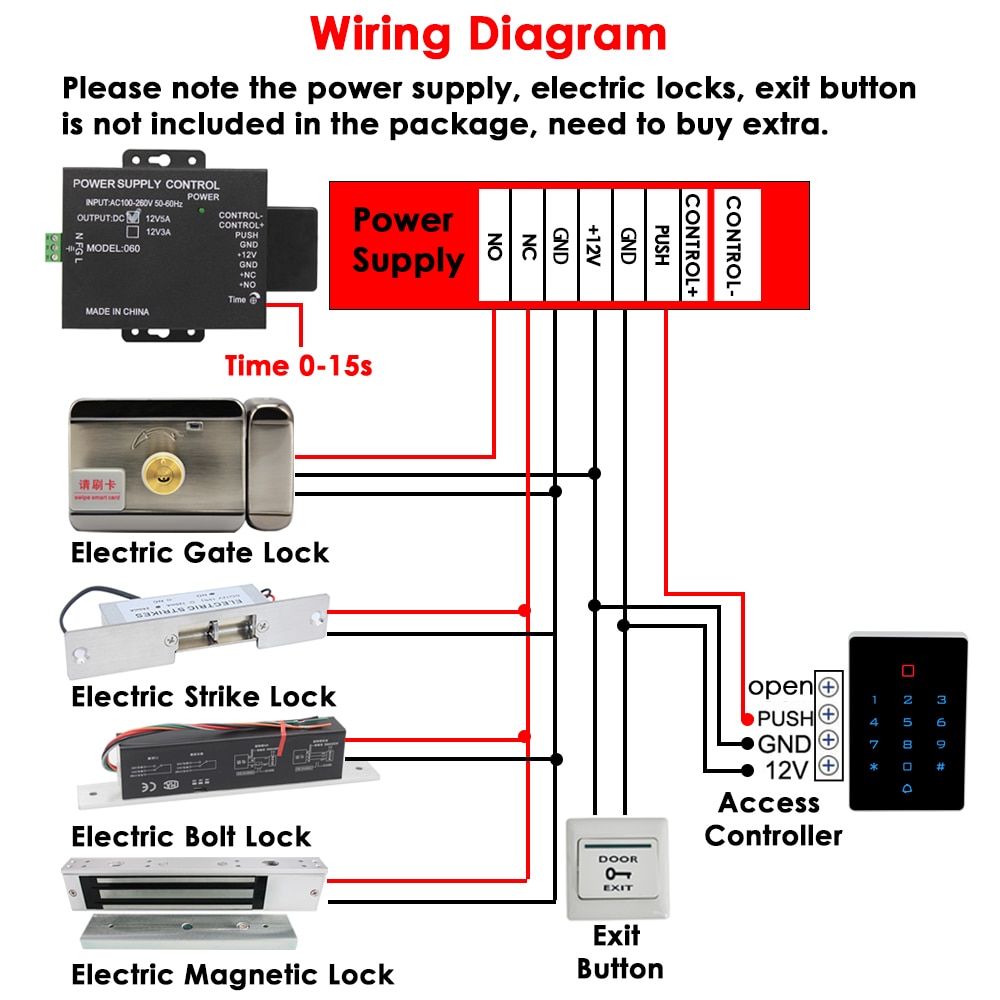

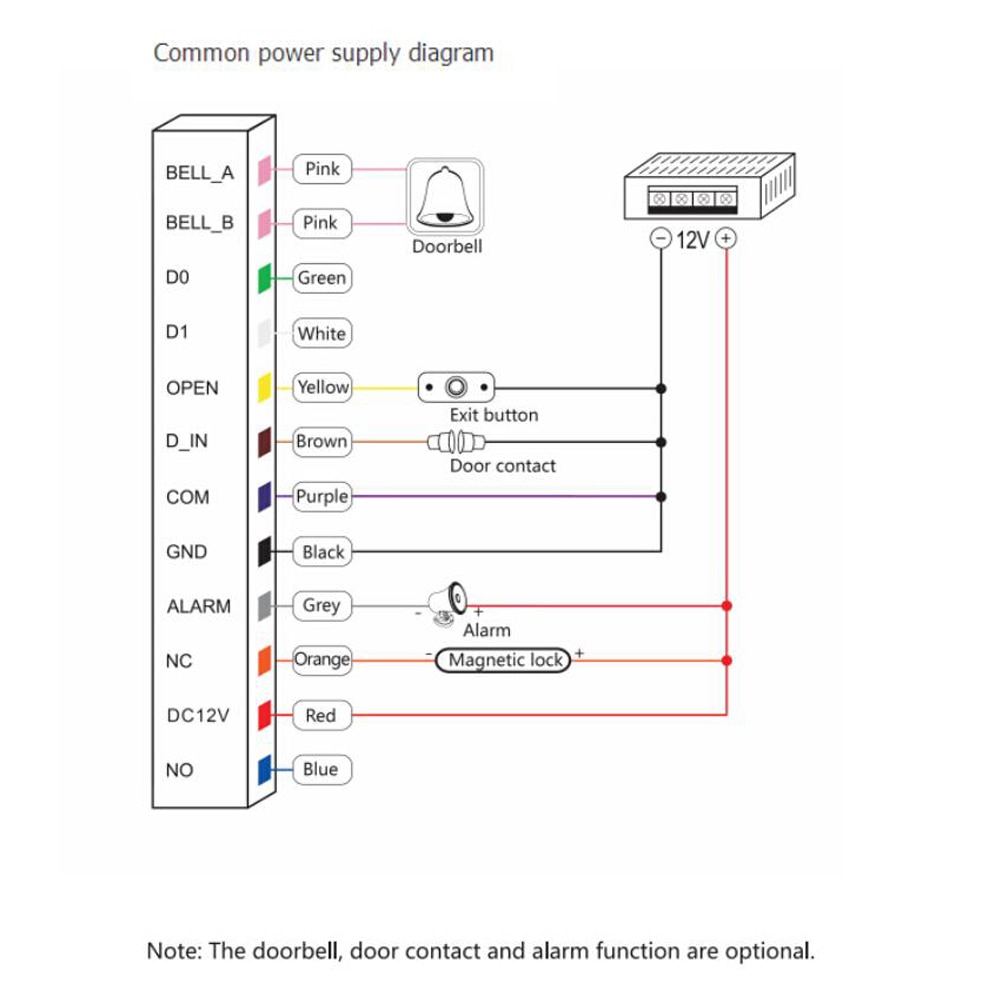

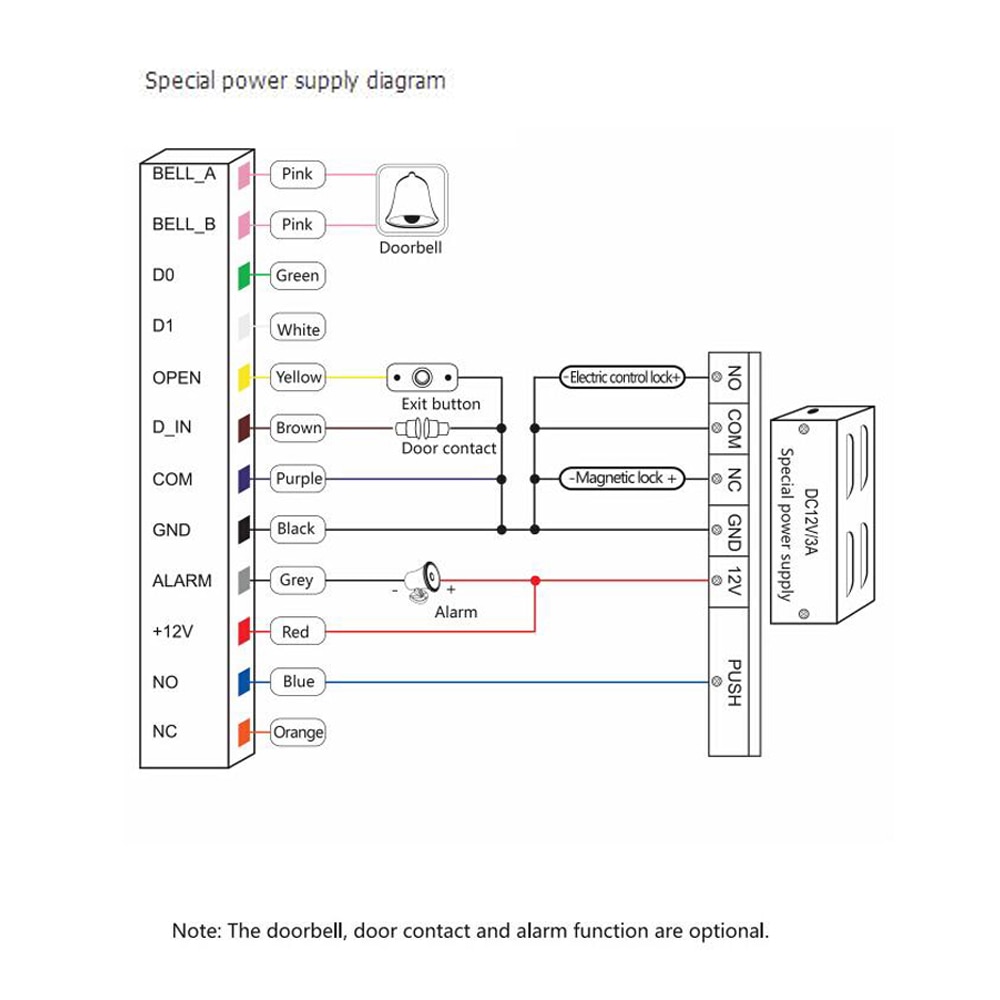

Color | ID | Description |
Green | D0 | |

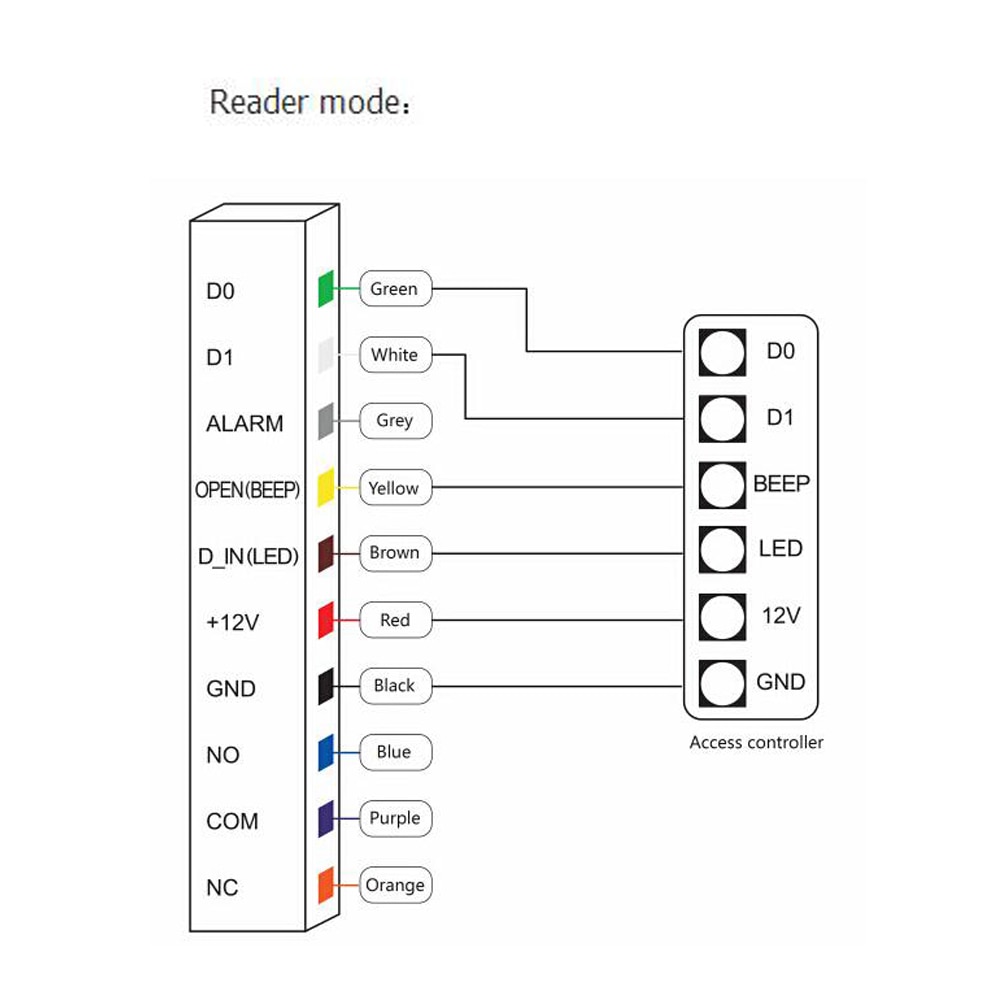

White | D1 | Wiegand Input (Wiegand Output in Card Reader Mode) |
Yellow | OPEN | Exit Button input terminal |
Red | +12V | 12V + DC Regulated Power Input |
Black | GND | 12V - DC Regulated Power Input |
Blue | NO | Relay normally-on terminal |
Purple | COM | Relay Public terminal |
Orange | NC | Relay normally-off terminal |
Pink | BELL_A | Doorbell button one terminal |
Pink | BELL_B | Doorbell button to the other terminal |
