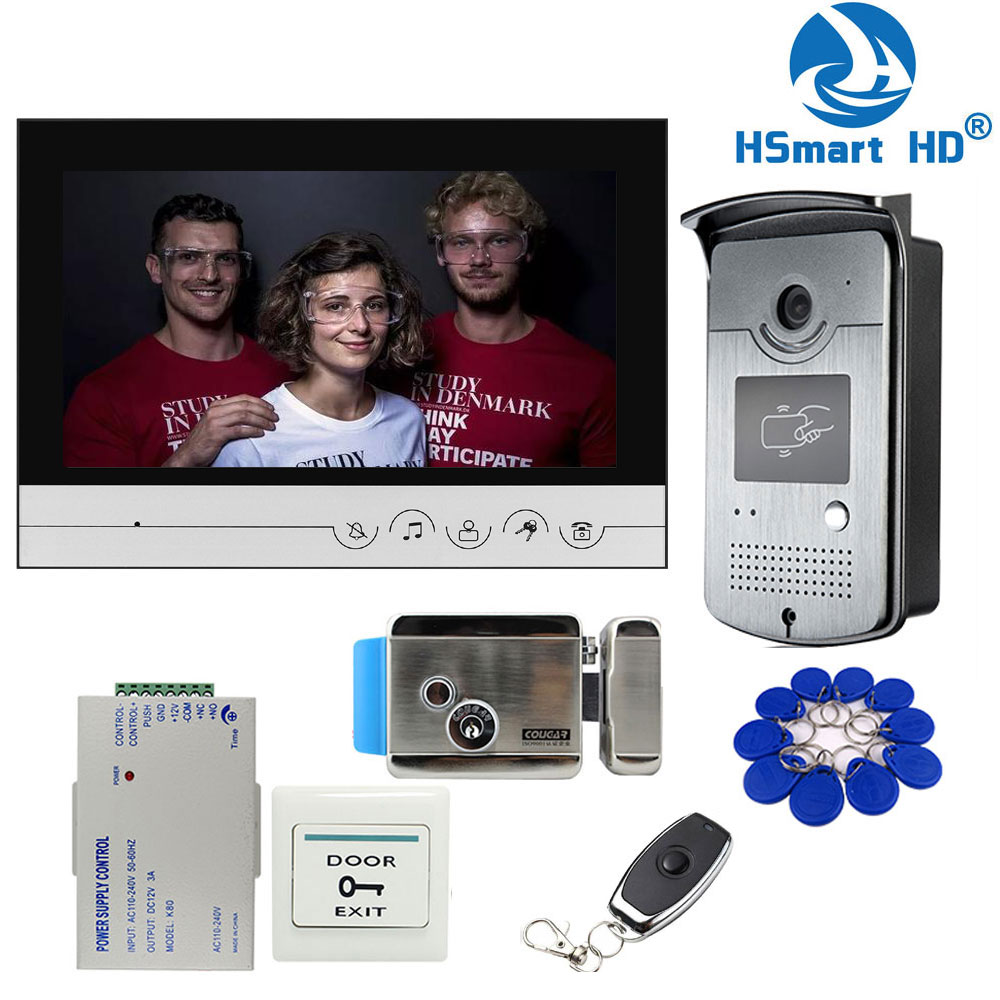

New Wired 9 inch Video Door Phone Intercom Entry System 1 Monitor + 1 RFID Access IR 700TVL Camera + Electric Control Door Lock

5.0 (2 votes) | 6 orders
Price: US $405.62 - 448.32 / piece
Discount Price:
US $ 331.42 - 364.71 / piece
-18%
Color
Quantity



New Wired 9 inch Video Door Phone Intercom Entry System 1 Monitor + 1 RFID Access IR 700TVL Camera + Electric Control Door Lock

9 inch Visual Video Doorbell Wide Angle Camera Rainproof IR-CUT Night Vision RFID keyfobs Unlock Access Control

Wired Video Doorphone 9 Inch Color Screen And ID Card Camera Visual Intercom

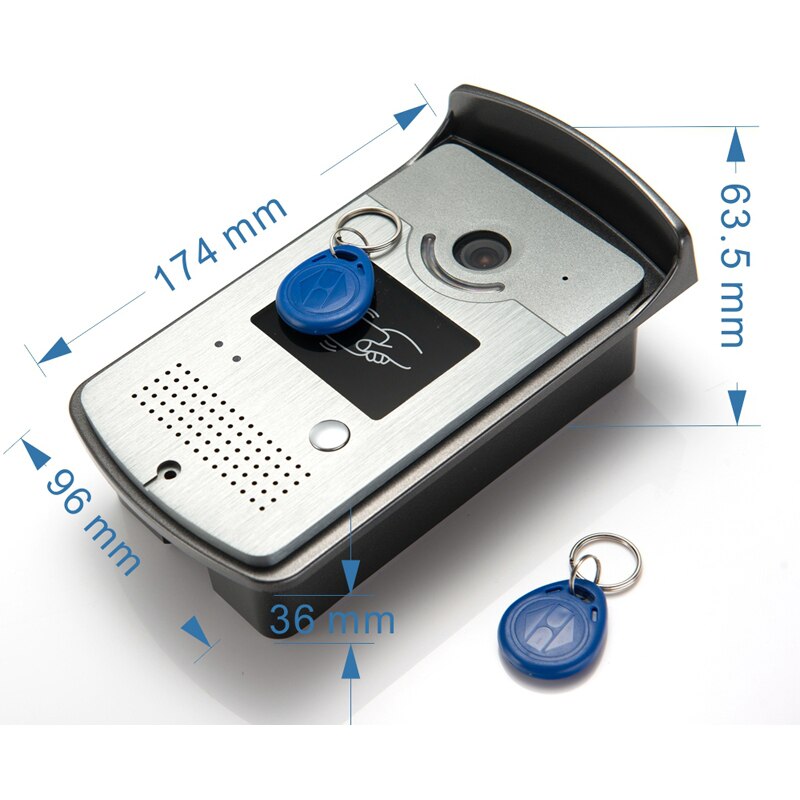

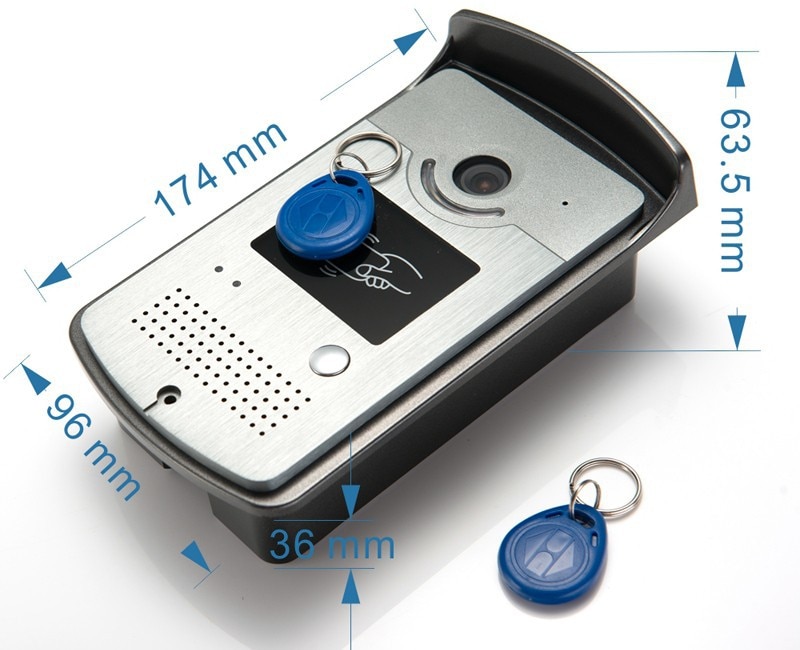

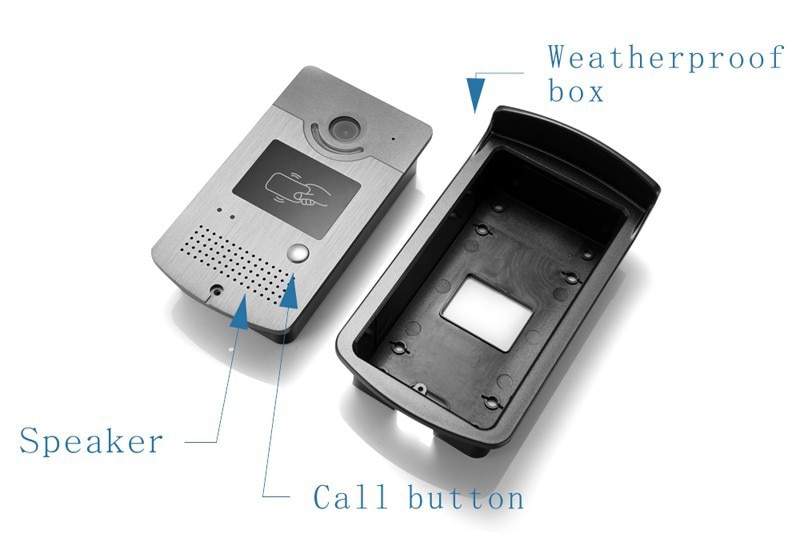

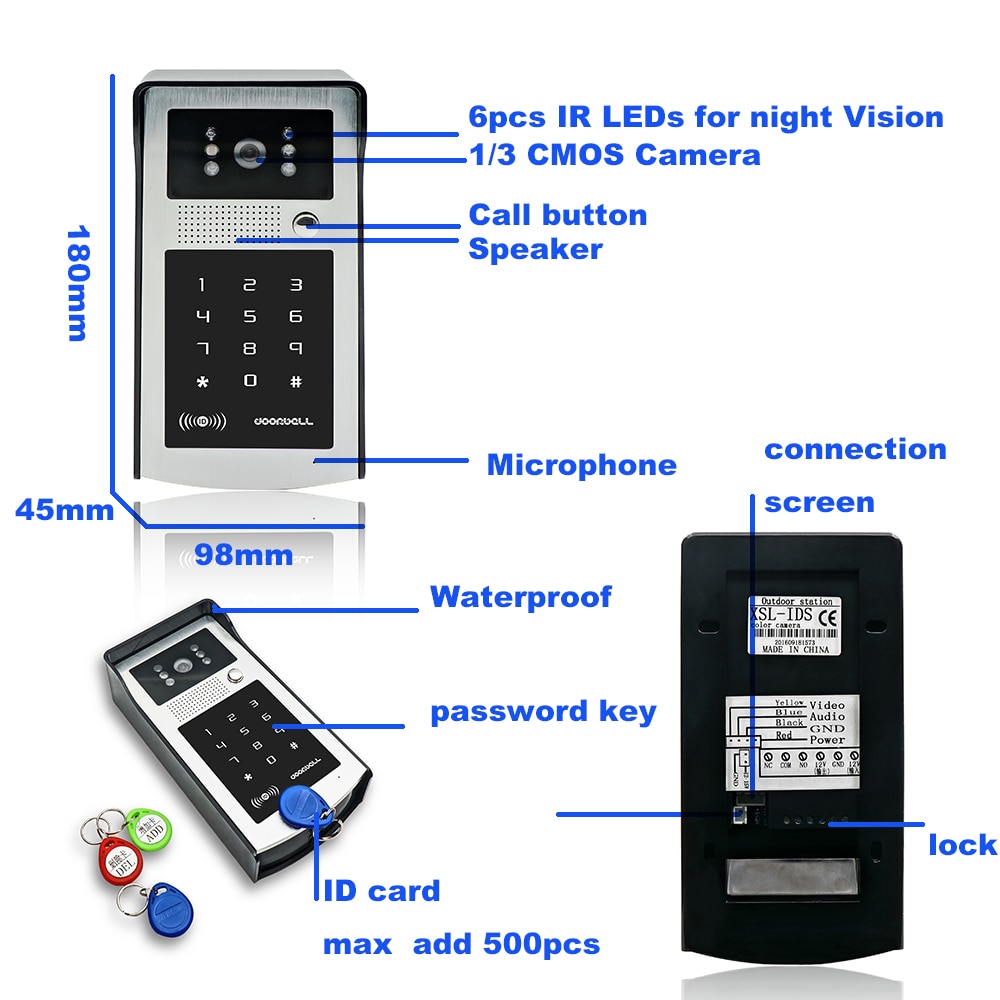

The outdoor unit has RFID reader, which supports max 500 RFID cards/fobs. It is easy to add new cards and delete old cards.

If you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

This 9 inch video door phone system is high quality and high tech product. It is with fashion and elegant design, a new product which combines with the needs of customers. The wonderful appearance is unique in the market, it can decorate your house, office, factory.

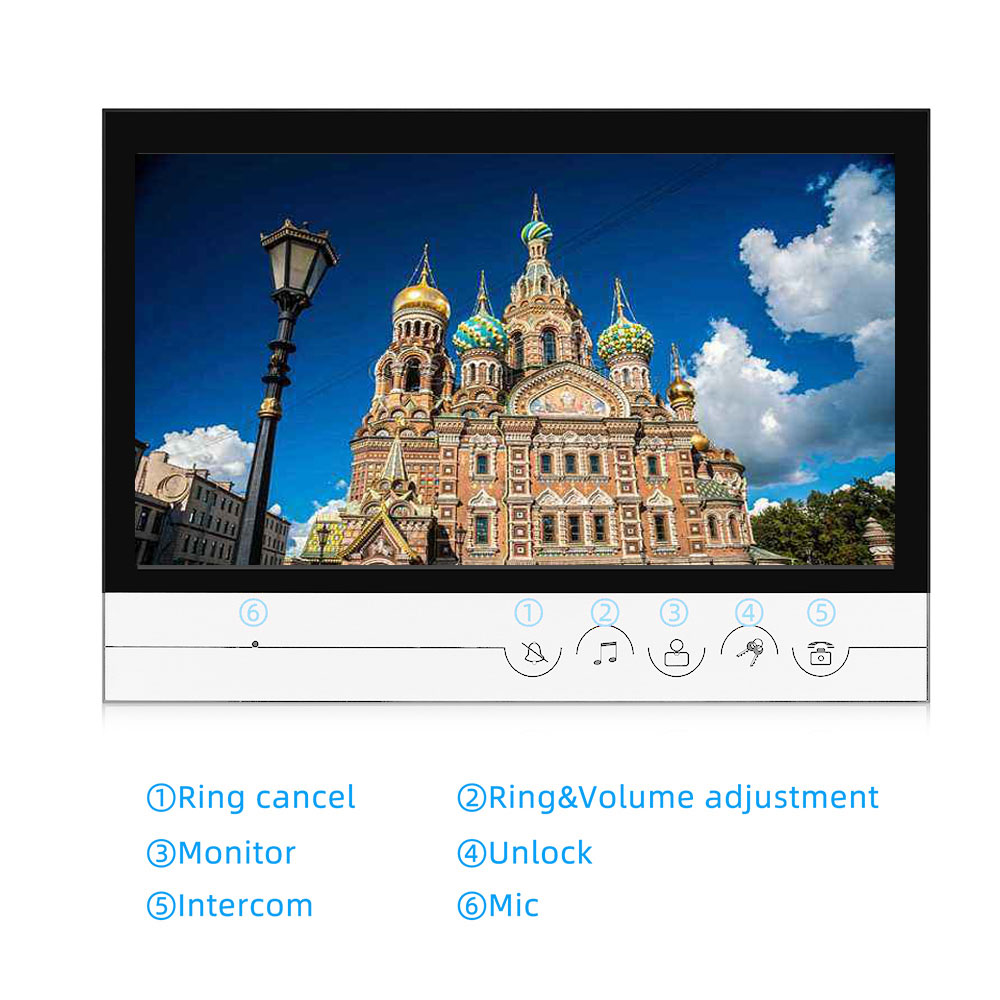

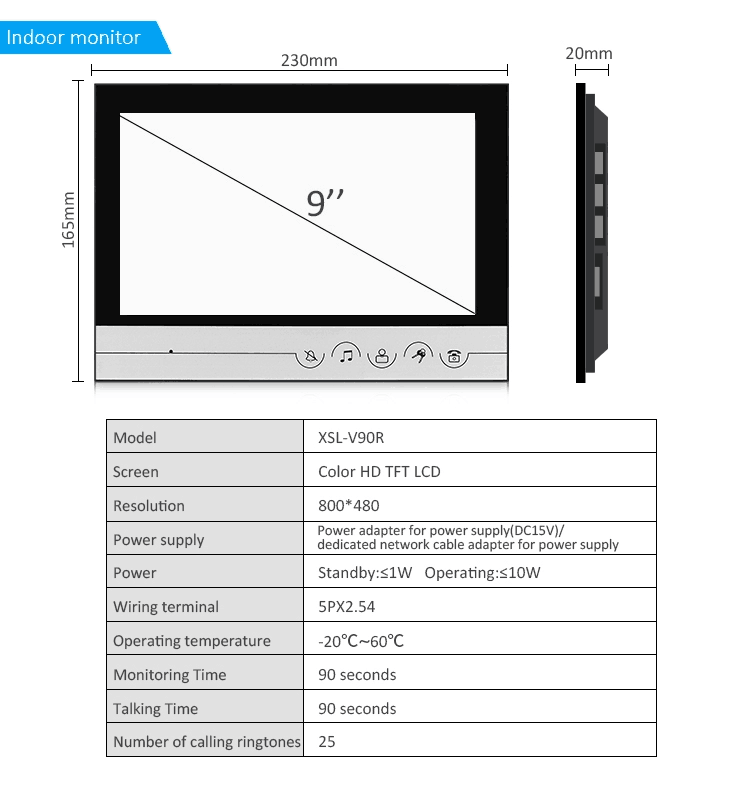

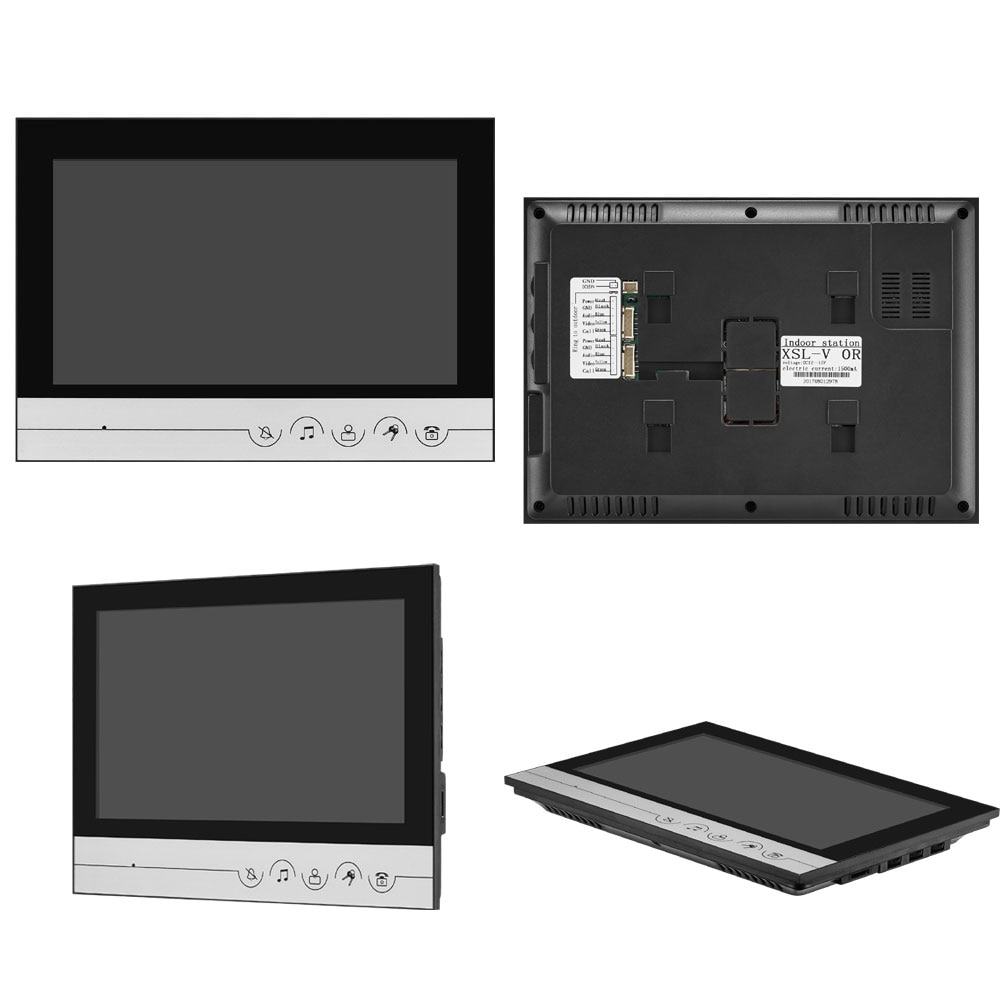

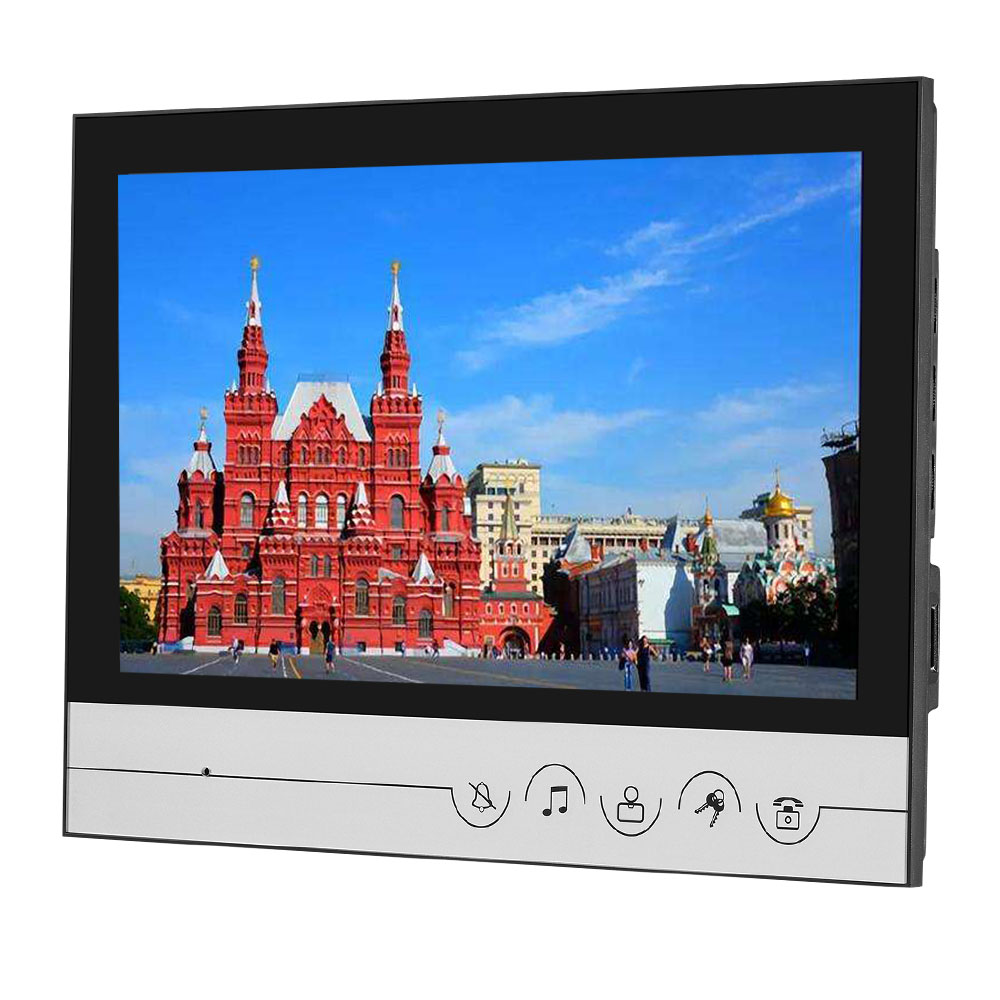

It is a door phone which can show you what is going on outside doors on a clearly 9" full color screen of which The Volume, brightness and chroma can be adjusted to meet your need. It can function as a monitor, Press the button of Response/Monitoring, the screen will show you the picture outside doors, which makes you kown the outside world staying in the house.



The design of ultrathin wall mounting will also make this product light and convenient. As to the applications, it can be widely used in apartments, villas, hotels and offices etc.

* Multiple ringtones - free switch

The 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.

* With 4 wirs system connection. Using 4-cores cable to connect the camera and monitor.

The max distandance is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose correspnding cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)

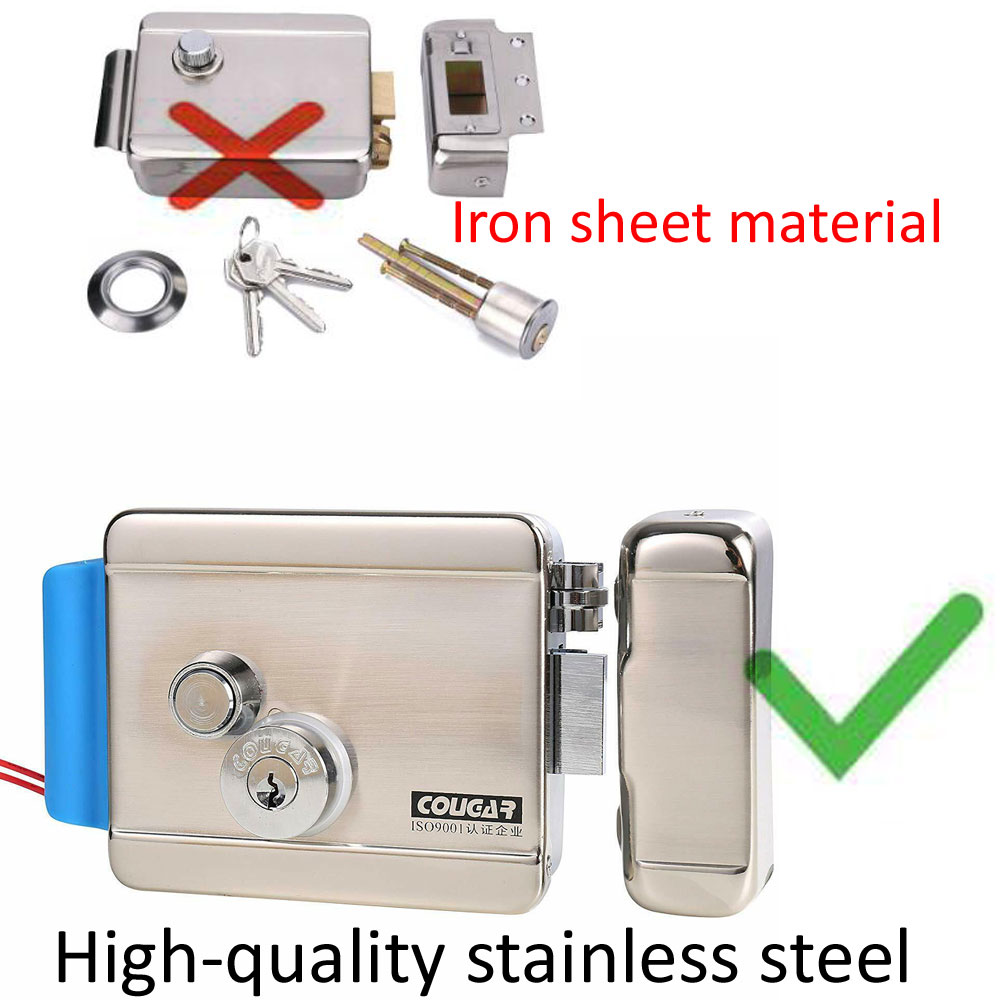

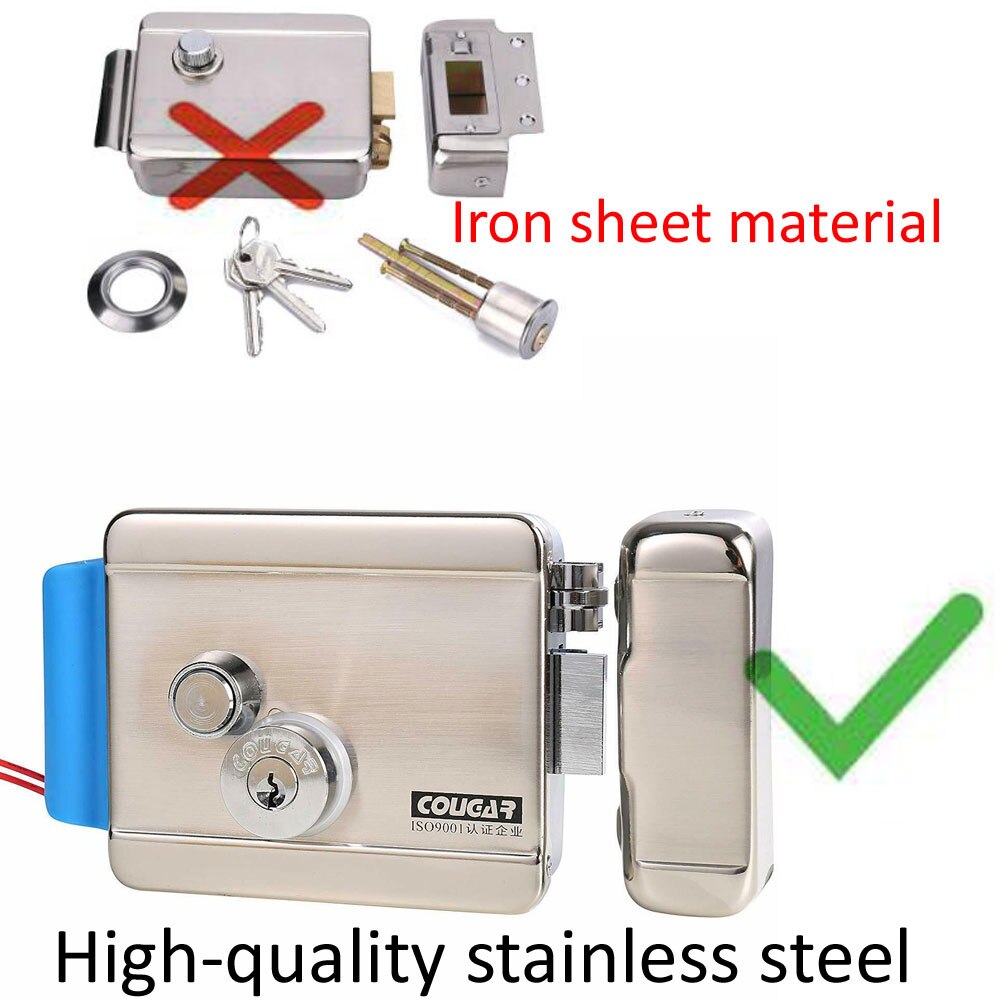

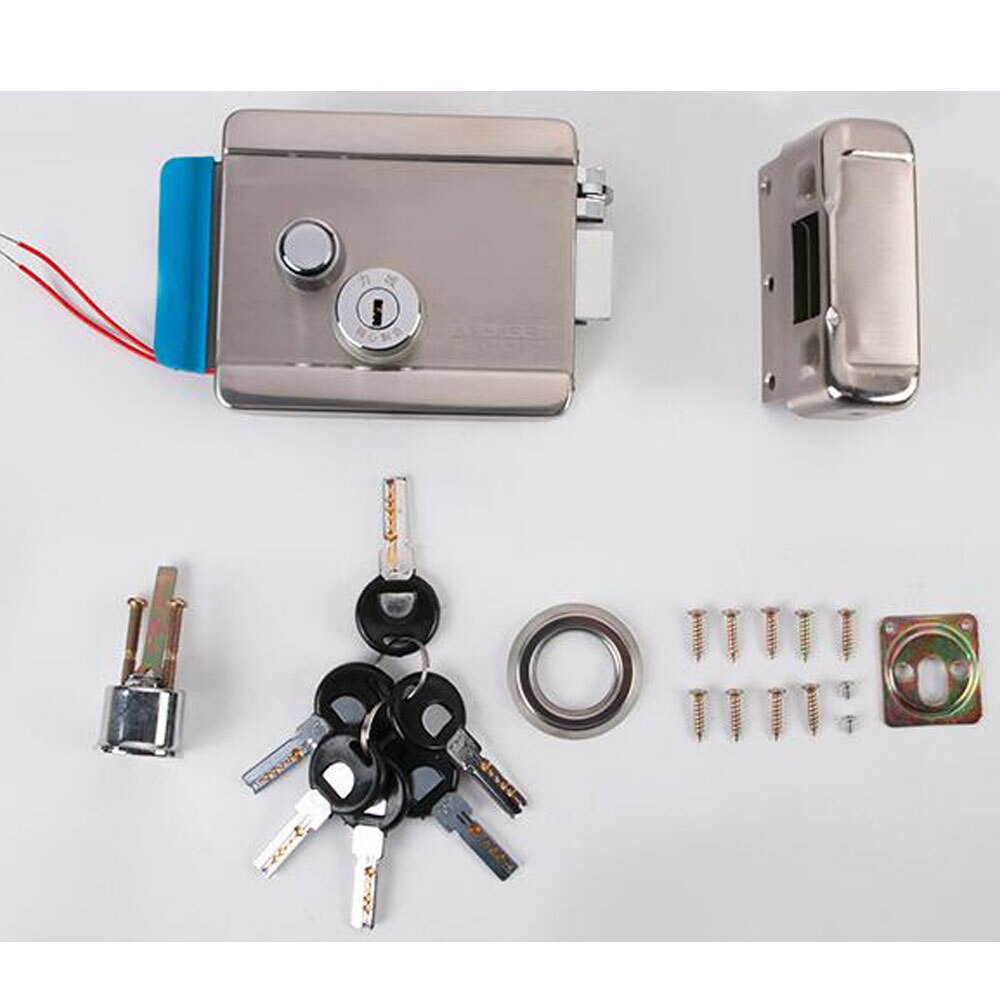

Electric Electronic Door Lock DC 12V for Doorbell Intercom Access Control Security System

Main Feature

Very Good Quality Item.
Adopting the most advanced mechanical design, production technology in Taiwan.
Can work with wood door, steel door, stainless steel door.
Static electricity power consumption, long service life, strong security.



Specifications

Can suit both Left and Right hand door (by rotating the lock 180 degree)
NO (open when powered) Fail Secure Operating Mode
Can work with all the video intercom system in my store
High-quality stainless steel
High anti-theft and high safety
Double lock heads inside and outside
With electronic-control unlocking unit and a spring adjusting balance unit
Easy to install
User friendly
Support manual unlocking, 3 keys included
Suitable for : home, offices, schools, hotels, factories, warehouses, etc
Certification: FCC, CE



Technical Information:
Voltage : DV 9 ~ 12V, 1.5A
Power : > 12W
Operating Mode: NO (open when powered)
Dimensions (strike):
- Approx. 36 (W) x 102 (H) x 51 (D) mm
- Approx. 1-3/8" (W) x 4" (H) x 2" (D) inch
Dimensions (main body):
- Approx. 123 (W) x 105 (H) x 35 (D) mm
- Approx. 4-3/4" (W) x 4-1/8" (H) x 1-3/8" (D) inch

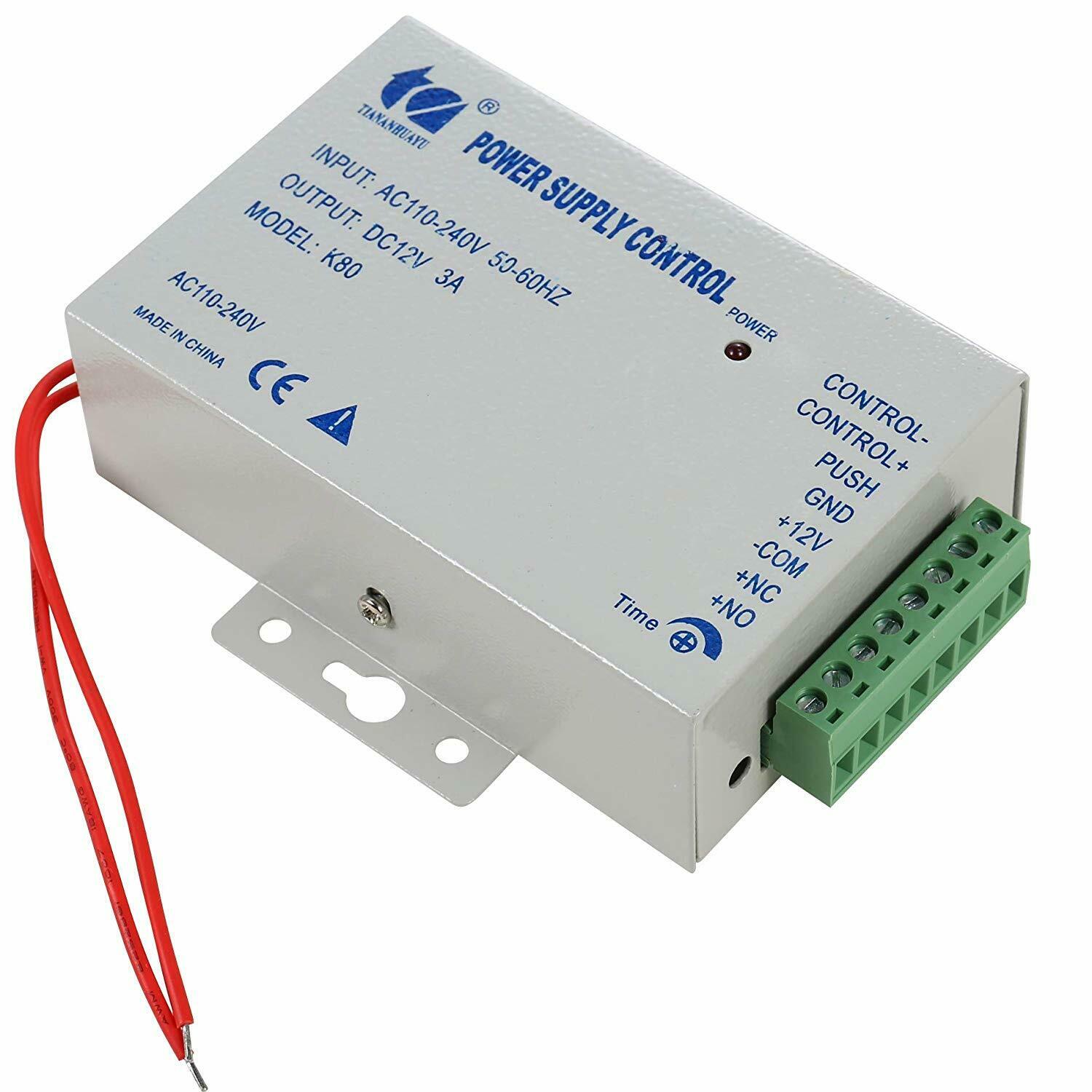

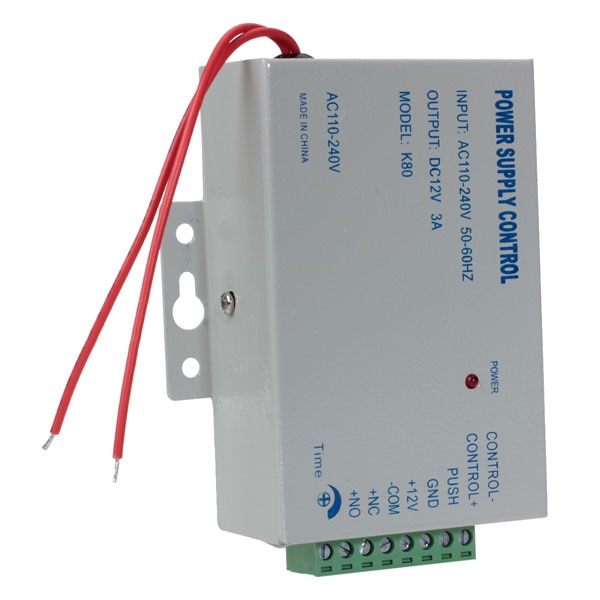

Power supply


This is a 110V-260V Access Control Power supply, it is made up of high quality electronic components and advanced international technology, it has anti-interference ability, provide very stable and reliable output in a various applications such as lock control/ controller control/ exit button/ RFID-ID Reader.etc.


It controls electric lock directly.

Can reduce the load of access controller, save wiring to reduce the hidden trouble

Based delay control circuit, lock time can be in 0-15 seconds

Automatic protection function, unexpected situations such as when the power supply
short-circuit occurs, the power may be temporarily disconnected or the fuse auto insurance line off

Operative device: E/M Lock, Access Controller, Exit Push Button.

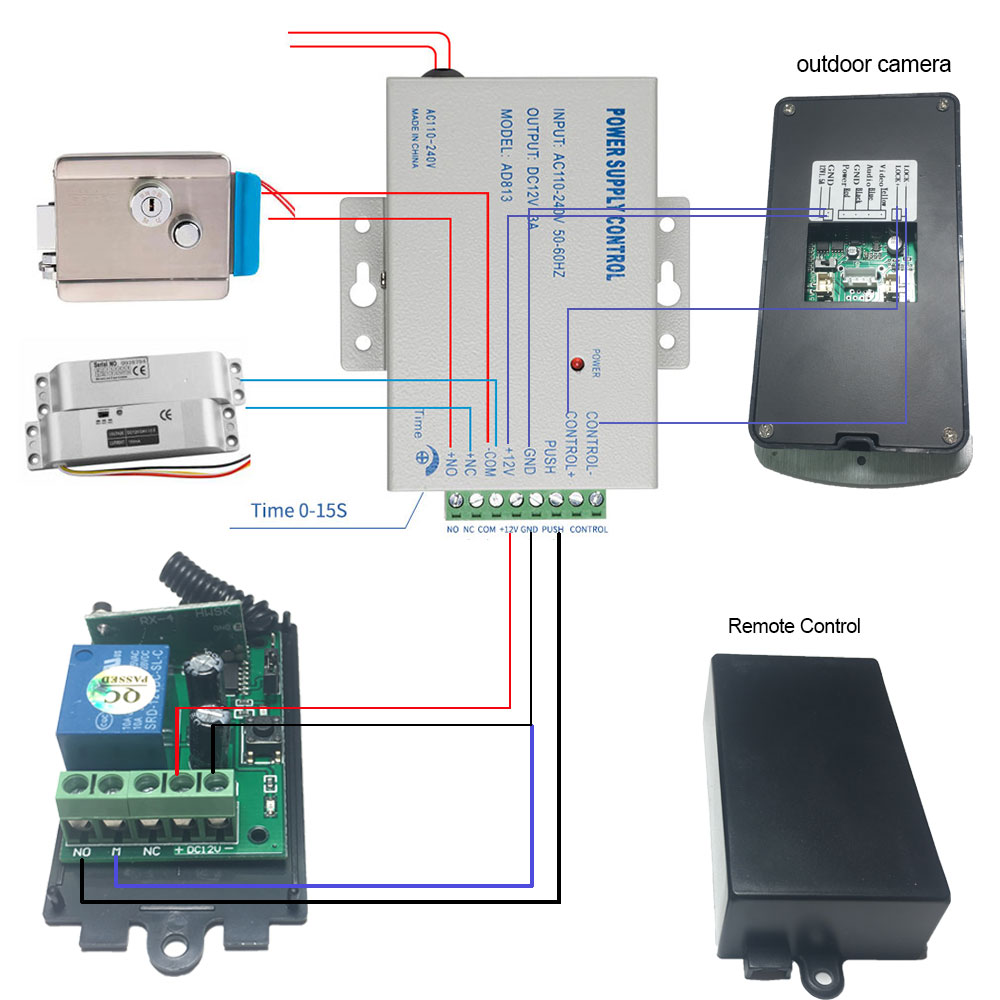

Remote Control
If you purchase this Access Control System now, we will supply the following Remote control to you for free, when you want to go out, you just need to click this Remote control, then you can go out:

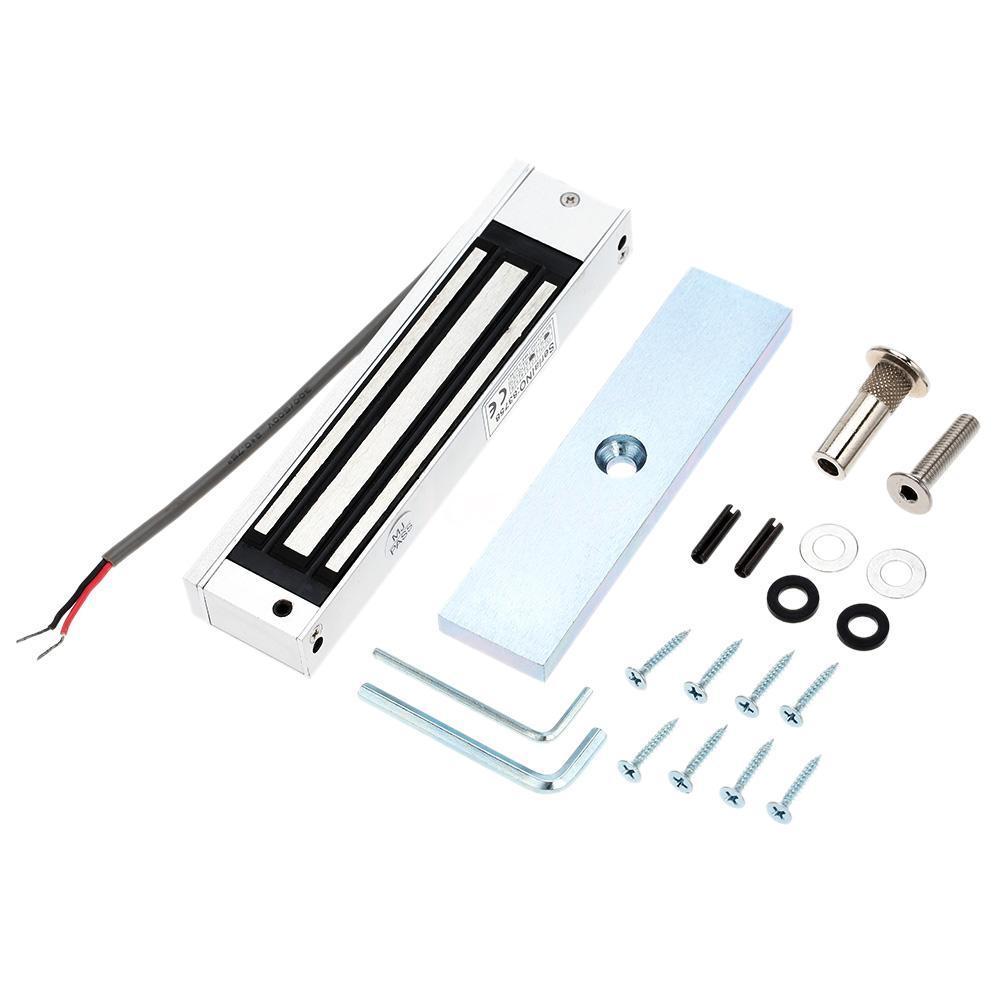

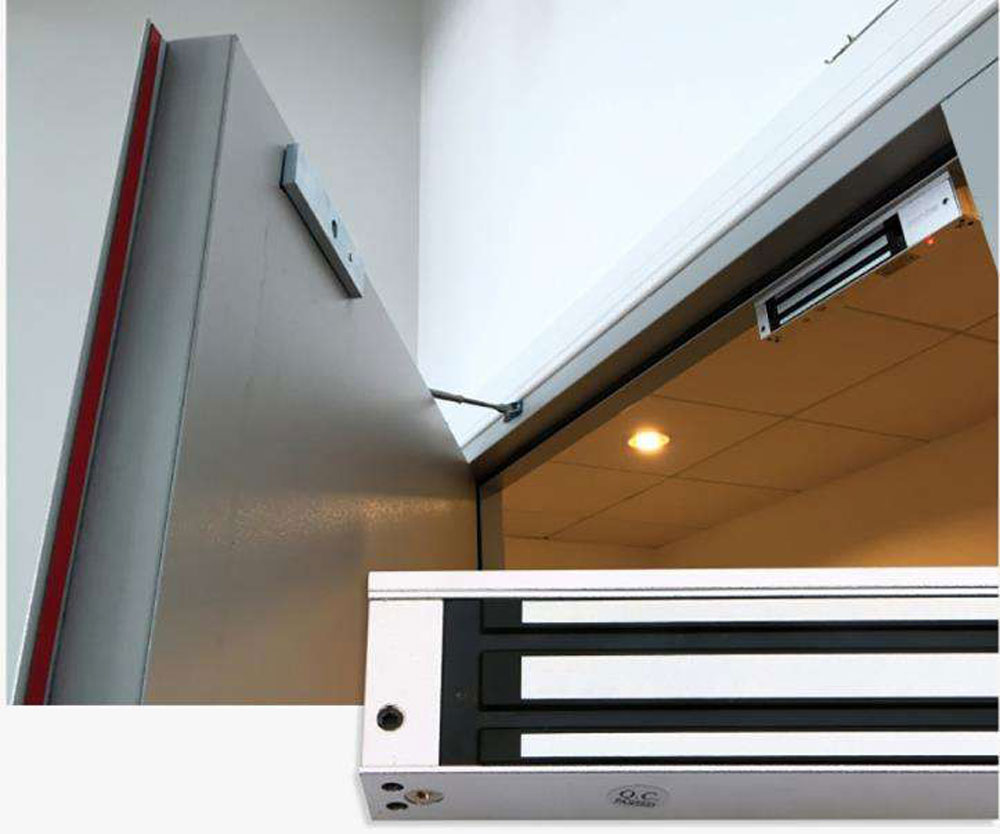

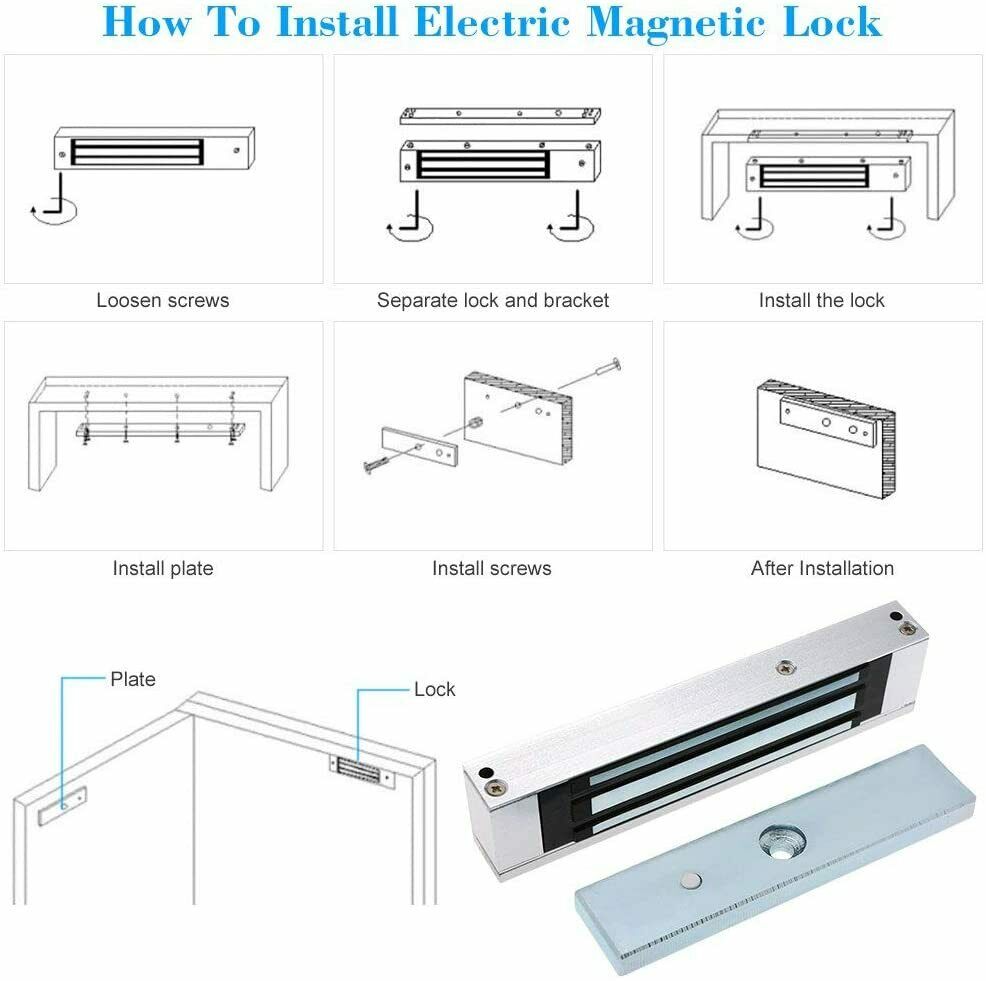

Electric Magnetic Lock

600lbs Electromagnetic Lock Holding Force for Access Control Single Door 12V NEW

Door 12V 600lbs Electric Magnetic Electromagnetic Lock Holding Force for Access Control

Fit for wooden door, metal door, glass door, fireproof door, etc.
Use magnetic power to lock the door, 280kgs (600lbs) holding force.
Built-in reverse current protection device (MOV). Alluminum shell adopts high strength material, with hard anodised processing.
Corrosion resistant. Good quality and durable to use.
Skyzonal is a US registered trademark protected by the US Trademark Law.

Product description
Pattern Name:600lbs

Specifications
Holding force:280kgs
Voltage:DC 12V
Current:380-430mA
Working temperature:-10 to 55 Celsius degree(14 to 131 Fahrenheit degree)
Humidity:0 to 95%
Working mode:power-on to lock
Lock size:25 * 4.7 * 2.5cm / 9.8 * 1.8 * 0.9in
Lock weight:1057g / 23.3lb
Plate size:18 * 3.9 * 1.1cm / 7 * 1.5 * 0.4in
Plate weight:580g / 1.2lb
Package size:27 * 6.3 * 6.3cm/10.6 * 2.4 * 2.4in
Package weight:1786g / 3.9lb

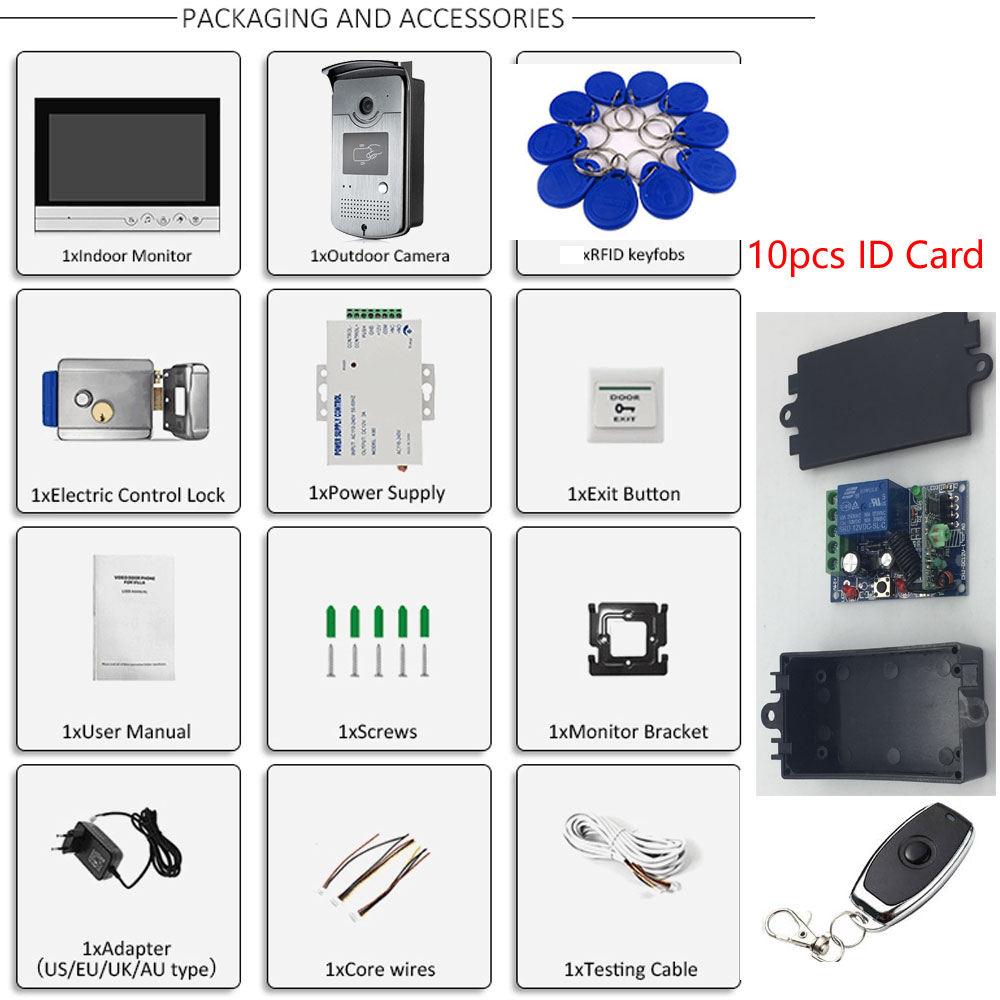

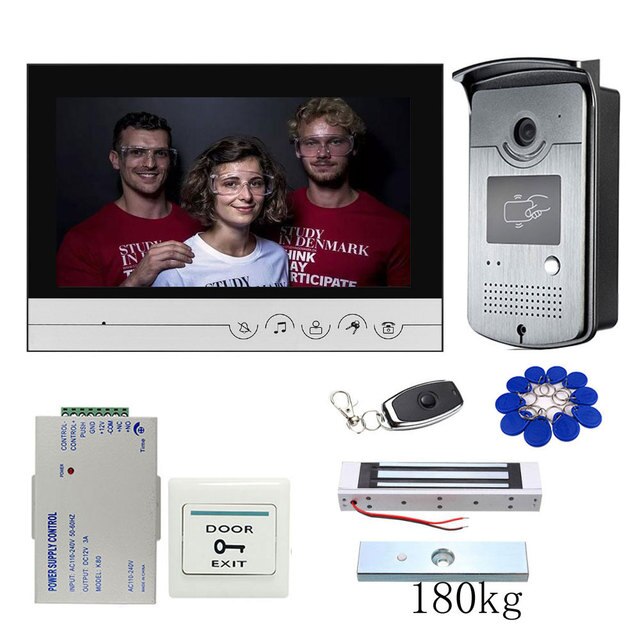

Package:

* With 4 wirs system connection. Using 4-cores cable to connect the camera and monitor.

The max distandance is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose correspnding cable. ( We will send 5 meters cable to you to test, for the longer cable, need to buy by yourself when installing)

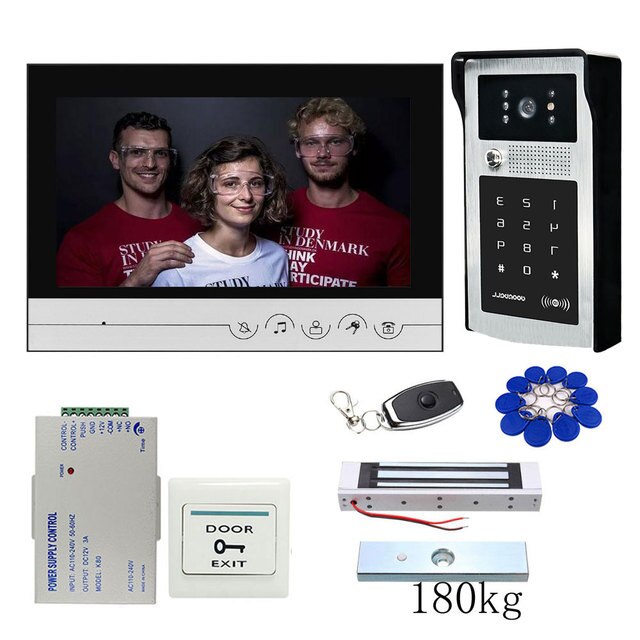

1 x Outdoor camera
1 x9 inch Indoor monitor
1 x 12V 3A power supply
1 x Remote control (NOTE:The remote control without batteries)
1 x power adapter (We will send AU/EU/US/UK type according to your address)
10 x RFID keyfobs (Please leave us message if you need more keyfobs)
1 x testing cable
1 x exit switch
1 x connetcors and screws for installation
1 x user manual
1 x electric control door lock

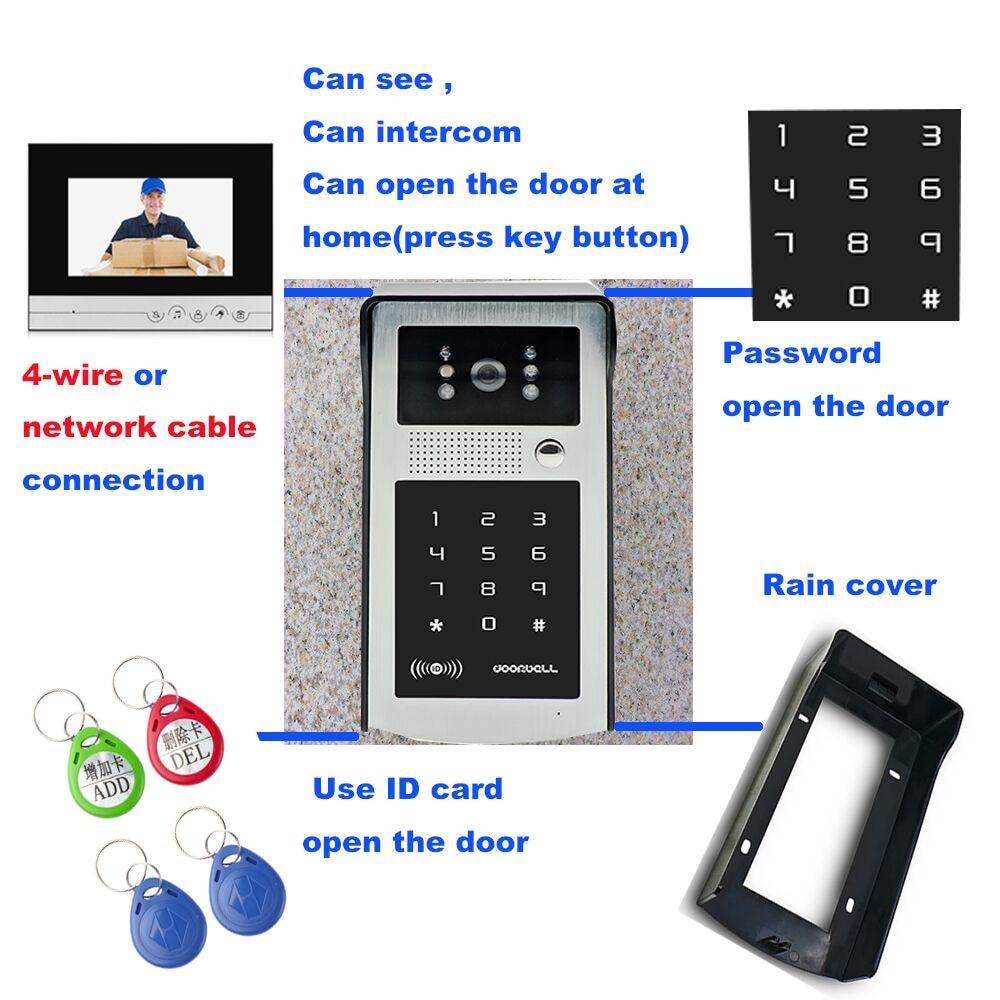

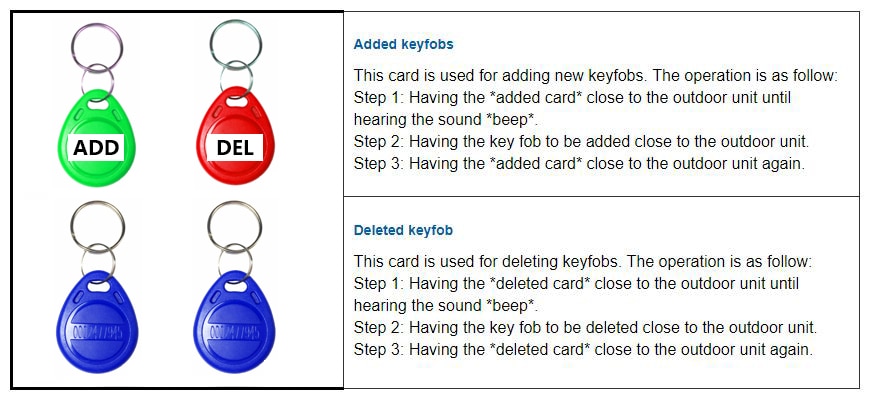

There are several ways to open the door lock when you are outside the door: using the RFID keyfobs or the remote control set. This item comes with 4 RFID keyfobs(including added keyfob and deleted keyfob) . Besides, if you need more RFID keyfobs, you can add the quantity of the RFID keyfob as you like.

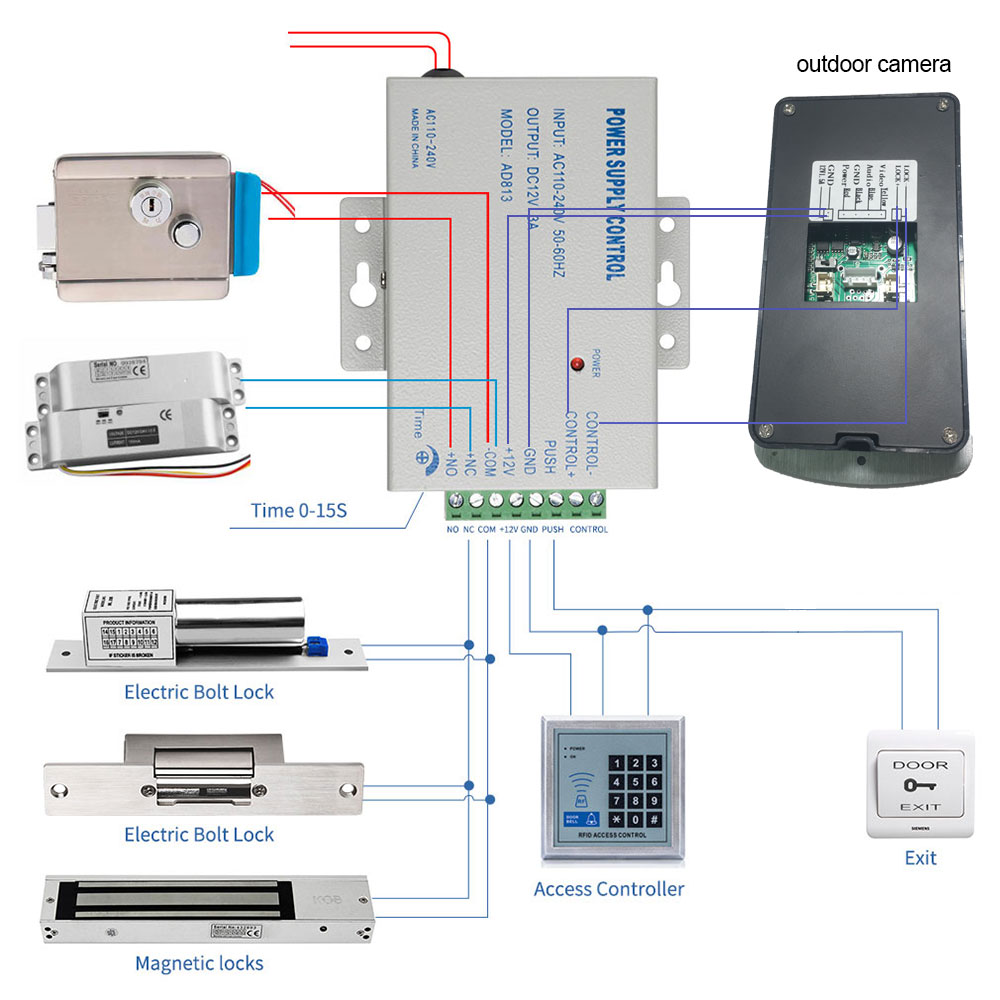

How to connect doorbell / outdoor cameras / electric lock

different connected methods




  • Plug Type: AU Plug,EU plug ,US plug,UK plug
  • Size: /
  • Doorbell: Yes
  • Material: metal case
  • Power: 110-220V
  • Sensor Size(Inch): 1/3
  • Resolution: > 420 TV Line
  • Power: 220v
  • Camera: color
  • Model Number: V90R+ID+LOOK
  • IP Camera Interface: No
  • Access Control: Inductive Card
  • Waterproof: Yes
  • Samrt Home Interface: No
  • Technology: Analog
  • Installation: Wall Mounting
  • Connection Type: WIRED
  • Zone Input: None
  • Display Screen Type: Color Touch Screen
  • Type: Intercom System
  • Viewing Angle (°): 92
  • Kit Configuration: One to One video doorphone
  • Display Size: 9
  • Answering Mode: Hands-free
  • Camera Sensor type: CCD
  • Connection Method: WIRED
  • Brand Name: HSmart HD
  • Origin: Mainland China
  • Smart home platform: Other
  • Certification: CE
