4.3 inch Home Intercom Video Door Phone Video Intercom Doorbell Doorphone Waterproof 700TVL Camera Two-way Audio IR Night Vision
4.9 (11 votes) | 32 orders
Price:
US $53.62 - 171.92
/ piece
Discount Price:
US $
42.90 -
137.53
/ piece
-20%
- Color
-
-
There are 3 different packages for your choice. If you buy the indoor monitor only, or outdoor camera only, we can't guarantee if ours can work with yours.

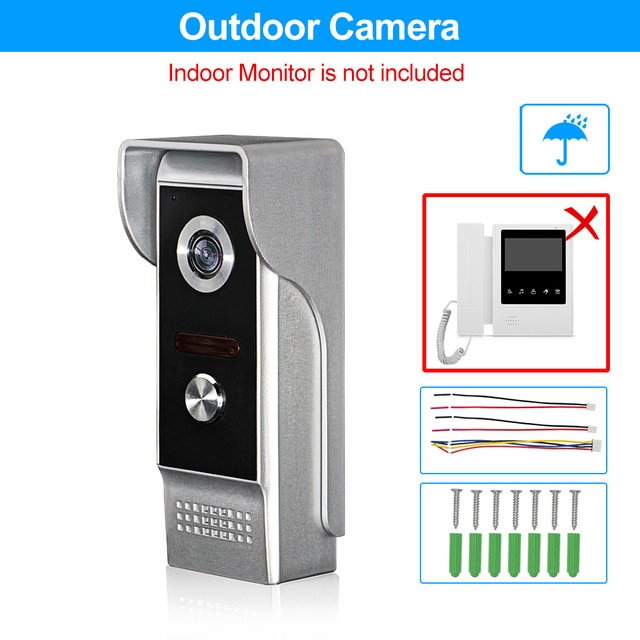

Package A (Camera ONLY): Including outdoor camera Only. Not including indoor monitor and 5 meter cable.

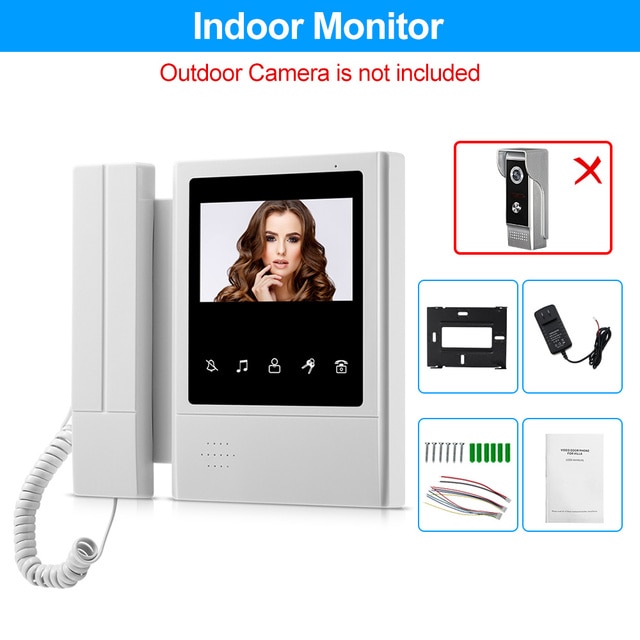

Package B (Monitor ONLY): Including indoor monitor Only. Not including outdoor camera and 5 meter cable.

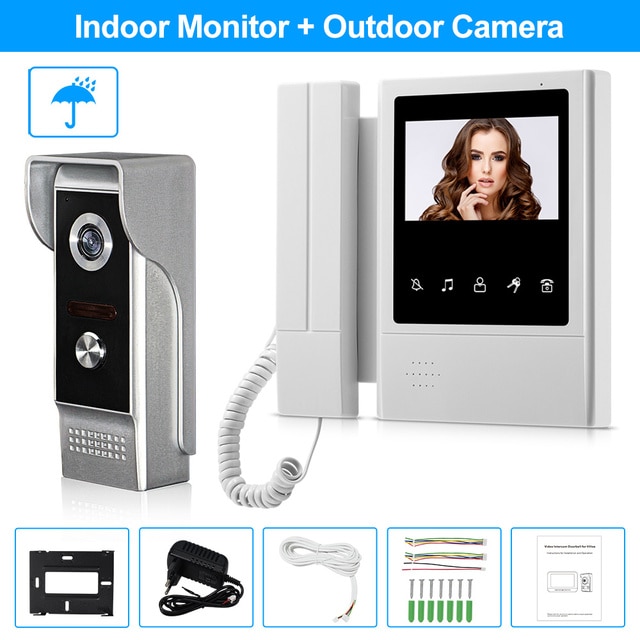

Package C (With One Monitor): Including outdoor camera + 1 unit indoor monitor + One 5 meters cable.
One outdoor Camera can work with max 6pcs indoor monitors, if you want more indoor monitor, you can buy Package C + Package B (if you have any questions, welcome to contact us)

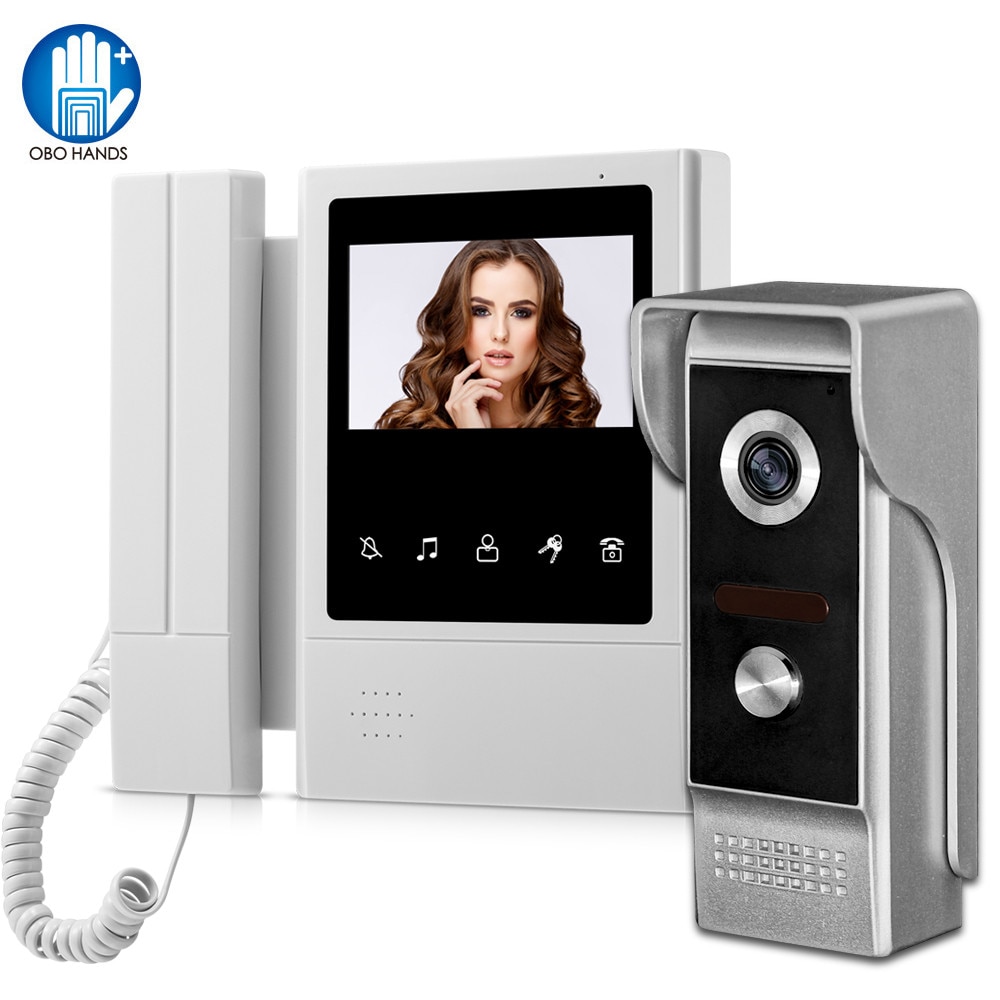

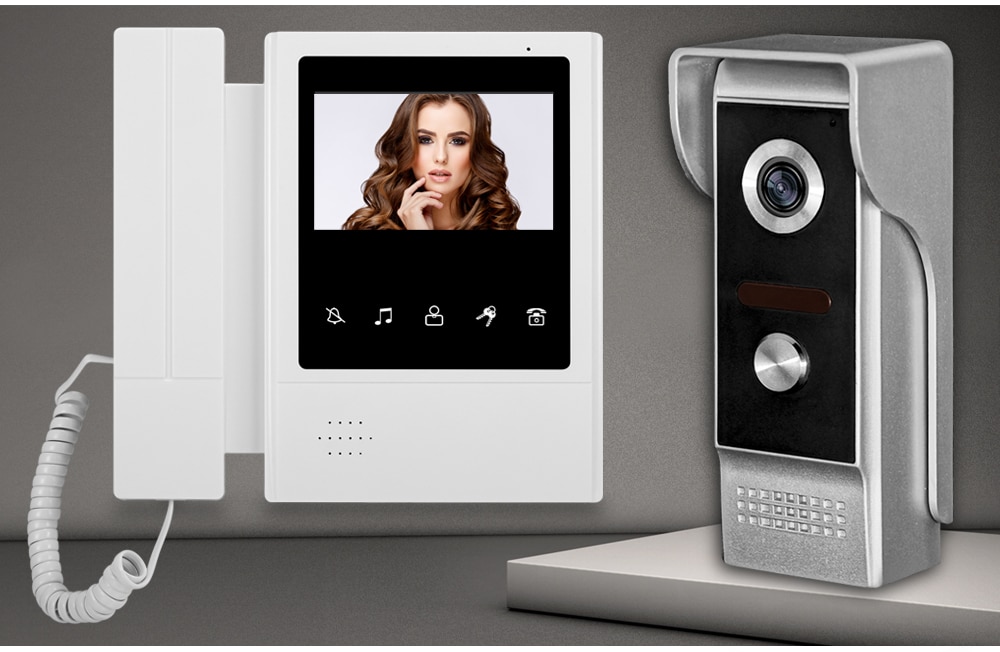

4.3 inch Video Door Phone Intercom System

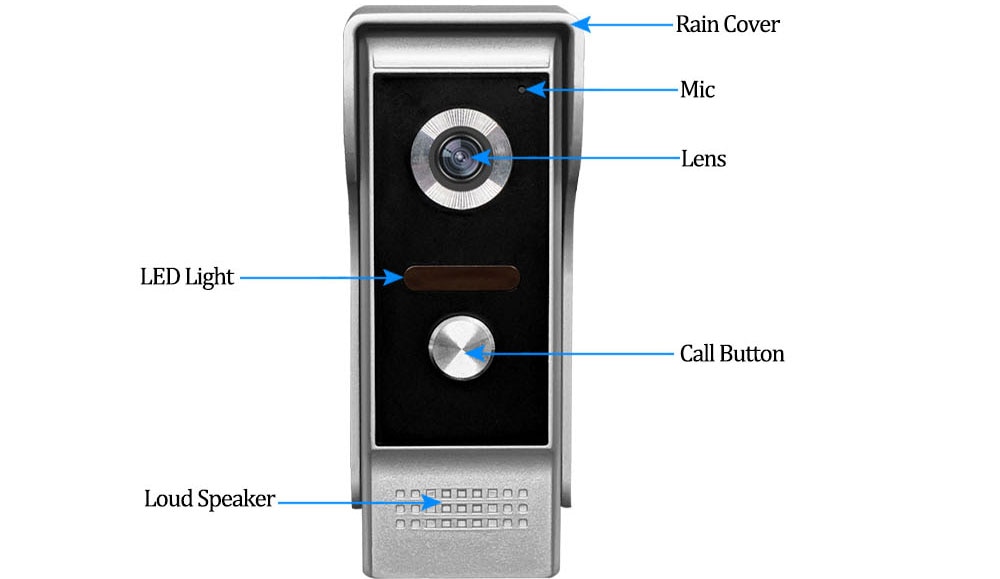

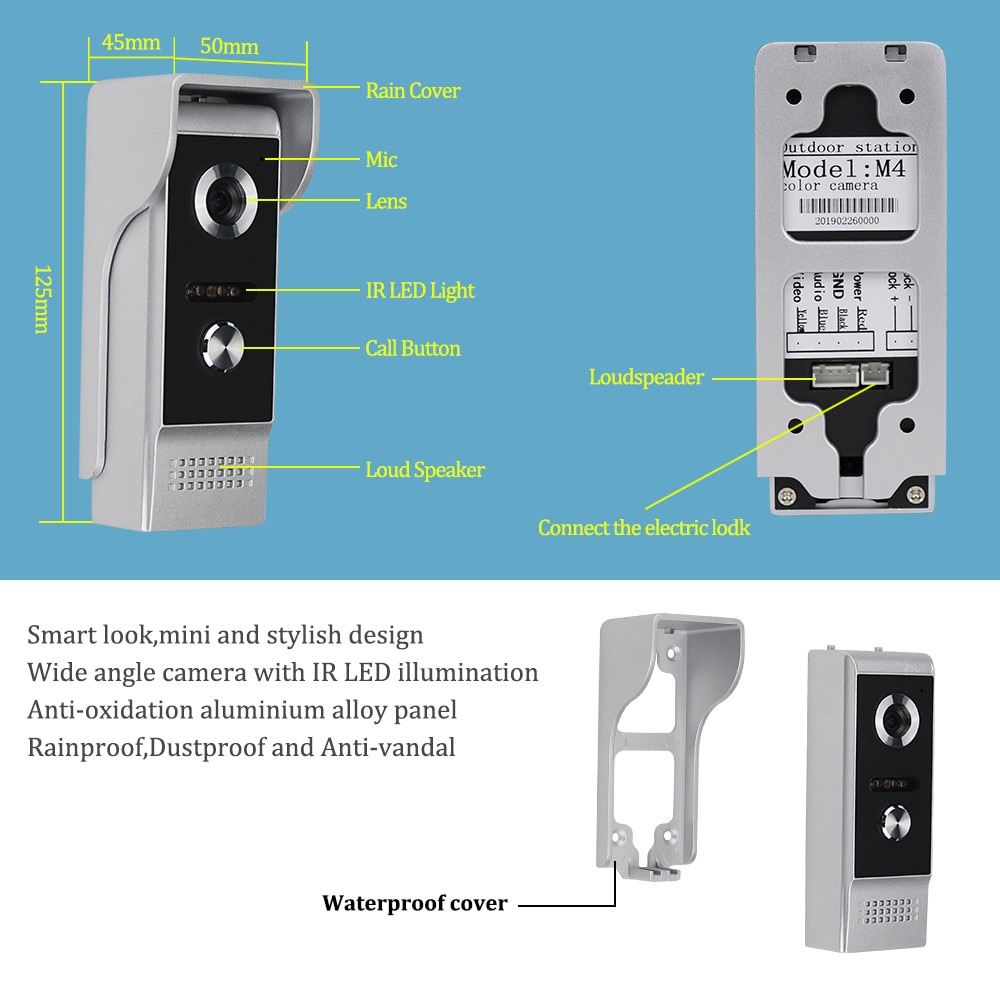

700TVL Outdoor unit ( Camera)

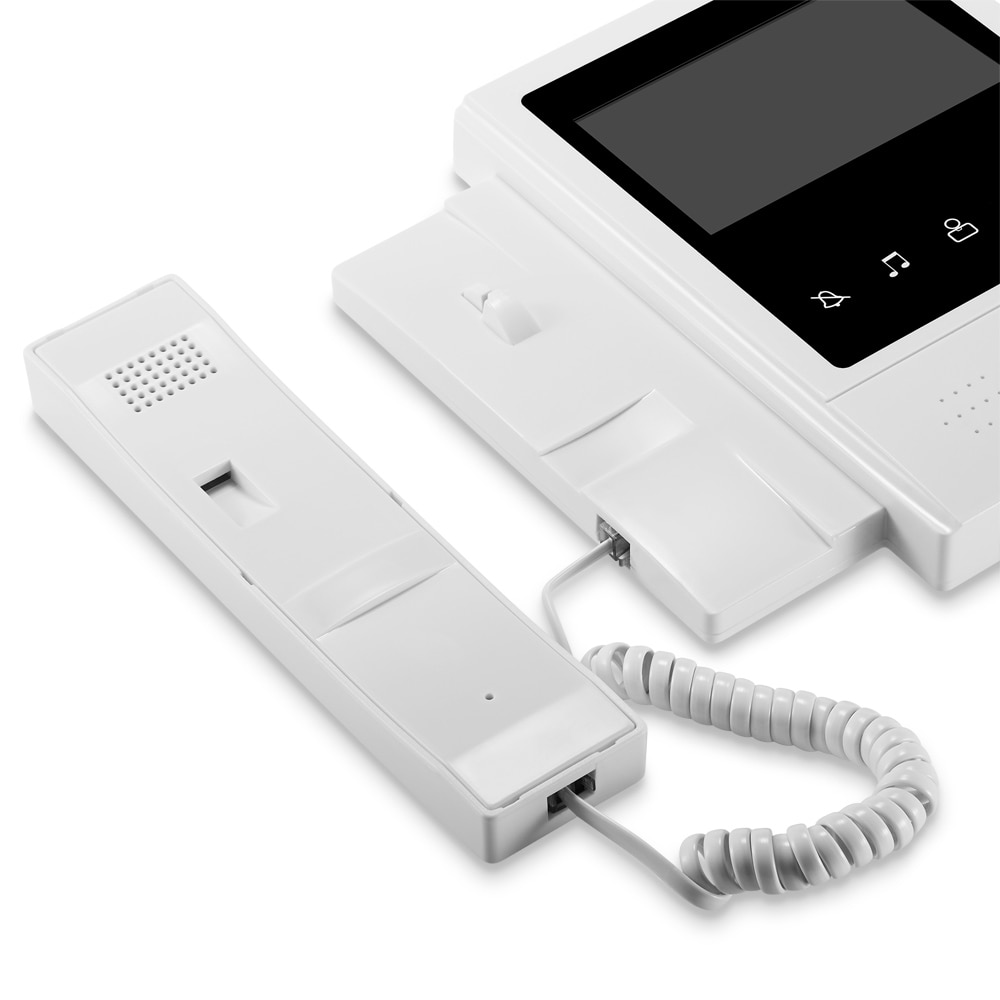

4.3 inch Indoor unit (Monitor)
Product Details
The distance between the camear and monitor is up to 100 Meter

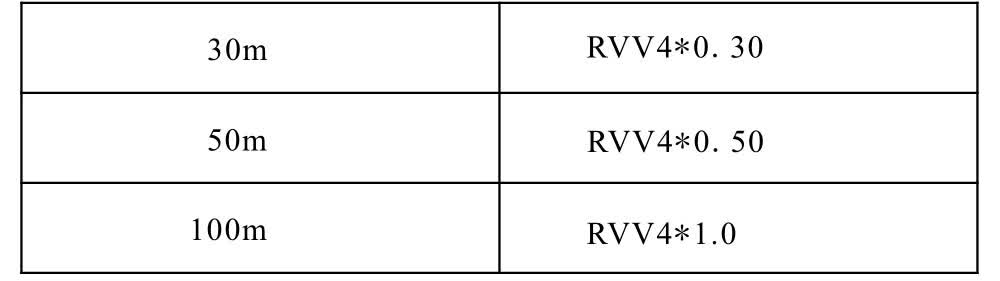

The max distandance is up to 100 meters. Different distance, use different diameter cable, please check the following from to choose correspnding cable.
( If you buy both the camera and monitor, we will supply one 5 meters cable to test our products. You can buy more longer cable in your local place when install it.)

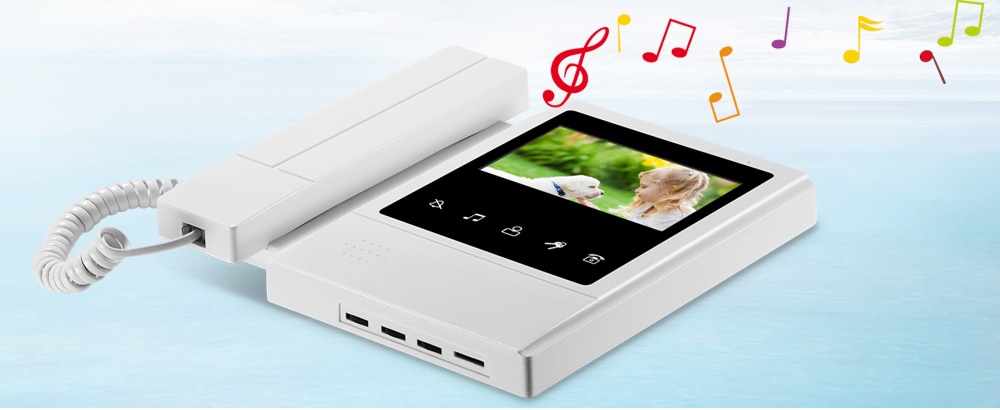

Multiple ringtones - free switch
The 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. Don't need to worry about can't hear voice or hear it too loud any more.
Support Two-way radio intercom and indoor monitoring
When a visitor ring the bell, the monitor will be activated and show the image outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s.
Support Two-way Audio and Ringback function
One camera can working with 6pcs indoor monitors. One monitor can working with 2 cameras. The camera can talk with the monitor. The monitor can talk with one of the monitor too. (If you want more camera or monitor, please contact us.)
Support IR Night Vision
The outdoor camera build-in 4 white LED light. With this function, you can see outside no matter day or night.
Keep your house more safer.
Induction white light effect IR infrared night vision effect without night vision effect
(coloured picture, the nigh
vision effect is the best)

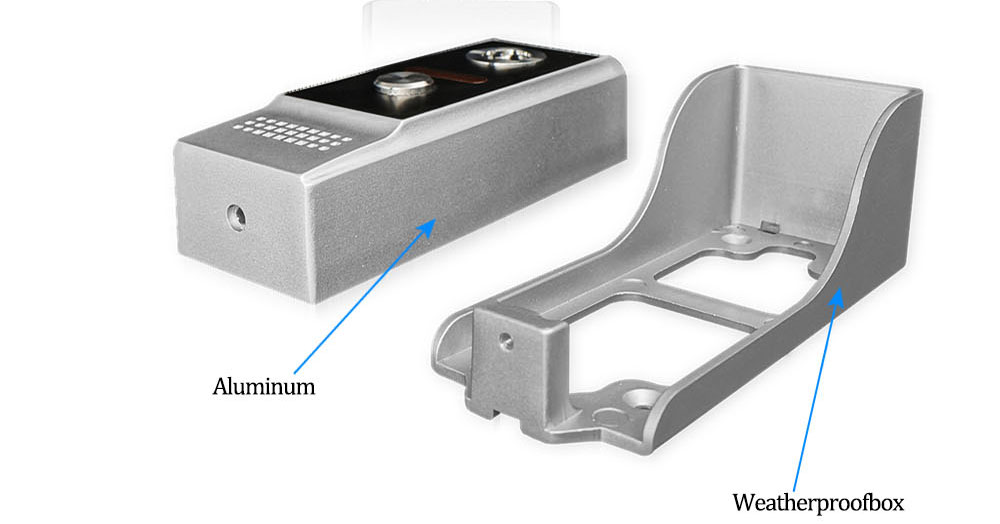

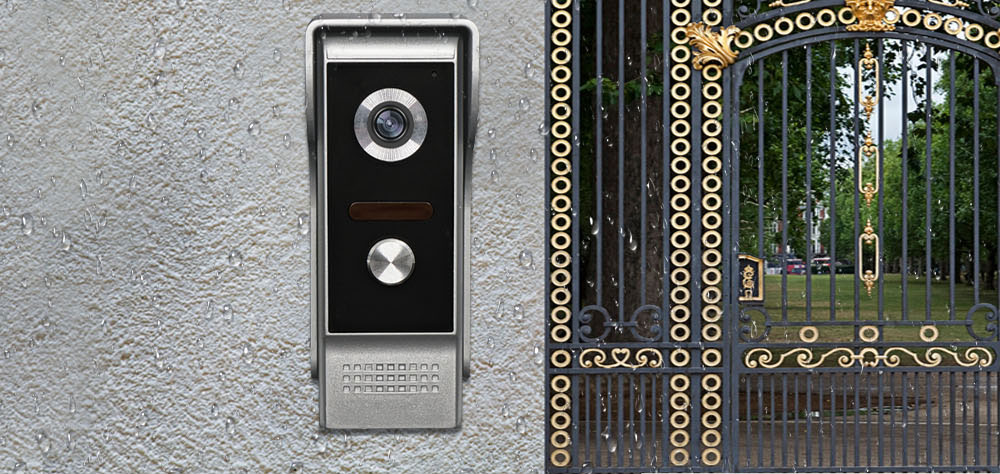

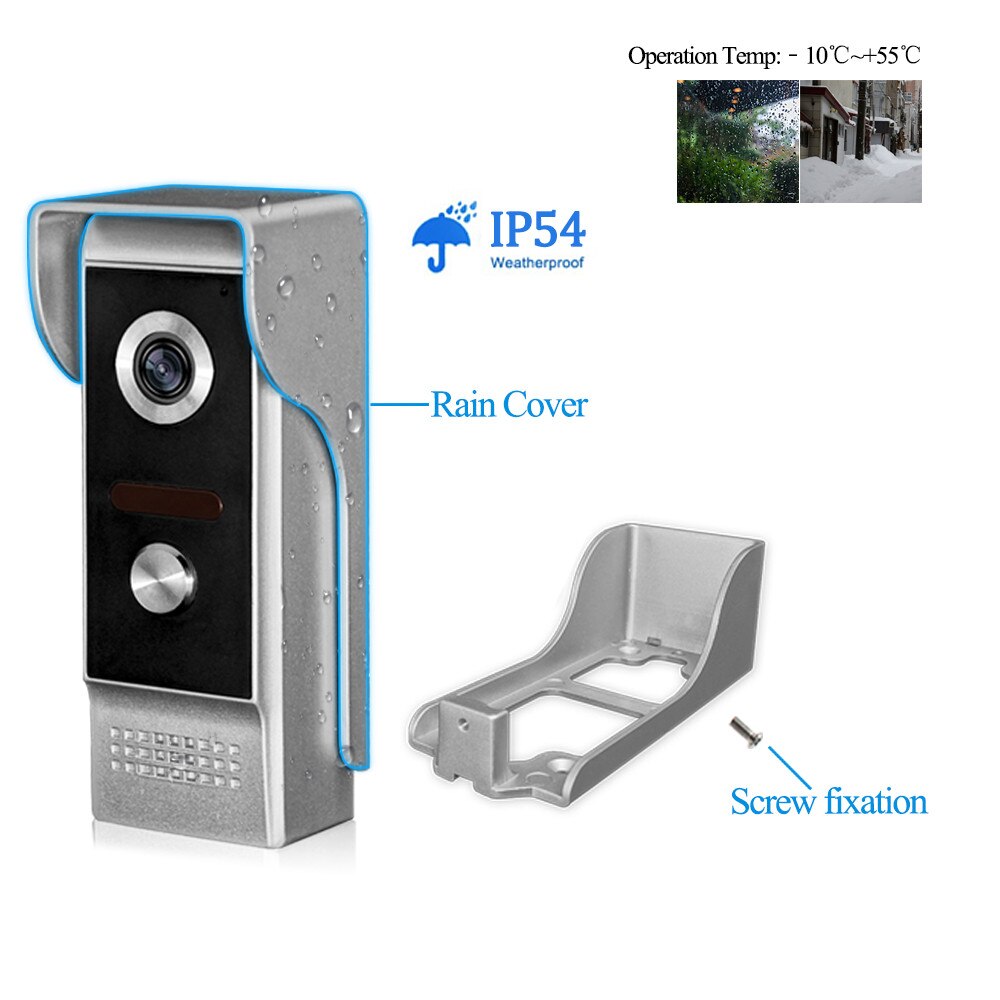

Waterproof and dustproof
The outdoor camera equip with a weatherproof cover,
can be used outside even in very bad weather.

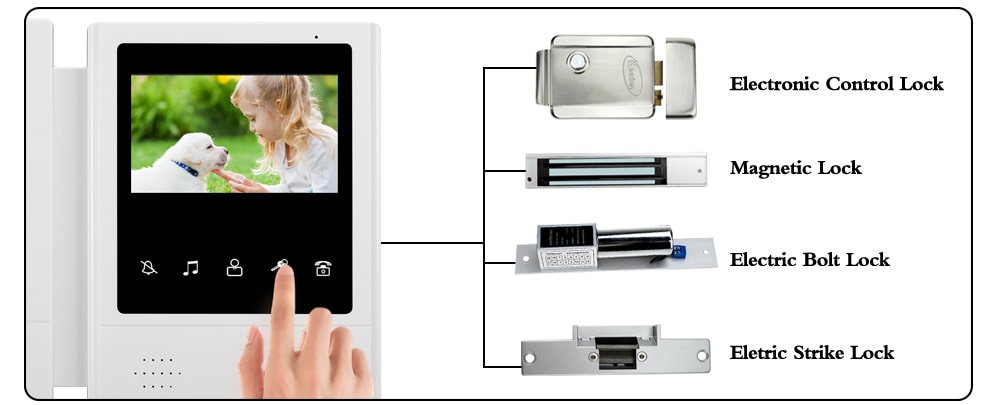

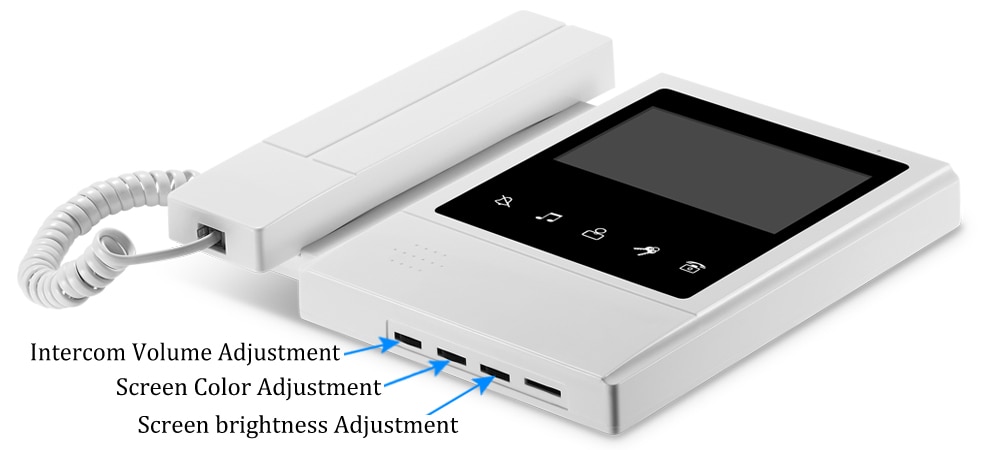

Unlock with Indoor Monitor (Screen)
This video intercom system can work with the electric lock. You can open the door with the indoor monitor. Don't need to go to open the door for you visitor. Very convenient!
(Note: The electric locks are not included in the package, need to buy extra)
Product Analysis
Product Specifications
| |||||||||||||||||||||||||||||||||||||||||||||||||

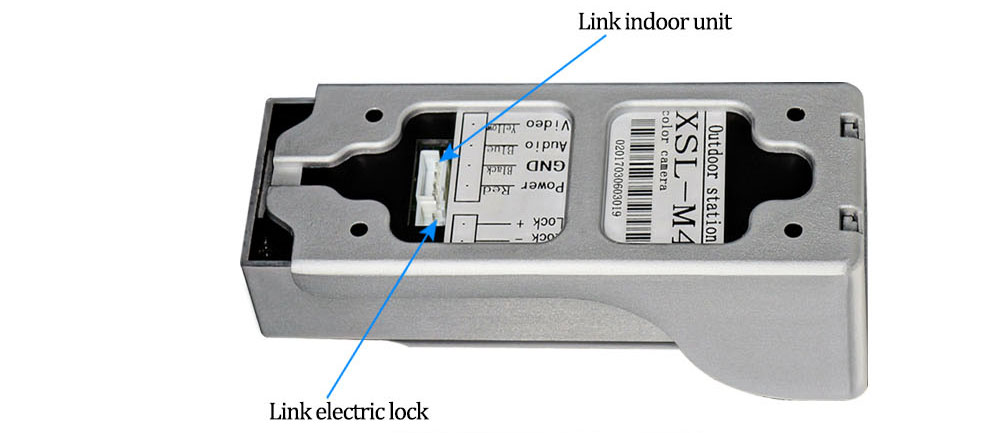

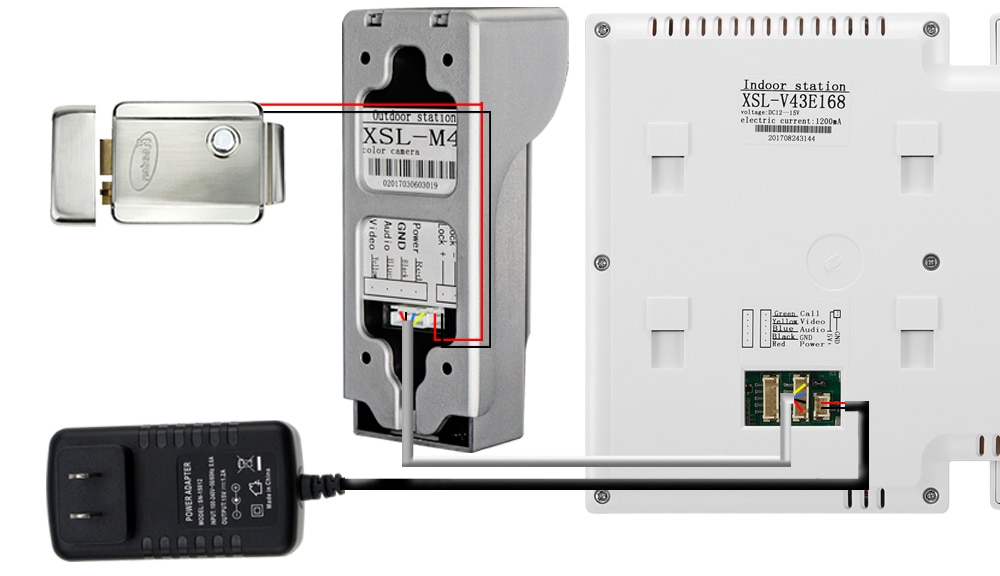

Wiring Diagram1:
Using the 4-core cable to connect outdoor unit to indoor unit.
Using the 5-core cable to connect indoor unit to next indoor unit.
( The NO type lock can be connected to the camera directly. But the magnetic lock, Strike lock and bolt lock need to be connected to an extra DC12V power supply. )

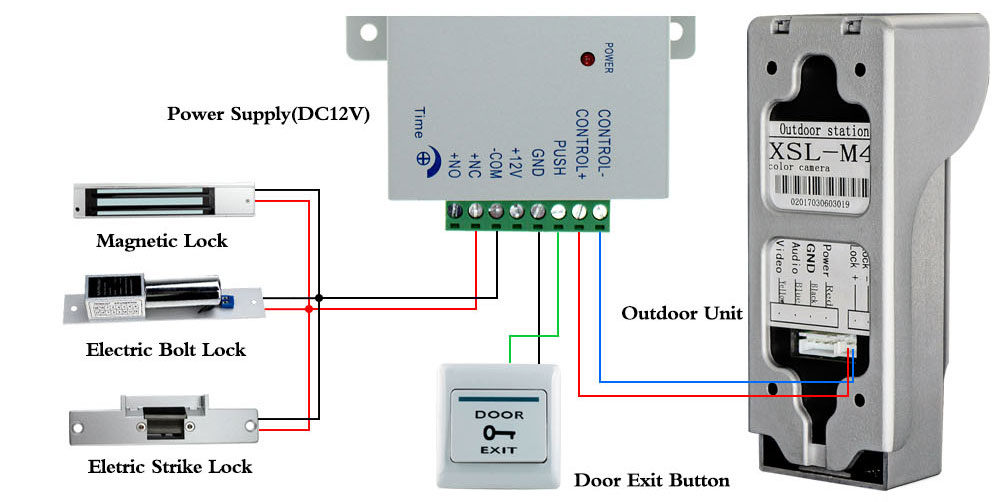

Wiring Diagram2:
If you want to install the electric magnetic lock, strike lock, bolt lock to the camera, need to buy a DC12V power supply. (Both of the power supply, locks, door exit button not included in the package)

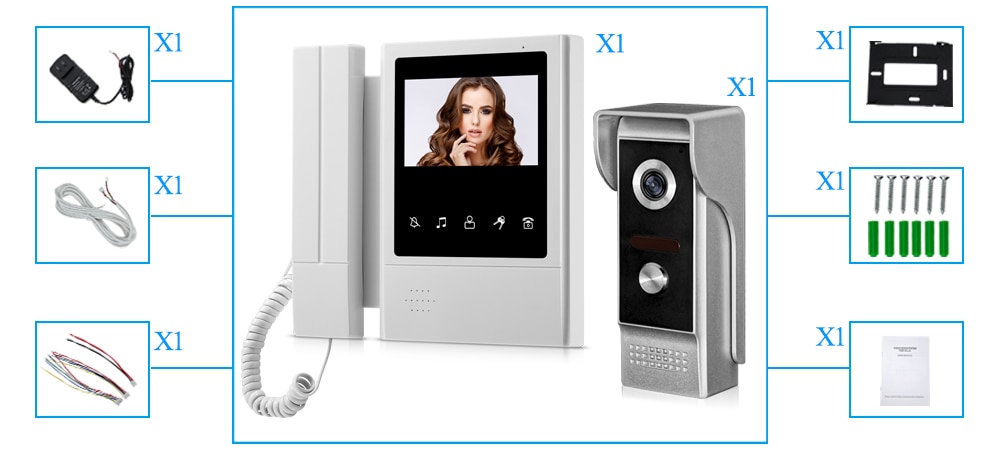

Package Including
1* Outdoor unit (Camera) (optional) 1* Indoor Unit (Monitor) (optional) 1* Power adapter (US /AU / EU / UK plug）(optioanl) 1* Cable (5m) (optional) 3* Short Cable 1* Mounting plate (optional) 1* Bag of screws (optional) 1*User manual (optional) Very Important: Please leave us message which type of the power plug you want, otherwise, we will send EU type by default.
|
- Size: 185mm(L) x 30mm(W) x 195mm(H)
- Doorbell: Yes
- Material: ABS/metal
- Power: DC15V/1.2A
- Sensor Size(Inch): 1/3
- Resolution: 700TVL
- Power: 220v
- Camera: CMOS
- Model Number: XSL-V168+M4
- IP Camera Interface: No
- Access Control: None
- Waterproof: Yes
- Samrt Home Interface: No
- Technology: DIGITAL
- Installation: Wall Mounting
- Connection Type: WIRED
- Zone Input: None
- Display Screen Type: color
- Type: Intercom System
- Viewing Angle (°): 90
- Kit Configuration: One to One video doorphone
- Display Size: 4.3
- Answering Mode: Hands-free
- Camera Sensor type: CMOS
- Connection Method: WIRED
- Brand Name: OBO HANDS
- Origin: Mainland China
- Certification: CE
- Distance: support max to 100 meters

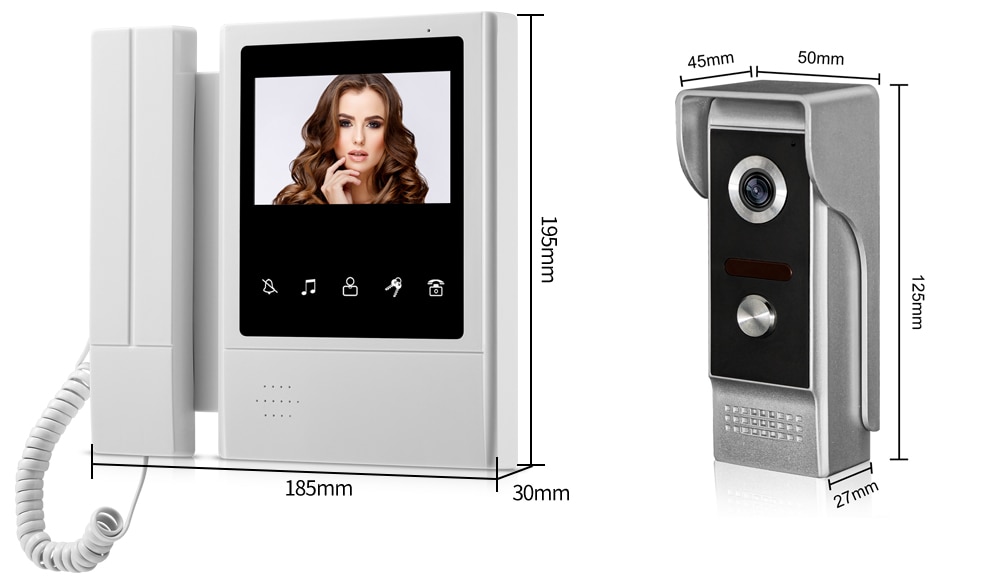

- Size of Display: 185mm(L) x 30mm(W) x 195mm(H)
- Size of Camera: 50mm(L) x 27mm(W) x 125mm(H)
- Type: Video intercom system
- Type1: Video door phone
- Type2: Video door bell
