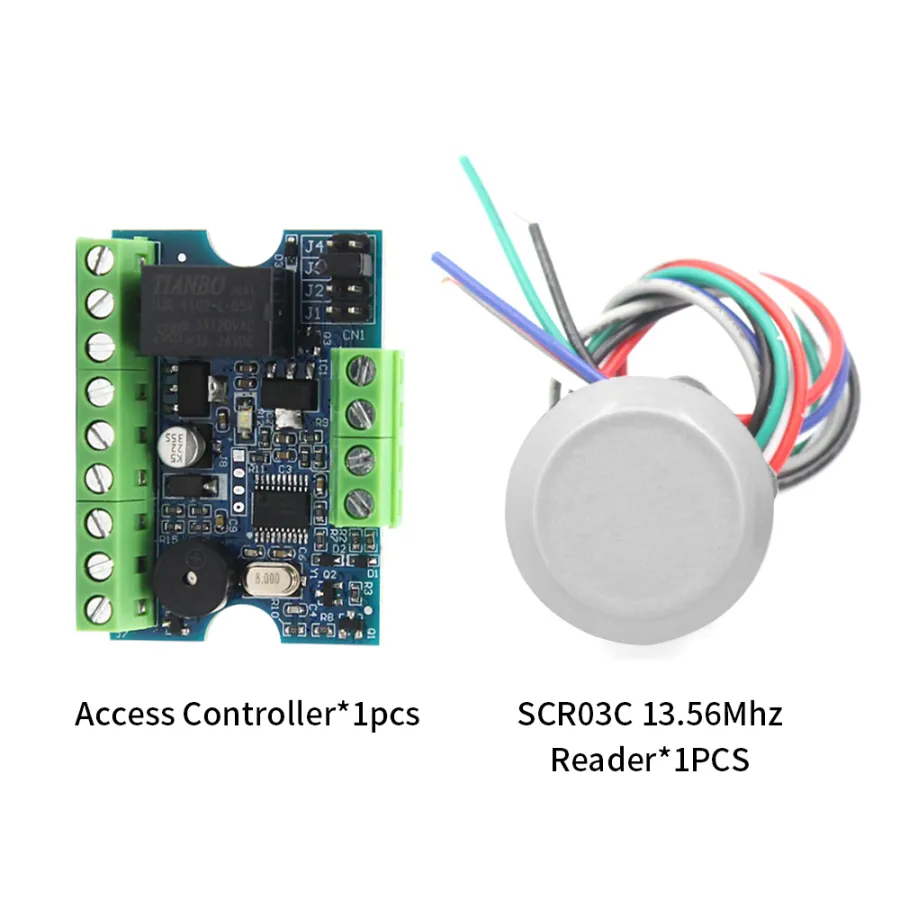

NEW Micro Access Control Sets TM Card Reader & Wiegand Mini Card Reader Controler RFID Module Electronic Door Access System Kit
4.7 (46 votes) | 209 orders
Price:
US $52.38 - 155.94
Discount Price:
US $
19.85 -
52.25
-62%
- Color
-
-

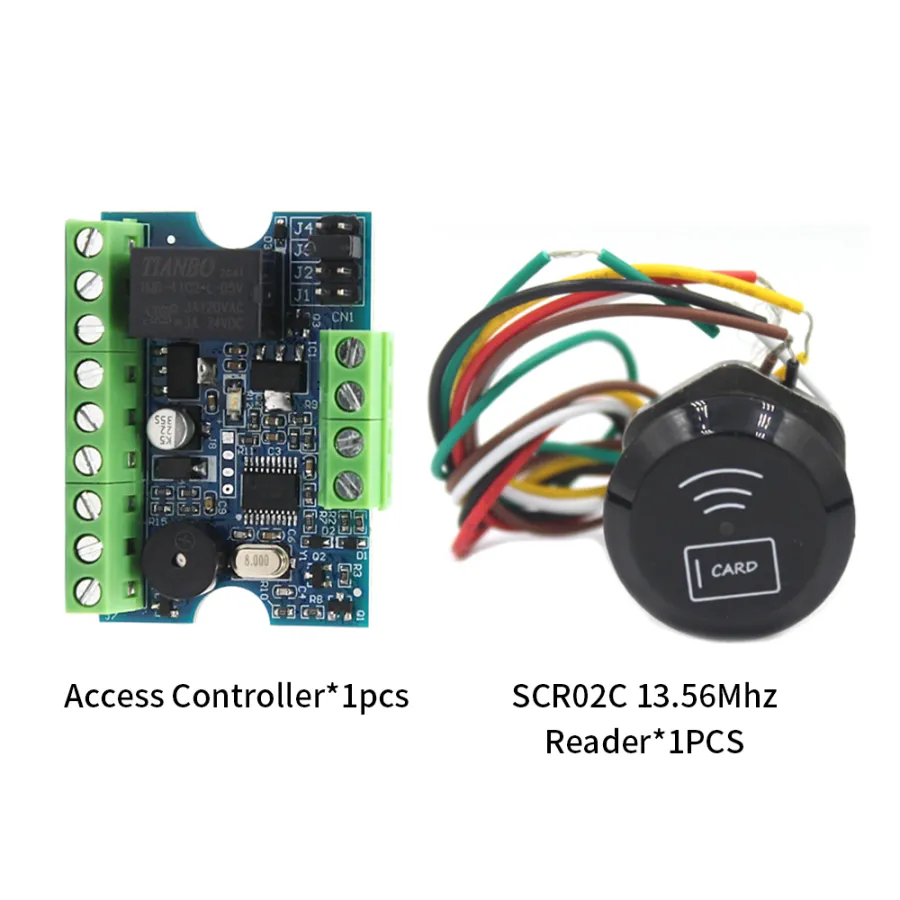

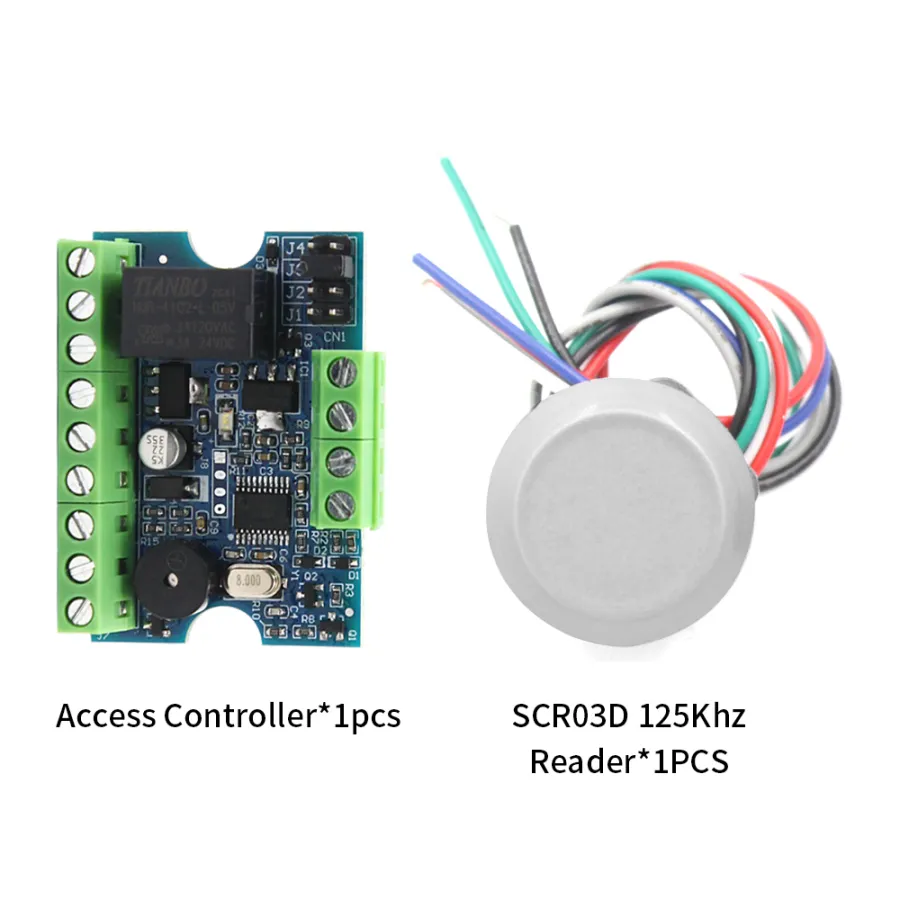

NEW Micro Access Control Sets TM Card Reader & Wiegand Mini Card Reader Controler RFID Module Electronic Door Access System Kit
Product Introduction

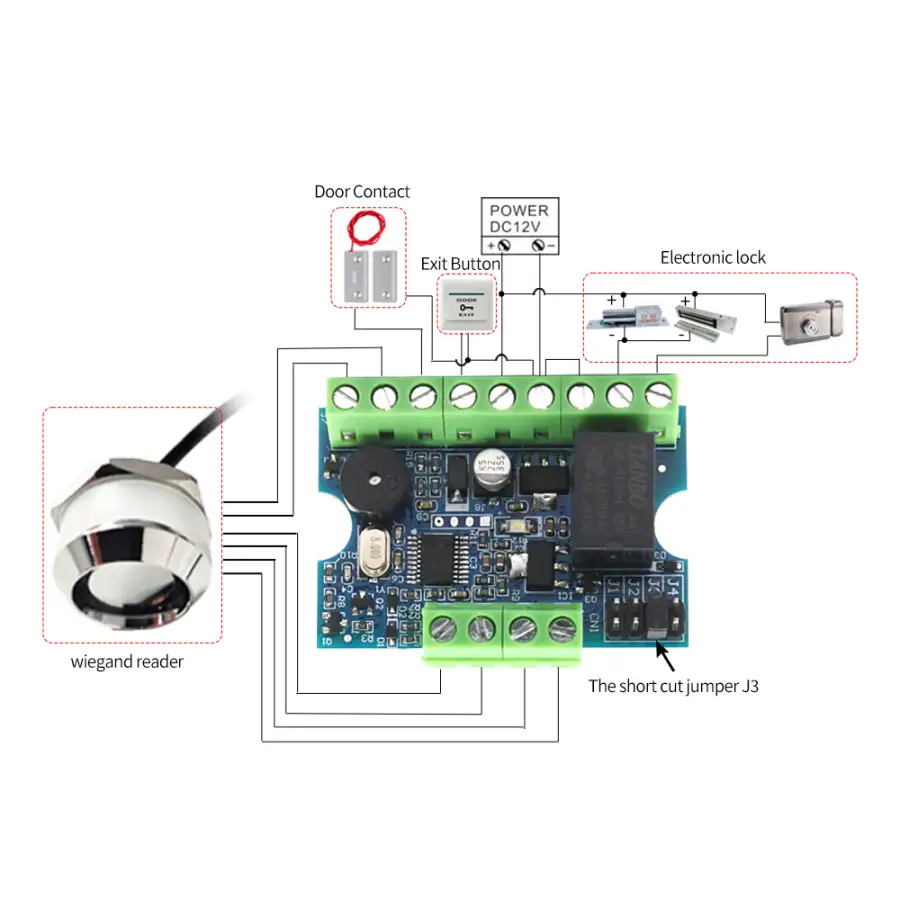

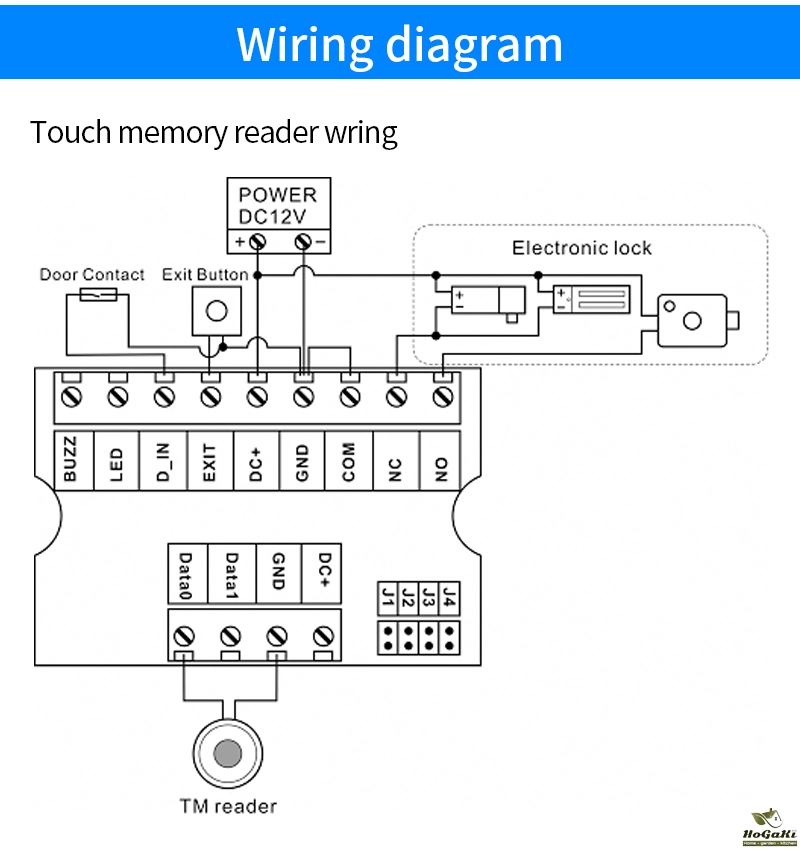

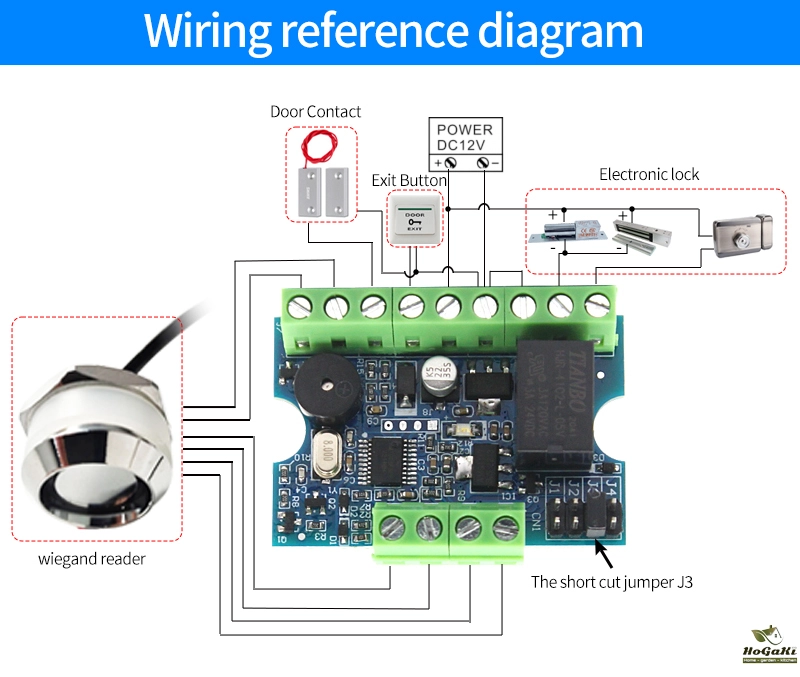

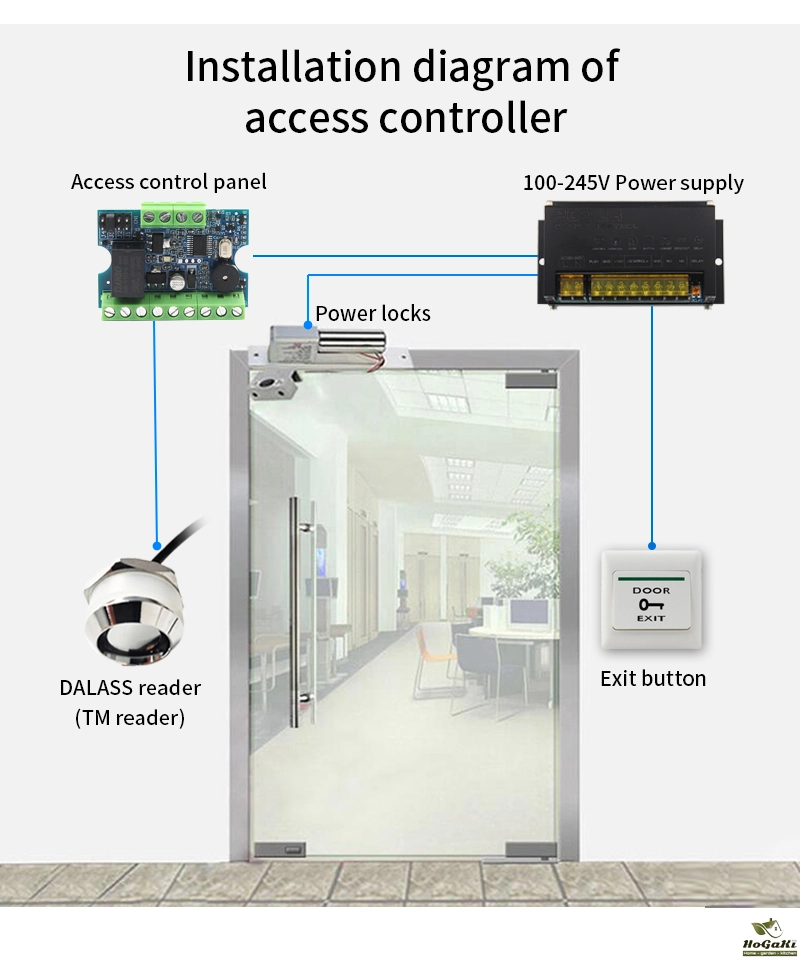

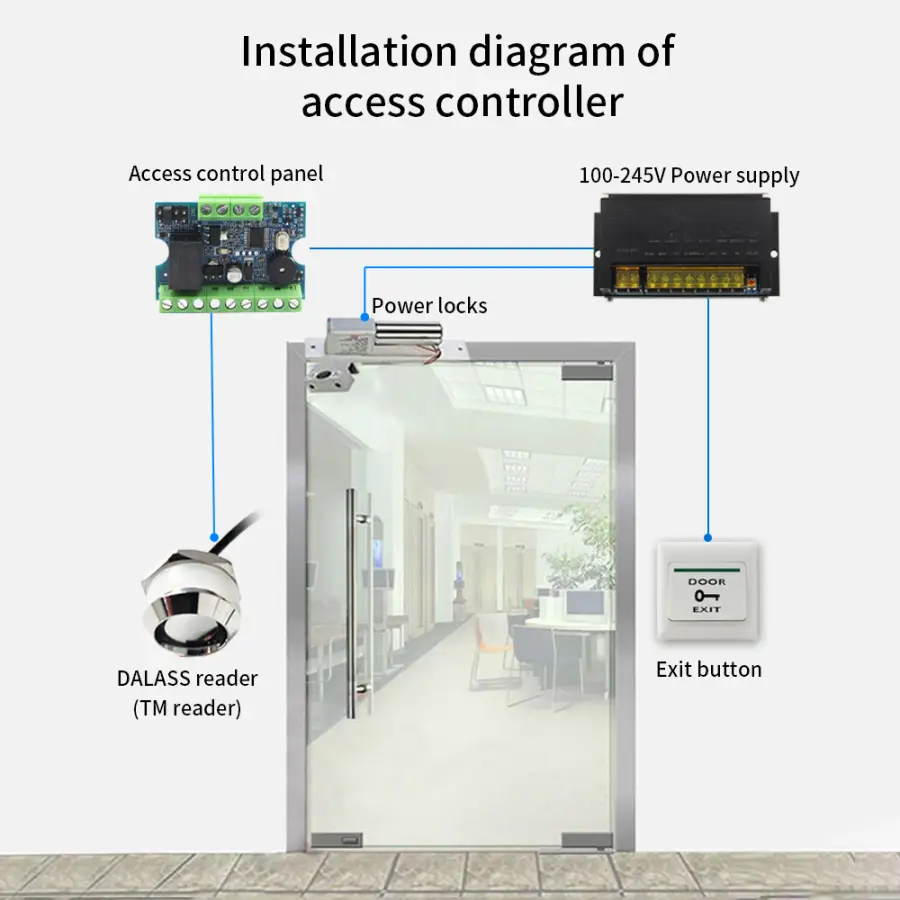

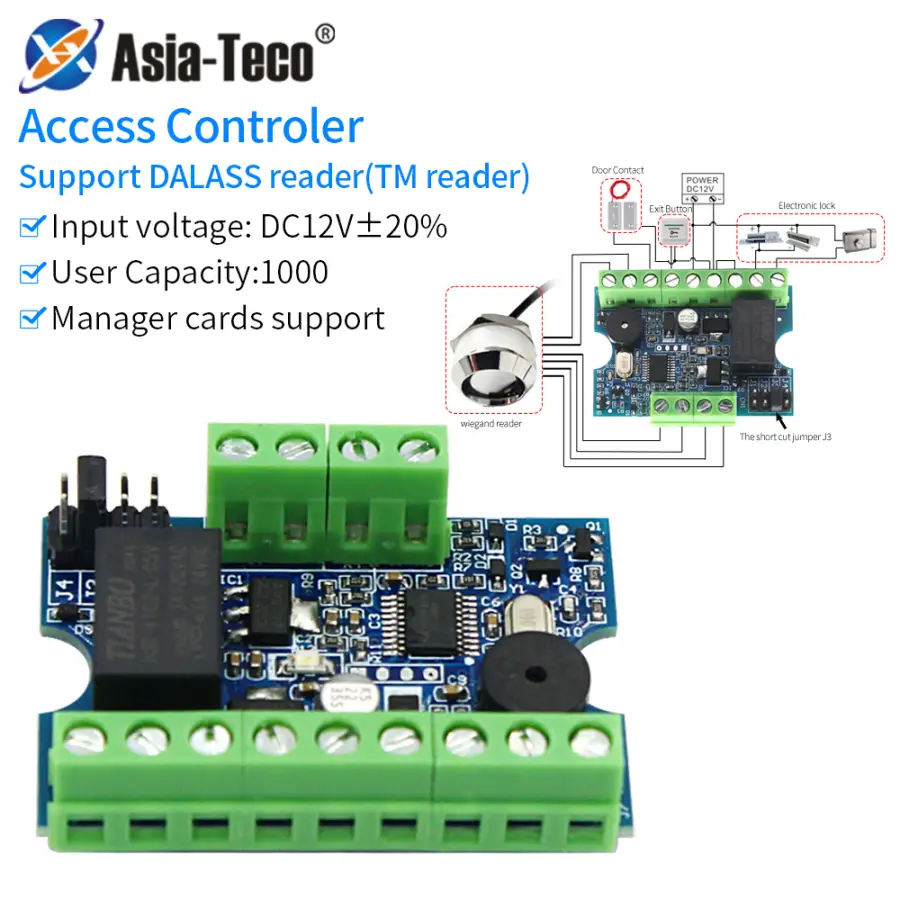

This access control is standalone access control which designed for single door. Support 1000 users and could connect to external Wiegand 26-44 RFID reader or Touch memory reader.
It has two manager cards and could connect to any kinds of locks and exit button. Easy installation and operation.

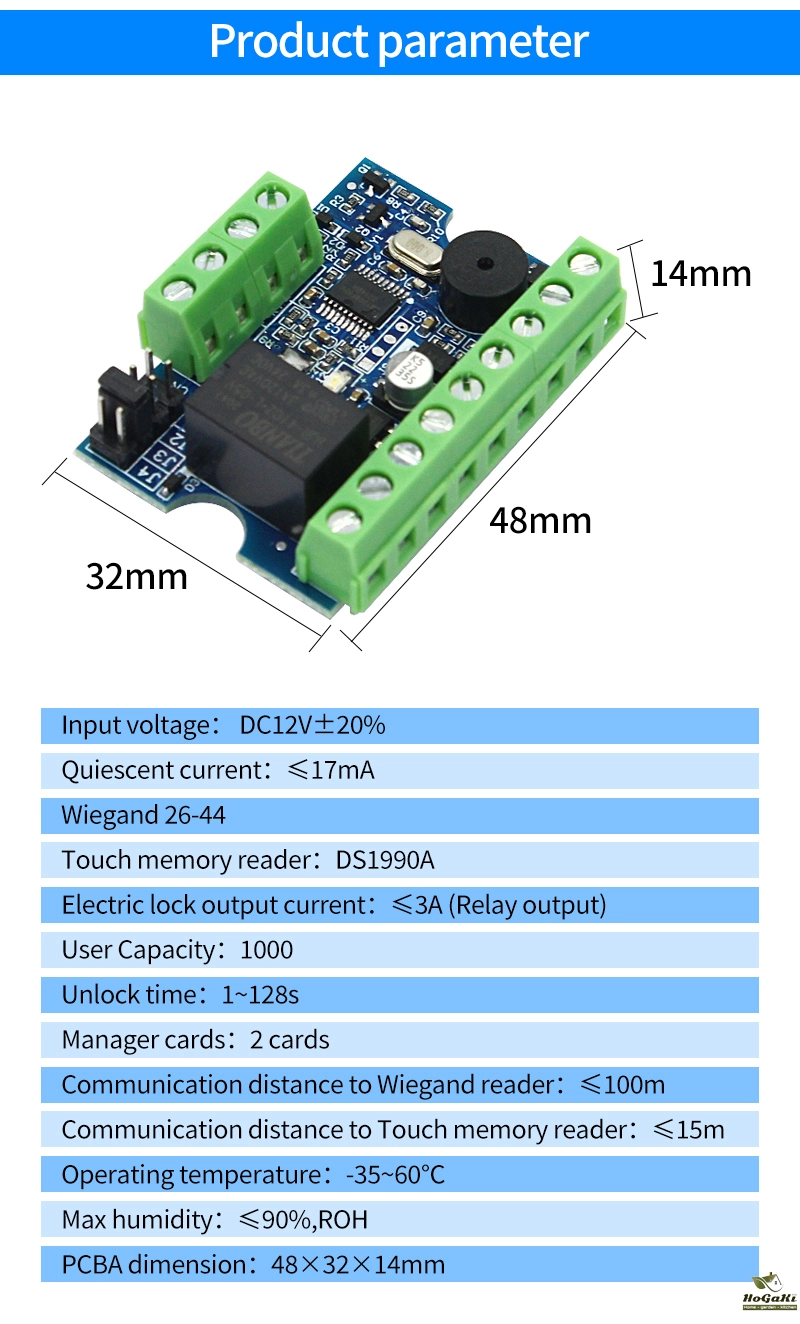

Technical parameters
Input voltage: DC12V±20%
Quiescent current: ≤17mA

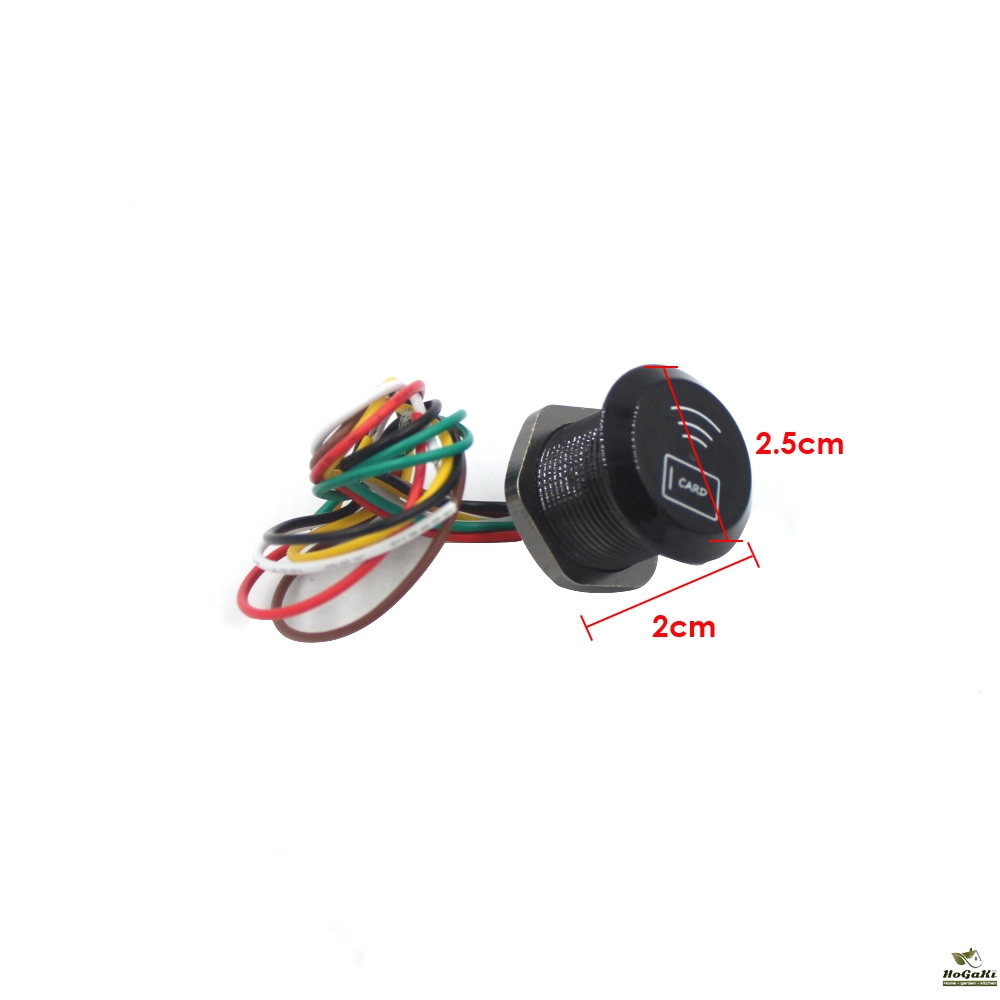

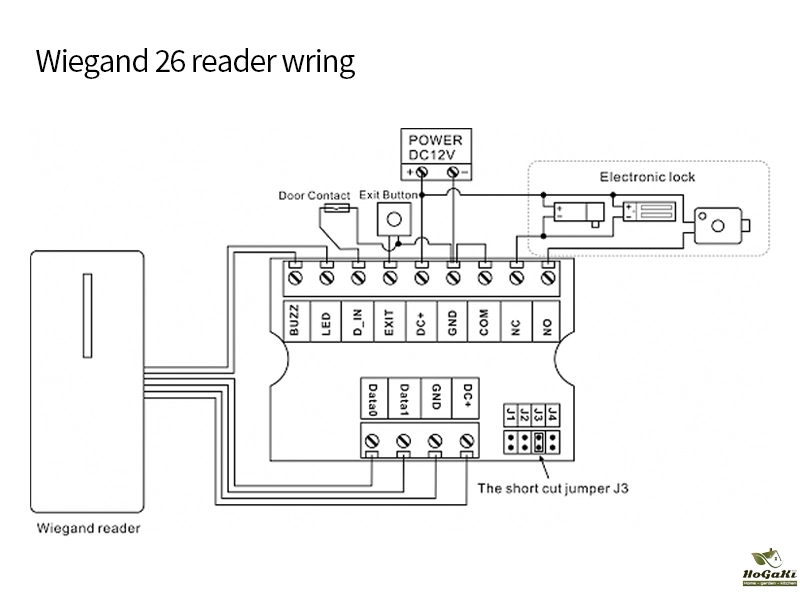

Wiegand 26-44

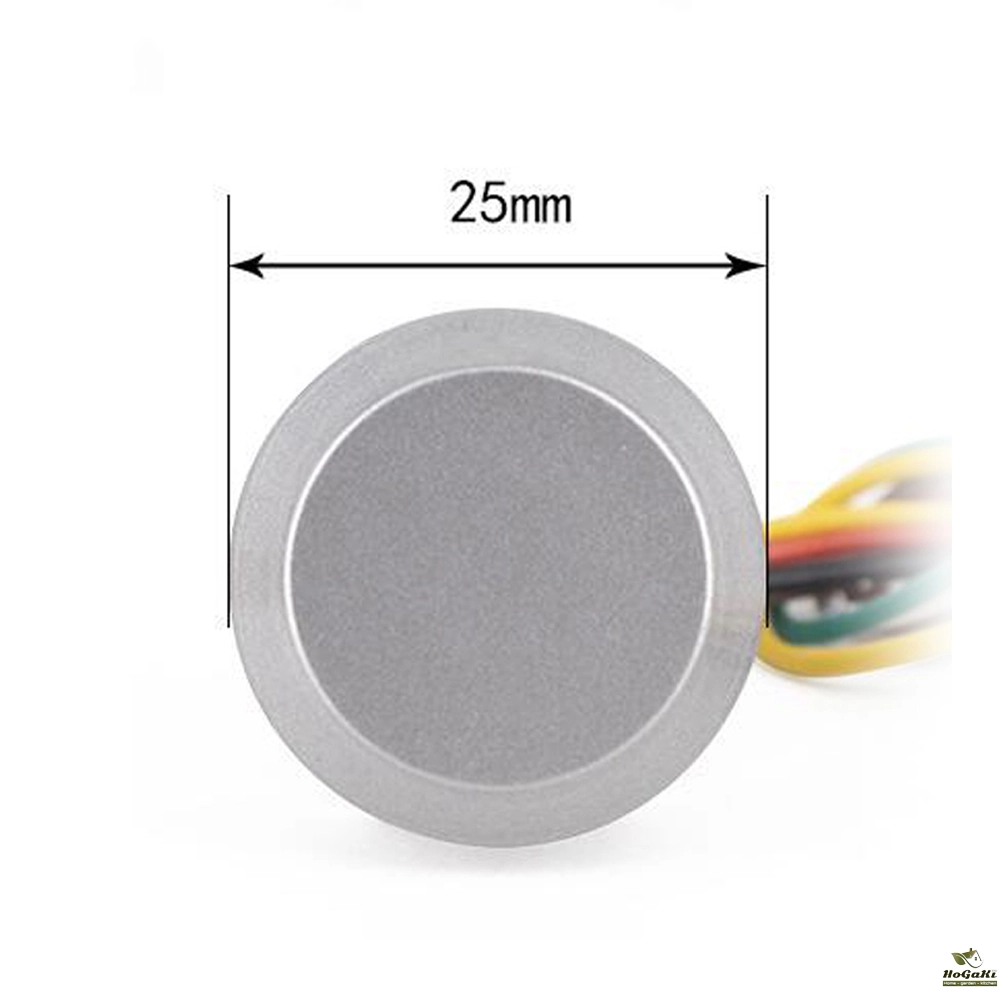

Touch memory reader:DS1990A
Electric lock output current: ≤3A (Relay output)
User Capacity:1000
Unlock time: 1~128s
Manager cards: 2 cards
Communication distance to Wiegand reader: ≤100m
Communication distance to Touch memory reader: ≤15m
Operating temperature: -35~60℃
Max humidity: ≤90%,ROH

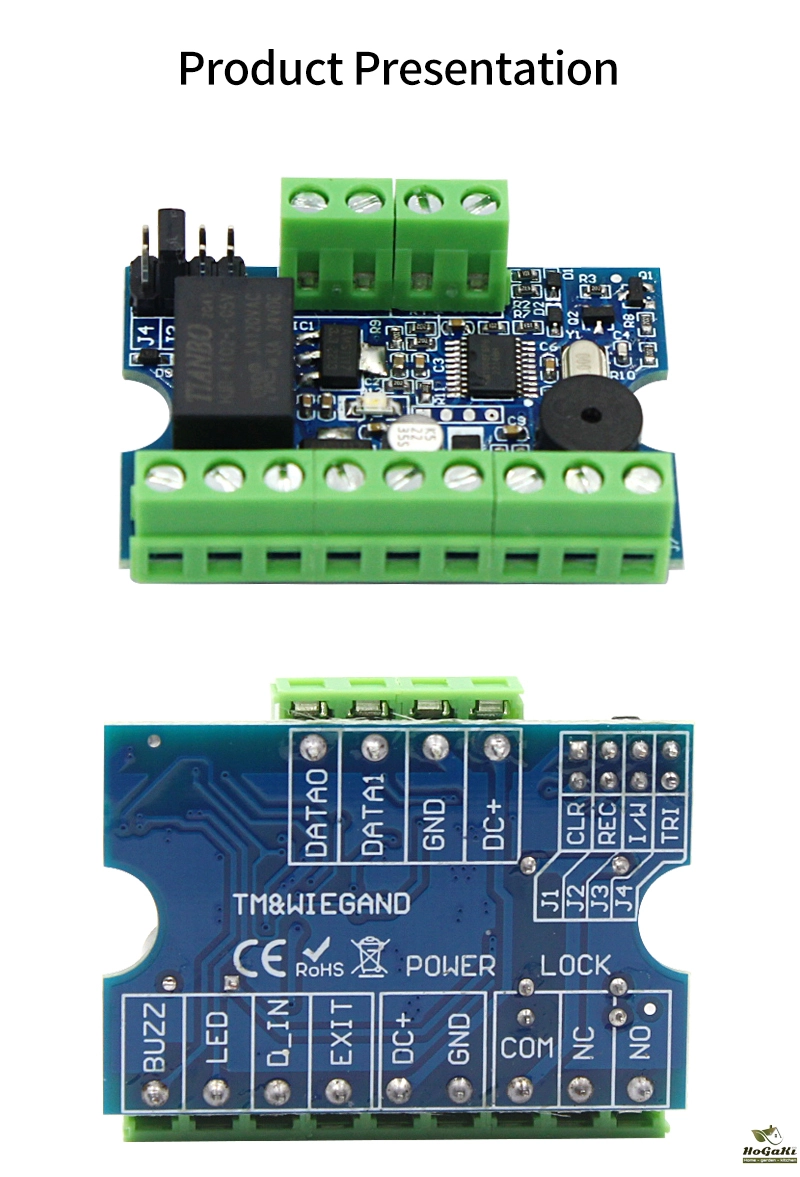

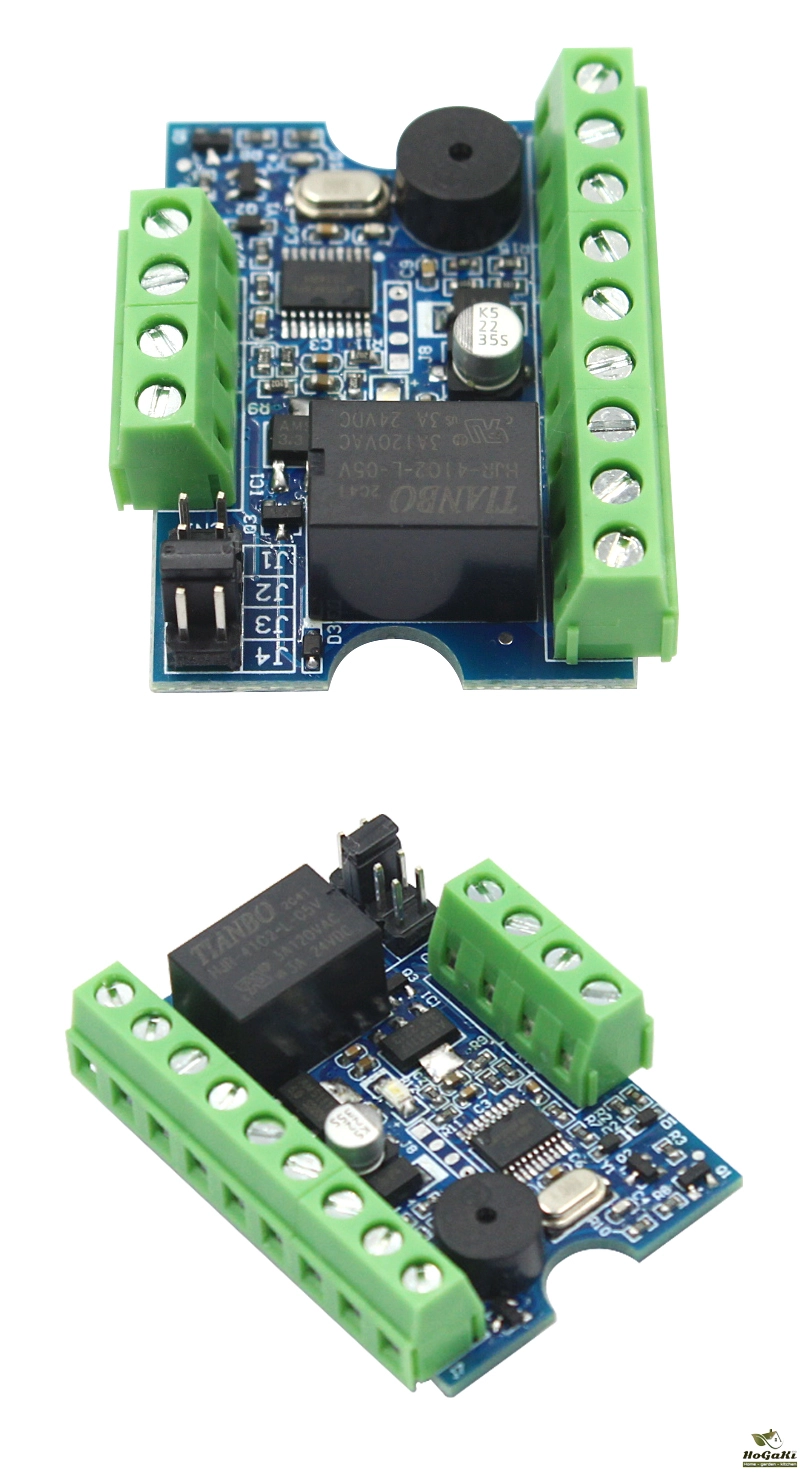

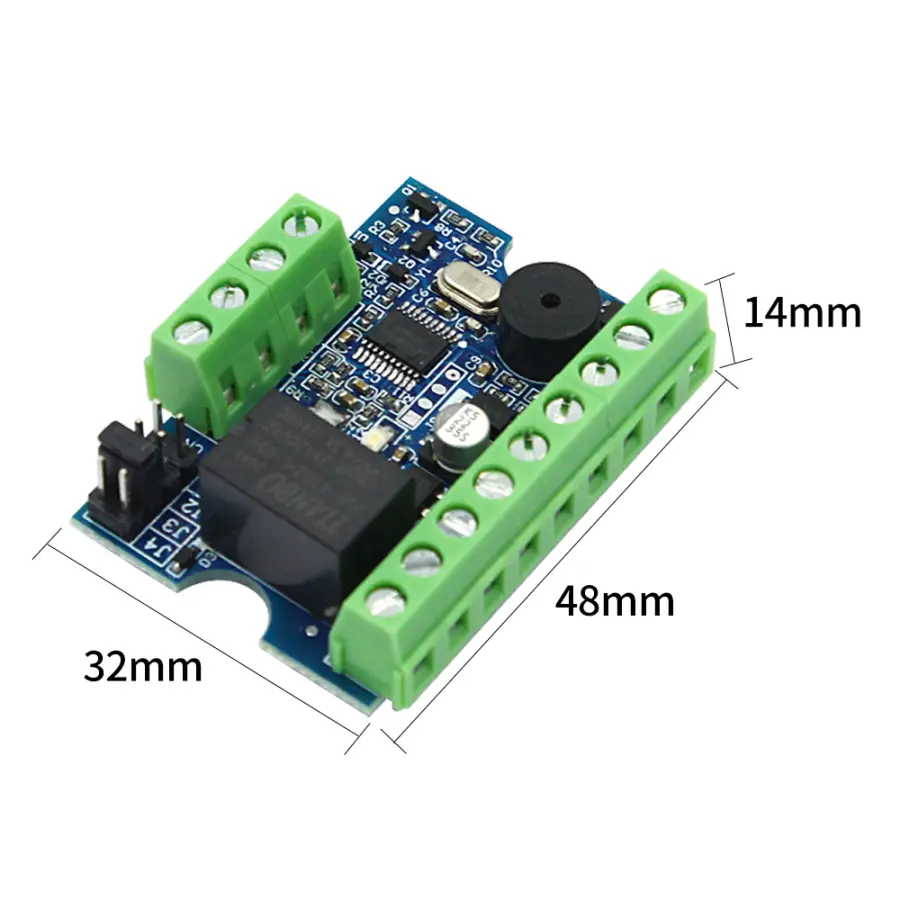

PCBA dimension: 48×32×14mm
Packaging Details
- Unit Type:
- Package Weight: 0.3
- Package Size: 8x4x10
- Brand Name: Asia-Teco
- Origin: Mainland China
- Model Number: TM-DALAS
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Direction: None
- Security Mode: Fail Safe with Signal
- Choice: yes
