NEW 2800W ZVS Induction Heater Induction Heating Machine Metal Smelting Furnace Metal Quenching Equipment+crucible+Heating coil
0.0 (1 votes) | 1 orders
Price:
US $1488.08
/ piece
Discount Price:
US $
1137.62
/ piece
-24%
2800W ZVS Induction Heater Induction Heating Machine Metal Smelting Furnace Metal Quenching Equipment+crucible+Heating coil
This product is a small power induction heating machine with AC110V-220V power supply. It can be used for
heating and quenching of small iron metal materials. It can be used with 70mL graphite crucible to reach a
maximum temperature of 1600 degrees Celsius. It can easily melt iron, copper, gold, silver and aluminum.
metal.
Feature：
1. It adopts integrated metal shell design, which is convenient to use and carry, and has good heat dissipation;
2. Integrated power supply to avoid complicated wiring;
3. The heating ring is wrapped with high temperature insulation material to prevent short circuit during
heating, and the heating ring can be removed and replaced to customize a specific heating ring;
4. Integrate the internal water cooling circulation system to prevent the heating coil from overheating;
5. The top two high-power fans are used for heat dissipation;
6. Add a current overload protection switch to trip the protection circuit in case of overload;
7. Large LCD screen display system's various operating parameters, including voltage, current, power,
motherboard temperature, etc., and can be easily switched in Chinese and English.
parameter:
1. machine size： 380*140*210 mm;
2. Heating ring size: 70*60*73 (inner diameter * outer diameter * high);
3.crucible size:57*87mm
4. Input voltage: AC110-AC220V 12A;
5. DC working voltage: 48V (internal power supply voltage is the apparent voltage);
6. Maximum DC operating current: 50A
7. Direct heating of metal iron up to 800-900 degrees Celsius
8. Use crucible maximum temperature 1700 degrees Celsius

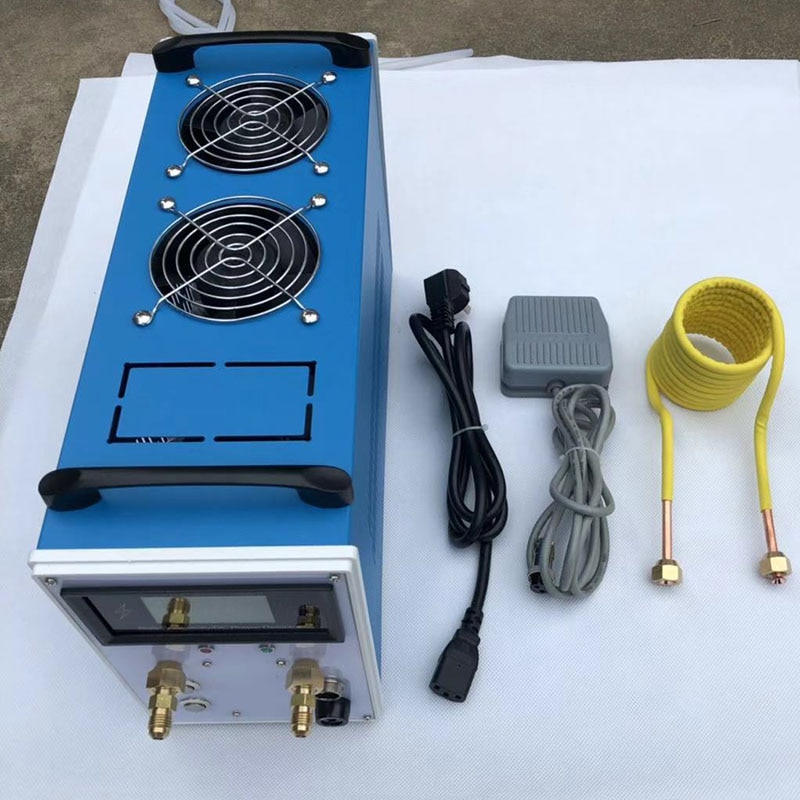

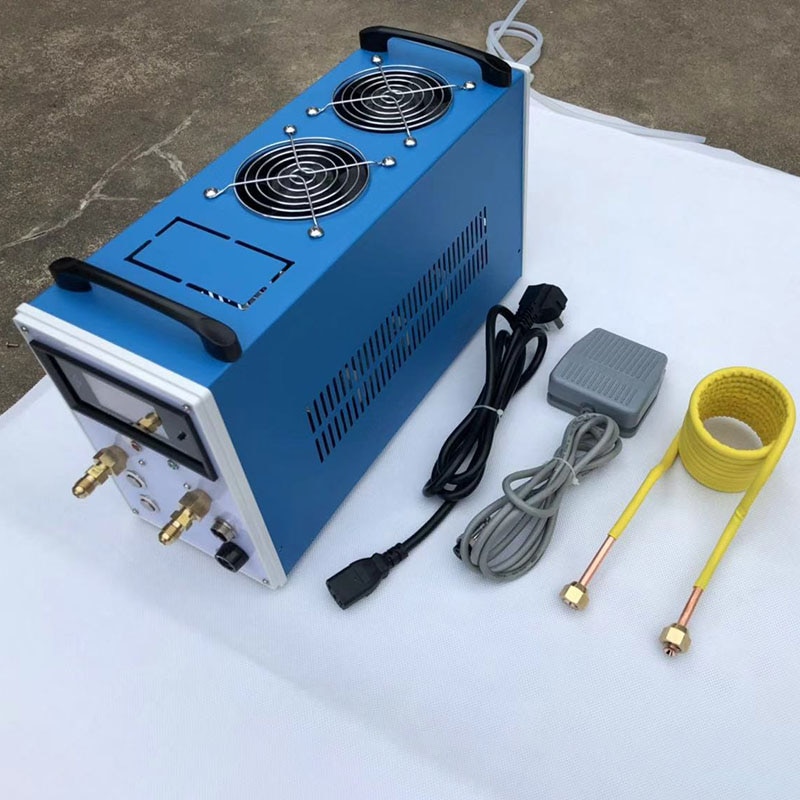

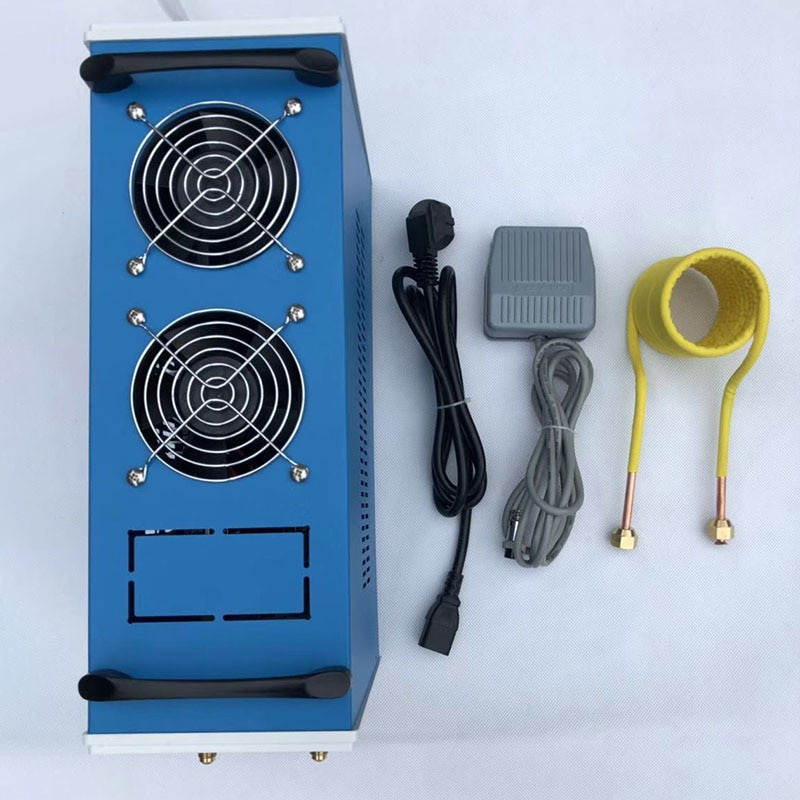

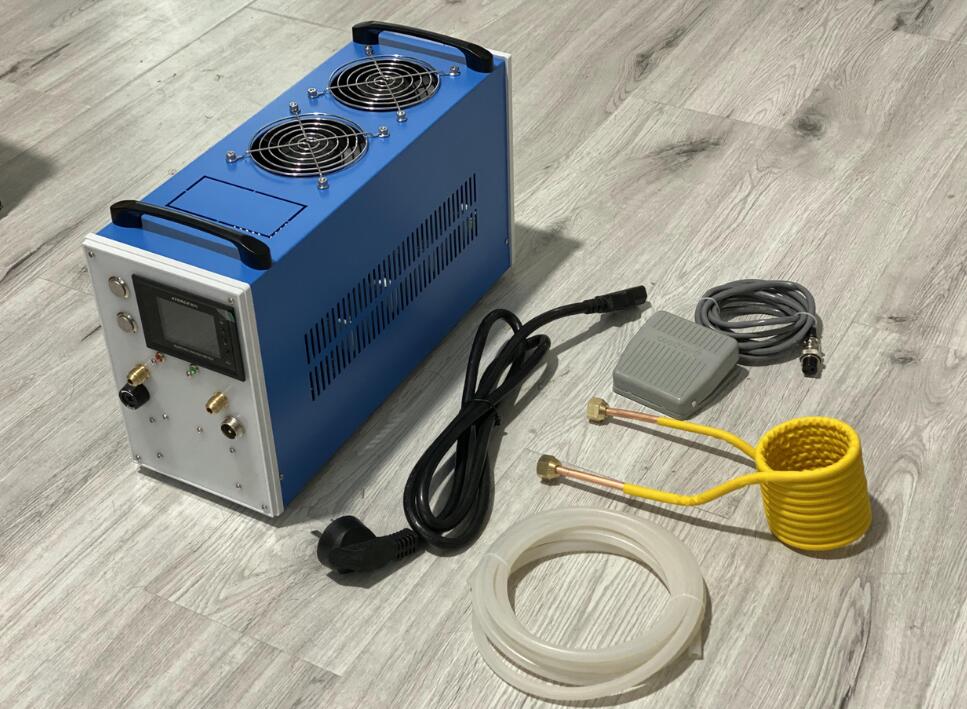

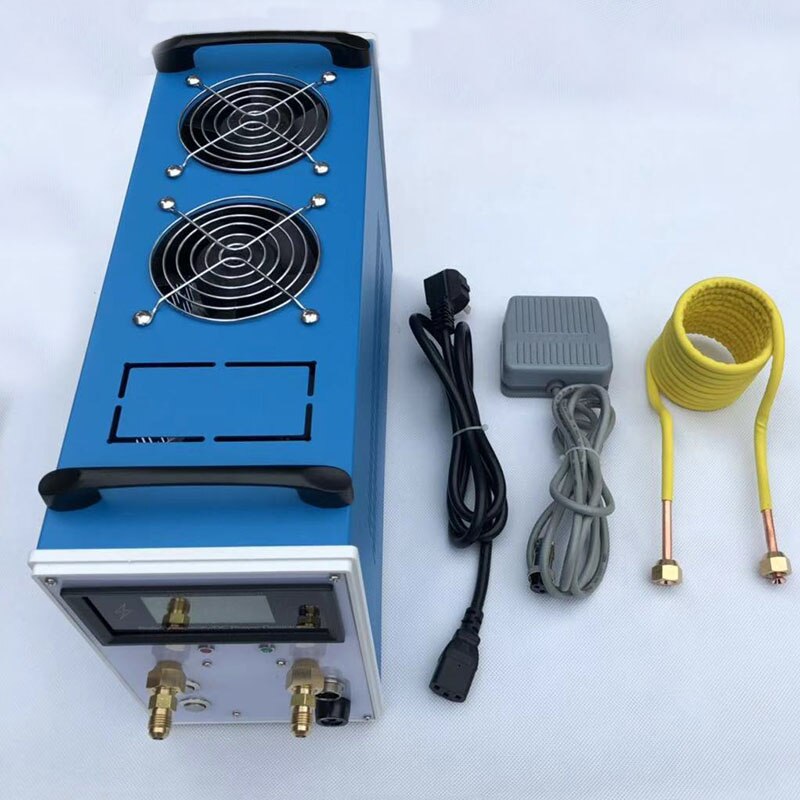

packing:
machine 1pcs
Heating coil 1pcs
crucible 1pcs
Foot switch
Precautions:
1. The boot sequence should follow the first turn on the main power switch. After waiting for a few seconds,
you can see that the fan and the pump are working normally. When the voltage is displayed as 48V, you can
turn on the inductive heating switch on the back. Do not operate incorrectly, otherwise it will be directly Burn
out the motherboard and no protection. Turn off the heating switch and then turn off the power switch when
shutting down. If the shutdown is not used for a period of time, the total power supply should be turned off
after the heating switch is turned off for one minute, so that the cooling system will cool the system and
increase the service life;
2. Work must be water-cooled and air-cooled at the same time. If any one of them does not work, immediately
disconnect the power supply and contact the manufacturer for a solution;
3. If the conditional water cooling can be directly discharged by using cold water and hot water, the circulation
method is not adopted, so that the heat dissipation effect is better;
4. Long-term use of antimony should be prepared, graphite high-temperature heating will react with oxygen
to form carbon dioxide and gradually consume it;
5. Always pay attention to the changes of various parameters of the display, especially the voltage and current
and the temperature of the motherboard. Whenever an abnormality is found, the power must be disconnected
immediately.
6. When using at high power, it is normal for the operating noise of the heat dissipation system to be relatively
large.
- Power: 2800W
- Model Number: 2800W
- Origin: Mainland China
- Certification: CE
