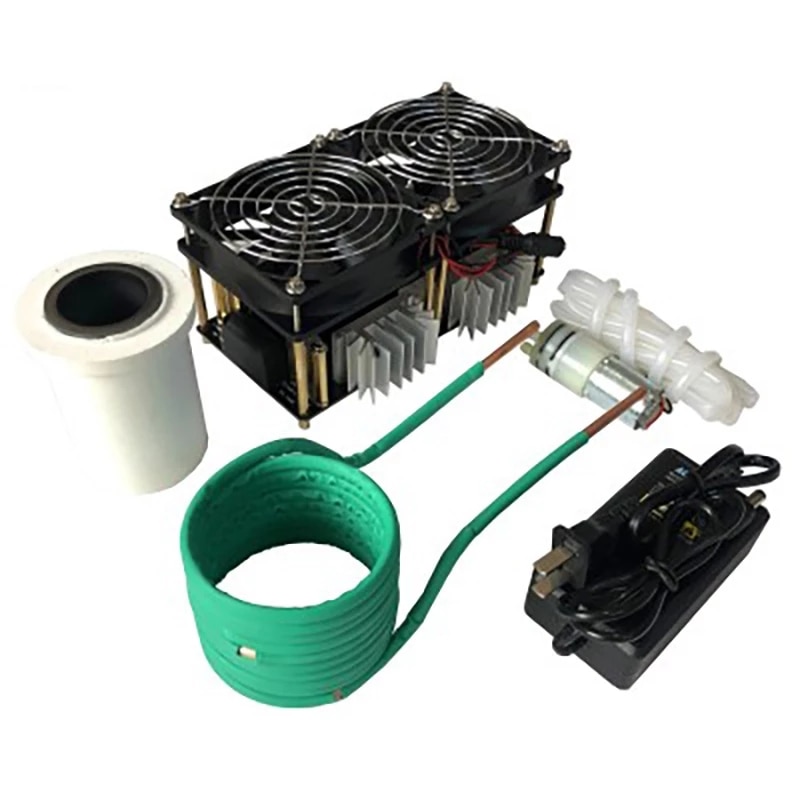

ZVS Induction Heater 2500W Induction Heating PCB Board Heating Machine+Heating Coil+70mL rucible+Pump+Power Supply
480.75 399.81 $
SALE
ID: 59430
Quantity
2500W ZVS Induction Heater Induction Heating PCB Board High frequency Heating Machine Melted Metal + Coil Mayitr+ Crucible+Pump
5.0 (1 votes) | 1 orders
Price:
US $258.86
/ piece
Discount Price:
US $
217.46
/ piece
-16%
- Color
-
-

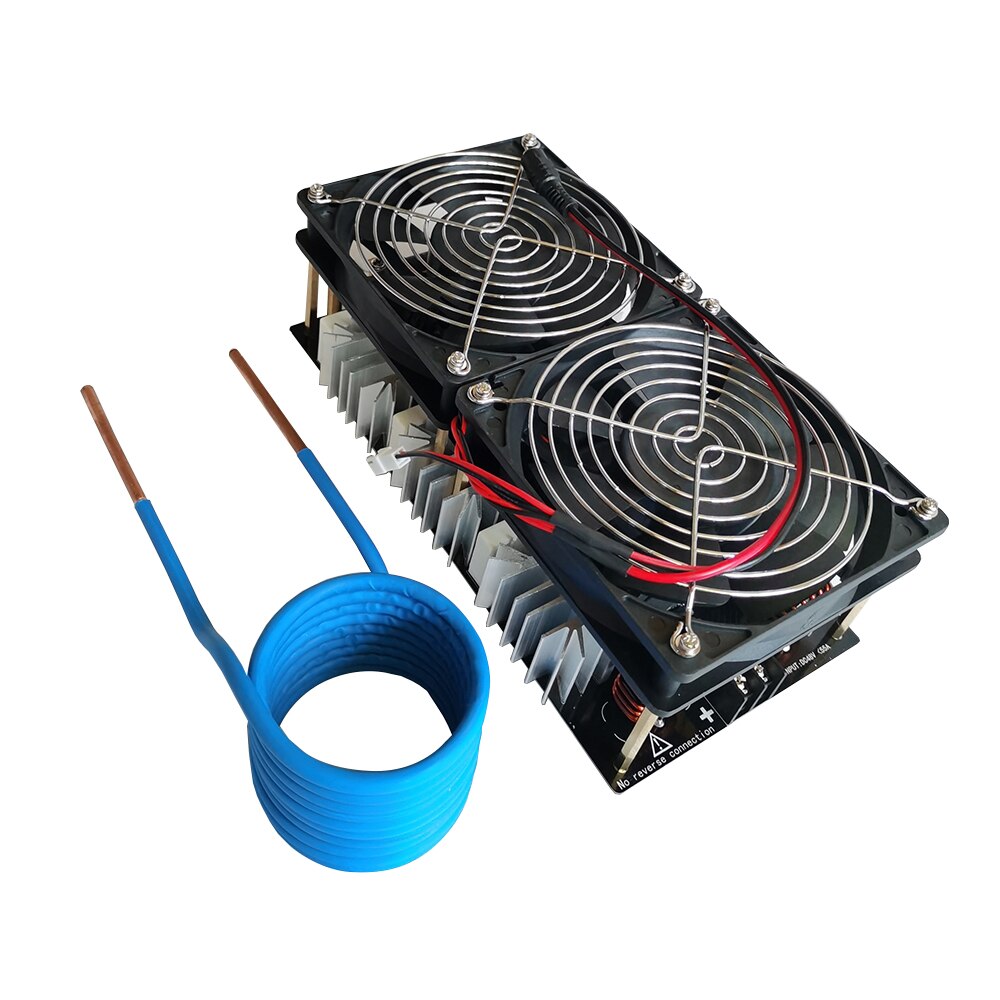

2500W ZVS Induction Heating Board induction heater High frequency heating machine Melted metal + Coil Mayitr+ crucible+Pump
Product size: 120mm * 240mm*85mm
Input voltage: 12V-48 recommended above 36V
Power requirements: less than 12V ≥ 10A 15V or more ≥ 20A
Maximum power: 2500W
Maximum current: 50A

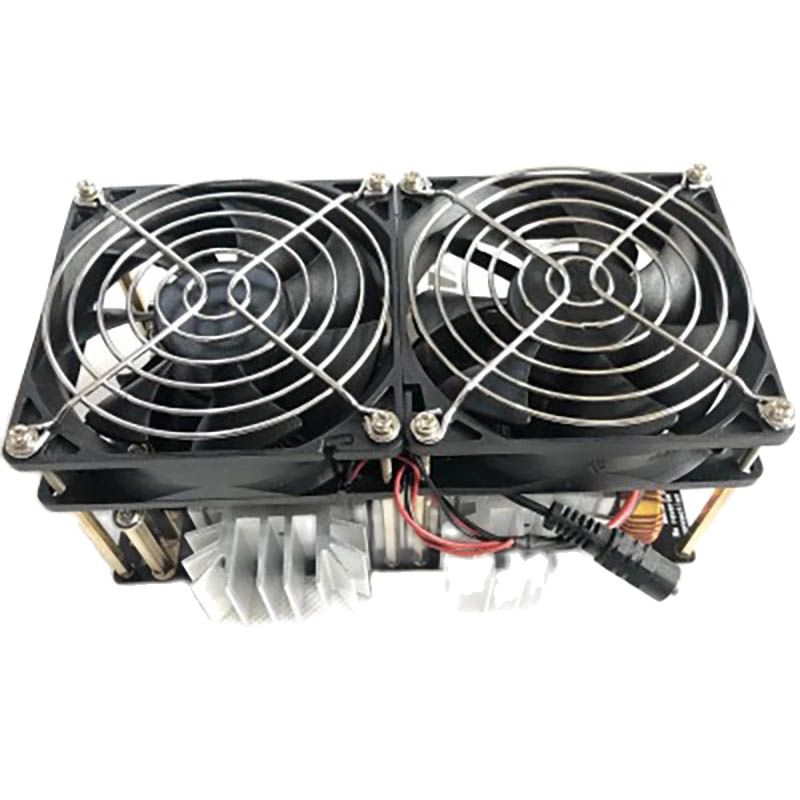

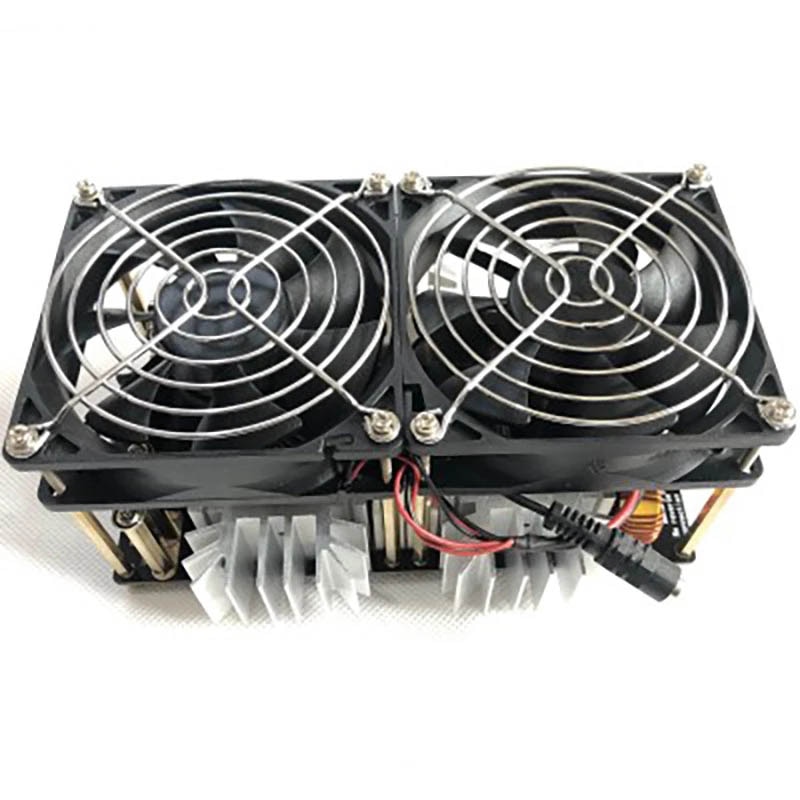

Adopted super PCB layout design and super heat sink, heat dissipation good.
With a cooling fan interface, can also do Tesla discharge, generator voltage inverter, etc.
It can work continuously under the condition of good heat dissipation.
It can be used by DIY players to give smaller players the parts can be treated by quenching,
annealing and other heat treatment.
You can also be melted with graphite crucible Kim, Silver, Copper, aluminum and other
metal,heating evenly, is fast and very convenient.
Fine workmanship and good performance.
Easy to use.
Long service life.

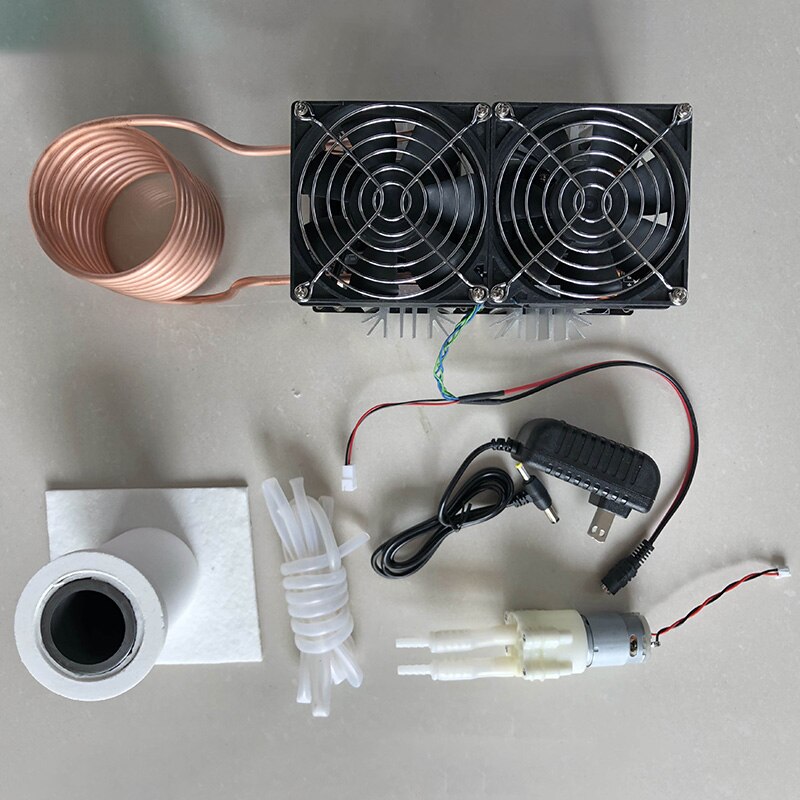

· 1 x PCB Board
· 1 x 48V Copper Tube

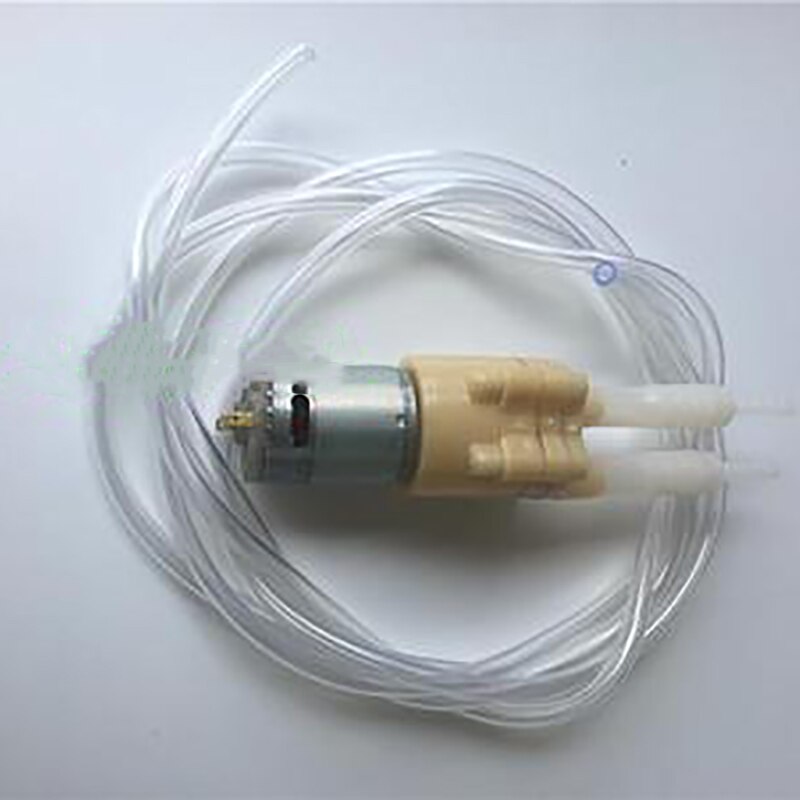

· 1 x water pump

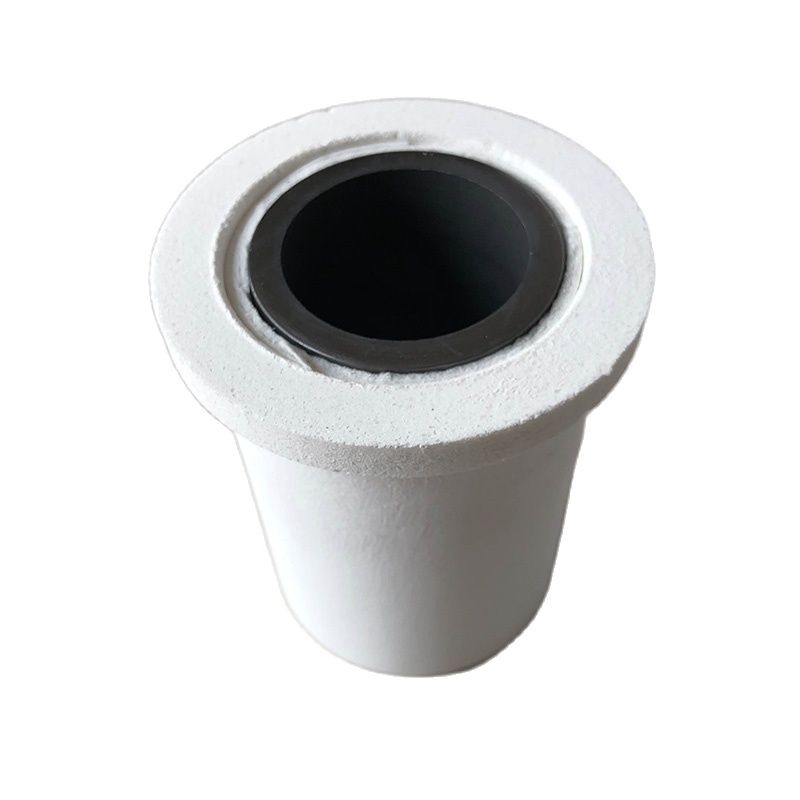

· 1 x crucible（57×87mm）
Note:
· The power of heating is very large, except that the plate and components are hot, and the
heat of copper tube is very high. The buyer can prepare water cooling system separately, can
buy a small water pump and 2 meters of inner diameter of 4mm rubber hose.
· You must pay attention to when using switch power supply, because the high-power
switching power supply usually have soft start function, namely the output voltage is slowly
rising, and if the voltage rise to 10V before connected induction heating circuit will be caused
by lacking voltage lead to circuit can't afford to vibrate, so that the two MOS tube conduction
and burned components at the same time, so be sure to switch the power supply voltage
stability and then access the induction heating circuit.
· When heating the metal objects do not to heat too large metal, otherwise it may be
overloaded with power, please add a 35A fuse or ammeter and air switch will be better(not
includes).
· Although this drive plate can withstand more than 40A current, but it is recommended that
not exceed 48V 35A to prevent accidents and damage.
· Package comes with heating circle diameter is 60 mm, design voltage is 36V, if you use more
than 40 voltage power supply shall be used for inner diameter 70 mm above diameter heating
ring,water pump use 12V dc power supply, please use separate power supply voltage regulator
module to avoid burn out fan and water pump.
· The minimum input voltage of the module is 12V, it doesn't mean all the 12V power supply
can be used, some novice buyers may use a smaller power supply. This module has specific
voltage and current requirements, the voltage 12V current must be more than 10A power
supply can be used, if the power is too low will lead to the power output is greatly reduced,
when the voltage is lower than 12V, it will lead to two MOS at the same time conduction, will
burn MOS tube.
· If you find that the MOS tube fever, then the first thing to consider whether the power
output meets the requirements.
· Do not empty the board, otherwise it will issue a very high frequency of noise, and then MOS
tube will burn out.
· Induction heating is recommended to use 36V 20A power supply, 12V power supply is too
small heating almost no response, and 12V power supply easily lead to the power supply
output voltage decreases, below 12V is very dangerous
· Induction heating power is great, so fever is normal, be sure to do a good job of cooling.
· Induction heating, the power recommended more than 48V 50A switching power supply.
More than 24V power supply, then more than 20A power supply, the greater the voltage, the
greater the current, the greater the heating power, heating faster.
· Please allow 0-1cm errors due to manual measurement.
We are not responsible for any custom duty or import tax, it is buyer’s responsibility.
- Power: 2500W
- Voltage: 48V
- Model Number: ZVS
- Origin: Mainland China
- Certification: NONE
