MPPT Solar Controller 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium LiFePO4 Titanate Battery Charger Module Battery Charging Board
4.9 (174 votes) | 900 orders
Price:
US $22.04 - 28.20
Discount Price:
US $
12.23 -
15.07
-45%
- Color
-
-

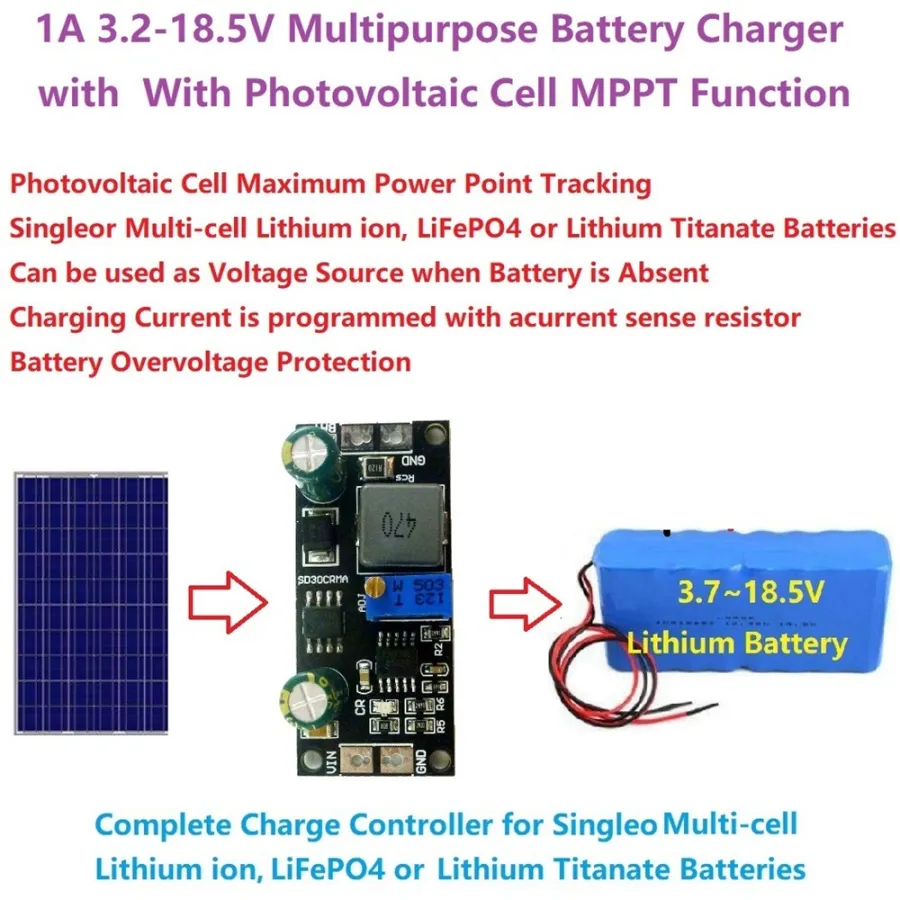

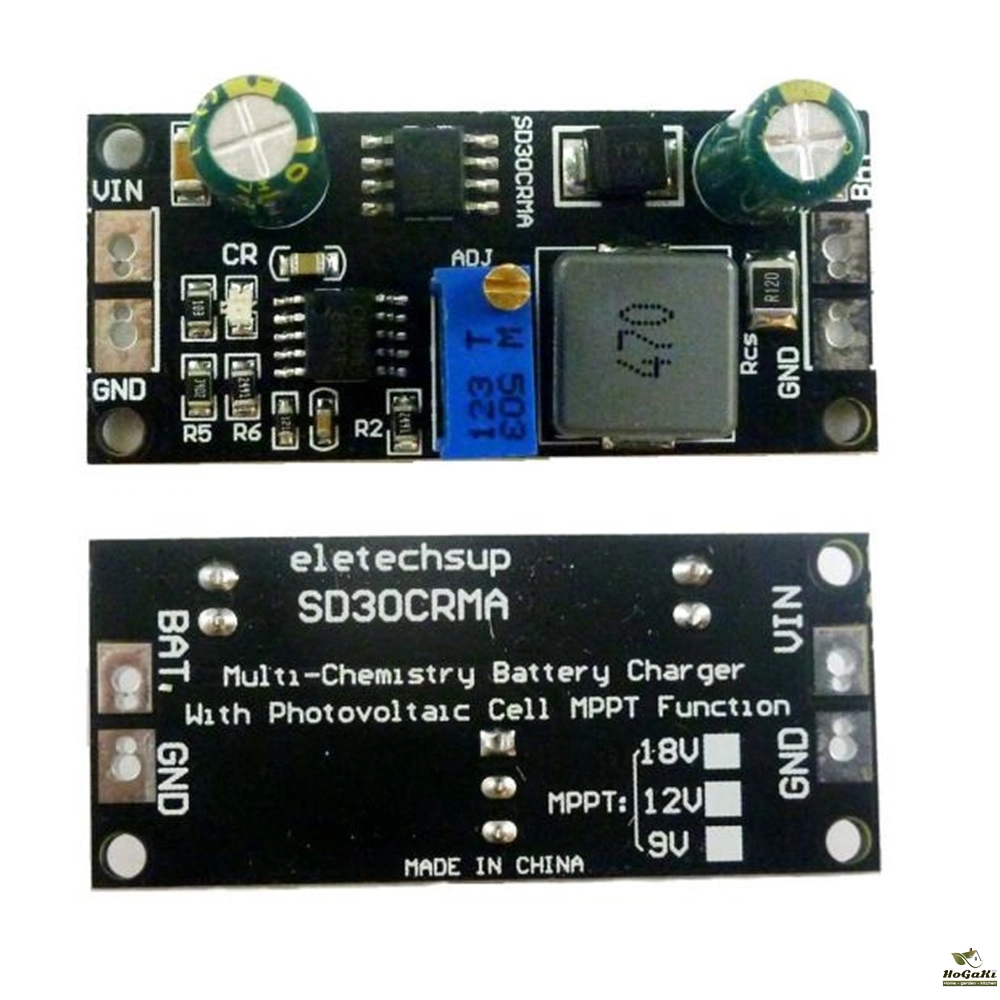

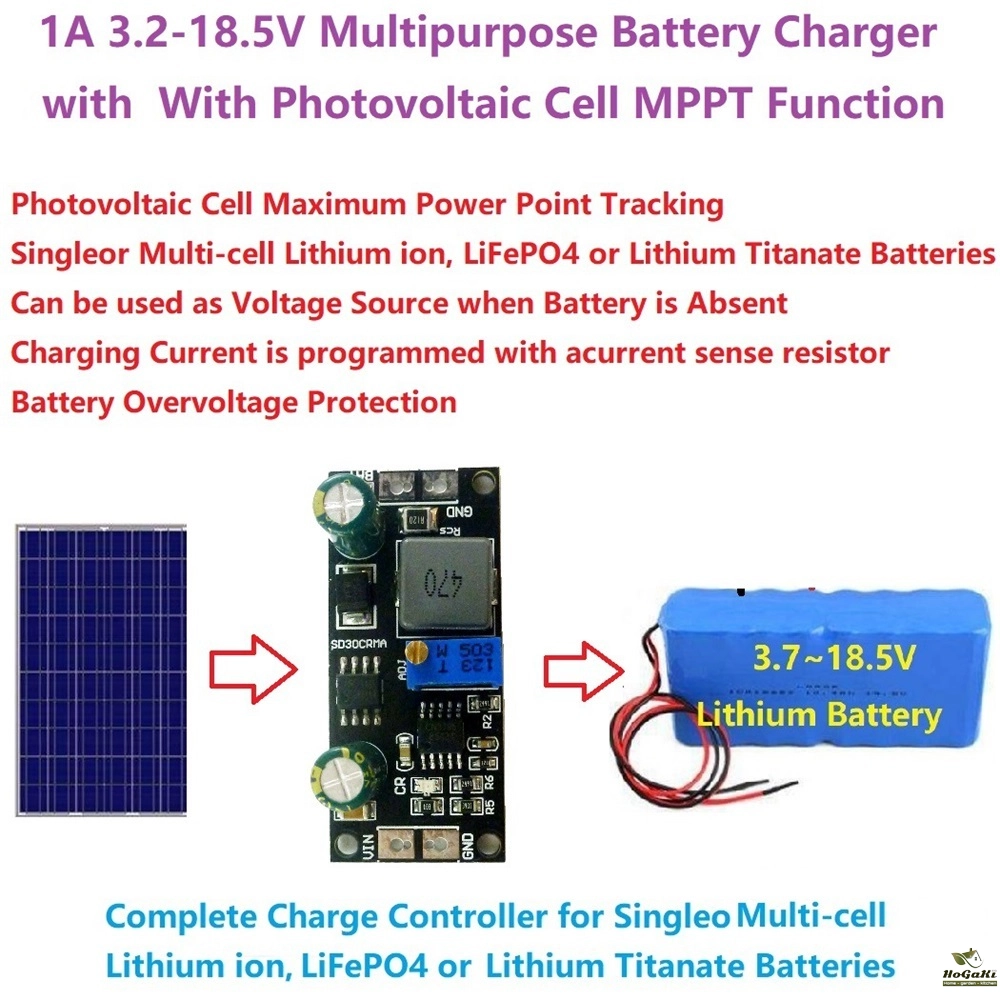

MPPT Solar Controller 1A 3.2V 3.7V 3.8V 7.4V 11.1V 14.8V Lithium LiFePO4 Titanate Battery Charger Module Battery Charging Board
Product selling point:
1. Using high-quality materials, the quality is guaranteed
2. Small size and exquisite appearance
3. Easy to use
4. Stable performance
5. Wide range of applications
parameter:

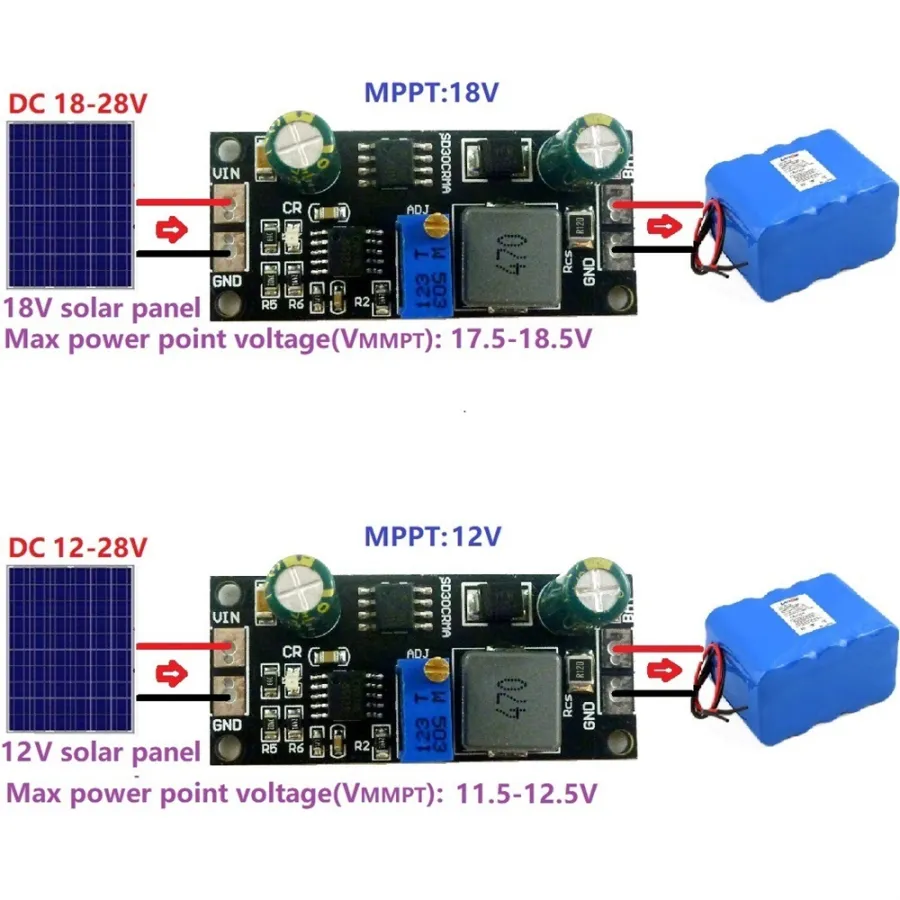

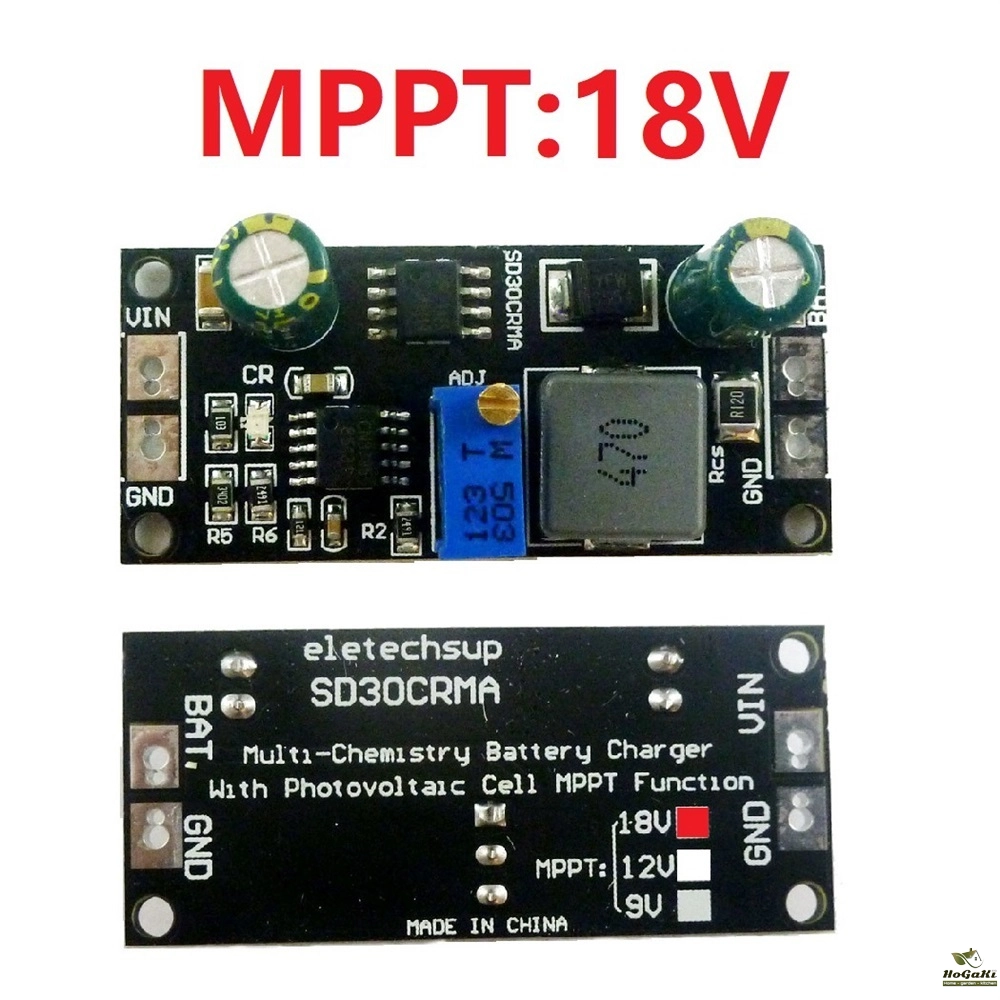

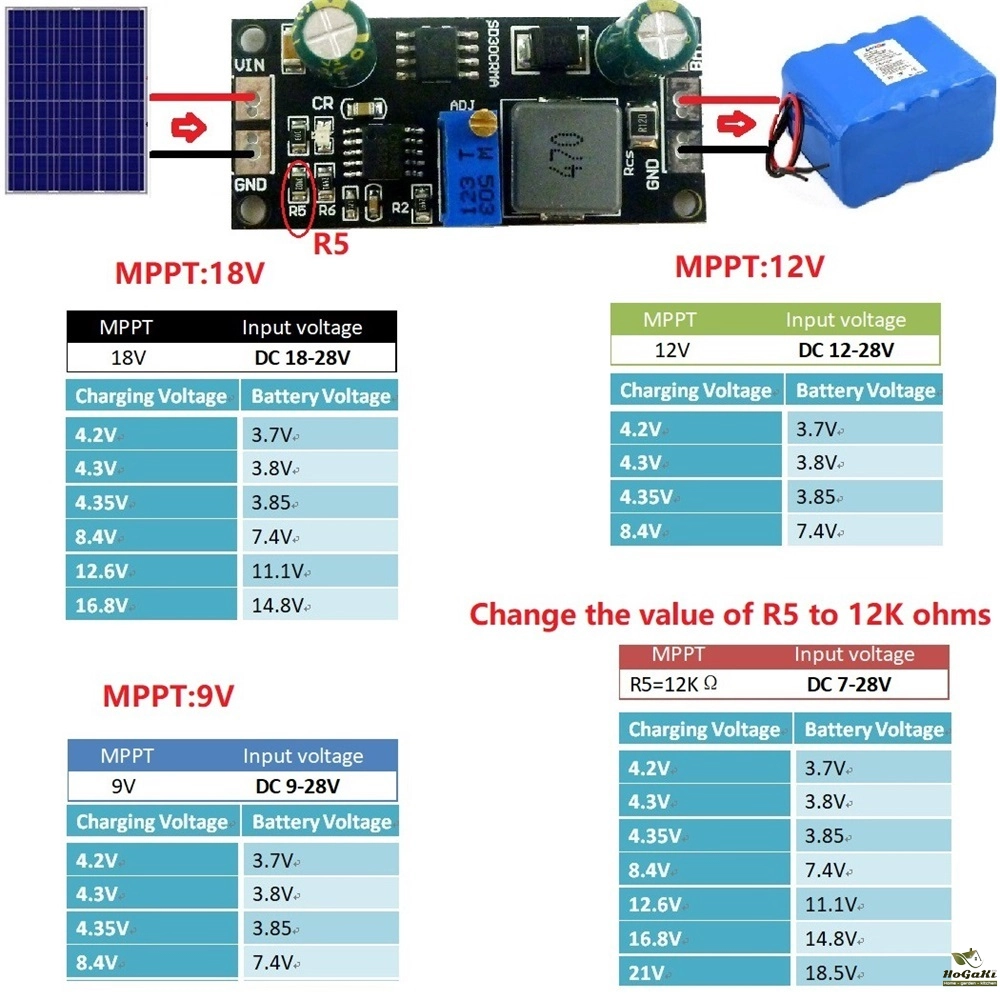

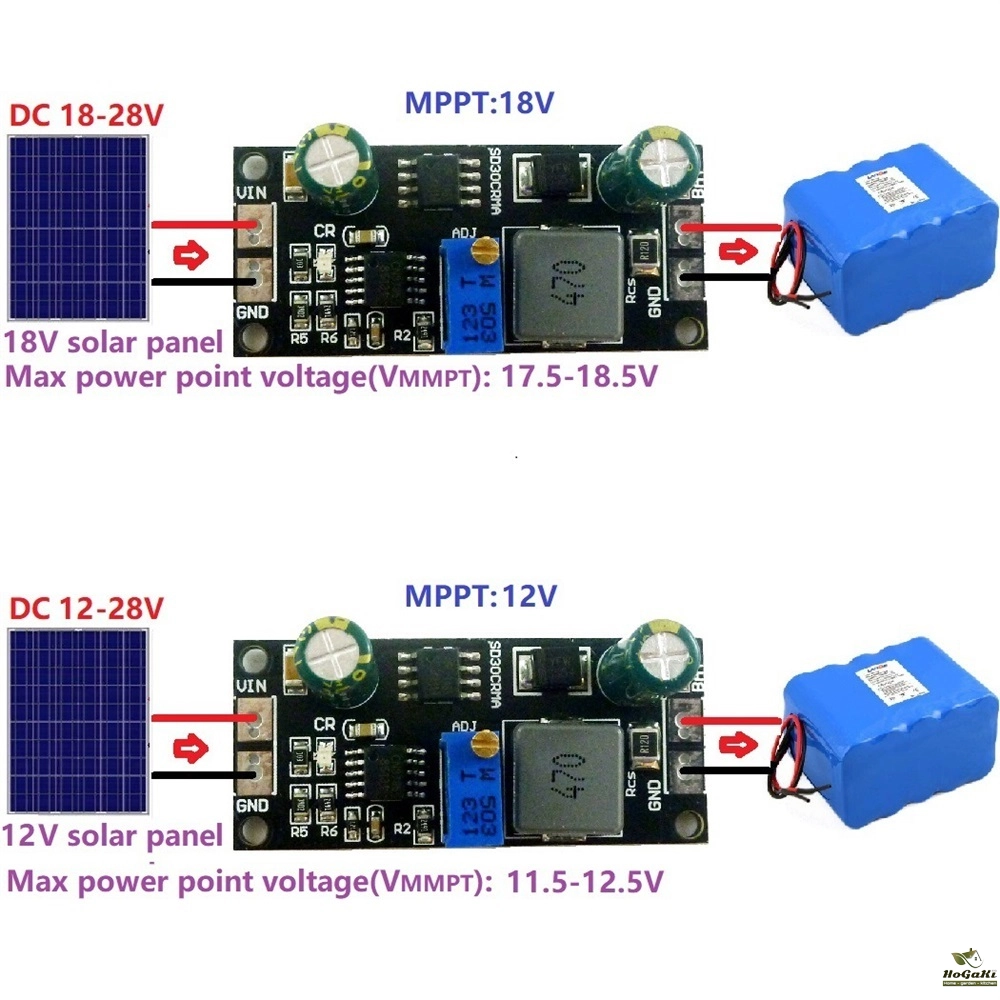

MPPT is 18V: input DC 18-28V, output DC 1.2-17V adjustable (3.6V 4.2V 4.3V 4.35V 8.4V 12.6V 16.8V)

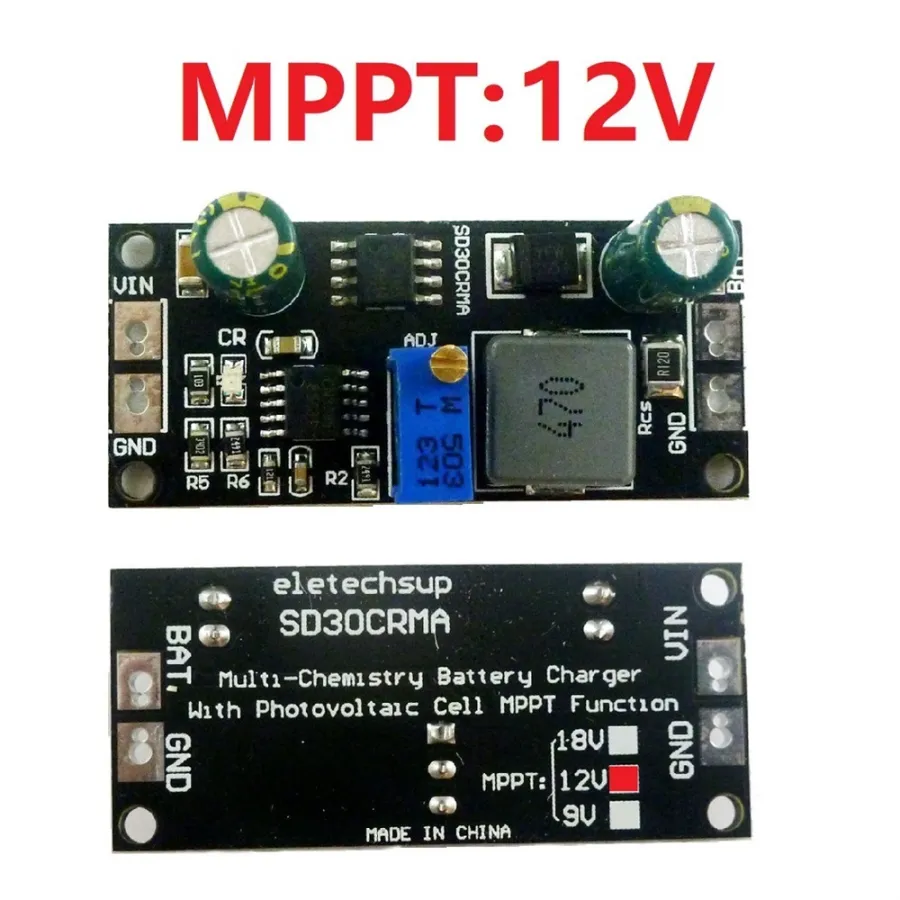

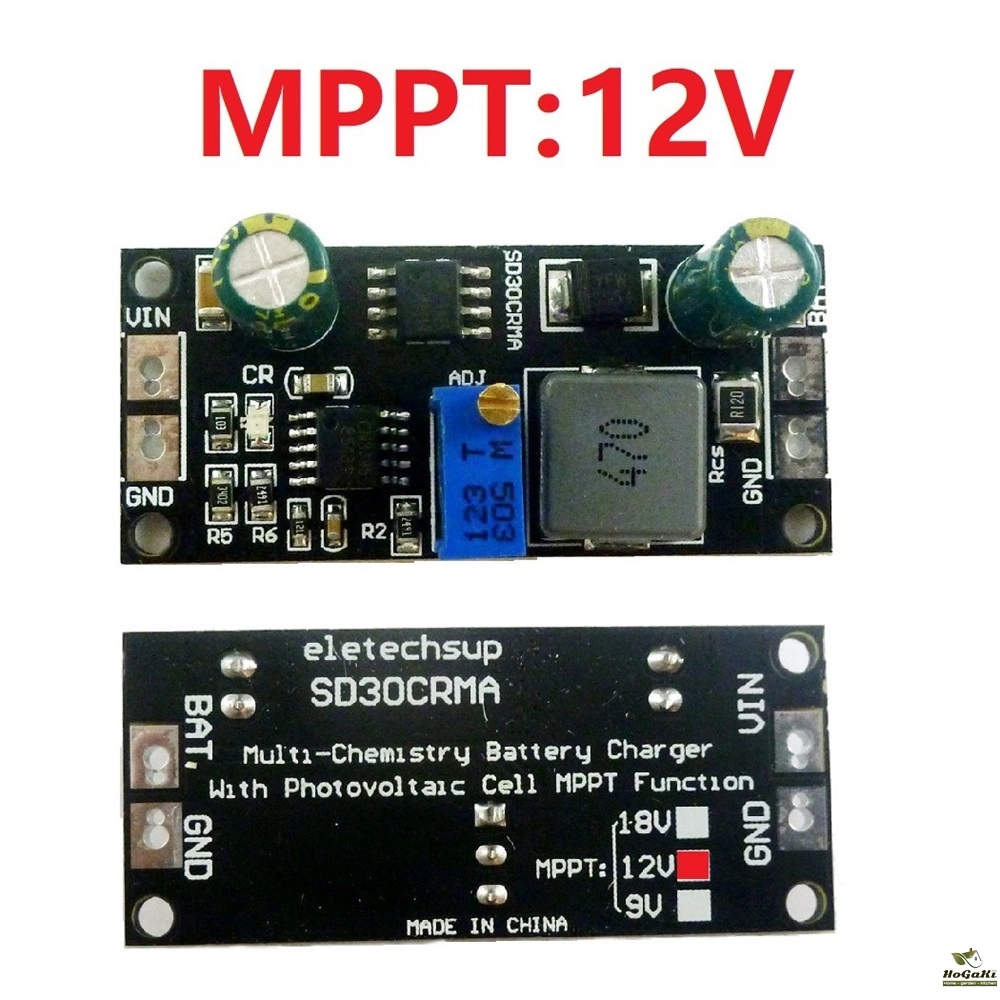

MPPT is 12V: input DC 12-28V, output DC 1.2-11V adjustable (3.6V 4.2V 4.3V 4.35V 8.4V)

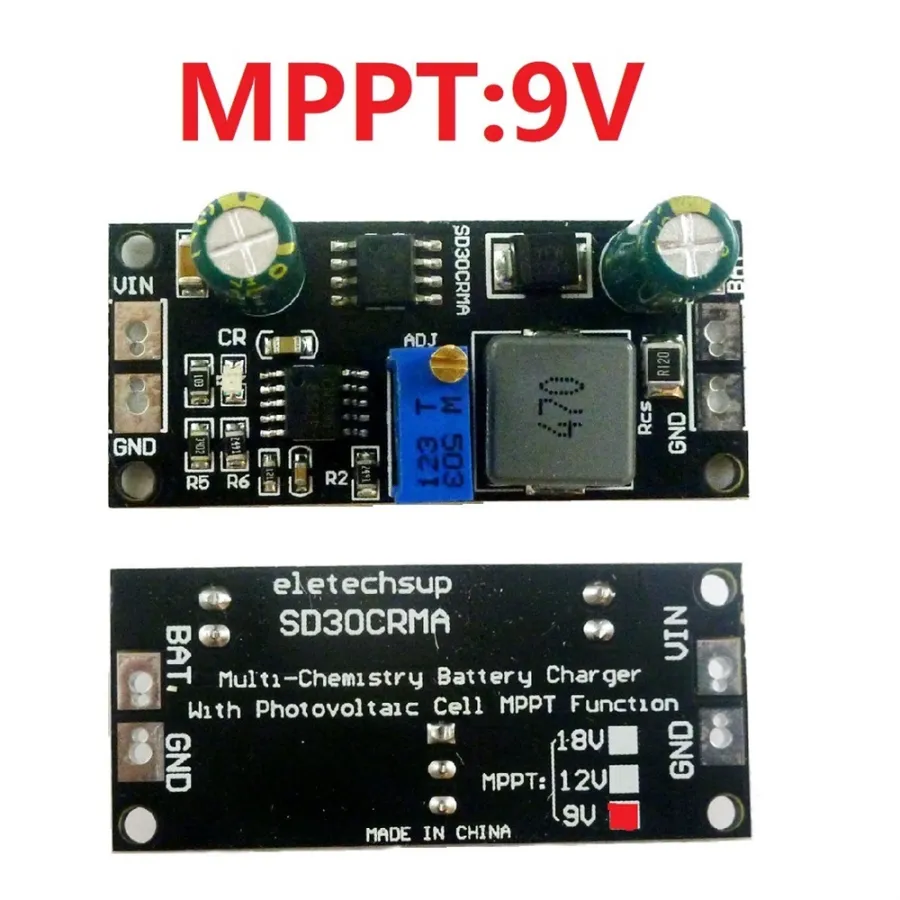

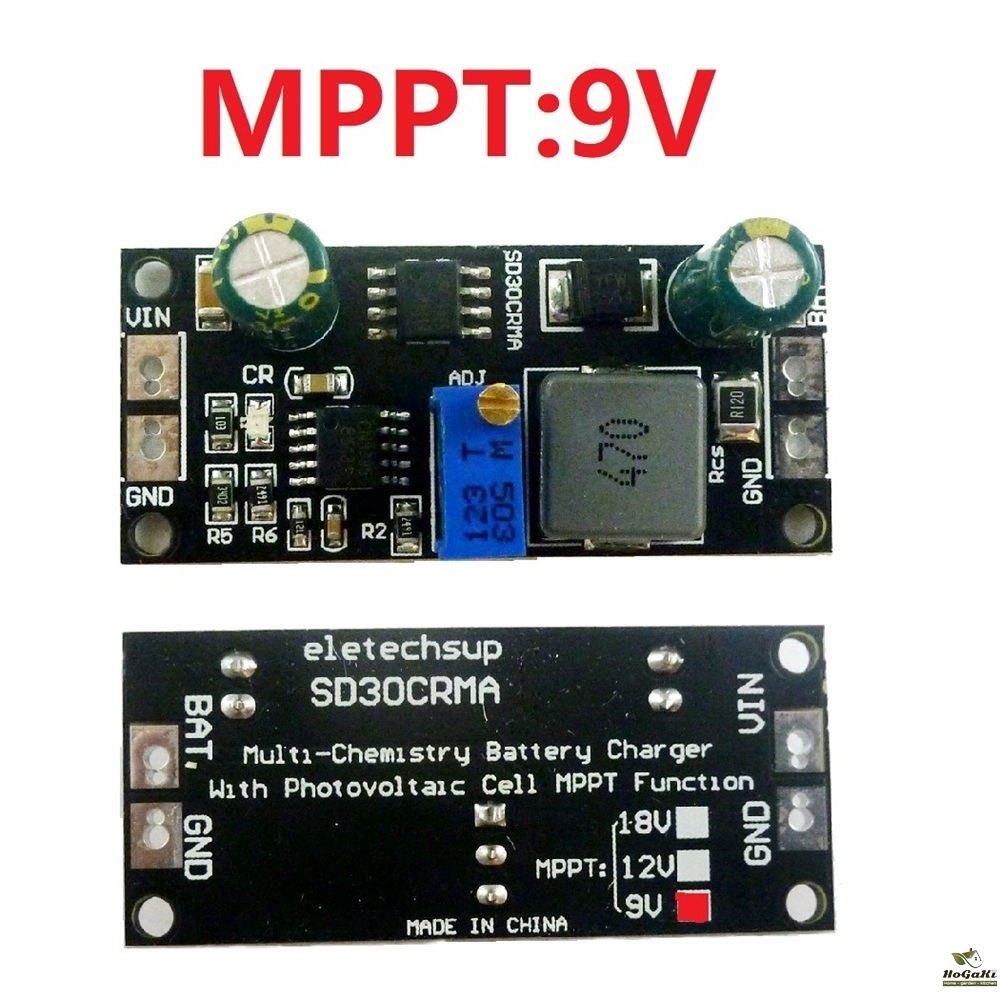

MPPT is 9V: input DC 9-28V, output DC 1.2-8V adjustable (3.6V 4.2V 4.3V 4.35V 7.2V)

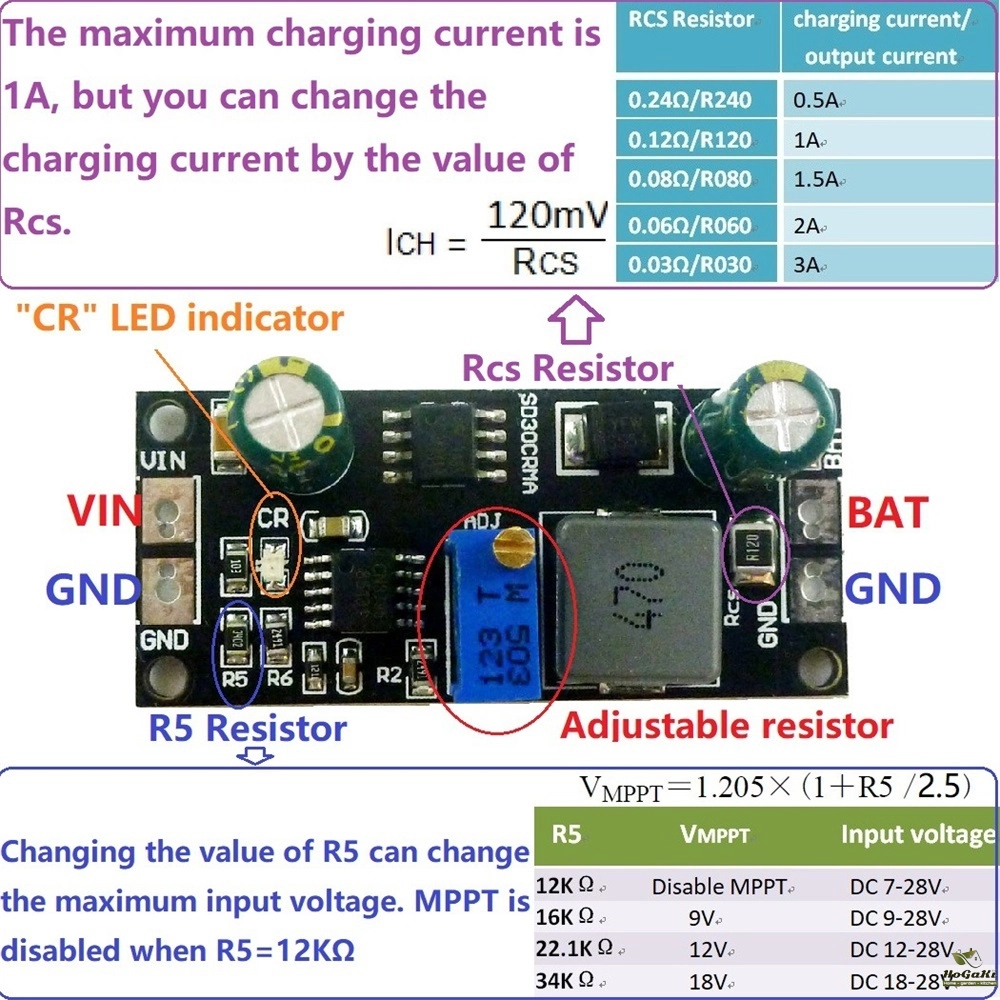

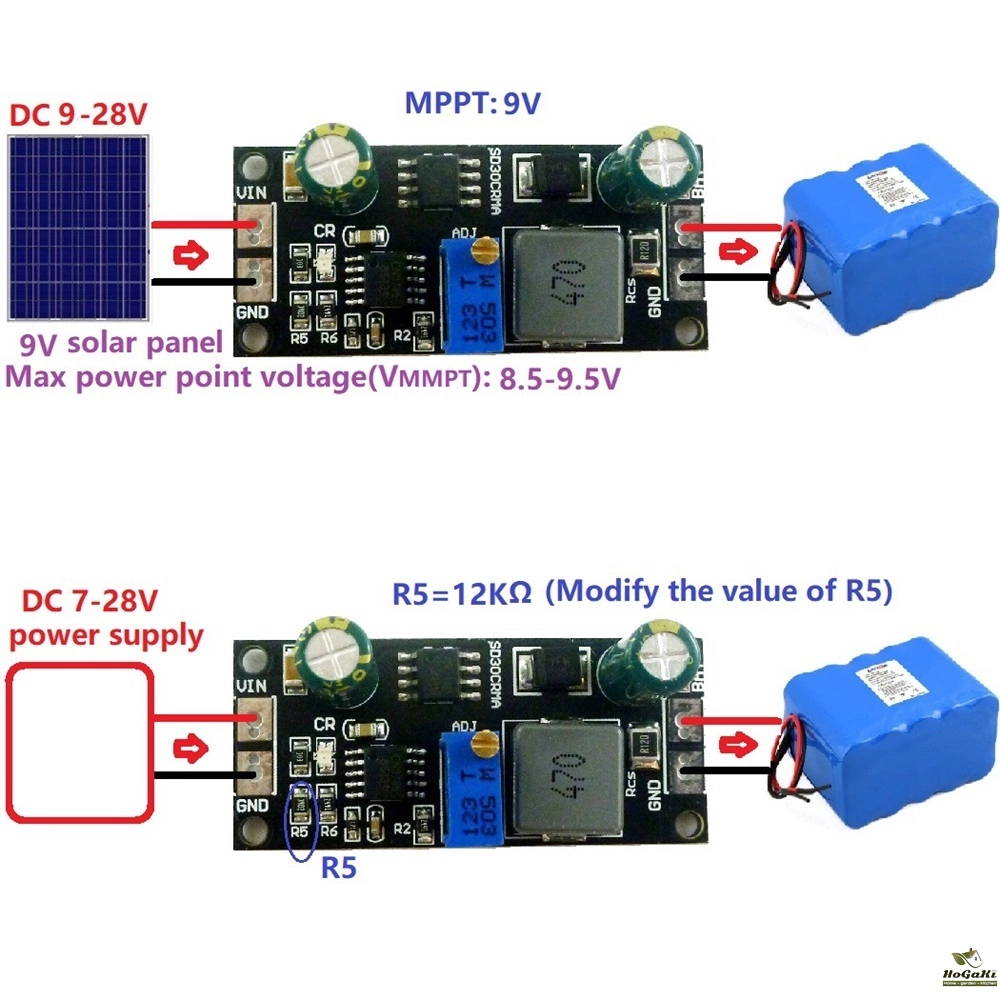

MPPT disabled (change R5 to 12KΩ):
Input DC 7-28V, output DC 1.2-21V adjustable (3.6V 4.2V 4.3V 4.3V 8.4V 12.6V 16.8V 21V)

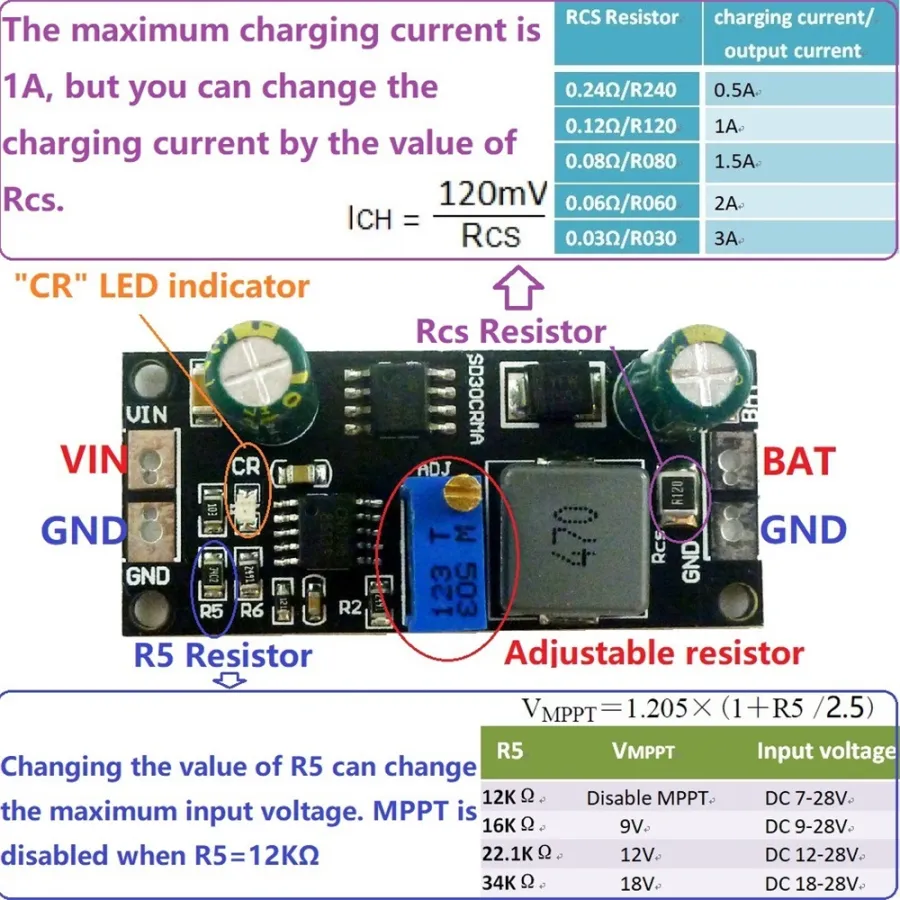

The maximum charging current/output current is 1A, but you can change the current by changing the value of the Rcs resistor
Can be used as a voltage source without a battery
Automatic regulation of deeply discharged batteries
automatic charging
Led indicator: "CR" Led is the charging status indicator
Battery overvoltage protection
Working environment temperature -40°C to +85°C
Dimensions: 45 x 20 x 15mm
Weight: 7.3 grams
Package list:
Charger module*1
Packaging Details
- Unit Type:
- Package Weight: 0.008
- Package Size: 4x1x7
- Brand Name: diymore
- Origin: Mainland China
- Model Number: solar charge controller
- Maximum Current: lifepo4 solar charge controller
- is_customized: Yes
- Is Smart Device: No
- Application: Charger Controller
- type 1: mppt module
- type 2: 14.8v charge controller
- type 3: 8.4v charge controller
- type 4: solar charge controller mppt
- type 5: mppt solar charge controller
- Choice: yes
