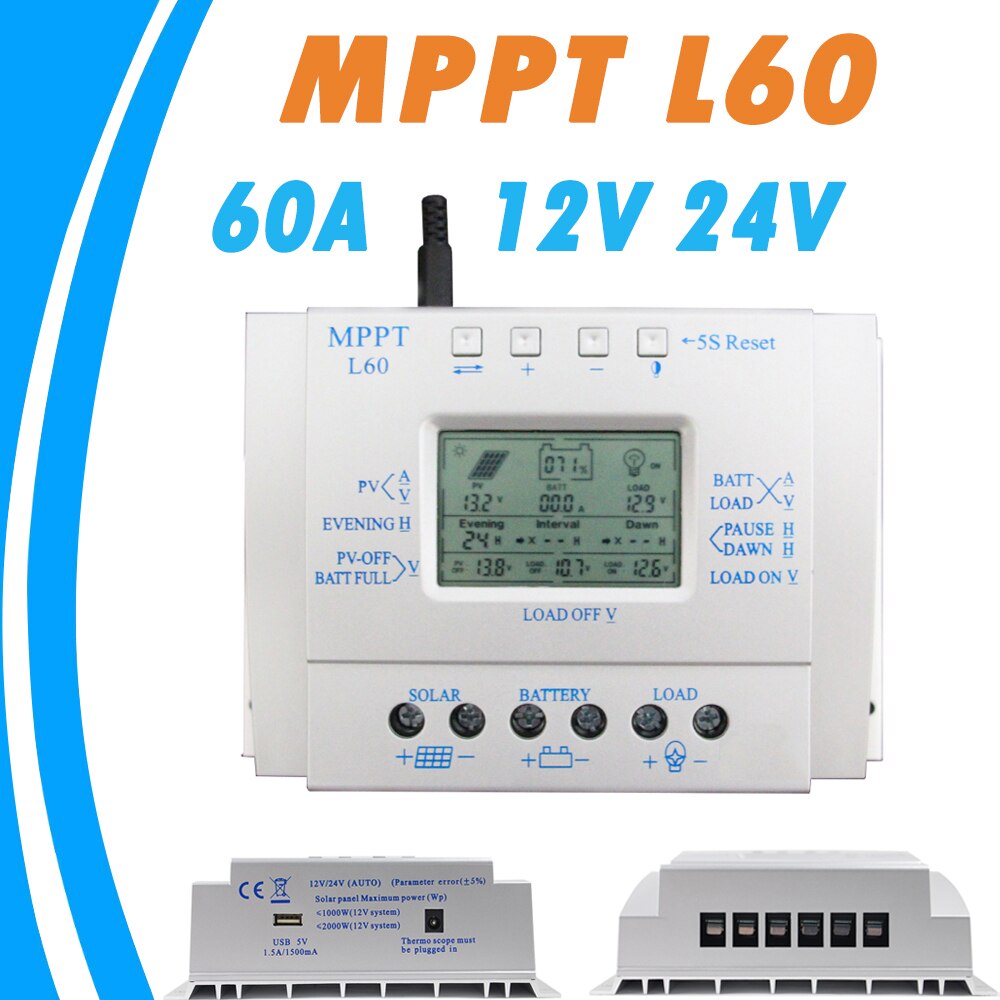

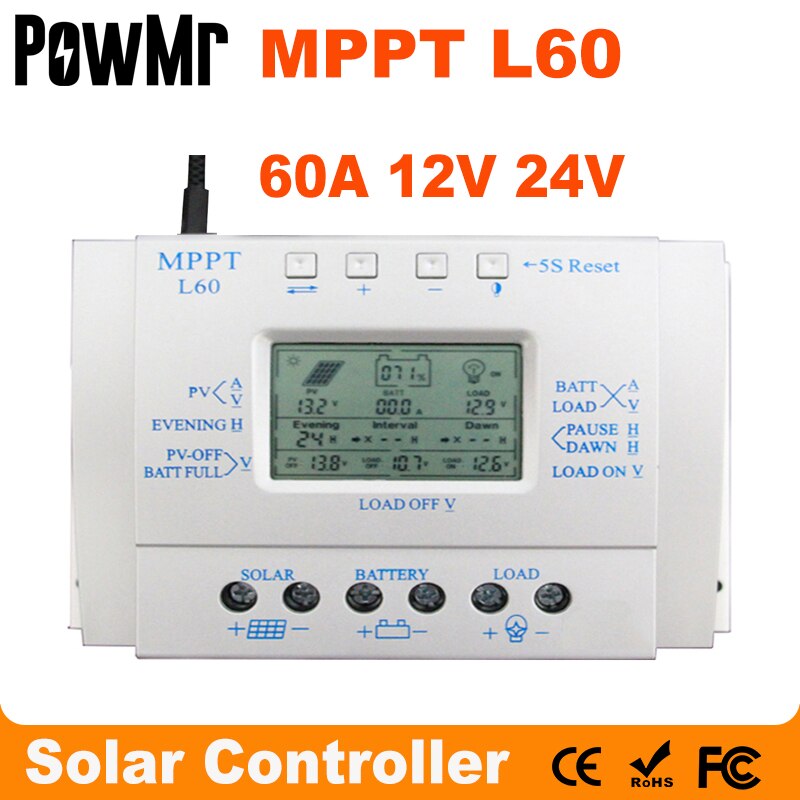

MPPT 60A Solar Charge Controller LCD 12V 24V Auto With USB 5V 1500mA Solar Regulator High Efficiency Solar Tracking System
5.0 (1 votes) | 11 orders
Price:
US $128.58 - 164.45
/ piece
Discount Price:
US $
97.72 -
124.99
/ piece
-24%
MPPT 60A Solar Battery Charge Controller LCD 12V 24V Auto with USB 5V 1500mA Solar Regulator High Efficiency Solar Tracking System
This is a three-time controller into the evening(evening)working time,an interval of rest or pause time,Dawn working time(morning light function),the user can according to their needs,set a different time.
A:time(evening working)B:time(Pause working)C:time(dawn working)
This is a compatible MPPT charge controller PWM intelligent/efficient/energy saving,he not only has efficient MPPT controller charging function to automatically track the maximum power point,10%-30% higher than the ordinary controller chargingefficiency,also has standby energy saving,more than 30% energy than ordinary controller,the standby power consumption of only 10mA-15mA.
Note:It is high qualitycompatible MPPT + PWM Solar Controllers ,not 100% Ture MPPT
1.Product introduction:
"T"series of an intelligent,multi-purpose solar charge controller
LCD Screen display | Battery reverse discharge protection |
Simple(and more time control) operation | Battery reverse polarity protection |
PWM charing mode+MPPT | Battery under voltage protection |
Parameter user can reset | Overload,short-circuit protection |
A key to open and close the load | Automatic Temperature compensation function |

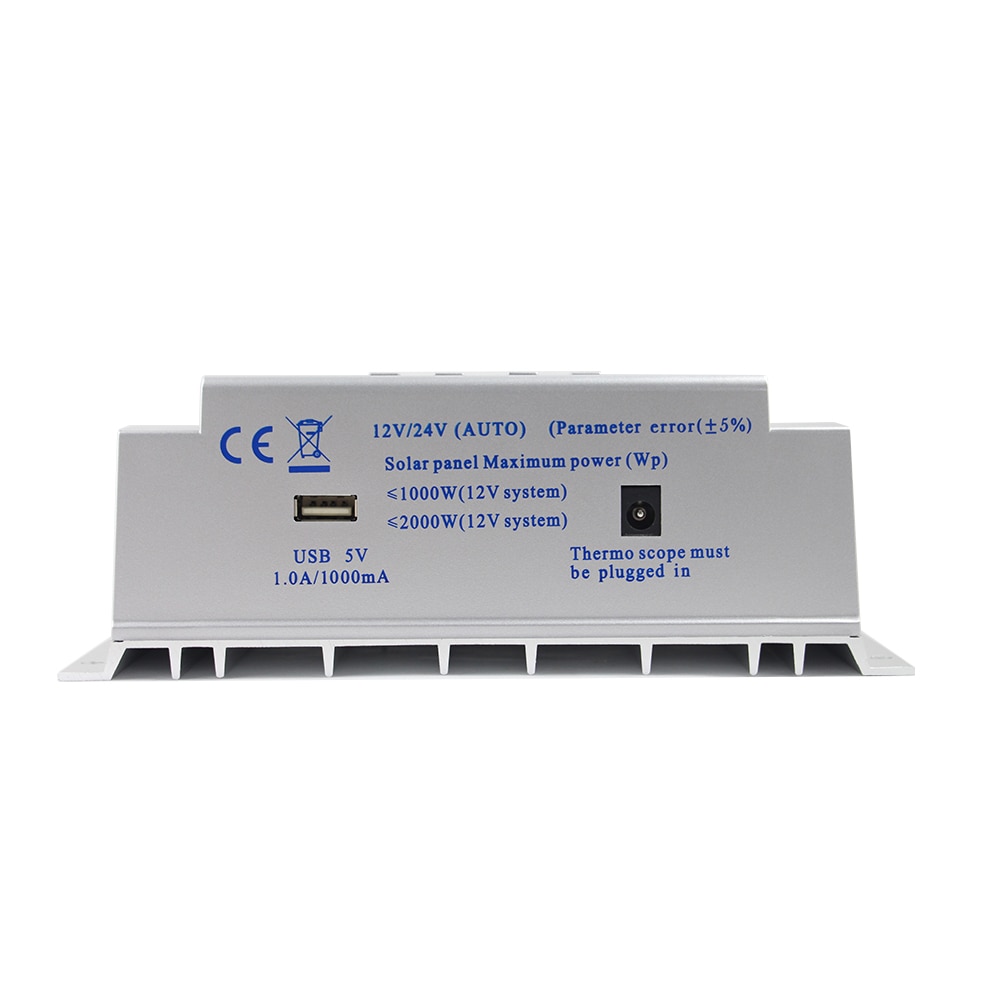

A key to restore the factory setting | USB 5V charge(current 1500mA/1.5A)Optional |
2.Packing Including

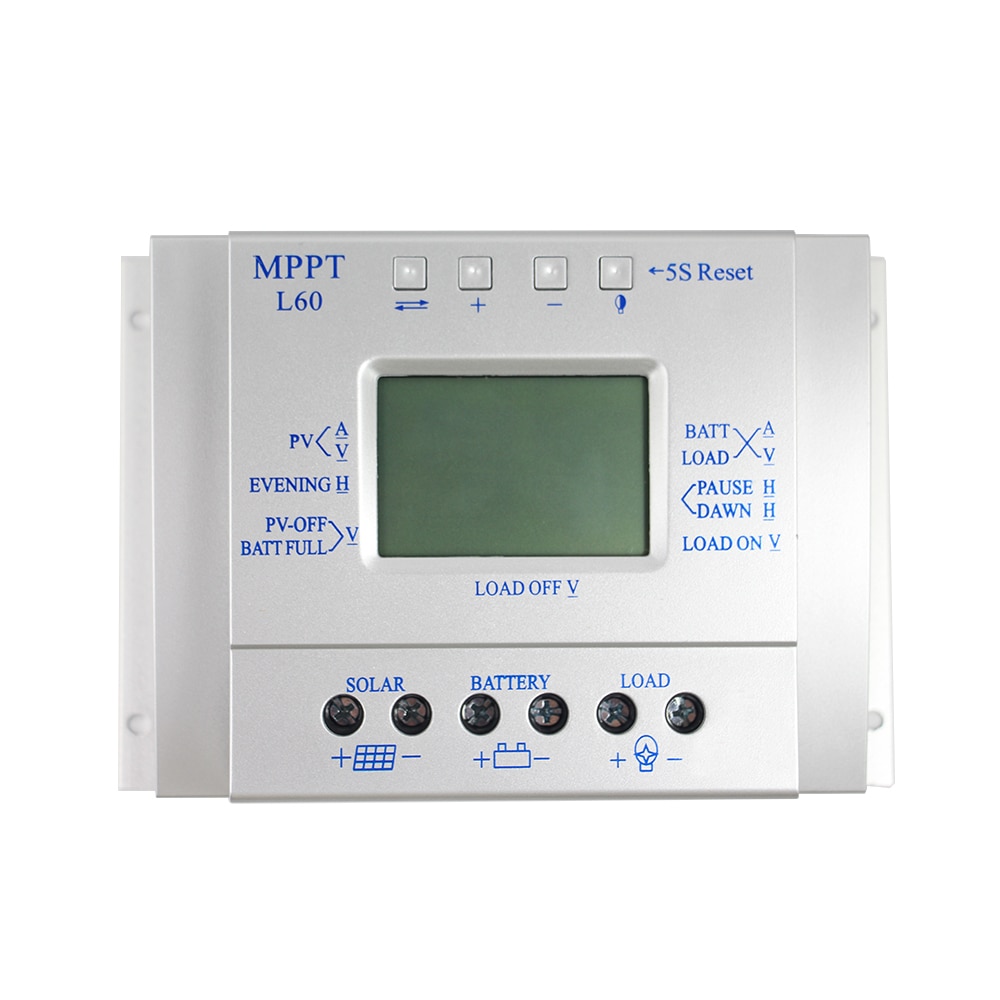

1pcs 60A Solar Controller MPPT L60
1pcs Temperature Sensor
1pcs English User Manual

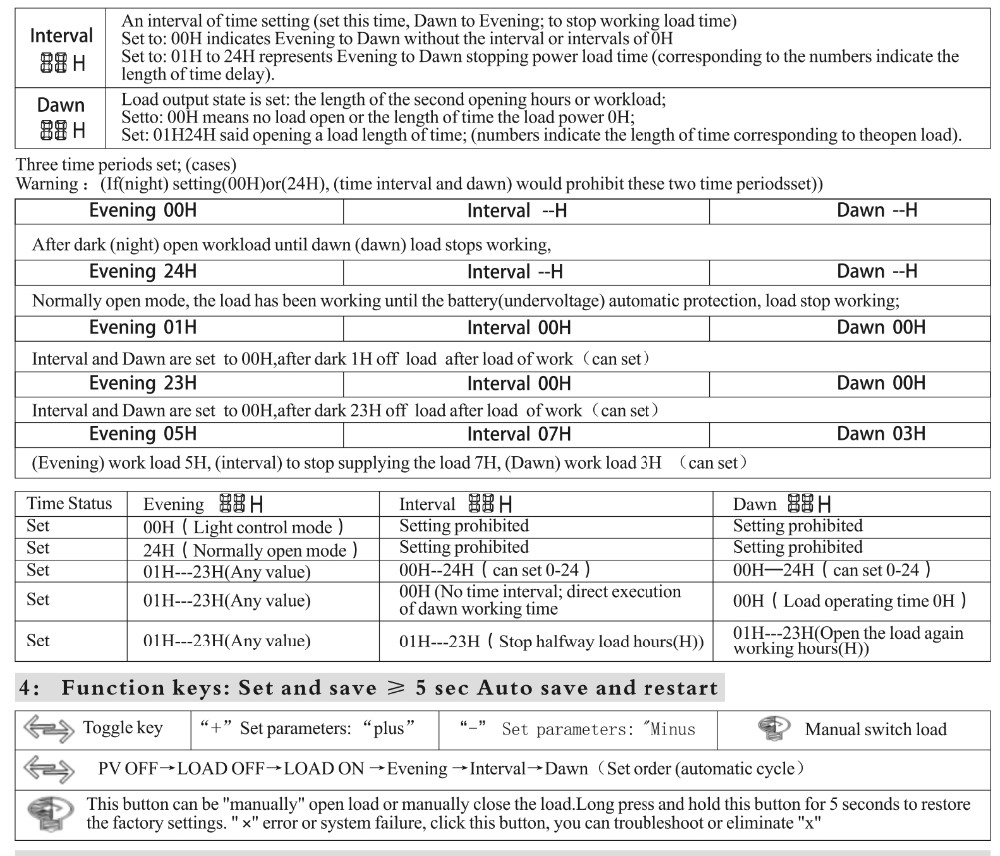

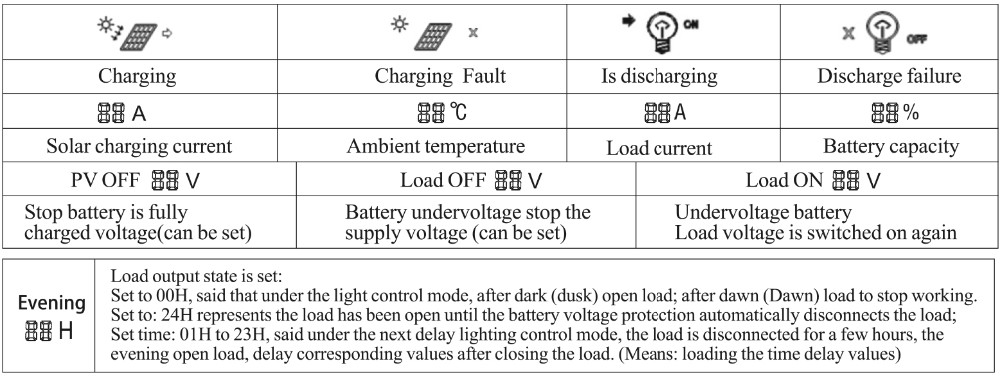

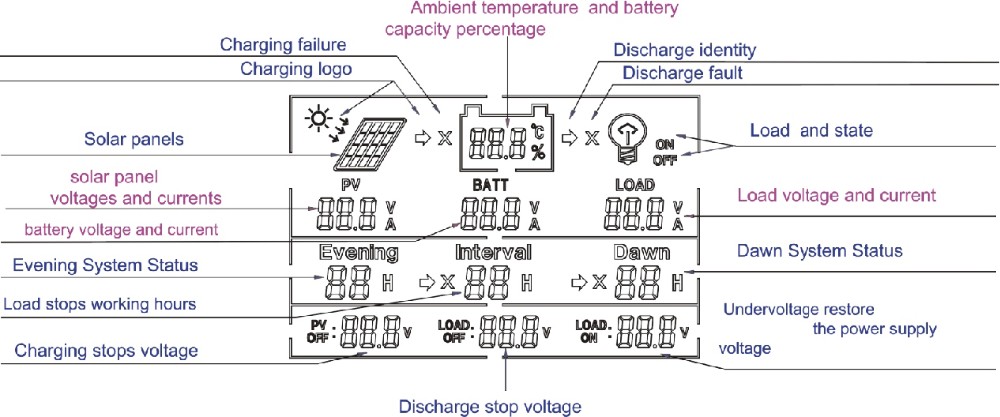

3.LCD Operating interface description :
4.Parameter table:
Parameters/Model | MPPT T-10 | MPPT T-20 | MPPT T-30 | MPPT T-40 | MPPT T-60 | MPPT T-80 |
Maximum Power Current | 12A | 20A | 30A | 40A | 60A | 80A |
Installation Lin(mm2) | 4mm2 | 8mm2 | 10mm2 | 12mm2 | 16mm2 | 20mm2 |
Installaton Line(AWG) | 10#(AWG) | 8#(AWG) | 7#(AWG) | 6#(AWG) | 4#(AWG) | 2#(AWG) |
Weight | 280g | 300g | 475g | 500g | 800g | 900g |
Peak power of solar cell panel (Max Wp) | 130W | 260W | 380W | 500W | 800W | 1000W |
Battery capacity configuration | 100AH | 200AH | 300AH | 400AH | 600AH | 800AH |
Dimensions | 143*89*46(mm) | 187*97*61(mm) | 188*128*61(mm) | |||
Battery float voltage | 13.8V(12V system)/27.6V(24V system) | |||||
Battery (under voltage) protection | 10.6V(12V system)/21.2V(24V system) | |||||
Battery(under voltage)recovery voltage | 12.6V(12V system)/25.2V(24V system) | |||||
System load loss:<=13mA | Loop Buck;<=100mV | |||||
Operation Temperature :-10degC~60degC | Storage Temperature :-30degC~-70degC | |||||
Operation Temperature :<=90%,No condensation | Temperature compensation :-4mV/Cell/degC | |||||
Maximum open circuit voltage of the solar panel | 18V~24V(12V system) 36V~48V(24V system) | |||||
Solar Panel maximum open circuit voltage | <=48V | |||||
Link | ||||||
5.Installation
1.Ready Qi installation tools and materials,and cable.Please matching suitable cable
2.Ensure that the current desity<4A/mm2 That will help reduce the line pressure drop.check the installation site meets the relevant safety requirements,avoid damp,dusty,flammable,explosive and corrosive gases
3.Install the controller fixed to the vertical plane,see Section V mounting aperture and hole spacing.In order to ensure a good controller cooling conditions,the controller on the bottom of each reserved 10cm space

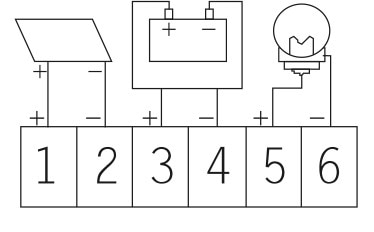

4.As shown on the right wiring sequense:load,battery,solar Battery plate is connected to the controller to be taken to ensure that the load,battery,The polarity of the solar cell panel and controller
5. Before use:external temperature sensor probe into the left of the controller temperature probe interface probe placed in similar battery temperature.(Line extensive must be build-in devices of the external temperature probe coextensive Otherwise,the controller will control parameters of the temperature compensation of the error
6.Warning:In order to prevent accidents from occurring,install:non-professionals can not be engaged in loading and unloading operations
6.Charging Problem Solution:
No proper installation of solar panels cable polarity(ldquo+rdquordquo-rdquo) Removing the polarity,you can re-install the correct
More than the rated power of solar panels to reduce solar panel power does not exceed the rated power controller discharge Problem Solution
Removing the load is not properly connected to the load,re-install the correct
More than the rated load power to reduce load power,the controller does not exceed the rated power
Instantaneous starting current is too large,the battery capacity is too small,the replacement of high-capacity batteries,button troubleshooting
Wire Cable polarity loose or too square and increase retightening bold cable
All keys can troubleshoot faults,press 5 seconds to restore factory settings.

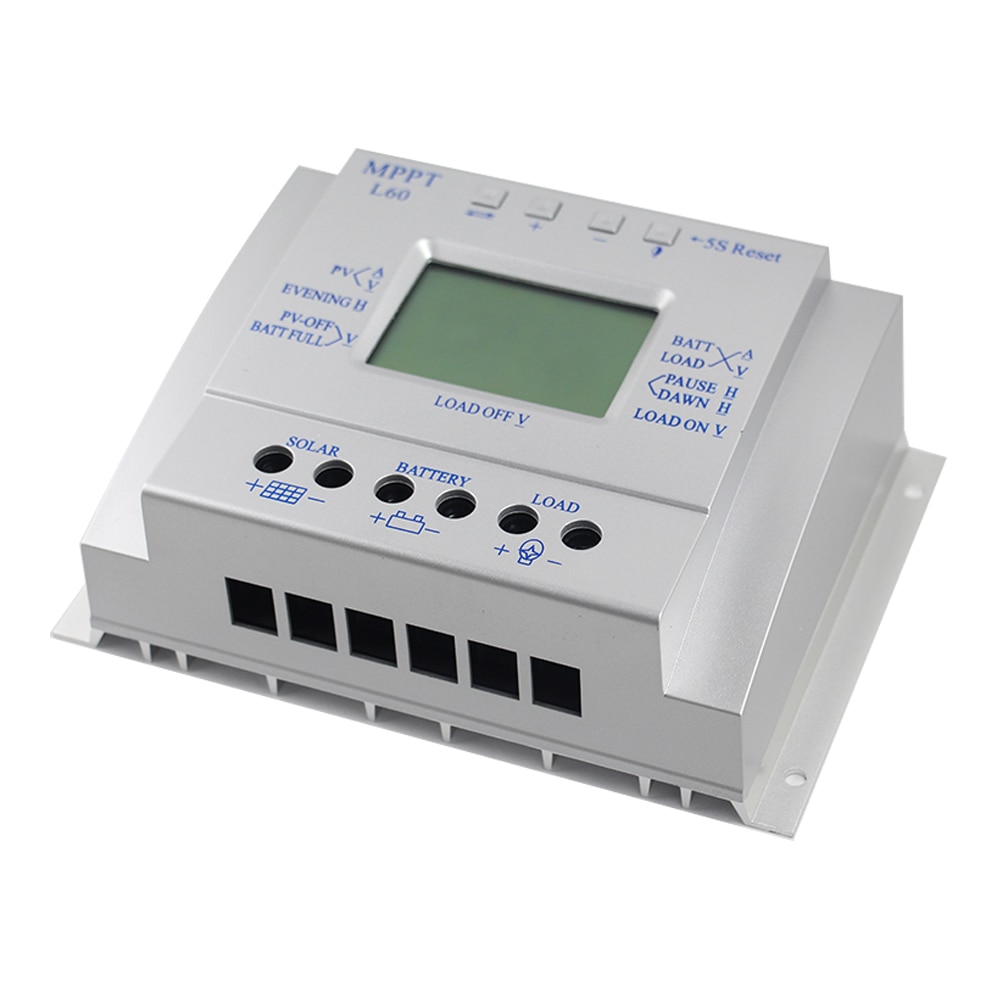

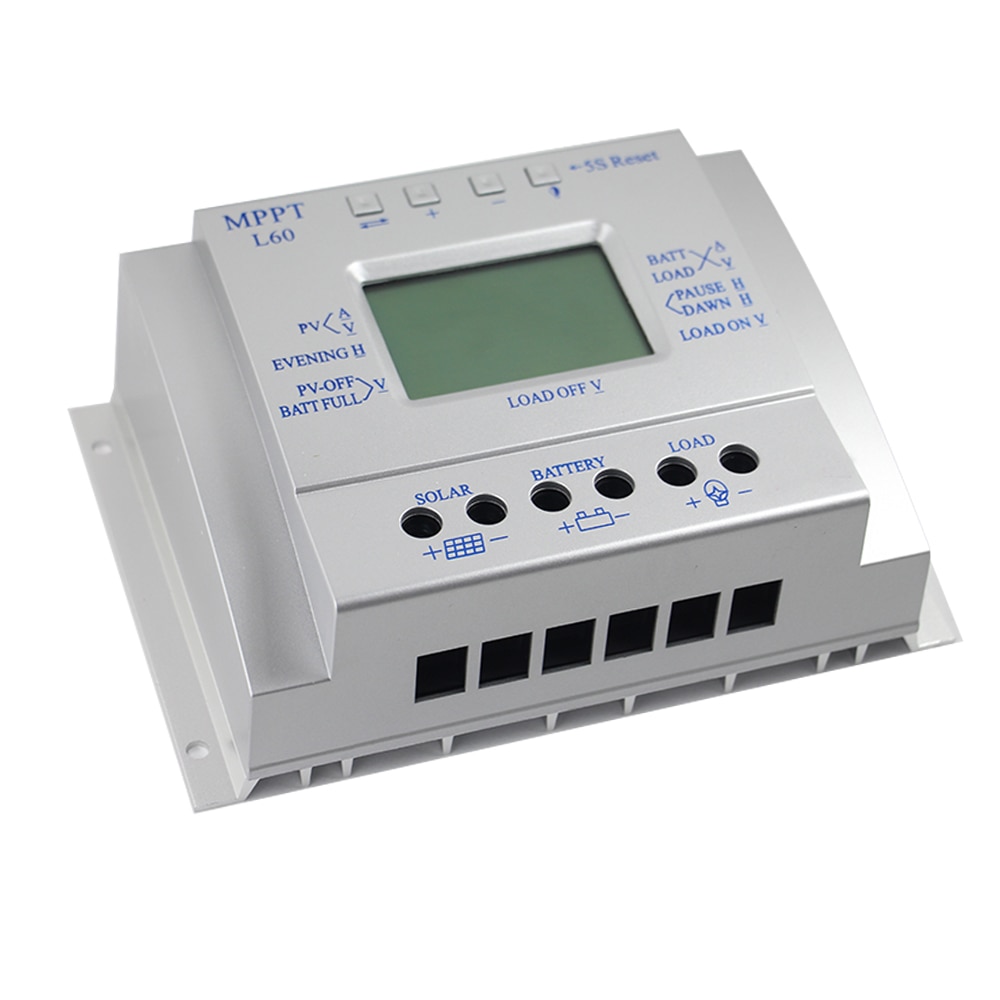

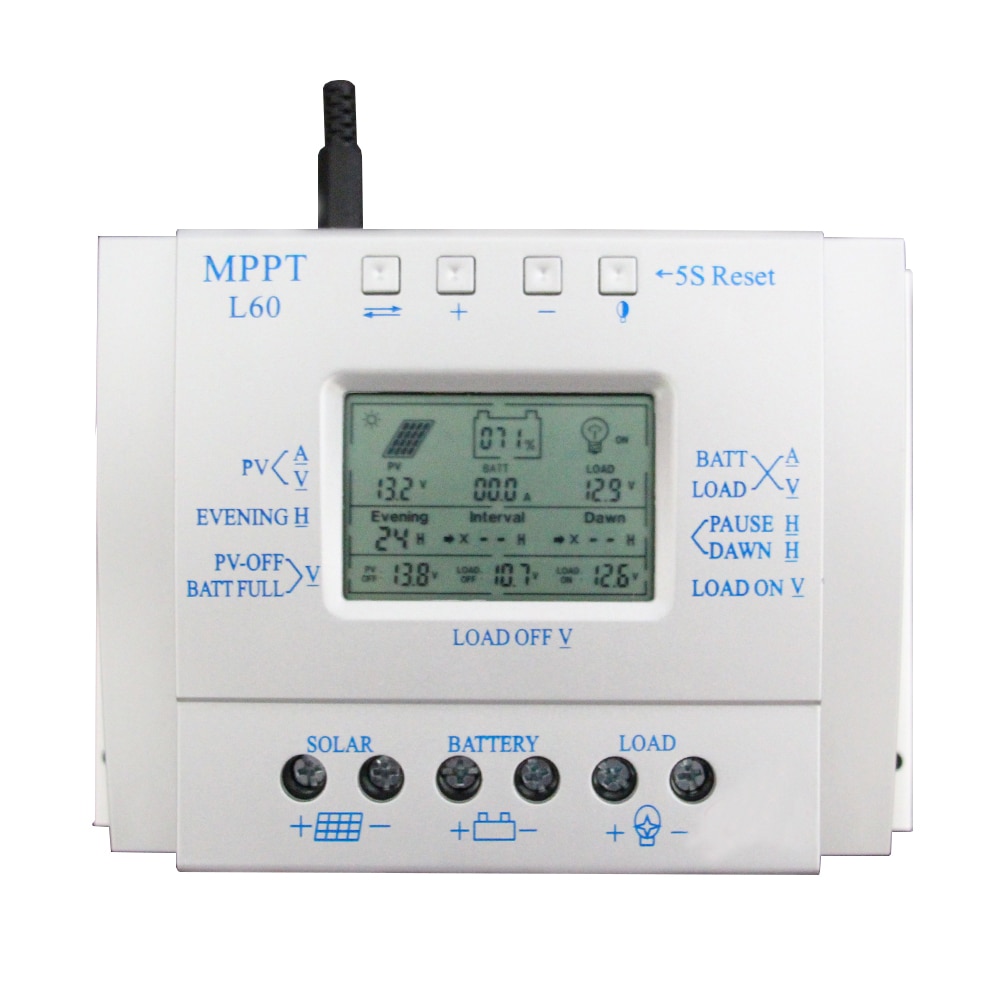

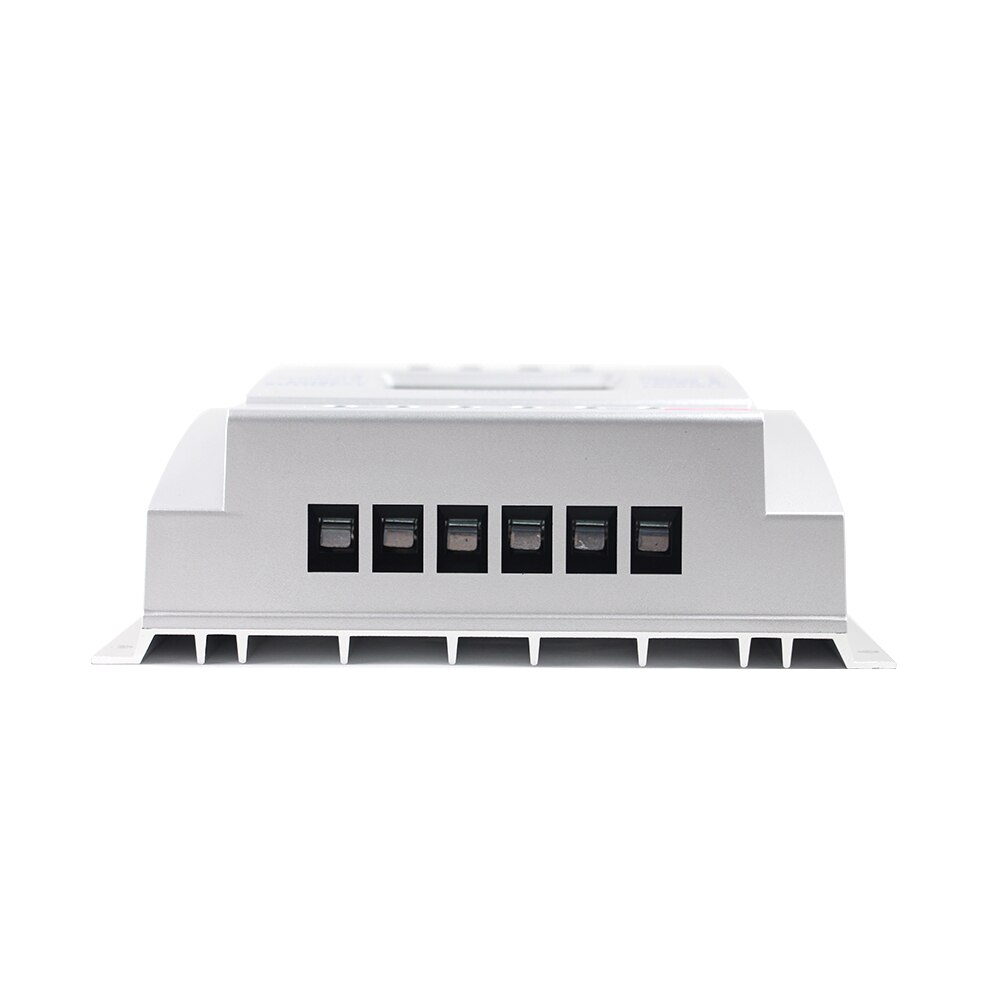

7.Pictures:
- is_customized: Yes
- Maximum Current: 60A
- Model Number: MPPT 60A
- Application: Solar System Controller
- Brand Name: PowMr
- Certification: CE
- Origin: Mainland China
- Maximum Power Current: 60A
- Installation Lin (mm2): 16 mm2
- Installation Lin(AWG): 4#(AWG)
- Weight: 800g
- Peak power of solar cell panel (Max Wp): Max 750W(12V System) 1500W(24V system)
- Battery float voltage: 13.8V(12V system) 27.6V(24V system)
- Battery (under voltage) protection: 10.6V(12V system) 21.2V(24V system)
- Battery(under voltage) recovery voltage: 12.6V(12V system) 25.2V(24V system)
- Solar Panel Maximum Open circuit voltage: 50
- Item: Solar Battery Charge Controller LCD solar regulator
- Type: MPPT+PWM
- Type 1: MPPT 60A
- Type 2: mppt solar charge controller 60a
