Wired Video Doorbell Intercom Indoor Monitor 7 inch Color TFT-LCD Screen 12/25 Ringtone Two-way Audio Door Phone Panel for Home
5.0 (2 votes) | 10 orders
Price:
US $116.53 - 136.88
/ piece
Discount Price:
US $
99.05 -
116.35
/ piece
-15%
- Color
-
-
7" Wired Video Doorbell Indoor Monitor Screen
ONLY indoor monitor, without outdoor unit! These indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type! This is a 7 inch indoor monitor of video intercom system. With high resolution TFT-LCD screen, the screen color and brightness can be adjusted by yourself. Use international 5-wire (or 4-wire) structure design, the max distance of audio & video transmission is about 100 meters. Support to monitor, intercom, audio & video, 12 / 25 chord ringtones, one key to unlock.
Product Features
1. Cabling standards.
Use international 5-wire (or 4-wire) structure design, these indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type. The max distance between indoor monitor and outdoor unit is about 100 meters. Different distance, use different diameter cable. Please check the following form to choose corresponding cable. (We will send a 5 meters cable to you for testing. When installing, if you need longer cable, you have to buy it in additional.)
2. Handsfree Dual-way Intercom and Indoor Monitoring.
When a visitor ring the bell, the monitor will be activated and show the image outside, then you can see and hear outside. Press the answer button, then you can talk to outside, press the answer button again to turn it off. If you do not press the button after conversation is finished or if no one answer the call, the monitor will turn off automatically after 60s. It supports monitoring feature, press the monitoring button, you can see and hear outside situation.
3. There are many different ringtones for you to choose, and the volume can be adjusted.
The 12 / 25 chord ringtones can be switched freely, elegantly and fair-sounding. Both of the ringtones and volume can be adjustable, can meet the original needs of your time. There are three levels of volume to choose. Don't need to worry about can't hear voice or hear it too loud any more.
4. Support to set mute mode.
When you sleep, or when you need a quiet space, you can set this indoor monitor to Do Not Disturb mode.

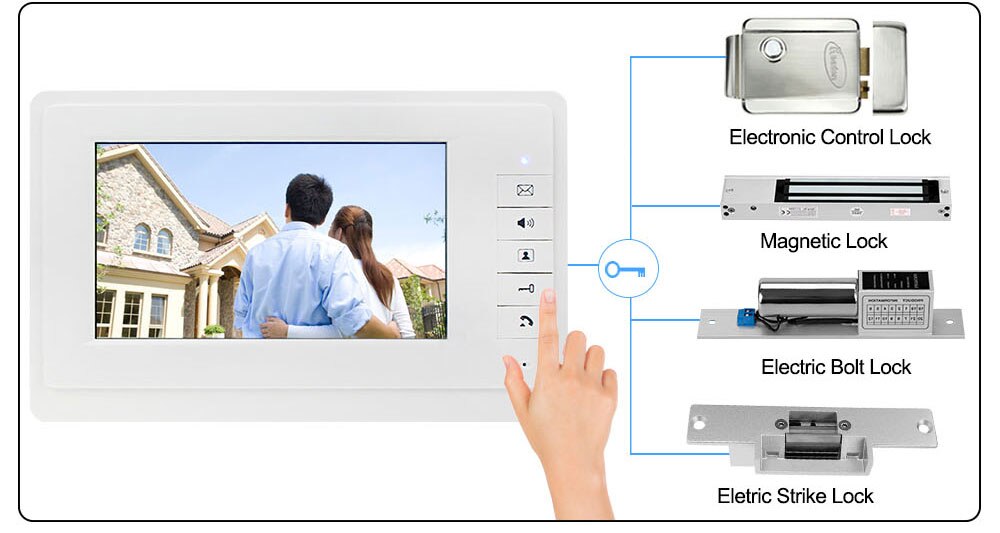

5. One key to unlock
This door phone can work with 12V electrical lock, so you can connect an electrical lock to this system. With this function, you don't need go to the door to open door for your guest, you just need to press unlock button on monitor. It also works as an access control system. This will bring great convenience for you and your family members. (Note: The electric locks which shown in below picture are not included in the package. If you need them, please contact us before order.)
6. Wiring diagram for your reference only
It is a 5-wire or 4-wire system, use 4-core cable to connect the outdoor unit and indoor monitor, but use 5-core cable to connect indoor monitor and the second indoor monitor. (Please noted: the outdoor unit and electric lock which show in below picture are not included in the package.)
Attention:
These indoor monitors only can work with such outdoor unit which is 5-wire or 4-wire connection type. For your reference, the outdoor units shown in below picture are compatible with these indoor monitors. If you already have a outdoor unit, please check whether it will compatible with our indoor monitor or not. If you can not sure, please feel free to contact us before ordering.
7. Package List

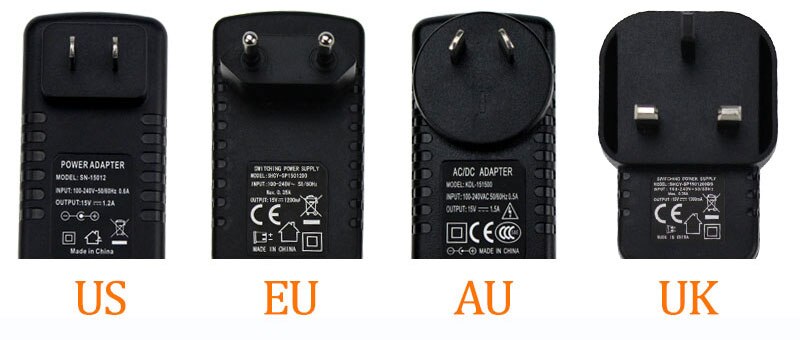

1 * Indoor unit (Monitor) 1 * Power adapter (US/EU/UK/AU plug optional) 2 * Wiring connector 1 * Mounting bracket 1 * Screws bag 1 * User manual Noted: Please leave us a message which type of power adapter you need, otherwise we will send EU power adapter to you by default.
Many types for you to choose
Model: V70F
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 240*150*26mm(L/W/H)

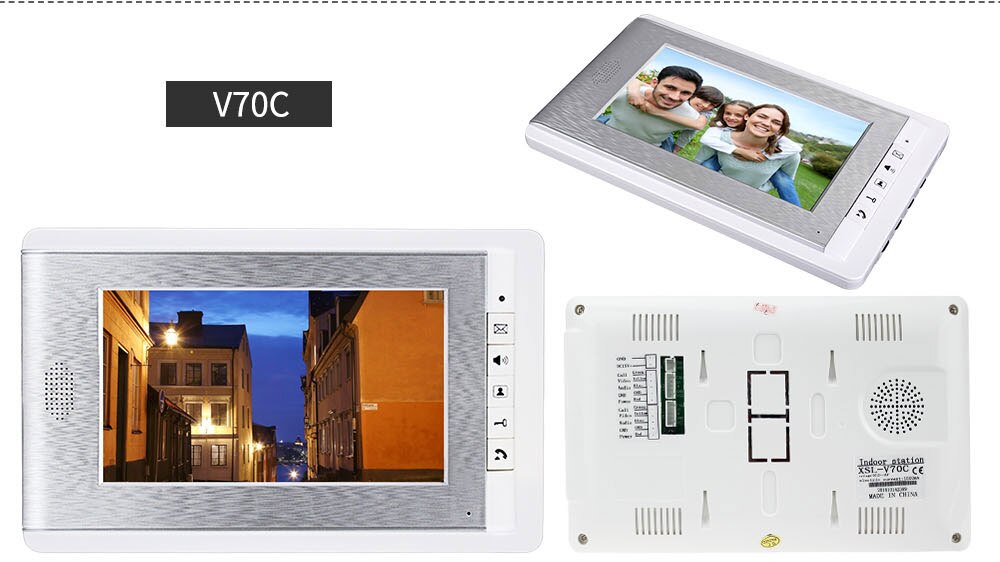

Model: V70C
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 240*150*23mm(L/W/H)

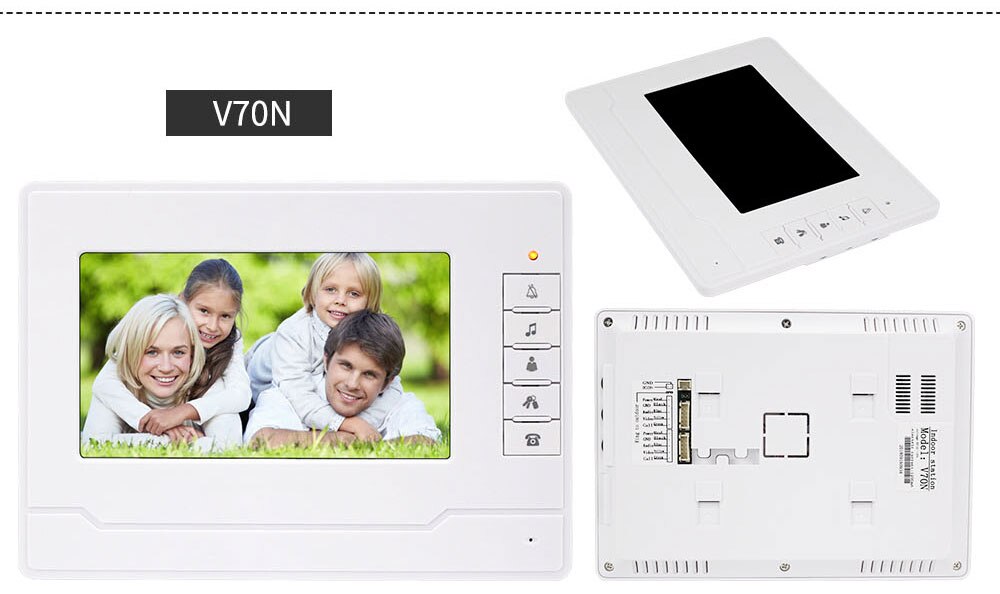

Model: V70N
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 230*165*20mm(L/W/H)

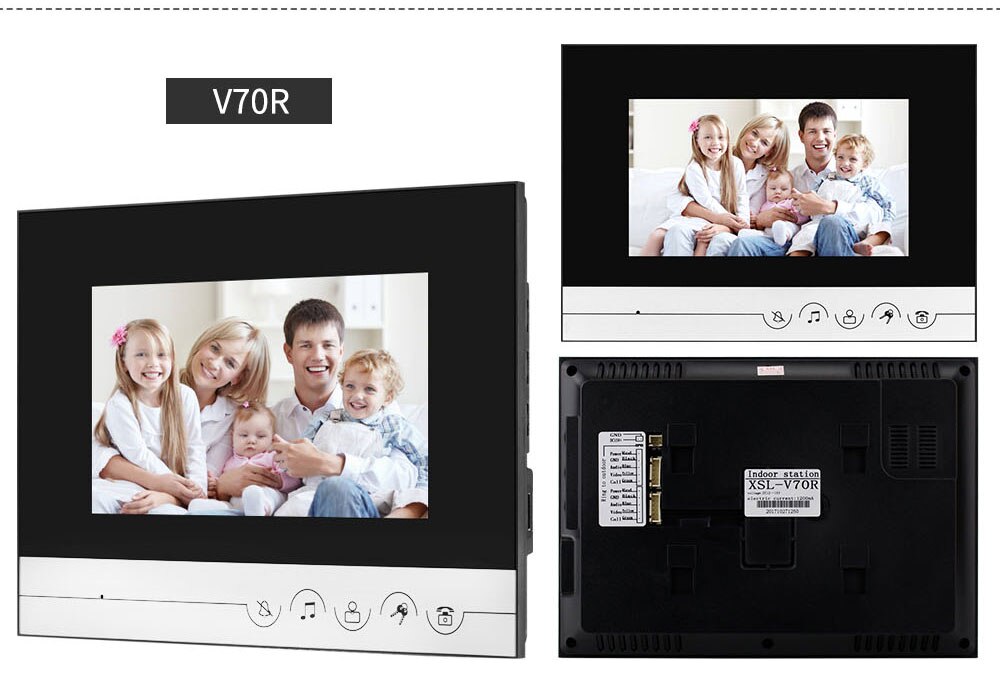

Model: V70R
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 12 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 230*165*20mm(L/W/H)

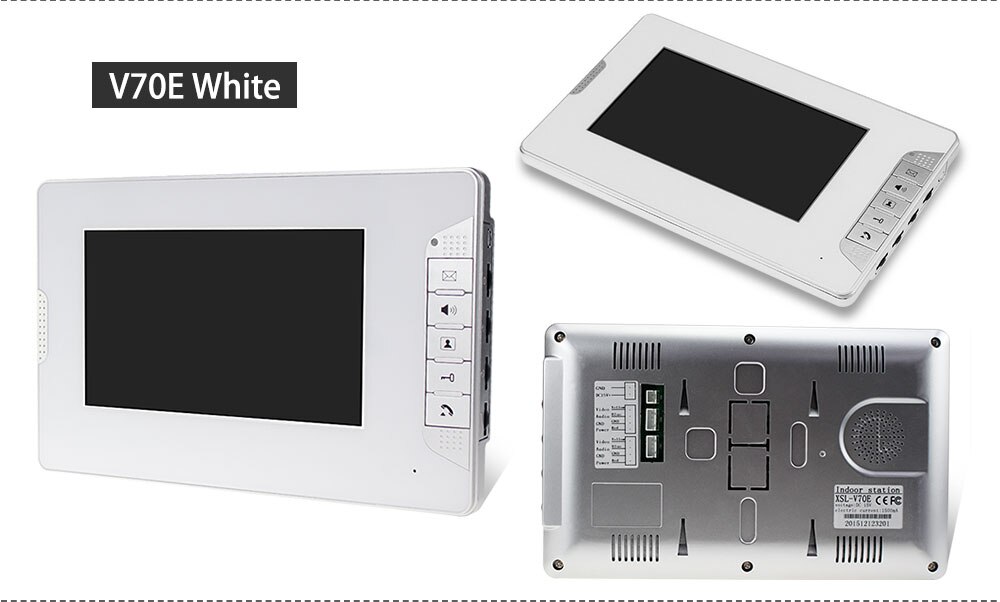

Model: V70E
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 240*150*23mm(L/W/H)

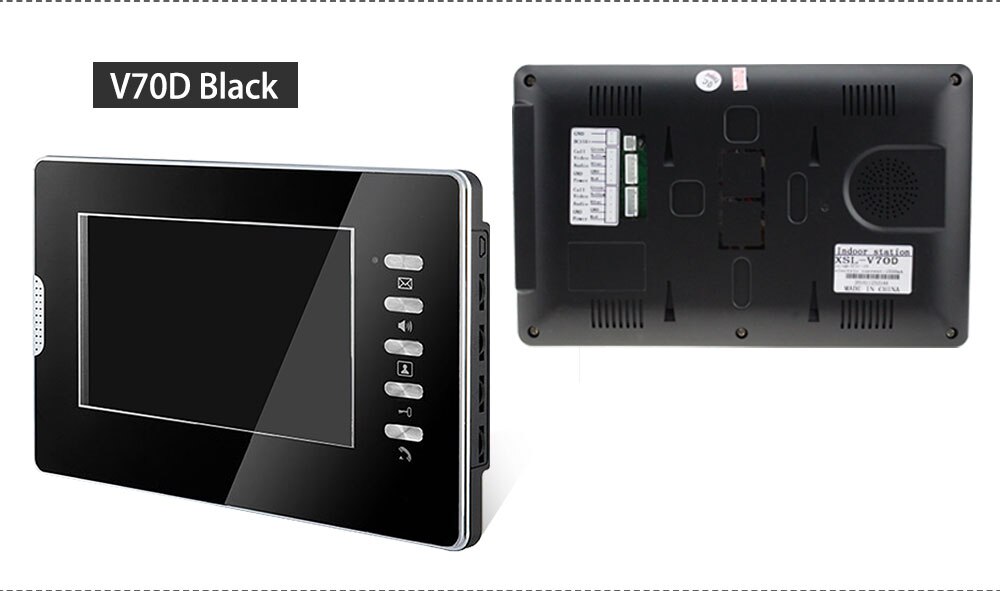

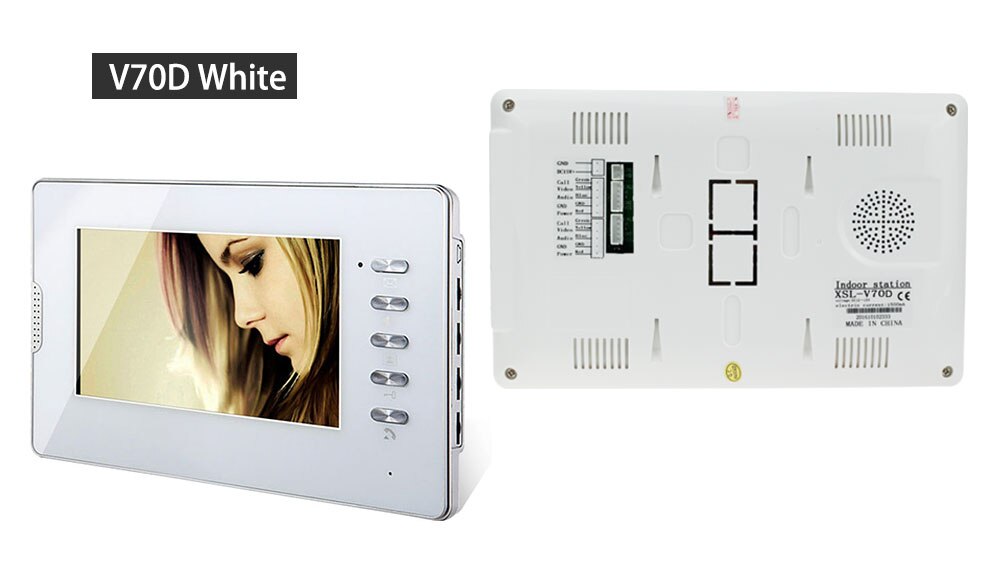

Model: V70D
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 240*150*23mm(L/W/H)
Model: V70M
Power Supply: Input: AC100 - 240V; Output: DC15V / 1500mA Power: Standby: ≤ 1W; Working: ≤ 10W Screen: 7" TFT-LCD color screen Resolution: 800 × 480 Ringtone: 25 Chords Installation: Wall mounting Wiring: 4 or 5 PIN line RVV Video Signal: 1VP - P Answering Method: hand-free Timing: Intercom: 30 seconds; Monitoring: 90 seconds Relative Humidity: 10% ~ 90% Working Temperature: -20℃ ~ +60℃ Material: ABS plastic shell + acrylic panel Size: 195*132*18mm(L/W/H)
- Model Number: Wired Indoor Monitor
- Brand Name: OBO HANDS
- Certification: CE
- Origin: Mainland China
- Power Supply Input/Output: AC100 - 240V / DC15V, 1500mA
- Power: Standby: ≤ 1W; Working: ≤ 10W
- Screen: 7" TFT-LCD color screen
- Resolution: 800x480
- Ringtone: 12/ 25 Chords
- Installation: Wall mounting
- Wiring: 4 or 5 PIN line RVV
- Video Signal: 1VP - P
- Answering method: hands-free
- Intercom Time Delay: 30 s
- Monitoring Time Delay: 90 s
- Relative Humidity: 10% ~ 90%
- Working Temperature: -20 ~ +60 Celsius
- Material: ABS plastic shell + acrylic panel
- Model: V70F/V70C/V70D/V70E/V70N/V70M/V70R
