MPPT 120A 80A 60A 40A Solar Charge Controller Backlight LCD Solar Regulator 12V 24V 36V 48V Auto for Acid and Lithium Connector

4.6 (8 votes) | 22 orders
Price: US $11732.80 - 23130.38 / piece
Discount Price:
US $ 10559.52 - 20817.34 / piece
-10%
Current
Quantity

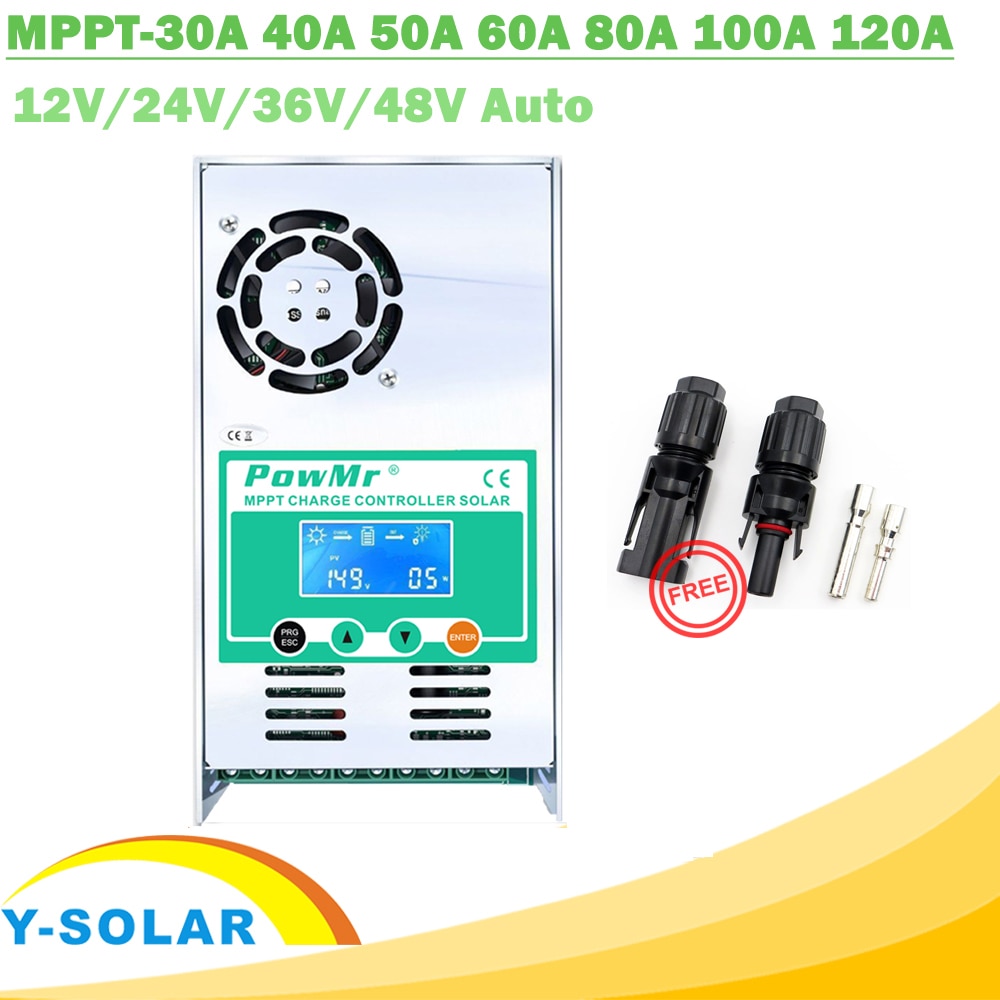

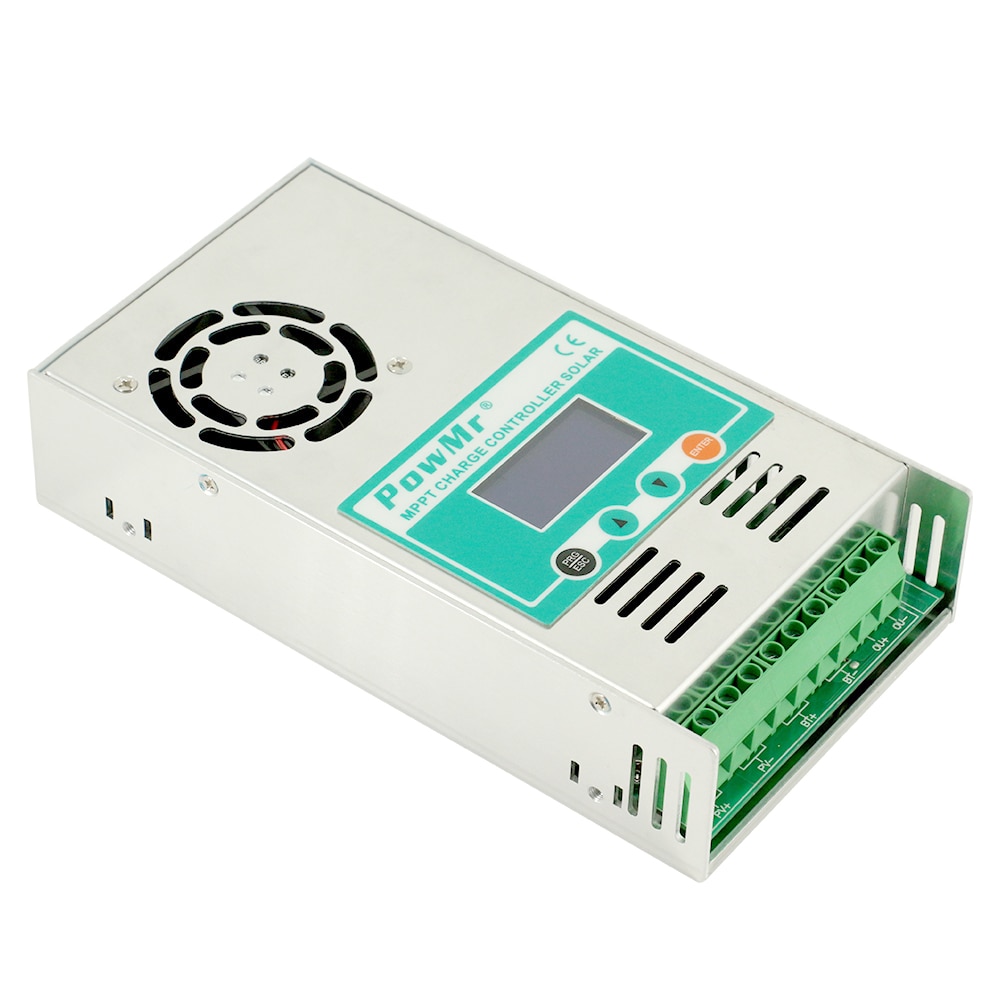

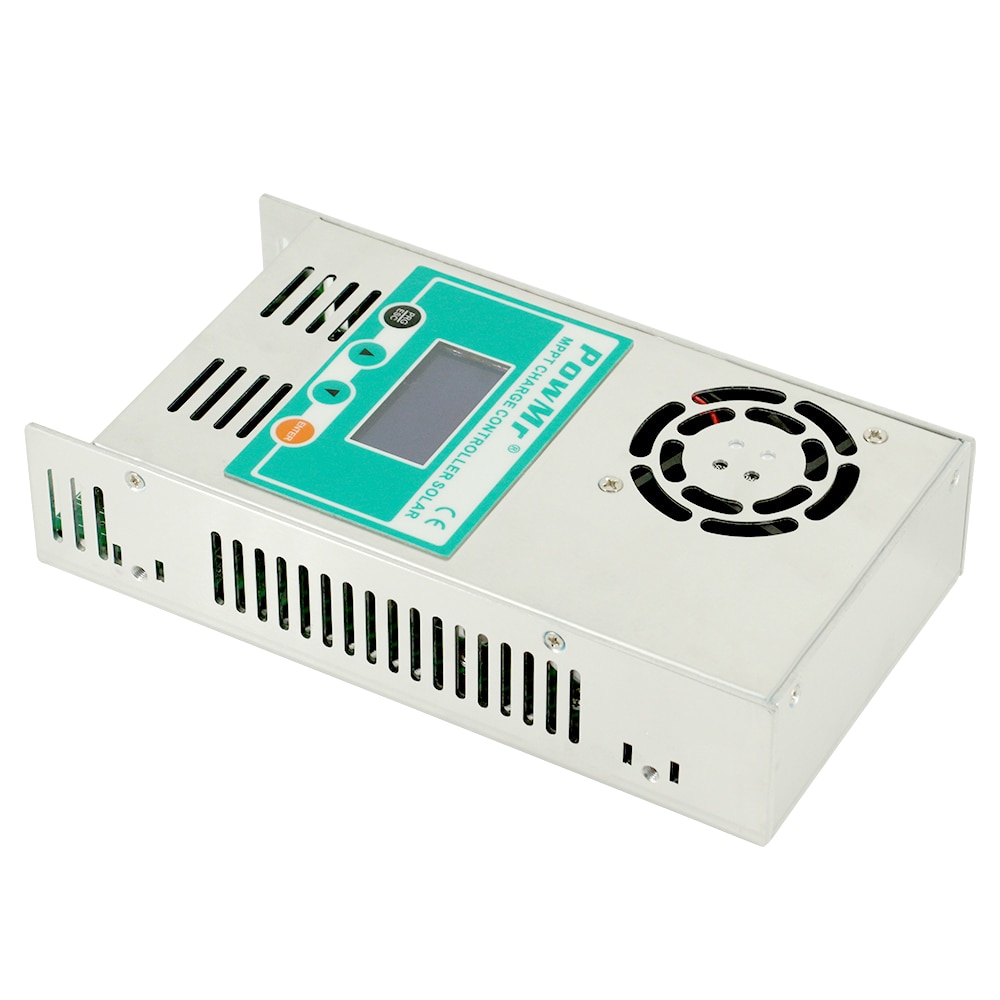

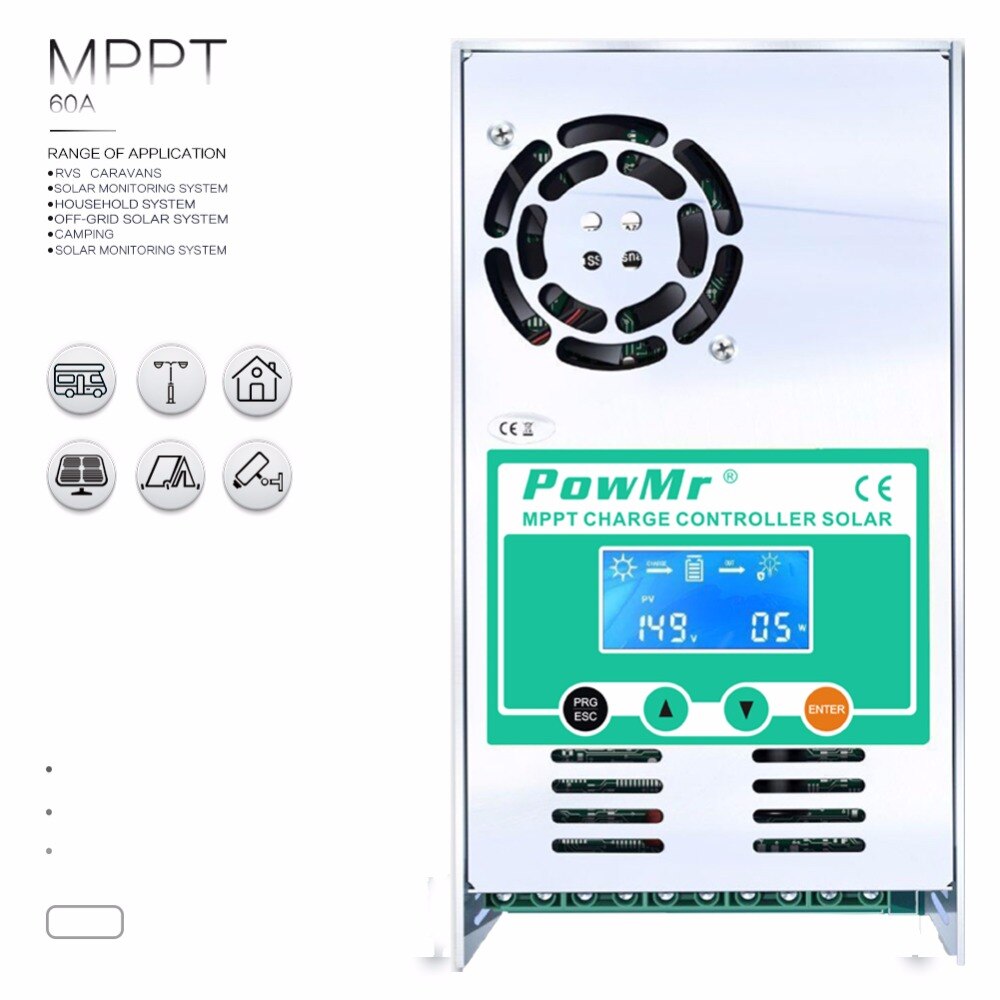

MPPT 120A  80A 60A 40A Solar Charge Controller Backlight LCD Solar Regulator 12V 24V 36V 48V Auto for Acid and Lithium With Free Connector

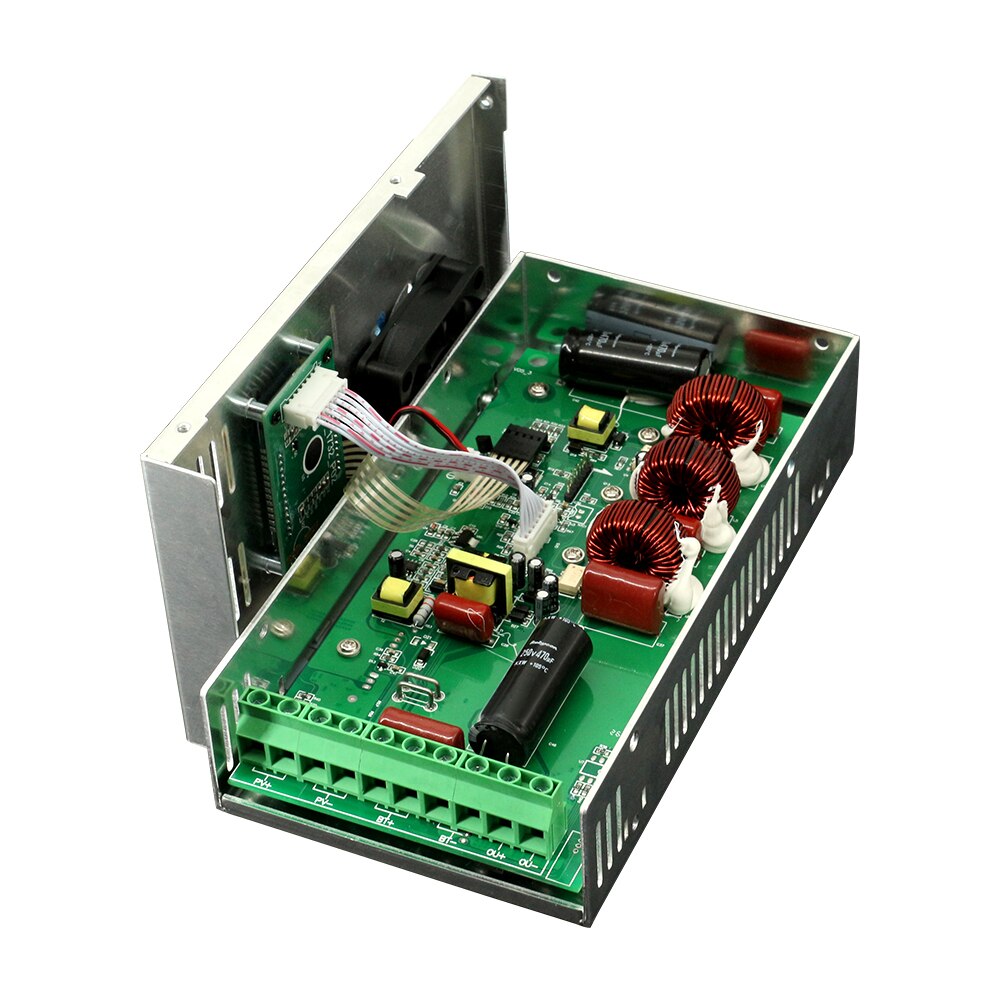

This is the newest version , we improve the quality of fan inside !

The Fake Product try to use V116 V117 Version to cheat our customers ,in fact ,the solar controller charging function is still same ,they increase the price by this to get more money from our customers ! they just lower quality of the parts inside and make a little change on display showing ,please do not be easily deceived by them !!!


Why we sell so cheapest price on Hogaki?

Yes ,do not be worried ,Recently ,our competitors misguide consumers by spreading false information ,now we are angry about this ,we have to take actions to help our customers !


Recently, our competitor (Makeskyb**e)  slander us in such unethical way , he can not provide any test report to prove his viewpoint, please do not be convinced only by his words ,if his product is good , why his product is not.theStar Rating are from the customers ,this is impartial !

I think "Facts speak louder than words",not matter what the version is . the most important is that the high quality solar controller  .

now we are trying to reduce our profit to sell cheaper price to help our customers !

If you ask Makes**blue to provide anyauthoritative test report ,he can not provide! please do not be deceived by his little trick ! my friends!

-------------------------------------

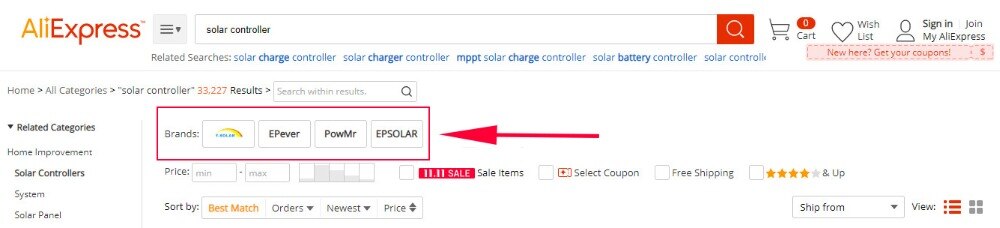

when choosing the solar controllers ,please look for thethe official recommendationbrands of solar controller on Hogaki! They are TOP brands !

This is100% MPPT Solar Charger Controller ,12V 24V 36V 48VAuto work , it is used for Lead acid ,gel , lithium battery.we have30A 40A 50A 60A,

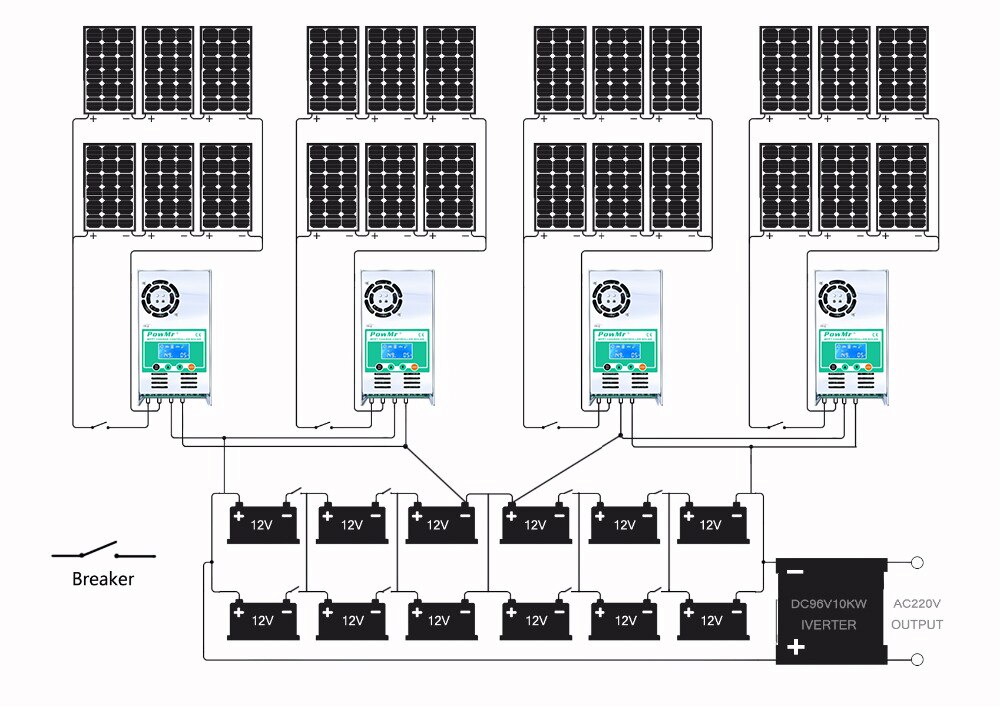

you can put two piece40Asolar controllers in parallel ,so total isMPPT 80A

you can put two piece50Asolar controllers in parallel,so total isMPPT 100A

you can put two pices60Asolar controllers in parallel ,so total isMPPT 120A

100% MPPT controller

Intelligent Maximum Power Point Tracking technology

Built-in DSP controller with high performance

Automatic battery voltage detection 12V/24V/36V/48V

Three-stage charging optimizes battery performance

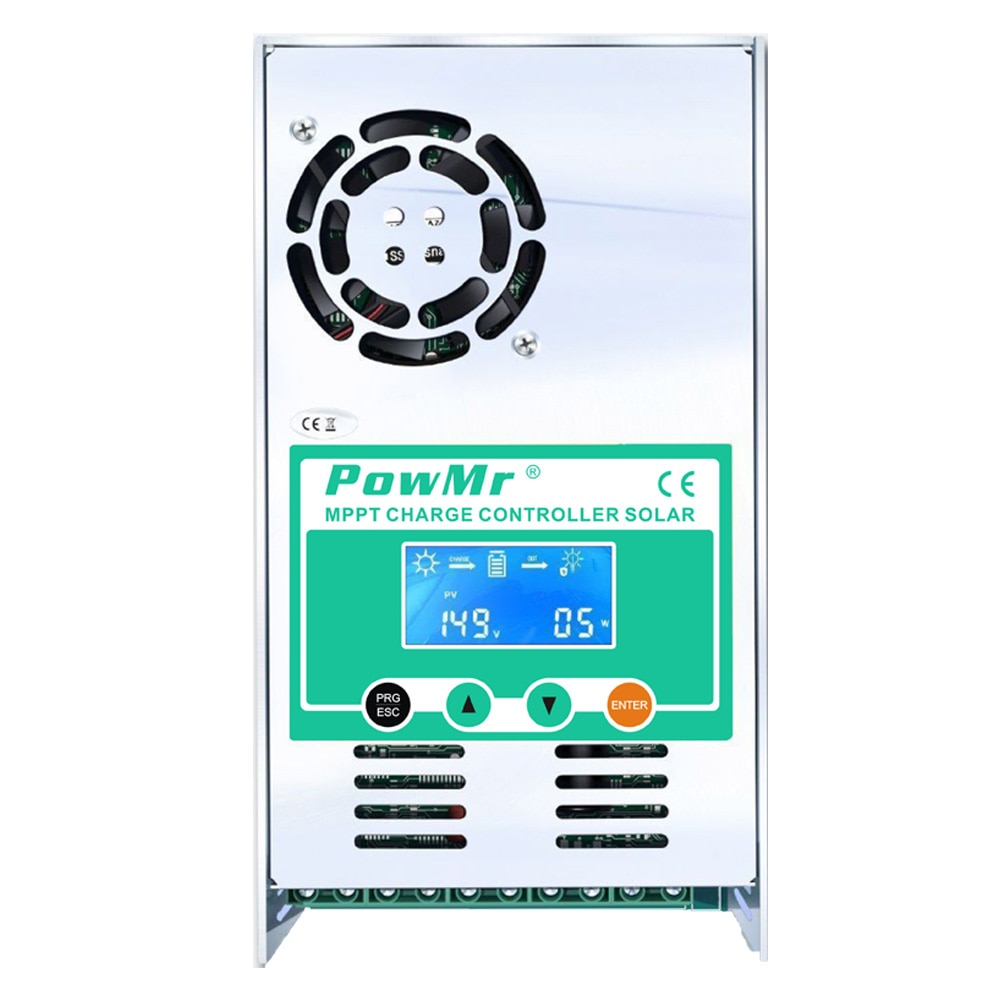

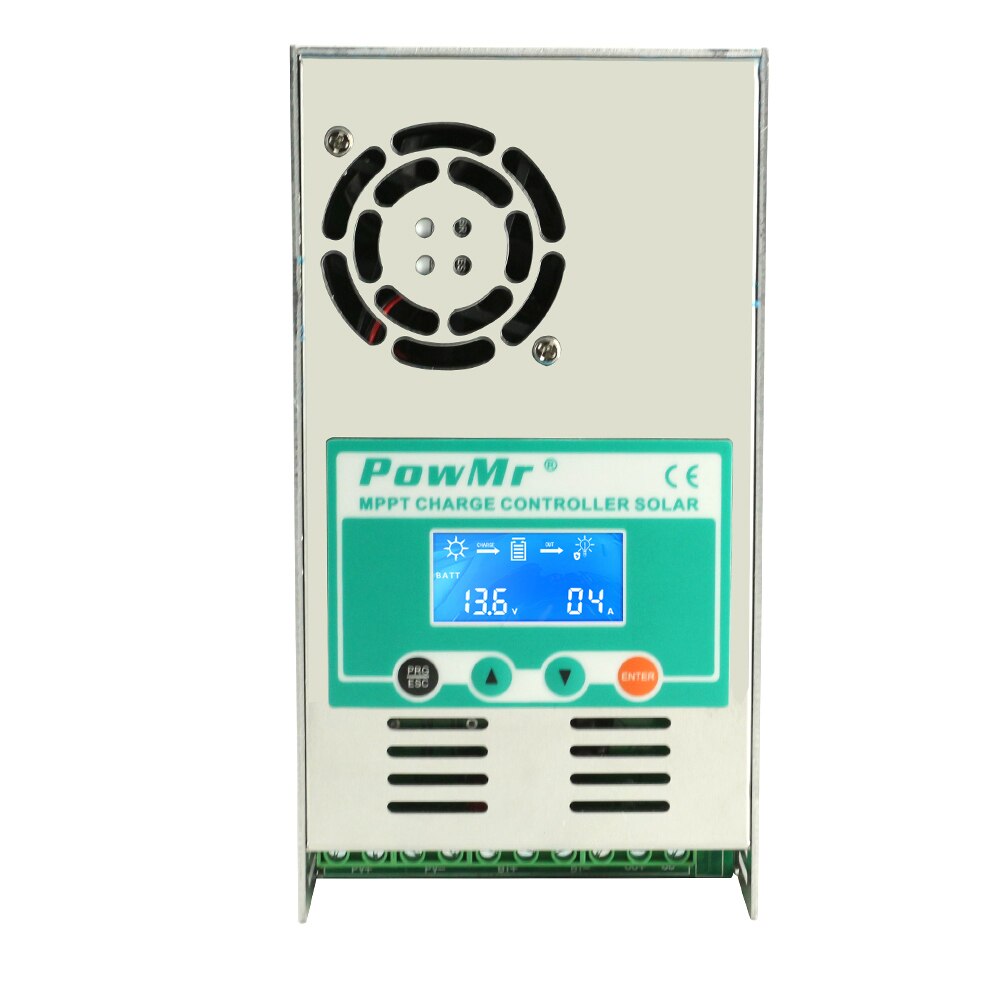

Multi-function LCD displays

Reverse polarity protection of solar panel

Overcharge protection

Can be mounted easily

Suitable for battery types of sealed lead acid, vented Gel, and Lithium battery

Notes:The output terminal is for lamp only( 12V system less 60W, 24V/36V/48V system less 100W ),and it will be burnt if connecting to other loads. The output for battery is no polarity reverse protection.

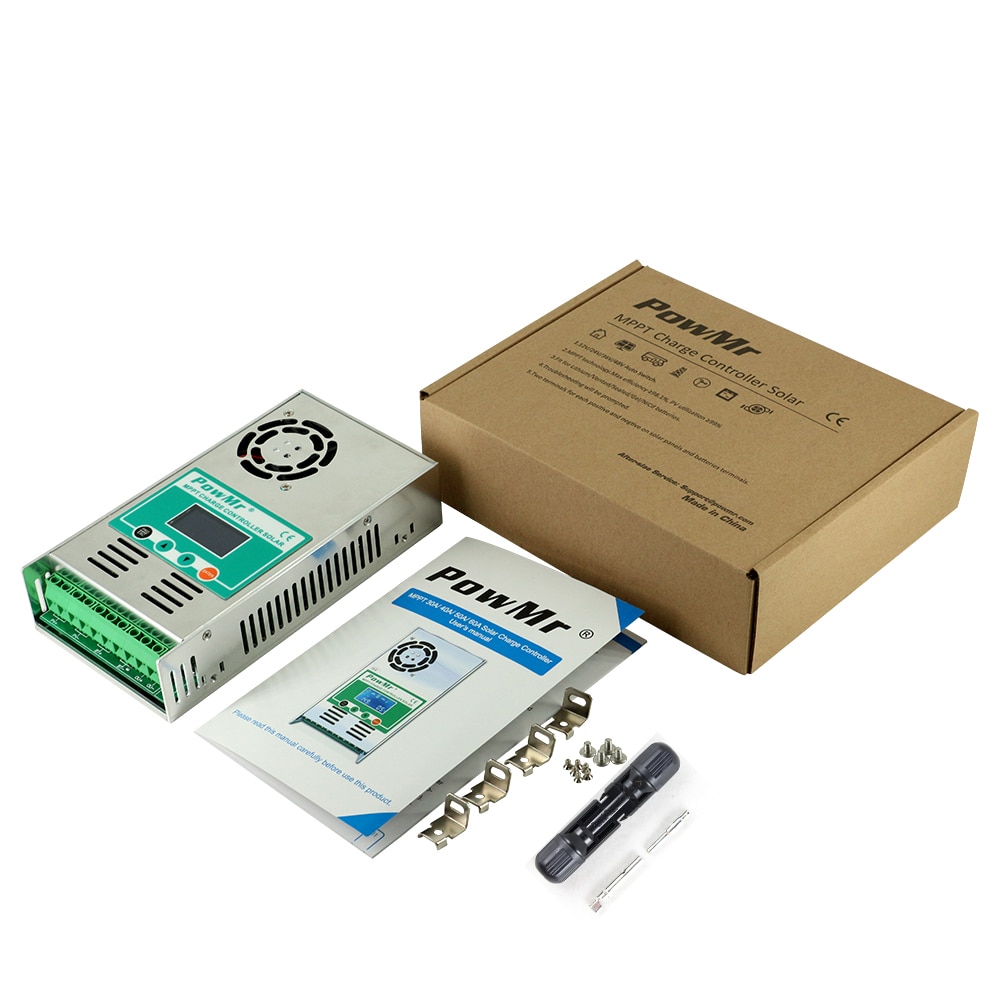

1 PCS MPPT Solar Controller

1 PCS English User Manual

1 Pair Free Solar Connector for Each Solar Controller


Model No.

MPPT-30A

MPPT-40A

MPPT-50A

MPPT-60A

Charging mode

MPPT Maximum power point tracking automatically

Charging

3-stage:constant current(MPPT), constant voltage(Absorption Voltage), floating charge

System type

DC12V/24V/36V/48V Recognition automatically

System voltage automatic recognition

12V system (DC9V-DC15V)


24V system (DC18V-DC29V)


36V system (DC30V-DC39V)


48V system (DC40V~DC60V)

Soft start time

≤1S

Dynamic response and recovery time

100us

Max efficiency

≥98.1%  (Voc is 1.5 or 2 times than battery, then it’s best efficiency)

PV utilization

≥99%

Input specification





Voc from PV

( Make sure the Voc of PVmeeting the requirement as right. Voc is 1.5 or 2 times than battery, then it’s best efficiency. )

12V system (DC20V~DC80V)


24V system (DC37V~DC105V)


36V system (DC50V~DC160V)


48V system (DC72V~DC160V)

The maximum PV input voltage (Voc)

DC190V(The controller can’t work at this voltage of long duration that will break controller. Please refer to Input voltage from PV.)

The maximum PV input power

(The total power rated of PV can’t be over this watt that will break the controller.)

12V system  (360W)

12V system  (480W)

12V system  (600W)

12V system  (720W)


24V system (720W)

24V system

(960W)

24V system (1200W)

24V system (1440W)


36V system (1080W)

36V system (1400W)

36V system (1800W)

36V system (2100W)


48V system (1440W)

48V system (1700W)

48V system (2200W)

48V system (2800W)

Output specification





Selectable battery type(default is Sealed)

Vented/ Sealed / Gel / NiCd / Lithium battery(defined voltage for other battery by user)

Absorption Charging Voltage

Refer to Batteries charging reference

Floating Charging Voltage

Refer to Batteries charging reference

Overcharging protection voltage

12V system (15V)


24V system (30V)


36V system (45V)


48V system (60V)

Rated output current

30A

40A

50A

60A

Temperature Coefficient

±0.02%/ centi-degree

utomatic temperature compensation

14.2V-(Max temperature-25 centi-degree)*0.3

Output voltage ripple-peak

100mV

Output voltage accurac

≤±1%

Input Anti-intrusion protection

yes

Temperature Protection

75°C

Temperature increased protection

Output power will reduce when it’s more 70 °C

Output power will be normal when it’s less 55 °C

Fan-on temperature

>40 °C

Fan-off temperature

<35 °C

Acoustic noise

≤40dB

Cooling way

Forced air cooling.

Components

Imported materials, Accord  to EU standards, Industrial grade range.

Environmental requirements

Meet 2002/95/EC; No cadmium, hydrides and fluorides

Security Level

Accord to CE, PSE, FCC, EMC, EN60950

Electromagnetic Compatibility

Accord to EN61000, EN55022, EN55024

Enclosure

IP21

Net weight(Kg)

1.1

Gross weight(Kg)

1.2


  • is_customized: Yes
  • Maximum Current: 30A/40A/50A/60A/80A/100A/120A
  • Model Number: MPPT
  • Application: Solar System Controller,Voltage Controller,Lighting Controller,Thermal Controller
  • Brand Name: PowMr
  • Origin: Mainland China
  • Certification: CE
  • Charging mode: MPPT (Maximum power point tracking)
  • Battery Voltage: 12V/24V/36V/48V Auto Recognition
  • Battery type: Vented Sealed Gel NiCd LiFePO4 Lithium Battery
  • Maximum Solar Panel input: 12V ( 80V) 24V (105V) 36V(160V) 48V(160V)
  • Cooling way: Fan
  • Case Material: Aluminum
  • Enclosure: IP21
