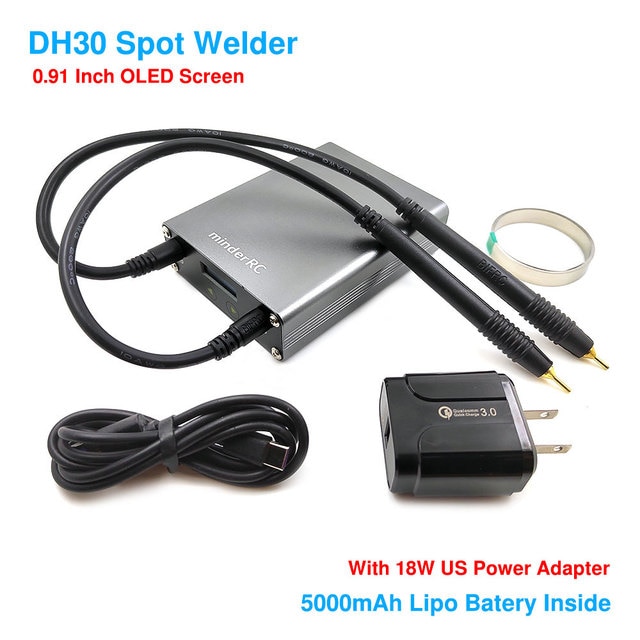

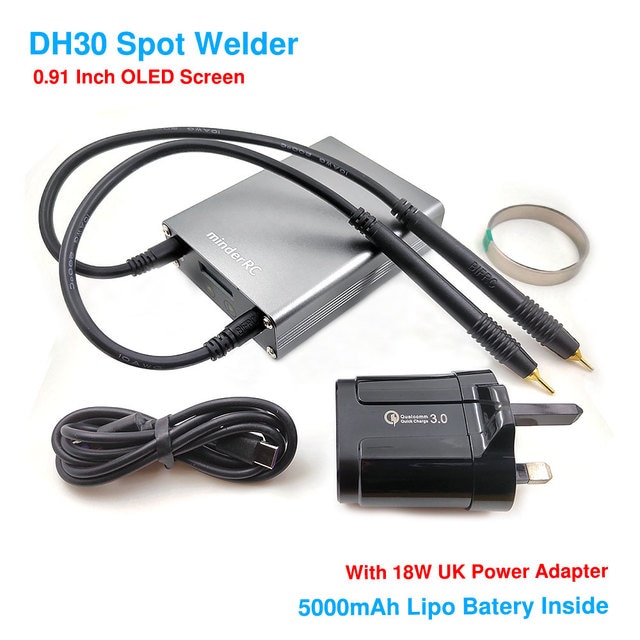

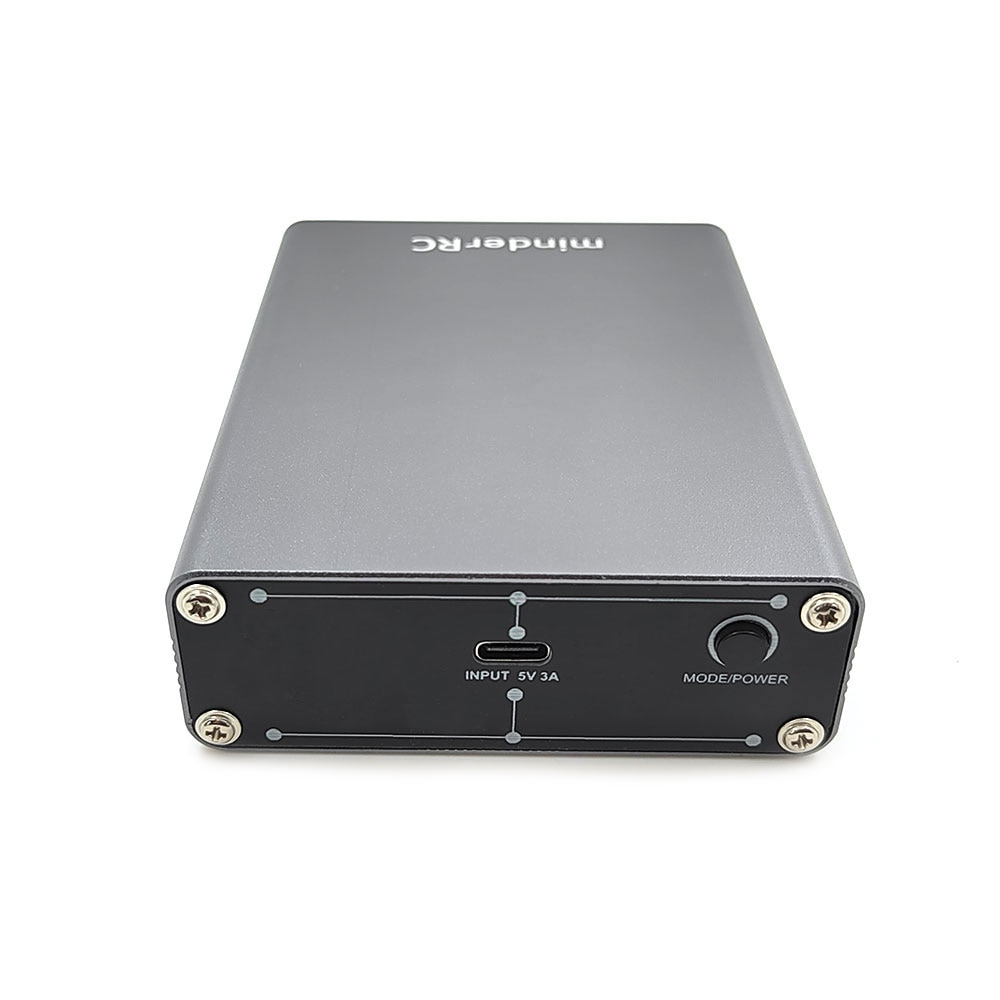

MinderRC DH30 Spot Welder Adjustable 30 Gears OLED Screen 5000mAh Lipo Include For Max 0.15mm Nickel Strip Portable Spot Welding
4.7 (78 votes) | 289 orders
Price:
US $102.36 - 107.91
/ piece
Discount Price:
US $
73.13 -
76.64
/ piece
-29%
- Ships From
- Color
-
-
DH30 Spot Welder

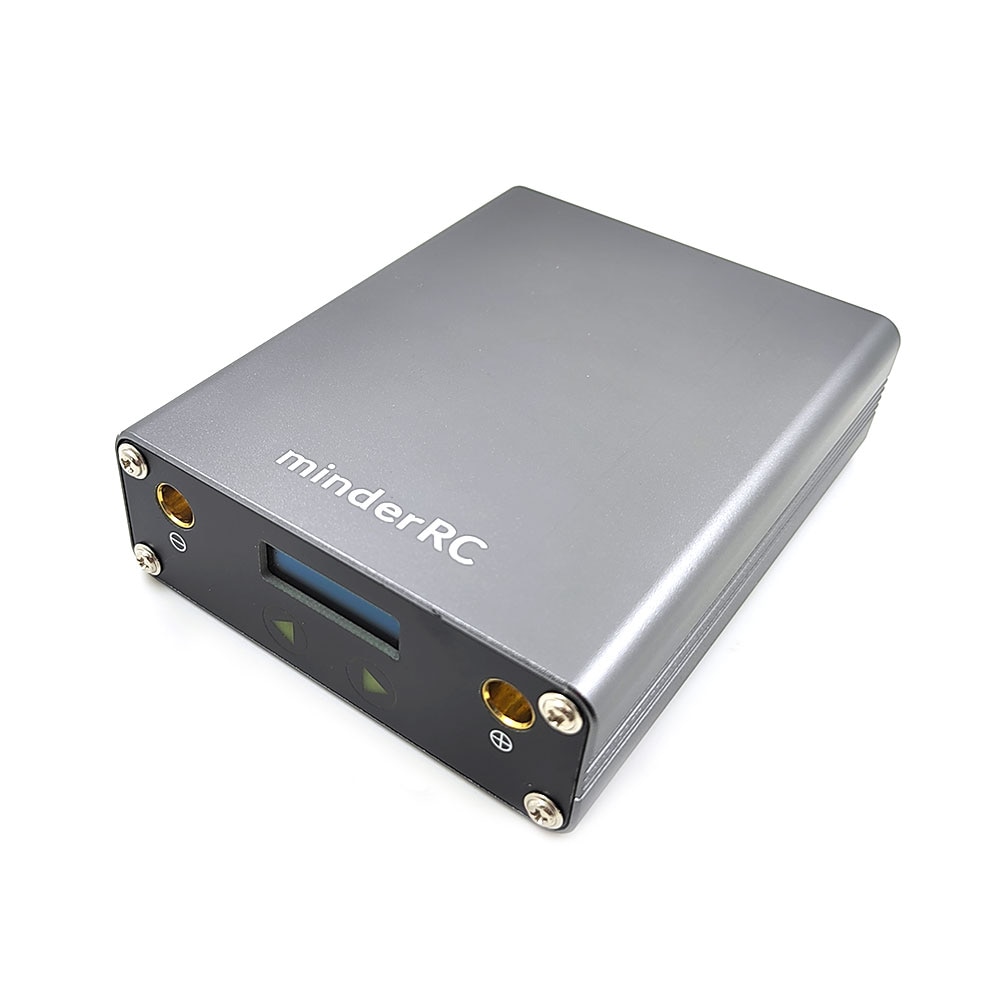

Screen: 0.91 Inch OLED

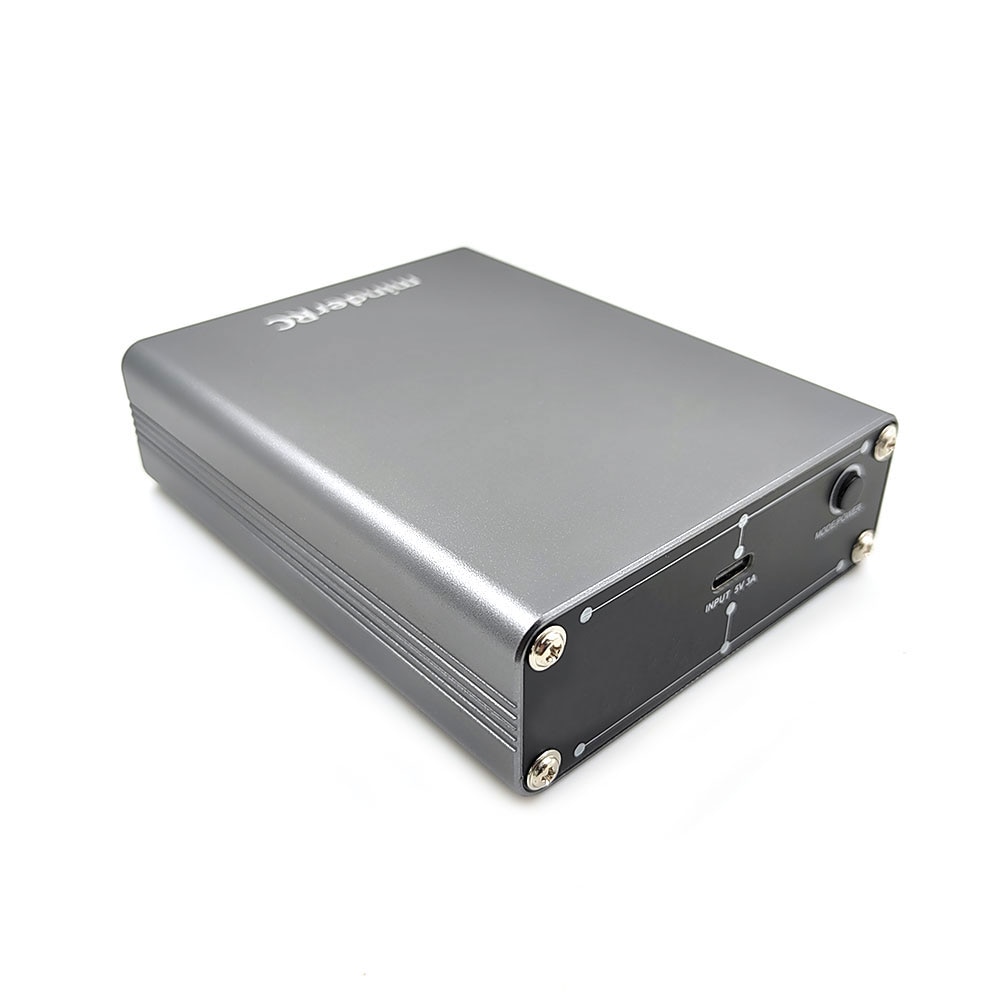

Material: Metal Case
Battery Capacity: 5000mAh
Welding Output: MAX 650A
Charging Port: Type-C
Product Weight: 302g
Product Size: 103x83x29mm
U Disk Firmware upgrade

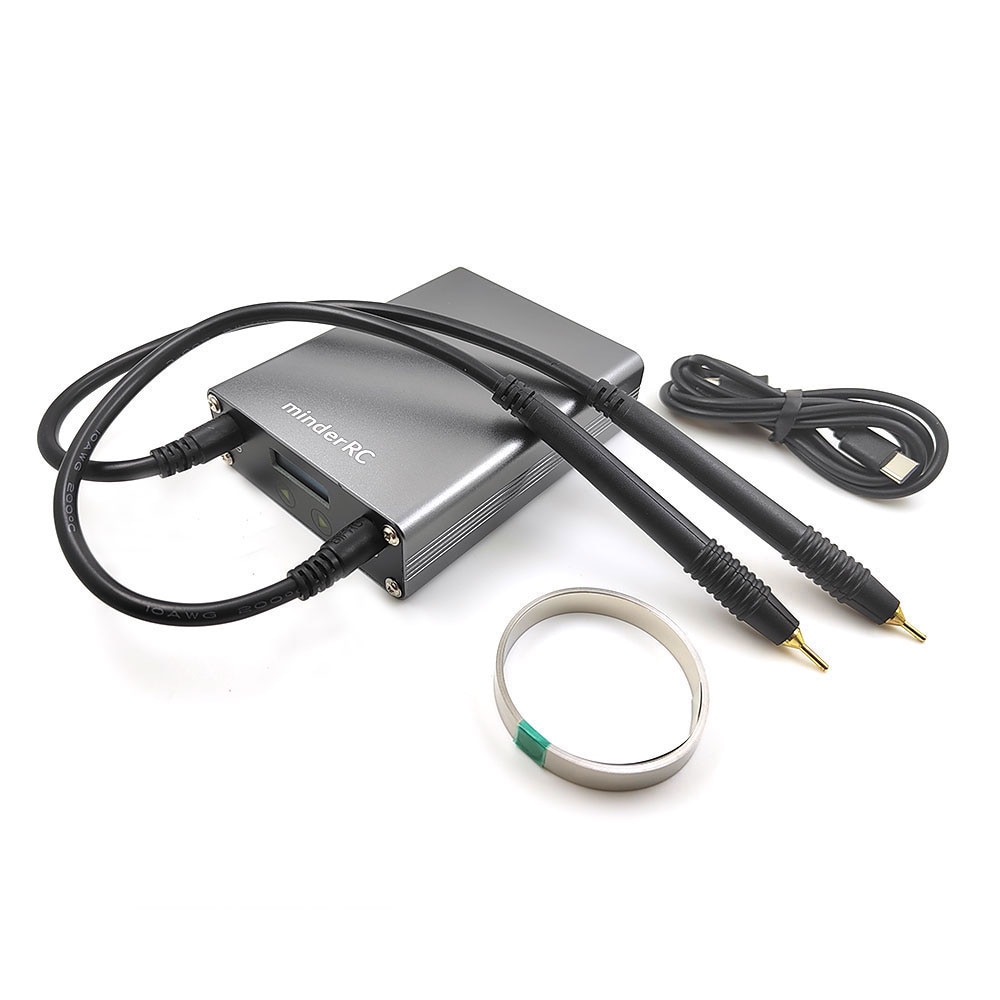

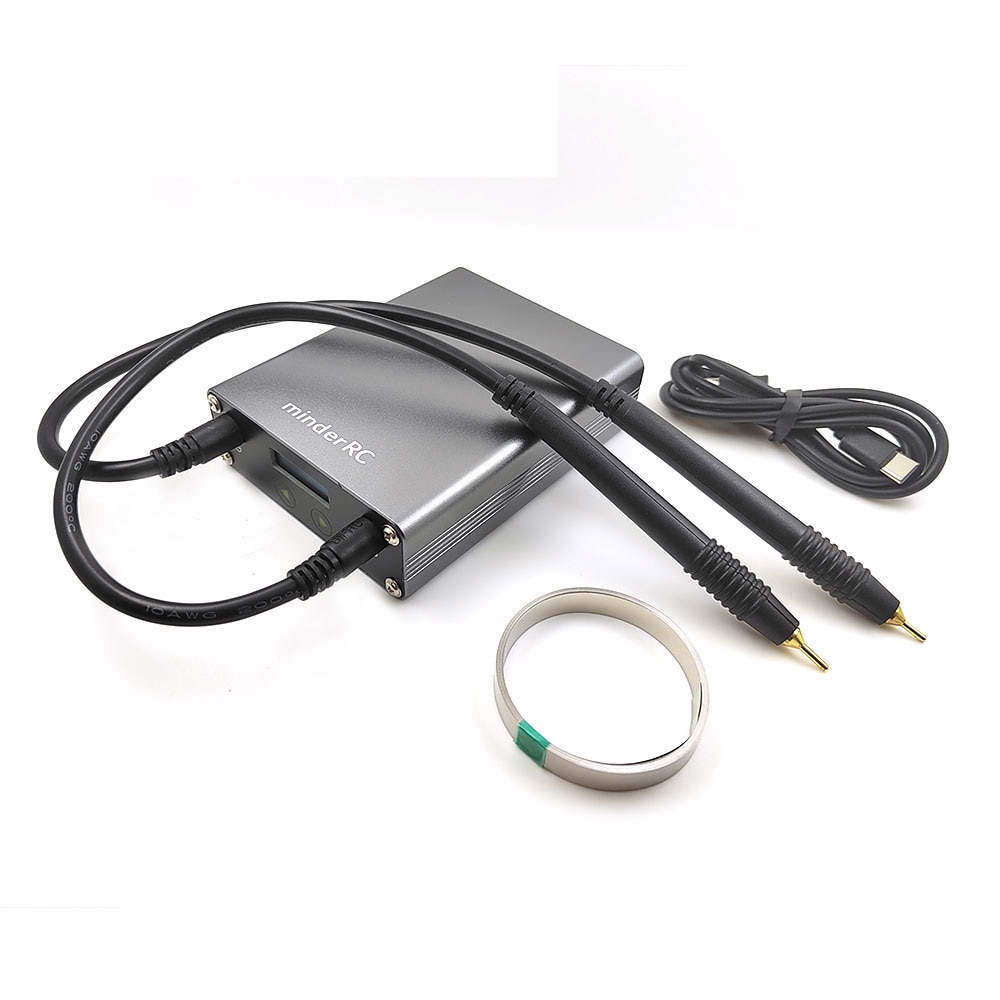

DH30 Packaging Include
1 x Mini Spot Welder
1 x Welding Pen
1 x Type C Charging Cable
1 x 0.12mm*8mm*2m Nickel Plated Steel Belt
1 x User Manual
1 x EU/US/UK Power Adapter (Optional)
Please full charging before using!
How to Welding

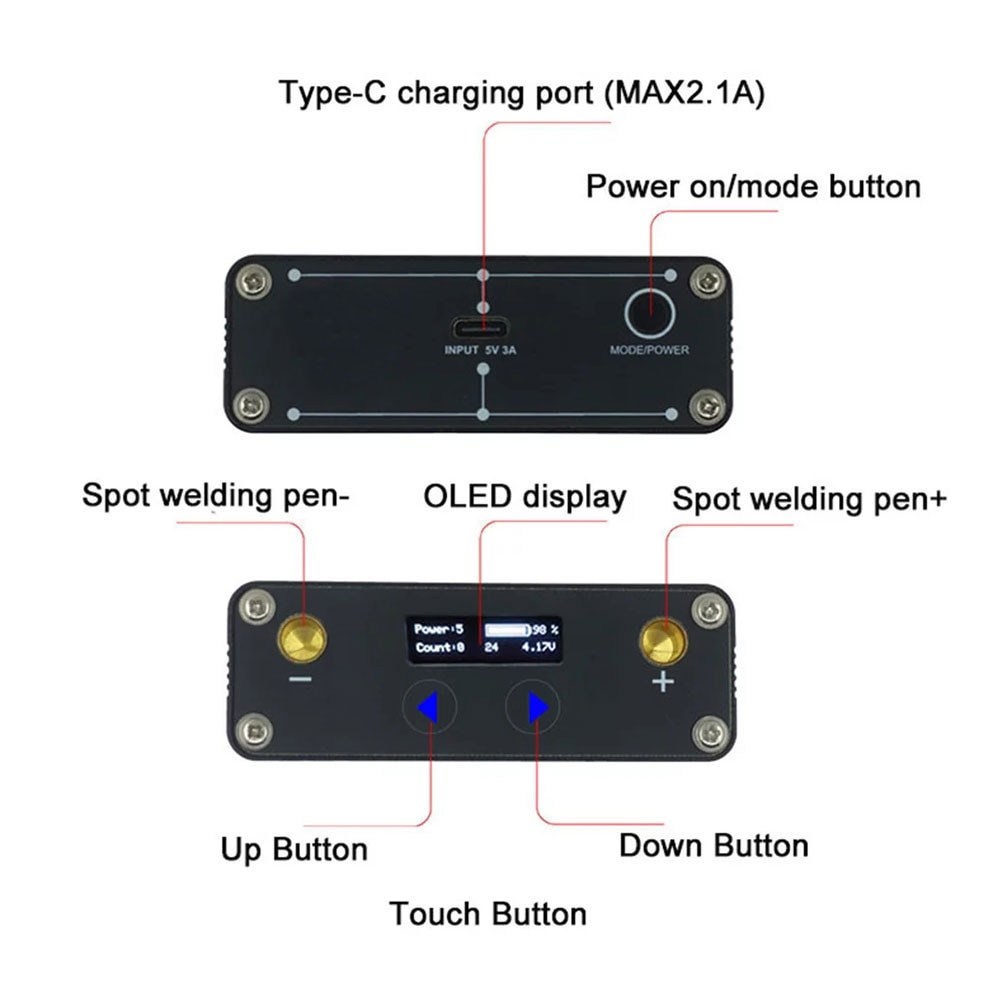

Long click the button to power on or off the spot welder，one click go to next manual when spot welder in power on status.
Try different spot welding power from low to high,we suggest use gear 11 or 12 to welding 0.12mm Nickel steel strip,if set the MAX gears,Nickel belt will be broken down or spot welder will power off to protection mode,It is not that the higher the power, the better welding effect is.

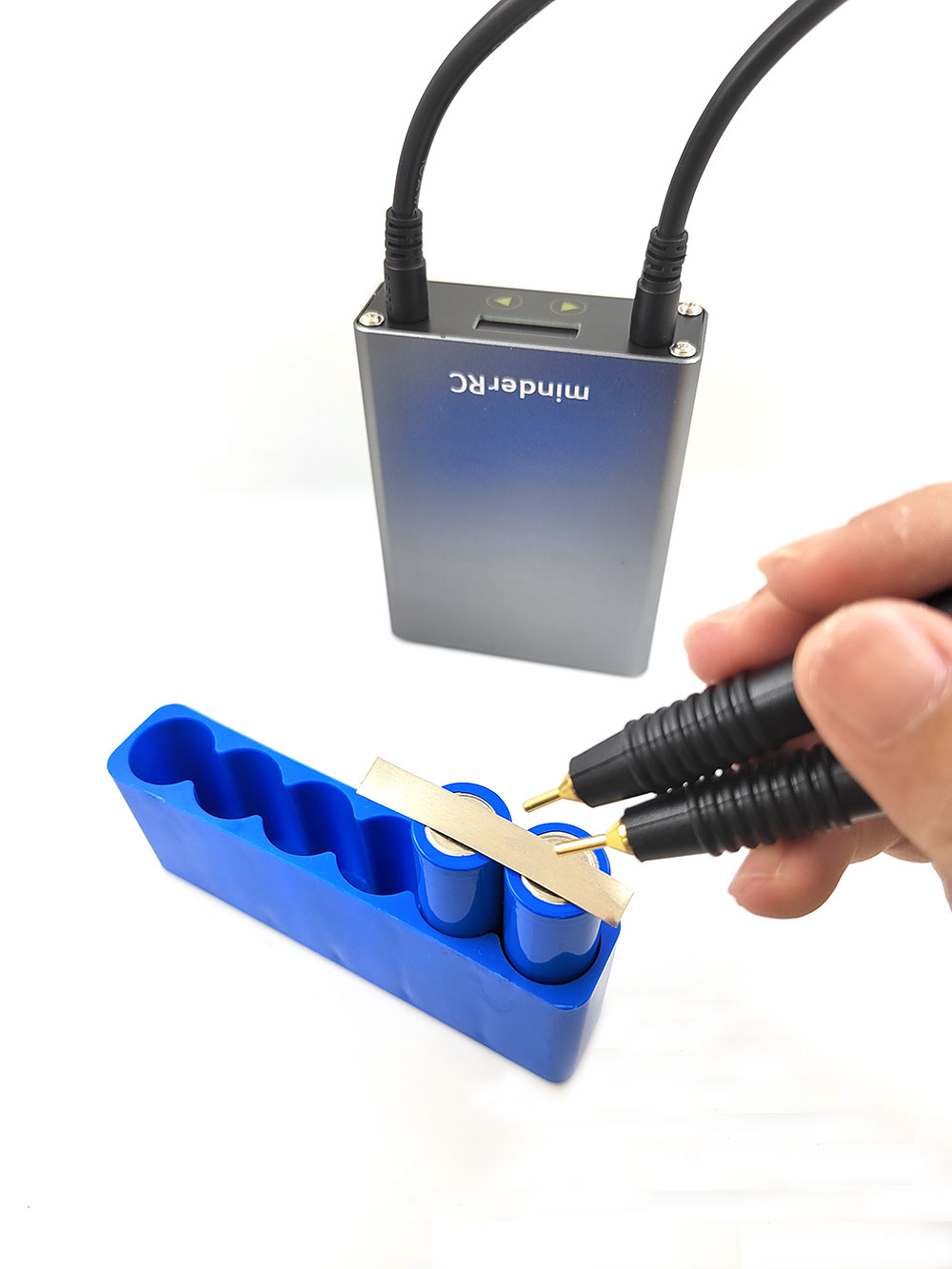

When welding, press down the soldering pin lightly, and the nickel sheet and the battery can be bonded together. The harder you press, the less solid the welding will be. It will automatically trigger after pressing down for one second.
How to Charging
We suggest directly connect the black charging wire coming with spot welder from power adapter to spot welder，and power adapter need 5V current above 2A.
We not suggest use PD charger or connect any other voltage current meter,because some PD charger and wire can not output a 5V voltage,type C to type C connect will have some charging problem!
Spot Welder include high discharge lipo battery,for safe delivery,it have low power,inside IC control charging current when battery is low power,
In the case of low power, there may be a low voltage alarm and the screen is not bright, continue to charge, the screen will return to normal charging，we suggest charing more than 30 minutes.
Precautions for maintenance
The spot-welding machine has a built-in high-rate lithium battery, which is different from the mobile phone battery. The high-rate lithium battery can discharge with high current, so if it is not used for a long time, it may cause the battery voltage too low to shut down, and serious may cause battery damage. We recommend charging it to about 80% for storage in 2-3 months
- Is Smart Device: No
- Usage: Spot Welder
- Max. Welding Thickness: 0.15mm
- Rated Capacity: 5000mAh
- Model Number: DH30
- Brand Name: MinderRC
- Origin: Mainland China
- Certification: CE,EAC,FCC
- Screen: 0.91 inch OLED
