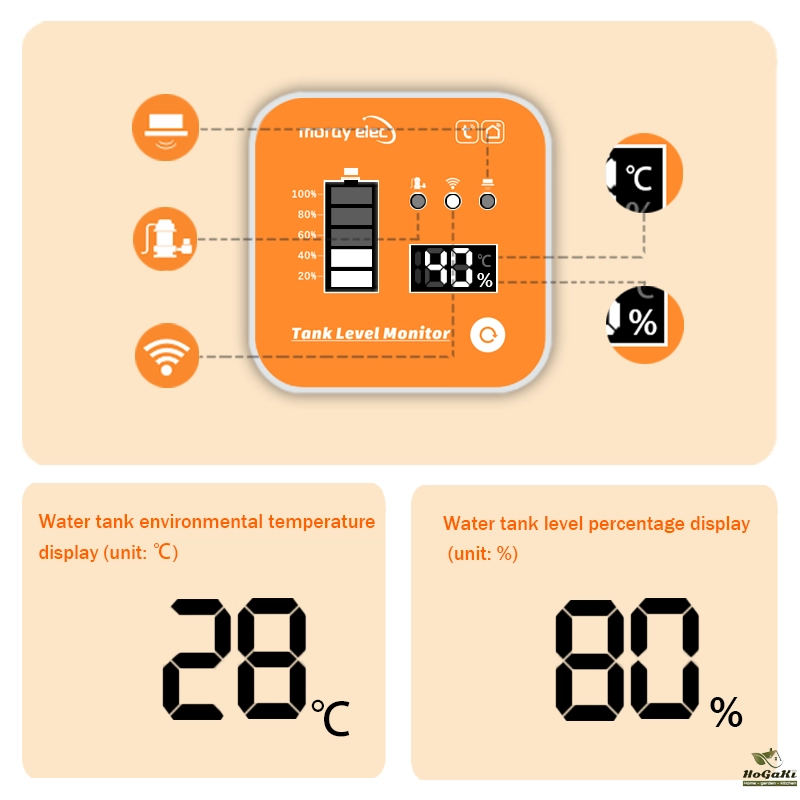

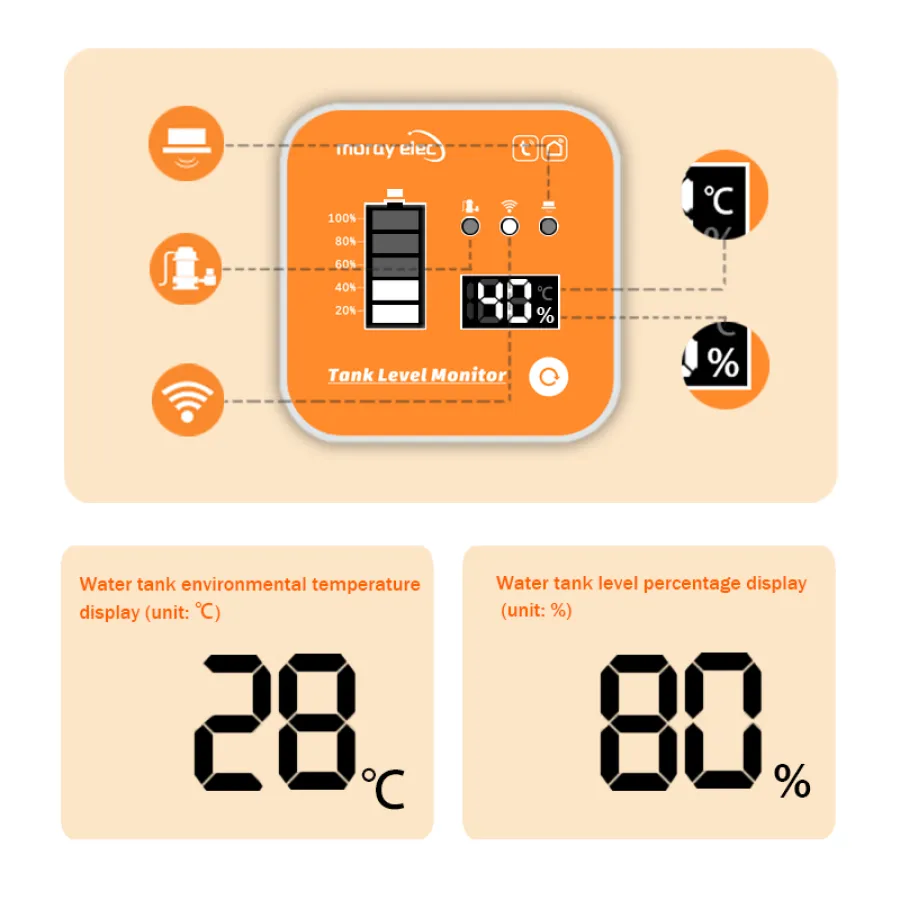

ME201R Tuya APP Ultrasonic Level Sensor with LCD Display Temperature Indicator Time Display For Water Tank Level Monitor
4.7 (49 votes) | 388 orders
Price:
US $179.89 - 196.57
Discount Price:
US $
170.48 -
181.98
-5%

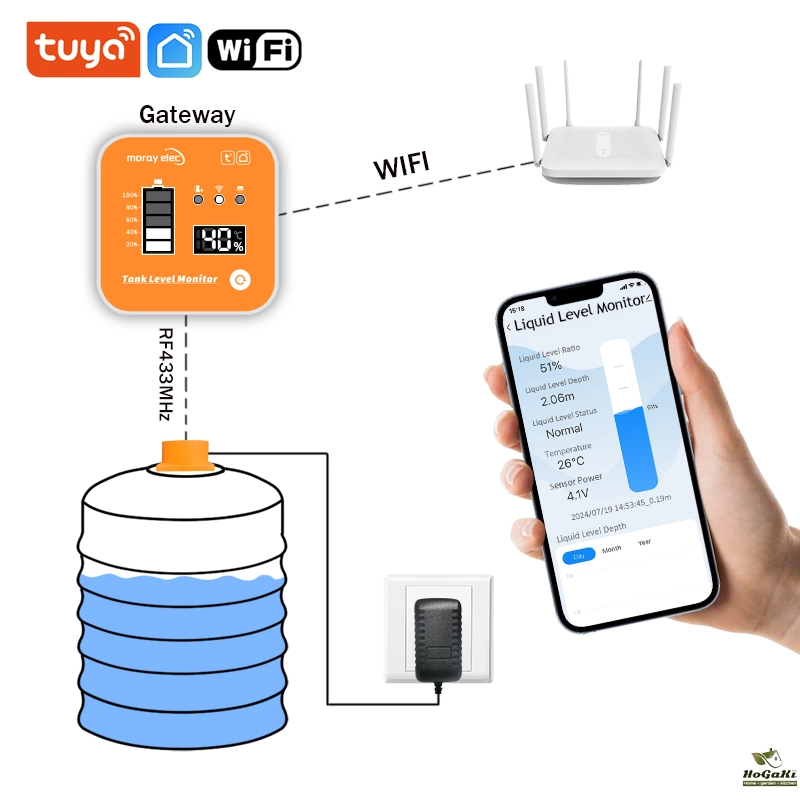

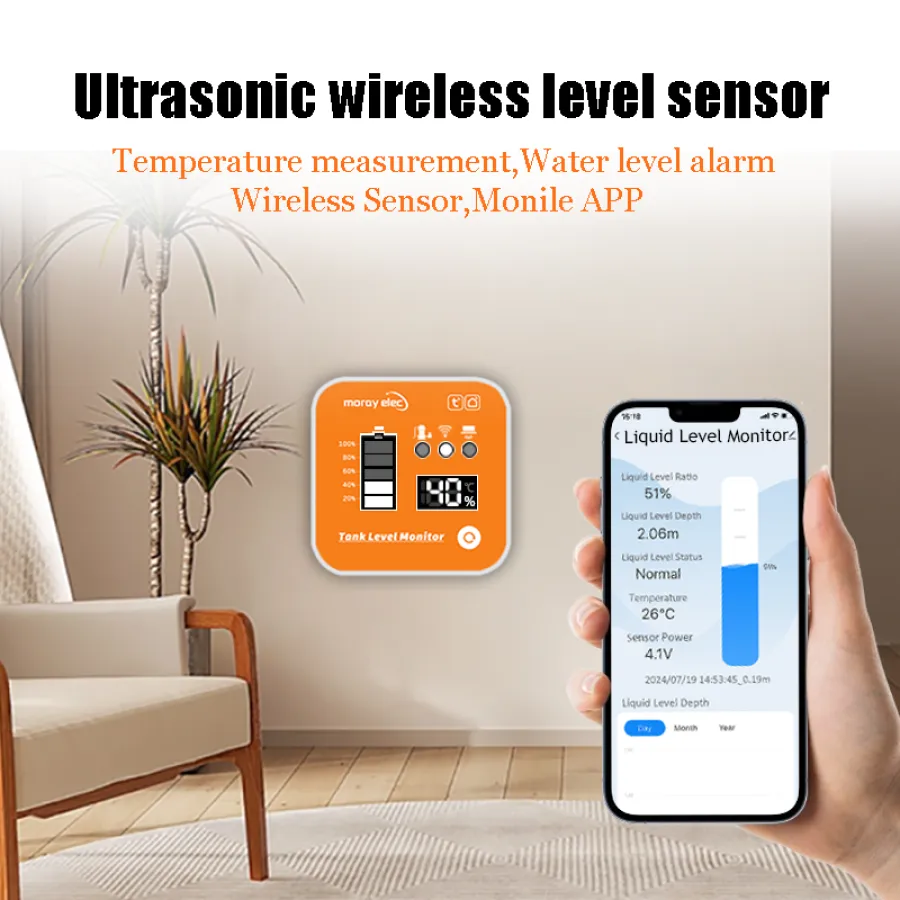

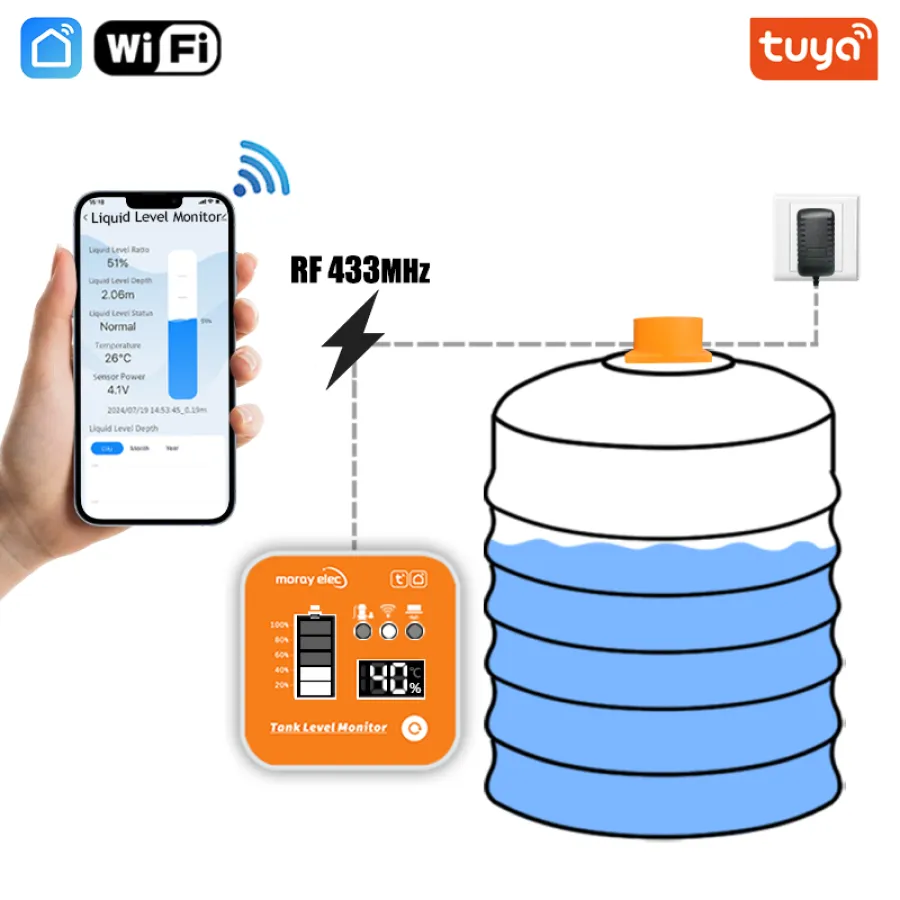

Wireless Level Monitor
Any time, Any where.
Tuya Ultrasonic Sensor is an outstanding
technology that boasts numerous advantages
for various applications.
Its reliable distance detection capability, easy
installation and use, high durability, versatility,
and low maintenance costs make it an
incredible value addition to any project.
This sensor is, without a doubt, a revolutionary
advantage that sets it apart from other sensors.

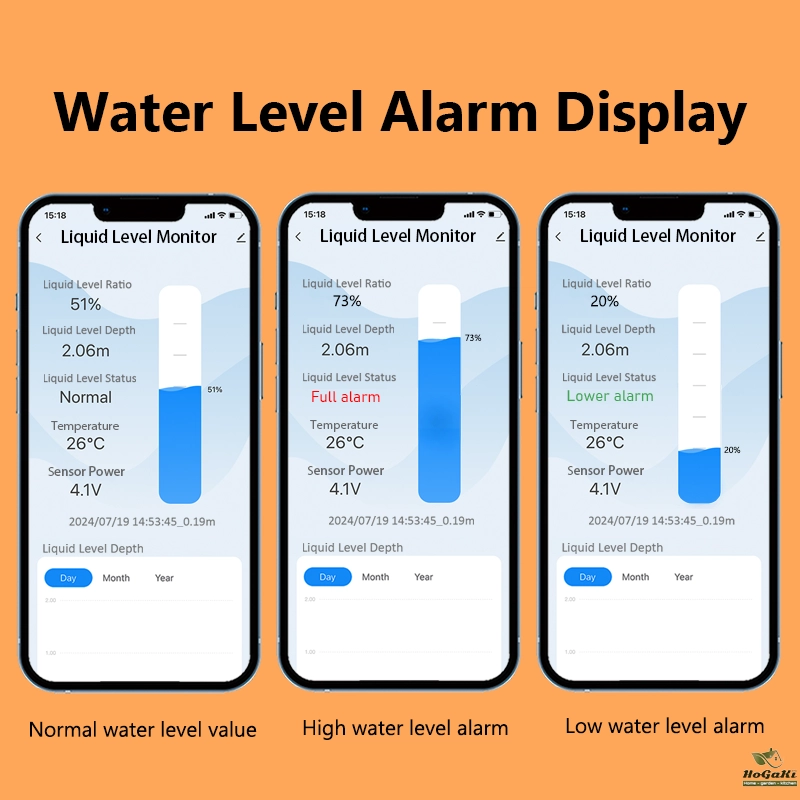

Alarm Notice

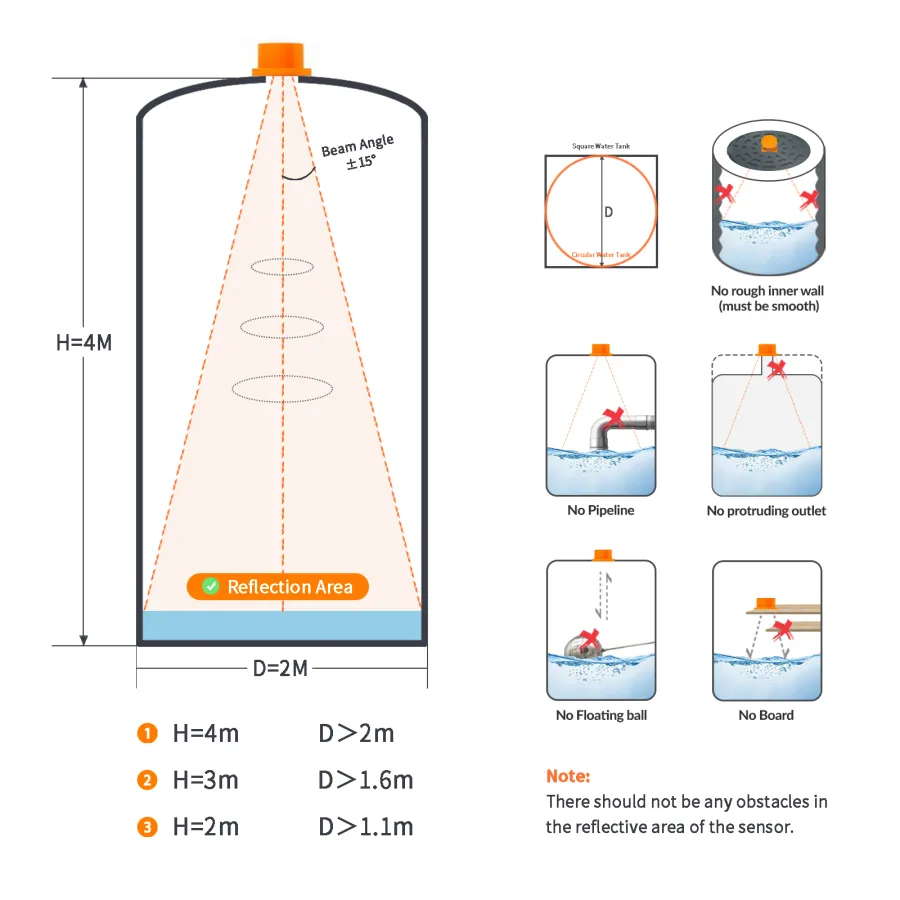

The detection height of the sensor is 10 cm to
400cm. The alarm and message notification were
triggered when the threshold was exceeded.
Product Connection
1. Power on the AC/DC ADAPTOR first, and
then power on the sensor.
2. Scan code to download “TUYA Smart APP" or
“Smart Life APP" on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light
flashes rapidly, then release the button, the
network reset, the device connect to the
network automatically.

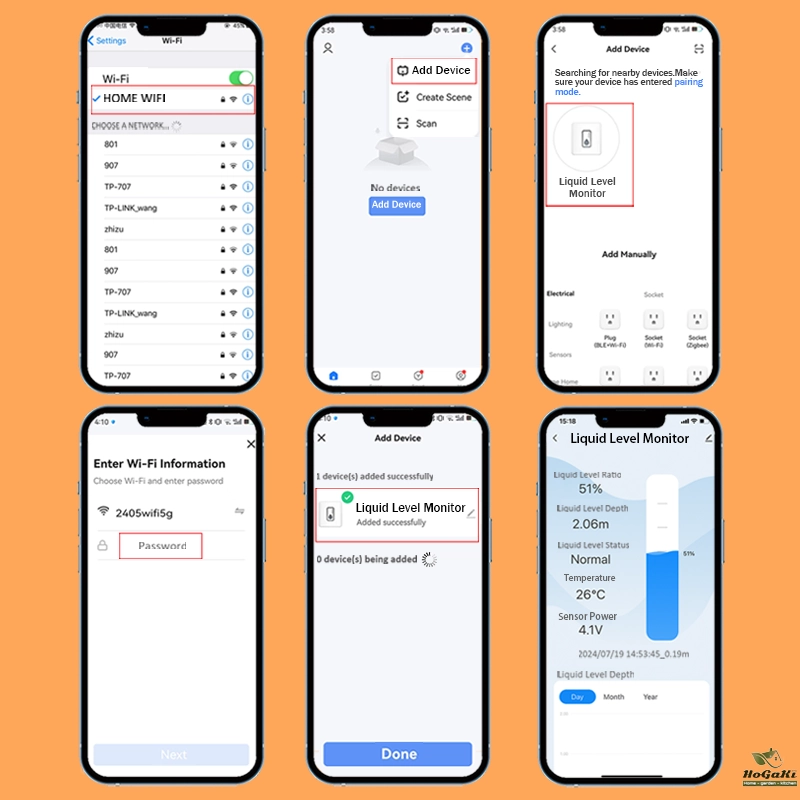

4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your
phone,enter the app and add device
Product Settings
1. Set Installation height
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm
Control Pump(Optional)

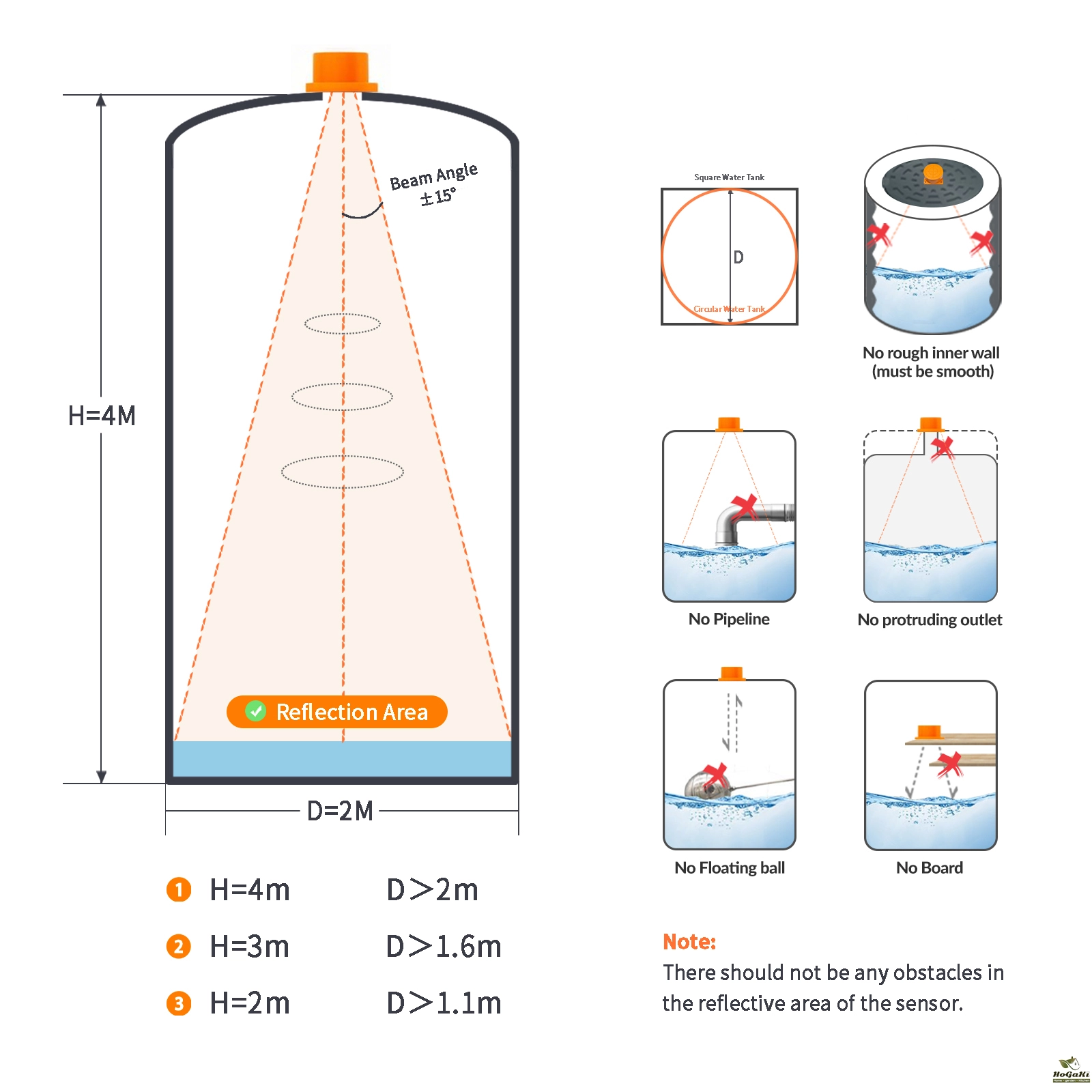

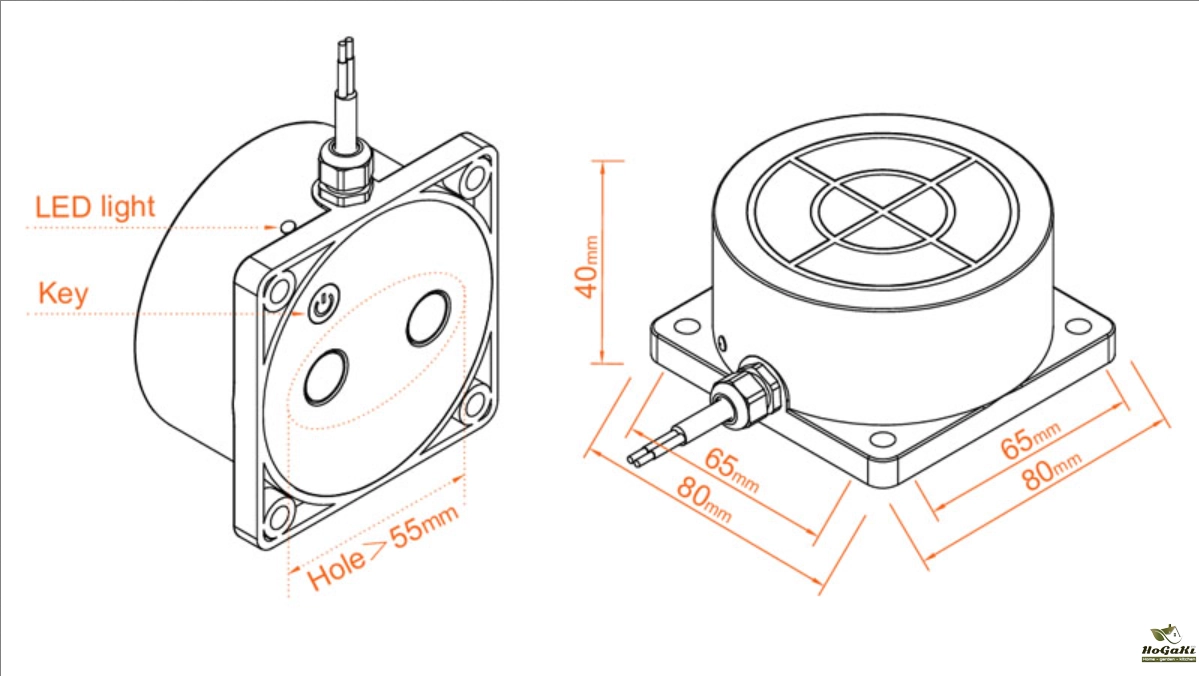

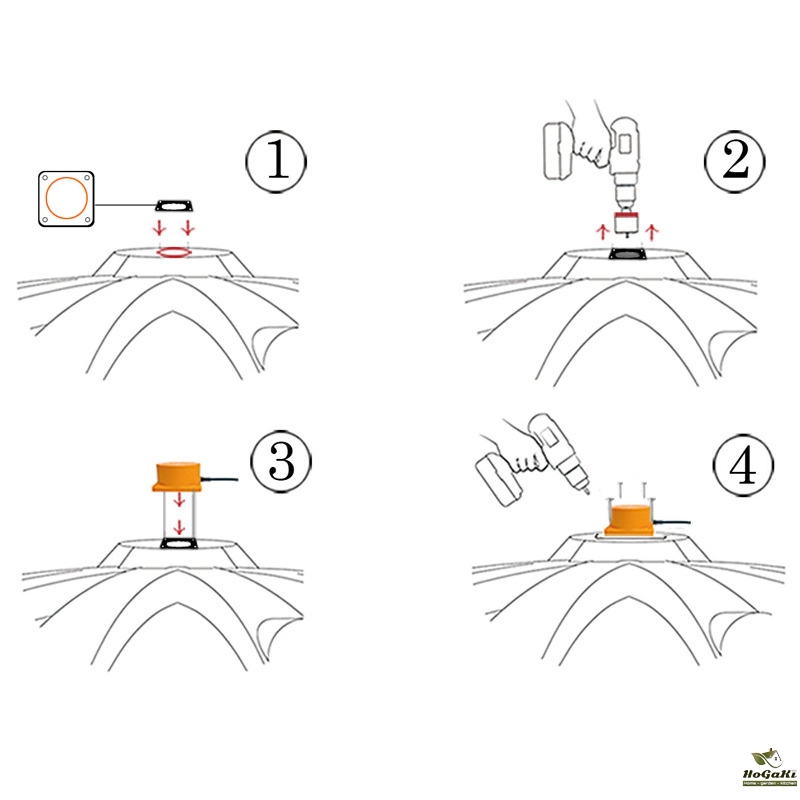

Product Installation
1. In the center of the tank, paste 3M
installation mark.
2. Drill a hole right in the middle of the label
with a diameter of 55mm;
3. Place the sensor over the hole, keeping it
centered and the probe unobstructed;
4. Fasten the sensor with a self-tapping screw.

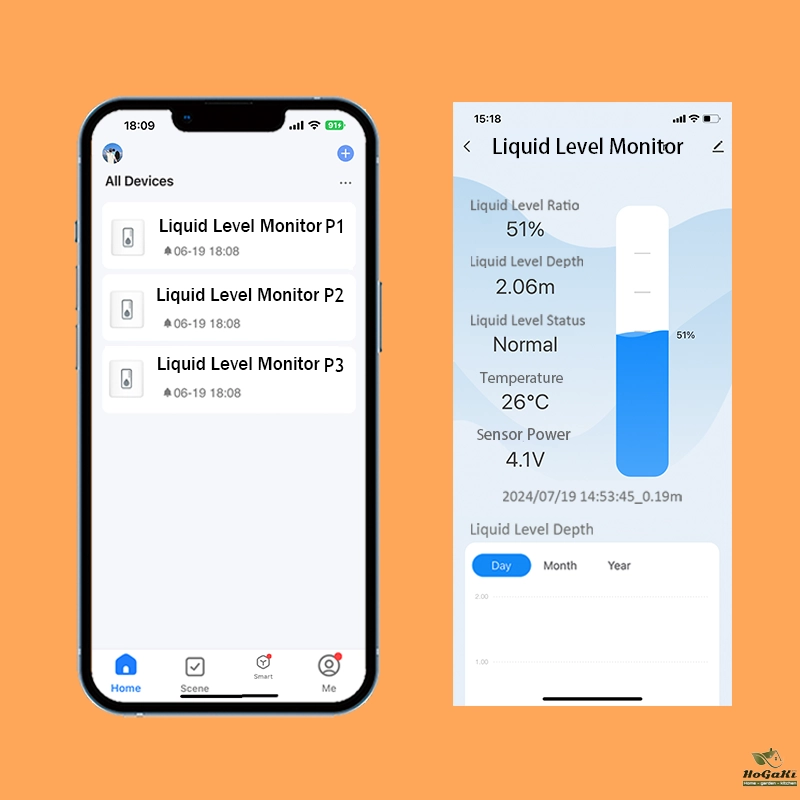

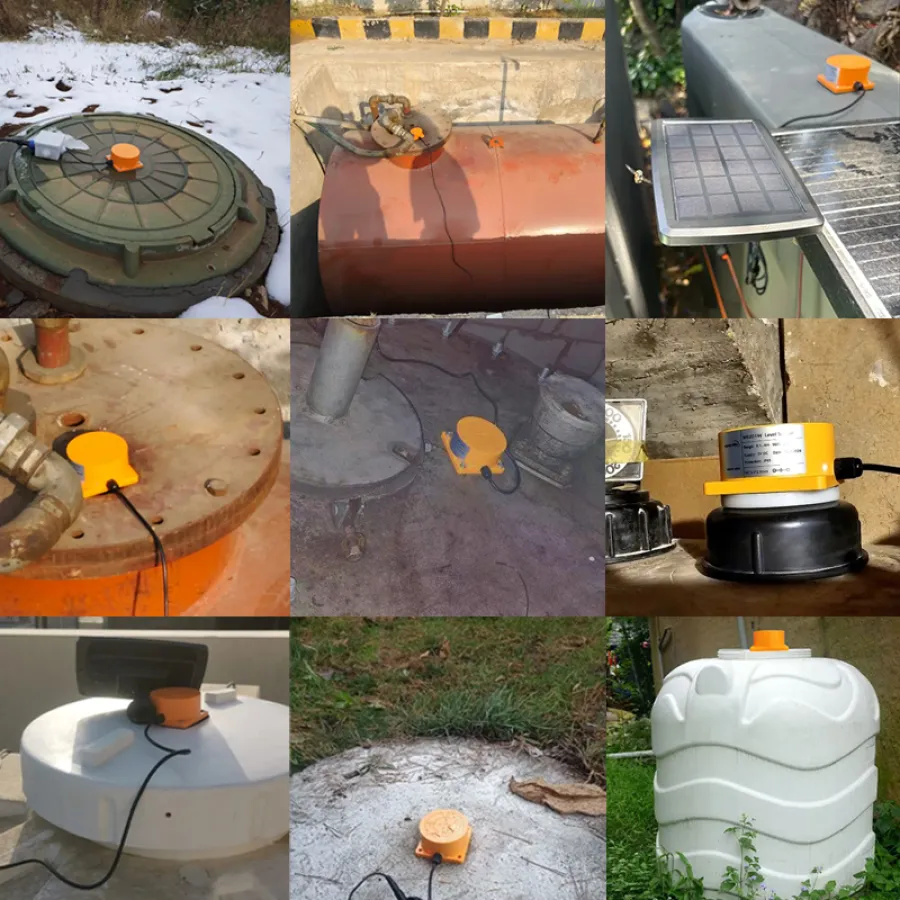

Multi-Tank Monitoring
Company
Xi'an Moray Electronic Technology Co., Ltd.
MORAY ELEC is an IoT solutions company
focusing on wireless monitoring of tank level
and pipeline pressure, integrating R&D,
production and sales from 2011.
For a long time, we focus on low-power
wireless transmission and sensor, with more
than 3000+ customer application sites. Since
its establishment, we have served customers
from more than 100 countries, our factory
exports 100,000+ pieces products abroad every
year.

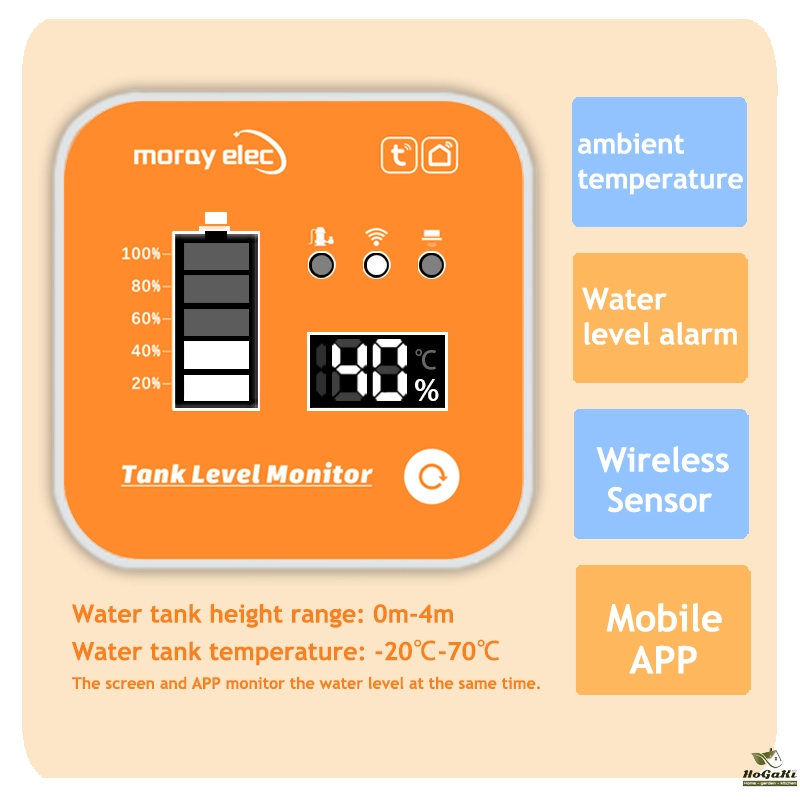

Water tank liquid level monitor is a high-
performance liquid level monitoring device with
many advantages.
First of all, the equipment can realize
unattended automatic detection. Using
ultrasonic sensor technology, the liquid level of
water tank can be monitored without manual
intervention, which greatly improves the
accuracy and efficiency of monitoring.
Secondly, the equipment has the function of
high-precision liquid level measurement. The
precise ultrasonic sensor can accurately read
the liquid level inside the water tank, provide
accurate liquid level monitoring data in real
time, and help users to know the liquid level of
the water tank in time.
In addition, the equipment has intelligent
remote monitoring function, which can
remotely monitor the liquid level of the water
tank through the network. Users can easily
carry out remote monitoring through
computers, mobile phones and other
equipment to know the liquid level status of the
water tank in time and avoid various problems
caused by low or high liquid level.
Finally, the device is simple in design, easy to
install and use. The use of this equipment can
greatly facilitate the use of users, reduce the
installation cost and difficulty of use, and
facilitate users to better manage the liquid level
state of the water tank in daily use.
To sum up, the graffiti ultrasonic water tank
level monitor has many advantages, which can
help users to monitor the water tank level
comprehensively and ensure the stability and
safety of the water supply system.
Packaging Details
- Unit Type:
- Package Weight: 0.300
- Package Size: 11x8x18
- Brand Name: morayelec
- Origin: Mainland China
- Hign-concerned Chemical: None
- DIY Supplies: Plumbing
- Battery Included: No
- Model Number: ME201R
- Certification: CE
- Product Name: Wireless Level Monitor
- Application: Water /Oil Tank
- Usage: Home Automation System
- Operating Temperatures: -20-70℃
- Operation System: Android,lOS APP
- APP: Tuya SmartLife
- Measuring Range: 0.1m~4.0m
- Accuracy: ±0.02m
- Power Supply: 100-240VAC to DC 5V
- Choice: yes
- semi_Choice: yes
