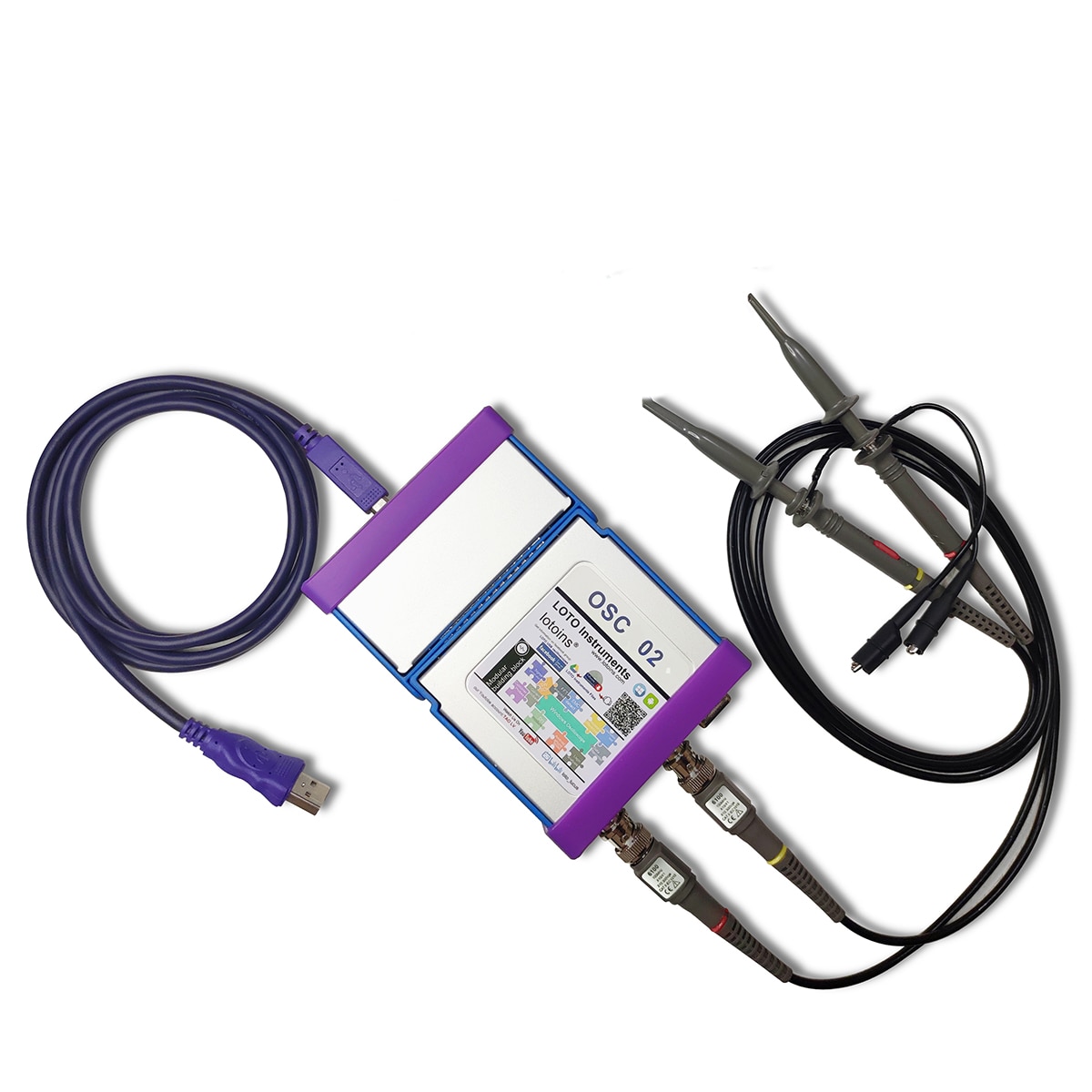

LOTO USB/PC Oscilloscope OSC482, 50MS/s, BW20MHz, 2-channel/Oscilloscope/Signal Generator/Logic Analyzer/8~13 bit Resolution
4.8 (6 votes) | 19 orders
Price:
US $
142.45 -
321.10
/ piece
LOTO products help you solve the problems bellow:
1: As a junior hardware engineer, which oscilloscope to choose to get started?
2: Have to share a oscilloscope with your colleagues,how to break?
3: Need to carry a heavy oscilloscope to debug on site, what should I do?
4: Developing electronic projects at home, no oscilloscope is inconvenient, what should I do?
5: Traditional oscilloscopes are expensive, and many functions are not used. Need a powerful and inexpensive oscilloscope?
6: Traditional oscilloscopes are too clumsy
to be customized and difficult to integrate into your project. How to solve it?
Software download:

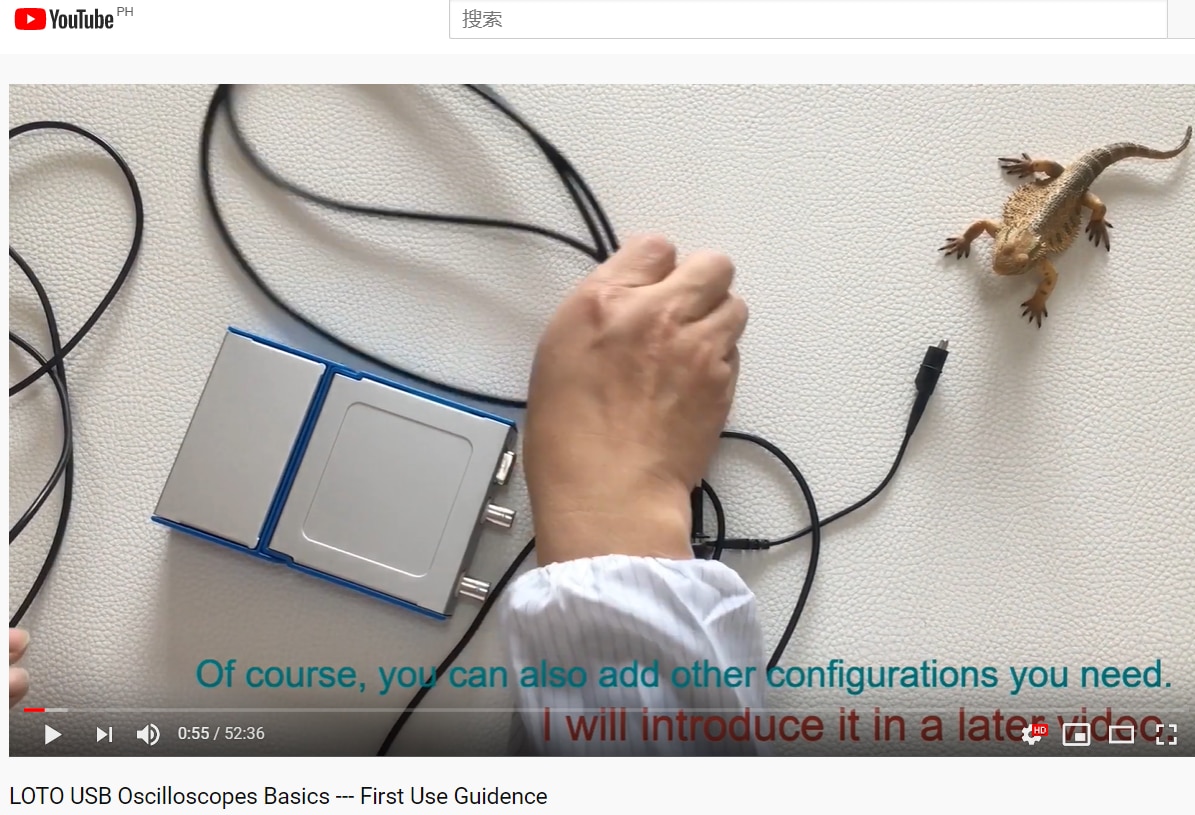

Official video introduction, answers all your questions.
https://youtu.be/mUM9R6rnH90

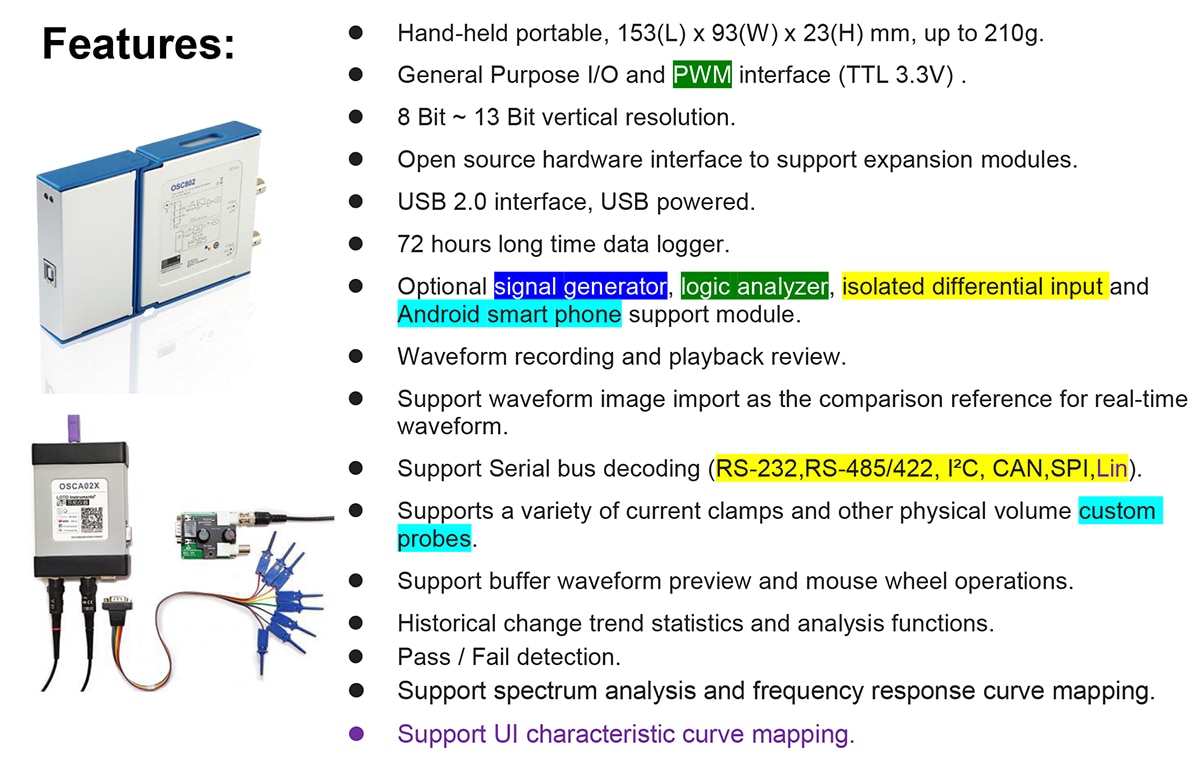

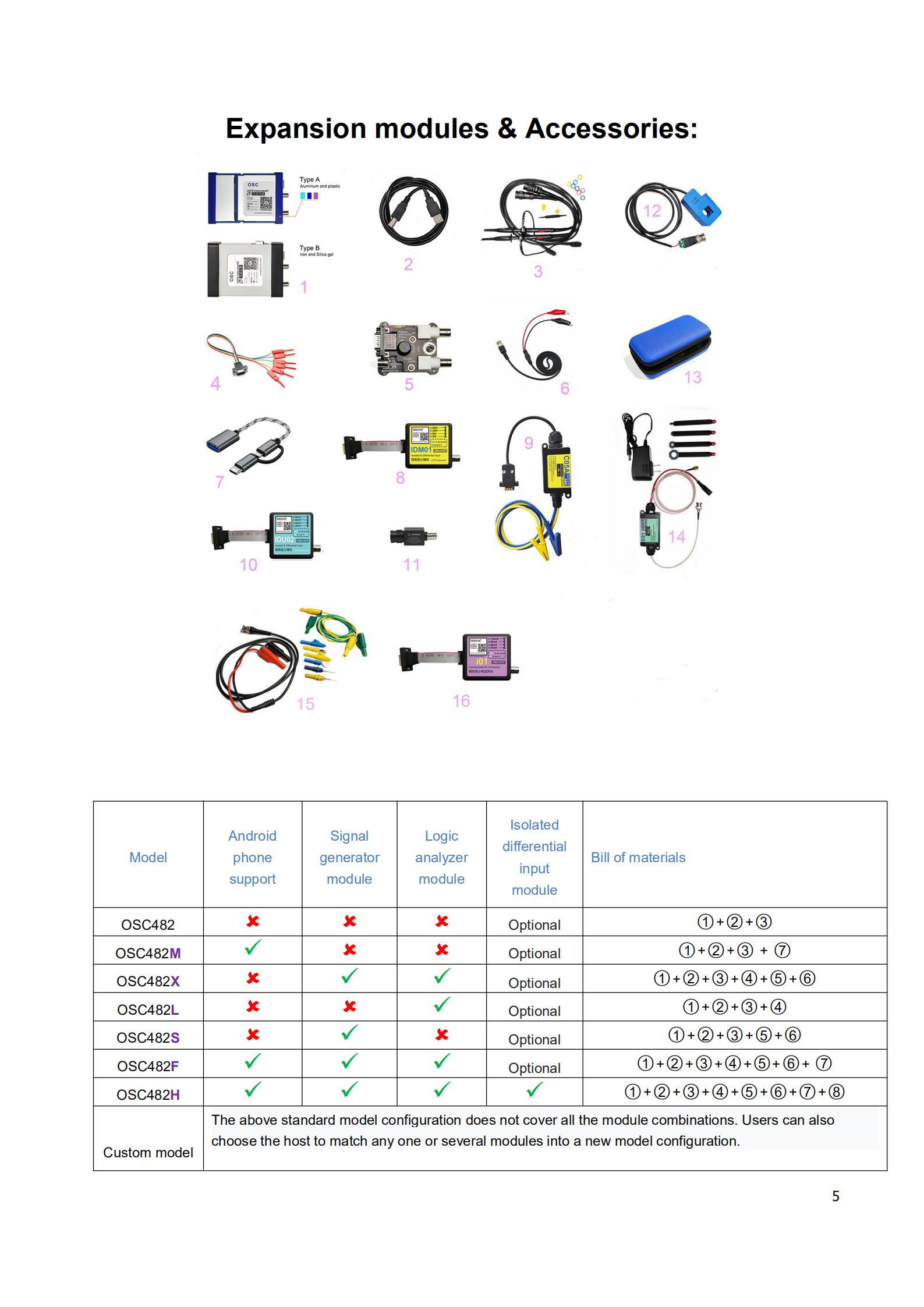

OSC482 series provide you 5 in 1 excellent choice:
OSC482 is a 2 -channel oscilloscope(work on Windows), it could combine additional modules to provide more useful features. Please choose the proper type for your application.
OSC482D=OSC482+differential isolation module.
OSC482L=OSC482+4-channel logic analyzer.
OSC482S=OSC482+1-channel signal generator.
OSC482M=OSC482+Android Phone APP
OSC482X=OSC482+logic analyzer+signal generator.
OSC482F=OSC482M+logic analyzer+signal generator.
OSC482H=OSC482F+differantial isolation module.

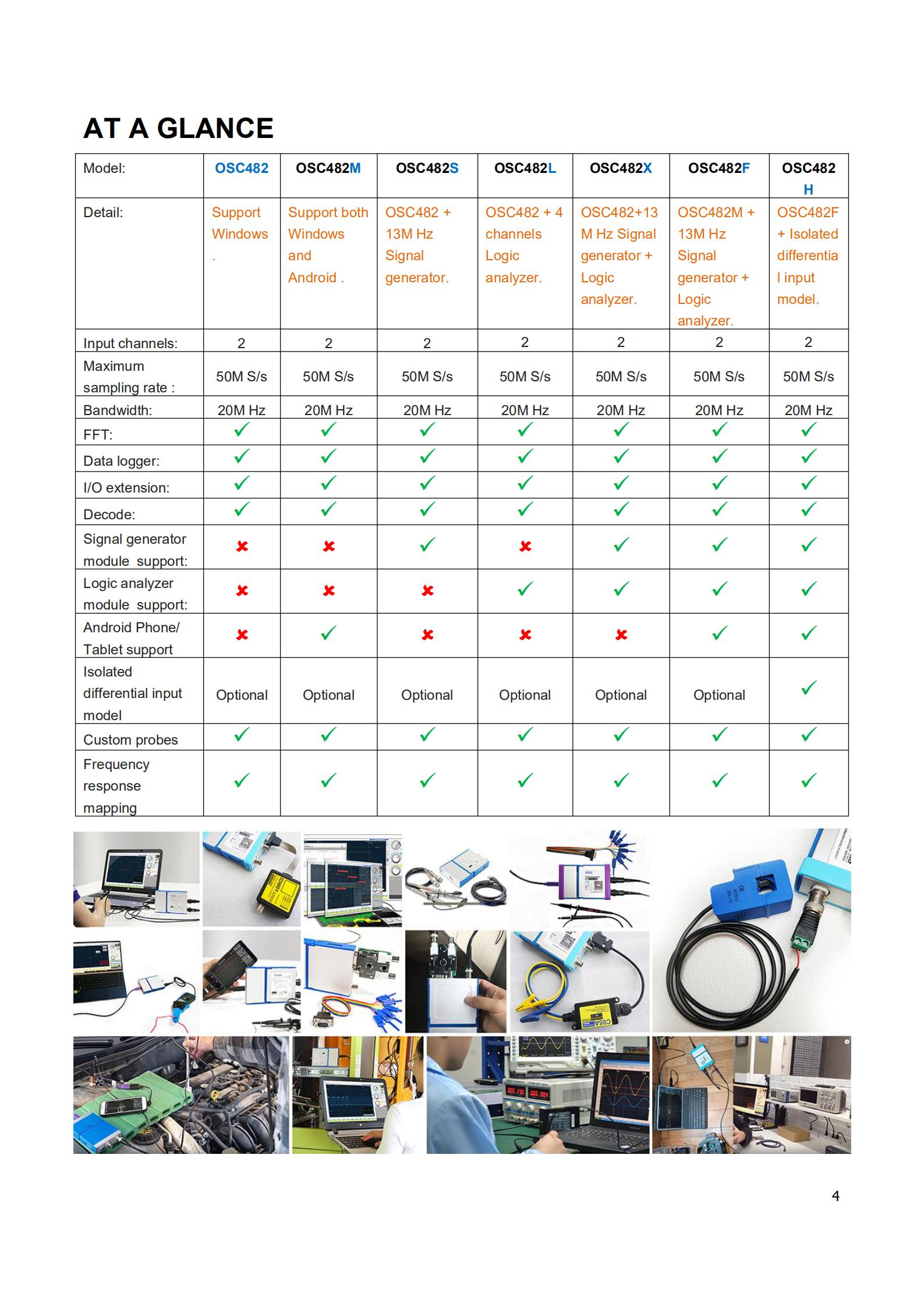

Description of all models in OSC482 series
We keep updating oscilloscope software for better features/operations,please download by the link:
www.lotoins.com
The software is totally free and you can always download the latest version by the link.

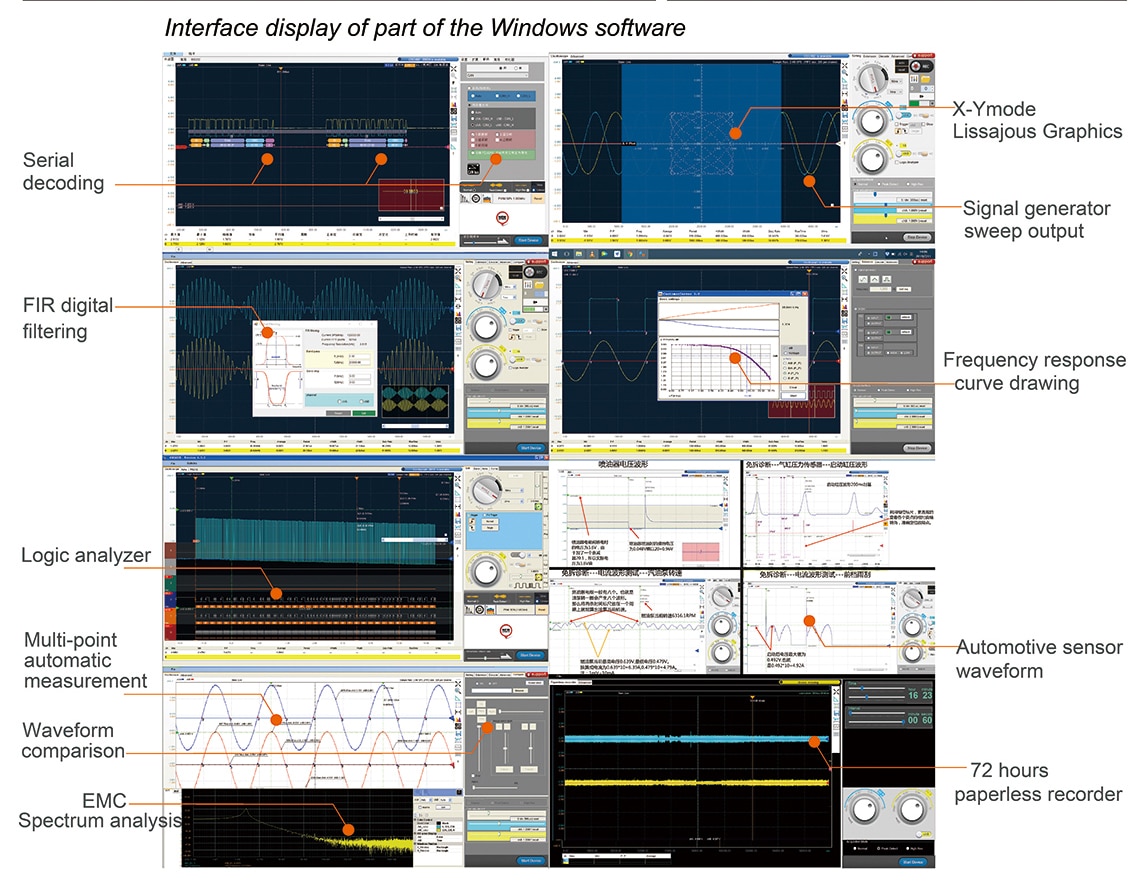

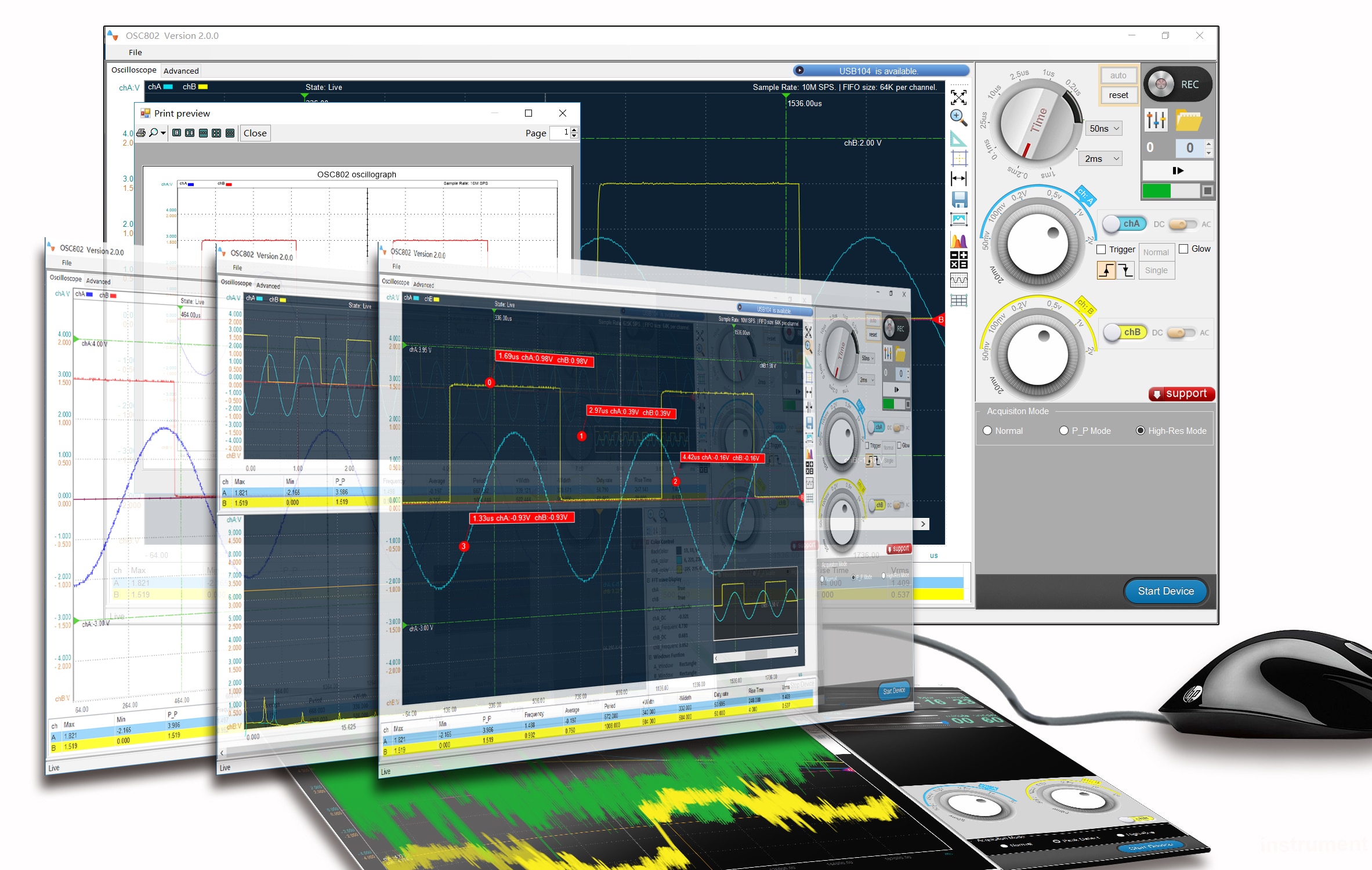

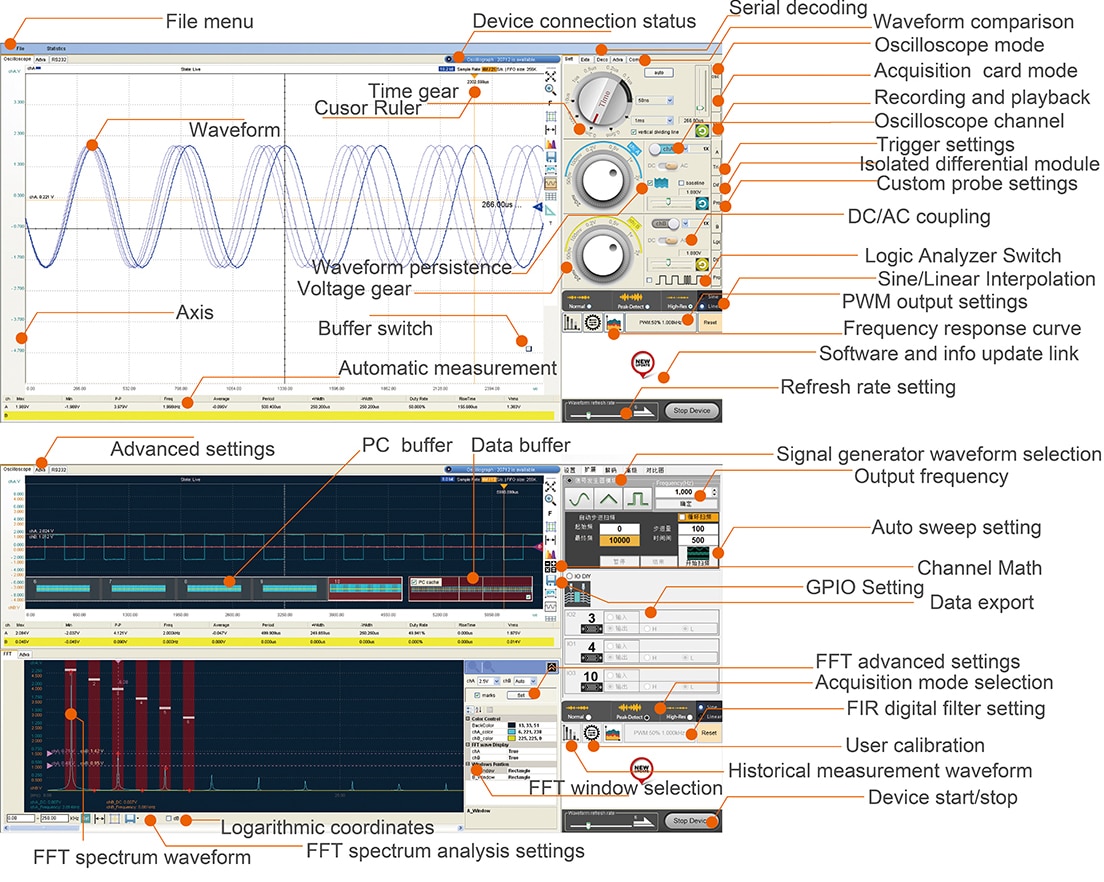

Let's have a look at the Software Application on Windows

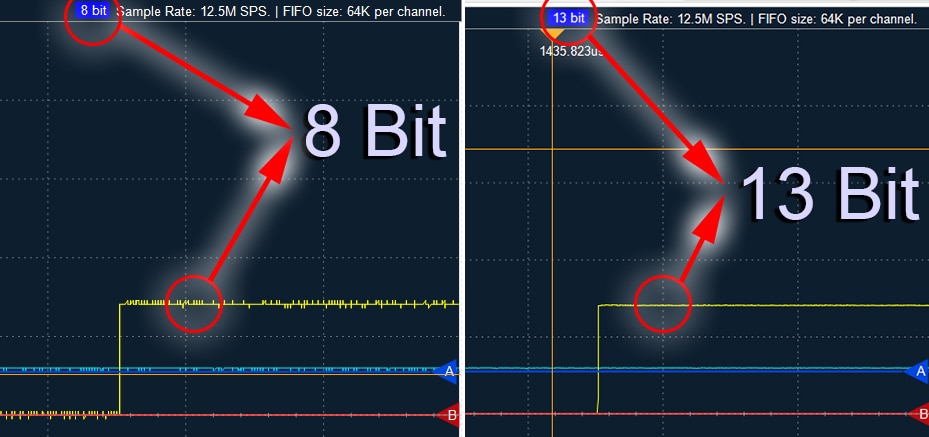

8~13 bit Vertical Resolution
Application scenarios and applicable population

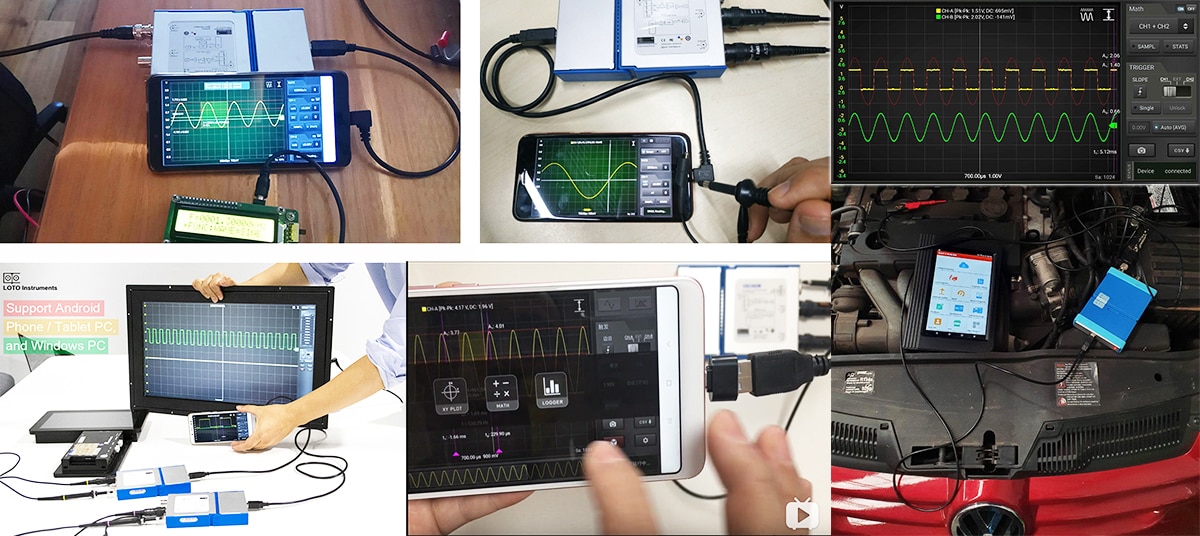

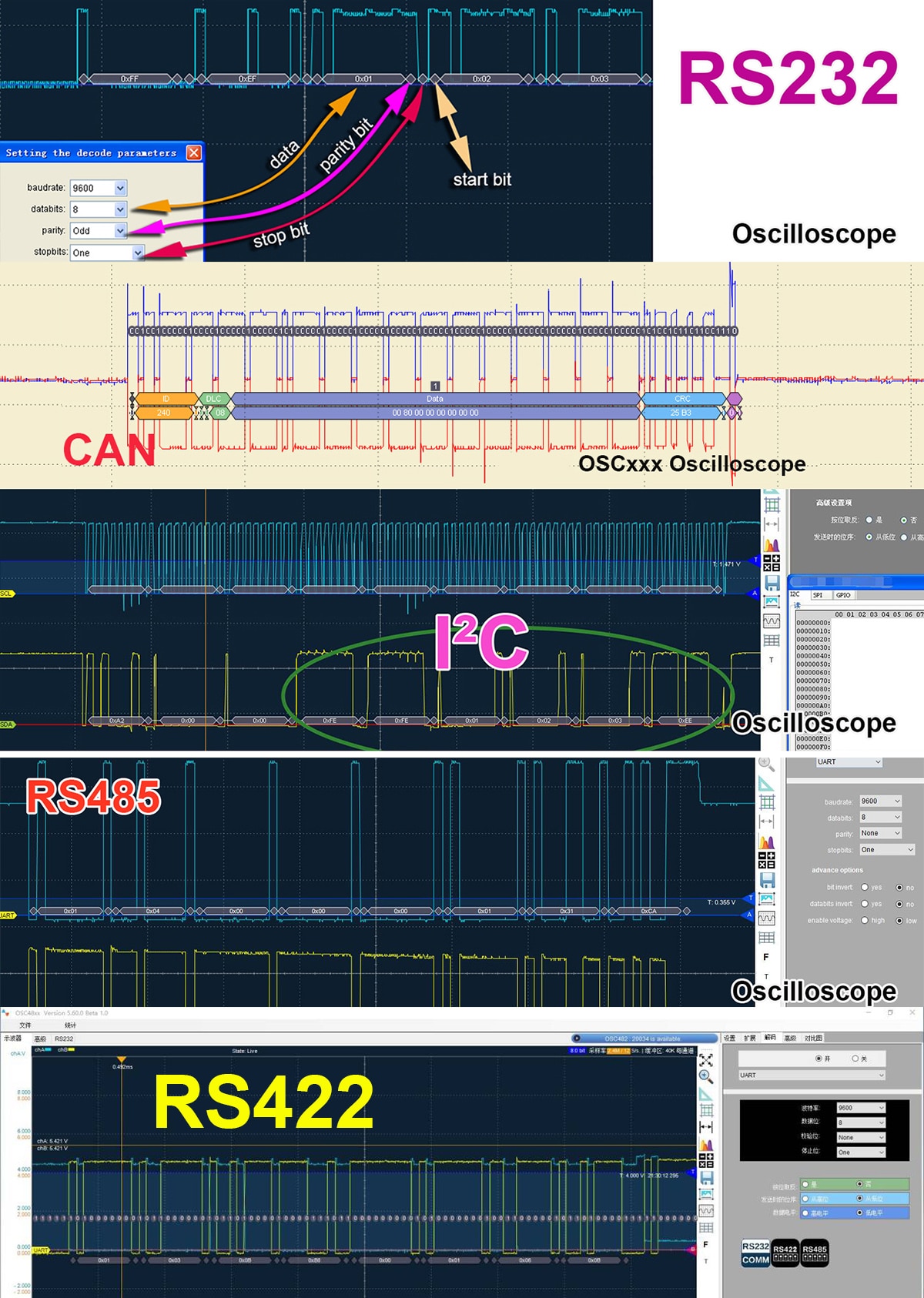

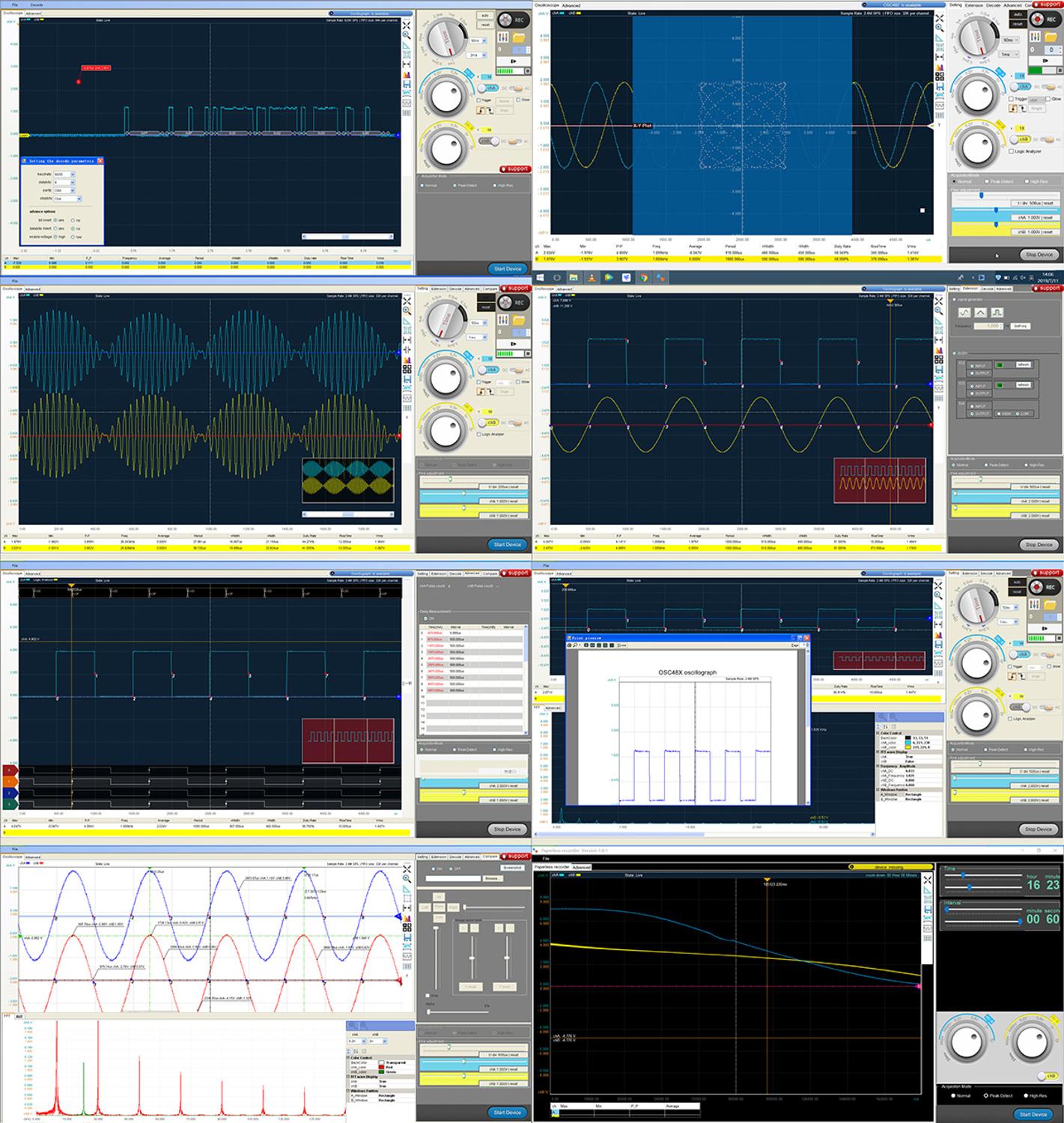

In the above picture, we will see serial port decoding, X_Y drawing, carrier amplification, multi-point automatic measurement, analog input and logic analysis, printing and FFT of the Windows Software Application, and the working scene of the data logger.
This product is recommended for hardware circuit development and measurement, teaching equipment, on-site commissioning, encoder inspection, vehicle maintenance, automated inspection equipment, power ripple testing, solar system inspection.
It is developed for
* Hardware engineer
*Auto electronics
*Electronic Geek
*Field engineer
*Colleage student

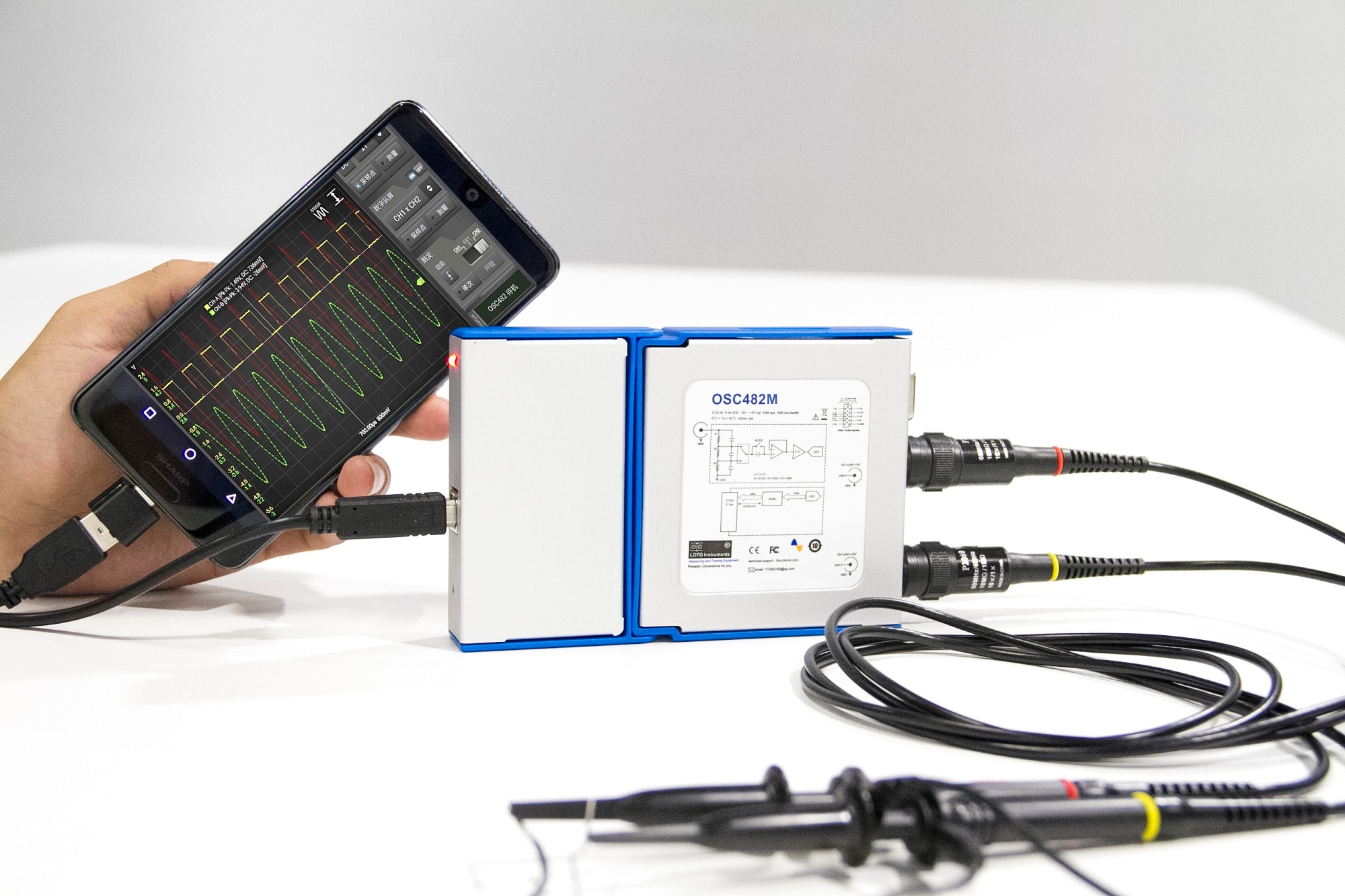

About Smart Phone/Tablet Support
OSC482M/ OSC482F can work on both Windows and Android systems, but they can't support all kinds of Android devices. Customers may need to check their Android phone/Tablet with OTG requirement, or contact us to check the support list.

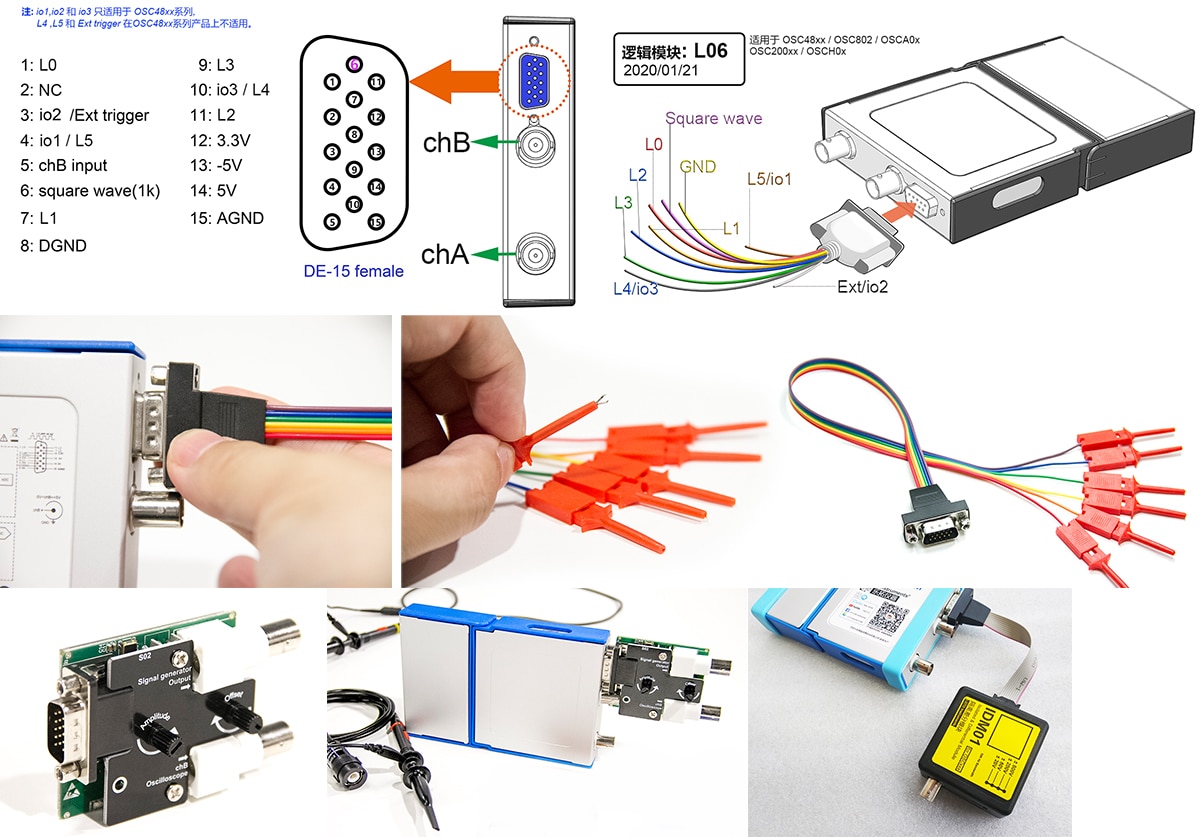

Module Extensions
let's take a look at the product hardware interface for extensions:
The open DE-15 hardware interface can provide digital power as well as analog power, GPIO ports and analog input channels as shown below.
This interface an be used as a standard access for signal generator modules or logic analyzer modules.
Although these two modules can be plug and play in frequent use, it is recommended to connect the module after the device is powered off.
If you are interested, you can make your own DIY modules.

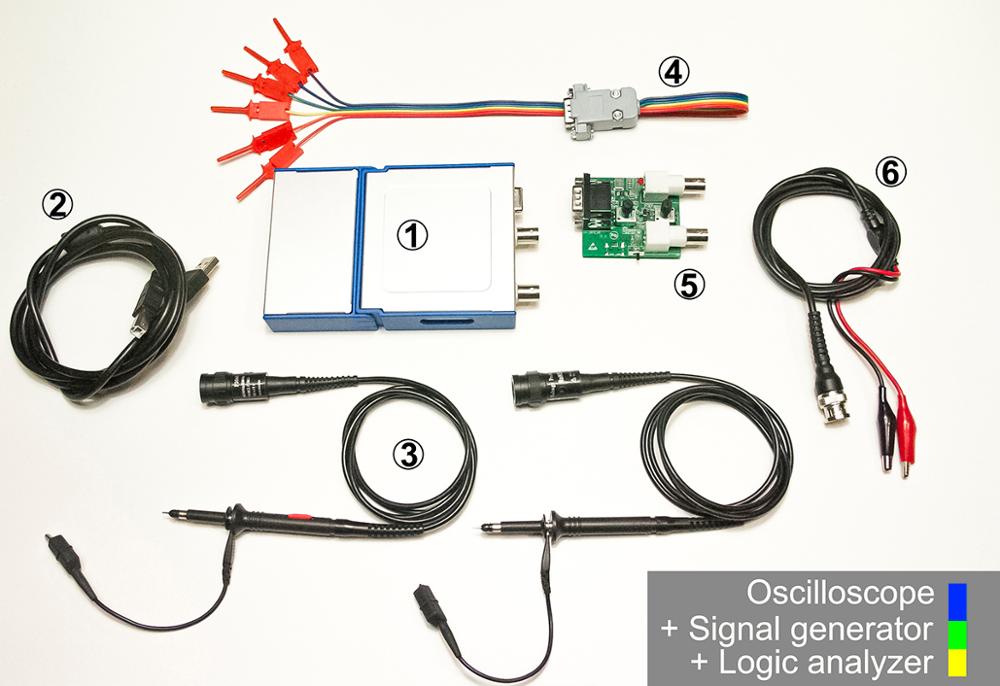

Package List
Let's take a look at the Package List:

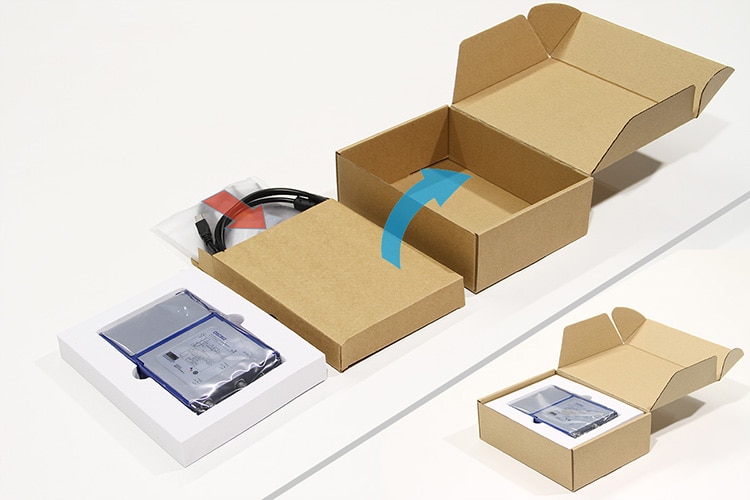

The picture above shows the uniform packaging appearance and the internal accessories, which vary according to the model chosen by the customer.
The USB oscilloscope and the required accessories( including extension modules and standard accessories) may be different according to your different purchase:
Tool Case is not Included
Of course, you can also choose a carrying case to package and store the oscilloscope and its accessories.
***This carrying case need to be purchased separately.Please click the following picture to purchase.
FAQ
Q: what is the measuring range
A: The scope could measure 5V(with probe on X1)
and 50V(with probe on X10). If you need to
measure higher voltage up to 500V, please
purchase X100 probe separately.
Q: how to contact technical support?
A: Please send email to 173393190@qq.com
Tech Dept will reply ASAP.
Q: How long of warranty?
A: 3-year warranty for all products.
Software Download
Please down load for free, we will keep updating.
www.lotoins.com/support.html
Technical Support
Please send email to 173393190@qq.com for any problem, we will reply as soon as possible.
Customer Service
Please send online note or send email to
mike_chill@qq.com
We promise to reply in 24 hours.

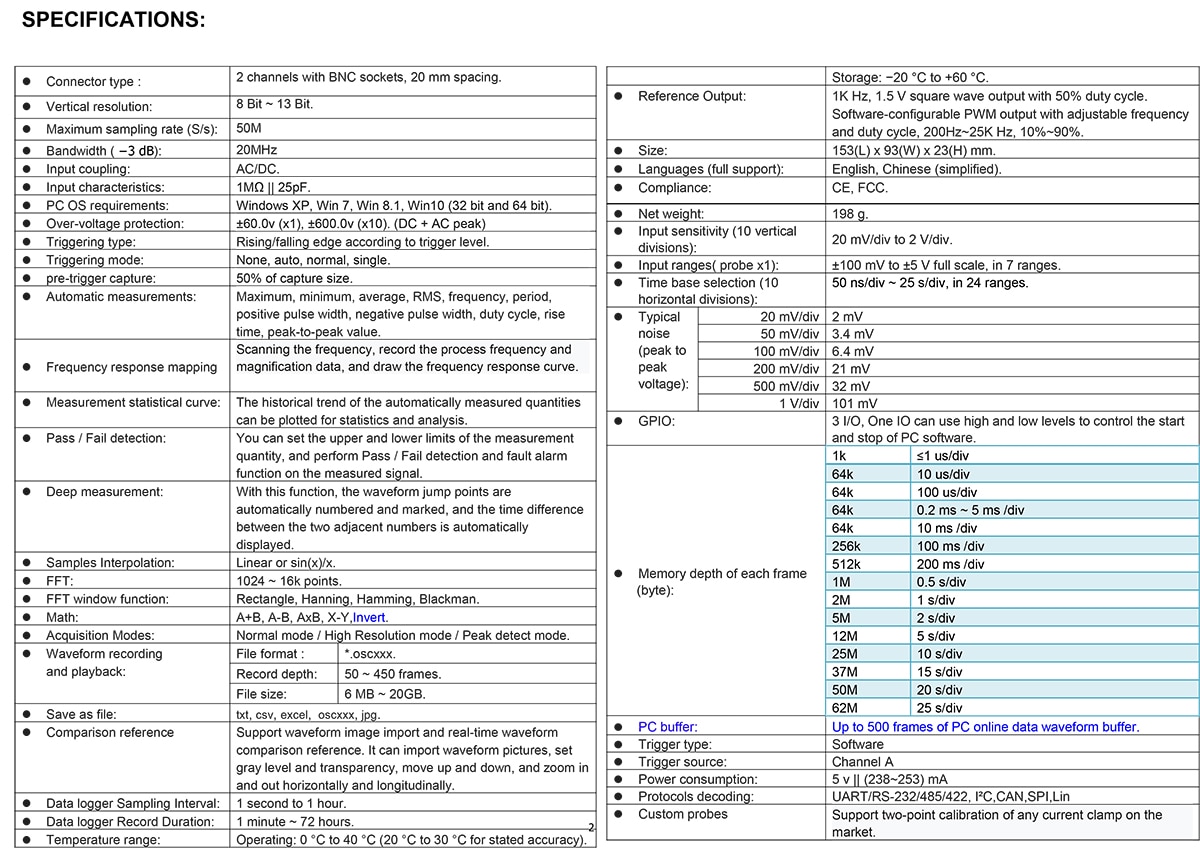

- Model Number: OSC482
- Real Time Sampling Rate: 50MSa/s
- Band Width: 20MHz
- Digital Channels: 2
- DIY Supplies: ELECTRICAL
- Brand Name: lotoins
- Origin: Mainland China
- Certification: CE
