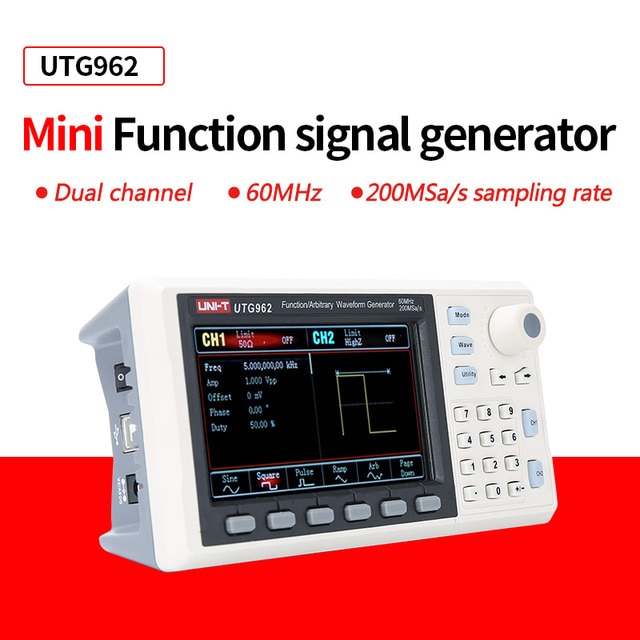

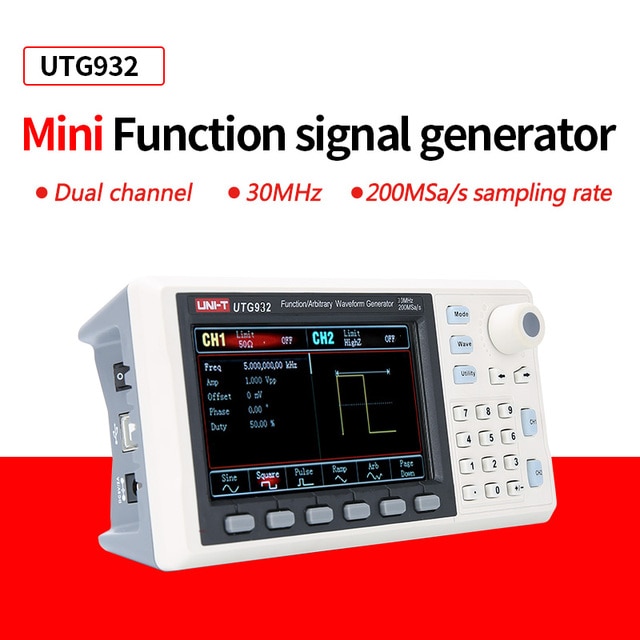

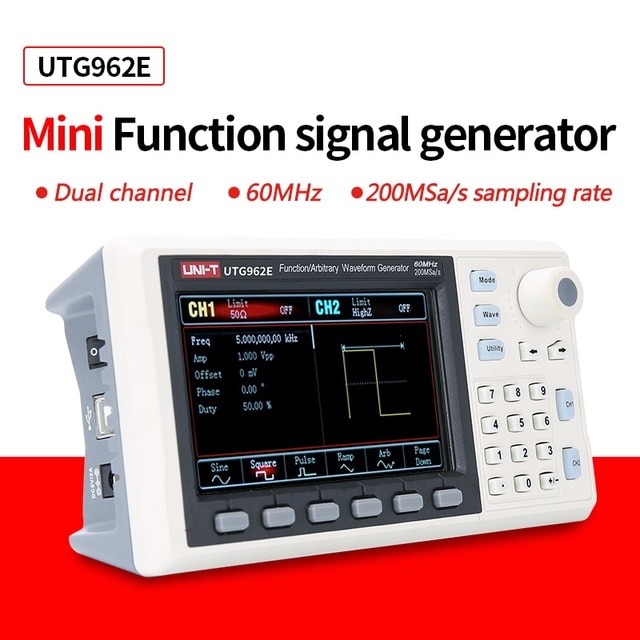

UNI-T UTG932E UTG962E Function Arbitrary Waveform Generator Signal Source Dual Channel 200MS/s 14bits Frequency Meter 60Mhz
4.9 (47 votes) | 144 orders
Price:
US $334.76 - 422.51
/ piece
Discount Price:
US $
281.20 -
345.80
/ piece
-16%
- Ships From
- Color
-
-

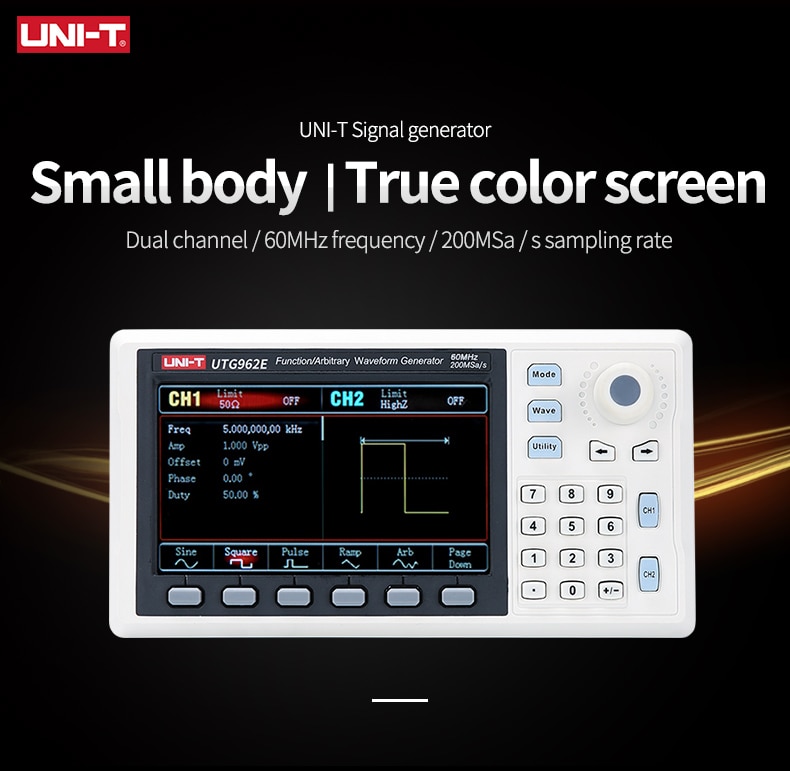

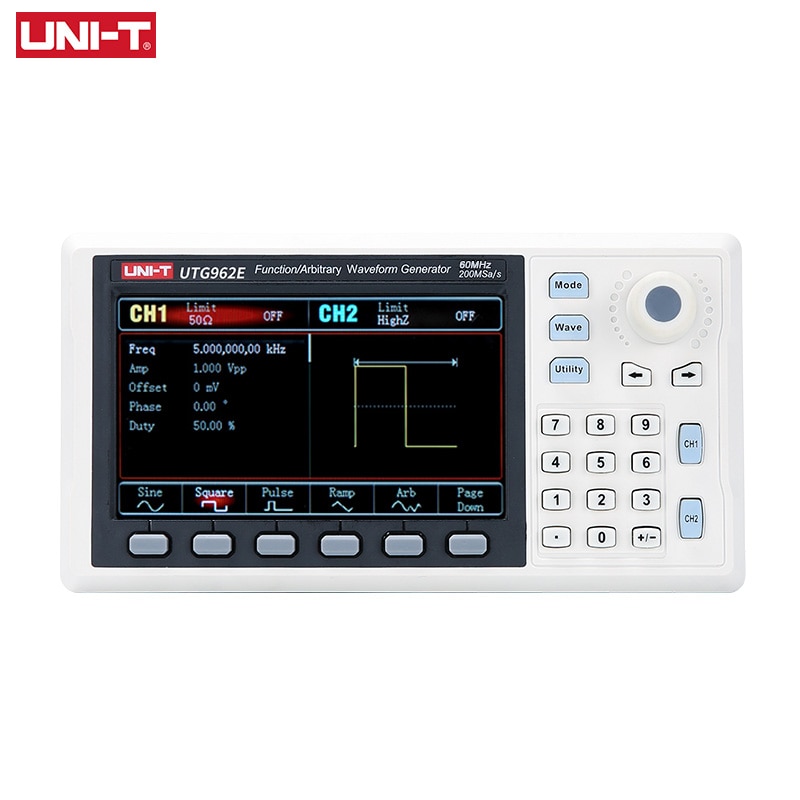

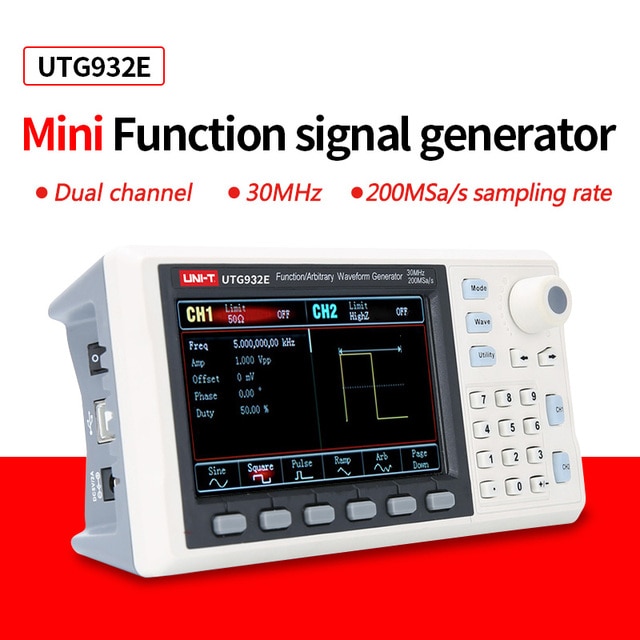

UTG900E Series Waveform Generators

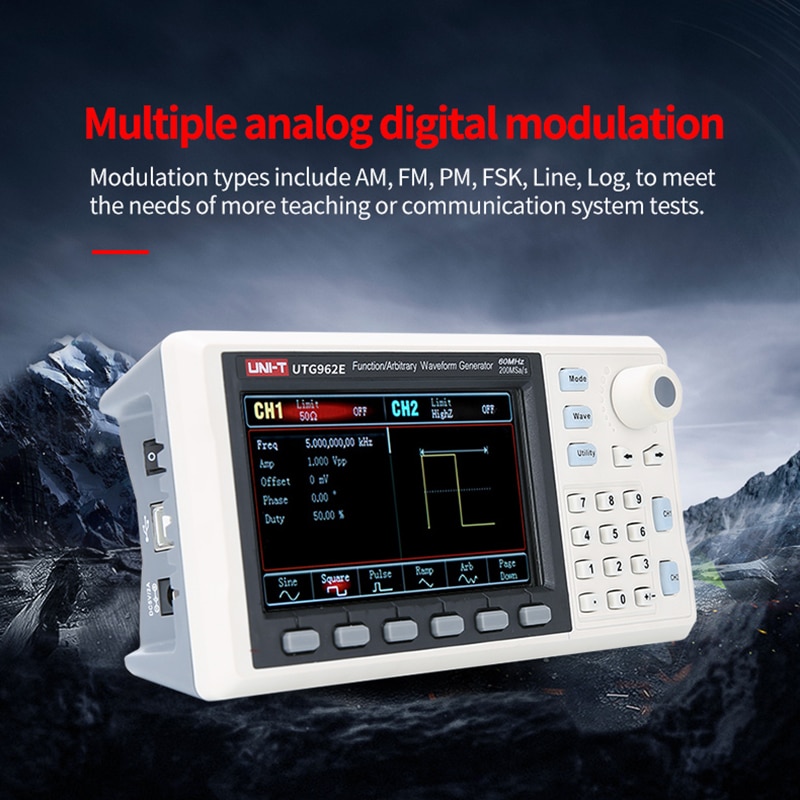

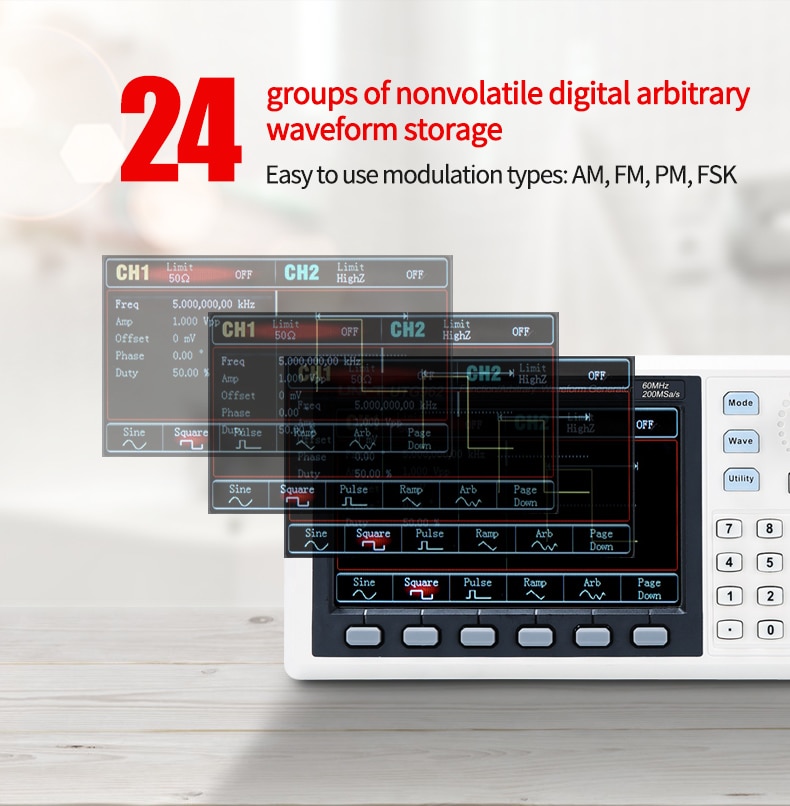

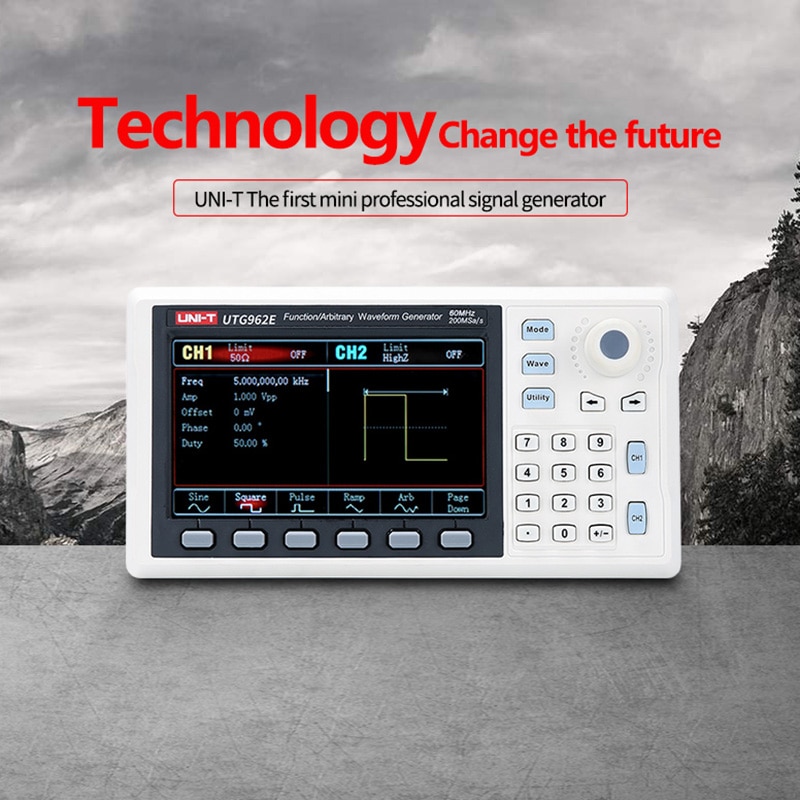

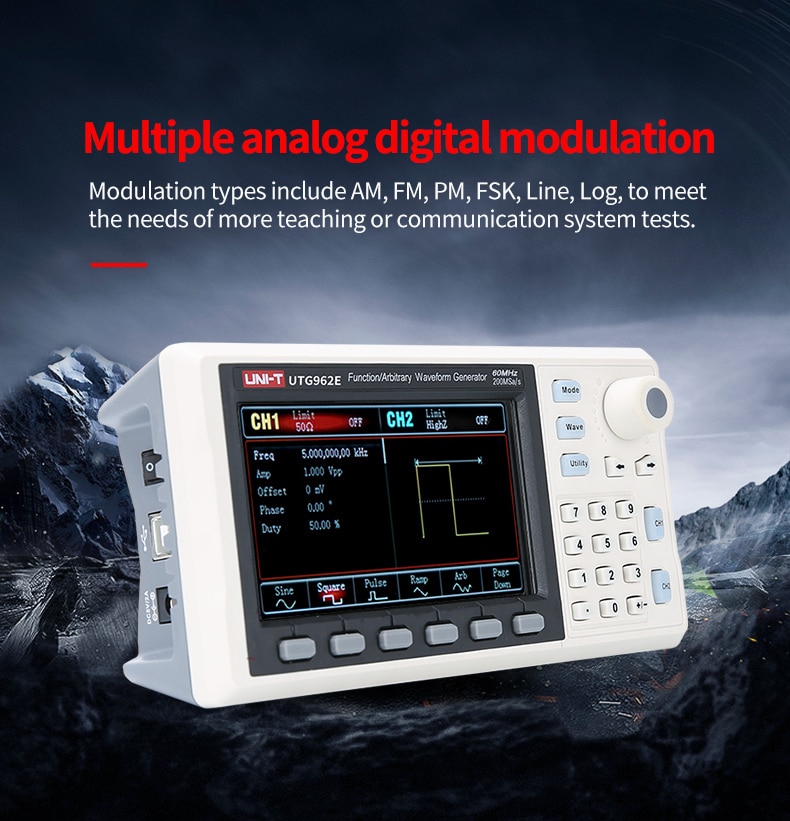

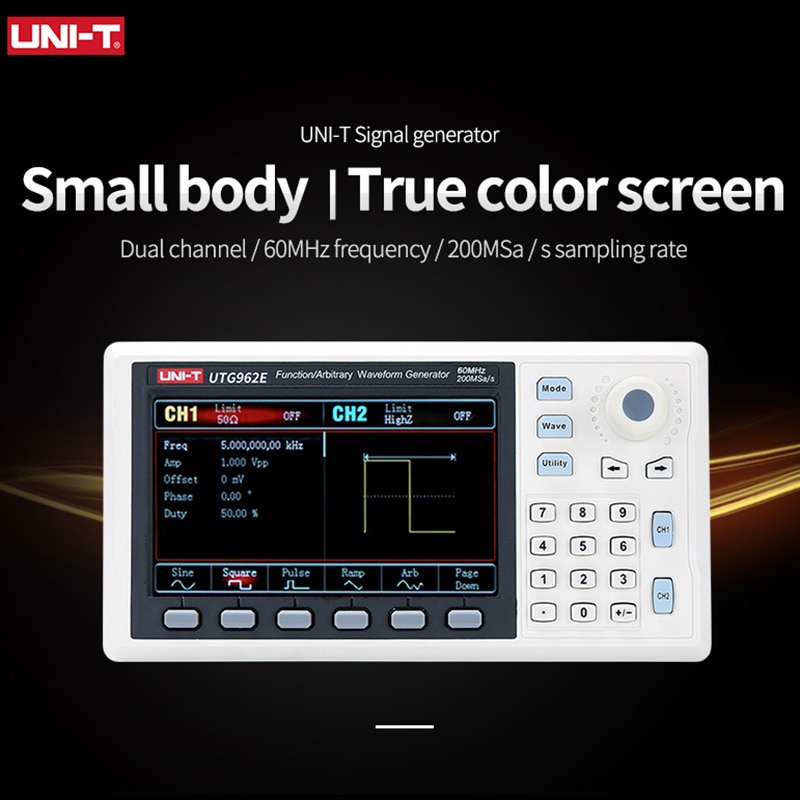

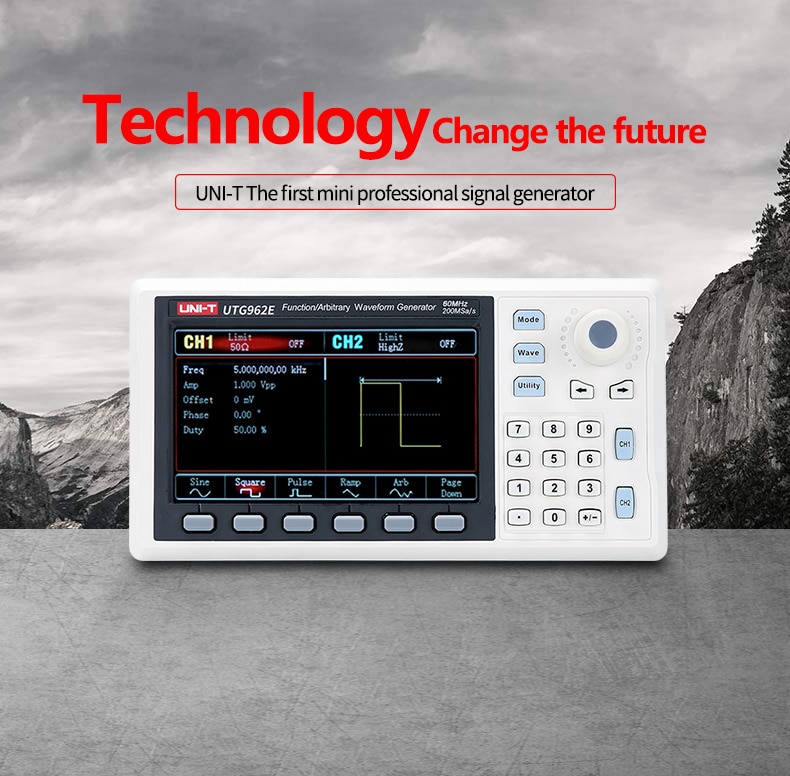

The UTG900E series function arbitrary waveform generator uses direct digital synthesis technology to produce accurate and stable waveform output, with a resolution as low as 1μHz. It is an economical, high-performance, and versatile function arbitrary waveform generator. It can generate accurate, stable, pure, low-distortion output signals, convenient operation, superior technical indicators and humanized graphic display. It is a multi-purpose device that meets the needs of learning and testing and improves work efficiency.
Main Features
Output Waveforms: Sine,square, pulse, ramp, noise, DC ,arbitrary
Output frequency range:1uHz-30MHz/60MHz
High accuracy, broad band 6 bit frequency ,counter,range:100mHz-100MHz
Two equivalent-performance channels

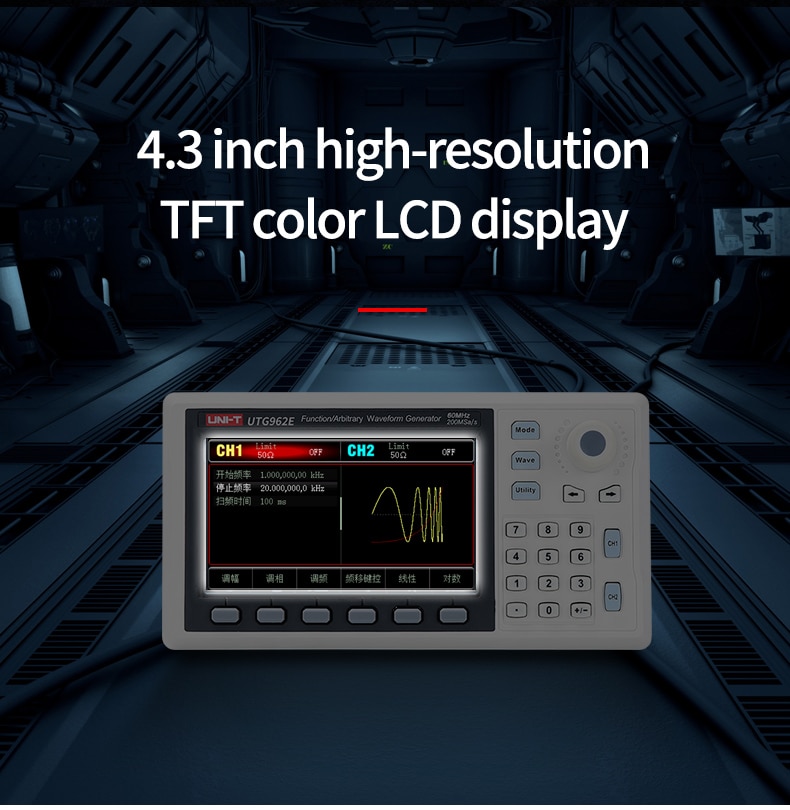

4.3 inches TFT LCD
Multi-language menu ,easy to operation

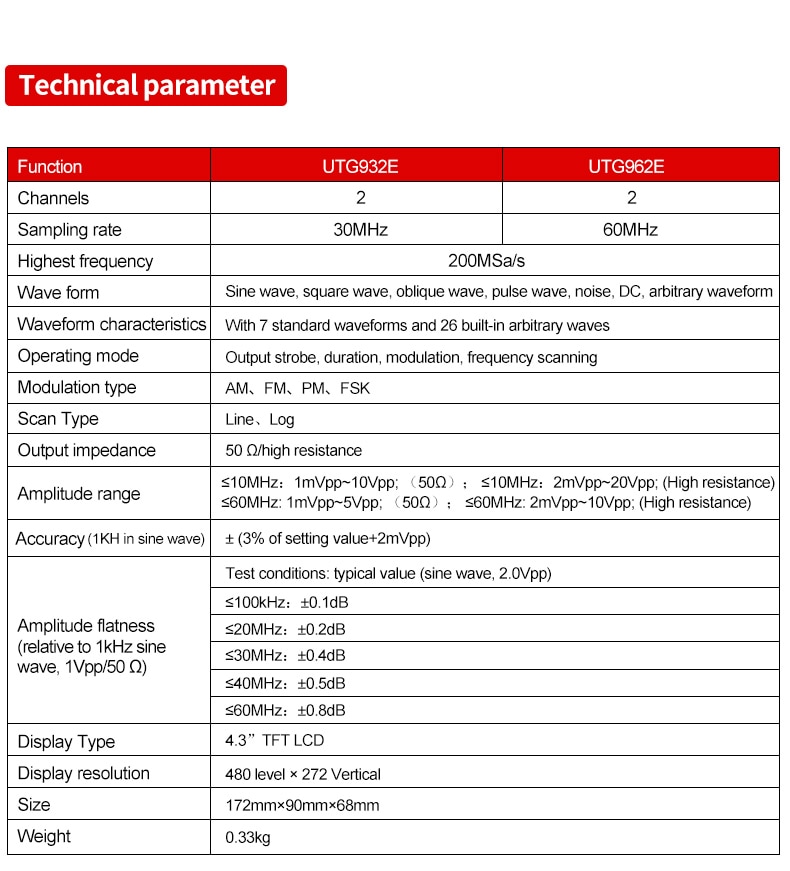

Specifications | ||
Model | UTG932E | UTG962E |
Channel | 2 | |
Max frequency | 30MHz | 60MHz |
Sampling rate | 200MS/s | |
Vertical resolution | 14 bits | |
Waveforms | Sine, square, pulse, ramp, noise, DC, arbitrary | |
Sweep modes | Logarithmic, linear | |
Frequency Characteristics | ||
Sine | 1μHz~30MHz | 1μHz~60MHz |
Square | 1μHz~15MHz | 1μHz~20MHz |
Ramp | 1μHz~400kHz | 1μHz~400kHz |
Pulse | 1μHz~15MHz | 1μHz~20MHz |
Arbitrary | 1μHz~10MHz | 1μHz~10MHz |
Resolution | 1μHz | |
Accuracy | Within 90 days ± 50ppm | |
Within 1 year ± 100ppm | ||
18℃~28℃ | ||
Output Characteristics | ||
Impedance | 50Ω/High Z | |
Amplitude range | 1mVpp~10Vpp (50Ω); 2mVpp~20Vpp (high Z) | |
DC offset range (AC+DC) | ±5V (50Ω); ±10V (high Z) | |
Amplitude resolution | 1mV | |
General Characterisitics | ||
Power | 100~240VAC, 50Hz/60Hz | |
Display | 4.3”TFT LCD (480×272) | |
Product color | White and grey | |
Product net weight | 0.33kg | |

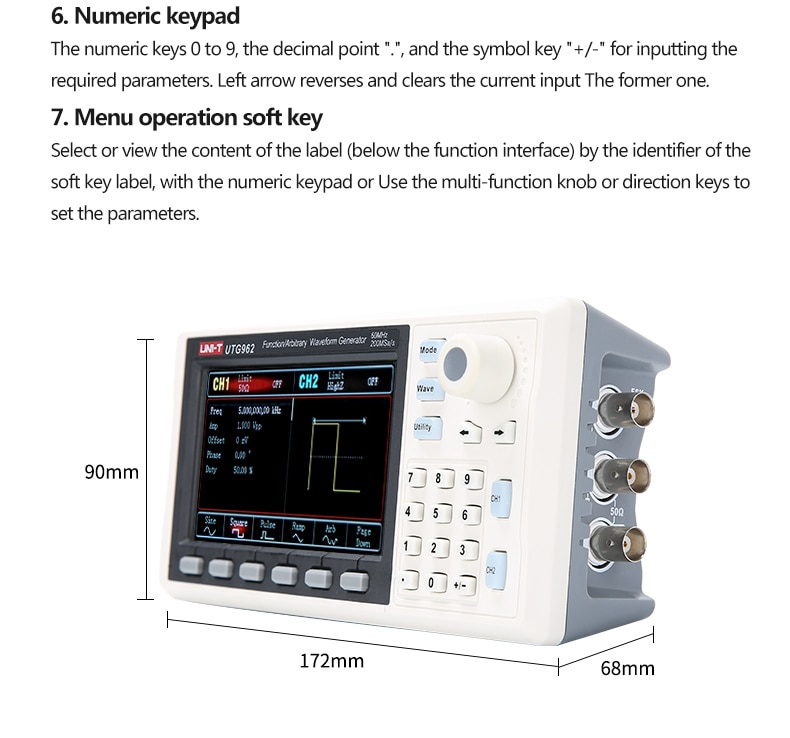

Product size | 172mm x 90mm x 68mm | |

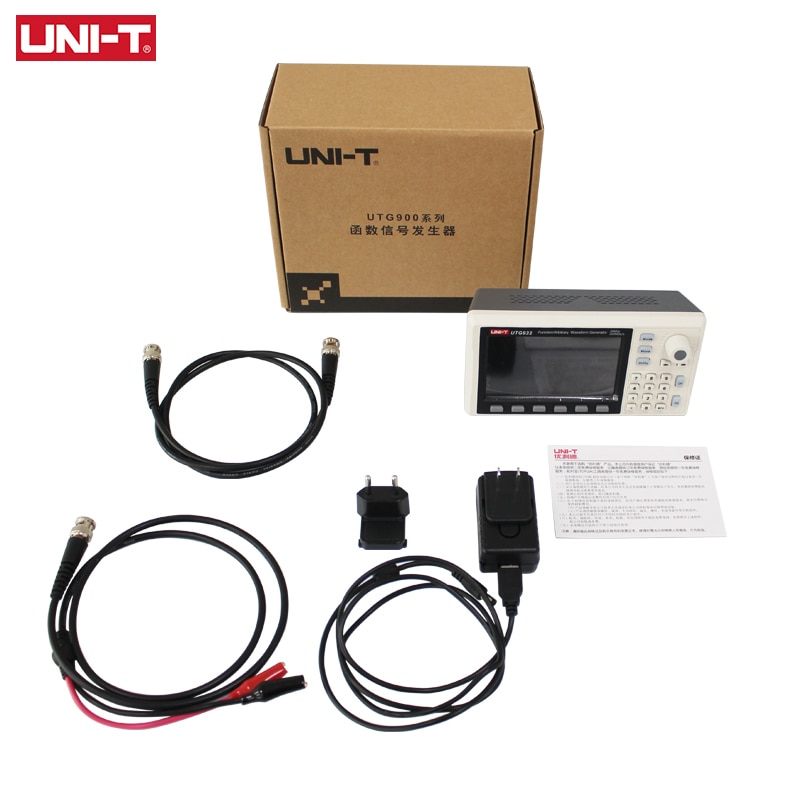

Standard accessories | USB interface cable, power cord, BNC cable with alligator clips | |
Standard individual packing | Carton box | |
Note: New Version Come with EU adapter
About Shipping
Other shipment services
Hogaki Standard Shipping: Ship to almost countries of world. The average delivery time is 15 ~ 35 days. Battery is not included
Commercial Express: DHL,UPS is fast and will take around 3-7days. Requires to pay extra shipping cost
How can I Track my parcel?
Tracking information will be updated in order. Oversea warehouse order, please track at seller’s shipment website we offered.
Or ask our customer service help to track.
What can I do when purchase protection time is running out?
If your purchase protection time is running out ,please contact us and we can help to extend it. So money will not go to our account.If there are some problems about our products, we supports exchange, return or refund, but please contact with us and provide a clearly video.All returned items must be in the original packaging and you must provide us with the shipping tracking number, specific reason for the return.
You have 15 days to contact us and 30 days to return it from the date it was received. If this item is in your possession more than 15 days, it is considered used and we won't issue you a refund or replacement. We offer free return service for following 24 countries respectively:Russia,United states, Spain, France, Pakistan, netherlands,Isreal,Poland, Brazil, Germany, Italy, Portugal,Belgium,Czech Republic, Swizerland, Canada, Australia, Japan, South Korea, Ukraine, Mexico, Chile, Saudi Arabia, UAE. If you are not satisfied with product ,no matter any reason, you can return product within 15 days and get full refund,details pleaseClick
Here
to view
- Model Number: UTG932 UTG962
- Display Size: 3.0 - 4.9 Inches
- DIY Supplies: ELECTRICAL
- Brand Name: UNI-T
- Origin: Mainland China
- Certification: CE
- Max Frenquency: UTG932E(30Mhz) UTG962E(60Mhz)
- Sampling Rate: 200MS/s
- Vertical Resolution: 14Bits
- Waveform: Sine/Square/Pulse/Ramp/Noise/DC/Arbitrary
- Sweep modes: Logarithmic/linear
- Function Generator: Singnal Generator
