LASER TREE K60 60W Optical Power Laser Module Adjustable 20W/40W Power For CNC Laser Engraver Cutting Woodworking DIY Tools
4.8 (12 votes) | 40 orders
Price:
US $5935.20
Discount Price:
US $
2670.84
-55%
LASER TREE K60 Optical Power 60W Laser Head Adjustable 20W/40W/60W Power Module For CNC Laser Engraver Cutting Woodworking DIY Tools

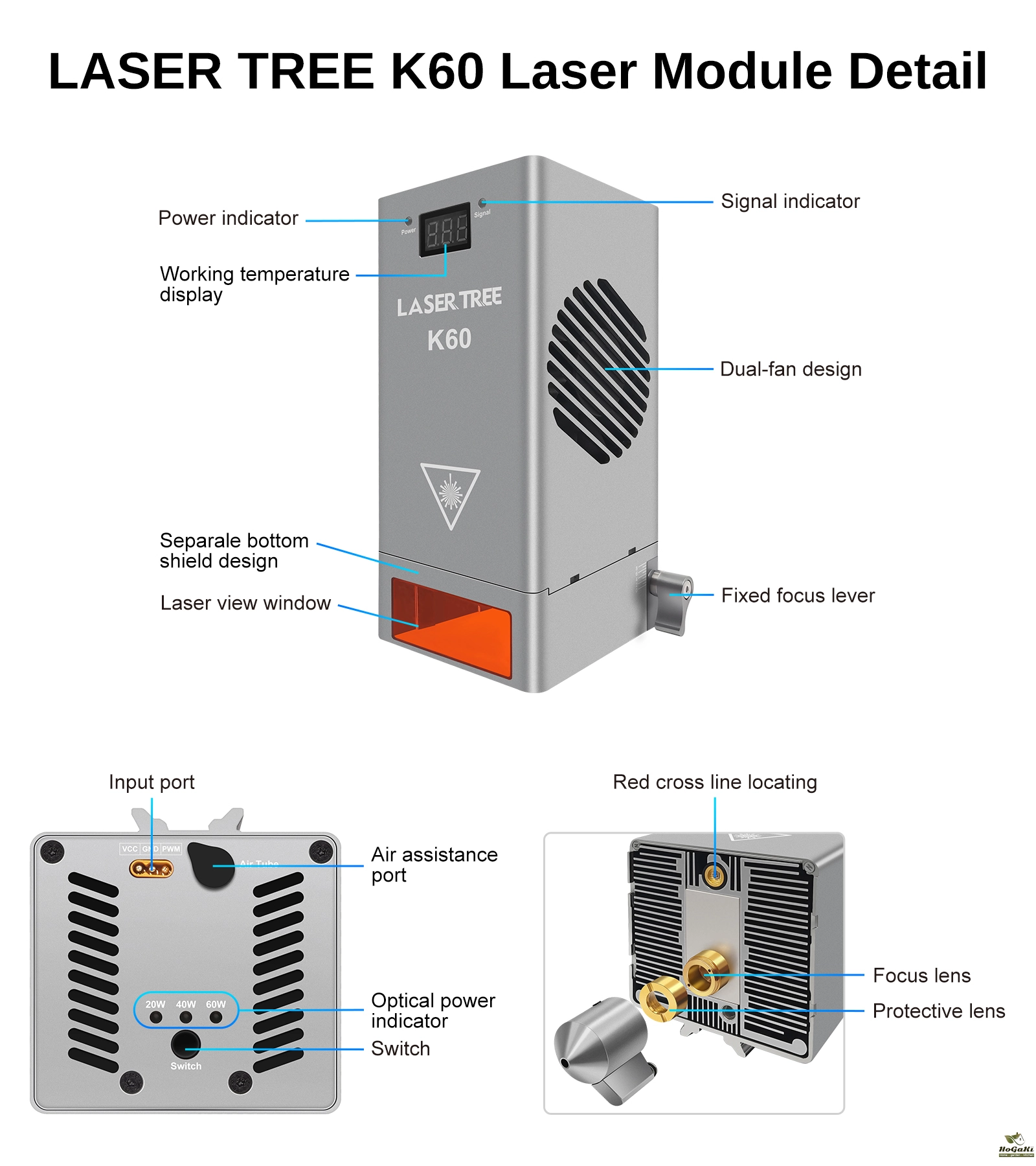

LT-K60 Features:
1. Optical Power 60W+ Laser Module.
Built-in 12pcs 5.5W+ beam compressed laser diodes, which can provide up to 60W+ optical power to achieve fast and efficient cutting.
2. Powerful Cutting Ability.
20mm plywood：170mm/min ；1pass
40mm pine plywood : 50mm/min; 1pass
30mm black acrylic : 30mm/min; 1pass
9mm MDF: 400mm/min; 1pass
3.Alarm Function & Optical Power Switching.
Function 1：
When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound
When the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm.
To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.
Function 2：
The default power is 60W optical power, long press 5S to enter the power switching mode and switch to 40W optical power. Continuous short press can switch the optical power.
Optical power switching order：60W→40W→20W
4. Built-in Air Assist Airway & Dual Fan Cooling Design.
①Built-in air assist airway to get clean-cut edges, improve cutting performance.
②Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.
5. Red Cross Line Locating.
The bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm), which can quickly locate the starting point and ensure the accuracy of the secondary cutting operatio.
6. Easy to installation.
① Integrated dovetail guide rail design, the guide rail length is 115mm, ensuring that the laser head can move smoothly, making it easy to adjust the height and focus position.
②In order to improve the compatibility to different laser engraver machine, K60 provide a solution by sliding plate with multi holes for installation compatibility.
7. Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.
8. Laser View Window.
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.
9. Widely Compatible Design.
In order to improve the compatibility to different laser engraver machine, K60 provide a solution by adapter board for electric compatibiliy.

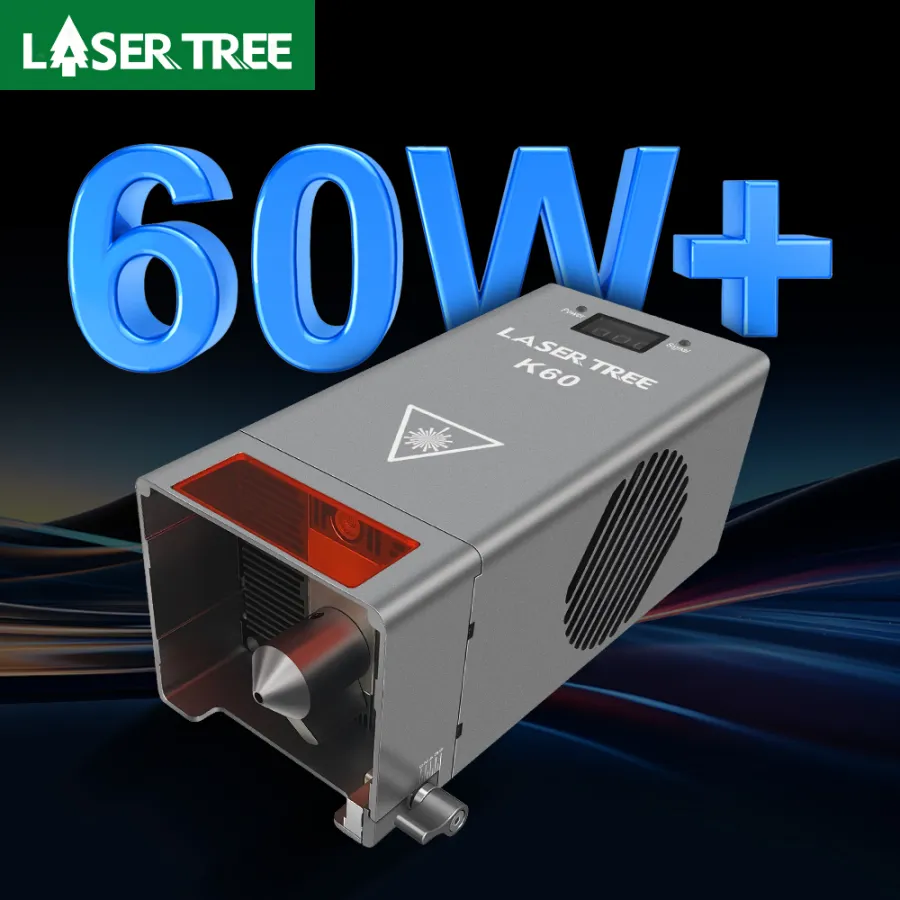

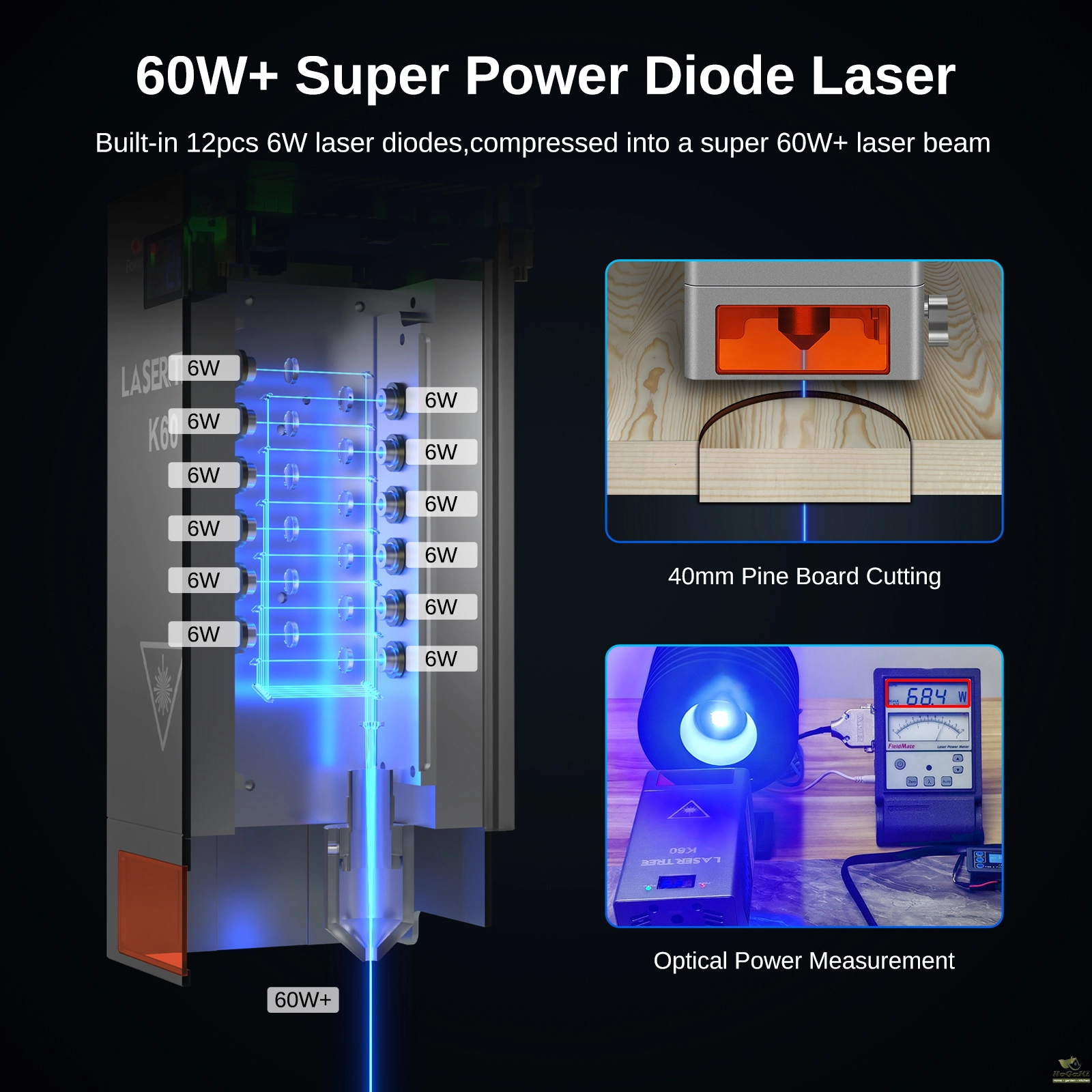

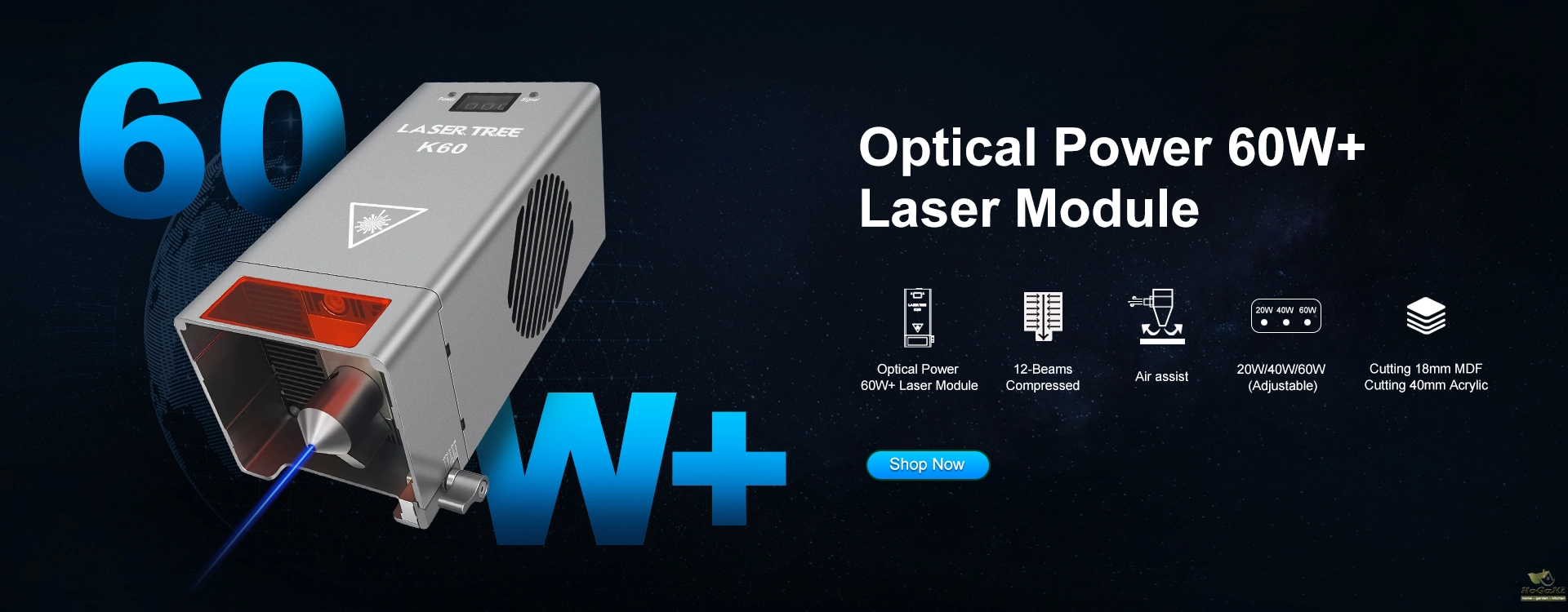

Optical Power 60W+ Laser Module
Built-in 12pcs 6W beam compressed laser diodes, which can provide up to 60W+ optical power to achieve fast and efficient cutting.

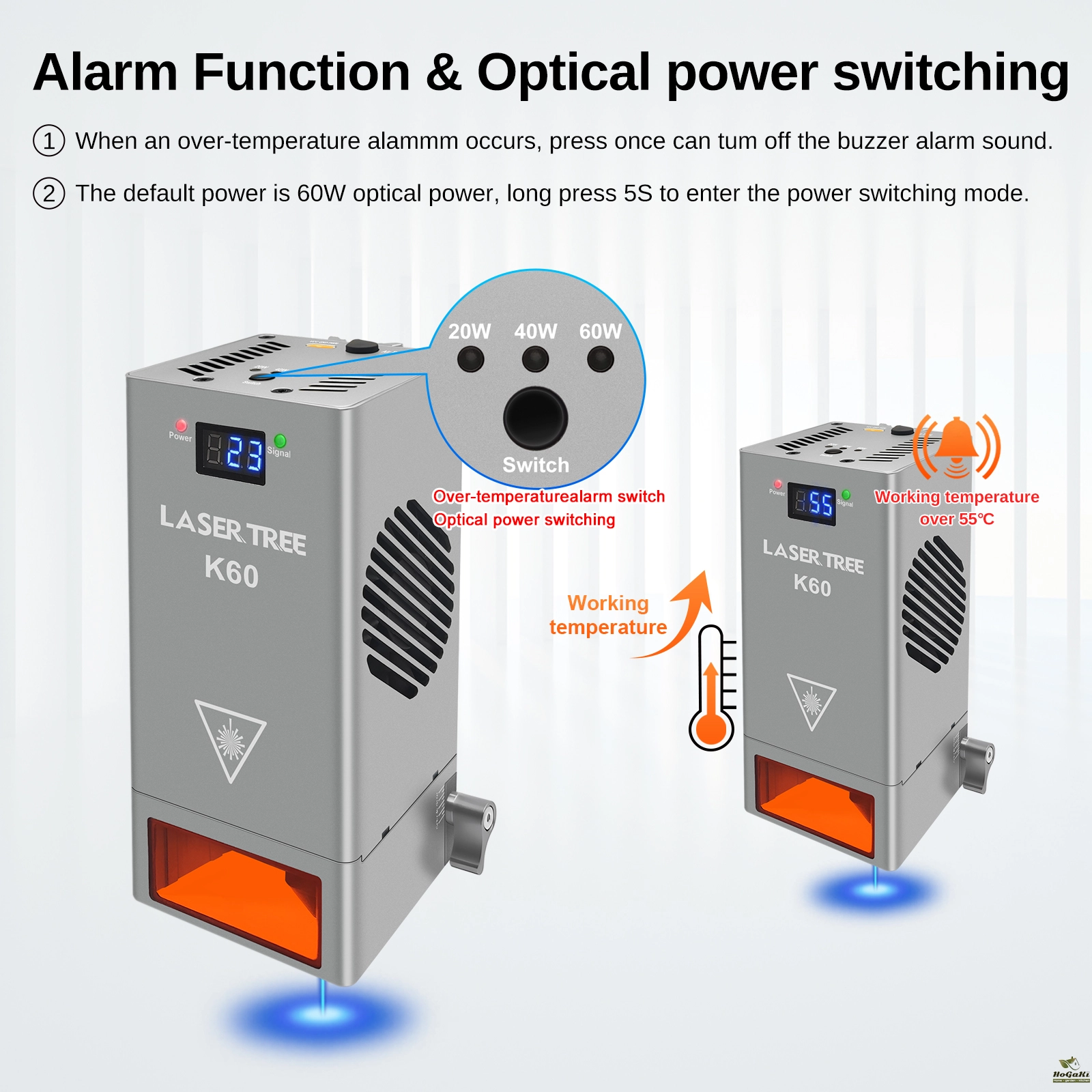

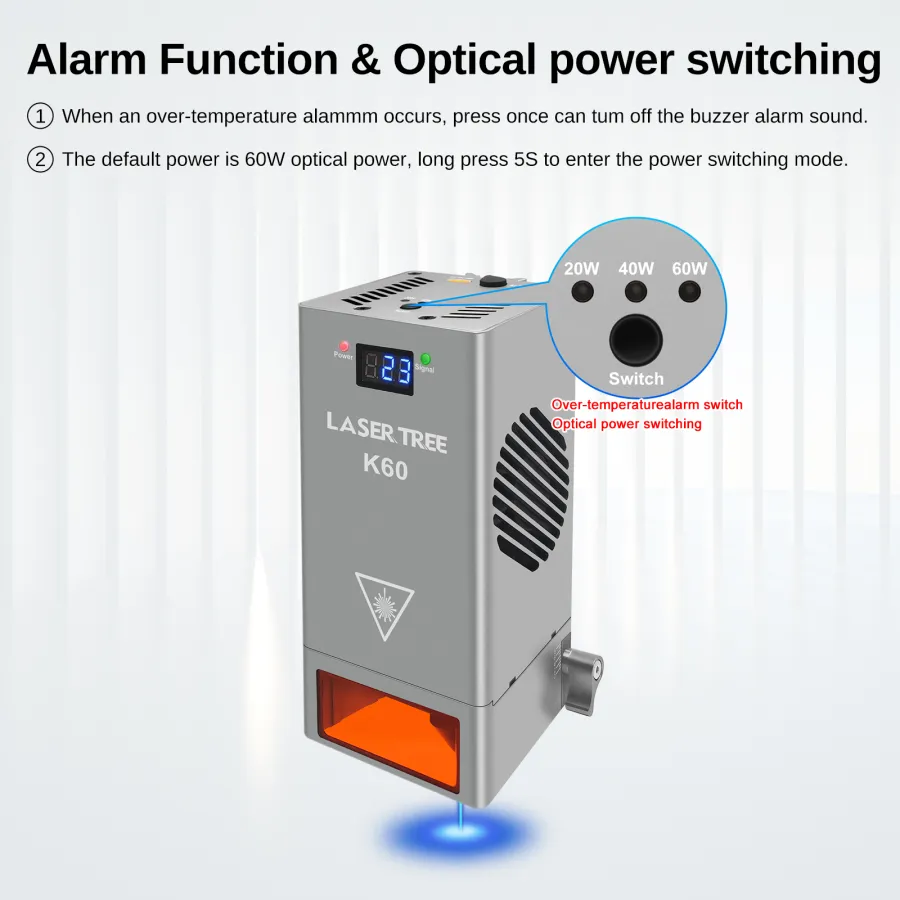

Alarm Function & Optical Power Switching
Function 1：

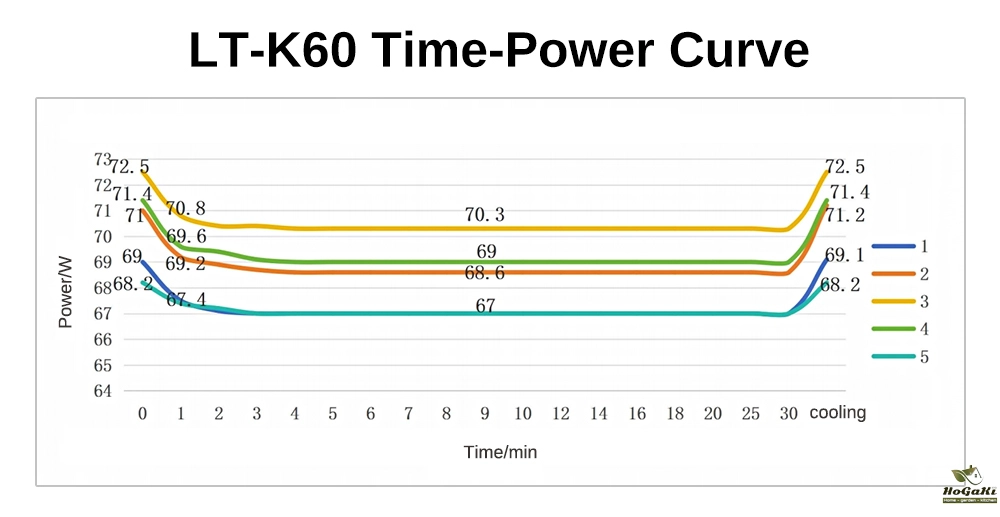

The output power stability and life time of laser module has strong relationship with working temperature of laser diode.
LT-K60 built-in a thermistor at the highest temperature point near the laser diode, the operating temperature of the diode can be displayed on the digital tube in real-time.
When an over-temperature alarm occurs, press once can turn off the buzzer alarm sound
When the working temperature of the laser module is higher than 55'C, the buzzer will sound an alarm.
To get good power stability and durability, it is suggested to keep the module working temperature below 55°c and environmental temperature below 35°C.
Function 2：
The default power is 60W optical power, long press 5S to enter the power switching mode and switch to 40W optical power. Continuous short press can switch the optical power.
Optical power switching order：60W→40W→20W

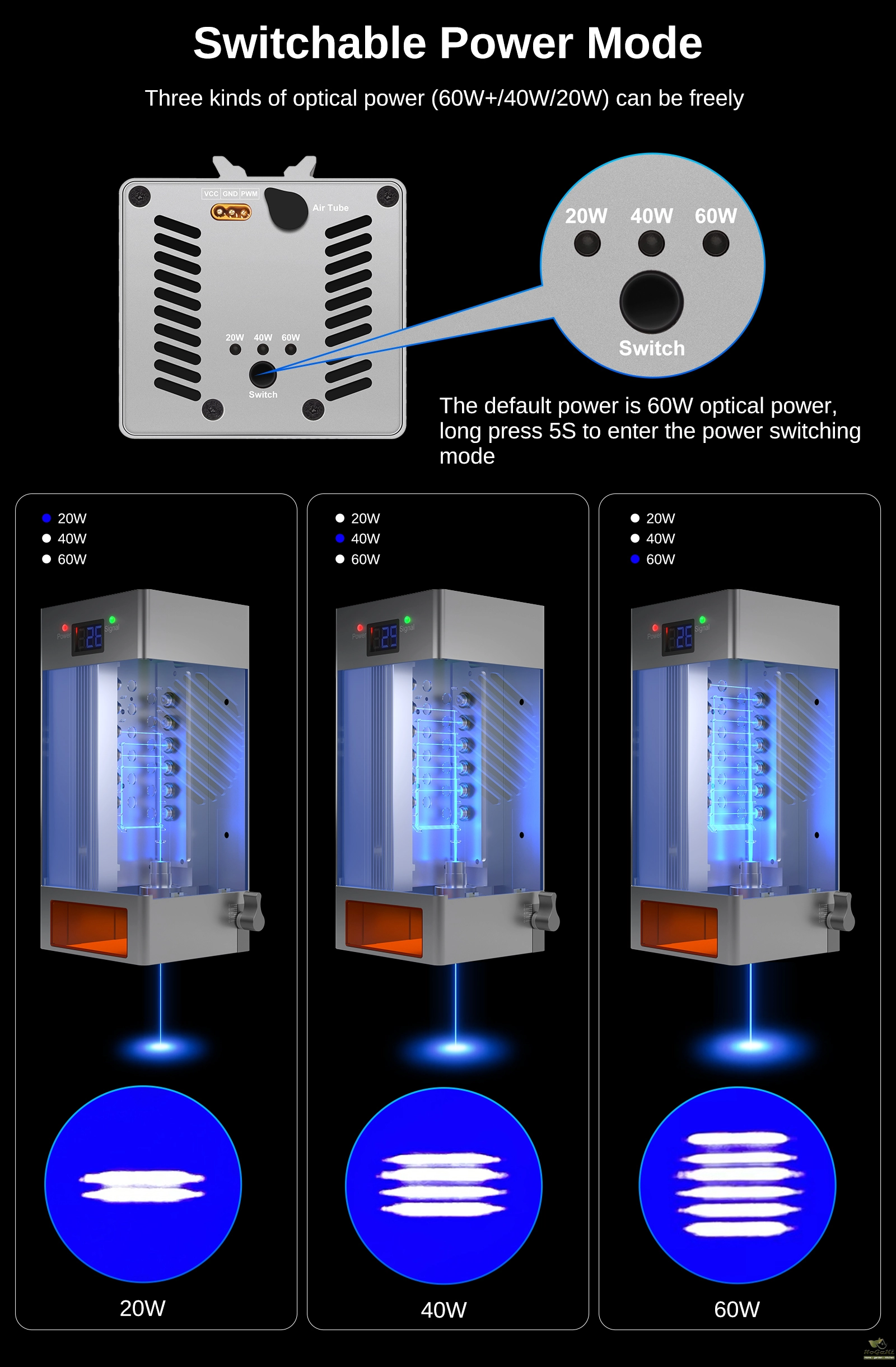

Switchable Power Mode
Three kinds of optical power 60W+/40W+/20W can be freely.

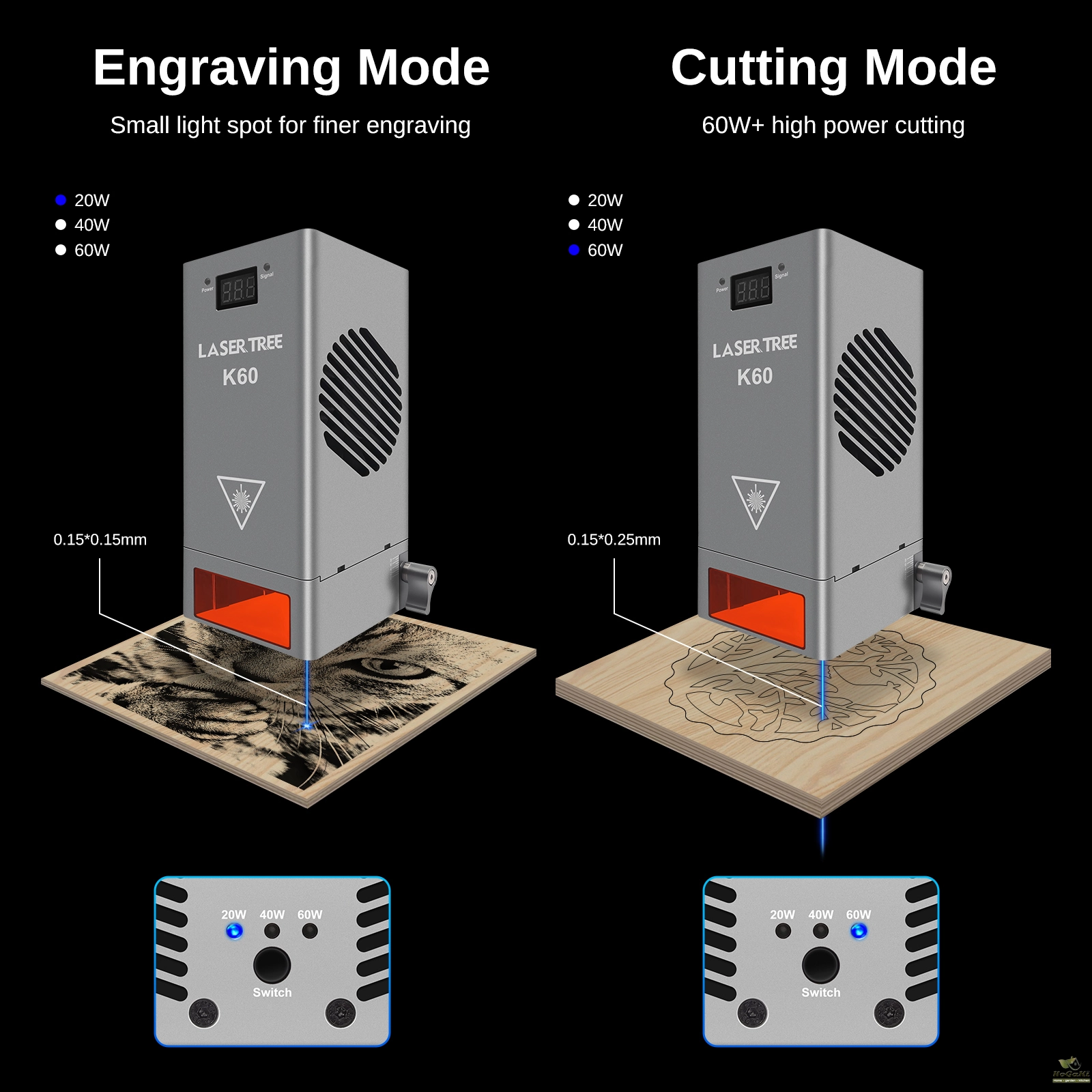

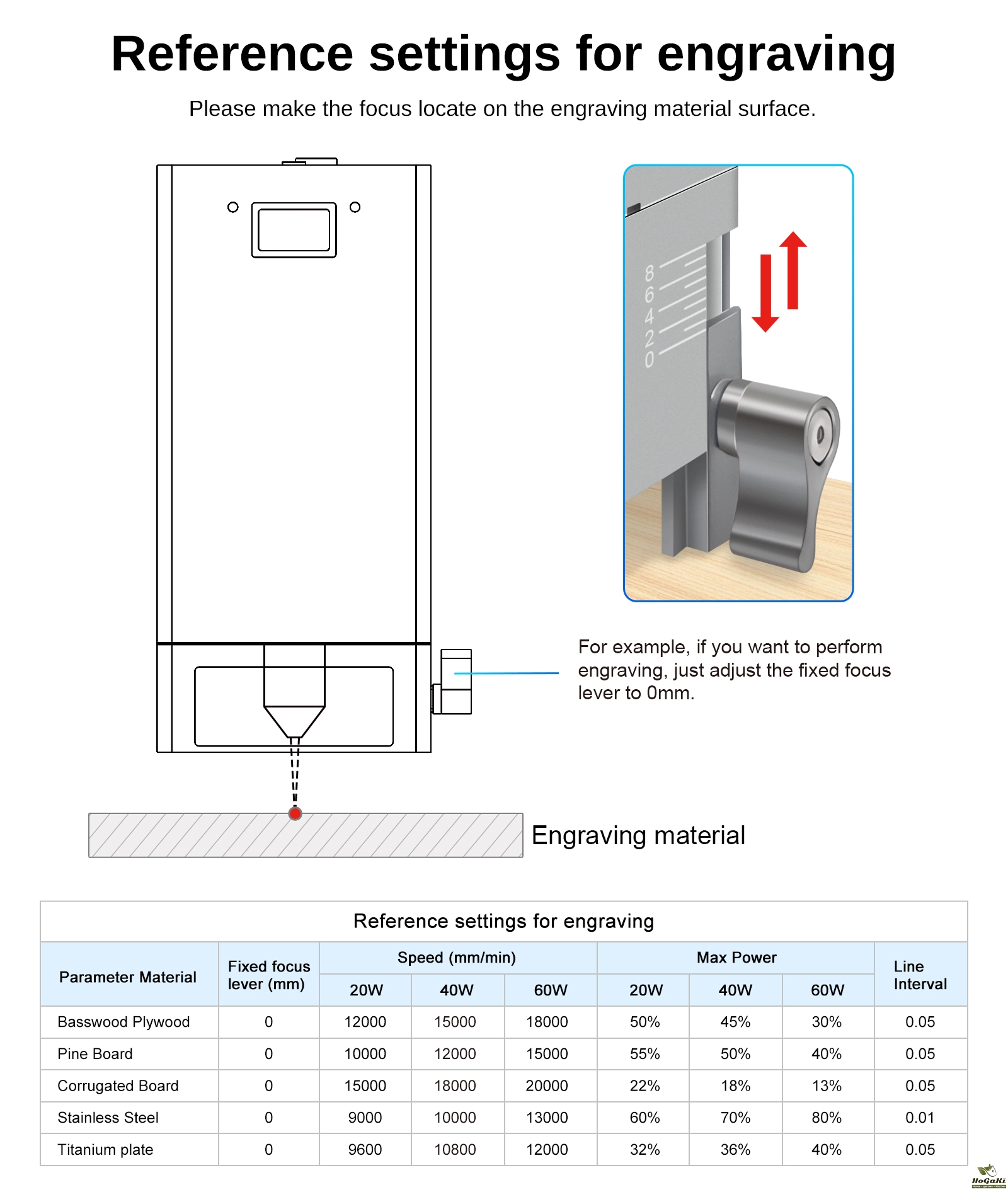

Engraving mode: small light spot for finer engraving.

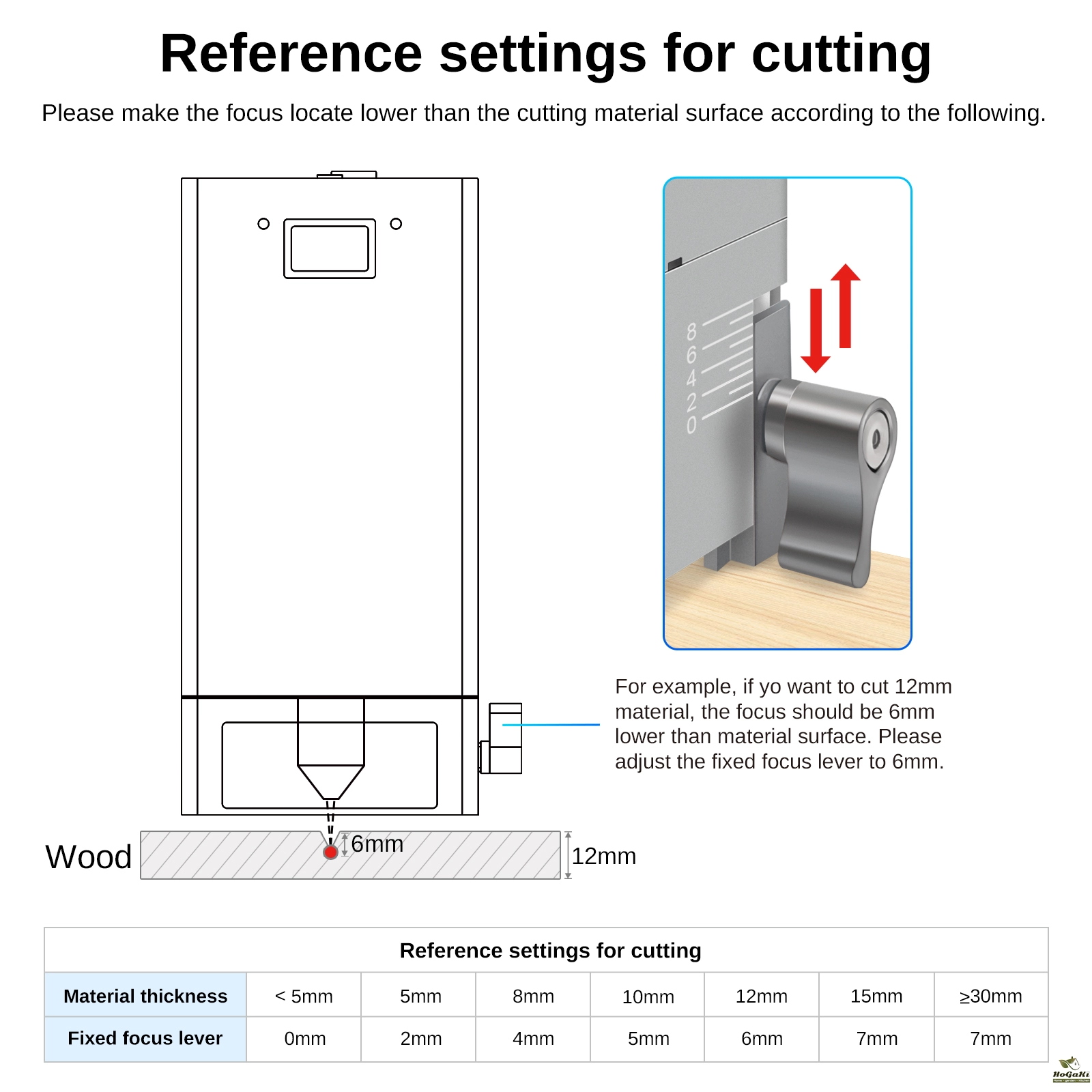

Cutting mode: 60W+ high power cutting.

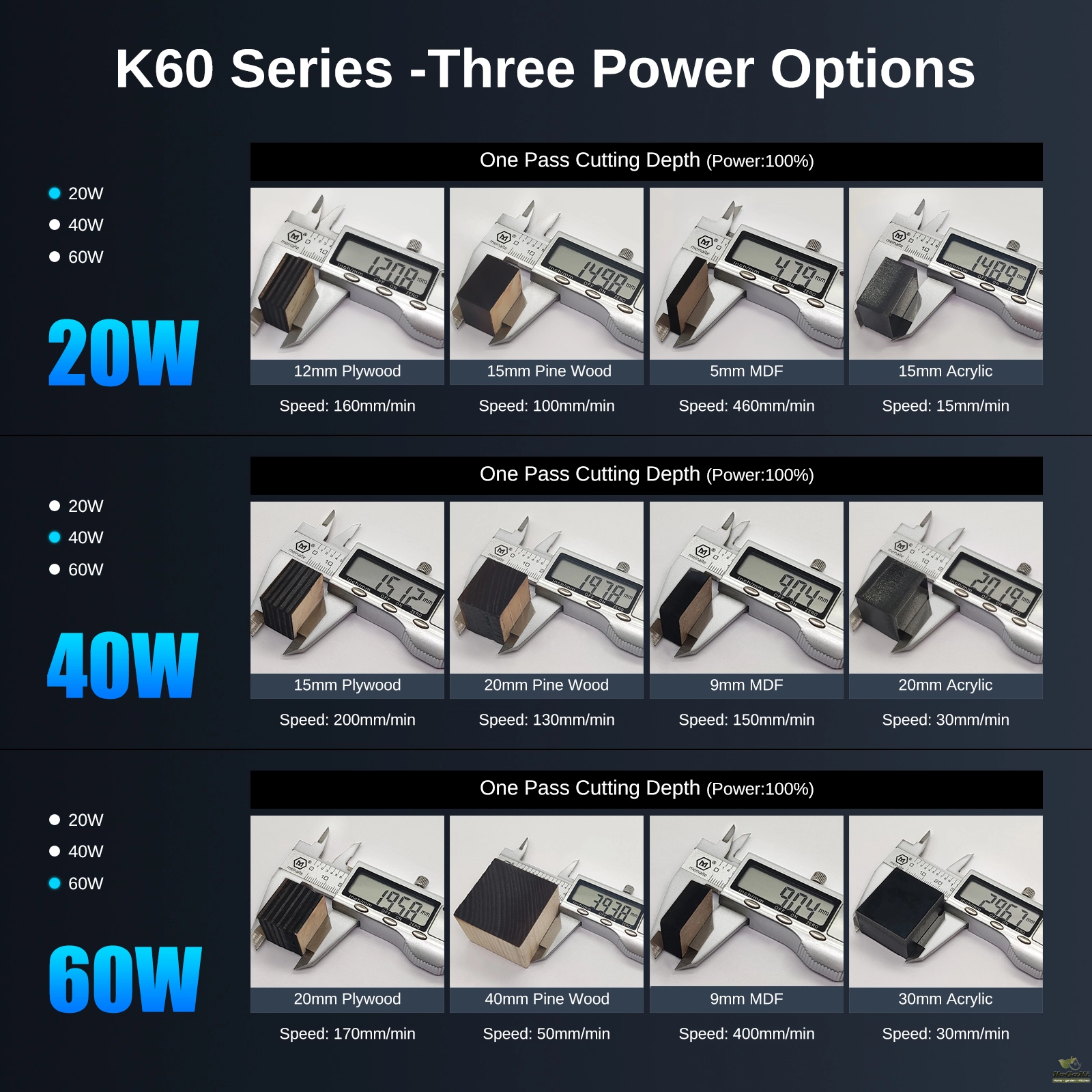

K60 Series-Three Optical Power Options

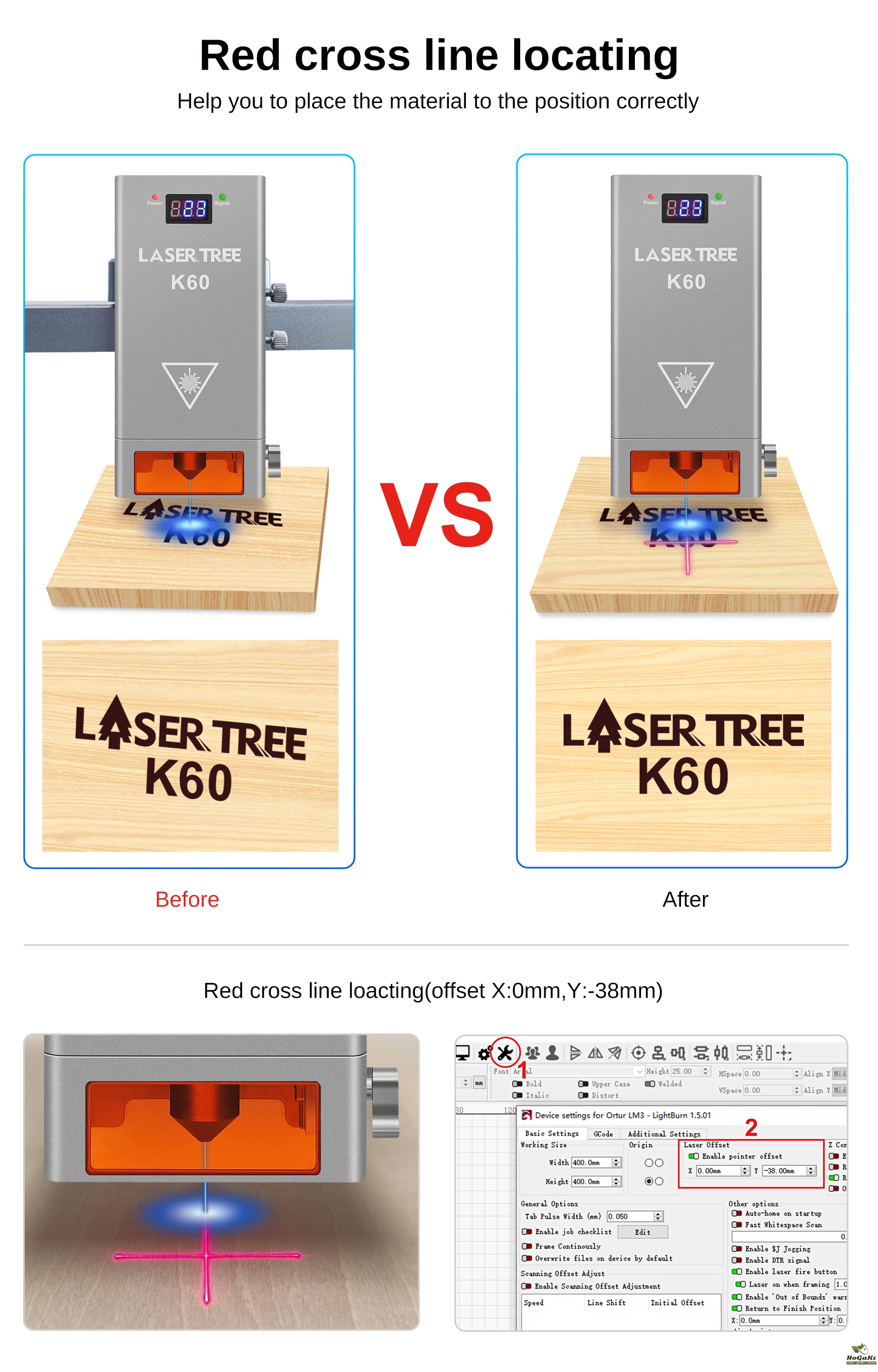

Red Cross Line Locating
The bottom is equipped with a red cross positioning cursor (offset X: 0mm, Y: -21mm), which can quickly locate the starting point and ensure the accuracy of the secondary cutting operatio.
Copper Core Protection Lens.
Easy to clean and replace when the lens is contaminated or dusty.

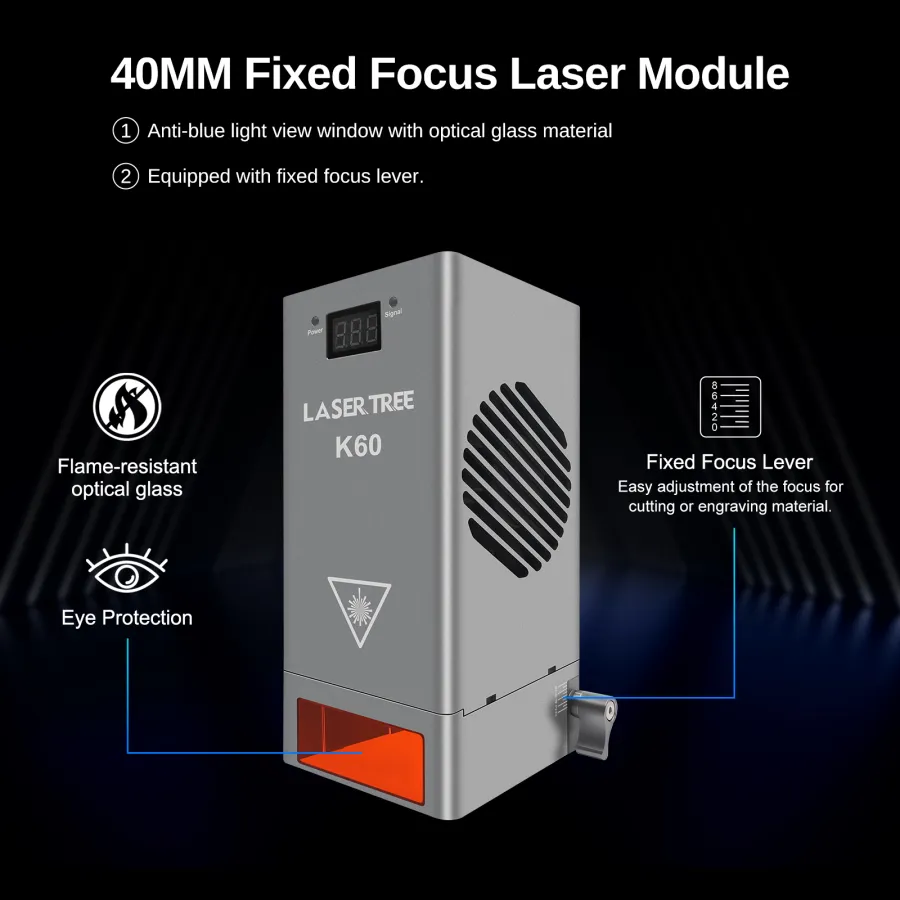

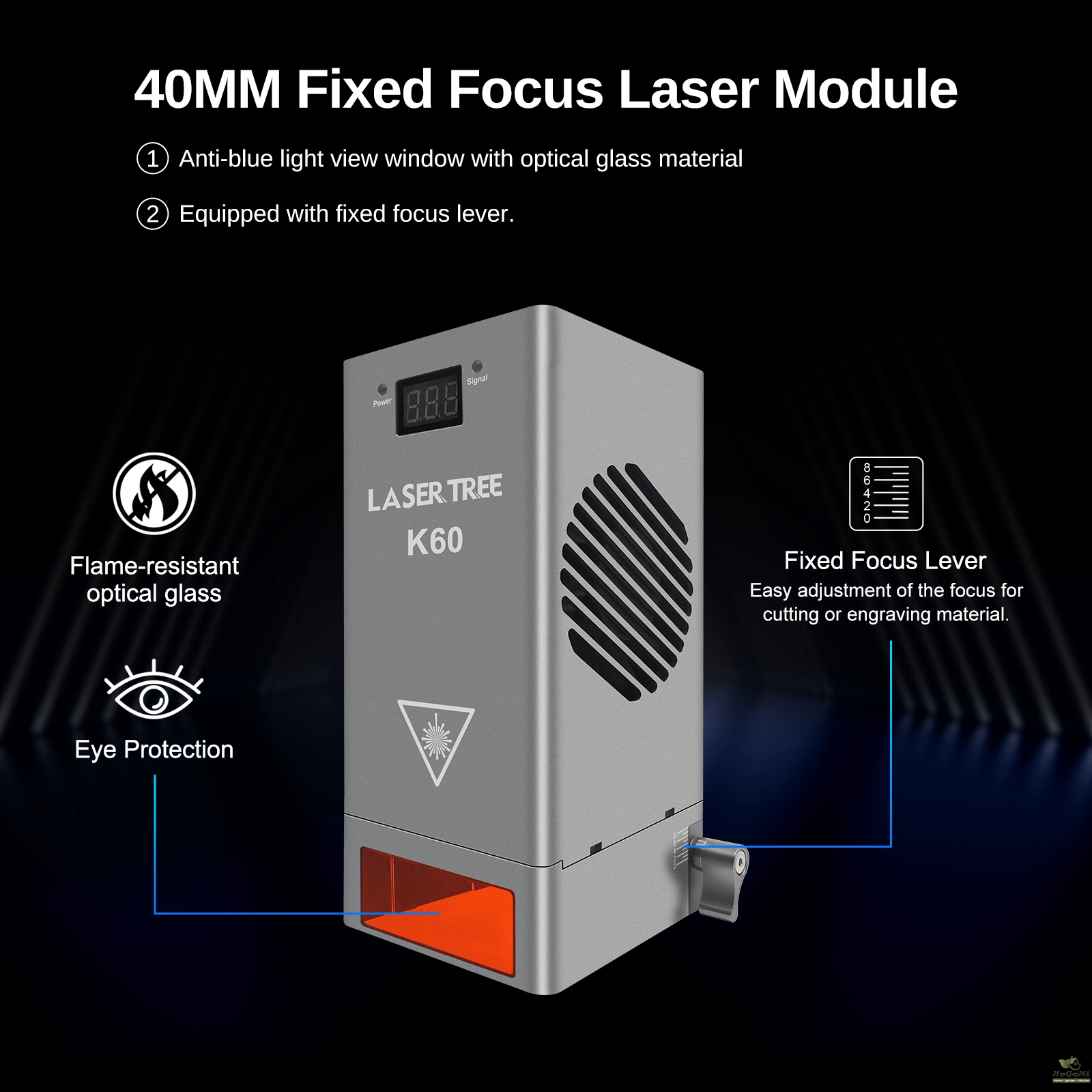

Laser View Window
Anti-blue light view window with optical glass material, protective your eye from blue light, no fear of fiames.

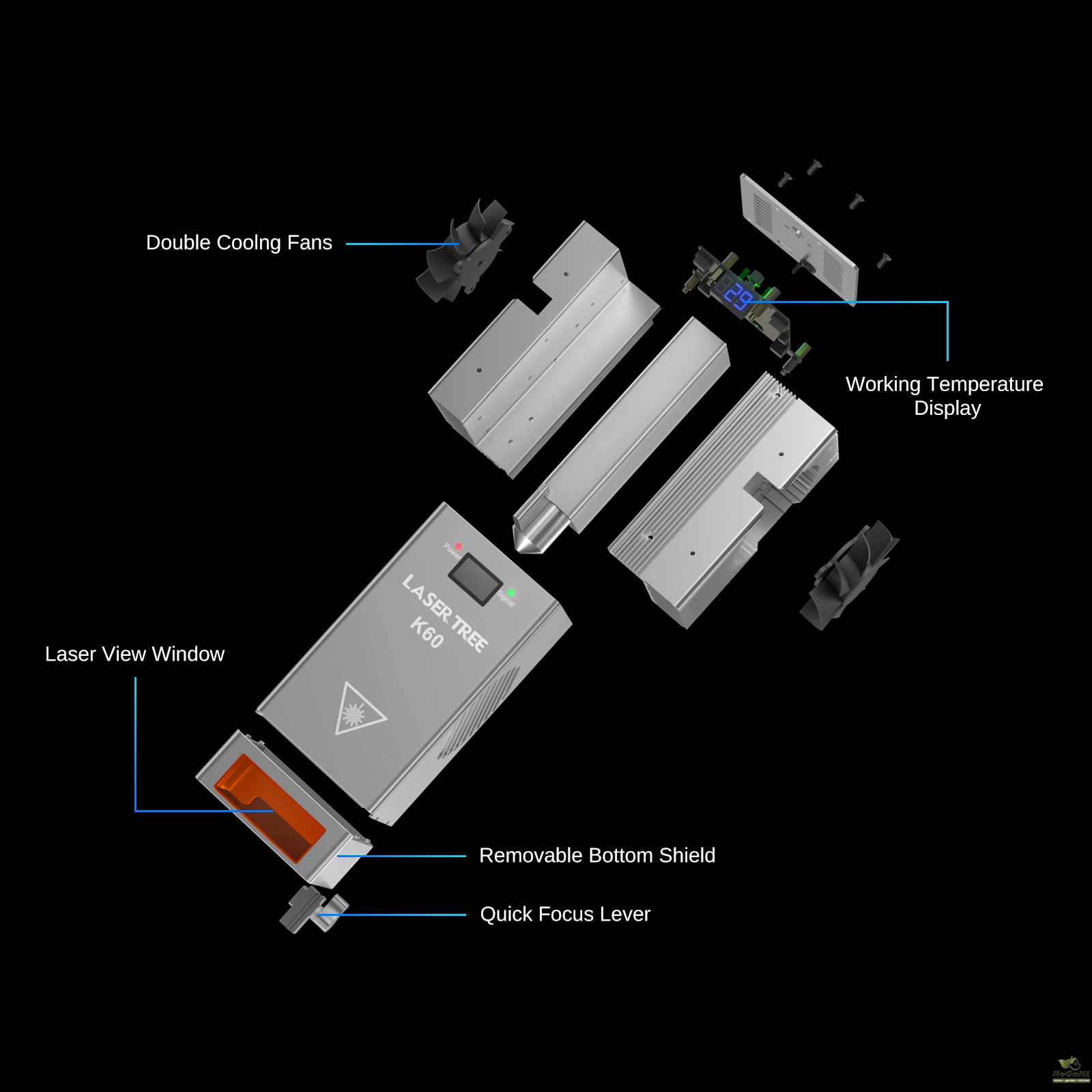

Built-in Air Assist Airway & Dual Fan Cooling Design
①Built-in air assist airway to get clean-cut edges, improve cutting performance.
②Excellent heat dissipation makes the laser module maintain a stable cutting ability and prolong service life.

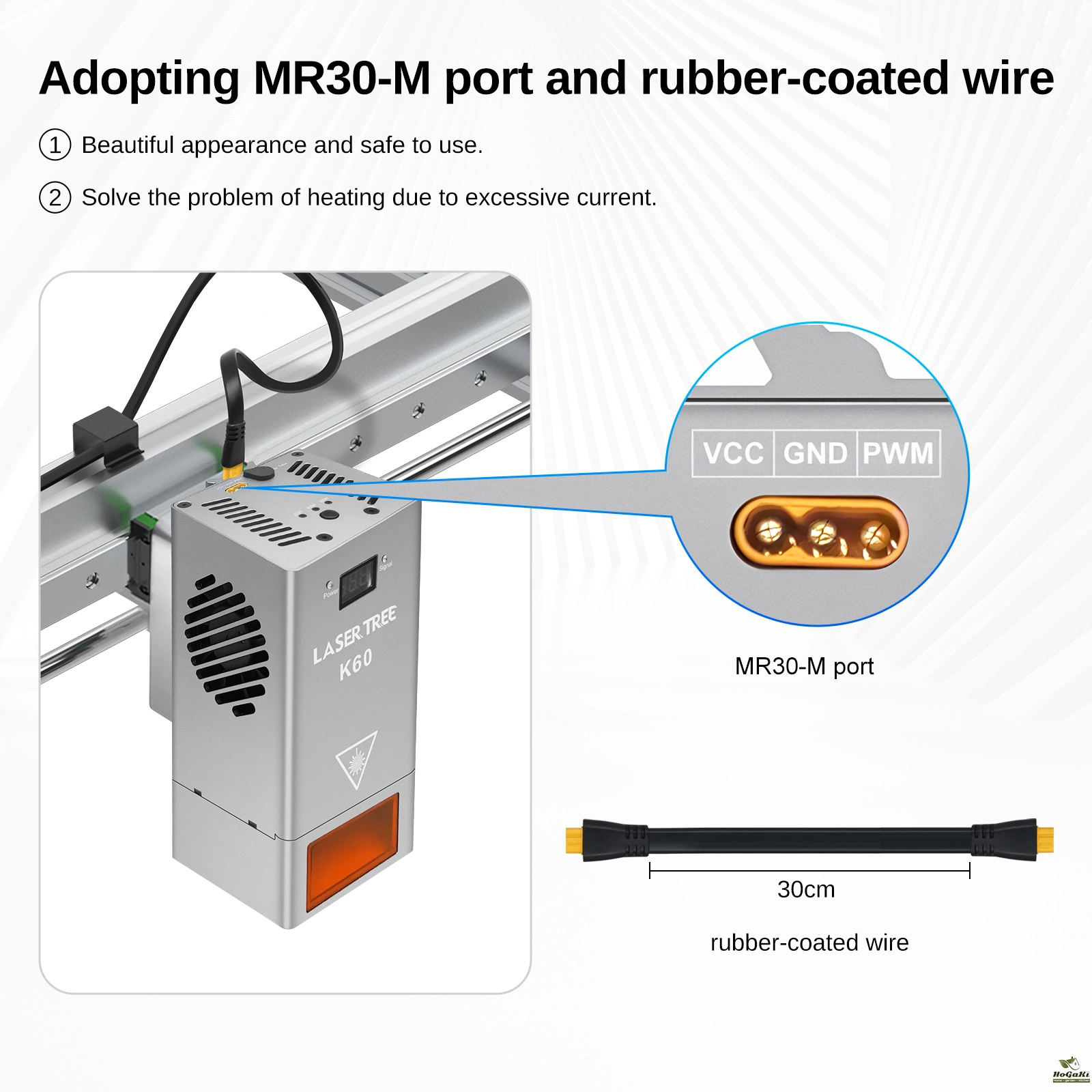

The use of MR30-M ports and rubber-coated wires greatly improves safety while being beautiful, and solves the problem of overheating due to excessive current.

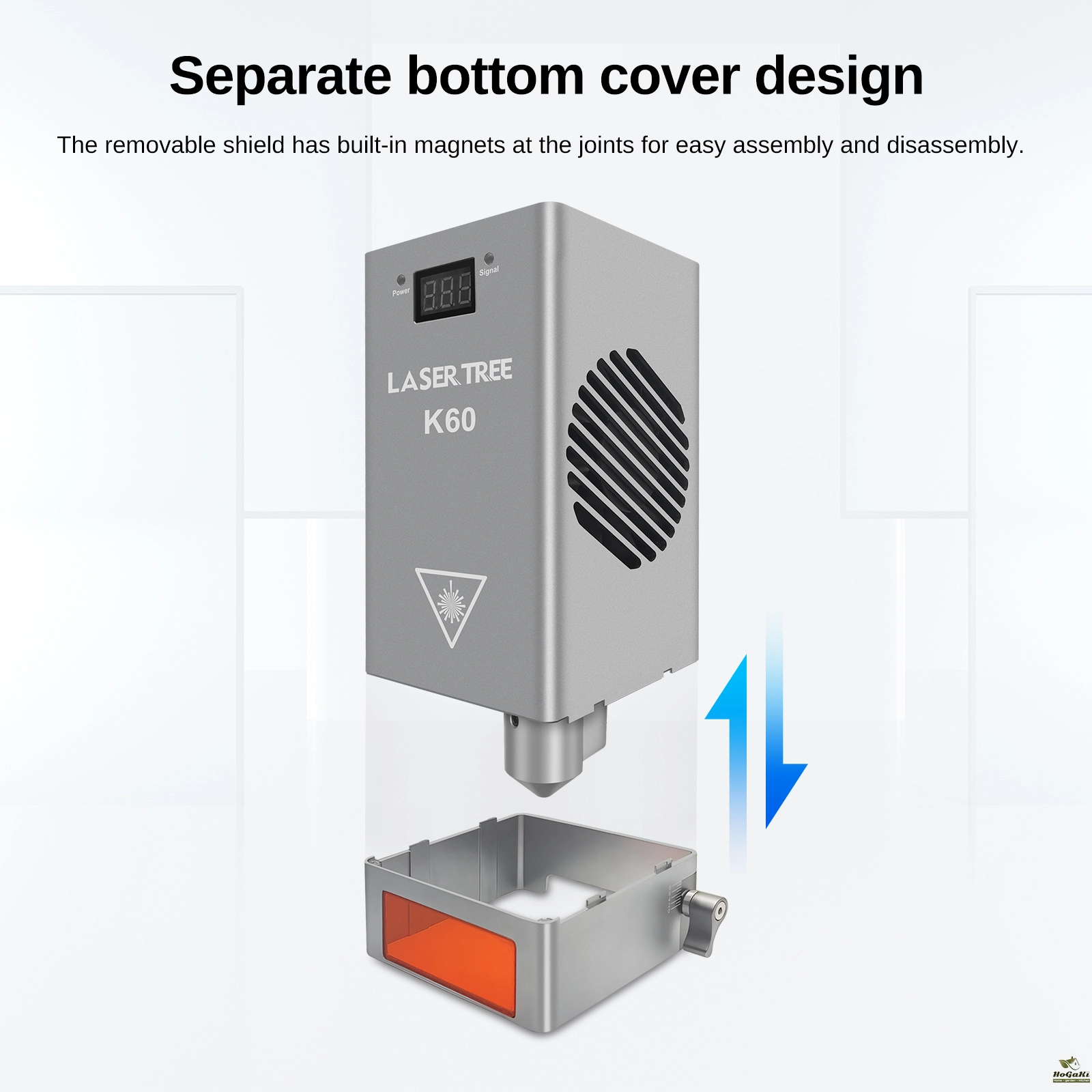

Removable Magnetic Protective cover
Packaging Details
- Unit Type:
- Package Weight: 2.780
- Package Size: 22x11x29
- Brand Name: Laser Tree
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: LT-K60
- Certification: CE
- Certification: RoHS
- Certification: weee

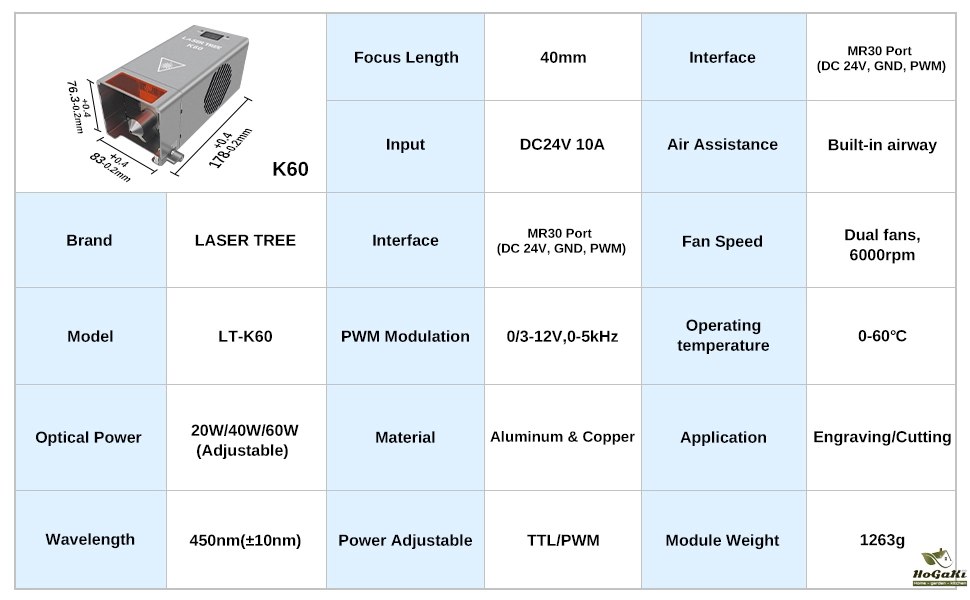

- Optical Power: 20W/40W/60W (Adjustable)
- Wavelength: 450nm(±10nm)
- Focus Length: 40mm
- Input: DC24V 10A
- Interface: MR30 Port (DC 24V,GND, PWM)
- PWM Modulation: 0/3-12V,0-5kHz
- Material: Aluminum& Copper
- Power Adjustable: TTL/PWM
- Cable: 30cm
- Air Assistance: Built-in airway
- Fan Speed: Dual fans. 6000rpm
- Operating temperature: 0-60°C
- Application: Engraving/Cutting
- Module weight: 1263g
