LASER TREE High Power 80W Laser Head with Air Assist 40W Blue Light TTL Module for CNC Laser Cutter Engraver Woodworking Tools

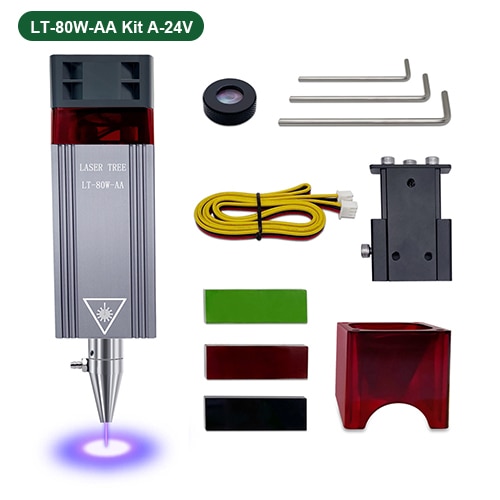

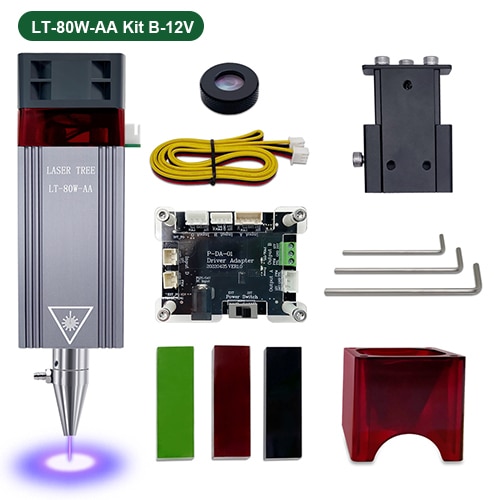

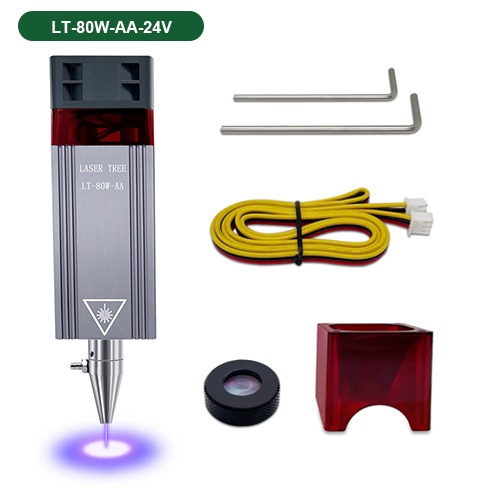

80W Laser Module Head with Air Assist for Laser Engraver

By LASER TREE

Product Description

[Main performance]

a.Directly engrave mirror stainless steel: no need painting black;

b. Super fast engraving speed: 304 stainless steel, ultra-fast engravingon stainless steel-30mm/s;

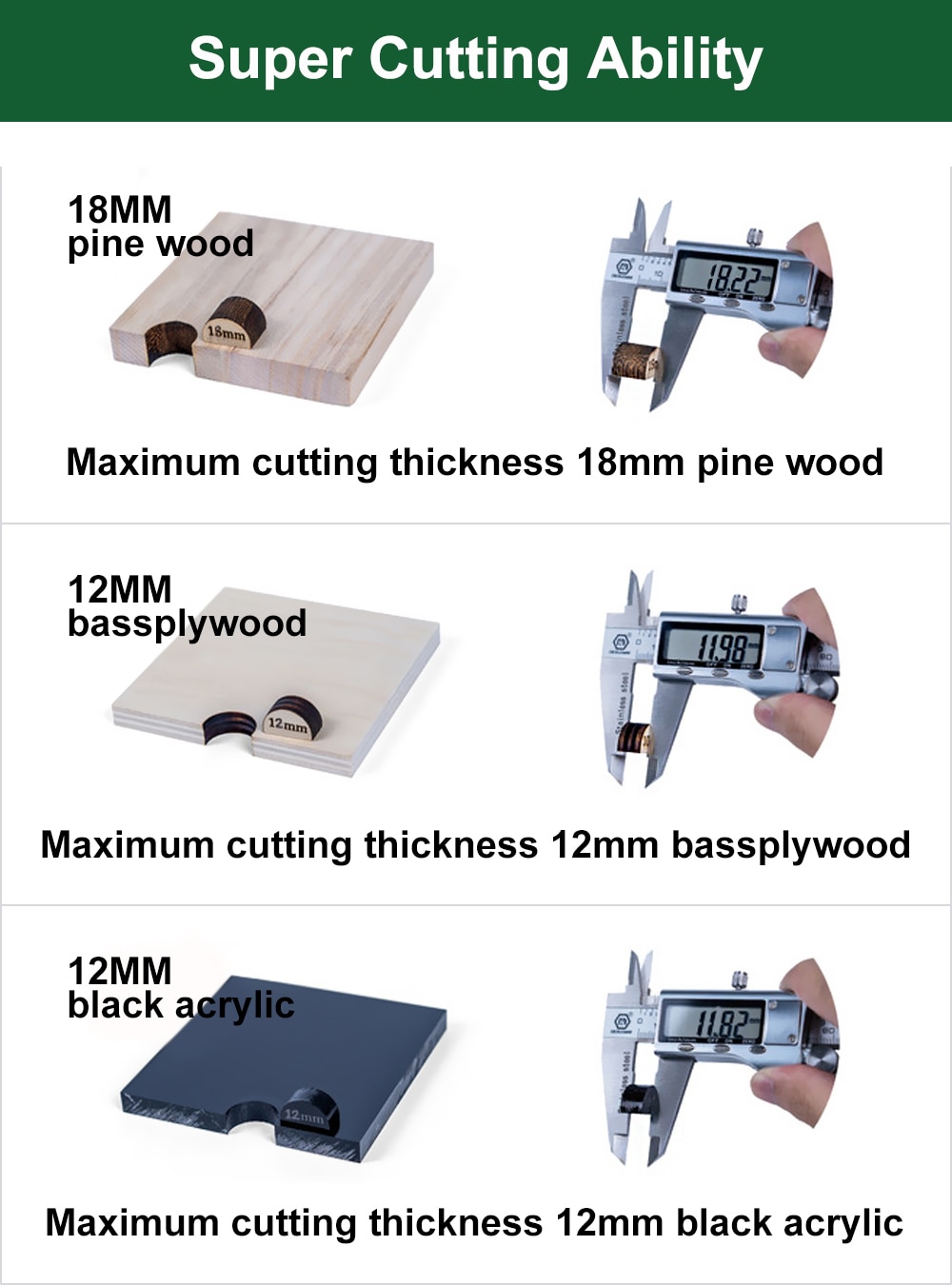

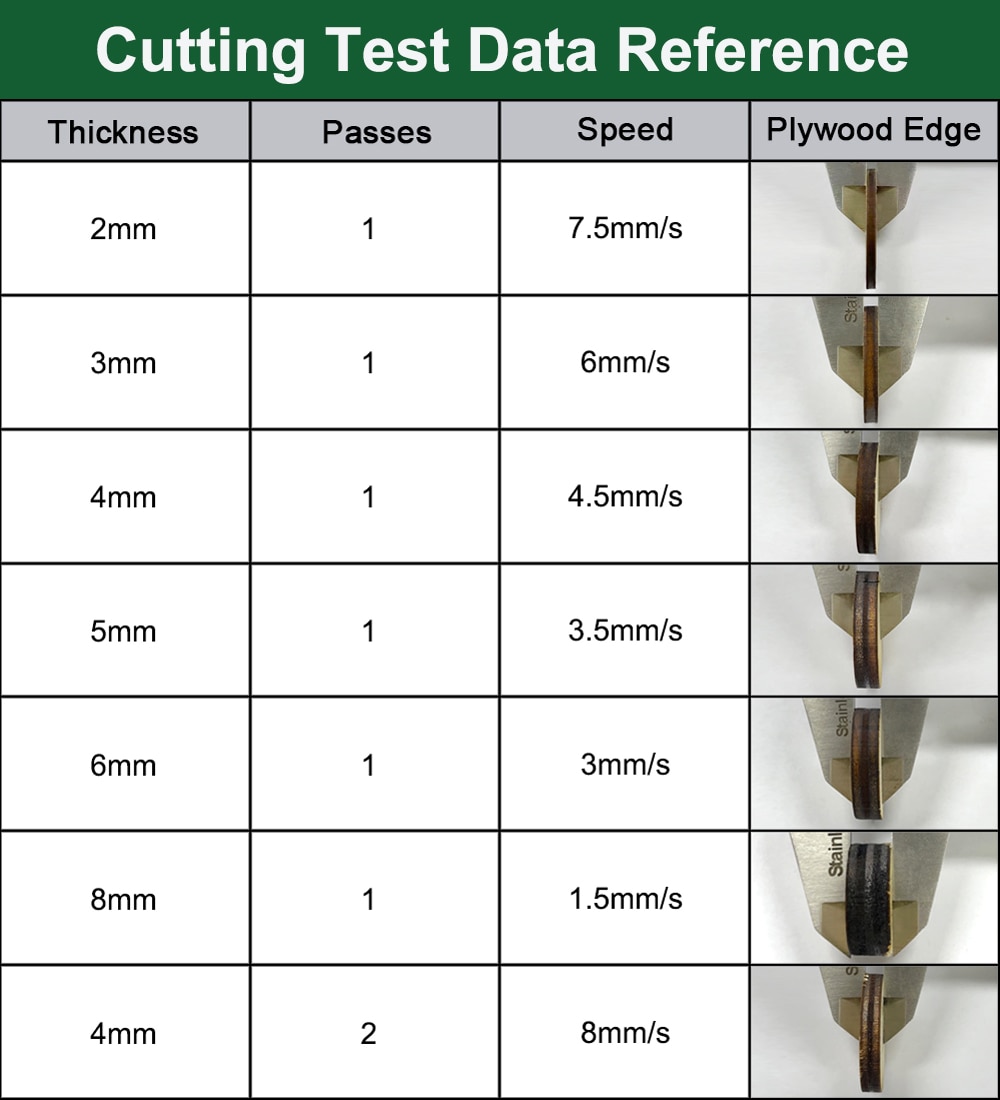

c. Remarkable cutting ability: cutting through 8-10mm thickness plywood by one pass at speed of 1.5mm/s.

[Original diode] Original diode, high quality, 20,000 hours life time!

[Strong compatibility] Suitable for various types of laser cutting machines and engraving machines.

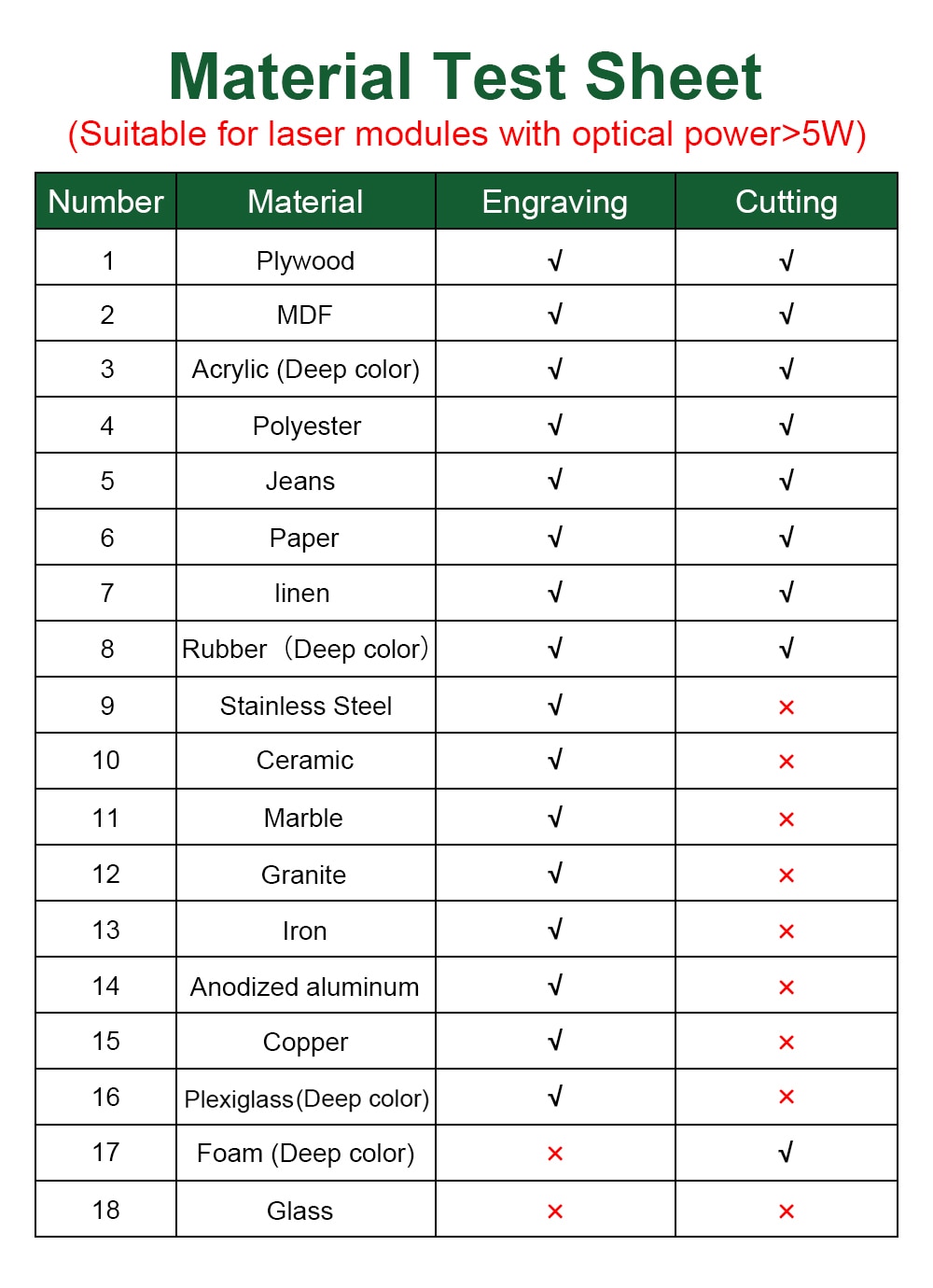

[Applicable materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.

[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

Features:

Blue laser module---a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

Fixed focus laser head---suitable for three-axis engraving machine, easy to install.

Easy to assemble---small, compact, convenient and easy to install.

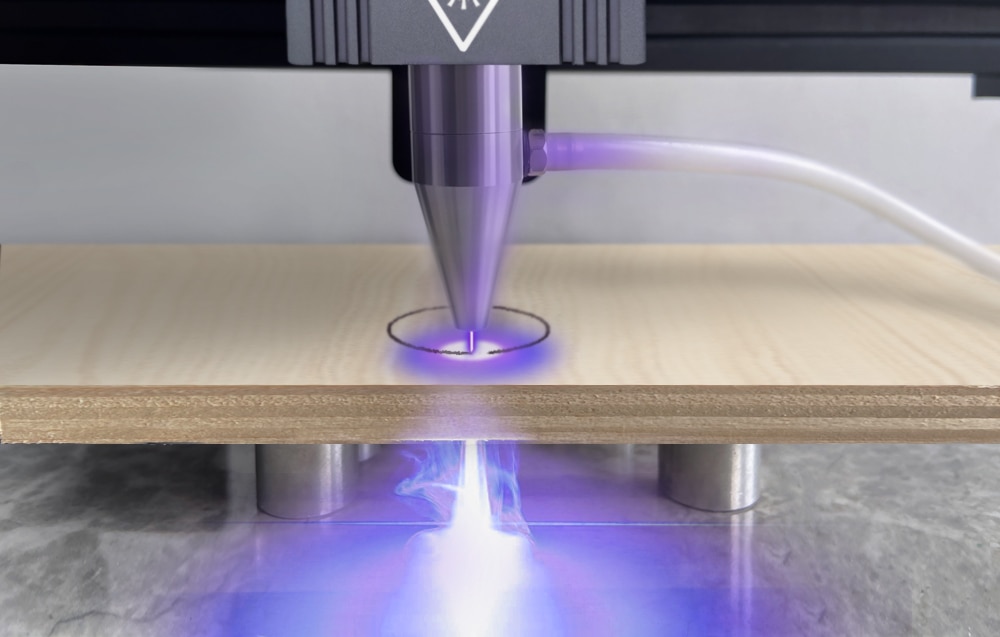

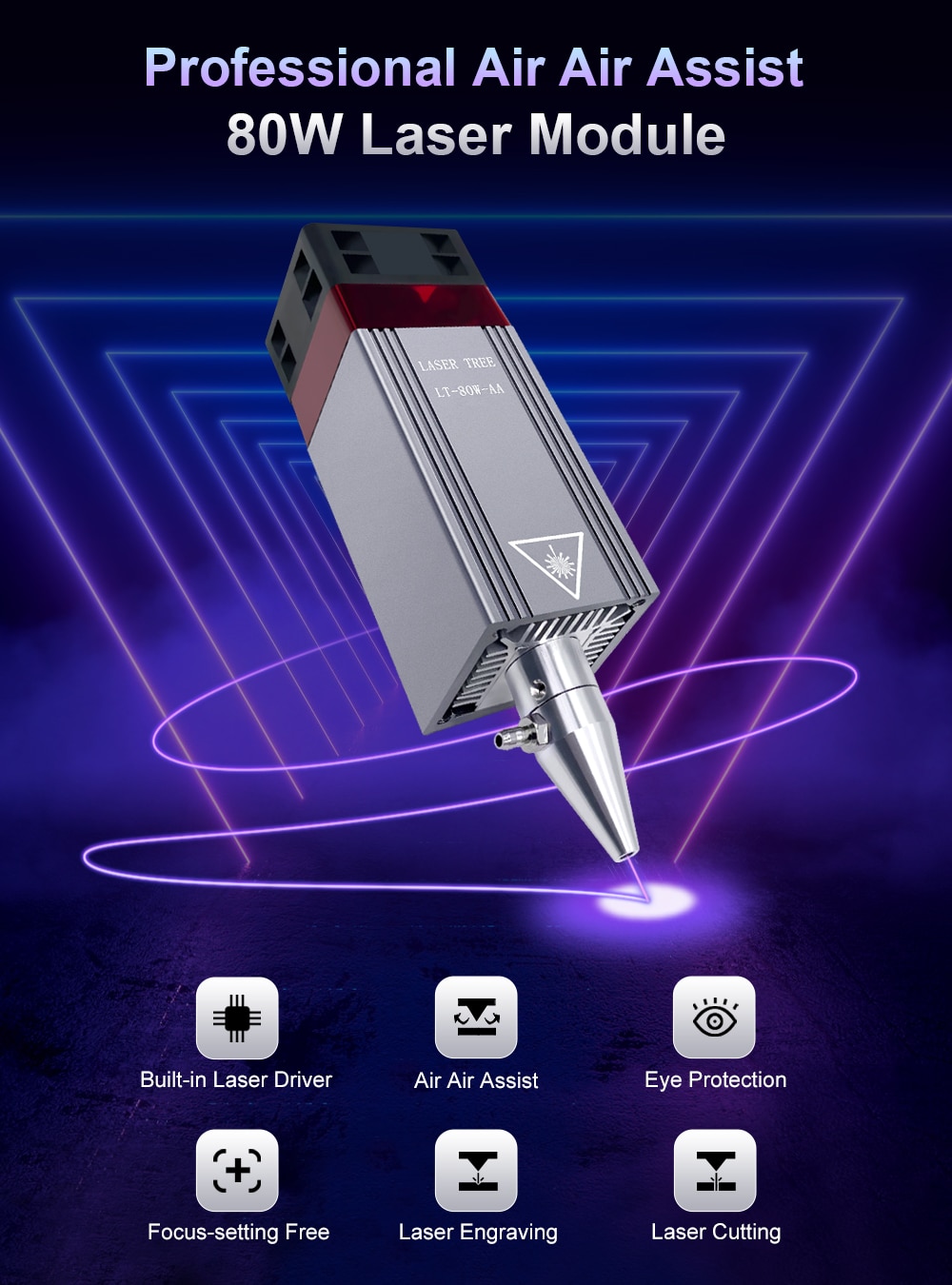

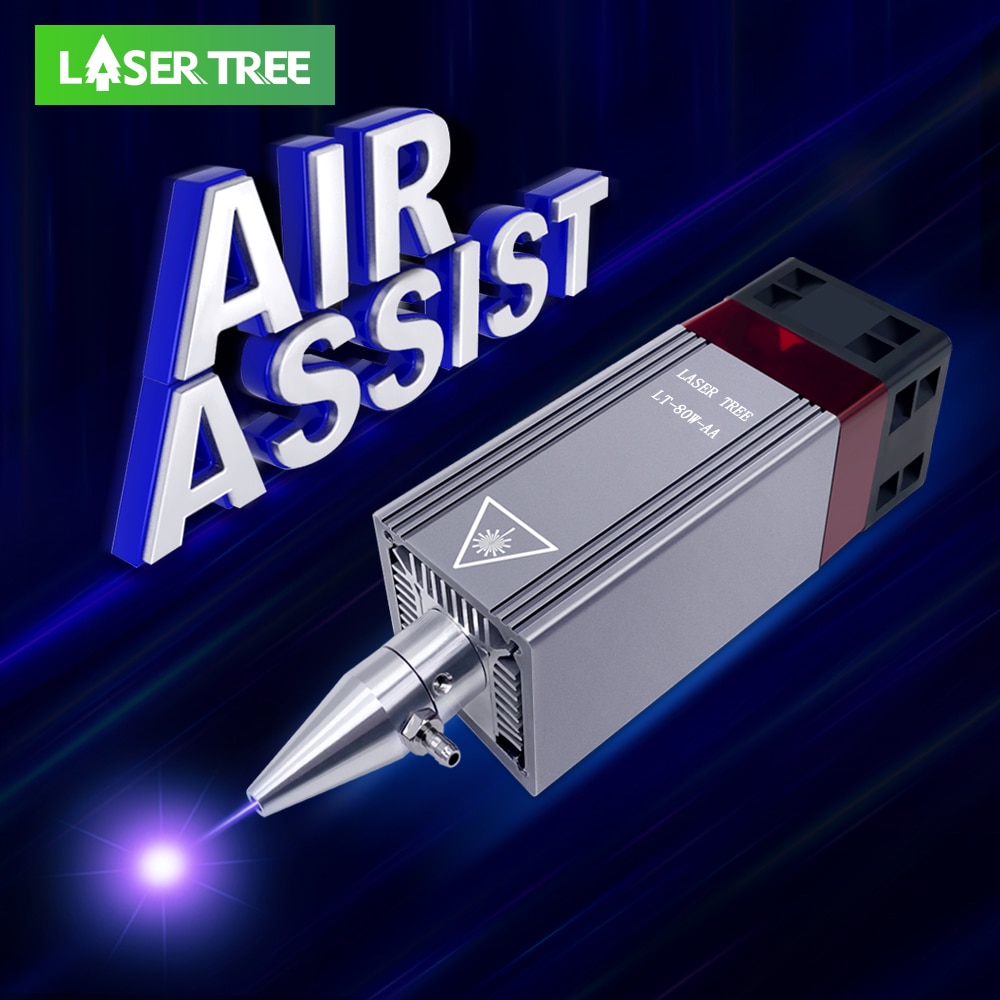

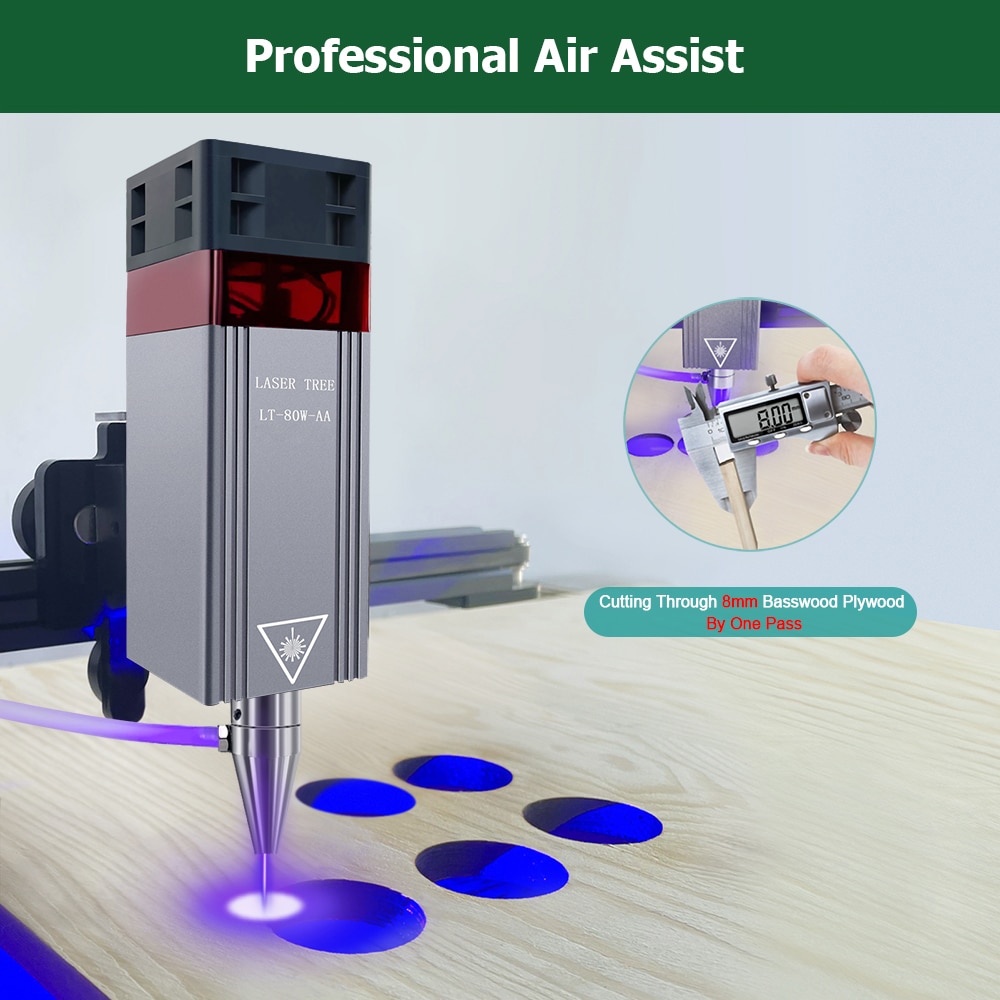

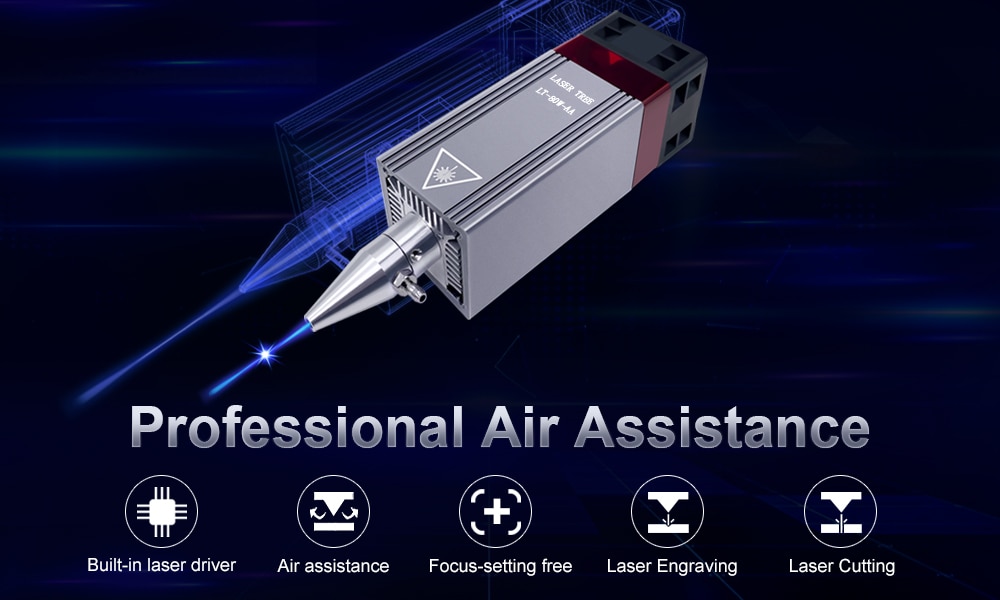

Air-assist--- Blowing through the air nozzle, which will reduces burn marks and improves cutting performance

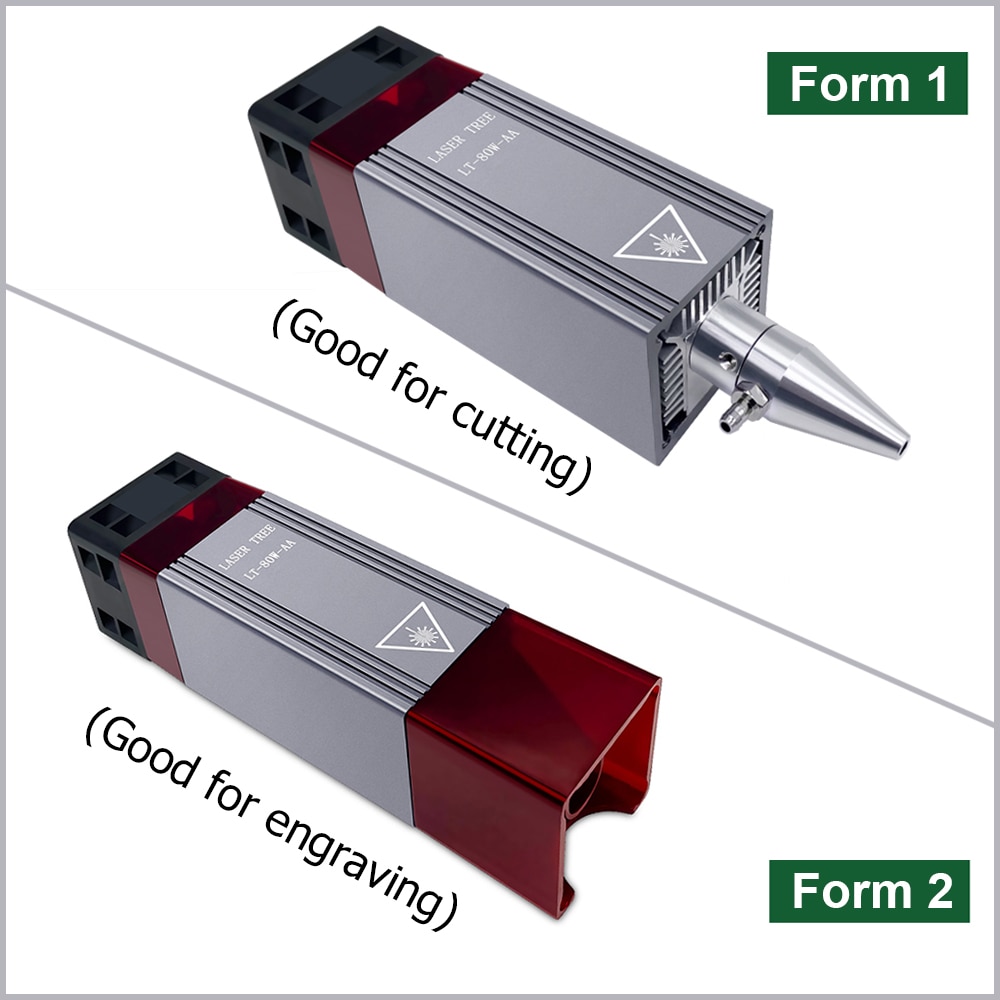

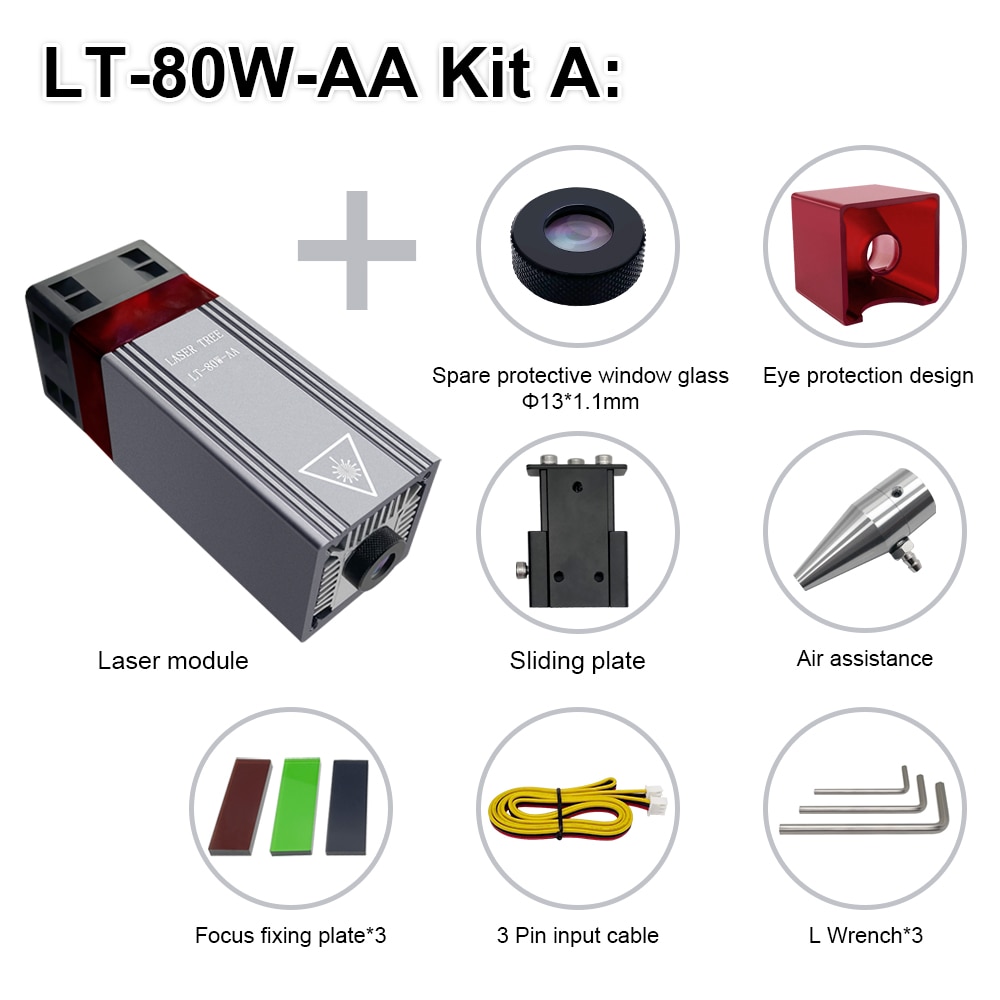

Two Ways to use LT-80W-AA:

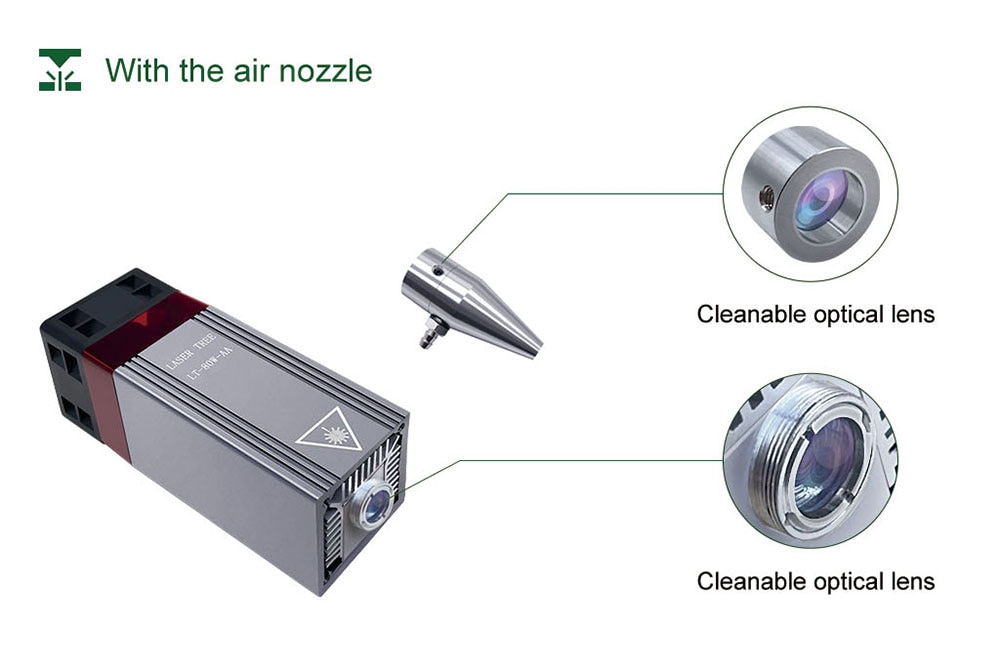

Way1: with the air asssit nozzle

The laser head comes with a specially designed air assist nozzle. When cutting with this laser head, the air assit system will blow air through the air nozzle. That will bring you excellent cutting experience and greatly reduce burned marks.

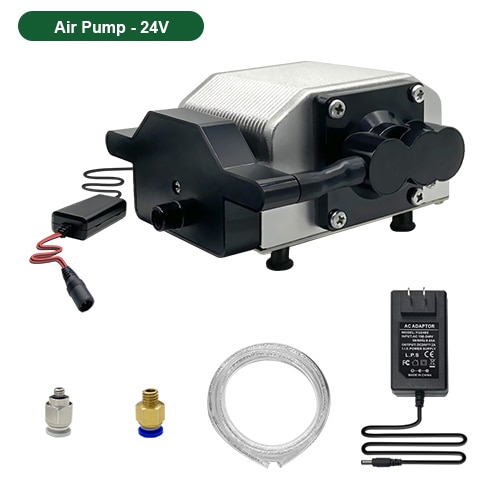

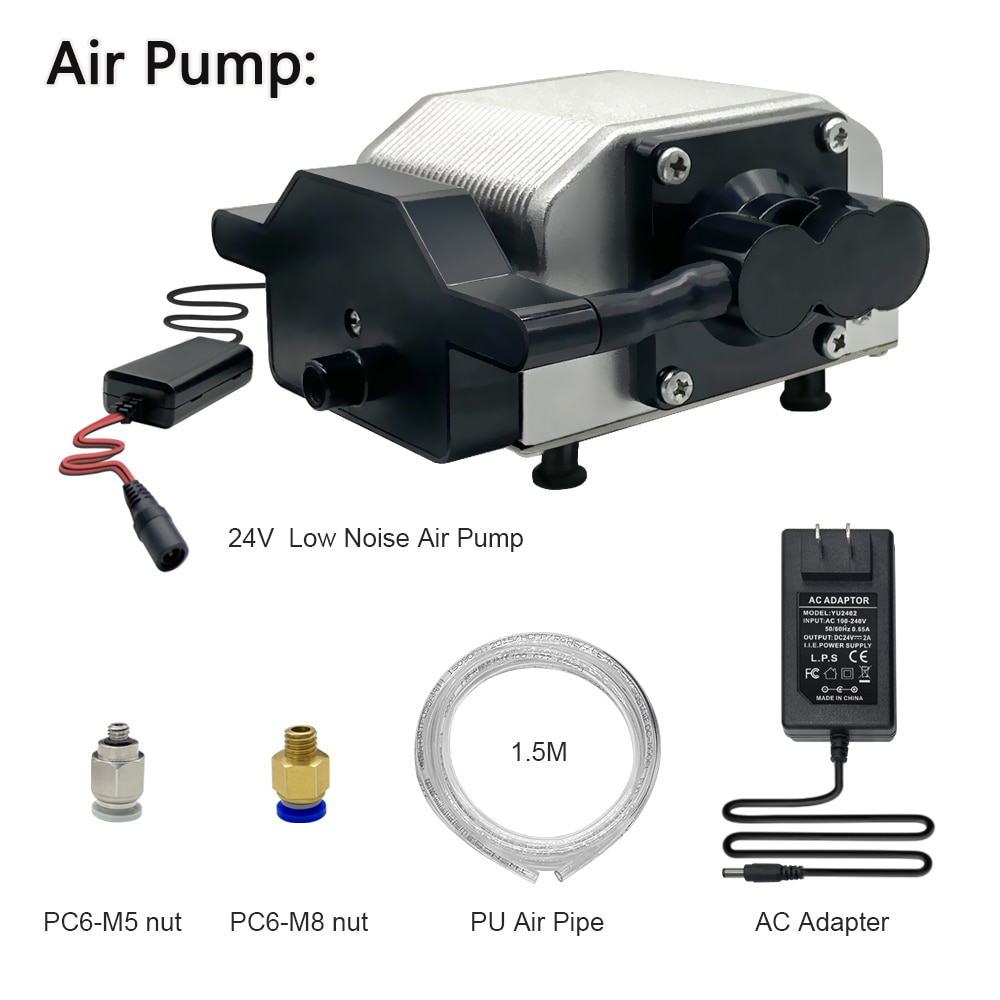

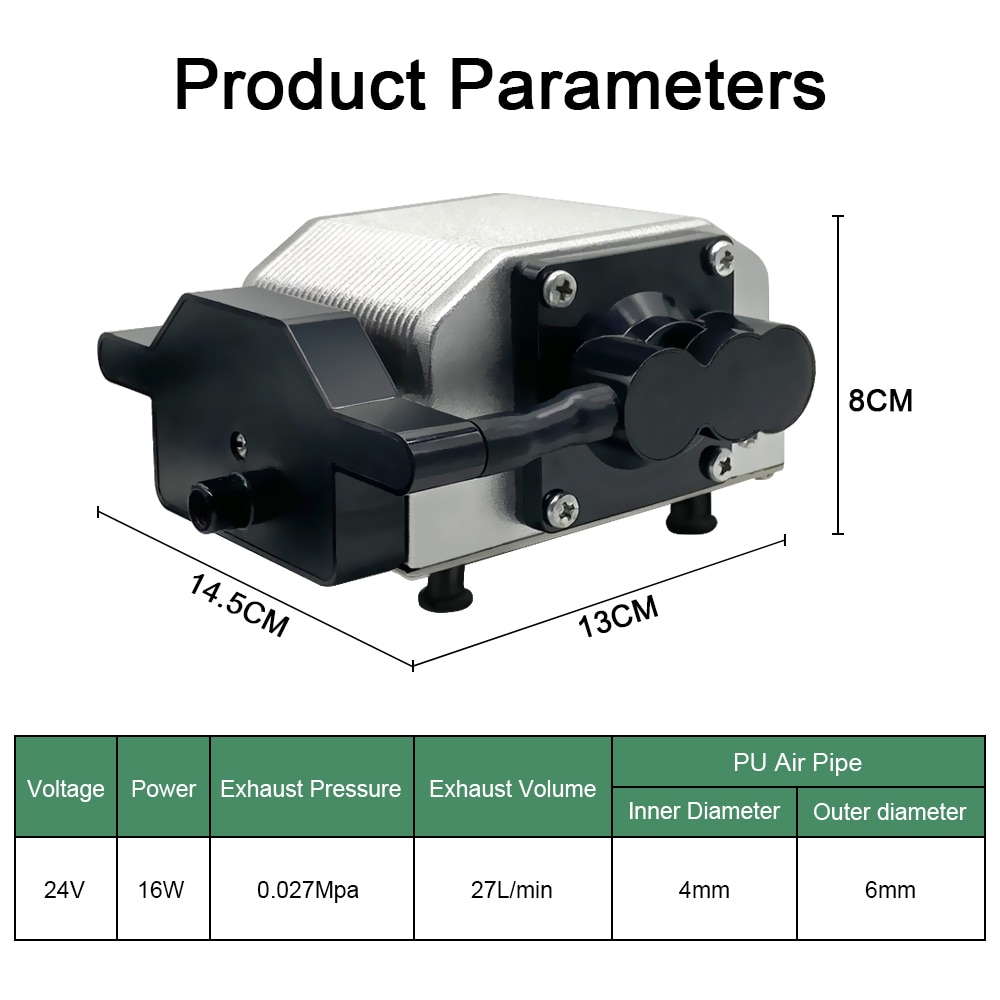

To make full use of the air assist, please prepare an assist pump and air tubing by yourself.

Recommended Air Tubing inner diameter: Φ2.5-3mm

Recommended air pump pressure: 150kPa

Way2：with the laser protective cover

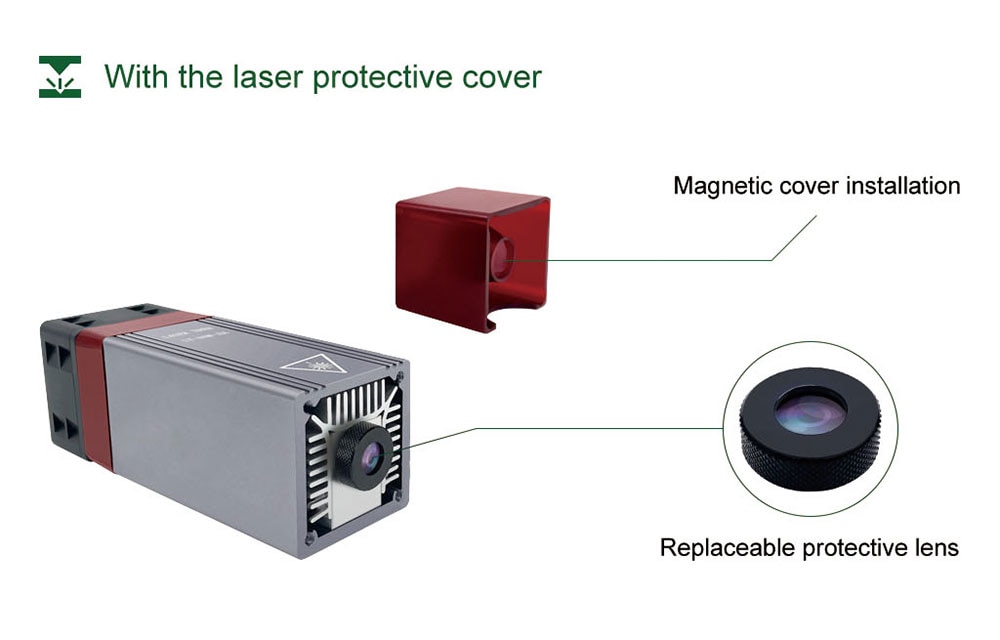

When engraving with this laser head, please use this protective cover that can effectively filter blue light. You can peform engraving without wearing laser goggles for convenience.

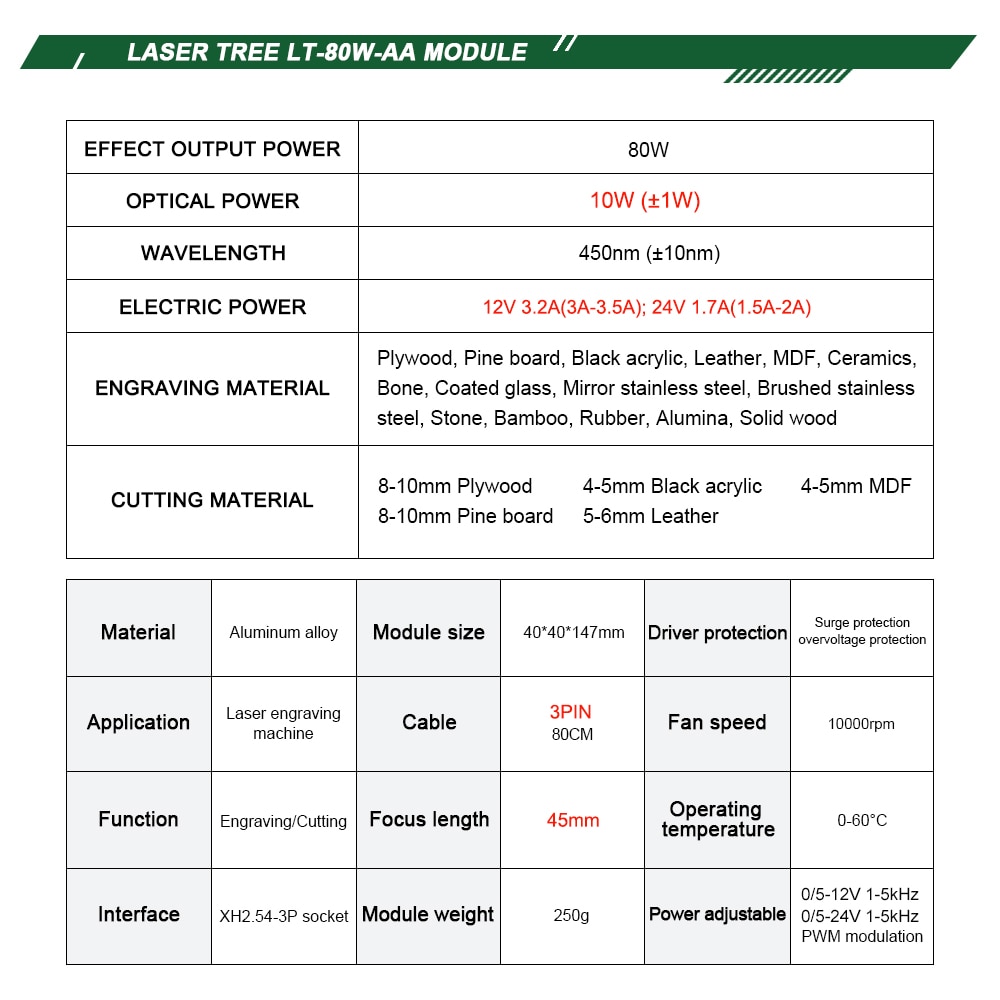

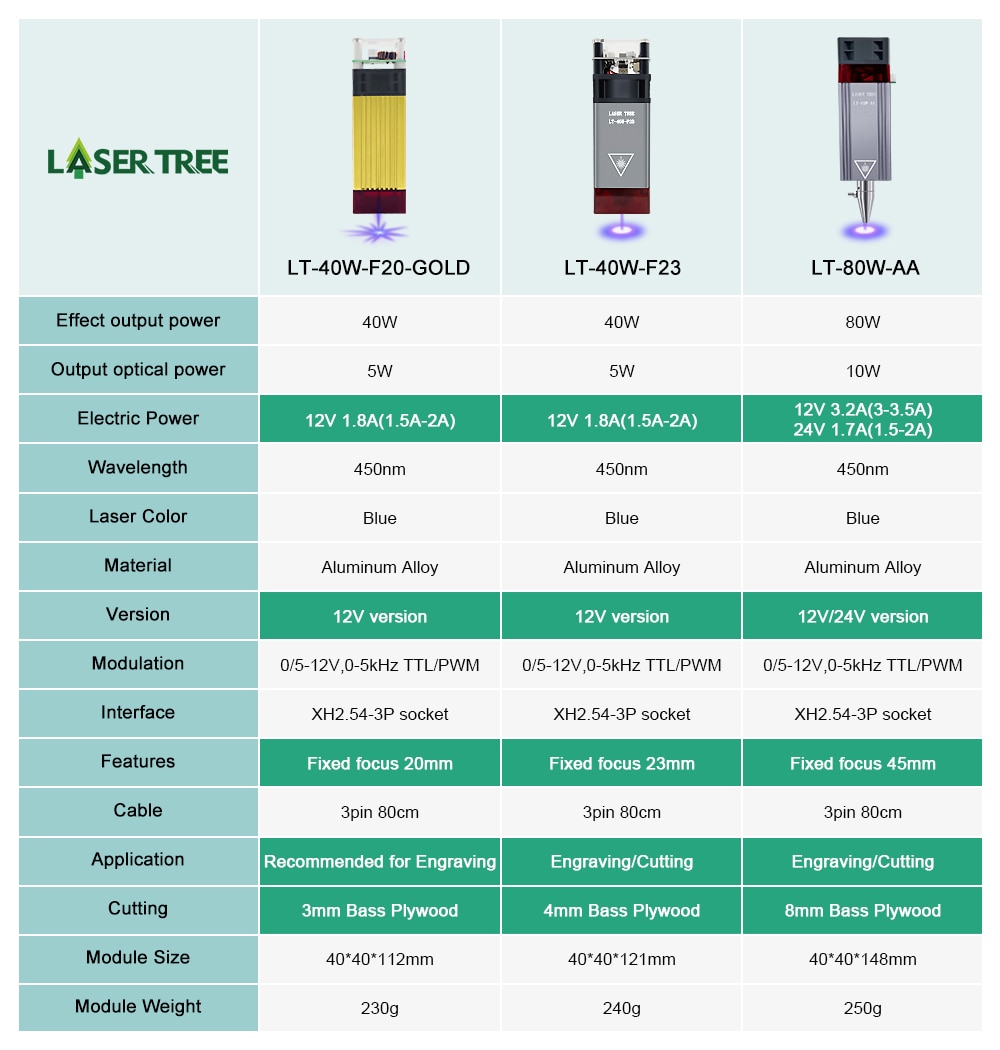

Specification:

Material: aluminum alloy

Effect output power: 80W

Optical Power：10W (±1W)

Wavelength: 450nm (±10nm)

Light color: blue

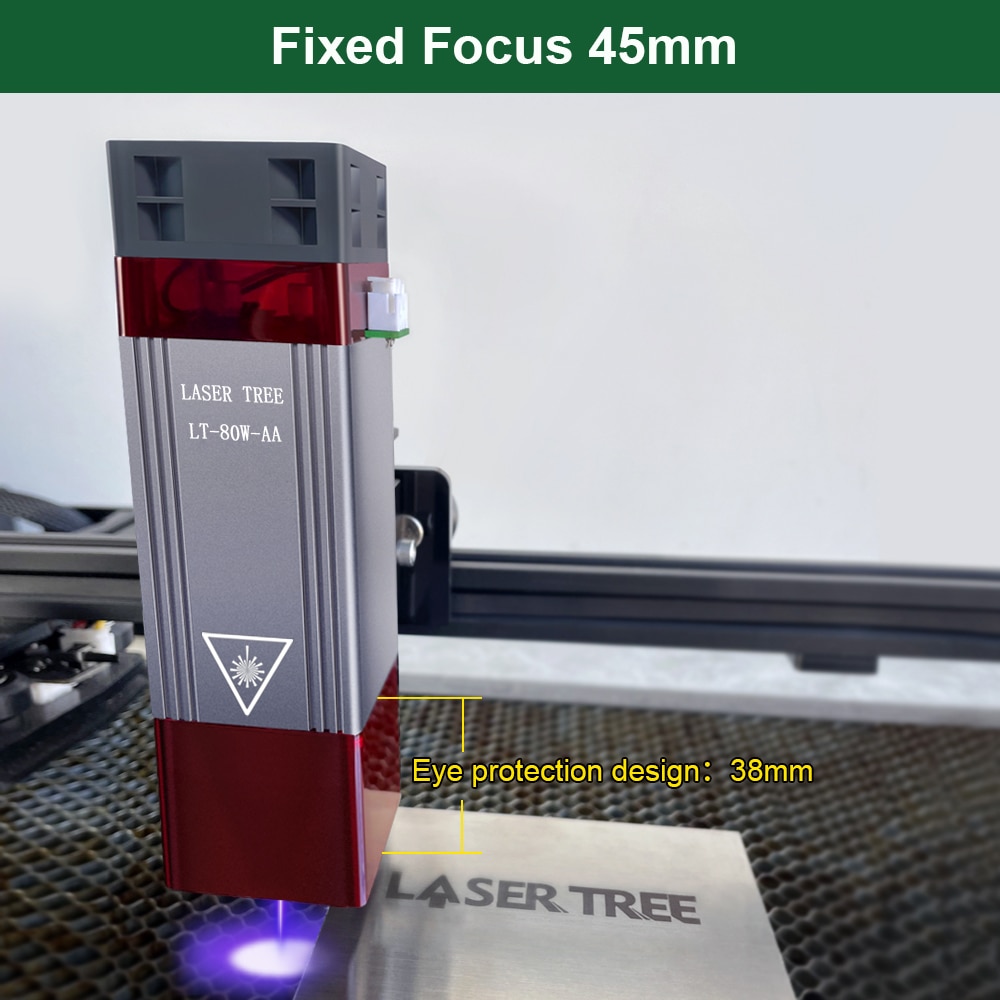

Focus Length: 45mm

Spot form: Punctiform, fixed focus

Electric power: 12V 3.2A(3A-3.5A);  24V 1.7A(1.5A-2A)

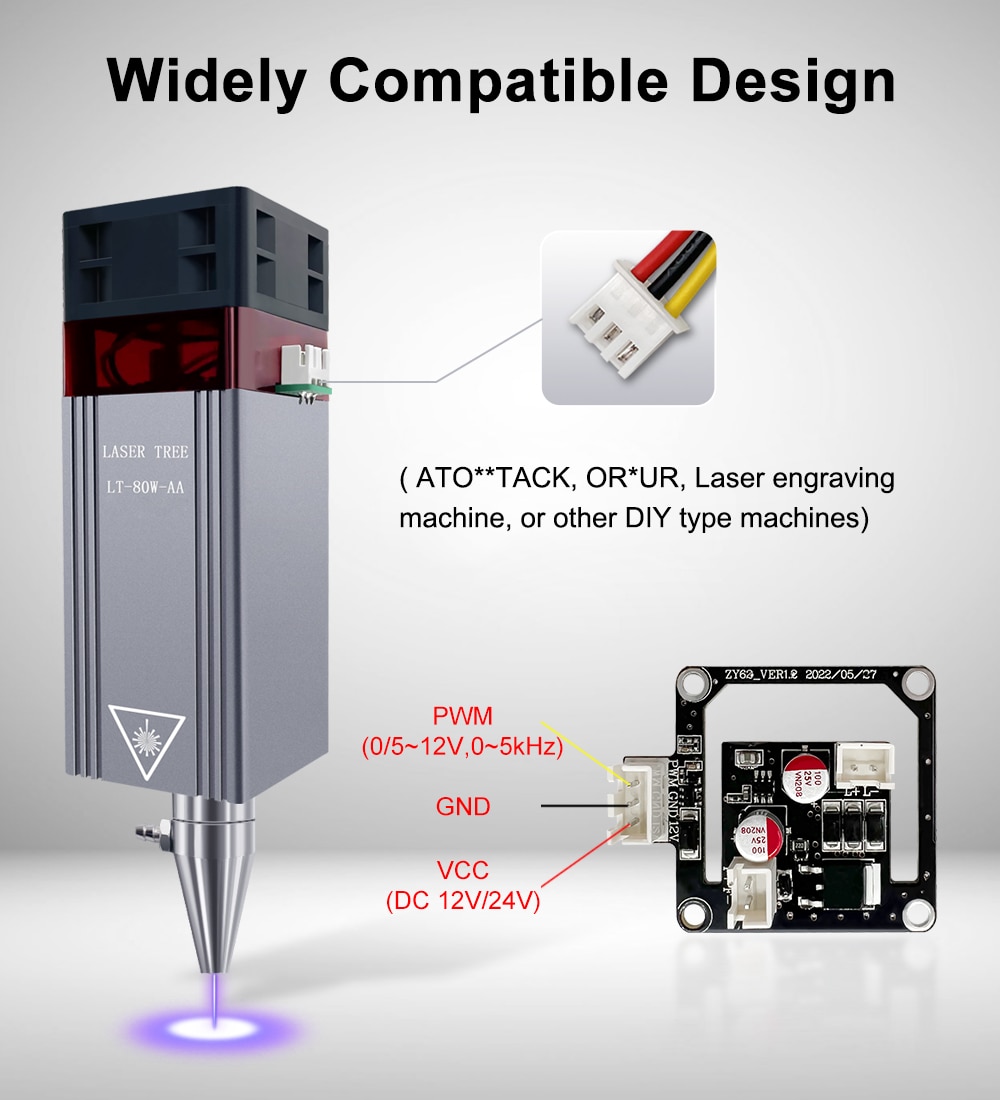

Modulation: support 0/5-12V 0-5kHzTTL/PWM

Input port: XH2.54-3P socket

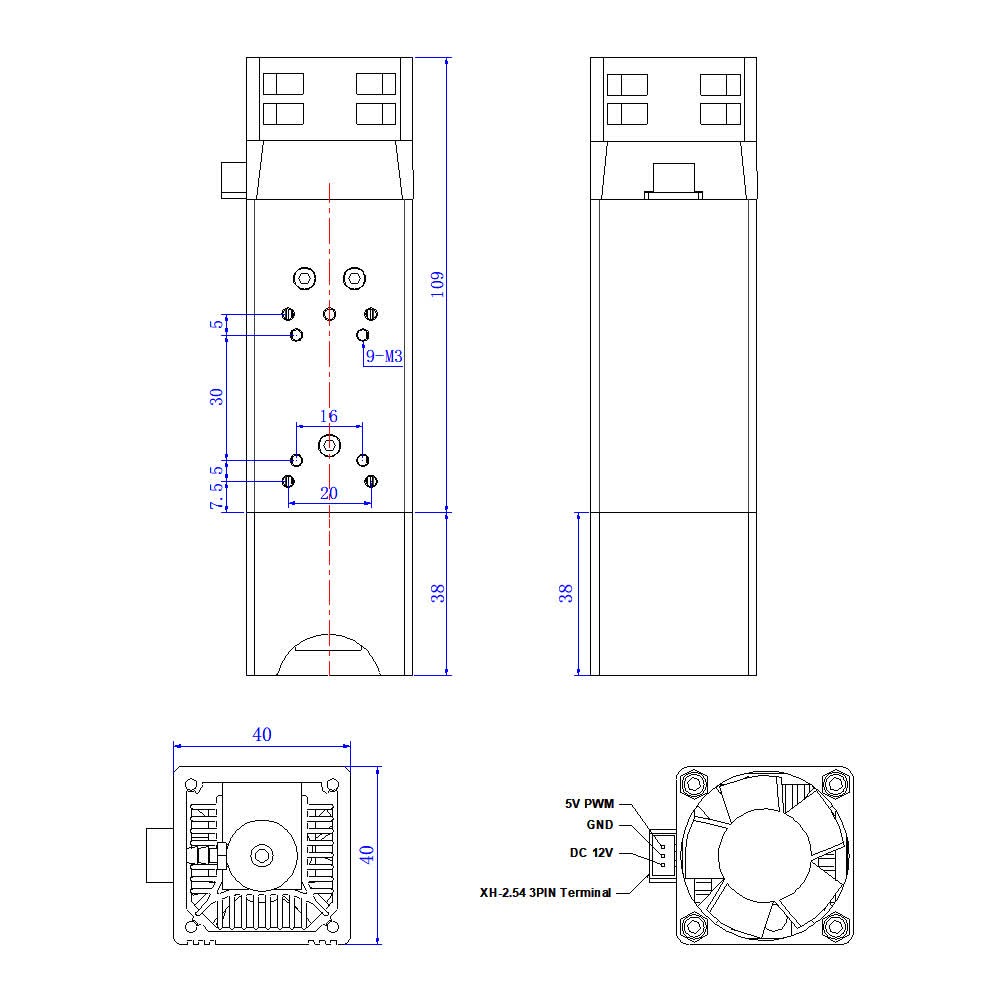

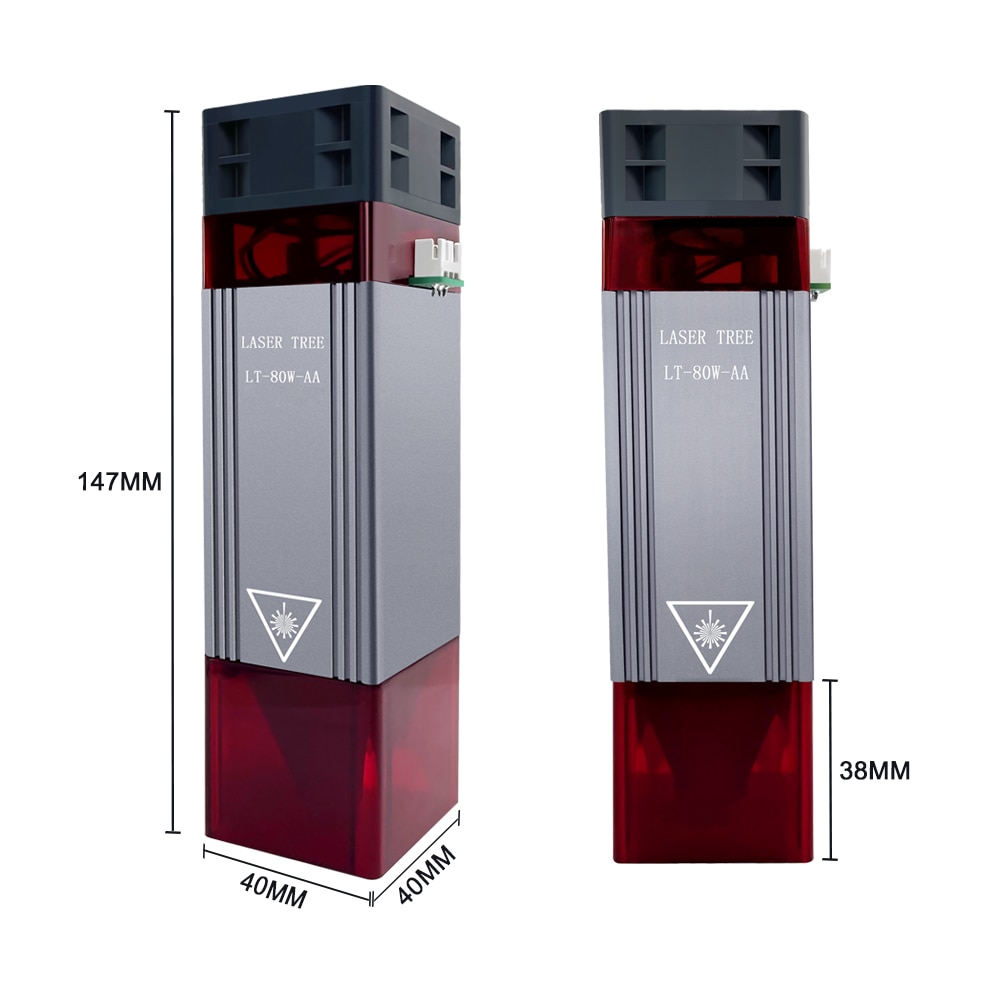

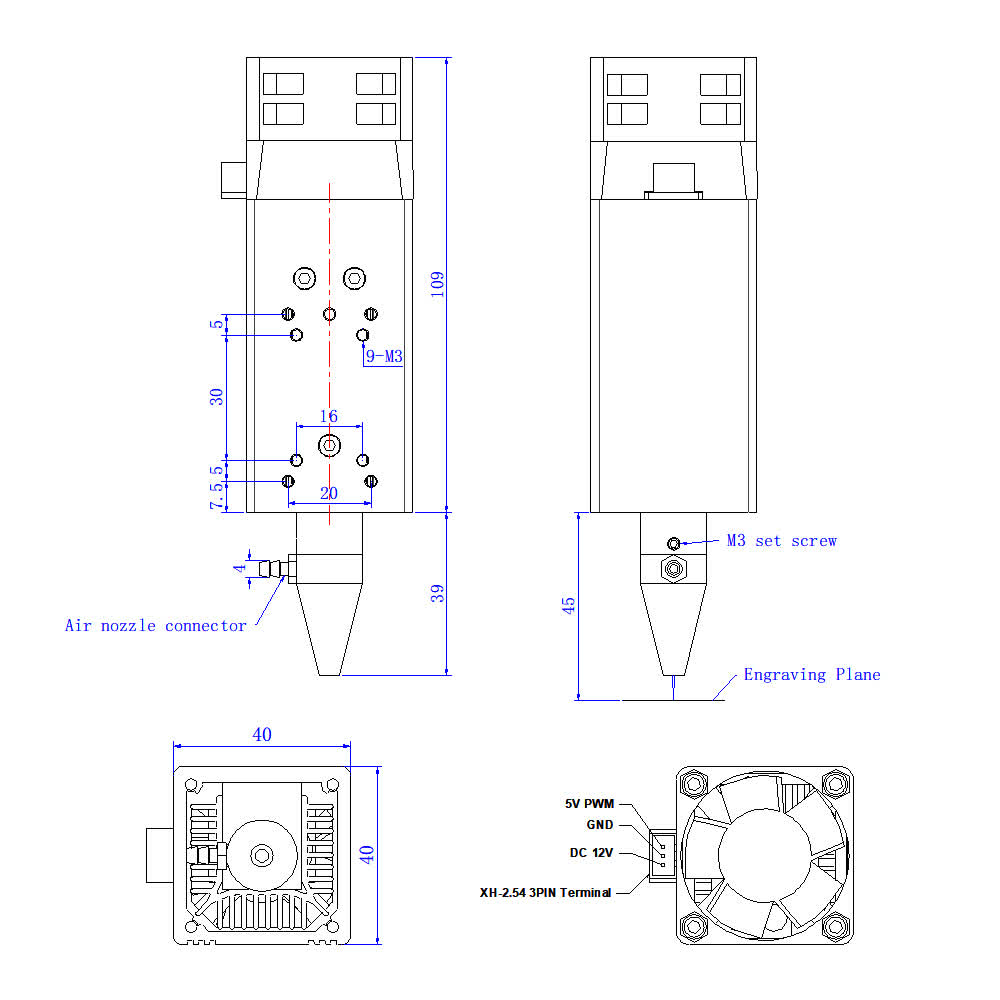

Item size: 40*40*147mm

Module weight: 250g

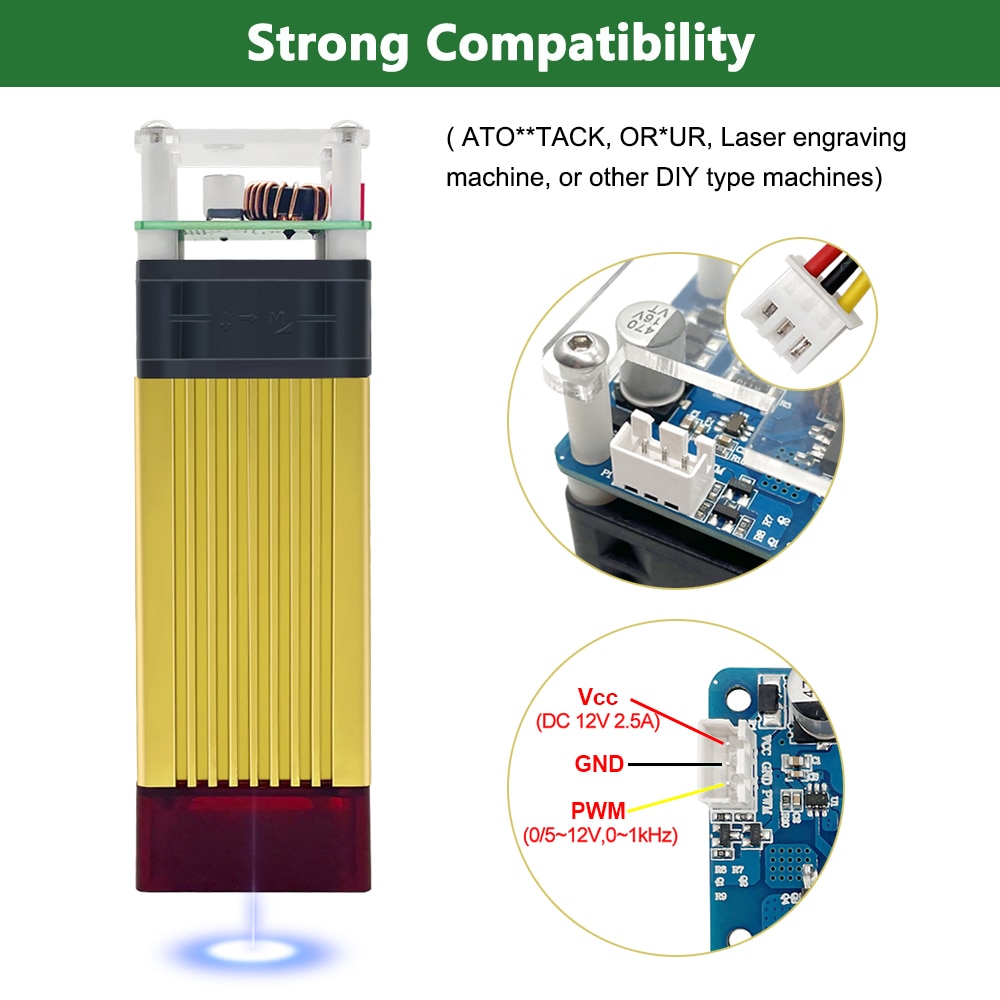

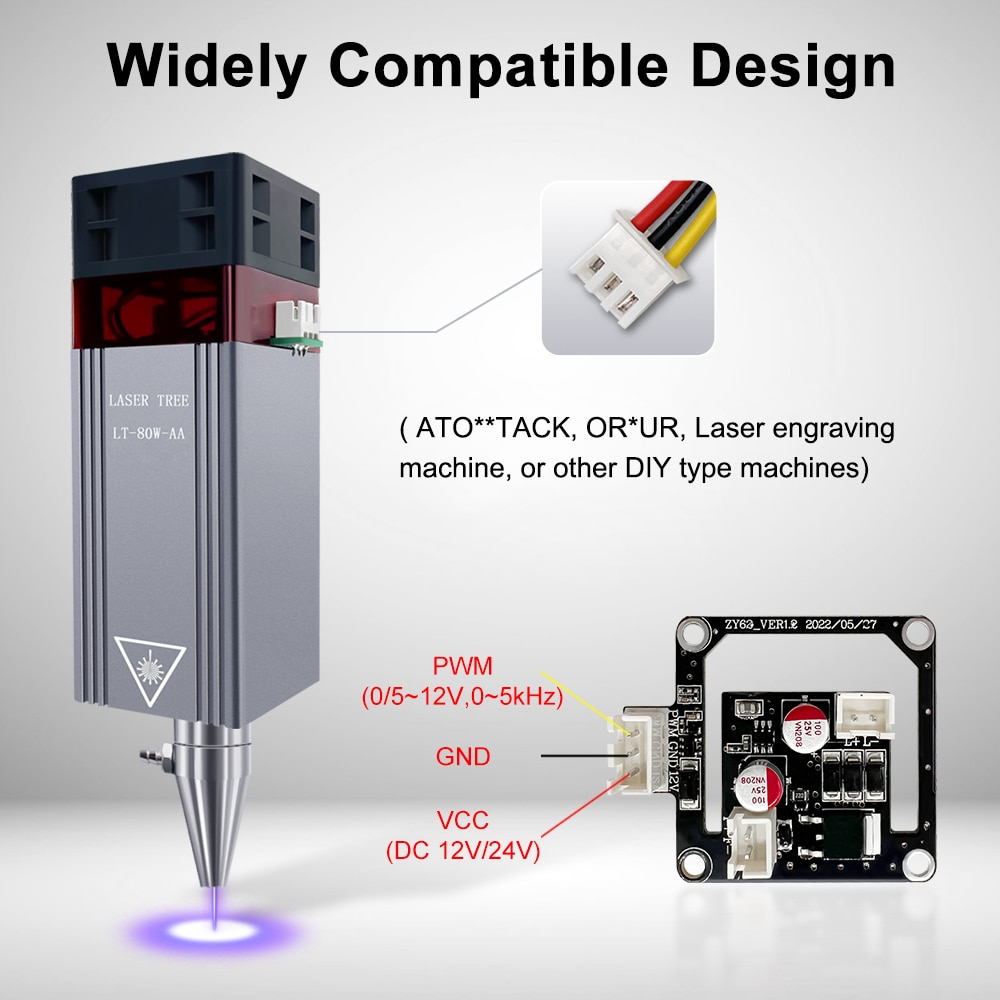

Widely Compatible Design

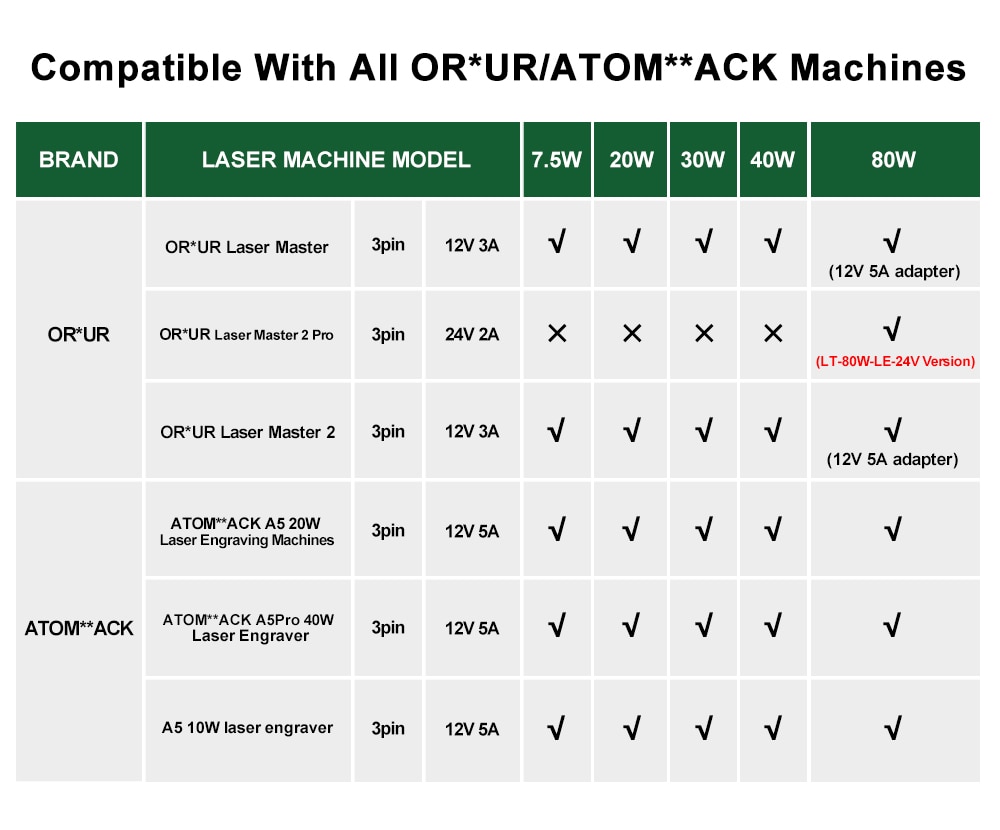

Suitable for ATO*TACK, OR&UR laser engraving machine, or other DIY type machines

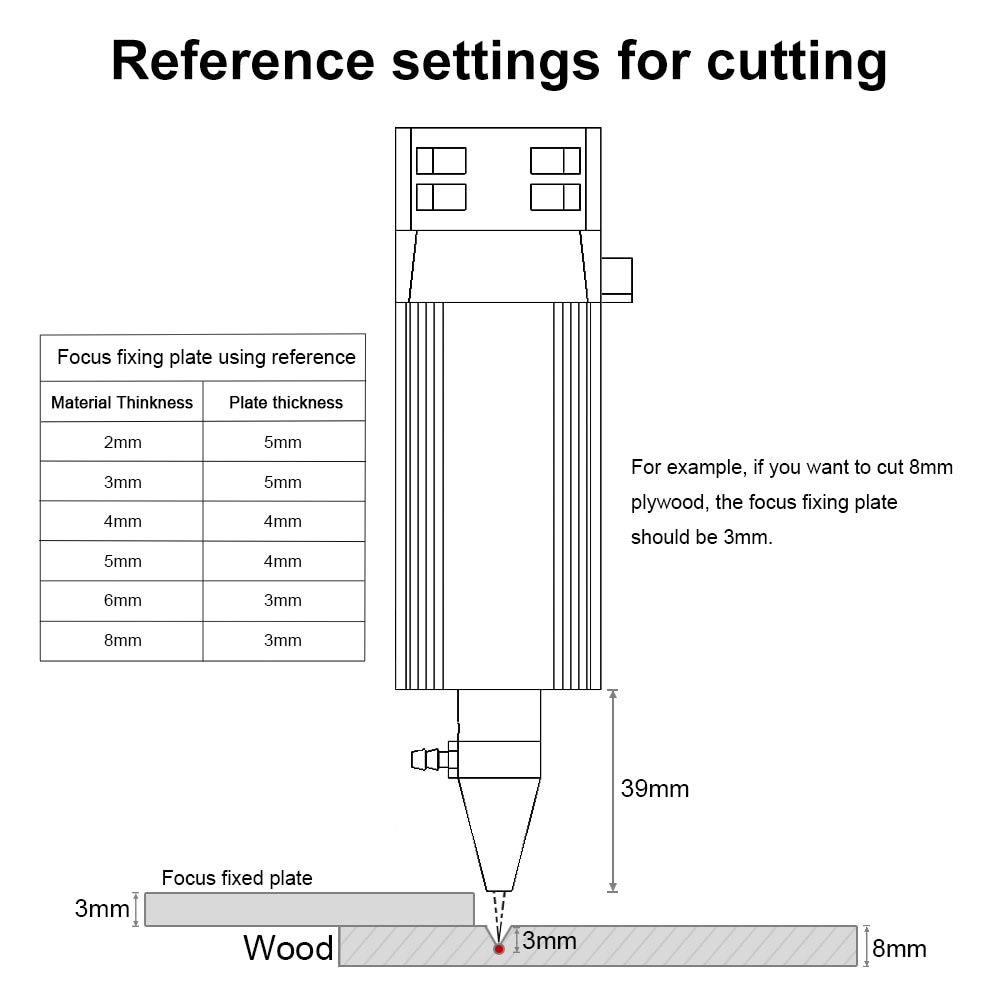

Reference Settings for Cutting

The focal point (the point where the light passes through the lens and converges to a point with the highest energy).
When cutting, the ideal location for the focal point should be in the middle of the material.
Take LT-80W-AA as an example, its focal length is 45mm, the length of the air nozzle is 39mm,
The focus position is at 45-39=6mm from the nozzle,
Cut the 8mm board, the middle position is 4mm below the board surface (8/2=4mm), 6-4=2mm,
Put a 2mm thick focus fixing plate between the nozzle and the board for the best cutting point
(Because the focus fixing plate we provide does not have a 2mm specification, the picture shows 3mm)

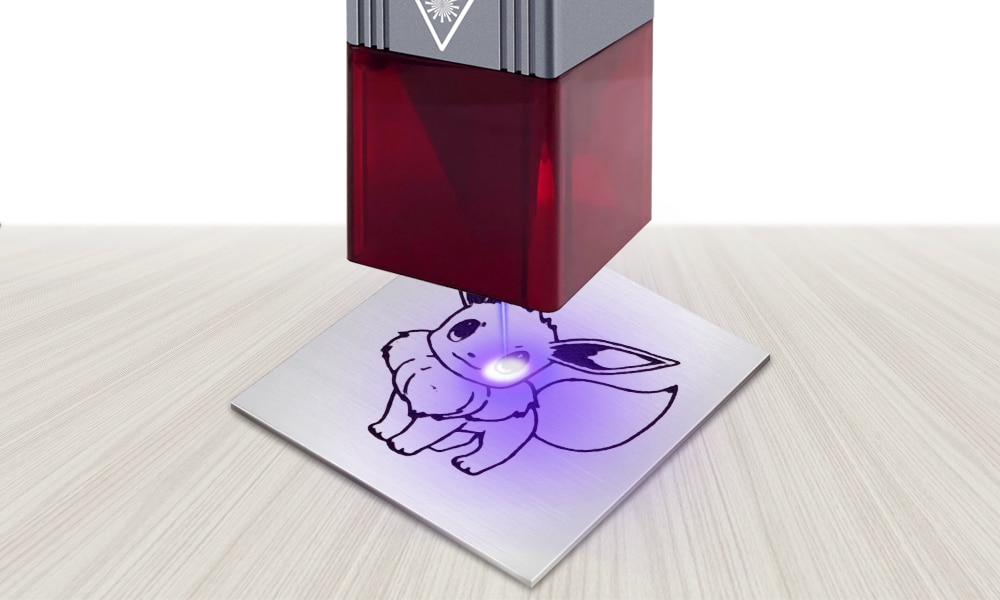

With the Laser Protective Cover

Effectively filter blue light, suitable for engraving

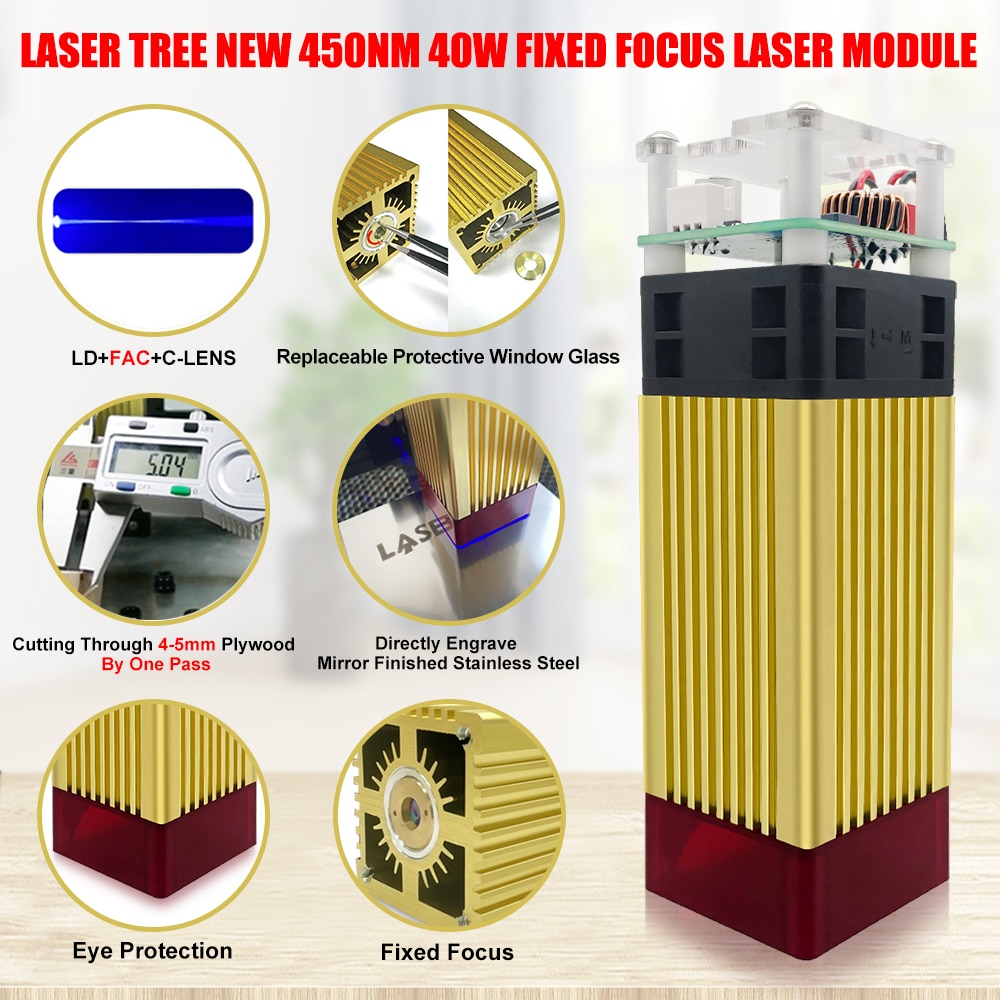

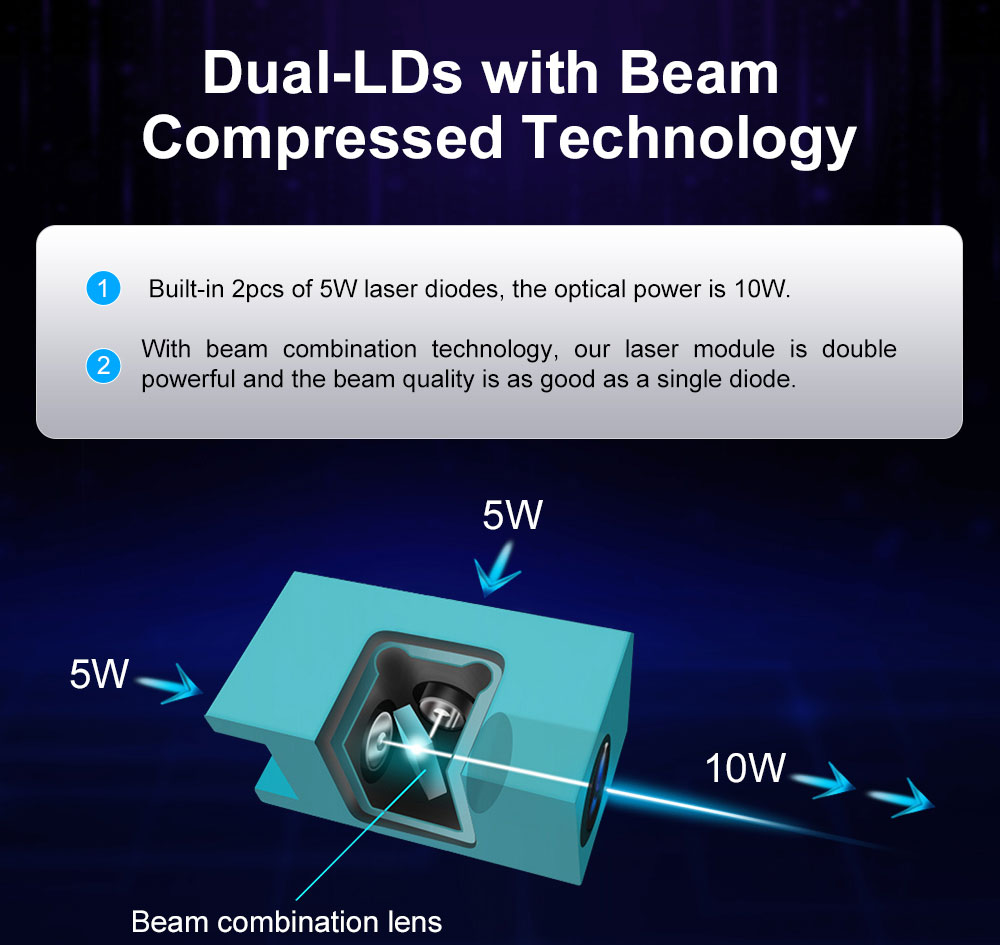

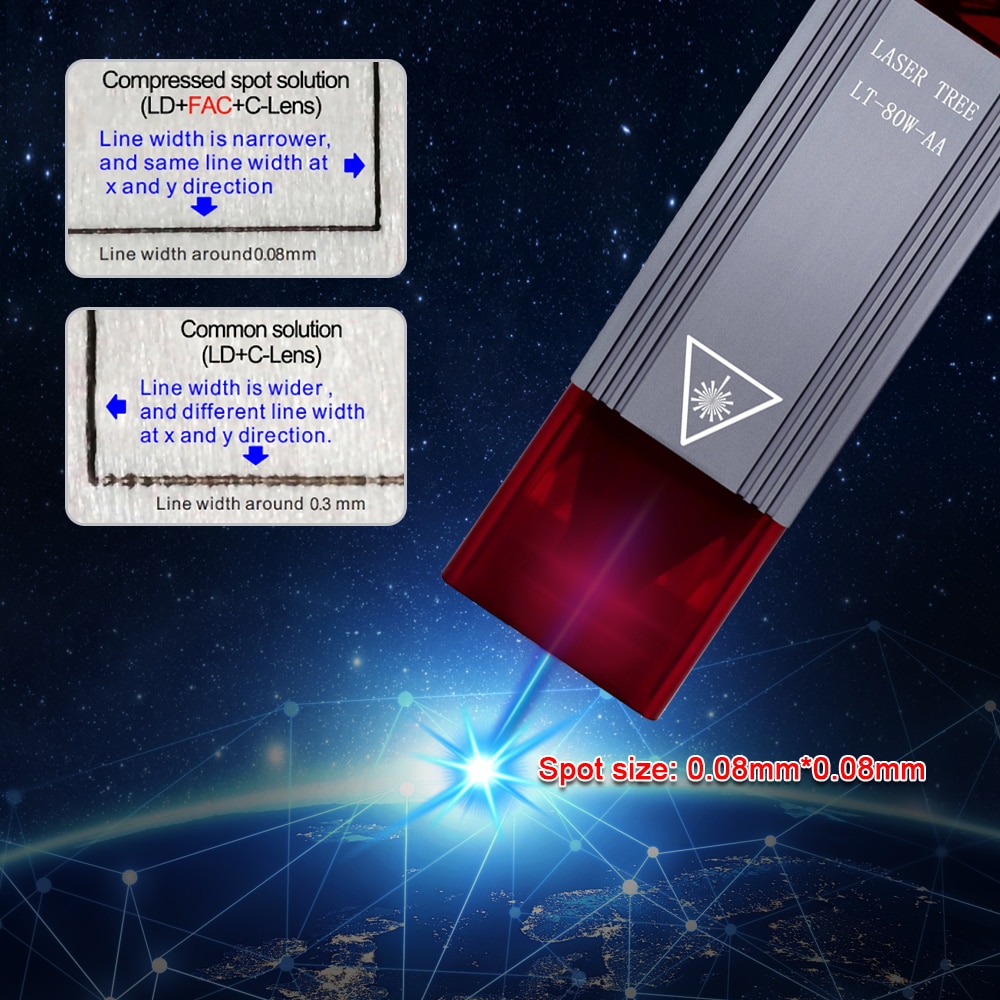

Compressed Spot Technology

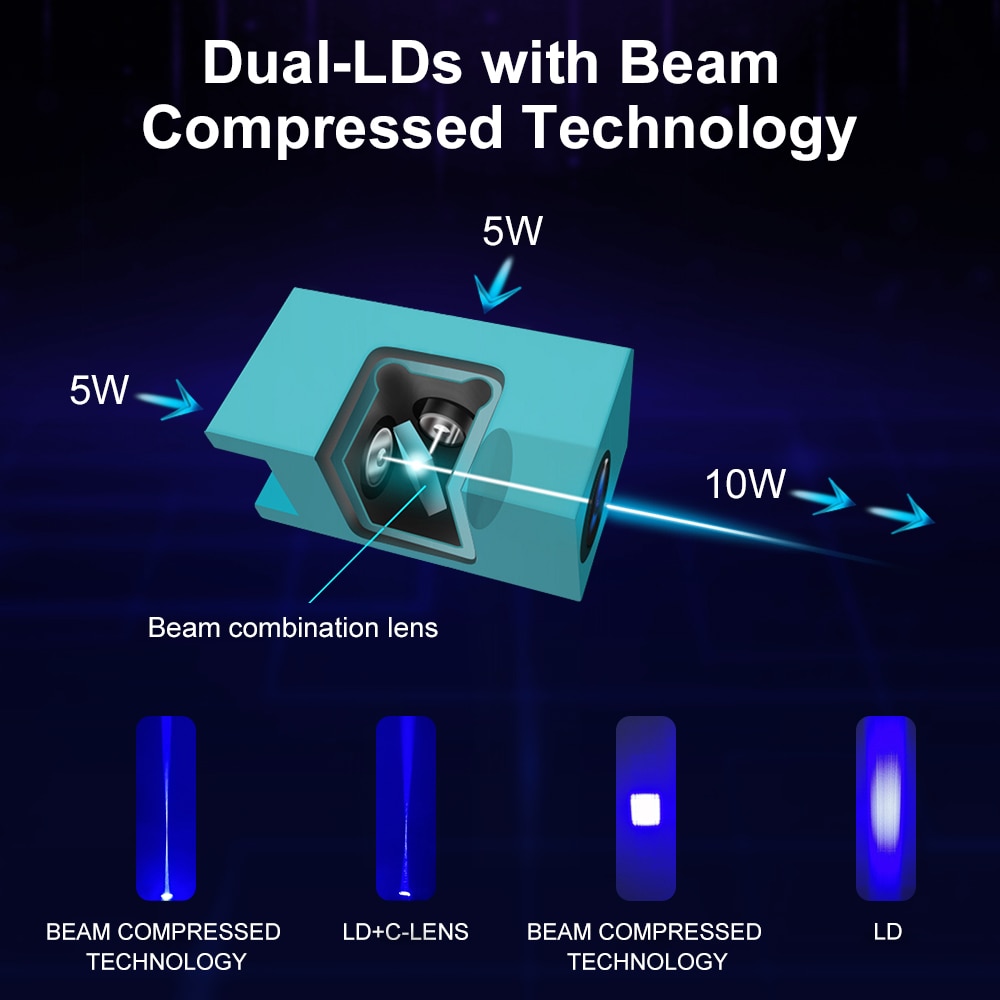

LD+FAC+C-Lens

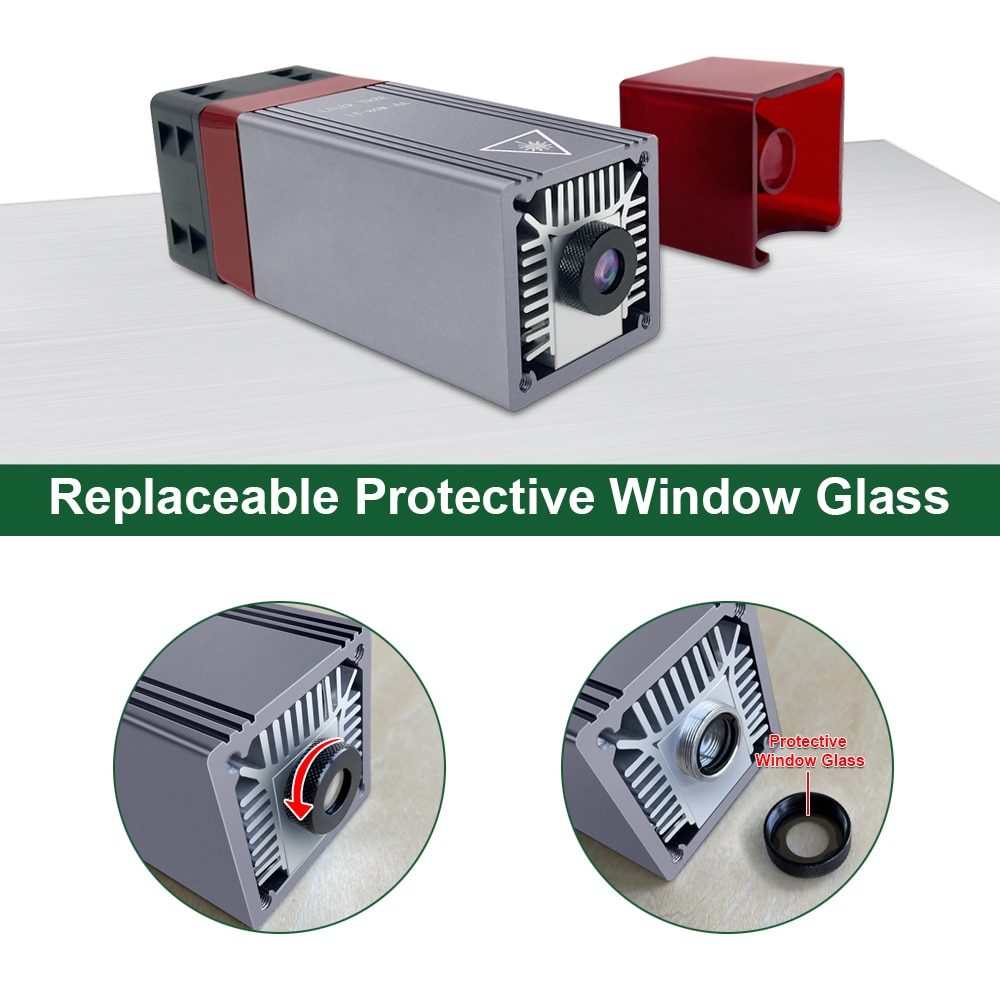

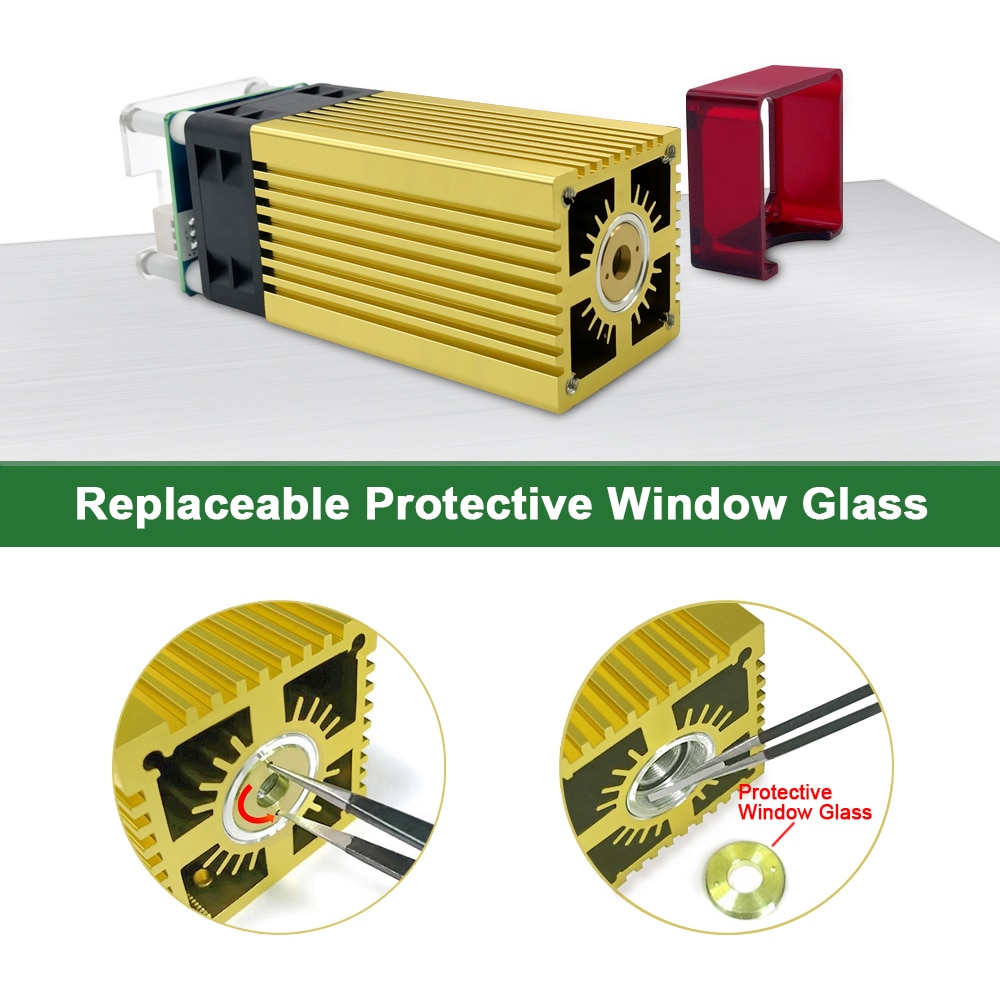

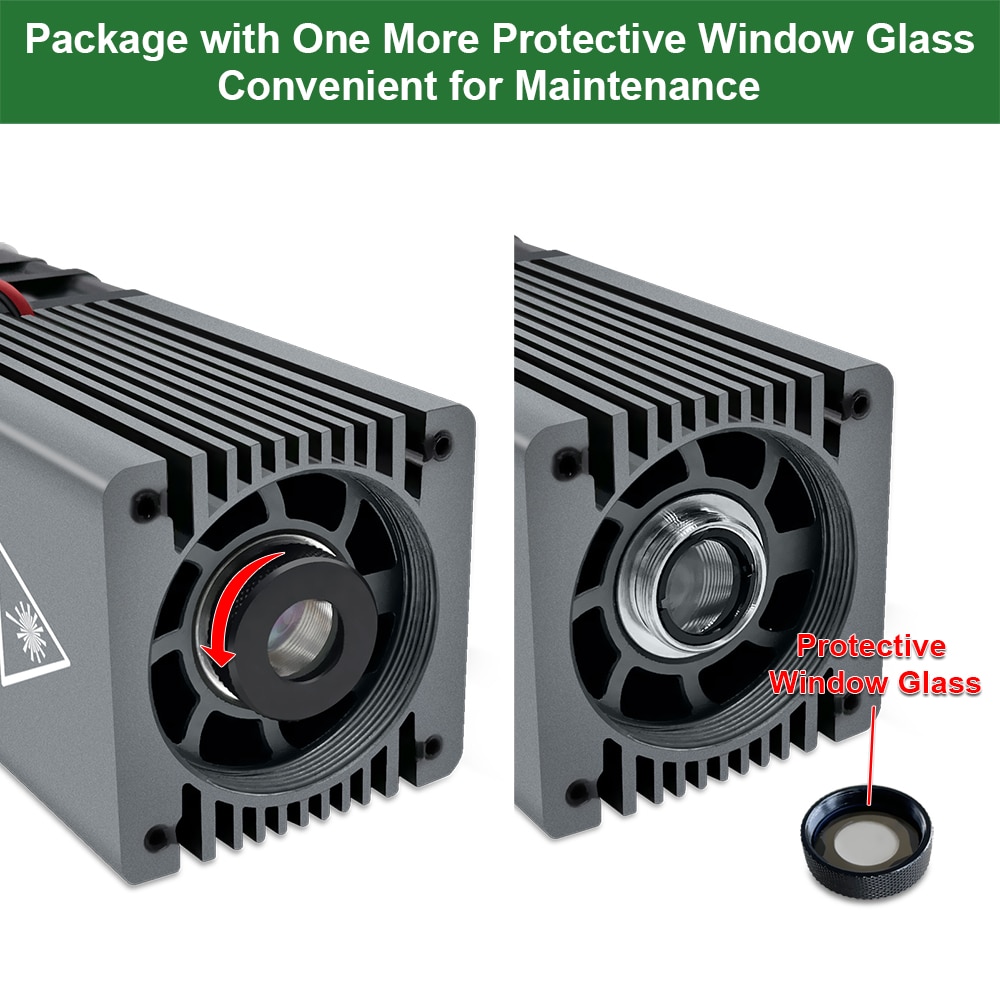

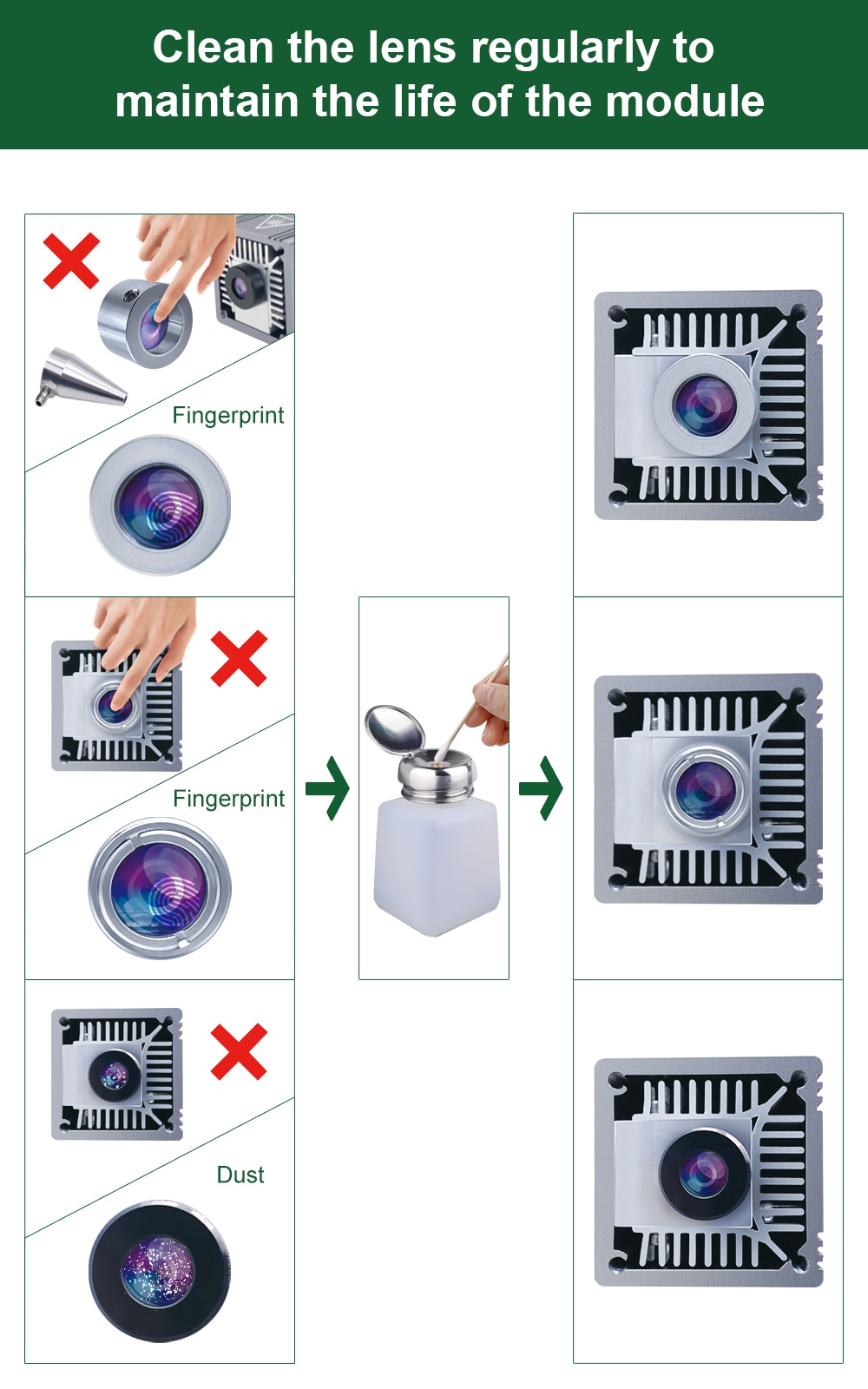

Replaceable Protective Window Glass

Eye Protection Design

Reference Settings for Engraving

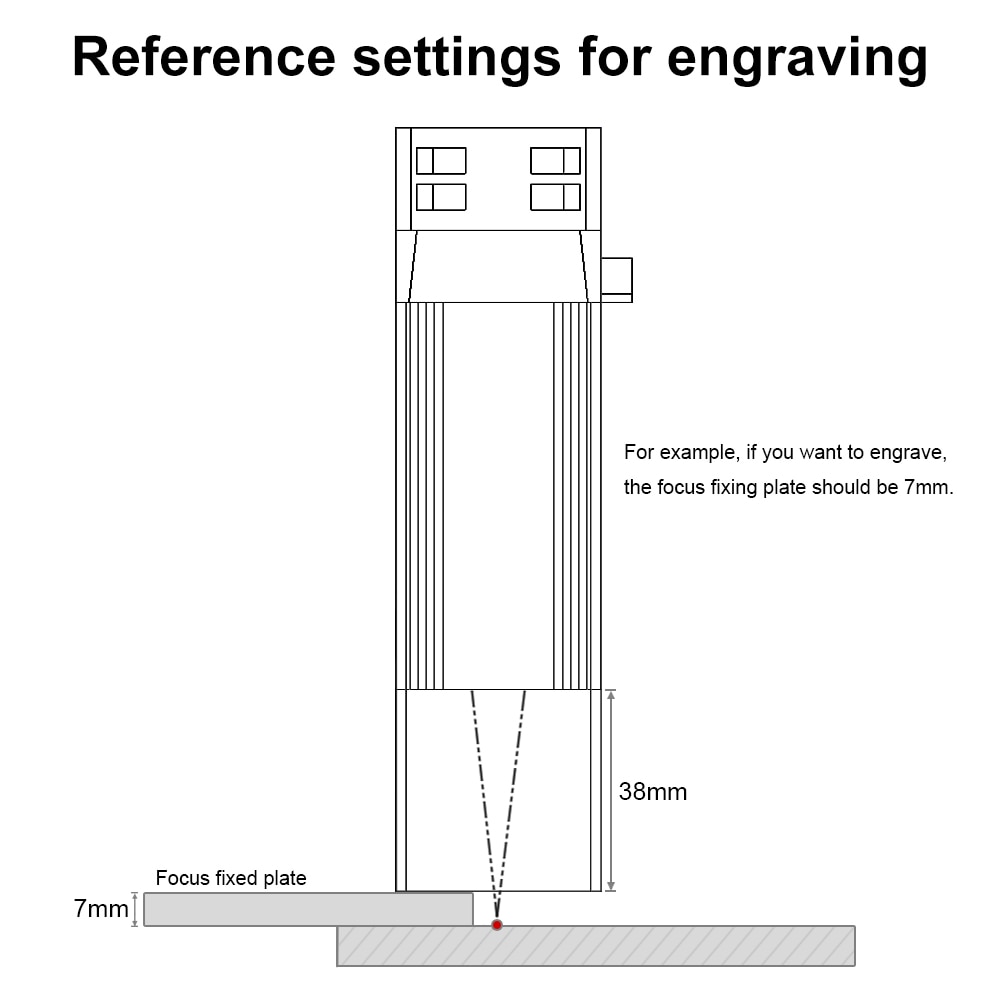

When engraving, please ensure that the focus is located on the surface of the material.

45-38=7mm, if you want to engrave, the focus fixing plate should be 7mm.

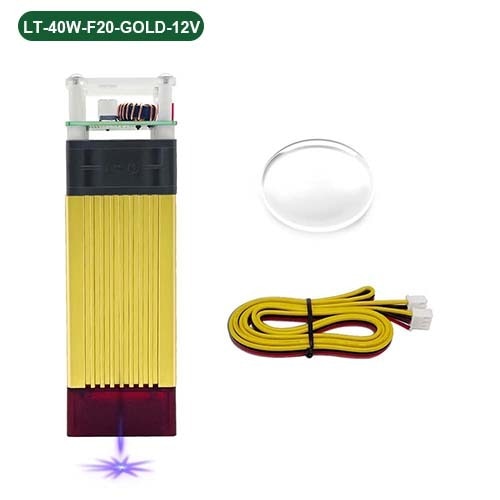

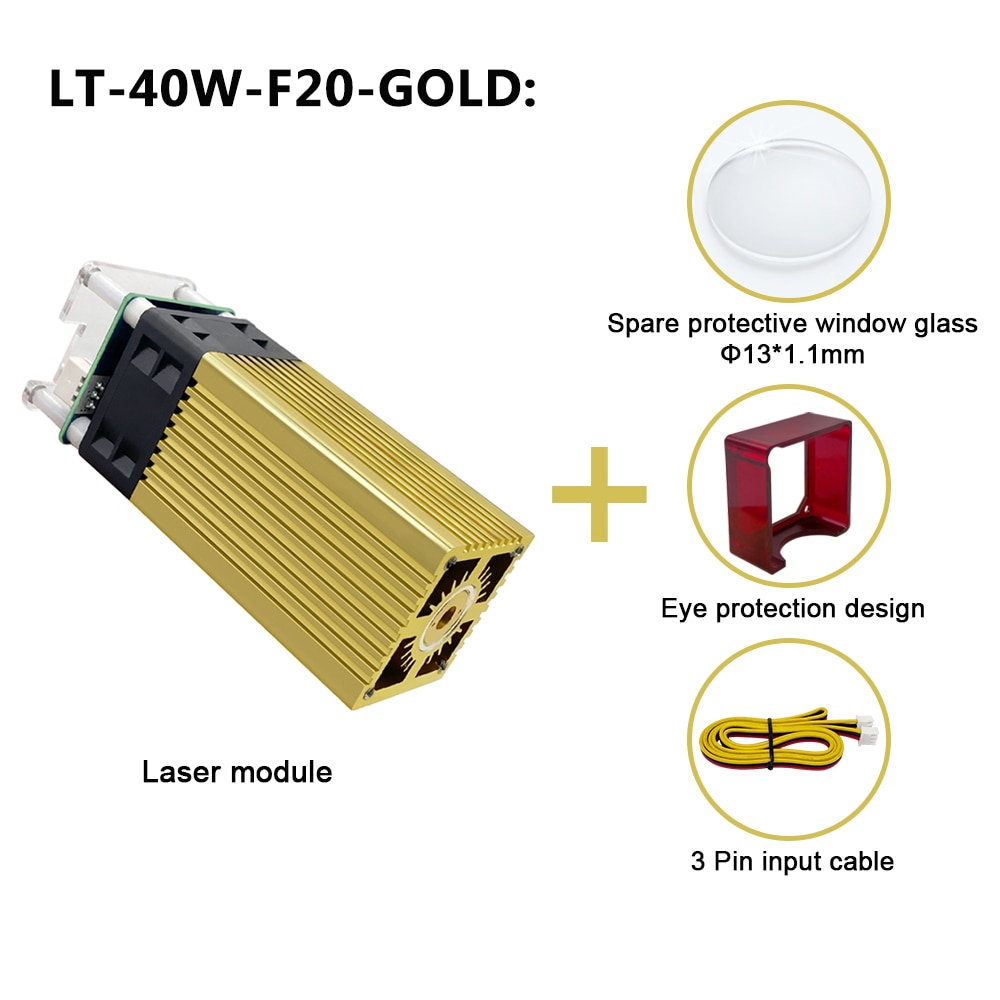

40W Fixed Focus 20mm Laser Engraving Head

By LASER TREE

Product Features:

1.Blue laser module, a professional laser head with high speed and high stability. Bright blue light, easy to locate when carving.

2.Fixed focus laser head, suitable for three-axis engraving machine, easy to install.

3.Directly engrave mirror stainless steel: no need painting black;

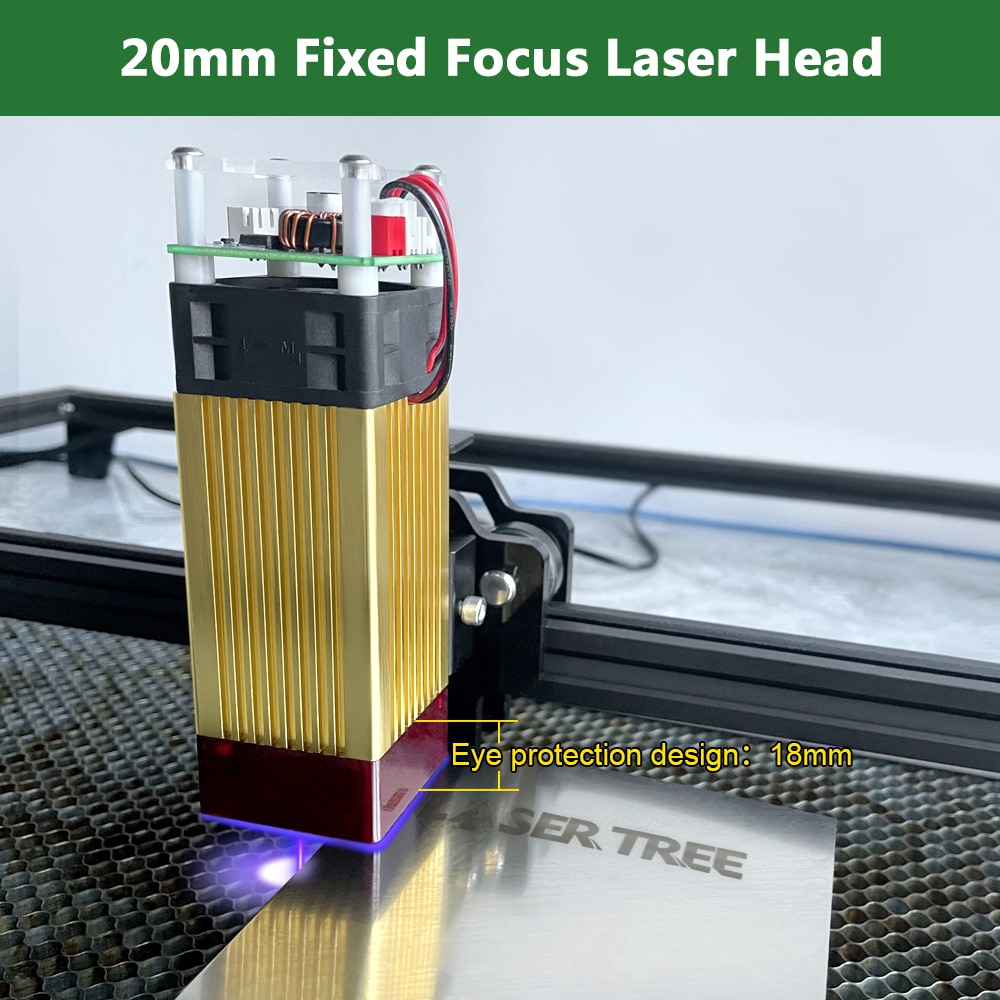

4. Super fast engraving speed: 304 stainless steel, up to 30mm/s with 20mm focus length;

5. Remarkable cutting ability: cutting through 4-5mm thickness plywood by one pass at speed of 2mm/s with 20mm foucs length.

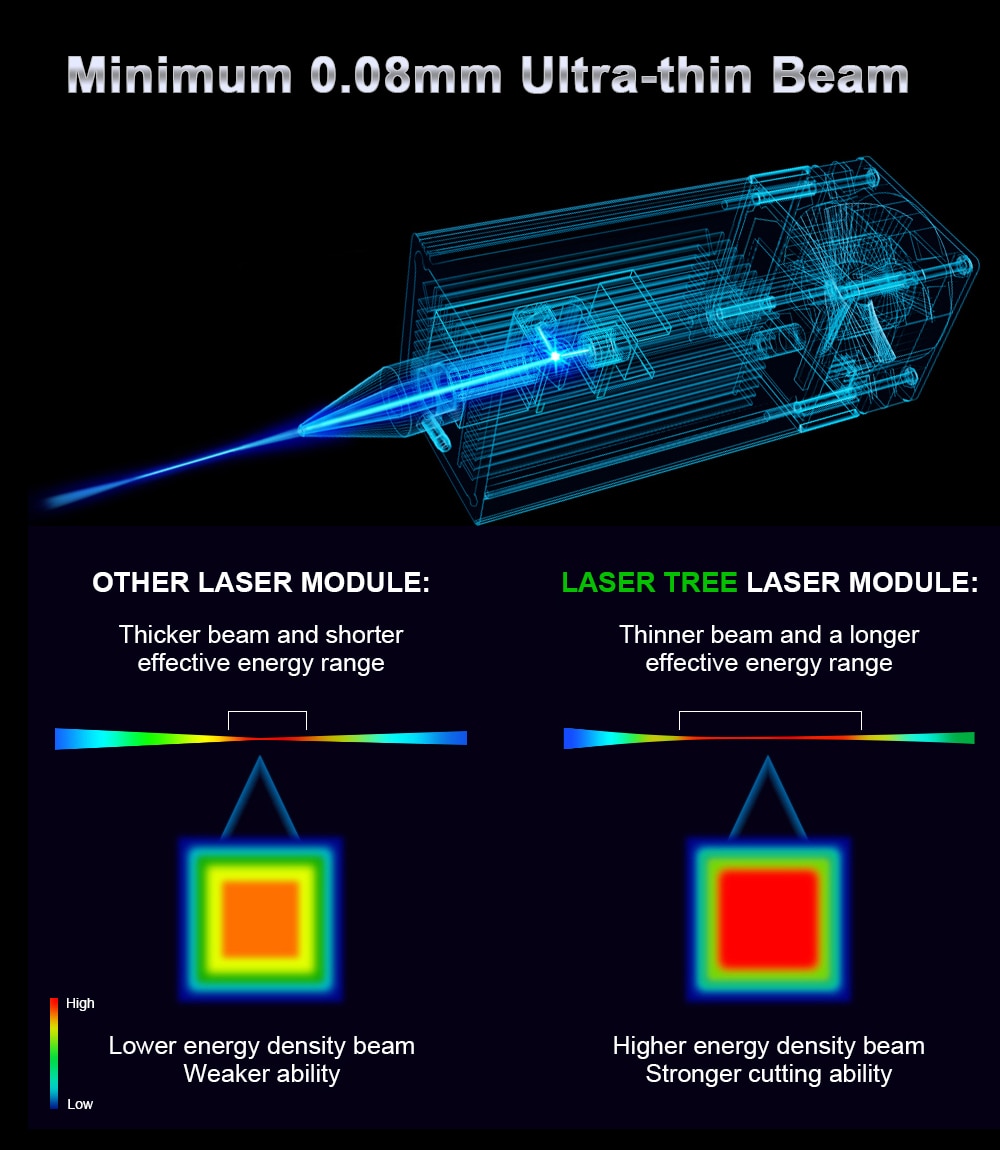

[Original diode with FAC] Original diode, high quality,20,000 hours life time! Built-in FAC to make the beam size much smaller at focus, power density increase 4~5times, the engraving speed increase 4~5 times accordingly. At same time, the precision increase 4~5 times also. The solution make high engrave speed and high precision possible.


[Applicable Materials] Ceramics, Bone, MDF, Coated glass, Black acrylic, Mirror stainless steel, Plywood, Brushed stainless steel, Stone, Bamboo, Leather, Rubber, Alumina, Solid wood, etc.


[Precautions] Unable to engrave: blue/purple/white/transparent material, aluminum without oxide layer.

Specification:

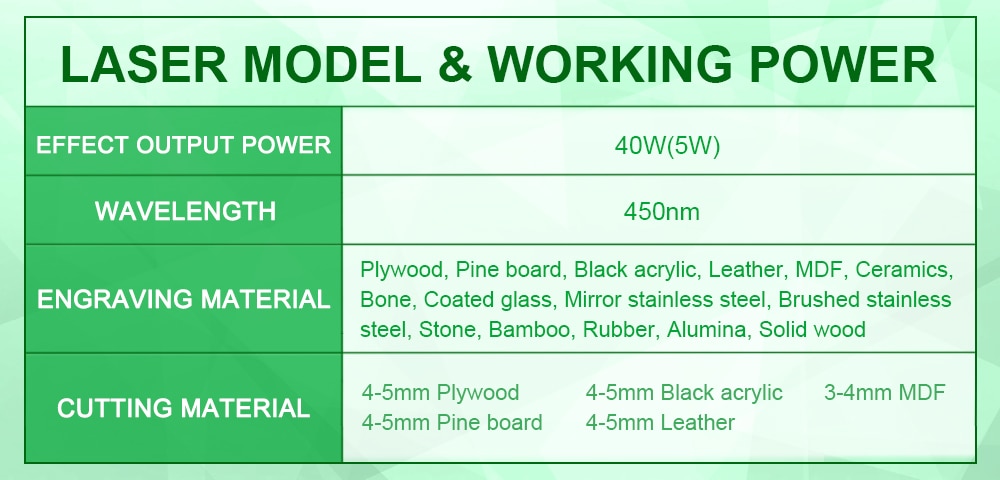

Effect output power: 40W

Output optical power: 5W

Material: aluminum alloy + plastic

Light color: blue

Wavelength: 450nm

Spot form: Punctiform, fixed focus

Input voltage: 12V 1.8A(1.5A-2A)

Interface: XH2.54-3PIN socket

Modulation: support 0/5-12V,0-5kHz TTL/PWM

Item size: 12 * 4 * 4cm

Packing size: 14 * 6.2 * 6.2cm

Product weight: 230g

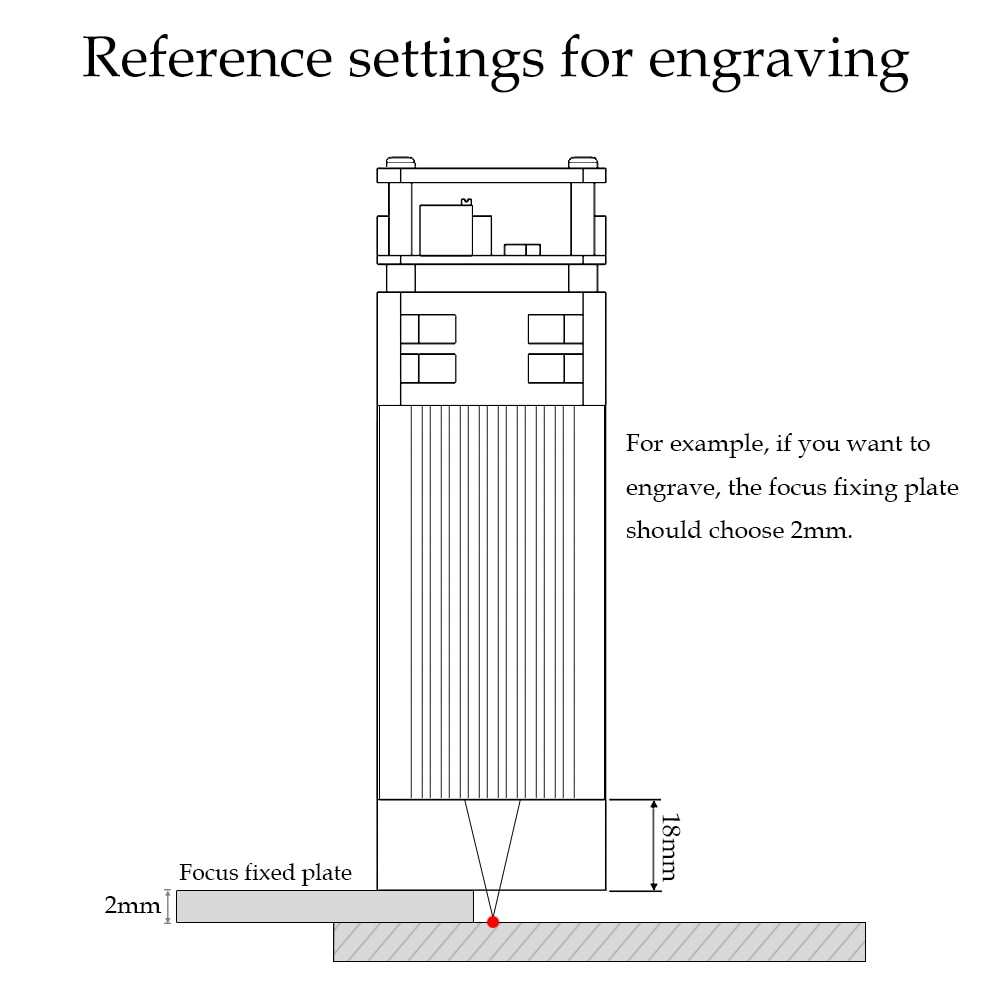

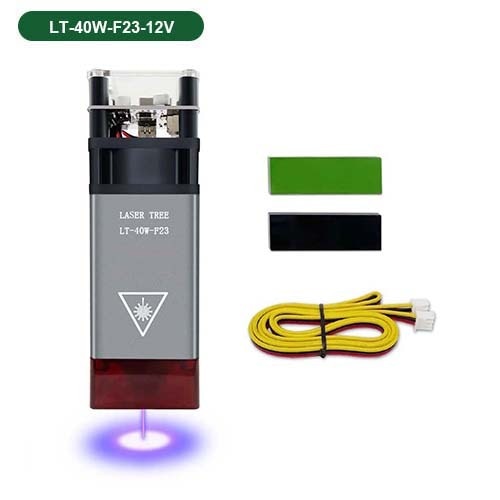

40W Fixed Focus 23mm Laser Engraving Head

By LASER TREE

Product Description

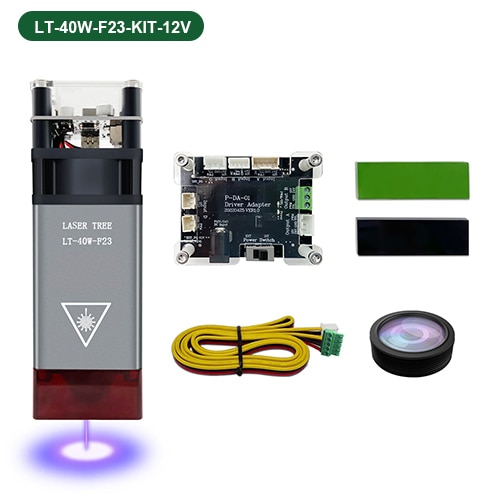

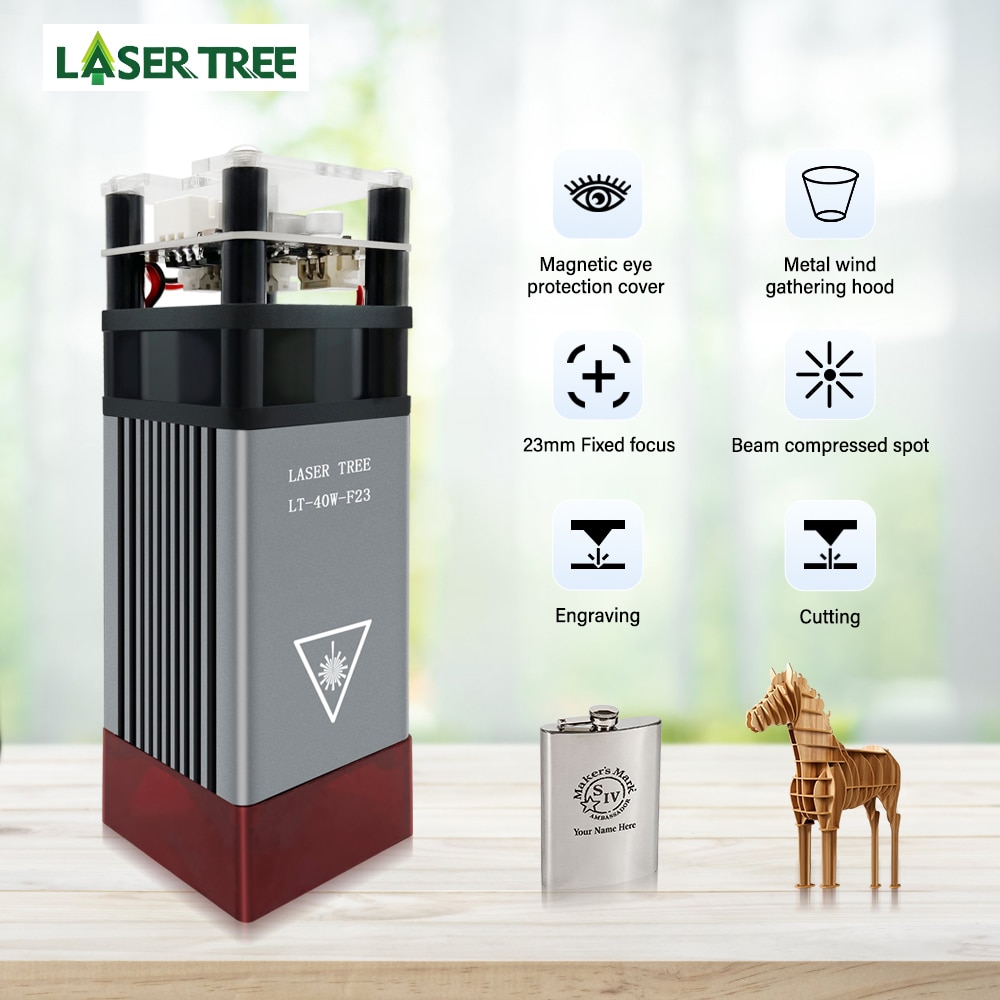

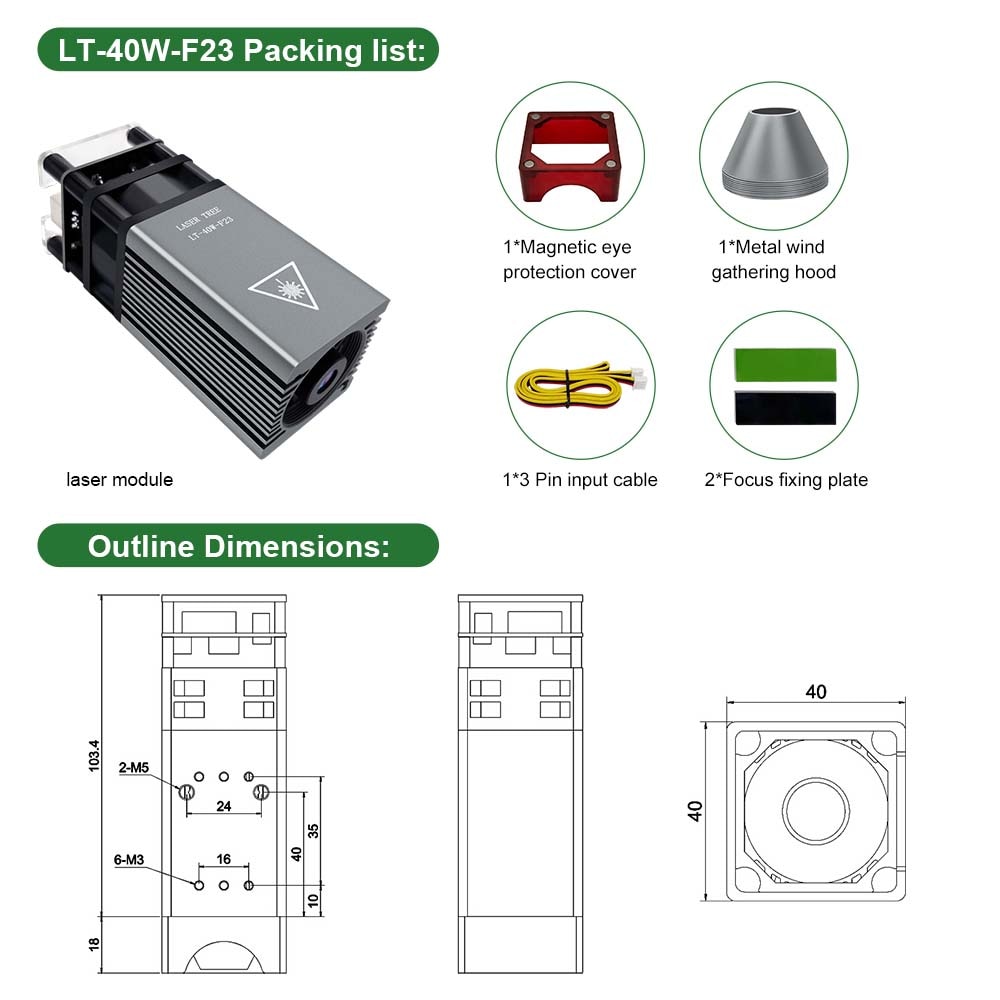

Upgraded Laser Module, LASER TREE 23mm Fixed Focus Balance Engraving and Cutting Head, Laser Engraver Module 5W Optical Power with Metal Wind Gathering Hood, Suitable for Laser Engraver Machine

Product Features:

1.Engraving Mirror Stainless Steel, no need to Paint Black.

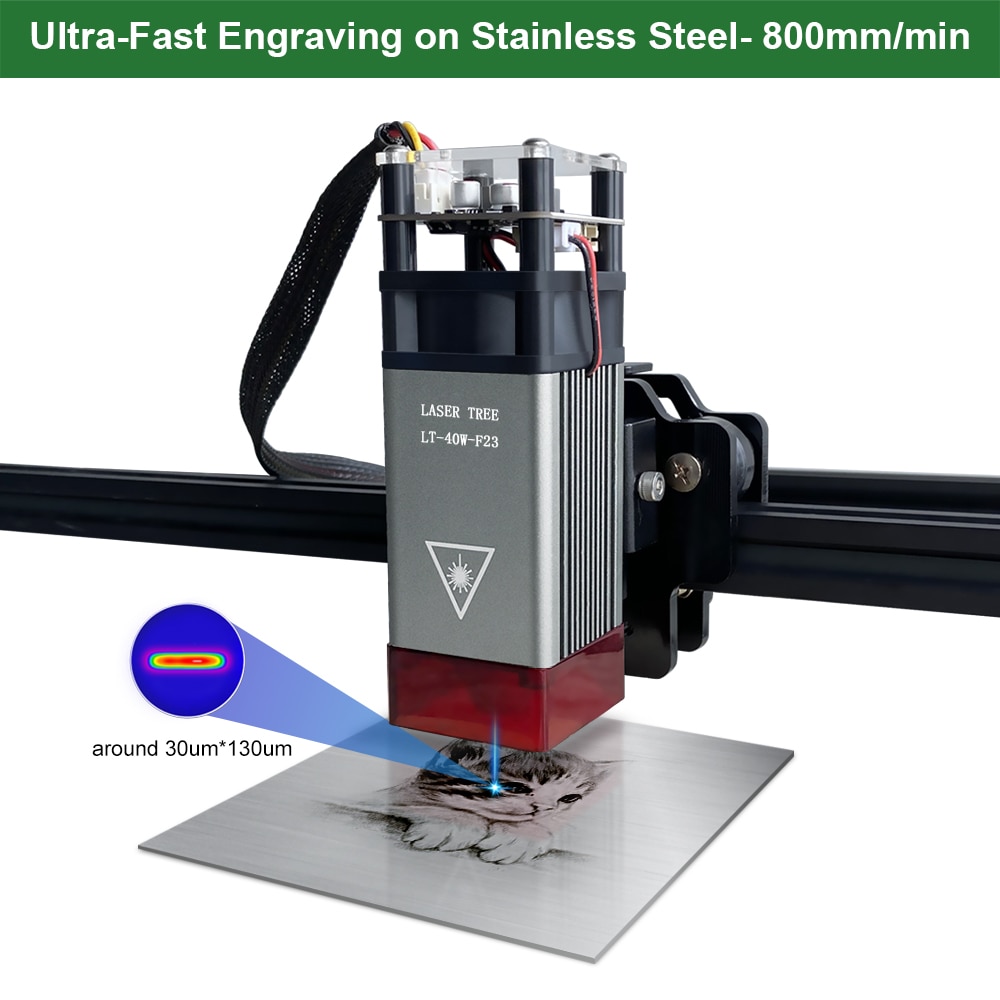

2.Very Fast Engraving Speed: 23mm focal length, engrave 304 stainless steel at speeds up to 800mm/min.

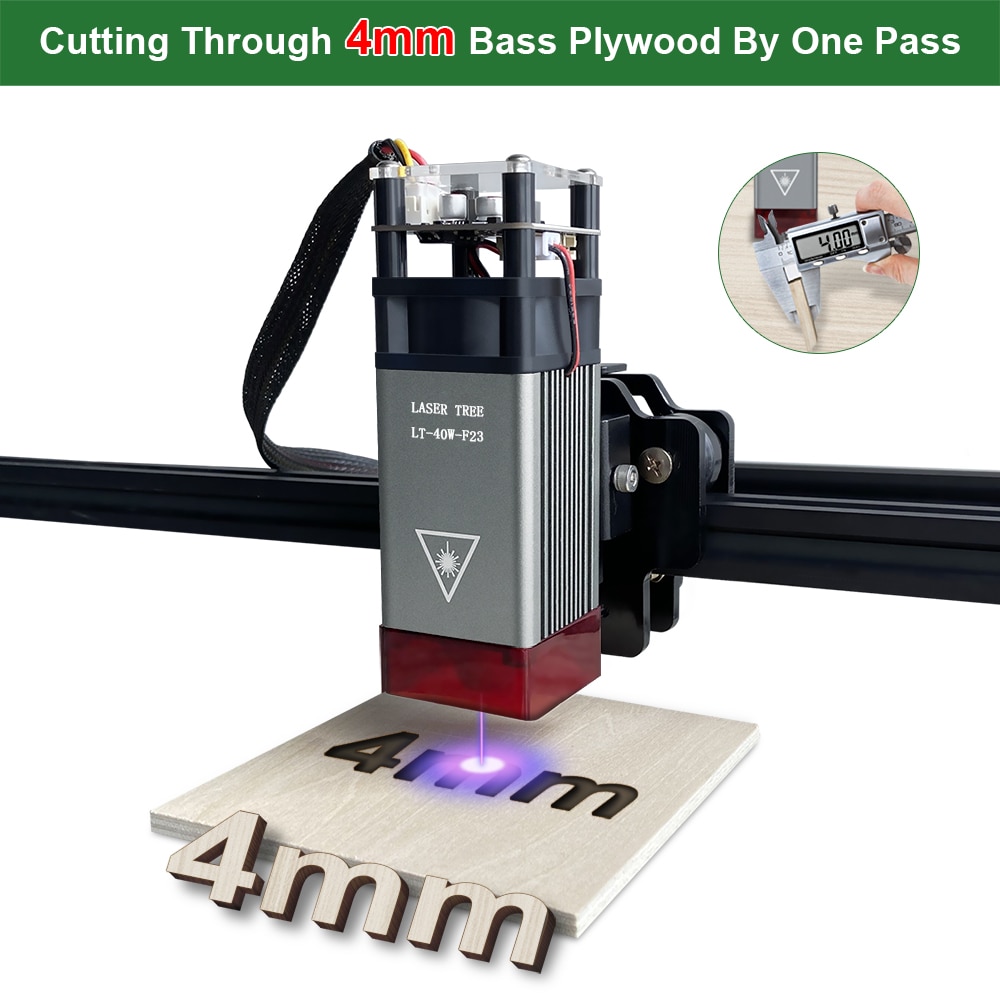

3.Excellent Cutting Ability: Cutting 4mm thick plywood by one pass at a Speed of 80-100mm/s.

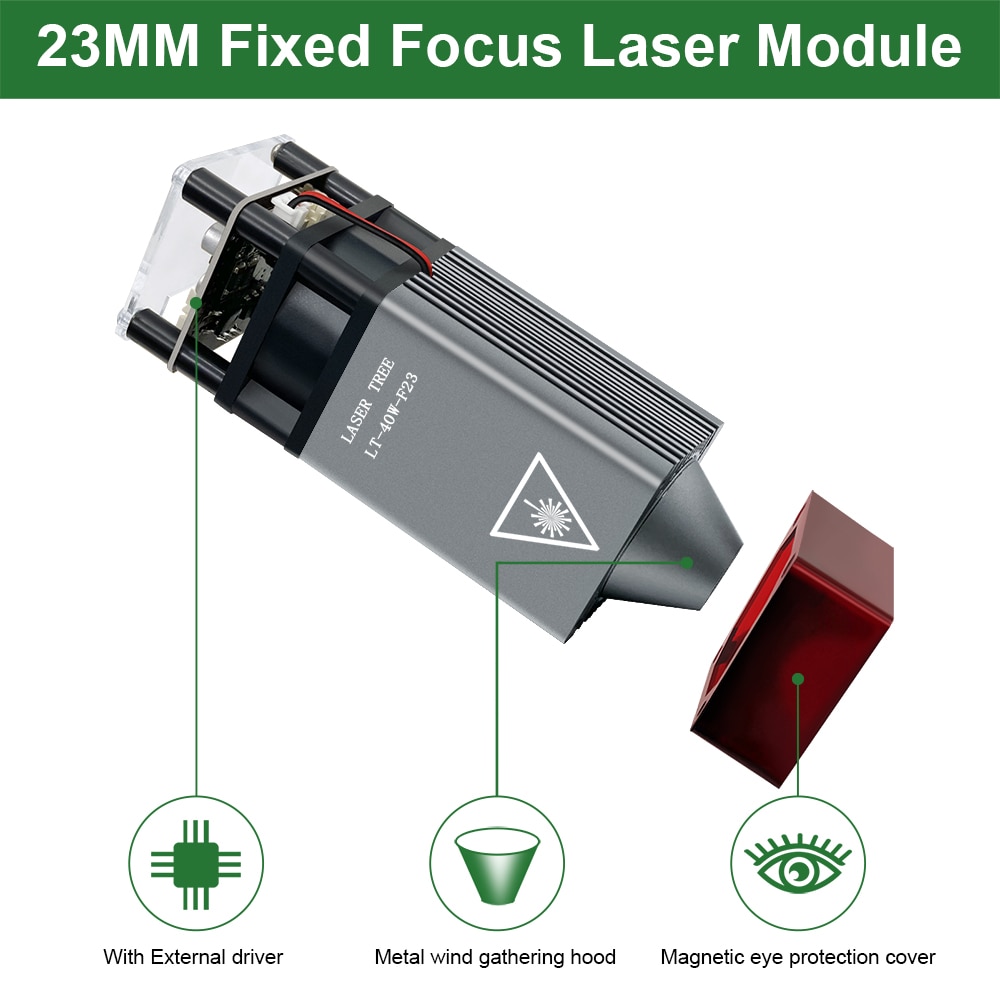

4.Magnetic eye protective cover: It allows you to see the laser module in action without the need for eye protection and is easy to disassemble without screws.

5.Metal cutting air outlet: Which does not generate heat and can resist flames.

Specification:

Material: Aluminum alloy

Effect Output Power: 40W

Output Optical Power: 5W

Electric Power: 12V 1.8A(1.5A-2A)

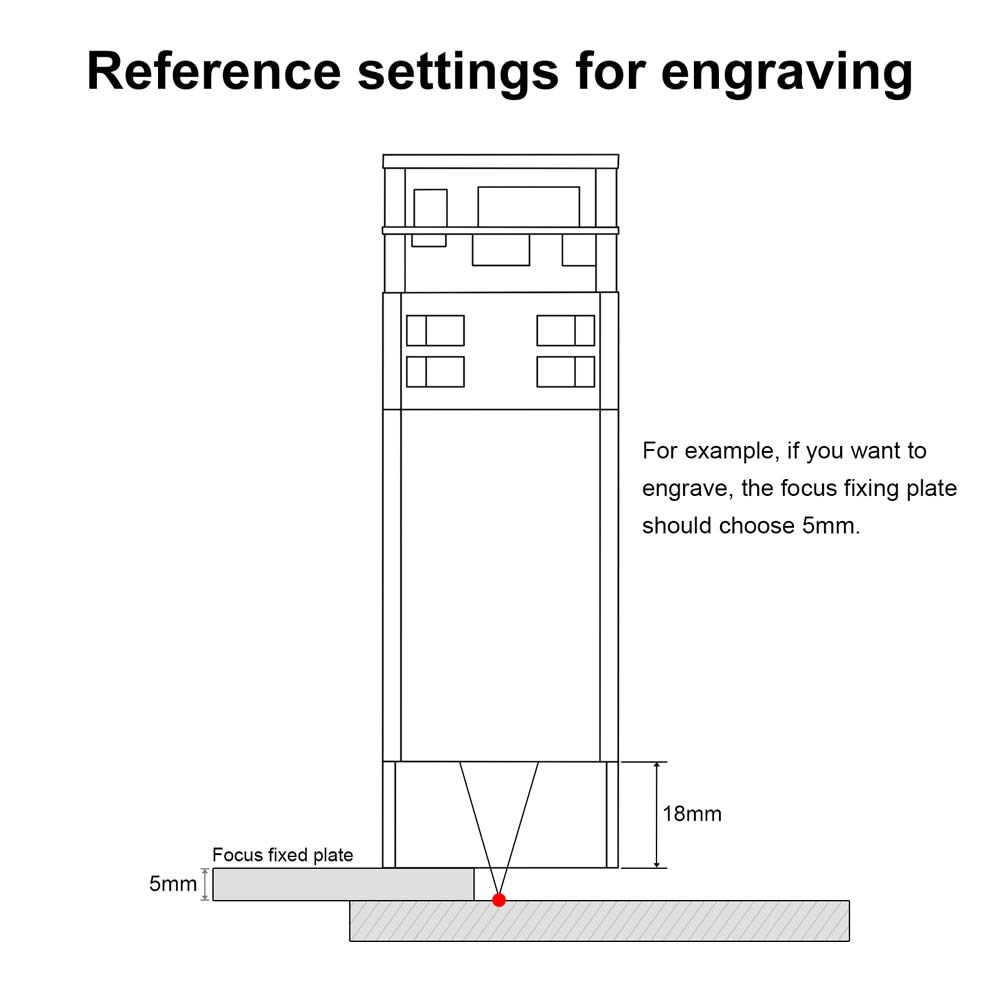

Focus Length: 23mm

Interface: XH2.54-3P socket
