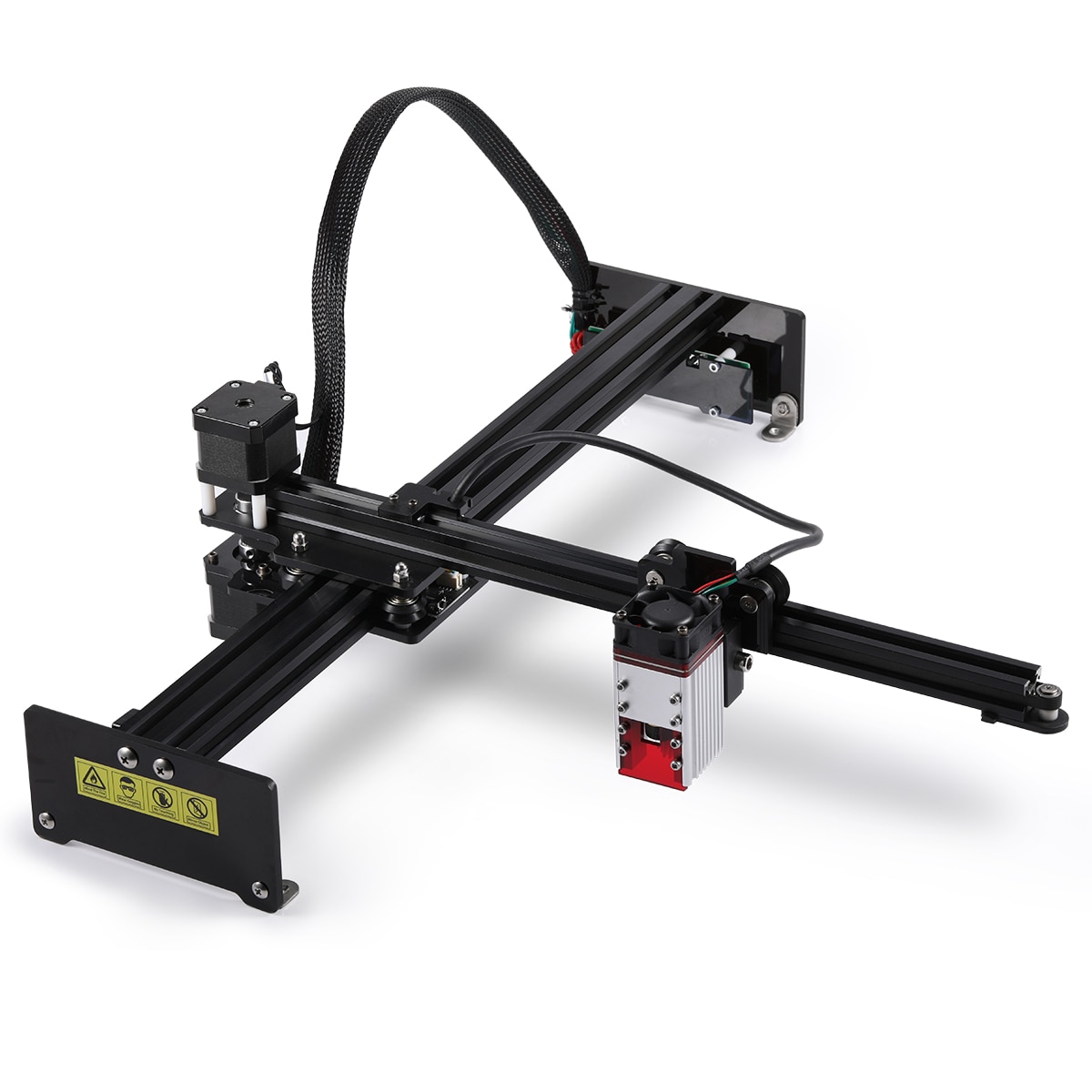

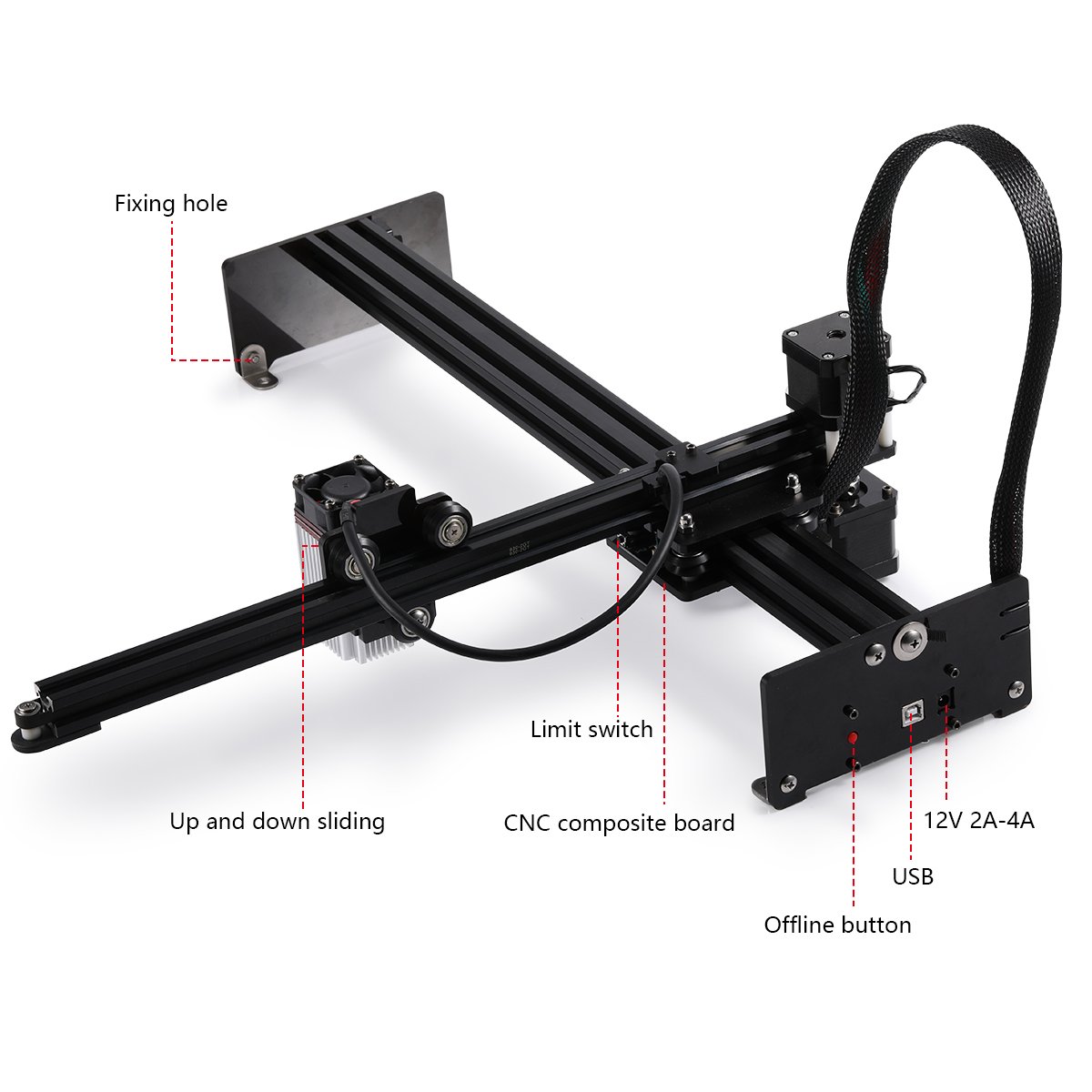

NEJE 3 Plus N40630 40W CNC Laser Engraver Cutter Printer Engraving Machine Router Lightburn,App Control,Wood Milling Machine
0.0 (3 votes) | 14 orders
Price:
US $1131.22 - 1349.40
/ piece
Discount Price:
US $
691.04 -
811.04
/ piece
-39%
- Ships From
- Color
NOTE:
Caros compradores brasileiros, pagamos tarifas elevadas pelos produtos no armazém brasileiro. Se você optar por enviá-lo para o armazém brasileiro, ele será entregue em 1-5 dias úteis, obrigado!
(Como os óculos são produtos anti-epidêmicos, a alfândega brasileira não permite produtos com óculos. Os produtos no armazém do Brasil não incluem óculos, obrigado pela compreensão).
Product Specifications

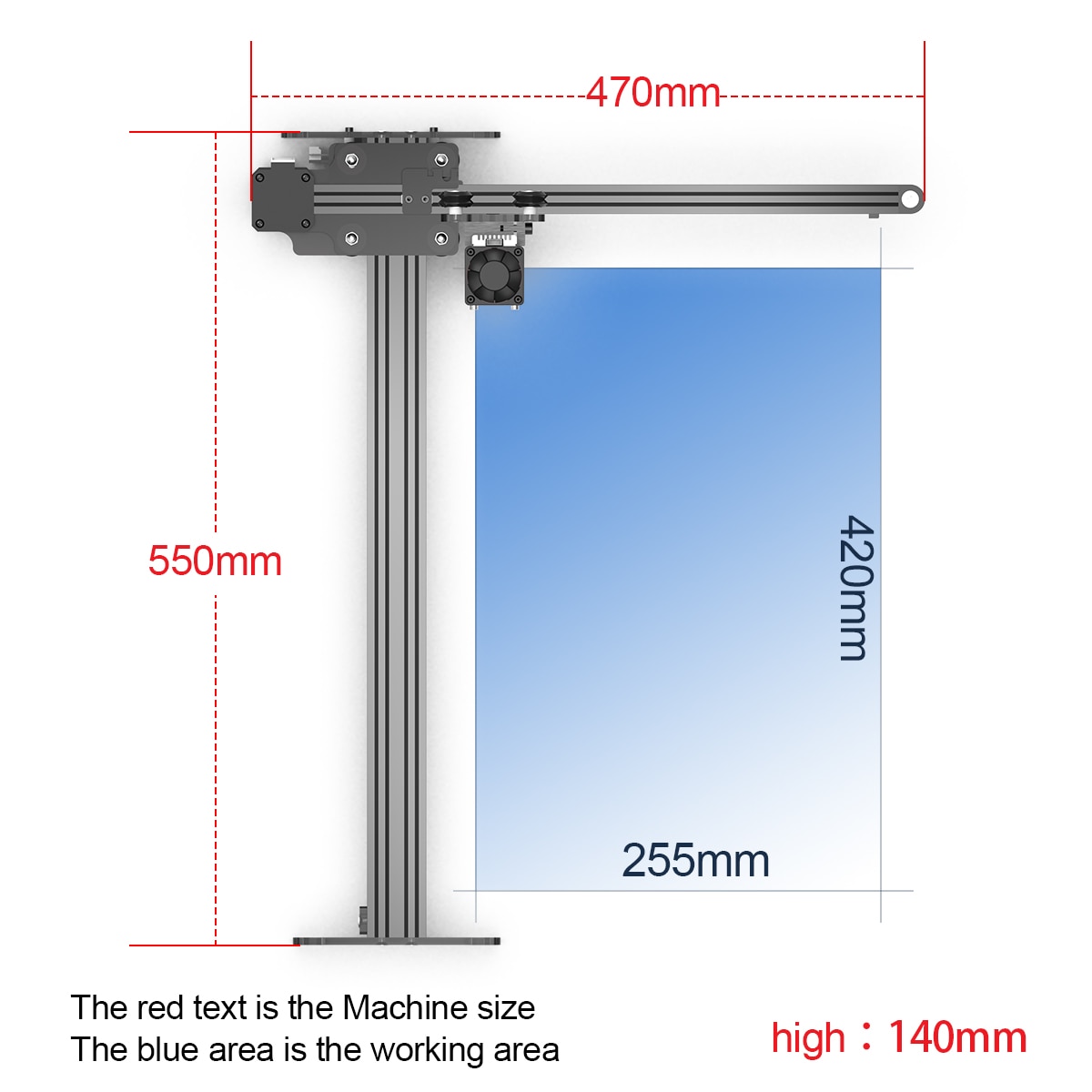

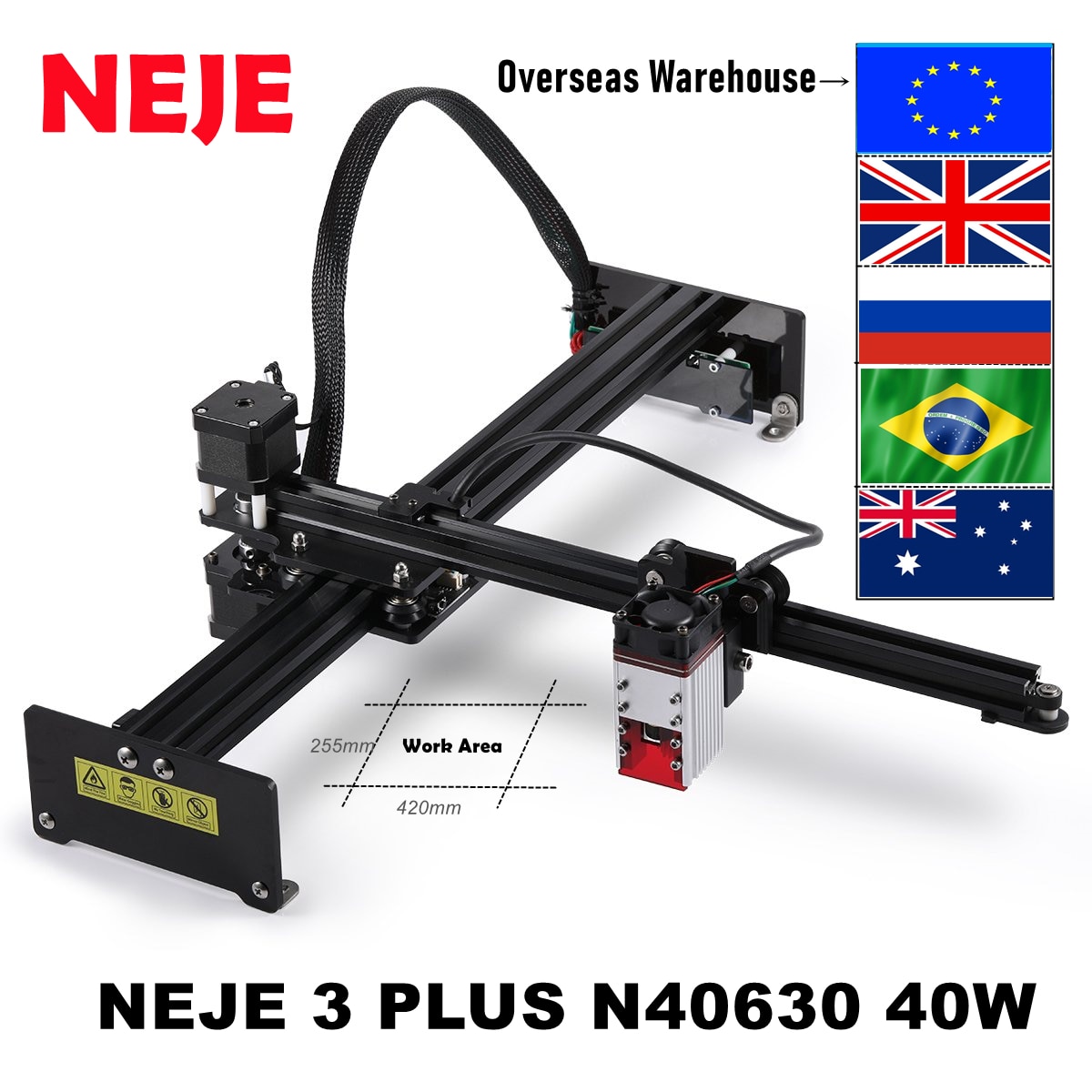

1. Larger area, 255 x 440 mm engraving and cutting area
2. optical power output 5.5W, focal point 0.01mm, support engraving and cutting.
3. Professional, support the latest grbl 1.1f firmware, support laserGRBL, benbox and lightburn software.
4. The most simple and portable engraving experience: support NEJE series software, including NEJE android APP, NEJE windows software, NEJE mac software, NEJE wireless APP for iOS, ipadOS, macOS. NEJE Scanner APP.
5. Safety design, the laser module comes with a protective panel design to block more than 90% of the leaking light; built-in MEMS Roll protection.
6. Quiet use, intelligent drive, can automatically adjust the fan speed according to the laser temperature.

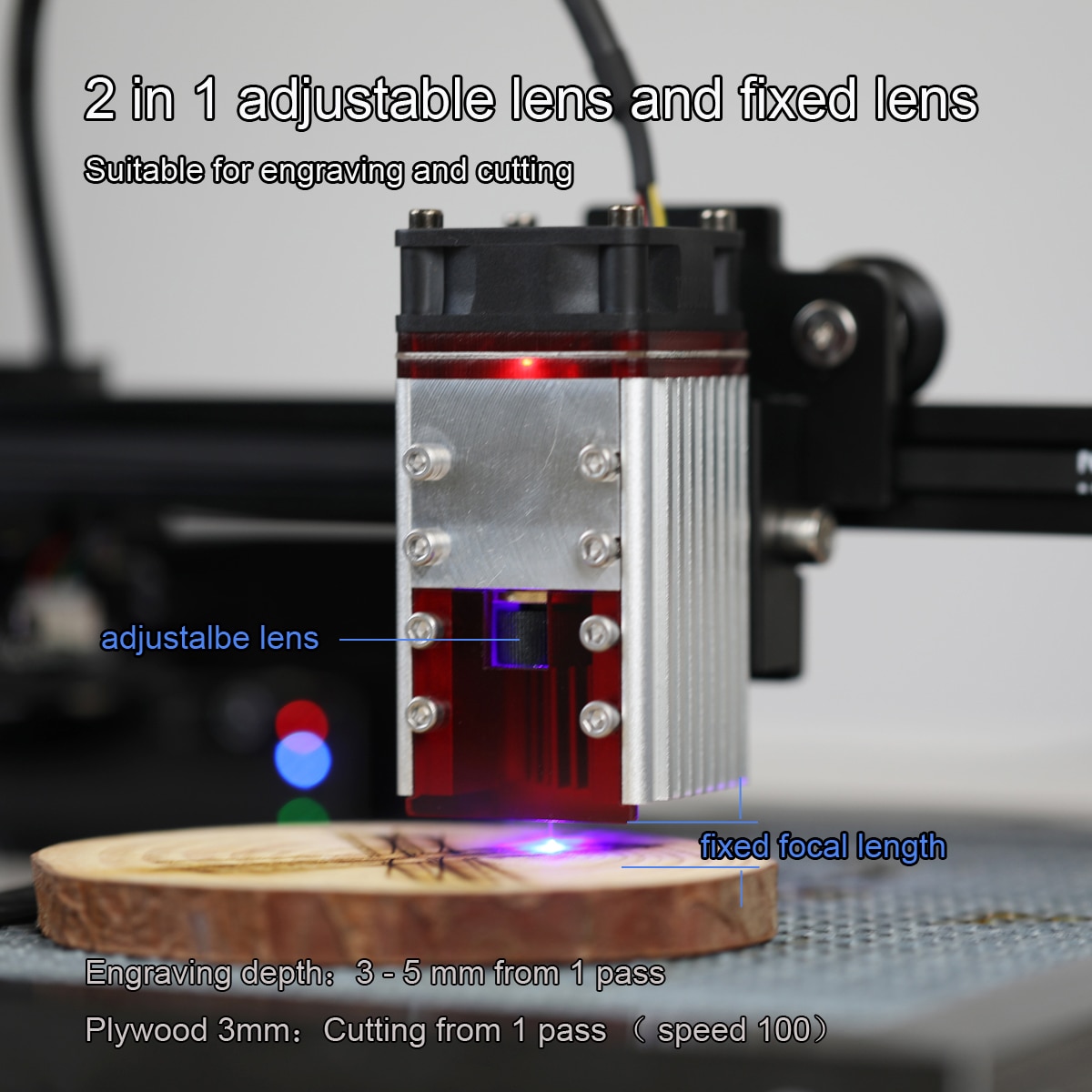

7. Two ways to adjust the focus, you can directly adjust the focus, you can also adjust the focus to a fixed position, use a fixed thickness board to adjust the focus, which can simultaneously take into account the use of engraving and cutting.
8. Support NEJE 4pin interface series modules, including 3500mw, 7W, 20W, 30W, 40W, etc.

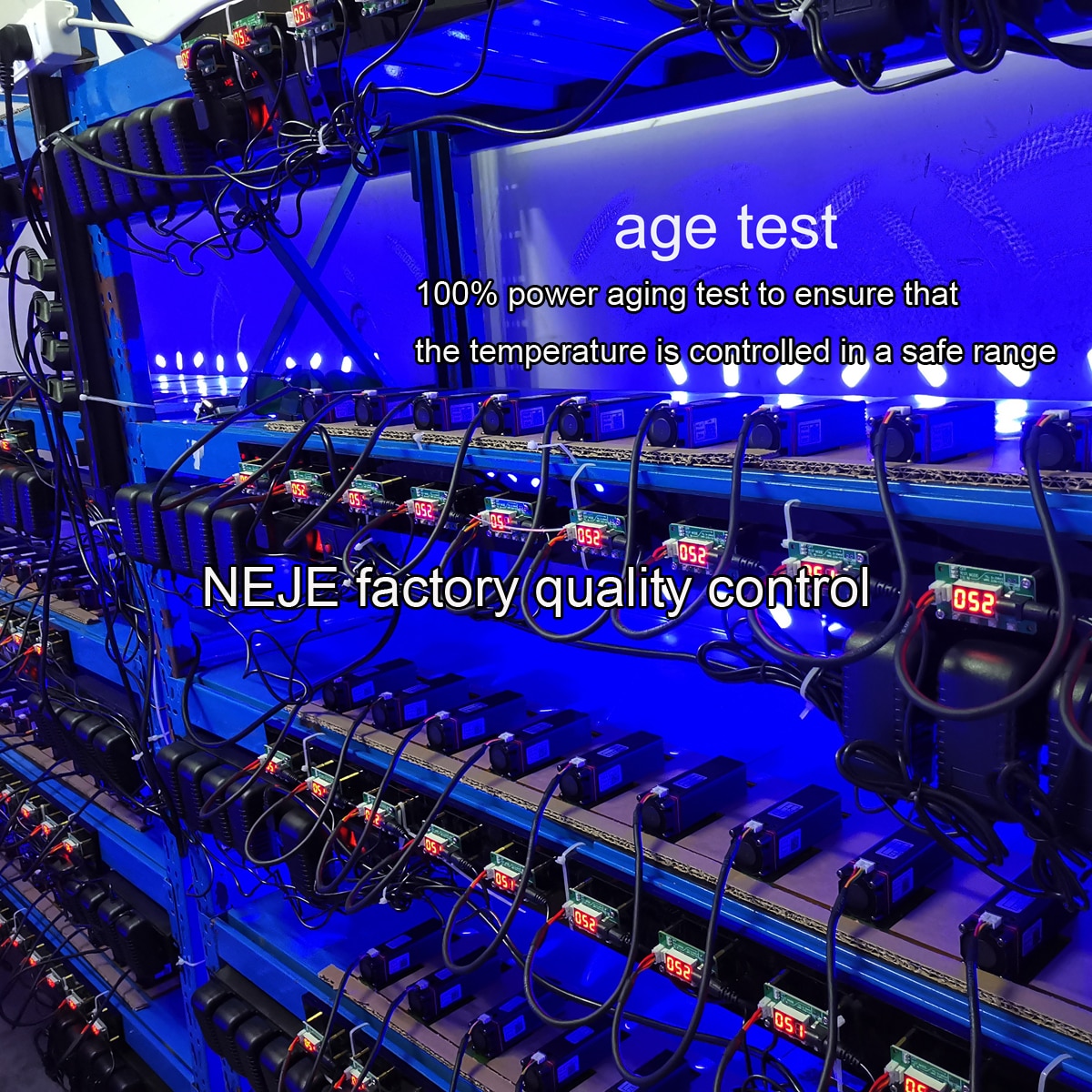

9. The product has passed the quality control of NEJE factory, if it is a product quality problem, 2 years free warranty!
N40630 Laser Moudle Feature
1.Designed for Laser Engraver, 3D printer, CNC mill, arduino project.

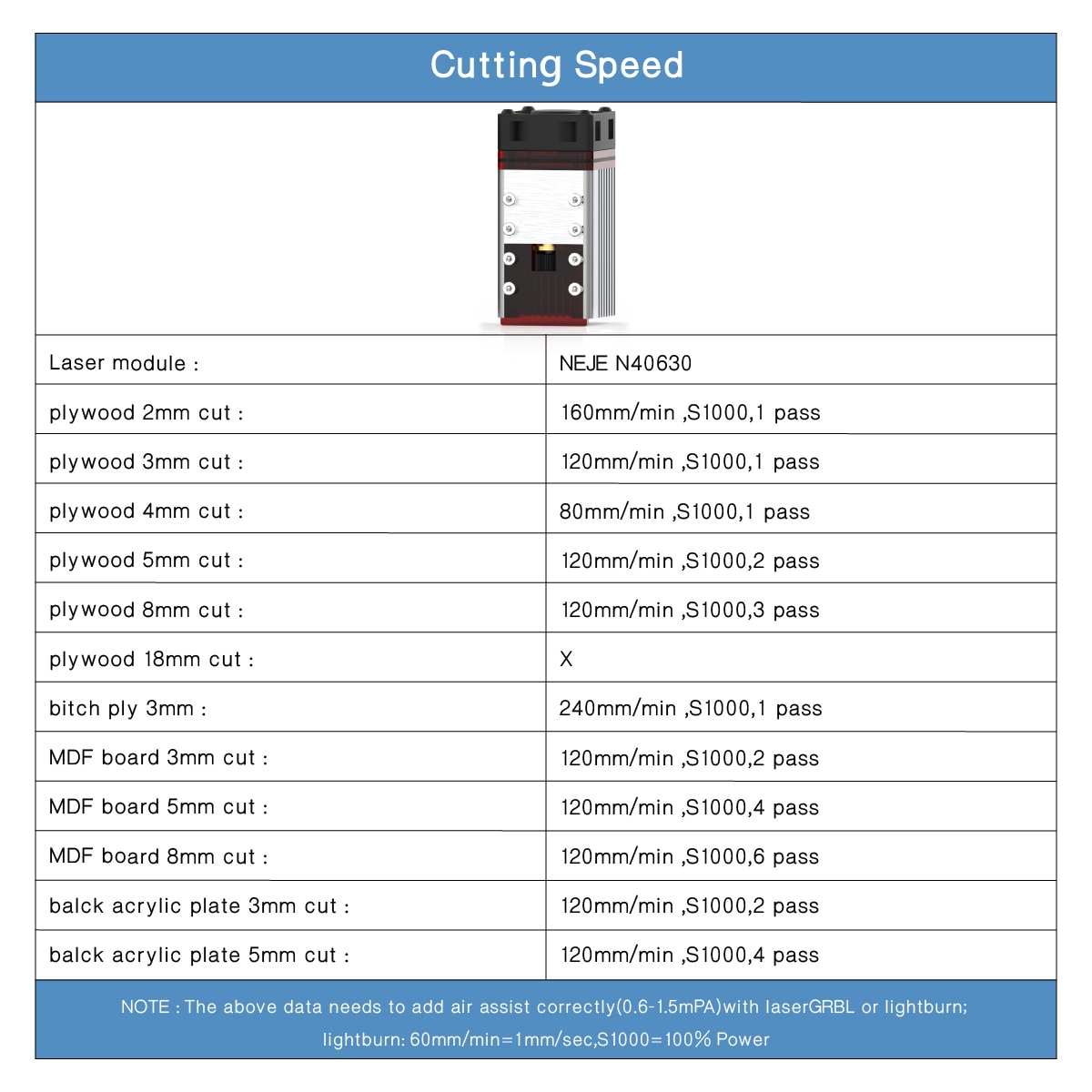

2.5.5W Optical power output, 3mm acrylic from 1 pass(speed 100)

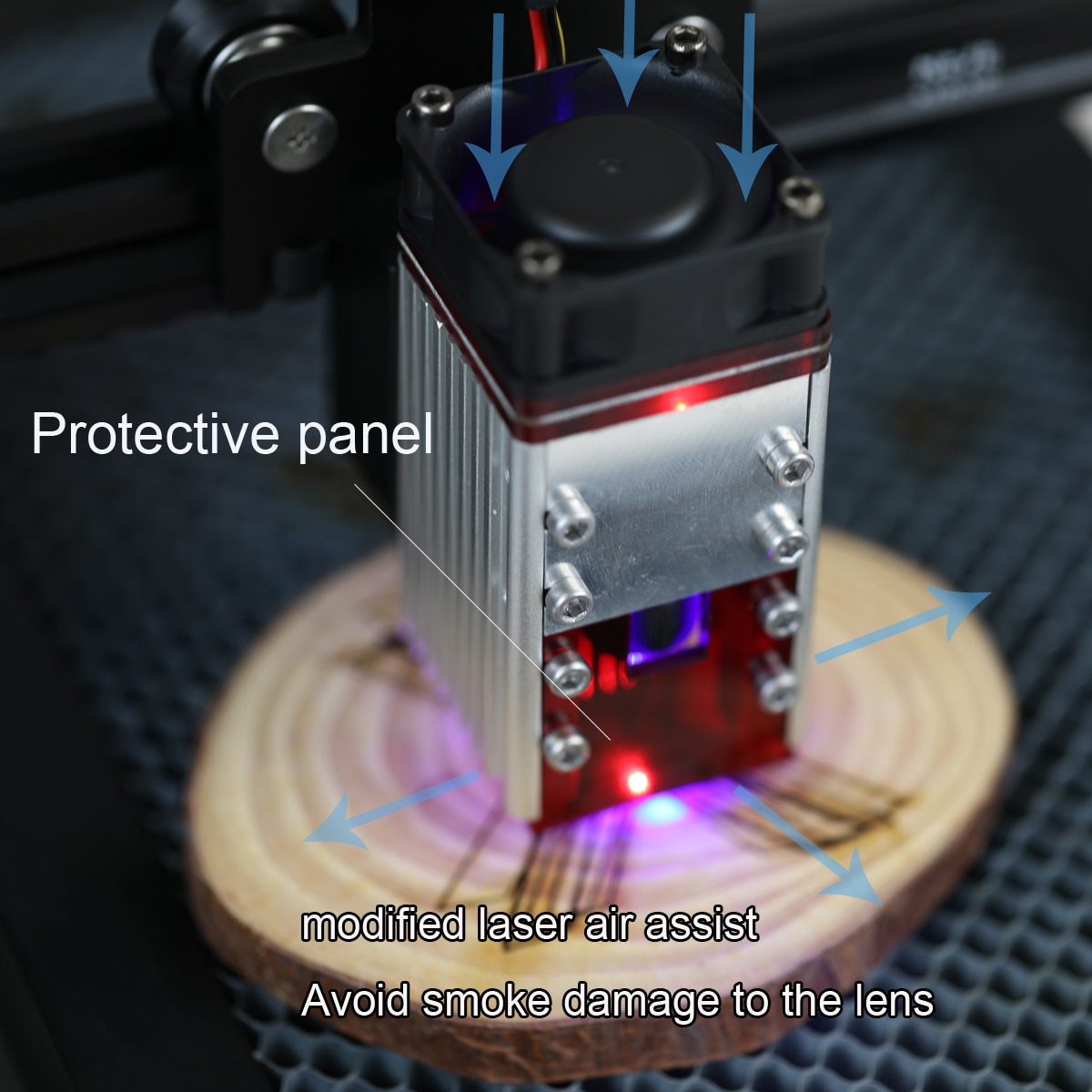

3.More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4.More Quiet, Intelligent drive adjust the cooling fan speed according laser temperature.
5.Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for neje laser module.
6.Slidable mounting fixture is provided for easy adjustment of focus.
N40630 Laser Product Specification
Model：NEJE Module (N40630)
Heatsink Material：Aircraft Aluminum + Brass Shell
Luminous Color：Blue
Section Size：40mm x 40mm
Cooling Mode：Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
Dimension：60 * 40 * 40mm
Adapter Plug：5.5 2.1 port

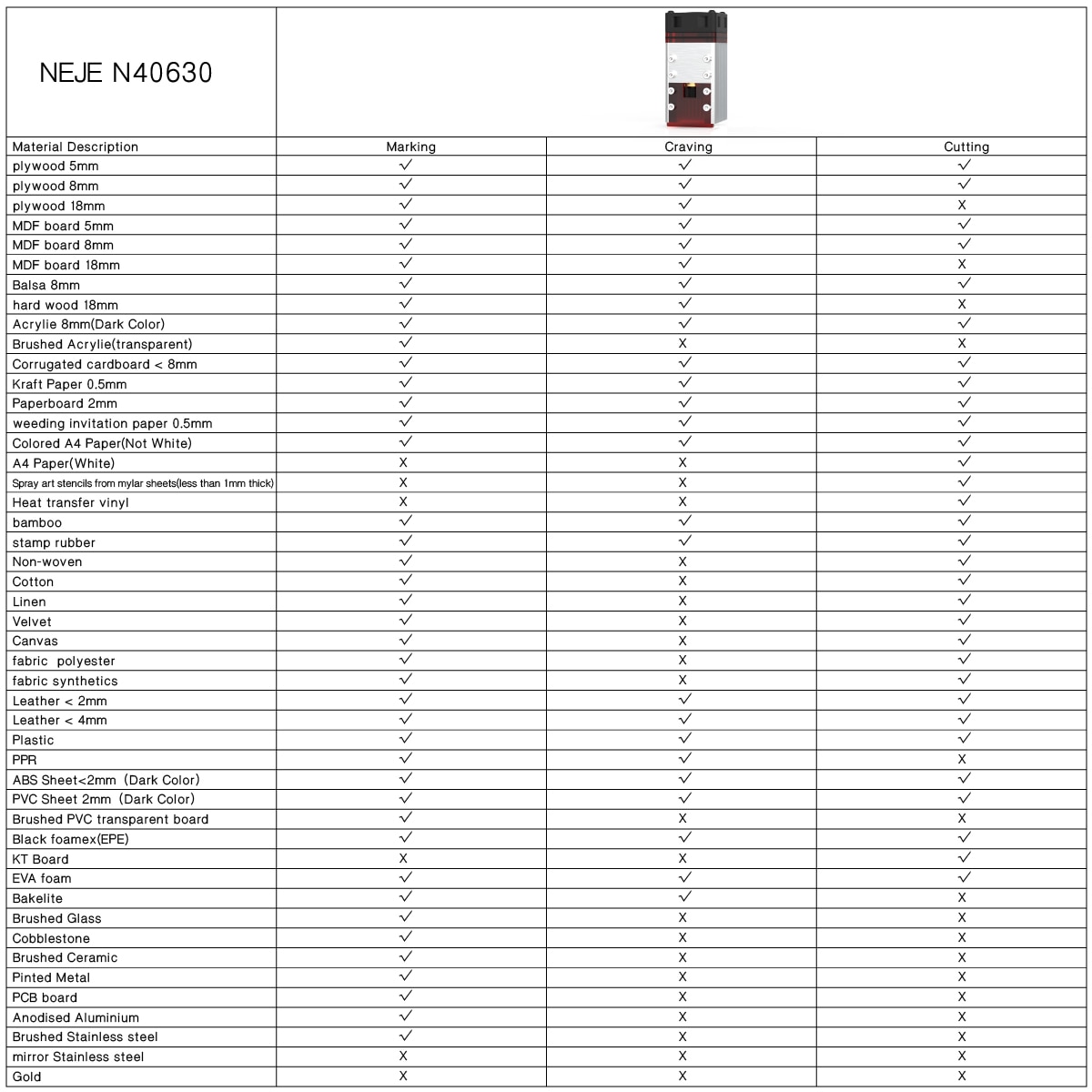

Can Engrave：MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
Can Not Engrave：Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material
Technical Parameters：
Optical power output：5.5W (5500mW)
Wavelength：445-450nm
Beam Shape：Dot (Focusable)
Working Voltage：DC 12V
TTL&PWM Modulation：YES, Compatible with Both TTL & PWM Modulation
Input Voltage：DC12V 3A
PWM/TTL Input：DC3.3V-12V
Input Interface：PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
NOTE：Temperature interface can be disconnected，NEJE provides text instructions for temperature acquisition on wiki.
Drive Mode：External ACC
Safe temperature range：<60 ℃
Module weight：202g ( The lighter the weight, the smaller the move inertia, the better the performance )
Life Time：10000-20,000 hours
NEJE 3 PLUS EXPANSION DESCRIPTION

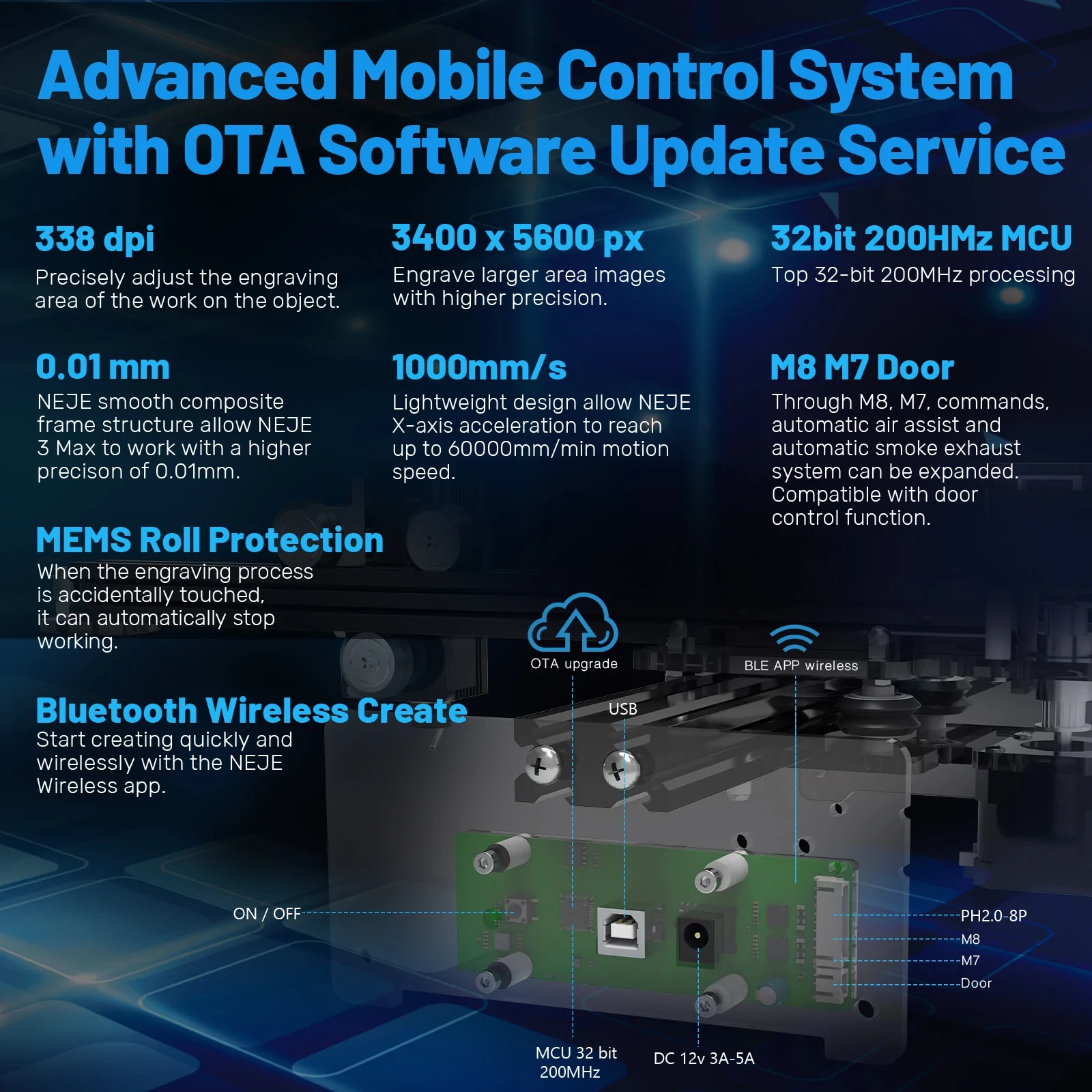

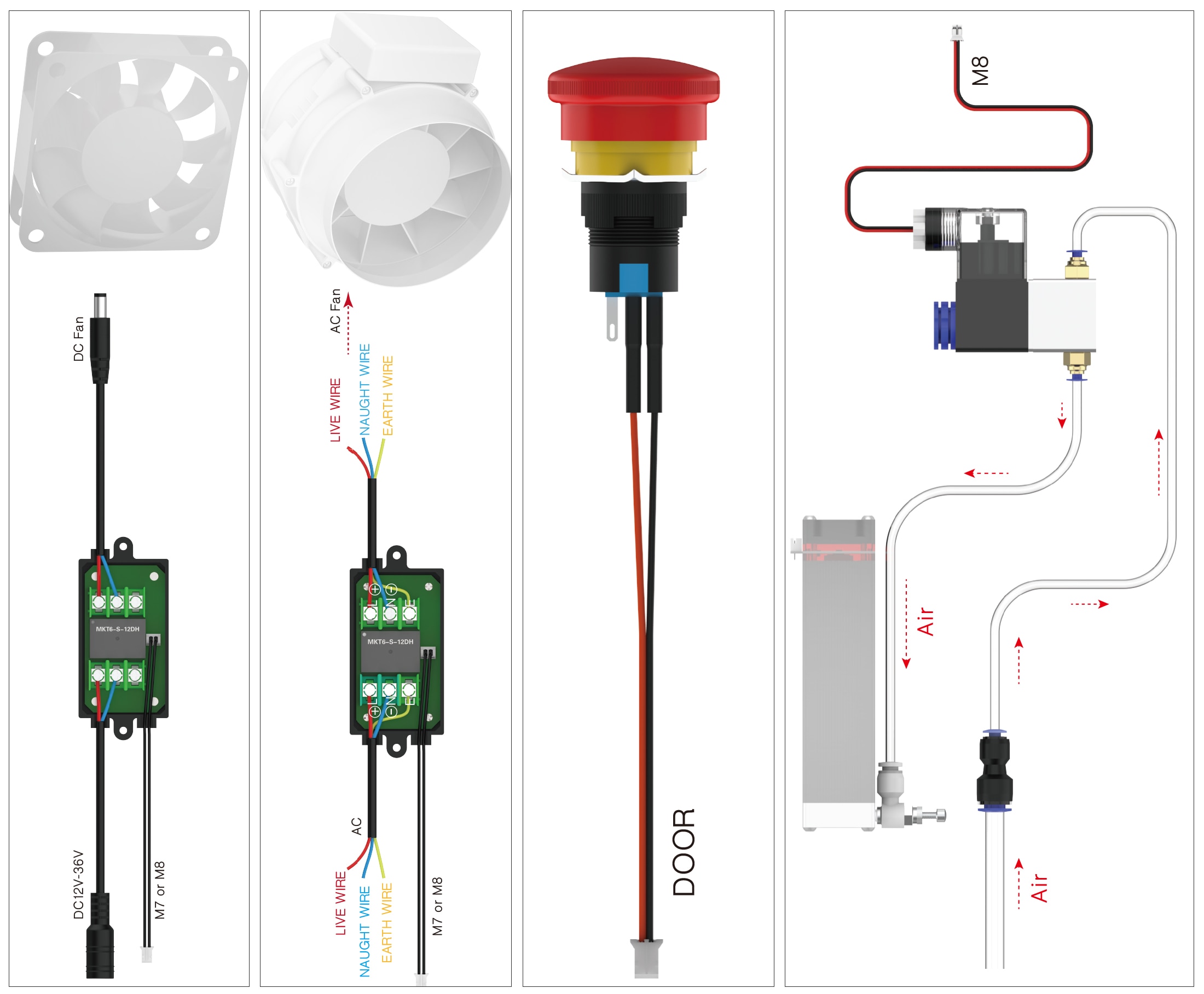

M7 relay expansion accessories, can be used to control AC or DC power supply smoke exhaust system, can also be used to control other circuits, used as M8, there are safety risks when operating high-voltage circuits, requiring professional operation; M8 valve expansion accessories, can be used To control the air compressor switch, neje 3 supports accessories expansion, but the relay module, air valve module and Door need to be purchased separately, not included in the product list.

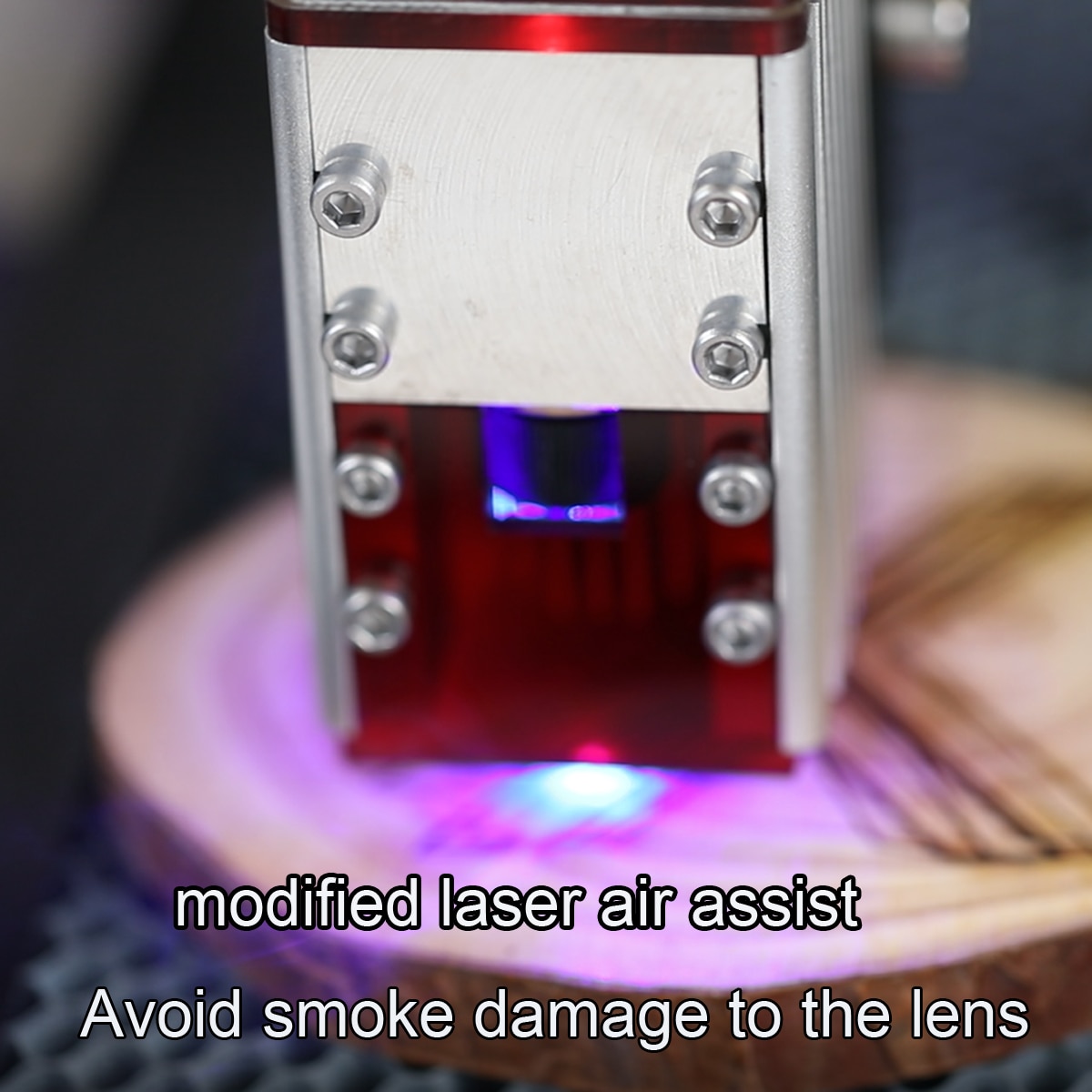

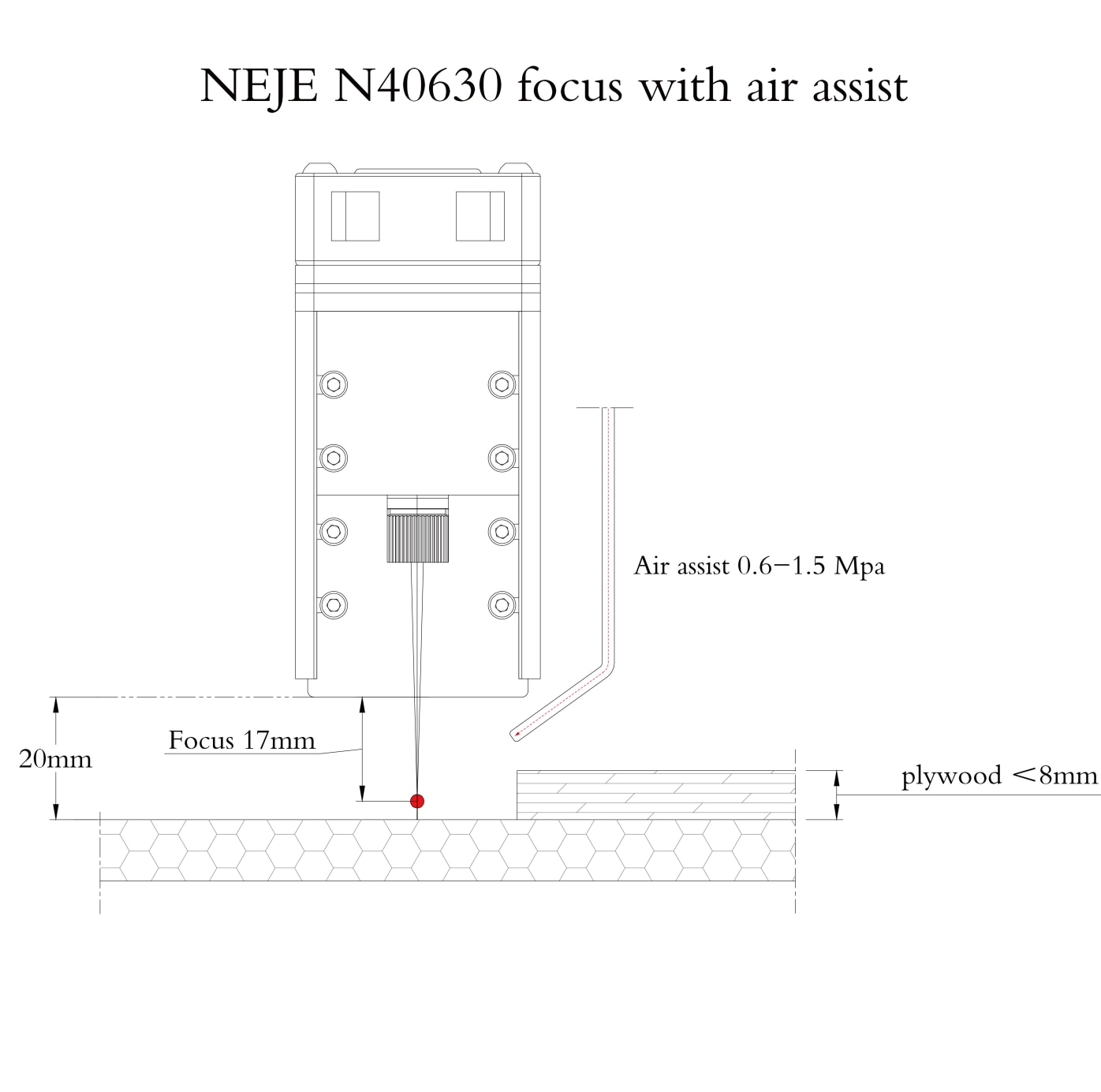

About Air Assist
-It is only necessary to add air assist when cutting plywood larger than 3mm and engraving rubber stamps such as carbonized materials. Air assist below 0.4mpa does not make any sense.
About Roller
-Support almost all rollers, round wine bottles, mugs, ceramic mugs can be engraved.
Package List
1* Laser engraving machine
1* N40630 module
1* 12V4A power supply
1* European standard adapter
1* Manual
1* Red glasses
1* Data cable
1* wooden board
5* paper
1* pen
1* brush
1* focusing film
4* angle iron
1* alumina film
3* cable tie
5* nut
1* large hexagon wrench
1* small hexagon wrench
1* Open wrench
Please Note
If there is a customs spot check, the customs duty is borne by the customer,hope you can understand.
Do not accept bad reviews and disputes due to tariffs.
- Is Smart Device: YES
- Model Number: NEJE 3 Plus
- Condition: New
- CNC or Not: CNC
- Brand Name: NEJE
- Origin: Mainland China
- Certification: CE,RoHS,UL
- Brand: NEJE
- Laser Model: N40630
- Power: 40W
