KL216+R503 Fingerprint Control Board With Remote Controller With Jog Mode/Ignition Mode/Self-locking Mode
5.0 (5 votes) | 29 orders
Price:
US $54.99
/ piece
Discount Price:
US $
53.94
/ piece
-2%
User manual for control board KL216
Technical parameter:
Power supply：DC10V--30V
Standby current：<40mA
Output：Relay(Max. current: 10A)
Fingerprint capacity：200 pieces
Relay Function：Jog Mode(0.5s-99s)/Ignition Mode/Self-locking Mode
KL216 can be managed by SET button or remote control(add/delete fingerprint to different three database,change relay time and so on)

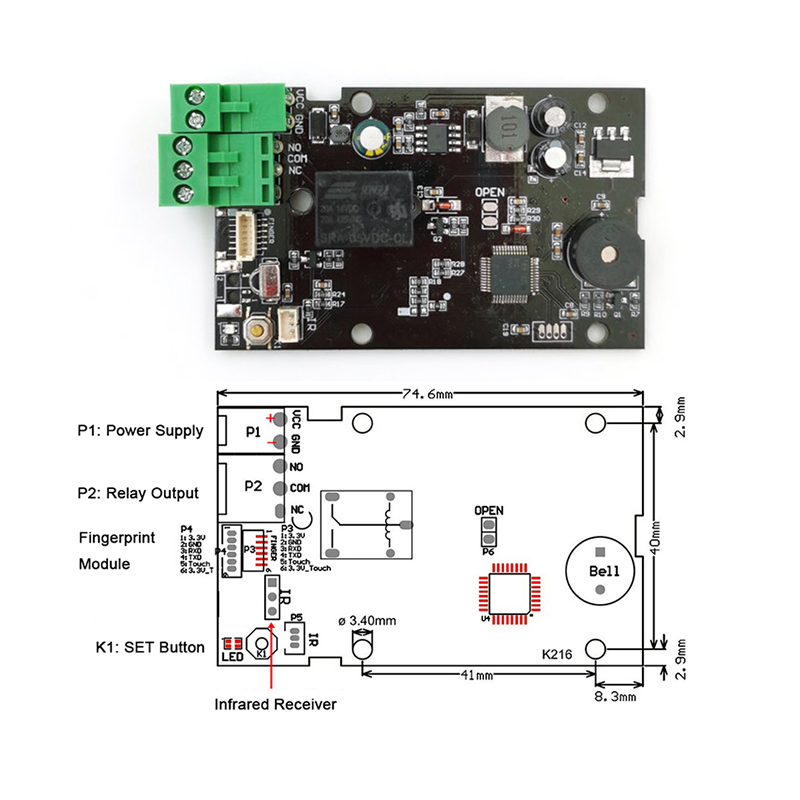

KL216 Connection reference diagram:
Instructions for KL216 control board:
1. SET Button:
1.1 Press SET button shortly,system in register state and indicator light flash fast, press multiple times for each fingerprint, fingerprint register successful when hearing music.
Fingerprint can be registered continuously when system in register state; if no need adding fingerprint more, waiting a few seconds.(By default, it will be saved in fingerprint database 1,when the current database is full, it is automatically saved to the next database.)
1.2 When back to factory default, press SET button until hear “Di” long beep and
music,means initialization operation successful
2. Remote Control:
When using remote control, pls touch the module to wake up first.
2.1 Blue indicator lighted means in programming stated, music means operation successful.
Default password: 123456, password length: 6 numbers
2.2 Change password: Press *password*1*new password*new password#
2.3 Register fingerprint: Press *password*2*Database(1-5)# ,Exit fingerprint in register state when press * button or waiting a few seconds.
E.g.: Register in Database 3: Press *password*2*3#
2.4. Delete Fingerprint: Press *password*3*Database(1-5)#
E.g.: Delete in Database 3: Press *password*3*3#
2.5. Relay Time Setting in jog mode: Press *password*4*Time(0.5s-99s)#
E.g.: Set 0.5s: Press *password*4*00#
E.g.: Set 1s: Press *password*4*01#
E.g.: Set 5s: Press *password*4*05#
E.g.: Set 99s: Press *password*4*99#
2.6. Setting Work Mode:
Jog Mode: Press *password*5*1#
Ignition Mode: Press *password*5*2#
Self-locking Mode:Press *password*5*3#
2.7. Standby Mode Selection:
Standby Mode On: Press *password*6*0#
Standby Mode Off: Press *password*6*1#
2.8. Back to Factory Mode: Press *password*7*password#
2.9. Password Using: Press *password and relay closed, press # and relay opened
Note: Any fingerprint can be used in the factory state, but the function will be invalid after the fingerprint is registered.
●R503 Upgrade to waterproof version, waterproof level: IP65
When the temperature of the use environment fluctuates greatly, it may affect the glue, thus affecting the waterproof effect.
●You can dowload KL216 user manual from the following website:
https://www.dropbox.com/sh/9itshhkx0r9mdyt/AABPH-Dhleve3A1Mn5ZA34pCa?dl=0
●You can download the R503 user manual from this website link:
https://www.dropbox.com/sh/epucei8lmoz7xpp/AAAmon04b1DiSOeh1q4nAhzAa?dl=0
●K216+R503 Register Fingerprint by Remote Control Video on Youtube:https://youtu.be/OwgdyGcdH38
●K216+R503 Adjust Relay Time by Remote Control Video on Youtube:https://youtu.be/V95SOx4Mqjc
KL216 Details:

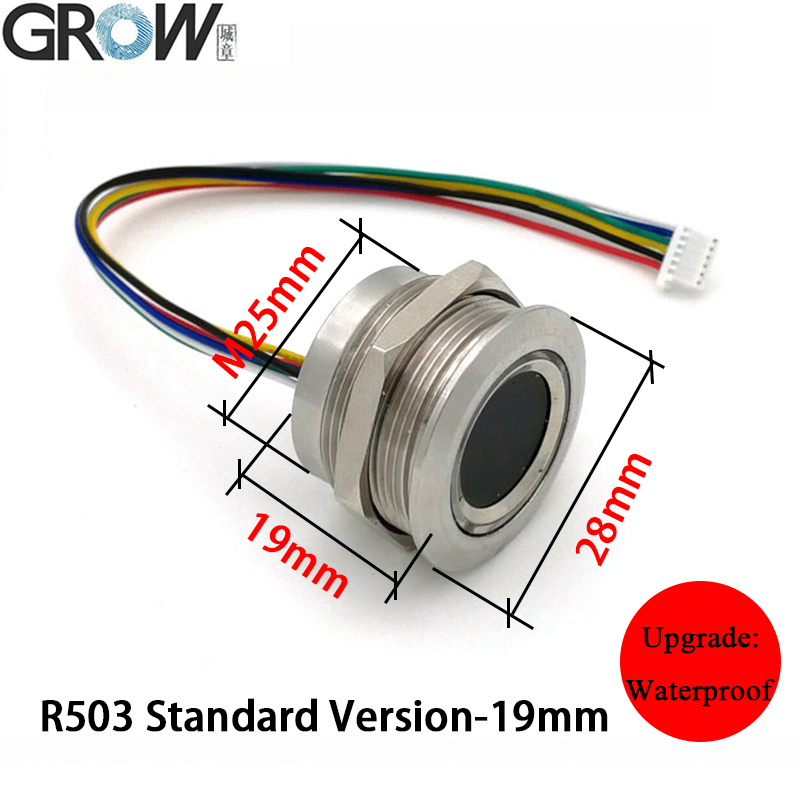

R503 Details:
For shipping list, please see the following photo:

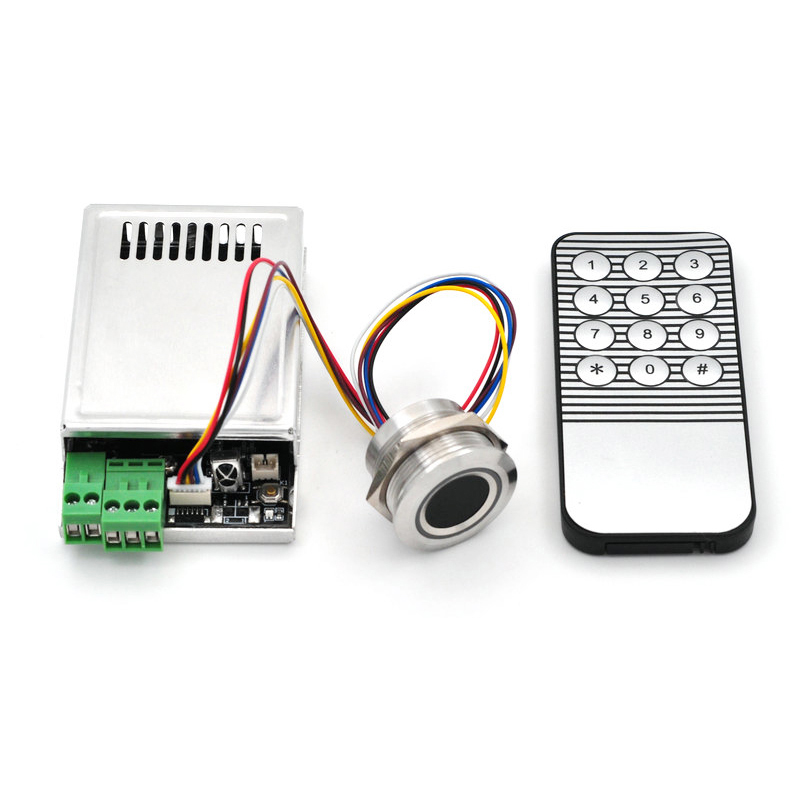

KL216 Fingerprint Control Board+R503 Fingerprint module+Nut+Remote Control
If need plastic enclosure for R503 fingerprint module, pls check this link:
Note: The enclosure can rain and dust resistant, but not waterproof.
If need zinc alloy enclosure for R503 fingerprint module, pls check this link:
- Model Number: KL216+R503
- Brand Name: grow
- Origin: Mainland China
- Smart home platform: Other
- Certification: NONE
- Power supply: DC10V--30V
- Output: less than 40mA
- Standby current: 6mA(DC12V)
- Fingerprint capacity: 200
