R502-A Round Ring RGB LED Small Thin UART DC3.3V Fingerprint Module Access Control Arduino
0.0 ( votes) | 7 orders
Price:
US $
32.43
/ piece

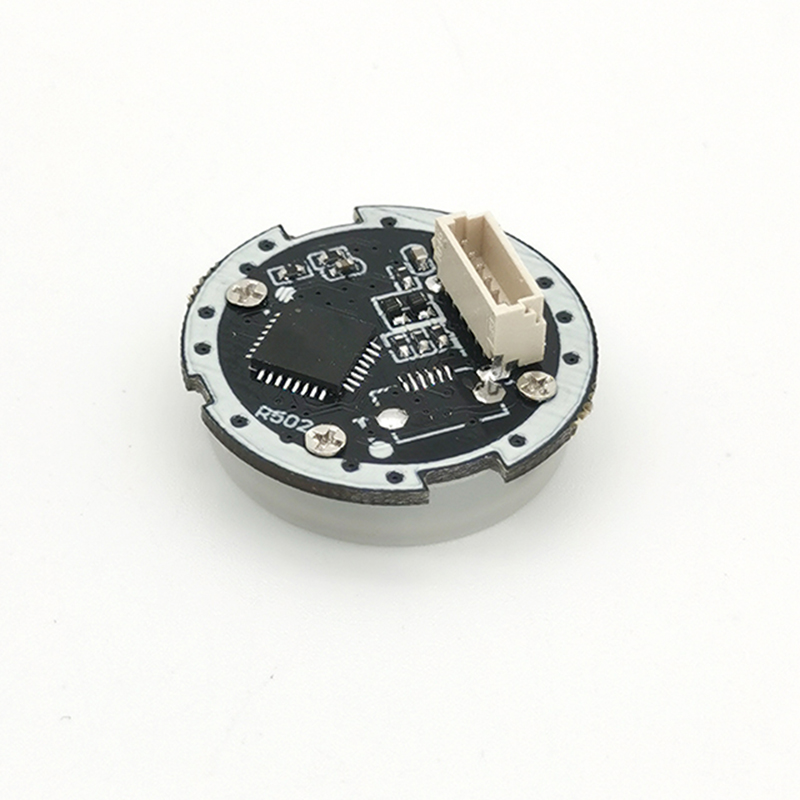

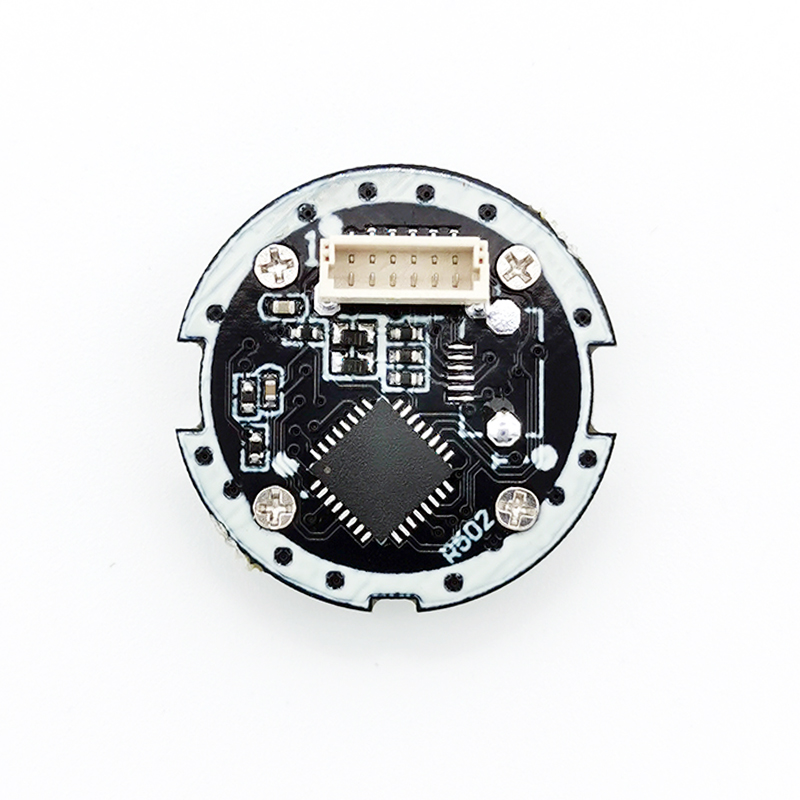

GROW R502-A Round Semiconductor Fingerprint Module/Sensor/Scanner
Main Function:
1.Integrated image collecting and algorithm chip together, ALL-in-One
2.The flexibility to adapt to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have high recognition rate.
3.The main application areas: can be embedded into a variety of end products, such as: access control, attendance, safety deposit box
Specification:
Model | R502-A |
Type | Capacitive Fingerprint Module |
Interface | UART(TTL) |
Resolution | 508 DPI |
Voltage | DC 3.3V |
Fingerprint Capacity | 200 |
Sensing array | 192*192 pixel |
Working current | 20mA |
Standby current | Typical touch standby voltage: 3.3V, Average current: 2uA |
Fingerprint module external size | Diameter 22(mm) |
Fingerprint module inner size | Diameter 19.5(mm) |
Fingerprint module height | 5(mm) |
Effective collection area | Diameter 15.5 (mm) |
Finger Touch Function | Yes |
LED Color | RGB |
LED Control | Yes |
Connector | MX 1.0mm 6Pin |
Scanning Speed | < 0.2 second |
Verification Speed | < 0.3 second |
Matching Method | 1:1; 1:N |
FRR | ≤1% |
FAR | ≤0.001% |
Work environment | -20C ---60C |
Work Humidity | 10-85% |
Anti-static capacity | 15KV |
Abrasive resistance intensity | 1 million times |
Communications baud rate (UART): | (9600 × N) bps where N = 1 ~ 12(default N = 6, ie 57600bps) |
The R502-A has RGB circular ring indicator light that can be controlled by command.
***The different between R502-A with R503:
R502-A is thinner and samller, others are same.
If you think R503 is too big, you can chose R502-A.
***The different between R502-A with R502:
We changed the R502's LED to Circular Ring LED.
If you need small and thin module, but need circluar ring LED, you can chose R502-A.
You can dowload R502-A user manual from the following website:
https://www.dropbox.com/sh/orprmb3bgb6lqb6/AACpiIXOF91R7-RQ9OkD4JXha?dl=0
R502-A Test program operation display video on Youtube: https://youtu.be/8w_bkgwTabE
If need SDK files,pls contact us.
For shipment list, please see the following photo:
If need fingerprint control board, R502-A can be used together with K200-3.3 fingerprint control board.
If need fingerprint control board, R502-A can be used together with K215-V1.2 fingerprint control board.
If need fingerprint control board, R502-A can be used together with K216 fingerprint control board.
- Model Number: R502-A
- Brand Name: grow
- Origin: Mainland China
- Smart home platform: Other
- Certification: CE
- Interface: RS232 (TTL)
- Fingerprint capacity: 200
- Fingerprint module external size: 22mm
- Fingerprint module inner size: 19.5mm
- Effective collection area: Diameter 15mm
- Fingerprint module height: 6mm
- Voltage: DC 3.3V
- Resolution: 508 DPI
- Sensing array: 192*192 pixel
- LED color: RGB
- LED control: Yes
- Standby current(finger detection): 3.3V,2uA
- Working current(Fingerprint acquisition): 20mA
- Weight: 5g
