IPC1800ADH plus Professional Cctv 4Inch Touch screen Tester Monitor H.265 4K 8Mp Tvi Cvi Ahd Cvbs Ip Camera Tester with PTZ

0.0 ( votes)
Price: US $431.13 / piece
Discount Price:
US $ 336.05 / piece
-22%
Ships From
Color
Quantity

Wanglu New 4" wrist coaxial HD 4.0 CCTV Tester Monitor 4K H.265 IP CVI TVI AHD CVBS Camera tester with WIFI hotspot PTZ Control

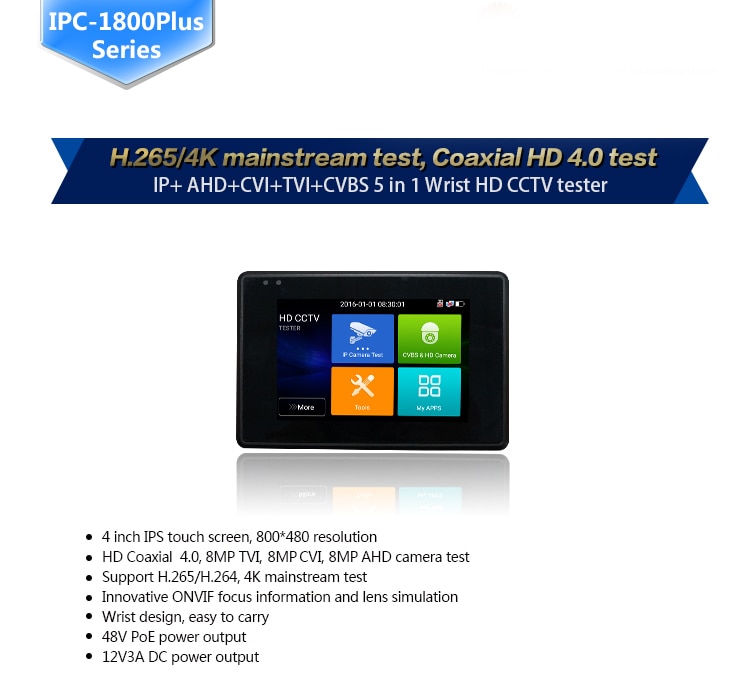

New 4" wrist 4K H.265 IP CVBS CVI TVI AHD 5-in-1 CCTV Tester

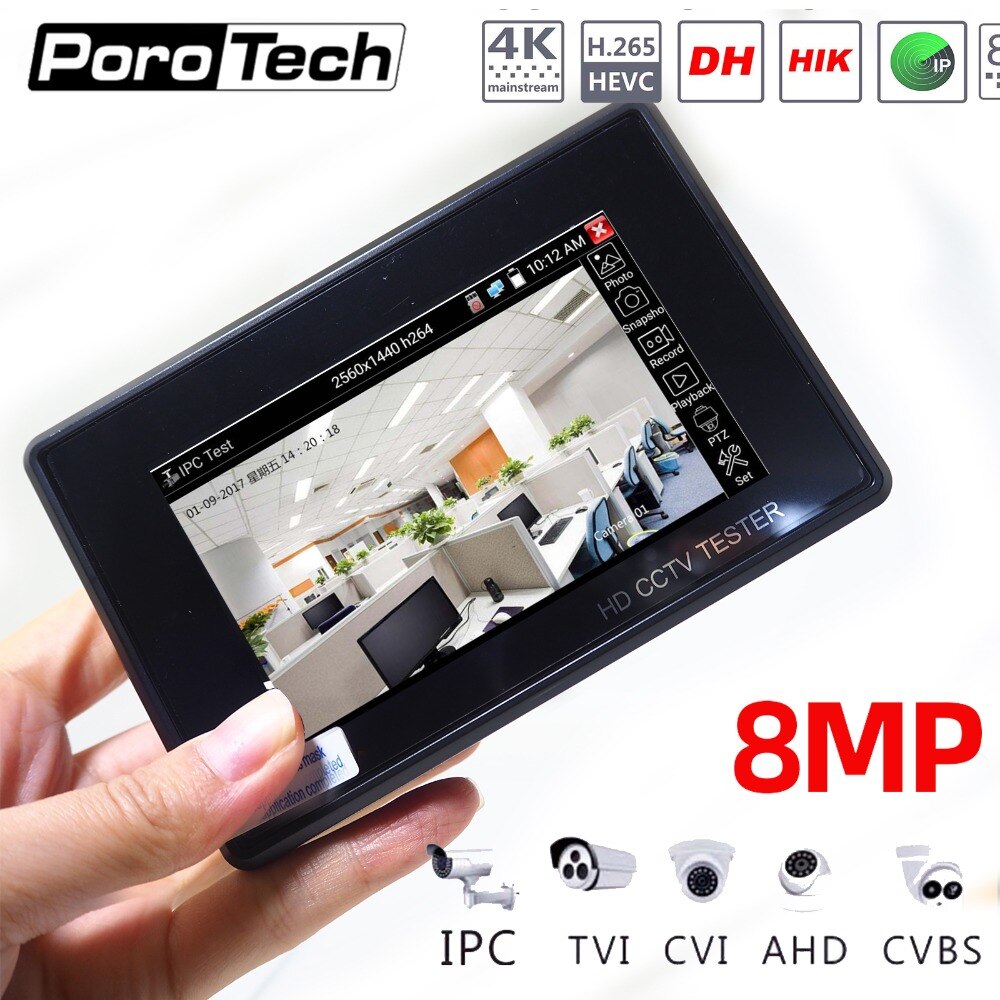

Model: IPC-1800ADH Plus

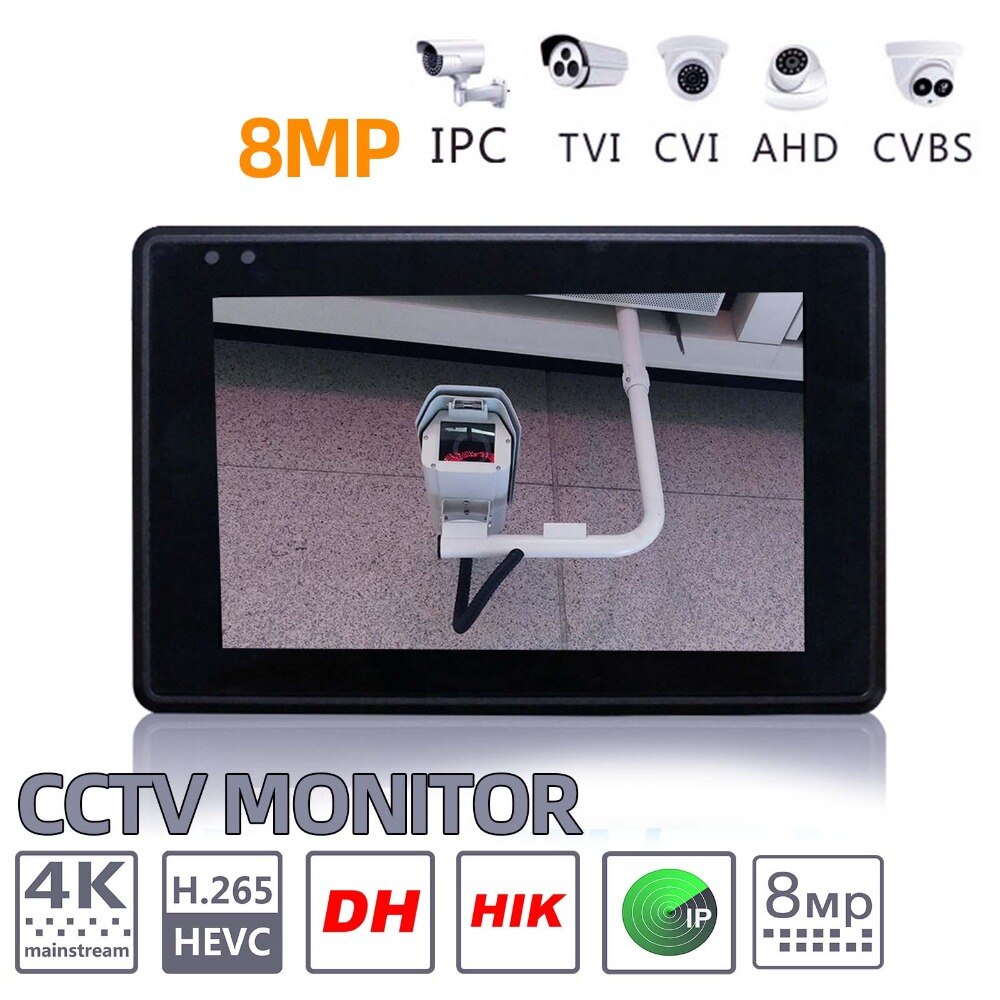

● 8MP TVI/ CVI/AHD, 4K H.265 IP, CVBS camera test

● H.265/H.264, 4K video display via mainstream

● Dahua, Hikvision, Axis etc ONVIF camera test

● Rapid ONVIF, auto view video and create testing report

● DC12V 3A, DC48V PoE power output

● Built in WIFI, create WIFI hotspot

 RJ45 cable TDR test,cable quality test

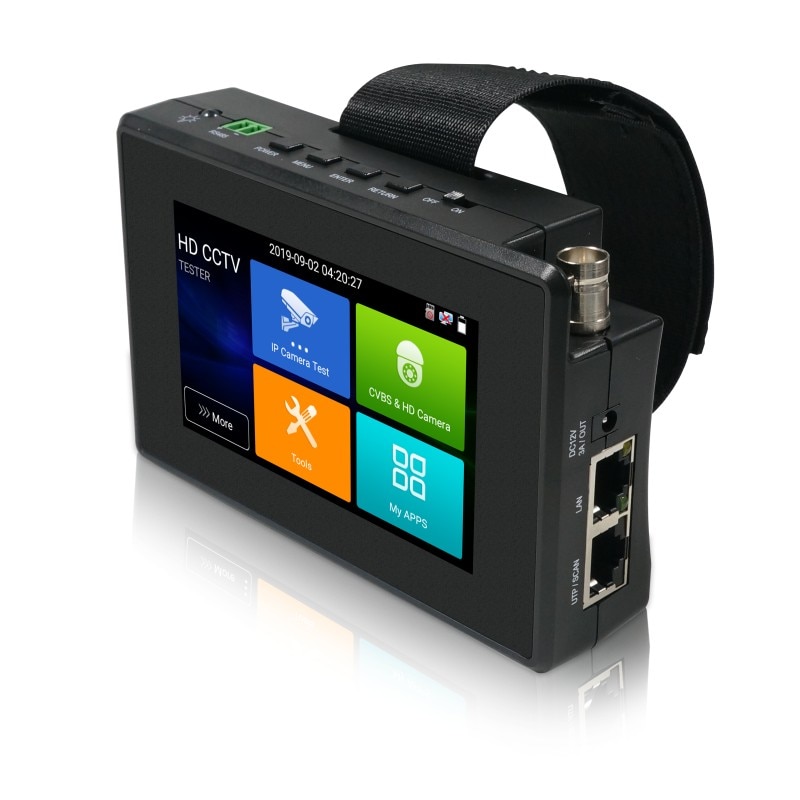

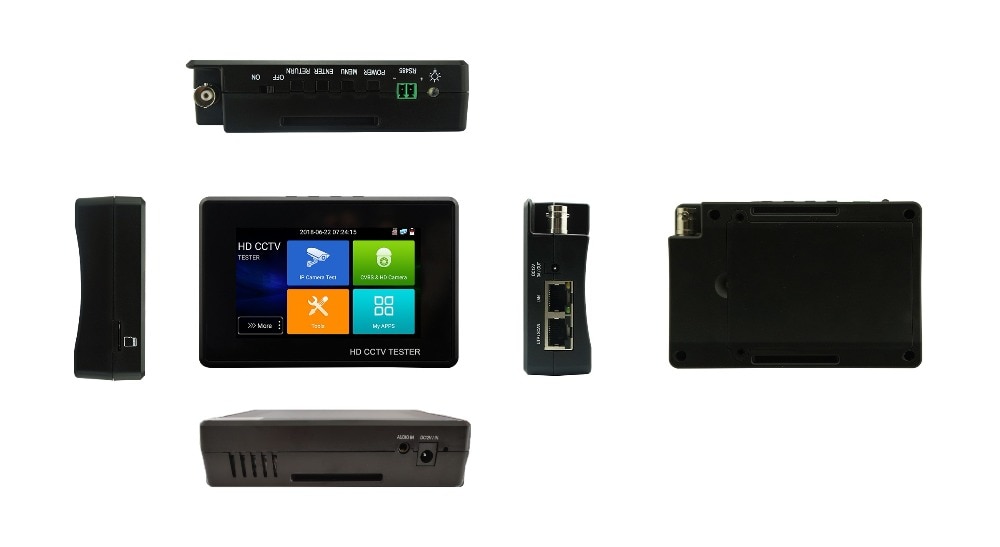

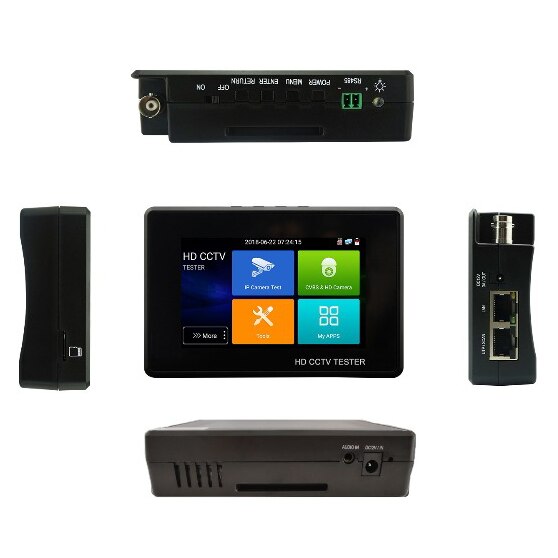

● Wrist design, portable and easier to carry

● 10/100/100M Ethernet, network state and traffic display

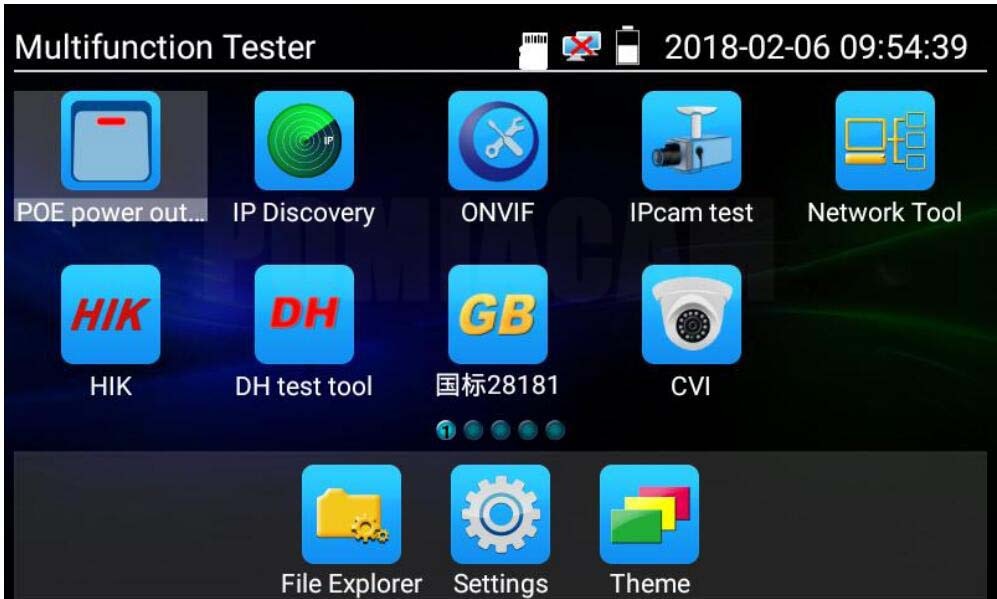

Camera test:

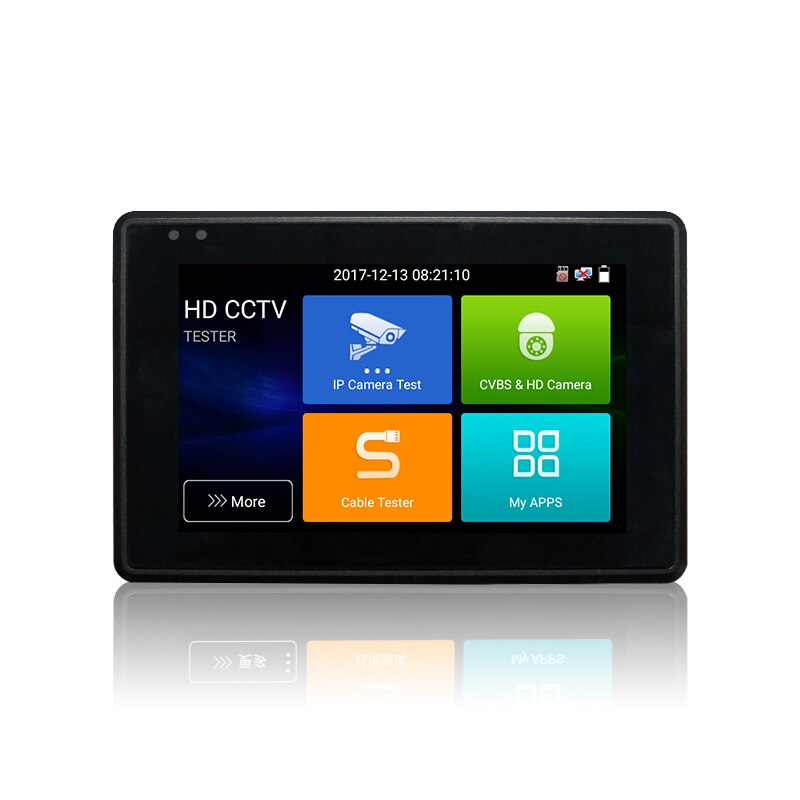

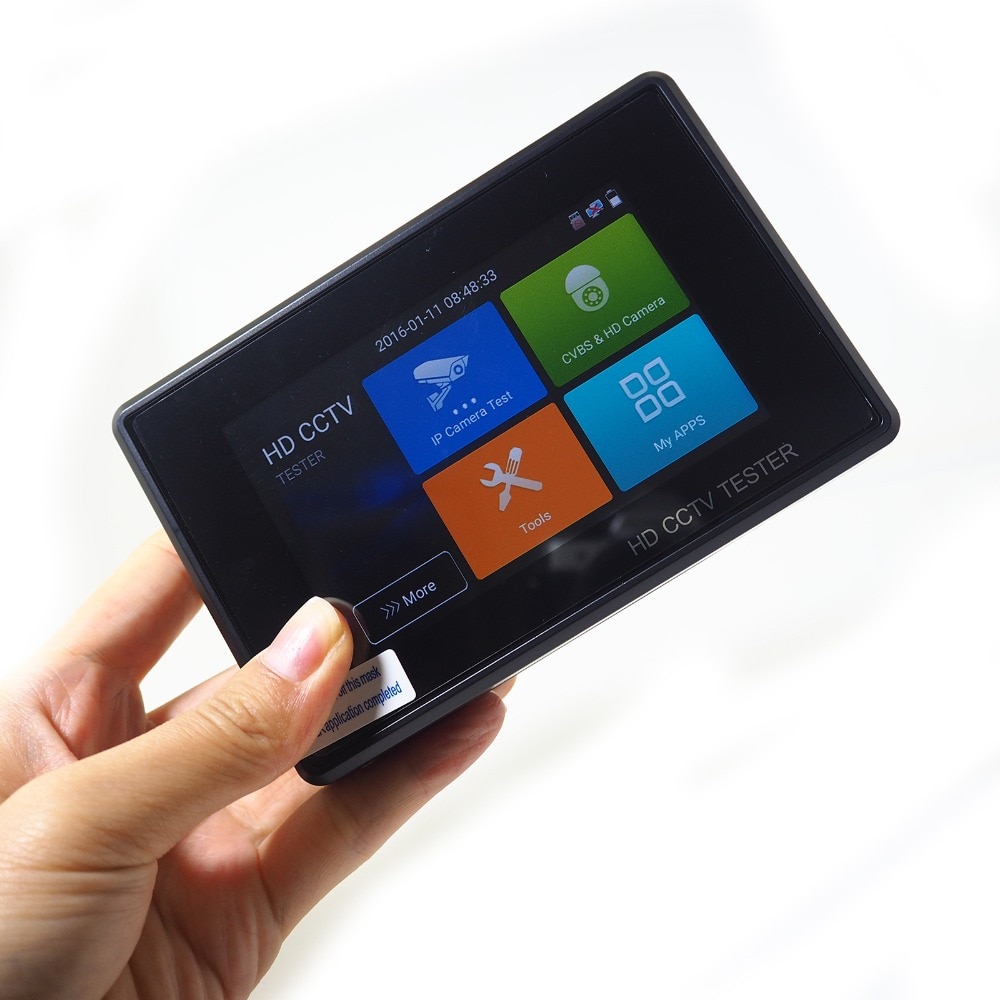

● 4 inch touch screen, 800*480 resolution

● H.265 & H .264 IP, 4K video display via mainstream

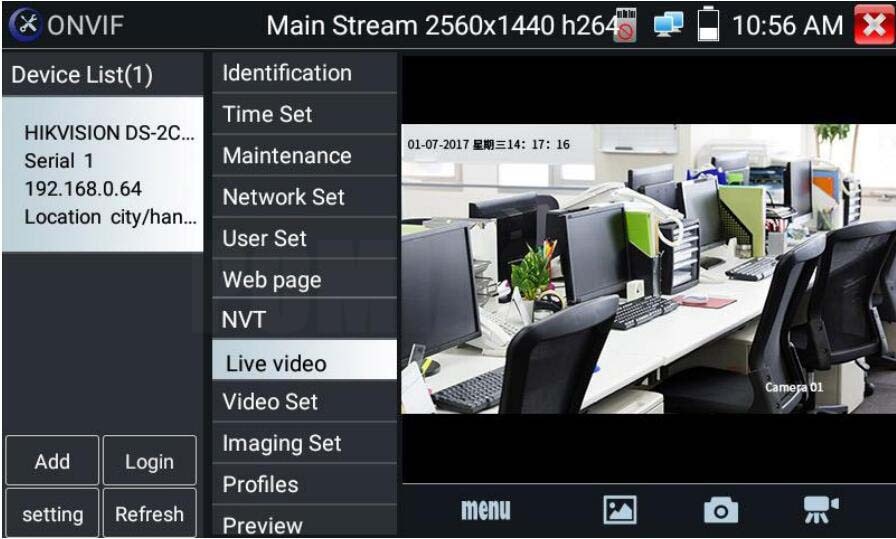

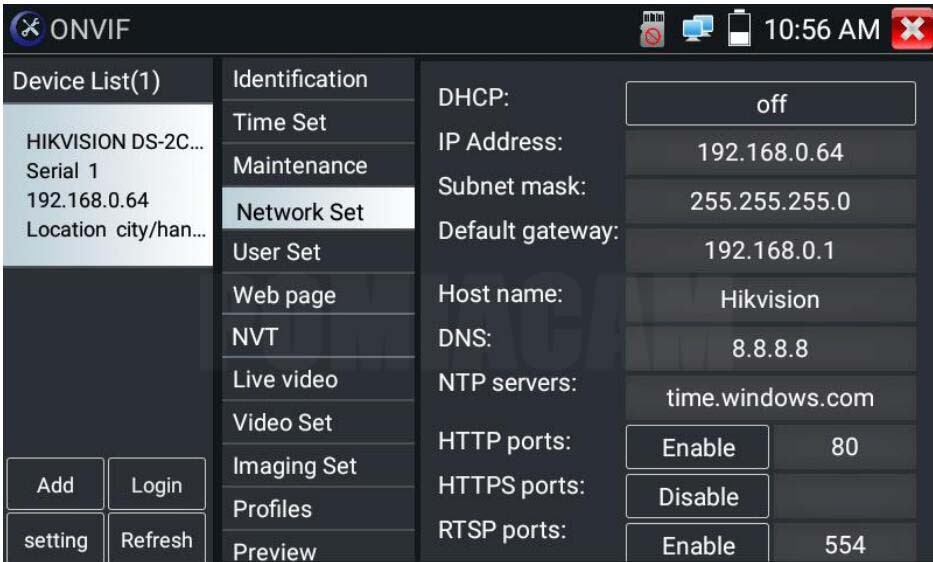

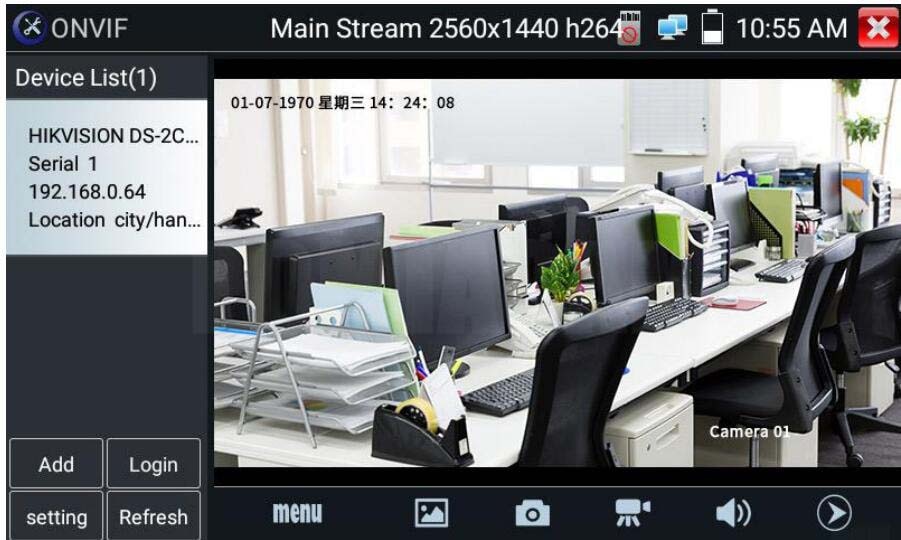

● Rapid ONVIF, Auto log in and display image, create testing report

● AXIS, Hikvision camera test, enter ONVIF app, input username and password to test

● 8MP TVI/8MP CVI/8MP AHD

● CVBS camera test and PTZ control

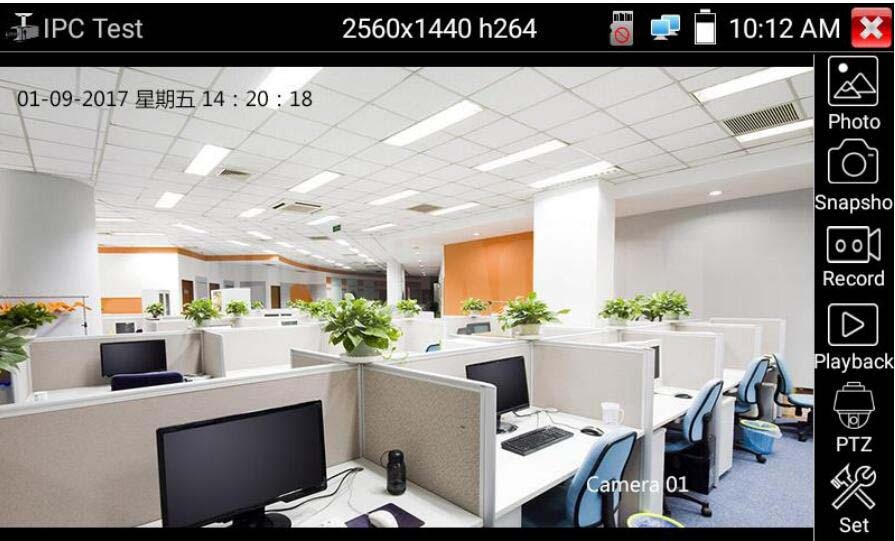

● IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test tool (Dahua camera)

● IP discovery, just by one key to detect all network cameras IP address

● Rapid video, just by one key to detect all network cameras and auto display

● DC 12V 3A power output

● PoE DC48V power output, Max power 25.5W

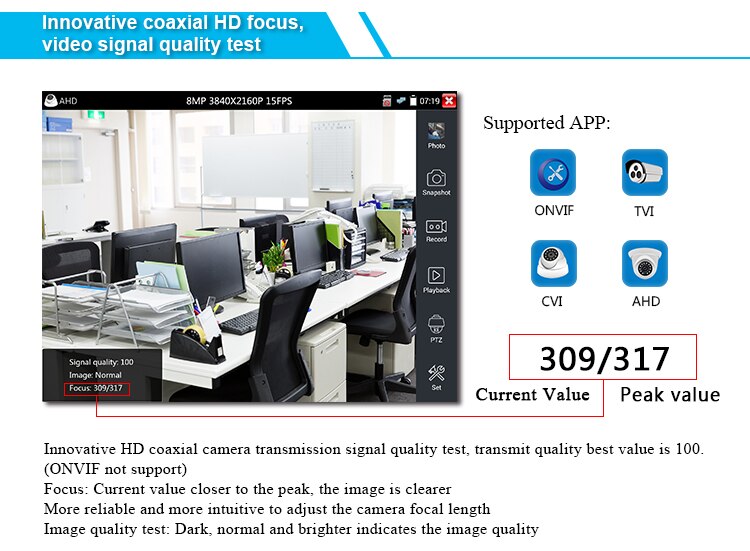

● Innovative coaxial HD focus, video signal quality test

● Built in WiFi, display image from the wireless camera, create WIFI hotspot


Cable test:

● RJ45 cable TDR test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc

Other functions:

● 10/100/1000M Ethernet, network state and traffic display

● Wrist design, portable and easier to carry

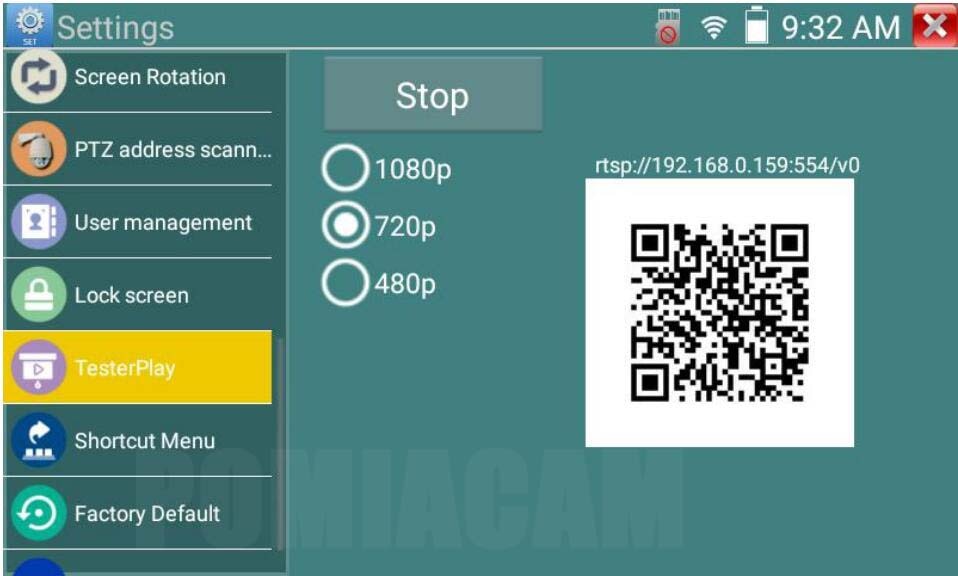

● TesterPlay: Tester, android version mobile phone, PC display at the same time

● Network tool: PING test, IP address scan, port flashing etc

● Drop-down menu, can select Poe power, IP setting, CVBS, LAN info etc

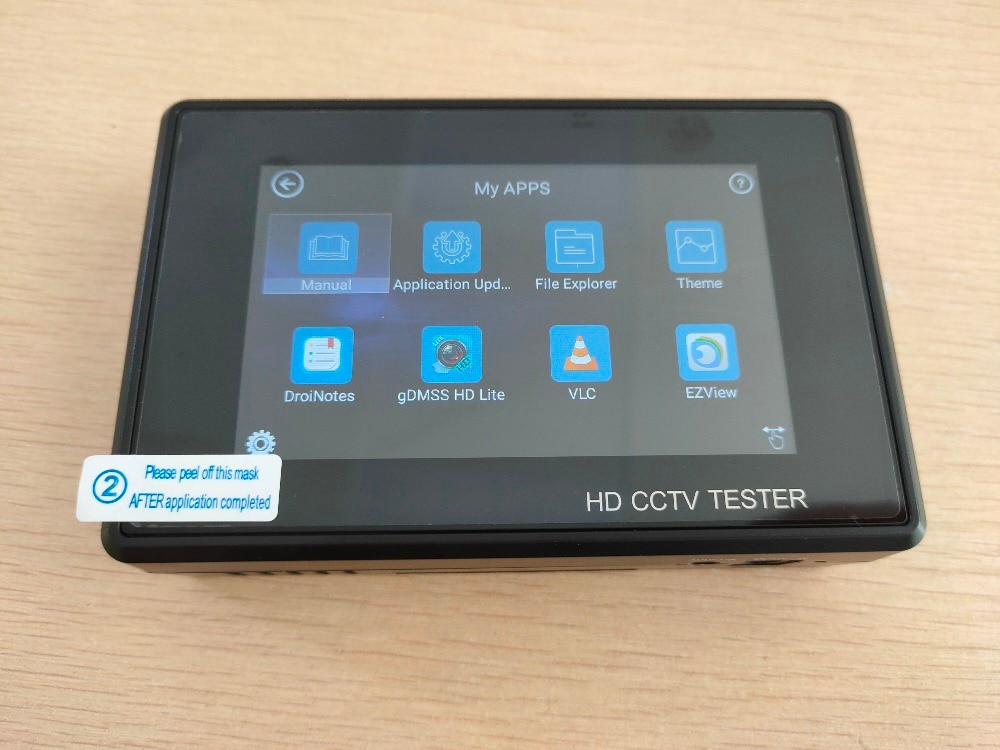

● Self -update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

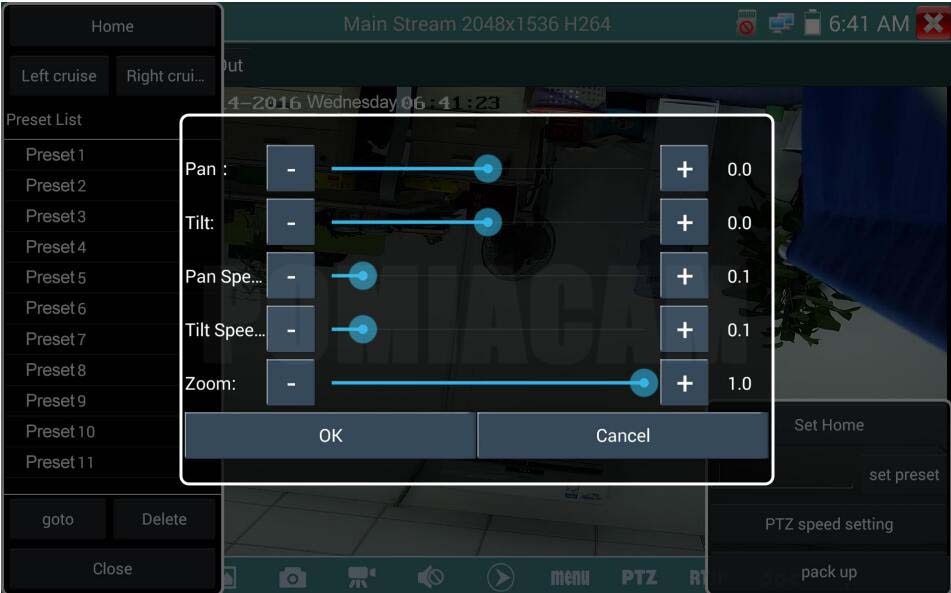

● PTZ control supports more than 30 protocols such as PELCO-P, PELCO-D, and SAMSUNG

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /2400mAh Lithium Ion Polymer Battery, after 4~5 hours charging, working time lasts 7 hours

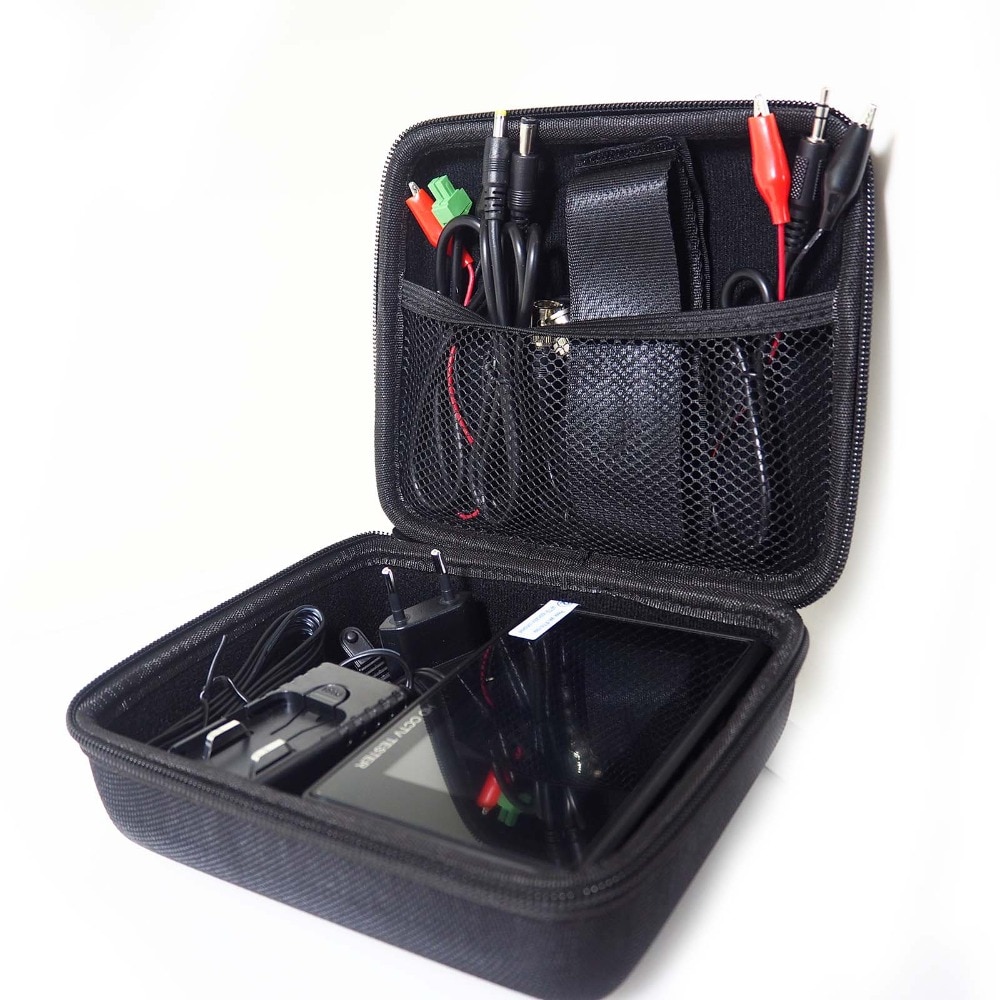

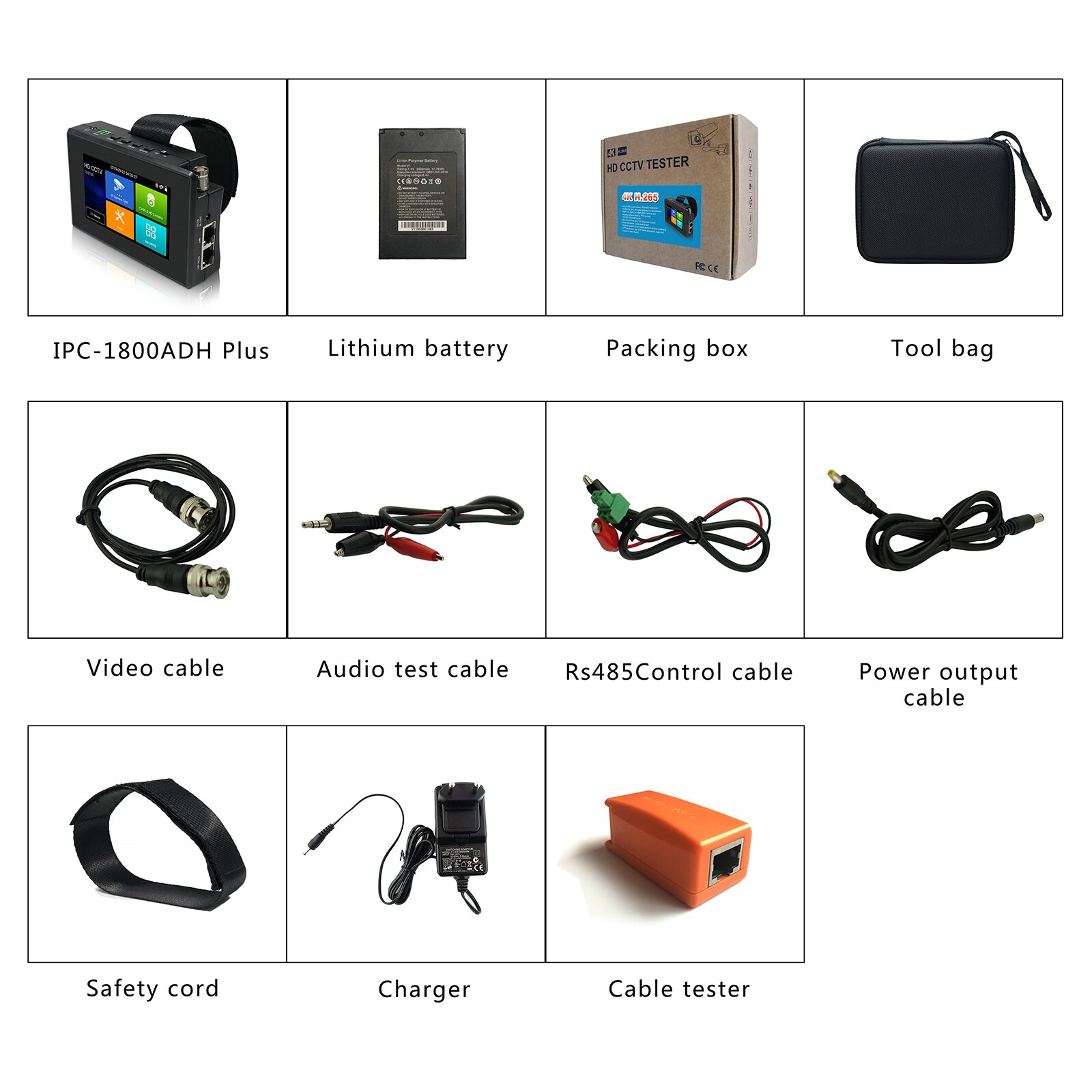

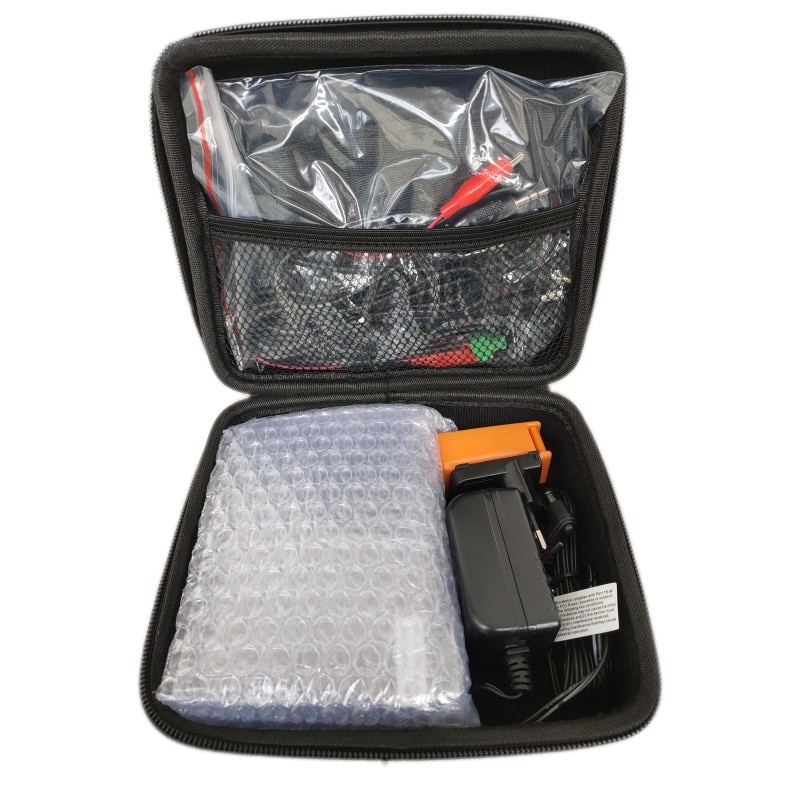

Packing list
1*Tester(Built-in battery)
1*Adapter
1*BNC cable
1*RS485 connector
1*Power output conversion cable
1*Audio cable




Detail :

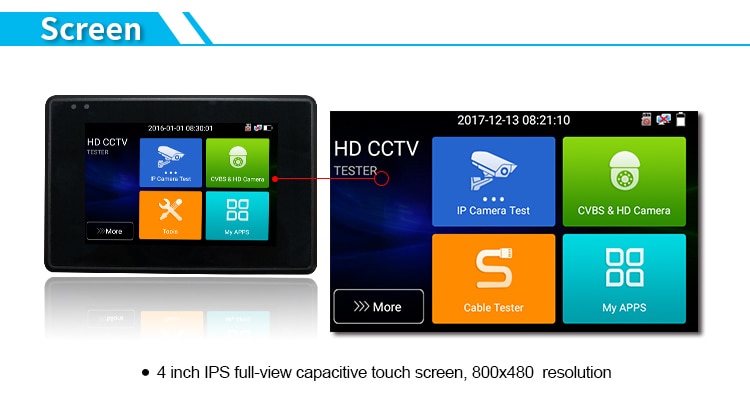

  Display: New 4 inch IPS touch screen , 800*480 resolution

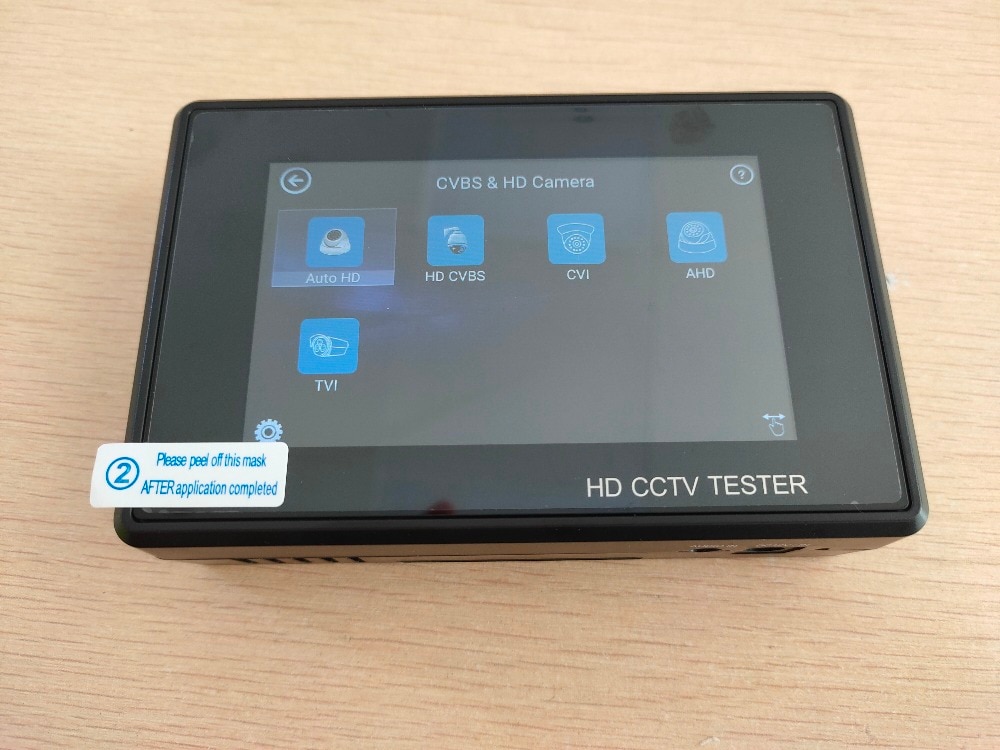

  CVBS:

  1 channel BNC input, NTSC/PAL (Auto adapt)

PTZ control, RS485 control, Baud 600-115200bps, compatible with more than 30 protocols such as PELCO-D/P, Samsung, Panasonic etc

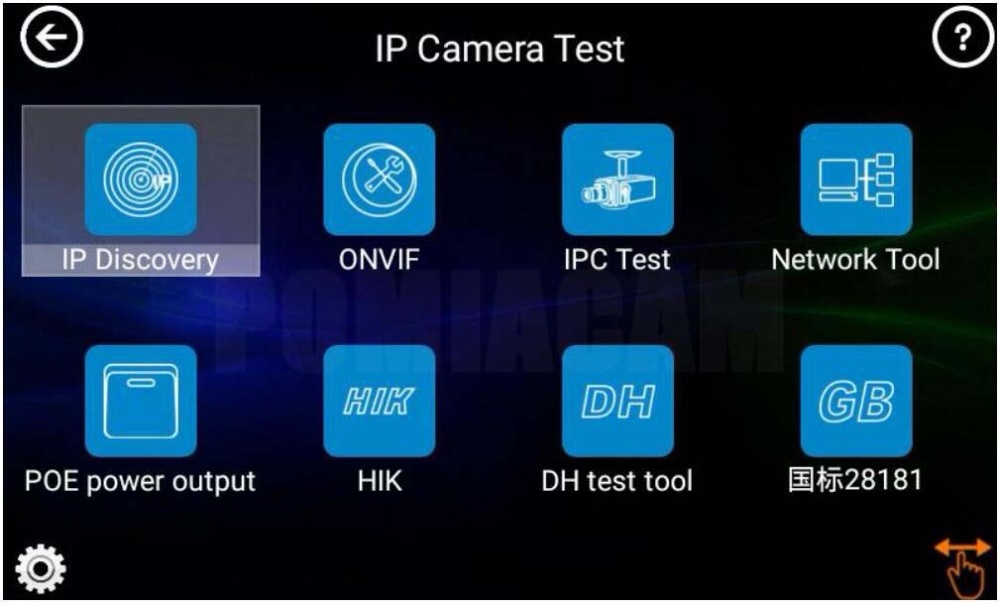

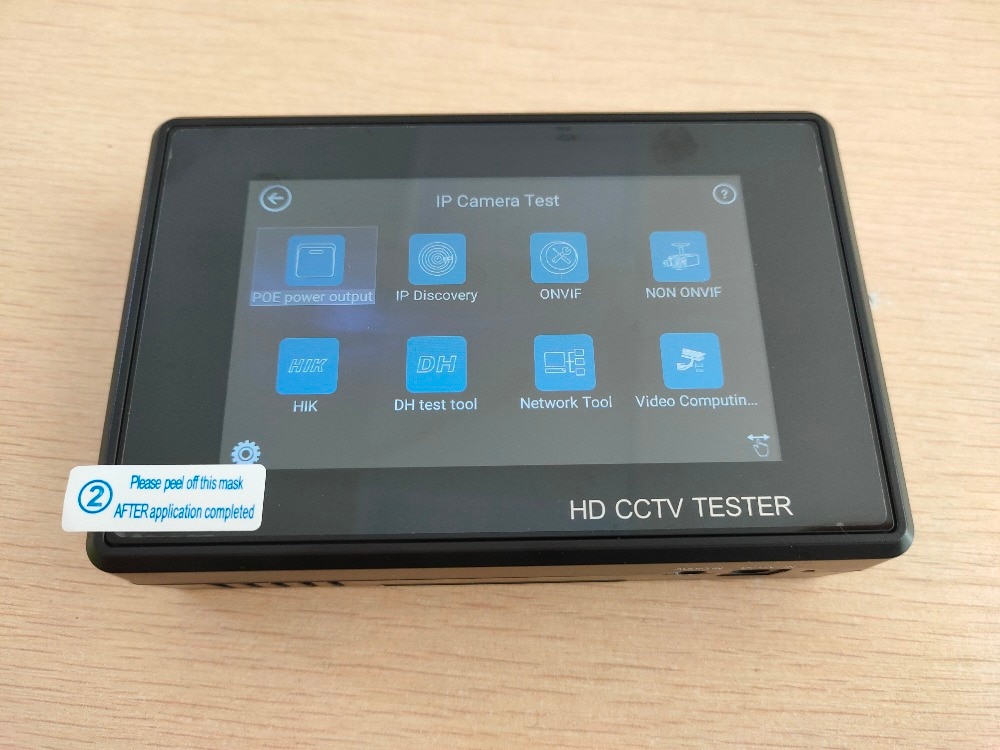

  IP camera test 4K/H.265/H.264 :

  IP Discovery/Quick ONVIF/IPC test /RTSP play /Client APK

  Rapid Video: Auto view the video, create testing report

  Hik test tool: pressing just one key to activate hikvision camera , Image test, can modify the user name, password and IP parameters

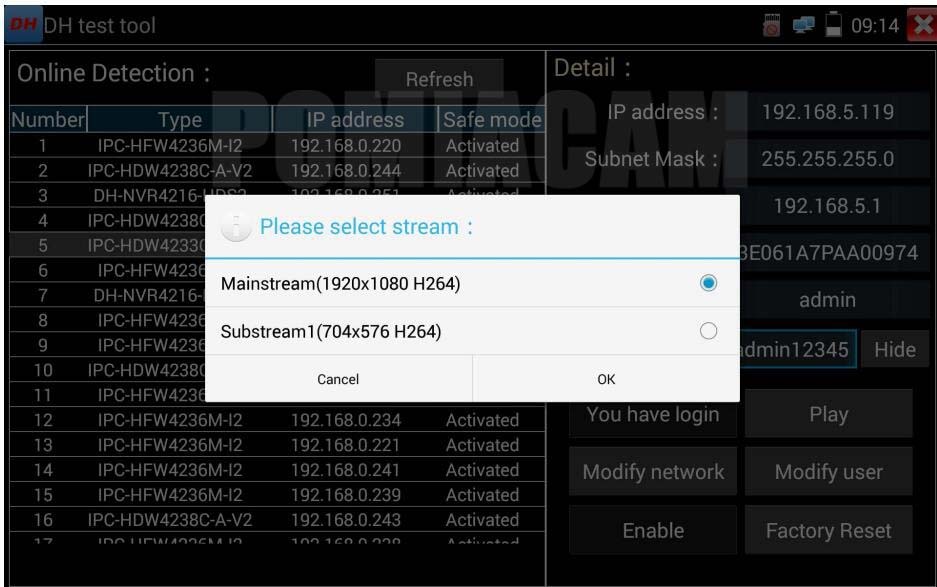

  Dahua test tool : Dahua camera test, modify the username, password and IP parameters

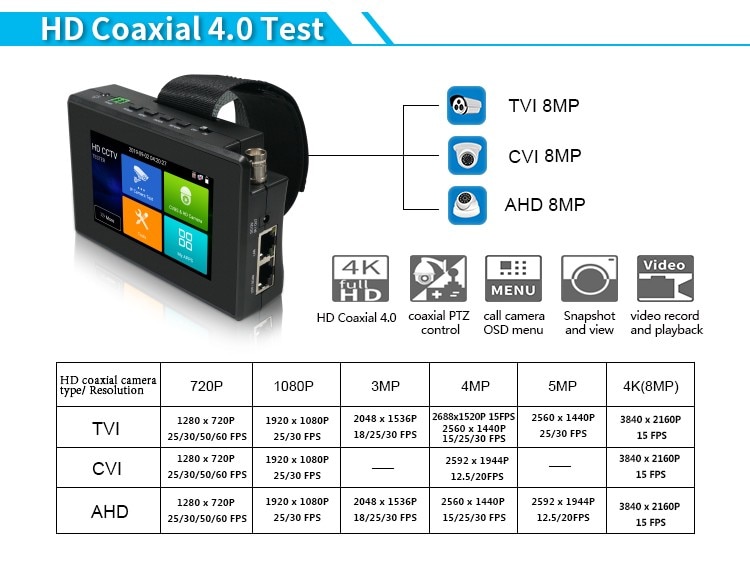

  Coaxial HD test :

8MP TVI camera test, 3840 x 2160P 15 FPS, UTC control/call OSD menu

8MP CVI camera test, 3840 x 2160P 12.5/15 FPS, UTC control/call OSD menu

8MP AHD test, 3840 x 2160P 15 FPS, UTC control/call OSD menu
  Zoom Image
4x zoom, to enlarge image, Screen snapshot, record, save, view and record and play back

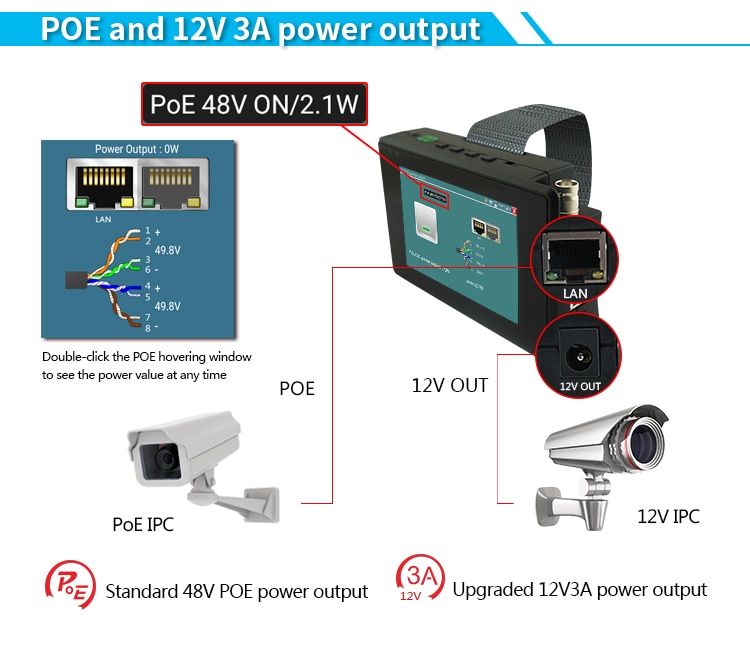

  12V/3A power :Output DC12V/3A power out, supply temporarily power for the camera

  PoE power output : 48V PoE power output, max power 25.5W

Network test: Link monitor,port flashing, Ping test

Audio test : 1 channel audio signal input, test whether sound normal, 1 channel audio signal, to connect headphone

Data monitor: Captures and analyzes the command data from controlling device, also can send hexadecimal

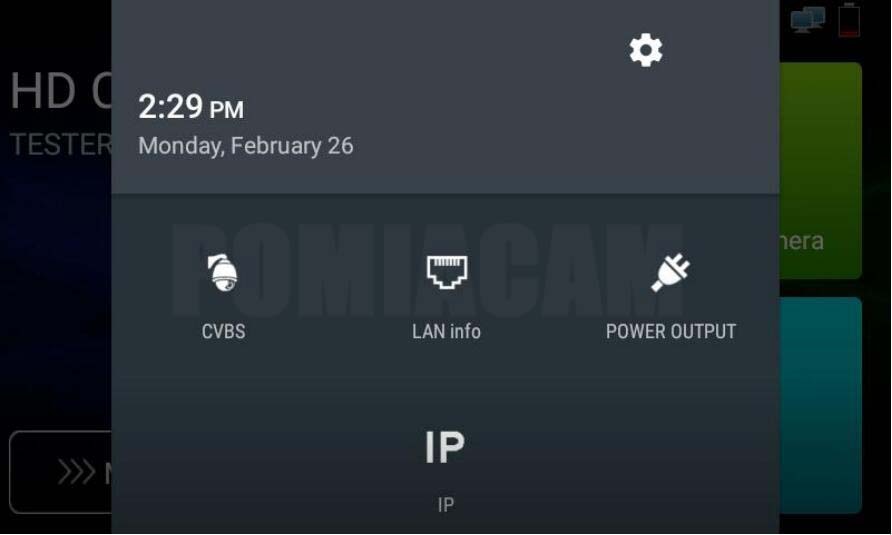

  Drop-down menu : You can select PoE power switch, IP setting, CVBS, LAN info, etc in any interface

External power supply: DC 12V 1A

Battery: Built-in 7.4V Lithium polymer battery , 2400mAh

Rechargeable: After charging 4~5 hours, normal working time 7 hours

Operation setting: OSD menu, select your desired language: English, Chinese, Korean, Russian, Italian, French, Polish, Spanish, Japanese etc

Auto off : 1-30 (mins)

Working Temperature: -10℃---+50℃

Working Humidity : 30%-90%

Dimension/Weight: 126mm x 83mm x 33mm / 0.32kg



Application:

● CCTV system installation and maintenance

● Network cabling project installation and maintenance

● Dome camera, 4K H.265 IP camera testing

● Video transmission channel testing

● PTZ controller





  • Plug Type: EU plug
  • Sensor Type: cctv monitor
  • Model Number: 1800ADHS plus
  • Maximum IR Distance(m): cctv monitor
  • Sensor Size: cctv monitor
  • Lens: cctv monitor
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
  • 1: 8MP TVI/8MP CVI/8MP AHD/4K H.265 IP /CVBS
  • 2: H.265/H.264, 4K video display via mainstream
  • 3: Dahua, Hikvision, Axis etc ONVIF camera test
  • 4: Rapid ONVIF, auto view video and create testing report
  • 5: AXIS, Hikvision camera test, enter ONVIF app, input username and passw
  • 6: 8MP TVI/8MP CVI/8MP AHD
  • 7: CVBS camera test and PTZ control
  • 8: IPC TEST (Non-ONVIF test), HIK test tool (Hikvision camera), DH test
  • 9: IP discovery, just by one key to detect all network cameras IP address
  • 10: Rapid video, just by one key to detect all network cameras and auto d
  • 11: DC 12V 3A power output
  • 12: PoE DC48V power output, Max power 25.5W
  • 13: Innovative coaxial HD focus, video signal quality test
  • 15: Built in WiFi, display image from the wireless camera, create WIFI hot
  • 16: cctv monitor
