ID: 96502

Worldwide shipping Fast delivery CCTV tester monitor for 8MP AHD TVI CVI Ip camera poe DC12V HDMI VGA input

0.0 (1 votes) | 2 orders
Price: US $683.30 - 711.60 / piece
Discount Price:
US $ 466.34 - 485.67 / piece
-32%
Ships From
Color
Quantity



CCTV tester monitor

 Full 8MP IP CVI TVI AHD Analog 6 IN 1 VGA & 4K HDMI input IP Camera Tester

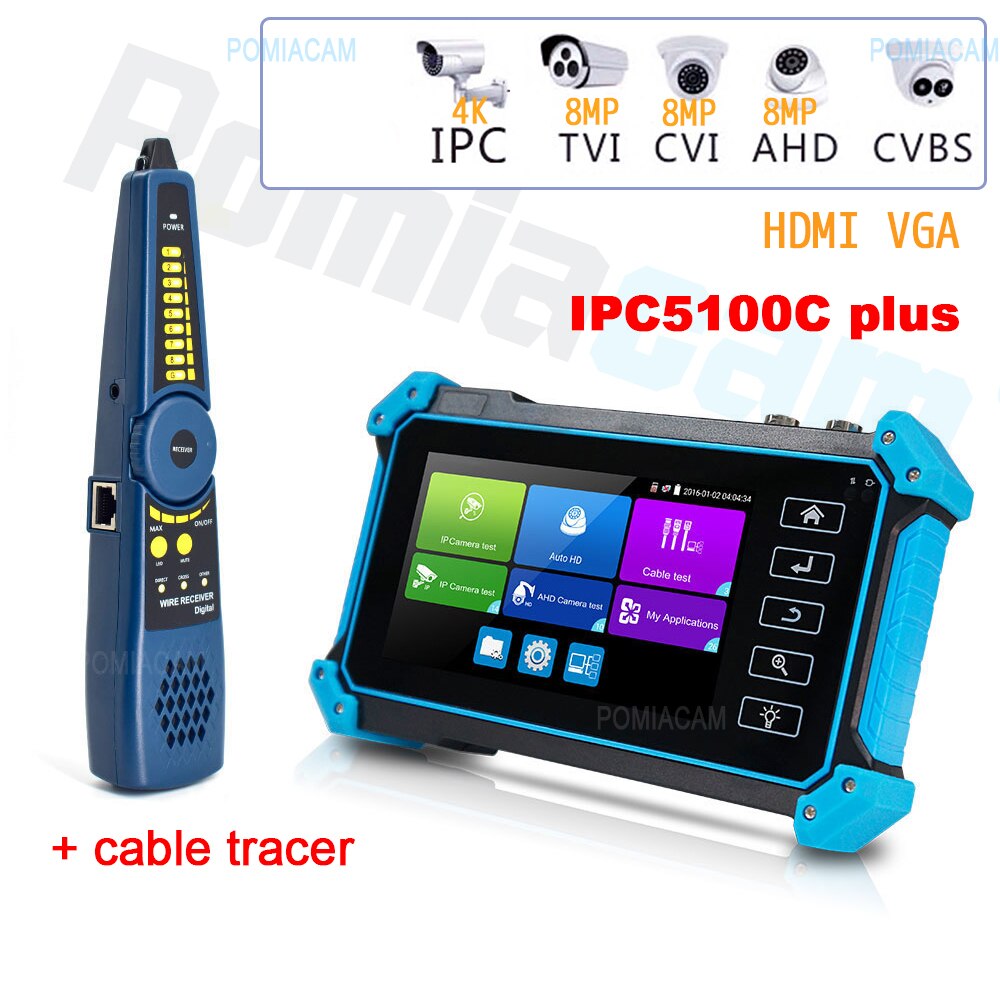

IPC5100C plus : 8MP AHD TVI CVI CVBS + VGA inout +HDMI input +cable tracker

IPC5200C plus : 8MP AHD TVI CVI CVBS SDI +VGA input +HDMI input + cable tracker

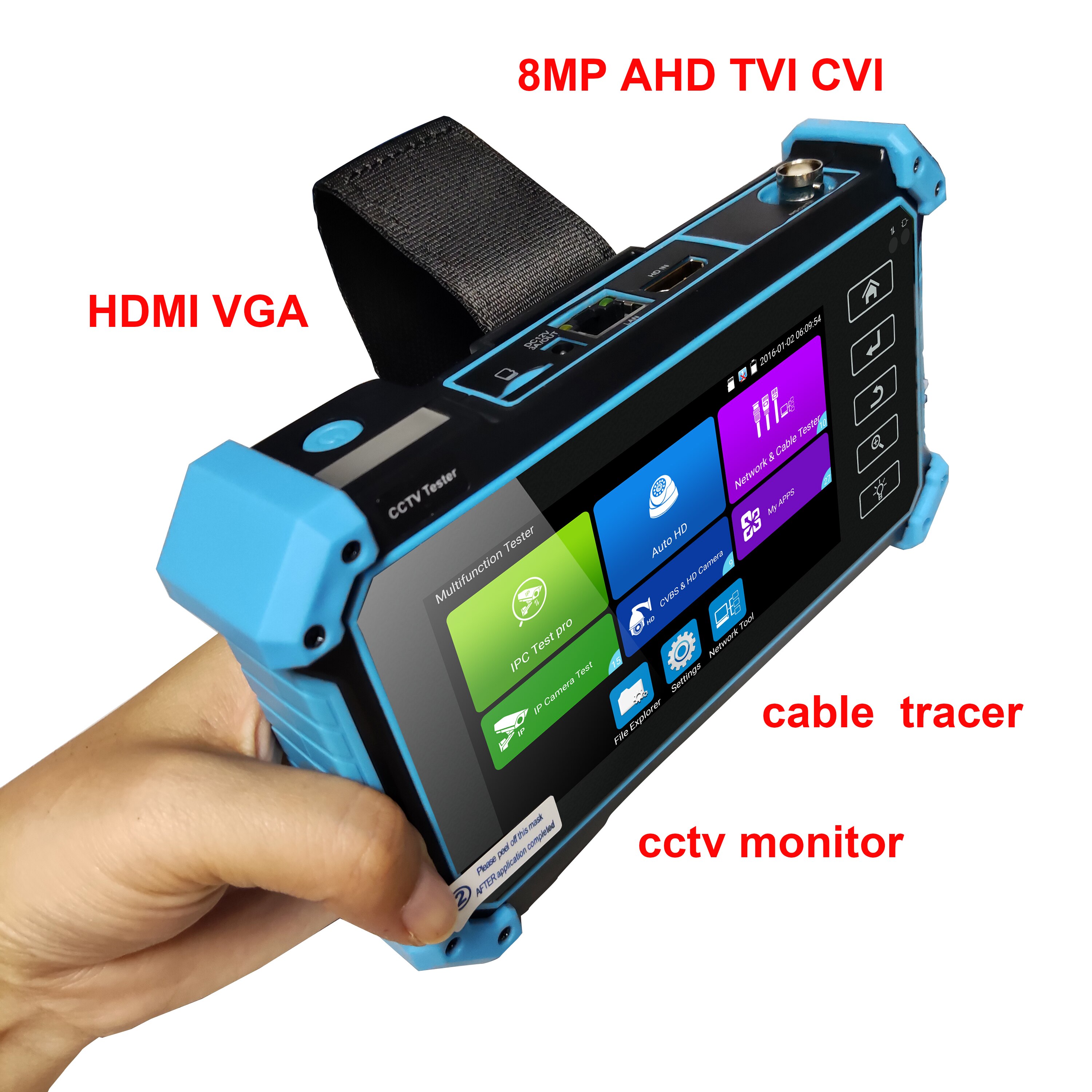

Newest 5 inch All in one VGA & 4K HDMI input IP Camera Tester

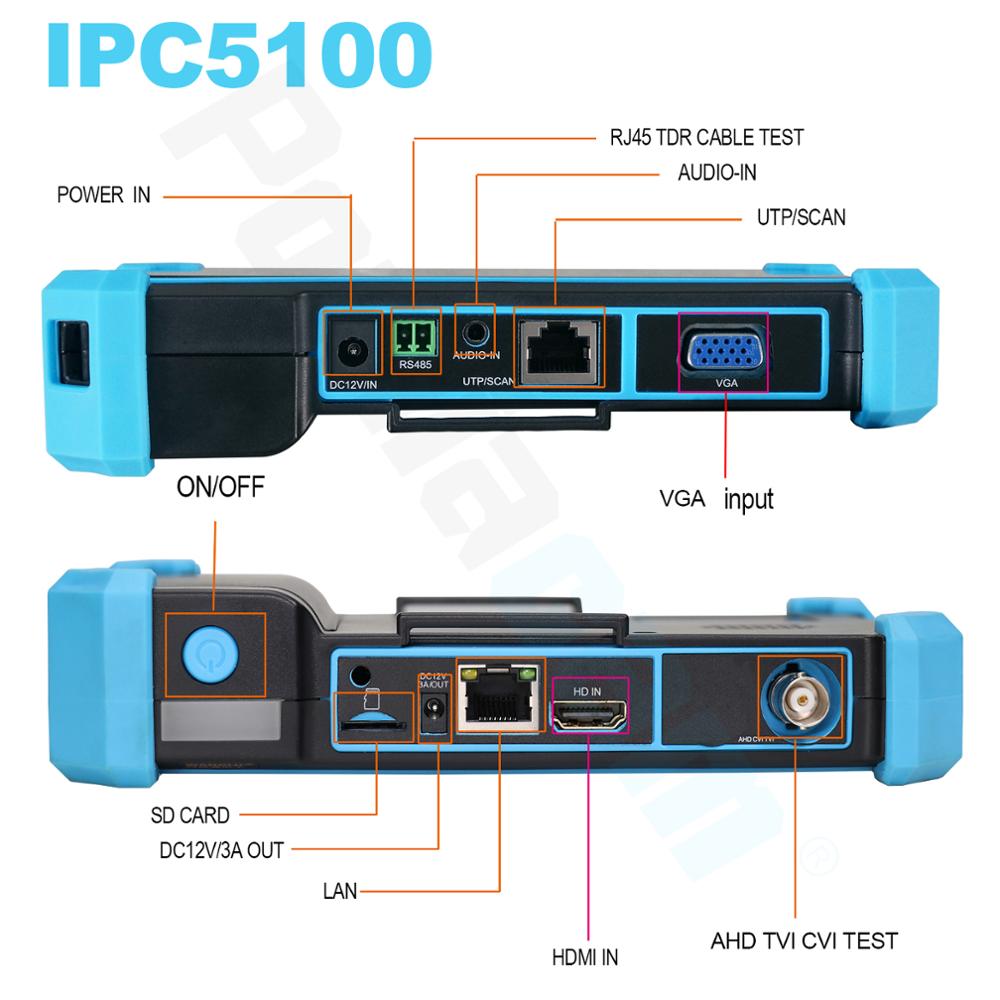

Model: IPC-5100 Plus

● 5 inch IPS touch screen, 1920x1080 resolution

● 8MP CVI/ TVI/ AHD camera test

● H.265/H.264, 4K video display via mainstream

● VGA input, support 1920 x 1200 60FPS

● HDMI input, support 4K 30FPS

● DC12V 3A, 48V PoE power output

● Auto HD, auto recognize HD coax camera type and resolution

● RJ45 TDR cable test, cable shorts ,opens and length ,max 180M.

● UTP cable test, detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

Camera test:

● 5 inch IPS touch screen, 1920*1080 resolution

● H.265 & H .264 IP, 4K video display via mainstream

● Analog camera test, PTZ controller

● 8MP TVI test, 3840 x 2160P 12.5/15 FPS, 4xzoom, video record & playback, coaxial PTZ control & call OSD menu

● 8MP AHD test, 3840 x 2160P 15 FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● 8MP CVI test, 3840 x 2160P 12.5/15FPS, 4xzoom, video record & playback, coaxial PTZ & call OSD menu

● Auto HD app, auto recognize HD coax camera type and resolution, support snapshot, video record & playback, coaxial PTZ & call OSD menu

● VGA input, up to 2048 x 1152 60FPS, support snapshot, video record & playback

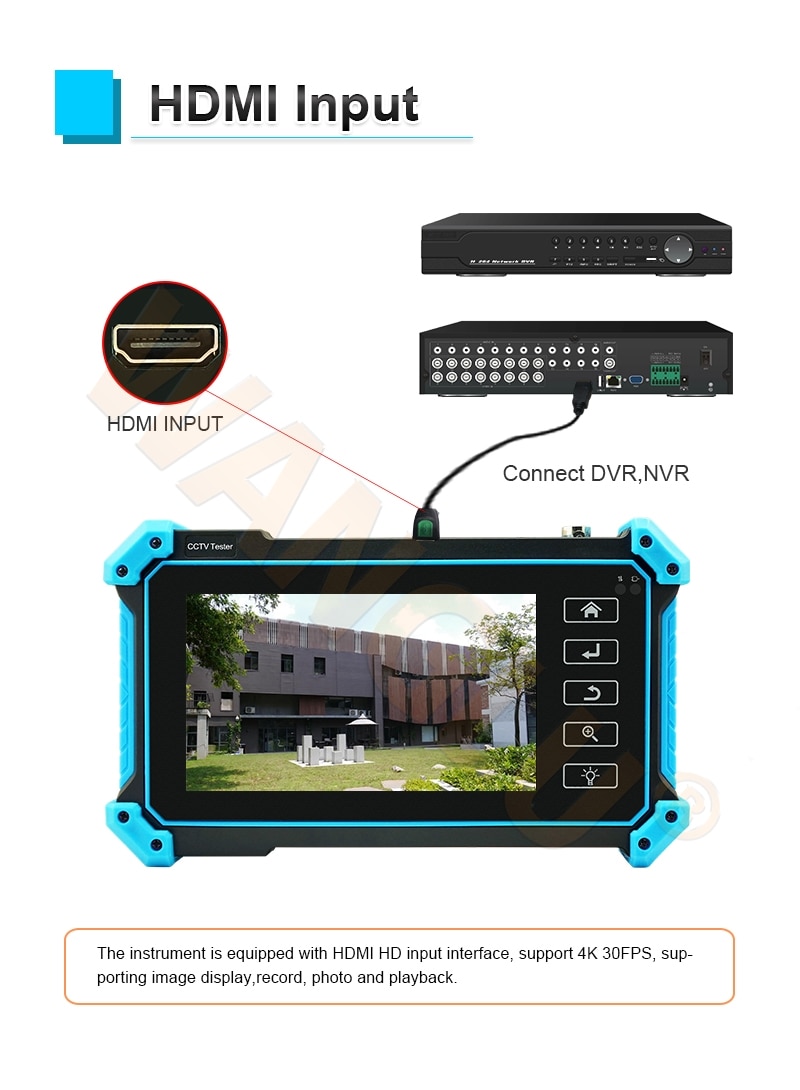

● HDMI Input, up to 4K 30FPS, support snapshot, video record & playback

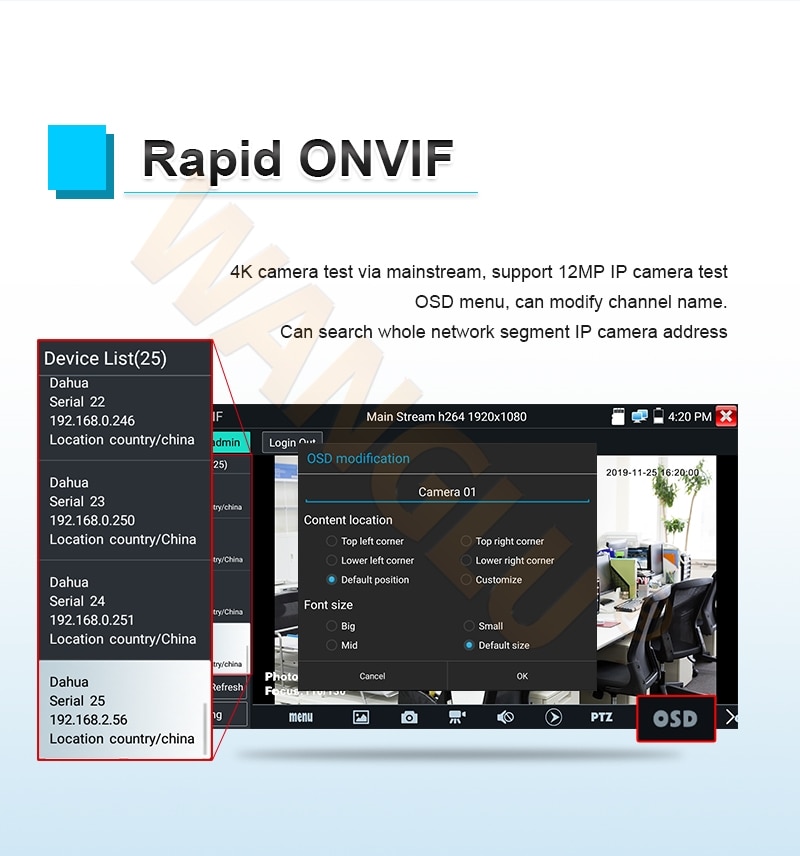

● Rapid ONVIF, Auto log in and display image, create testing report

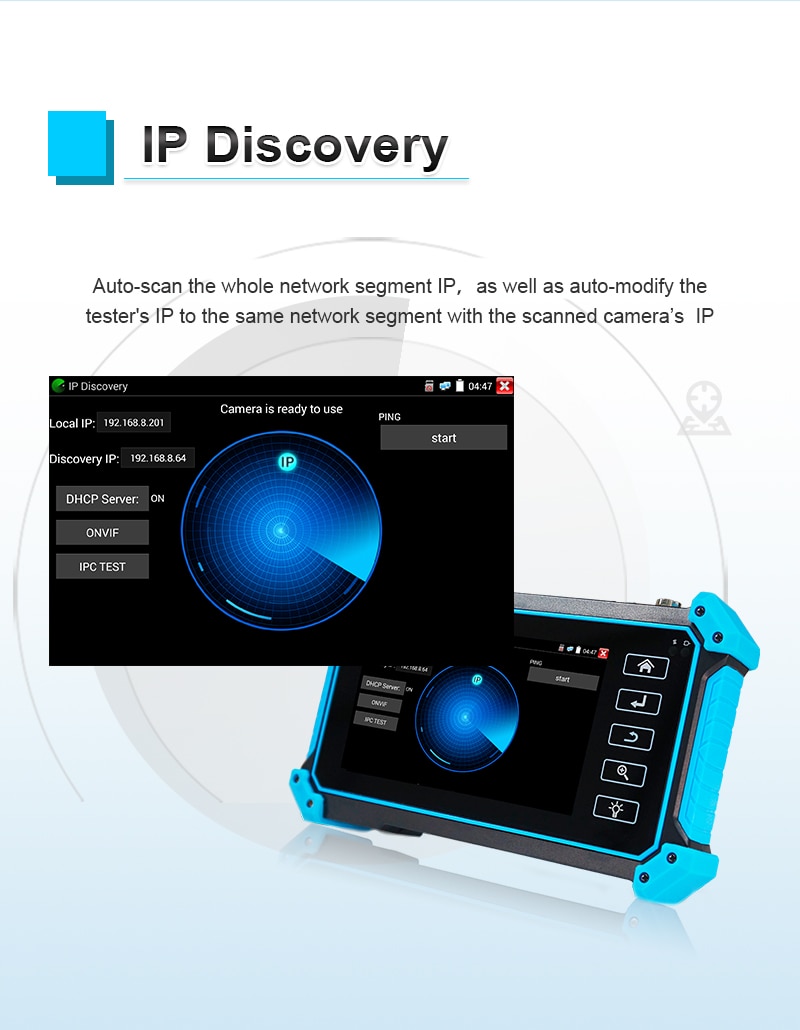

● IPC test pro, auto scan all network segments IP, auto open PoE power and display the power. Input username and password, can scan camera image, can batch activate cameras. Jump to ONVIF interface and test tools

● Camera test, enter ONVIF app, input username and password to test

● IP and analog display image at the same time

● IPC TEST (Non-ONVIF test)

● DC12V/3A power output, camera can be powered from DC 12 Voltage

● Rapid video, just by one key to detect all network cameras and auto display

● Built in Wi-Fi, display image from the wireless camera, create WIFI hotspot

Cable test:

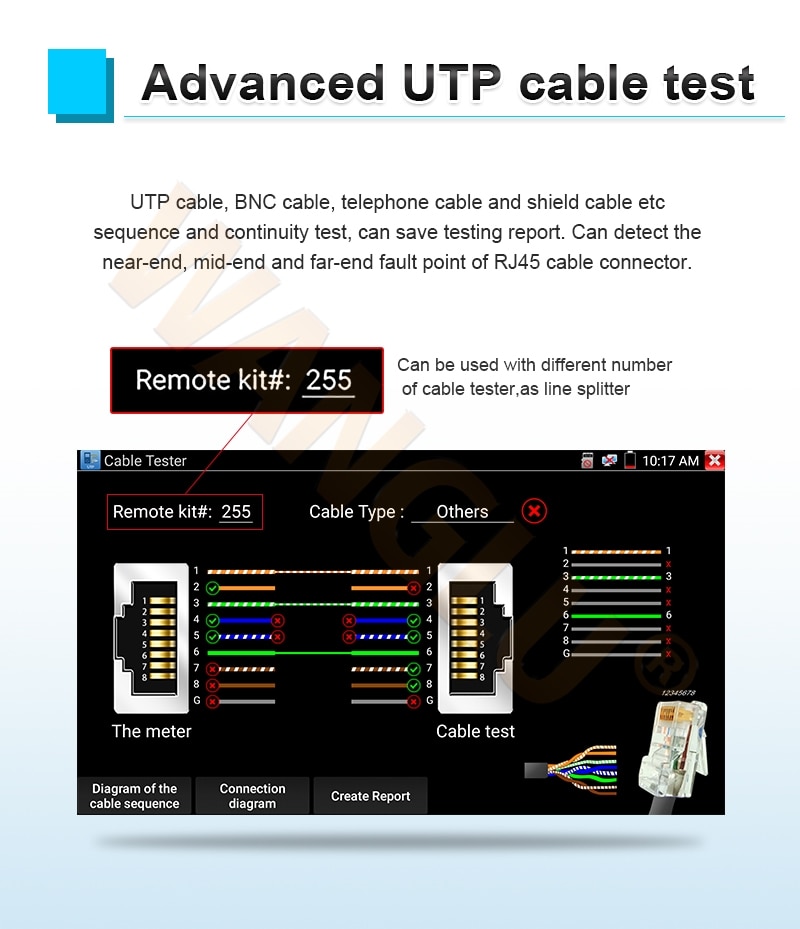

● Improvement cable tester, UTP cable, telephone cable etc order and connectivity test, can save testing report, if special number, need customized. Can detect the near-end, mid-end and far-end fault point of the RJ45 cable plug

● RJ45 TDR cable test, test cable pair status, length, attenuation, reflectivity, impedance, skew etc, can create test report

● Digital Cable tracer, search BNC cable, network cable and telephone cable from the mess cables. Cable search and UTP cable can test at the same time *

Other Functions:

● Network tool: Ping, IP scan, Port Flash, DHCP server, Trace Route

● Tester Play: Tester, android version mobile phone and PC display at the same time

● Traffic monitoring, display network port or WIFI connection real-time upload and download speeds and other network parameters

● Customers self-update software, you can install apps with android version

● Media player, 4K video files and MKV/MP4 media files play

● Display its genuine resolution of the IP camera images

● Audio in, support record and save the audio/LED lamp, calculators, music players and other application tools

● 7.4 V /3350mAh Lithium Ion Battery, after 3-4 hours charging, working time lasts 6 hours   (only for IPC-5100 plus and IPC-5200 Plus)

Item Chart

                Features/ Model

IPC-5000Plus

IPC-5100Plus

IPC-5200Plus

8MP AHD/8MPTVI/8MPCVI

4K IP /Analog

DC12V 3A /48V PoE output

HD-SDI/3G-SDI/EX-SDI 2.0*

X

X

           HDMI output,1080P

X

X

HDMI INPUT 4K 30 FPS*

X

VGA IN*

X

Battery

   2600mAh

3350mAh

3350mAh

                    Working hours

            5 hours

          6 hours

              6 hours

Digital Cable tracer*

Optional

Optional

Optional

Advanced UTP cable test, check fault point of the RJ45 cable plug







  • Plug Type: EU plug
  • Sensor Type: Best IP CCTV Tester monitor
  • Model Number: IPC5100C plus
  • Maximum IR Distance(m): Best IP CCTV Tester monitor
  • Sensor Size: Best IP CCTV Tester monitor
  • Lens: Best IP CCTV Tester monitor
  • Brand Name: POMIACAM
  • Origin: Mainland China
  • Certification: CE
