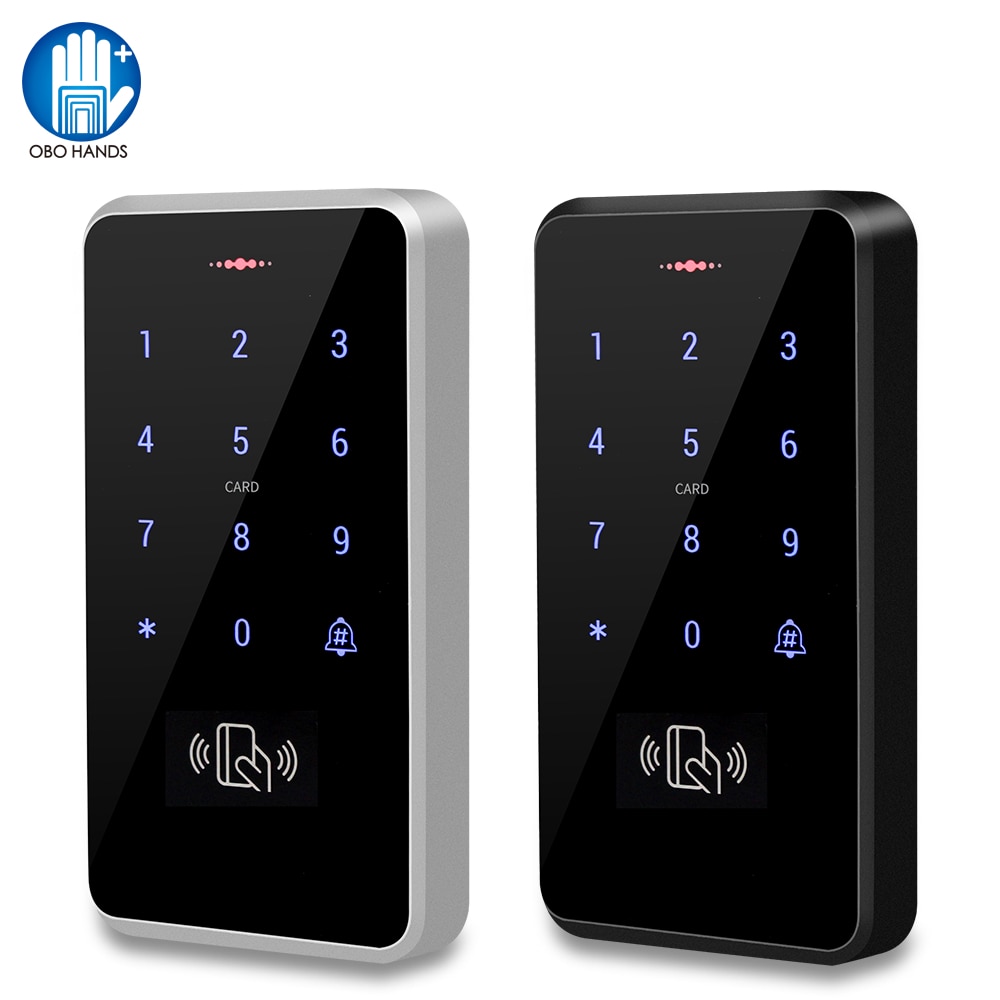

IP68 Waterproof Access Control Keypad Outdoor RFID Access Controller Touch Door Opener System Electronic EM4100 125KHz Key Cards

5.0 (11 votes) | 52 orders
Price: US $11.44 - 37.98 / piece
Discount Price:
US $ 9.95 - 32.28 / piece
-13%
Color
Quantity





IP68 Waterproof RFID Card Door Access Controller With Wiegand 26 / 34 Output

High quality / 3000 user capacity / 3 unlock method


Product Specification:
  • User capacity: 3000

  • Material: ABS high quality material

  • Panel: touch screen panel

  • Working frequency: 125KHz

  • Card reading type: support EM compatible card

  • Card reading distance: 0-10CM

  • Identification method: card, password, card + password

  • Backlight: has blue backlight

  • Waterproof function: IP68 waterproof, can be installed outdoor

  • Doorbell button: support wired doorbell

  • Wiegand signal: WG26/34 input/output

  • Can set management card: yes

  • Working voltage: DC 12V

  • Working current: ≤ 30mA

  • Door opening time: 0-255 seconds

  • Working temperature: -20 ° C ~ 70 ° C

  • Working Humidity: 20% ~ 90%

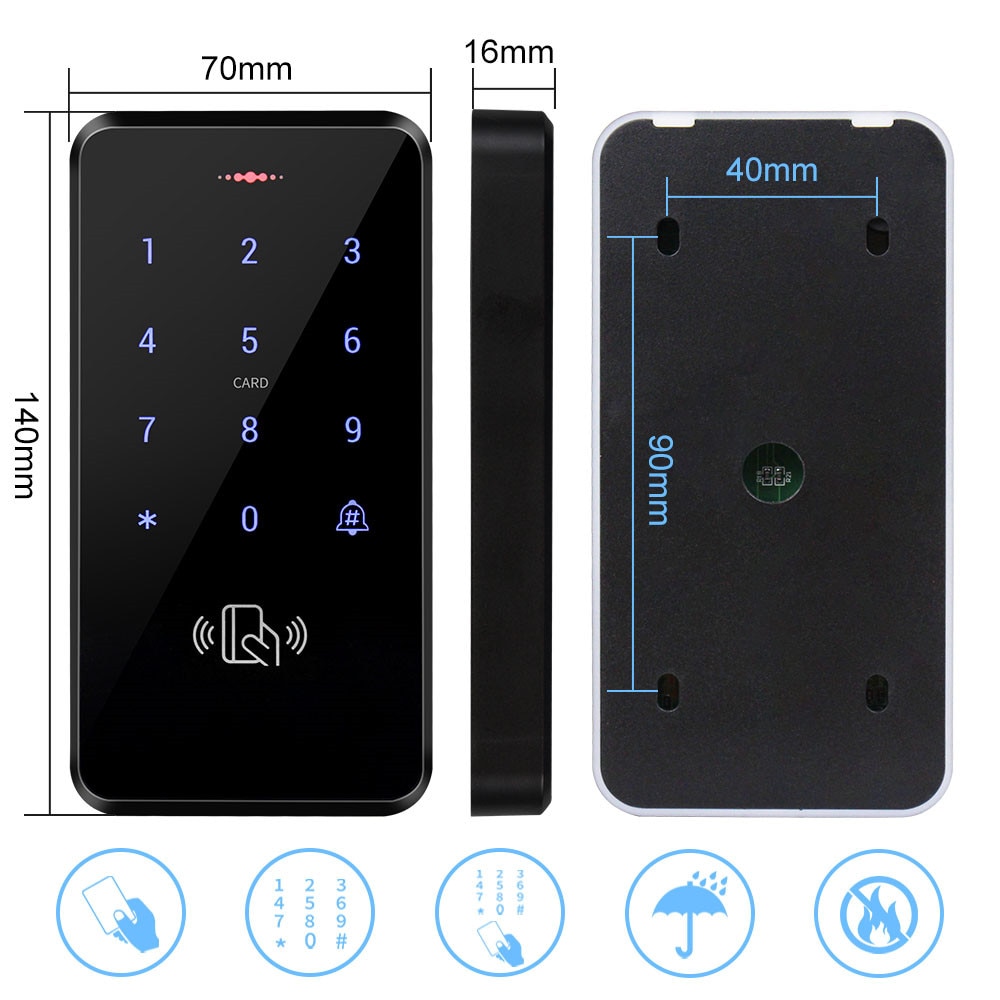

  • Product size: 140*70*16mm


Product Details:

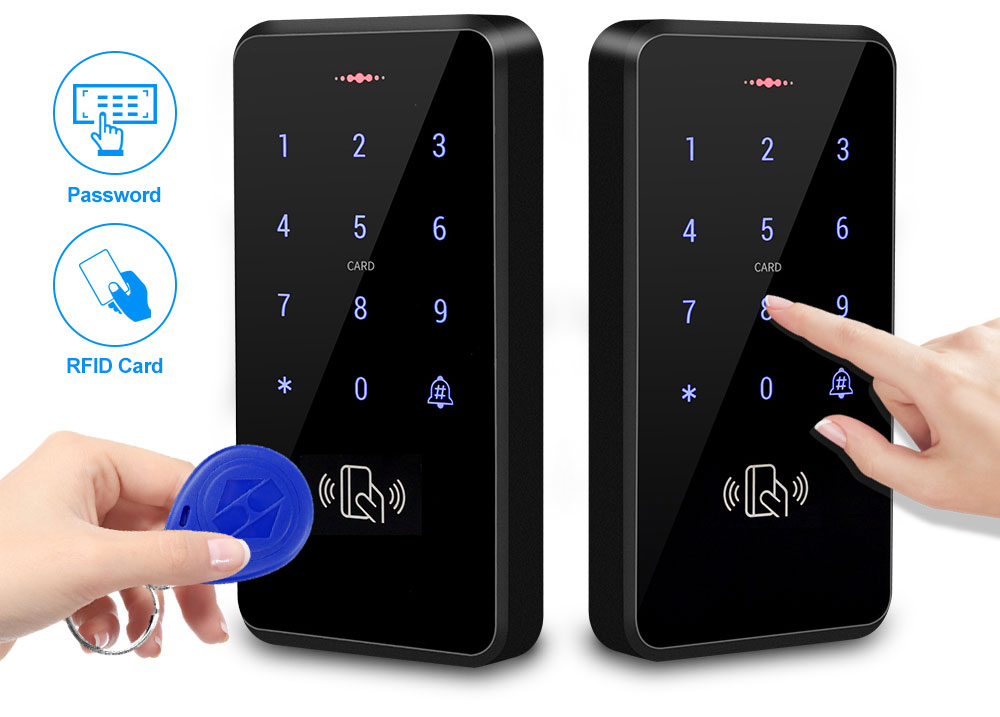

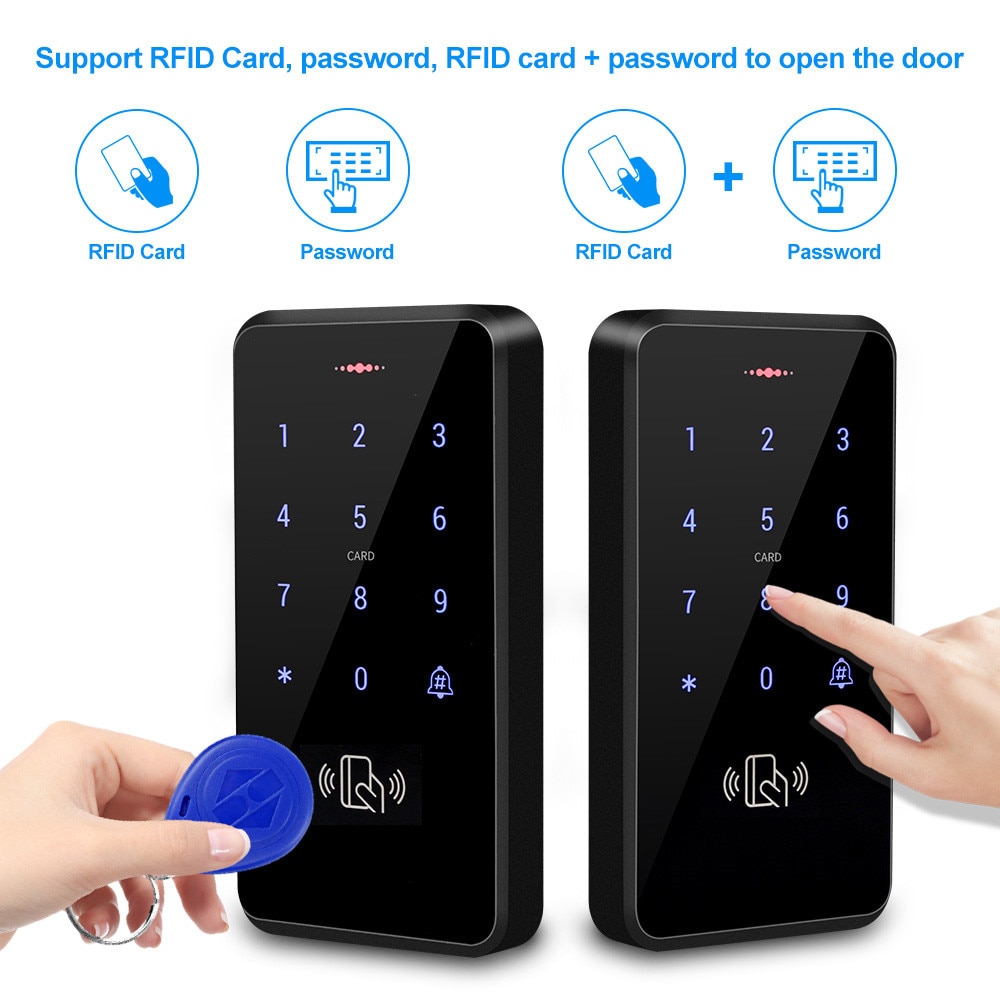

Support RFID Card, password, RFID card + password to open the door

Support 3000 card and password user capacity, can set card + password to open the door, more secure!

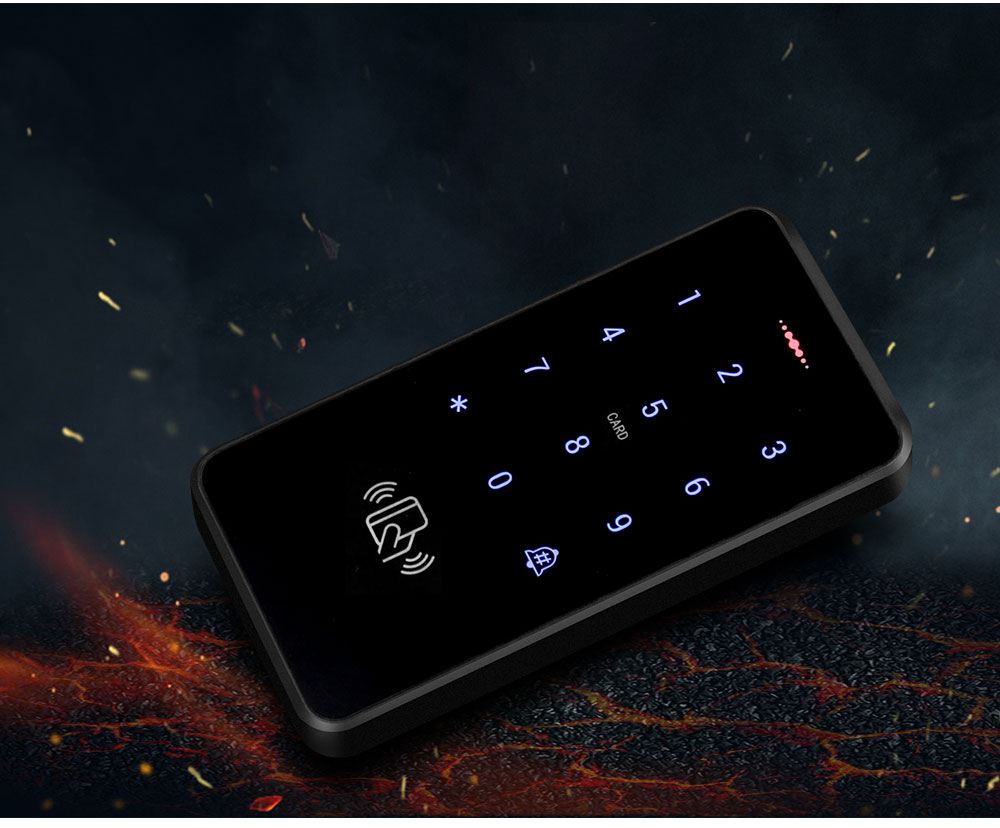

ABS fire retardant material shell

One-piece molding, hard plastic treatment. Fire retardant, impact resistant and wear resistant!

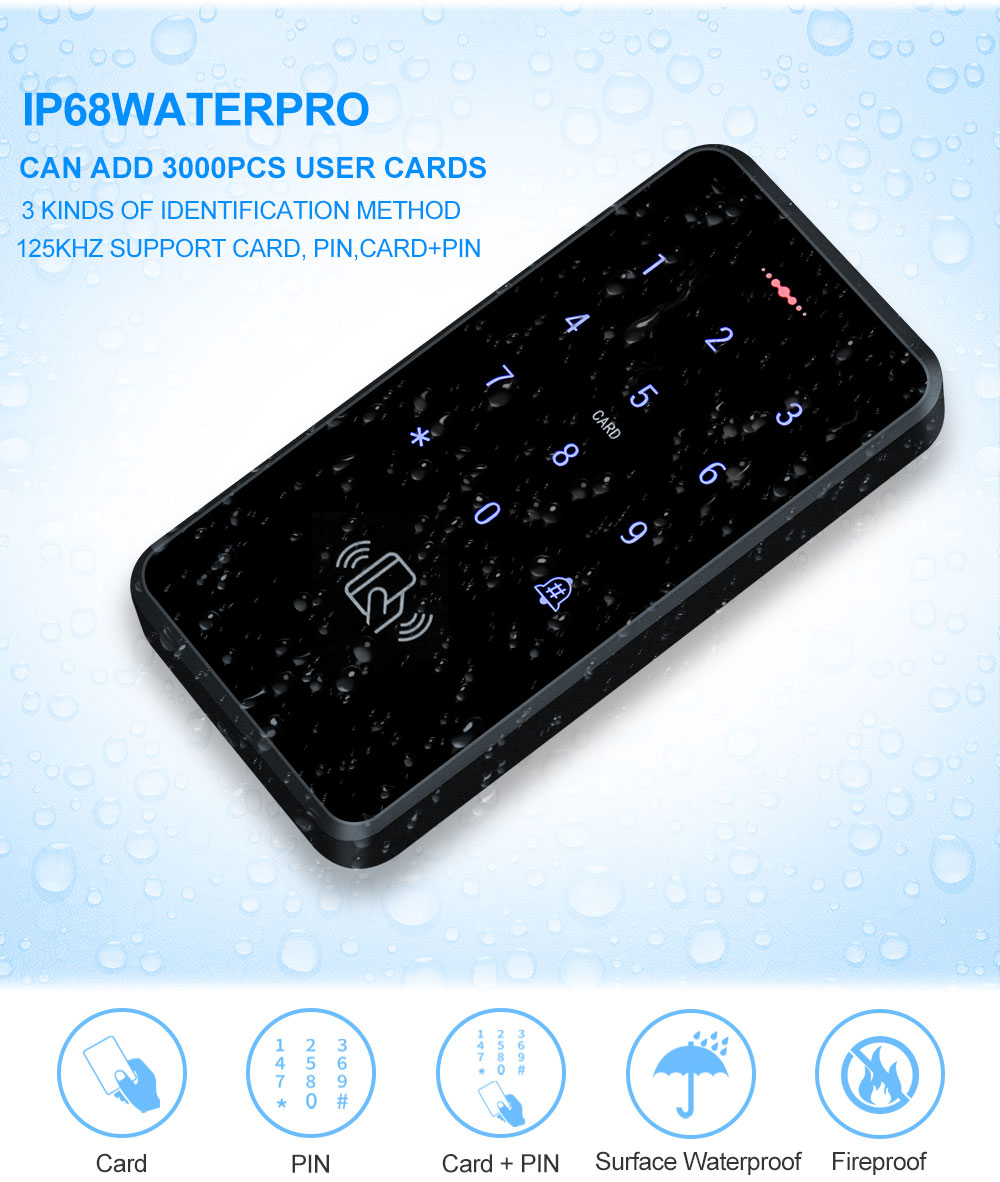

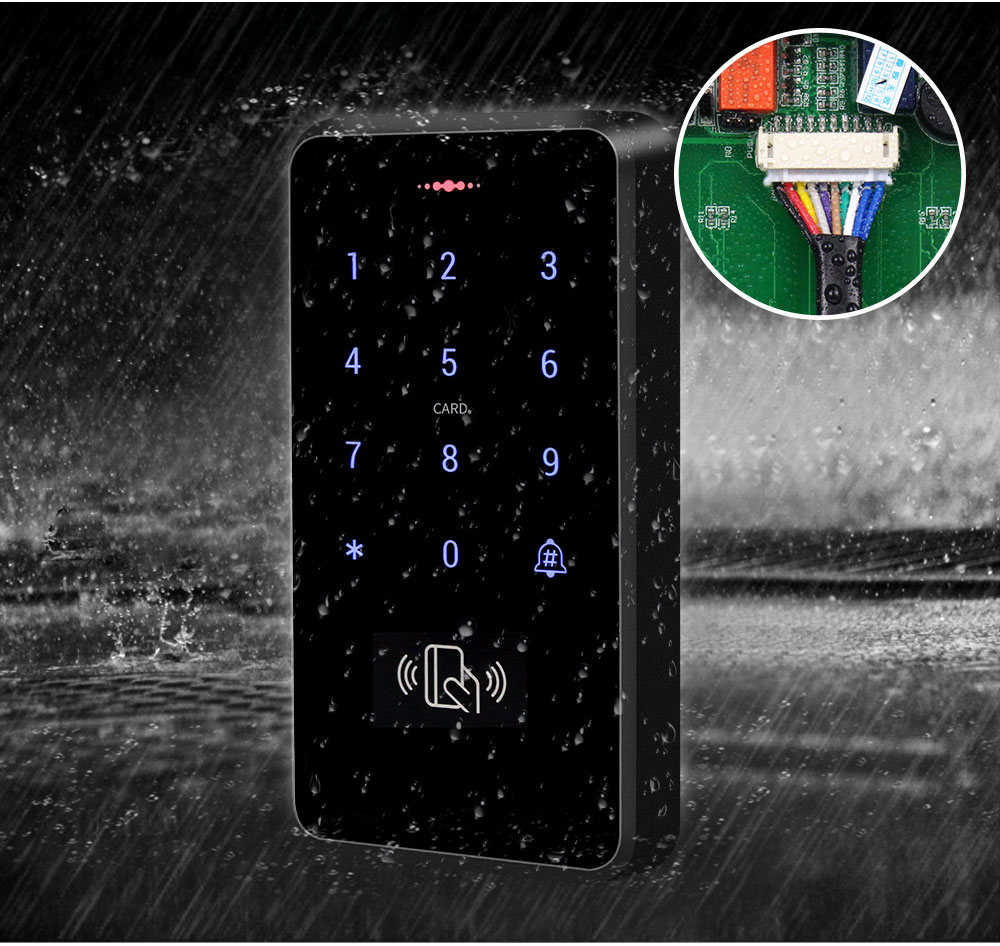

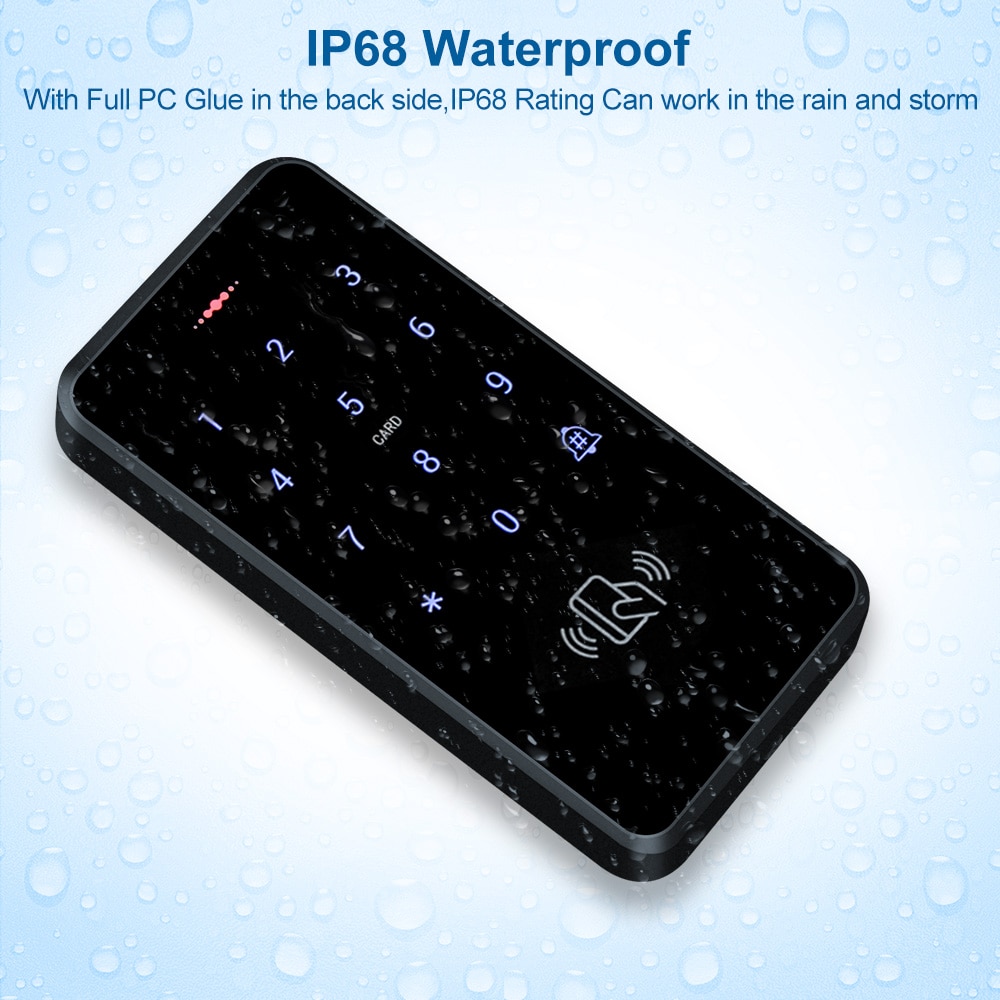

IP68 waterproof, Can be installed outdoor

With Full PC Glue in the back side, IP68 Rating, can work in the rain and storm

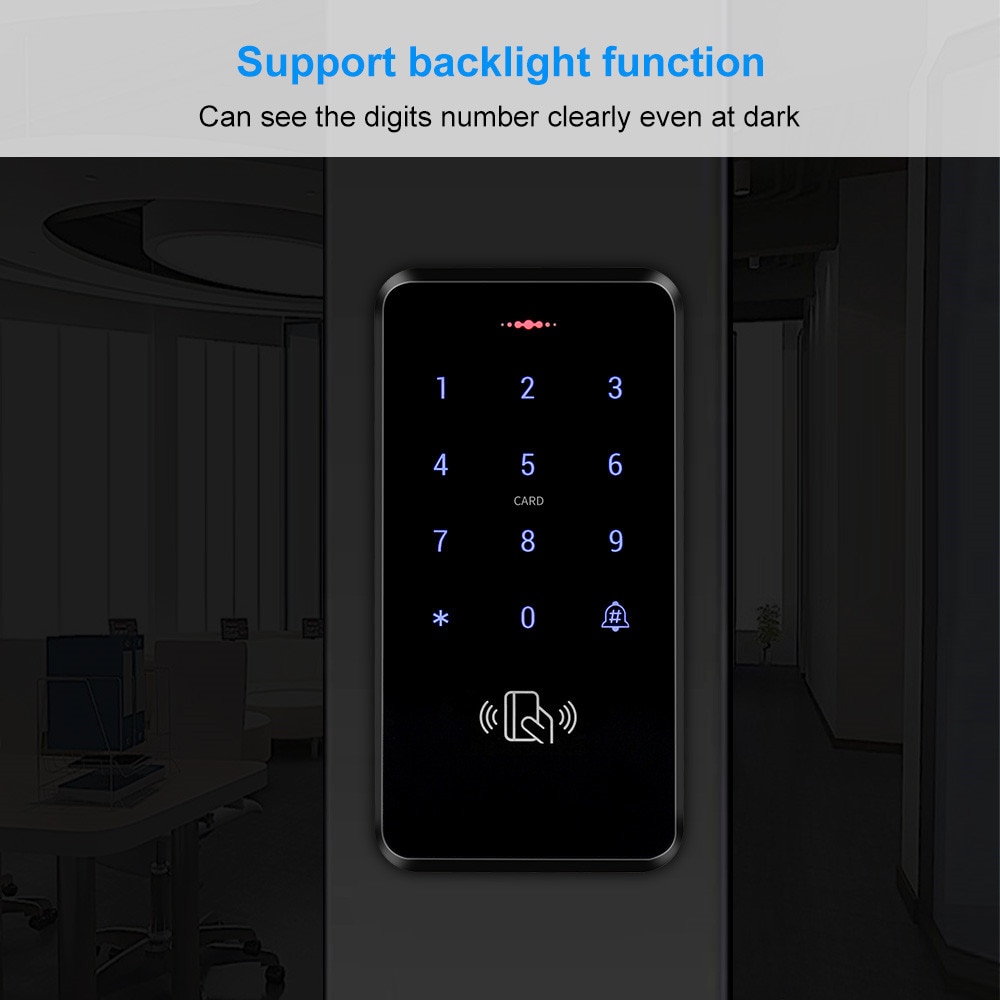

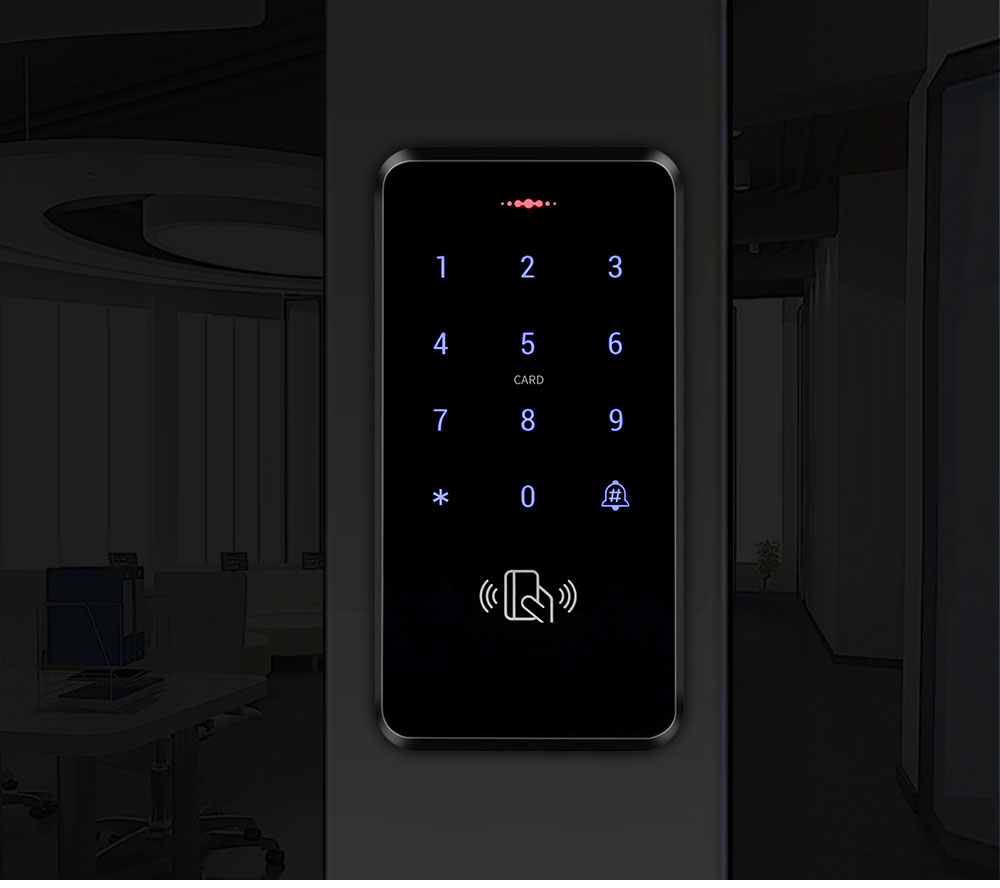

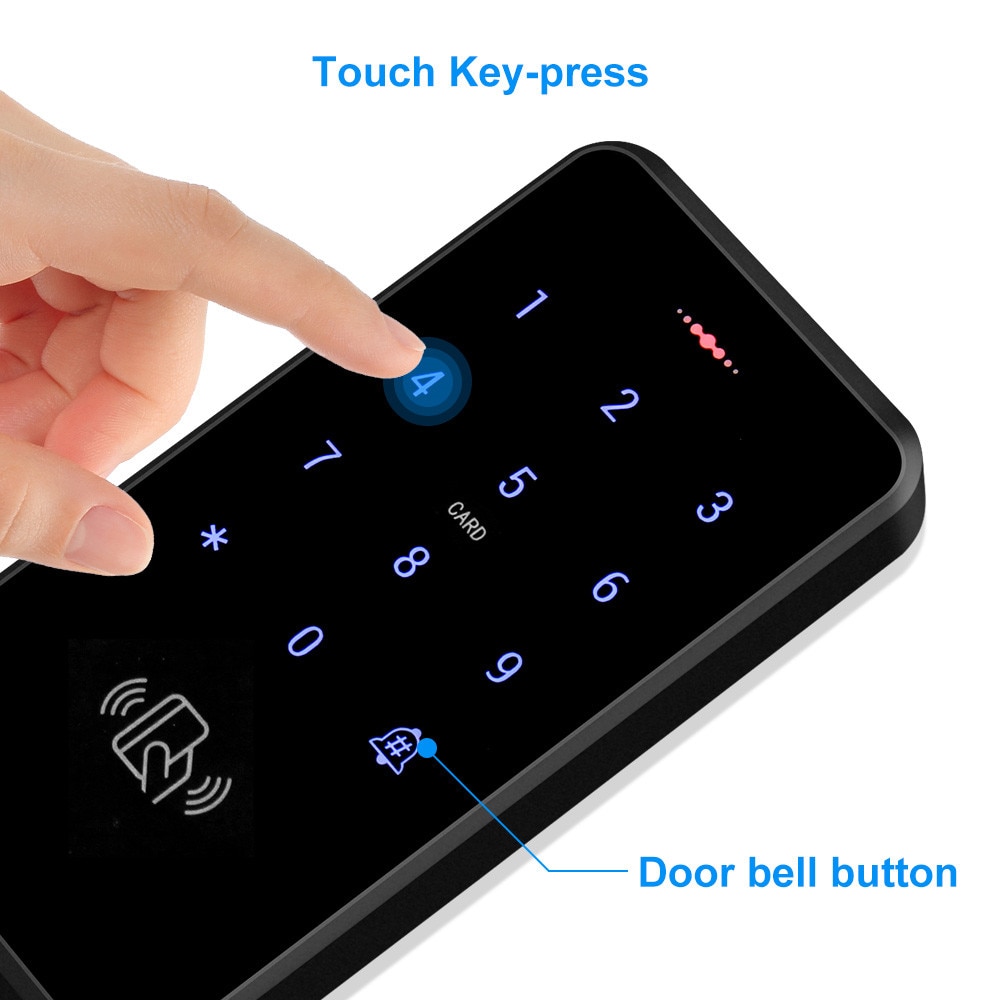

Backlight keypad

The digits number can be seen clearly even at dark

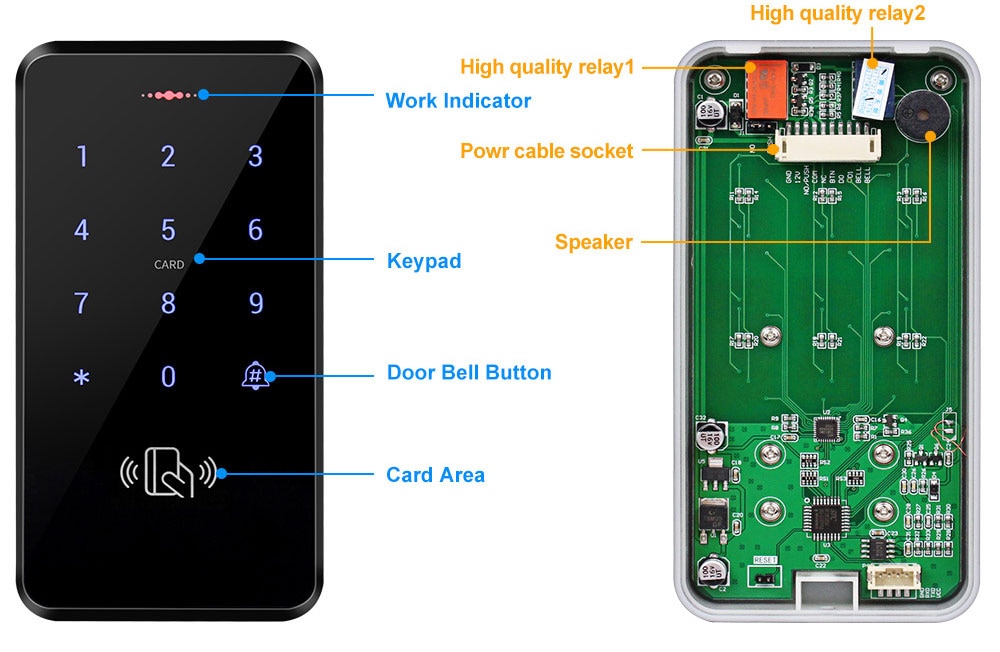

Easy installation and operation

Based on advanced technology, fast recognition speed, high sensitivity. Suitable for most major access control solution.

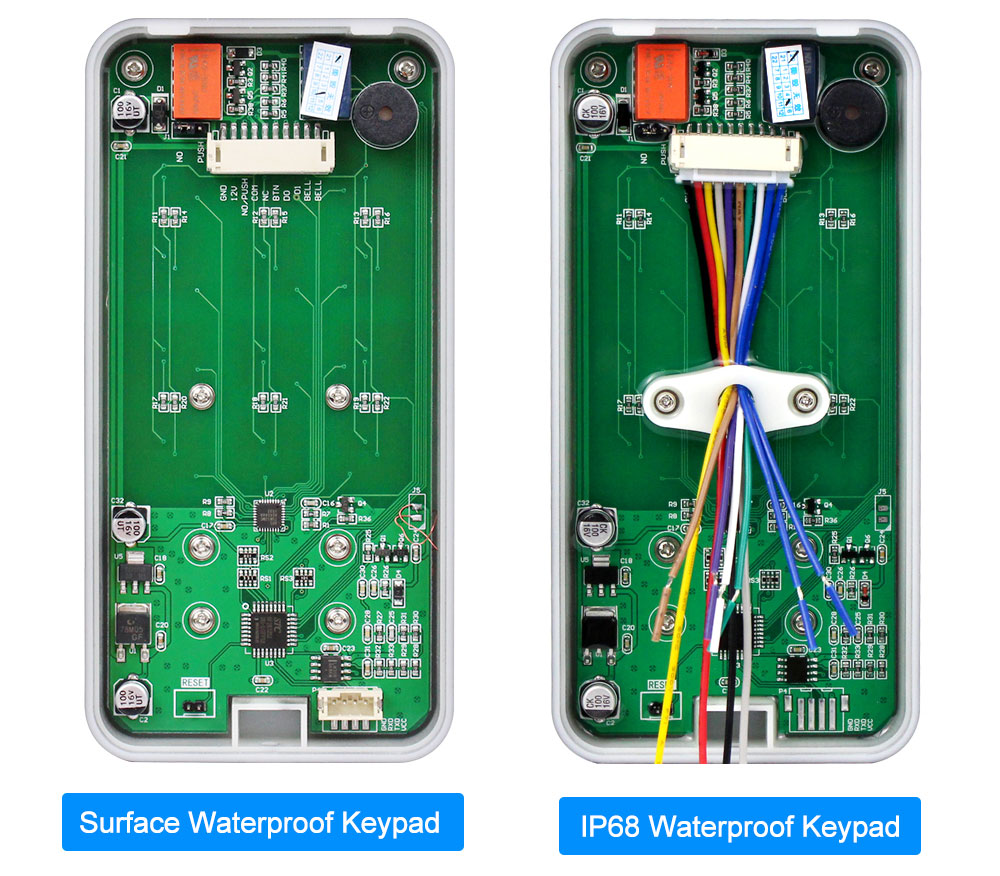

Product Analysis


Very Important!

The Surface waterproof keypad can't be used under the rain directly.

The IP68 waterproof keypad can be installed outdoor, and used under the rain directly.

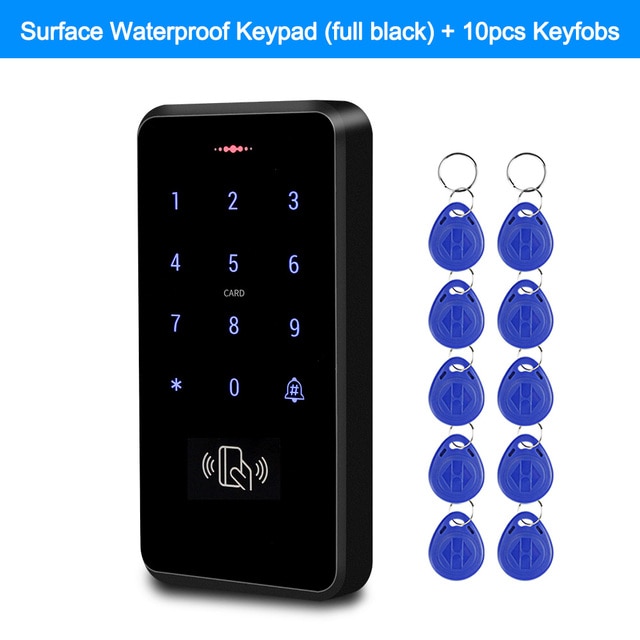

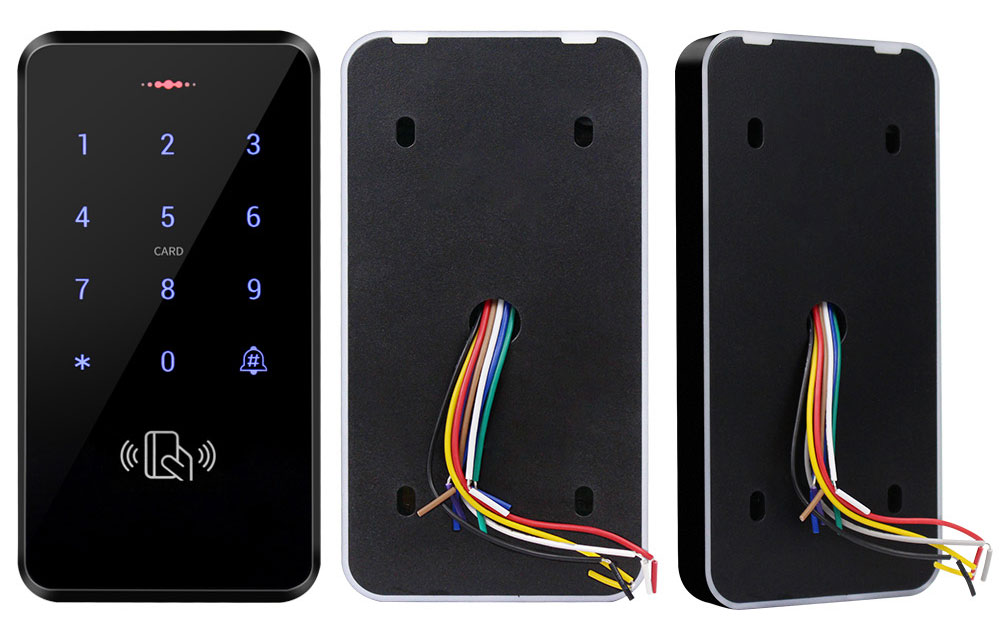

S20 surface waterproof Keypad, with full black color.

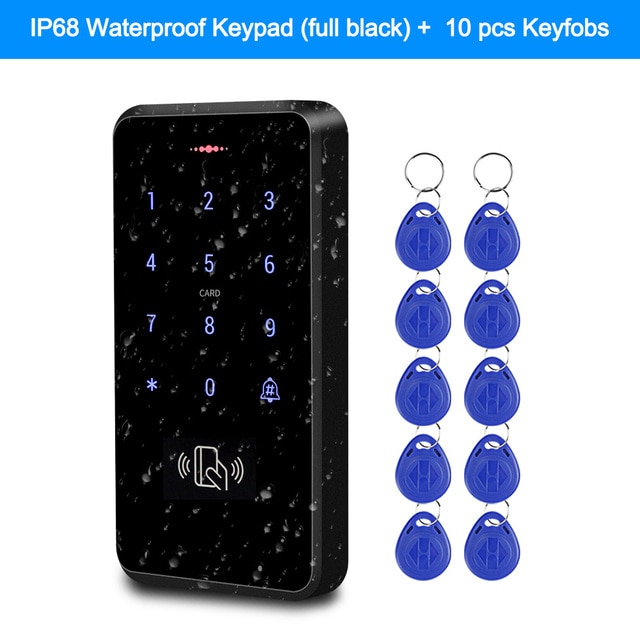

S20 IP68 waterproof Keypad, with full black color. Can be installed outdoor.

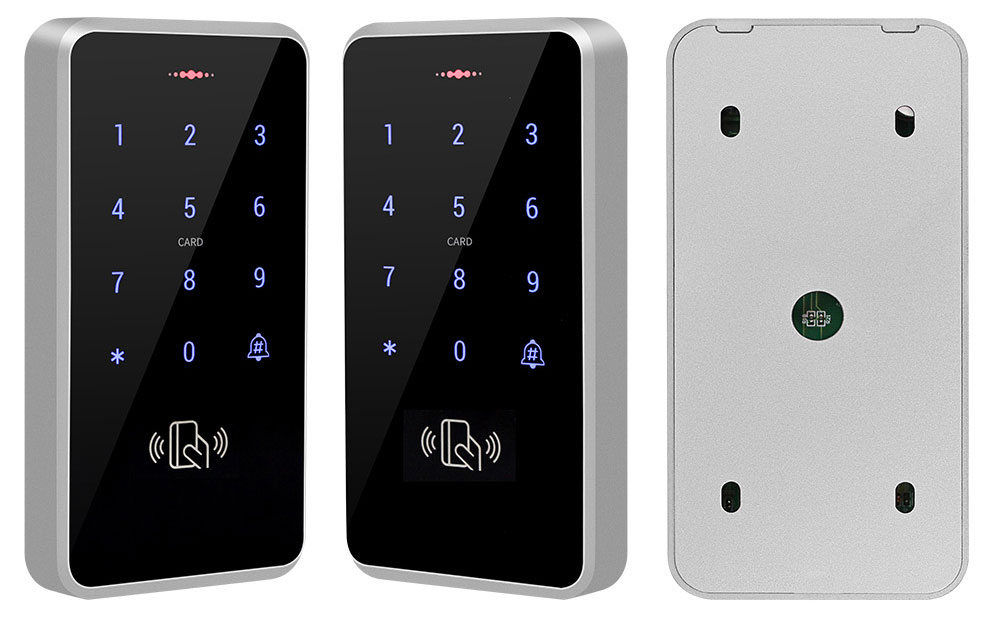

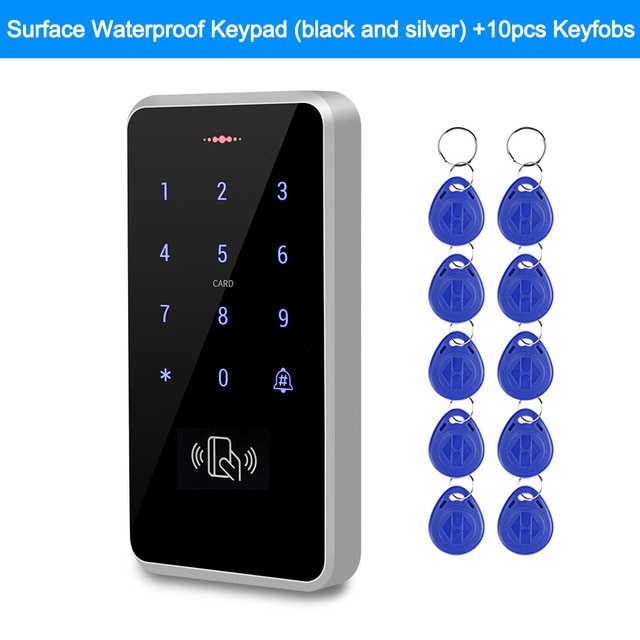

S20 surface waterproof Keypad, with black and silver color.

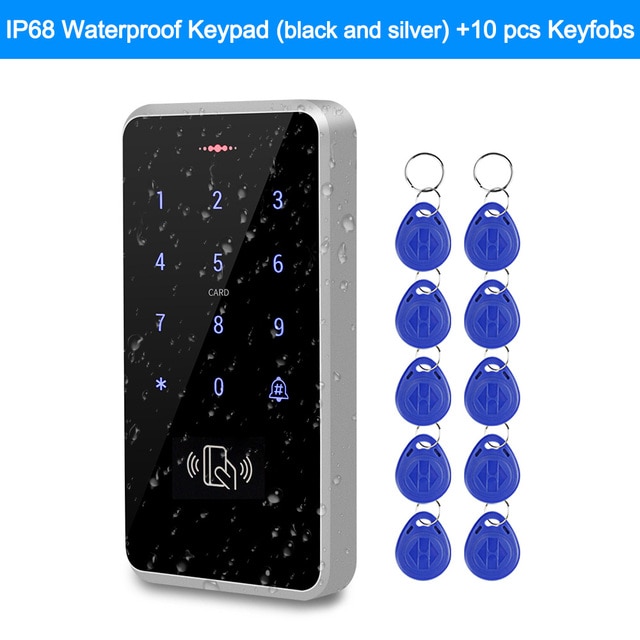

S20 IP68 waterproof Keypad, with black and silver color. Can be installed outdoor.

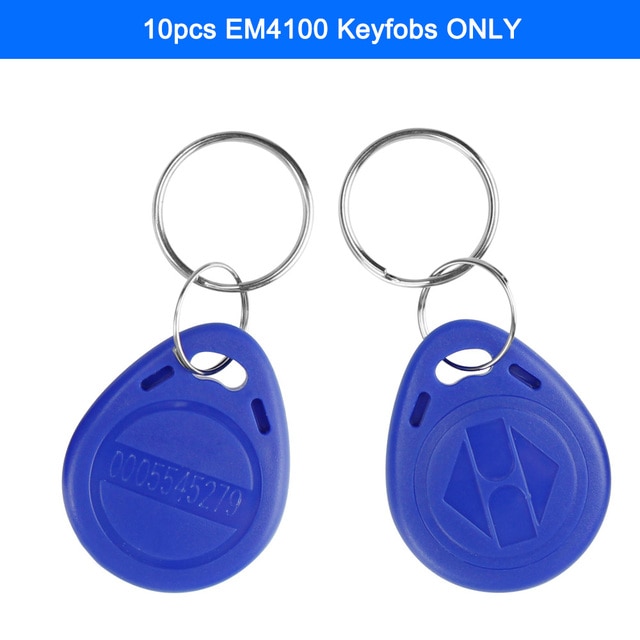

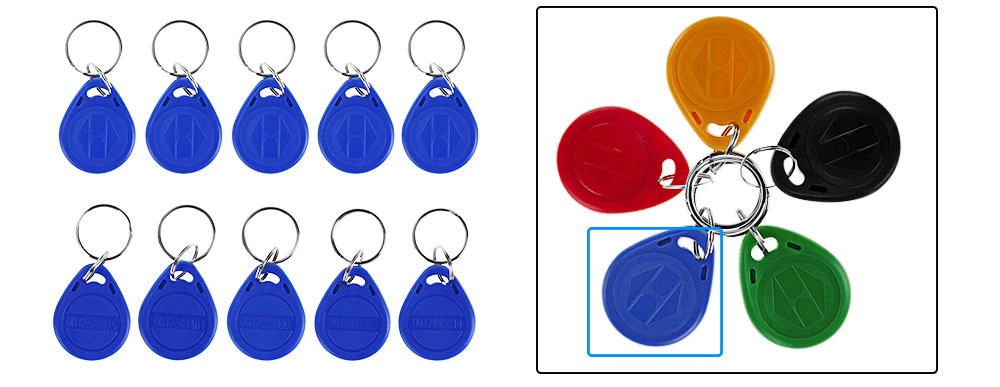

RFID Keyfobs

1. Material: ABS
2. Working Frequency: 125Khz
3. Support: read only, not support write.
4. Reading distance: 0-10cm
5. Each one has a unique ID number printing on it

6. Color: we will send the blue by default, if you want other color, please lease a message to us.

Quantity: 10pcs. If you want more RFID key cards, please contact us. Thank you!

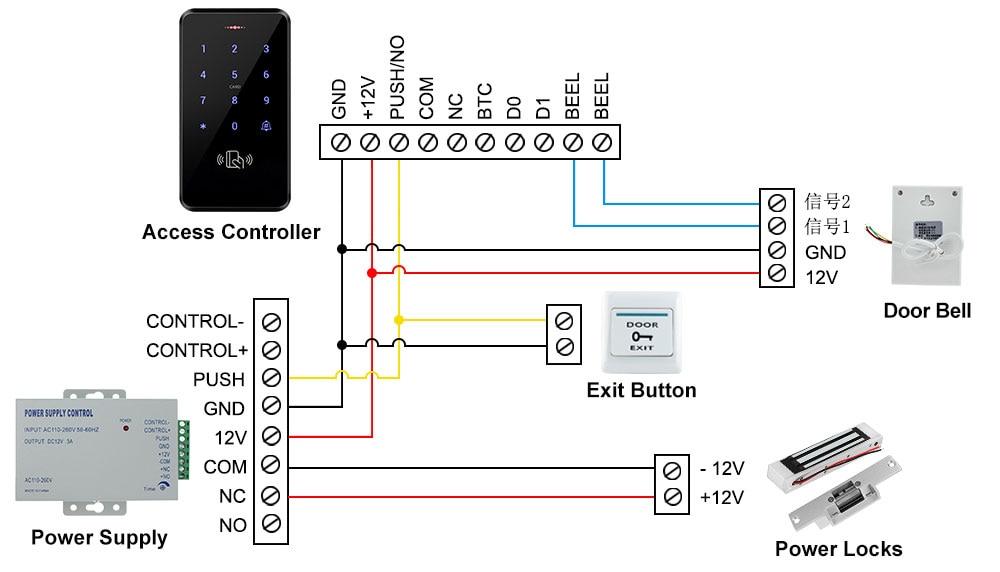

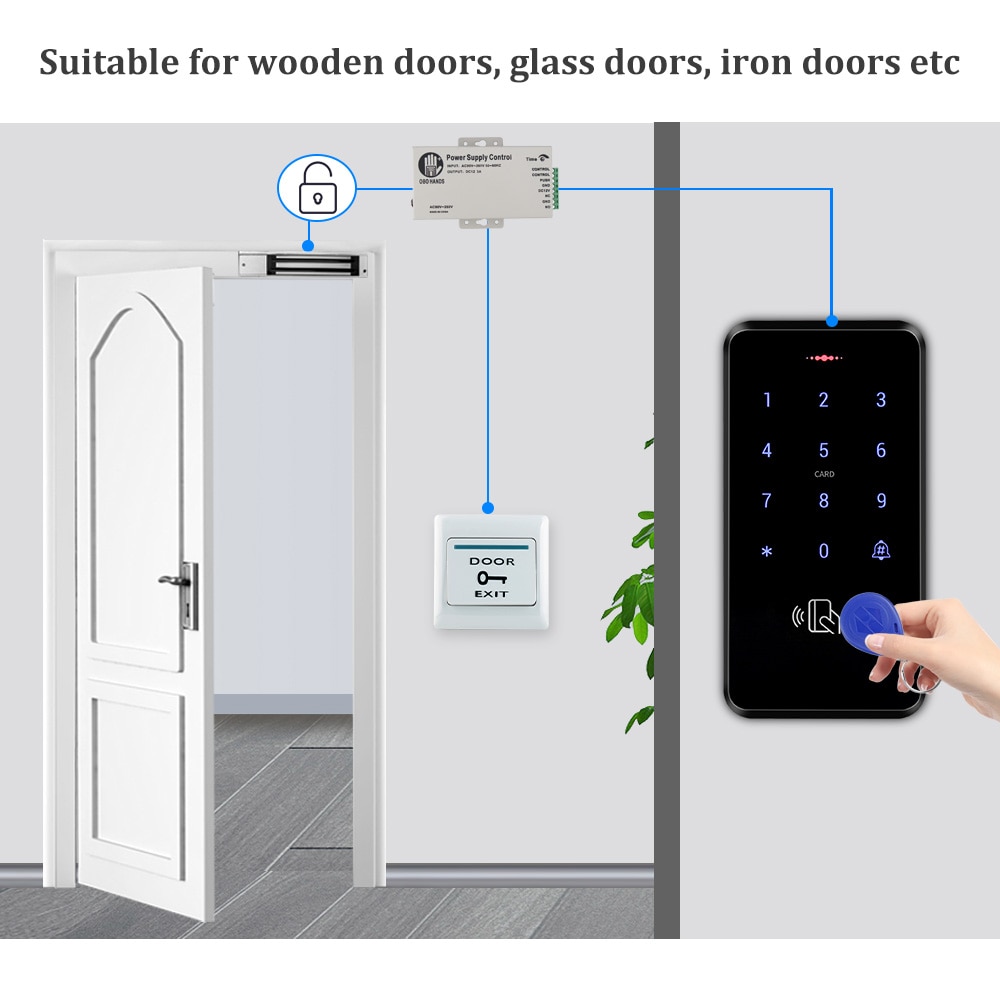

Wiring Diagram:

(Note: Both of the power supply, lock, exit button are Not included in the package, need to buy extra)






  • Model Number: S20+10
  • Brand Name: OBO HANDS
  • Origin: Mainland China
  • Certification: NONE
  • User capacity: 3000 users
  • Working frequency: 125KHz
  • Working voltage: DC 12V
  • Working current: ≤ 30mA
  • Waterproof function: IP68 Waterproof
  • Card type: EM4100 Card
  • Material: High quality ABS
  • Can be installed outdoor: Yes
  • Door bell function: Support
  • WG interface: WG26/34 input/output
  • Type: RFID Keypad
  • Type1: RFID Keypad waterproof
  • Type2: Access Control Keypad
