3-4/4-6/5-8/9-12 Ways Circuit Breaker Distribution Protection Box Indoor Wall Mount Plastic Box With Electric Transparent Cover
19.54 12.52 $
Company and Factory Website:www.hochiot.com
Description:

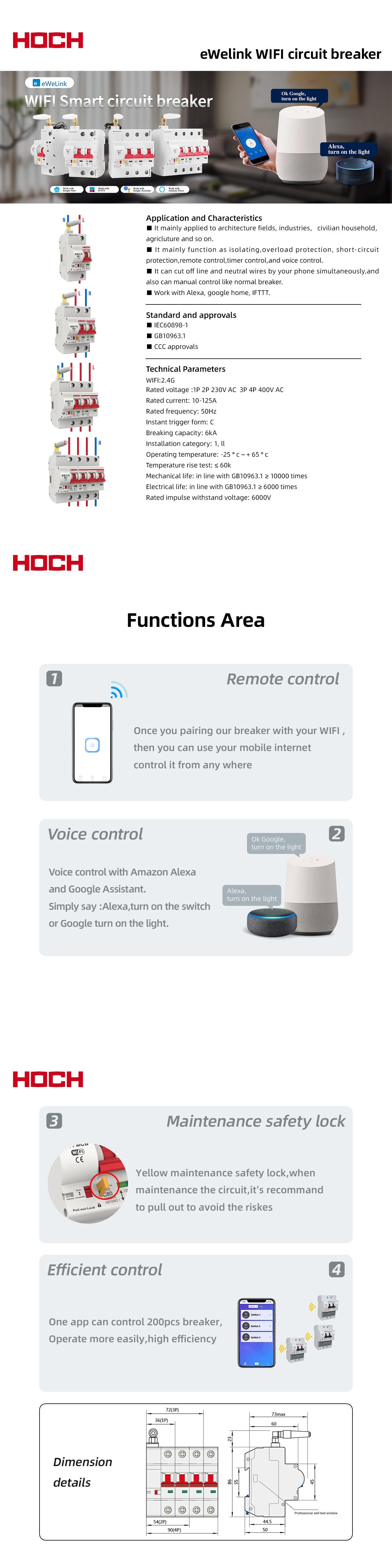

Function:

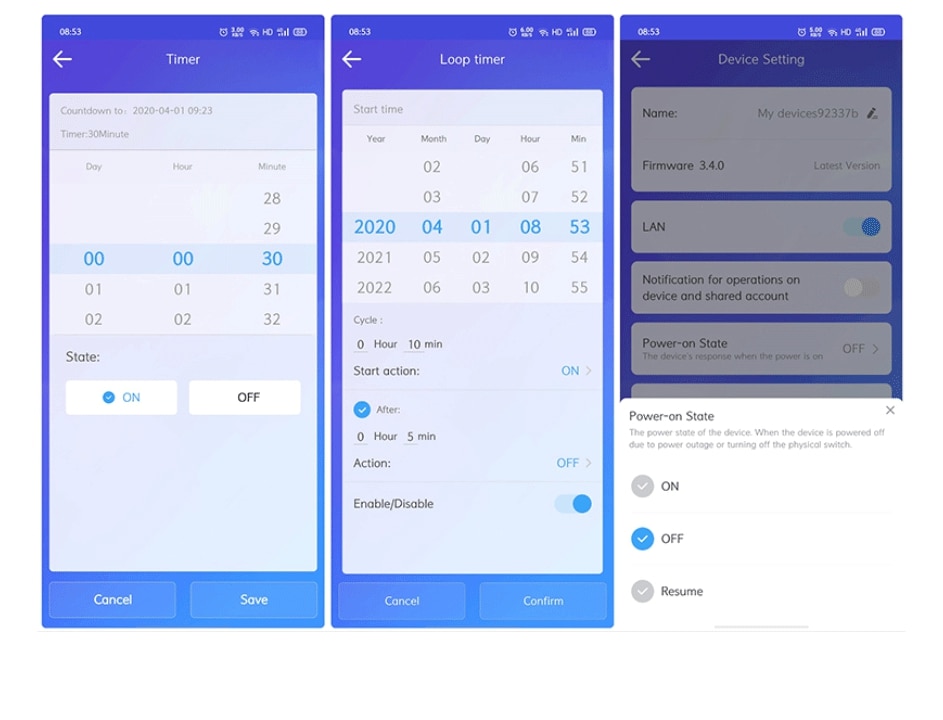

Global control,Scedule/Loop timer/timer,voice control,Overload protection,Short-circuit protection,over-current protection,Over-voltage protection
Built-in chip (ESP8266/ESP8285) to improve the stable transmission and reception of WIFI signals, to avoid congestion interference.Professional CE-EMC,CE-LVD test to ensure safe and reliable communication process.
Work with: Alexa, google home, IFTTT.One phone can connect 200pcs our breaker.
Specification:
Rated voltage:1P,2P AC230V /3P,4P AC400V (Noted:Customizable voltage,Contact service)
Rated frequency: 50Hz (Noted:Customizable Frequency,Contact service)
Instant trigger form: C (Noted:Customizable B、D type,Contact service)

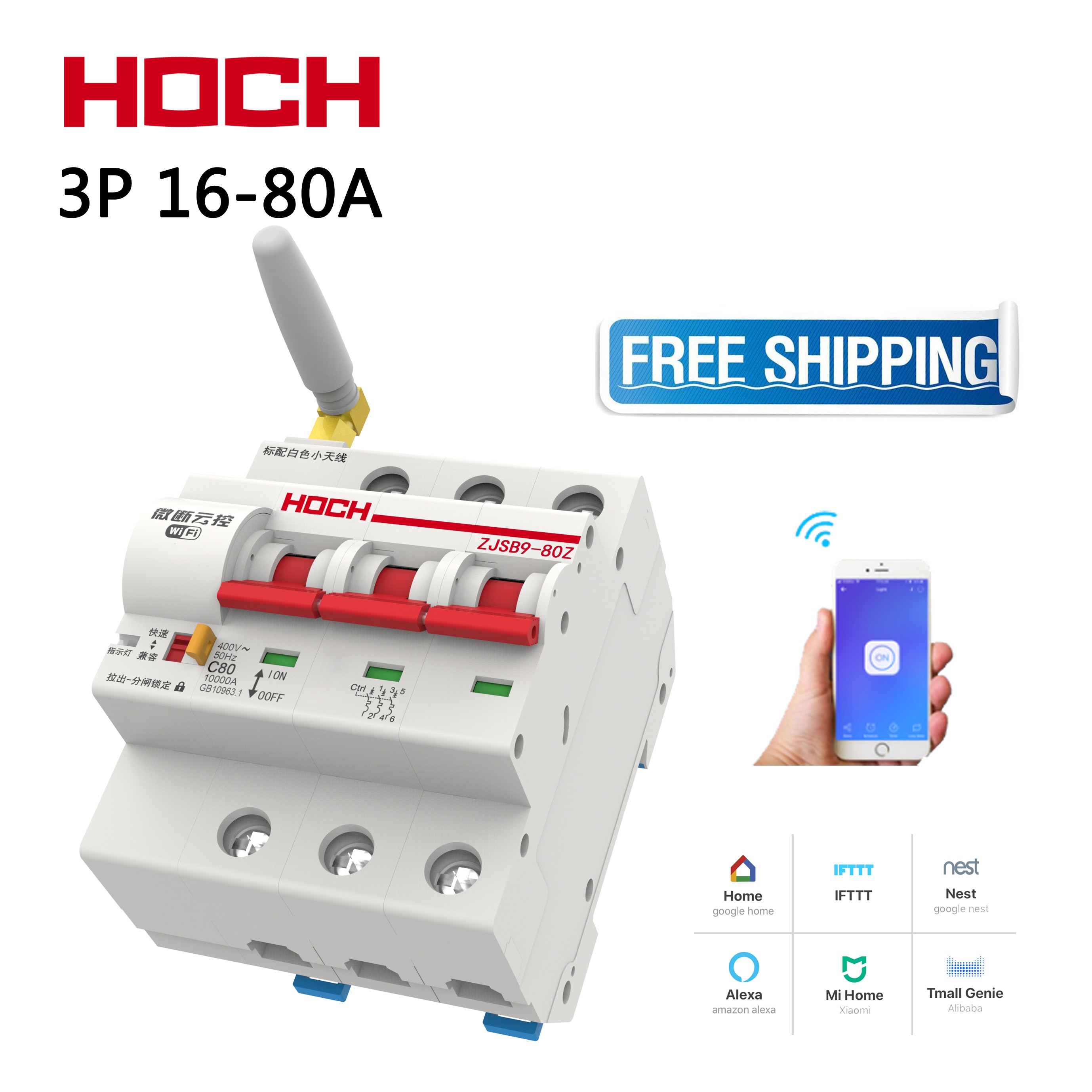

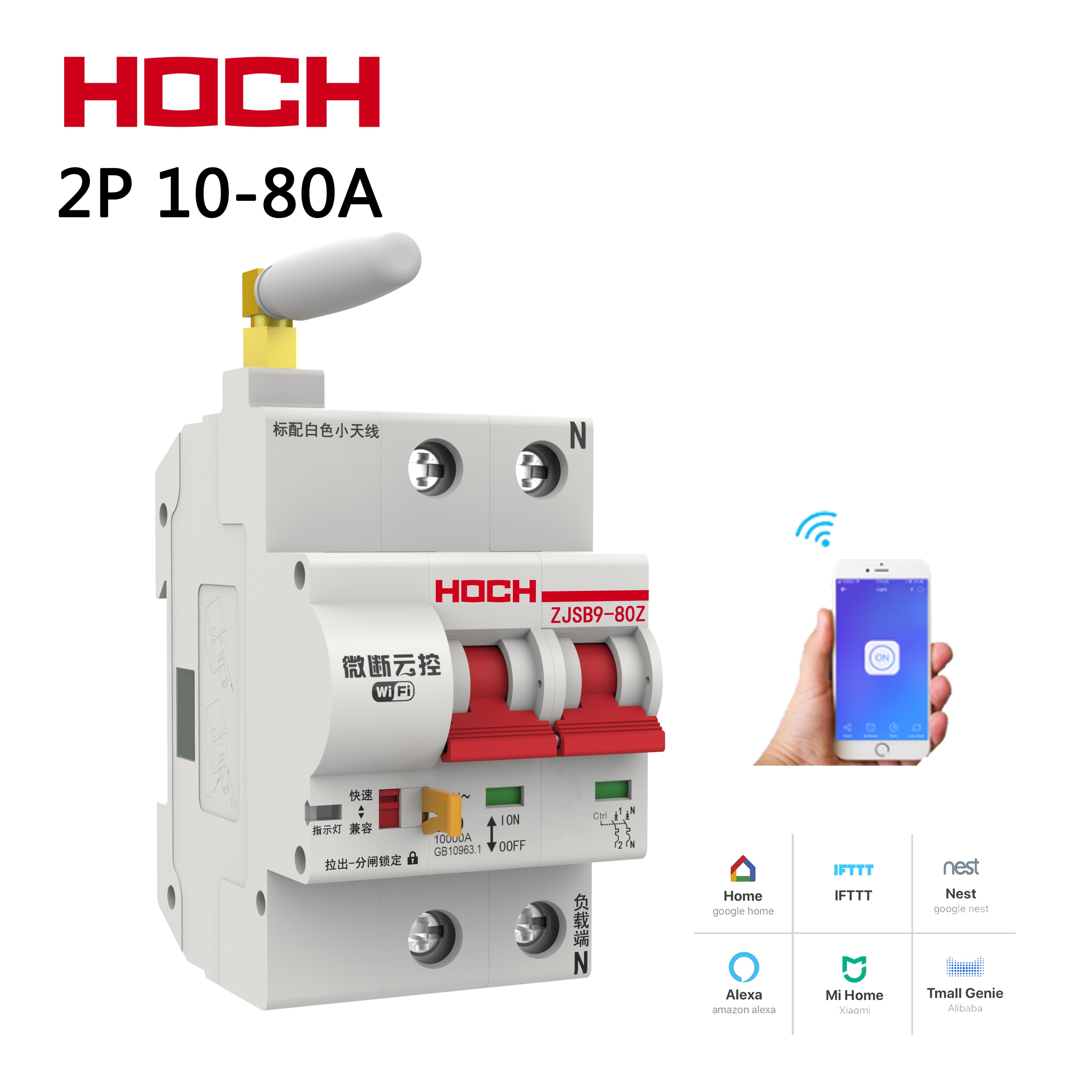

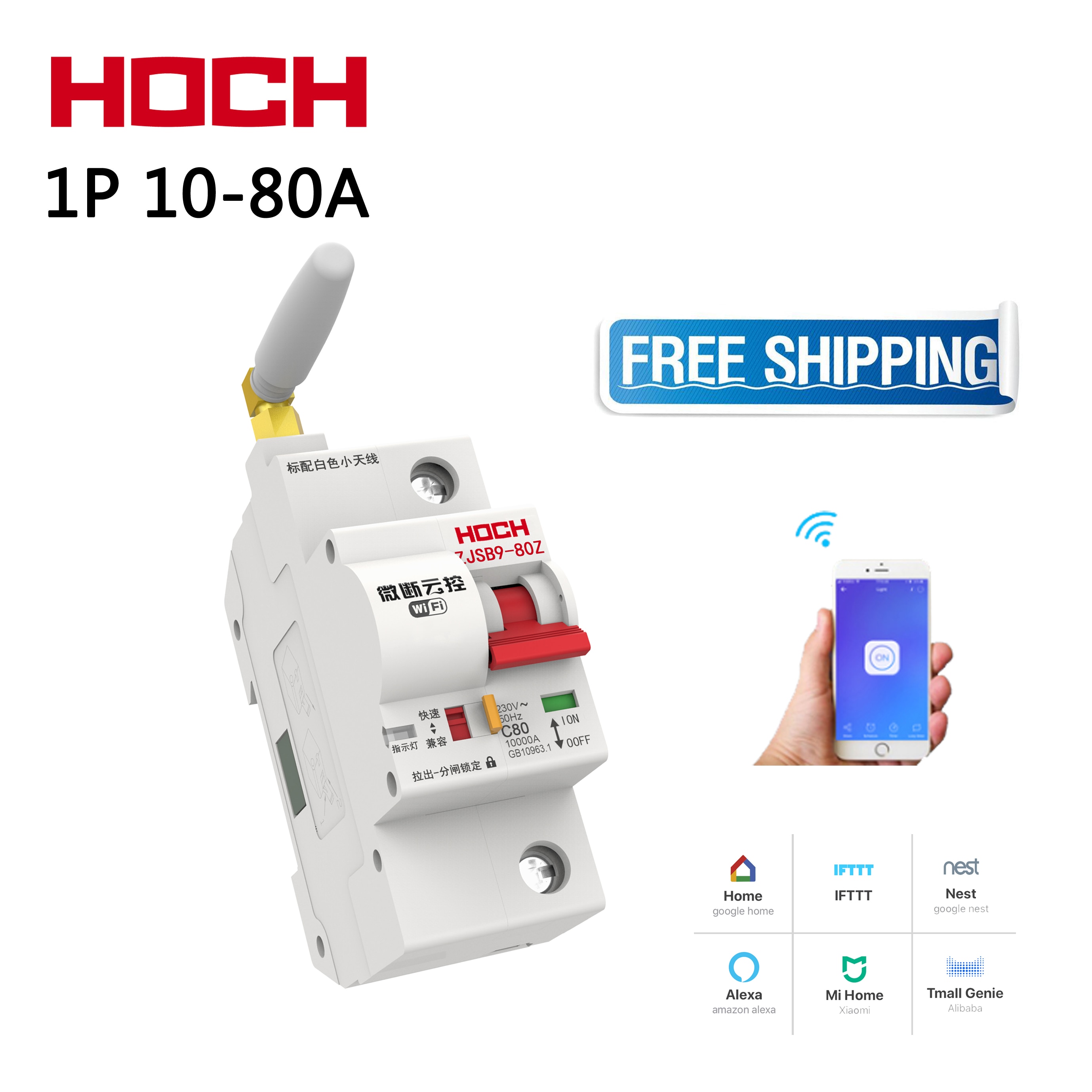

Number of poles:1P,2P,3P,4P
Rated current:10A,16A,20A,25A,32A,40A,50A,63A,80A,100A,125A
Pollution level: level 2
Level: IP20
Rated impulse withstand voltage: 6000V
Implementation standards: GB10963.1, IEC60898-1, GB / T21706
Control mode: working mode, pairing mode
Drop test: in line with GB / T4857.18
EMC test: in line with GB / T18499-2008
Nominal short-circuit breaking capacity: nic = 6kA Ics = 6kA
Operating temperature: -25 ° c ~ + 65 ° c
Mechanical life: in line with GB10963.1 ≥ 10000 times
Electrical life: in line with GB10963.1 ≥ 6000 times
Installation category: 1, ll
Temperature rise test: ≤ 60k
Salt spray test: conforms to GB / T 2423.1724h
Package included:
1 * circuit breaker
1 * instruction manual
Warm Notice
Please read carefully before buying, and wholeheartedly provide you with quality service.

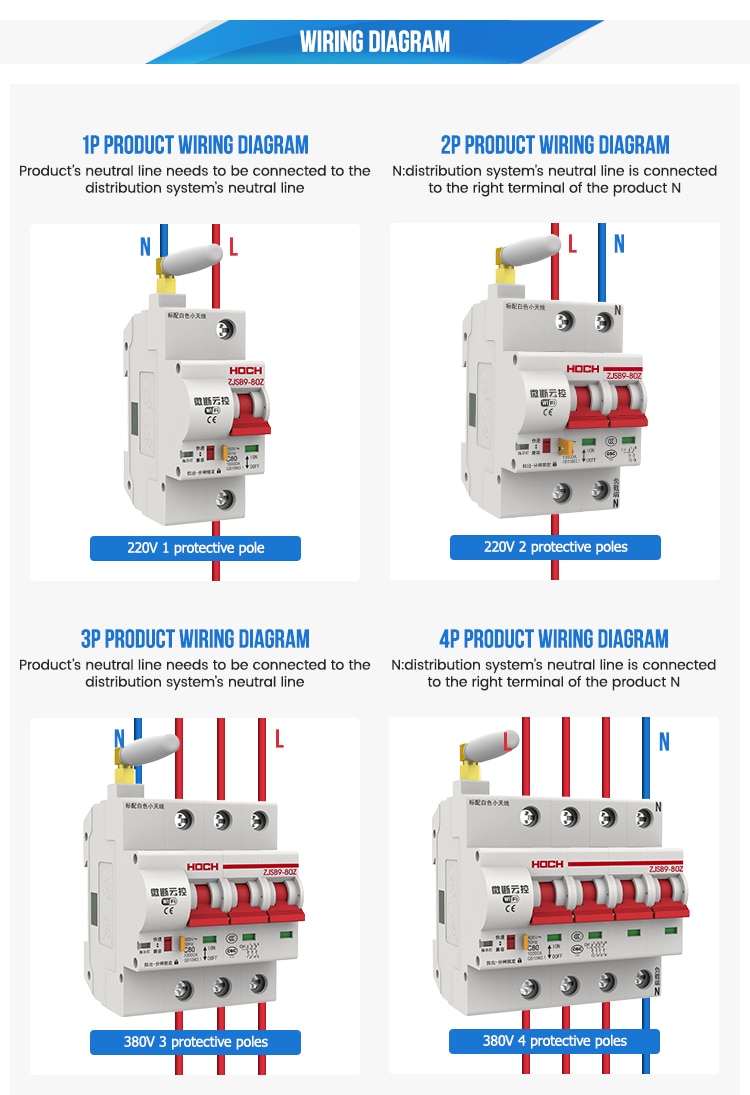

1:This product only support above input, down output.Please don't reverse, otherwise the handle can't push up,Some customers have a distribution box at home, the input line is below, and the output is above.his situation needs to turn our circuit breaker upside down.
2:Different country has different voltage ,Such as Japan、Brazil、Amercia、Canada、Columbia、Mexico and so on,Our breaker 1P,2P is 230V 50HZ,3P,4P is 400V 50Hz,If your voltage is special,please inform us or write a remarks in your order,then we will customize according to your request,Otherwise, we will not bear any resposibility!!!
3:Check if the WIFI router is 5G or 2.4G. This product supports 2.4G (if it is dual band router, please upgrade to 2.4G.)
4:Remote control:by smartphone application anywhere ,our breaker need to in the WIFI condition.(the smartphone must connect to the internet in WiFi or 3g / 4g)

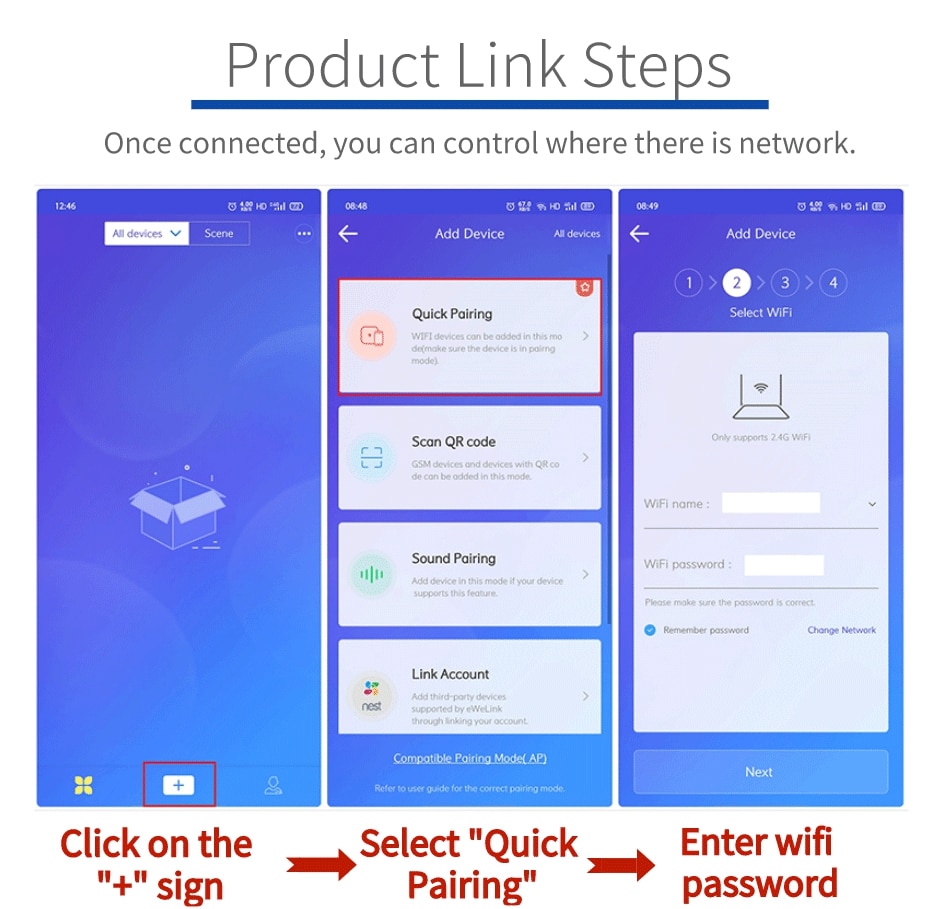

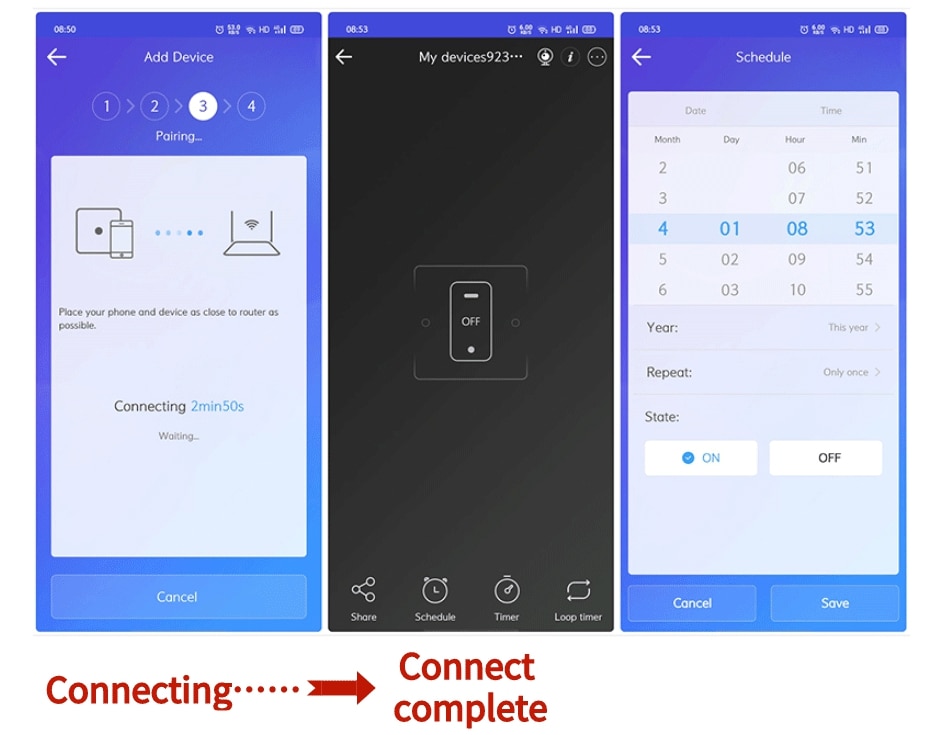

Operation pairing
