H.265 32CH 4K NVR Network DVR Digital Video Recorder Board IP Camera Max 8T Motion Detection OVNIF CMS XMEYE SATA Line P2P Cloud
5.0 (4 votes) | 30 orders
Price:
US $
207.50
/ piece
1. HDD question:
We recommend use the Newest HDD.
Use the security HDD will work more better.
PC HDD most can not work.
2.IP Camera 264 and 265 question:
This one only support the xmeye IP camera H.265,
if you use the dahua or hik camera, nvr will not match all of their cameras and not support h.265
3. VGA and HDMI question:
NVR have a defult display resolution,Your monitor must use the same resolution then will work first time. The second you can change the nvr output resolution as you need.

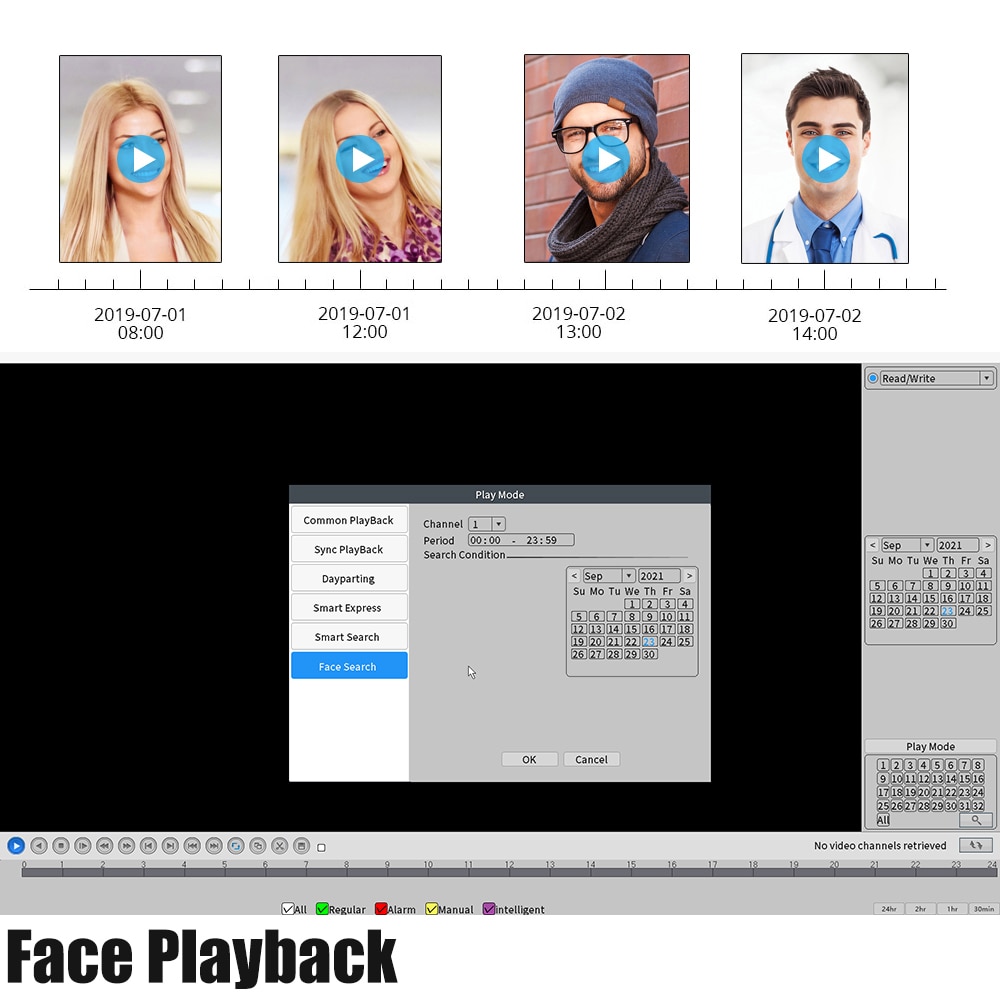

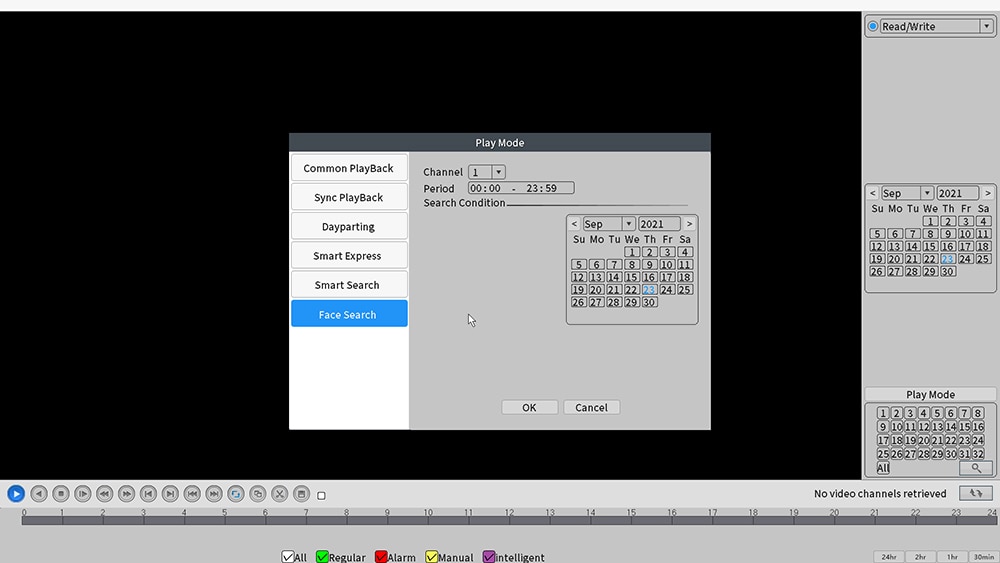

Face Record/Face Detection/Face Playback
Record every face that appears on the lens, without missing any details.
You need use the Face Detction Function IP Camera

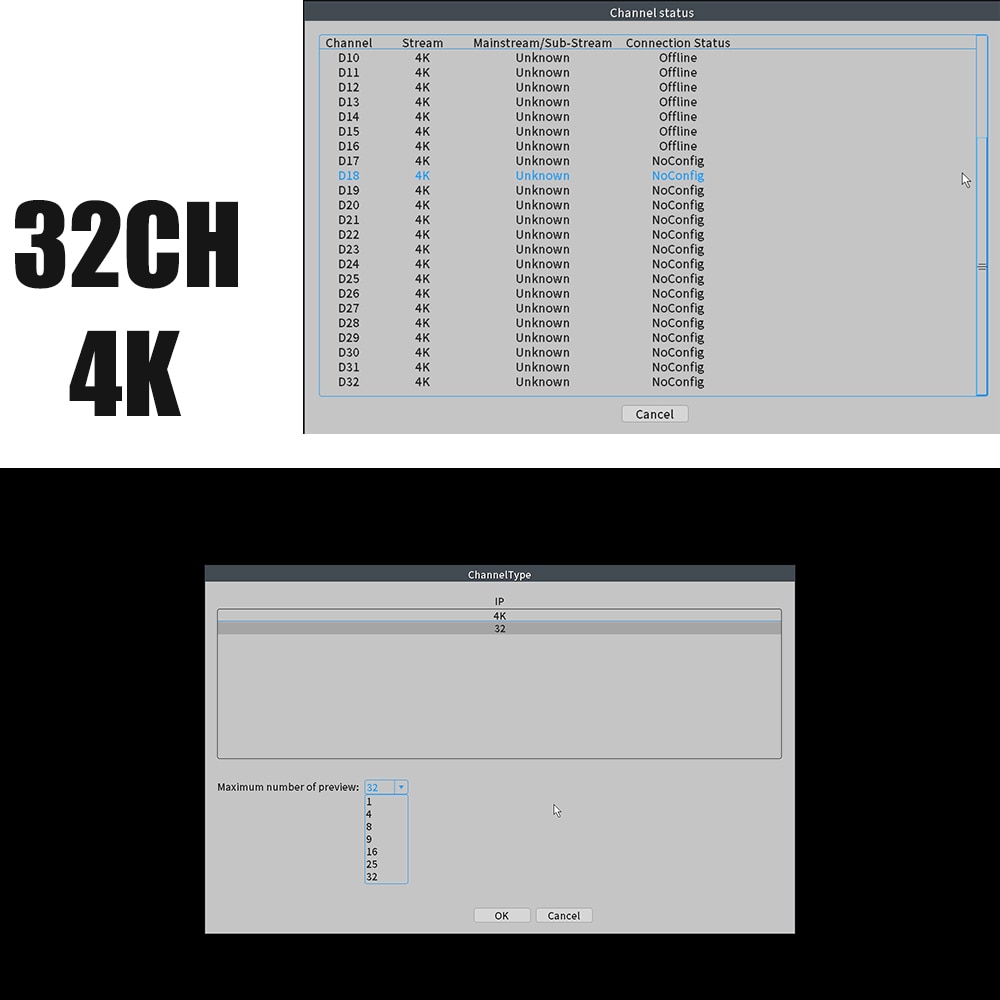

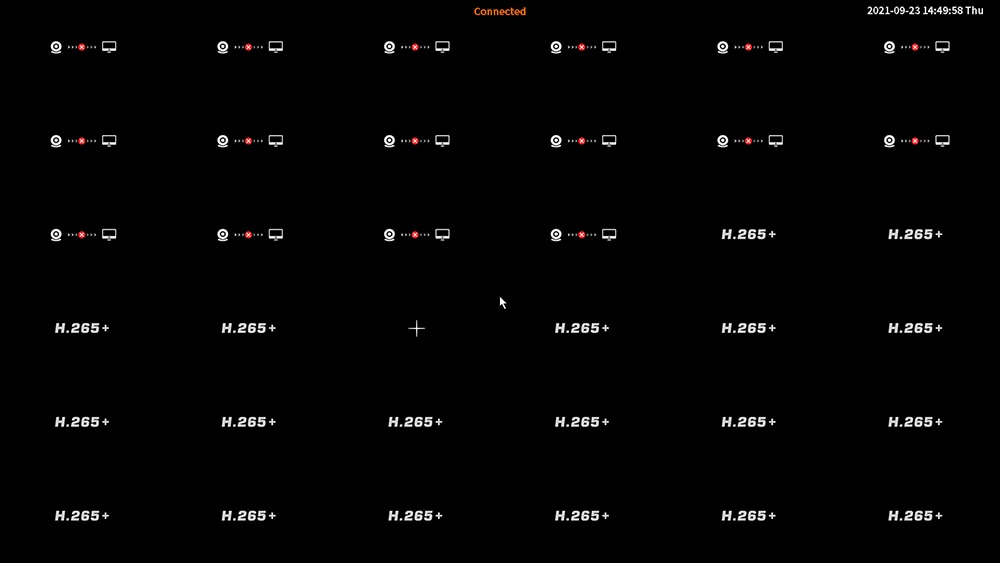

Newest Firmware Support 32CH 4K IP Camera

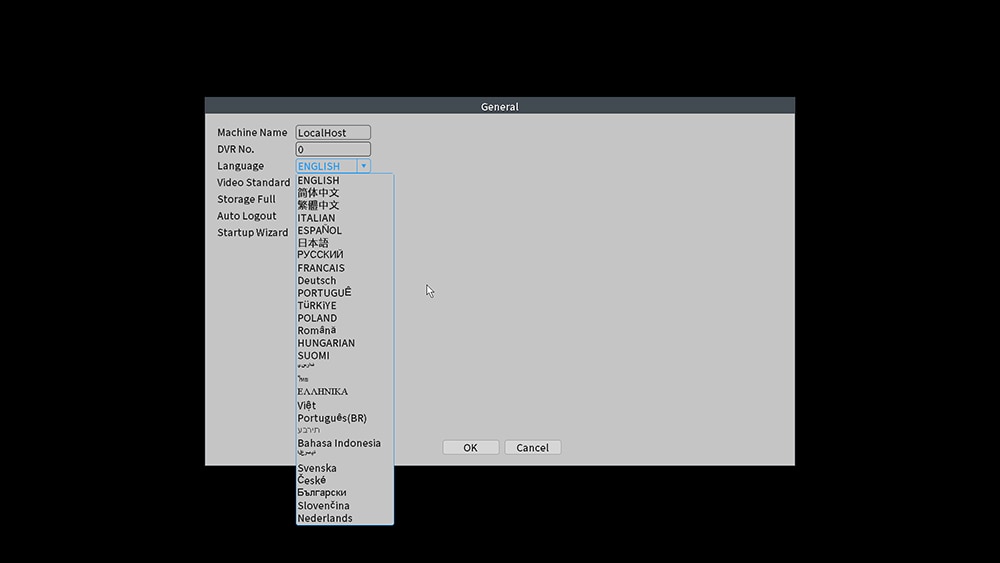

Langauages:
English,Russian,Italian,Portuguese,Spanish,French,Germany.,etc...
Motion Detection & Email Alert/Record
when motion is detected, the NVR can send email or start record to the hard disk without missing any important events.
Max Support the 4K Display

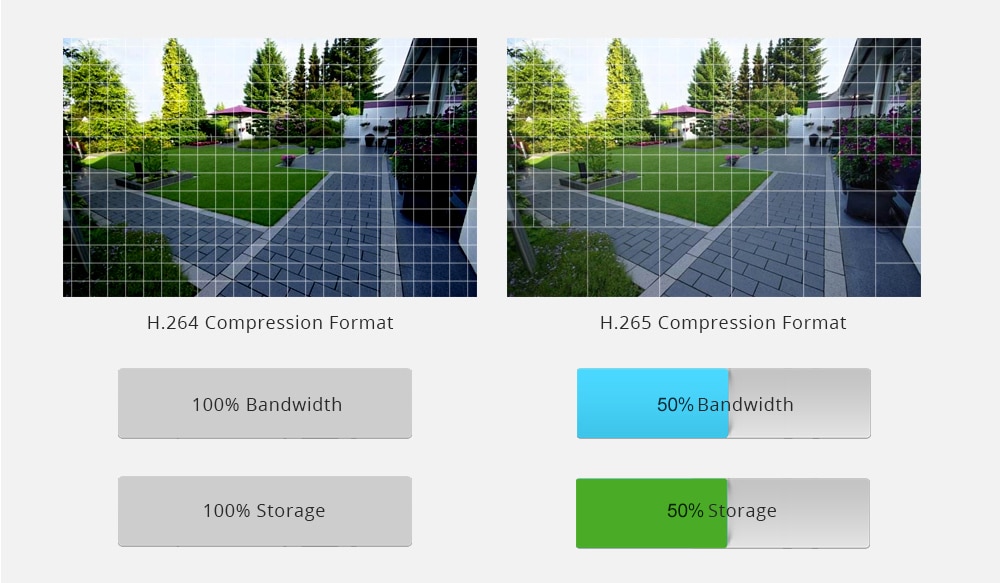

Advanced H.265++ Video Compression
H.265 (HEVC) doubles the coding efficiency compared with its predecessor H.264. That means H.265++ video saves around 70% of the bit rate at the same quality of coding.
Easy remote access Anytime anywhere
P2P technology supports remote access on the mobile device,Just intall the APP on your phone by scanning the QR cade or storing from the APP View the camera remotely anytime, any where. PC use the www.xmeye.net to visit the camera.
Model | NBD80N32RA-KL (This NVR will be constantly update, the model name will change after update but the function will be the same) | |
System | Main processor | NT98323 H.265AI/H.265/H.264 Your camera must be the same NVR H.265 then will work with H.265, or will not work. |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |

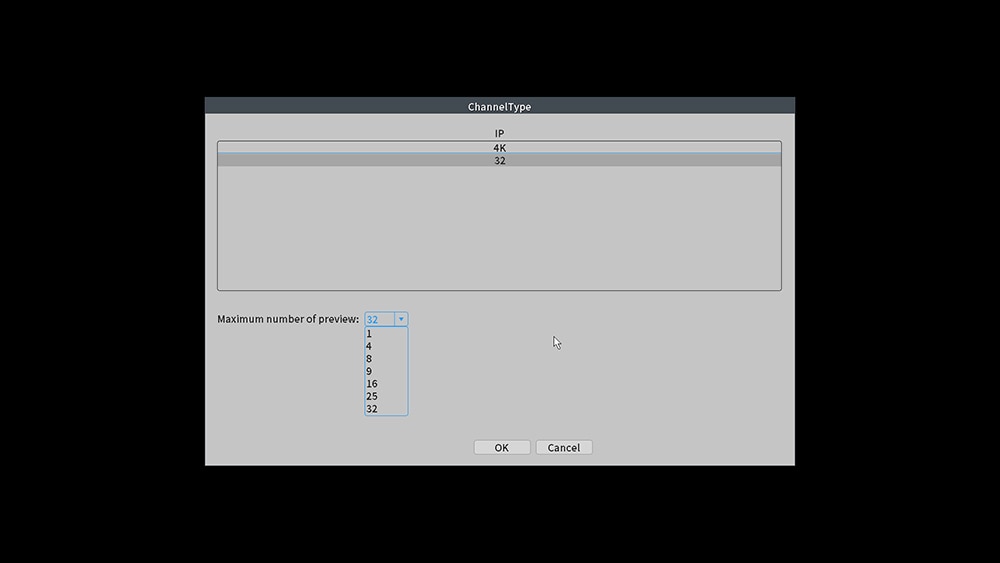

Preview | 1/4/9/16/25 | |
Video | Video input (IP) | 32CH 4K (Support 5MP,4MP,3MP,2MP,1MP xmeye camera or same onvif) |
Access bandwidth | 300Mbps | |
Forwarding bandwidth | 240Mbps | |
Video compression | H.265/H.264 | |
Display quality | Max:4K | |
Playback quality | 4K | |
Decode | 4K | |
Motion detection | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | support | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Local payback | 1*4K/2*5M/4*1080P | |
Search mode | Search by Time/Calendar/Event/Channel | |
Record storage | HDD,Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA,1ch HDMI HD output |
Audio I/O | 1/1 | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M/1000M Adaptive Ethernet port | |
USB interface 3G,Wifi | 2*USB2.0 ports Support 3G,Wifi, please ask seller which 3G,Wifi adapter can use. | |
HDD | 2 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ONVIF | Support |
Power supply | 12V/6A , Adapter is not include, you need buy extra, 6A is for two HDD, if you need one HDD,please confirm how much ampere | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃-＋55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp | |
Dimension | 118mm*69.5mm | |
Weight | A total of about 63g |

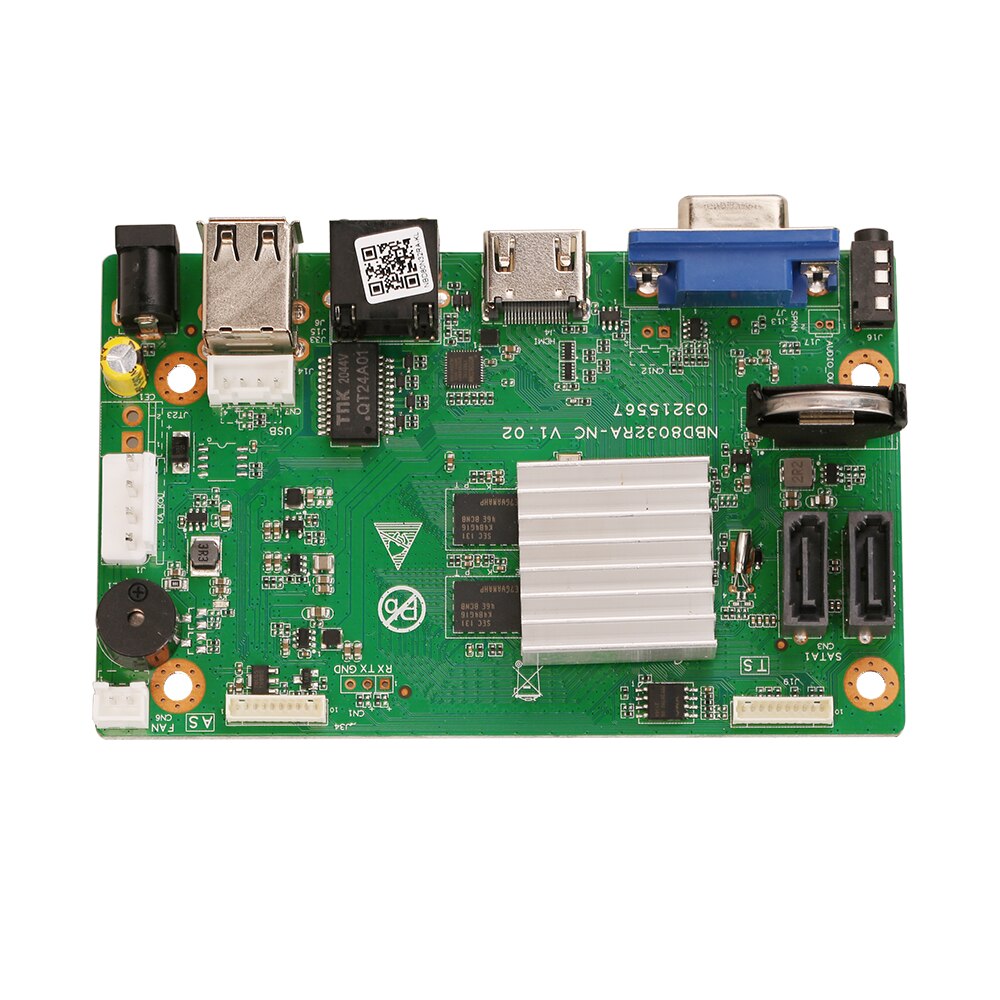

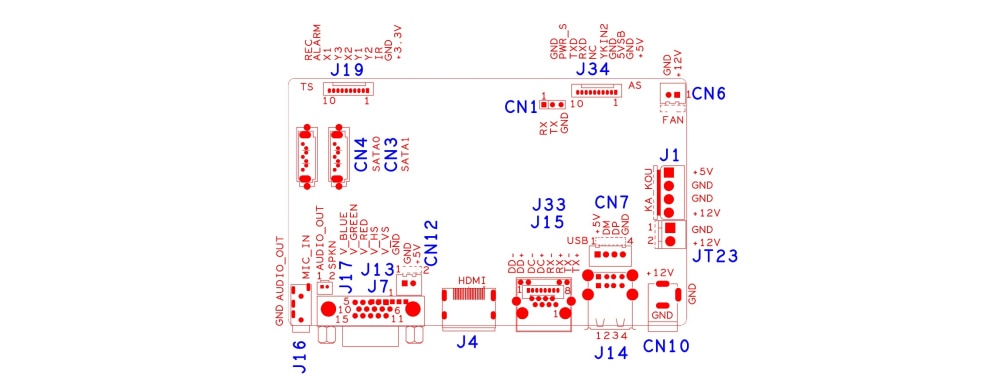

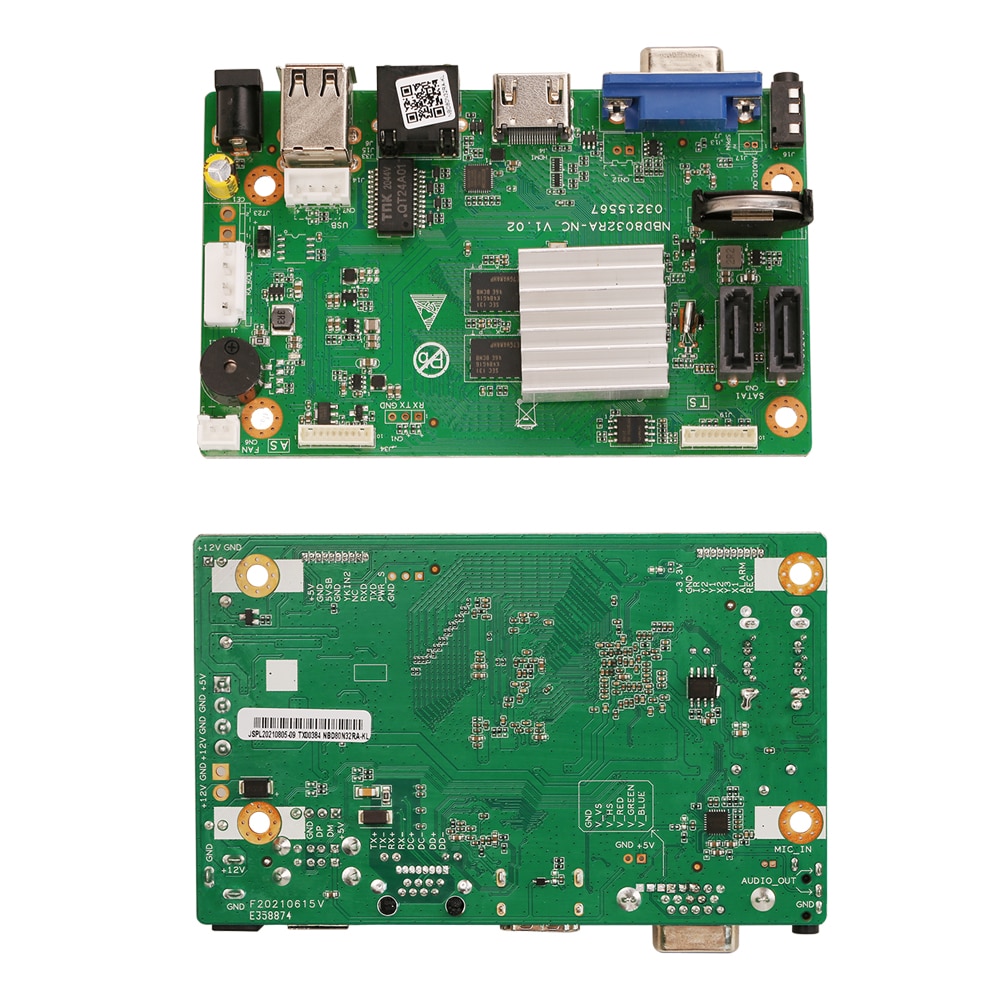

(1.25*10P) | 1:+3.3 | 2:GND | 3:IR | 4:COL2 | |
5:COL1 | 6:ROW2 | 7:COL3 | 8:ROW1 | ||
9:ALARM | 10:REC | ||||
J34 | (1.25*10P) | 1:+5 | 2:GND | 3:+5_STB | 4:GND |
5:NC | 6:NC | 7:RXD_FRONT | 8:TX_FRONT | ||
9:PWR_S | 10:GND | ||||
CN4 | |||||
CN3 | SATA | ||||
J16 | 3.5mm Audio in/Out (Same time work one) | ||||
J7 | VGA | ||||
J4 | HD | ||||
J15 | RJ45 | ||||
J33 | POEExtension | ||||
J14 | 2USB | ||||
CN7 | USB | ||||
CN10 | 12VDC in | 1:+12 | 2:GND | ||
J1 | HDD | 1:+5 | 2:GND | 3:GND | 4:+12 |
CN6 | Fan | 1:+12 | 2:GND |

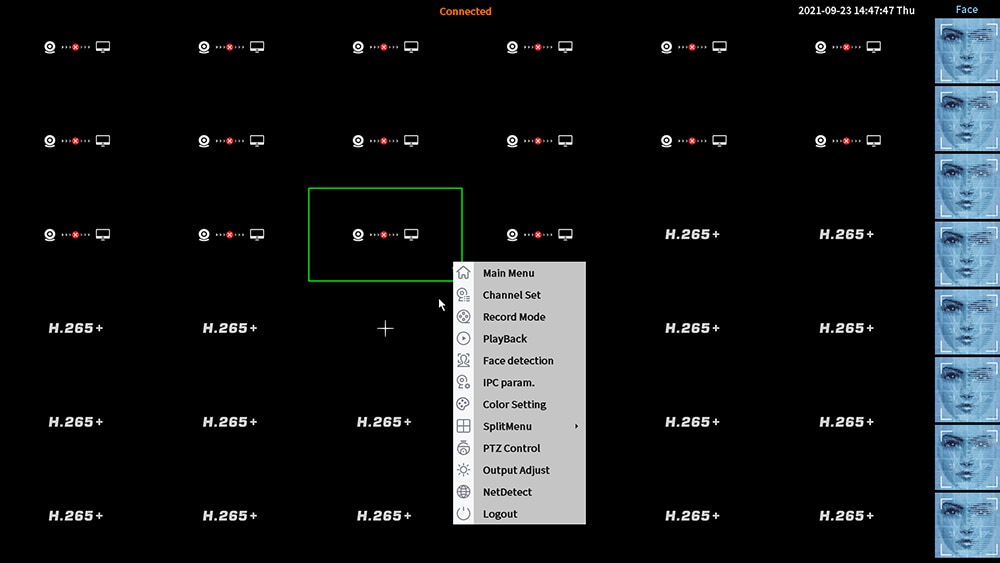

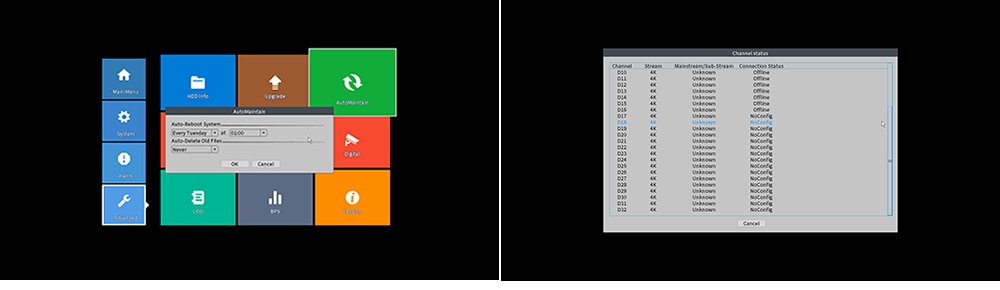

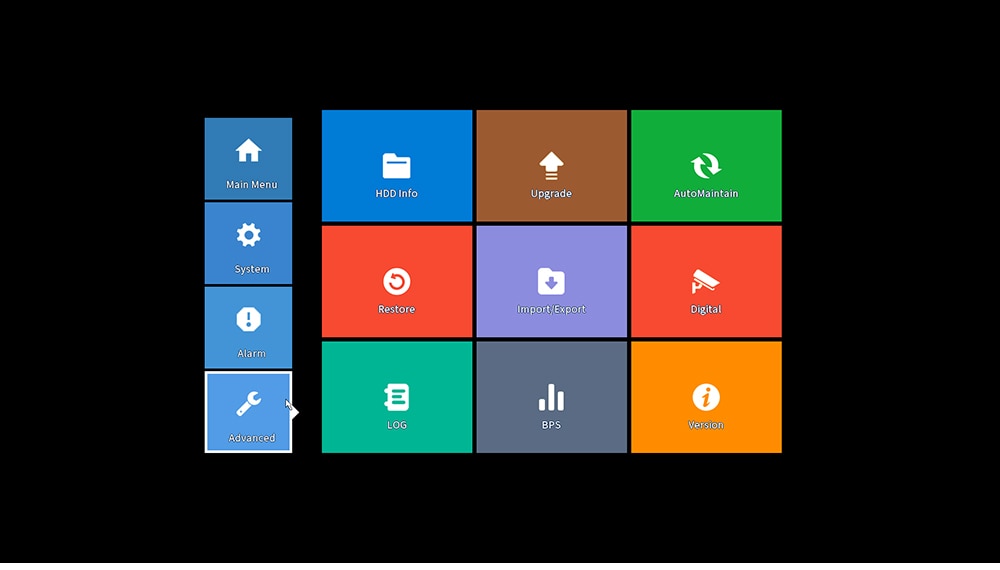

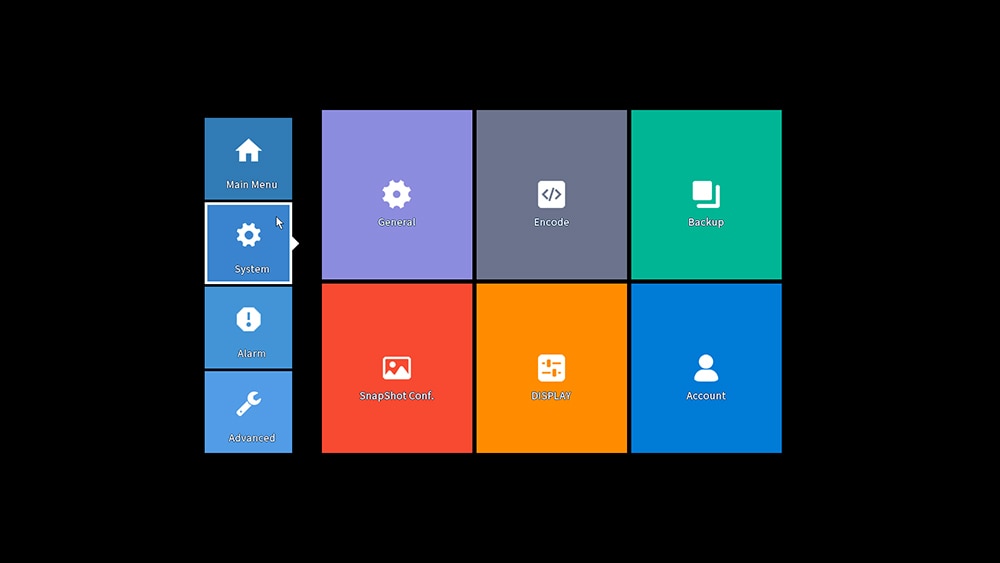

New Style Win10 Menu
- POE: None
- e-Cloud(P2P): YES
- Two-way Audio: No
- Alarm Action: Email Photo,Local Alarm
- Backup Type: Hard Drive
- Supported Operating Systems: Microsoft Windows 98,Microsoft Windows 2000,Microsoft Windows XP,Microsoft Windows 7,Mac OS
- Supported Mobile Systems: iPhone OS,Android,Windows Mobile
- IP Mode: Dynamic IP address,Static IP address
- Wireless Security: WEP
- Network Protocol: TCP/IP,DHCP,SMTP,HTTP,DDNS,UPNP,PPPoE,FTP,DNS
- Communication Interface: RS232
- Network Interface: RJ45 10/100M,WIFI,3G
- Hard Drive Size: 3.5''
- Hard drive Interface Type: SATA
- Audio Output: 1CH RCA
- Video Standard: NTSC,PAL
- Audio Compression Format: G711A
- Audio Input: 1 RCA
- Compression Format: H.265,H.264
- Technology: Network
- Model Number: NBD80N32RA-KL
- Brand Name: USAFEQLO
- Origin: Mainland China
- Certification: NONE
- Smart home platform: Other
- Main processor 32CH: NOVA
- Display: Max 4K
- Video out: 1ch VGA, 1ch HDMI
- HDD Connector: 2 SATA ports(each max to 14TB)
- USB: 1* USB 2.0
- Power supply: 12V4A(not include)
- CMS: Support
- Support Camera: 4K/5MP/4MP/3MP/2MP/1MP
- Video compression: H.264/H.265/H.265 AI
- Package: Main PCB+SATA cable
