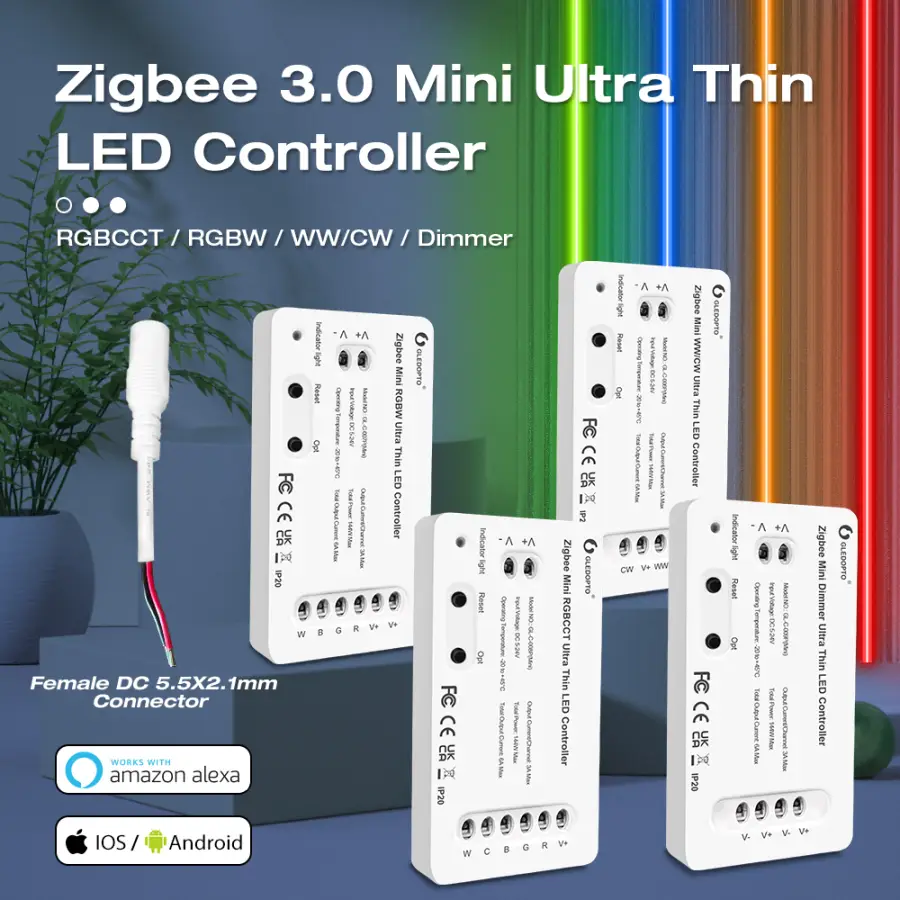

Gledopto Zigbee 3.0 Ultra Thin Mini RGBCCT WWCW LED Light Strip Controller Bedroom Kitchen Lighting Alexa Voice APP Controller
ID: 165530

Gledopto Zigbee 3.0 Ultra Thin Mini RGBCCT WWCW LED Light Strip Controller Bedroom Kitchen Lighting Alexa Voice APP Controller

4.7 (54 votes) | 600 orders
Price:
US $ 41.57 - 210.18
Color
Button Number
Quantity

Buy Now
Add to Cart
Please kindly note that our zigbee devices(Zigbee/Plus/Pro version Products) require zigbee gatewayswith standard protocol.(Such as SmartThings, Tuya, Conbee ect.)


If you don't have any gateway, please buy one 2.4G RF remote control or wall switch to work with Pro Version Products.


2.4G RF Remote Control and Wall Switch only work with Pro Version Products.(Not ZigBee)


 This device is only compatible with the GLEDOPTO 2.4G RF remote control and cannot be compatible with other remote controls.

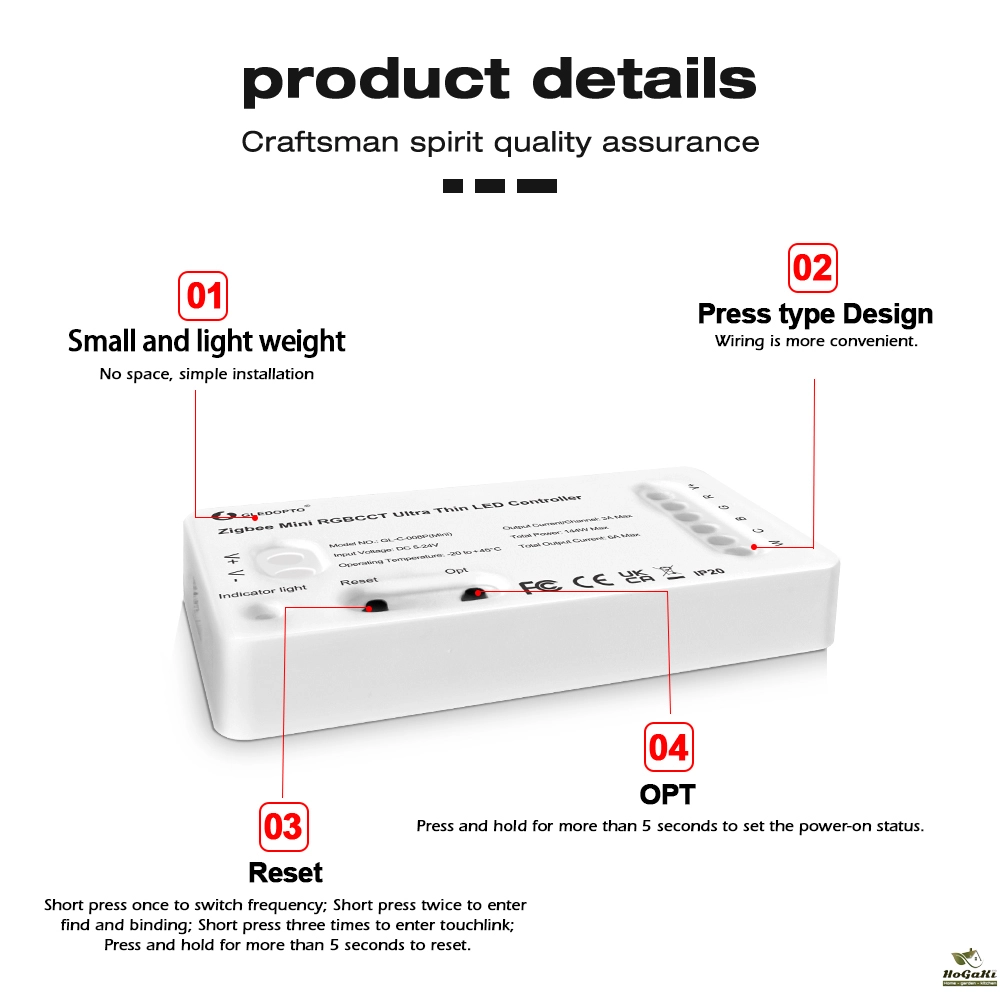

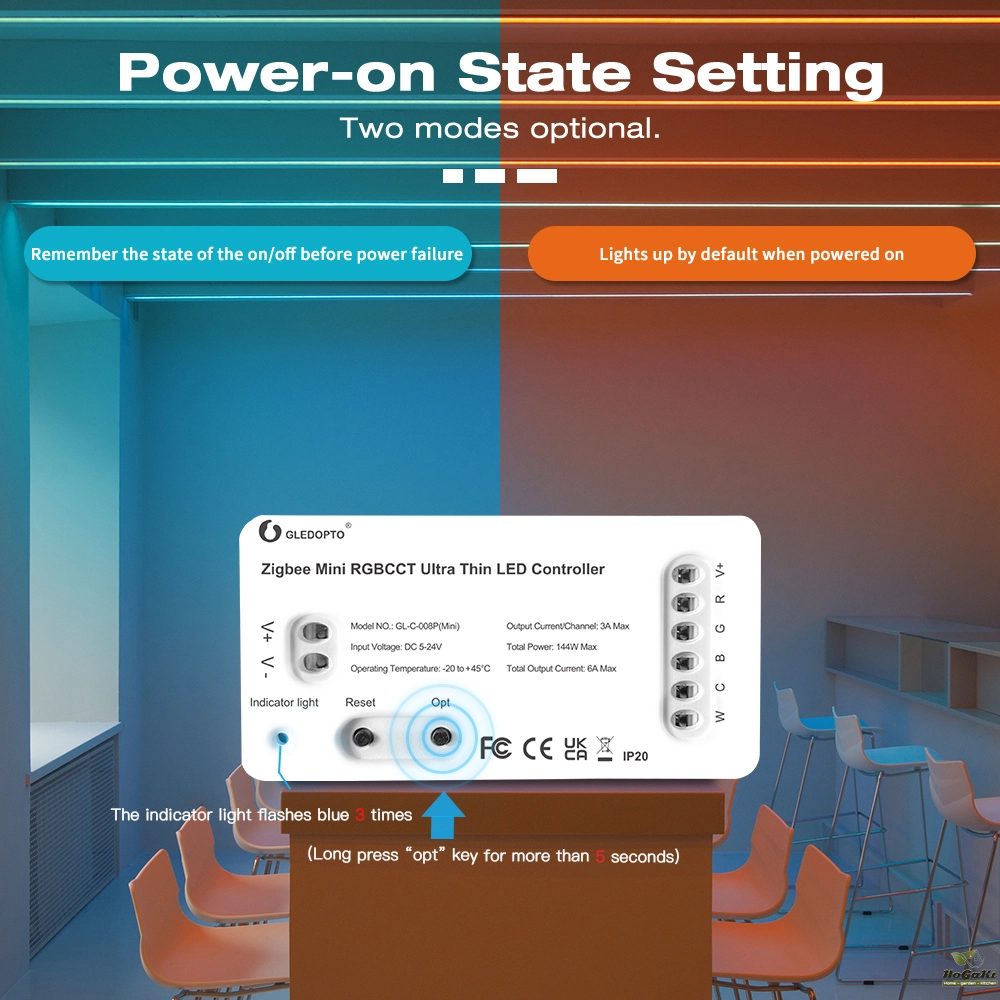

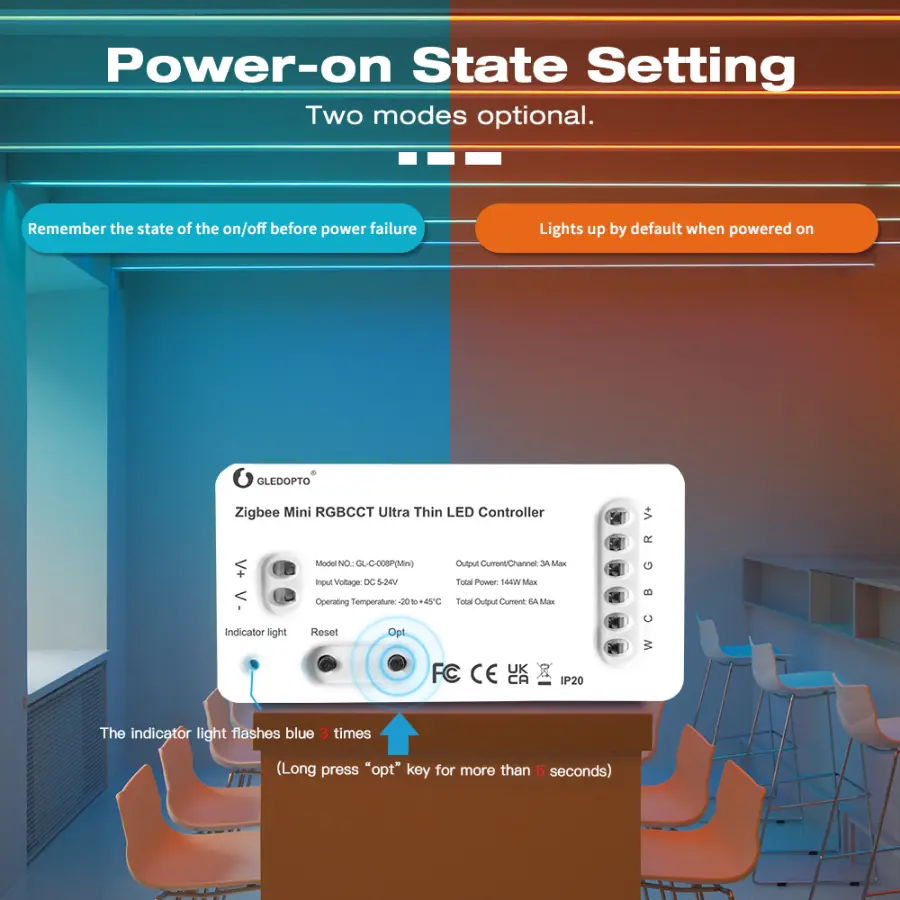

Power On Status Settings:

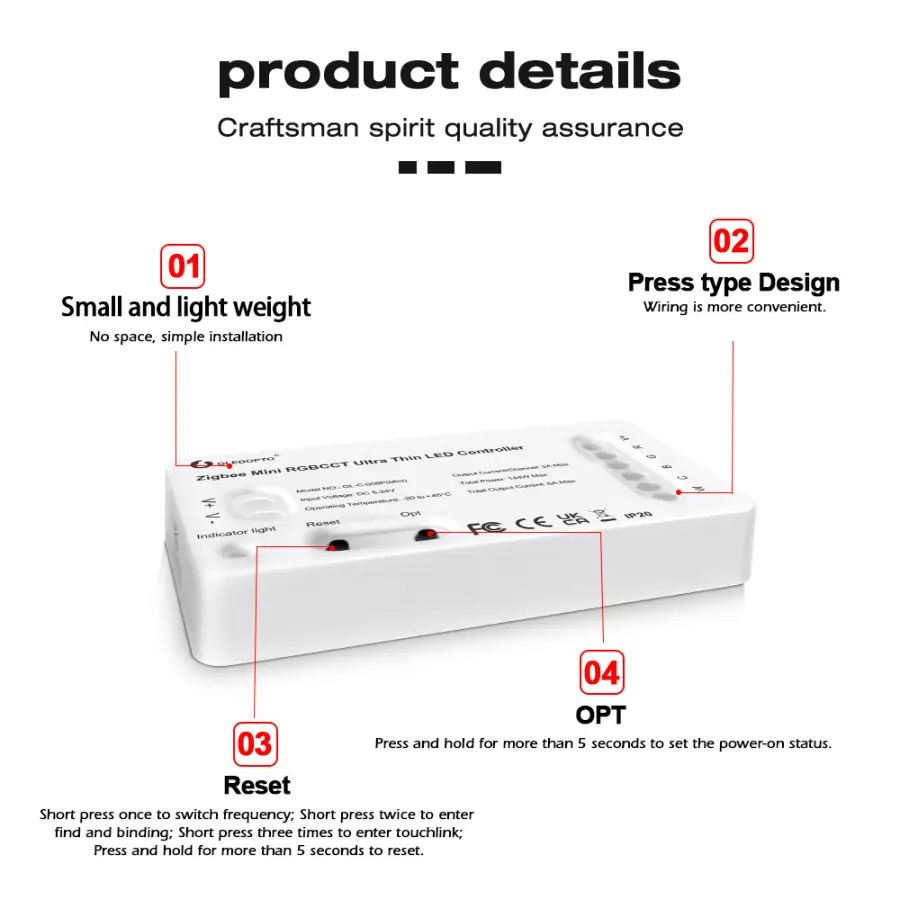

Long press the "opt" key for 5 seconds, the indicator of device will flash in blue color for 3 times, it will go into the "power on/off status“ mode, and the device will save the previous status before power off.


It will has two options state under:
① if the device is powering on, after the electricity drop and power on again, the device will keep on;
② if the device is powering off, after the electricity drop and power on again, the device will keep off.
Repeat the operation again to cancel this function, the device will be on by default status when powered on.

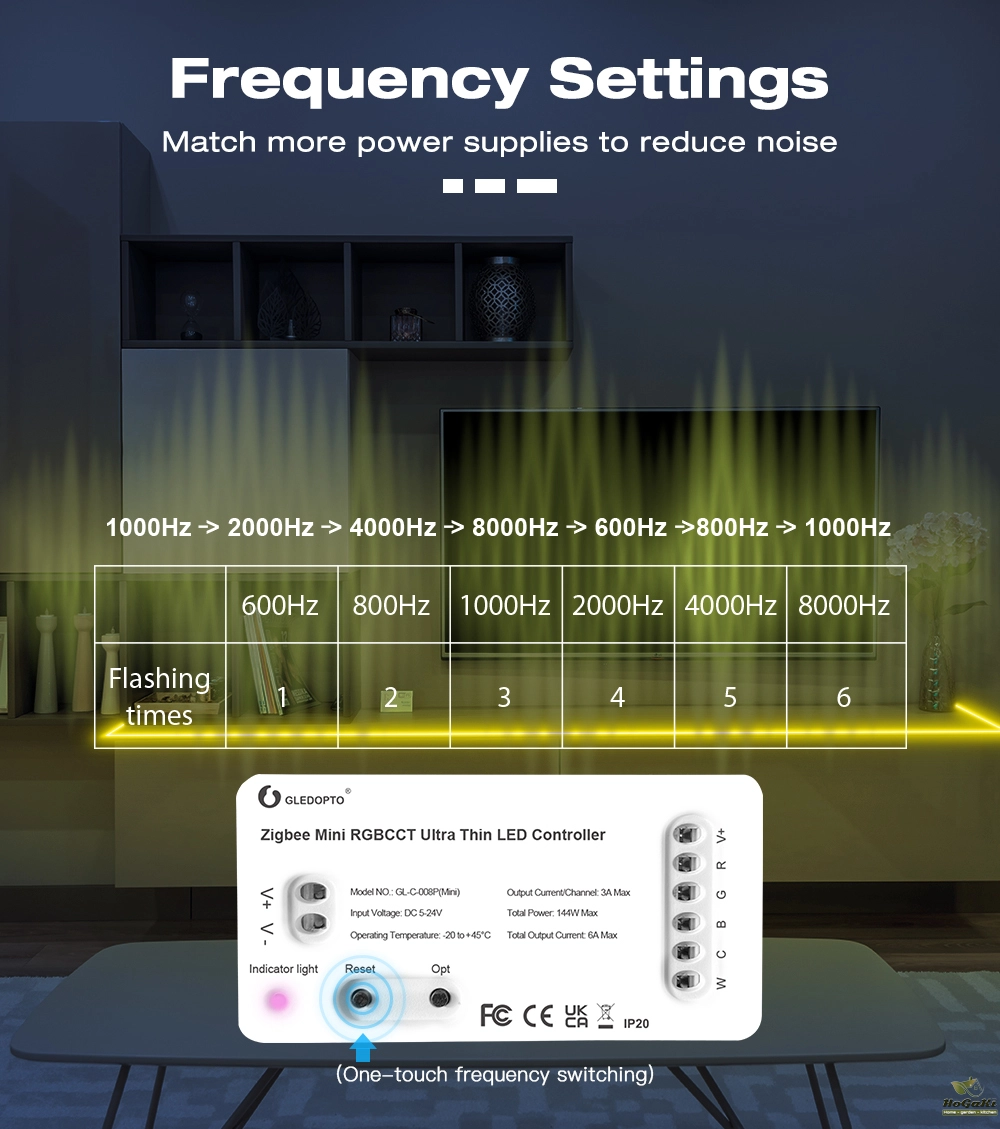

Frequency Settings:
In order to be applicable to different power supplies, the frequency of device is selectable as 600Hz, 800Hz, 1000Hz, 2000Hz, 4000Hz and 8000Hz, and default frequency 1000Hz.
Once short press "reset" key, the frequency will switch into the next one. The indicator will flash in pink color and resume to previous color after "off" for 2 seconds. The indicator flashing times corresponding to different frequency.

(There has specifications in user manual.)

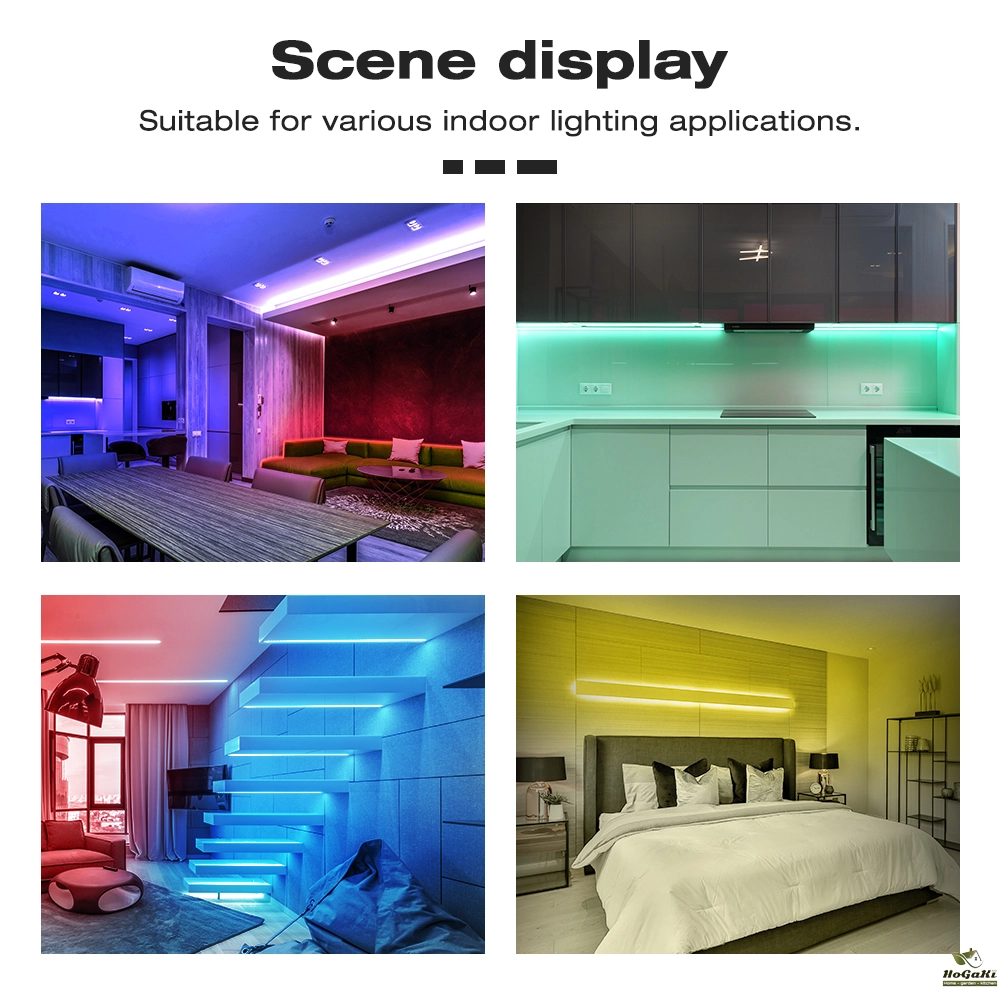

16 million colors for your choice and make your life colorful, to create a relaxing and quiet atmosphere. Such as living room, kitchen, bedroom and so on.


When adjusting the color temperature, the color lamp beads will automatically turn off to get a more accurate color temperure that you want,which can experience the more delicate atmosphere lighting effect;


When adjusting the brightness from 1% to 100% that you want, making a vibrant atmosphere anytime.

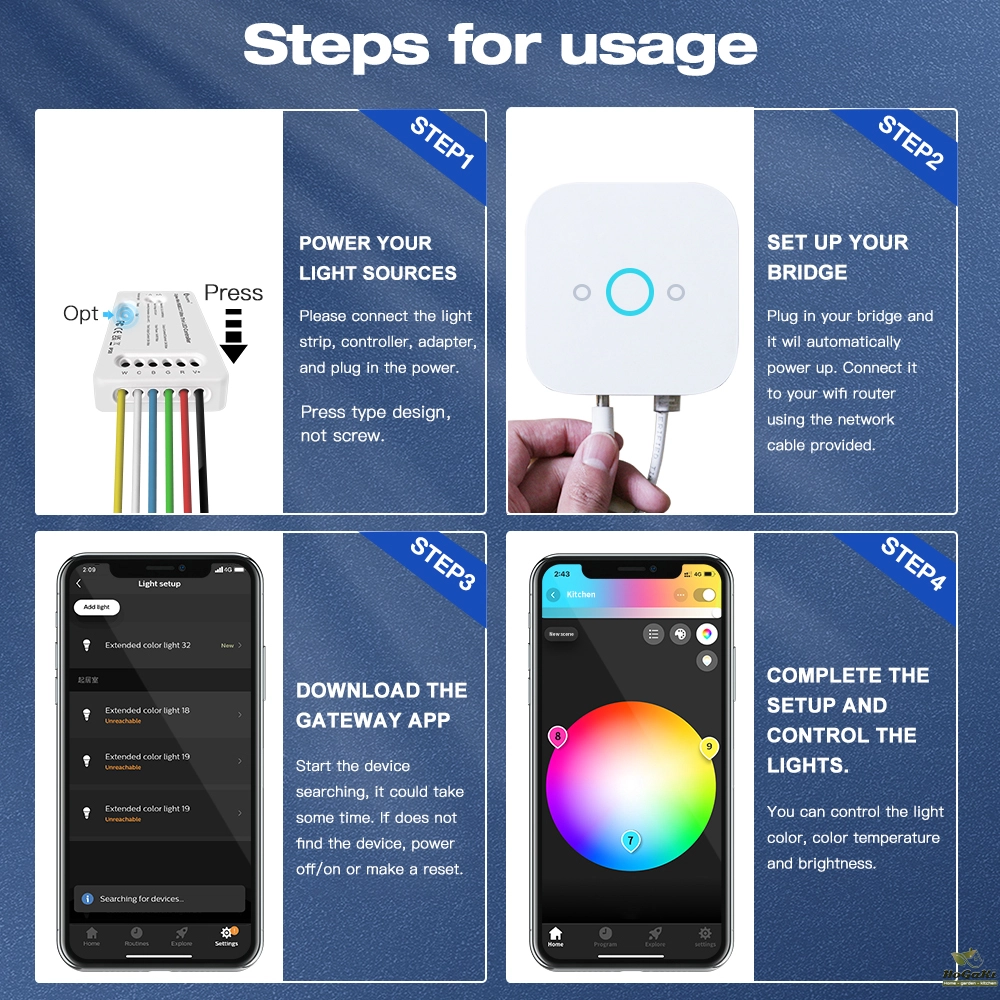

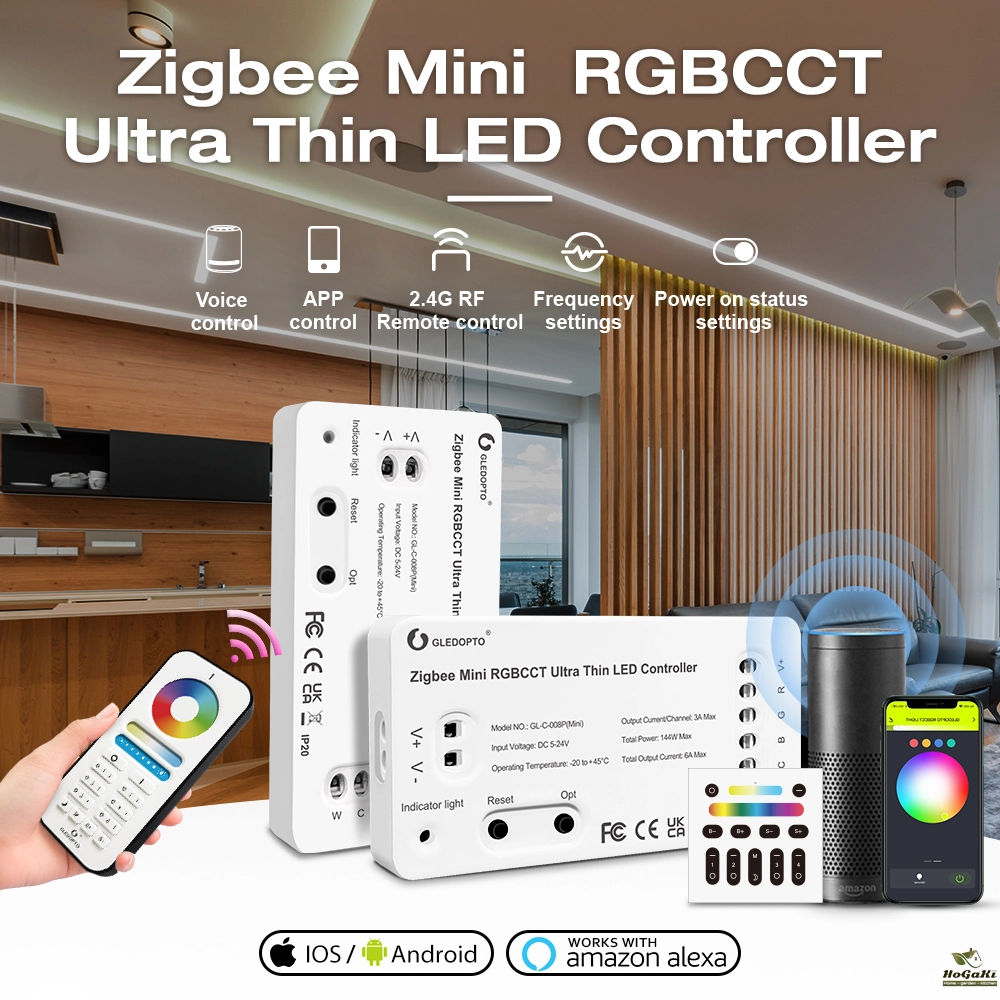

Control ways:

① APP Control: Requires to zigbee gateway such as SmartThings, Tuya ect., support APP control in Android/IOS Phone;

② Voice Control: support Amazon Alexa/Google Home/Homekit via zigbee hub;

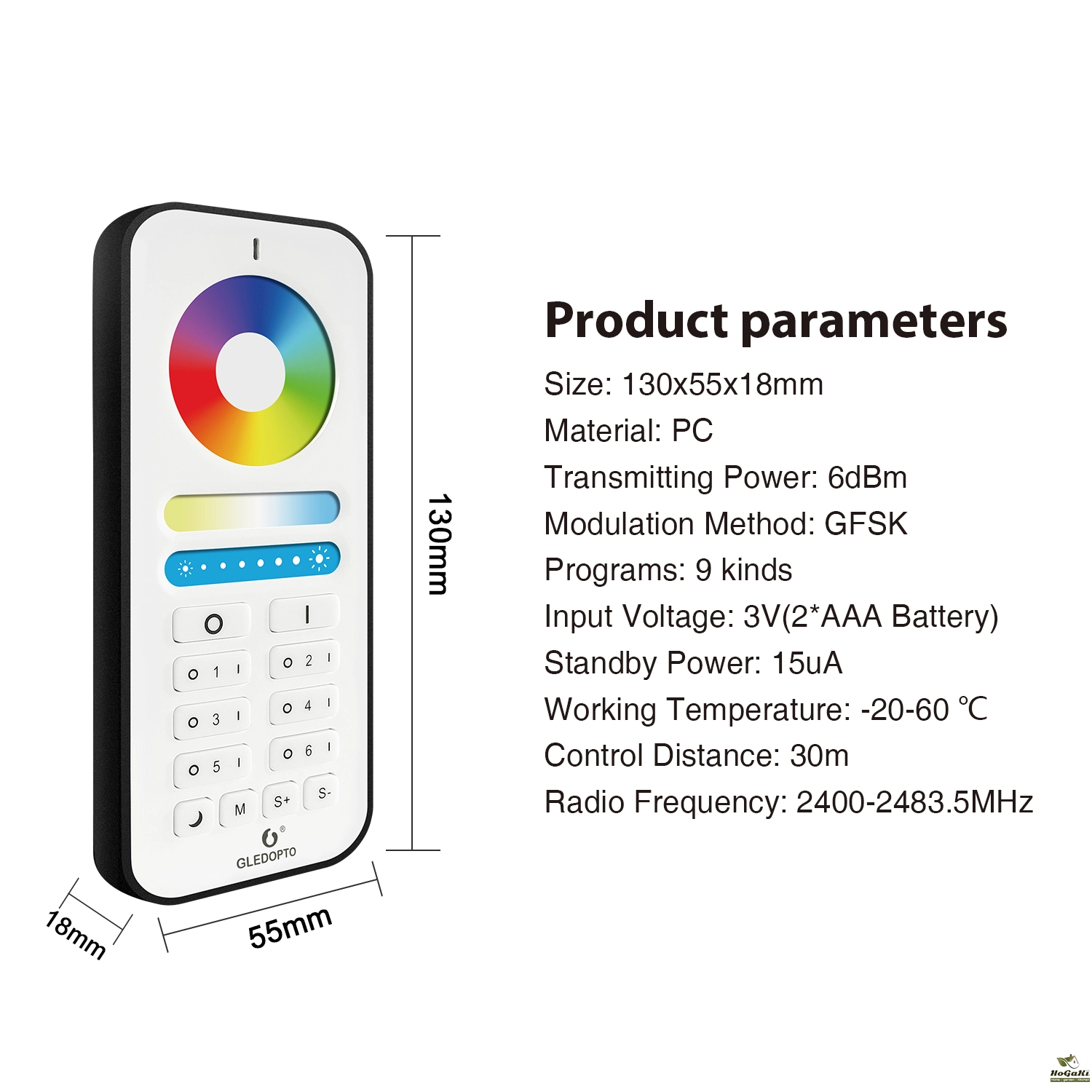

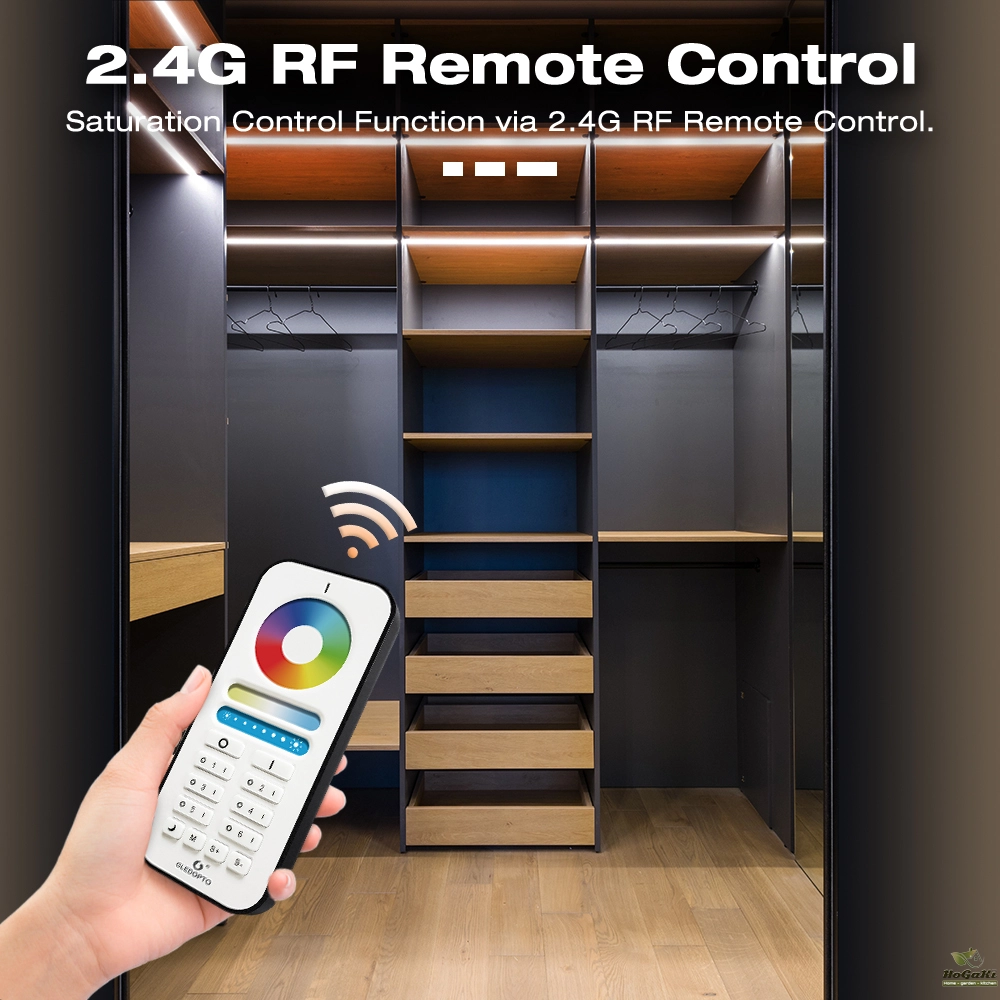

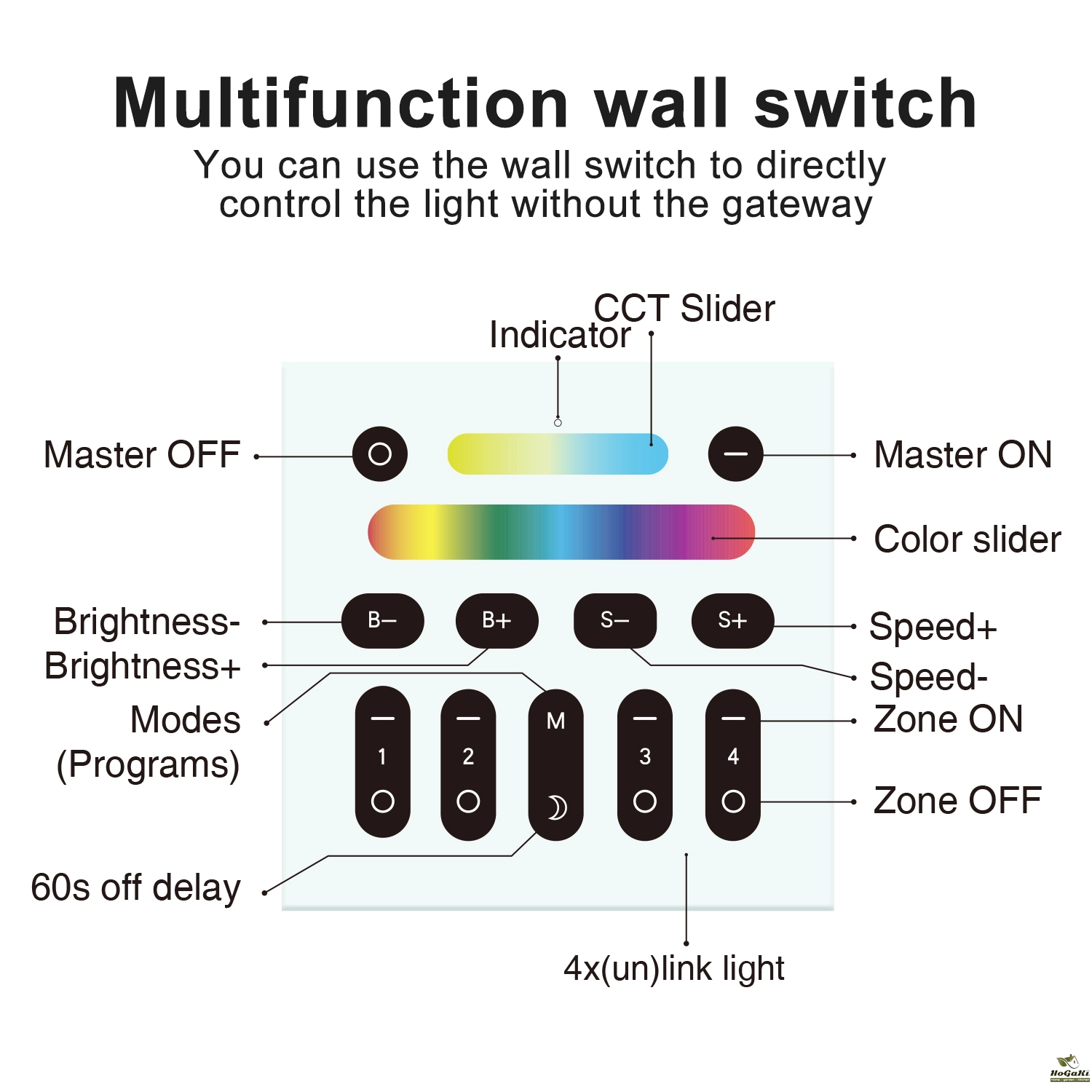

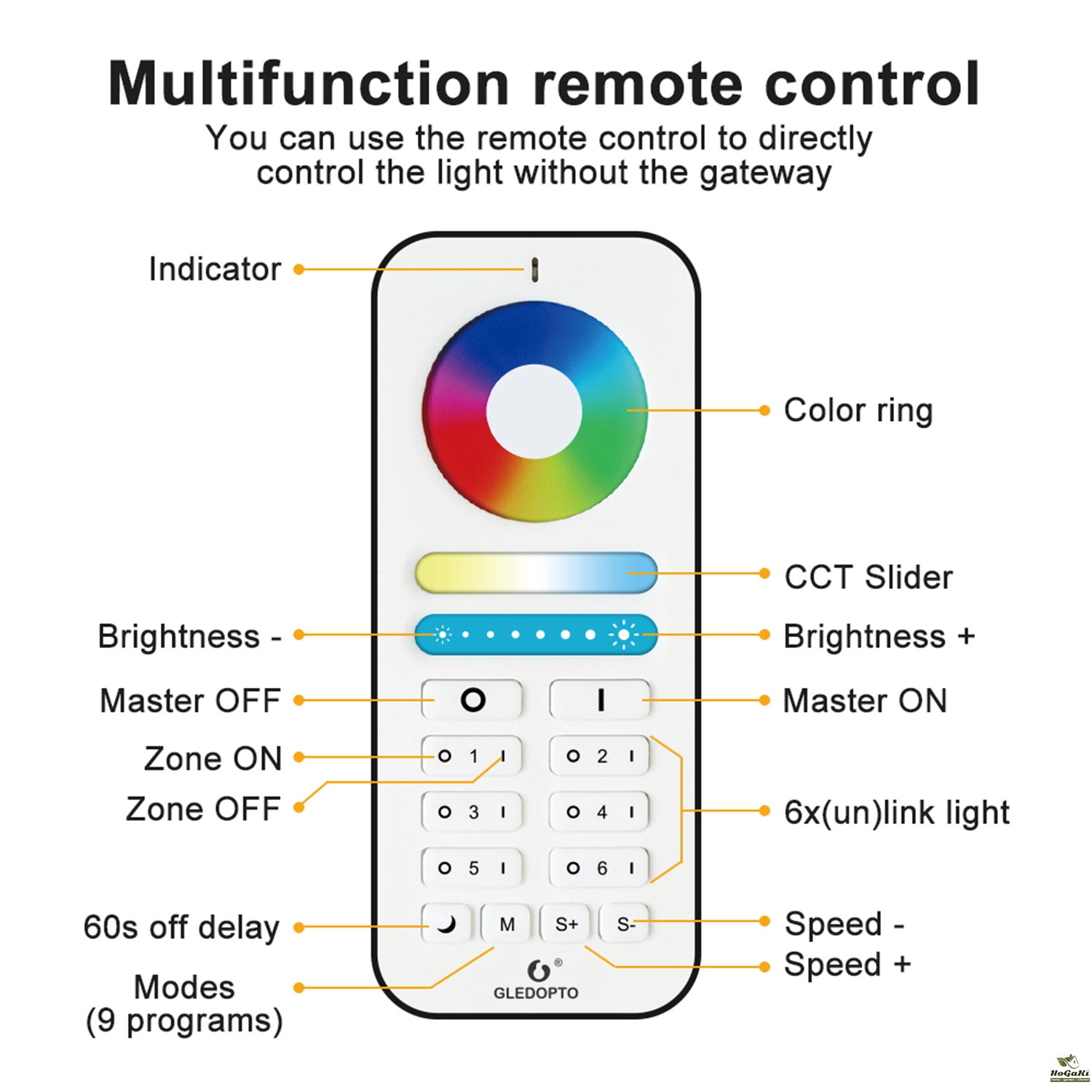

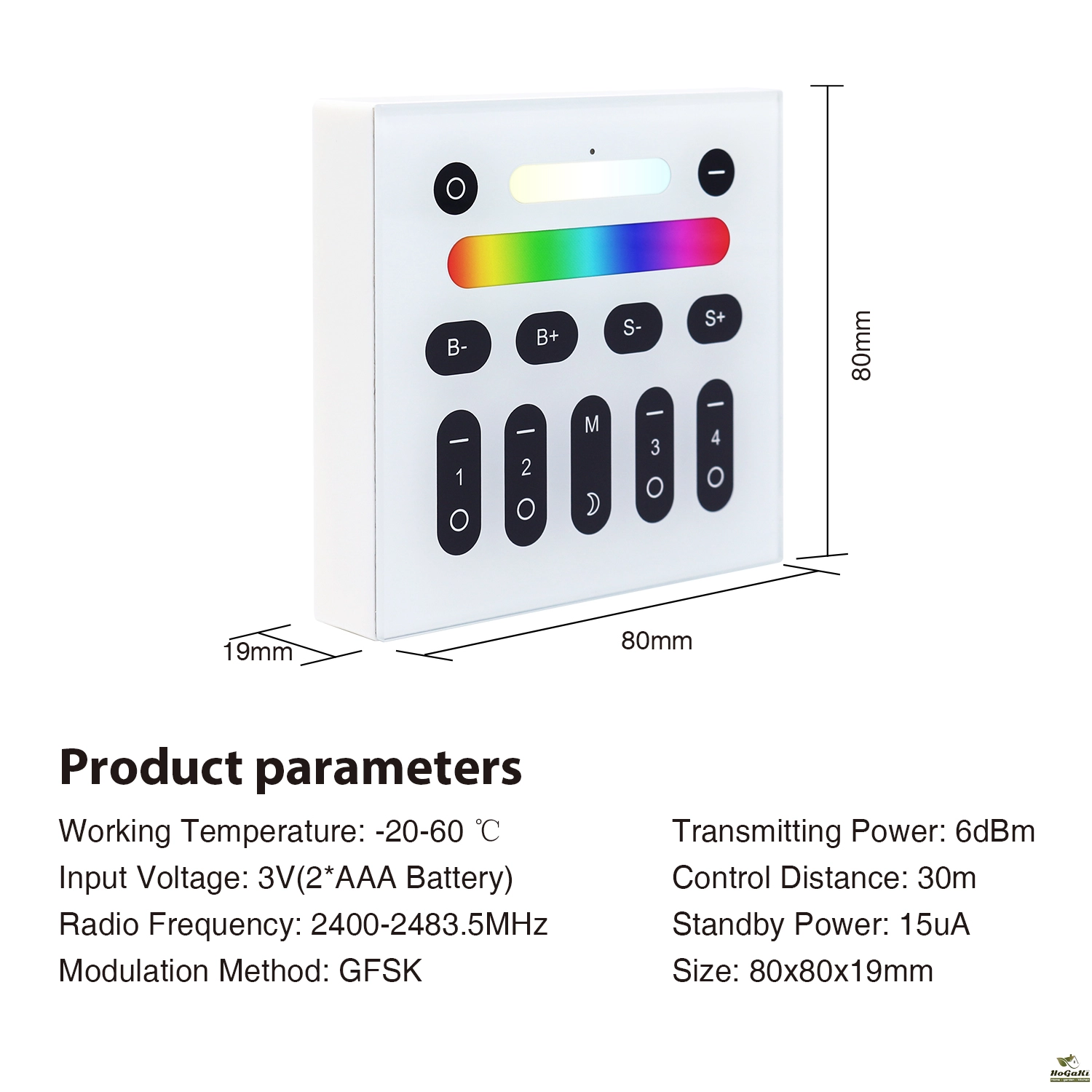

③ Remote Control: support 2.4G RF remote control/wall switch directly, without zigbee hub;


Group: Create rooms, divide your strip lights into one room( to control lights together) or several rooms(to control lights in different room separately).


Set the Scene that can adjust the different lights atmosphere in your room according to your needs.

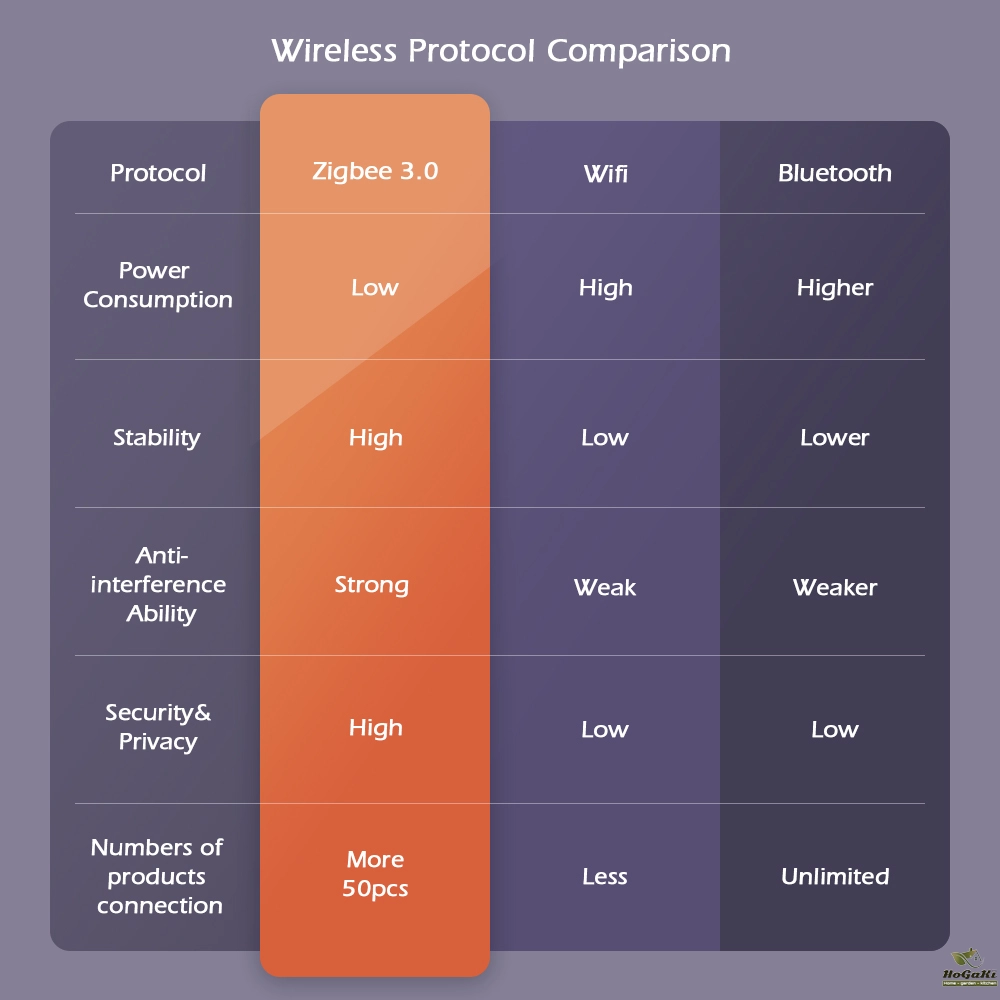

Compatible With Zigbee Gateway: it's using with zigbee light link(ZLL) standard protocol, zigbee transmission technology, mesh, multi signal at the same to to transmit, receive, anti interference ability.


Q&A or more info, please contact us on line, and we will answer you in time.

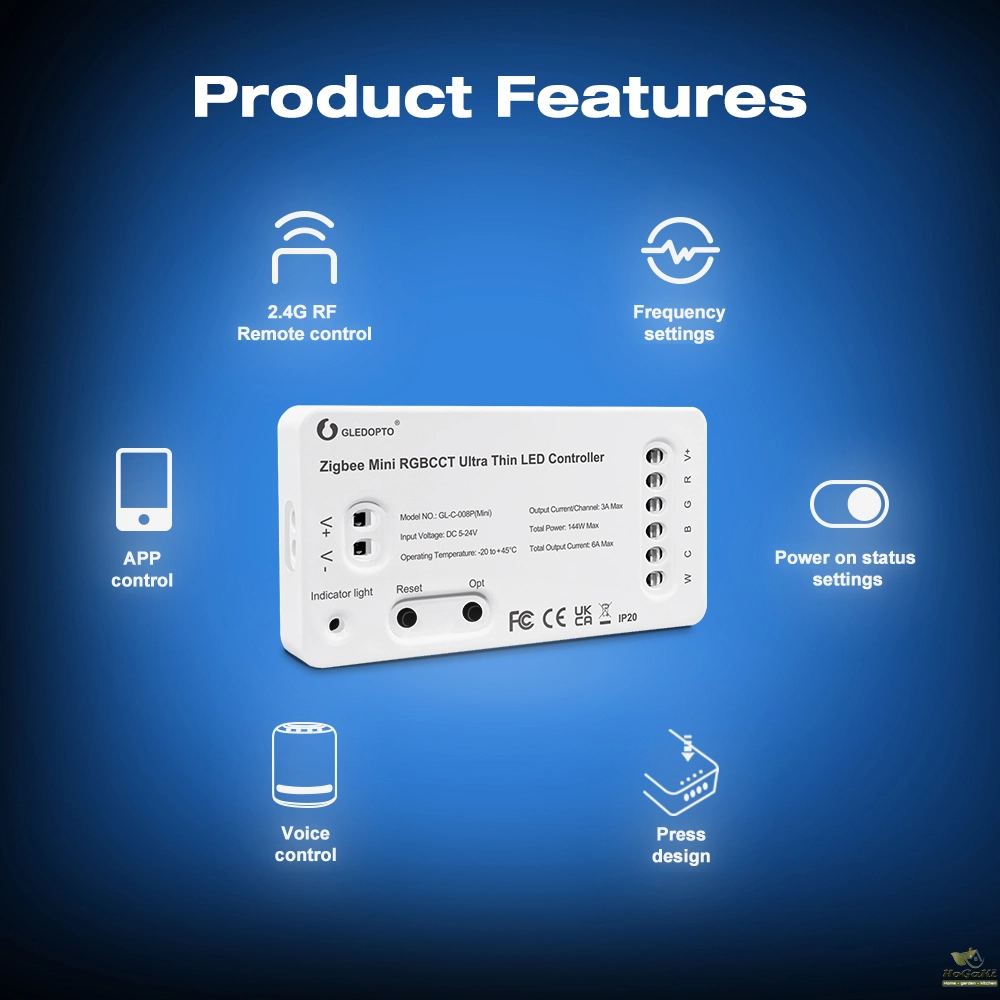

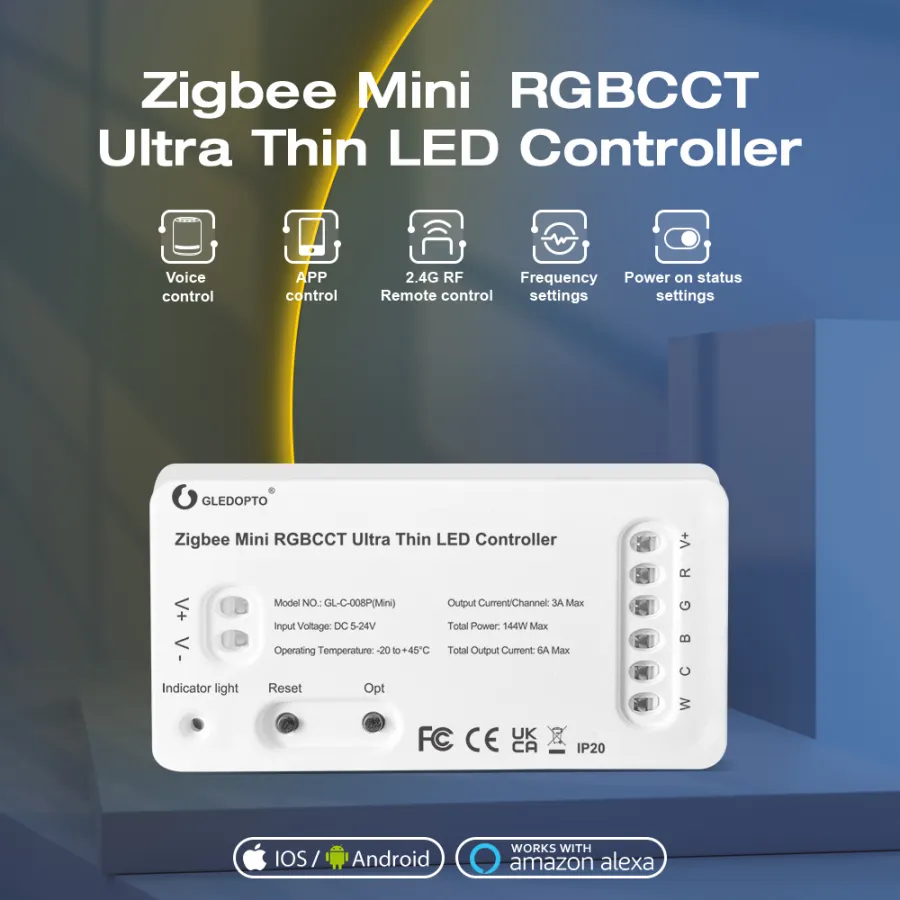

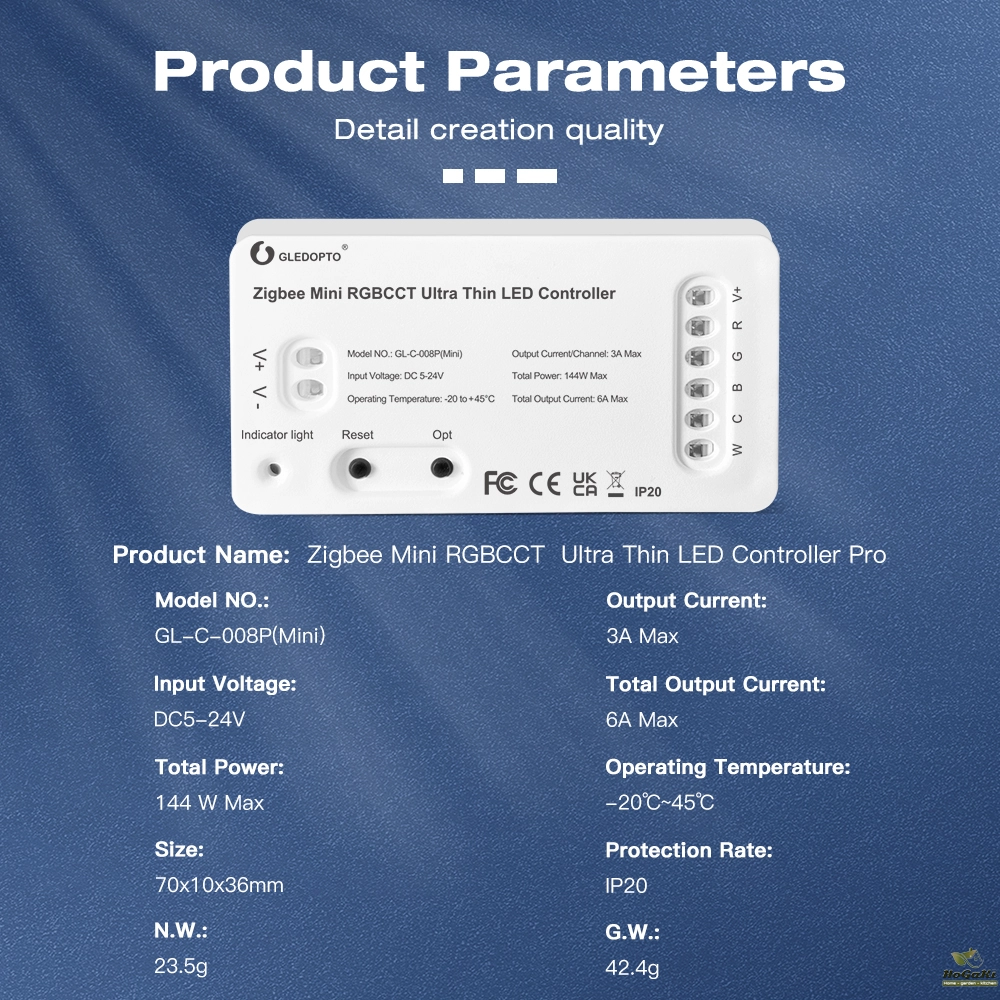

Product Name: Zigbee Utral Thin Mini RGBCCT LED Controller
Model No.: GL-C-008P(mini)

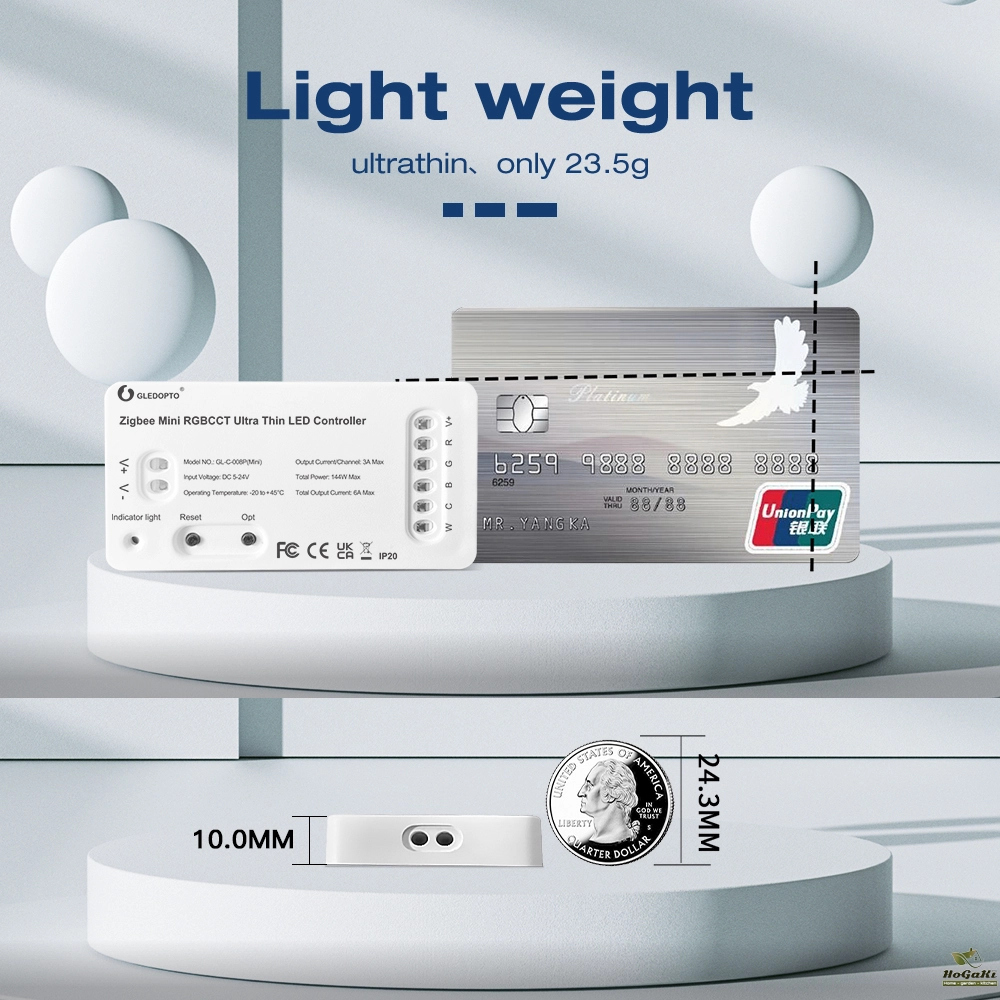

Product Size: 70*36*10mm

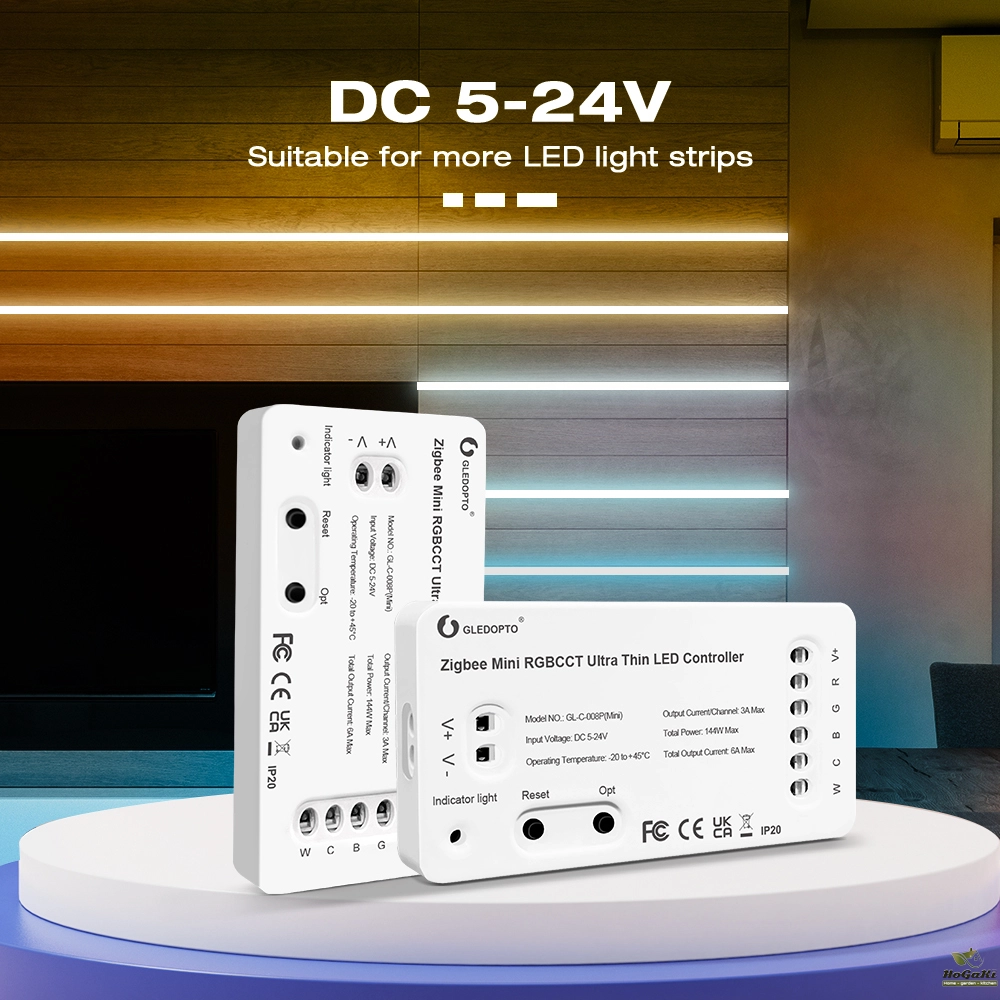

Input Voltage: DC5-24V
Protection Rate: IP20
Total Power: 144W Max
Output Current/Channel: 3A Max
Total Output Current: 6A Max

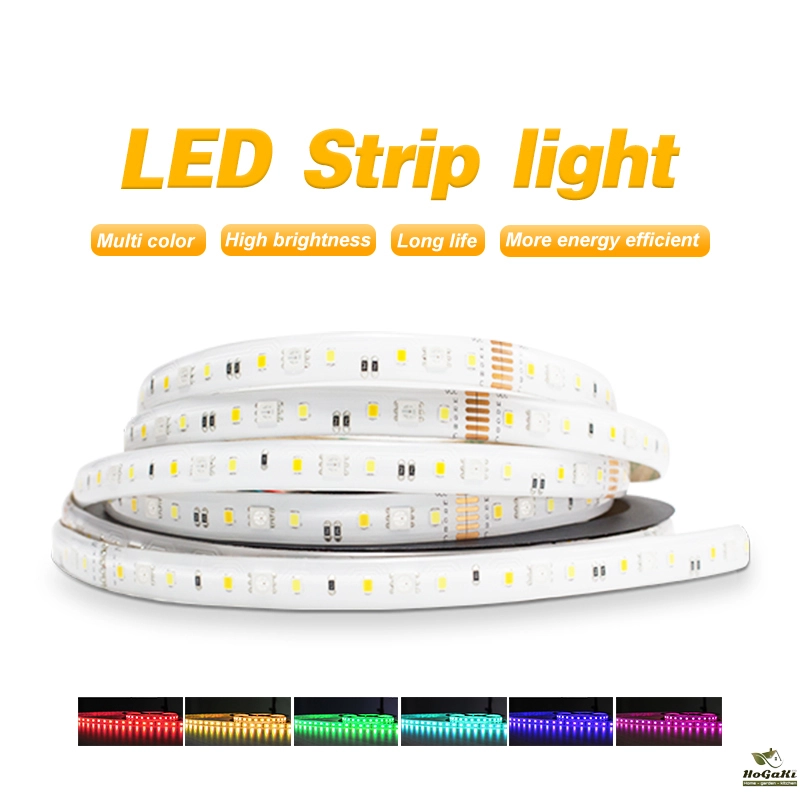

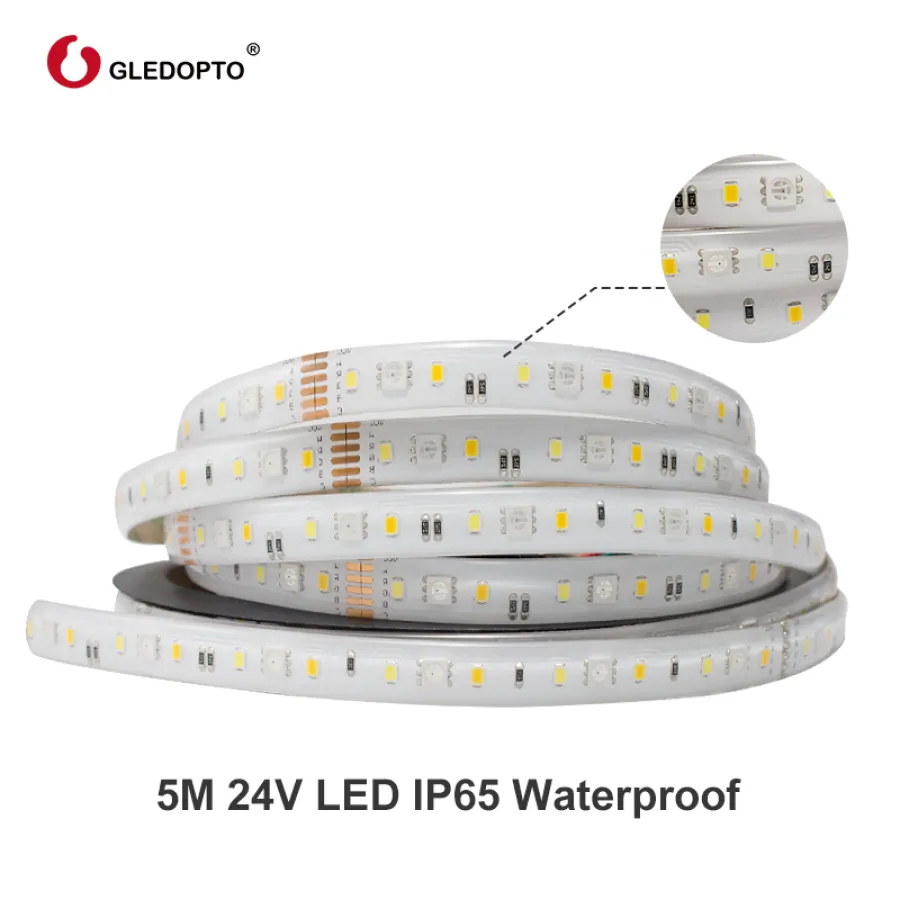

Applications: Suitable For DC5-24V LED Light Strip

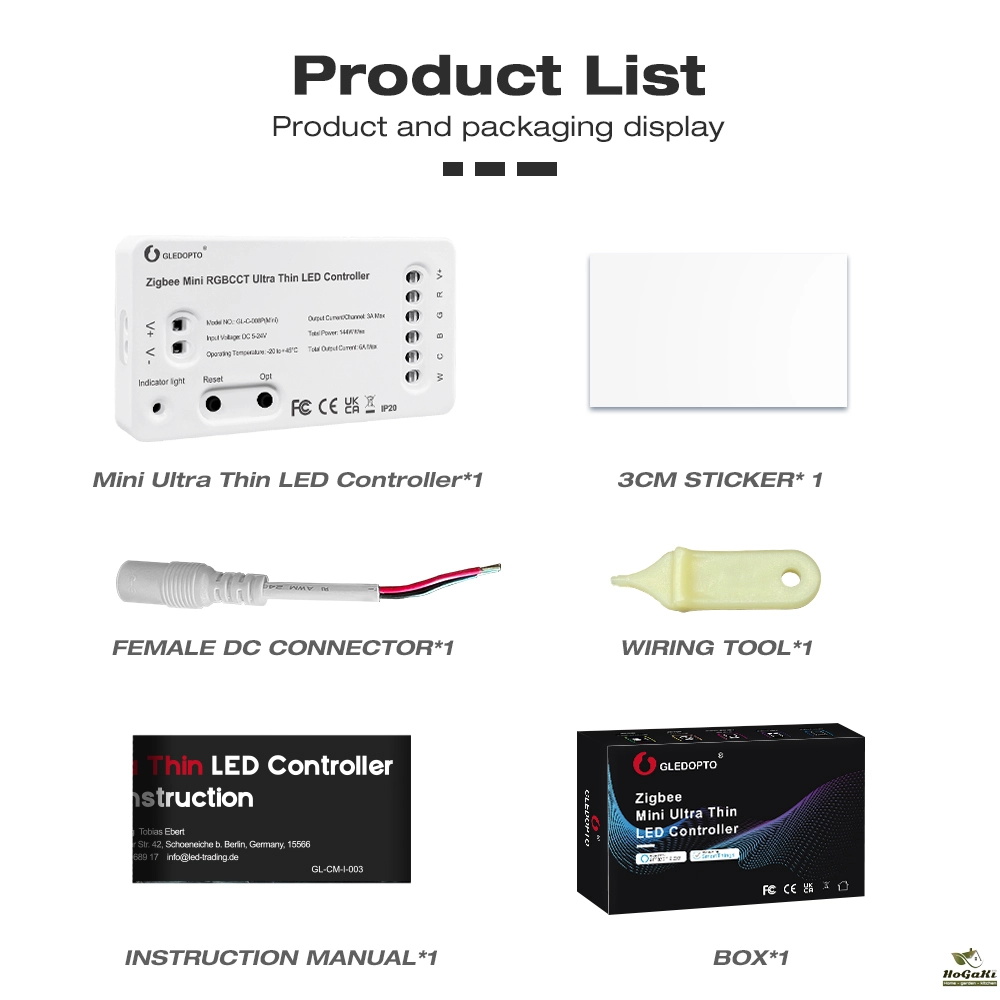

1pcs* ZIGBEE Mini RGBCCT LED Strip Controller

1pcs* User Manual

1pcs* 3cm Stricker

1pcs* Wiring Tool



Packaging Details

  • Unit Type:
  • Package Weight: 0.100
  • Package Size: 6x5x10

  • Brand Name: GLEDOPTO
  • Origin: Mainland China
  • Hign-concerned Chemical: None
  • Item Type: RGB controler
  • Material: ABS
  • Warranty: 2 Years
  • Certification: ce
  • Certification: EMC
  • Certification: LVD
  • Certification: ROHS
  • Connection Mode: APP/Voice/RF Remote Control
  • Power Source: DC
  • Wattage: 144W
  • Model Number: GL-C-008Pmini
  • Remote Distance: 30m
  • Controled Method: APP/Voice/RF Remote Control
  • Applicable Lights: LED Light Strip
  • Max. Load Power: 144W
  • Product Name: Gledopto Zigbee Mini RGBCCT LED Strip Controller
  • Product Size: 70*36*10mm
  • Input Voltage: DC5-24V
  • Current: Max 6A
  • Operating Temperature: -20-60°C
  • Feature 1: Zigbee RGBCCT LED Strip Controller
  • Feature 2: LED Dimmer Controller
  • Feature 3: Zigbee RGBW Controller
  • Feature 4: Zigbee WWCW Controller
  • Feature 5: LED RGB Controller
  • Feature 6: Zigbee Mini Controller
  • Feature 7: DC 5-24V LED Controller
  • Choice: yes
  • semi_Choice: yes
