V2 Stair LED Light Controller DC 12V 24V 32 Channels Indoor Stairs PIR Sensor Dimmer Controller For Stairway Staircase Lighting
4.7 (44 votes) | 370 orders
Price:
US $13.77 - 77.11
Discount Price:
US $
13.18 -
73.96
-4%
- Color
-
-
V2 Stair LED Light Controller DC 12V 24V 32 Channels Indoor Stairs PIR Sensor Dimmer Controller For Stairway Staircase Lighting

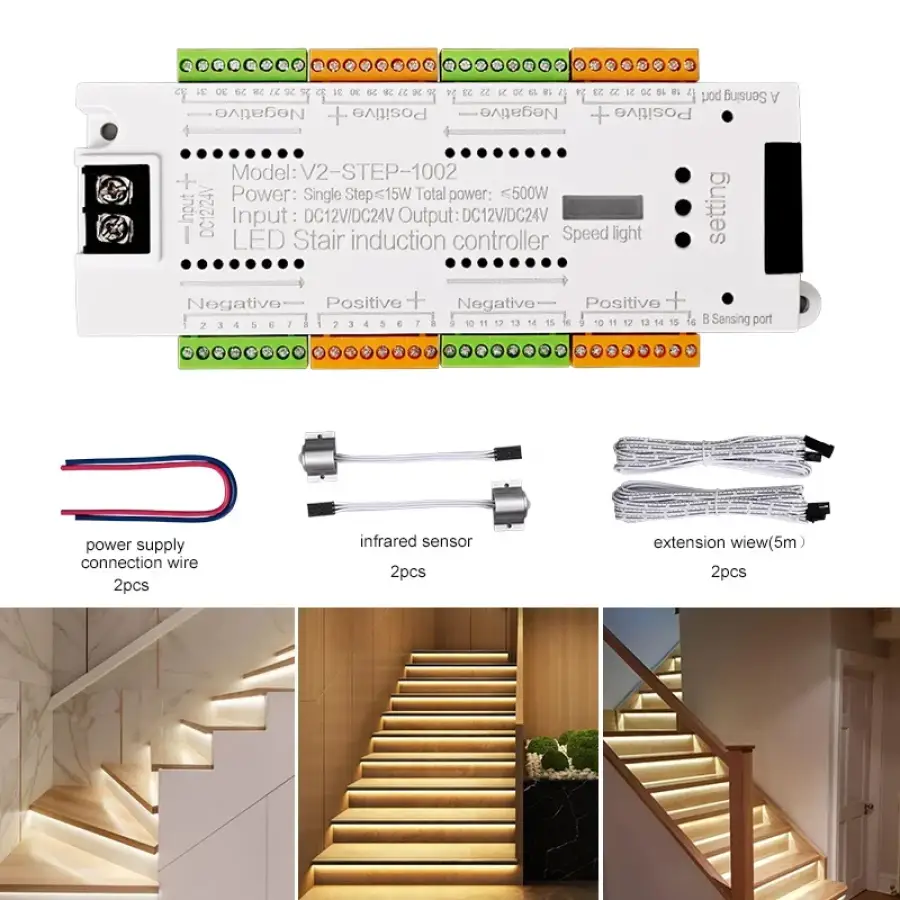

Package Content:
1 x Stair Light Controller
2 x Wire to connect power supply

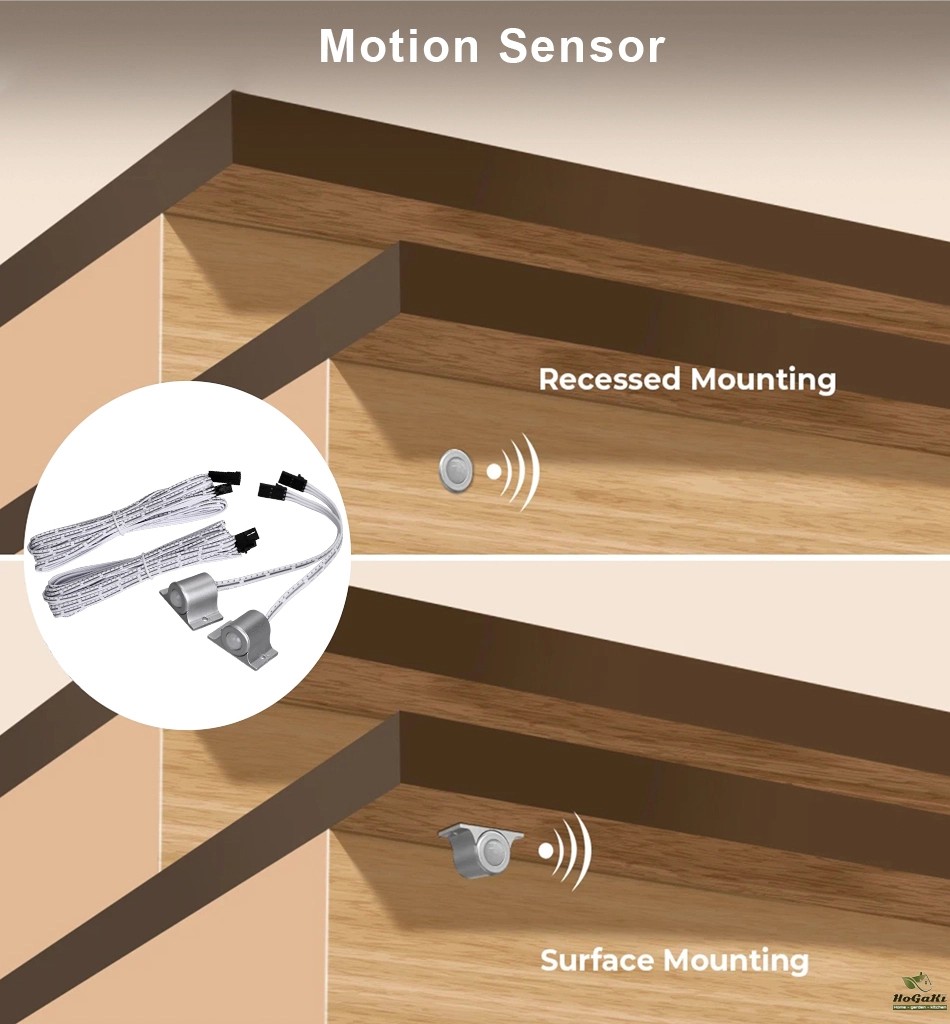

2 x PIR sensor
2 x Extension wire (5m)
1x Screw driver
1 x User manual

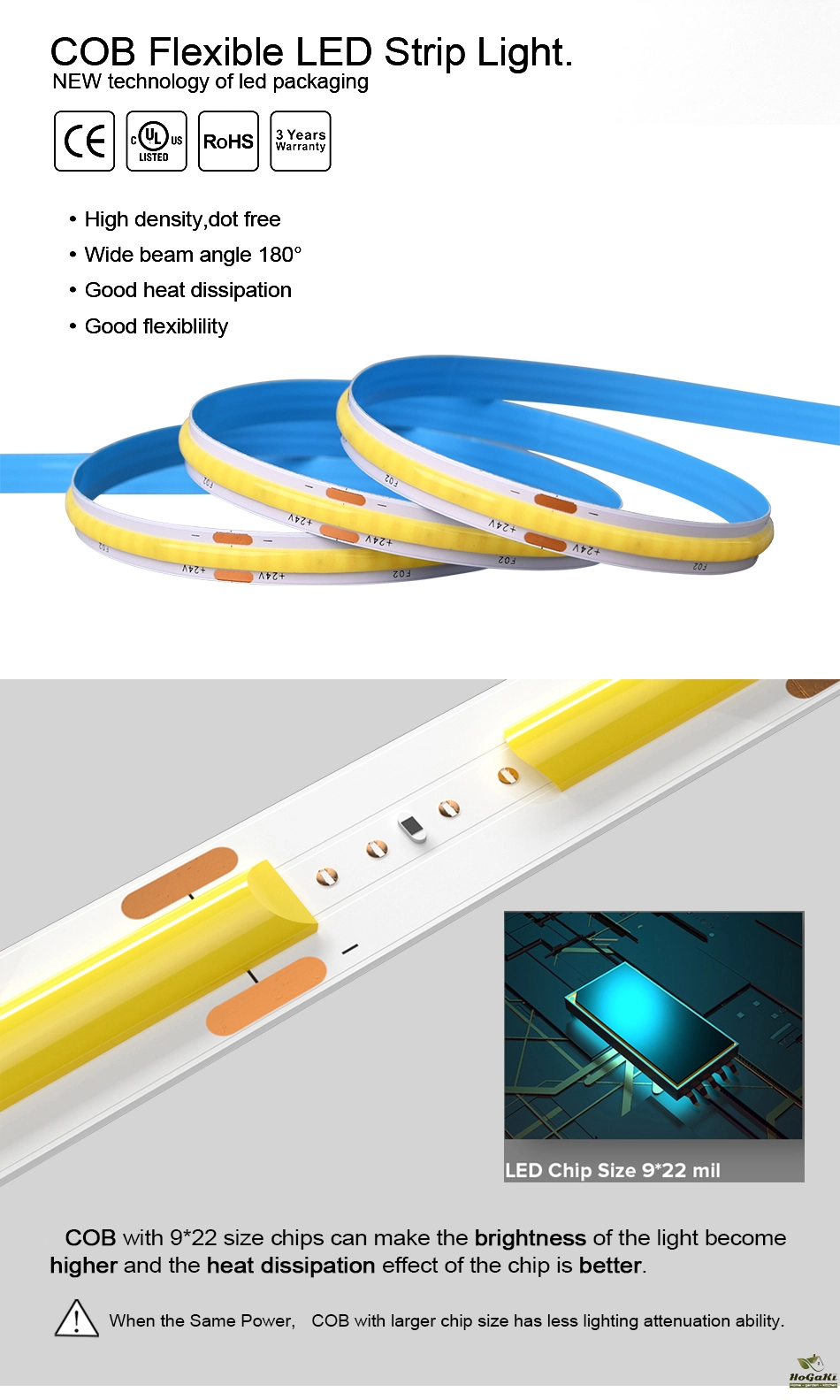

LED Strip Only:

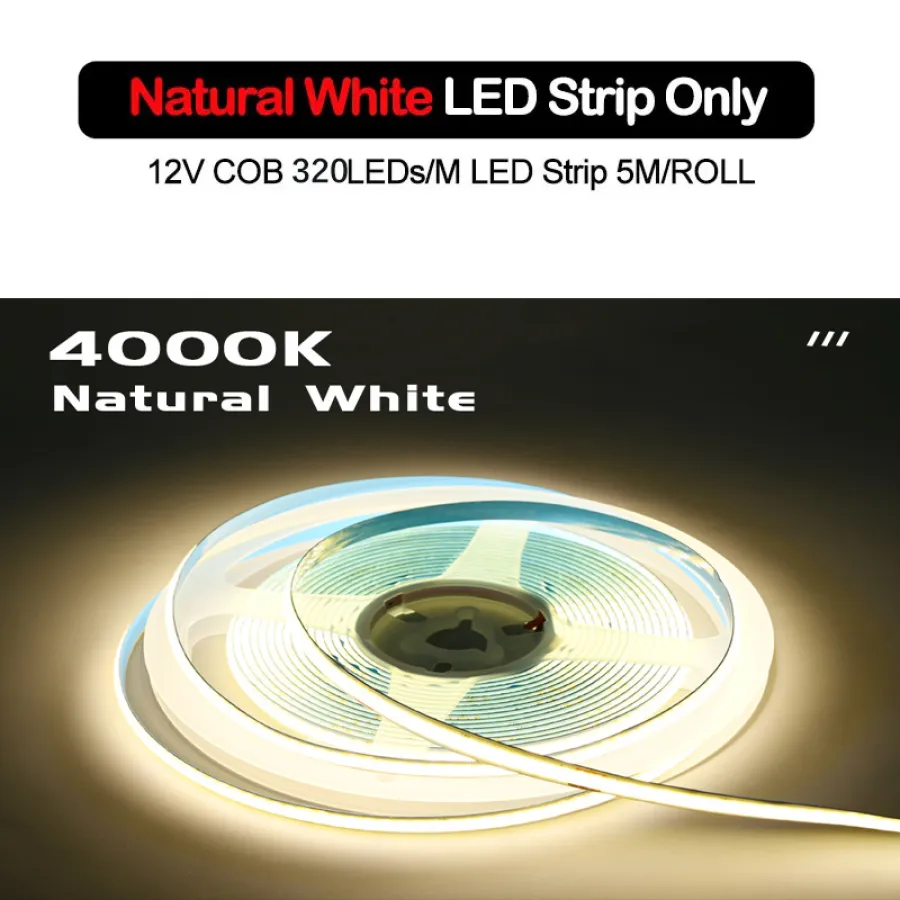

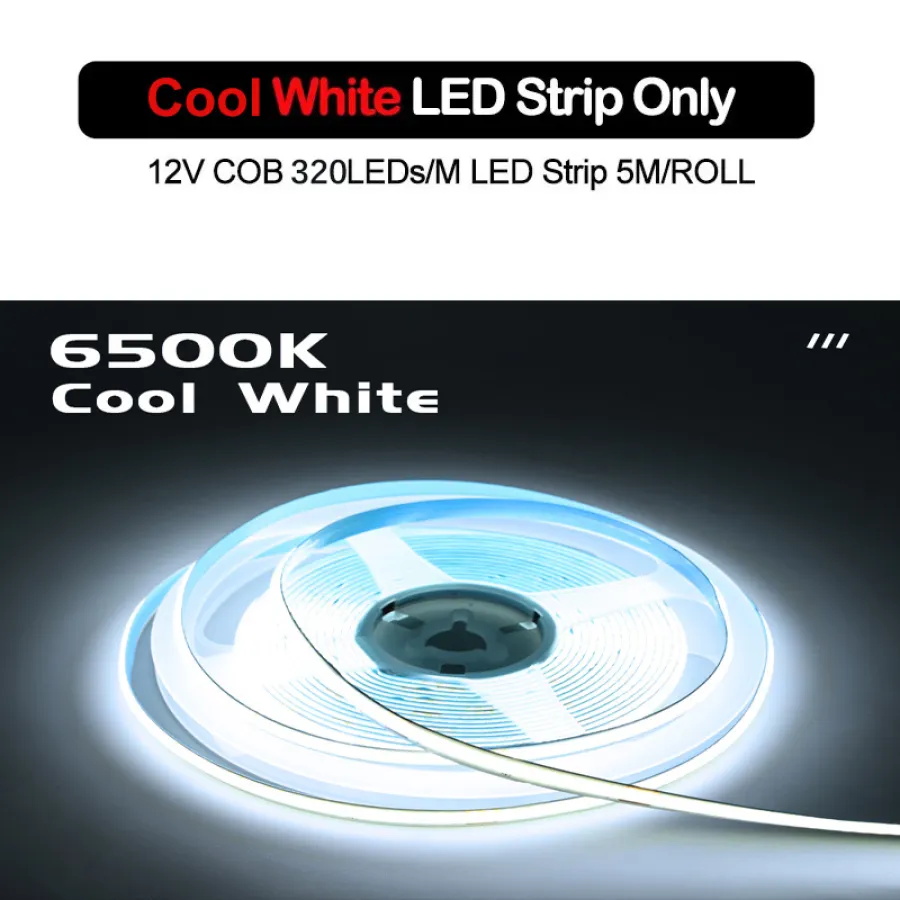

1 x 5M 12V COB LED Strip

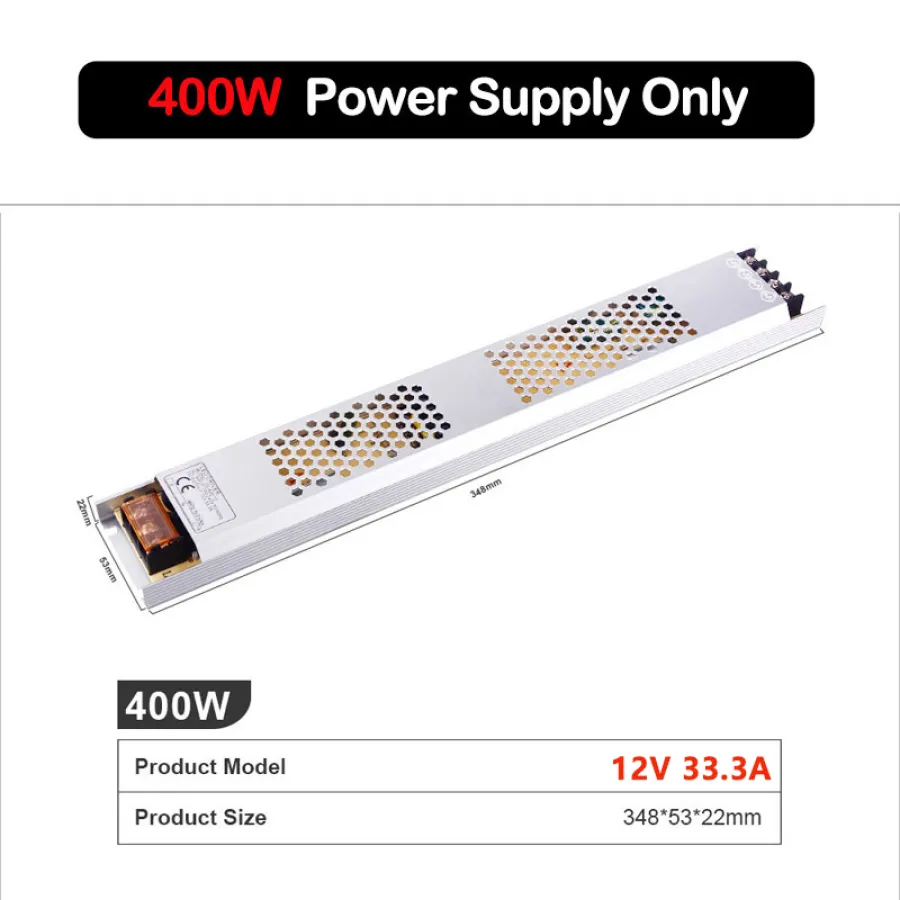

Power Supply Only:

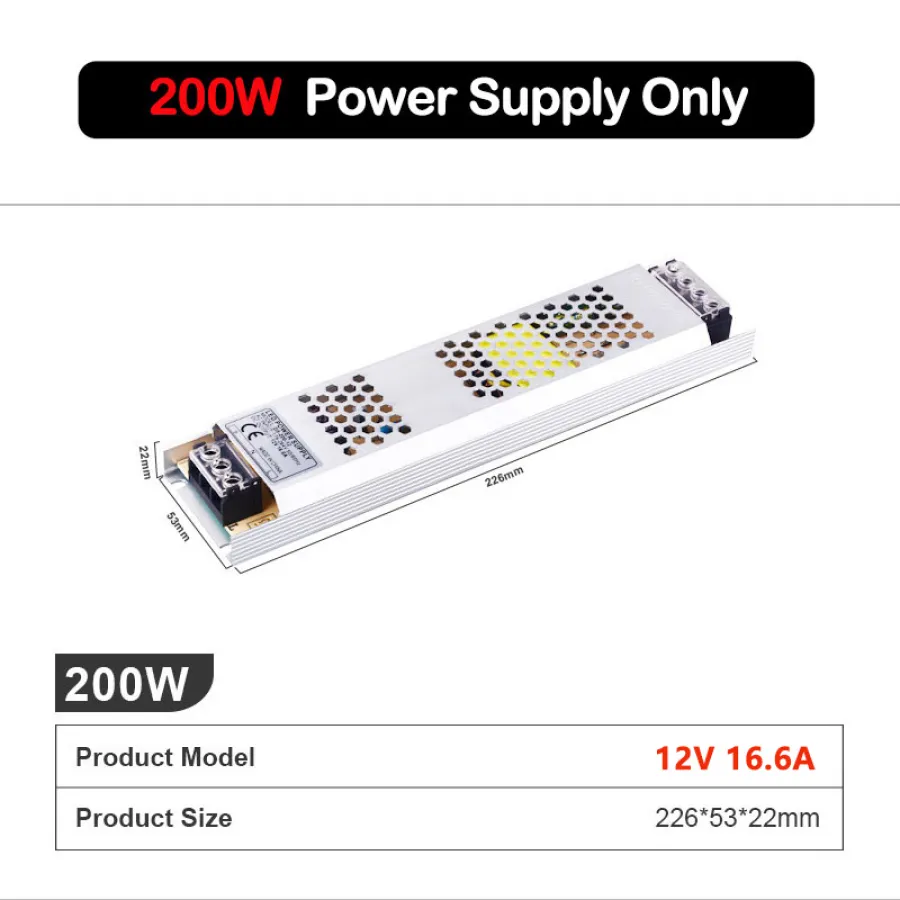

1 x Power Supply(200W/300W/400W Optional)
Features:
Made of high quality plastic and aluminium, with a stable output and sensitive sensing. Perfect for homes, shopping malls, shops etc.

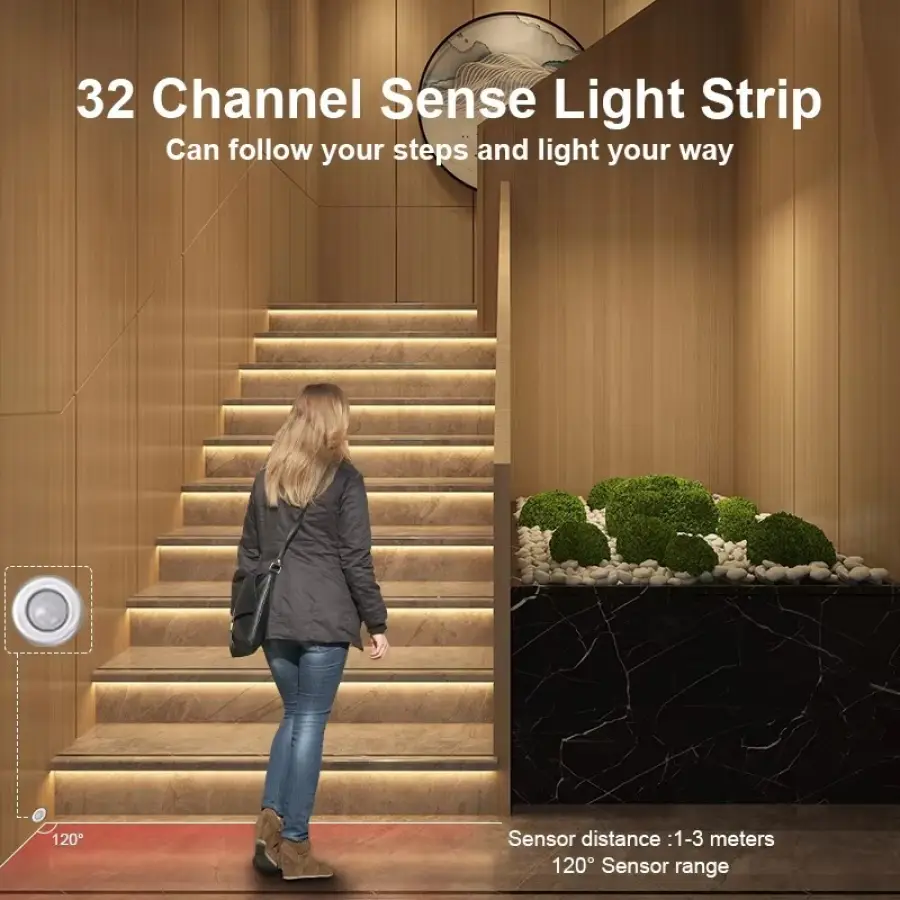

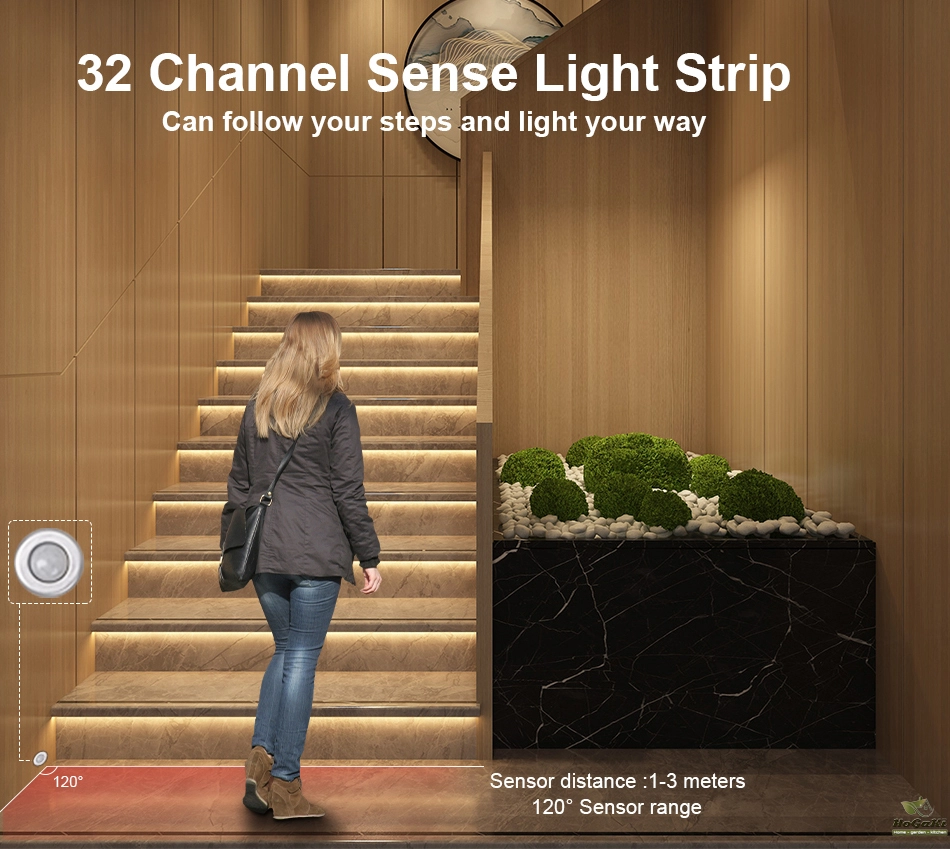

Fully automatic, turns on the light when it senses someone walking and turns off the light when they leave.
With anti-leakage system, stable output, safer and more secure use.

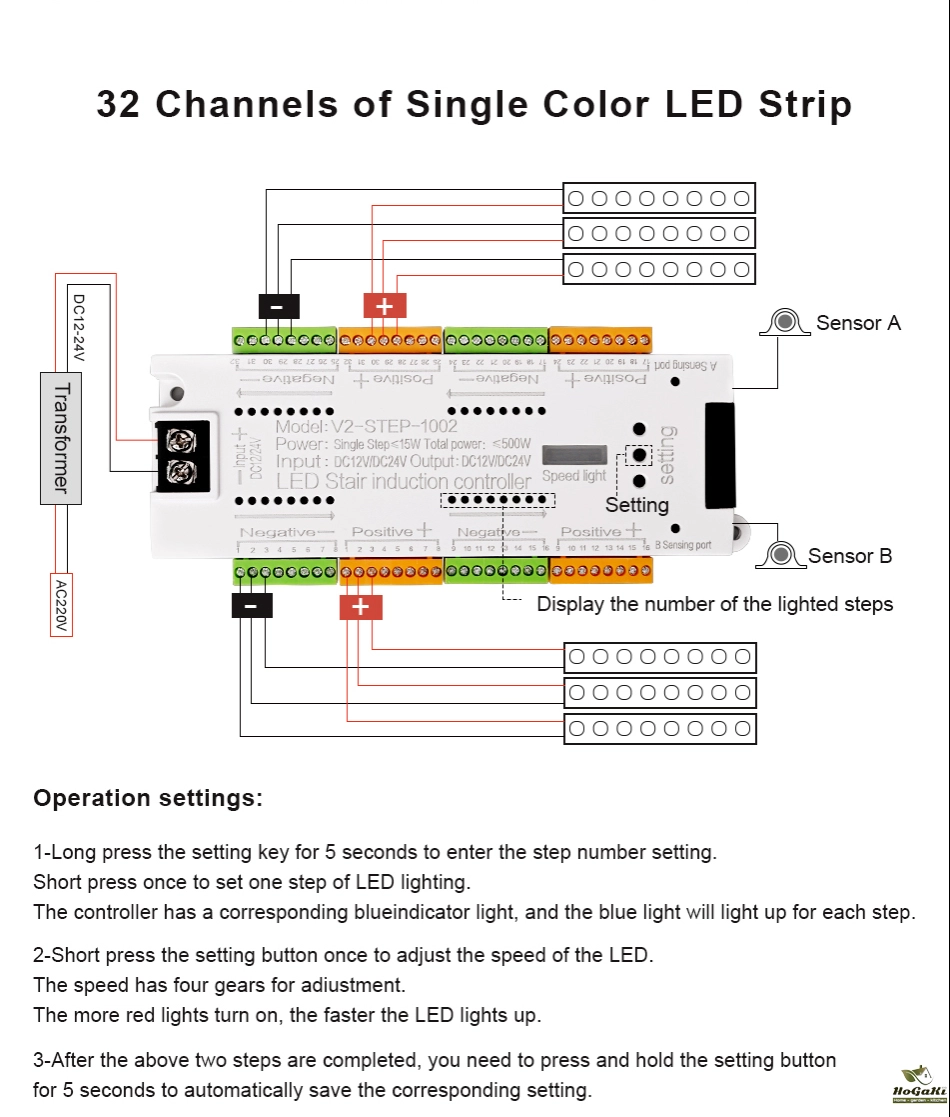

Touch the setup button to adjust the speed of the lights off on the controller.
Long press for 5 seconds to set the number of stair lights, blue light means the serial number light is on. Click the button until all lights are on, up to 32 stair lights can be controlled, press and hold again to confirm.

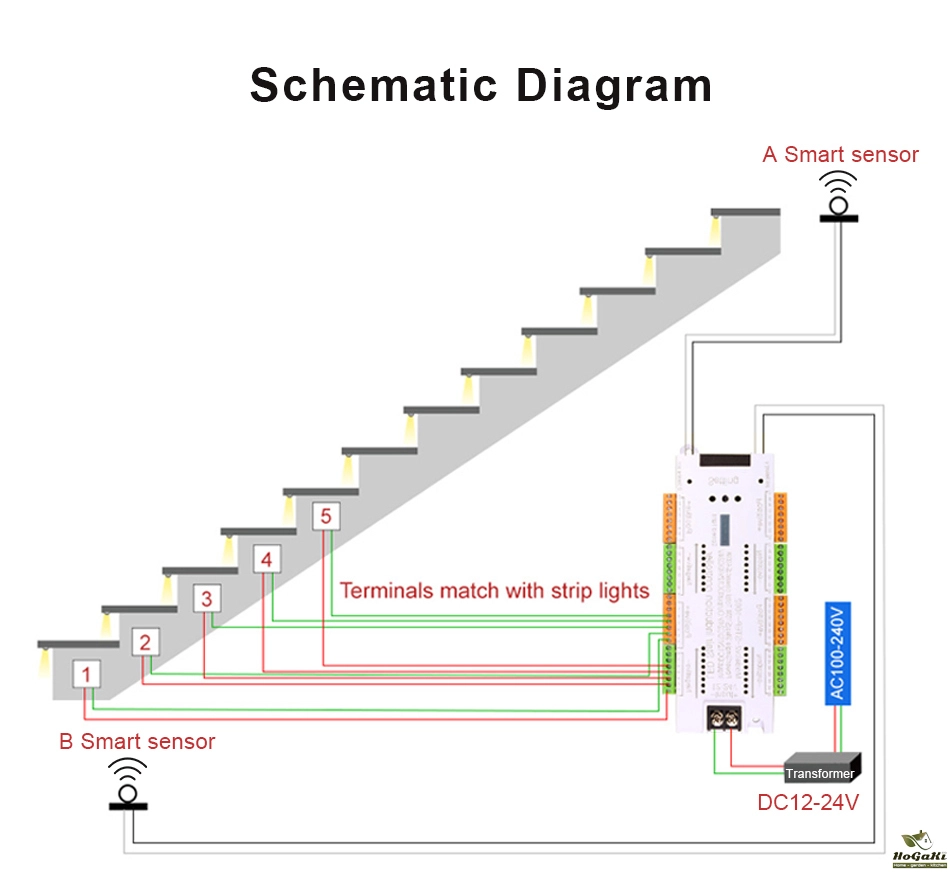

Installation Tips:

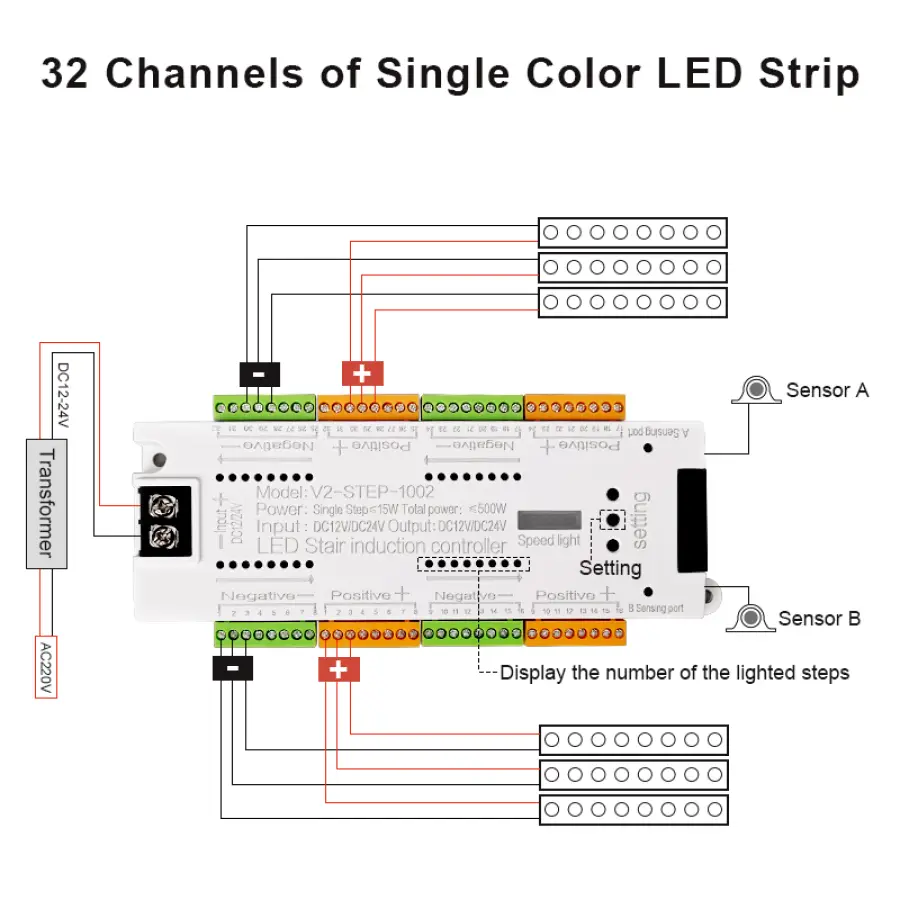

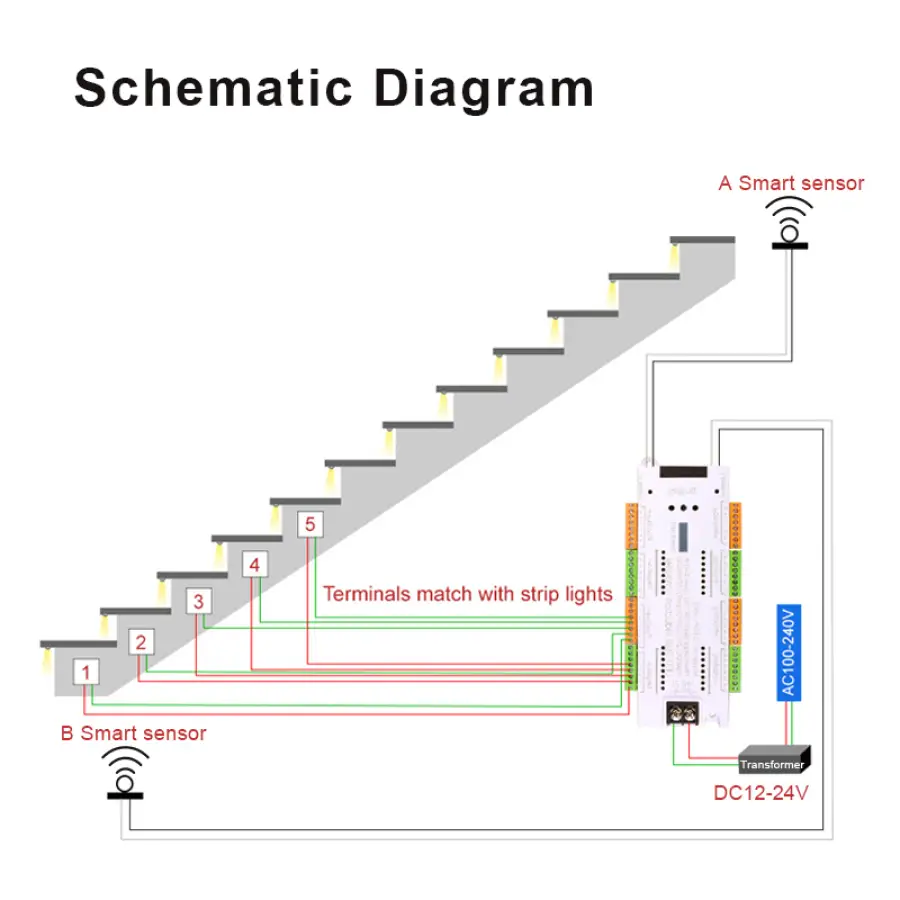

1. When the lamp is plugged into the controller, be sure to find the socket of the corresponding serial number.
2. The controller and sensor can be in the electric box.
3. Be sure to connect the positive and negative poles, the red is the positive, the blue is the negative, and the low-voltage current is DC 12-24V, not AC 220V/110V.
4. It is recommended to bury the line in advance and install the lights when the stairs are decorated.
5. The wiring needs to be connected in case of power off, to avoid short circuit.

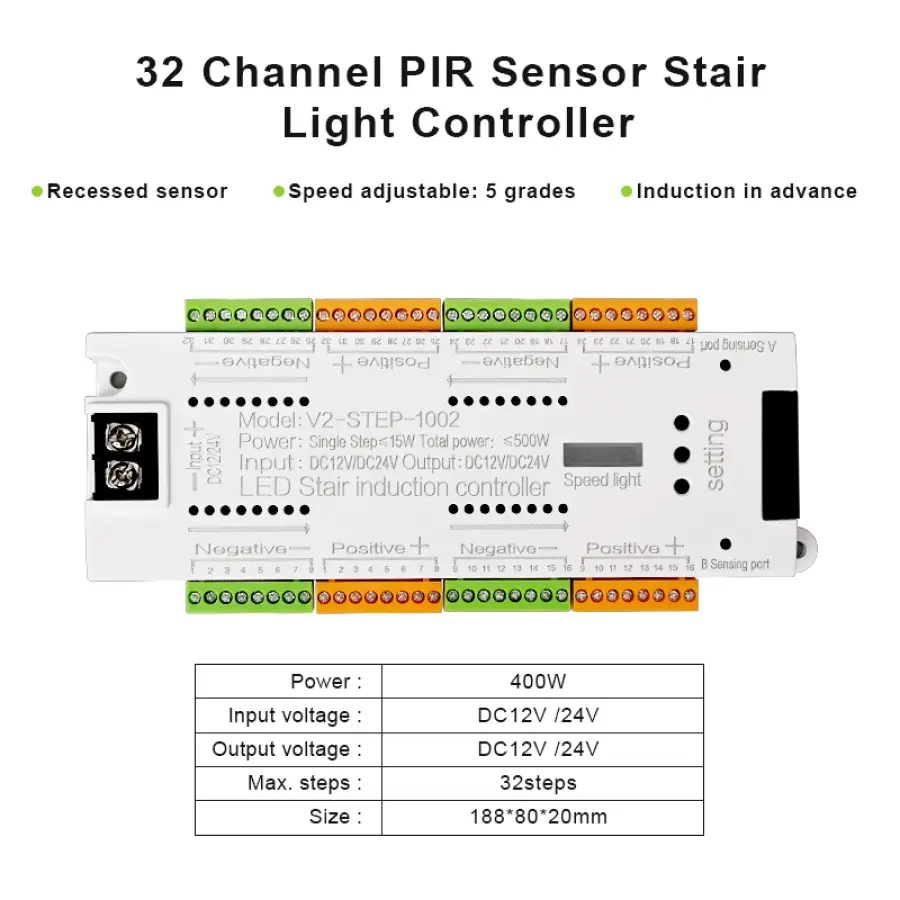

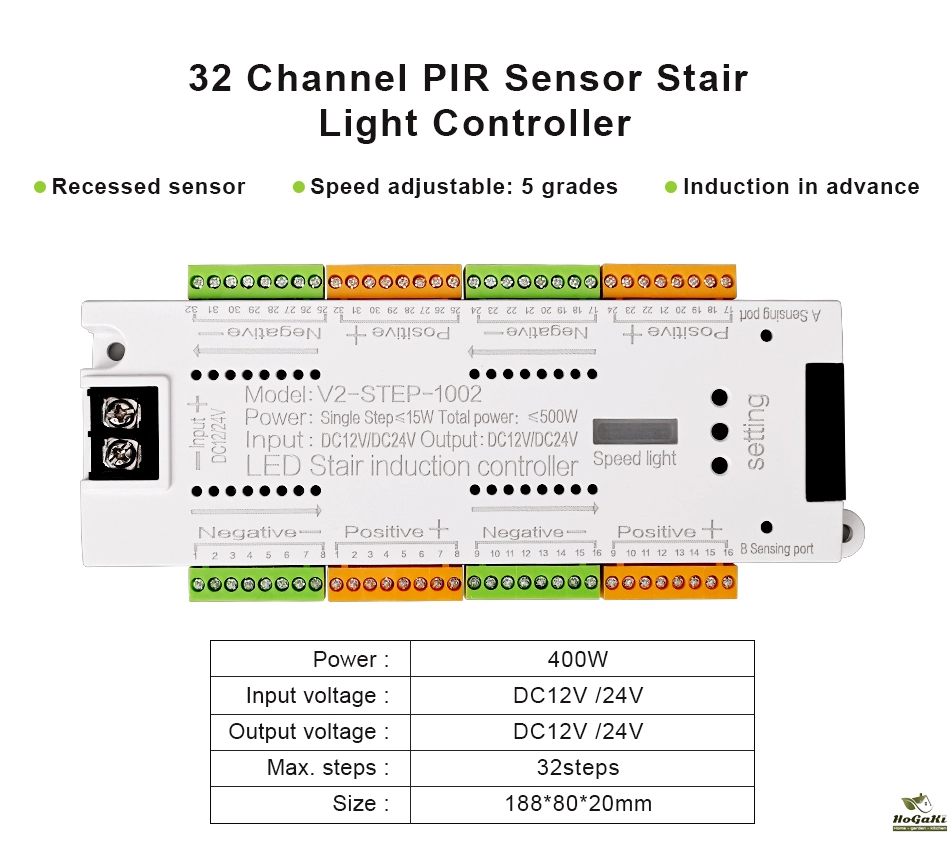

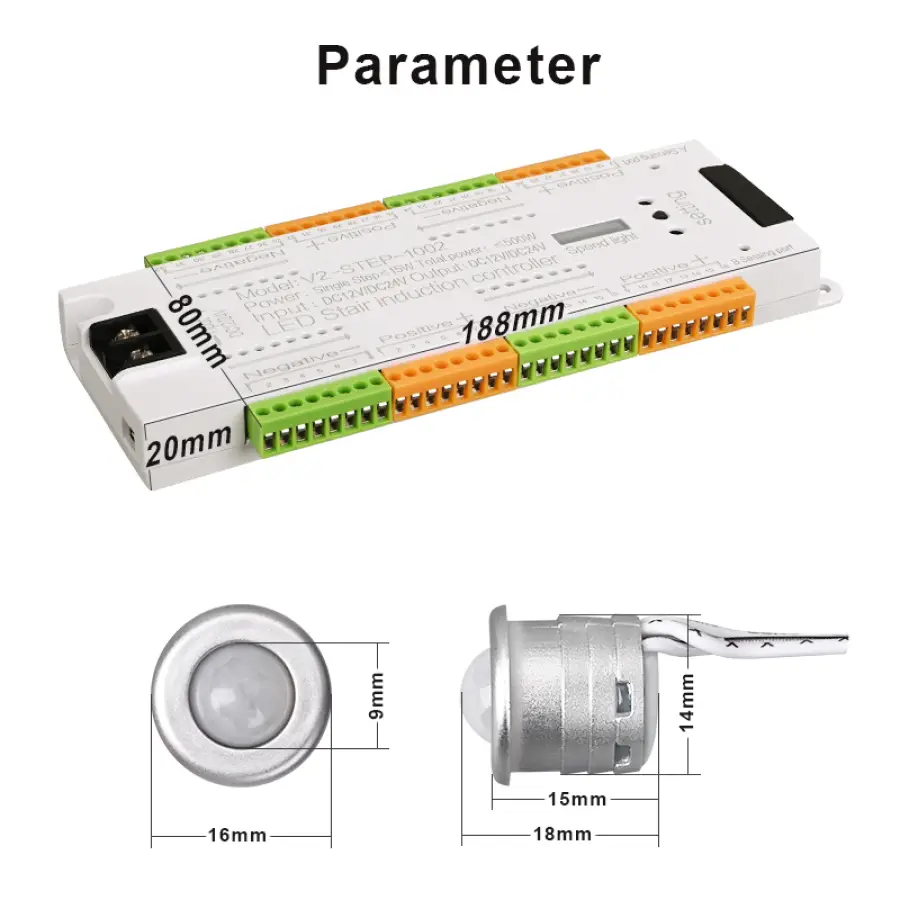

Specifications:
Product: 32-channel stair sensor
Voltage: DC 12V/DC 24V
Power: ≤350W MAX
Sensors: 2 (A, B)
Channel: 32 (set to 1-32 step)
Operating Mode: Photoelectric
Static power consumption: 5W
Induction distance: 3M
Output line length: 5 meters +5 meters
COB LED Strip
LED Power Supply
Packaging Details
- Unit Type:
- Package Weight: 0.380
- Package Size: 9x3x19
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Item Type: RGB controler
- Material: Metal + ABS
- Warranty: 2 years
- Certification: ce
- Certification: EMC
- Certification: ROHS
- Connection Mode: Wired
- Power Source: DC
- Wattage: 400W
- Oscillation frequency: -
- Voltage: 12-24v
- Model Number: V2 Step Stair Light Controller
- Remote Distance: 3m
- Controled Method: PIR Sensor
- Features: with Daylight sensor
- Applicable Lights: LED Strip Lights
- Max. Load Power: 400W
- Channel: 32CH single color strips
- IP Rate: IP20
- Operation: 1 buttons operation
- Feature: With Daylight Sensor
- Item: Stairs LED Light
- Type: Stair Light Controller
- Application 1: LED Lights Controller For Stairs
- Application 2: Smart Home PIR Sensor Stair Light Controller
- Application 3: Light Stair Motion Sensor
- Application 4: LED PIR Controller
- Application 5: Stairs Controller With Light Sensor
- Choice: yes
- semi_Choice: yes
