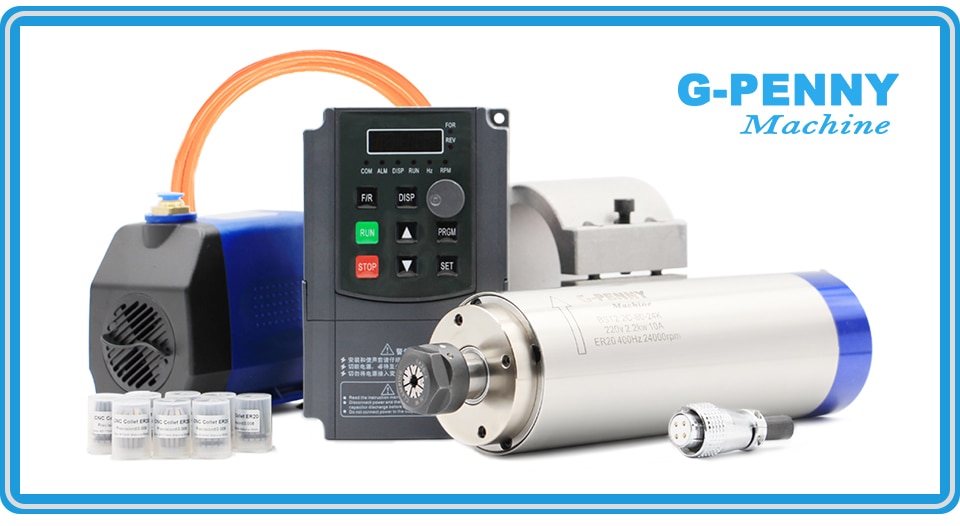

G-Penny 2.2kw ER20 Water Cooled Spindle Kit Water Cooling Spindle & 2.2kw Inverter & 80mm Spindle Bracket & 75w Water Pump

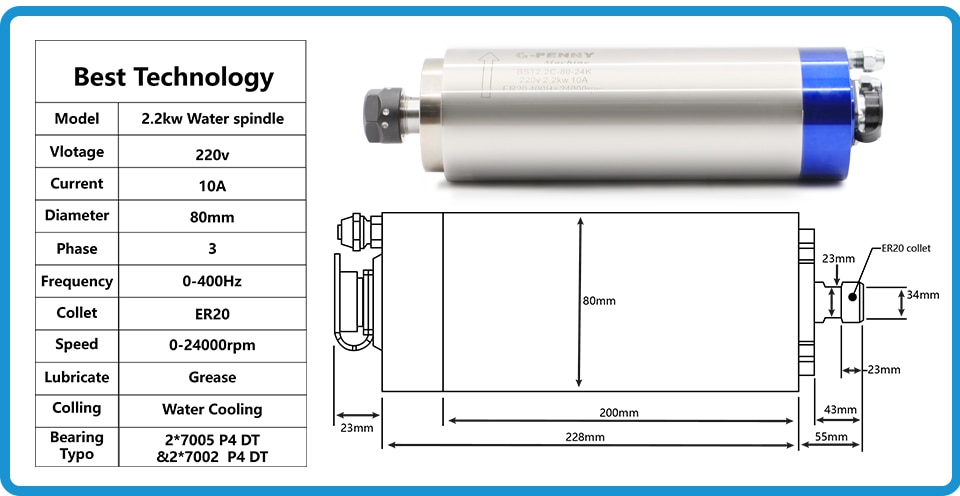

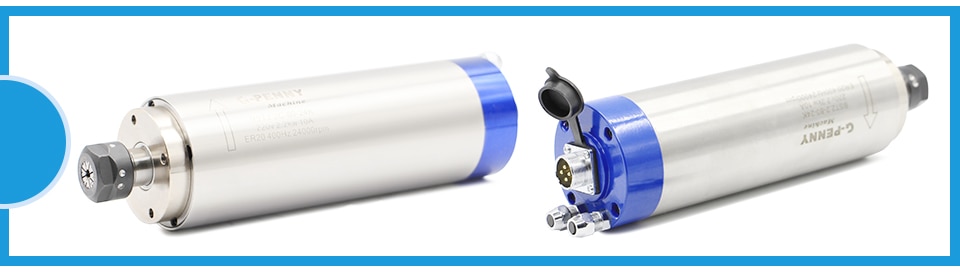

1 &220v 2.2kw ER20 4 bearings water cooled spindle

1 &220v 2.2kw inverter/VFD

1 &80mm spindle clamp/bracket

1 &75w water pump & 5m water pipes

1 kit ER20 high accuracy collet (≤0.008mm) --- 4,6,8,10,12,1/2,1/4,1/8 (As gift)

Good News! Now order the 2.2kw ER20 water cooled spindle kit, you can get 1 kit ER20 high accuracy collet as gift (Precision≤0.008)

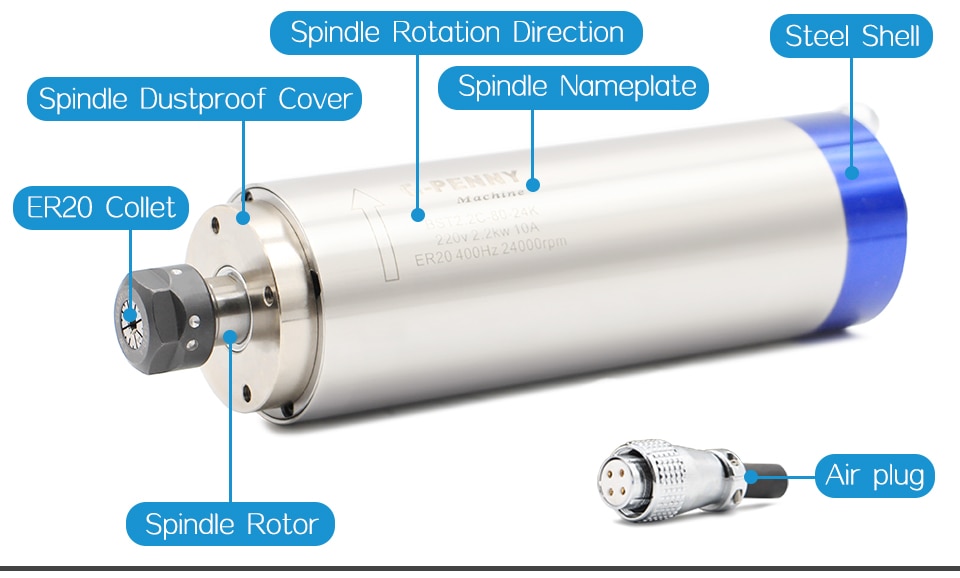

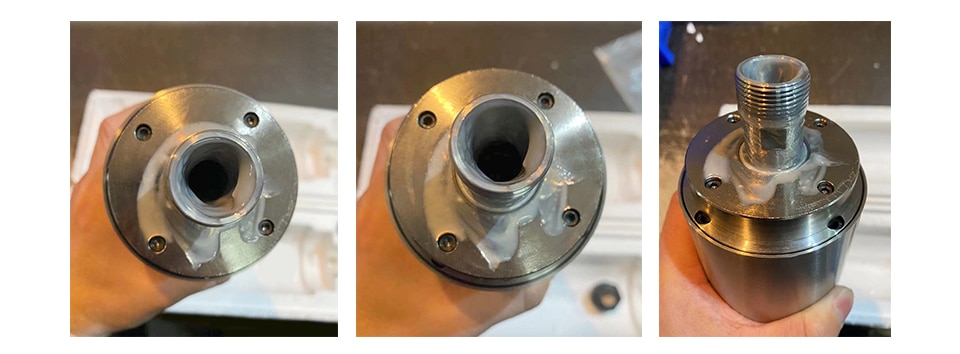

We are the spindle manufacturer,we use better material to produce the spindle.

• 1.We use steel bearings seat,spindle will not morph during the using life.Increase the spindle using life.

• 2.We use 4 pcs 7 series fully sealed angular contact ball bearings, it quality much better, usually use it 1-2 years without any problems.

• 3. Full power spindle, stronger shaft and coil,more power in engraving and cutting working.

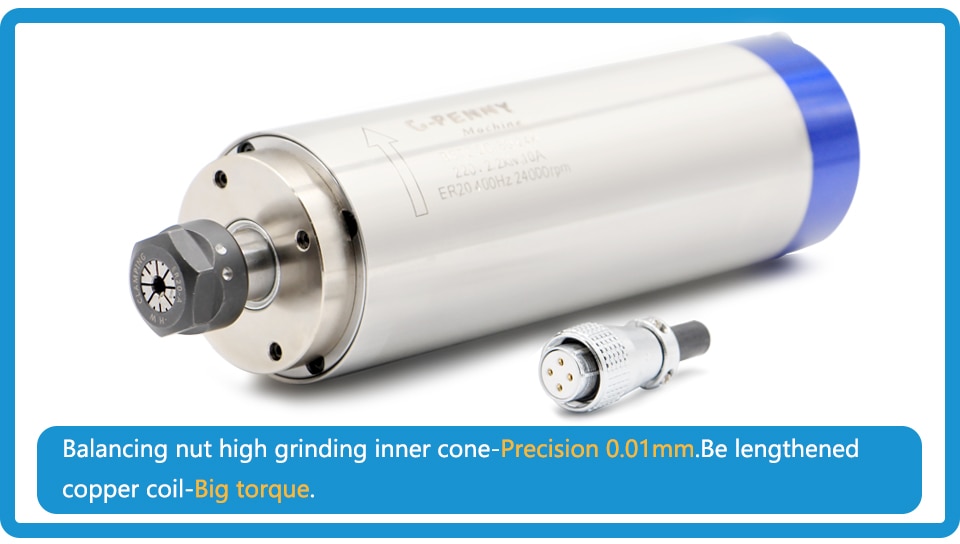

• 4. Precision 0.01mm.Coaxial degree less than 0.0025mm,suitable for high accuracy work.

• 5. Carefull assembly make the spindle more precisional. 3-4 hours testing after assemble, 99.9% pass rate. No worry after ordering.

• 6. We work with biggest CNC router manufacturer in USA, EU,RU. Strong work partners.

If you order our spindle, it can using 1-2 years without any problems. Saving a lot of cost for replacing the shorter using life spindle.

• 1. Our Ceramic ball bearings spindle use 4 pcs ceramic ball bearings.

• 2. Ceramic ball bearings are resistant to high temperatures and low heat, usually 3-5 degrees lower than steel ball bearings during using .

• 3. Ceramic ball bearings have low friction, low noise and long service life.

• 4. If you want to use the spindle for aluminum, hard wood, then ceramic ball bearings better than steel ball bearings.

•


•


•

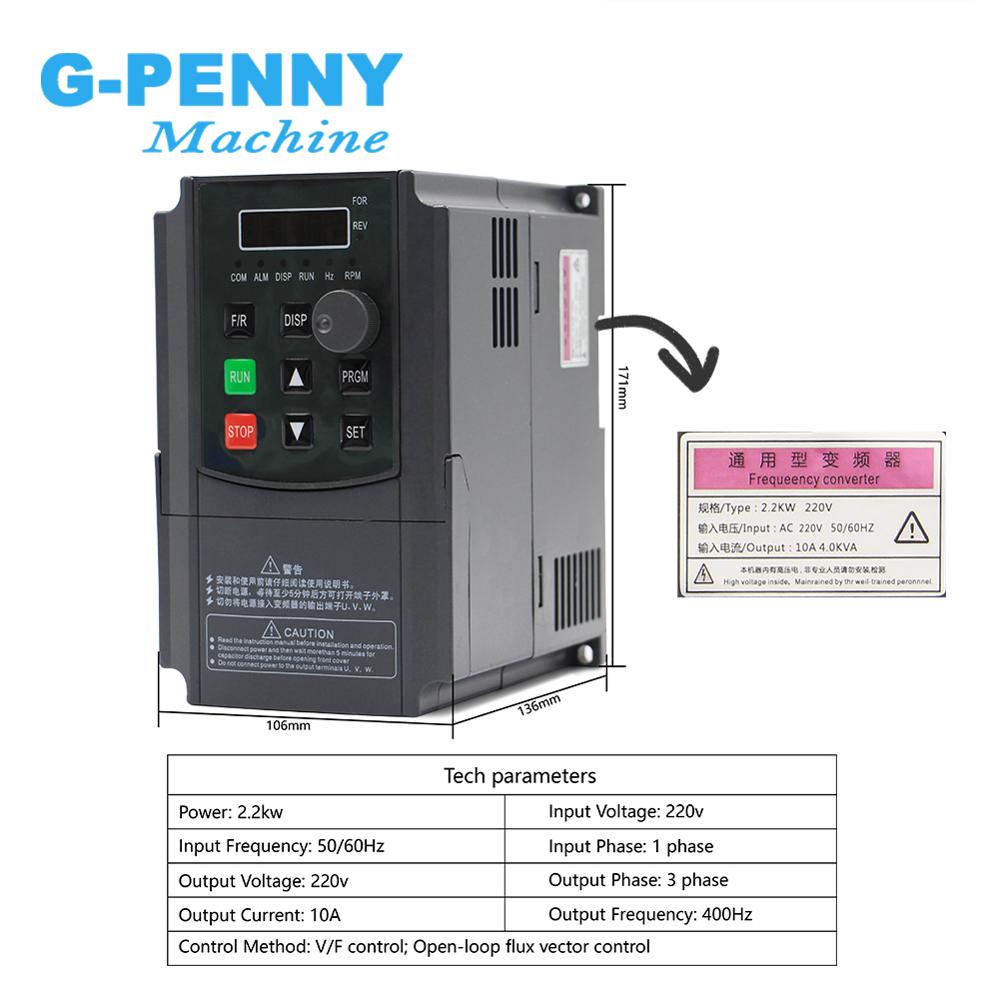

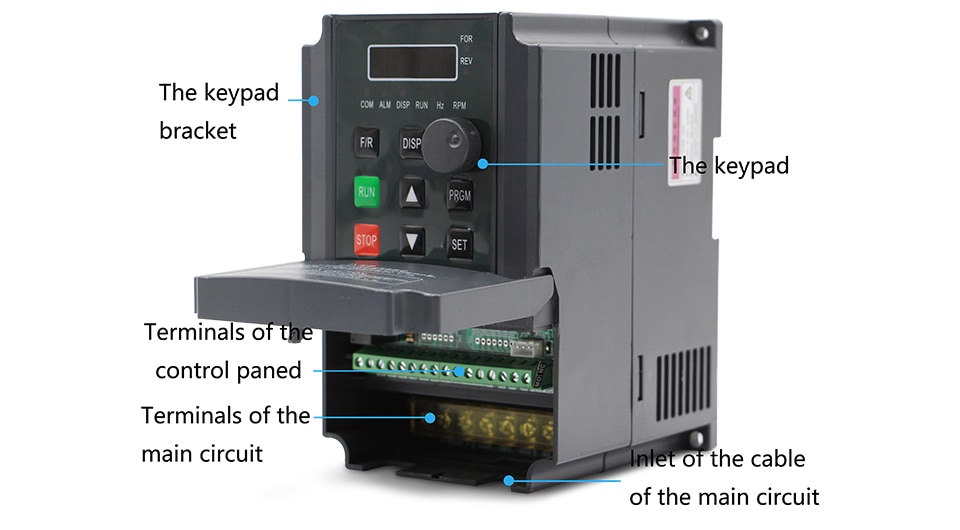

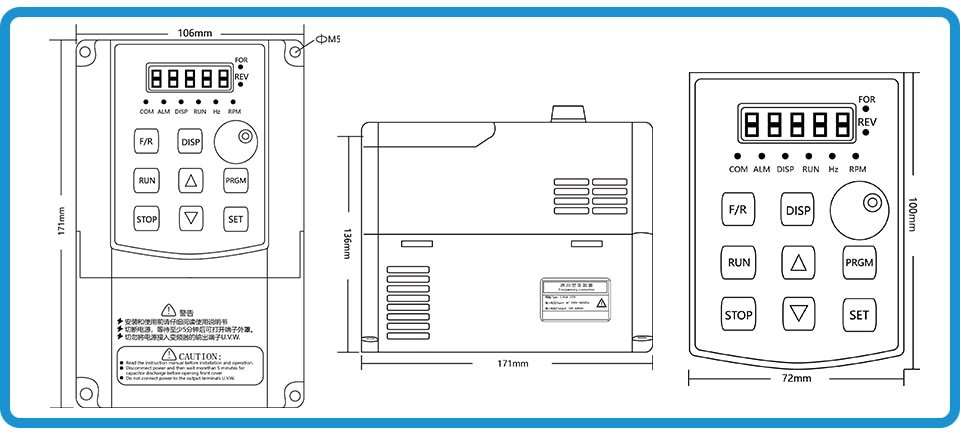

• Power: 2.2kw

• Input Voltage: 220v

• Input Phase: 1

• Input Frequency: 50/60Hz

• Output Voltage: 220v

• Output Phase: 3

• Output Current: 10A

• Output Frequency: 400Hz

• Control Method: V/F control;

• (The inverter should be set up before connecting to the spindle, it needs to be set to 400Hz)

• 1.PID control;advanced calculous PID closed-loop arithmetic.quick responding speed and high suitability.

• 2.Easy PLC function can realize 16 legs of speed and inverter control function.

• 3.Rs485 communication can realize 16 legs of speed and inverter control function.

• 4.With extremely strong anti-jamming capability。

• 5.Low output ratting torque 0.5HZ-150%,low speed running ability.

• 6.Carrier adjustable by 16KHZ. completely soundless working environment.

• 7.Broad voltage working area,normal running in 3.4v-456v

• 8.Auto voltage regulation (AVR) technique , for ensuring the inverter load capability.

• 9.Various control technique by both synchronization znd non-synchronization,dynamically realize fast starting without changing brakes.

• 10.With perfect error protection and short circult starting protection capability.

• 11.Eead-time compensation and auto torque slip compensation function ,can realize 180% high orque output at low frequency 0.25HZ

• 12.Unique EMC desige,can minimize inverter's pollution to power.

• 13.Overall reinforcement layer to suit all kinds of harsh environment.

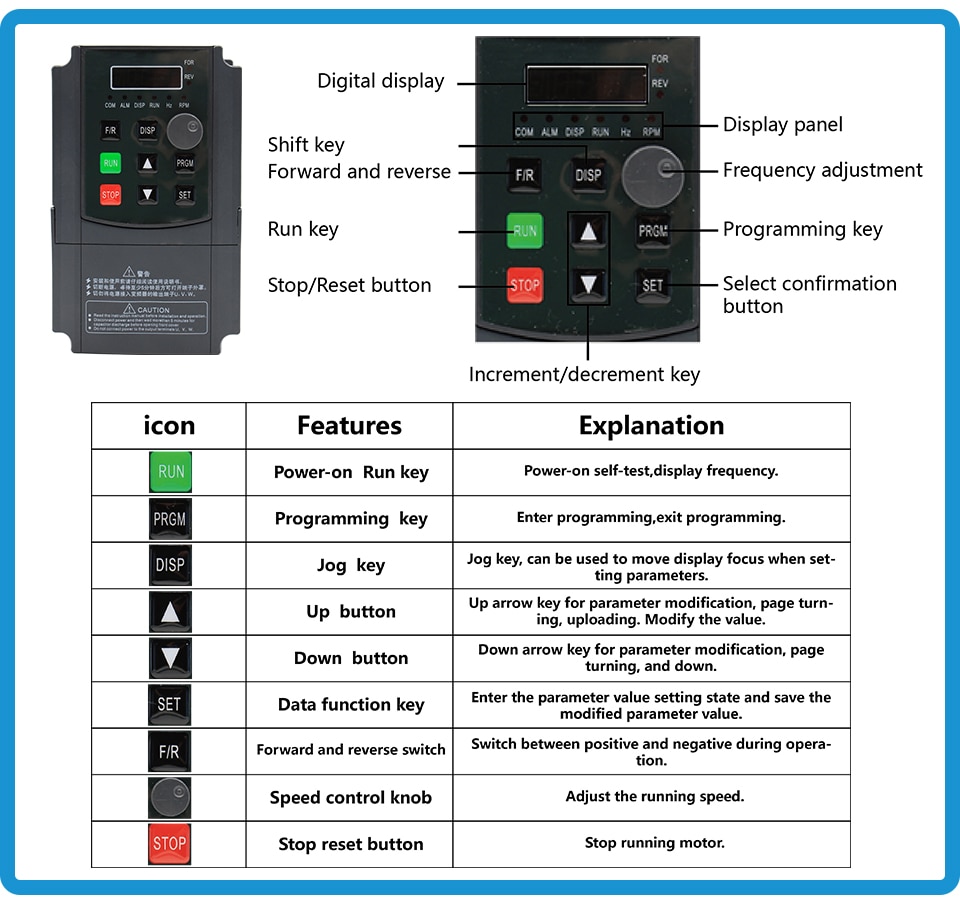

Some questions about Inverter

DO NOT set up the inverter by yourself if you don't know how to, or it will make both the spindle and inverter burn easily.

Please contact us, we have manuals, videos and pictures to help you.

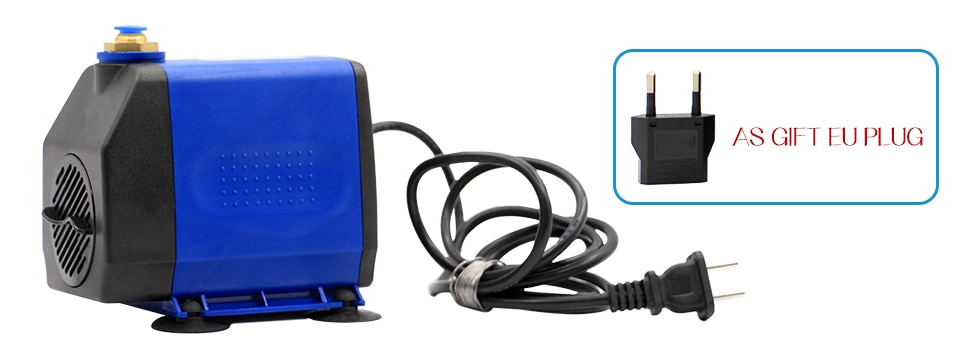

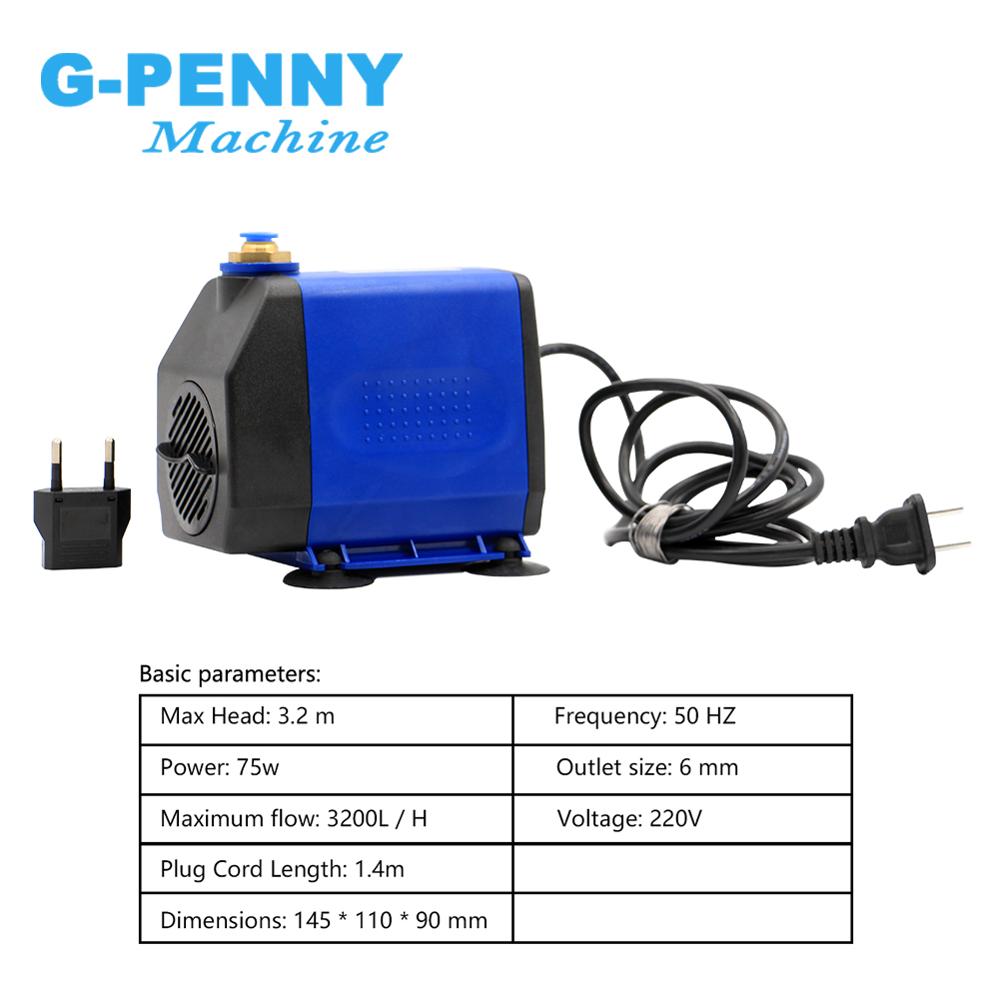

• Max Head:3.2 m;

• Power:75w;

• Maximum flow:3200L / H

• Plug Cord Length:1.4m

• Voltage:220V;

• Frequency:50 HZ

• Outlet size:4 and 6 mm;

• Dimensions:145 * 110 * 90 mm

Advantage

• High Lift

• Large Flow Rate

• Highly Durable

• Excellent Insulation

• Can cool the machine quickly

• Good quality and long life

• Large inventory

• Big strong power

Features

• The shell is made of high quality plastic, which is anti corrosive and high durable.

• Pumps have excellent insulation thanks to the motor bearing completely sealed.

• Pumps combine pumping, filtered,oxygen and fountains in one.

Note

• Must be used in the water.

• Must cut off the electricity once the product works improperly and must maintain it after lifting it from the water.



• Diameter:80mm

• Material:Cast Aluminium

Features

Cast aluminium fixture is high quality aluminium which is casting with a special manufacturing process ,compared with ordinary aluminium ,This product has toughness, strong shock resistance, high hardness and strong antioxidant activity.

Product Description

• Compared with the aluminium profile fixture,the accuracy is much higher , and it is hard to deform.

• Inner wall is very smooth,  outer walls is sandblasted, relatively fine uniform,  but not very smooth.

• Cast aluminium fixture much heavier than aluminium profile fixture.

Usage

Cast aluminium fixture is mainly used for fixation of ancillary products, thereby ensuring the verticality of balancing and ancillary products, ancillary products to improve running accuracy, reduce noise, reduce the accumulated error.

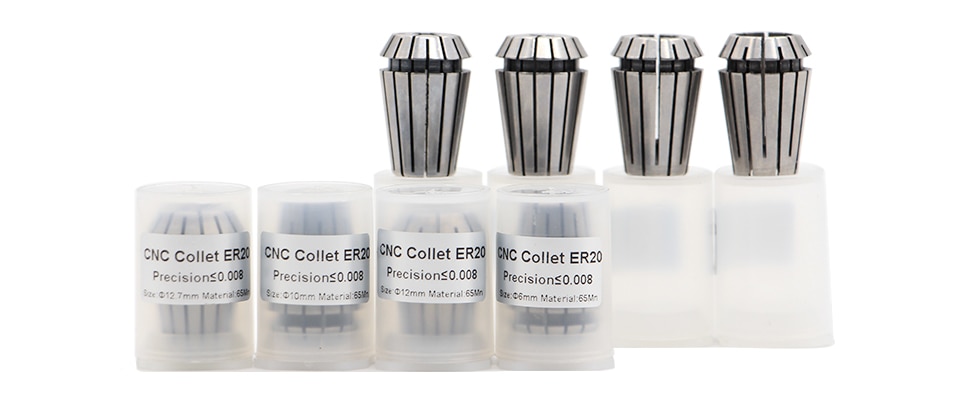

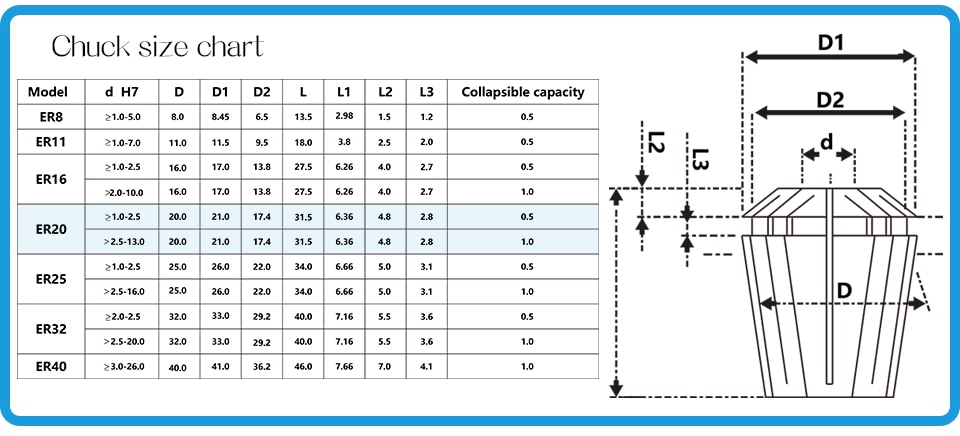

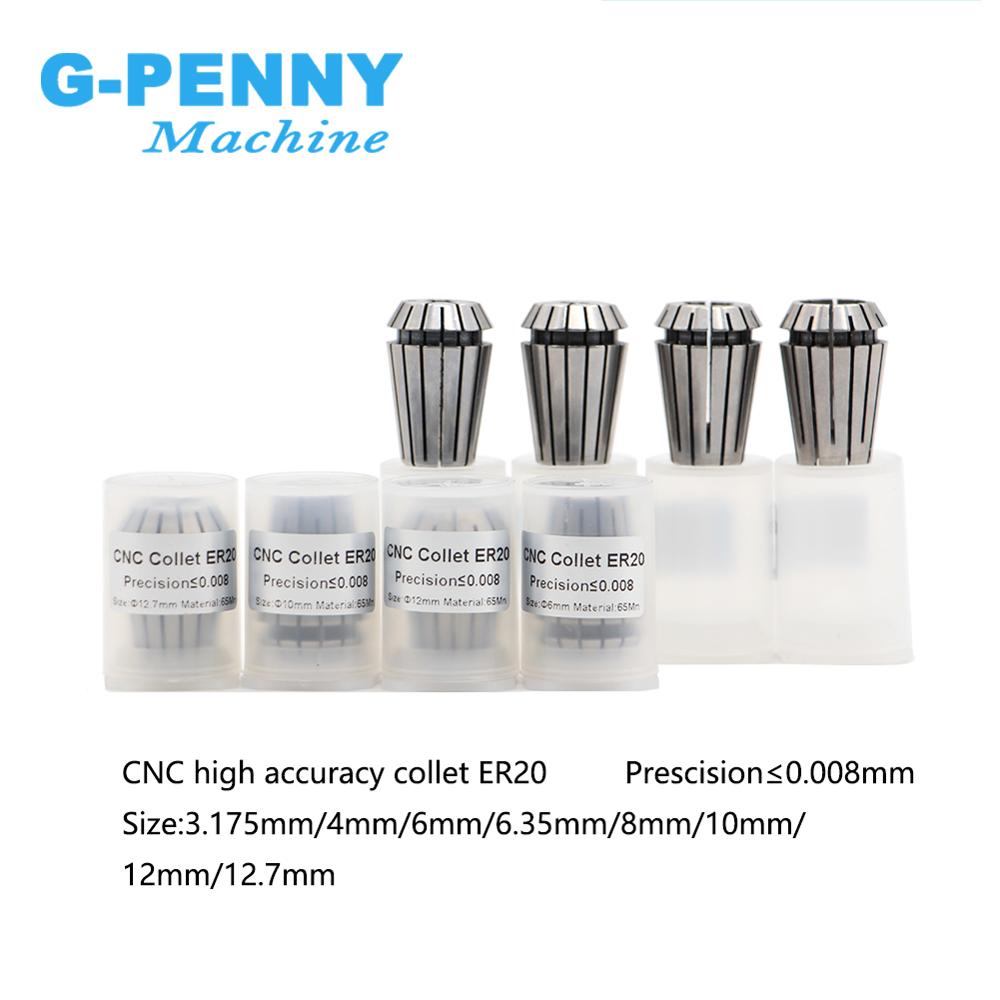

• Type: ER20 High accuracy collet

• Material:65Mn Steel

• Quantity: 8 pcs (4mm,6mm,8mm,10mm,12mm,1/4(6.35mm),1/8(3.175mm),1/2(12.7mm))

• Precision ≤ 0.008mm

• Hardened & Precision ground

• Widely used in boring, milling, drilling, CNC milling machine wire tapping,engraving spindle machines,machining centers and other processing.

• Spindle working environment temperature is usually -10 ~ 40 .

• Before installing the first electric spindle axis head turned by hand, should feel flexible, non-blocking phenomenon.

• Spindle in the preservation and transportation, high-speed grease inside the bearing state will change, customers should be running at low speed for 30 minutes. 3000 rpm and then follow the poor increase, run 20 minutes each. Spindle and the inverter should be working together. The inverter's specifications and parameter settings need match spindles parameter.

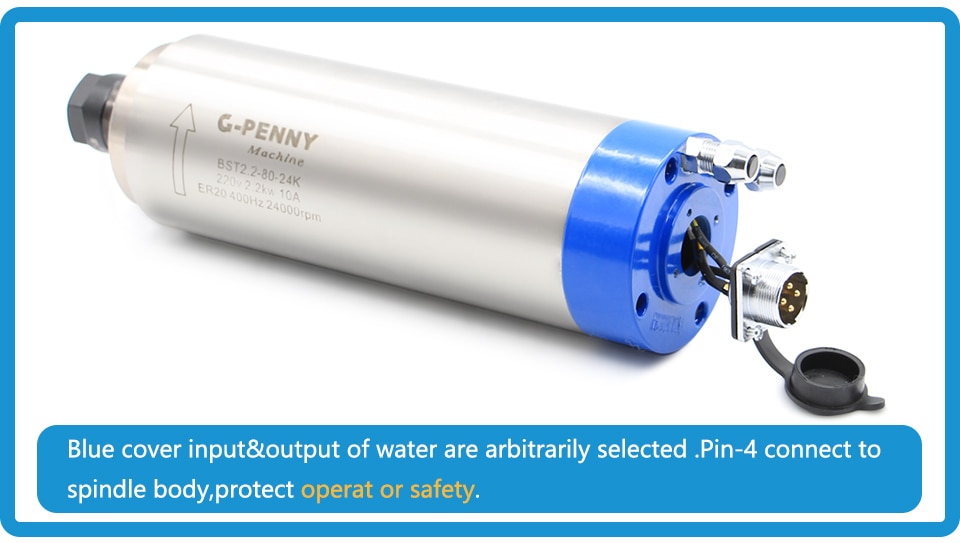

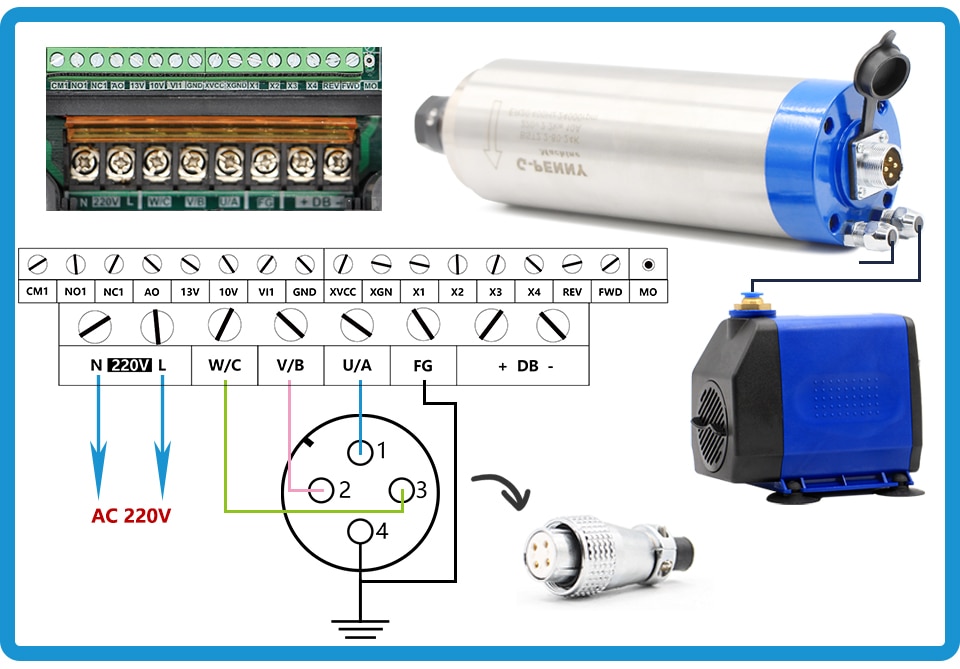

• Connect the inverter spindle, three-phase inverter power cord should be soldered in the plug 1 (U), 2 (V), 3 (W) feet, 4 feet for the ground. After the power is turned on, to observe whether the spindle rotation axis indicates the direction consistent. If inconsistency should be immediately shut down, replace the inverter and spindle connected two wires of three-phase power supply.

• It should ensure that before use of water-cooled spindle, the cooling system is working properly. Every day before using the spindle must be running at low speed for 15-20 minutes. Clamping the cutters to spindle, collet nuts ,collets,cutters must be clean enough. Shank inserted into the collet must be greater than 15mm.

1. Cooling in different ways: water-cooled spindle motor is the use of the water cycle to cool the heat generated after the high-speed rotating spindle, spindle motor with fan-cooled approach to cooling.

2. Noise: Water-cooled spindle motor is basically no noise, but the air-cooled spindle motor is very loud.

3. Life aspects: Water-cooled spindle motor pay attention to maintenance, frequently changes the water or the use of industrial water coolers, air-cooled spindle fan mainly by the wind blowing the heat transferred to the heat sink, so as to achieve the cooling effect.

4.If you need use for metal ,hard wood,granite,stone,you can choose metal spindle.Metal spindle much better than wood spindle.

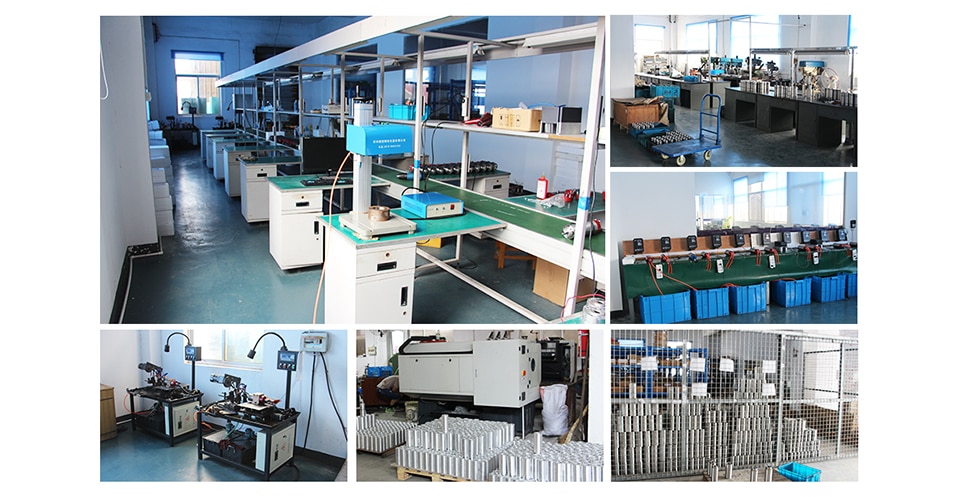

Spindle from the production - assembly - test, and finally the perfect packaging .

We will 100% guarantee security to the hands of the guests.
