FPM10A Optical Fingerprint Reader Sensor Module Door Lock fingerprint Scanner module For Arduino Serial Communication Interface
4.3 (3 votes) | 51 orders
Price:
US $30.53
/ piece
Discount Price:
US $
17.88
/ piece
-41%
RECOMMEND

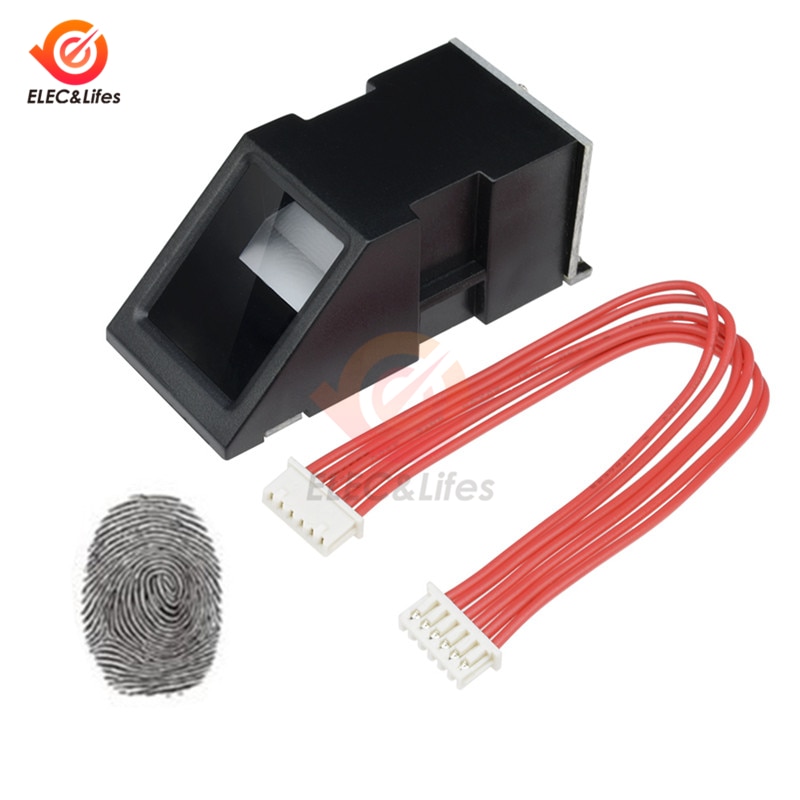

1PCs FPM10A Optical Fingerprint Reader Sensor Module For Arduino Locks Serial Communication Interface
Introduction:
1.The fingerprint module is an integrated fingerprint processing module that integrates the optical path and fingerprint processing part. It has the characteristics of small size, low power consumption and simple interface. It has high reliability, fast recognition speed, good adaptability to dry and wet fingers, and fast fingerprint search. .
2.When the fingerprint image is read, it has sensitive response and judgment to the wet and dry fingers, and obtains the best image quality, which is suitable for a wide range of people.
3.The self-learning adaptation function can also be customized, and the parameters are automatically adjusted according to changes in the user's habits, climate, etc., to achieve a better match.
4.With self-learning function, in the process of fingerprint recognition, after extracting new fingerprint feature values, the feature values are merged into the previous fingerprint features, and the more practical the use, the better.
5.The module also has an inductive finger function. When the finger is pressed to the fingerprint collection surface, the module touch pin outputs a high level.
6.The communication interface of module is USB and UART communication interface. This module acts as a slave device, and the master device sends relevant commands to control it.
Working principle:
Through the principle of optical imaging, the lines created by the unevenness of the skin on the inner side of the finger will form various fingerprint images. The texture of the skin is different in patterns, breakpoints and intersections. They are called in information processing. "Feature points", each finger's characteristics are different, that is, unique, relying on this uniqueness, we can associate a person with his fingerprint, by pre-storing his fingerprint By comparing the fingerprints, you can verify his true identity.
The fingerprint identification system collects, analyzes and compares fingerprints through special photoelectric conversion equipment and image processing technology, and can identify personal identity automatically, quickly and accurately. The system mainly includes processes such as fingerprint image acquisition, fingerprint image processing, feature extraction, and comparison and matching of feature values.
Specifications:
Supply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying
Supply Current: Current: <120mA
Peak current: <140mA
Fingerprint image time: <1.0 seconds
Window size: 14 * 18 mm
Matching mode: Match mode (1:1)
Search mode (1: N)
Signature File: 256 bytes
Template files: 512 bytes
Storage capacity: 200
Safety level: five (from low to high: 1,2,3,4,5)
False Accept Rate (FAR): <0.001% (security level 3)
False Reject Rate (FRR): <1.0% (security level 3)
Search time: <1.0 seconds (1:500, the mean)
PC Interface: UART (TTL logic level) or USB2.0 / USB1.1
Communication baud rate (UART): (9600 * N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps)
Working environment:
Temperature: -20 ° - +50
Relative Humidity: 40% RH-85% RH (non-condensing)
Storage environment:
Temperature: -40 - +85
Relative humidity: <85% H (non-condensing)

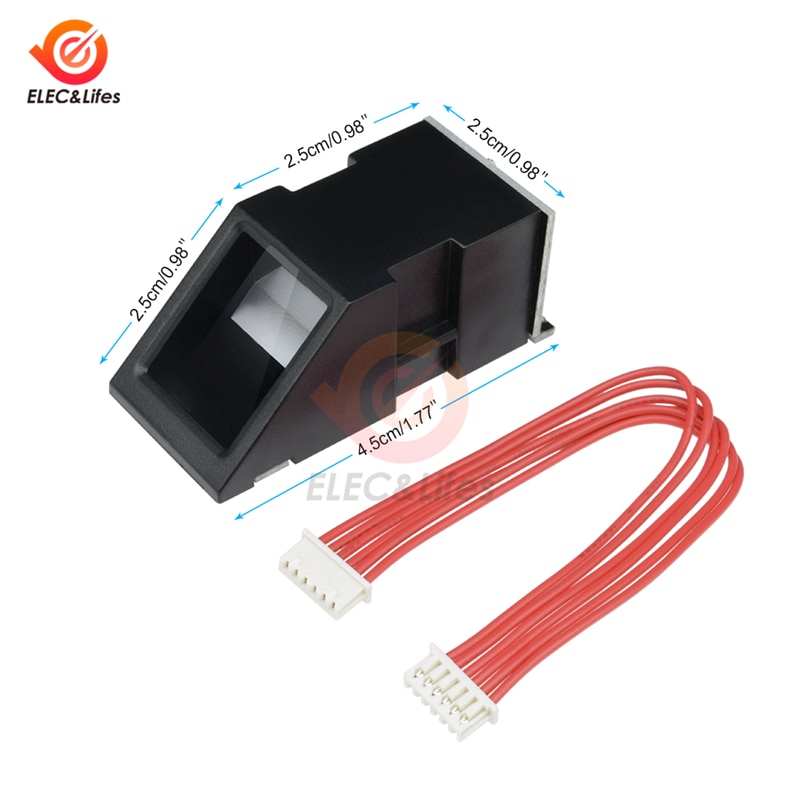

Dimensions (L* W * H):
Split: Fingerprint sensor: 56 * 20 * 21.5mm
-One: 56 * 20 * 21.5mm
Hardware connection:
Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2
Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD).
For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer
Circuitry (e.g.: MAX232 circuit)

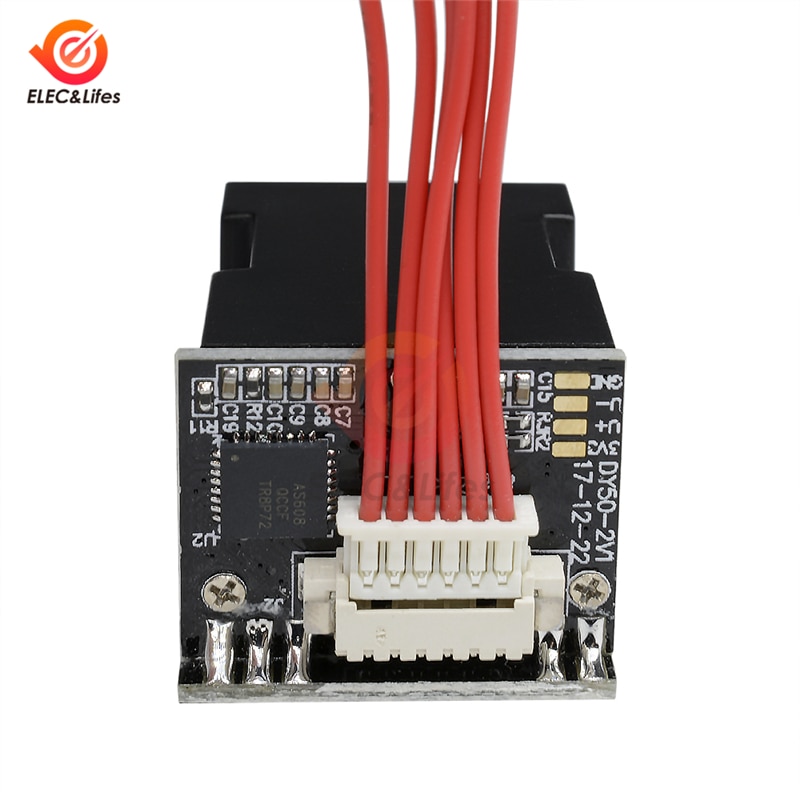

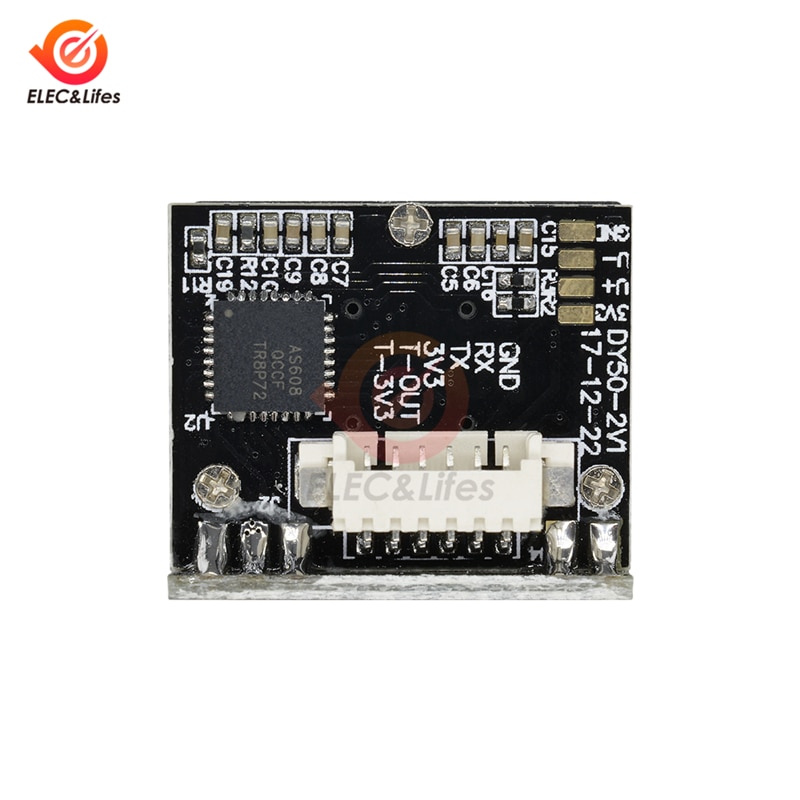

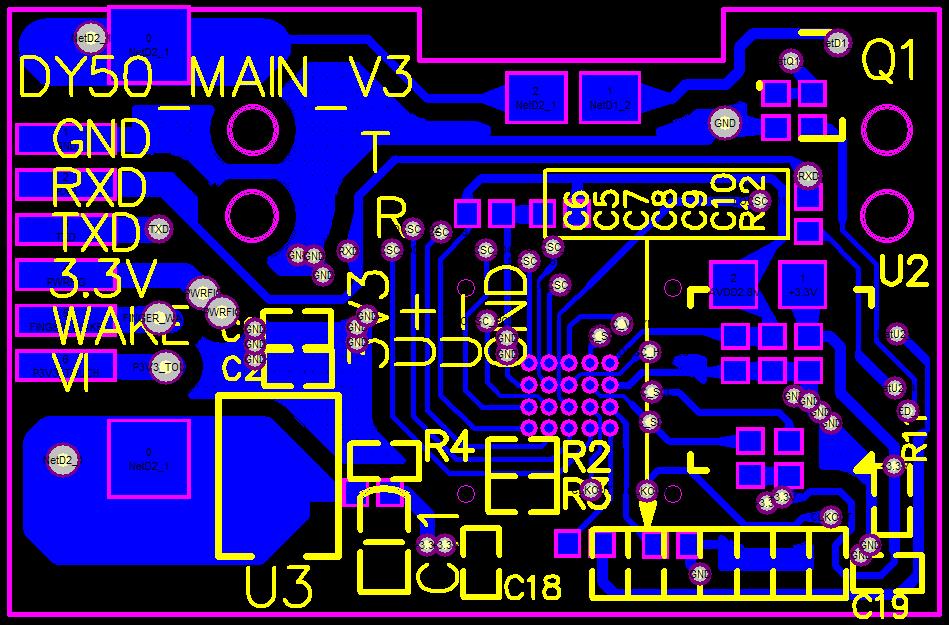

Pin | name | Type | Functional description | |
1 | GND | In | Module power positive input | |
2 | TXD | Out | TTL Serial data output. TTL logic level | |
3 | RXD | In | TTL Serial data input. TTL logic level | |
4 | 3.3V | － | Signal ground. Internal and power ground connection | |
5 | Touch | Out | Induction signal output, default high level effective | |
6 | TouchVin | In | Touch sensing power input, 3.3v power supply | |
Package includes:
1PCS Optical Fingerprint reader Sensor Module sensors All-in-one For Arduino Lock
- Capacity: Fingerprint Reader Sensor
- Model Number: 3.3V/5V Fingerprint Reader Sensor
- Brand Name: Aideepen
- Origin: Mainland China
- Certification: CE
- Type: Optical Fingerprint Scanner Module
- Feature: door lock fingerprint module
