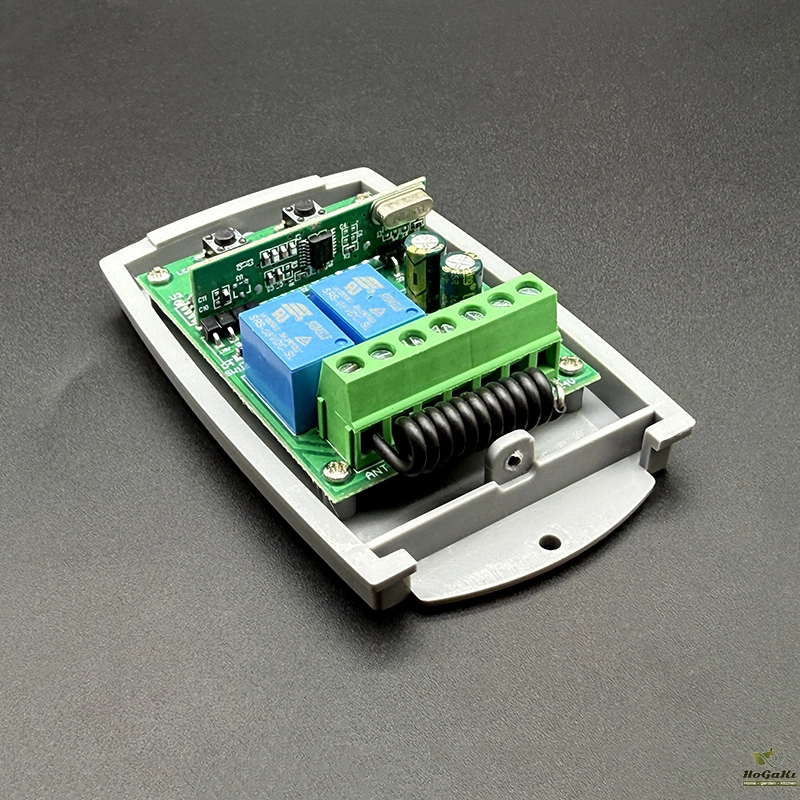

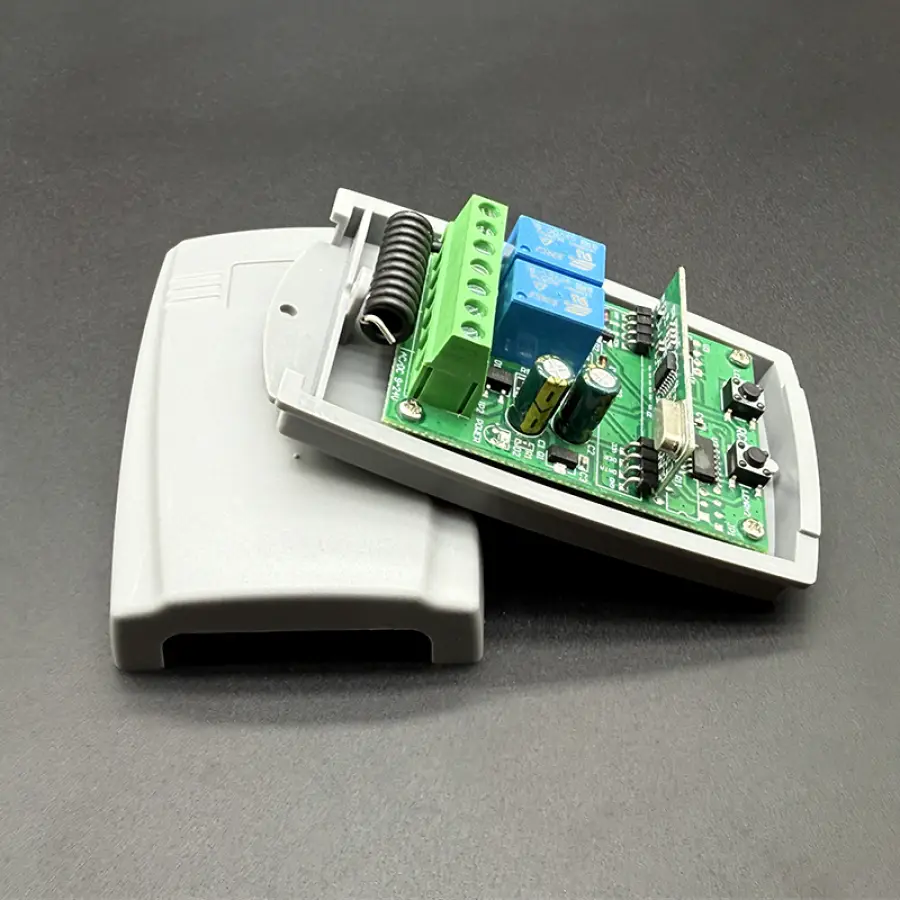

For NOVOFERM NOVOTRON 502 504 512 MINI-NOVOTRON 522 524 MTR43-2 MCHS43-2 MNHS433 Garage Door Remote Control Receiver 433.92MHz
5.0 (1 votes) | 16 orders
Price:
US $
19.71
When to ship ?
We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.
Specifications
1，Models：YNG200
2，Frequency：433.92MHz=433MHz

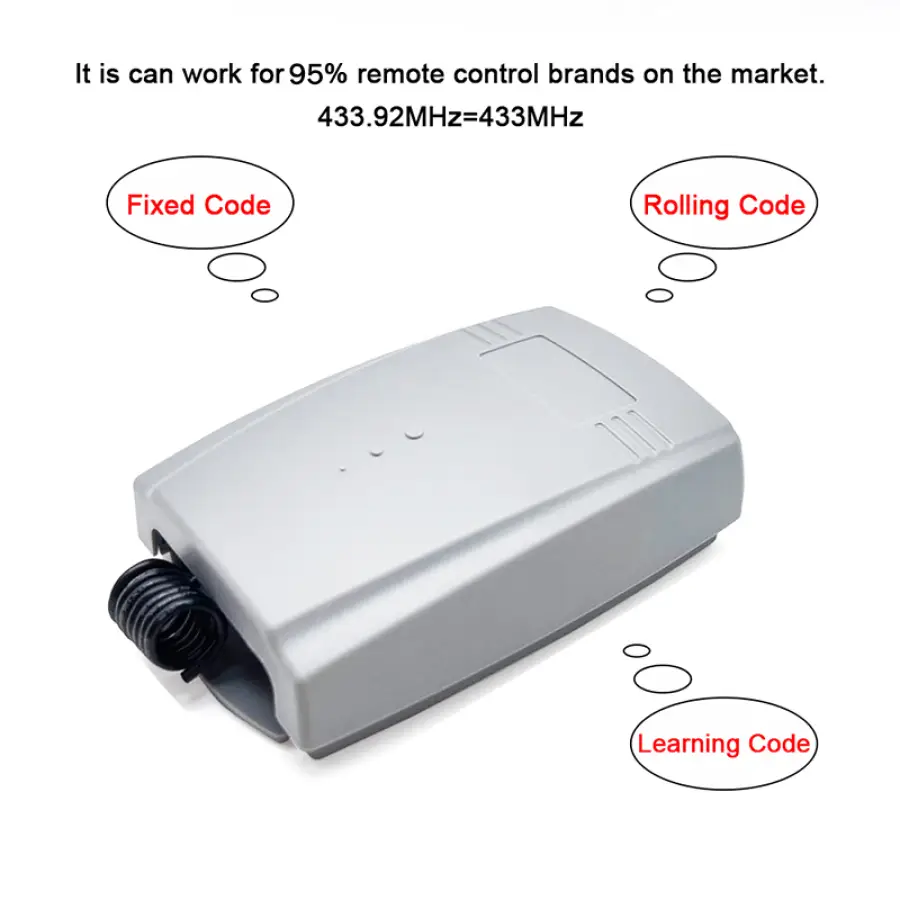

3，Codes：Fixed / Learning / Rolling Code
4，Channels：2
5， Power supply：AC/DC 9V-24V
6，Built in Aerial antenna：Reception range 10m-100m
7，Controlcapacity：100PCS
Features
Supports 2 programming methods, one is pulse mode, the other is latch mode, you can choose the mode you like

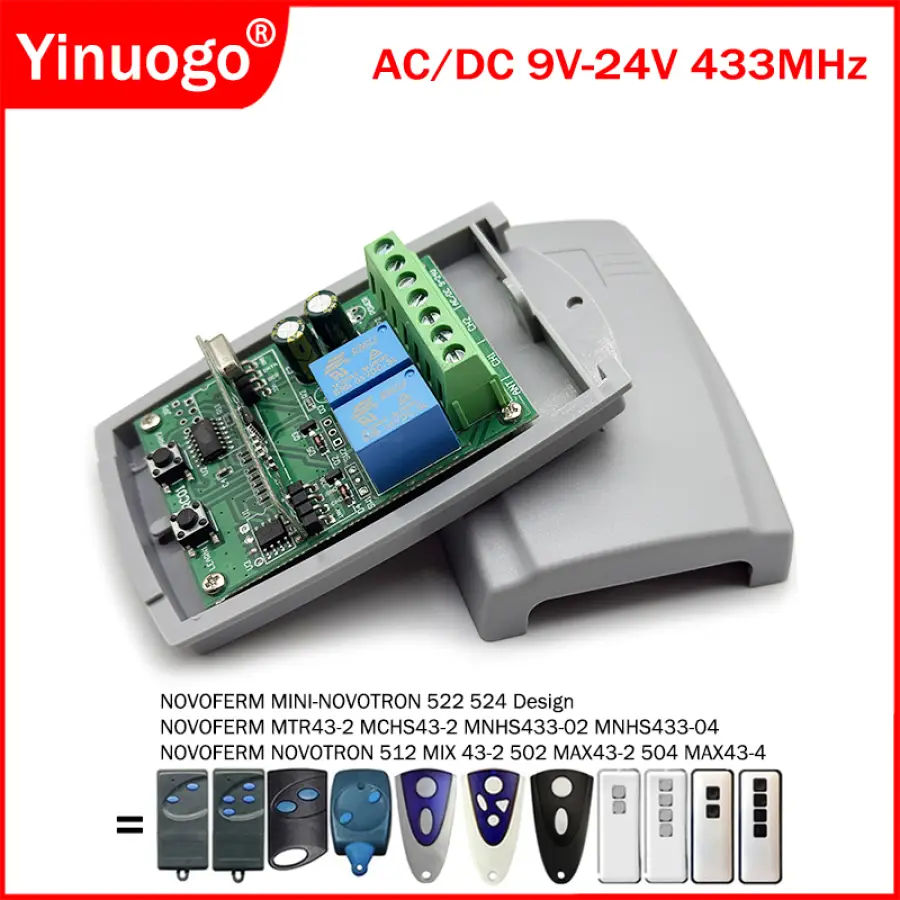

Compatible Models
NOVOFERM MTR43-2
NOVOFERM MCHS43-2
NOVOFERM MNHS433-02
NOVOFERM MNHS433-04
NOVOFERM MINI-NOVOTRON 522
NOVOFERM MINI-NOVOTRON 524
NOVOFERM NOVOTRON 512 MIX 43-2
NOVOFERM NOVOTRON 502 MAX43-2
NOVOFERM NOVOTRON 504 MAX43-4
NOVOFERM MINI-NOVOTRON 522 Design
NOVOFERM MINI-NOVOTRON 524 Design
1. Please make sure your original remote control can work properly before purchasing.
2. Please make sure that the brand, model, frequency, and code of your remote control are the same as what I described.
3. If you cannot confirm compatibility, please contact us, we are not responsible for wrong purchases.
Applicable scene
Replacing old garage control systems, or for adding more remotes to control garage doors
There are 2 ways to use this receiver
1: First pulse mode programming
2: Second latch mode programming
3: Learn code encoding, a good replacement for your current remote. You can add new remotes to the controller, up to 100 transmitters
4: Can learn fixed and rolling code 433,92Mhz remotes separately and simultaneously!!!
5: Can learn and use most original 433,92Mhz fixed and rolling code remotes!!!
6: 2 channel receiver gives you the option to control and use 2 door automation or alarm systems at the same time
Include
Receiver
Small Antenna
English Manual
How to program ？

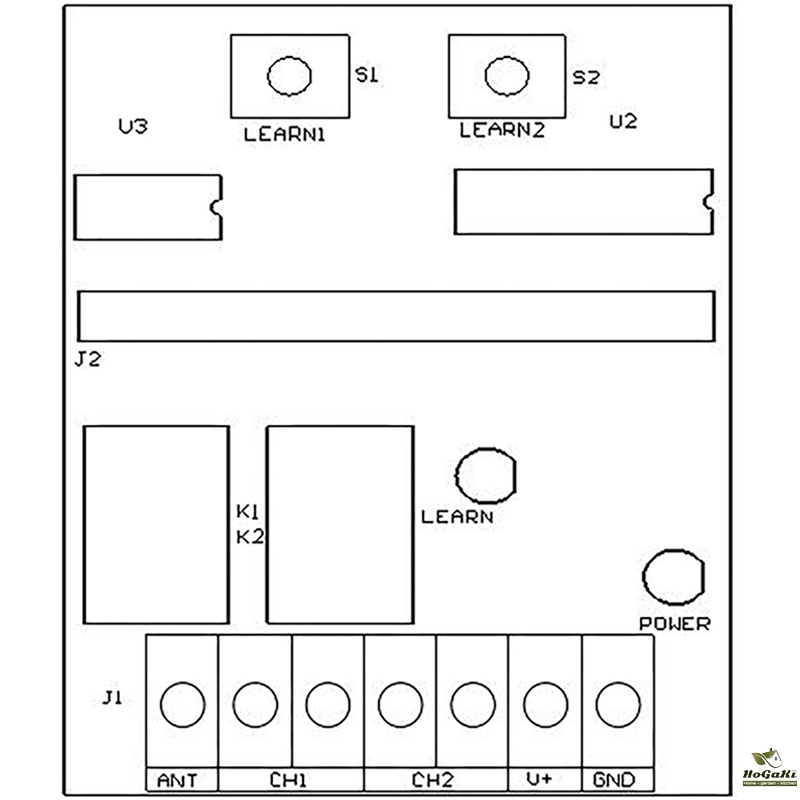

1：Programming of Pulse Mode:
-Power up the MDU module- Power LED will turn ON.
-Press once Bution S1 for programming Relay 1 or Button S2 for programming Relay 2. The Learn LED will light up.
Press and hold a bution on the remote control until the Learn LED flashes five times.
2：Programming of Latch Mode
- Power up the MDU module - Power LED will tum ON.
- Press twice Button S1 for programming Relay 1 or Button S2 for programming Relay 2. The Learn LED will light up.
Press and hold a button on the remote control until the Learn LED flashes five times.
NOTE: Each button of the remote key fob could be programmed independently.
Erasing a remote control from the control module
ATTENTION: Erasing a remote control from the control module is performed by resetling the MDU module and adding the operating remote controls back to the module.
To reset the module:
- Press Button S1 or Button S2 on the control module and hold until the Learn LED lights off. By doing this, all remote controls stored in the module will be erased.
To add remole controls:
- Follow the steps above (section: Programming operating modes)
Packaging Details
- Unit Type:
- Package Weight: 0.080
- Package Size: 8x8x8
- Brand Name: NoEnName_Null
- Origin: Mainland China
- Hign-concerned Chemical: None
- Model Number: YNG200
- Certification: CE
- Certification: FCC
- Certification: RoHS
- Certification: weee
- Brand Name: Yinuogo
- Name: 433MHz Receiver
- Voltage: AC/DC 12V-24V
- Channel: 2CH
- Material: Metal and PVC
- Code: Fixed / Rolling / Learning Code
- Choice: yes
- semi_Choice: yes
