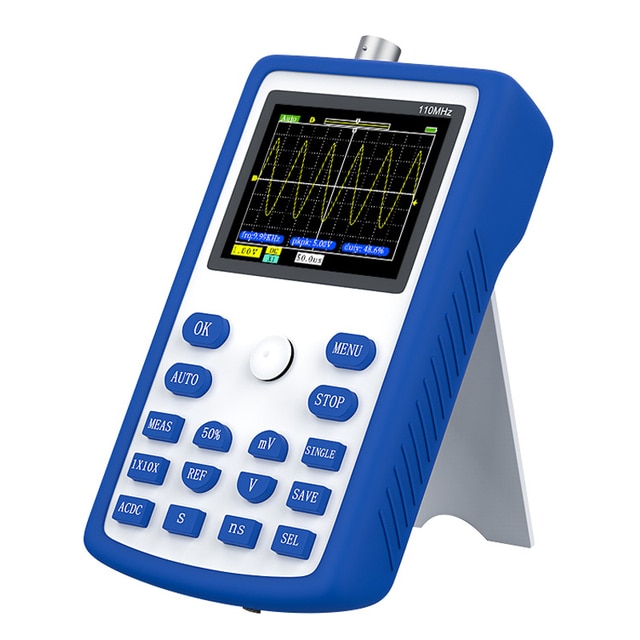

FNIRSI-1C15 Professional Digital Oscilloscope 500MS/s Sampling Rate 110MHz Analog Bandwidth Support Waveform Storage
4.9 (1119 votes) | 2117 orders
Price:
US $226.54 - 233.85
/ piece
Discount Price:
US $
116.12
/ piece
-49%
- Ships From
- Color
-
-

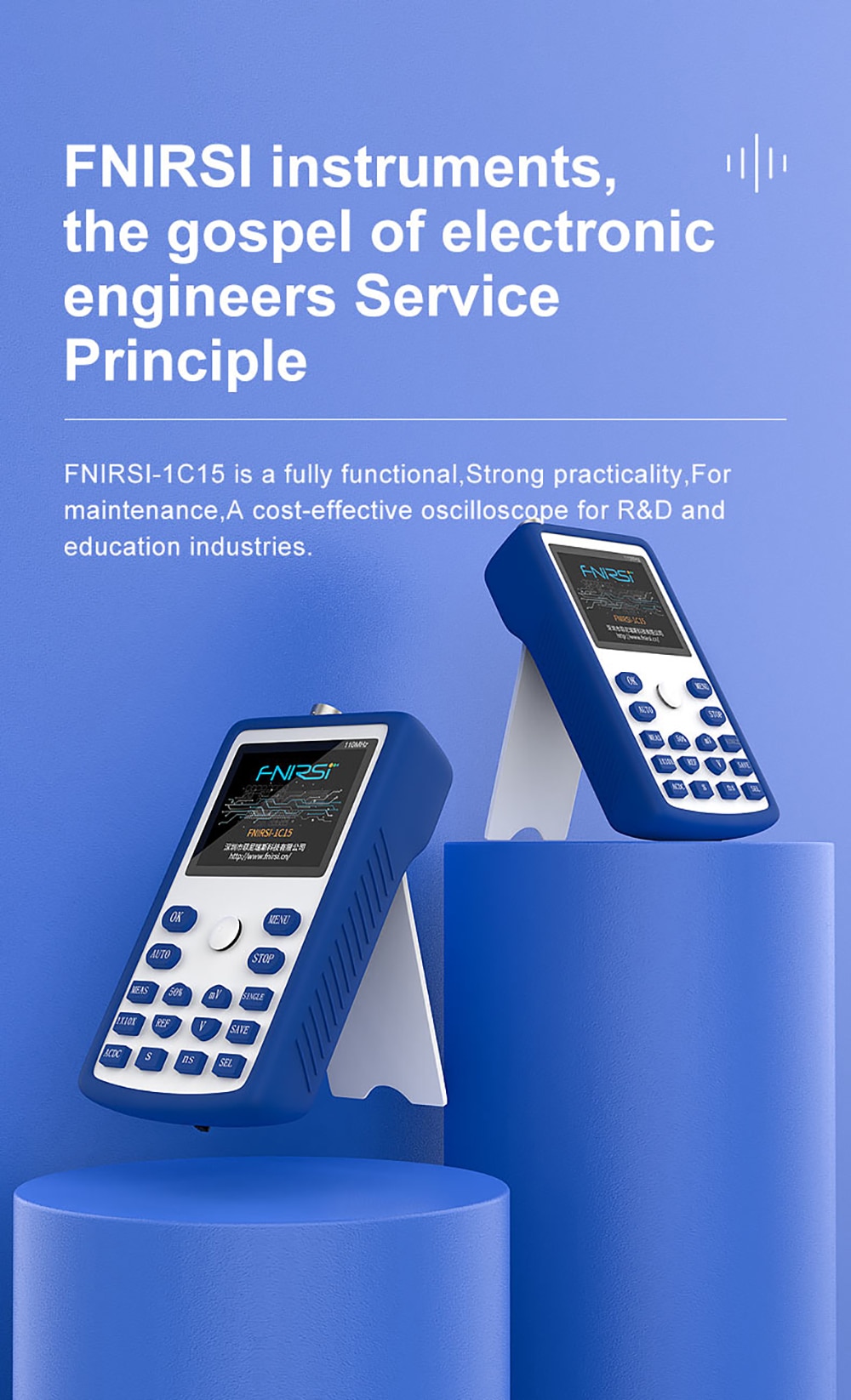

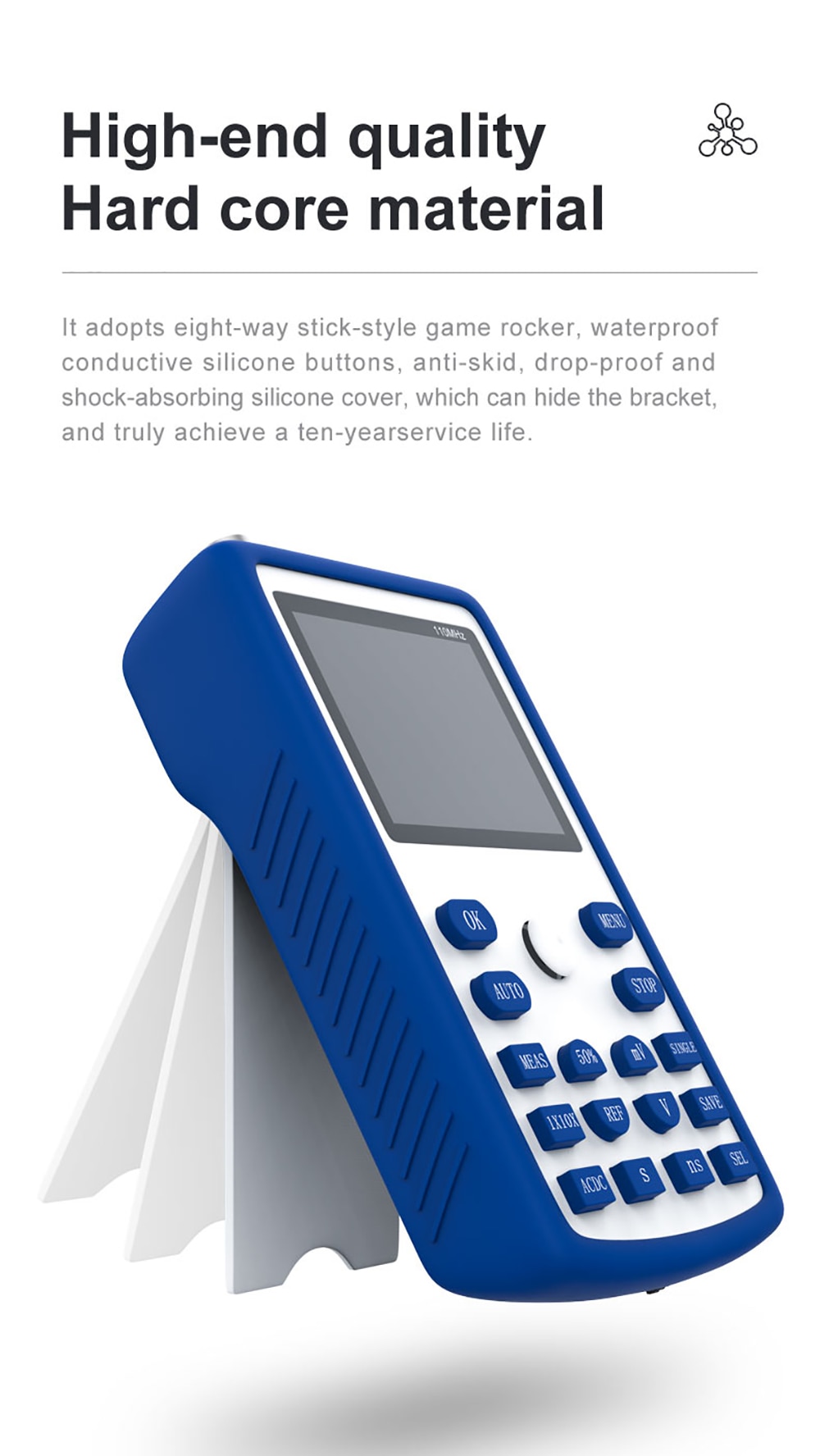

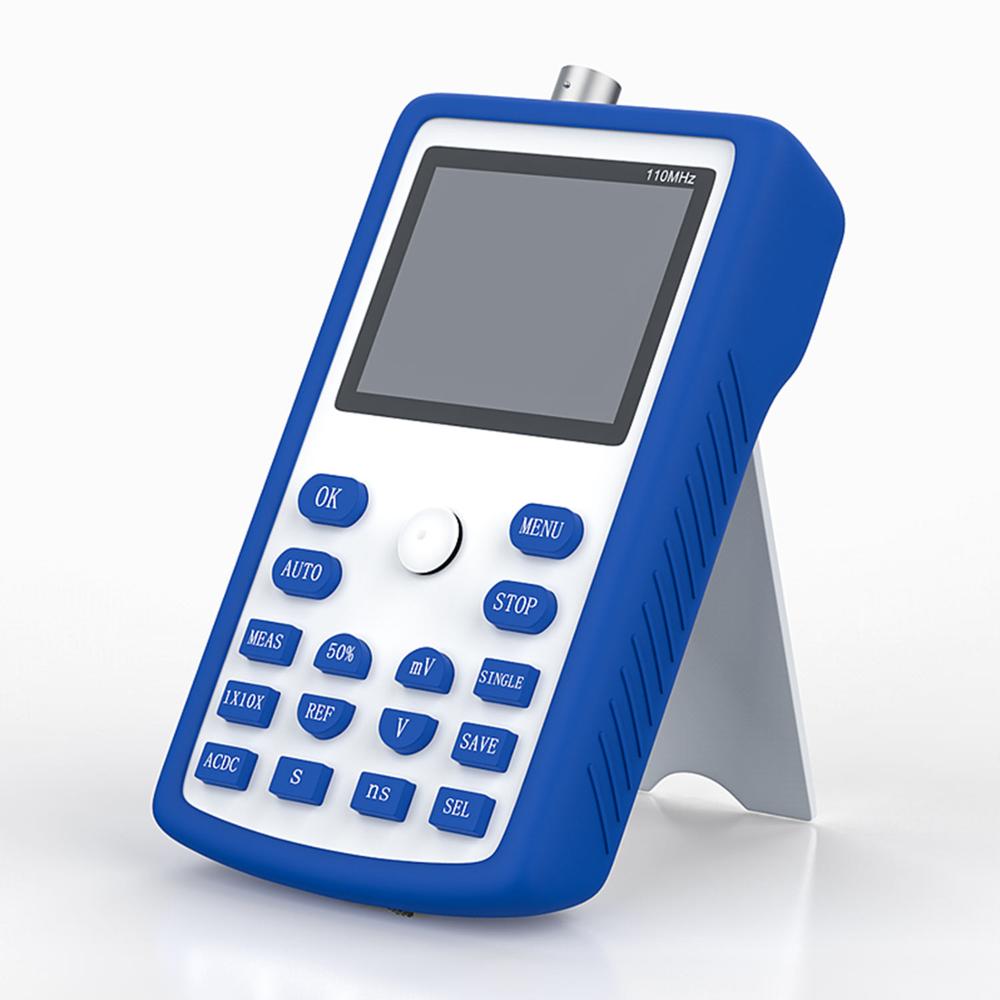

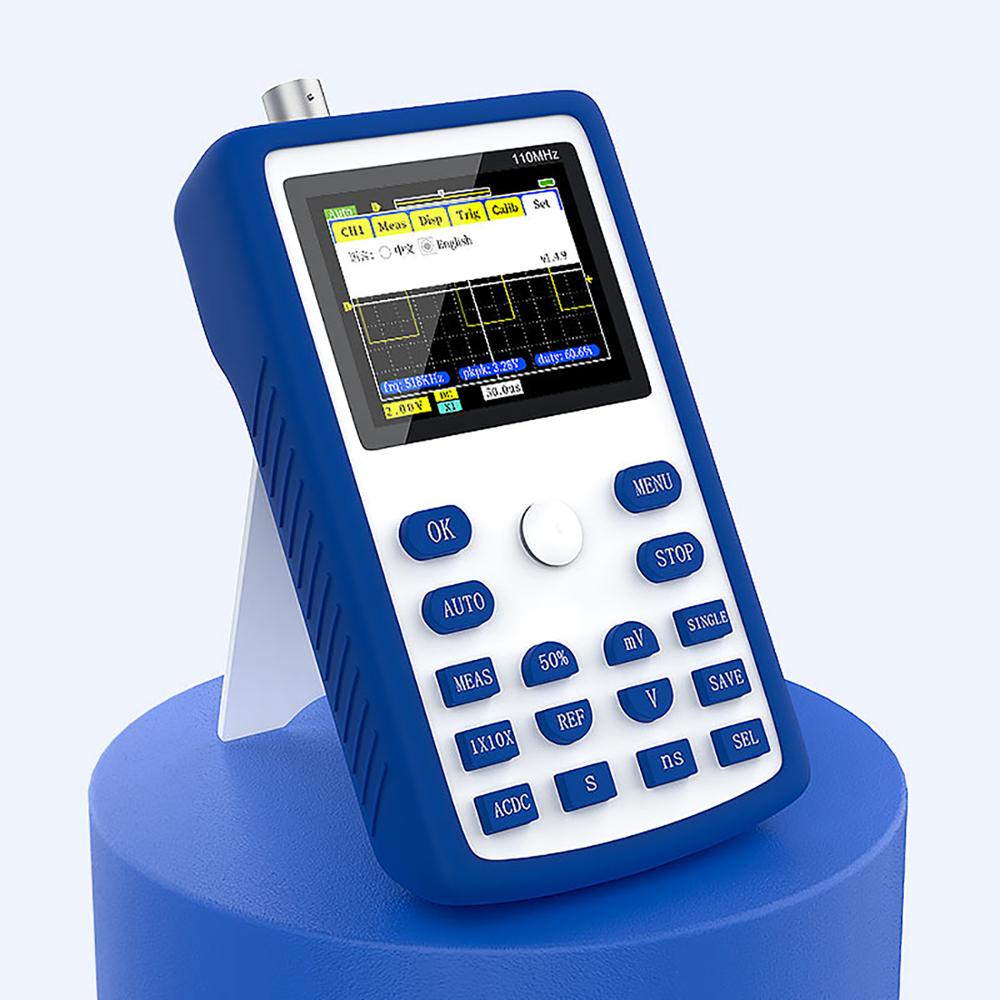

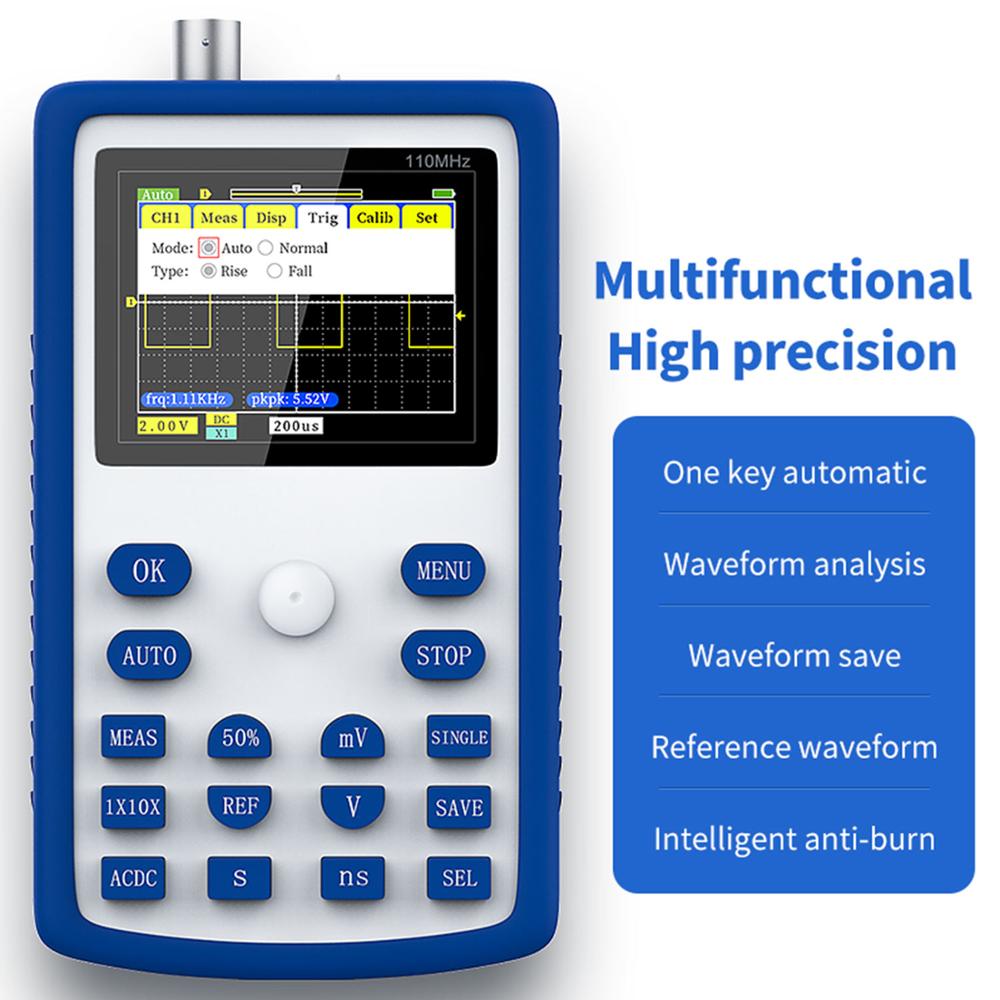

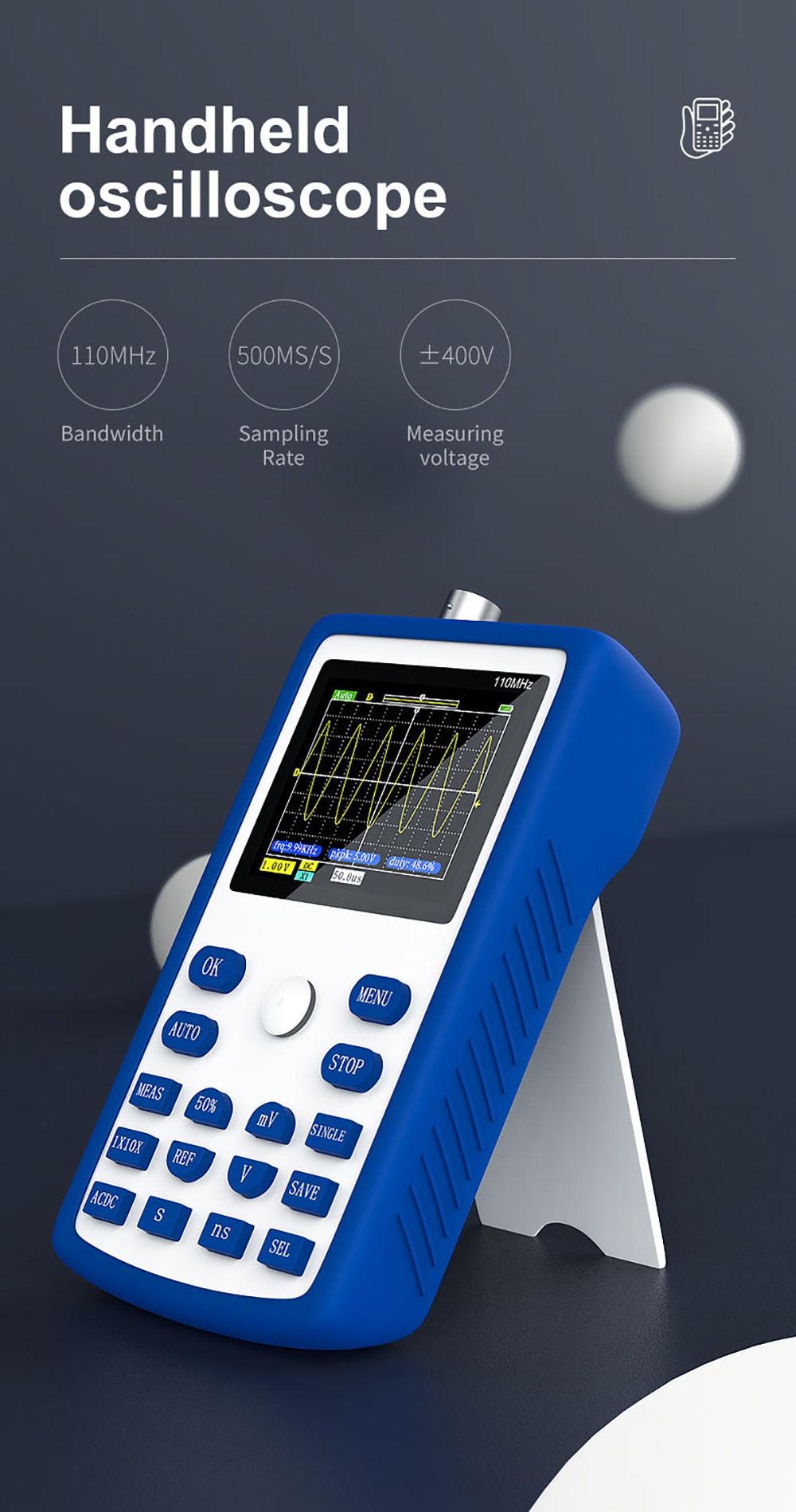

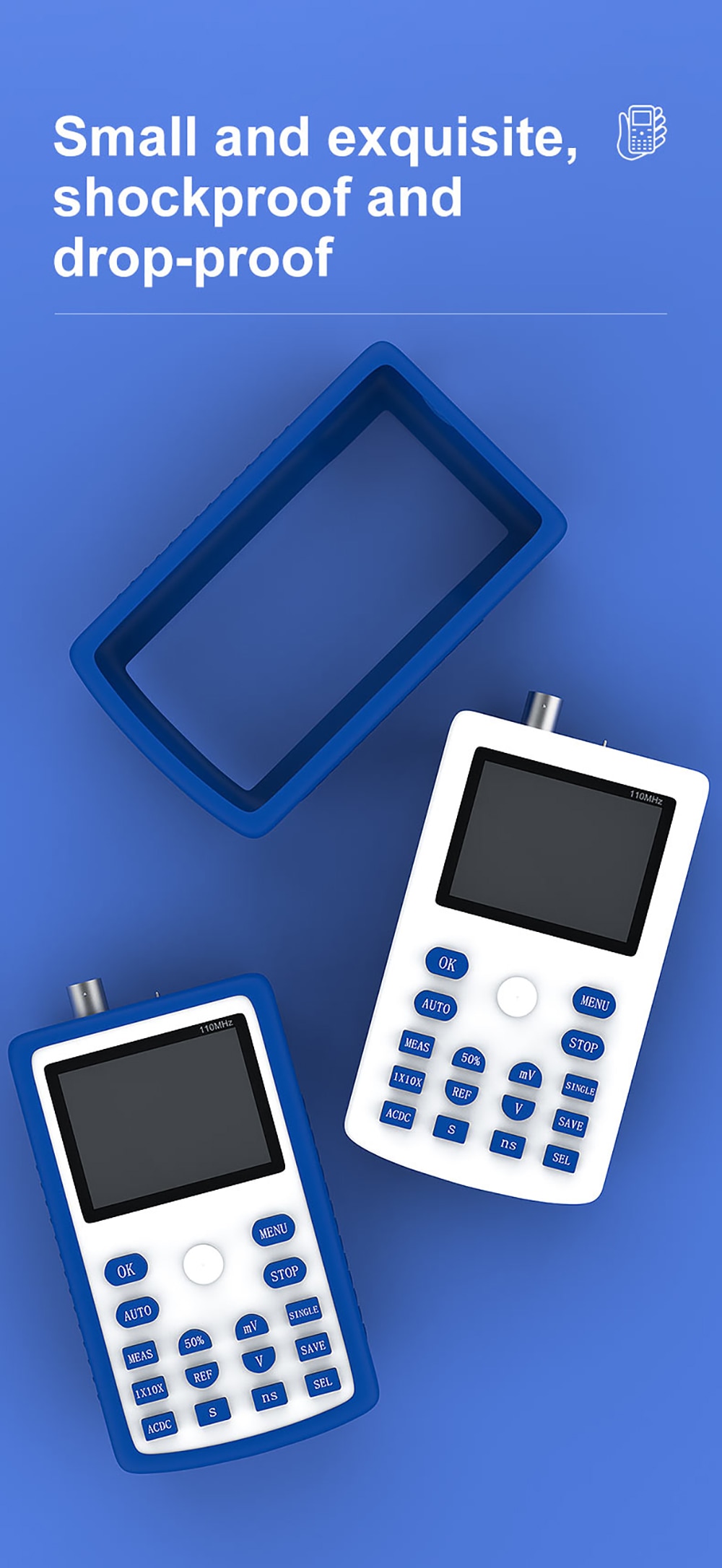

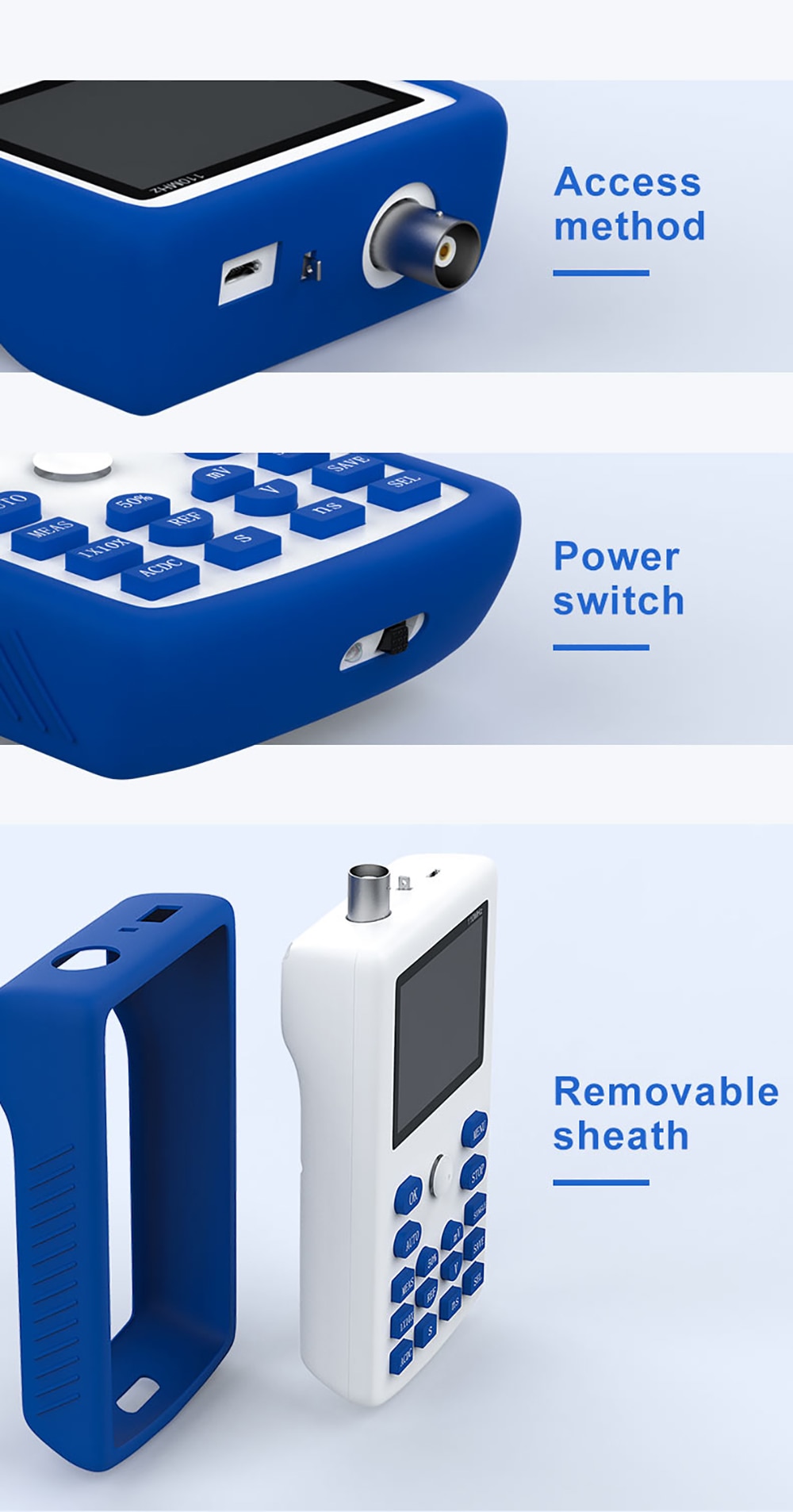

FNIRSI-1C15 is a fully functional, practical and cost-effective handheld oscilloscope newly launched by FNIRSI. The real-time sampling rate is 500M, and the analog bandwidth is 110MHz. In addition to all the functions of a conventional handheld oscilloscope, we also added a one-key quick auto function on this basis, so you can easily grasp the waveform like a desktop computer. We have added 1k Hz self-test square wave for FNIRSI-1C15, and the storage depth has been upgraded to 12kpts. With reference to the waveform, you can pause at any time to save the previous frame waveform to the screen, and you can compare it with the currently refreshed waveform. Afterglow and scroll modes make it easier to detect and record waveforms. Built-in 3000mAH rechargeable battery, it can work continuously for more than 10 hours after fully charged. The body is equipped with a high-quality silicone sleeve, which is non-slip and anti-drop. The joystick replaces the original arrow keys, making the operation simpler and more effective.

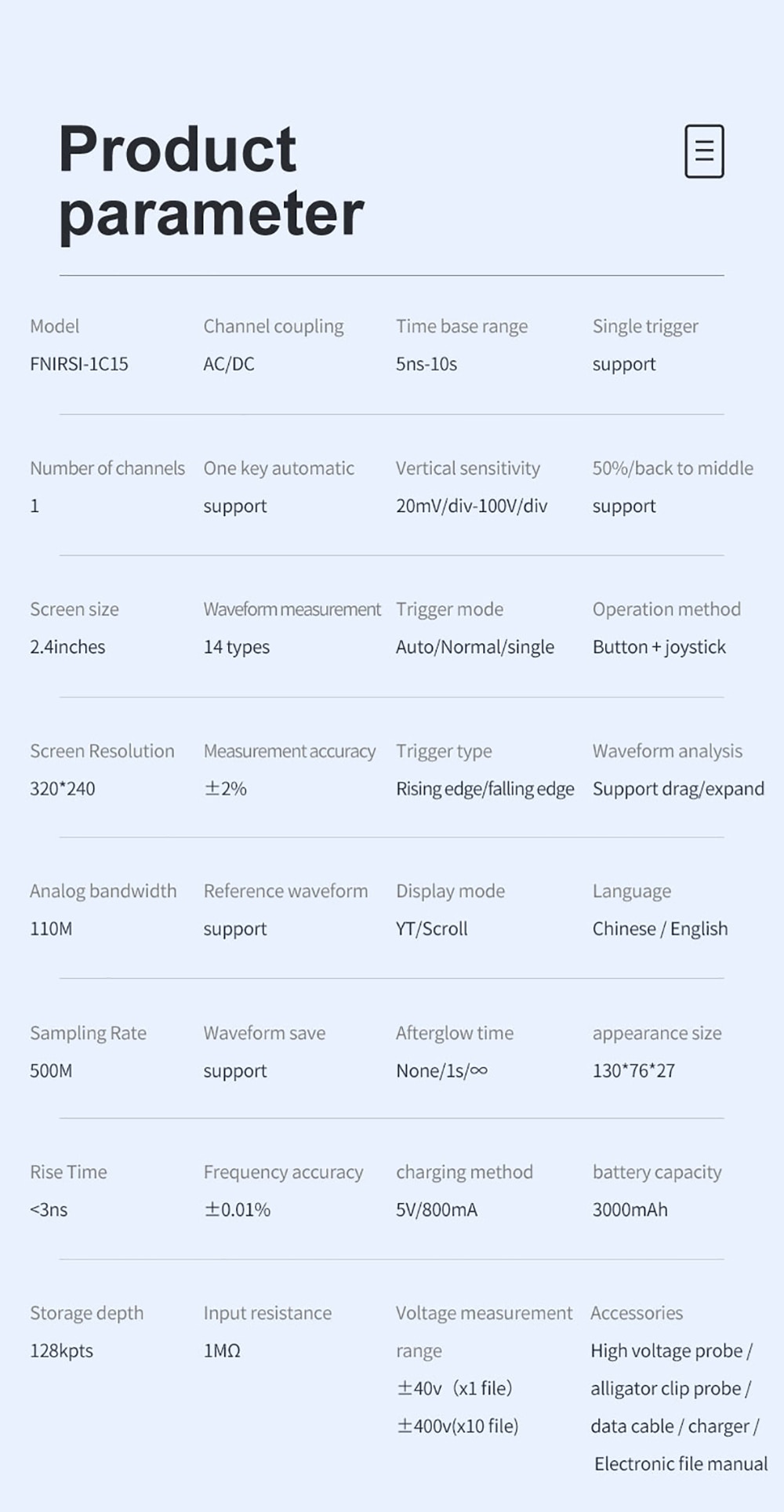

Model : FNIRSI-1C15
Number of channels : 1

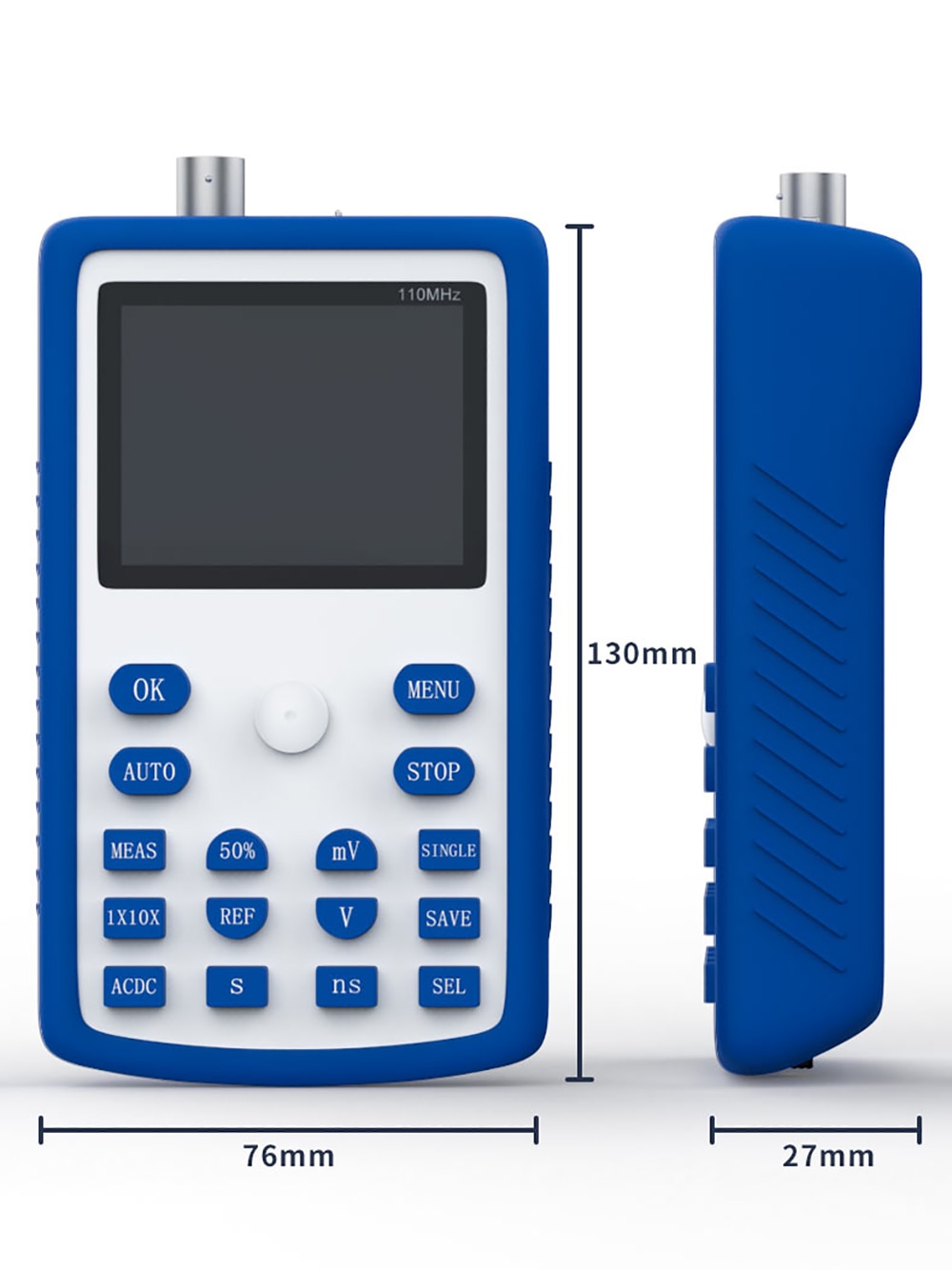

Screen size : 2.4 inches
Screen Resolution : 320*240
Analog bandwidth : 110M
Sampling Rate : 500M

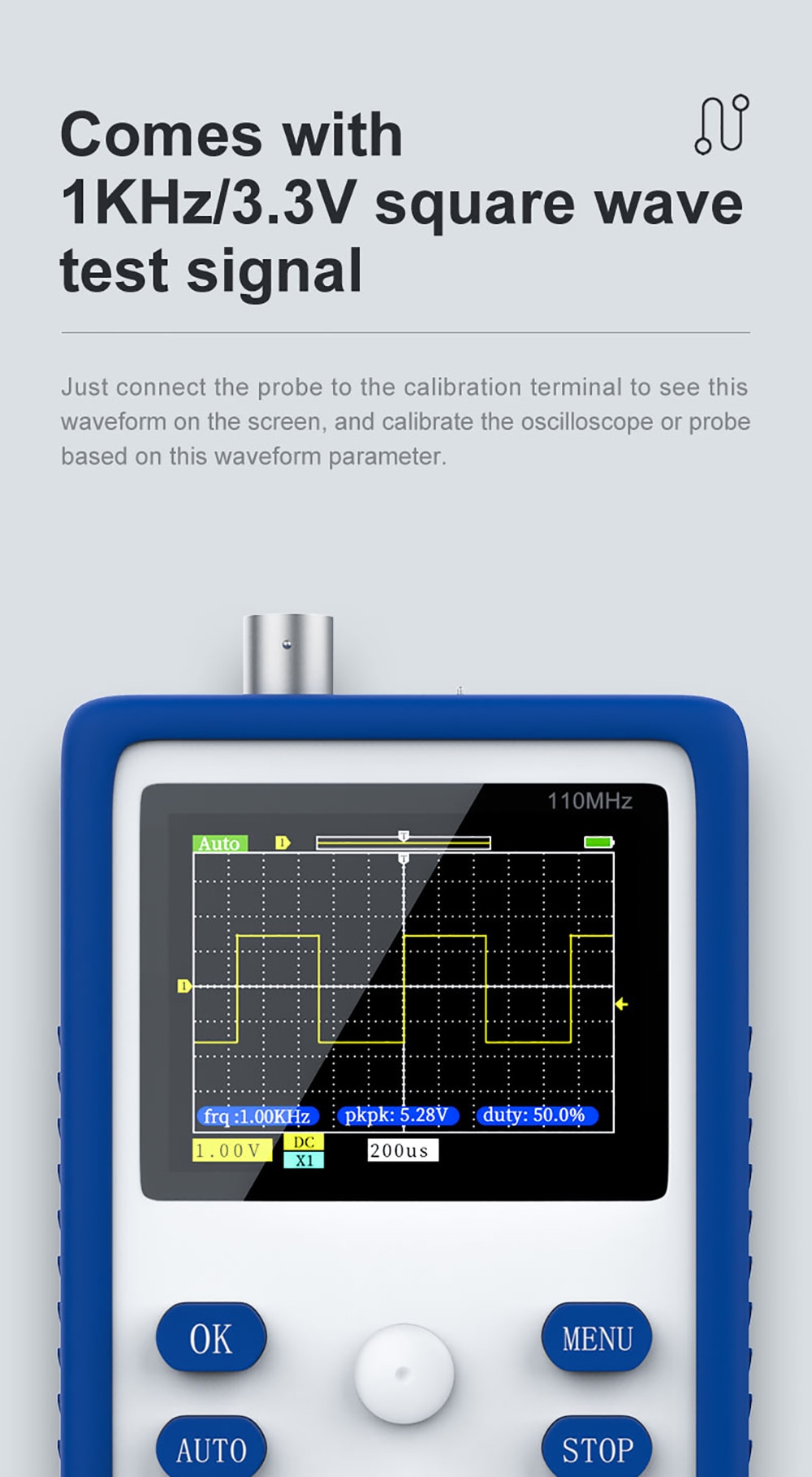

1k Hz self-checking square wave：Stand by
Rise Time : <3ns
Storage depth : 12 Kpts
Time base range : 5ns-10s
Vertical sensitivity : 20mv/div-100v/div

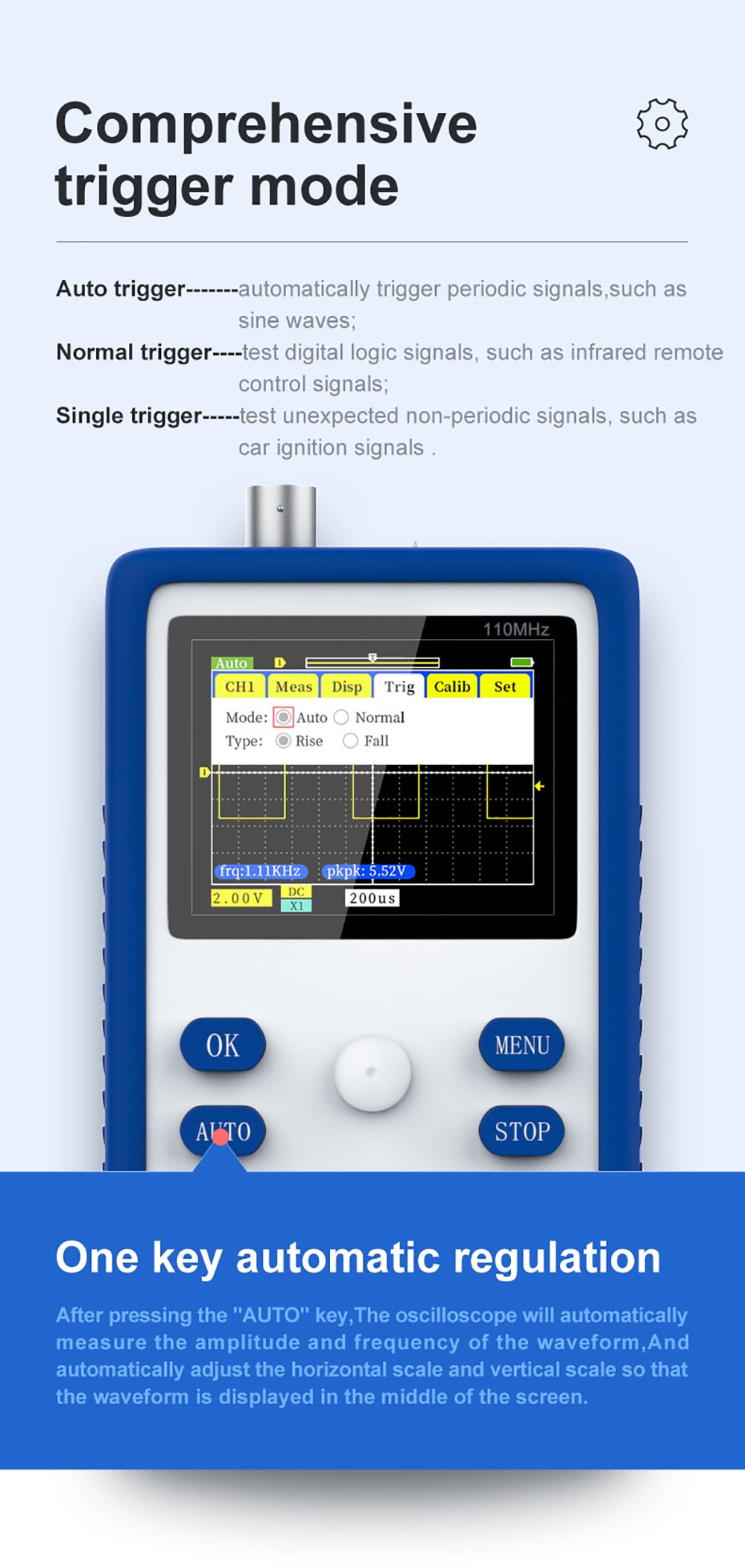

Trigger mode : Auto/Normal
Trigger type : Rising/Falling
Display mode : YT/scroll

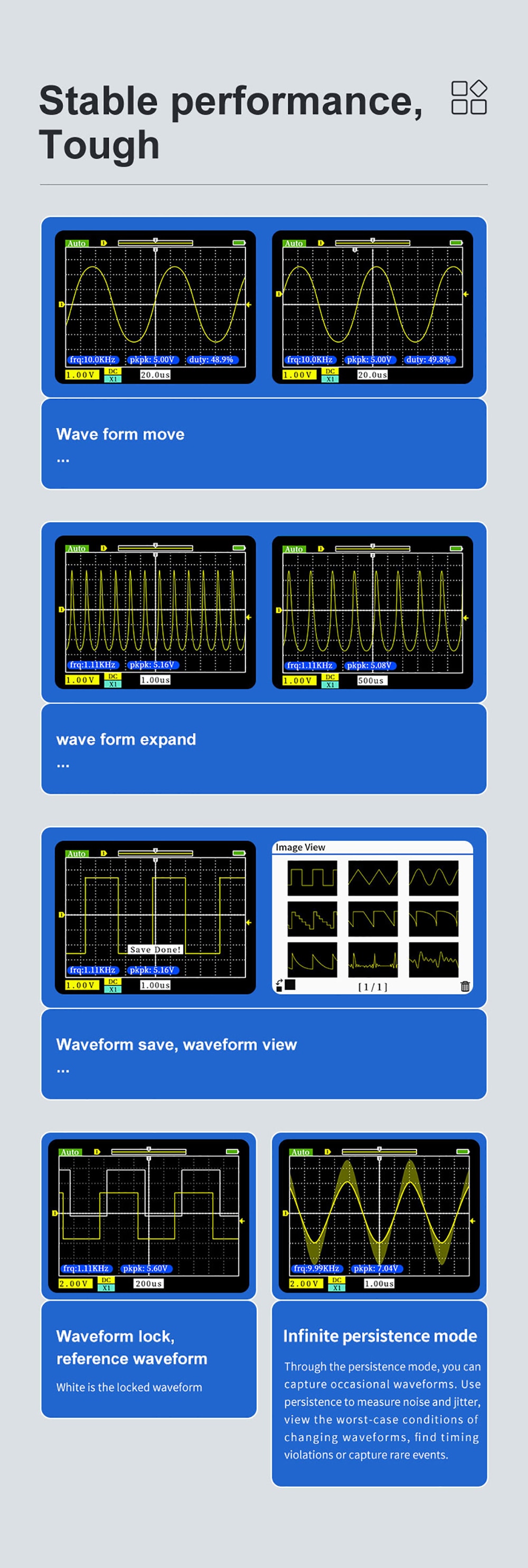

Afterglow time : None/1s/∞
Charging method : 5V/800mA
Voltage measurement range : ± 40v (x1 file);± 400v (x10 file)
Channel coupling : AC-DC
One-button automatic : Stand by

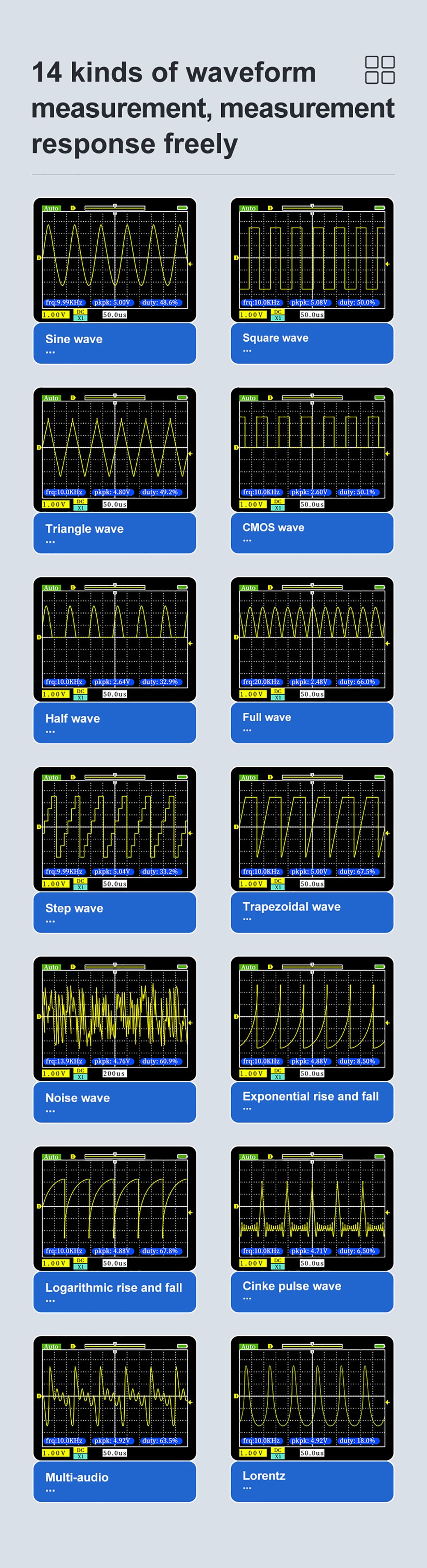

Waveform measurement : 14 types
Measurement accuracy : ±2%
Reference waveform : Stand by
Waveform save : Stand by
Frequency accuracy : ±0.01%
1 * FNIRSI 1C15 oscilloscope
1 * P6100 High Voltage Probe
1 * Allgator Clip Probe
1 * Micro USB charging cable
1 * English User Manual
1 * Cloth bag
Player Evaluation Section(Video from ：Eletrônica e Tecnologia)
Player testing and evaluation （English） ：
https://www.youtube.com/watch?v=z4esHO2wfDM
----- Or scan and click the QR code to watch the video.
Player Evaluation Section
(Video from ：learnelectronics)
Player testing and evaluation （English） ：
Player testing and evaluation （English） ：
----- Or scan and click the QR code to watch the video.
- IS Battery Demountable: Yes
- Max Waveform Capture Rate: 30,000wfm/s
- Model Number: FNIRSI-1C15
- Real Time Sampling Rate: 500MSa/s
- Display resolution: 320*240 Pixels
- Display Size: 2.9 Inches & Under
- Band Width: 100-349MHz
- Digital Channels: 1
- DIY Supplies: ELECTRICAL
- Brand Name: FNIRSI
- Origin: Mainland China
- Certification: CE
- Battery capacity: 3000mAh
- Time base range: 5ns-10s
- Number of waveform measurement types: 14 types
- 1k Hz self-checking square wave: YES
- Single trigger: YES
- Waveform save: YES
