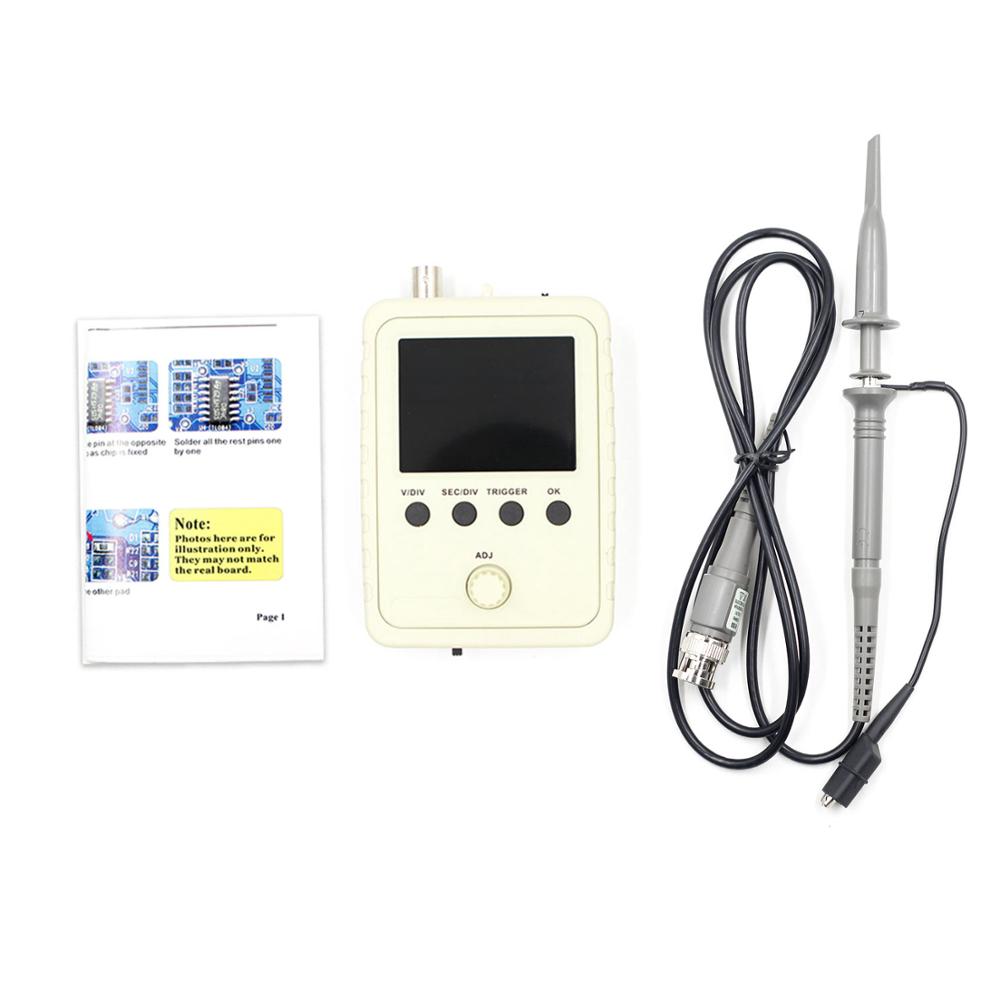

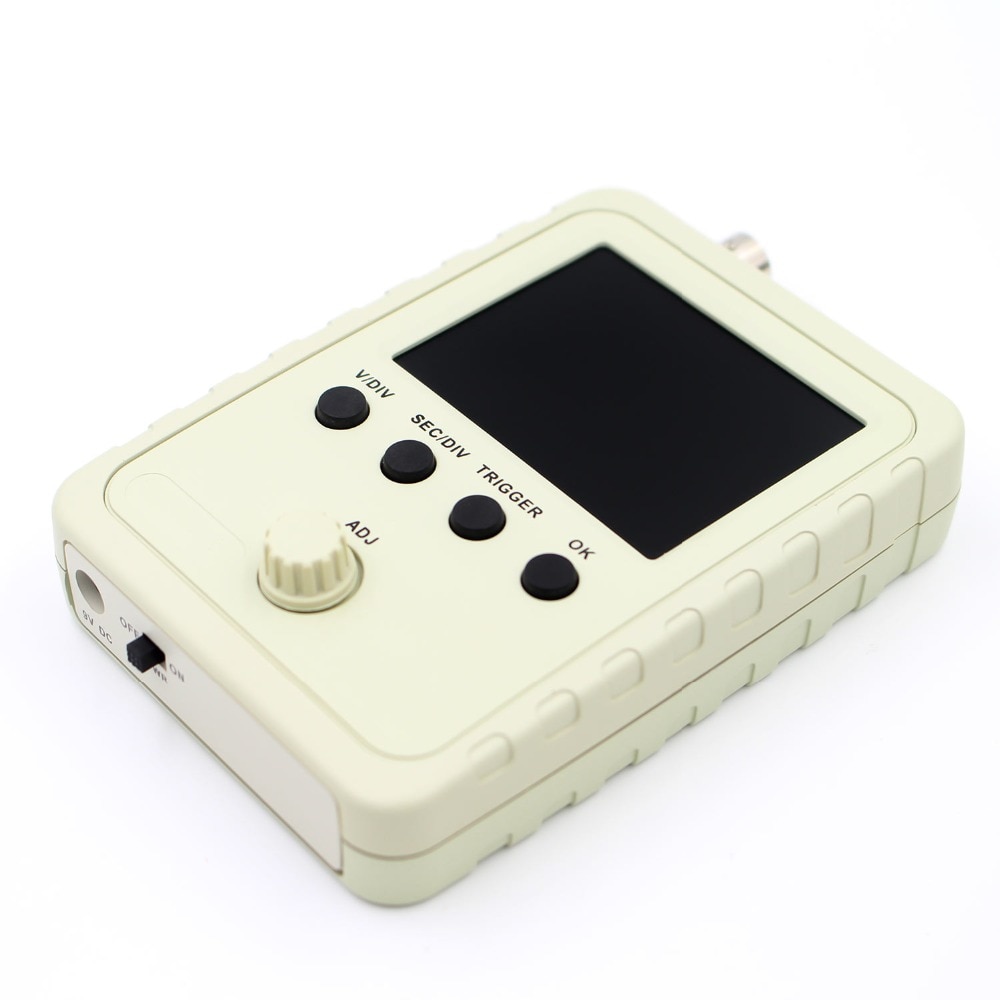

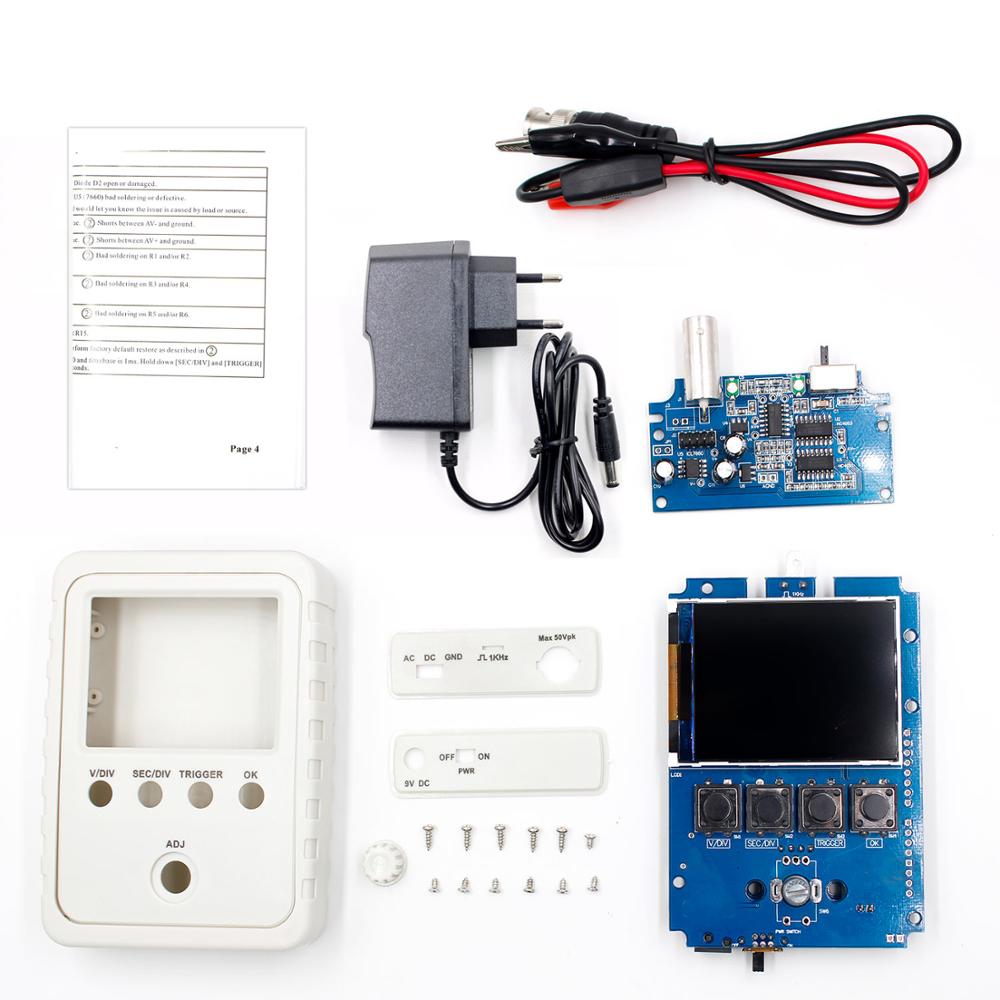

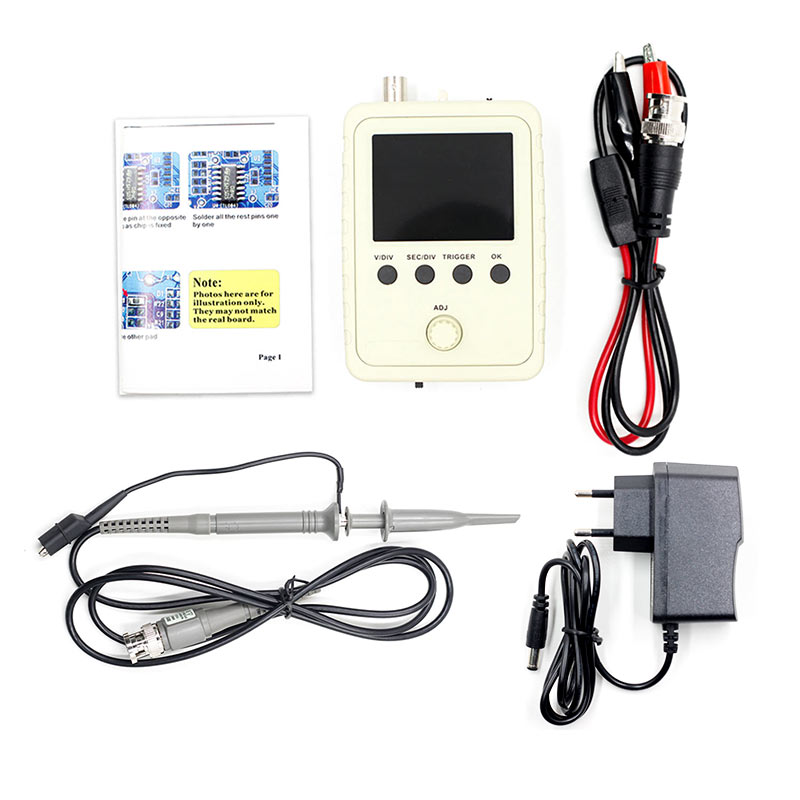

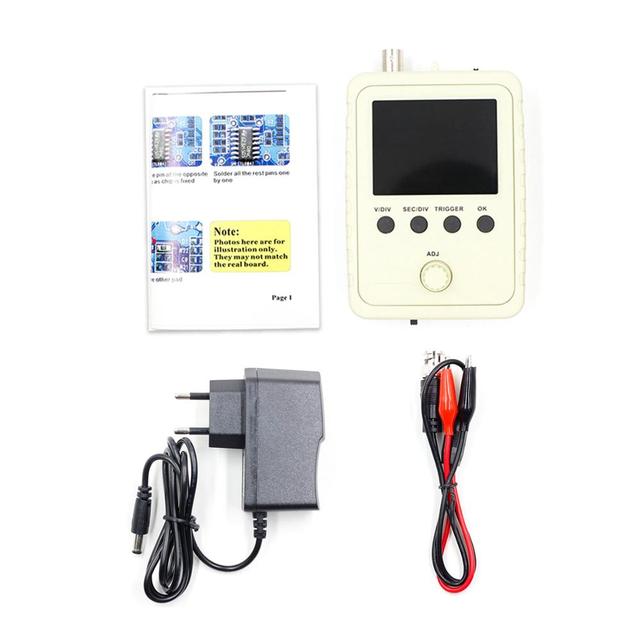

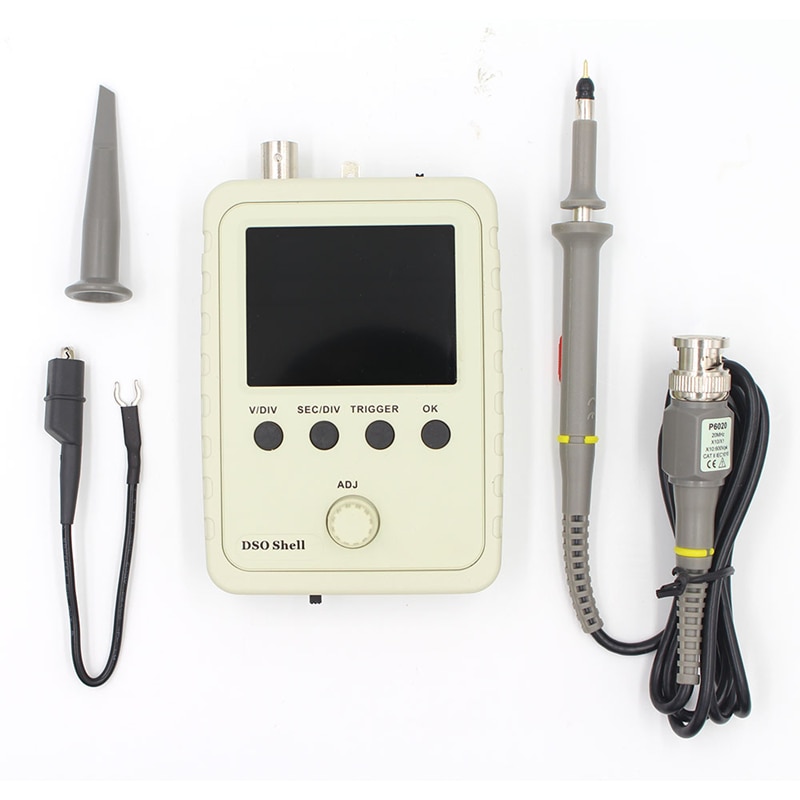

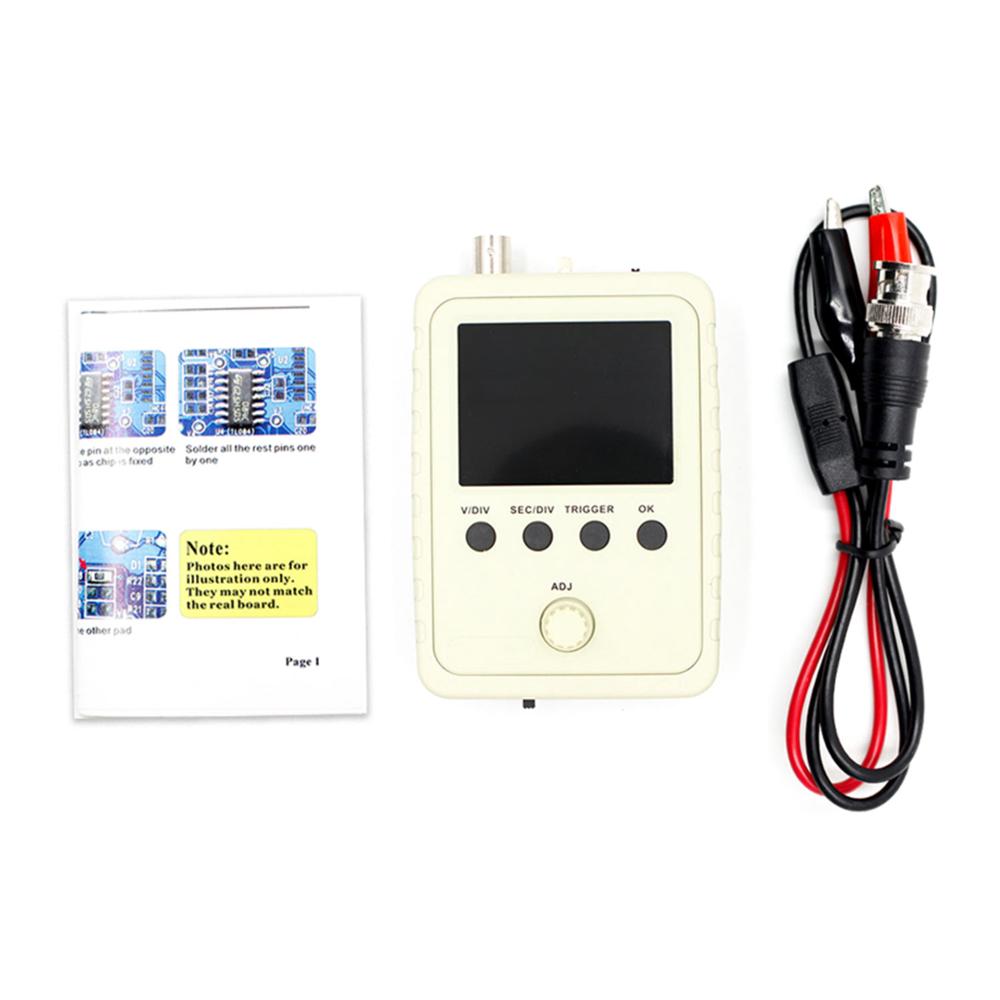

DSO FNIRSI-150 15001K DIY Digital Oscilloscope Kit With Housing
5.0 (20 votes) | 56 orders
Price:
US $54.72 - 71.23
/ piece
Discount Price:
US $
41.59 -
54.13
/ piece
-24%
- Ships From
- Color
-
-
This DIY digital oscilloscope kit adopts an ARM Cortex-M3 processor with a 2.4-inch TFT screen and protective case. It's easy and reliable for circuit operation. It can display waveform parameters, such as frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Features:
Adopt ARM Cortex-M3 processor (STM32F103C8), and include a 2.4-inch color TFT display screen.
Used for secondary development based on this kit, for example, it can be changed to Millivoltmeter, data loggers.
Come with instructions, easy to install and operate.
With Auto/Normal/Single trigger modes, easy to capture the moment waveform.
Available rising or falling edge trigger.
Observable previous waveform before trigger(negative delay).

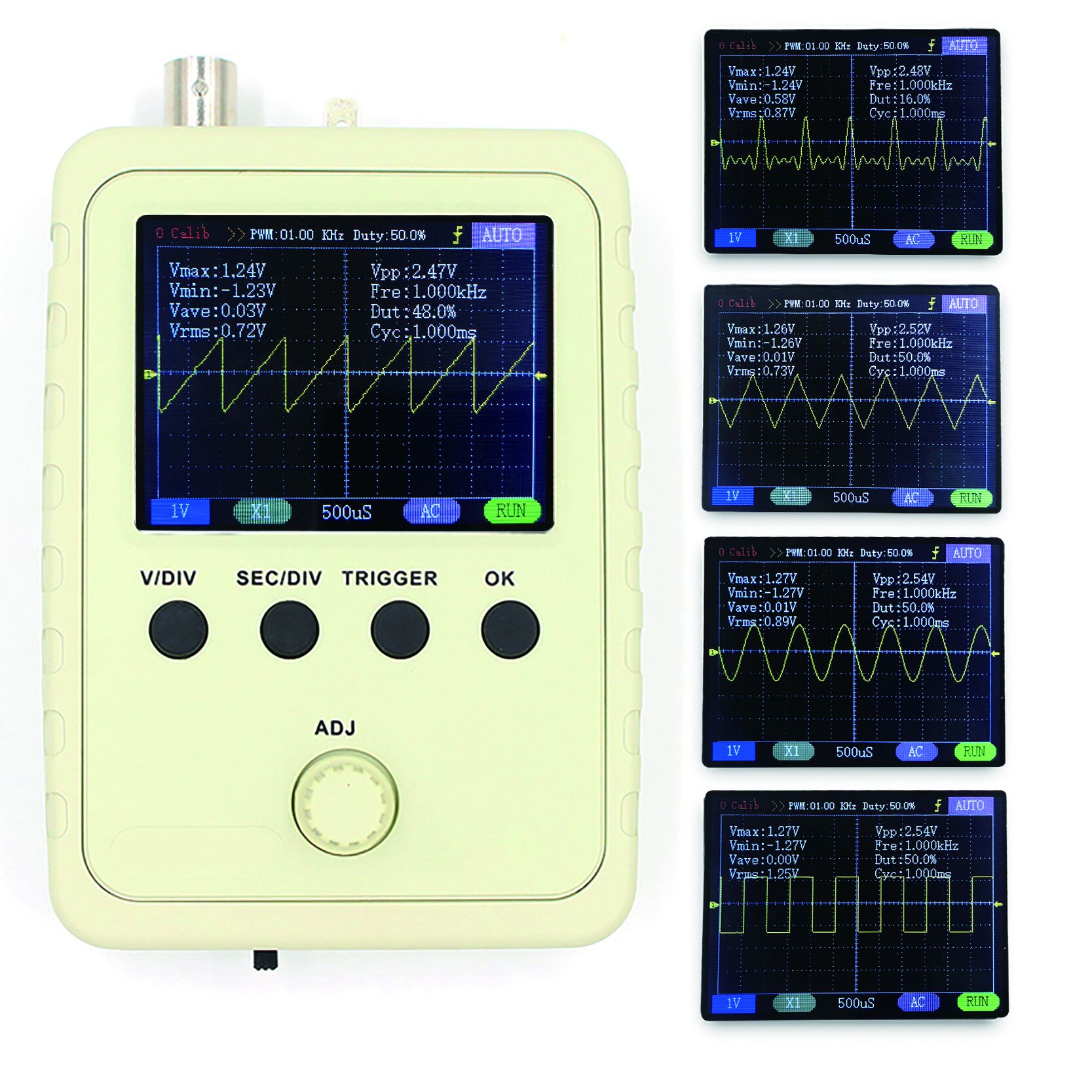

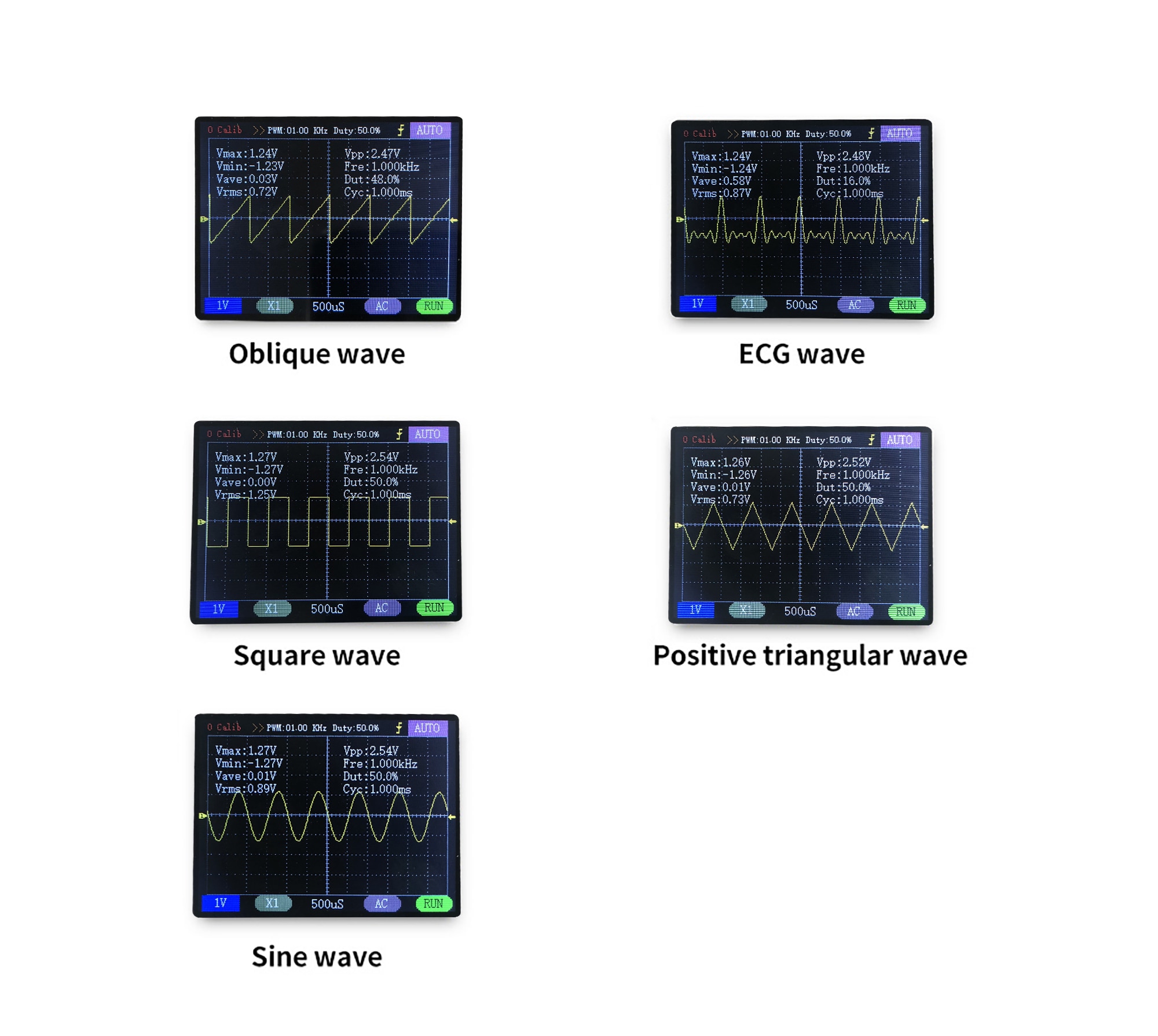

With waveform parameter digital display, including frequency, period, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
Waveform storage function: will not lose the waveform after power off.
Short-circuit and open-circuit detection: this can help the user find out the soldering error.
TFT controller recognition function.

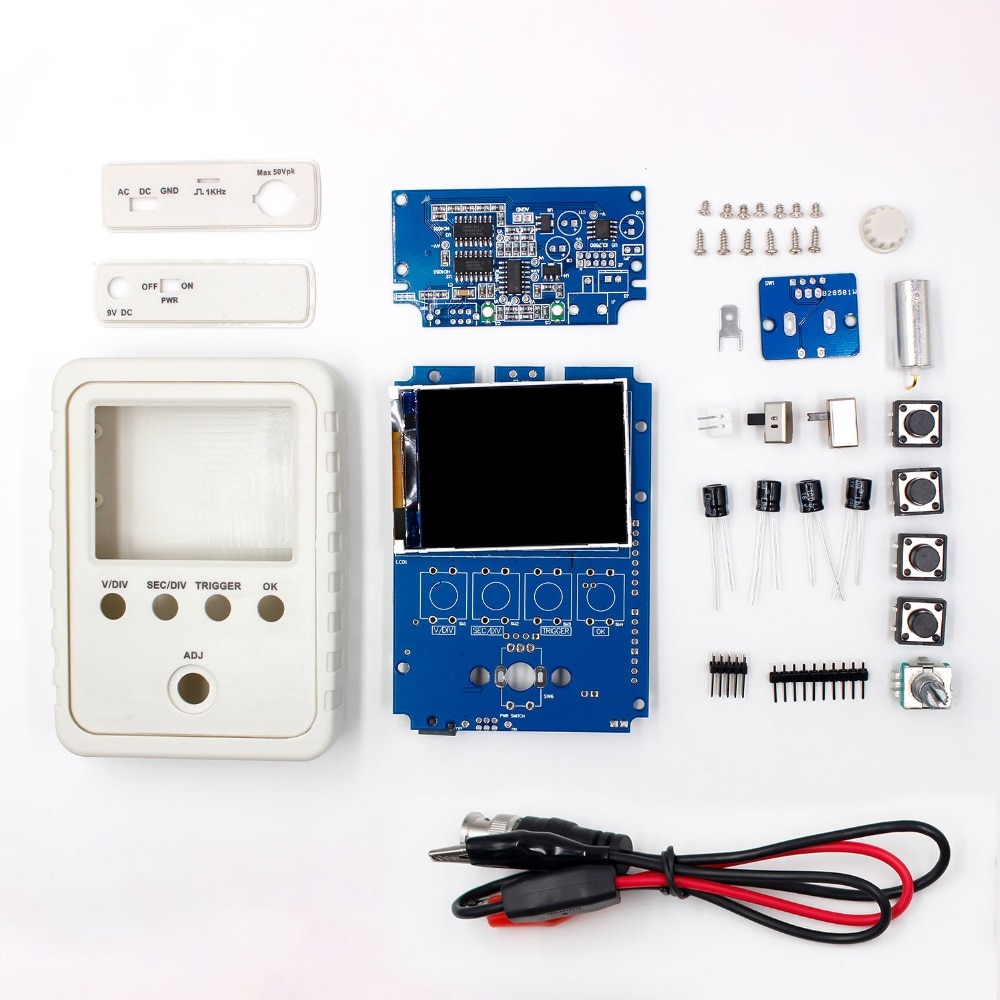

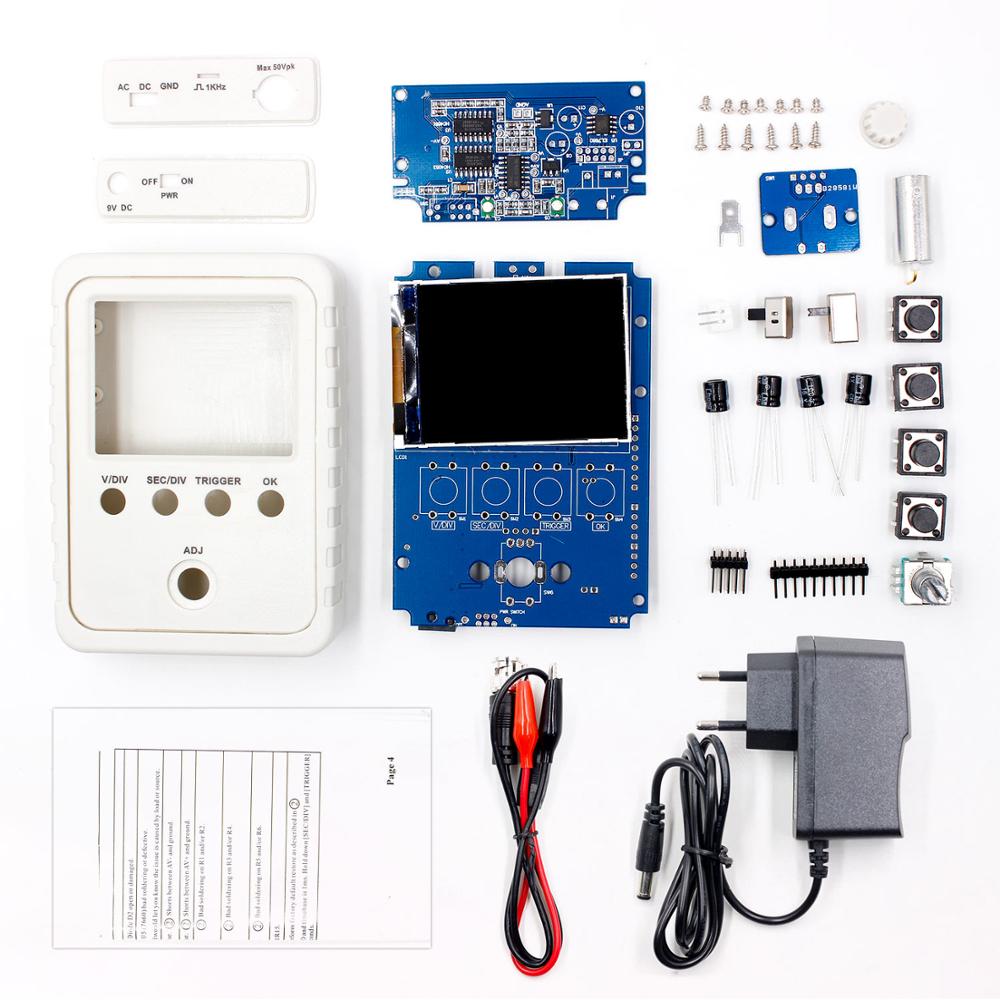

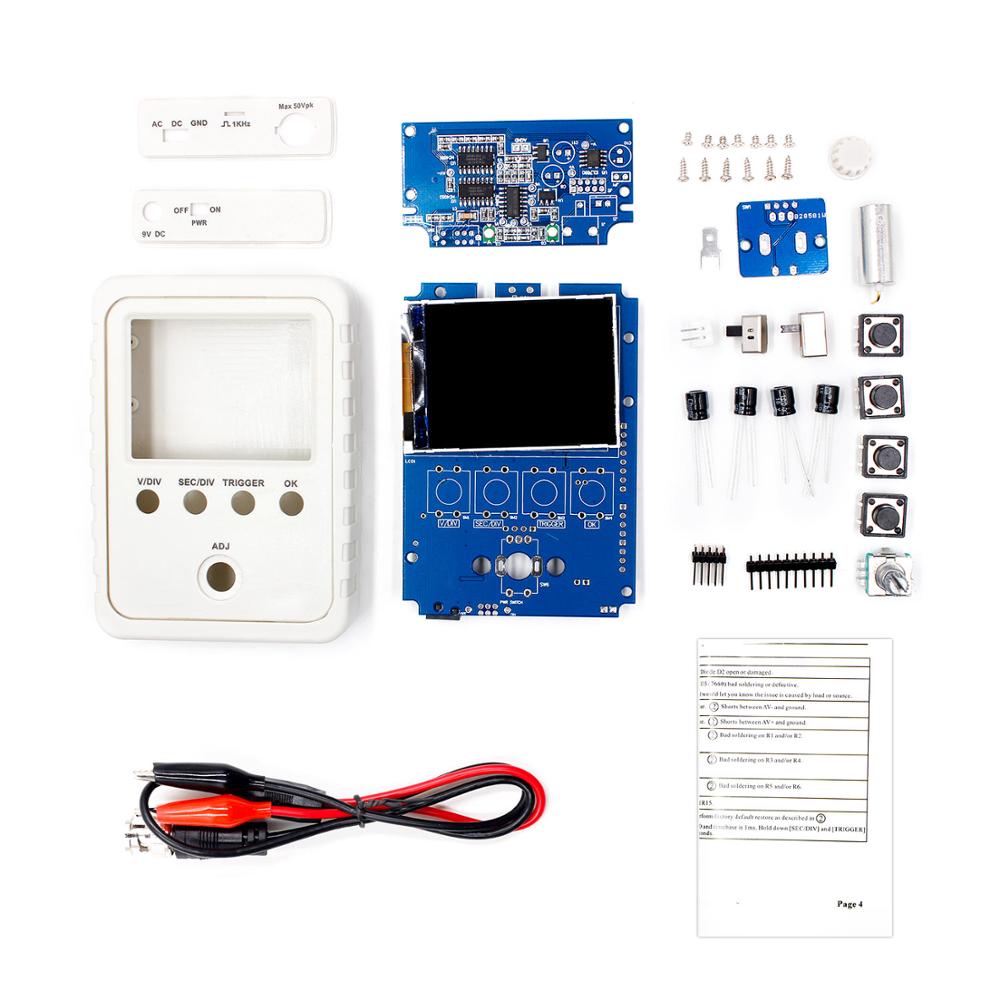

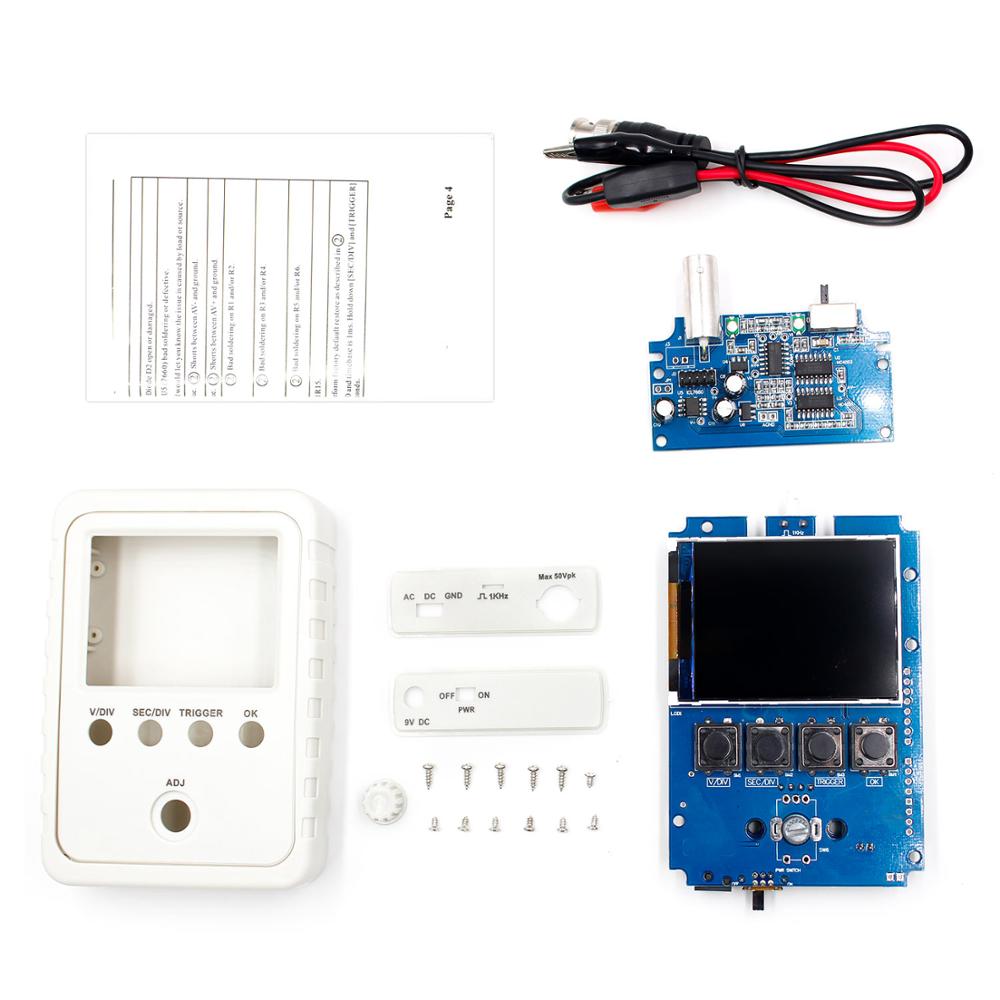

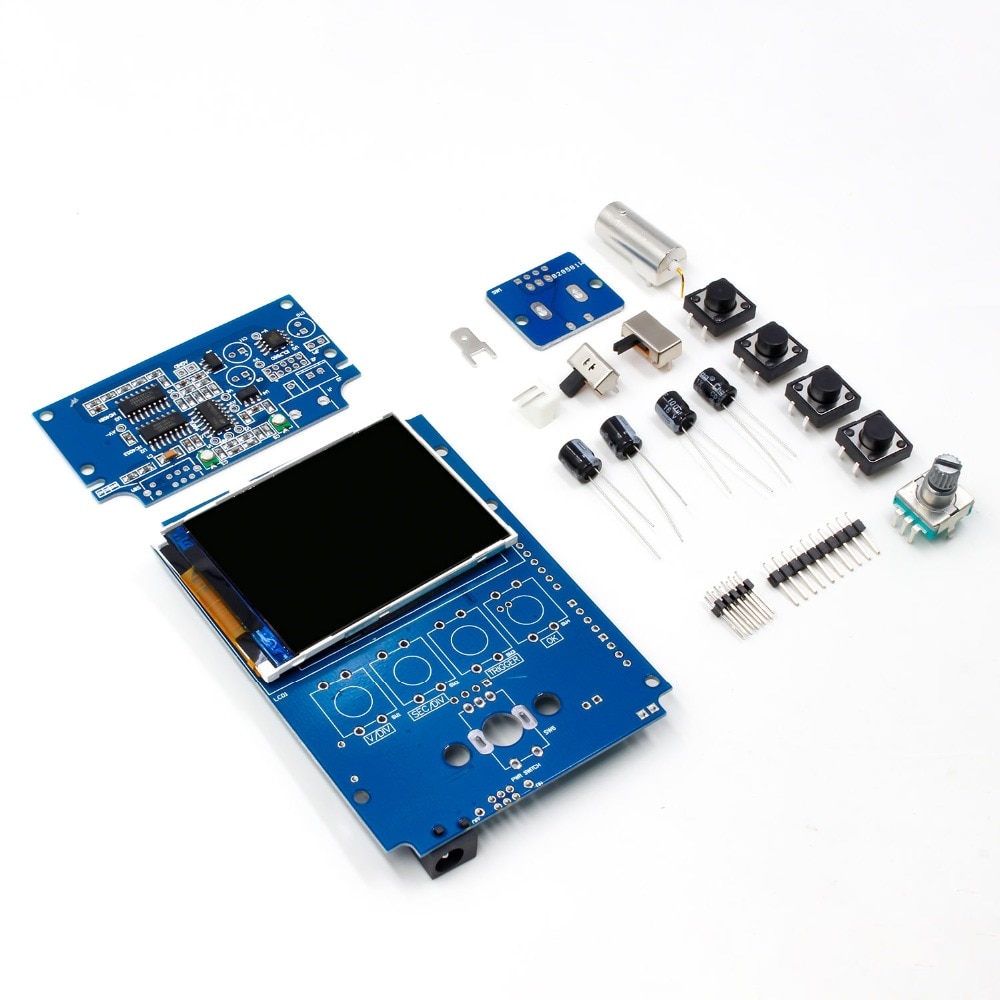

The SMD has been soldered, more suitable for an electronic beginner.
Specifications:
Maximum Real-time Sampling Rate: 1MSa/s
Analog Bandwidth: 0-200KHz
Sensitivity Range: 5mV/div-20mV/idv
Maximum Input Voltage: 50Vpk (1X probe)
Input Impedance: 1M ohms/20pF
Accuracy: 12 Bits
Record Length: 1024 points

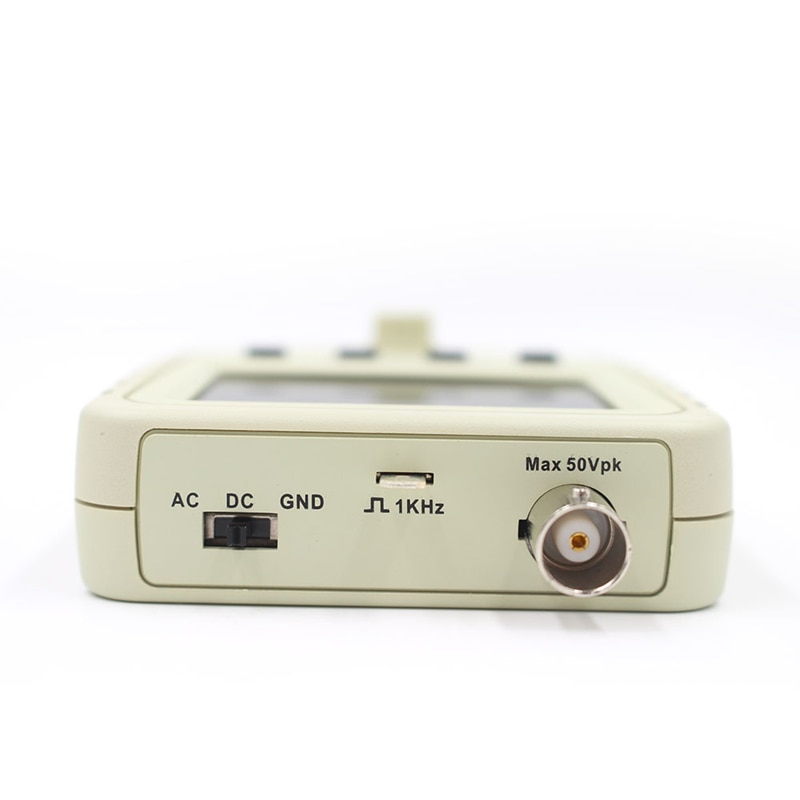

Coupling Modes: DC / AC / GND
Time Base Range: 500s/Div - 10us / Div
Trigger Modes: Auto, Normal, and Single
Trigger Position: Center of Buffer
Supply Voltage: DC 9V(8-10V)
Current Consumption:~120mA @ 9V

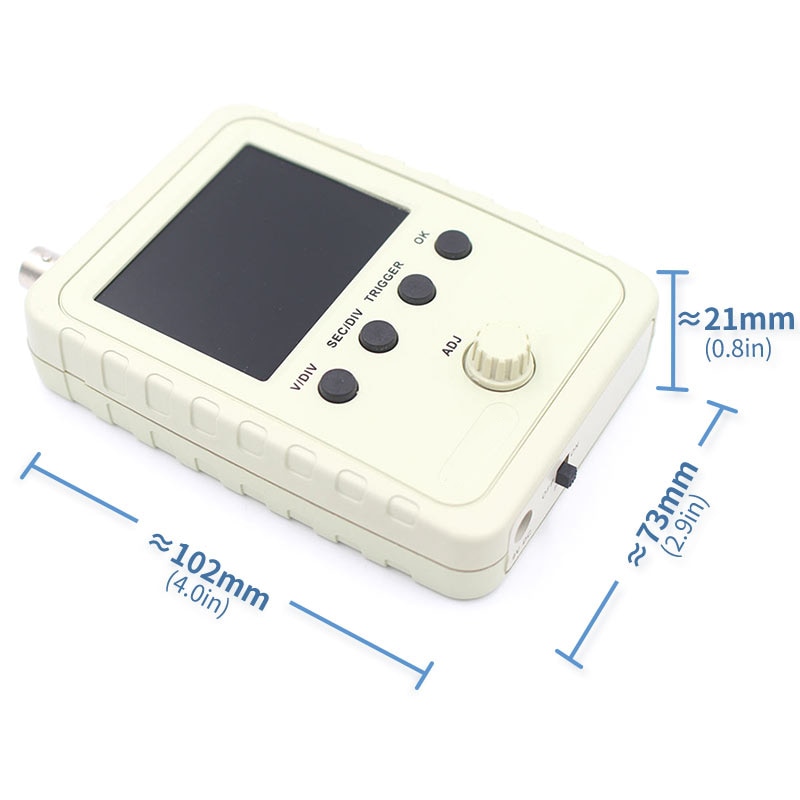

Main Board Size: 94 * 65mm / 3.7 * 2.56in
Analog Board Size: 65 * 47mm / 2.56 * 1.85in
Screen Size: 52 * 40mm / 2 * 1.57in
- Record Length: as the description
- Model Number: DSO 150
- Display Size: 3.0 - 4.9 Inches
- Band Width: Less than 60MHz
- Digital Channels: 1
- DIY Supplies: ELECTRICAL
- Brand Name: FNIRSI
- Origin: Mainland China
- Certification: CE
