Factory Best price High Precision Linear Scale 5micron Linear Encoder 100 150 200 250 300 350 400 450 500mm Optical Linear Ruler

4.7 (32 votes) | 172 orders
Price: US $122.10 - 170.20 / piece
Discount Price:
US $ 96.46 - 134.46 / piece
-21%
Ships From
Color
Quantity

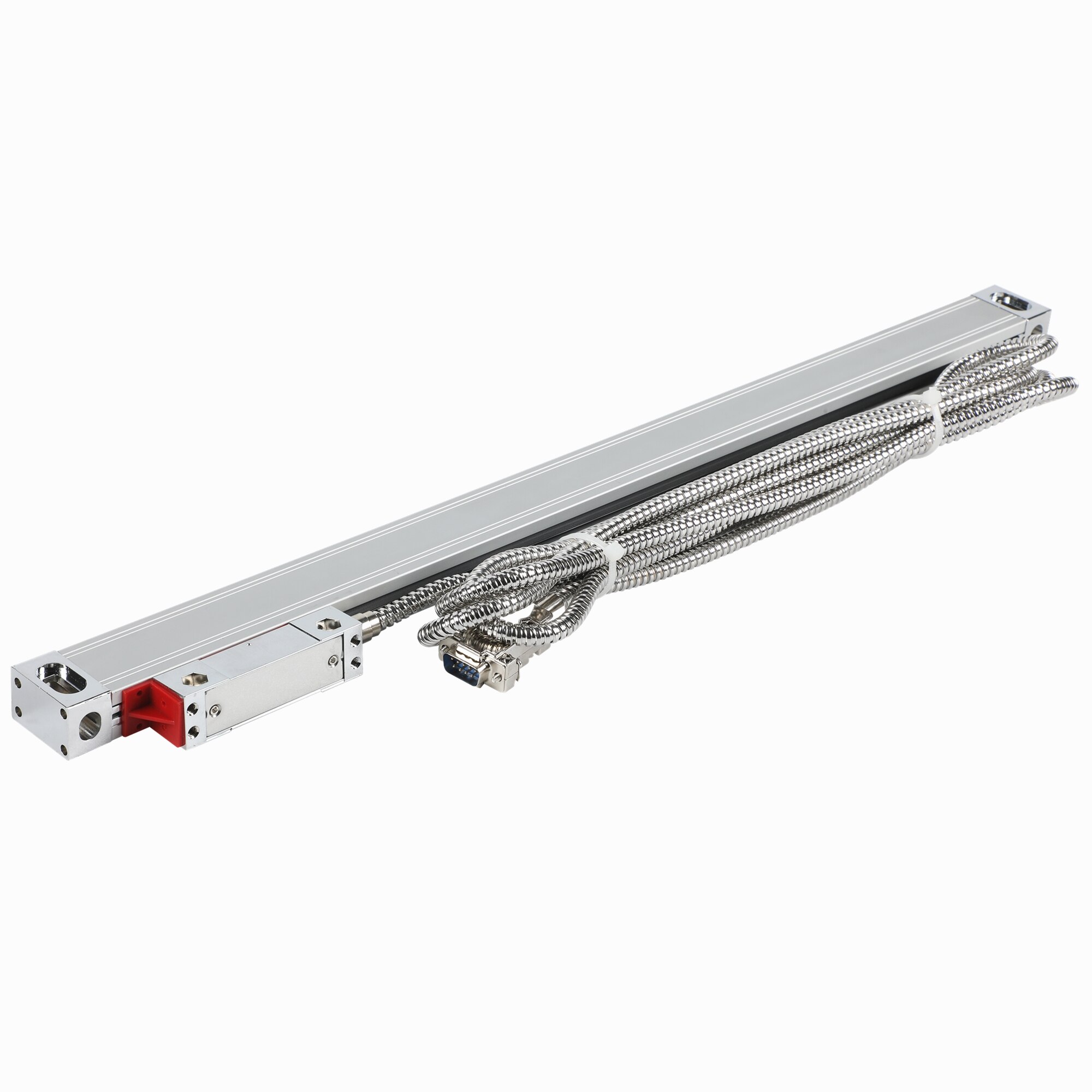

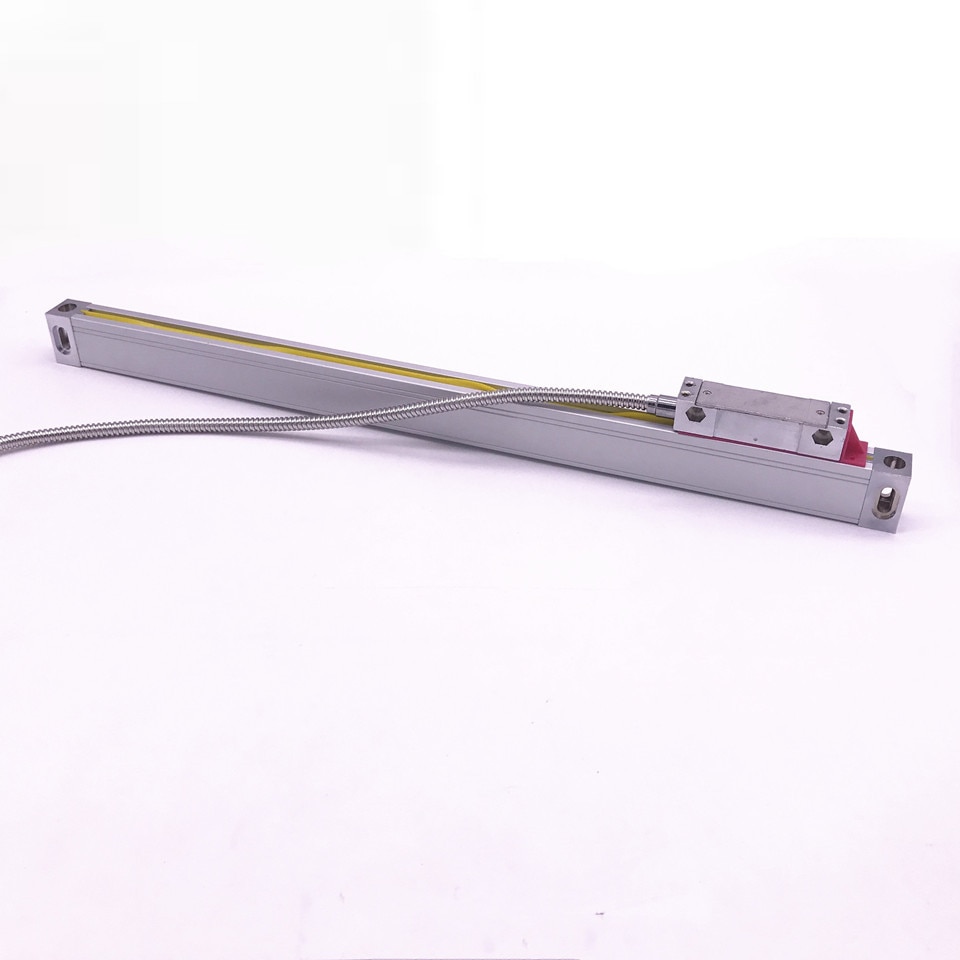

Factory Best price High Precision Linear Scale 5micron Linear Encoder 100 150 200 250 300 350 400 450 500mm Optical Linear Ruler


There are enough stock in factory, if your need large quantity, pls contact seller for cooperation.


The scale can completely replace Sino, Easson, Sinpo, Rational, HXX & all Chinese brands scales.


The order is for 5um scale, with the price you can choose any length within 100 150 200 250 300 350 400 450 500mm scale length, scale length above refers to the real travel (measurement) of the linear scale. Actual physical length is 142mm longer than travel. One inch equuals to 25.4mm.


Scale Futures


Parameter

Linear scale parameter
1. Travel (measuring) length: 0-1000mm / 0-40inch
2. Total (overall) length: Travel length + 142mm (0-1142mm)
3. Plug: DB9
4. Resolution: 0.005mm / 0.0002“ (0.001mm is option from extra)
5. Input voltage: 5V
6. Grating pitch: 0.02mm (50LP/min)
7. Cable length: 2.5 or 3 Meter (about 9 feet)
Package includes
1 pcs linear scale

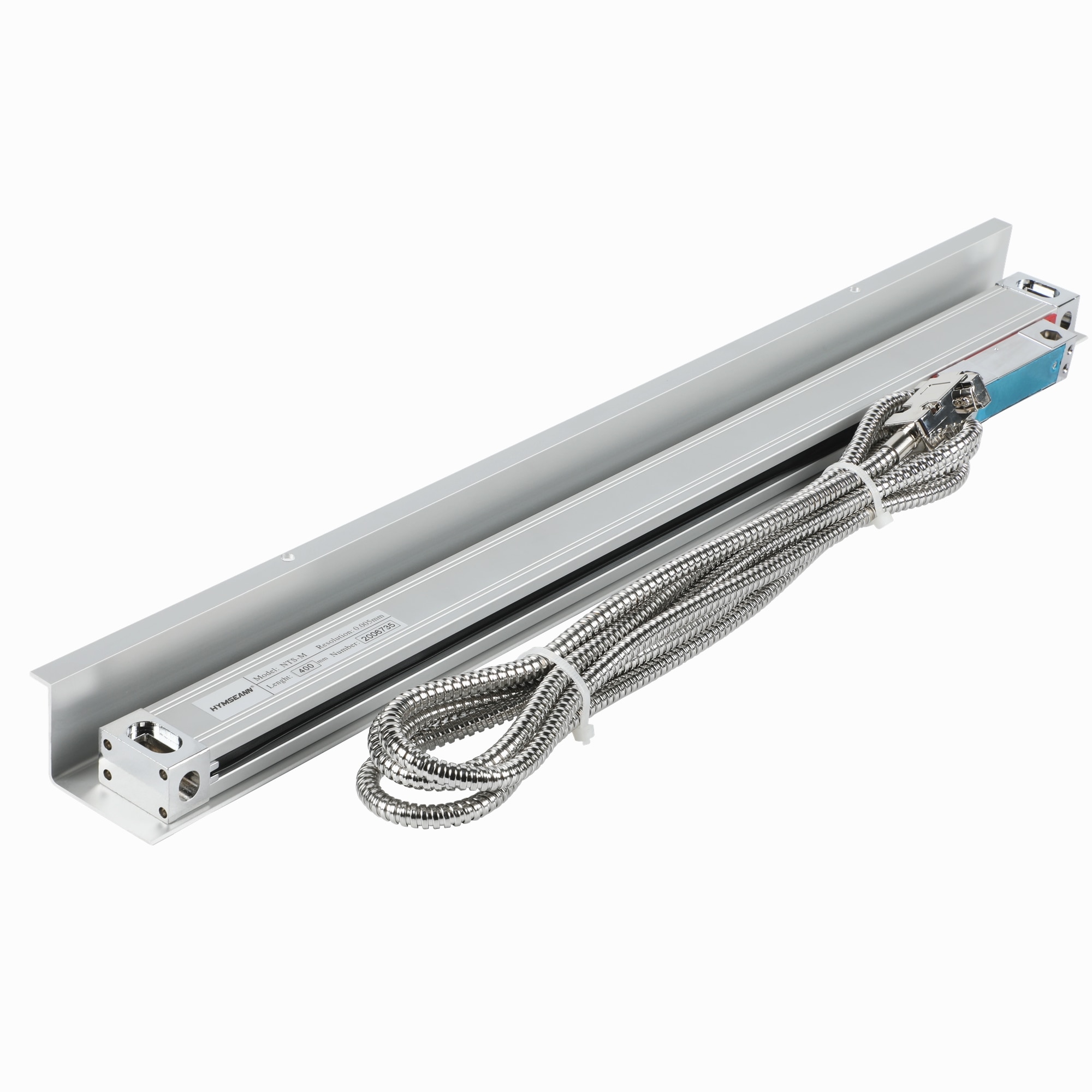

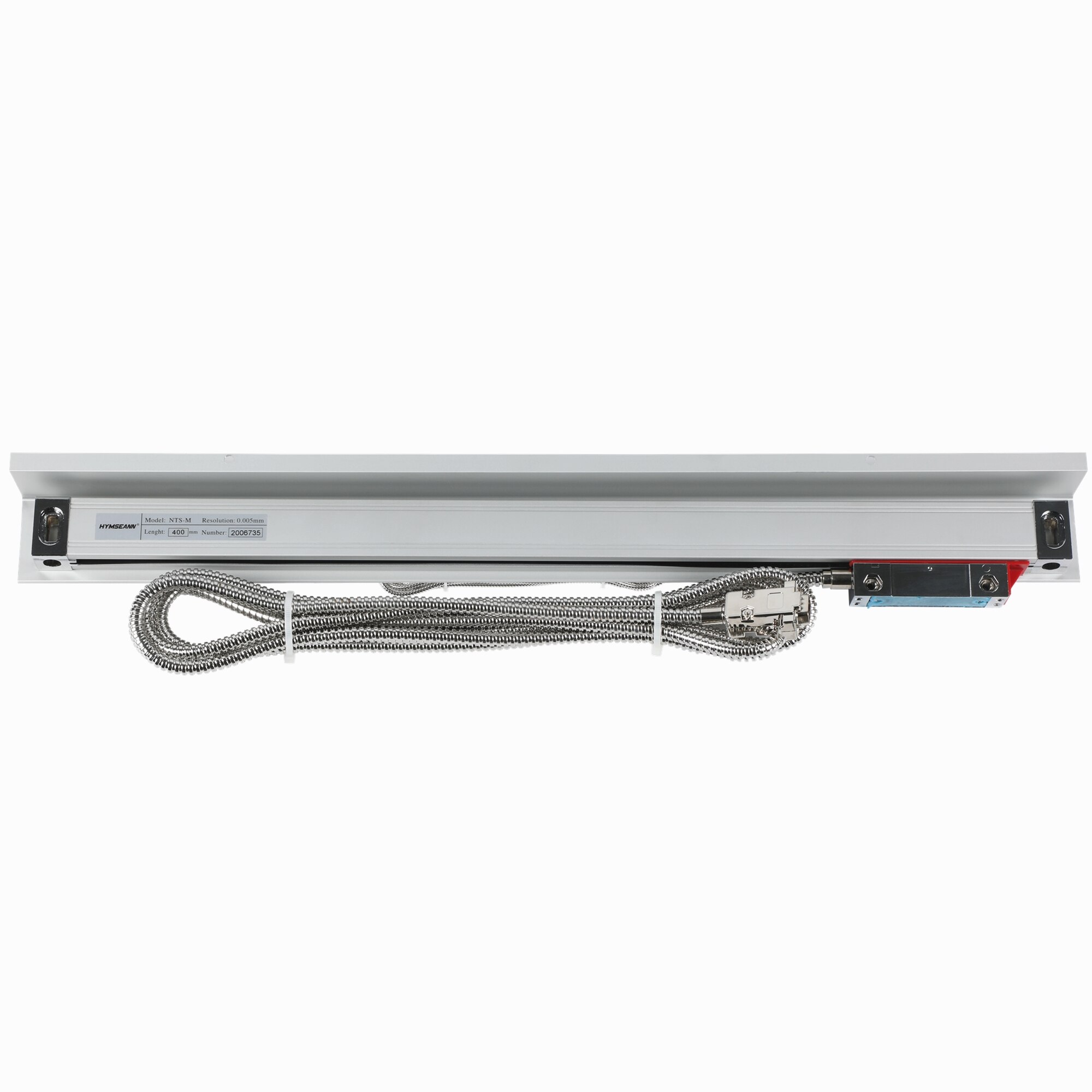

1 pcs scale cover
1 pcs L connecting bracket
1 pcs screw bag
Tips
  1. We also supply 1um scale from China, each 1um scale costs extra 16$, pls contact seller if need 1um scale.
  2. 24V scale also can be provided from China, each 24V scale costs extra 15$





50mm-400mm slim scales drawing





450mm-500mm scales drawing








Shipment
When you place an order, plase choose a shipping method and pay for the order including the shipping fee (except free shipping). We will send the items within the delivery time once your payment is completed.
We will inform you if need to change to other shipping method or delay shipping.
We do not guarantee delivery time on all international shipments due to differences in customs clearing times in individual countries, which may affect how quickly your product is inspected.
Please note that buyers are responsible for all additional customs fees, brokerage fees, duties, and taxes for importation into your country. These additional fees may be collected at time of delivery. We wiil not refund charges for refused shipments.
The shipping cost does not include any import taxes, and buyers are responsible for customs duties.
Returns
We do our best to serve our customers the best that we can.
We will refund you if you return the items within 15 days of your receipt of the items for any reason. However, the buyer should make sure that the items returned are intheir original conditions. If the items are damaged or lost when they are returned, the buyer will be responsible for such damage or loss, and we will not give the buyer a full refund. The buyer should try to file a claim with the logistic company to recover the cost of damage or loss.
The buyer will be responsible for the shipping fees to return the items.
Warranty
We offer the1-month free replacement. Buyers may request for a replacement within 15 days from your receipt of the product. The buyer should return the product in the original conditions to us and should bear the shipping costs for return.
We also provide 12-month free maintenance. The buyer should return the product in the original conditions to us and should bear the shipping costs for return. If any part is required to be replaced,the buyer should also pay for the costs of the parts to be replaced.
Before returning the items, please confirm the return address and the logistics method with us. After you give the items to the logistic company, please send us the tracking number. As soon as we receive the items, we will repair or exchange them ASAP.
Feedback
Your satisfaction and positive feedback is very important to us. Please leave feedback and 5 stars if you are satisfied wiht our items and services.
If you have any problems with our  items or services, please feel free to contact us first before you leave negative feedback. We will do our best to solve any problems and provide you with the best customer services.



  • Model Number: NTS-M
  • Brand Name: HYMSEANN
  • Certification: CE
  • Origin: Mainland China
  • Item name: linear scale linear ruler linear encoder
  • Input voltage: 5VDC
  • Output signal: TTL
  • Resolution: 5um
  • Scale travel: 100 150 200 250 300 350 400 450 500mm
  • Scale total length: travel + 142mm
  • Size: 21mm*33mm
  • Match model: Sino, Easson, Rational, HXX etc.
  • If include accessories: Yes(with scale cover, screws and accessories)
  • Warranty: 1 year
